USER MANUAL Bravia XBR55X700D SONY
Sony Customer Support
U.S.A.:
http://www.sony.com/tvsupport
Canada:
http://www.sony.ca/support
United States Canada
1.800.222.SONY 1.877.899.SONY
Please Do Not Return the Product to the Store
http://www.sony.com/tvsupport
Canada États-Unis
1.877.899.SONY 1.800.222.SONY
Parts and Controls .....7
Controls and Indicators 7
Using Remote Control .....8
Remote Control Parts Description.....8

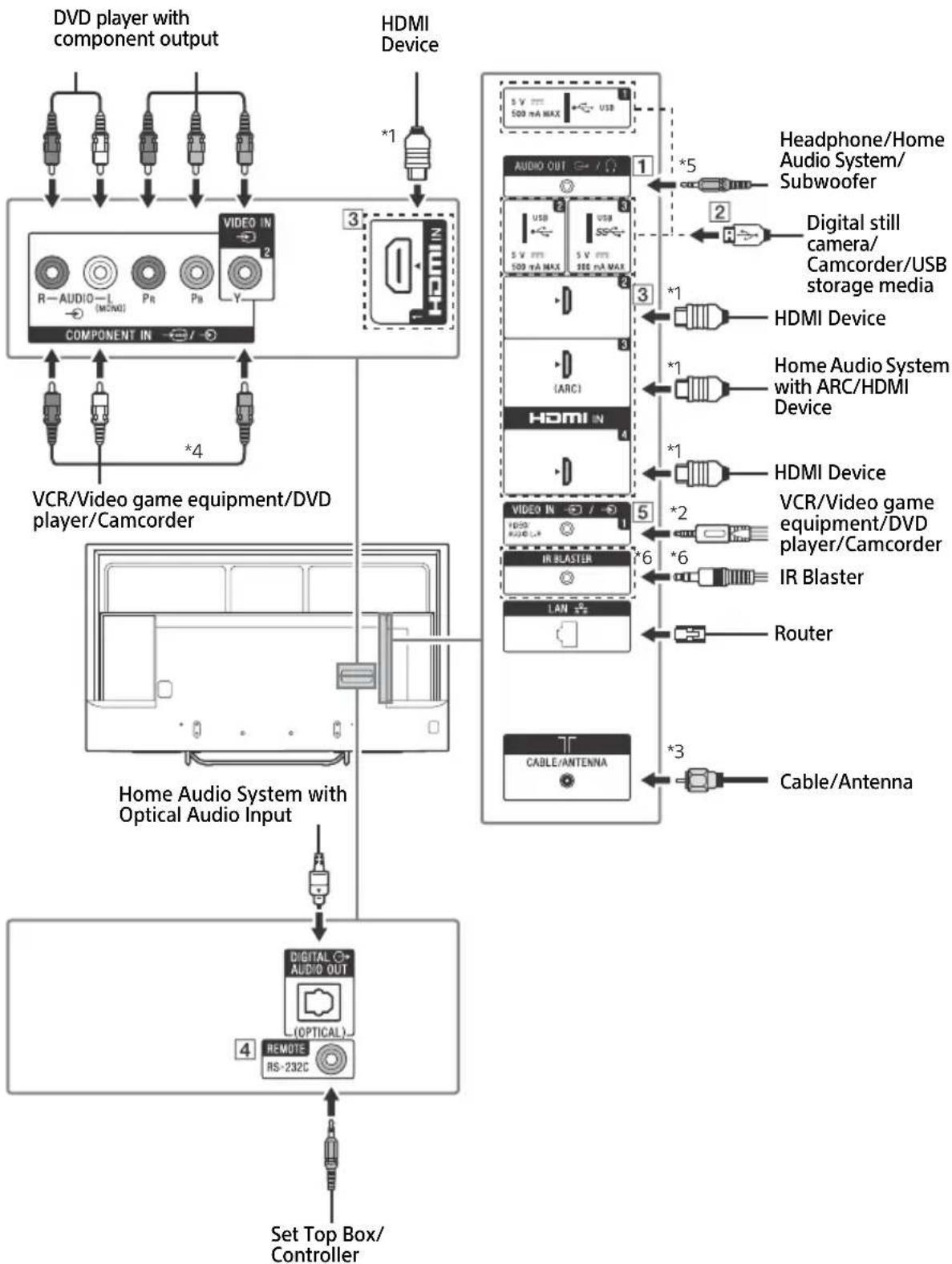

Connection Diagram .....10
Installing the TV to the Wall .....12
Detaching the Table-Top Stand from the TV....12
Installing the TV against a wall or enclosed area....13
Troubleshooting....14
Troubles and Solutions....14
Specifications....15
Introduction
Thank you for choosing this Sony product. Before operating the TV, please read this manual thoroughly and retain it for future reference.
Note
- Images and illustrations used in Setup Guide and this manual are for reference only and may differ from actual product.
The 65" class has a 64.5 inch (163.9 cm) viewable image size, the 55" class has a 54.6 inch (138.8 cm) viewable image size and the 49" class has a 48.5 inch (123.2 cm) viewable image size (measured diagonally).
Location of the Setup Guide
Setup Guide is placed on top of the cushion inside the TV carton.
Help Guide
Help Guide explains the information on how to use the TV's features. To display Help Guide on the TV, press HELP on the remote control and select [Help Guide].
Location of the identification label
Labels for the TV Model No. and Power Supply rating are located on the rear of the TV.
IMPORTANT NOTICE
Owner's Record
The model and serial numbers are located at the side and rear of the TV. Record these numbers in the spaces provided below. Refer to them whenever you call upon your Sony dealer regarding this TV.
Model Name
Serial No.
CAUTION
To prevent electric shock and blade exposure, do not use this AC plug with an extension cord, receptacle or other outlet unless the blades can be fully inserted.
- Operate the TV only on 110 V - 240 V AC (U.S.A./Canada 120 V AC)
Note
This television includes a QAM demodulator which should allow you to receive unscrambled digital cable television programming via subscription service to a cable service provider. Availability of digital cable television programming in your area depends on the type of programming and signal provided by your cable service provider.
Safety Information
Declaration of Conformity
Trade Name: SONY
Model: XBR-65X750D/XBR-55X700D/XBR-49X700D
Responsible Party: Sony Electronics Inc.
Address: 16535 Via Esprillo,
San Diego, CA 92127 U.S.A.
Telephone Number: 858-942-2230
This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
FCC Related Information
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help.
Pursuant to FCC regulations, you are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.
Safety and Regulatory
This device complies with Industry Canada's licence-exempt RSSs. Operation is subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired operation of the device.
To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing.
Only use Wireless LAN indoors when using it with IEEE 802.11a (5 GHz).
This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment should be installed and operated keeping the radiator at least 20 cm or more away from person's body (excluding extremities: hands, wrists, feet and ankles).
This device and its antenna(s) must not be co-located or operating with any other antenna or transmitter except Grant condition.
WARNING
Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:
— Using cabinets or stands recommended by the manufacturer of the television set.
- Only using furniture that can safely support the television set.
— Ensuring the television set is not overhanging the edge of the supporting furniture.
- Not placing the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.
- Not placing the television set on cloth or other materials that may be located between the television set and supporting furniture.
— Educating children about the dangers of climbing on furniture to reach the television set or its controls.
If your existing television set is being retained and relocated, the same considerations as above should be applied.
Before setting up your TV
Some TV models are packaged with a detached Table-Top Stand so you can mount your TV to a wall right away. See page 12 (Installing the TV to the Wall) if you want to mount the TV to a wall. If you are not mounting the TV to a wall, you will need to attach the Table-Top Stand. You will need a Phillips screwdriver (not supplied) and the supplied screws to complete the task. Look for the Setup Guide.
Be sure to consider the following while setting up your TV:
- Disconnect all cables when carrying the TV.
- Carry the TV with the adequate number of people; larger size TVs require two or more people.
- Correct hand placement while carrying the TV is very important for safety and to avoid damage.
- For best picture quality, do not expose the screen to direct illumination or sunlight.

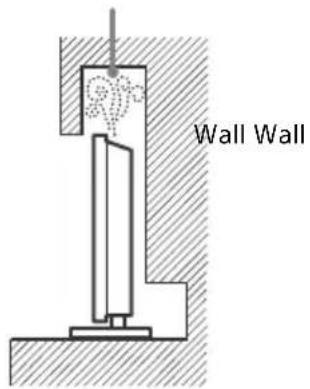

- Avoid installing the TV in a room with reflective wall and floor materials.
- Avoid moving the TV from a cold area to a warm area. Sudden room temperature changes may cause moisture condensation. This may cause the TV to show poor picture and/or poor color. Should this occur, allow moisture to evaporate completely before powering the TV on.
Securing the TV
Sony strongly recommends taking measures to prevent the TV from toppling over.
Unsecured TVs may topple and result in property damage, serious bodily injury or even death.
Preventing the TV from Toppling
- Secure the TV to a wall and/or stand.
- Do not allow children to play or climb on furniture and TV sets.
- Avoid placing or hanging items on the TV.
- Never install the TV on:
— slippery, unstable and/or uneven surfaces.
— furniture that can easily be used as steps, such as a chest of drawers.
• Install the TV where it cannot be pulled, pushed, or knocked over. - Route all AC power cords and connecting cables so that they are not accessible to curious children.
Recommended Measures to Secure the TV
Consider the following measures when securing your TV to a Stand (not supplied).
1 Secure the Stand for the TV.
Make sure the Stand can adequately support the weight of the TV. Use two angle braces (not supplied) to secure the stand. For each angle brace use the appropriate hardware to:
- Attach one side of the angle brace to the wall stud.
- Attach the other side to the Stand.
2 Secure the TV to the Stand.
Use the optional hardware listed as follows (not supplied):

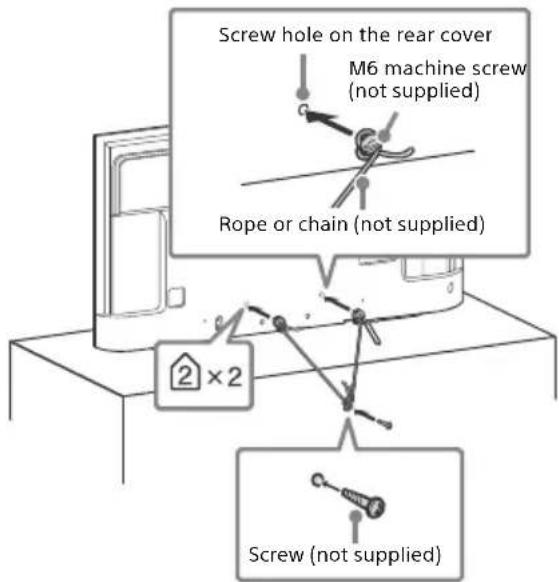

- M6 machine screw (screwed into the TV's rear cover)
• A screw or similar (attach it to the Stand) - Rope or chain (strong enough to support the weight of the TV). Make sure that there is no excess slack in the rope or chain.
The length of the M6 machine screw differs depending on the rope or chain diameter. Please see below illustration.

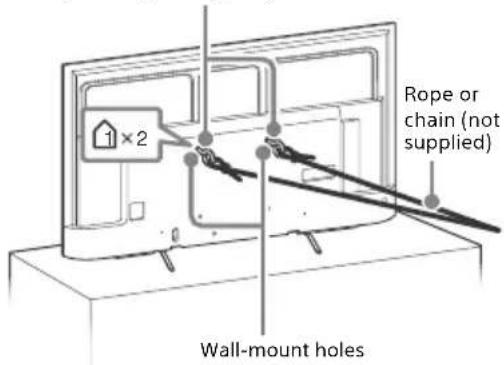

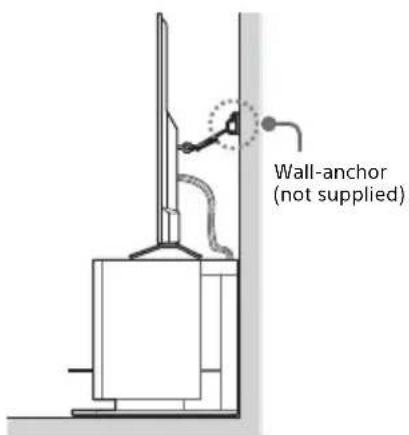

3 Anchor the TV to the wall by using bolts, wall anchor and chain (or rope).
M6 eye bolts (not supplied)
Please see below illustration for M6 eye bolt length.
Note
- Securing the TV to the stand without securing the TV and the stand to the wall provides minimum protection against the TV toppling over. For further protection, be sure to follow the three measures recommended.
Precautions
How to care for your BRAVIA TV
Safety is very important. Please read and follow the safety documentation (Safety Booklet) separately provided.
Unplug the TV and other connected equipment from the wall outlet before you begin cleaning your TV.
- Wipe the LCD screen gently with a soft cloth.
- Stubborn stains may be removed with a cloth slightly moistened with a solution of mild soap and warm water.
- If using a chemically pretreated cloth, please follow the instruction provided on the package.
- Never spray water or detergent directly on the TV set. It may drip to the bottom of the screen or exterior parts and enter the TV set, and may cause damage to the TV set.
- Never use strong solvents such as a thinner, alcohol or benzine for cleaning.
- Do not plug in the TV into the wall outlet until the moisture from cleaning has evaporated.
- Do not touch the TV if your hand is covered in any chemical substance such as hand cream or sunblock. The TV should also be placed on a stable surface to prevent it from toppling over (see page 4). If you have young children or pets at home, check regularly to ensure the TV is securely fastened.
Recommendation for an F type plug
Projection of the inner wire from the connection part must be less than 1.5 mm.
(Reference drawing for an F type plug)
The BRAVIA® 4K TV Experience
Thank you for choosing Sony! Your new BRAVIA® TV opens the door to the "4K TV Experience." This document will help you get the most out of your TV. Please take a moment to register your TV at:
U.S.A.: http://productregistration.sony.com
Canada: http://www.sony.ca/registration
Four Steps to a 4K TV Experience
Set, Source, Sound, and Setup.
1 set
Now that you have made the best selection in LED backlit LCD TV technology, be sure to remove all of the accessories from the packaging before setting up your TV.
2 Source
To experience the stunning detail of your BRAVIA TV, you need access to HD programming.
- Upgrade your signal or content source to high-definition (4K) by contacting your HD service provider.
- Bring the astonishing resolution of your Sony 4K Ultra HD TV to life with Sony 4K Ultra HD Media Player. (The availability depends on region)
- Receive over-the-air HD broadcasts with an HD-quality antenna connected directly to the back of your TV.
Visit http://www.antennaweb.org for more information on antenna selection and setup.
- Discover the wealth of entertainment now available on super-high resolution Blu-ray Disc™ player and other Sony HD equipment.
3 Sound
Complete the high-definition experience with a BRAVIA Sync™ surround sound system or A/V receiver from Sony.
4 Setup
Install your TV and connect your sources. See page 10 for sample connection diagrams. To help assure the highest quality for your 4K experience, use Sony HDMI (High-Definition Multimedia Interface) cables.
To learn more about 4K TV, visit:
U.S.A.: http://www.sony.com/HDTV
Canada: http://www.sony.ca/hdtv
This TV displays all video input signals in a resolution of 3,840 dots × 2,160 lines.
The following chart shows the high-definition (HD) and standard-definition (SD) video formats supported by your BRAVIA TV inputs.
| INPUT VIDEO AUDIO | SUPPORTED FORMATS | |||||||||||
| 4K^*1 | 1080/24p/30p | 1080p^*1 | 1080i | 720/24p/30p | 720p^*1 | 480p | 480i PC* | 2 | ||||
| 4K/HD | HDMI |  | √ | √ | √ | √ | √ | √ | √ | √ | √ | |
| COMPONENT |  |  | √ | √ | √ | √ | √ | |||||
| SD | VIDEO |  Composite video connection |  Audio L/R | √ | ||||||||
*1 For details of supported formats, refer to the "Specifications" in this manual.
*2 For supported PC formats refer to the Help Guide.
Parts and Controls
Controls and Indicators
US

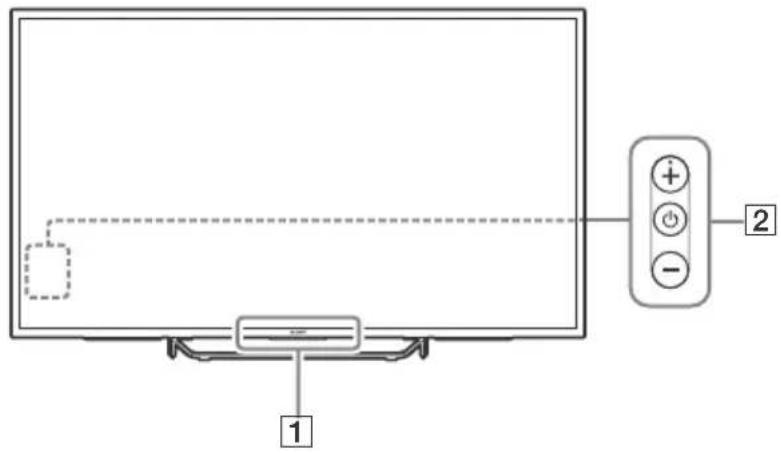

1 Remote Control sensor\* / Light sensor\* / Illumination LED
The illumination LED lights up or blinks according to the status of the TV.
- White
When turning on the TV/picture off mode/software update, etc.
• Cyan
When connecting with a mobile device wirelessly. - Amber Timer is set
2 ⏻ (Power) / + / -
When the TV is off,
Press ⏻ to power on.
When the TV is on,
Long press ⏻ to power off.
Press ⏻ repeatedly to change the function, then press + or - button to:
- Adjust the volume
- Select the channel
- Select the input source of TV
* Do not place anything near the sensor.
Using Remote Control
Remote Control Parts Description
The remote control shape, location, availability and function of remote control button may vary depending on your region/country/TV model.

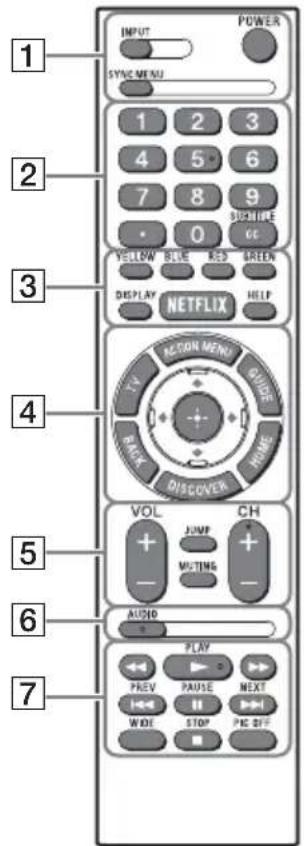

1 INPUT
Display and select the input source.
POWER
Turn on or turn off the TV (standby mode).
SYNC MENU
Display the BRAVIA Sync Menu.
2 Number buttons
Use with the 0-9 buttons to select digital channels.
CC/SUBTITLE
Turn subtitles on or off (when the feature is available).
3 Color buttons
Execute corresponding function at that time.
DISPLAY
Display information about the channel/program/input you are viewing.
NETFLIX (Only on limited region/ country/TV model)
Access the "NETFLIX" online service.
HELP
Display Help Menu. Help Guide can be accessed from here.
4 ACTION MENU
Display a list of contextual functions.
TV
- Switch to a TV channel or input from other applications.
- Turn on the TV to display TV channel or input.
GUIDE
Display the digital program guide.
BACK
Return to previous screen.
HOME
Display the TV Home Menu.
DISCOVER
Bring up the Content Bar to search for content.
//// (Item select/Enter)
5 VOL +/- (Volume)
Adjust the volume.
JUMP
Jump back and forth between two channels or inputs. The TV alternates between the current channel or input and the last channel or input that was selected.
MUTING
Mute the sound. Press again to restore the sound.
CH +/- (Channel)
Select the channel.
6 AUDIO
Change the language for the program currently being viewed.
7 ◀◀/▶/▶▶/◀◀/||/▶▶/■
Operate media contents on TV and connected BRAVIA Sync-compatible device.
WIDE
Change the screen format.
PIC OFF
Turn the picture off, while sound remains on.
Guidelines for IR Remote Control

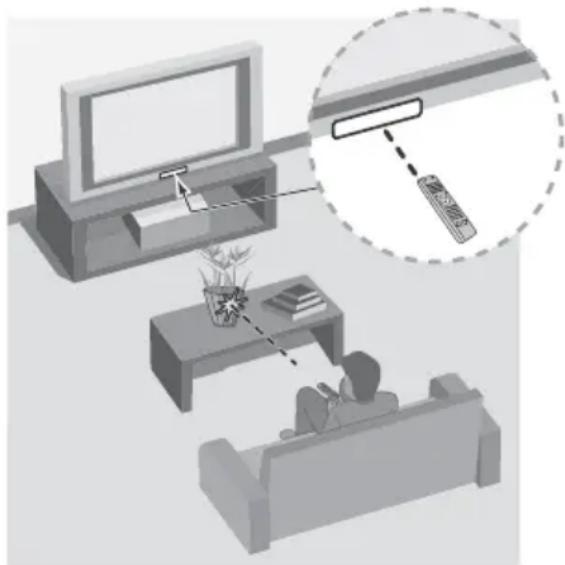

- Point your remote control directly at the IR sensor located on your TV.
- Make sure that no objects are blocking the path between the remote control and the IR sensor on your TV.
- Fluorescent lamps can interfere with your remote control; try turning off the fluorescent lamps.
- If you are having problems with the remote control, reinsert or replace your batteries and make sure that they are correctly inserted.
Connection Diagram
For more information on connections, refer to the Help Guide (page 2).
Note
- When connecting the cable to the Cable/Antenna, input finger tighten only, over tightening the connection can damage the TV.
1 AUDIO OUT ^5 → /
- To listen to the TV's sound through the connected equipment, press HOME. Select [Settings] → [Sound] → [Headphone/Audio out] and then select the desired item.
2 USB 1/2, USB 3
- Connecting a large USB interfere with other connected devices beside it. - When connecting a large USB device, connect to the USB 1 port.
3 HDMI IN 1/2/3/4
- If connecting a digital audio system that is compatible with Audio Return Channel (ARC) technology, use HDMI IN 3. If not, an additional connection with DIGITAL AUDIO OUT (OPTICAL) is necessary.
4 REMOTE RS-232C
- This jack is for receiving the external control signal. Enables extended control of the TV using RS-232C via the RS-232C jack. RS-232C: connect to the RS-232C terminal of the home controller. - Take care to not connect to headphones or an external audio system. - If [RS232C control] is set to [On], [BRAVIA Sync settings] is not available.
5 → /→ VIDEO IN 1

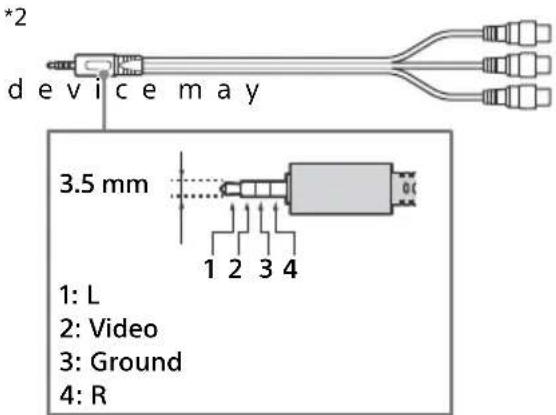

- For a composite connection, use the supplied Analog Extension Cable ^6 .
*1
*4 When connecting mono equipment, connect to the L (MONO) audio jack (socket).
*5 Supports 3-pole stereo mini jack only.
*6 Only on limited region/country/TV model.
Installing the TV to the Wall
This TV's instruction manual only shows the steps on preparing the installation of the TV before installing to the wall.
Your TV can be mounted on a wall using a Wall-Mount Bracket (not supplied) out of the box as packaged. If the Table-Top Stand is attached to the TV, the TV may require detaching the Table-Top Stand; see page 12 (Detaching the Table-Top Stand from the TV).
Prepare the TV for the Wall-Mount Bracket before making cable connections.
For product protection and safety reasons, Sony strongly recommends that installation of your TV on the wall be performed by qualified professionals. Do not attempt to install it yourself.
- Follow the instruction guide provided with the Wall-Mount Bracket for your model. Sufficient expertise is required in installing this TV, especially to determine the strength of the wall for withstanding the TV's weight.
- The length of the screw for Wall-Mount Bracket differs depending on the Wall-Mount Bracket thickness. Please see below illustration.
8 mm - 12 mm
- Be sure to store the unused screws and Table-Top Stand in a safe place until you are ready to attach the Table-Top Stand. Keep the screws away from small children.
Note
- Read the supplied Safety Booklet for additional safety information.
Detaching the Table-Top Stand from the TV

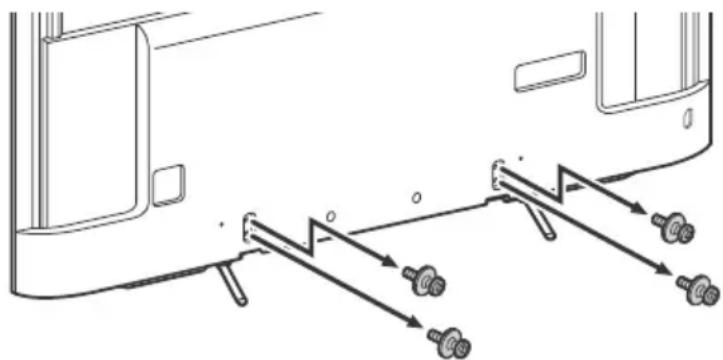

To detach the Table-Top Stand from the TV, remove the screws
- Do not remove the Table-Top Stand for any reason other than to install corresponding accessories on the TV.
- Be sure the TV is vertical before turning on. To avoid uneven picture uniformity do not power on the TV with the LCD panel facing down.
- When attaching the Table-Top Stand again, be sure to fasten the screws (previously removed) to the original holes on the rear of the TV.
Installing the TV against a wall or enclosed area
Make sure that your TV has adequate ventilation. Allow enough space around the TV as shown in the illustration.

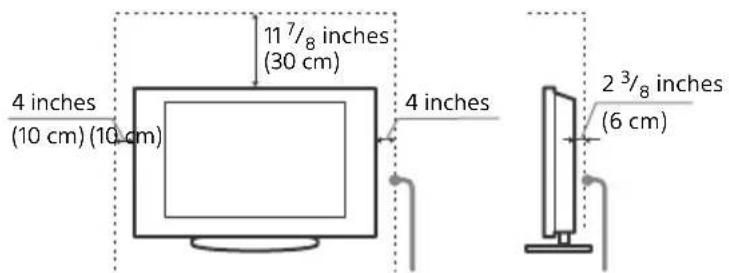

Installed with stand

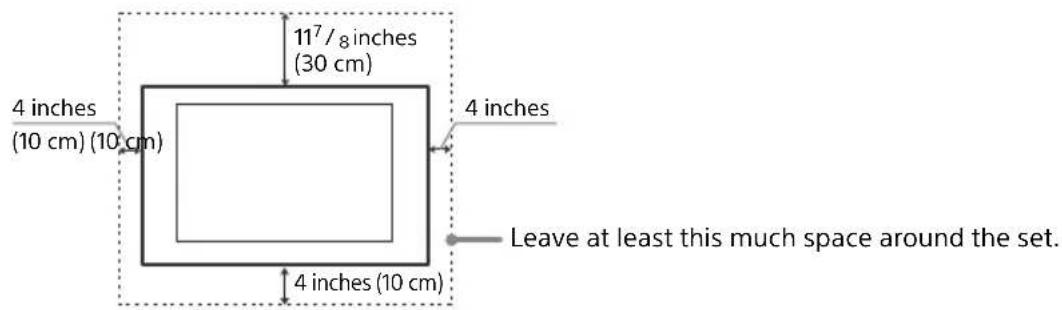

Leave at least this much space around the set.
US
Installed on the wall
Never install the TV set as follows:
Air circulation is blocked. Air circulation is blocked.
- Inadequate ventilation can lead to overheating of the TV and may cause damage to your TV or cause a fire.
Troubleshooting
In order to keep your TV software up-to-date, it is necessary to download the latest software information via the digital broadcasting system or internet and to update the software. Select [Update Now] to start a software update. The illumination LED flashes white while the software is updating.
The following screen with [Updating...] will appear while software is updating.
Do not unplug the AC power cord during the software update. If you do, the software update may not finish completely, and it may cause a software malfunction. Software updates can take up to 30 minutes. If you do not wish to update the software automatically, press HOME and select [Help] → [System software update] → [Automatic software download] → [Off].
When you plug in TV, the TV may not be able to turn on for a while even if you press the power button on the remote control or the TV, because it takes time to initialize the system. Wait for about one minute, then operate it again. When you turn on by pressing the power button on the remote control or the TV, it takes some time to turn on the illumination LED and for the remote control to be functional.
When the illumination LED is flashing red, count how many times it flashes (interval time is three seconds).
If the illumination LED flashes red, reset the TV by disconnecting the AC power cord for two minutes, then turn on the TV. If the problem persists, contact Sony Customer Support (information provided on the front cover) with the number of times the illumination LED flashes red (interval time is three seconds). Disconnect the AC power cord, and contact Sony Customer Support.
When the illumination LED is not flashing, check the items as follows.
You can also refer to troubleshooting in the Help Guide or perform self-diagnosis by selecting [Help] → [Self diagnostics]. If the problem persists, contact Sony Customer Support (information provided on the front cover).
Troubles and Solutions
There is no picture (screen is dark) and no sound.
- Check the cable/antenna connection.
- Connect the TV to AC power, and press the ⏻ button on the TV or POWER button on the remote control.
Some programs cannot be tuned.
- Check the cable/antenna connection.
The remote control does not function.
- Replace the batteries.
The [Parental lock (Broadcast)] password has been forgotten.
- Enter 4357 for the PIN code. Update PIN code by selecting [Settings] → [Parental lock (Broadcast)] → [Change password].
The TV and its surroundings become warm.
- When the TV is used for an extended period of time, the TV and its surroundings may become warm to the touch. This is not a malfunction of the TV.
How to reset the TV to factory settings
- Turn on the TV. You can reset the TV to factory settings by pressing HOME, then select [Settings] → [Storage & reset] → [Factory data reset].
WARNING: The reset will clear all of your customized settings including the [Parental lock (Broadcast)] setting. - For security purposes, be sure to remove all personal and account information before discarding, selling or passing your TV to someone else by: unlinking/unregistering, signing out of and deactivating all network services as well as factory reset the TV.
Frozen audio or video, a blank screen, or the TV does not respond to TV or remote control buttons.
- Perform a simple reset of the TV by unplugging the AC power cord for two minutes, then plug it in again.
The ⏻, +, and - buttons cannot be located on the TV.
• See below illustration for location of the buttons on the TV.
Rear of TV
- If you do not wish to light up the illumination LED, you can turn it off.
Press HOME, then select [Settings] → [Illumination LED] → [Off].
Cannot connect to a wireless router by WPS (Wi-Fi Protected Setup).
- If you use WEP security, select [Easy] → [Wi-Fi] → [Connect by scan list]. Then, select the network name (SSID) you want to connect.
Cannot find the required network name in network setup.
- Select [[Manual entry]] and press⊕to enter network name.
Specifications
System
Television system
NTSC: American TV standard ATSC (8VSB terrestrial): ATSC compliant 8VSB QAM on cable: ANSI/SCTE 07 2000 (Does not include CableCARD functionality)
Channel coverage
Analog terrestrial: 2 - 69 / Digital terrestrial: 2 - 69
Analog Cable: 1 - 135 / Digital Cable: 1 - 135
Panel system
LCD (Liquid Crystal Display) Panel, LED Backlight
Speaker output
10 W + 10 W
Wireless technology
Protocol IEEE802.11ac/a/b/g/n
Bluetooth Version 4.1
Input/Output jacks
CABLE/ANTENNA
75-ohm external terminal for RF inputs
VIDEO IN 1
Video / Audio input (mini jack)
COMPONENT IN
YPBPR (Component Video): 1080p (60 Hz), 1080i (60 Hz), 720p (60 Hz), 480p, 480i Audio input (phono pin jack)
→VIDEO IN 2
Video input (common phono pin with Y input)
HDMI IN 1/2/3/4 (Support 4K resolution, HDCP 2.2-compatible)
Video: 4096 × 2160p (60 Hz)* ^1 , * ^2 , 4096 × 2160p (24 Hz)* ^1 , 3840 × 2160p (60 Hz)* ^2 , 3840 × 2160p (24, 30 Hz), 1080p (30, 60 Hz), 1080/24p, 1080i (60 Hz), 720p (30, 60 Hz), 720/24p, 480p, 480i, PC Formats * ^1 3840 × 2160p is displayed when 4096 × 2160p is input * ^2 HDMI IN 2 / 3 only.
Audio: 5.1 channel linear PCM: 32, 44.1, 48, 88.2, 96, 176.4 and 192 kHz, 16, 20 and 24 bits, Dolby Digital, Dolby Digital Plus and DTS ARC (Audio Return Channel) (HDMI IN 3 only) (Two channel linear PCM, Dolby Digital, Dolby Digital Plus, DTS)
- DIGITAL AUDIO OUT (OPTICAL)
Digital optical jack (Two channel linear PCM, Dolby Digital, DTS)
Headphone, Audio output, Subwoofer
1, 2, SS 3
USB port 1 and 2 support High Speed USB (USB2.0).
USB port 3 supports Super Speed USB (USB3.0).
LAN
10BASE-T/100BASE-TX connector
(Connection speed may differ depending on the network environment. 10BASE-T/
100BASE-TX communication rate and communication quality are not guaranteed for this TV.)
Home Network
Refer to the Help Guide for supported formats.
REMOTE
RS-232C, mini jack
This jack is for receiving the external control signal.
IR BLASTER *1
IR Blaster Cable input (mini jack)
Others
Optional accessories
Voice Remote Control: RMF-TX200U
Wireless Subwoofer: SWF-BR100
Operating temperature
32^-104^(0^-40^)
Power and others
Power requirement
110 V - 240 V AC, 50/60 Hz (U.S.A./Canada
120 V AC, 60 Hz)
Power consumption
in use
XBR-65X750D: 193 W
XBR-55X700D: 171 W
XBR-49X700D: 138 W
in standby*2
Less than 0.50 W with 120 V AC and less than 0.50 W with 240 V AC
Screen size (inches measured diagonally)
(Approx.)
XBR-65X750D: 64.5 inches (65" class)
XBR-55X700D: 54.6 inches (55" class)
XBR-49X700D: 48.5 inches (49" class)
Display resolution
3,840 dots (horizontal) × 2,160 lines (vertical)
Output Rating
USB 1
5 V, = 500 mA MAX
USB 2
5 V, 500 mA MAX
USB 3
5 V, 900 mA MAX
Dimensions (Approx.)
with stand
XBR-65X750D: 1,463 × 901 × 295 mm /
57^5/8×35^1/2×11^5/_8 inches
XBR-55X700D: 1,245 × 770 × 235 mm /
49^1/8×30^3/8×9^3/_8 inches
XBR-49X700D: 1,107 × 690 × 235 mm /
43^5/8×27^1/4×9^3/_8 inches
without stand
XBR-65X750D: 1,463 × 852 × 80 mm /
57^5/8×33^5/8×3^1/_4 inches
XBR-55X700D: 1,245 × 730 × 78 mm /
49^1/8×28^3/4×3^1/_8 inches
XBR-49X700D: 1,107 × 651 × 78 mm /
43^5/8×25^3/4×3^1/_8 inches
wall-mount hole pattern
XBR-65X750D: 300 × 300 mm
XBR-55X700D: 200 × 200 mm
XBR-49X700D: 200 × 200 mm
wall-mount screw size (mm)
M6 (length: see diagram on page 12.)
Mass (Approx.)
with stand
XBR-65X750D: 22.7 kg / 50.0 lb.
XBR-55X700D: 17.8 kg / 39.3 lb.
XBR-49X700D: 14.1 kg / 31.1 lb.
without stand
XBR-65X750D: 21.5 kg / 47.4 lb.
XBR-55X700D: 16.9 kg / 37.3 lb.
XBR-49X700D: 13.2 kg / 29.1 lb.
*1 Only on limited region/country/TV model.
*2 Standby power consumption will increase when your TV is connected to the network.
Note
- Optional accessories availability depends on countries/region/TV model/stock.
- Design and specifications are subject to change without notice.
Licensing Information
- Opera® Devices SDK from Opera
- The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
- Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories.
- "BRAVIABRAVAd, S-Force, Motionflow, BRAVIA Sync, and Rare trademarks or registered marks of Sony Corporation.
- Gracenote, Gracenote eyeQ, Gracenote VideoID, Gracenote Video Explore, the Gracenote logo and logotype, and the "Powered by Gracenote" logo are either registered trademarks or trademarks of Gracenote in the United States and/or other countries.
Software ASA. Copyright 1995-2015 Opera Software ASA. All rights reserved.
- Wi-Fi, Wi-Fi Direct, Miracast, Wi-Fi Protected Setup and Wi-Fi CERTIFIED Logo are trademarks or registered trademarks of Wi-Fi Alliance.
- For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS Digital Surround is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.
- QuickSet and the QuickSet logo are trademarks of Universal Electronics Inc. Portions © UEI 2000-2015
- The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Sony Corporation is under license. Other trademarks and trade names are those of their respective owners.
- TUXERA is a registered trademark of Tuxera Inc. in the US and other countries.
- USB-IF SuperSpeed USB Trident logo is a registered trademark of USB Implementers Forum, Inc. SS
Opera
YOUR DATA - WHERE YOU WANT IT
Table des matières
AVIS IMPORTANT....2
Partie responsible: Sony Electronics Inc.
Adresse : 16535 Via Esprillo,
San Diego, CA 92127 U.S.A.
Illustration of a person watching TV on a sofa with a magnified view of a remote control device (no text or symbols present)FR
Remarque
| For Your Convenience | |
| Online Registration: | Be sure to register your TV. United States http://productregistration.sony.com Canada http://www.sony.ca/registration |
| Software Updates: | Your TV is capable of receiving software updates. For the latest information about software updates for your TV, visit: United States http://www.sony.com/tvsupport Canada http://www.sony.ca/supportNOTE: If your TV is connected to the Internet, you can check for software updates by selecting [Help], [System software update] and then [Check for a system software update]. |
