USER MANUAL DX H11A2TCEXMS HOOVER

BORN INNOVATIVE FRD ENLPT ES FRD ENLPT

Please read and follow these instructions carefully and operate the machine accordingly. This booklet provides important guidelines for safe use, installation, maintenance and some useful advice for best results when using your machine.

Keep all documentation in a safe place for future reference or for any future owners

Please check that the following items are delivered with the appliance:

• Instruction anual
• Guarantee card
• Energy label

By placing the C€ mark on this product, we are confirming compliance to all relevant European safety, health and environmental requirements which are applicable in legislation for this product.

⚠️ Check that no damage has occurred to the machine during transit. If it has, call for service by GIAS. Failure to comply with the above can compromise the safety of the appliance. You may be charged for a service call if a problem with your machine is caused by misuse.

Index

1. SAFETY REMINDERS
2. DRAIN HOSE KIT: FITTING INSTRUCTIONS
3. PREPARING THE LOAD
4. CLEANING AND ROUTINE MAINTENANCE
5. WATER CONTAINER

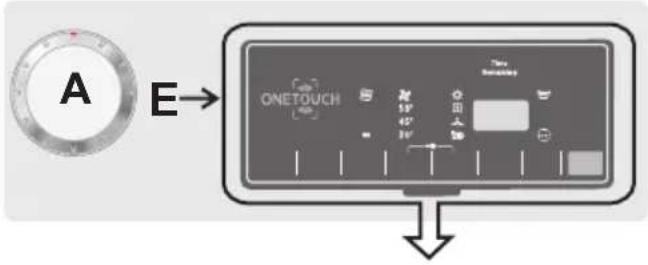

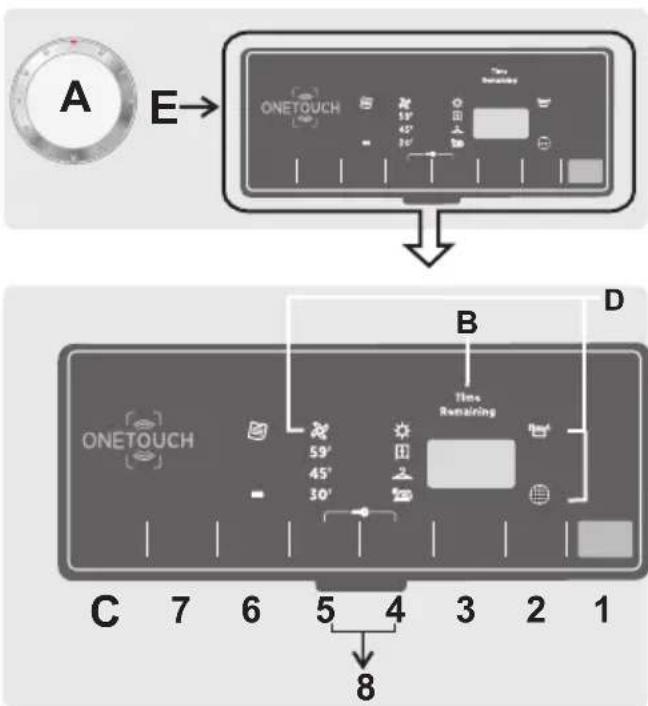

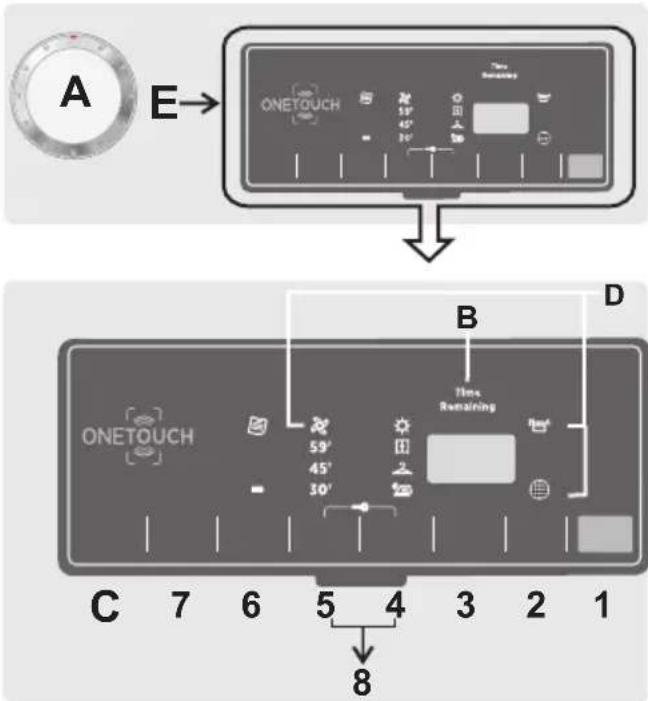

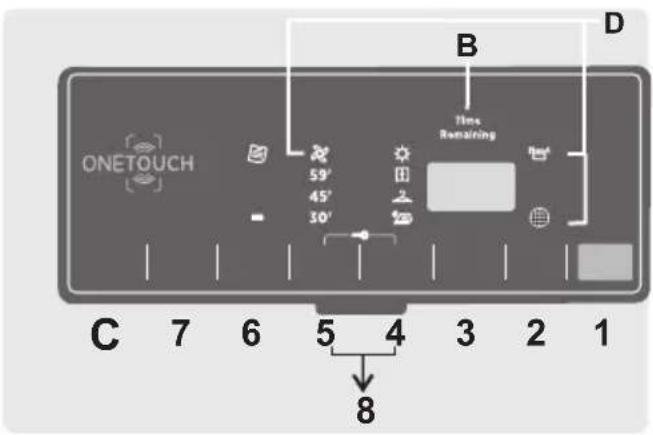

6. CONTROLS AND INDICATORS

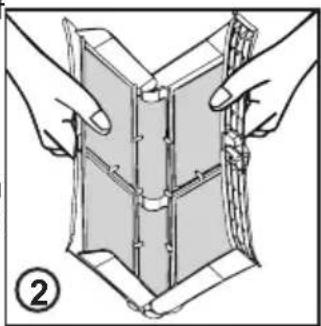

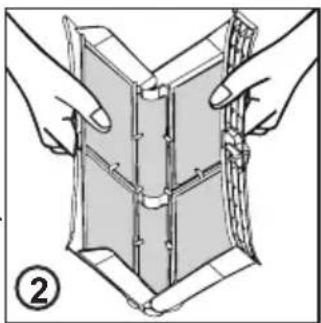

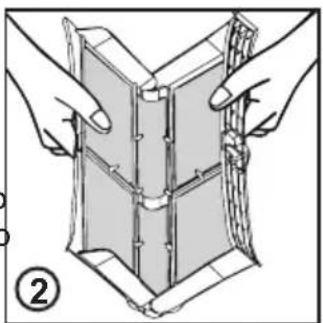

7. DOOR AND FILTER AND CONDENSER

8. SELECTING THE PROGRAMME AND SET THE FUNCTION

9. TROUBLESHOOTING CUSTOMER SERVICE

1. SAFETY REMINDERS

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance should not be made by children without supervision. Children of less than 3 years should be kept away unless continuously supervised.

• WARNING Misuse of a tumble dryermay createa firehazard
• This appliances is intended to be used in household and similar applications such as:

- Staff kitchen areas in shops offices and other working environments;

• Farm houses;
• By clients in hotels, motels and other residential type environments.
• Bed and breakfast type environments. A different use of this appliance from house hold environment or from typical housekeeping functions, as commercial use by expert or trained users, is excluded even in the above applications.

If the appliance is used in a manner inconsistent with this it may reduce the life of the appliance and may void the manufacturer's warranty.

Any damage to the appliance or other damage or loss arising through use that is not consistent with domestic or household use (even if located in a domestic or household environment) shall not be accepted by the manufacturer to the fullest extent permitted by law.

• This machine should only be used for its intended purpose as described in this manual. Ensure that the instructions for installation and use are fully understood before operating the appliance.
• Do not touch the appliance when hands or feet are damp or wet
• Do not lean on the door when loading the machine or use the door to lift or move the machine.

• Do not allow children to play with the machine or its controls.

• WARNING Do not use the product if the fluff filter is not in position or is damaged; fluff could be ignited.

• WARNING Where the hot surface symbol is located the temperature rise during operation of the tumble dryer may be in excess of 60 degrees C.
• Remove the plug from the electricity supply Always remove the plug before cleaning the appliance.
• Do not continue to use this machine if it appears to be faulty.
• Lint and fluff must not be allowed to collect on the floor around the outside of the machine.
• The final part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that the items are left at a temperature that ensures that the items will not be damaged.
• The tumble dryer is not to be used if industrial chemicals have been used for cleaning.
• WARNING: Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.
• Maximum load drying weight: see energy label.

Installation

• Do not use adapters, multiple connectors and/or extensions.
• Never install the dryer against curtains and be sure to prevent items from falling or collecting behind the dryer.
• The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the tumble dryer.

Important: During transport ensure that the dryer is in an upright position, if it's necessary you can only flip in the side shown;

Caution: If the product is in different side, wait at least 4 hours before switching on so that the oil can flow back into the compressor. Failure to do this could result in damage to the compressor.

The Laundry

• Do not dry unwashed items in the tumble dryer.
• WARNING Do not tumble dry fabrics treated with dry cleaning fluids.
  • WaR NbNGer materials can, under certain circumstances, when heated become ignited by spontaneous combustion. Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads MUST NOT be dried in the tumble dryer.
• Always refer to the laundry care labels for directions on suitability for drying.
• Clothes should be spin dried or thoroughly wrung before they are put into the tumble dryer.
• Remove all objects from pockets such as lighters and matches.
• Clothes that are dripping wet should not be put into the dryer.
• Lighters and matches must not be left in pockets and NEVER use flammable liquids near the machine.
• Glass fibre curtains should NEVER be put in this machine. Skin irritation may occur if other garments are contaminated with the glass fibres.
• Items that have been soiled with substances such as cooking oil, acetone, alcohol,

petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.

- Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.

Ventilation

• Adequate ventilation must be provided in the room where the tumble dryer is located to prevent gases from appliances burning other fuels, including open fires, being drawn into the room during operation of the tumble dryer.
• Installing the rear of the appliance close to a wall or vertical surface.
• There should be a gap of at least 12 mm between the machine and any obstructions. The inlet and outlet should be kept clear of obstruction. To ensure adequate ventilation the space between the bottom of the machine and the floor must not be obstructed.

• Check regularly that the air flowing through the dryer is not restricted.

• Check frequently the fluff filter after use, and clean, if necessary.

• Prevent items from falling or collecting behind the dryer as these may obstruct the air inlet and outlet
• NEVER install the dryer up against curtains.
• In cases where the dryer is installed on top of a washing machine, a suitable stacking kit must be used according to the configuration of your appliance:

- Stacking kit "standard size": for washing machine with minimum depth of 44 cm;

- Stacking kit "slim size": for washing machine with minimum depth of 40 cm.

• The stacking kit shall be obtainable from our spare service.
  The instructions for installation and any fixing attachments, are provided with the stacking kit.
• The plug should be accessible for disconnection after the appliance has been installed.

WARNING: the appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by a utility.

Architectural floor plan showing room layout and structural elements (no text or labels)

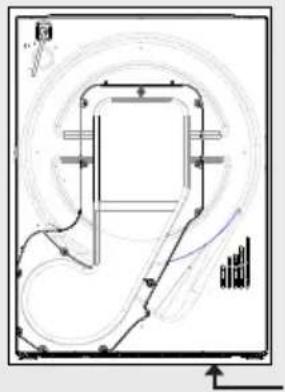

Air Outlets in the Base

⚠️ If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Do not install the product in a low temperature room or in a room where there is a risk of frost occurring. At temperature around freezing point the product may not be able to operate properly: there is a risk of damage if the water is allowed to freeze in the hydraulic circuit (valves, hoses, pumps). For a better product performance the ambient room temperature must be between 5-35°C. Please note that operating in cold condition (between +2 and +5°C) might simply some water condensation and water drops on floor.

Warning sign depicting a flame symbol in yellow and black on white background

WARNING:

Fire hazard / Flammable materials.

• The appliance contains R290, an eco-sustainable refrigerating gas that is flammable.
  Keep open flames and sources of ignition away from the appliance.
• Check there is no visible damage on the appliance. Do not use the appliance if it is damaged.
• Should there be any kind of problem, please contact your specialised retailer or one of our customer support centres.

WARNING:

ensure that the openings on the appliance and the openings of the compartment the appliance is fitted in (for built-in models) are clear of obstructions.

Z

WARNING:

do not damage the refrigerating circuit.

• Any repairs or interventions on the appliance must be carried out only by an authorised assistance service.
• Disposing of the device incorrectly could cause fires or poisoning.
• Dispose of the device correctly and do not damage the pipes used for the circulation of the refrigerating fluid.

Environmental Issues

• All packaging materials used are environmentally-friendly and recyclable. Please help dispose of the packaging via environmentally-friendly means. Your local council will be able to give you details of current means of disposal.
• To ensure safety when disposing of an old tumble dryer disconnect the mains plug from the socket, cut the mains power cable and destroy this together with the plug. To prevent children shutting themselves in the machine break the door hinges or the door lock.

European irective 20 /ED 12/19

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials.

Individuals can play an important role in ensuring that WEEE does not become an environmental issue, it is essential to follow some basic rules:

• WEEE should not be treated as household waste.
• WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.

In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as in the supplied equipment.

GIAS Service

- To ensure the continued safe and efficient operation of this appliance we recommend that any servicing or repairs are only carried out by an authorised GIAS service engineer.

Electrical Requirements

Tumble dryers are supplied to operate at a voltage of 220-240V, 50 Hz single phase. Check that the supply circuit is rated to at least 6A.

Electricity can be extremely dangerous. This appliance must be earthed. The socket outlet and the plug on the appliance must be of the same type. Do not use multiple adapters and/or extension leads.

The plug should be accessible for disconnection after the appliance has U been installed.

You may be charged for a service call if a problem with your machine is caused by incorrect installation.
⚠️ If the mains cord on this appliance is damaged, it must be replaced by a special cord which is ONLY obtainable from the spares service. It must be installed by a competent person.
Do not plug the machine in and switch it on at the mains until the installation is completed. For your safety, this dryer must be correctly installed. If there is any doubt about installation, call GIAS Service for advice.

Adjusting the Feet

Once the machine is in place the feet should be adjusted to ensure that the machine is level.

Hand holding a small object with directional arrows indicating rotation or movement (no text or symbols)

2. DRAIN HOSE : FITTING INSTRUCTIONS

To avoid emptying the water container after each drying cycle, the water can be discharged directly to a waste water drain pipe (the same drainage system as household sinks). Water Bye-Laws prohibit connection to a surface water drain. The waste water drain pipe should be located adjacent to the tumble dryer.

The kit consists of:1 hose and 1 tap.

WARNING! Switch off and remove the tumble dryer plug from the electricity supply before carrying out any work.

Fit he s Follows:t Hose a

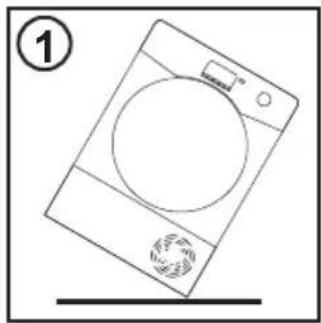

1. Flip the machine slowly to the right side.

Line drawing of a washing machine with a circular vent and base, no text or symbols present

1. The waste water pipe is situated at the right-hand side of the machine (see the picture). A grey hose connects to the bridge at the left hand side of the machine. Using pliers, remove the pipe retaining clip from the bridge.

Close-up of a hand holding a tool near a surface, no visible text or symbols

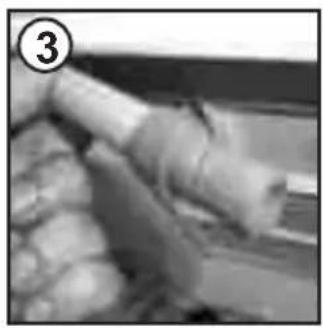

1. Pull the hose off the bridge connection.

Close-up of hands operating a mechanical device with no visible text or symbols

1. Attach the black hose from the kit, (using the connector and pipe clips supplied), to the hose removed from the bridge connection.

2. Connect the new drain hose to the waste Water pipe.

3. Once the machine is in place, check the bottom to ensure that the new hose does not kink when pushing the tumble dryer into position.

Connect to the mains electricity supply.

Close-up of hands holding a pen or tool with a cylindrical object inserted (no visible text or symbols)

Close-up of a hand holding a pen with a coiled cable, no visible text or symbols

Exterior view of a white industrial pipe or container with a black hose attached, next to a brick wall (no visible text or symbols)

Caution: If the product is in different side, wait at least 4 hours before switching on so that the oil can flow back into the compressor. Failure to do this could result in damage to the compressor.

3. PREPARING THE LOAD

Before using the tumble dryer for the first time:

• Please read this instruction book thoroughly
• Remove all items packed inside drum
• Wipe the inside of the drum and door with a damp cloth to remove any dust which may have settled in transit.

Clothes Preparation

Make sure that the laundry you are going to dry is suitable for drying in a tumble dryer, as shown by the care symbols on each item.

Check that all fastenings are closed and that pockets are empty. Turn the articles inside out. Place clothes loosely in the drum to make sure that they don't get tangled.

Do Not Tumble Dry:

Silk, nylon stockings, delicate embroidery, fabrics with metallic decorations, garments with PVC or leather trimmings

IMPORTANT: Do not dry articles which have been treated with a dry cleaning fluid or other clothes (danger of fire or explosion).

During the last 15 minutes the load is always tumbled in cool air.

Energy Saving

Only put into the tumble dryer laundry which has been thoroughly wrung or spin-dried. The drier the laundry the shorter the drying time thus saving electricity.

ALWAYS

- Check that the filter is clean before every drying cycle.

NEVER

- Put dripping wet items into the tumble dryer, this may damage the appliance.

Sort the Load as Follows

- By care symbols

These can be found on the collar or inside seam:

Suitable for tumble drying.

Tumble drying at high temperature.

Tumble drying at low temperature only.

Do not tumble dry.

If the item does not have a care label it must be assumed that it is not suitable for tumble drying.

• By amount and thickness

Whenever the load is bigger than the dryer capacity, separate clothes according to thickness (e.g. towels from thin underwear).

- By type of fabric

Cottons/linen: Towels, cotton jersey, bed and table linen.

Synthetics: Blouses, shirts, overalls, etc. made of polyester or polyamid, as well as for cotton/synthetic mixes.

Do not overload the drum, large items when wet exceed the maximum missible clothes load (for example:eping bags, duvets).

4. CLEANING AND ROUTINE MAINTENANCE

Cleaning the Dryer

• Clean the filter and empty the water container after every drying cycle.
• Regularly clean the condenser
• After each period of use, wipe the inside of the drum and leave the door open for a while to allow circulation of air to dry it.
• Wipe the outside of the machine and the door with a soft cloth.
• DO NOT use abrasive pads or cleaning agents.
• To prevent the door sticking or the build up of fluff clean the inner door and gasket with a damp cloth after every drying cycle.

WARNING! The Drum, door and load be very hot.

IMPORTANT Always switch off and move the plug from the electricity supply are cleaning this appliance.

For electrical data refer to the rating set on the front of the dryer cabinet (with door open).

5. WATER CONTAINER

OPERATION

The water removed from the laundry during the drying cycle is collected in a container inside the door of the dryer. When the container is full the indicator on the control panel will light, and the container MUST be emptied.

However, we recommend that the container is emptied after each drying cycle.

NOTE: Very little water will collect during the first few cycles of a new machine as an internal reservoir is filled first.

1. Open the door and load the drum with laundry. Ensure that garments do not hinder closure of the door.
2. Gently close the door pushing it slowly until you hear the door 'click' shut.
   ^13 . Turn the Programme Selector dial to select the required drying programme (see Programme Guide).
3. Press the ▷■ button. The dryer will start automatically and the indicator above the button will be continuously lit.
4. If the door is opened during the programme to check the laundry, it is necessary to press ▷III to recommence drying after the door has been closed.
5. When the cycle is nearing completion the machine will enter the cool down phase, the clothes will be tumbled in cool air allowing the load to cool down.
6. Following the completion of the cycle the drum will rotate intermittently to minimize creasing. This will continue until the machine is switched OFF or the door is opened.

Do not open the door during the automaticams in order to obtain a proper drying.

To Remove the Container

1. Gently pull out the water container holding the handle. (A) When it is full the water container will weigh about 6 kg.
2. Tilt the water container to empty the water out through the spout. (B)

When empty, replace the water container back as shown; (C) first insert the base of the container into position as shown (1) then gentle push the top into position (2).

Technical diagram of a mechanical component with an upward arrow and circular housing (no text or symbols)

Diagram of a mechanical device pouring liquid into a container (no text or symbols)

1. Press ▷■■ Button to restart the cycle.

NOTE: If you have the option of drainage near to the dryer you can use the discharge kit to provide a permanent drainage for the water collected in the container of the dryer. This means that you don't have to empty the water container.

Diagram of a backpack with labeled parts and directional arrows indicating movement or rotation

6. DOOR AND FILTER

Pull on handle to open the door. To restart the dryer, close the door and press Start / Pause button▶

WARNING! When the tumble dryer is in the drum and door may be VERY HOT.

Filter

IMPORTANT: To maintain the efficiency of the dryer check that the fluff filter is clean before each drying cycle.

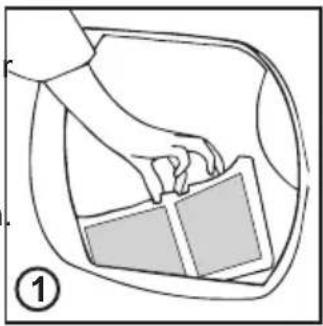

1. Pull the filte upwards.

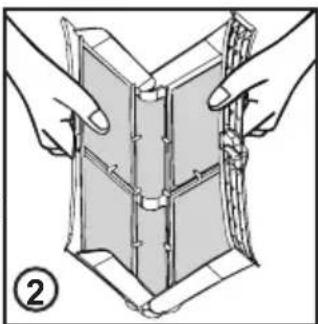

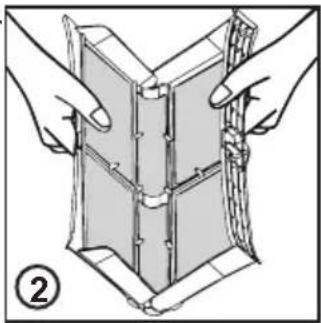

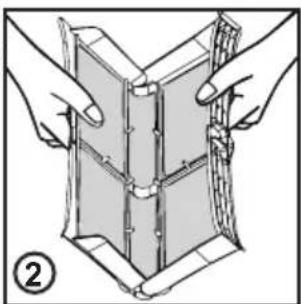

   2.Open filter as shown.
2. Gently remove lint using a soft brush or your fingertips.
3. Snap the filter together and push back into place.

Line drawing of a hand holding a rectangular object inside a car door frame (no text or symbols)

Illustration of hands assembling a mechanical component (no text or symbols visible)

Filter Care Indicator

Lights when the filter needs cleaning.

If the laundry is not drying check that the filter is not clogged.

IF YOU CLEAN FILTER UNDER TER, REMEMBER TO DRY IT.

WARNING! If you open the door mid e, before the cool-down cycle has pleted,the handle may be hot. Please see me caution when attempting to empty water reservoir during the cycle.

To Clean the Condenser Filter

1. Remove the kickplate.
2. Turn the two locking levers anti-clockwise and pull out the front cover.
3. Gently remove the filter frame and clean any dust or fluff with a cloth from the filter. Do not use water to clean the filter.
4. Remove the sponge gently from its place and then wash the sponge by holding it under a running tap turning it so to remove any dust or fluff.
5. Refit the front cover ensuring it is in the correct way (a indicated by the arrow) and pushed firmly into place. Lock the two levers by turning them, clockwise
6. Refit the kickplate.

Illustration of hands holding a mechanical component with a circular component and a spiral pattern (no text or symbols)

Simple diagram with a rectangular frame containing four small figures inside, no text or symbols present.

Illustration of two hands holding a metallic object, labeled with number 3 (no text or symbols on the object itself)

Illustration of hands holding a tool or device with a curved component, no visible text or symbols

Hand inserting a component into a device housing (no text or symbols visible)

Clean the filters before every cycle

7. CONTROLS AND INDICATORS

A E→ ONE TOUCH 20 55° 45° 30° 20 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100

ONETOUCH 59' 45' 30' Time Remaining B D C 7 6 5 4 3 2 1 8

A-Programme Selector - Rotating the knob in both directions it's possible to select the desired drying program. To cancel the selections or switch off the dryer rotate the knob on OFF.

B- Display Digit - The display shows the remaining time for drying, the postponed time in case of delayed start selection and other notifications setting.

C-Buttons -

1.Start/Pause Button

To start the selected program and/or suspend

2.Delay Start Button

It allows to delay the start of the program from to 24 hours in 1-hour intervals. The delay selected is shown on the display. After pressing the START button the time showed decrease hour after hour. Opening of the porthole with delayed start set, after re-closing the porthole, press start again to resume the counting.

3.Time cycle selection

It's possible transform a cycle from automatic to programmed, up to 3 minutes after the start of the cycle.

The progressive pressure increases the time in 10-minute intervals. After this selection to reset the automatic drying functioning is necessary to switch off the dryer. In case of incompatibility, all LEDs flash quickly for 3 times.

4. Drying Selection Button

It allows to set the desired dryness level editable option up to 5 minutes after the starting of the cycle:

- Ready to Iron : It leaves the garments slightly wet to facilitate ironing.

- Dry Hanger: To get garment ready to be hang.

田 - Dry wardrobe : For laundry that can be directly stored.

-Extra-dry: To get completely dry garments, ideal for full load.

This appliances is equipped with Drying Manager Function. On automatic cycles, each level of intermediate drying, prior to the reaching the selected one, is indicated by flashing the light indicator corresponding to the degree of drying reached. In case of incompatibility, all LEDs flash quickly for 3 times.

5.Rapids Button

It's possible switch an automatic program to RAPID program, up to 3 minutes after the start of the cycle. The progressive pressure increases the time (30-45-59 minutes).

After this selection to reset the automaticdrying functioning is necessary to switch off the dryer. In case of incompatibility, all LEDs flash quickly for 3 times.

6.Best Ironing

This option allows to reduce folds and tangles, thanks to alternating movements of the drum during and after drying and automatically, setting the ironi drying level (the drying level setting can be modified after the option selection).

The option can be set up to five minutes after the start of the cycle and is activated only on automatic cycles.

7.Memory

This option allows you to store the options set on a cycle.

STORAGE When the cycle is running push the button "memory" for three seconds. The control light "memory" flashes for three times and stores the set options connected to the cycle selected in the flange.

Recall: After the selection of the cycle Push the button "memory" for recall the stored options. (not the cycle).

8. Keylock

This function allows to block unwanted changes of the set options on the bezel, during drying phase. Activation/Inactivation: Push 4 and 5 buttons simultaneously for two seconds. The sign "LOC" appears on the display. Unlocking the option, on the display appears the sign "Uni", only once. In case of opening of 'porthole' with activated key lock, the cycle stops but the lock is kept: to restart the cycle, you must remove the lock and restore Start. When the dryer is off, the option is automatically inactivated.

Key lock can be modified at any time of the cycle.

Automatic Anti crease

This option automatically activates an anti-creases movement of the drum, pre cycle in case of activation of the delay and at the end of drying cycle for 6 hours. It is activated every 10 minutes. To stop the movements set the knob to OFF.

Useful when it's not possible to remove immediately the laundry.

Drying Guide

The standard cycle COTTON DRY (☐) is the most energy efficient and best suited for drying normal wet cotton laundry.

The table in last page shows the approximate time and energy consumption of the main drying programmes.

D-Led

Water tank ^1 - It lights up when it's necessary to empty the condensate water tank.

Filter cleaning ⚙ - It lights up when the cleaning of the filters is requested (the door at the lower filter).

Cooling ✗ - It lights up when the cycle is in th final cooling phase.

E-

ONE TOUCH area - pressing the START/PAUSE button allows to a previously downloaded cycle to start whilst the Touch position is selected on the programme knob (for downloading cycles from the App see the relevant section of this user manual).

Power consumption of off-mode	0,40 W
Power consumption of on-mode	0,75 W

Technical Specifications

Drum capacity 125
Maximum load See energy label
Height 85 cm
Width	60 cm
Depth	60 cm
Energy class	See energy label

Information for Test Laboratory

EN 61121 Programme To Use

-DRY COTTON

- COTTON OR

-COTTON OR WHITES

-DELICATES OR SYNTHETIC

APPAREL CARE

The wool drying cycle of this IRON DRY COTTON machine has been EASY-CARE TEXTILE

approved by The Woolmark Company for the drying of machine washable wool products provided that the products are washed and

Clean the filters before every cycle

dried according to the instructions on the garment label and those issues by the manufacturer of this machine M1530. In UK, Eire, Hong Kong and India the Woolm trade mark is a Certification trade mark.

ONLY FOR 10-11KG CAPACITY TUMBLE DRYER: CONNECT THE DRAIN HOSE FOR RECOVERING CONDENSER WATER ACCORDING TO INSTRUCTION AT CHAPTER 2

Maximum Drying Weight
Cottons	Max.capacity declared
Synthetics or Delicates	Max.4 Kg

The real duration of drying cycle depends by the starting humidity level of the laundry due to spin speed, type and amount of load, cleanliness of filters and ambient temperature.

1. SELECTING THE PROGRAMME AND SET THE FUNCTION

PROGRAM	PROGRAM DESCRIPTION	CAPACITY(kg)	DRYING TIME(min)
All In One	A new innovative cycle to dry different kinds of fabrics in the same time. The dryer provides an alert when the lightweight fabrics are dry and ready to are taking out. After this step it's necessary to press start again to complete the drying for the leftovers heavier linens.	6	*
	A delicate and specific cycle to dry dark or coloured cotton or syntethics garments.	4	*
[20GC]	The right cycle to dry cottons, sponges and towels.	Full	*
[HSY4]	Program Eco normative (hang dry) drying. The most efficient program in energy consumption. Suitable for cottons and linens.	Full	*
	This specifics cycle has been conceived to dry shirts minimizing tangles and folds thanks specific movements of the drum. It's recommended to take out the linens immediately after drying cycle.	2.5	*
[HDY]	Dedicated to dry uniformly fabrics like jeans or denim. It's recommended flip over the garments before drying.	4	*
[06GG]	To dry delicate and synthetic fabrics that need an accurate and specific treatment.	4	*
[4VZ]	An special service to revitalize the waterproofing treatment of the linens.	2	*
	Dedicated to technical garments for sport and fitness, drying gently with special care to avoid shrinking and deterioration of elastic fibers.	4	*
[137]	Perfect cycle to dry uniformly duvets and quilts, revitalizing the smoothness of the feathers.	4	*
[8700]	Woolen clothes: the program can be used to dry up to 1 kg of laundry (around 3 jumpers). It is recommended to reverse all clothes before drying. Timing can change due to dimensions and thickness of load and to spinning chosen during washing. At the end of the cycle, clothes are ready to be worn, but if they are heavier, edges can be a bit wet: it is suggested to dry them naturally. It is recommended to unload clothes at the very end of the cycle. Attention: felting process of wool is irreversible; please dry exclusively clothes with symbol (symbol "ok tumble"); this program is not indicated for acrylic clothes.	1	70'
[9048]	One specifics cycle that dry and in the same time helps to reduce the main allergens as dust mites, pet hair, pollens and residual of powder detergents.	4	Max 220'
	This kind of cycle, thanks a special Rack, allows to dry 2 couples of canvas shoes. It's raccommended take out the laces from the shoes before drying them.	*	Max 120'
[10022]	The perfect cycle to remove the smells from the linens smoothing creases.	2.5	20'
[8246]	Customizable setting that interacts with the App on your android smartphone and to download the cycles (see the dedicated section). The factory sets the default programme Auto-Hygiene, which will sanitize the machine.

*The real duration of drying cycle depends by the starting humidity level of the laundry due to spin speed, type and amount of load, cleanliness of filters and ambient temperature.

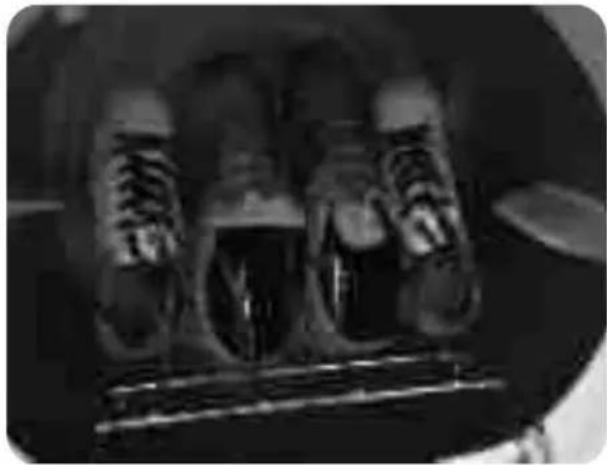

RACK FOR SHOES AND TRAINERS

Close-up of three shoes partially submerged in a dark container (no visible text or symbols)

Close-up of two ancient foot feet with decorative patterns, no visible text or symbols

The shoes accessory supplied with the dryer, allows to dry up to 4 sneakers. You must remove the door filter replacing it with the rack. Before inserting the shoes, remove any soles and place them in the dryer.

Central hooks are also suitable for men's shoes, while side hooks are more suitable for children's or women's shoes (EU 39- UK 5.5). It is advisable to turn the drum around to check for no interference. Alternatively you can position the two side shoes with the sole up.

ONE TOUCH

This appliance is equipped with One Touch technology that allows you to interact, via the App, with smartphones based on Android operating system and equipped with NFC (Near Field Communication) function.

- Download on your smartphone theHoover Wizard App.

The Appvise Available for devices running both Android and iOS, both for tablets and for smartphones. However, you can interact with the machine and take advantage of the potential offered by One Touch only with Android smartphones equipped with NFC technology, according to following functional scheme:

Android smartphone with NFC technology	Interaction with the machine + contents
Android smartphone without NFC technology	Contents only
Android Tablet	Contents only
Apple iPhone	Contents only
Apple iPad	Contents only

FUNCTIONS

The main functions available using the App are:

• Voice Coach – A guide to help you choose the ideal cycle with only three voice inputs (clothes/fabrics, colour, drying level).

• Programmes – To download and launch new drying programmes.

• Clever Care – Clever Check-up and troubleshooting guide.

• Reports – Dryingstatistics and tips for a more efficient use of your machine.

Get all the details of the One Touch functions, browsing the App in DEMO mode or go to:

www.hooveronetouch.com

HOW TO USE ONE TOUCH

FIRST TIME - Machine registration

Enter the "Settings" menu of your Android smartphone and activate the NFC function inside the "Wireless & Networks" menu.

Depending on the smartphone model and its Android OS version, the process of the NFC activation may be different. Refer to the smartphone manual for more details.

• Turn the knob to the One Touch position to enable the sensor on the dashboard.
• Open the App, create the user profile and register the appliance following the instructions on the phone display or the "Quick Guide" attached on the machine.

More information, F.A.Q. and the video for an easy registration are available on:

www.hooveronetouch.com/how-to

NEXT TIME – Regular usage

• Every time you want to manage the machine through the App, first you have to enable the One Touch mode by turning the knob to the One Touch indicator.
• Make sure you have unlocked your phone (from stand-by mode) and you have activated the NFC function; then, follow the steps mentioned earlier.
• If you want to start a dry cycle, load the laundry and close the door.
• Select the desired function in the App (e.g.: starting a programme, the Clever Check-up cycle, update statistics, etc...).
• Follow the instructions on the phone display, KEEPING IT ON the One Touch logo on the machine dashboard, when requested to do so by the App.

One Touch Off ONE TOUCH Off

NOTES:

Place your smartphone so that the NFC antenna on its back matches the position of the One Touch logo on the appliance (as illustrated below).

Close-up of a mechanical component with a circular arrow indicating direction (no visible text or symbols)

If you do not know the position of your NFC antenna, slightly move the smartphone in a circular motion over the One Touch logo until the App confirms the connection. In order for the data transfer to be successful, it is essential TO KEEP THE SMARTPHONE ON THE DASHBOARD DURING THE FEW SECONDS OF THE PROCEDURE; a message on the device will inform about the correct outcome of the operation and advise you when it is possible to move the smartphone away.

Thick cases or metallic stickers on your smartphone could affect or prevent the transmission of data between machine and telephone. If necessary, remove them.

The replacement of some components of the smartphone (e.g. back cover, battery, etc...) with non-original ones, could result in the NFC antenna removal, preventing the full use of the App.

The management and the control of the machine via App is only possible "by proximity": it is therefore not possible to perform remote operations (e.g.: from another room; outside of the house).

WIRELESS PARAMETERS

Parameter	Specifications
Wireless Standard	ISO/IEC 14443 Type A and NFC Forum Type 4
Frequency band	13,553-13,567 MHz (centre frequency 13,560 MHz)
Magnetic field limit	< 42dBμA/m (at 10 meters)

With this the Candy Hoover Group Srl, declares that this appliance marked with C€ complies with the essential requirements of the Directive 2014/53/EU.

To receive a copy of the declaration of conformity, please contact the manufacturer at: www.candy-group.com

9. TROUBLESHOOTING

The Hoover Wizardapp has a Clever Check-up function that allows you to confirm the functionality and status of the product at any time. To use the Hoover Wizard app you will need an Android smartphone with NFC technology.

More info can be found on the App.

If the display of the machine is showing an error (by a code or blinking LEDs), you should turn on the App on your Android smartphone, with NFC on, selecting "Read the error" on the "Help on line" menu. Place your smartphone against the One Touch logo on the control panel. You should now be able to read the fault directory to solve the issue.

What Might be the Cause of...

Defects you can remedy yourself

Before calling service for technical advice please run through the following checklist. A charge will be made if the machine is found to be working q has been installed incorrectly or used incorrectly. If the problem persists after completing the e recommended checks, please call Service, they may be able to assist you over the telephone.

Time display to end could change during drying cycle. The time to end is continuously checked during the drying cycle and the time is adjusted to give the best estimation time.

The displayed time may increase or decrease during the cycle and this is normal.

Drying time is too long/clothes are not dry enough...

• Have you selected the correct drying time/programme?
• Were the clothes too wet? Were the clothes thoroughly wrung or spindried?
• Does the filter need cleaning?
• Is the dryer overloaded?

The dryer does not operate...

- Is there a working electricity supply to the dryer? Check using another appliance such as table lamp.

- Is the plug properly connected to the mains supply?

• Is there a power failure?

- Has the fuse blown?

• Is the door fully closed?

- Is the dryer switched on, both at the mains supply and at the machine?

- Has the drying time or the programme been selected?

- Has the machine been switched on again after opening the door?

The dryer is noisy...

- Switch off the dryer and contact GIAS Service for advice.

The Indicator is on...

Does the filter need cleaning?

The 📋 Indicator is on...

Does the water container need emptying?

CUSTOMER SERVICE

Should there still be a problem with your dryer after completing all the recommended checks, please call service for advice.

They may be able to assist you over the telephone or arrange for a suitable appointment for an engineer to call under the terms of your guarantee. However, a charge may be made if any of the following applies to your machine:

• Is found to be in working order.
• Has not been installed in accordance with the installation instructions.
• Has been used incorrectly.

Spares

a Always use genuine spares, available direct from service.

Service

For service and repairs call your local service engineer.

The manufacturer declines all responsibility in the event of any printing mistakes in this booklet. The manufacturer also reserves the right to make appropriate modifications to its products without changing the essential characteristics.

Architectural site plan showing building layout and surrounding roads (no text or labels)

Air Outlets in the Base

Hand holding a small object with directional arrows indicating rotation or movement (no text or symbols)

2. KIT TUYAU D'ÉVACUATION: INSTRUCTIONS DE MONTAGE

Line drawing of a washing machine with a circular vent and side buttons (no text or symbols)

Close-up of a hand holding a tool near a surface, no visible text or symbols

1. Retirez le tuyau du raccord.

Close-up of hands holding a cylindrical object, possibly a tool or device (no visible text or symbols)

Close-up of a hand holding a pen tip, no visible text or symbols

Close-up of a hand holding a coiled cable or wire, with no visible text or symbols

Close-up of a white industrial machine with a coiled hose and pipe, next to a brick wall (no visible text or symbols)

Technical diagram of a mechanical component with an arrow indicating upward motion, labeled (A) in the corner (no text or symbols on the diagram itself)

Diagram of a container pouring liquid into a container with a handle, no text or symbols present

Diagram of a backpack with directional arrows indicating movement or rotation (no text or symbols)

FONCTIONNEMENT

Line drawing of a hand holding a rectangular object inside a car (no text or symbols)

Illustration of hands assembling a layered structure with visible components (no text or symbols)

Illustration of hands holding a rectangular object with a circular pattern, next to a ring (no text or symbols)

Simple diagram with a rectangular frame containing three small figures inside, no text or symbols present.

Illustration of hands holding a metallic object with a numbered label (3) in the corner, no text or symbols present.

Illustration of hands holding a flatbed object with a blade, no text or symbols present

nt ⑤

7. COMMANDES ET INDICATEURS

A E→ ONETOUCH 15' 45' 30' 7 6 5 4 3 2 1 B D ONETOUCH 59' 45' 30' Thus Remaining C 7 6 5 4 3 2 1 8

COTON OU COTON OU BLANC -DELICATS OU SYNTHETIQUES

Close-up of two dark, textured shoes with visible laces and soles, placed on a dark surface (no text or symbols)

Close-up of white ceramic shoes with decorative patterns, displayed on a dark surface (no visible text or symbols)

Close-up of a white plastic sheet with a black clip and arrow indicator (no text or symbols)

PARAMETRES SANS FIL

Architectural site plan showing building layout and surrounding roads (no text or labels)

Air Outlets in the Base

Illustration of a person using a device to interact with a light bulb, showing motion direction (no text or symbols)

Line drawing of a washing machine with a circular vent and side panel (no text or symbols)

Close-up of a hand holding a tool near a surface, no visible text or symbols

Close-up of a mechanical component with no visible text or symbols

Close-up of hands holding a pen tip, no visible text or symbols

Close-up of a hand holding a cable with metal clamps, no visible text or symbols

Exterior view of a white toilet with black hoses placed on the floor (no visible text or symbols)

Diagram of a backpack with directional arrows indicating movement (no text or symbols)

Cross-sectional diagram of a mechanical component with an upward arrow and circular housing (no text or symbols)

Diagram of a water pump with particles being poured into a container, no text or symbols present

BETRIEB

Line drawing of a hand opening a car door with a rectangular panel on the side (no text or symbols)

Illustration of hands assembling a folded or layered structure (no text or symbols visible)

Flusensieb-Anzeige

Illustration of hands holding a mechanical component with a circular component and a fan-like pattern (no text or symbols)

Simple diagram showing a rectangular container with four small fish-like shapes inside, labeled 'n' and circled number ② (no text or symbols on the shapes themselves)

Illustration of hands holding a metallic object with a numbered label (3) in the corner, no text or symbols present.

Illustration of hands holding a tool or device with a curved component, no visible text or symbols

Hand inserting a component into a device (no text or symbols visible)

Close-up of three shoes partially submerged in a dark container (no visible text or symbols)

Close-up of two white footshells with decorative patterns, mounted on a dark base (no visible text or symbols)

More information, F.A.Q. and the video for an easy registration are available on: www.hooveronetouch.com/how-to

Close-up of a white plastic panel with a black handle and arrow indicator (no text or symbols)

Architectural floor plan sketch showing room layout and structural elements (no text or labels)

Air Outlets in the Base

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

ATTENZIONE:

Hand holding a small object with directional arrows indicating rotation or movement (no text or symbols)

2. KIT ACCESSORIO TUBO FLESSIBILE DI SCARICO: ISTRUZIONI PER IL MONTAGGIO

Line drawing of a washing machine with a circular vent and control panel (no text or symbols)

Close-up of a hand holding a tool near a surface, no visible text or symbols

Close-up of hands holding a tool or device, possibly a tool or tool, with no visible text or symbols.

Close-up of a hand holding a tool with a metallic connector, no visible text or symbols

Close-up of a hand holding a tool with a coiled cable, no visible text or symbols

Exterior view of a white industrial pipe outlet next to a black rope, with brick wall and numbered label (6) in top-left corner

Cross-sectional diagram of a mechanical component with an arrow indicating upward motion (no text or symbols)

Simple line drawing of a container pouring liquid into a container with a label (B) in the corner, no text or symbols present.

Diagram of a backpack with labeled parts and directional arrows indicating motion or movement

FUNZIONAMENTO

Line drawing of a hand placing a rectangular object into a car's side panel (no text or symbols)

Illustration of hands assembling a mechanical component (no text or symbols visible)

Illustration of hands holding a rectangular device with a fan inside, no text or symbols visible

Simple diagram with a rectangular frame containing four small figures, no text or symbols present.

Illustration of hands holding a metallic object with a numbered label (3) in the corner, no text or symbols present.

Illustration of hands holding a flatbed object with a shaded blade, no text or symbols present

Hand inserting a plug into a socket (no text or symbols visible)

Close-up of two pairs of shoes partially submerged in a dark container (no visible text or symbols)

Close-up of two white ceramic feet with decorative patterns, mounted on a dark base (no visible text or symbols)

Hand holding a smartphone displaying a 'ONE CHINESE' logo on a washing machine (no text or symbols on the device itself)

NOTE:

Close-up of a white plastic sheet with a black tool and arrow indicator (no text or symbols)

Pure architectural floor plan lines without any text, numbers, or symbols

Air Outlets in the Base

Hand holding a small object with directional arrows indicating rotation or movement (no text or symbols)

2.AFVOERSLANG KIT: MONTAGE-INSTRUCTIES

Line drawing of a washing machine with a circular vent and side-mounted buttons (no text or symbols)

Close-up of hands holding a tool near a curved surface, possibly a pipe or tool, with no visible text or symbols.

1. Koppel de slang los van de brug-verbindin

Close-up of a mechanical component with no visible text or symbols

Close-up of a hand holding a small mechanical component, possibly a tool or tool, with no visible text or symbols.

Close-up of a hand holding a pen with a coiled cable, no visible text or symbols

Exterior view of a white toilet with black hoses on the floor (no visible text or symbols)

3. HET WASGOED VOORBEREIDEN

Cross-sectional diagram of a mechanical component with an arrow indicating upward motion, labeled 'A' in the corner (no text or symbols within the diagram itself)

Simple line drawing of a container pouring liquid into a container (no text or symbols)

Diagram of a backpack with labeled parts and directional arrows indicating movement or rotation

BEDIENING

Line drawing of a hand holding a rectangular object inside a car's side panel (no text or symbols)

Illustration of hands assembling or folding a folded paper structure (no text or symbols visible)

Illustration of hands holding a mechanical component with a fan inside, no text or symbols present

Simple diagram with a rectangular frame containing four small figures, no text or symbols present.

Illustration of two hands holding a metallic object, labeled with number 3 (no text or symbols on the object itself)

Illustration of hands holding a rectangular object with a blade, no text or symbols present

Hand placing a component into a rectangular device (no text or symbols visible)

-DELICAAT OF SYNTHETISCH

TE MAKEN TEXTIEL

Close-up of two dark, textured shoes with laces, partially covered by a dark surface (no visible text or symbols)

Close-up of two white ceramic feet with decorative patterns, mounted on a dark base (no visible text or symbols)

Close-up of a mechanical component with a circular arrow indicating direction (no visible text or symbols)

Architectural site plan showing building layout and surrounding roads (no text or labels)

Air Outlets in the Base

Hand holding a small object with directional arrows indicating rotation or movement (no text or symbols)

2. TUBO DE DRENAGEM: INSTRUÇÕES DE INSTALAÇÃO

Line drawing of a washing machine with a circular vent and fan (no text or symbols)

Close-up of a hand holding a tool near a vehicle (no visible text or symbols)

Close-up of a mechanical component with no visible text or symbols

Close-up of a hand holding a pen tip against a textured background (no visible text or symbols)

Close-up of a hand holding a tool with a wire, no visible text or symbols

Close-up of a white toilet with a black hose attached to the floor, next to a brick wall (no visible text or symbols)

Cross-sectional diagram of a mechanical component with an arrow indicating upward motion (no text or symbols)

Diagram of a container pouring liquid into a tank (no text or symbols)

Diagram of a backpack with labeled parts and directional arrows indicating movement or rotation

Diagram of a backpack with labeled parts and directional arrows indicating motion or movement

UTILIZAÇÃO

Line drawing of a hand holding a rectangular object inside a car (no text or symbols)

Illustration of hands assembling or folding a mechanical component (no text or symbols visible)

Indicador de Controlo do Estado do Filtro

Illustration of hands holding a mechanical component with a circular component and a wavy pattern, labeled with number 1 (no text or symbols on the diagram itself)

Simple diagram with a rectangular frame containing four small figures, no text or symbols present.

Illustration of hands holding a metallic object with a numbered label (3) in the corner, no text or symbols present.

Illustration of hands holding a tool or device with a shaded blade, no text or symbols present

Hand inserting a component into a device housing (no text or symbols visible)

Limpe os filtros antes de cada ciclo

7. CONTROLOS E INDICADORES

A E ONETOUCH 59' 45' 30' B 59' 45' 30' D ONETOUCH C 7 6 5 4 3 2 1 8

A-Seletor de ciclos -

Close-up of dental crowns and teeth in a clinical setting (no visible text or symbols)

Close-up of two white footshells with decorative patterns, mounted on a dark base (no visible text or symbols)

Close-up of a camera mounted on a stand with a circular arrow indicating direction (no text or symbols visible)

Pure architectural floor plan lines without any text, numbers, or symbols

Air Outlets in the Base

Hand holding a small object with directional arrows indicating motion or rotation (no text or symbols)

Line drawing of a washing machine with a circular vent and side-mounted buttons (no text or symbols)

Close-up of hands using a power tool to apply electrical wire (no text or symbols visible)

Close-up of a hand holding a tool with wire wrapped around a cylindrical component (no visible text or symbols)

Exterior view of a white toilet with a hose and circular number 6 on the left wall (no text or symbols visible)

Close-up of hands holding a tool near a surface, no visible text or symbols

Close-up of hands operating a mechanical device with a numbered label (3) in the corner, no visible text or symbols on the device itself.

Diagram of a backpack with labeled parts and directional arrows indicating movement or rotation

Cross-sectional diagram of a mechanical component with an arrow indicating upward motion (no text or symbols)

Diagram of a container pouring liquid into a container with a bottle nearby (no text or symbols)

FUNCIONAMIENTO

Line drawing of a hand holding an open book inside a car (no text or symbols)

Illustration of hands holding a folded or layered object with visible internal structure (no text or symbols)

Illustration of hands holding a mechanical component with a circular component and a textured surface (no text or symbols)

Simple diagram showing a rectangular container with three small fish-like shapes inside, labeled with number ② (no text or symbols on the diagram itself)

Illustration of hands holding a metallic object with a numbered label (3) at the bottom left corner.

Illustration of hands holding a knife and a blade, no text or symbols present

s n el ⑤

Close-up of two pairs of shoes partially submerged in a dark container (no visible text or symbols)

Close-up of two white ceramic feet with decorative patterns, mounted on a dark base (no visible text or symbols)

Hand holding a smartphone displaying a washing machine with 'One Bowl' branding (no text on device or background)

NOTAS:

Close-up of a mechanical component with a circular arrow indicating direction (no visible text or symbols)

What Might be the Cause of...
