PT-LB2U PT-LB1U Thank you for purchasing a Panasonic Projector. Before operating this product, please read the instructions carefully, and save this manual for future use. Before using your projector, be sure to read “Precautions with regard to safety” (pages 5 to 9). For network operation, please read the Network Operation Manual. ENGLISH TQBJ0322-1 AUTO SETUP MENU RETURNENTERFREEZE

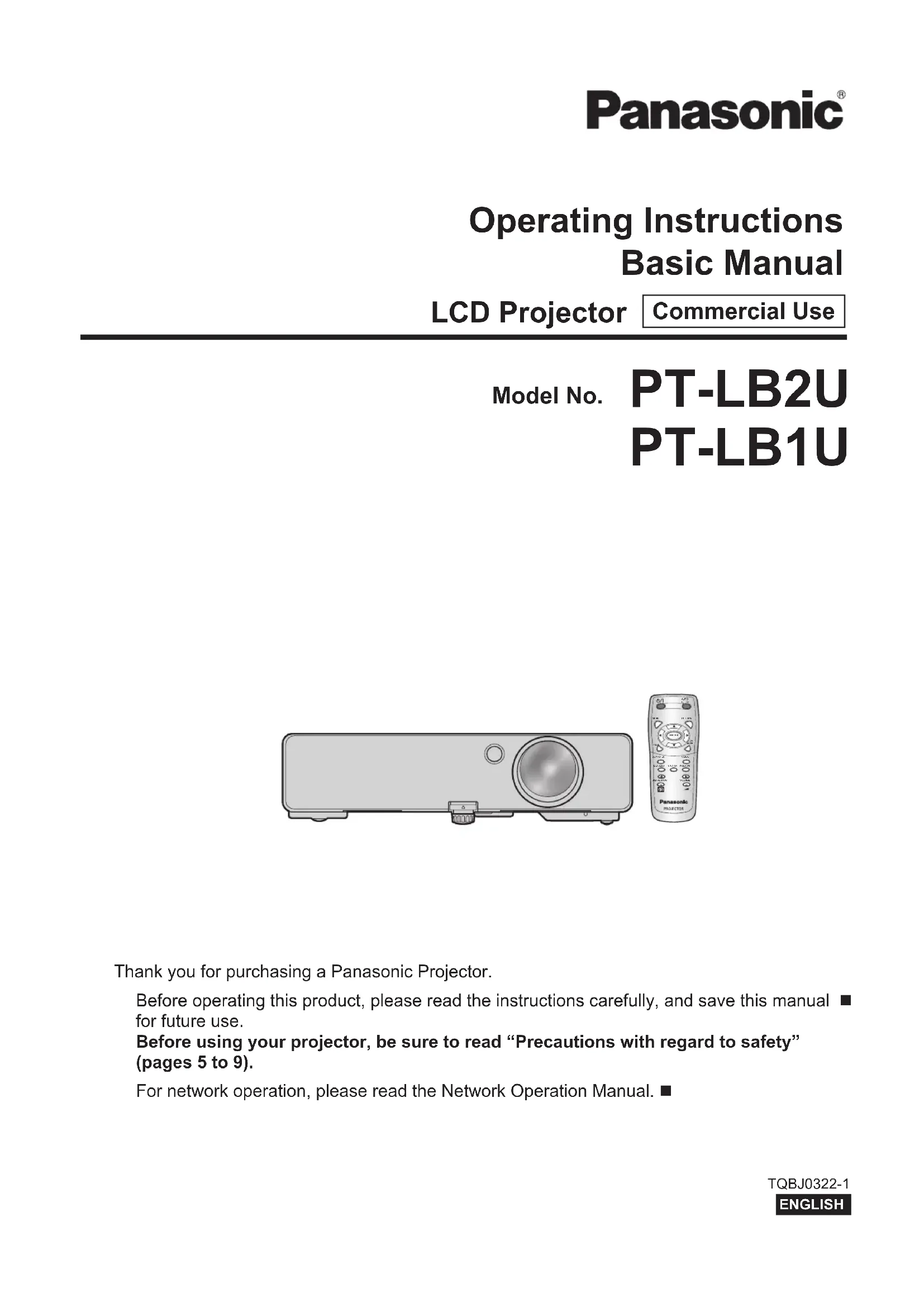

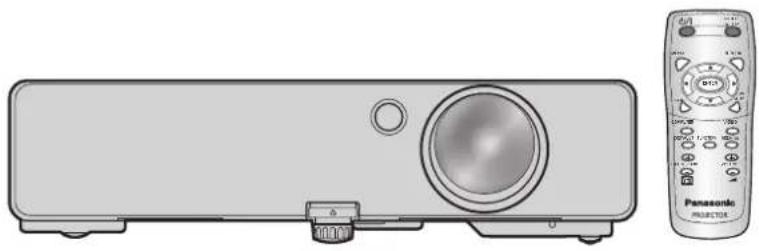

Operating Instructions Basic Manual LCD Projector Commercial Use Model No.Essential information

ENGLISH Important Safety Notice Dear Panasonic Customer: The following information should be read and understood as it provides details, which will enable you to operate the projector in a manner which is both safe to you and your environment, and conforms to legal requirements regarding the use of projectors. Keep this booklet with your Panasonic LCD projector for future reference. The serial number of your product may be found on its bottom. Write it in the space provided below and retain this booklet in case service is required. Model number: PT-LB2U/PT-LB1U Serial number:

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO

RAIN OR MOISTURE. Power Supply: This LCD Projector is designed to operate on 100 V - 240 V, 50 Hz/60 Hz AC, house current only. CAUTION: The AC power cord which is supplied with the projector as an accessory can only be used for power supplies up to 125 V, 7 A. If you need to use higher voltages or currents than this, you will need to obtain a separate 250 V power cord. If you use the accessory cord in such situations, re may result. The lightning ash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufcient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. CAUTION: This equipment is equipped with a three-pin grounding-type power plug. Do not remove the grounding pin on the power plug. This plug will only t a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact an electrician. Do not defeat the purpose of the grounding plug. Do not remove Pursuant to at the directive 2004/108/EC, article 9(2) Pursuant to at the directive 2005/32/EC amended by 2008/28/EC, article 14 Panasonic Testing Center Panasonic Service Europe, a division of Panasonic Marketing Europe GmbH Winsbergring 15, 22525 Hamburg, F.R. Germany NOTICE: This product has a High Intensity Discharge (HID) lamp that contains mercury. Dispose may be regulated in your community due to environmental considerations. For disposal or recycling information, please contact your local authorities, or the Electronic Industries Alliance: http://www.eiae.org Essential informationEssential information ENGLISH

Important Safety Notice (continued)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.• Consult the dealer or an experienced radio/TV technician for help.• FCC CAUTION: To assure continued compliance, follow the attached installation instructions and use only shielded interface cables when connecting to computer and/or peripheral devices. Any changes or modications not expressly approved by Panasonic Corp. of North America could void the user’s authority to operate this device.

Not for use in a computer room as dened in the Standard for the Protection of Electronic Computer/Data • Processing Equipment, ANSI/NFPA 75. For permanently connected equipment, a readily accessible disconnect device shall be incorporated in the • building installation wiring. For pluggable equipment, the socket-outlet shall be installed near the equipment and shall be easily • accessible. Declaration of Conformity Model Number: PT-LB2U/PT-LB1U Trade Name: Panasonic Responsible party: Panasonic Solutions Company Address: 3 Panasonic Way, Secaucus, NJ 07094 Telephone number: (877) 803 - 8492 E-mail: projectorsupport@us.panasonic.com This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Information on Disposal in other Countries outside the European These symbols are only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal. Environment care information for users in China This symbol is only valid in China.4

Standby power reduction The standby power has been immensely reduced compared to the previous model. Approx. 0.9 W (PT-LB90NTU)Approx. 0.4 W (PT-LB2U/PT-LB1U)(Standby mode: In “ECO”) User logo display function You can project your company’s logo when projection starts. (

page 34) Longer lamp life The lamp replacement cycle is longer than the former model. (

Precautions with regard to safety WARNING POWER The wall outlet or the circuit breaker shall be installed near the equipment and shall be easily accessible when problems occur. If the followings problems occur, cut off the power supply immediately. Continued use of the projector in these conditions will result in re or electric shock. If foreign objects or water get inside the projector, cut • off the power supply. If the projector is dropped or the cabinet is broken, cut • off the power supply. If you notice smoke, strange smells or noise coming • from the projector, cut off the power supply. Please contact an Authorized Service Center for repairs, and do not attempt to repair the projector yourself. During a thunderstorm, do not touch the projector or the cable. Electric shocks can result. Do not do anything that might damage the power cord or the power plug. If the power cord is used while damaged, electric shocks, short-circuits or re will result. Do not damage the power cord, make any • modications to it, place it near any hot objects, bend it excessively, twist it, pull it, place heavy objects on top of it or wrap it into a bundle. Ask an Authorized Service Center to carry out any repairs to the power cord that might be necessary. Insert the power plug securely into the wall outlet. If the plug is not inserted correctly, electric shocks or overheating will result. Do not use anything other than the provided power • cord. Do not use the provided power cord for other • electrical equipment. Do not use plugs which are damaged or wall outlets • which are coming loose from the wall. Clean the power plug regularly to prevent it from becoming covered in dust. Failure to observe this will cause a re. If dust builds up on the power plug, the resulting • humidity can damage the insulation. If not using the projector for an extended period of • time, pull the power plug out from the wall outlet. Pull the power plug out from the wall outlet and wipe it with a dry cloth regularly. Do not handle the power plug with wet hands. Failure to observe this will result in electric shocks. Do not overload the wall outlet. If the power supply is overloaded (ex., by using too many adapters), overheating may occur and re will result.

Do not place liquid containers on top of the projector. If water spills onto the projector or gets inside it, re or electric shocks will result. If any water gets inside the projector, contact an Authorized Service Center. Do not place the projector on soft materials such as carpets or sponge mats. Doing so will cause the projector to overheat, which can cause burns, re or damage to the projector. Do not set up the projector in humid or dusty places or in places where the projector may come into contact with oily smoke or steam, ex. a bathroom. Using the projector under such conditions will result in re, electric shocks or components deterioration. Components deterioration (such as ceiling mount brackets) may cause the projector which is mounted on the ceiling to fall down. Do not install this projector in a place which is not strong enough to take the full weight of the projector or on top of a surface which is sloped or unstable. Failure to observe this will cause projector to fall down or tip over the projector, and severe injury or damage could result. Do not place another projector or other heavy objects on top of the projector. Failure to observe this will cause the projector to become unbalanced and fall, which could result in damage or injury. The projector will be damaged or deformed. Installation work (such as ceiling suspension) should only be carried out by a qualied technician. If installation is not carried out and secured correctly it can cause injury or accidents, such as electric shocks. Do not use anything other than an Authorized ceiling • mount bracket. Do not cover the air inlet port or the air outlet port. Doing so will cause the projector to overheat, which can cause re or damage to the projector. Do not place the projector in narrow, badly ventilated • places such as closets or bookshelves. Do not place the projector on cloth or papers, as • these materials could be drawn into the air inlet port. Do not place your hands or other objects close to the air outlet port. Doing so will cause burns or damage your hands or other objects. Heated air comes out of the air outlet port. Do not • place your hands or face, or objects which cannot withstand heat close to this port.Essential information

ENGLISH Precautions with regard to safety (continued) Do not look and place your skin into the lights emitted from the lens while the projector is being used. Doing so can cause burns or loss of sight. Strong light is emitted from the projector’s lens. Do • not look or place your hands directly into this light. Be especially careful not to let young children look • into the lens. In addition, turn off the power and disconnect the power plug when you are away from the projector. Do not insert any foreign objects into the projector. Doing so will cause re or electric shocks. Do not insert any metal objects or ammable objects • into the projector or drop them onto the projector. Never attempt to remodel or disassemble the projector. High voltages can cause re or electric shocks. For any inspection, adjustment and repair work, please contact an Authorized Service Center. Do not project an image with the supplied lens cover attached. Doing so can cause re. ACCESSORIES Do not use or handle the batteries improperly, and refer to the following. Failure to observe this will cause burns, batteries to leak, overheat, explode or catch re. Do not use unspecied batteries.• Use manganese batteries but not rechargeable • batteries. Do not dissemble dry cell batteries.• Do not heat the batteries or place them into water or • re. Do not allow the + and – terminals of the batteries • to come into contact with metallic objects such as necklaces or hairpins. Do not store batteries together with metallic objects.• Store the batteries in a plastic bag and keep them • away from metallic objects. Make sure the polarities (+ and •

) are correct when inserting the batteries. Do not use a new battery together with an old battery • or mix different types of batteries. Do not use batteries with the outer cover peeling • away or removed. Remove the empty batteries from the remote control • at once. Insulate the battery using tape or something similar • before disposal. Do not allow children to reach the AAA/R03 battery. The battery can cause personal injury if swallowed.• If swallowed, seek medical advice immediately.• If the battery uid leaks, do not touch it with bare hands, and take the following measures if necessary. Battery uid on your skin or clothing could result in • skin inammation or injury. Rinse with clean water and seek medical advice immediately. Battery uid coming in contact with your eyes could • result in loss of sight. In this case, do not rub your eyes. Rinse with clean water and seek medical advice immediately. Do not disassemble the lamp unit. If the lamp breaks, it could cause injury. Lamp replacement The lamp has high internal pressure. If improperly handled, an explosion and severe injury or accidents will result. Replacement of the lamp should be carried out by a • qualied technician. The lamp can easily explode if struck against hard • objects or dropped. Before replacing the lamp, be sure to disconnect the • power plug from the wall outlet. Electric shocks or explosions can result if this is not done. When replacing the lamp, allow it to cool for at least • one hour before handling it otherwise it can cause burns. Do not allow infants or pets to touch the remote control unit. Keep the remote control unit out of the reach of • infants and pets after using it. CAUTION POWER When disconnecting the power cord, be sure to hold the power plug and power connector. If the power cord itself is pulled, the lead will become damaged, and re, short-circuits or serious electric shocks will result. When not using the projector for an extended period of time, disconnect the power plug from the wall outlet and remove the batteries from the remote control. Disconnect the power plug from the wall outlet before carrying out any cleaning. Electric shocks can result if this is not done.Essential information ENGLISH

Precautions with regard to safety (continued)

Do not put your weight on this projector. You could fall or the projector could break, and injury will result. Be especially careful not to let young children stand or • sit on the projector. Do not place the projector in extremely hot locations. Doing so will cause the outer casing or internal components to deteriorate, or result in re. Take particular care in locations exposed to direct • sunlight or near stoves. Always disconnect all cables before moving the projector. Moving the projector with cables still attached can damage the cables, which will cause re or electric shocks to occur. ACCESSORIES Do not use the old lamp unit. If used it could cause lamp explosion. If the lamp has broken, ventilate the room immediately. Do not touch or bring your face close to the broken pieces. Failure to observe this will cause the user to absorb the gas which was released when the lamp broke and which contains nearly the same amount of mercury as uorescent lamps, and the broken pieces will cause injury. If you believe that you have absorbed the gas or that the gas has got into your eyes or mouth, seek medical advice immediately. Ask your dealer about replacing the lamp unit and check the inside of the projector.

CAUTIONS WHEN TRANSPORTING

When transporting the projector, the leg adjusters must be housed and do not hold them. When transporting, keep the projector in the provided carrying bag with the lens cover on it. Face the lens of the projector in an upward direction • and put it gently into the carrying bag. Do not put anything other than the projector and its • accessories in the carrying bag.

CONDITIONS. Do not set up the projector outdoors.• The projector is designed for indoor use only. Avoid setting up in places which are subject to • vibration or shocks. If the projector is installed in a place where vibrations are transmitted or mounted in a car or a vessel, vibrations or impacts will result in damage to the internal parts, causing failure. Install the product in a place free from vibrations and impacts. Avoid setting up in places which are subject to • sudden temperature changes, such as near an air conditioner or lighting equipment. Failure to observe this will result in malfunctions or the lamp life will be shortened. See “TEMP INDICATOR” on page 43. Avoid setting up in places which are near high-• voltage power lines or near motors. The product will be exposed to interference if it is installed in the vicinity of high-voltage electrical power lines or power sources.

• Do not install the projector at elevations higher than 2 700 m (8 858 ft) above sea level. If using this projector at high elevations 1 400 - 2 700 m (4 593 - 8 858 ft) above sea level, set the HIGH ALTITUDE MODE to ON. If using this projector at elevations lower than 1 400 m (4 593 ft) above sea level, set the HIGH ALTITUDE MODE to OFF. Failure to observe this will result in malfunctions or the lamp life or life of other components will be shortened.

PRODUCT TO A CEILING. If the product is to be installed hanging from the ceiling, purchase an optional hanging attachment (Model No. ET-PKB2). Please call a specialized technician or contact an Authorized Service Center for installation. LENS FOCUS Do not adjust the lens focus in the initial period after switching the projector on. The high clarity projector lens is thermally affected by the light from the light source, making the focus unstable in the period just after switching on. Please allow a warm-up time of at least 30 minutes before adjusting the lens focus.Essential information

ENGLISH Precautions with regard to safety (continued)

IN ORDER TO GET THE PICTURE QUALITY Draw curtains or blinds over windows and turn off any lights near the screen to prevent outside light or light from indoor lamps from shining onto the screen. Depending on where the projector is used, air exhaust vents or the warm air from air conditioning can cause a shimmering effect on the screen. For this reason, take care not to shield the air exhaust vents and consider the direction of the air owing from air conditioning. DO NOT TOUCH THE SURFACE OF THE PROJECTOR LENS WITH YOUR BARE HAND. If the surface of the lens becomes dirty from ngerprints or anything else, this will be magnied and projected onto the screen. Please put the standard lens cover on the projector when you do not use it.

DO NOT MOVE THE PROJECTOR WHILE

IT IS OPERATING OR SUBJECT IT TO VIBRATION OR IMPACT. The service life of its internal components will be shortened.

CHARACTERIZED AS FOLLOWS: The brightness of the lamp will decrease over time.• The lamp may explode or shorten the lamp life by • shocks or chipping damage. In rare cases, it may burst shortly after the rst use.• The possibility of its bursting increases when the lamp • is used beyond the replacement time. If the lamp bursts, gas inside the lamp is released in • the form of smoke. The life of a mercury lamp varies according to the • individual difference or conditions of use. In particular, turning the power on and off frequently • and/or repeatedly as well as continuous use for 10 hours will greatly affect the life cycle. Provide a lamp for replacement in advance.

CONNECTION TO EXTERNAL DEVICE

When connecting the projector to a computer or external device, use the power cord supplied with the corresponding device and a commercially available shielded interface cable. OPTICAL COMPONENTS It may be necessary to replace the optical components such as Liquid crystal panels and Polarizing plates in less than 1 year if using the projector in a high temperature environment or in a very dusty, oily smoke or tobacco smoke environment. For more details, please contact your dealer.

LIQUID CRYSTAL PANEL

The Liquid crystal panels are precision-made. Note that in rare cases, pixels of high precision could be missing or always lit, but this is not a malfunction. Do not project the same image for long periods of time, as this may remain as an afterimage on the liquid crystal panel. Display the white screen test pattern for more than an hour to remove it. See “TEST PATTERN” on page 39. SECURITY

TAKE SAFETY MEASURES AGAINST

FOLLOWING INCIDENTS. Personal information being leaked via this product.• Unauthorized operation of this product by a malicious • third party. Interfering or stopping of this product by a malicious • third party. SECURITY INSTRUCTION The connecting network must be secured by rewall • or others. Change your password regularly.• Do not use a password that is simple to guess.• Panasonic and its afliate companies would never • directly inquire about your password. Do not share your password with the general public.• Set a password, and place restrictions on the users • who can log in.Essential information ENGLISH

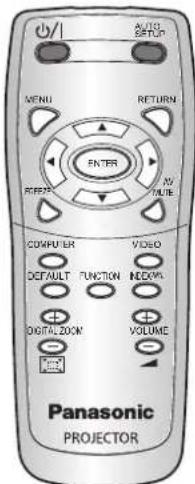

Precautions with regard to safety (continued) SUPPLIED ACCESSORIES Make sure that the following accessories are provided with your projector. Remote control (×1) (N2QAYA000011) AUTO SETUP MENU RETURN ENTER FREEZE

MUTE COMPUTER VIDEO DEFAULT FUNCTION WIN. INDEX- DIGITAL ZOOM VOLUME Power cord (×1) (K2CG3YY00072) RGB signal cable (×1) 1.8 m (5' 10") (K1HY15YY0009) Power cord secure lock (×1) (TTRA0185) AAA/R03 batteries for Remote control (×2) Carrying bag (×1) (TPEP033) Lens cover (×1) (TKKL5499) (Attached to the projector by default.) CD-ROM (×1) (TXFQB02VKN5) NOTE: The protectors for the enclosed products, such as a plug cover or foam cartons, must be handled appropriately.• Contact an Authorized Service Center for any lost accessories.• Keep the accessories away from children.• The model Nos. of the accessories and parts sold separately are subject to change without notice.• NOTE: This product contains a CR Coin Cell Lithium Battery which contains Perchlorate Material - special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate.

CLEANING AND MAINTENANCE

ASK AN AUTHORIZED SERVICE

CENTER TO CLEAN THE INSIDE OF THE PROJECTOR AT LEAST ONCE A YEAR. If dust is left to build up inside the projector without being cleaned out, it can result in re or problems with operation. It is a good idea to clean the inside of the projector before the season when humid weather arrives. Ask your nearest Authorized Service Center to clean the projector when required. Please discuss with the Authorized Service Center regarding cleaning costs. DISPOSAL When discarding this product, please contact your local authorities or dealer and ask for the correct method of disposal.Preparation

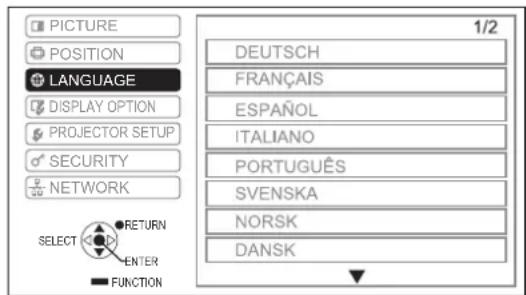

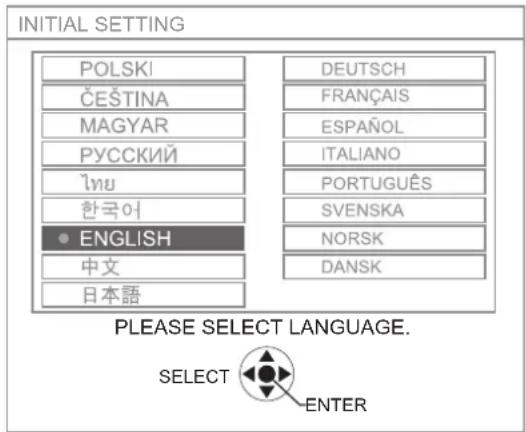

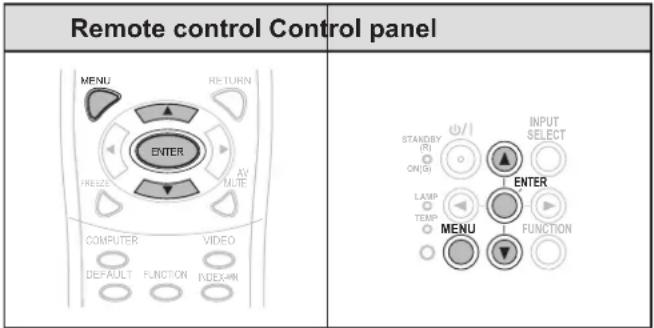

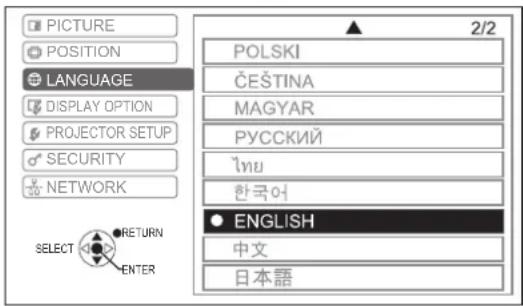

ENGLISH Start-up display The LANGUAGE and INITIAL SETTING menu will be displayed when the projector is turned on for the rst time or after it has been initialized. (

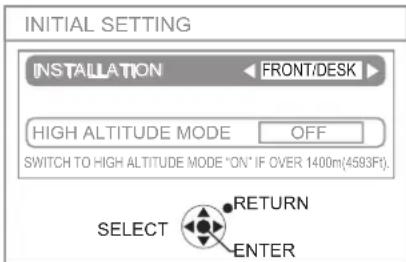

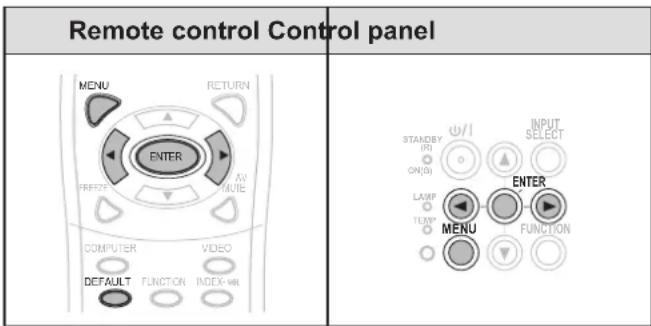

page 39) Navigate the DISPLAY OPTION menu to set the menus in accordance to its application and environment settings. NOTE: When the projector is turned on for the rst time, you may be required to adjust the “zoom ring” and “focus ring” • (

page 11) on the top of the projector body to make the menu screen clearer. For details, see POSITION THE IMAGE. (

page 15, 37) FRONT/ DESK Put it on a desk or oor and project from the front FRONT/ CEILING Mount it on the ceiling with a ceiling mount bracket (sold separately) and project from the front REAR/ DESK Put it on a desk or oor and project from the rear (a translucent screen is required) REAR/ CEILING Mount it on the ceiling with a ceiling mount bracket (sold separately) and project from the rear (a translucent screen is required)

Navigate through the menus. Conrm selection.

Create shortcut assigned to certain selected function. (

Switch the input connections.

Switch between standby mode and projection mode. (

Remote control signal receptor

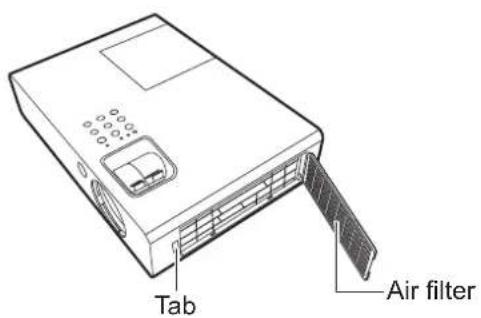

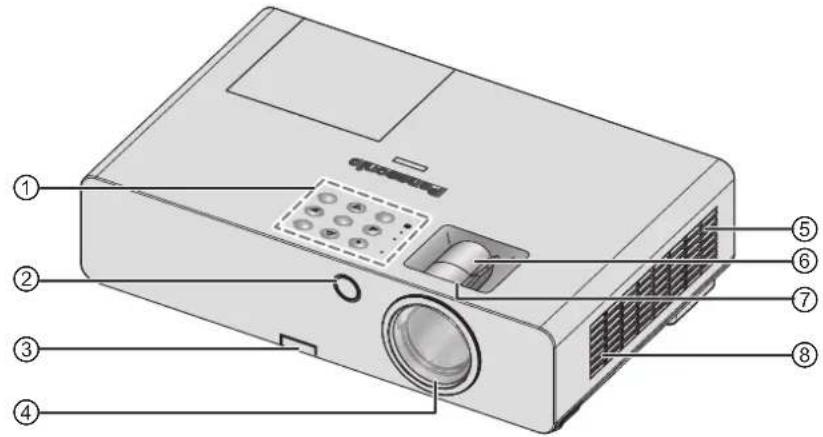

Air lter compartment (

Zoom ring – To adjust the size of projection.

Focus ring – To adjust the focus. (

ENGLISH Details of your projector (continued)

Remote control signal receptor

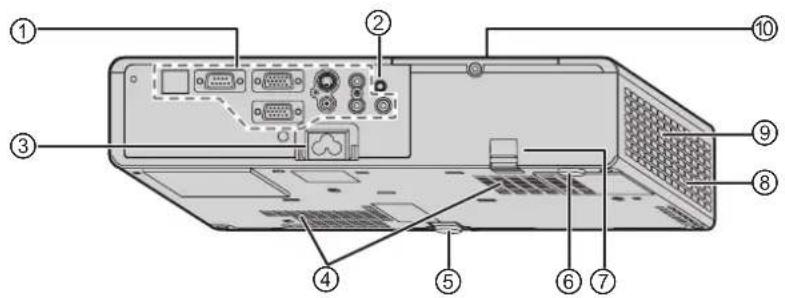

AC IN Connect the power cord to supply electric power to the projector. (

Front leg adjuster To adjust the projection angle. (

Rear leg adjuster To adjust the projection angle. (

Air outlet port Hot air comes out from this opening.

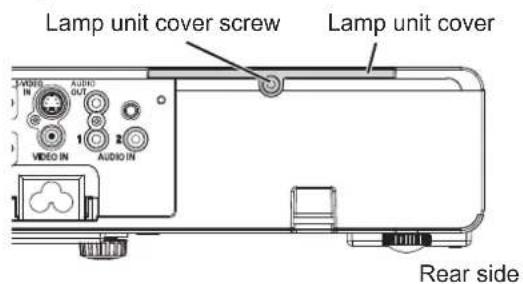

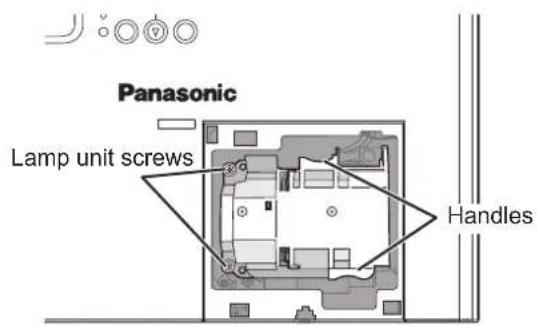

Lamp unit compartment (

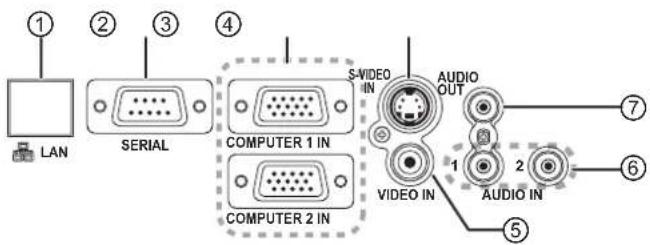

Connect to a network cable. (See “Network Operation Manual”.)

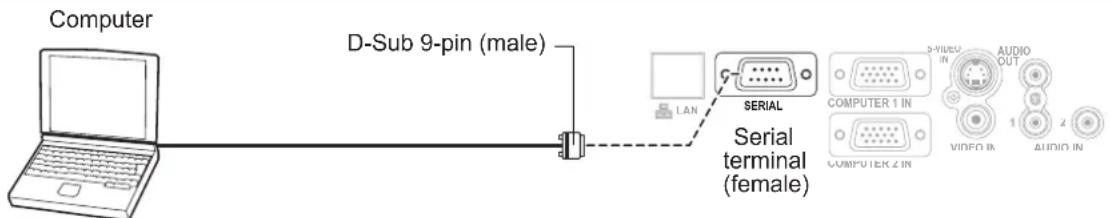

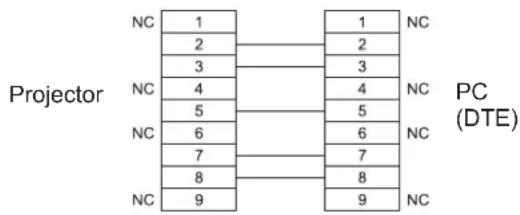

Connect to a computer to control the projector’s operation.

Connect to a computer or YP

Connect to an S-VIDEO signal cable.

Connect to a VIDEO signal cable.

Connect an audio cable for audio signal output to the connected equipment. If it is connected to this terminal, no sound comes out of the built-in speaker.

page 16, 17) NOTE: Do not place your hands or other objects close to the air outlet port as this may cause damage or injury.• Do not place your hands or face, or objects which cannot withstand heat near the air outlet port. Hot air comes out • from this port. Rear and bottom view Terminals LAN SERIALCOMPUTER 1 INS-VIDEO

NOTE: Do not connect any power cable other than the attached one.• Do not cover the ventilation openings of the air intake port or air outlet port. •Preparation ENGLISH

Details of your projector (continued)

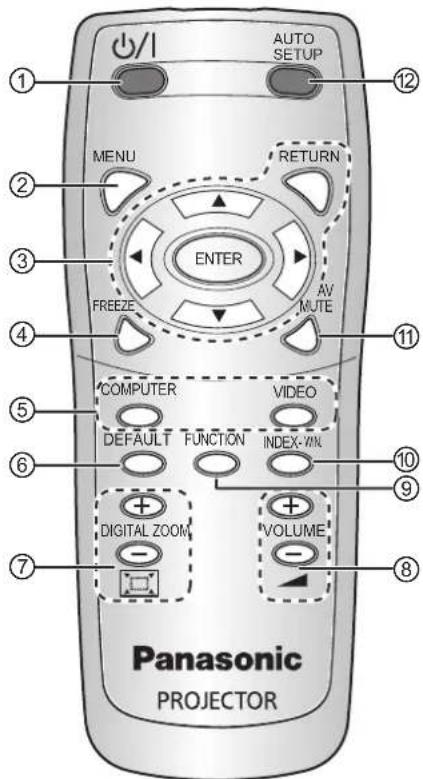

PROJECTOR’S REMOTE CONTROL

Top and rear view Remote control signal emitters Installing/removing batteries Press the tab and lift up the cover. Insert the batteries according to the polarity diagram indicated inside or remove. Use only manganese batteries. Front view AUTO SETUP MENU RETURN ENTER FREEZE

POWER Switch between standby mode and projection mode. (

Navigate through the menus with [

] and conrm the selection with [ENTER]. (

Capture the projected image as a frozen picture.

Switch the required input signal button to select.

Reset some of the settings to the factory default settings. (

Control the zoom size. (

Create shortcut assigned to certain selected function. (

Display frozen image while the display of subsequent images continues. (

Turn off the projection temporarily. (

page 23) NOTE: Do not drop the remote control.• Avoid contact with liquids or moisture.• Do not attempt to modify or disassemble the remote control.• Do not let strong light shine onto the signal receptor which will cause a malfunction. • The remote control operates within the range of 7 m (23' 0"), approximately ±30 ° vertically and horizontally from the projector • avoiding any obstacles. The operating range may differ due to the screen material and may not be effective with a translucent screen. •Getting started

ENGLISH Set up your projector

SCREEN SIZE AND THROW DISTANCE

You can adjust the projection size with 1.2× zoom lens. Calculate and dene the throw distance as follows.

Projected imageScreenScreen (All measurements below are approximate and may differ slightly from the actual measurements.) Projection size For 4:3 aspect ratio For 16:9 aspect ratio Screen diagonal (SD) Minimum distance (LW) Maximum distance (LT) Minimum distance (LW) Maximum distance (LT) PT-LB2 PT-LB1 PT-LB2 PT-LB1 PT-LB2 PT-LB1 PT-LB2 PT-LB1

) × 0.0125 Screen width (SW) = SD (

) × 0.0221 Minimum distance (LW) PT-LB2 = 0.0292 × SD (

0.025 = 0.0318 × SD (

PT-LB1 = 0.0302 × SD (

Maximum distance (LT) PT-LB2 = 0.0351 × SD (

PT-LB1 = 0.0358 × SD (

0.035 = 0.0391 × SD (

NOTE: For best projection image quality, install a screen where sunlight or room lightings do not • shine directly onto the screen. Close window shades or curtains to block the light and turn off the lightings. Do not use the projector at a raised or horizontally tilted position. It may cause the • projector to malfunction. However, you can tilt the projector’s body approximately ±30 ° vertically and ±10 ° horizontally. Over tilting may result in shortening the component’s life. Do not cover the air outlet port and air intake ports or place anything within 50 cm (20") near them as this may cause damage • or injury. +30 °

30 ° Getting startedGetting started ENGLISH

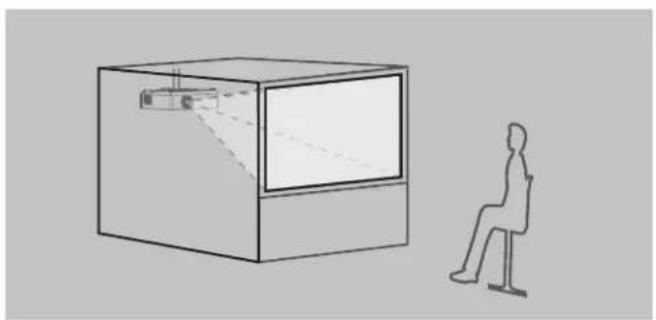

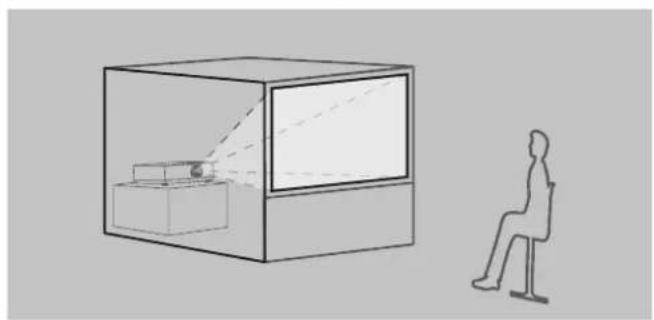

Set up your projector (continued) PROJECTION METHOD See “INSTALLATION” on page 37 to select the projection method. Put it on a desk or oor and project from the front Mount it on the ceiling and project from the front Menu Method

Put it on a desk or oor and project from the rear (Use translucent screen) Mount it on the ceiling and project from the rear (Use translucent screen) Menu Method

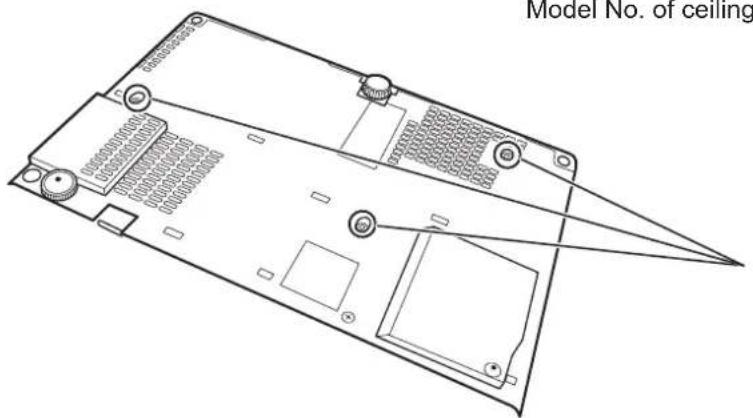

NOTE: Use the optional ceiling mount bracket (ET-PKB2) when mounting the projector on the ceiling.• You can adjust the projection angle in the vertical direction by adjusting the leg adjuster button. • (

page 22)Getting started

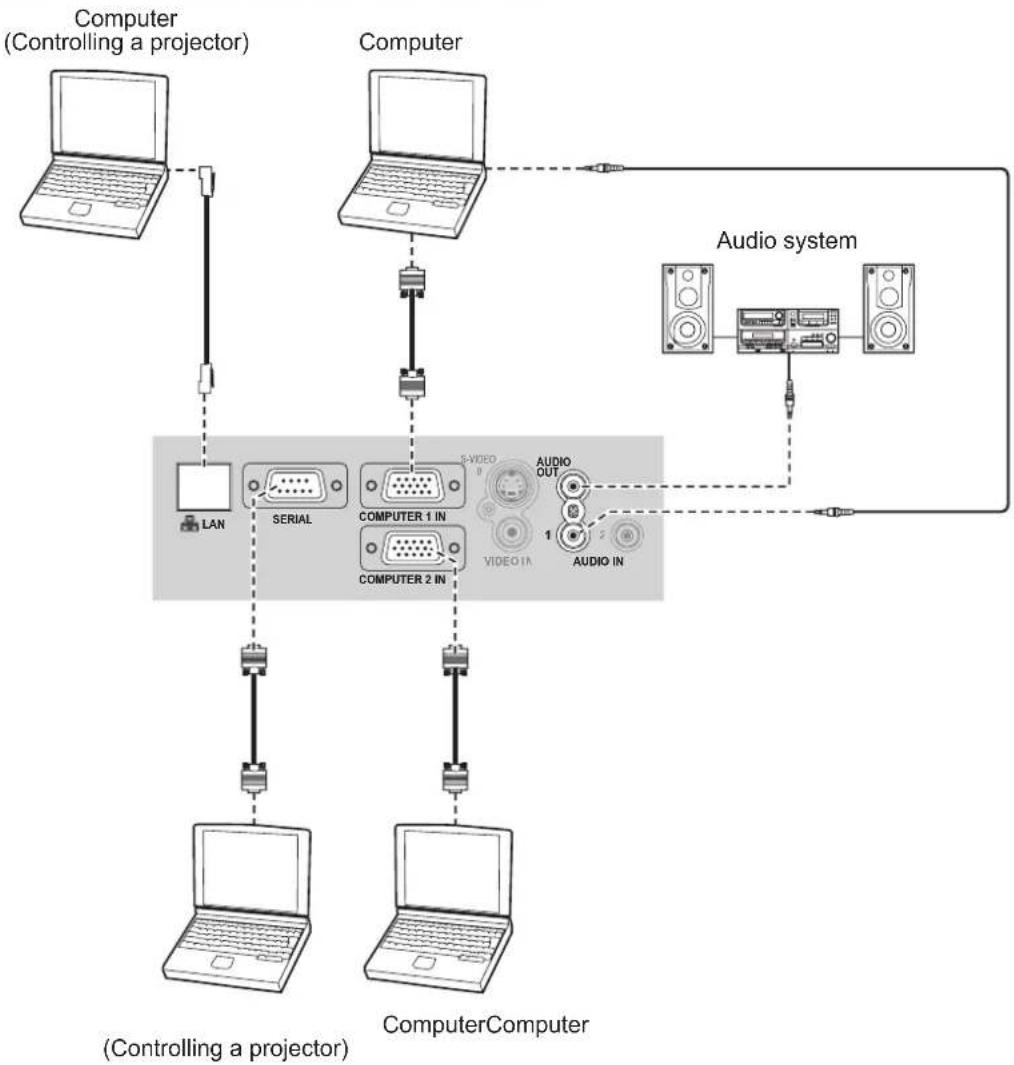

ENGLISH Connections Preparations Read and follow the operating instructions of each peripheral device and turn the peripheral devices off prior to • making any connections. Prepare the selected peripheral devices with the connection cables that correspond to the projector’s terminals.• All peripheral devices and cables used for the connections are sold separately unless indicated otherwise.• If the input signal is affected by signal jitter, the projected image may have poor image quality and timebase • correction is effective. Conrm the types of video signals, • see “LIST OF COMPATIBLE SIGNALS”. (

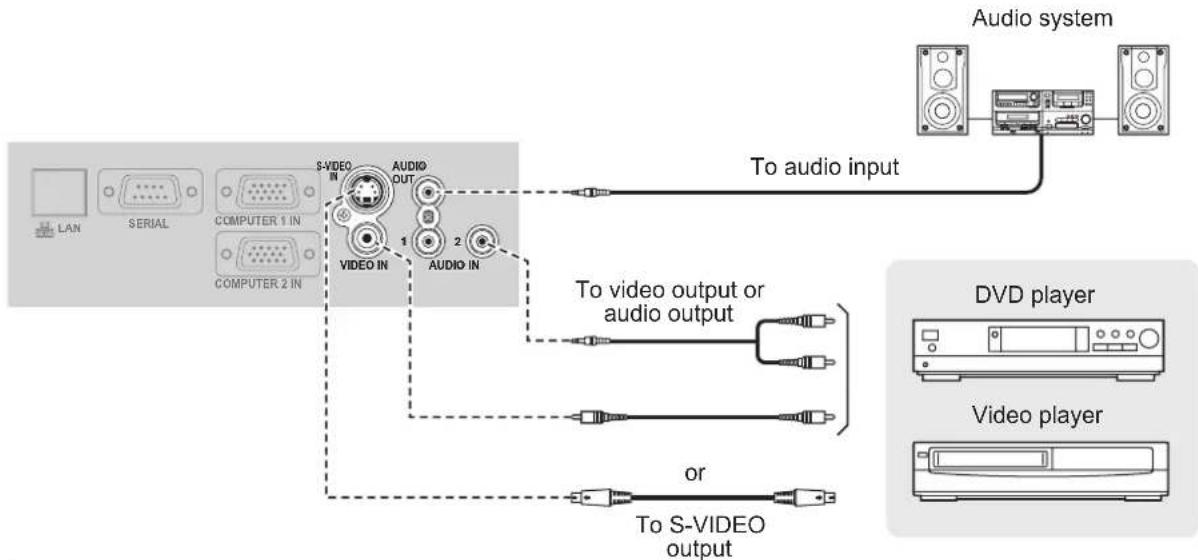

AUDIO OUT NOTE: Switch the audio connection manually for more than one AV equipment connections.• To S-VIDEO output DVD player Video player To audio input Audio system To video output or audio output orGetting started ENGLISH

Connections (continued) NOTE: When connecting the RGB signal cable, tighten the xing screws on the D-Sub (15-pin) connector.• For the network connection between the projector and computers, see “Network Operation Manual” in the CD-ROM provided.• Only the RGB signal cable (1 piece) is attached. If any other cables are necessary, purchase them from the market.• LAN

AUDIO OUT COMPUTER 2 IN Audio system Computer ComputerComputer (Controlling a projector) Computer (Controlling a projector) Example: ComputersBasic operations

ENGLISH Turn the projector ON or OFF POWER CORD Fix the provided “power cord secure lock” to the power cord on the projector to prevent the cord from coming off. For details, see “Precautions with regard to safety”. (

Push the connector all the way into the AC IN terminal ensuring that the shape of the connector matches that of the terminal.

Align the side of the “power cord secure lock” with the side of the “Rail guide” of the AC IN terminal and slide it in.

Latch to the latch catcher and press until it clicks.

Connect the power plug to a wall outlet. Rail guideLatch

Unplug the power plug from the wall outlet.

Depress the latch and slide off the lock.

Slide up the “power cord secure lock” and remove it.

Hold the connector rmly and detach it from the AC IN terminal. Direct power on function If the power cord is connected to a wall outlet with INITIAL START UP (PROJECTOR SETUP menu) is set to ON, projection will start even when the control panel is disabled. ( page 37) Direct power off function You can switch off the electric power supply any time by unplugging the power plug from the wall outlet or by switching off the main power. The internal cooling fan keeps operating using the internal power supply and automatically stops when cooled. NOTE: Do not put the projector into the carrying bag with the • POWER indicator lit. LatchRail guide Install the “power cord secure lock” Detach the “power cord secure lock” Basic operationsBasic operations ENGLISH

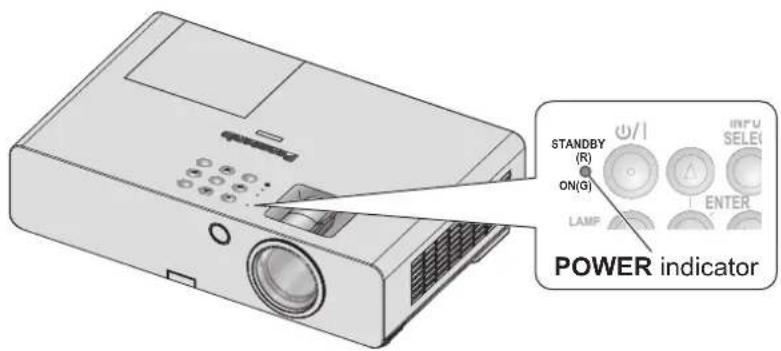

shows status of the projector’s power When the TEMP indicator ashes, the POWER indicator lights red and you cannot turn the projector on. POWER indicator status Indicator status Status No illumination or ashing No power is supplied and the internal cooling fan is not operating. Red Lit The power is turned off (when STANDBY MODE is set to ECO). If [POWER] button is pressed, projection starts. Flashing The power is turned off (when STANDBY MODE is set to NORMAL). If [POWER] button is pressed, projection starts. Green Flashing The power is on and preparing for projection. Lit The projector is projecting. Orange Lit No power supply and the power is preparing for being turned off. It is turned off (The projection is set in STANDBY MODE) after a while. Flashing The power is switched on again while cooling the lamp and recovering to the projection mode. Recovery may take a while. NOTE: When the power is turned off, the internal fan cools the lamp using internal power supply.• The power is turned on again while cooling the lamp and recovers to the projection mode. Recovery may take a while.• While the power is turned off (when • STANDBY MODE is set to ECO, the POWER indicator is lit red), power of about 0.4 W is consumed. POWER indicatorBasic operations

ENGLISH Turn the projector ON or OFF (continued)

Before switching on the projector, make sure all the other devices are correctly connected and remove the Lens cover. (

Connect the power cord. (

page 18) After a while the “power indicator” lights or ashes in red.

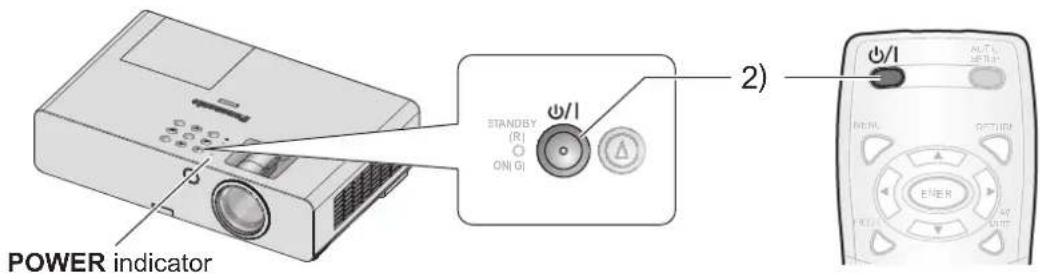

Press the POWER button. POWER• indicator ashes green several times before it lights up and the STARTUP LOGO is displayed. See STARTUP LOGO in DISPLAY OPTION menu. (

page 34) NOTE: Conrm that • CONTROL PANEL (when operating with the projector body) or REMOTE CONTROLLER (when operating with the remote control) under CONTROL DEVICE SETUP in the SECURITY menu is set to ENABLE.

page 42) When setting the SECURITY menu, you will be asked to input the password. (

page 40) When starting up the projector, some small rattling or • tinkling sound may be heard. These are normal and will not affect the performance of the projector. When the internal cooling fan is operating, some operational • sound may be heard. The loudness of the operational sound depends on the external temperature. If • INITIAL START UP (PROJECTOR SETUP menu) is set to ON, the projector starts projecting when the power cord is connected to a wall outlet. (

page 37) If the projector is turned on again while the internal cooling • fan is still operating by the internal power supply, the display may icker due to the specications of the lamp. These are normal and will not affect the performance of the projector. POWER indicatorBasic operations ENGLISH

Turn the projector ON or OFF (continued)

When operating the projector, check the status of the POWER indicator. (

Press the POWER button. A conrmation screen will be displayed – the screen will go off and return to projection if there is no operation for approximately 10 seconds.

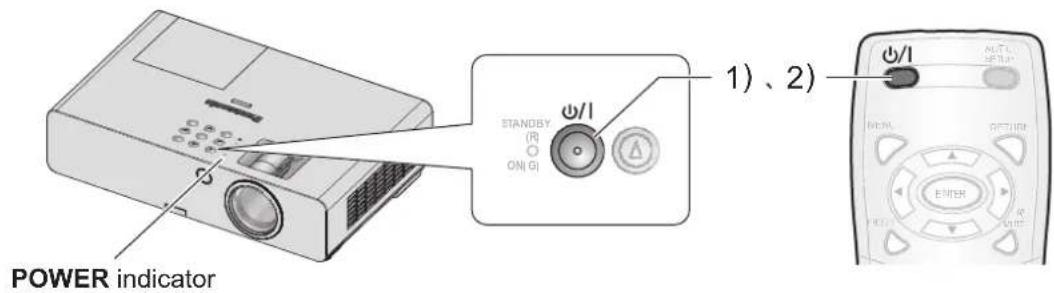

Press the button again. The lamp goes off and the projection stops. The cooling fan continues its rotation and • POWER indicator lights orange. Wait until the POWER indicator turns red. If • STANDBY MODE is set to NORMAL, the POWER indicator ashes red. (

Disconnect the power plug from the wall outlet after the POWER indicator turns red.

page 19) For urgency, you may disconnect the power • plug immediately since the DIRECT POWER OFF function is installed. NOTE: Conrm that • CONTROL PANEL (when operating with the projector body) or REMOTE CONTROLLER (when operating with the remote control) under CONTROL DEVICE SETUP in the SECURITY menu is set to ENABLE.

page 42) Power can be turned off by pressing • [POWER] for at least 0.5 seconds. POWER indicatorBasic operations

ENGLISH Project an image Preparations Conrm the connections of the peripheral devices •

page 16, 17) and power cord (

page 20) to start projecting. Select the input signal and adjust the image.•

Switch on the connected devices. When playing a connected DVD player, if SIGNAL SEARCH (DISPLAY OPTION menu) is set to ON, the input signal is detected and projected automatically when the projector is switched on.

Select an input signal. The image selected with any of the [INPUT SELECT] button is projected. NOTE: Change the settings in the • PICTURE menu according to the connected device for example DVD, video tape, etc., to be played. (

page 28) Conrm the aspect ratio of the screen and image.• Select the optimum aspect ratio. (

When setting up the projector for the rst time or setting up at a new place, you must perform the following operations.

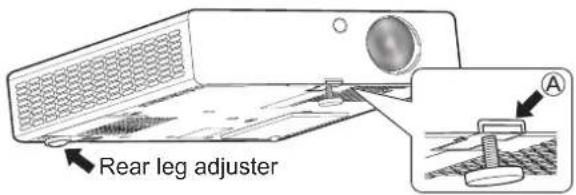

Adjust the vertical angle of the projector. Place the projector at the right angle from the • screen. Press the leg adjuster button • and adjust the vertical projection angle. Then, adjust the projected image to the center of the screen.

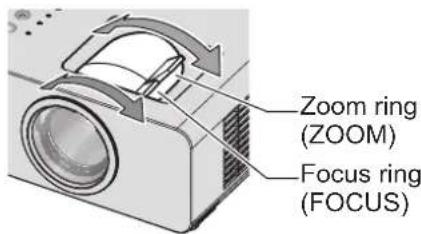

Adjust the projection size and focus. Turn the zoom and focus rings to adjust the • projected image. NOTE: When you adjust the zoom after adjusting the focus, you • may need to adjust the focus of the image again. If the projected image slants to the right or left, turn the rear • leg adjuster to adjust the angle of the projector. If keystone distortion occurs, see KEYSTONE. •

Remote control operation You can freeze the projected image and temporarily stop the sound, regardless of the playing condition of the connected device. FREEZE Press the button again to cancel it. The image is distorted momentarily when the projection is stopped and restarted.

TEMPORARILY You can temporarily stop the projection and the sound from the projector.

MUTE Press the button again to cancel it.

You can conrm the selected input terminal (from the graphical input terminal guide on the upper right of the screen), if INPUT GUIDE (DISPLAY OPTION

page 33) You can change the input with [

It may take some time to change the image after the input signal is switched. NOTE: Input a compatible signal shown in the “LIST OF • COMPATIBLE SIGNALS”. (

page 16) The input guide automatically disappears when it is left • idle. Press [INPUT SELECT] on the control panel to switch the input in the following order. (

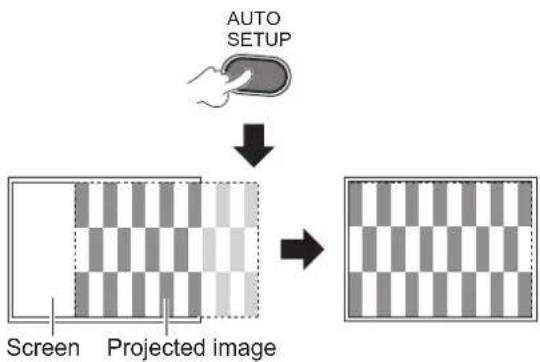

AUTOMATICALLY The projector automatically adjusts the SHIFT, DOT CLOCK and CLOCK PHASE when an RGB signal is input. AUTO SETUP NOTE: The • SIGNAL SEARCH will be in operation when it is set to ON. (

page 35) If the dot clock frequency is higher than 162 MHz, • DOT CLOCK and CLOCK PHASE can not be adjusted automatically. (

page 30, 31) If the projected signal or image is too dark or blurred around • the edge, AUTO SETUP may stop the process before completing the adjustment or adjust abnormally. Project a much clearer or lighter image and try again. Projected imageScreenBasic operations

ENGLISH Remote control operation (continued)

RESET TO FACTORY DEFAULT

SETTINGS You can reset most of the customized settings to the factory default settings. DEFAULT For details, see “Reset to factory default settings”.

You can control the volume of the built-in speakers and output audio sound. VOLUME + : increases the volume

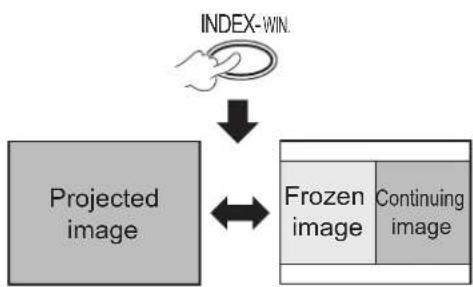

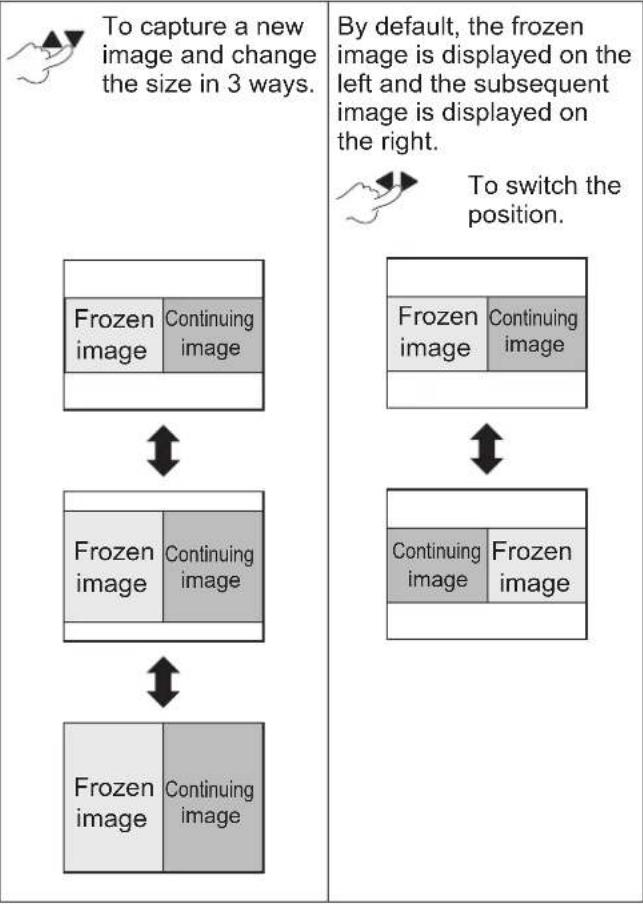

INDEX-WINDOW You can split a projected image into 2 windows using INDEX-WINDOW. One frozen image is stored in memory and displayed on the left side of the screen. Projection continues for the other image on the right side. WIN. INDEX- Frozen image Continuingimage Projected image Press [RETURN] to escape. INDEX-WINDOW display To capture a new image and change the size in 3 ways. By default, the frozen image is displayed on the left and the subsequent image is displayed on the right. To switch the position. Frozen image Frozen image Frozen image ContinuingimageContinuingimageContinuingimage Frozen image Continuingimage Frozen image Continuingimage NOTE: The aspect ratio of the image is changed and becomes • vertically elongated.If you change the window size, the aspect ratio of the image • is changed. ( page 31) While in • INDEX-WINDOW mode, press [ENTER] to capture a new image and the frozen image’s window will be updated.When capturing a quick moving picture, repeat several • times to get a stable picture.Basic operations ENGLISH

Remote control operation (continued)

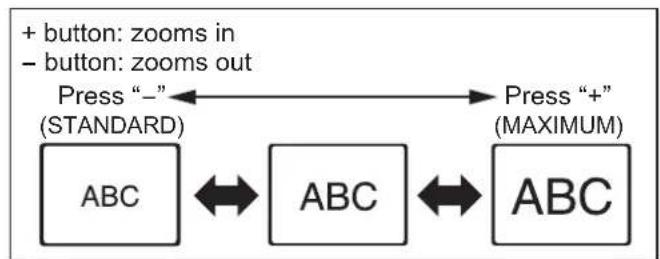

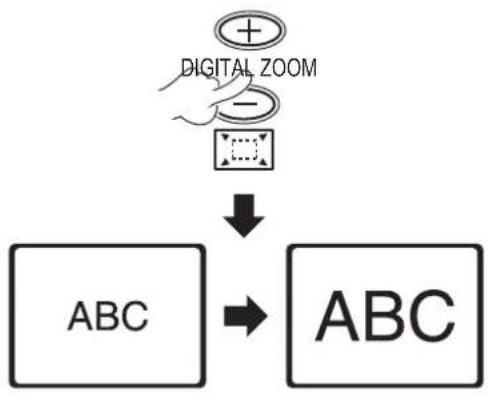

You can enlarge the projected image to the center position by emphasizing within the range of 1× to 2×. DIGITAL ZOOM Press [RETURN] or [MENU] to escape. [DIGITAL ZOOM] button operation + button: zooms in

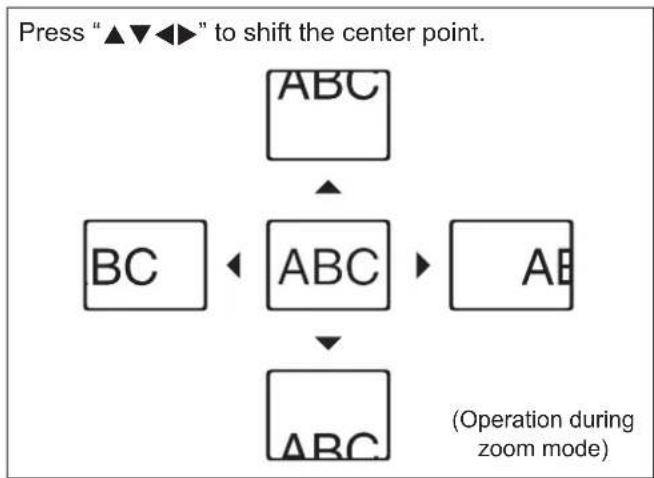

” to shift the center point. NOTE: When the • COMPUTER signal is input, if FRAME LOCK in the POSITION menu is OFF, enlargement range is 1× to 3×. When the • COMPUTER signal is input, if FRAME LOCK in the POSITION menu is ON, enlargement range is 1× to 2×.When another signal is input, the enlargement range is from • 1× to 2× by 0.1.DIGITAL ZOOM• mode is canceled when the input signal is changed. During • DIGITAL ZOOM mode, [AUTO SETUP], [FREEZE], [DEFAULT], [INDEX-WINDOW] and [FUNCTION] (except when AV MUTE is assigned) buttons are not available.The image is distorted momentarily when the image is • zoomed.

page 26) Press and hold for at least 3 seconds. When not using the [FUNCTION] button

(STANDARD) Press “+” (MAXIMUM)(Operation during zoom mode)Settings

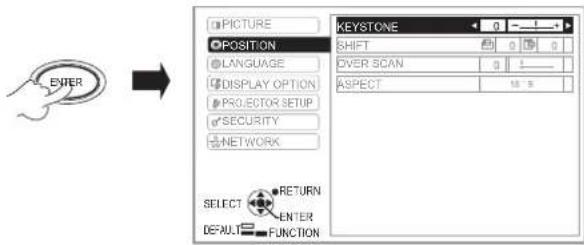

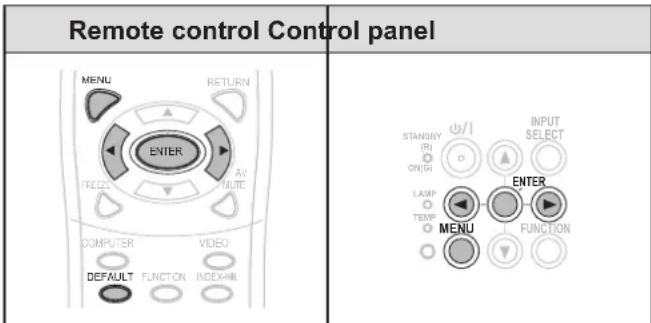

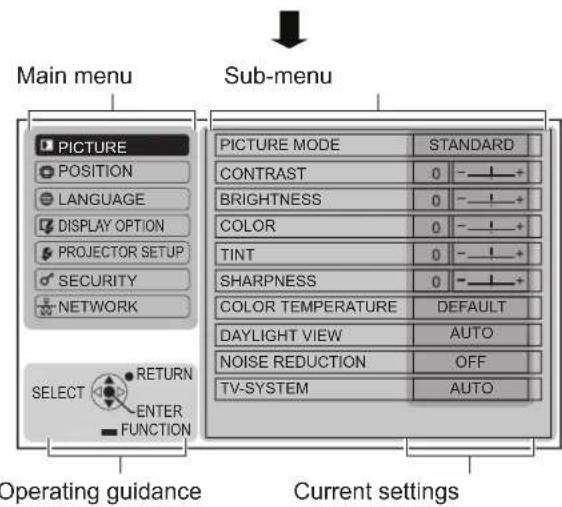

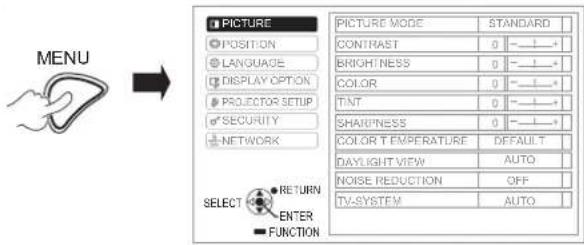

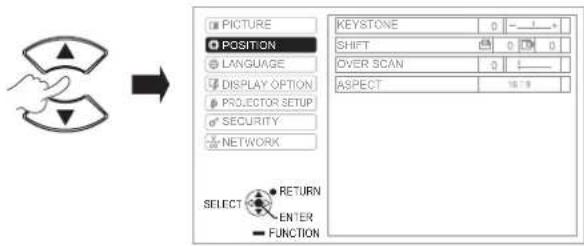

ENGLISH Menu operation Depending on the selected input signals, some items and functions may not be adjusted or available. Some can be adjusted without any signals.

KEYSTONEENTER Press ▲▼ buttons to scroll to the required sub-menu item and press ◄► buttons or the ENTER button to adjust. KEYSTONEENTER The selected menu is called up while other menu item disappears from the screen. NOTE: Press • [MENU] or [RETURN] to return to the previous menu. Press repeatedly to exit from the menu mode and return to the projection. Called up item will disappear after 5 seconds without any • operation and return to the menu mode. For the sub-menu items, • see “SUB MENU” in the ON-SCREEN MENU (

page 27). Reset to factory default settings DEFAULT During sub-menu screen display: The items of the sub-menu currently displayed are reset to the factory default settings. During called up item screen display: Only the item adjusted currently is reset to the factory default setting. KEYSTONE NOTE: You cannot reset all the settings at one time to the factory • default settings. For resetting all the settings, • see INITIALIZE ALL (PROJECTOR SETUP menu). (

page 39) Not all menu items can be reset by pressing • [DEFAULT]. Adjust each menu item manually. Current setting Default setting ON-SCREEN MENU You can access other functions from operating this menu by referring to “OPERATE THE MENU”.

RGB moving images can be projected only when the following signals: 480i, 576i, 480p, 576p, 1 080/60i, 1 080/50i, 720/60p, 720/50p

Input signal is RGB/YP

Input signal is RGB.

The setting is activated or deactivated depending on the input signal and the specic setting. LANGUAGE menu For details, see “LANGUAGE MENU”. (

The setting is activated or deactivated depending on the input signal and the specic setting. MAIN MENUSettings

PICTURE MODE You can optimize the projected image depending on the projection’s environment. Change setting Change setting Change setting Change setting STANDARD Setting for general image DYNAMIC Setting for brightness and sharpness BLACKBOARD Setting for when projecting on a blackboard WHITE BOARD Setting for when projecting on a white board NATURAL Reproducing the original color of the image NOTE: It may take a while until the selected mode is stabilized.•

CONTRAST You can adjust the contrast of the projected image. Lower Change setting Change setting Higher

BRIGHTNESS You can adjust the brightness of the projected image. Darker Change setting Change setting BrighterSettings ENGLISH

Menu operation (continued)

input signal only) Lighter Change setting Change setting Darker

input signal only) More reddish Change setting Change setting More greenish

SHARPNESS You can adjust the sharpness of the projected image. Less sharp Change setting Change setting More sharp NOTE: The adjustable range depends on the input signal.•

WHITE BALANCE You can adjust the white balance in 3-color temperature. (For RGB (Still image) input signal only)

Change setting Change setting

COLOR TEMPERATURE You can adjust the white balance of the projected image. Change setting Change setting Change setting Change setting DEFAULT Balanced white HIGH More bluish LOW More reddish

DAYLIGHT VIEW You can keep the projected image bright and vivid even in well-lit rooms where the ambient light sources cannot be controlled. Change setting Change setting Change setting Change setting AUTO Automatic adjustment ON Active OFF Deactive NOTE: Do not cover the Ambient Luminance Sensor(ALS) of the • projector, otherwise the AUTO mode may not function properly. AUTO• is not available when INSTALLATION in PROJECTOR SETUP menu is set to REAR/DESK or REAR/CEILING.

NOISE REDUCTION You can switch the automatic noise reduction system on/off. (For S-VIDEO/VIDEO input signal only) Change setting Change setting Change setting Change setting OFF No noise reduction ON Automatic noise reduction NOTE: If • NOISE REDUCTION is set active when the selected input signal has less noise, the image may look different from the true image. If so, set to OFF.

• mode is selected by default. When the projector is not working properly in • AUTO mode, change the setting according to each TV system type. AUTO• setting will automatically select the compatible signal from NTSC/NTSC 4.43/PAL/PAL60/PAL-M/PAL-N/ SECAM.Settings

ENGLISH Menu operation (continued)

input signal only) Select the signals to be input to the COMPUTER 1 IN and COMPUTER 2 IN terminals. Change setting Change setting Change setting Change setting AUTO Automatic adjustment RGB For RGB signals

signals NOTE: AUTO• mode is selected by default. Select • RGB or YP

according to the input signal if the image is not normally projected during AUTO mode. The function only becomes effective when certain signals are input: (VGA60, 480i, 576i, 480p, 576p, 1 080/60i, 1 080/50i, 720/60p, 720/50p) POSITION MENU Remote control Control panel MENU RETURN ENTER FREEZE

REALTIME KEYSTONE If the projector is aligned non-perpendicularly to the screen, or if the projection screen has an angled surface; the keystone will be automatically corrected. Change setting Change setting Change setting Change setting OFF Deactive ON Active NOTE: If the detected tilt of the main unit is ± 5 %, even if you • set ON, the distortion will not be corrected automatically. Because the priority is not to correct the distortion, but to avoid the image quality deteriorated by correcting. If you need to correct the keystone, you can correct the • distortion manually by adjusting the KEYSTONE.

KEYSTONE If you need to correct the angle of the projection even when the REALTIME KEYSTONE is activated, you can correct the keystone manually. Image Operation ENTER ENTER NOTE: You can correct the distortion ±30 ° from the plane.• For a better image quality, install the projector to minimize • distortion. The result of the keystone correction will affect the aspect • ratio and the size of the image. The image is distorted momentarily when the keystone is • corrected.

] to move the image horizontally. Vertical (V): Press [

] to move the image vertically. NOTE: This function can be adjusted by pressing the •

DOT CLOCK If there are interference patterns on the projected image (referred as moire or noise), minimize it by pressing

] to adjust the clock frequency. (For RGB (Still image) input signal only) NOTE: DOT CLOCK• needs to be adjusted before adjusting the CLOCK PHASE.Settings ENGLISH

Menu operation (continued)

CLOCK PHASE If you require further adjustment for the same reason as the DOT CLOCK adjustment, you can further adjust the timing of the clock. (For RGB/YP

input signal only) Press ◄► buttons to adjust. NOTE: If the projecting signal’s dot clock frequency is higher than • 162 MHz, adjusting DOT CLOCK or CLOCK PHASE may not make any difference. Refer to “LIST OF COMPATIBLE SIGNALS”. (

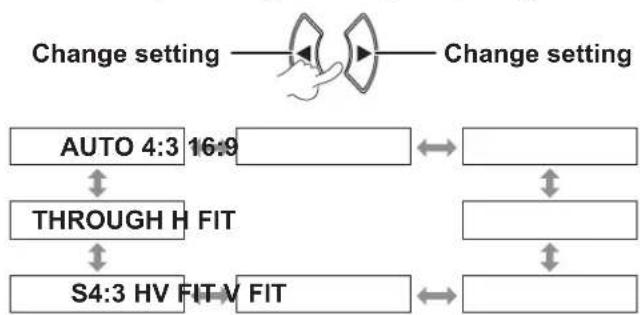

OVER SCAN Use this function when characters or pictures are cropped near the periphery of the projected image. (For S-VIDEO/VIDEO/RGB (Moving image)/YP

input signal only) Zoom out Change setting Change setting Zoom in Setting range: 0 to +3

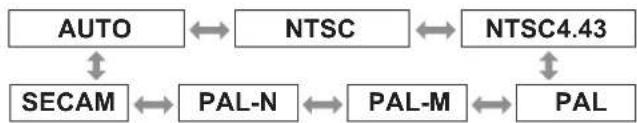

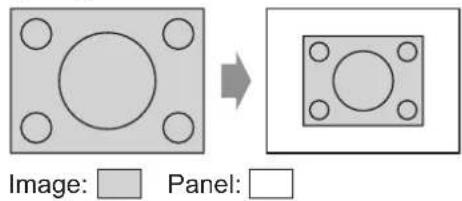

NOTE: AUTO• mode is displayed only when NTSC/480i signal is input. THROUGH• mode is displayed only for certain signals. For the wide signal*•

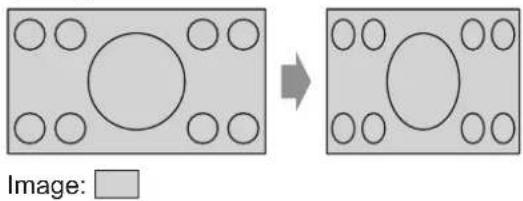

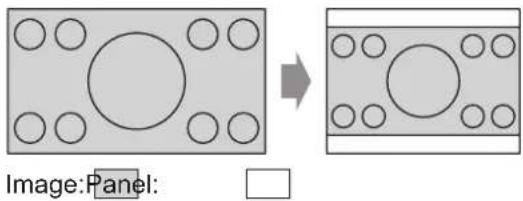

, the aspect ratio option cycles through 16:9 ↔ V FIT ↔ HV FIT. AUTO (For NTSC/480i input signal only) The signal which contains an identifying signal will be detected and will automatically project the image in the most optimal aspect setting. 4:3 Standard input signal*

projection without changing the aspect ratio uses all the panel pixels in the horizontal direction to crop the top and bottom of the image. Input signal: SXGA Image:

A standard signal has an aspect ratio of 4:3 or 5:4.

A wide signal has an aspect ratio of 16:10, 16:9 or 15:9.Settings

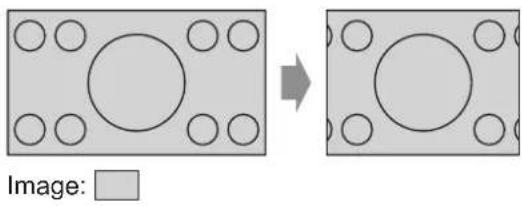

ENGLISH Menu operation (continued) V FIT Wide input signal*

projection without changing the aspect ratio uses all the panel pixels in the vertical direction to crop the right and left of the image. Input signal: 1 080/60i Image: HV FIT The image is projected all over the panel pixels (screen). The input signal is projected at the aspect ratio of the panel screen. Input signal: 1 080/60i Image: S4:3 Standard input signal*

the input signal will be sized down 75% and projected. S4:3 mode is effective when projecting 4:3 image onto a 16:9 screen. Input signal: XGA Image: Panel: Screen:

A standard signal has an aspect ratio of 4:3 or 5:4.

A wide signal has an aspect ratio of 16:10, 16:9 or 15:9. THROUGH The image will be projected without any size adjustment. This function can be set when the input signal is smaller than the number of the LCD panel pixels (1024 x 768). Input signal: NTSC Image: Panel: NOTE: When a 4:3 image is projected to 16:9 screen, the image • may be distorted or some portions may be cropped. Select an aspect ratio (4:3) which retains the creator’s intended image. The order of • ASPECT types is dened not only by the input method but also by the input signals. If you project an enlarged or distorted copyrighted image • using the ASPECT function for commercial use in a public place, you might infringe the copyright of the creator which is protected by the copyright law.

FRAME LOCK If the projected image is bad, you can activate FRAME LOCK for synchronization. (For RGB input signal only) Change setting Change setting Change setting Change setting ON Active OFF DeactiveSettings ENGLISH

ON-SCREEN DISPLAY You can set the on-screen display. Change setting Change setting Change setting Change setting INPUT GUIDE Set the display method of the input terminal name currently selected in the upper right corner of the screen. DETAILED Display the input method using graphic. The INPUT GUIDE will go off if there is no operation after 10 seconds. OFF Turn off the guide. SIMPLE Display the input method using text. The INPUT GUIDE will go off if there is no operation after 5 seconds.Settings

ENGLISH Menu operation (continued) Computer connection guide You can switch the output signals from COMPUTER1/ COMPUTER2 terminal by pressing the following computer command keys. ManufacturerImage output selection commandPanasonic NEC

NOTE: The command keys depend on the manufacturers. • For detailed information, please refer to the instructions provided with the computers. If you want to turn off the computer connection guide, select • SIMPLE or OFF. OSD DESIGN You can change the background of the on-screen menu (OSD). TYPE1 Semi transparent black TYPE2 Solid blue TYPE3 Semi transparent dark blue WARNING MESSAGE You can choose to or not to display the warning messages.

Warning messages will be displayed OFF No display NOTE: When the • WARNING MESSAGE is set to OFF, use the projector with utmost care as most of the warning messages will not be displayed.

If the input signal contains closed captions, you can turn on the feature and switch channels. CLOSED CAPTION OFF Deactive ON Active MODE CC1 - 4 Change the channels CC1 - 4 NOTE: VCR with TBC (Time Base Corrector) function is • recommended for video cassette tapes.

STARTUP LOGO You can set the Panasonic logo, your own image or Pre-set letters to be displayed at the start of the projection. Change setting Change setting Change setting Change setting ON Display “Panasonic” logo TEXT Display the original text USER Display the image registered by the user OFF No display NOTE: If • TEXT is selected, the input letters are displayed at the start of the projection. You can display 2 lines of original text which contains up to 40 characters each. If • USER is selected, the image transferred by the Logo Transfer Software is displayed at the start of the projection. (You can install the Logo Transfer Software from the provided CD-ROM.) STARTUP LOGO• will be displayed for 30 seconds. ManufacturerImage output selection commandlenovo

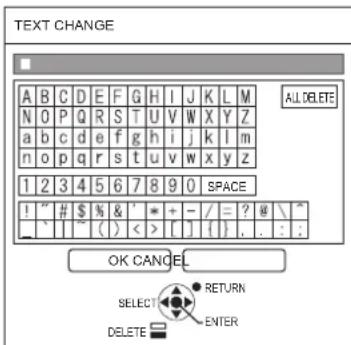

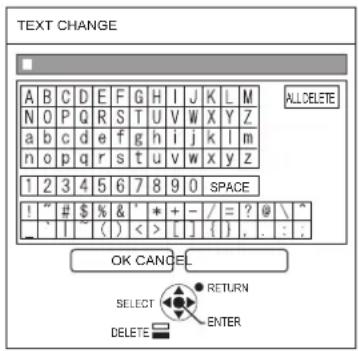

Menu operation (continued) Editing the original text

] to select the desired line and then press [ENTER]. You can input and edit the text for the rst line in TEXT1 and the text for the second line in TEXT2.

] to select the desired character and then press [ENTER]. To delete all the input characters, move the cursor to ALL DELETE and then press [ENTER]. To delete a character, press [DEFAULT] or move the cursor to select the character then press [DEFAULT].

Select OK and then press [ENTER] to set the input text in the box.

AUTO SETUP AUTO mode is selected by default. If you do not need to perform automatic correction, select “BUTTON”. Change setting Change setting Change setting Change setting AUTO When the projector detects COMPUTER signal, SHIFT, DOT CLOCK and CLOCK PHASE in the POSITION menu is automatically set. BUTTON Only when [AUTO SETUP] is pressed, SHIFT, DOT CLOCK and CLOCK PHASE in POSITION menu will be automatically set for COMPUTER signals. ( page 23)

SIGNAL SEARCH You can turn off the auto signal detection. Change setting Change setting Change setting Change setting

Detects the input signal from the terminals and projects the image OFF Deactive NOTE: SIGNAL SEARCH• is not available during any input signal projection.

ENGLISH Menu operation (continued)

SXGA MODE Set this mode when an SXGA signal is input and the projected image is trimmed. Change setting Change setting Change setting Change setting SXGA For normal projection SXGA+ For projection when image is cropped

OTHER FUNCTIONS You can perform some of the remote control button operations from the sub-menu. AUTO SETUP For details, see “SET UP THE IMAGE POSITION AUTOMATICALLY”. (

page 23) FREEZE You can capture the projected image as a still picture. While the image is frozen, the audio sound through the projector will stop. Press [RETURN] to escape. The image is distorted momentarily when the projection is stopped and restarted. AV MUTE You can temporarily stop projection and audio sound when the projector is left idle. Press [MENU] to escape. INDEX-WINDOW For details, see “INDEX-WINDOW display”.

] button: zoom out Press [ENTER] to select the enlargement. Press [MENU] to escape. The image is distorted momentarily when the image is zoomed.

Scanning frequency of input signal RUNTIME PROJECTOR

Menu operation (continued)

If no image signal is input for the time set using the timer, the projector will automatically enter into standby mode. Change setting Change setting Change setting Change setting DISABLE NO SIGNAL SHUT-OFF is disabled 15 – 60 MIN. Timer can be set at a 5-minute intervals

You can set the starting method when the power plug is connected to wall outlet. Change setting Change setting Change setting Change setting LAST MEMORY Projector starts from the last image before the power plug was disconnected STANDBY Projector starts in the standby mode ON Projector starts immediately

INSTALLATION When installing the projector, select the projection method according to the projector’s position.

If you use the projector at high elevation, the HIGH ALTITUDE MODE setting need to be ON to set the fan speed to high. Change setting Change setting Change setting Change setting OFF Use in normal environment (below 1 400 m (4 593 ft) above sea level)

Use at high altitude (at 1 400 m – 2 700 m (4 593 - 8 858 ft) above sea level) NOTE: The loudness of fan noise depends on the • HIGH ALTITUDE MODE setting.

STANDBY MODE You can change the standby mode setting. Change setting Change setting Change setting Change setting ECO The standby power is reduced to 0.4 W to save power NORMAL The power of the projector can be turned ON and the audio output can be set active by controlling the computer connected via wired LAN in standby mode

LAMP POWER You can adjust the power of the lamp to save electricity, prolong the lamp life and reduce the noise. Change setting Change setting Change setting Change setting NORMAL When higher luminance is required ECO When lower luminance is sufcient NOTE: This function is disabled when no input signal is detected.• ECO• setting is recommended when higher luminance is not required such as in a small room.Settings

ENGLISH Menu operation (continued) LAMP RUNTIME You can check how long the lamp has been used. NOTE: LAMP RUNTIME• is important for lamp replacement timing. See “REPLACE THE LAMP UNIT”. ( page 45)Check the lamp unit replacement time. • ( page 45)If the lamp runtime has reached 3 800 hours, the red (time • indicator) and gray marks appear alternately to notify you of the lamp replacement time.The lamp life varies depending on the usage condition • (number of power-on times, etc.). ▌ EMULATE When the projector is controlled by a computer through serial input terminal, you can change the setting to use the former projector control commands.

To select the required setting.

• DEFAULT LB2 Series LB1 Series LB75 Series LB78 Series LB80 Series LB90 Series D3500 D3500 D4000 D4000 D/W5K series D5500 Series DW5000 Series D5600 Series DW5100 Series D5700 Series D/W/Z6K series D5000 Series D6000 Series DW6300 Series DZ6700 Series DZ6710 Series L730 L520 Series L720 Series L730 Series L780 L750 Series L780 Series L735 L735 Series L785 L785 Series F/W series F100 Series FW100 Series F200 Series F300 Series FW300 Series NOTE: Some commands are not available. For details, please • contact your dealer. ▌ FUNCTION BUTTON You can select a useful function from the list and assign it to [FUNCTION] button as a short-cut. MENU FUNCTION To display the on-screen menu (main menu, sub- menu or detailed menu). For the menu operation, see “OPERATE THE MENU”.

page 26) Press and hold for at least 3 seconds. When not using the [FUNCTION] button (

page 25) NOTE: The text and button color will change once the setting has • completed. ▌ AUDIO SETTING You can perform detailed setting for Audio. VOLUME You can adjust the volume of the built-in speakers and audio output sound.

Change setting Change setting + 1 BALANCE You can adjust to listen to the sound played equally from both right and left external stereo speakers, or adjust the balance so that more sound plays from either the left or right side. Left Change setting Change setting RightSettings ENGLISH

TEST PATTERN You can use the 7 different test patterns to adjust the focus of the image. ENTER To display the test pattern.

Change pattern Change setting Change setting Change pattern Press [MENU] or [RETURN] to return to the PROJECTOR SETUP menu, or press repeatedly to escape the menu mode. NOTE: The initial screen is an all white pattern. Only when • TEST PATTERN is assigned to the [FUNCTION] button, the lattice pattern will be displayed as the initial screen.

INITIALIZE ALL You can reset all of the customized settings in MENU to the factory default. If the • [ENTER] is pressed in the INITIALIZE ALL menu, “INITIALIZE ALL” will be displayed. Select OK and press [ENTER], “NOW INITIALIZING... ” is displayed followed by “POWER OFF” display. Select OK and turn the power off according to the instruction. (All other buttons are deactivated.) The • LANGUAGE and INITIAL SETTING menu screen will be displayed when the power is connected. (

page 10) NOTE: The usage time of the projector, lamp runtime and the • NETWORK settings will not be initialized. When • PASSWORD in SECURITY menu is activated, ensure to enter the correct password when initializing. After • INITIALIZE ALL operation is completed, the password is reset to the factory default setting and PASSWORD setting is turned OFF.

You can turn ON or OFF the audio output in standby mode. Change setting Change setting Change setting Change setting OFF Deactive ON Active NOTE: When • STANDBY MODE is set to ECO, the audio output cannot be activated in the standby mode, even if ON is selected.

You can select the AUDIO IN 1 or AUDIO IN 2 terminal to connect the audio output of the devices connected to COMPUTER 1 IN or COMPUTER 2 IN. Change setting Change setting Change setting Change setting

When you use SECURITY menu for the rst time, you will be asked to perform the password operation. Input the initial password by pressing [

] in this order and then press [ENTER]. NOTE: If you have changed the password, input the new password • and press [ENTER].

PASSWORD You can activate the security system and the password operation will be asked to perform when projection mode starts. Change setting Change setting Change setting Change setting OFF Deactive ON Active NOTE: PASSWORD• is set to OFF by default and when initialized. Change your password regularly. Do not use a simple • password that is easy to decode. Unless you perform the correct password operation, all of • the control buttons will be disabled except the [POWER] button. Menu operation (continued)

PASSWORD CHANGE You can change the password.

To change the password. (Up to 8 button operations can be set.)

ENTER Input the password again and press the button. NOTE: The entered password operations will appear as asterisks in • the box. If the password input second does not match with the • password input rst, an error message is displayed. In this case, input the correct password again.

TEXT DISPLAY You can set your original text to display regularly at the bottom of the projected image during projection. Change setting Change setting Change setting Change setting OFF Deactive ON Active When • CLOSED CAPTION SETTING is set to ON, SECURITY TEXT will not be displayed.

TEXT CHANGE You can enter your original text to be displayed when TEXT DISPLAY is turned ON.

ENTER To select the characters (You can input up to 22 characters.) To delete all the entered characters, move the cursor to ALL DELETE and press [ENTER].Settings ENGLISH

To delete a character, press [DEFAULT] or move the cursor to the required character then press [DEFAULT].

Select CANCEL or press [MENU/RETURN] to return to the previous menu without setting.

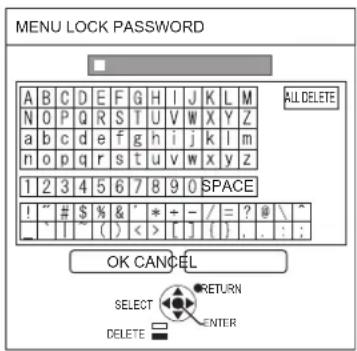

MENU LOCK Press [MENU] to display the menu. You can lock or unlock the menu operation. Change setting Change setting Change setting Change setting OFF Unlock the menu operation ON Lock the menu operation NOTE: Once • MENU LOCK is set to ON, you cannot use the [MENU] button unless you input the correct password. The • MENU LOCK is set to OFF by default and when initialized.

ENTER To select the characters (You can input up to 16 characters.) To delete all the entered characters, move the cursor to ALL DELETE and press [ENTER]. To delete a character, press [DEFAULT] or move the cursor to the required character then press [DEFAULT].

Select CANCEL or press [MENU/RETURN] to return to the previous menu without setting. NOTE: When using the projector for the rst time or after • INITIALIZE ALL operation is activated, the initial password is set to AAAA. Change your password regularly. Do not use a simple • password that is easy to decode. To reset the password to the initial password, • see MENU LOCK PASSWORD. (

ENGLISH Menu operation (continued)

You can enable/disable the button operations of the control panel and remote control. Change setting Change setting Change setting Change setting CONTROL PANEL ENABLE Enable the button operations DISABLE Disable the button operations REMOTE CONTROLLER ENABLE Enable the button operations DISABLE Disable the button operations NOTE: If • DISABLE is selected and [ENTER] is pressed, the conrmation screen appears. Select OK and press [ENTER]. If any button is pressed after • CONTROL PANEL is set to DISABLE, the password screen appears. Input the password which is set in the SECURITY menu. (If no operation is done, the password screen disappears in 10 seconds.) If you set both • CONTROL PANEL and REMOTE CONTROLLER to DISABLE, all buttons' operations of the control panel and remote control are disabled and you cannot turn off the power. How to clear DISABLE: During the standby mode or projection, press and hold [ENTER] and [MENU] for at least 2 seconds, and CONTROL PANEL is set to ENABLE. Change the setting of REMOTE CONTROLLER with the control panel. NETWORK MENU Remote control Control panel MENU RETURN ENTER FREEZE

NOTE: These items are set for network connection with a • computer. For details of the PJ Link and network, see “Network Operation Manual”. WIRED LAN You can set up a wired LAN. NAME CHANGE You can change the name of the projector. NETWORK CONTROL When controlling the projector with a computer on the network, you must turn this function ON. STATUS You can display the status of the network setting. INITIALIZE You can reset the settings of the network to the factory default settings. NOTE: If • PASSWORD (SECURITY menu) is activated, when the network setting is initialized, you will be required to input the password.Maintenance ENGLISH

LAMP and TEMP indicators The LAMP and/or TEMP indicators will light up to indicate that the projector has some problems. NOTE: Make sure to turn off the power • (see “TURN THE PROJECTOR OFF” on page 21) and conrm the power supply status with the POWER indicator. (

page 19) Manage the problem as follows: LAMP INDICATOR Indicator Illuminating red• Flashing red• Problem LAMP RUNTIME has reached 3 800 hours. LAMP circuit failure, abnormal function or the lamp unit is damaged. Cause Lamp unit will run out soon and needs to be replaced. The projector is turned on again too soon. LAMP circuit failure, abnormal function. Lamp unit is damaged. Remedy See “REPLACE THE LAMP UNIT”. (

page 45) Let the lamp unit cool down and turn on the projector after 90 seconds. Turn the projector off ( page 21) and contact an Authorized Service Center. See “REPLACE THE LAMP UNIT”. ( page 45) NOTE: If the • LAMP indicator still lights or ashes after the above remedy, contact an Authorized Service Center. TEMP INDICATOR Indicator Illuminating red while projecting and the alert will be displayed.• Flashing red and power is turned off.• Problem The temperature inside and/or outside the projector is abnormally high. The projection may become darker than usual.• The internal fan’s operational noise may be louder than usual.• Cause The air outlet port and air intake ports are covered. The room temperature is too high. The lter is excessively dirty and the ventilation is poor. The projector is located at 1 400 - 2 700 m (4 593 - 8 858 ft). Remedy Remove object(s) from the air outlet port and air intake ports or clear around the projector. Reinstall the projector in temperature controlled place.

and set the HIGH ALTITUDE MODE to ON. (

The projector will operate for 2 minutes with OFF set at high elevation. NOTE: Perform the above remedy; disconnect the power plug, and then supply the power again. If the • TEMP indicator still lights or ashes after the above remedy, contact an Authorized Service Center. If temperature in the projector rises, the fan speed increases and the sound becomes louder.• STANDBY (R) ON(G) LAMP TEMP MENU FUNCTION ENTER INPUT SELECT FOCUS ZOOM LAMP indicatorTEMP indicator MaintenanceMaintenance

ENGLISH Care and replacement Preparations Before cleaning, be sure to turn off the power and disconnect the power plug from the wall outlet. ( page 18, 21)

CLEANING THE PROJECTOR

Cabinet Wipe off dirt and dust gently with a soft cloth. If it is difcult to remove the dirt, wipe the projector with a damp cloth. Dry off the projector with dry cloth.• Do not use petroleum benzine, thinner, any alcoholic solvent, kitchen detergents or chemical cloths. Failure to • observe these may result in altered or damaged surfaces of the projector. Projector lens Make sure no dirt or dust remains on the surface of the projector lens glass. It will be enlarged and projected onto the screen. Wipe off dirt and dust gently with a lint-free cloth. Do not wipe the projector lens with a cloth which has collected dust. NOTE: Clean the projector lens with special care.• Air lter If the air lter is excessively dirty, the internal temperature of the projector increases, the TEMP indicator lights, and the power is turned off. If the power is turned off, the TEMP indicator ashes. Clean the air lter regularly every 100 hours of usage.

Remove the air lter. While pressing the tab of the air lter, pull the air lter open slowly.

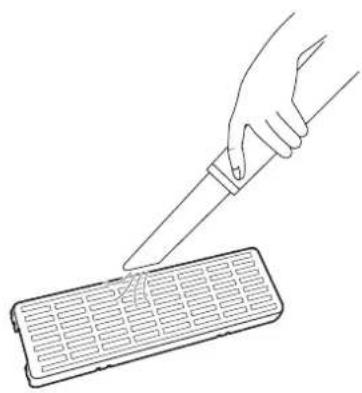

Clean the air lter. Vacuum dirt and dust from the air lter.

Install the air lter. Install in the reverse order to 1). NOTE: Do not use the projector without attaching the air lter. Otherwise, it will suck in dirt and dust which can cause malfunction.• The TEMP indicator may ash because of clogging within 100 hours, depending on the using environment. In that case, clean • the air lter at shorter intervals. Tab Air lterMaintenance ENGLISH

Care and Replacement (continued)

REPLACE THE LAMP UNIT

Air filter The air lter should be replaced when cleaning is ineffective and when replacing the lamp unit. A replacement air lter is provided with a replacement lamp unit (ET-LAB2). Contact an Authorized Service Center for the air lter (TXFKN01VKN5). Lamp unit The lamp unit, ET-LAB2 is consumable and you must replace it regularly. It is recommended that a qualied technician carry the lamp unit replacement. Consult with an Authorized Service Center. Note on lamp unit replacement Handle the lamp unit with special care as the lamp is made of glass. • Dropping or giving it a shock may cause it to burst or damaged. If you wish to discard the used lamp, please contact your local • authorities or dealer and ask for the correct method of disposal. Prepare a Phillips-head screwdriver.• When replacing the lamp unit, be sure to hold it by the handle.• Hold the lamp unit horizontally to prevent broken pieces from scattering. • When the projector is mounted in the ceiling, do not work directly under the projector or put your face close to the projector. Pull out the lamp vertically. NOTE: Prior to replacing the lamp unit, allow it to cool down to prevent the risk of burns, damage and other hazards.• Do not attempt replacement of an unauthorized lamp unit.• The model Nos. of the accessories and the parts sold separately are subject to change without notice.• Lamp unit replacement time When the lamp has expired, the brightness may decrease over time. 4 000 hours of use is a rough guide of the replacing time and that might be shortened due to usage conditions, specications of the lamp unit or environmental conditions. You can check the duration of usage time by checking LAMP RUNTIME in the PROJECTOR SETUP menu. Do not use a lamp unit over 5 000 hours. Failure to observe this may result in explosion of the lamp. ON-SCREEN DISPLAY REPLACE LAMP LAMP indicator 3 800 hours Display “REPLACE LAMP” at the upper left of the screen for 30 seconds. If any button is pressed within 30 seconds, the message disappears. Illuminates red, even in the standby mode. 5 000 hours Display “REPLACE LAMP” at the upper left of the screen, and it will stay until you respond. The power is turned off automatically in 10 minutes. NOTE: The guide time, 4 000 hours, is a rough estimate based on certain conditions and is not a guaranteed time.•Maintenance

ENGLISH Care and Replacement (continued) Lamp replacement procedure When the projector is mounted in the ceiling, do not work directly under the projector or put your face close to the • projector. Be sure to install the lamp unit and attach the lamp unit cover securely. If they are not securely installed, it may • cause the protection circuit to operate and the power cannot be turned on.

Disconnect the power plug from the wall outlet according to “TURN THE PROJECTOR OFF”

page 21), wait for at least 1 hour and check the bottom if the lamp unit has cooled.

Use a Phillips-head screwdriver to loosen the 1 lamp unit cover screw on the back of the projector until the screw loosen and remove the lamp unit cover.

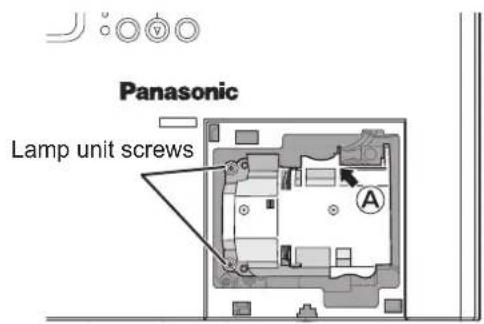

Use a Phillips-head screwdriver to loosen the 2 lamp unit screws. Pull the used lamp unit gently from the projector. Lamp unit cover Top side Lamp unit cover Rear side Lamp unit cover screw Lamp unit screws Handles

Press in the lamp unit until it clicks and make sure the unit is installed securely. Tighten the 2 lamp unit screws securely with a Phillips- head screwdriver. During insertion, particularly press the portion securely.

Attach the lamp unit cover and tighten the 1 lamp unit cover screw securely with a Phillips-head screwdriver.

Connect the power cord to a wall outlet.

Press [POWER] to begin projection. NOTE: If • INITIAL START UP in the PROJECTOR SETUP menu is set to ON, the projector starts projecting when the power cord is connected to a wall outlet. (

Care and Replacement (continued)

ENTER Press and hold for approximately 3 seconds. LAMP RUNTIMELAMP RUNTIME RESET.

CANCELPRESS ANY OTHER BUTTONPRESS BUTTON

NOTE: If any button other than the • [POWER] is pressed, the LAMP RUNTIME screen disappears and the lamp runtime is not reset. (Repeat from step 8 again).

After the lamp goes off, projection stops and the [POWER] button on the main unit lit red. Disconnect the power plug. The lamp runtime has been reset to “0”. Ceiling mount bracket safeguards Installation work of the ceiling mount bracket should only be carried by a qualied technician. • Even if it is during guaranteed period, the manufacturer is not responsible for any hazard or damage caused • by using a ceiling mount bracket which is not purchased from an authorized distributors, or environmental conditions. Remove an unused ceiling mount bracket promptly. • Ensure to use a torque driver and do not use an electrical screwdriver or an impact screwdriver.• For details, see the work instruction manual packed together with the ceiling mount bracket.• The model Nos. of the accessories and the parts sold separately are subject to change without notice.• M4×0.7 Torque:1.25 ± 0.2 N.m Model No. of ceiling mount bracket: ET-PKB2 9 mmReferences

ENGLISH Troubleshooting Conrm the following problem and cause. If the suggested solutions do not solve the problem, contact an Authorized Service Center. Problem Cause Page Power does not turn on. The power cord may not be connected securely. z No electric supply at the wall outlet. z The circuit breakers have tripped. z TEMP z or LAMP indicator is lit or ashes. The lamp unit cover has not been securely installed. z CONTROL PANEL z in the PROJECTOR SETUP menu is invalidated.

No picture appears. The lens cover is not removed. z The input terminal may not be connected properly. z The input selection setting may not be correct. z The z BRIGHTNESS adjustment setting may be at the minimum setting. The signal input source may not be operating properly. z The z AV MUTE function may be in use.

The picture is fuzzy. The lens focus may not have been set correctly. z The projector may not be at the correct distance from the screen. z The lens may be dirty. z The projector may be tilted too much. z

Color is pale or grayish. COLOR z or TINT adjustment may be incorrect. The input source which is connected to the projector may not be z adjusted correctly.

No sound can be heard from the internal speaker. The audio signal source may not be connected properly. z The volume adjustment may be at the lowest possible setting. z A cable may be connected to the z AUDIO OUT terminal. 16, 17 24, 38

The remote control does not operate. The batteries may be weak. z The batteries may not have been inserted correctly. z The remote control signal receptor on the projector may be obstructed. z The remote control unit may be out of the operation range. z REMOTE CONTROLLER z in the PROJECTOR SETUP menu is invalidated. The remote control is under a strong light such as uorescent. z

The control buttons of the projector do not operate. CONTROL PANEL z in the PROJECTOR SETUP menu is invalidated. (If you have a loss of the remote control while the CONTROL PANEL is invalidated, press and hold [MENU] for 2 seconds by pressing [ENTER].)

) may not have been set correctly. There may be a problem with the VCR or other signal source. z A signal which is not compatible with the projector is being input. z 29, 30

Picture from a computer does not appear. The RGB signal cable is too long. (Limit to 10 m (32' 10").) z The external video output from a laptop computer may not be correct. z (You may be able to change the external output settings by pressing the [Fn] + [F3] or [Fn] + [F10] keys simultaneously. The actual method varies depending on the type of computer; refer to the documentation provided with your computer for further details.)

The projector cannot be controlled through serial terminal. EMULATE z in the PROJECTOR SETUP menu is not set correctly. (If you fail to select your product series, ask your dealer for repair.)

Trademark acknowledgements VGA and XGA are trademarks of International Business Machines Corporation.• S-VGA is a registered trademark of the Video Electronics Standards Association.• HDMI, the HDMI logo and High-Denition Multimedia Interface are trademarks or registered trademarks of HDMI • Licensing LLC. The font used in the on-screen displays is a Ricoh bitmap font, which is manufactured and sold by Ricoh • Company, Ltd. All other trademarks are the property of the various trademark owners. Unit:mmReferences

ENGLISH Technical information This projector can project the following image signals. Mode Display resolution (dots)*

Scanning frequency Dot clock frequency (MHz) Picture quality*

The “i” appearing after the resolution indicates an interlaced signal.

The following symbols are used to indicate picture quality. AA : Maximum picture quality can be obtained. A : Signals are converted by the image processing circuit before picture is projected. B : Some loss of data occurs to make projection easier.

The signals marked with circles (O) can be applied by plug-and-play device. LIST OF COMPATIBLE SIGNALSReferences ENGLISH

Technical Information (continued) SERIAL TERMINAL The serial connector which is on the connector panel of the projector conforms to the RS-232C interface specications. The projector can be controlled by a personal computer which is connected to this connector. Connection LAN SERIAL COMPUTER 1 IN S-VIDEO S-VIDEO

AUDIO OUT OUT COMPUTER 2 IN SERIAL Pin assignments and signal names

Pin No. Signal name Contents

TXD Transmitted data

RTS Connected internally

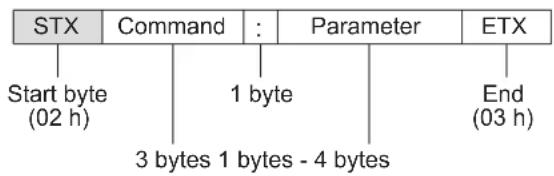

The data streaming from the computer will start with STX, and proceed to Command, Parameter and end with ETX. You can add the required parameter. NOTE: The projector cannot receive any command for 10 seconds after the lamp is switched on. Wait for 10 seconds before sending • the command. For multiple commands, check the projector if the response has been sent for one command before sending the next • command. When a command which does not require parameters to be sent, the colon (:) is not required. • If an incorrect command is sent from the personal computer, an ER401 command will be sent from the projector to the • personal computer. Computer D-Sub 9-pin (male) Serial terminal (female) STX Command Parameter ETX Start byte (02 h) 1 byte End (03 h) 3 bytes 1 bytes - 4 bytesReferences

ENGLISH Technical Information (continued) Cable specifications (When connected to a personal computer) Control commands The following commands are used for control of the projector with a computer. (Operation commands) Command Control contents Remarks PON Power on

• The PON command is ignored during lamp ON control.

• If a PON command is received while the cooling fan is operating after the lamp has switched off, the lamp is not turned back on again straight away in order to protect the lamp. POF Power off AVL Volume Parameter:

Q$S Lamp condition query Call back: 0 = Standby 1 = Lamp on control active 2 = Lamp on 3 = Lamp off control active OSH AV mute Turn off the projection and sound temporarily. Send the command to switch between off and on. (

page 23) Do not send the command consecutively. 0 = Off 1 = On NOTE: If • STANDBY MODE is set to ECO, only PON and Q$S command can be used in the standby mode.

To reset the password to the default setting AAAA, perform the following when the MENU LOCK PASSWORD request screen is displayed.

1) Press and hold the <AUTO SETUP> button of the remote control or the <INPUT SELECT> button of the

control panel and the▲button of the control panel together for at least 2 seconds.

2) Press and hold▼button for at least 2 seconds.

(DTE)References ENGLISH

Specications Power supply AC 100 - 240 V 50 Hz/60 Hz Power consumption 300 W During standby (when fan is stopped):

2 600 lm (PT-LB2U) 2 200 lm (PT-LB1U) Scanning frequency *

(for RGB signal) Horizontal scanning frequency 15 kHz - 91 kHz Vertical scanning frequency 50 Hz - 85 Hz Dot clock frequency Less than 170 MHz COMPONENT (YP

1.1 m - 11.5 m (3'7" - 37'8") (PT-LB2U)

input Y: 1.0 V [p-p] (include sync), 75 Ω

When “IN STANDBY MODE” in AUDIO SETTING menu is ON: 18 W.

Measurement, measuring conditions and method of notation all comply with ISO21118 international standards.

See “LIST OF COMPATIBLE SIGNALS” on page 50 for available signals.References

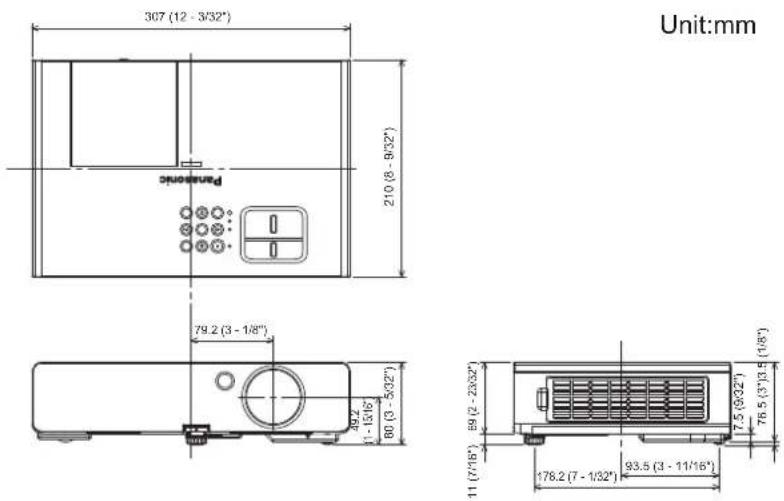

ENGLISH Specications (continued) Cabinet Moulded plastic (PC+ABS) Dimensions Width: 307 mm (12 3/32") z Height: 69 mm (2 23/32") z Length: 210 mm (8 9/32") z (not including surface projection parts) Weight Approx. 2.3 kg (5.1 lbs.) *

page 37) is set to ON: 0 °C - 35 °C (32 °F - 95 °F) Humidity: 20 % - 80 % (no condensation) z Certications UL60950-1 C-UL FCC Class B ICES-003 Remote control Power supply 3 V DC (AAA/R03 battery × 2) Operating range Approx. 7 m (23' 0") (when operated directly in front of signal receptor) Weight Approx. 64 g (2.3 ozs.) (including batteries) Dimensions Width: 45.6 mm (1 25/32") z Length: 115 mm (4 17/32") z Height: 21.4 mm (27/32") (not including surface projection parts) z Options *

Average value. Each product has an individual variability in weight.

The model Nos. of the accessories and parts sold separately are subject to change without notice.References ENGLISH

SCREEN SIZE AND THROW

MISE AU POINT DE L’OBJECTIF
