CG 4014 - Coffee machine Orbegozo - Free user manual and instructions

Product type	Filter coffee machine
Model	CG 4014
Brand	Orbegozo
Color	Black and stainless steel
Capacity	12 cups (approx. 1.2 L)
Power	800 W
Power supply	220-240 V ~ 50/60 Hz
Dimensions (L x W x H)	25 x 20 x 30 cm
Weight	1.2 kg
Cord length	80 cm
Housing material	Plastic and stainless steel
Removable parts	Filter holder, permanent filter, glass carafe
Automatic shut-off function	Yes, after coffee dispensing
Hot plate	Keep warm for up to 30 minutes
Anti-drip system	Yes, when removing the carafe
Water level indicator	Graduated on the reservoir
Permanent filter	Yes, washable and reusable
Recommended descaling	Every 2-3 months depending on limescale
Cleaning	Removable parts in dishwasher or soapy water
Safety	Operation without water forbidden; hot surface; do not immerse
Warranty	2 years, keep receipt
Support service	Orbegozo website

Frequently Asked Questions - CG 4014 Orbegozo

How to use my Orbegozo CG 4014 coffee maker for the first time?

Before first use, fill the water tank to the maximum level and run water several times without coffee, then discard the water. Then clean all removable parts with hot water.

How much ground coffee should I use?

Count one measuring spoon of ground coffee per cup, but adjust to taste. The recommended dose is about 6 to 8 grams per cup.

Can I remove the carafe during brewing?

Yes, you can remove the carafe at any time. The flow stops automatically thanks to the anti-drip system. However, the interruption must not exceed 30 seconds.

How long does the coffee stay hot on the plate?

The hot plate keeps the coffee warm for 30 minutes after brewing. For best taste, serve immediately.

How to clean the different parts?

After each use, clean the filter holder, filter and carafe with hot soapy water. The exterior is cleaned with a soft damp cloth. Wipe the area above the filter holder to avoid drips.

How often should I descale the machine?

Descaling is recommended every 2 to 3 months depending on water hardness. Use a household descaler or citric acid (3% of water volume) following the procedure in the manual.

What to do if the coffee does not flow properly?

Check that the tank has enough water, the filter holder is properly inserted and the filter is not clogged. Descaling may be necessary if the circuit is scaled.

Does the appliance turn off automatically?

Yes, the coffee maker stops automatically once brewing is complete. However, the hot plate remains active for 30 minutes. You can also turn it off manually with the switch.

Can I use coffee other than ground?

This machine is designed for ground coffee. Do not use whole bean coffee or capsules. Use a medium grind for filters.

Where to find spare parts?

To obtain spare parts (carafe, filter, etc.), contact customer service via the website https://orbegozo.com/assistencia-technica/ or the email indicated in the manual.

USER MANUAL CG 4014 Orbegozo

CAFETIÈRE - MANUEL D'INSTRUCTIONS

MAQUINA DE CAFÉ GOTA A GOTA - MANUAL DE INSTRUÇOES

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

Dear Customer, if you follow the recommendations contained in this Instruction Manual, our appliance will give you constant high performance and will remain efficient for many years to come.

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

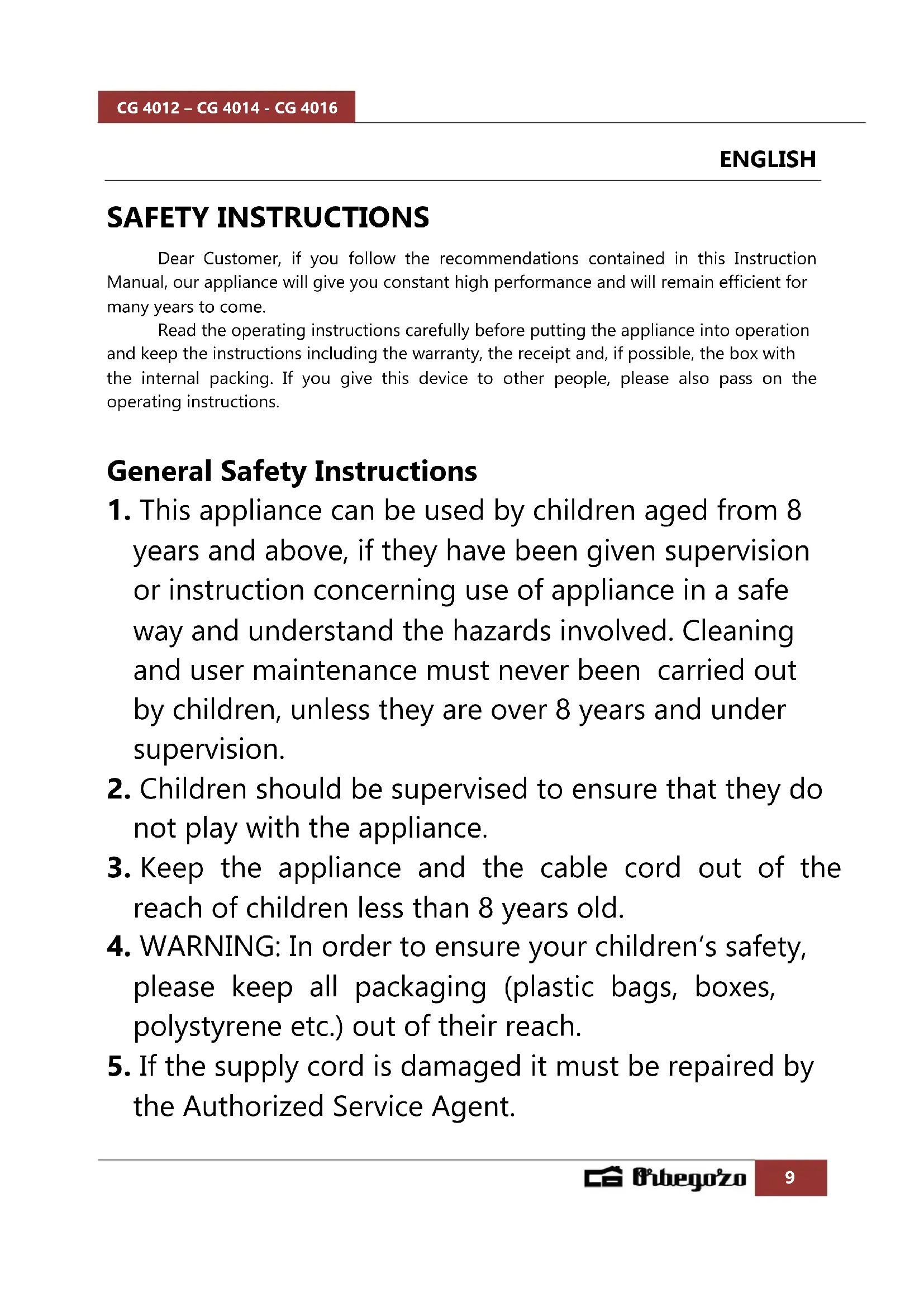

General Safety Instructions

1. This appliance can be used by children aged from 8 years and above, if they have been given supervision or instruction concerning use of appliance in a safe way and understand the hazards involved. Cleaning and user maintenance must never been carried out by children, unless they are over 8 years and under supervision.
2. Children should be supervised to ensure that they do not play with the appliance.
3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

5. If the supply cord is damaged it must be repaired by the Authorized Service Agent.

6. Never pull on the cord when unplugging.

7. Do not use the unit with a damaged cord or plug, or if it is not working properly.
8. Do not handle the appliance with wet hands.
9. Never immerse the appliance in water or any other liquid.
10. Make sure the appliance has been unplugged before cleaning.
11. This appliance must be installed following the national regulations for electrical installations.
12. This appliance is for household use only.

In case that you need a copy of the instruction manual, you can find it in www.orbegozo.com

1. WARNING: In case of misuse, there is a risk of possible injury.

SPECIFIC SAFEGUARDS

CAUTION: The surface can remain hot during or after use.

• To disconnect, remove plug from wall outlet. Always hold the plug. But never pull the cord.
• Be careful not to get burned by the steam.

• Do not touch hot surface. Use handles or knobs only.

• Never use the appliance if the carafe shows any signs of cracks. Only use the carafe with this appliance. Use carefully as the carafe is very fragile.

• Never use your coffee maker without water in it.
• Stand the appliance on a table or flat surface.

• This appliance is intended to be used in household applications such as:

• Reserved kitchen areas for staff in shops, offices and other working environments.

• Farms.
• By clients in hotels, motels and other residential environments.
• In environments such hotel rooms.

BEFORE FIRST USE

Check that all accessories are complete and the unit is not damaged. Add water into water tank to the MAX level and brew water for several times without coffee powder, then discard the water. Clean all detachable parts thoroughly with warm water.

1. Open the tank cover and fill fresh water. The water level should not exceed the max level as indicated on the water tank. Replace the tank cover.
2. Swing the funnel support out and place the filter in the funnel, and make sure it is assembled correctly.
3. Add coffee into filter. Usually a cup of coffee need a level spoon of coffe, but you may adjust according to personal taste.
4. Insert the jug on the keeping warm plate horizontally.
5. Plug the power cord into the outlet.
6. Pulse the switch, the indicator will be illuminated. The appliance will begin working. The brewing process can be interrupted by pulsing the switch at any time. The appliance will continue brewing once the switch is turned on again.
7. Note: you can take out the jug, pour and serve at any time. The appliance will stop dripping automatically. But the time cannot exceed 30 seconds.
8. Remove out the jug to serve when finish brewing (about one minute later after the coffee stops dripping out.)

Note: the coffee you get will be less than the water you have added, as some water is absorbed by coffee.

Caution: When pour coffee, the momentary incline angle of the jug should not exceed 45^ . You should pour the coffee slowly until the jug is empty, otherwise the coffee in the jug will rush to the jug lid, and the coffee will flow out from two edges of the lid and will cause scalds.

1. When the process is finished, if you do not want to serve immediately do not unplug the power without pulsing the switch. The coffee can be kept warm during 30 minutes and then the device will stop. For an optimum coffee taste, serve it just after brewing.

2. Always turn the coffee maker off and unplug the power cord from the electrical outlet when the coffee maker is not in use.

CLEANING AND MAINTENANCE

CAUTION: Be sure to unplug this appliance before cleaning. To protect against electrical shock, do not immerse cord, plug or unit in water or liquid. After each use, always make sure plug is first removed from wall outlet.

1) Clean all detachable parts after each use in hot and sudsy water.
Note: the funnel can be removed from the column to cleaning. When assembling, only insert the column of funnel into the groove of the appliance.
2) Wipe the product's exterior surface with a soft, damp cloth to remove stains.
3) Water droplets may buildup in the area above the funnel and drip onto the product base during brewing. To control the dripping, wipe off the area with a clean, dry cloth after each use of the product.
4) Replace all parts and keep it for next use.

REMOVING MINERAL DEPOSITS

To keep your coffee maker operating efficiently, you should clean away the mineral deposits left by the water regularly according to the water quality in your area and the frequency use the appliance. Follow the next instructions:

1. Fill the tank with water and descaler to the MAX level in the gauge of coffee maker (the scale of water and descaler is 4:1). Please take into consideration the descaler's instructions. Please use "household descaler". You can also use citric acid instead of the descaler (the one hundred parts of water and three parts of citric acid).
2. Push the jug on the base. Pay attention to let center line of jug aligns with that of brew basket.
3. Pulse the switch and the indicator of it will be illuminated. After a while, water will drop out automatically.
4. After percolate the equivalent of one cup and pulse the switch to turn off the appliance.
5. Leave the solution work for 15 minutes, and then repeat the steps of 3-5 again.
6. Turn the appliance on and run off the water until the water tank is completely empty.
7. Rinse by operating the appliance with water at least 3 times.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the

environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

GUARANTEE

This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/asistencia-technica/

For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our website.
