USER MANUAL WOS72EC7HV WHIRLPOOL

BUILT-IN ELECTRIC SINGLE AND DOUBLE OVEN OWNER'S MANUAL

FOURS ENCASTRÉS SIMPLE ET DOUBLE MANUEL DU PROPRIÉTAIRE

Table of Contents/Table des matieres

BUILT-IN OVEN SAFETY. 2

Built-In Oven Safety 2

Self-Cleaning Cycle. 5

Steam Clean (on some models) 6

INSTALLATION INSTRUCTIONS 6

REQUIREMENTS. 6

Tools and Parts 6

Location Requirements 6

Electrical Requirements 11

INSTALLATIONS 12

Prepare Built-In Oven 12

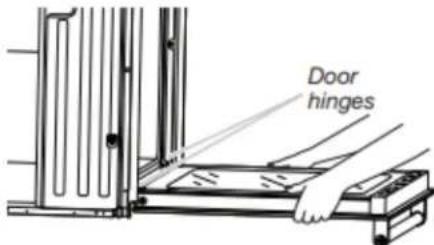

Remove Oven Door(s) 12

Positioning Oven Feet for Multiple Cabinet Cutout Heights... 13 Enlever la/les porte(s) du four 33

Make Electrical Connection. 17

Install Oven 18

Replace Oven Door(s) 19

Complete Installation 20

SECURITE DU FOUR ENCASTRE 21

BUILT-IN OVEN SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING." These words mean:

ADANGER

WARNING

You can be killed or seriously injured if you don't immediately follow instructions.

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electric shock, or injury to persons when using the appliance, follow basic precautions, including the following:

• Proper Installation - The appliance, when installed, must be electrically grounded in accordance with local codes, or in the absence of local codes, with the National Electrical Code, ANSI/NFPA 70 or the Canadian Electrical Code, CSA C22.1-02. In Canada, the appliance must be electrically grounded in accordance with Canadian Electrical Code. Be sure your appliance is properly installed and grounded by a qualified technician.
• Never Use Your Appliance for Warming or Heating the Room.
• Do Not Leave Children Alone - Children should not be left alone or unattended in area where appliance is in use. They should never be allowed to sit or stand on any part of the appliance.
  Wear Proper Apparel - Loose-fitting or hanging garments should never be worn while using the appliance.
• User Servicing - Do not repair or replace any part of the appliance unless specifically recommended in the manual. All other servicing should be referred to a qualified technician.
  Storage in or on Appliance - Flammable materials should not be stored in an oven or near surface units.
  This appliance is not intended for storage.
  ■ Do Not Use Water on Grease Fires - Smother fire or flame or use dry chemical or foam-type extinguisher.

• Do not use replacement parts that have not been recommended by the manufacturer (e.g. parts made at home using a 3D printer).

• Use Only Dry Potholders - Moist or damp potholders on hot surfaces may result in burns from steam. Do not let potholder touch hot heating elements. Do not use a towel or other bulky cloth.
  Use Care When Opening Door - Let hot air or steam escape before removing or replacing food.
  DO NOT TOUCH HEATING ELEMENTS OR INTERIOR SURFACES OF OVEN - Heating elements may be hot even though they are dark in color. Interior surfaces of an oven become hot enough to cause burns. During and after use, do not touch, or let clothing or other flammable materials contact heating elements or interior surfaces of oven until they have had sufficient time to cool. Other surfaces of the appliance may become hot enough to cause burns - among these surfaces are the coil and cooktop elements, oven vent openings and surfaces near these openings, oven doors, and windows of oven doors.
  Do Not Heat Unopened Food Containers - Build-up of pressure may cause container to burst and result in injury.

• Keep Oven Vent Ducts Unobstructed.
• Placement of Oven Racks - Always place oven racks in desired location while oven is cool. If rack must be moved while oven is hot, do not let potholder contact hot heating element in oven.

SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electric shock, or injury to persons when using the appliance, follow basic precautions, including the following:

For self-cleaning ovens:

• Do Not Clean Door Gasket - The door gasket is essential for a good seal. Care should be taken not to rub, damage, or move the gasket.
• Do not use a protective coating to line the oven and do not use commercial oven cleaner unless Certified for use in a self-cleaning oven.
  Clean Only Parts Listed.

CAUTION: DO NOT LEAVE FOOD OR COOKING UTENSILS, ETC., IN OVEN DURING THE PYROLYTIC SELF-CLEANING MODE OF OPERATION.

Before Self-Cleaning the Oven - Remove broiler pan and other utensils, and wipe off all excessive spillage.

For smart enabled ranges and ovens:

Remote Operation - This appliance is configurable to allow remote operation at any time. Do not store any flammable materials or temperature sensitive items inside, on top or near surface units of the appliance.

SAVE THESE INSTRUCTIONS

Internet Connectivity Guide for Connected Appliances Only

IMPORTANT: Proper installation of your appliance prior to use is your responsibility. Be sure to read and follow the installation instructions that came with your appliance.

Connectivity requires Wi-Fi and account creation. App features and functionality are subject to change. Data rates may apply. Once installed, launch the app. You will be guided through the steps to set up a user account and to connect your appliance.

You Will Need:

A home wireless router supporting Wi-Fi, 2.4 Ghz with WPA2 security. If you are unsure of your router's capabilities, refer to the router manufacturer's instructions.
The router to be on and have a live internet connection.
The 10-character SAID code for your appliance. The SAID code is either printed on a label on the appliance or found on the LCD screen.

Federal Communications Commission (FCC) Compliance Notice

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Industry Canada (IC) Compliance Notice

This Device complies with Industry Canada License-exempt RSS standard(s). Operation is subject to the following two conditions:

1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause undesired operation of the device.

Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.

To comply with FCC and Industry Canada RF radiation exposure limits for general population, antenna(s) used for this transmitter must be installed such that a minimum separation distance of 20~cm is maintained between the radiator (antenna) and all persons at all times and must not be co-located or operating in conjunction with any other antenna or transmitter.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

Reorient or relocate the receiving antenna.
■ Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
  ■ Consult the dealer or an experienced radio/TV technician for help.

To avoid damage to the control panel, do not use abrasive cleaners, steel-wool pads, gritty washcloths, or abrasive paper towels.

General Cleaning

IMPORTANT: Before cleaning, make sure all controls are OFF and the oven is cool. Always follow label instructions on cleaning products.

Soap, water, and a soft cloth or sponge are suggested first un otherwise noted.

EXTERIOR PORCELAIN ENAMAL SURFACES (on some models)

Food spills containing acids, such as vinegar and tomato, should be cleaned as soon as the entire oven is cool. These spills may affect the finish.

Cleaning Method:

Glass cleaner, mild liquid cleaner, or nonabrasive scrubbing pad:

Gently clean around the model/serial/rating plate because scrubbing may remove numbers.

■ Affresh® Kitchen and Appliance Cleaner Part Number W10355010 (not included):

See the Quick Start Guide for ordering information.

STAINLESS STEEL (On some models)

NOTE: To avoid damage to stainless steel surfaces, do not use soap-filled scouring pads, abrasive cleaners, steel-wool pads, gritty washcloths, or abrasive paper towels. Damage may occur to stainless steel surfaces, even with one-time or limited use.

Cleaning Method:

Rub in direction of grain to avoid damaging.

■ Affresh ^®+ Stainless Steel Cleaner Part Number W10355016 (not included):

See the Quick Start Guide for ordering information.

STAINLESS STEEL AND BLACK STAINLESS STEEL (on some models)

To avoid damage to stainless steel or black stainless steel surfaces, do not use soap-filled scouring pads, abrasive cleaners cooktop cleaner, steel-wool pads, gritty washcloths, or abrasive paper towels.

Cleaning Method:

Rub in direction of grain to avoid damaging.

• Affresh® Stainless Steel Cleaner Part Number W10355016 (not included) or affreshStainless Steel Cleaning Wipes Part Number W10355049 (not included):

See the Quick Start Guide for ordering information.

METALLIC PAINT (on some models)

Do not use abrasive cleaners, cleaners with bleach, rust removers, ammonia, or sodium hydroxide (lye) because paint surface may stain.

Cleaning Method:

Glass cleaner and soft cloth or sponge:
less Apply glass cleaner to soft cloth or sponge, not directly on panel.
■ Affresh © Kitchen and Appliance Cleaner Part Number W10355010 (not included):
See the Quick Start Guide for ordering information.
NOTE: To clean the trough, the oven door must be removed first. See the "Oven Door" section.

OVEN RACKS

Cleaning Method:

Steel-wool pad.
For racks that have discolored and are harder to slide, a light coating of vegetable oil applied to the rack guides will help them slide.

OVEN CAVITY OVEN DOOR INTERIOR

Do not use oven cleaners.

Food spills should be cleaned after the oven cools. At high temperatures, foods react with porcelain, and staining, etching, pitting, or faint white spots can result.

Cleaning Method:

Self-Cleaning cycle:
See the "Self-Cleaning Cycle" section first. Remove racks or they will discolor and become harder to slide. If this happens, a light coating of vegetable oil applied to the rack guides will help them slide.
For optimal door cleaning results, wipe away any deposits with a damp sponge before running cycle.

+POWERED ATTACHMENTS (on some models)

To avoid damage to the nonstick surfaces, do not use abrasive cleaners, steel-wool pads, gritty washcloths, or abrasive paper towels. Food spills should be cleaned when the +Powered Attachment cools.

Do not soak or immerse the Heating Element.

Cleaning Method:

• Soap, water, and a soft cloth or sponge: Wipe the Heating Element when it is cool. All attachments can be cleaned with soap, water, and a soft cloth or sponge.
• Dishwasher: The Base Pan, +Grill Attachment, +Baking Stone Attachment, and +Steamer Attachment are dishwasher-safe.
  ■ Affresh ^ 念 Cooktop Cleaner: Stubborn soils on the ^+ Baking p Stone Attachment can be cleaned with baking soda and a no scratch heavy duty scrub sponge. Rub cream into surface with a damp paper towel or soft cloth. Continue rubbing until white film disappears.

See the Smart Oven+ Powered Attachments User Instructions for more detailed instructions.

Self-Cleaning Cycle

AWARNING

Burn Hazard

Do not touch the oven during the Self-Cleaning cycle.

Keep children away from the oven during Self-Cleaning cycle.

Failure to follow these instructions can result in burns

IMPORTANT: The health of some birds is extremely sensitive to the fumes given off during the Self-Cleaning cycle. Exposure to the fumes may result in death to certain birds. Always move birds to another closed and well-ventilated room.

Self-clean the oven before it becomes heavily soiled. Heavy soil results in longer cleaning and more smoke.

• Keep the kitchen well-ventilated during the Self-Cleaning cycle to help get rid of heat, odors, and smoke.

Do not block the oven vent(s) during the Self-Cleaning cycle. Air must be able to move freely. See the "Oven Vents" section.

Do not clean, rub, damage, or move the oven door gasket. The door gasket is essential for a good seal.

Prepare Oven:

• Remove the broiler pan, grid, cookware and bakeware, and, on some models, the temperature probe from the oven.
• Remove oven racks to keep them shiny and easy to slide. the "General Cleaning" section for more information.
• Remove any foil from the oven because it may burn or melt, damaging the oven.
• Hand clean inside door edge and the area around the inside oven cavity frame, being certain not to move or bend the gasket. This area does not get hot enough during high-temp self-cleaning to remove soil. Do not let water, cleaner, etc., enter slots on door frame. Use a damp cloth to clean this area.
  Wipe out any loose soil to reduce smoke and avoid damage. At high temperatures, foods react with porcelain. Staining, etching, pitting, or faint white spots can result. This is normal and will not affect cooking performance.

IMPORTANT:

Oven temperature must be below 500^ (260^) to program a clean cycle.
■ For double ovens only: Only 1 oven can be cleaned at a time.
■ For double ovens only : Both oven doors will lock when either oven is running the Self-Cleaning cycle.

How the Cycle Works

IMPORTANT: The heating and cooling of porcelain on steel in the oven may result in discoloring, loss of gloss, hairline cracks, and popping sounds.
The Self-Cleaning cycle uses very high temperatures, burning soil to a powdery ash.

NOTE: 12 hours must pass before the next Self-Clean can begin. Once the oven has completely cooled, remove ash with a damp cloth. To avoid breaking the glass, do not apply a cool damp cloth to the inner door glass before it has completely cooled.

The oven lights will not work during the Self-Cleaning cycle.

NOTE: The oven has a two-speed cooling fan motor. During the Self-Cleaning cycle, the fan(s) will operate at its highest speed to increase airflow to better exhaust the hotter air through the oven vent(s). An increase in noise may be noticeable during and after the Self-Cleaning cycle until the oven cools.

Before Self-Cleaning, make sure the door is closed completely or it will not lock and the cycle will not begin. When the oven is locked, the doors of the oven cannot be opened. To avoid damage to the doors, do not force the doors open when the oven is locked.

To Self-Clean:

NOTE: For specific instructions on your model's Self-Clean cycle, please see your model's online Control Guide.

1. Close door, and (for select models) Touch the Tools keypad.
2. Select Self-Clean icon.
3. (For Double-Ovens) Select Upper Cavity or Lower Cavity. On some models, select the "1" or "2" number keypad to select desired oven to clean.
4. Select duration or level of cleaning. This will impact the duration which can range from 3 to 6 hours including cool down. If this model offers "Steam Clean" please check the "Steam Clean" section.
5. (On select models) follow the prompts on the oven display to prepare the oven.
6. Select Start OR (on select models) select Delay Start to set a delayed Self-Cleaning cycle. See the "To Delay Start Self-Cleaning Cycle" section. The oven doors will automatically lock.

NOTE: It may take a couple moments for the oven door to automatically lock after starting the Self-Clean Cycle. The doors will automatically unlock once the Self-Cleaning cycle is complete and the oven is cool.

When the oven is completely cooled, remove ash with a damp cloth.

Delay Start: (on select models)

Depending on your model, your oven may be able to Delay Start the Self-Cleaning cycle. You may be able to use one of the methods listed below.
NOTE: For specific instructions on your model's Delay Start Self-Clean cycle, please see your model's online Control Guide.

Version A:

1. Follow steps 1-5 in the "To Self-Clean" section.
2. Select Delay Start.
3. Select the start time of when the Self-Cleaning cycle should begin by scrolling from left to right.
4. Select Start Delay.

The oven doors will automatically lock after the Delay Start countdown. When the Self-Cleaning cycle is complete and the oven cools, the oven doors will unlock.

1. When the oven is completely cooled, remove ash with a damp cloth. Select STEAM CLEAN. 5 Select START

Version B:

1. Close the oven doors, and then press Delay Start
2. (For Double-Ovens) Select Upper Cavity or Lower Cavity. On some models, select the "1" or "2" number keypad to select the desired oven to clean.
3. Select the number keypads to enter the desired amount of time by which you want to delay the start.
4. Press Self Clean.
5. Select level of cleaning.
6. Select Start for the selected oven. The oven doors will automatically lock after the Delay Start countdown.

When the Self-Cleaning cycle is complete and the oven cool, the oven doors will unlock.

1. When the oven is completely cooled, remove ash with a damp cloth.

To Stop Self-Cleaning Anytime:

Touch the Oven Cancel Keypad for single oven models, or the keypads for double oven models. If the oven temperature is too high, the door will remain locked. It will not unlock until the oven cools.

Steam Clean (on some models)

The Steam Clean feature is designed for light oven cavity bottom cleaning on models that have hidden bake in both ovens.

Allow the oven to cool to room temperature before using the Steam Clean feature. If your oven cavity is above 200^ (93^) the Steam Clean feature will not activate until it cools down.

Remove all racks and accessories from the oven cavity.

For best results, use 10 oz (295.7 mL) of distilled or filtered water. Do not use oven cleaners.

The Steam Clean feature will take approximately 1 hour. A tone will sound at the end of the cycle.

IMPORTANT: Because the water in the oven bottom is hot, do open the oven door during the Steam Clean cycle.

• Touch the Oven Cancel keypad for single oven models and the Upper/Lower keyboards for double oven models at any time to end the cycle. The display will return to the time of day.

Helpful Hints

Once the Steam Clean cycle is complete and the oven is completely cooled, remove all remaining water in the bottom the oven with a sponge or cloth.
Wipe any remaining moisture from the oven door interior, over cavity interior sides, and cooktop.
Use a soft brush or nylon scrubber to wipe the oven interior. This may help with more stubborn stains.
It is recommended to use distilled or filtered water, as tap water may leave mineral deposits on the oven bottom. Use a cloth soaked with vinegar or lemon juice to remove any mineral deposits that may be left after the Steam Clean cycle
If the oven is heavily soiled, use the Self-Cleaning cycle. The Steam Clean cycle may be used first to eliminate most of the debris, resulting in a more effective self-cleaning.

To Steam Clean:

1. Open the oven door of the selected oven and remove all rad and accessories from the oven cavity.
2. Pour 10 oz (295.7 mL) of distilled or filtered water into the oven bottom. Then close the oven door.

3. Touch the Tools keypad. (On double-oven models) Select Upper Cavity or Lower Cavity.

4. After approximately 1 hour, a tone will sound to signal the end of the cycle. Touch the keypad for single oven models and the keypads for double oven models to clear the display.

5. When the oven is completely cooled, remove any excess water with a sponge or cloth and wipe down oven interior. If needed, use a non-scratch copper scrubbing pad to remove stubborn soils.

INSTALLATION INSTRUCTIONS REQUIREMENTS

Tools and Parts

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

Tools Needed

■ Phillips screwdriver
Measuring tape
Hand or electric drill (for wall cabinet installations)
1" (2.5 cm) drill bit (for wall cabinet installations)
Level
Flat-blade screwdriver

Parts Needed

■ UL-listed or CSA-approved conduit connector
UL-listed wire connectors

Parts Supplied

■ #8-14 x 3/4" (1.9 cm) screws - single ovens (2), double ovens (4)

tor #8-18 x 3/8" (9.5 mm) screws - bottom vent (2)

8-18 x 3/8" (9.5 mm) screws - bottom vent shield (2)

8-18 x 3/8" (9.5 mm) screws - bottom vent trim (4)

Rear feet - double oven (2)
Front feet - double oven (2)
Bottom vent and shield

Check local codes. Check existing electrical supply. See the "Electrical Requirements" section.

It is recommended that all electrical connections be made by a licensed, qualified electrical installer.

NOTE: Be sure to purchase only whirlpool factory-certified parts and accessories for your appliance. Your installation may require additional parts. To order, refer to the contact information referenced in your Quick Start Guide.

Location Requirements

IMPORTANT: Observe all governing codes and ordinances.

To eliminate the risk of burns or fire by reaching over heated surface units, cabinet storage space located above the surface units should be avoided. If cabinet storage is to be provided, the risk can be reduced by installing a range hood that projects horizontally a minimum of 5 inches beyond the bottom of the cabinets.
Cabinet opening dimensions that are shown must be used.icks Given dimensions provide minimum clearance with oven.
- Recessed installation area must provide complete enclosure around the recessed portion of the oven.
Grounded electrical supply is required. See "Electrical Requirements" section.

• Electrical supply junction box should be located 3'' (7.6 cm) maximum below the support surface when the oven is installed in a wall cabinet. A 1'' (2.5 cm) minimum diameter hole should have been drilled in the right rear or left rear corner of the support surface to pass the appliance cable through to the junction box.

NOTE: For undercover installation, it is recommended that the junction box be located in the adjacent right or left cabinet. If you are installing the junction box on rear wall behind oven, it is recommended that the junction box be recessed and located in the upper center of the cabinet.

• Oven support surface must be solid, level and flush with bottom of cabinet cutout.
  Floor must be able to support a single oven weight of 200 lbs (91 kg) for 30^ (76.2 cm) models.
  Floor must be able to support a double oven weight of 330 lbs (150kg) for 30^ (76.2cm) models.

IMPORTANT: To avoid damage to your cabinets, check with your builder or cabinet supplier to make sure that the materials used will not discolor, delaminate or sustain other damage. This oven has been designed in accordance with the requirements of UL and CSA International and complies with the maximum allowable wood cabinet temperatures of 194^ (90^) .

Undercounter Installation (With Cooktop Installed Above):

Ovens approved for this type of installation have an approval la located on the top of the oven. Refer to Cutout Dimensions for Ovens Installed Under Cooktop.

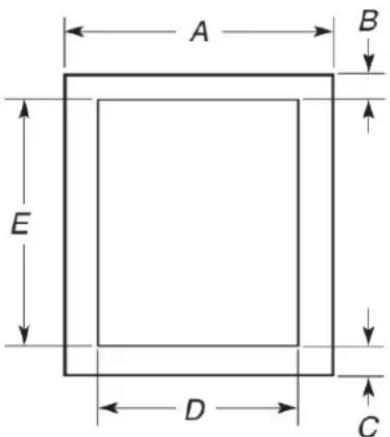

Cabinet Dimensions - Single Ovens, Standard Installation

Single Oven Undercounter (Without Cooktop Installed Above)

27" (68.6 cm) models

A. 27^ (68.6 cm) minimum cabinet width
B. 1 / 2'' (3.8 cm) minimum top of cutout to underside of countertop
C. 5 / 4'' (13.3 cm) bottom of cutout to floor
D. 25 12 (64.8 cm) minimum cutout width
E. 28^ (71.2 cm) minimum cutout height

30^ (76.2 cm) models

A. 30^ (76.2 cm) minimum cabinet width
B. 1 12'' (3.8 cm) minimum top of cutout to underside of countertop
C. 5 / 4'' (13.3 cm) bottom of cutout to floor
D. 28 12 (72.4 cm) minimum cutout width
E. 28^ (71.2 cm) minimum cutout height

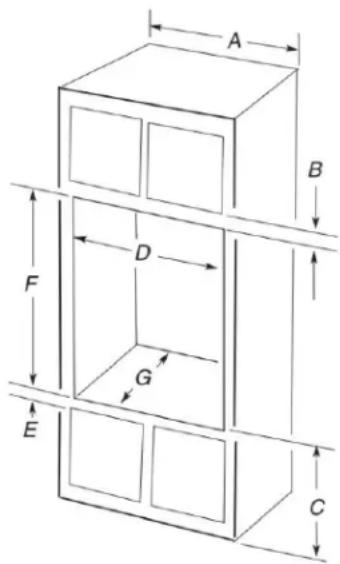

Single Ovens Installed in Cabinet

27" (68.6 cm) models

A. 27^ (68.6 cm) minimum tel cabinet width
B. 1 / 4'' (3.2 cm) top of cutout to bottom of upper cabinet door
C. 32^ (81.3 cm) bottom of cutout to floor
D. 25 12^ (64.8 ~cm) minimum cutout width
E. 1 / 2'' (3.8 cm) minimum bottom of cutout to top of cabinet door
F. 28^ (71.2 cm)* recommended cutout height
G. 24^ (60.7cm) cutout depth

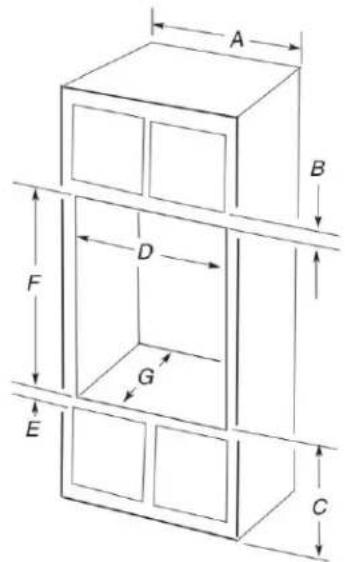

30" (76.2 cm) models

A. 30^ (76.2 cm) minimum cabinet width
B. 1 14 (3.2 cm) top of cutout to bottom of upper cabinet door
C. 32^ (81.3 cm) bottom of cutout to floor
D. 28 12''(72.4 ~cm) minimum cutout width
E. 1 / 2^ (3.8~cm) minimum bottom of cutout to top of cabinet door
F. 28^ (71.2 cm)* recommended cutout height
G. 24^ (60.7 cm) cutout depth

*NOTE: The cutout height can be between 26^15/16 and 29^7/16 (68.4 cm and 74.8 cm) for single ovens.

NOTE: Tall shield for installations greater than 28^11/16 (72.9 cm).

Cabinet Dimensions - Double Ovens, Standard Single Ovens Installed in Cabinet Installation

Double Ovens Installed in Cabinet

27" (68.6 cm) models

A. 27^ (68.6 cm) minimum cabinet width
B. 1 / 4'' (3.2 cm) top of cutout to bottom of upper cabinet door
C. 14 3 / 4'' (37.5 cm) bottom of cutout to floor is recommended. 4^ - 14^3 / 4 (10.2 cm - 37.5 cm) bottom of cutout to floor is acceptable.
D. 25 1 12 (64.8 cm) minimum cutout width
E. 1 / 2^ (3.8cm) minimum bottom of cutout to top of cabinet door
F. 50 14 (127.6 cm)* recommended cutout height
G. 24^ (60.7 cm) cutout depth

30^ (76.2 cm) models

A. 30^ (76.2 cm) minimum cabinet width
B. 1 / 4'' (3.2 cm) top of cutout to bottom of upper cabinet door
C. 14 3 / 4'' (37.5 cm) bottom of cutout to floor is recommended. 4^ - 143 / 4^ (10.2 cm - 37.5 cm) bottom of cutout to floor is acceptable.
D. 28 12'' (72.4 ~cm) minimum cutout width
E. 1 / 2'' (3.8 cm) minimum bottom of cutout to top of cabinet door
F. 50 14 (127.6 cm)* recommended cutout height
G. 24^ (60.7 cm) cutout depth

27" (68.6 cm) Models

A. 3 / 4'' (1.9 cm) top clear
B. 2714'' (69.2 cm) minimum width B. 3014'' (76.8 cm) minimum width of flush inset cutout of flush inset cutout
C. 257 / 8'' (65.7 cm) minimum width C. 287 / 8'' (73.3 cm) minimum width of opening of opening
D. 2914'' (74.3 cm) minimum D. 2914'' (74.3 cm) minimum height of flush inset cutout height of flush inset cutout
E. 28 12 (72.4 cm) recommended E. 28 12 (72.4 cm) recommended cutout height cutout height
F. 11 / 16'' (1.7 cm) side cleat
G. 1 / 4^ 2^ (6.4mm× 5.1cm) spacer the entire depth of the cutout*
H. Recommended junction box location
45" - 32" (11.7 - 81.3 cm) bottom of cutout to floor
J. 25" (63.5 cm) minimum depth of cutout

• Cleats and spacers must be recessed" 1(3.5 cm) from the front of the cabinet.

NOTE: The cutout height can be between 8^14 and 5216^1

(124.1 cm and 132.6 cm) for double ovens.

NOTE: Contact service to get tall shield for cutouts greater than 28^11 / 16 (72.9 cm) to enhance installation.

Cabinet Dimensions - Single Ovens, Flush Installations

NOTE: This is an alternate option to install your product in the cabinet and obtain a flush look. For standard installation, refer section "Cabinet Dimensions - Single Ovens, Standard Installation".

A 25" (63.5 cm) minimum cutout depth is required.

These dimensions will result in a 1/4'' (6 mm) reveal on the top, a 1/4'' (6 mm) reveal on the sides, and a 1/8'' (3 mm) reveal on the bottom of the wall oven.

The front face of the cleats and platform will be visible and should be treated as a finished surface.

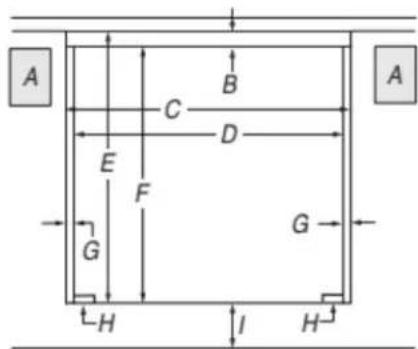

Single Ovens Undercounter - without cooktop installed above

Front View

27" (68.6 cm) Models

A. Recommended junction box location
B. 3 / 4'' (1.9 cm) top cleat
C. 27 14 (69.2 cm) minimum width of flush inset cutout
D. 257 / 8'' (65.7 cm) minimum width of opening
E. 2914 (74.3 cm) minimum height of flush inset cutout
F. 28 1/2 (72.4 cm) recommended cutout height
G. 11 / 16'' (1.7 cm) side cleat
H. 1/4"x 2" (6.4 mm x 5.1 cm) spacer the entire depth of the cabinet"
I. 45 / 8 (11.7 cm) bottom of cutout I. to floor

30" (76.2 cm) Models

A. Recommended junction box location
B. 3 / 4'' (1.9 cm) top clear
C. 30 1 / 4 (76.8 cm) minimum width of flush inset cutout
D. 287 / 8'' (73.3 cm) minimum width of opening
E. 29 14 (74.3 cm) minimum height of flush inset cutout
F. 28 12 (72.4 cm) recommended cutout height
G. 11 / 16'' (1.7 cm) side cleat*
H. 1 / 4^ 2^ (6.4mm× 5.1cm) spacer the entire depth of the cabinet*
I. 45 / 8 (11.7 cm) bottom of cutout to floor

• Cleats and spacers must be recessed" 1(3.5 cm) from the front of the cabinet.

Top View

27" (68.6 cm) Models

A. 1 / 4^ 2^ (0.64cm× 5.1cm) spacer the entire depth of the cutout*
B. 25^ (63.5 cm) depth of cutout
C. 1^3 / 8 (3.5 cm) recess from front of cabinet
D. 11 / 16'' (1.7 cm) side clear*

30" (76.2 cm) Models

A. 1 / 4^ 2^ (0.64cm× 5.1cm) spacer the entire depth of the cutout*
B. 25^ (63.5 cm) depth of cutout
C. 1^3 / 8 (3.5 cm) recess from front of cabinet
D. 11 / 16'' (1.7 cm) side clear*

• Cleats and spacers must be recessed"1(3.5 cm) from the front of the cabinet.

Cabinet Dimensions - Double Ovens, Flush Installations

NOTE: This is an alternate option to install your product in the cabinet and obtain a flush look. For standard installation, refer section "Cabinet Dimensions - Double Ovens, Standard Installation".

A 25^3 / 8 (64.4 cm) minimum cutout depth is required.

These dimensions will result in a 1/4'' (6 mm) reveal on the top, a 1/4'' (6 mm) reveal on the sides, and a 1/8'' (3 mm) reveal on the bottom of the wall oven.

The front face of the cleats and platform will be visible and should be treated as a finished surface.

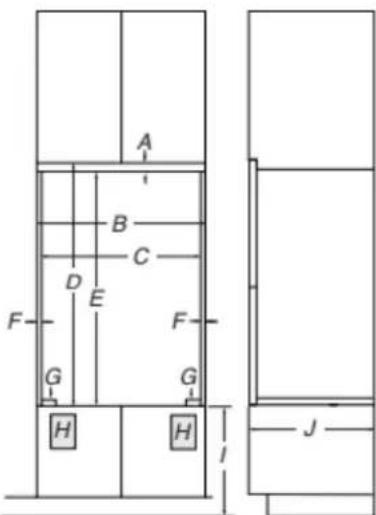

Double Ovens Installed in Cabinet

Front View
Side View

27" (76.2 cm) Models

A. 9 / 16'' (1.4 cm) top cleat
B. 27 14 (69.2 cm) minimum width of flush inset cutout
C. 25 78 (65.7 cm) minimum width of opening
D. 52^ (132.1 cm) minimum height of flush inset cutout
E.51 7/16" (130.6 cm) recommended cutout height
F. 11 / 16'' (1.7 cm) side cleat
G. 1 / 4'' x 2'' (0.64 cm x 5.1 cm) spacer the entire depth of the cutout*
H. Recommended junction box location
1. 45/8" - 143/4" (11.7 - 37.5) bottom of cutout to floor
J.25 3 / 8 (64.4 cm) minimum depth of cutout

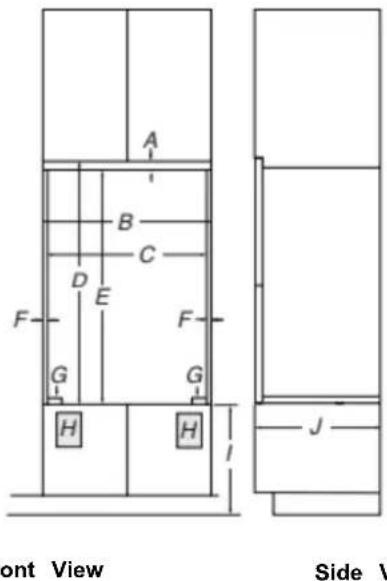

30" (76.2 cm) Models

A. 9 / 16'' (1.4 cm) top cleat
B. 30 14 (76.8 cm) minimum width of flush inset cutout
C. 287 / 8 (73.3 cm) minimum width of opening
D. 52^ (132.1 cm) minimum height of flush inset cutout
E.51 7/16" (130.6 cm) recommended cutout height
F. 11/16" (1.7 cm) side cleat
G. 1 / 4''x2'' (0.64 cm x 5.1 cm) spacer the entire depth of the cutout*
H. Recommended junction box location
I. 45 / 8^ - 32^ (11.7 - 81.3cm) bottom of cutout to floor
J. 25 3 / 8 (64.4 cm) minimum depth of cutout

• Cleats and spacers must be recessed" 1(3.5 cm) from the front of the cabinet.

Top View

27" (68.6 cm) Models

30" (76.2 cm) Models

A. 1 / 4^ 2^ (0.64cm× 5.1cm) spacer the entire depth of the cutout*

A. 1 / 4^ 2^ (0.64cm× 5.1cm) spacer the entire depth of the cutout*

B. 25 [3]8 (64.4 cm) depth of cutout

B. 25 [3]8 (64.4 cm) depth of cutout

C. 1^3 / 8 (3.5 cm) recess from front of cabinet

C. 1 / 8'' (3.5 cm) recess from front of cabinet

D. 11 / 16'' (1.7 cm) side cleat*

D. 11 / 16'' (1.7 cm) side cleat*

• Cleats and spacers must be recessed" 1(3.5 cm) from the front of the cabinet.

Cutout Dimensions For Ovens Installed Under Cooktop

IMPORTANT: Observe all governing codes and ordinances.
Cooktop must be approved for use over an oven. See cooktop
Installation Instructions for cutout dimensions. Center the cooktop cutout over oven cutout.
To avoid damage to your cabinets, check with your builder or cabinet supplier to make sure that the materials used will not discolor, delaminate or sustain other damage. This oven has bee designed in accordance with UL and CSA International and complies with the maximum allowable wood cabinet temperatures of 194^ (90^)

Approved Built-In Oven and Electric Radiant/Coil Cooktop Combinations

A. 24^ (61~cm) cabinet depth
B. 25^ (63.5 cm) countertop depth
C. Recommended oven and cooktop junction box locations
D. Allow 5 / 8'' (1.6 cm) for oven trim to overlap on each side.
E.27 3 / 4'' (70.5 cm) minimum cutout height

F. 36^ (91.4 cm) from cabinet base to countertop
G. 45 / 8 (11.7 cm) maximum from cabinet base

H. See Cutout Dimensions chart.
I.31 _'' (79.7 cm) from top of countertop to bottom of cutout

CUTOUT DIMENSIONS (H)

Oven Size Oven Cutout D	mension
24" (61 cm) 22	\( \frac{1}{2}'' \)(57.2 cm)
27" (68.6 cm) 25	\( \frac{1}{2}'' \)(64.8 cm)
30" (76.2 cm) 28	\( \frac{1}{2}'' \)(72.4 cm)
36" (91.4 cm) 34	\( \frac{1}{2}'' \)(87.6 cm)

For the approved model number combinations, refer to the undercounter label located on top of the oven chassis and o the bottom of the cooktop burner box.

NOTE: For undercounter installation, it is recommended that the junction boxes for oven and cooktop be located in the adjacent right or left cabinet. A 1" (2.5 cm) minimum diameter hole should have been drilled in the upper rear right or left corner of the side wall surface to pass the appliance cable through to the junction box.

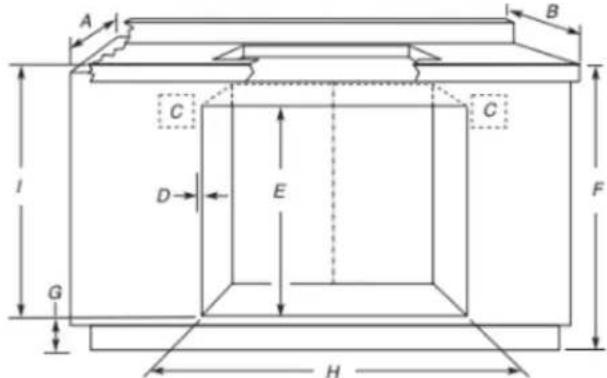

Approved Built-In Oven and Induction Cooktop Combinations

A. 24^ (61~cm) cabinet depth
B. 25^ (63.5 cm) countertop depth
C. Recommended oven and cooktop junction box locations
D. Allow 5 / 8'' (1.6 cm) for oven trim to overlap on each side.
E.27 3 / 4 (70.5 cm) minimum cutout height

F. 36^ (91.4 cm) from cabinet base to countertop
G. 4^5/8 (11.7 cm) maximum from cabinet base. If dimension “F” is greater than 36 (91.4 cm), dimension “G” can be increased the same difference for induction combinations.
H. See Cutout Dimensions chart.
I. 31 38 (82.2 cm) from top of countertop to bottom of cutout

CUTOUT DIMENSIONS (H)

Oven Size Minimum Oven	Cutout Dimension
24" (61 cm) 22	\( \frac{1}{2}'' \)(57.2 cm)
27" (68.6 cm) 25	\( \frac{1}{2}'' \)(64.8 cm)
30" (76.2 cm) 28	\( \frac{1}{2}'' \)(72.4 cm)

For the approved model number combinations, refer to the undercounter label located on top of the oven chassis and o the bottom of the cooktop burner box.

NOTE: For undercounter installation, it is recommended that the junction boxes for oven and cooktop be located in the adjacent right or left cabinet. A 1" (2.5 cm) minimum diameter hole should have been drilled in the upper rear right or left corner of the side wall surface to pass the appliance cable through to the junction box.

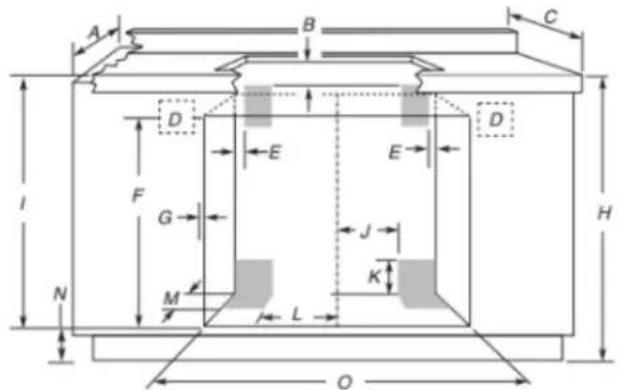

Approved Built-In Oven and Gas Cooktop Combinations

A. 24^ (61cm) cabinet depth
B. 1'' (2.5 cm) clearance to bottom of countertop
C. 25^ (63.5 cm) countertop depth
D. Recommended oven junction box locations.
E. 1'' (2.5 cm) clearance to cabinet
F.27 3 / 4 (70.5 cm) minimum cutout height
G. Allow 5 / 8'' (1.6 cm) for oven trim to overlap on each side.
H. 36^ (91.4 cm) from cabinet base to countertop

1. 31 38 (79.7 cm) from top of countertop to bottom of cutout
   J. Gas line through wall 1012 (26.7 cm) to center of cutout K. 314 (8.3 cm)
   L. Gas line through floor 10^1/2 (26.7 cm) to center of cutout M. 31/2 (8.9 cm)
   N. 45 / 8 (11.7 cm) maximum from cabinet base
   O. See Cutout Dimensions chart.

CUTOUT DIMENSIONS (O)

Oven Size Minimum Oven	Cutout Dimension
24" (61 cm) 22	\( \frac{1}{2}''(57.2cm) \)
27" (68.6 cm) 25	\( \frac{1}{2}''(64.8cm) \)
30" (76.2 cm) 28	\( \frac{1}{2}''(72.4cm) \)
36" (91.4 cm) 34	\( \frac{1}{2}''(87.6cm) \)

For the approved model number combinations, refer to the undercounter label located on top of the oven chassis.

NOTE: For undercounter installation, it is recommended that the junction box for oven be located in the adjacent right or left cabinet. A 1" (2.5 cm) minimum diameter hole should have been drilled in the upper rear right or left corner of the side wall surface to pass the appliance cable through to the junction box.

The upper shaded areas are recommended locations for recessed junction box for 120V grounded outlet for cooktop.

Lower shaded areas are recommended locations for flexible or rigid gas pipe installation. The gas connection on the cooktop is on the right (same location as "J" in the above diagram). The gas pipe can be installed on either side of the cutout, and either through the floor or through the wall. Refer to local codes regarding the use of gas lines.

Electrical Requirements

If codes permit and a separate ground wire is used, it is recommended that a qualified electrical installer determine that the ground path and the wire gauge are in accordance with local codes.

Check with a qualified electrical installer if you are not sure the oven is properly grounded.

This oven must be connected to a grounded metal, permanent wiring system.

Be sure that the electrical connection and wire size are adequate and in conformance with the National Electrical Code, ANSI/NFPA 70-latest edition or CSA Standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No. O-M91-latest edition, and all local codes and ordinances.

A copy of the above code standards can be obtained from: National Fire Protection Association

1 Batterymarch Park

Quincy, MA 02169-7471

CSA International

8501 East Pleasant Valley Road

Cleveland, OH 44131-5575

Electrical Connection

To properly install your oven, you must determine the type of electrical connection you will be using and follow the instructions provided for it here.

Oven must be connected to the proper electrical voltage and frequency as specified on the model/serial/rating plate. The model/serial/rating plate is located under the control panel on single ovens and under the control panel on the upper oven cavity on double ovens. See the following illustrations.

Double oven

Single oven

A. Model/serial/rating plate

A. Model/serial/rating plate

Models rated from 7.3 to 9.6kW at 240V (5.4 to 7.4kW at 208V ) require a separate 40 A circuit. Models rated at 4.8kW and below at 240V (3.6 kW and below at 208V ) require a separate 20 A circuit.
A circuit breaker is recommended.
Connect directly to the fused disconnect (or circuit breaker box) through flexible, armored, or nonmetallic sheathed, as copper cable (with grounding wire). See "Make Electrical Connection" section.
Flexible conduit from the oven should be connected directly to the junction box.
Fuse both sides of the line.
Do not cut the conduit. The length of conduit provided is for serviceability of the oven.
A UL-listed or CSA-approved conduit connector must be provided.

If the house has aluminum wiring, follow the procedure below:3.

Connect the aluminum wiring using special connectors and/or tools designed and UL listed for joining copper to aluminum. Follow the electrical connector manufacturer's recommended procedure. Aluminum/copper connection must conform with local codes and industry-accepted wiring practices.

INSTALLATIONS

Prepare Built-In Oven

1. Decide on the final location for the oven. Avoid drilling or cutting into house wiring during installation.

AWARNING

Excessive Weight Hazard

Use two or more people to move and install or uninstall appliance.

Failure to do so can result in back or other injury.

1. To avoid floor damage, set the oven onto cardboard prior to installation. Do not use handle or any portion of the front frame for lifting.
2. Remove the shipping materials and tape from the oven. Remember to keep the corner posts and other materials that may be needed for installation.
3. Remove the hardware package from inside the bag containing literature.
4. Remove and set aside racks, attachments, and other parts from inside the oven.
5. Move oven and cardboard close to the oven's final location.

Remove Oven Door(s)

IMPORTANT: Use 2 hands to remove oven door. For double ovens, repeat the process for each door.

1. Prior to removing the oven door, prepare a surface where you will place it. This surface should be flat and covered with a soft blanket, or use the corner posts from your packaging material.
2. Fully open the oven door.

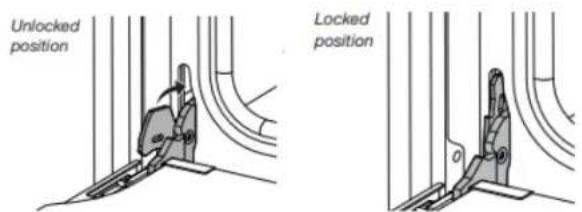

Locate the oven door hinge locks in both corners of the oven door, and rotate the hinge locks toward the oven door to the unlocked position. If the door hinge lock is not rotated fully (see illustration B), the door will not remove properly.

A. Oven door hinge lock in locked position

B. Oven door hinge lock in unlocked position

1. Gently start to close the door. The door will stop at a partially closed position.

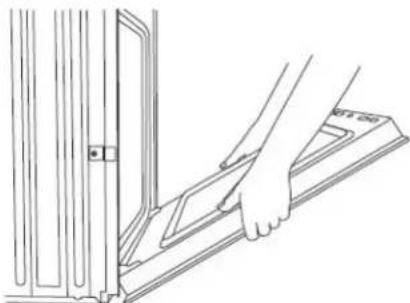

1. Using 2 hands, grasp the edges of the oven door. Close the oven door slightly past the stop position to take the weight off of the door hinges, and then pull the oven door up.

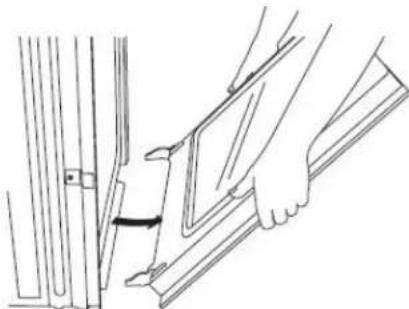

1. Pull the oven door toward you, and then remove. You may need to gently shift door from side to side as you pull.
2. Set the oven door aside on the prepared covered work surface with the oven door resting on its handle.
3. To continue with the oven installation, go to the "Positioning Oven Feet for Multiple Cabinet Cutout Heights" section.

Positioning Oven Feet for Multiple Cabinet Cutout Heights

Cutout Height is Between 1526'' and 27_16'' (68.4 cm and 70.3 cm)

1. Using 2 or more people, place the oven on its back on a covered surface.

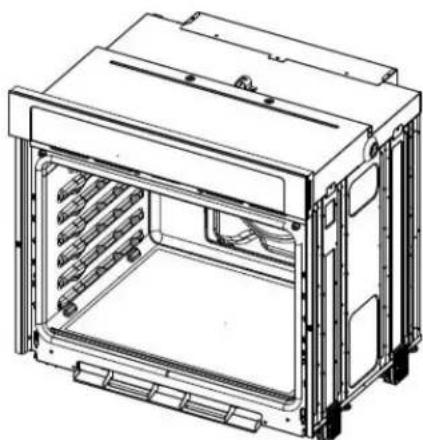

Single Ovens

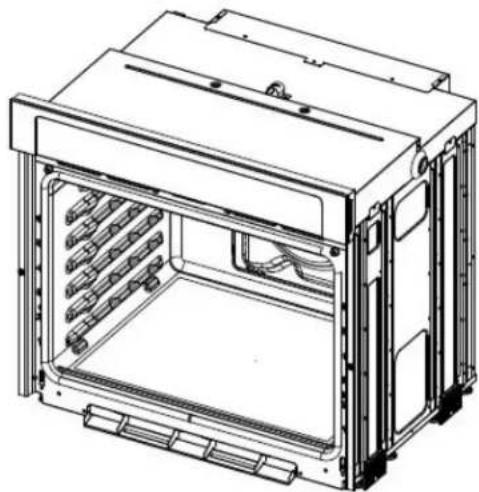

The positioning of the oven feet allow a single oven to be installed in a cutout height between 12% and 29% (68.4 cm and 74.8 cm). Refer to the following instructions to position the feet for the size of your cabinet cutout.

Cutout Height is Between 5/8 and 28 " (70.2 cm and 72.7 cm)

The oven feet do not need to be changed. They are positioned correctly as received.

Go to the "Make Electrical Connection" section.

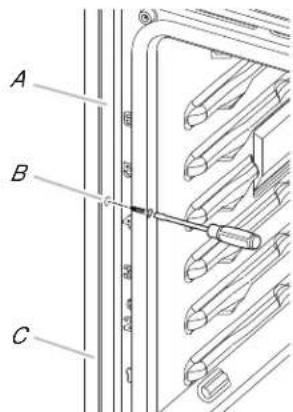

1. Remove the foot from the right front spacer by removing the #8-18 x 3/8" screw. NOTE: Do not remove the spacer.

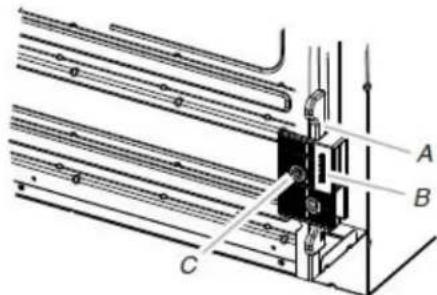

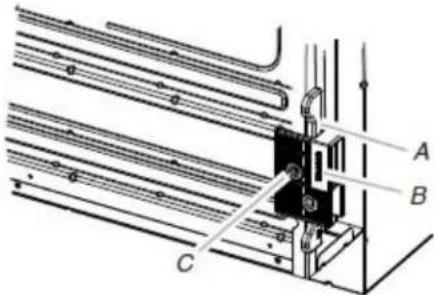

A. Spacer
B. Foot
C.#8-18x3/8"(9.5mm) screw

1. In the same manner, remove the feet on the right rear, left front, and left rear of the oven.
2. Using 2 or more people, place the oven in its upright position.

1. Go to the "Make Electrical Connection" section.

Cutout Height is between 1125'' and 296'' (72.8 cm and 74.8 cm)

NOTE: A tall bottom vent shield can be ordered to replace the 6. shield that came with the unit as an optional bottom aesthetic. The oven will function properly with either shield. Please refer to your Quick Start Guide for the service number to call and request at no charge.

1. Using 2 or more people, place the oven on its back on a covered surface.

1. Remove the foot from the right front spacer by removing the #8-18 x3/8" (9.5 mm) screw.

NOTE: Do not remove the spacer.

A. Spacer
B. Foot
C.#8-18 x 3/8" (9.5 mm) screw

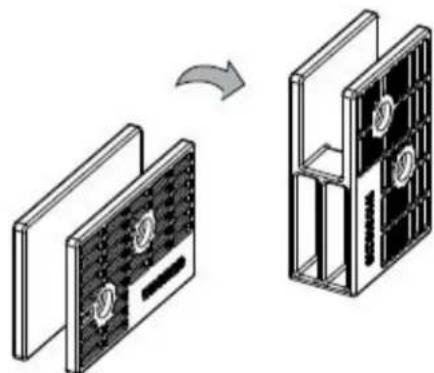

1. Rotate the foot 90^ so the short side of the foot is positioned toward the top of the oven.

1. Reinstall the foot to the spacer using the #8-18 x 3/8" (9.5 mm) screw previously removed.

2. In the same manner, remove, rotate and reinstall the feet on the right rear, left front, and left rear of the oven.

3. Using 2 or more people, place the oven in its upright position.

1. Go to the "Make Electrical Connection" section.

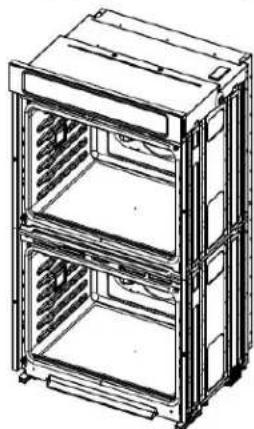

Double Ovens

The positioning of the oven feet allow a double oven to be installed in a cutout height between 7/48 and 52_16'' (124.1 cm and 132.6 cm). Refer to the following instructions to position the feet for the size of your cabinet cutout.

Cutout Height is Between7/48 and 5016" (124.1 cm and 128.1 cm)

The oven feet do not need to be installed. The oven is configured correctly as received.

NOTE: Do not remove the spacers.

Go to the "Make Electrical Connection" section.

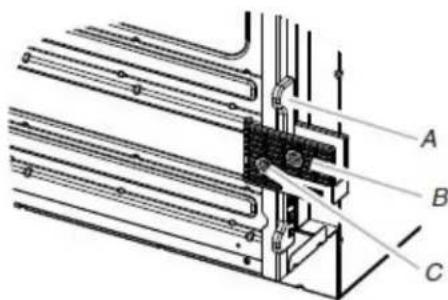

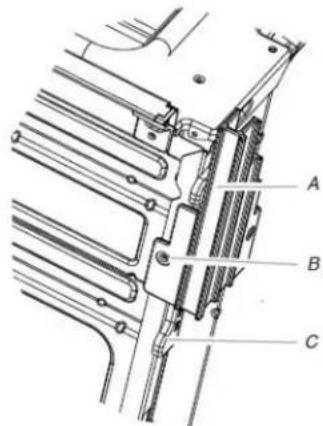

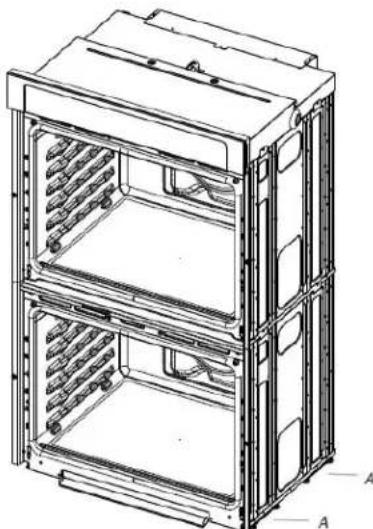

A. Spacers

Cutout Height is Between1/50 and 5% (128.2 cm and 129.9 cm) or For Flush Installation

1. Using 2 or more people, place the oven on its back on a covered surface.

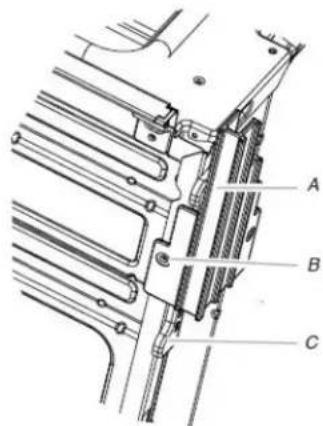

1. Install a rear foot on the left rear spacer using a #8-18 x 3/8" (9.5 mm) screw. NOTE: Position the foot so the long side of the foot is facing toward the top of the oven.

A. Spacer
B. Rear foot
C.#8-18 3 / 8'' (9.5mm) screw

1. In the same manner, install a rear foot on the right rear of the oven.

2. Install a front foot on the left front spacer using a #8-18 x 3/8" (9.5 mm) screw. NOTE: Position the foot so the long side of the foot is facing toward the inside of the oven.

A. Front Foot
B.#8-18 x 3/8" (9.5 mm) screw
C. Spacer

1. In the same manner, install a front foot on the right front of the oven.
2. Using 2 or more people, place the oven in its upright position.

1. Go to the "Make Electrical Connection" section.

Cutout Height is Between 3/5 and 526 (130.0 cm and 132.6 cm)

NOTE: A tall bottom vent shield can be ordered to replace the shield that came with the unit as an optional bottom aesthetic. The oven will function properly with either shield. Please refer to your Quick Start Guide for the service number to call and request at no charge.

1. Using 2 or more people, place the oven on its back on a covered surface.

1. Install a rear foot on the left rear spacer using a #8-18 x 3/8" (9.5 mm) screw.

NOTE: Position the rear foot so the short side of the foot is facing toward the top of the oven.

1. Install a front foot on the left front using a #8-18 x 3/8" (9.5 mm) screw.

NOTE: Position the foot so the short side of the foot is facing toward the top of the oven.

A. Front Foot
B.#8-18x3/8"(9.5mm) screw
C. Spacer

1. In the same manner, install a front foot on the right front of the oven.

2. Using 2 or more people, place the oven in its upright position.

A. Spacer

B. Rear foot
C.#8-18x3/8"(9.5mm) screw

1. In the same manner, install a rear foot on the right rear of the Go to the "Make Electrical Connection" section. oven.

Make Electrical Connection

For Single Ovens

AWARNING

Electrical Shock Hazard

Disconnect power before servicing.

Use 12 gauge copper wire.

Electrically ground oven.

Failure to follow these instructions can result in death, fire, or electrical shock.

For Double Ovens

AWARNING

Electrical Shock Hazard

Disconnect power before servicing.

Use 8 gauge copper wire.

Electrically ground oven.

Failure to follow these instructions can result in death, fire, or electrical shock.

This oven is manufactured with a neutral (white) power supply 1 wire and a cabinet-connected green (or bare) ground wire twisted together.

1. Disconnect power.
2. Feed the flexible conduit from the oven through the opening the cabinet.
3. Remove junction box cover, if it is present.
4. Install a UL listed or CSA approved conduit connector to the junction box.

A. UL listed or CSA Approved conduit connector

1. Route the flexible conduit from the oven to the junction box through a UL listed or CSA approved conduit connector.
2. Tighten screws on conduit connector.
3. See "Electrical Connection Options Chart" to complete installation for your type of electrical connection.

Electrical Connection Options Chart

If your home has: Go to section:

4-wire

3-wire

4-Wire Cable from Home Power Supply

3-Wire Cable from Home Power Supply

4-Wire Cable from Home Power Supply

IMPORTANT: Use the 4-wire cable from home power supply in the U.S. where local codes do not allow grounding through neutral, New Branch circuit installations (1996 NEC), mobile homes and recreational vehicles, new construction and in Canada.

A. Cable from home power supply

B. Black wires
C. Red wires
D. 4-wire flexible conduit from oven

F. White wires
G. UL listed wire connectors
H. Green (or bare) ground wires
I. UL listed or CSA approved conduit connector

E.Junction box

1. Connect the 2 black wires (B) together using a UL listed wire connector.
2. Connect the 2 red wires (C) together using a UL listed wire connector.
   3 Untwist white wire from green (or bare) ground wire coming from the oven.
3. Connect the 2 white wires (F) together using a UL listed wire connector.
4. Connect the green (or bare) ground wire (H) from the oven cable to the green (or bare) ground wire (in the junction box) using a UL listed wire connector.
5. Install junction box cover.

3-Wire Cable from Home Power Supply - U.S. Only

IMPORTANT: Use the 3-wire cable from home power supply where local codes permit a 3-wire connection.

A. Cable from home power supply

F. 4-wire flexible conduit from oven

C. Black wires

G. Red wires

D. White wires

H. UL listed wire connectors

E. Green (or bare) ground wire (from oven)

I. UL listed or CSA approved conduit connector

1. Connect the 2 black wires (C) together using a UL listed wire connector.
2. Connect the 2 white wires (D) and the green (or bare) ground wire (of the oven cable) using a UL listed wire connector.
3. Connect the 2 red wires (G) together using a UL listed wire connector.
4. Install junction box cover.

Install Oven

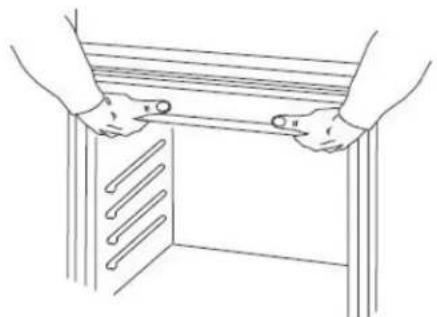

1. Using 2 or more people, lift the oven partially into the cabinet cutout. Use the oven opening as an area to grip.

NOTE: Push against seal area of the oven front frame when pushing the oven into the cabinet. Do not push against the outside edges.

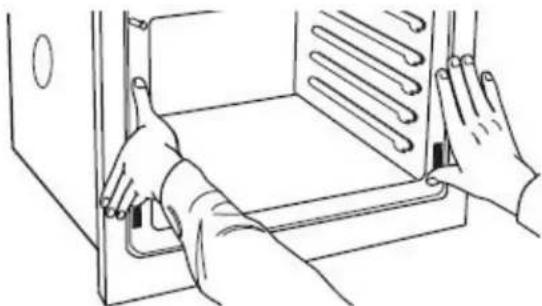

1. Push against the seal area of the front frame to push the oven into the cabinet until the back surface of the front frame touches the front wall of the cabinet.

1. Push oven completely into the cabinet and center the oven into the cabinet cutout.

Securely fasten the oven to the cabinet using the #8-14 x 3/4" (1.9 cm) screws provided.
Insert the screws through hole in black trim aligning with hole in oven frame. Do not overtighten screws.

A.Oven frame
B. Side trim hole
C. Side trim piece

1. The bottom vent trim and bottom vent shield are shipped in the foam packing at the top of the oven.

Tall bottom vent shield are used when the oven is installed with the feet in the tall position. Please contact service for one to be shipped to you free of charge.

Align vent tab (B) with oven frame (A) as shown.
Using one #8-18 x 3/8" (9.5 mm) screw (C) on each side of the shield tab (B), fasten the vent securely to the oven frame (A).

A.Oven frame
B. Shield tab

C.#8-18×3/8" (9.5mm)

screws

1. After the bottom vent shield is installed.

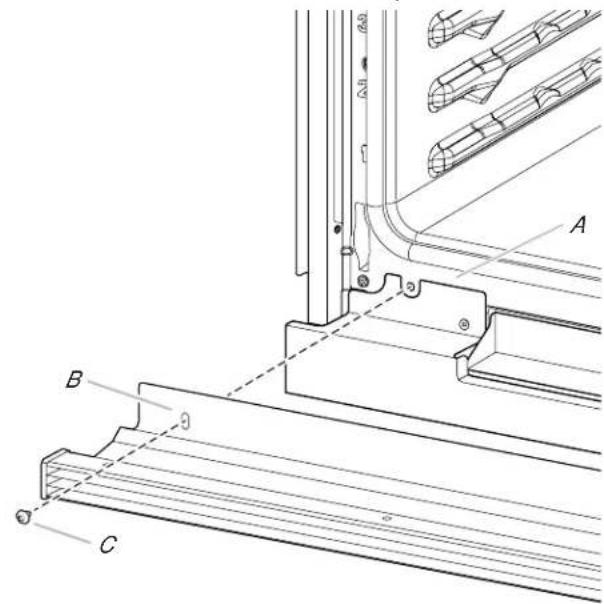

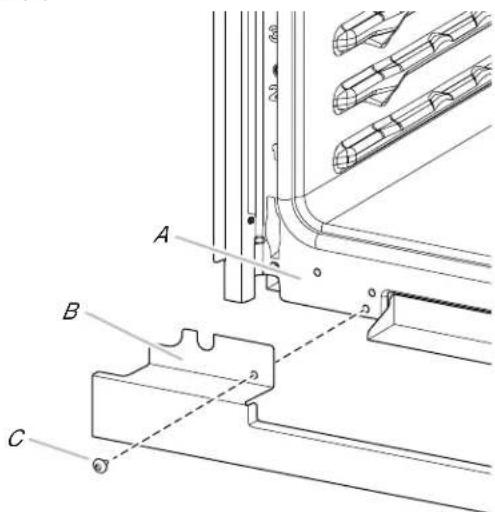

Align the bottom vent trim tab (B) with the oven frame (A). Using two hands, grasp side edges of door at the midpoint. as shown. Face the oven cavity.
Using one #8-18 x 3/8" (9.5 mm) screw (C) on each side of Locate the slots on each side of the oven cavity for the door the trim tab (B), align the top of the bottom trim tab (B) to hinge locks. the Hinge receiver (D) as shown.
Fasten the bottom vent trim securely to the oven frame (A).

A.Oven frame

B. Trim tab

C.#8-18x3/8"(9.5mm)

screw

D. Hinge receiver

1. Replace the oven racks.
2. Replace the oven door. See the "Replace Oven Door(s)" section.
3. Check that the door is free to open and close. If it is not, repeat the removal and installation procedures. See the "Prepare Built-In Oven" section.
4. Repeat for lower oven door.

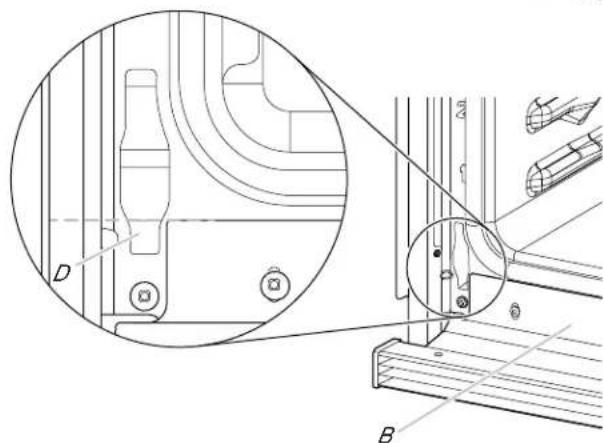

   IMPORTANT: For proper oven operation, check that the gap between bottom of the door and bottom vent trim is at least 1/4'' (6.4 mm).
5. Reconnect power.
6. The display panel will light and boot up.
7. If the display panel does not light, reference the Warranty.

Replace Oven Door(s)

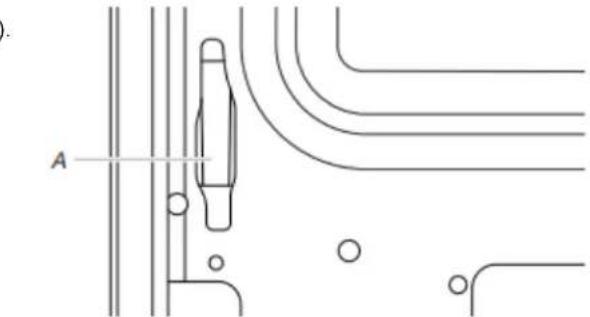

A. Slot in the oven cavity for door hinge lock

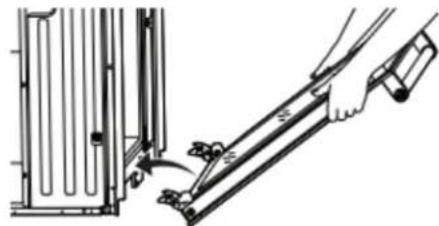

1. Using 2 hands, grasp the edges of the oven door. At a 45^ angle, insert the hinges at the same time, and push the oven door into the oven cavity slot to replace. You may need to gently shift the door from side to side as you push.

1. Make sure the door hinge notch is engaged on the bottom of the oven cavity slot.

IMPORTANT: Do not close the door at this step or damage may occur to the door hinge.

1. Lower the oven door to the fully open position. If the oven door does not open to a full 90^ , repeat steps 1 through 3.
2. Locate the oven door hinge locks in the corners of the oven door, and rotate the hinge locks toward the oven cavity to the locked position.

1. After the door hinges have been locked, gently swing the door upward to close. The door should not be forced closed.

2. When the hinges are properly installed and the door is closed, there should be an even gap between the door and the control panel. If one side of the oven door is lower than the other, the hinge on that side is not properly installed.

Complete Installation

1. Check that all parts are now installed. If there is an extra part, go back through the steps to see which step was skipped.
2. Check that you have all of your tools.
3. Dispose of/recycle all packaging materials.
4. For oven cleaning, read the "Oven Maintenance and Care" section.

Check Operation of Single and Double Ovens

1. Turn on power.
2. At first use, set up the languages, clock, and any other preferences, if available. For more information, read the online "Control Guide".
3. Start a broil cycle.

NOTE: Odors and smoke are normal when the oven is used the first few times.

1. Wait 5 minutes, then check for heat.

If Oven(s) Does Not Operate, Check the Following:

Household fuse is intact and tight; or circuit breaker has not tripped.
- Electrical supply is connected.
See the online "Troubleshooting".

1. Place the SatinGlideM Roll-Out Extension Rack for Smart Oven+ Attachments in the lowest rack position in the unit to make sure the correct accessory rack is on the bottom.
2. Press UPPER CANCEL/LOWER CANCEL on double ovens, or press CANCEL on single ovens.

If you need Assistance or Service:

Please refer to the Quick Start Guide for contact information.

SECURITE DU FOUR ENCASTRE

National Fire Protection Association

1 Batterymarch Park

Quincy, MA 02169-7471

CSA International

8501 East Pleasant Valley Road

Cleveland, OH 44131-5575

Fours doubles
Fours simples
