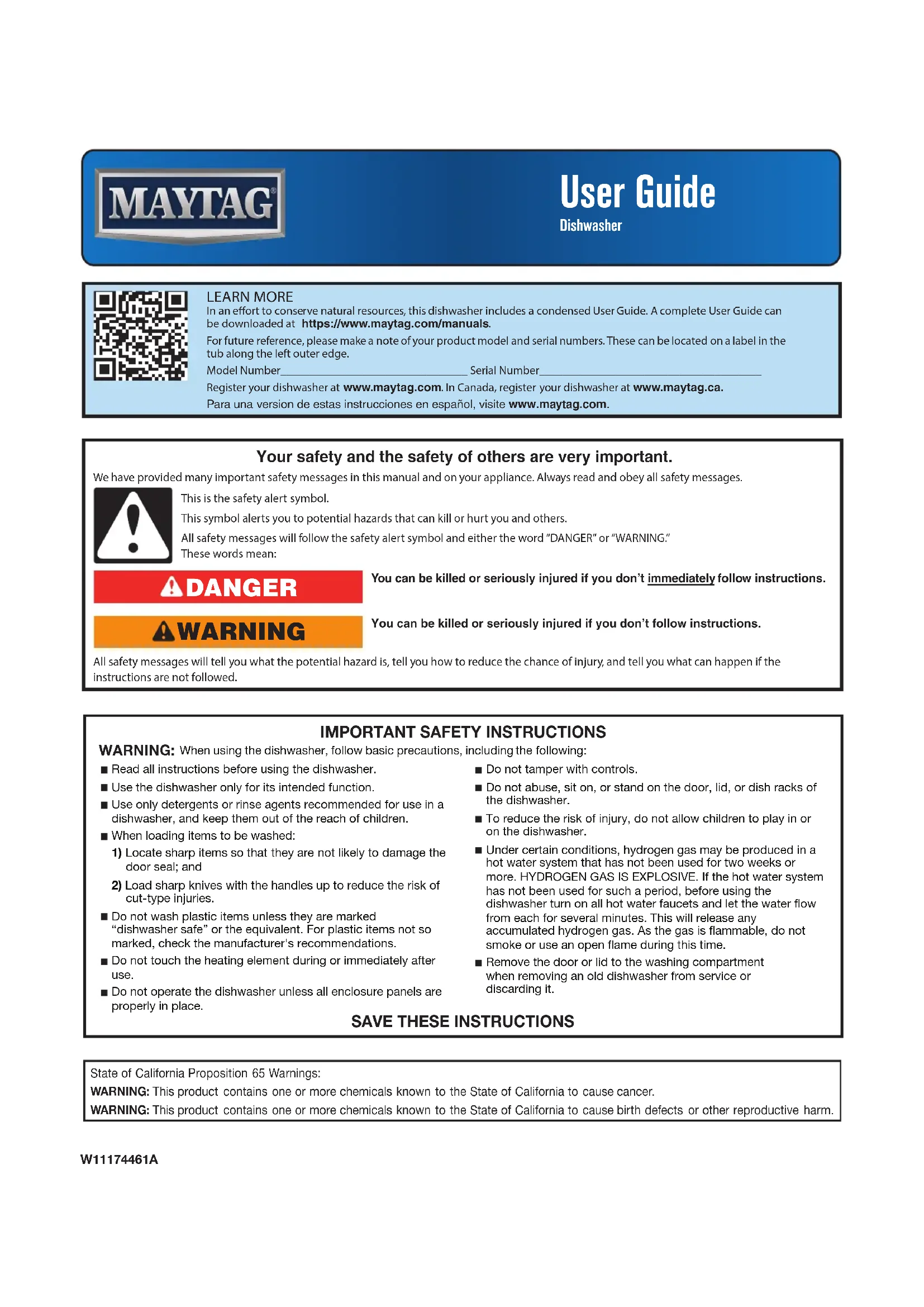

User Guide Dishwasher LEARN MORE In an eort to conserve natural resources, this dishwasher includes a condensed User Guide. A complete User Guide can be downloaded at https://www.maytag.com/manuals. For future reference, please make a note of your product model and serial numbers. These can be located on a label in the tub along the left outer edge. Model Number________________________________ Serial Number______________________________________ Register your dishwasher at www. maytag.com. In Canada, register your dishwasher at www.maytag.ca. Para una version de estas instrucciones en español, visite www.maytag.com. You can be killed or seriously injured if you don’t immediately follow instructions. You can be killed or seriously injured if you don’t follow instructions. All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed. Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.” These words mean: DANGER WARNING

IMPORTANT SAFETY INSTRUCTIONS

When using the dishwasher, follow basic precautions, including the following:

SAVE THESE INSTRUCTIONS

Read all instructions before using the dishwasher. Use the dishwasher only for its intended function. Use only detergents or rinse agents recommended for use in a dishwasher, and keep them out of the reach of children. When loading items to be washed:

1) Locate sharp items so that they are not likely to damage the

2) Load sharp knives with the handles up to reduce the risk of

cut-type injuries. Do not wash plastic items unless they are marked “dishwasher safe” or the equivalent. For plastic items not so marked, check the manufacturer's recommendations. Do not touch the heating element during or immediately after use. Do not operate the dishwasher unless all enclosure panels are properly in place. Do not tamper with controls. Do not abuse, sit on, or stand on the door, lid, or dish racks of the dishwasher. To reduce the risk of injury, do not allow children to play in or on the dishwasher. Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period, before using the dishwasher turn on all hot water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time. Remove the door or lid to the washing compartment when removing an old dishwasher from service or discarding it. State of California Proposition 65 Warnings:

WARNING: This product contains one or more chemicals known to the State of California to cause cancer.

WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other reproductive harm. W11174461ATip Over HazardDo not use dishwasher until completely installed.Do not push down on open door.Doing so can result in serious injury or cuts. WARNING GROUNDING INSTRUCTIONS

SAVE THESE INSTRUCTIONS

For a grounded, cord-connected dishwasher:The dishwasher must be grounded. In the event of amalfunction or breakdown, grounding will reduce the risk ofelectric shock by providing a path of least resistance forelectric current. The dishwasher is equipped with a cordhaving an equipment-grounding conductor and a groundingplug. The plug must be plugged into an appropriate outletthat is installed and grounded in accordance with all localcodes and ordinances.

Improper connection of the equipment-grounding conductor can result in a risk of electric shock.Check with a qualified electrician or service representative if you are in doubt whether the dishwasher is properly grounded. Do not modify the plug provided with the dishwasher; if it will not fit the outlet, have a proper outlet installed by a qualified electrician.For a permanently connected dishwasher:The dishwasher must be connected to a grounded metal,permanent wiring system, or an equipment-groundingconductor must be run with the circuit conductors andconnected to the equipment-grounding terminal or lead onthe dishwasher. Filtration system Your dishwasher has the latest technology in dishwasher ltration. The Clean Water Wash system continuously removes food particles from the wash water for excellent performance. Plus, there is no need to ever remove and clean the lter. Drying - Rinse aid is essential You must use a drying agent such as a rinse aid for good drying performance. Rinse aid along with the Heated Dry option will provide improved drying and avoid excessive moisture in dishwasher interior. Energy efficiency The Auto cycle senses load size, soil amount, and toughness of soil. This cycle is optimized to achieve the best cleaning with using minimal water and energy consumption. Efcient dishwashers run longer to save water and energy, just as driving a car slower saves on gas. Your rst cycle will run longer to calibrate the optical sensor. When you need fast results, Quick Wash will clean your dishes but use slightly more water and energy. Press START every time you add a dish IMPORTANT: If anyone opens the door (such as to add a dish, even during a Delay) the START button must be pressed. Firmly push the door closed and press START. Auto SLIDE START KEY USAGE TIPS1. Prepare and load dishwasher Rack may vary by model IMPORTANT: Remove leftover food, bones, toothpicks and other hard items from dishes. Remove labels from containers before washing. ■ Make sure when dishwasher door is closed, no items are blocking detergent dispenser. ■ Items should be loaded with soiled surfaces facing down and inward to the spray as shown in the graphics above. This will improve cleaning and drying results. Angle dirtiest dish surface downward, allowing space for water to ow up through rack and between dishes. ■ Avoid overlapping items, like bowls or plates, that may trap food. ■ Place plastics, small plates, and glasses in upper rack. ■ Wash only items marked “dishwasher safe.” ■ To avoid thumping/clattering noises during operation, load dishes so they do not touch one another. Make sure lightweight load items are secured in racks. ■ Use slots in the covers and suggested loading patterns to keep your silverware separated for optimum wash. ■ If your silverware does not t into the designated slots, lift and slide covers off to remove them and mix silverware types to keep them separated. ■ When loading silverware,always place sharp items pointing down and avoid “nesting” as shown.

2. Check that all arms spin freely

Items in the rack can block the spray arms. Quality tablets and packs have been proven better than powder, liquid, or gel detergents at reducing lming on dishes. Using tablets and packs over time will start to reduce or eliminate white lm. They are suitable for all water hardness and soil levels. Also, by using a rinse aid, you can minimize repeat buildup of white lm (not all packs and tablets contain rinse aid). Always place premeasured detergents in main compartment and close lid.

Premeasured Detergents High-quality premeasured tablets and packs are recommended for improved performance. NOTE: Follow instructions on the package when using other dishwasher detergent types. See the complete User Instructions for more details about powders, liquids, and gels. ■ Use automatic dishwasher detergent only. Add detergent just before starting a cycle. ■ Fresh automatic dishwasher detergent results in better cleaning. Store tightly closed detergent container in a cool,dry place. SLIDE

■ Your dishwasher is designed to use rinse aid for good drying performance. Without rinse aid, your dishes and dishwasher interior will have excessive moisture. The heating and drying options will not perform as well without rinse aid. ■ Rinse aid keeps water from forming droplets that can dry as spots or streaks. It also improves drying by allowing water to drain off of dishes after nal rinse. Rinse aid does not adhere to dishware, and when used, it is dispensed during each cycle. Silverware basket may vary by model To close lidTo open lid SLIDESLIDE Place selected detergent in the dispenser. Place nger, as shown, and slide lid closed. Press rmly until it clicks. Push OPEN, as shown, and the lid will slide open.

OPERATING YOUR DISHWASHER

Upper rack Lower rack■ Rinse aid is dispensed automatically. Be sure to check level and rell as needed. ■ Close dispenser by pushing down gently on the lid. NOTE: For most water conditions, the factory setting will give good results. If you are experiencing poor drying performance, you may want to try a higher setting. Turn the arrow adjuster to a higher setting to increase the amount of rinse aid dispensed.

You can customize your cycles by pressing the options desired. If you change your mind, press the option again to turn off the option. Not all options are available for every cycle. If an invalid option is selected for a given cycle, lights will ash.

7. START or resume a cycle

NOTE: If needed, run hot water at the sink nearest your dishwasher until the water is hot. Turn off water. With door rmly closed press START. IMPORTANT: If the door is opened for more than a few seconds after the cycle is started (even during the Delay time), the START button must be pressed again after the door is closed. If START button is not pressed the START button LED will ash, an audible tone will be heard, and the cycle will not resume.

8. Follow the progress of your dishwasher

The indicator light will indicate the cycle progress such as Add Dish, Washing, Drying, Clean, and Sanitized. The cycle has completed when the Clean light is lit. Refer to the Controls and Cycle Status section for operation of the Sanitized indicator. This information covers several different models. Your dishwasher may not have all cycles and options described. IMPORTANT: The sensor in your dishwasher monitors the soil level. Cycle time and/or water usage can vary as the sensor adjusts the cycle for the best wash performance. If the incoming water is less than the recommended temperature or food soils are heavy, the cycle will automatically compensate by adding time, heat, and water as needed. SLIDE Full Add Efcient dishwashers run longer to save water and energy, just as driving a car slower saves on gas. Typical cycle time is approximately 2

hours but can take less or more time to complete depending on selections. Push door rmly closed and select the cycle appropriate for your load (see Cycle Guide). ■ To add rinse aid, open the dispenser lid by gently pushing in the center of the lid with your thumb while lifting up on the edge. ■ Pour rinse aid into the opening until the indicator level shows that it is full. Pre Wash OPEN SLIDE

*The government energy certications are not based on this cycle. See the Normal cycle description for the government energy certication cycle. Using the Auto cycle may increase your energy usage. **No other washing and drying temperature options were selected, and the dishwasher was not subjected to truncated testing. Rinse aid was not used, and there was no detergent used in the prewash. CYCLE GUIDE PowerBlast

Targets toughest food soils. Use for hard-to-clean heavily soiled pots, pans, casseroles, and tableware. 3:30 to 3:45 9.0 (34.2) Auto Load and soil sensing cycle. This cycle is optimized to achieve best cleaning with minimal water and energy for all soil levels.* 2:45 to 3:15 4.5 to 6.9 (17.0 to 26.0) Normal This cycle is recommended for daily, regular or typical use to completely wash and dry a full load of normally soiled dishes. This dishwasher’s government energy certications were based on the Normal cycle with only the Heated Dry option selected.** 2:30 to 3:30 3.0 to 7.4 (11.2 to 27.9) Light Use for lightly soiled items. It saves energy. 2:15 to 3:15 3.0 to 7.4 (11:2 to 27.9) Quick For fast results, this cycle will clean your light to medium soiled dishes, but uses slightly more water and energy. For improved drying, select a Heated Dry option. 1:00 5.5 (21.0) Rinse Use for rinsing dishes, glasses, and silverware that will not be washed right away. Do not use detergent. During cycle, the rinse action will repeatedly pause for several seconds. 0:07 1.3 (5.0) CYCLES ESTIMATED WASH TIME*

Press to START or resume a wash cycle If the door is opened during a cycle or the power is interrupted, the START button LED ashes. Cycle will not resume until door is closed and START is pressed. Press to CANCEL wash cycle Close the door rmly. Press and hold CANCEL for 3 seconds. The dishwasher starts a 2-minute drain (if needed). Let dishwasher drain completely. CONTROL PURPOSE COMMENTS High Temp Raises main wash temperature to improve cleaning for loads containing tough, baked-on food. Auto PowerBlast™ Normal Raises main wash temperature to a minimum of 129F (53.9 C). Press and hold the button for 3 seconds to turn on/off sound. 0:00 to 1:00 0 – 3.3 (0 – 12.5) Sanitize Sanitizes dishes and glassware in accordance with NSF International NSF/ANSI Standard 184 for Residential Dishwashers. Certied residential dishwashers are not intended for licensed food establishments. Only sanitizing cycles have been designed to meet the requirements of the NSF/ANSI 184 performance standard for soil removal and for sanitization efcacy. There is no intention, either directly or indirectly, that all cycles on a NSF/ANSI 184 certied dishwasher meet the NSF/ANSI 184 performance standard for soil removal and for sanitization efcacy. The Sani Rinse indicator glows at the end of the cycle if the Sani Rinse option was successfully completed. If your load did not properly sanitize, the indicator light will ash at the end of the cycle. This can happen if cycle is interrupted or if the water does not reach the required temperature. The light goes off when you open and close the door or press CANCEL. Auto PowerBlast™ Normal Raises the main wash temperate to145°F (62.8°C) and the nal rinse temperature to (156°F (69°C). 0:15 to 1:30 0 – 3.7 (0 – 14.0) Heated Dry Dries dishes with heat. Use option with rinse aid to provide best drying results. Plastic items are less likely to deform when loaded in top rack. Use Heat Dry for optimum drying performance. Turn option off for an air dry. Auto PowerBlast™ Normal Quick Light Uses a heating element to speed drying times. Heat Dry option defaults to On when any cycle is selected except for Quick and Rinse. 0:11 to 0:46 4-Hour Delay Runs dishwasher at a later time or during off-peak electrical hours. Select a wash cycle and options. Press Delay button to delay the cycle by 4 hours. Close door rmly. Press START. NOTE: Any time the door is opened (such as, to add a dish), the START keypad must be touched again to resume the delay countdown. Available with any cycle Delays start of a cycle by 4 hours. Control Lock (Hold 3 Sec) Use the Control Lock option to avoid unintended use of dishwasher between cycles and/or during cycles. To turn on Control Lock, press and hold Control Lock for 3 seconds. Control Lock light will stay on for a short time, indicating that it is activated. When the Lock indicator is lit, all buttons are disabled. If you press any button while your dishwasher is locked, the light ashes 3 times. The dishwasher door can still be opened/closed while the controls are locked. To turn off Control Lock, press and hold Control Lock for 3 seconds. Control Lock light turns off. ADDED TIME TO CYCLE OPTIONS CAN BE SELECTED WITH WHAT IT DOES ADDED WATER GALLONS (LITERS)Cleaning the Exterior Clean the exterior of the dishwasher with only a soft, damp cloth, and mild detergent. If your dishwasher has a stainless steel exterior, it may have a coating that is resistant to ngerprints. Avoid using abrasive cleaning products on the exterior of the dishwasher. Cleaning and Maintaining the Interior Many detergents may leave white spots or a white residue on dishware and on the interior of the dishwasher. Over time this residue can become unsightly and could affect dishwasher performance. Use of a dishwasher cleaning product such as affresh

† Dishwasher Cleaner can help to remove the residue. Monthly use of affresh

† Dishwasher Cleaner is recommended to help maintain the dishwasher. Follow package directions. NOTE: Maytag recommends the use of high-quality, premeasured detergent tablets or packs and the use of rinse aid for dishwasher cleaning and daily care. If you have a drain air gap, check and clean it if the dishwasher isn’t draining well. To Reduce Risk of Property Damage During Vacation or Extended Time Without Use ■ When you will not be using the dishwasher during the summer months, turn off the water and power supply to the dishwasher. ■ Make sure the water supply lines are protected against freezing conditions. Ice formations in the supply lines can increase water pressure and cause damage to your dishwasher or home. Damage from freezing is not covered by the warranty. ■ When storing your dishwasher in the winter, avoid water damage by having your dishwasher winterized by authorized service personnel. First try the solutions suggested here. If you need further assistance or more recommendations that may help you to avoid a service call, refer to the warranty page in this manual or visit https://www.maytag.com/product_help. In Canada, visit http://www.maytag.ca Contact us by mail with any questions or concerns at the address below : In the U.S.A.: Maytag Brand Home Appliances Customer eXperience Center 553 Benson Road Benton Harbor, MI 49022-2692 Please include a daytime phone number in your correspondence. In Canada: Maytag Brand Home Appliances Customer eXperience Centre

is a registered trademark of Whirlpool, U.S.A. DISHWASHER CARE TROUBLESHOOTING Dishwasher does not run or stops during a cycle It is normal for certain cycles to repeatedly pause for several seconds during the main wash. Is the door closed tightly and latched? Is the right cycle selected? Is there power to the dishwasher? Has a household fuse blown, or has a circuit breaker tripped? Replace the fuse or reset the circuit breaker. If the problem continues, call an electrician. Has the motor stopped due to an overload? The motor automatically resets itself within a few minutes. If it does not restart, call for service. Is the water shutoff valve (if installed) turned on? The START indicator is ashing If the Start light is ashing, close the door and press START within 4 seconds. If the Clean light or any other lights are blinking and the dishwasher will not run. Dishes do not dry completely NOTE: Plastic and items with nonstick surfaces are difcult to dry because they have a porous surface which tends to collect water droplets. Towel drying may be necessary. Use of rinse aid along with the Heated Dry option is needed for proper drying. Proper loading of items can affect drying. Adjust your rinse aid dispenser to a higher number, allowing a larger amount of rinse aid to dispense. See section on adding rinse aid. Glasses and cups with concave bottoms hold water. This water may spill onto other items when you are unloading the dishwasher. ■ Unload the bottom rack rst. If you experience Recommended SolutionsNoise NOTE: Common noises: ■ Surging sounds can occur periodically throughout the wash cycle and during the drain cycle. ■ Normal water valve hissing may be heard periodically. ■ A normal snap sound may be heard when the detergent dispenser opens during the cycle and when the door is opened at the end of the cycle. ■ Improper installation will affect noise levels. ■ A thumping sound may be heard if items extend beyond the racks and interfere with the wash arms. Readjust the dishware and resume the cycle. Spotting/Filming Liquid rinse aid is necessary for drying and to reduce spotting. Use the correct amount of detergent. Conrm that the cloudiness is removable by soaking the item in white vinegar for 5 minutes and dry the item. If the cloudiness disappears, it is due to hard water. Adjust the amount of detergent and rinse aid. See the “Dishwasher Care” section. If the cloudiness on glass does not come clear, it is due to etching. Be sure the incoming water temperature is set at 120°F (49°C).Try using the High Temp Wash or Sani Rinse option. Dishwasher does not clean completely Be sure the dishwasher is loaded correctly. Improper loading can greatly decrease the washing performance. Check that all spray arms spin freely. Select the proper cycle for the type of soils. The Auto or PowerBlast

cycle can be used for tougher loads. Be sure the incoming water temperature is at least 120°F (49°C). Use the proper amount of fresh detergent. More detergent is needed for heavier soiled loads or hard water conditions. Scrape food from dishes prior to loading (do not prerinse). If foam or suds are detected by the dishwasher sensing system, the dishwasher may not operate properly or may not ll with water. Suds can come from: ■ Using the incorrect type of detergent, such as dish detergent for hand washing dishes, laundry detergent. ■ Loading dishes that have been prewashed with handwash dishwashing detergent without rinsing them. ■ Not replacing the rinse aid dispenser cap after lling (or relling) the rinse aid. ■ Using an excessive amount of dishwasher detergent. Dishwasher does not drain Be sure the cycle has been completed (the Clean light is on). If it has not, resume the cycle by closing the door and pressing START. If dishwasher is connected to a food waste disposer, be sure the knockout plug has been removed from the disposer inlet. Check for kinks in the drain hose. Check for food obstructions in the drain or disposer. Check your house fuse or circuit breaker. If you experience Recommended SolutionsIF YOU NEED SERVICE: 1. Before contacting us to arrange service, please determine whether your product requires repair. Some questions can be addressed without service. Please take a few minutes to review the Troubleshooting section of the Use and Care Guide or visit producthelp.maytag.com. 2. All warranty service is provided exclusively by our authorized Maytag Service Providers. IntheU.S.and Canada, direct all requests for warranty service to: Maytag Customer eXperience CenterIn the U.S.A., call 1-800-688-9900. In Canada, call 1-800-807-6777. If outside the 50 United States or Canada, contact your authorized Maytag dealer to determine whether another warranty applies. MAYTAG

DISHWASHER LIMITED WARRANTY ATTACH YOUR RECEIPT HERE. PROOF OF PURCHASE IS REQUIRED TO OBTAIN WARRANTY SERVICE.Please have the following information available when you call the Customer eXperience Center: ■ Name, address, and telephone number ■ Model number and serial number ■ A clear, detailed description of the problem ■ Proof of purchase, including dealer or retailer name and address

TEN YEAR LIMITED WARRANTY

WHAT IS COVERED WHAT IS NOT COVERED FIRST YEAR LIMITED WARRANTY (PARTS AND LABOR)For one year from the date of purchase, when this major appliance is installed, operated, and maintained according to instructions attached to or furnished with the product, Maytag brand of Whirlpool Corporation or Whirlpool Canada LP (hereafter “Maytag”) will pay for factory specied replacement parts and repair labor to correct defects in materials or workmanship that existed when this major appliance was purchased or, at its sole discretion, replace the product. In the event of product replacement, your appliance will be warranted for the remaining term of the original unit’s warranty period.SECOND THROUGH TENTH YEAR LIMITED WARRANTY (CERTAIN COMPONENT PARTS ONLY – LABOR NOT INCLUDED)In the second through tenth years from the date of original purchase, when this major appliance is installed, operated, and maintained according to instructions attached to or furnished with the product, Maytag will pay for factory specied replacement parts for the following components to correct non-cosmetic defects in materials or workmanship in these parts that prevent function of this major appliance and that existed when this major appliance was purchased. This is a limited ten year warranty on the below named parts only and does not include repair labor. ■ Upper and lower racks (excludes cup shelves and silverware basket) ■ Chopper blade ■ Stainless steel tub and inner door linerYOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. Service must be provided by a Maytag designated service company. This limited warranty is valid only in the United States or Canada and applies only when the major appliance is used in the country in which it was purchased. This limited warranty is effective from the date of original consumer purchase. Proof of original purchase date is required to obtain service under this limited warranty.1. Commercial, non-residential, multiple-family use, or use inconsistent with published user, operator, or installation instructions. 2. In-home instruction on how to use your product.3. Service to correct improper product maintenance or installation, installation not in accordance with electrical or plumbing codes, or correction of household electrical or plumbing (e.g., house wiring, fuses, or water inlet hoses).4. Consumable parts (e.g., light bulbs, batteries, air or water lters, preservation solutions, etc.).5. Defects or damage caused by the use of non-genuine Maytag parts or accessories.

6. Damage from accident, misuse, abuse, re, oods, acts of God,

or use with products not approved by Maytag.7. Repairs to parts or systems to correct product damage or defects caused by unauthorized service, alteration, or modication of the appliance.8. Cosmetic damage including scratches, dents, chips, and other damage to the appliance nishes, unless such damage results from defects in materials and workmanship and is reported to Maytag within 30 days.

9. Discoloration, rust, or oxidation of surfaces resulting from caustic

or corrosive environments including, but not limited to, high salt concentrations, high moisture or humidity, or exposure to chemicals.10. Pickup or delivery. This product is intended for in-home repair.11. Travel or transportation expenses for service in remote locations where an authorized Maytag servicer is not available.12. Removal or reinstallation of inaccessible appliances or built-in xtures (e.g., trim, decorative panels, ooring, cabinetry, islands, countertops, drywall, etc.) that interfere with servicing, removal, or replacement of the product.13. Service or parts for appliances with original model/serial numbers removed, altered, or not easily determined.The cost of repair or replacement under these excluded circumstances shall be borne by the customer. DISCLAIMER OF IMPLIED WARRANTIESIMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO TEN YEARS OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not allow limitations on the duration of implied warranties of merchantability or tness, so this limitation may not apply to you. This warranty gives you specic legal rights, and you also may have other rights that vary from state to state or province to province.DISCLAIMER OF REPRESENTATIONS OUTSIDE OF WARRANTY Maytag makes no representations about the quality, durability, or need for service or repair of this major appliance other than the representations contained in this warranty. If you want a longer or more comprehensive warranty than the limited warranty that comes with this major appliance, you should ask Maytag or your retailer about buying an extended warranty.LIMITATION OF REMEDIES: EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGESYOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. MAYTAG SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty gives you specic legal rights, and you also may have other rights that vary from state to state or province to province.08/17 8W11174461A Guide d'utilisation Lave-vaisselle
