Parts and Features - Model WBV19DZ

Parts and Features - Model WCV38DZ

Important Safety Instructions

Electrical Connection

Installation Instructions

Installation of Your Appliance

Built-in Cabinet Instructions

Control Panel Lock ON/OFF Power Setting the Temperature Control

Control Panel Lock ON/OFF Power Setting the Temperature Control

Service for Your Appliance

Your Avanti Products Warranty

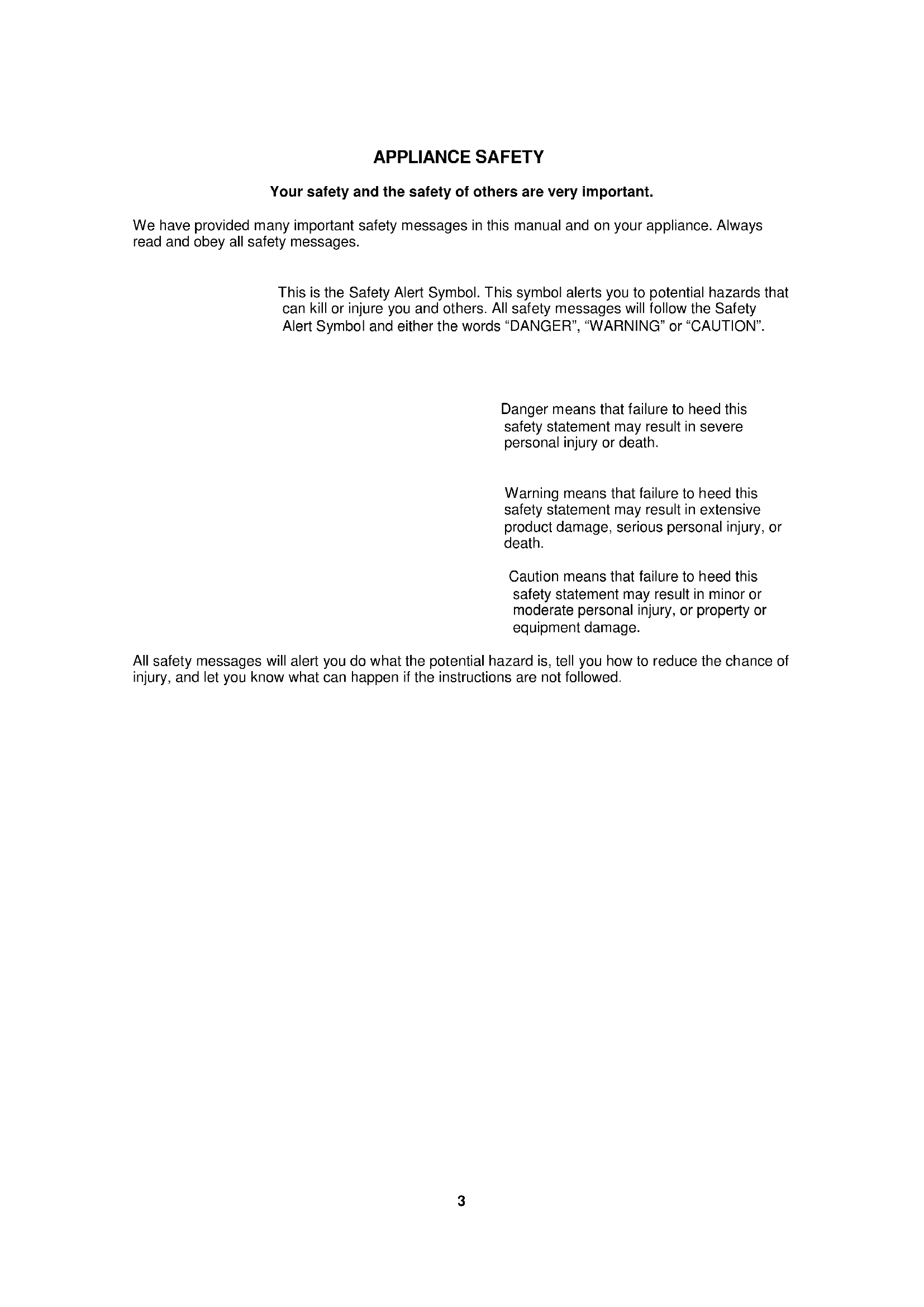

Registration Information and Registration Card Last Page3 APPLIANCE SAFETY Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the Safety Alert Symbol. This symbol alerts you to potential hazards that can kill or injure you and others. All safety messages will follow the Safety Alert Symbol and either the words “DANGER”, “WARNING” or “CAUTION”.

Danger means that failure to heed this safety statement may result in severe personal injury or death.

Warning means that failure to heed this safety statement may result in extensive product damage, serious personal injury, or death. Caution means that failure to heed this safety statement may result in minor or moderate personal injury, or property or equipment damage. All safety messages will alert you do what the potential hazard is, tell you how to reduce the chance of injury, and let you know what can happen if the instructions are not followed.4 IMPORTANT SAFEGUIDES

Before the appliance is used, it must be properly positioned and installed as described in this manual, so read the manual carefully. To reduce the risk of fire, electrical shock or injury when using the appliance, follow basic precaution, including the following:

• Plug into a grounded 3-prong outlet, do not remove grounding prong, do not use an adapter, and do not use an extension cord.

• Replace all panels before operating.

• It is recommended that a separate circuit, serving only your appliance be provided. Use receptacles that cannot be turned off by a switch or pull chain.

• Never clean appliance parts with flammable fluids. These fumes can create a fire hazard or explosion. And do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.

• Before proceeding with cleaning and maintenance operations, make sure the power line of the unit is disconnected.

• Do not connect or disconnect the electric plug when your hands are wet.

• Unplug the appliance or disconnect power before cleaning or servicing. Failure to do so can result in electrical shock or death.

• Do not attempt to repair or replace any part of your appliance unless it is specifically recommended in this material. All other servicing should be referred to a qualified technician.

• Use two or more people to move and install appliance. Failure to do so can result in back or other injury.

• To ensure proper ventilation for your appliance, the front of the unit must be completely unobstructed. Choose a well-ventilated area with temperatures above 60°F (16°C) and below 90°F (32°C). This unit must be installed in an area protected from the element, such as wind, rain, water spray or drips.

• The appliance should not be located next to ovens, grills or other sources of high heat.

• The appliance must be installed with all electrical, water and drain connections in accordance with state and local codes. A standard electrical supply (115 V AC only, 60 Hz), properly grounded in accordance with the National Electrical Code and local codes and ordinances is required.

• Do not kink or pinch the power supply cord of appliance.

• The fuse (or circuit breaker) size should be 15 amperes.

• It is important for the appliance to be leveled in order to work properly. You may need to make several adjustments to level it.

• Never allow children to operate, play with or crawl inside the appliance.

• Do not use solvent-based cleaning agents of abrasives on the interior. These cleaners may damage or discolor the interior.

• Do not use this apparatus for other than its intended purpose.5

HELP US HELP YOU... Read this guide carefully. It is intended to help you operate and maintain your new unit properly. Keep it handy to answer your questions. If you don't understand something or you need more assistance, please call: Avanti Customer Service 800-220-5570 Keep proof of original purchase date (such as your sales slip) with this guide to establish the warranty period.

Write down the model and serial numbers. You'll find them on a plate located on the rear outside wall of unit. Please write these numbers here:

Serial Number Use these numbers in any correspondence or service calls concerning your unit. If you received a damaged unit, immediately contact the dealer (or builder) that sold you the unit. Save time and money. Before you call for service, check the Troubleshooting Guide. It lists causes of minor operating problems that you can correct yourself.

We're proud of our service and want you to be pleased. If for some reason you are not happy with the service you receive, here are some steps to follow for further assistance. FIRST, contact the people who serviced your unit. Explain why you are not pleased. In most cases, this will solve the problem.

NEXT, if you are still not pleased, write all the details, including your telephone number, and send it to: Customer Service Avanti Products 10880 NW 30 Street Miami, FL 33172 USA

OF MEDICINE OR OTHER

MEDICAL PRODUCTS.6 PARTS & FEATURES WBV19DZ – Wine & Beverage Center

Wine Bottle Shelves – Large – Total (5)

Left Leveling Leg Right Zone

Beverage Shelves – Total (3)

Beverage Basket – Total (1)

Wine Bottle Shelves – Large – Total (5)

Left Leveling Leg Right Zone

Wine Bottle Shelves – Large – Total (5)

To reduce the risk of fire, electrical shock, or injury when using your appliance, follow these basic precautions:

• Read all instructions before using the appliance.

• DANGER or WARNING: Risk of child entrapment. Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances are still dangerous . . . even if they will “just sit in the garage a few days”.

• Before you throw away your old appliance: Take off the door. Leave the shelves in place so that children may not easily climb inside.

• Never allow children to operate, play with, or crawl inside the appliance.

• Never clean appliance parts with flammable fluids. The fumes can create a fire hazard or explosion.

• Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion. -Save these instructions-

This appliance should be properly grounded for your safety. The power cord of this appliance is equipped with a three-prong plug which mates with standard three prong wall outlets to minimize the possibility of electrical shock. Do not under any circumstances cut or remove the third ground prong from the power cord supplied. For personal safety, this appliance must be properly grounded. This appliance requires a standard 115/120 Volt AC ~/60Hz electrical ground outlet with three-prong. Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded. When a standard 2-prong wall outlet is encountered, it is your responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet. The cord should be secured behind the appliance and not left exposed or dangling to prevent accidental injury. The appliance should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating label on the appliance. This provides the best performance and also prevent overloading house wiring circuits that could cause a fire hazard from overheated. Never unplug the appliance by pulling the power cord. Always grip the plug firmly and pull straight out from the receptacle. Repair or replace immediately all power cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end. When moving the appliance, be careful not to damage the power cord. EXTENSION CORD Because of potential safety hazards under certain conditions, it is strongly recommended that you do not use an extension cord with this appliance. However, if you must use an extension cord it is absolutely necessary that it be a UL/CUL-Listed, 3-wire grounding type appliance extension cord having a grounding type plug and outlet and that the electrical rating of the cord be 115 volts and at least 10 amperes. Warning Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized Avanti Products service center.9 INSTALLATION INSTRUCTIONS

BEFORE USING YOUR APPLIANCE

• Remove the exterior and interior packing.

• Check to be sure you have all of the following parts: Model WBV19DZ Wine / Beverage Center Model WCV38DZ Dual Zone Wine Chiller

Beverage Shelves (Glass)

• Before connecting this appliance to the power source, let it stand upright for approximately 2 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.

• Clean the interior surface with lukewarm water using a soft cloth.

INSTALLATION OF YOUR APPLIANCE

• This appliance is designed to be for free standing installation or built-in (fully recessed).

• Place your appliance on a floor that is strong enough to support it when it is fully loaded. To level your appliance, adjust the front leveling legs at the bottom of the appliance.

• Locate the appliance away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly.

• Avoid locating the unit in moist areas.

• Plug the appliance into an exclusive, properly installed-grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician or an authorized Avanti Products service center.

BUILT – IN CABINET INSTRUCTIONS

This unit is designed for both built-in or free standing installation. If you plan to use this unit in a built- in application please follow the requirements shown to the right. Cabinet Opening Dimensions

This wine chiller includes a stainless steel handle that is not required to operate this unit. To install the handle please follow the below instructions:

1. Pull away the door gasket in the area where the handle is to be installed as shown below in

Illustration # 1. The gasket is easily displaced by hand, no tools are necessary.

2. Align the handle with the screws pre-installed on the backside of the door. Tighten the

screws using a Phillips head screwdriver until the handle sets both flush and secured tightly against the door frame. (DO NOT overtighten as this will cause damage to the handle assembly).

3. Replace the door gasket to its original position.

It is recommended you install the appliance in a place where the ambient temperature is between 72- 78 degrees Fahrenheit. If the ambient temperature is above or below recommended temperatures, the performance of the unit may be affected. For example, placing your unit in extreme cold or hot conditions may cause interior temperatures to fluctuate. The range of 40-65 degrees Fahrenheit may not be reached.

Recommended Temperatures for Chilling Wine. Red Wines

Beverage Center (Right Side / Zone) Control Panel

• Your appliance is equipped with an automatic Control panel lock function. This function will prevent any unwanted changes to your temperature or power settings.

• The lock function will activate automatically 12 seconds after the last time a button is pushed on the control panel.

• To unlock the control panel lock press and hold the (UP) and the (DOWN) buttons for 3 seconds the control panel will beep and blink once indicating that the control panel is active and the settings can be changed.

You can control the internal temperature of each side/zone independently by using the control panel for that side. You can press the left side UP and DOWN buttons/marks to control the internal temperature of each respective side / zone. The degrees indicators will appear in the display window.

• The temperature that you desire to set will increase 1ºF or 1ºC if you push the UP button/mark once, on the contrary the temperature will decrease 1ºF or 1ºC if you push the DOWN button/mark once. NOTE:

• If the unit is unplugged, power lost, or turned off, you must wait 3 to 5 minutes before restarting the unit. If you attempt to restart before this time delay, the appliance will not start.

• When you use the appliance for the first time or restart the appliance after having been shut off for a long time, there could be a few degrees variance between the temperature you select and the one indicated on the LED readout. This is normal and it is due to the length of the activation time. Once the appliance is running for a few hours everything will be back to normal. STORAGE Many bottles may differ in size and dimensions. As such the actual number of bottles you may be able to store may vary. NOTE: Capacity: Wine Chiller / LEFT SIDE / ZONE: 19 Standard bottles Beverage Center / RIGHT SIDE / ZONE: 66 Standard Cans (54 Cans on the shelves / 12 Cans in the basket) Bottle capacities are approximate maximums when storing traditional Bordeaux 750 ML bottles and include bulk storage. INTERIOR LIGHT

• Interior lights are available in both zones.

• You can turn the interior light on in each zone by pushing the button marked with the “bulb” symbol or touch the mark . The lights will turn off automatically if it remains ON for 10 minutes or more. You have to push the button marked with the “bulb” symbol or touch the mark again and the light will turn back on. DOOR LOCK Your unit is provided with a lock and key combination on each side.. The keys are located inside the plastic bag that contains the User’s Guide. Insert the key into the lock and turn it counterclockwise to unlock the door. To lock the door do the reverse operation making sure metal pin is engaged completely. Remove the key and place it in a secure place for safekeeping.13

It is recommended you install the appliance in a place where the ambient temperature is between 72- 78 degrees Fahrenheit. If the ambient temperature is above or below recommended temperatures, the performance of the unit may be affected. For example, placing your unit in extreme cold or hot conditions may cause interior temperatures to fluctuate. The range of 40-65 degrees Fahrenheit may not be reached.

Recommended Temperatures for Chilling Wine. Red Wines

• Your appliance is equipped with an automatic Control panel lock function. This function will prevent any unwanted changes to your temperature or power settings.

• The lock function will activate automatically 12 seconds after the last time a button is pushed on the control panel.

• To unlock the control panel lock press and hold the (UP) and the (DOWN) buttons for 3 seconds the control panel will beep and blink once indicating that the control panel is active and the settings can be changed.

You can control the internal temperature of each side/zone independently by using the control panel for that side. You can press the left side UP and DOWN buttons/marks to control the internal temperature of each respective side / zone. The degrees indicators will appear in the display window.

• The temperature that you desire to set will increase 1ºF or 1ºC if you push the UP button/mark once, on the contrary the temperature will decrease 1ºF or 1ºC if you push the DOWN button/mark once.

• If the unit is unplugged, power lost, or turned off, you must wait 3 to 5 minutes before restarting the unit. If you attempt to restart before this time delay, the appliance will not start.

• When you use the appliance for the first time or restart the appliance after having been shut off for a long time, there could be a few degrees variance between the temperature you select and the one indicated on the LED readout. This is normal and it is due to the length of the activation time. Once the appliance is running for a few hours everything will be back to normal. STORAGE Many bottles may differ in size and dimensions. As such the actual number of bottles you may be able to store may vary. NOTE: LEFT SIDE / ZONE: 19 Standard bottles RIGHT SIDE / ZONE: 19 Standard bottles TOTAL 38 Standard bottles Bottle capacities are approximate maximums when storing traditional Bordeaux 750 ML bottles and include bulk storage. INTERIOR LIGHT

• Interior lights are available in both zones.

• You can turn the interior light on in each zone by pushing the button marked with the “bulb” symbol or touch the mark . The lights will turn off automatically if it remains ON for 10 minutes or more. You have to push the button marked with the “bulb” symbol or touch the mark again and the light will turn back on. DOOR LOCK Your unit is provided with a lock and key combination on each side.. The keys are located inside the plastic bag that contains the User’s Guide. Insert the key into the lock and turn it counterclockwise to unlock the door. To lock the door do the reverse operation making sure metal pin is engaged completely. Remove the key and place it in a secure place for safekeeping.15

CARE AND MAINTENANCE

CLEANING YOUR APPLIANCE

• Turn off the power, unplug the appliance, and remove all items including shelves.

• Wash the inside surfaces with a warm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to a quart of water.

• Wash the shelves with a mild detergent solution.

• Wring excess water out of the sponge or cloth when cleaning area of the controls, or any electrical parts.

• Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and wipe dry with a clean soft cloth.

• Do not use steel wool or steel brush on the stainless steel. These will contaminate the stainless steel with steel particles and rusting may occur. POWER FAILURE

• Most power failures are corrected within a few hours and should not affect the temperature of your appliance if you minimize the number of times the door is opened. If the power is going to be off for a longer period of time, you need to take the proper steps to protect your contents.

MOVING YOUR APPLIANCE

• Securely tape down all loose items (shelves) inside your appliance.

• Be sure the appliance stays secure in the upright position during transportation. Also protect outside of appliance with a blanket, or similar item.

• The appliance should be located in the coolest area of the room, away from heat producing appliances, and out of the direct sunlight.

Your wine is a living object that breathes through the cork of its bottle. In order to preserve the quality and taste of your fine wines, they must be stored at the ideal temperature and ambient conditions.Your cellar is equipped with an active charcoal filtration system to ensure air purity, cooling efficiency, and to maintain an odor free cabinet for the storage of your fine wines. The filter assembly is located at the rear panel inside your cellar. Keep in mind, that this filter must be changed every 12 months. To replace your filter:

Remove the bottles / cans stored on the two (2) shelves in front of the filter.

Remove the shelves and set aside to be replaced once you have changed the filter

Hold the filter and turn it at 90 degrees in the anti- clockwise direction and then pull it out.

Remove the existing filter and replace with a new one.

Put the new filter into the hole and then turn the filter at 90 degrees in clockwise direction..16

PROBLEMS WITH YOUR APPLIANCE? You can solve many common problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the servicer. TROUBLESHOOTING GUIDE PROBLEM POSSIBLE CAUSE Appliance does not operate. Not plugged in. The appliance is turned off. The circuit breaker tripped or a blown fuse. Appliance is not cold enough. Check the temperature control setting. External environment may require a higher setting. The door is opened too often. The door is not closed completely. The door gasket does not seal properly. Turns on and off frequently. The room temperature is hotter than normal. A large amount of contents has been added to the unit. The door is opened too often. The door is not closed completely. The temperature control is not set correctly. The door gasket does not seal properly. The light does not work. Not plugged in. The circuit breaker tripped or a blown fuse. The light button is “OFF”. Vibrations. Check to assure that the appliance is level. The appliance seems to make too much noise. The rattling noise may come from the flow of the refrigerant, which is normal. As each cycle ends, you may hear gurgling sounds caused by the flow of refrigerant in your appliance. Contraction and expansion of the inside walls may cause popping and crackling noises. The appliance is not level. The door will not close properly. The appliance is not level. The gasket is dirty. The shelves are out of position. Display flashes Error message “E0” Connection failure – there is a wire or component that is not connected correctly. Contact the Avanti Service Department – 1 – 800 – 220 – 5570 Display flashes Error message “E1” Temperature sensor failure. Contact the Avanti Service Department –

SERVICE FOR YOUR APPLIANCE

We are proud of our customer service organization and the network of professional service technicians that provide service on your Avanti appliances. With the purchase of your Avanti appliance, you can have the confidence that if you ever need additional information or assistance, the Avanti Products Customer Service team will be here for you. Just call us toll-free.

Product Information 800-323-5029 Whatever your questions are about our products, help is available. Part Orders 800-220-5570 You may order parts and accessories that will be delivered directly to your home by personal check, money order, Master Card, or Visa. In-Home Repair Service 800-220-5570 An Avanti Products authorized service center will provide expert repair service, scheduled at a time that is convenient for you. Our trained servicers know your appliance inside and out.

WARRANTY Staple your sales receipt here. Proof of original purchase date is needed to obtain service under warranty.

Avanti Products warrants that the product is free from defects in materials and/or workmanship for a period of twelve (12) months from the date of purchase by the original owner. The foregoing timeline begins to run upon the date of purchase, and shall not be stalled, tolled, extended, or suspended for any reason whatsoever unless described in detail in the warranty document. For one year from the date of purchase by the original owner, Avanti products will, at its option, repair or replace any part of the product which proves to be defective in material or workmanship under normal use. Avanti Products will provide you with a reasonably similar product that is either new or factory refurbished. During this period Avanti Products will provide all parts and labor necessary to correct such defects free of charge, so long as the product has been installed and operated in accordance with the written instructions in this manual. In rental or commercial use, the warranty period is 90 days. All Avanti appliances of 4.2 cubic feet capacity or less must be brought/sent to the appliance service center for repair.

For the second through the fifth year from the date of original purchase, Avanti Products will provide a replacement compressor free of charge due to a failure. You are responsible for the service labor and freight charges. In rental or commercial use, the limited compressor warranty is one year and nine months. Costs involved to move the product to the service center and back to the user’s home, as maybe required, are the user’s responsibility.

WARRANTY EXCLUSIONS / WHAT IS NOT COVERED: The warranty coverage described herein excludes all defects or damage that are not the direct fault of Avanti Products, including without limitation, one or more of the following:

A failure to comply with any applicable state, local, city, or county electrical, plumbing and/or building codes, regulations, or laws, including failure to install the product in strict conformity with local fire and building codes and regulations.

• Any external, elemental and/or environmental forces and factors, including without limitation, rain, wind, sand, floods, fires, mud slides, freezing temperatures, excessive moisture or extended exposure to humidity, lightning, power surges, structural failures surrounding the appliance, and acts of God.

Content losses of food or other content due to spoilage.

• Incidental or consequential damages

• Parts and labor costs for the following will not be considered as warranty:

• Evaporator doors, door springs, and/or frames.

• Inner door panels, door shelves, door rails, and/or door supports.

• Light bulbs and/or plastic housing.

• Plastic cabinet liners.

• Punctured evaporator that voids the warranty on the complete sealed system.

• Shipping and handling costs associated with the replacement of the unit.

• Repairs performed by unauthorized servicers.

• Service calls that are related to external problems, such as abuse, misuse, inadequate electrical power, accidents, fire, floods, or any other acts of God.

• Failure of the product if it is used for other than it intended purpose.

• The warranty does not apply outside the Continental USA.

• Surcharges including but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage expense for service calls to remote areas. In no event shall Avanti Products have any liability or responsibility whatsoever for damage to surrounding property, including cabinetry, floors, ceilings, and other structures and/or objects around the product. Also excluded from this warranty are scratches, nicks, minor dents, and other cosmetic damages on external surfaces and exposed parts; Products on which the serial numbers have been altered, defaced or removed; service visits for customer education, or visits where there is nothing wrong with the product; correction of installation problems (you are solely responsible for any structure and setting for the product, including all electrical, plumbing and/or other connecting facilities, for proper foundation/flooring, and for any alterations including without limitation cabinetry, walls, floors, shelving etc., as well as the resetting of breakers or fuses.

OUT OF WARRANTY PRODUCT

Avanti Products is under no obligation, at law or otherwise, to provide you with any concessions, including repairs, pro-rates, or product replacement, once this warranty has expired.

• Plastic liners cabinet.

Registration Information Thank you for purchasing this fine Avanti product. Please fill out this form and return it to the following address within 100 days from the date of purchase and receive these important benefits: Avanti Products LLC P.O.Box 520604 – Miami, Florida 33152 Protect your product: We will keep the model number and date of purchase of your new Avanti product on file to help you refer to this information in the event of an insurance claim such as fire or theft. Promote better products: We value your input. Your responses will help us develop products designed to best meet your future needs. -------------------------------------------------------(detach here)------------------------------------------------------------- Avanti Registration Card

Address Date Purchased Store / Dealer Name

City State Zip E-mail Address

Did You Purchase An Additional Warranty As your Primary Residence, Do You: Extended Own Rent None

Your Age: Reason for Choosing This Avanti Product: Please indicate the most important factors That influenced your decision to purchase this product:

Is This Product Used In The: Home Business How Did You Learn About This Product: Advertising In-Store Demo Personal Demo Comments:40
