USER MANUAL KIF672DS ETNA

1. De timer is ingesteld.

Temperature safety 8

Cooking-time limiter 8

Healthy cooking 8

Use

Induction noises 9

Pans 9

Power level setting 10

Melting/keep warm functions 11

Automatic heat up 11

Pause function 11

Indications in the display 12

Cooking-timer/minute minder 12

Hob functions table 13

Cooking settings 14

Operation

Start cooking 15

Finish cooking 16

Bridge cooking zones (depending on model) 16

Timer control17

Switch on the Automatic heat-up function 19

Pause cooking 19

Using the (child) lock function 19

Recall function 20

Switch on the melting function 20

Switch on the keep warm function 20

Settings

Setting the acoustic signal and lock parameters 21

Maintenance

Cleaning 23

Technical specifications

Information according regulation (EU) 66/2014 24

Troubleshooting

General 26

Environmental aspects

Disposal of packaging and appliance 27

Introduction

This hob has been designed for the real lover of cooking. Cooking on an induction hob has a number of advantages. It is easy, because the hob reacts quickly and can also be set to a very low power level. Because, moreover, it can also be set to a high power level, it can bring dishes to the boil very quickly. The ample space between the cooking zones makes cooking comfortable.

Cooking on an induction hob is different from cooking on a traditional appliance. Induction cooking makes use of a magnetic field to generate heat. This means that you cannot use just any pan on it. The pans section gives more information about this.

For optimum safety the induction hob is equipped with several temperature protections and a residual heat indicator, which shows which cooking zones are still hot.

This manual describes how you can make the best possible use of the induction hob. In addition to information about operation, you will also find background information that can assist you in using this product. You will also find cooking tables and maintenance tips.

Read the manual thoroughly before using the appliance, and store these instructions in a safe place for future reference.

The manual also serves as reference material for service technicians. Please, therefore, stick the appliance identification card in the space provided, at the back of the manual. The appliance identification card contains all the information that the service technician will need in order to respond appropriately to your needs and questions.

The installation instructions are included separate.

Enjoy your cooking!

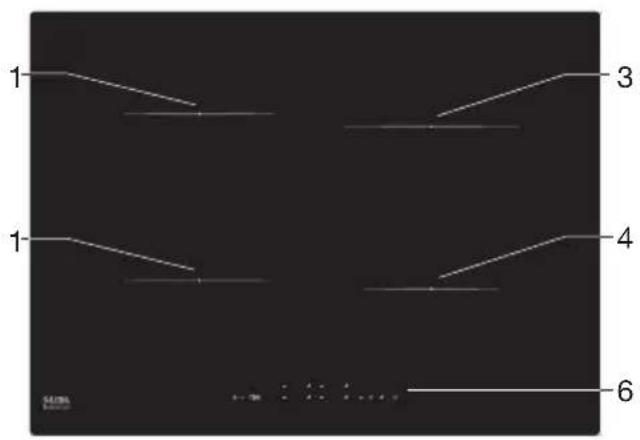

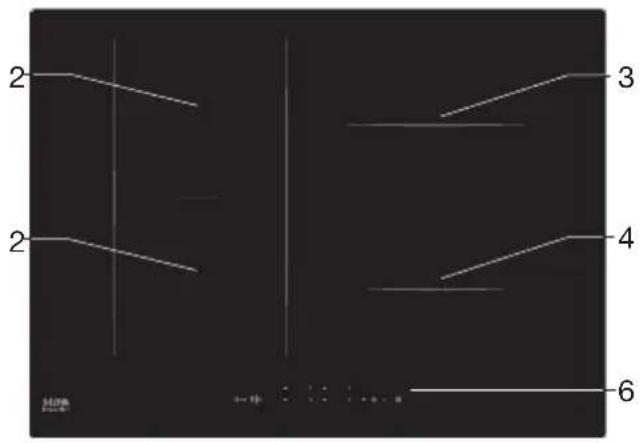

Induction hob

KIS670ZT KIF670ZT/KIF670DS

1. Cooking zone 18cm / 1.4kW - 2.1kW (boost)
2. Bridge induction cooking zone 18cm / 1.4kW - 2.1kW (boost)
3. Cooking zone 21cm / 2.3kW - 3.0kW (boost)
4. Cooking zone 16cm / 1.4kW - 1.85kW (boost)
5. Bridge induction cooking zone 19 × 21 ~cm / 2.1 kW - 3.0 kW (boost)
6. Control panel

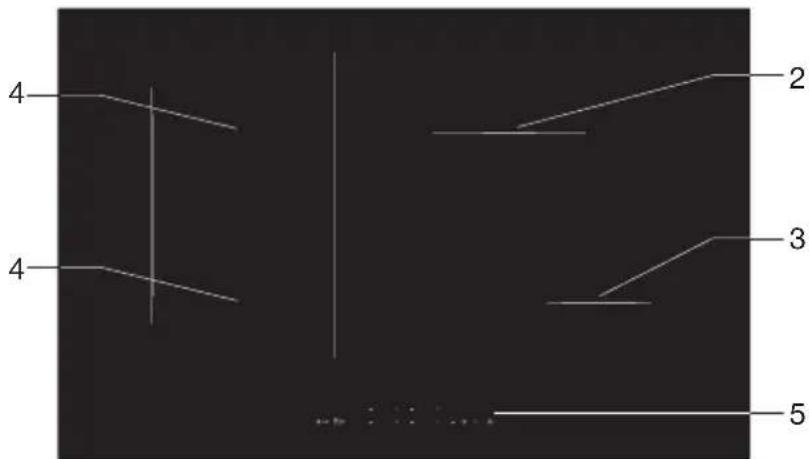

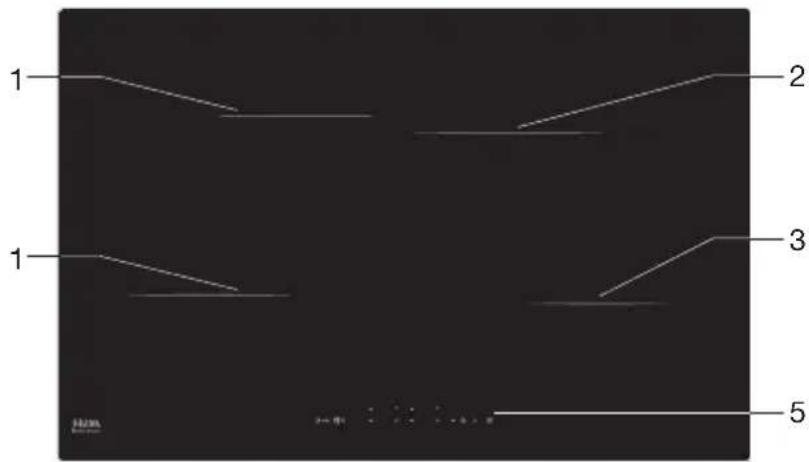

KI680ZT

KIF680DS

1. Cooking zone 18cm / 1.4kW - 2.1kW (boost)
2. Cooking zone 0.21cm / 2.3kW - 3.0kW (boost)
3. Cooking zone 16cm / 1.4kW - 1.85kW (boost)
4. Bridge induction cooking zone 18cm / 1.4kW - 2.1kW (boost)
5. Control panel

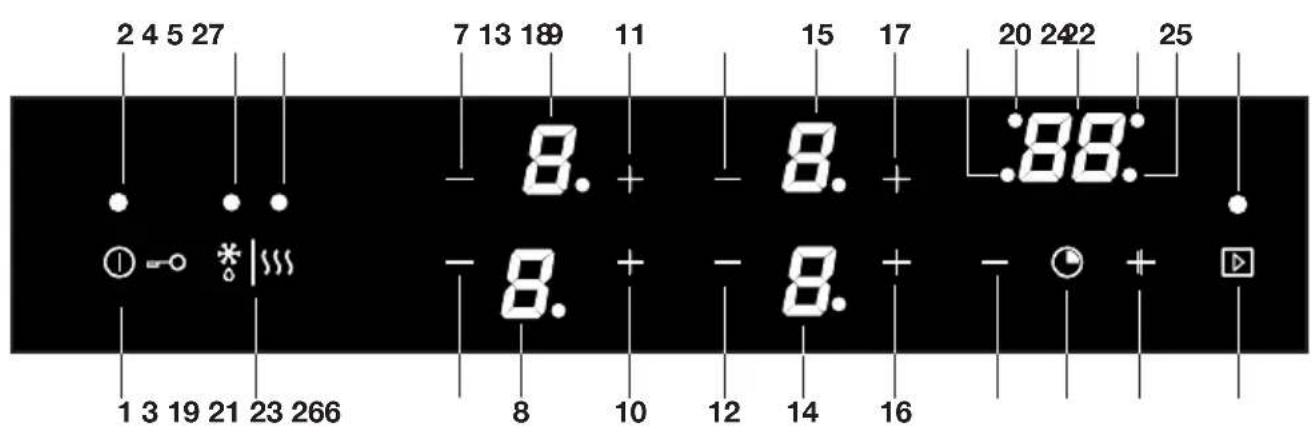

Control panel

1. On/Off key / Child lock key
2. On/Off / Child lock indicator light
3. Melting/Keep warm key
4. Melting Indicator light
5. Keep warm Indicator light
6. Power decrease key left front cooking zone
7. Power decrease key left back cooking zone
8. Display cooking zone left front
9. Display cooking zone left back
10. Power increase key left front cooking zone
11. Power increase key left back cooking zone
12. Power decrease key right front cooking zone
13. Power decrease key right back cooking zone
14. Display cooking zone right front
15. Display cooking zone right back
16. Power increase key right front cooking zone
17. Power increase key right back cooking zone
18. Timer indicator light for left front cooking zone
19. Time decrease key
20. Timer indicator light for left back cooking zone
21. Timer key
22. Timer display
23. Time increase key
24. Timer indicator light for right back cooking zone
25. Timer indicator light for right front cooking zone
26. Pause/Re-call key
27. Pause/Re-call indicator light

Some operating functions are available depending on the model.

Before use, read the separate safety instructions first!

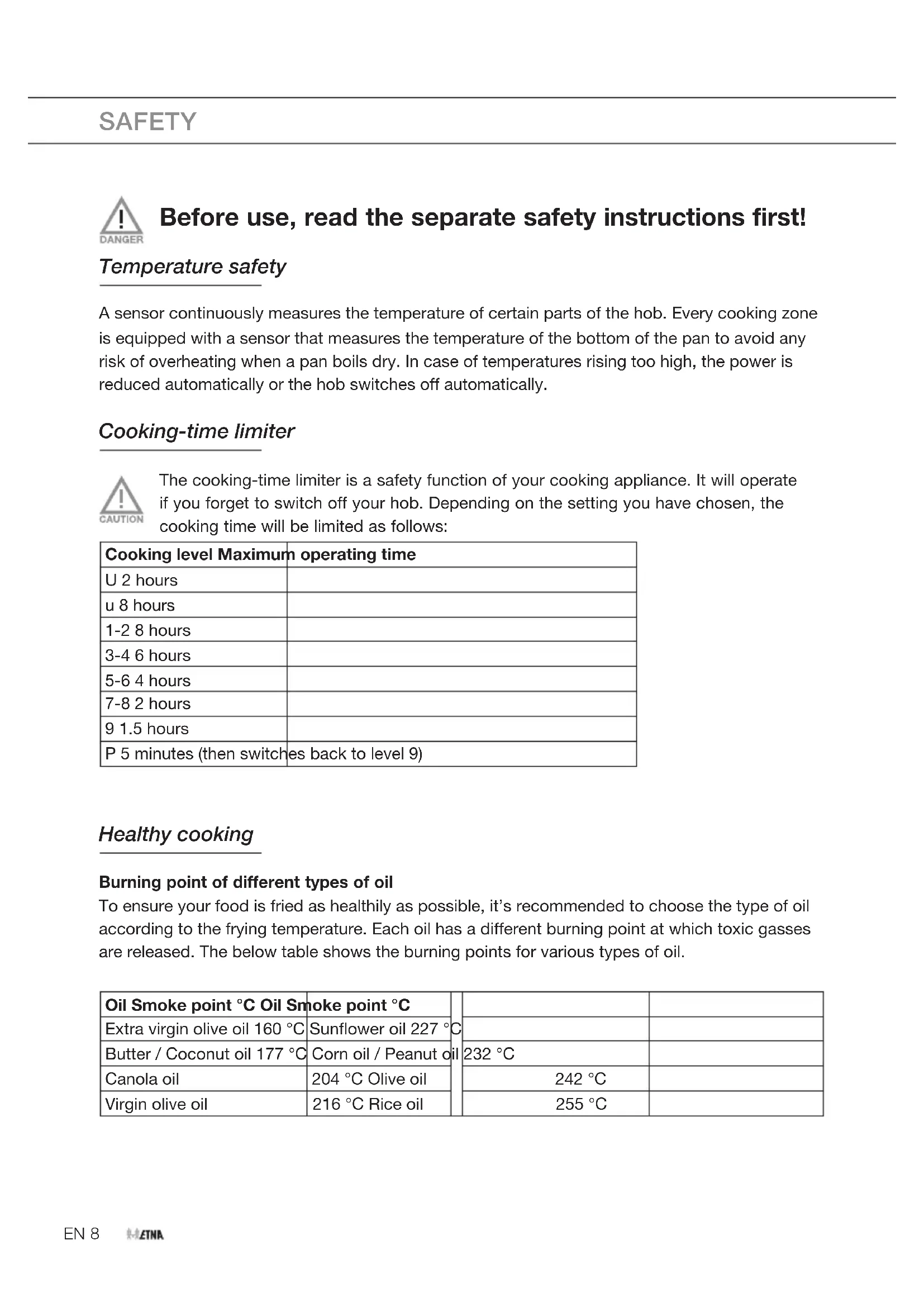

Temperature safety

A sensor continuously measures the temperature of certain parts of the hob. Every cooking zone is equipped with a sensor that measures the temperature of the bottom of the pan to avoid any risk of overheating when a pan boils dry. In case of temperatures rising too high, the power is reduced automatically or the hob switches off automatically.

Cooking-time limiter

The cooking-time limiter is a safety function of your cooking appliance. It will operate if you forget to switch off your hob. Depending on the setting you have chosen, the cooking time will be limited as follows:

Cooking level Maximum operating time

U 2 hours

u 8 hours

1-2 8 hours

3-4 6 hours

5-6 4 hours

7-8 2 hours

9 1.5 hours

P 5 minutes (then switches back to level 9)

Healthy cooking

Burning point of different types of oil

To ensure your food is fried as healthily as possible, it's recommended to choose the type of oil according to the frying temperature. Each oil has a different burning point at which toxic gasses are released. The below table shows the burning points for various types of oil.

Oil Smoke point ℃ Oil Smoke	Smoke point ℃
Extra virgin olive oil 160 ℃	Sunflower oil 227 ℃
Butter / Coconut oil 177 ℃	Corn oil / Peanut oil		232 ℃
Canola oil	204 ℃ Olive oil		242 ℃
Virgin olive oil	216 ℃ Rice oil		255 ℃

Induction noises

A ticking sound

• This is caused by the capacity limiter on the left and right zones. Ticking can also occur at lower settings.

Pans are making noise

• Pans can make some noise during cooking. This is caused by the energy flowing from the hob to the saucepan. At high settings this is perfectly normal for some pans. It will not damage either the pans or the hob.

The fan is making noise

• To enlarge the lifespan of the electronics, the appliance is equipped with a fan. If you use the appliance intense, the fan is activated to cool down the appliance and you will hear a buzzing sound. The fan runs on for several minutes after the hob has been switched off.

Pans

• Always place a pan in the middle (cross section) of a cooking zone.
• Induction cooking requires a particular quality of pan.
• Only use pans that are suitable for electric and induction cooking with:
• a thick base (minimum 2.25 mm);
• a clean and flat base.
• The best are pans with the 'Class Induction' quality mark.

Pans that have already been used for cooking on a gas hob are no longer suitable for use on an induction hob.

You can check for yourself whether your pans are suitable using a magnet. A pan is suitable if the base of the pan is attracted by the magnet.

Suitable Unsuitable
Special stainless steel pans Earthenware
Class Induction Stainless steel
Hard-wearing enamelled pans Porcelain
Enamelled cast-iron pans Copper / Aluminium / Plastic

Be careful with enamelled sheet-steel pans! The enamel may chip (the enamel comes loose from the steel), if you switch the hob on at a high setting when the pan is (too) dry. The base of the pan may warp - due, for example, to overheating or to the use of too high a power level.

• Never use pans with a misshapen base. A hollow or rounded base can interfere with the operation of the overheating protection, so that the appliance becomes too hot. This may lead to the glass top cracking and the pan base melting.
• Damage arising from the use of unsuitable pans or from boiling dry is excluded from the guarantee.

Minimum pan diameter

The diameter of the bottom of the pan must be at least:

9 cm for zone 0 16 - 18 cm
11 cm for zone 21 cm and for zone 19 × 21 cm
23 cm for connected Bridge zones

• You will achieve the best results by using a pan with the same diameter as the zone. If a pan is too small the cooking zone will not work.

Pressure cookers

• Induction cooking is very suitable for cooking in pressure cookers. The cooking zone reacts very quickly, and so the pressure cooker is quickly up to pressure. As soon as you switch a cooking zone off, the cooking process stops immediately.

Power level setting

The cooking zones have 9 levels and a boost level.

• Touch the ^+ or - key of the desired cooking zone.

Touching the ^+ key for the first time displays setting '9'.
Touching the - key for the first time displays setting 4^

• Use the + or the - key of the desired cooking zone to choose the desired power setting.

Set the power level to 9 and then touch the +^ key to select the Boost level.

The cooking zone starts at the selected power level.

Power distribution cooking zones

Maximum power available is depending on the power connection of the hob.

Consult chapter Settings 'Total maximum power'.

• When Po is set at < 7.4 then the cooking zones on the right influence each other.

Also the cooking zones on the left influence each other.

The power is automatically distributed when these cooking zones are used at the same time. This does not have any consequences up to setting 9.

If the maximum power has reached a audio signal will sound.

• If one of the cooking zones is set to boost and you want to set the other zone to setting 9 or Boost, then first set the cooking zone that is set to boost to a lower setting.

• The right and left cooking zones do not influence each other. You can set one cooking zone from the left side to Boost or one from the right side to Boost. If the 'Total maximum power' P0 is set at 3.7 or lower, then the cooking zones on the left and right influence each other. If the maximum power has been reached a audio signal will sound.

Melting/keep warm functions

The melting and keep warm functions are intended for heating up food and keeping it at a certain temperature.

Melting

A temperature of 42^ (+/- 5^) is maintained for melting food (depending on quality of used cookware).

• Keep warm

A temperature of 70^ (+/- 5^) is maintained for keep warm food (depending on quality of used cookware).

Automatic heat up

This function preheats the cooking zone at level 9 in order to bring it rapidly up to the required temperature. After a given time interval, the power level returns to the established setting. It may be switched on in any of the zones for all power settings except for setting "9" and Boost.

Cooking level	Time interval (seconds), cooking zone switches to the choosen setting
1	40
2	70
3 120
4 180
5 260
6 430
7 120
8 195

Pause function

The pause function can only be used when at least one zone is switched on. The maximum break duration is 10 minutes. After 10 minutes at pause, the hob switches off. Cooking can be resumed within 10 minutes by touching the pause key.

While the Pause function is active:

• Any Timer (also Alarm timer) set before the pause will be stopped during the pause and continue when pause mode is stopped.

Indications in the display

In display	Status
19	Power setting cooking zone; 1 = low setting / 9 = high setting
u	No (suitable) pan on cooking zone (pan detection symbol)
R	Bridge cooking zones connected (present depending on the model)
R	Automatic heat-up function selected
u	Melting function selected
u	Keep warm function selected
L	Child lock function selected
H	Residual heat indicator; The hob has a residual heat indicator for each cooking zone to show those which are still hot. Although the hob is switched off, the indicator 'H' will remain on for as long as the cooking zone is hot! Avoid touching them when this indicator is lit. Danger! Risk of burns.
F	Fault code; See 'Troubleshooting table'
F	Fault code; See 'Troubleshooting table'

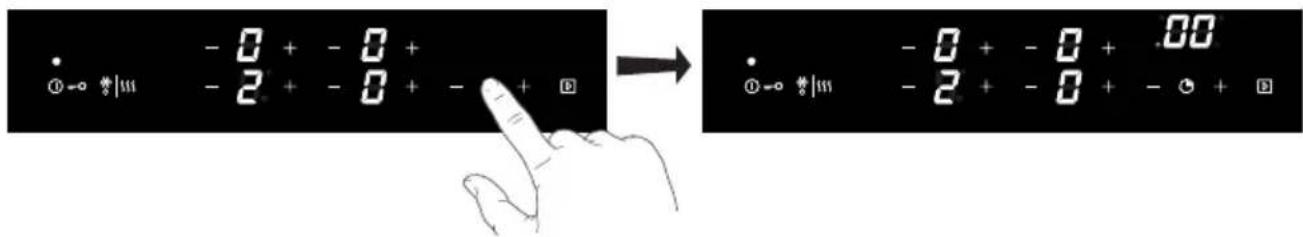

Cooking-timer/minute minder

• A cooking-timer can be set for each active cooking zone.
• The hob also has a minute minder. Both the cooking-timer as well as the minute minder can be set for a maximum of 99 minutes.

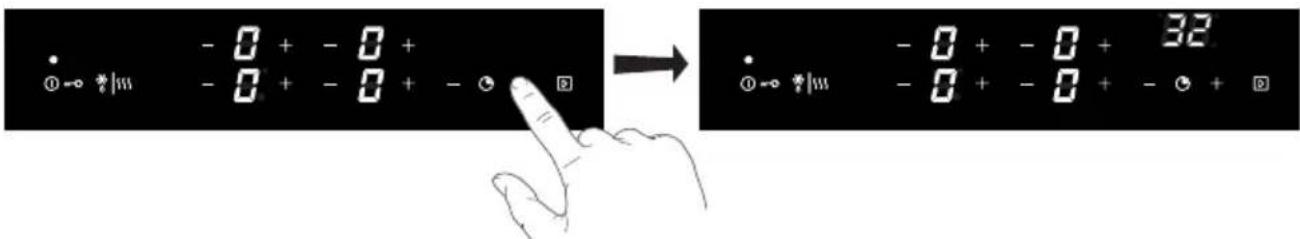

• The minute minder works in the same way as the cooking-timer, but is not connected to a cooking zone. When the hob is switched off the minute minder continues.
• The minute minder can only be switched off or adjusted when the hob is switched on.

Select the desired function:

• Cooking-timer — the timer is connected to a active cooking zone. After the set time has elapsed, the cooking zone will switch off automatically.
• Minute minder — no cooking zone will be switch Off after the set time has elapsed. Only an alarm will sound.

Press any key to stop the alarm.

Hob functions table

Function Key(s) to use Description
On/Off and Child safety lock	1 =0 On/Off function; to turn the induction hob on or off.
	Child safety lock function; by activating the child safety lock mode protection you can prevent the operation of the appliance, protecting the children from accidental start and eventual injury. Can only be activated when no cooking zone is selected or active.
Timer	2 The timer can be set separately for each active cooking zone. Cooking times of up to 99 minutes can be programmed. The timer alarm beeps after the set time has passed. The timer alarm stops automatically after 2 minutes or by touching any key. The cooking zone automatically switches off when the set time has elapsed. When no cooking zone is selected the timer works as a minute minder (no automatic switch off).
Pause	3 When Pause is activated it reduces the power level to ‘0’ of all cooking zones that are in use. If you deactivate the pause function the cooking zones will return to there previous power level. The hob will switch off if de pause function is not deactivated within 10 minutes.
Melting/ Keep warm	4 Melting and keep warm function; to maintain a fixed temperature to defrost or keep warm food. Touch once to select the melting function. Touch twice to select the keep warm function.

Cooking settings

Because the settings depend on the quantity and composition of the contents of the pan, the table below is intended as a guideline only.

Use setting 'boost' to:

• bring the food or liquid to the boil quickly;
• 'shrink' greens;
  heat oil and fat;
• wok.

Use setting 9 to:

sear meats;
cook fish;
cook omelettes;
- fry boiled potatoes;
- deep fry foods.

Use setting 7 and 8 to:

• fry thick pancakes;
• fry thick slices of breaded meat;
• fry bacon (fat);
• cook raw potatoes;
  make French toast;
• fry breaded fish;
  cook through pasta;
• fry thin slices of (breaded) meat.

Use setting 4-6 to:

complete the cooking of large quantities;
defrost hard vegetables;
- fry thick slices of breaded meat.

Use settings 1-3 to:

simmer bouillon;
stew meats;
- simmer vegetables;
- melt chocolate;
- poach;
- melt cheese.

Start cooking

Use of the touch keys

Put the tip of your finger flat on the touch key. Do not apply pressure.

The touch keys react to a light fingertip touch. Only operate the touch keys with your finger.

The touch key gives a short audio signal when it engages.

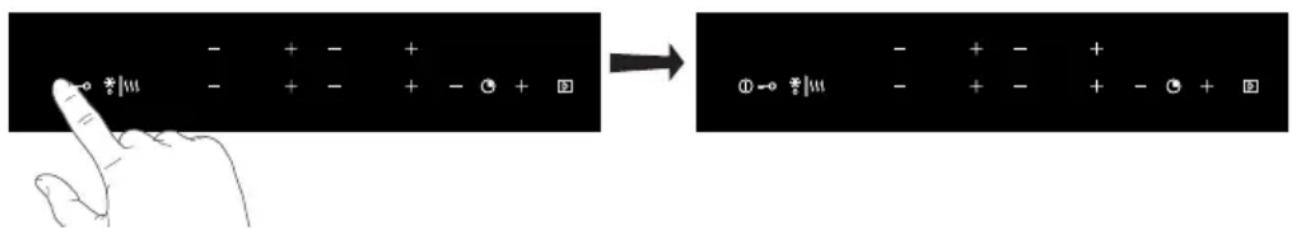

1. Touch and hold the On/Off key until you hear an audio signal.

The On/Off Indicator light appears.

All displays show '0' indicating that the induction hob has entered the state of standby mode.

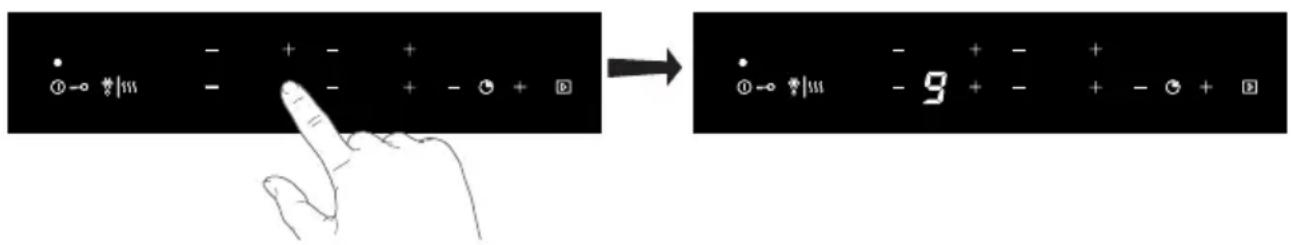

1. Place a suitable pan on the cooking zone.

Make sure the bottom of the pan and the surface of the cooking zone are clean and dry.

• Touch the ^+ or - key of the desired cooking zone.

Touching the ^+ key for the first time displays setting 9'.
Touching the - key for the first time displays setting 4^
A short audio signal will sound.
The power level indicator is flashing.

When the pan detection symbol flashes:

• you have not placed a pan on the correct cooking zone;
• the pan you're using is not suitable for induction cooking;
• the pan is too small or not properly centered on the cooking zone.

No heating takes place unless there is a suitable pan on the cooking zone.
The display will automatically turn Off after 2 minutes if no suitable pan is placed on it.

If the hob is not used for 10 seconds, it will shut off automatically.

Finish cooking

• Set the cooking power level to zero (0) to turn Off the cooking zone. You can also press the'-' key and the +^ key simultaneously to turn Off the cooking zone.
• Turn the induction hob Off by touching the On/Off key.

or

Symbol ±bH will appear in the display of the cooking zone which is too hot to touch. It will disappear when the surface has cooled down to a safe temperature. It can also be used as an energy saving function if you want to heat other pans, use the cooking zone that is still hot.

Bridge cooking zones (present depending on the model)

The Bridge induction zones can be connected to each other. This creates one large zone that can be used, for example, a grill plate or a large fish pan on the same power. If the Bridge induction zones are connected, they cannot be set to boost. The pan has to be large enough to cover the centres of the front and rear cooking zone.

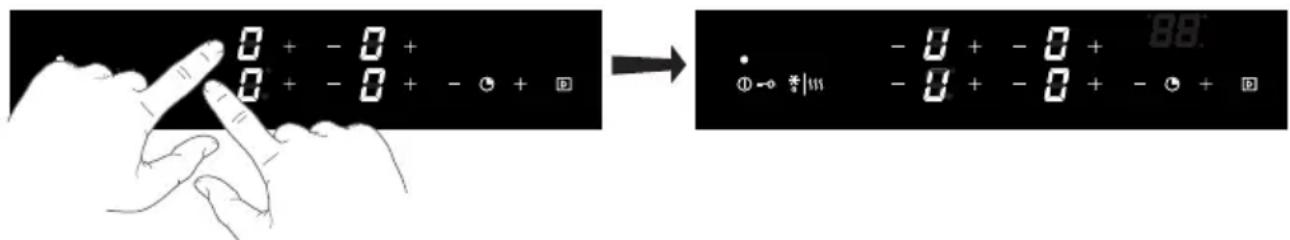

Connect the bridge cooking zones

1. Press the On/Off key.
2. Simultaneously touch and hold (for 4 seconds) the - keys from both the left-hand side or right-hand side cooking zones.

The 'bridge cooking zone indicator' will appear on the rear zone display to indicate that the two cooking zones are connected.

1. Set the desired cooking power for both the connected cooking zones with the - and + keys of the front cooking zone.

Timer control

Using the minute minder

1. Switch on the hob.
2. Touch the timer key to switch on the timer.

In the timer's display flashes "00".

1. Within 10 seconds select a cooking time with the ' -' or +' timer key.

1. The minute minder has been set.

When the time is set, it will begin to countdown immediately.
The timer alarm beeps after the set time has passed.

Touch any key to stop the alarm; alternatively it will switch off automatically after 2 minutes (switch Off time can be adjusted; see 'Settings').
The display will show the remaining time.
The minute minder function will remain activated even when the cooking hob is switched Off.
During the last minute of countdown, remaining time will be displayed in seconds.

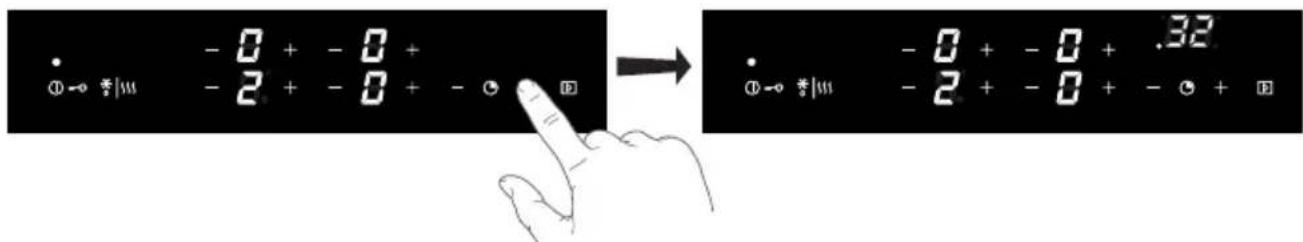

Using the cooking timer

1. Switch on the hob and select a cooking zone and power level.
2. Touch the timer key to switch on the timer.

In the timer's display flashes "00".

1. Touch the timer key again.

The point from the relevant cooking zone next to the timer display and the time are flashing.
Touch the timer key as many times as necessary, to select the cooking zone of which you want to set the timer.

1. Within 10 seconds select a cooking time with the - or + timer key.

The point from the relevant cooking zone next to the timer display is flashing.

1. The timer has been set.

The cooking zone will switch off after the set time has passed.

The timer alarm beeps after the set time has passed.
Touch any key to stop the alarm; alternatively the alarm will switch off automatically after 2 minutes (the duration time of the alarm can be adjusted; see 'Settings').

Changing preset cooking time

Cooking time can be changed anytime during the operation.

1. Touch the timer key as many times as necessary, to select the zone of which you want to adjust the timer.
   The zone is identified by a flashing point next to the timer display.
2. Touch the - or + timer key to change the time.

Checking remaining cooking time

The timer display shows all timer settings. The different timer settings are shown clockwise in the display in turn.

1. Touch the timer key as many times as necessary, to select the zone of which you want to see the remaining time.

The zone is identified by a flashing point next to the timer display.
The timer will display the remaining time of the selected cooking zone.

Turning the timer off

If you want to switch off the timer prior the end of preset time:

1. Touch the timer key as many times as necessary, to select the zone of which you want to disable the timer.

2. Simultaneously touch the - and + timer keys.

The illuminated point next to the display is turned off.

Switch on the Automatic heat-up function

The cooking zone should be off.
A zero (0) should appears in the display.

1. Switch on the hob and place a suitable pan on one of the cookings zones.
2. Set power level '9'. Touch and hold the +^ key for approximately 3 seconds until you hear a short acoustic signal.
   A and level 9' flash alternately in the display.
3. Touch the - key to set the power level you wish to cook with after the power setting with automatic heat-up time is finished.
   After 3 seconds releasing the key the automatic heat-up functions is activated.
   A and the selected power flash alternately in the display.
4. When the automatic heat-up time expires, the cooking zone automatically switches to the selected power.
   The selected power will appear continuously in the display.

1. Touch the - key to switch off the active automatic heat-up function or simultaneously touch the - and + keys to switch off the cooking zone.

Touch the ^+ key to increase the automatic heat-up function.

Pause cooking

1. Touch the pause key.
   The light above the pause key is flashing (together with the power settings).
2. Touch the pause key again to turn off the pause function.
   The hob will automatically switch off after 10 minutes if the pause function is not switched off in the meantime.

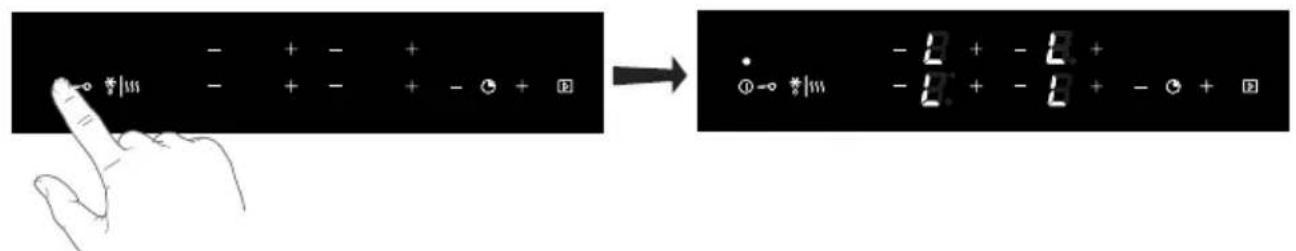

Using the (child) lock function

1. Switch off the hob.
2. Touch and hold the On/Off key for approximately 3 seconds.

All displays show 'L'.

• The hob is now locked. After 5 seconds, the hob will switch off automatically.
• To unlock touch and hold the On/Off key again for approx. 3 second.

Child lock is now de-activated.

If the child lock function is activated in the settings menu (see chapter 'settings') then the hob will be automatically locked every time it is switched off.

Recall function

If the control was accidentally switched off through the On/Off key all settings can be restored using the recall function.

1. Touch within 5 seconds the On/Off key.
2. Confirm to continue by touching within 5 seconds the pause key.

Switch on the melting function

1. Switch on the hob and place a suitable pan on one of the cookings zones.
2. Touch the melting/keep warm key once.

The melting light above the key lights up.

1. Touch the - or +^ key of the desired cooking zone.
   Melting function is selected. The symbol u appears in the display.
2. Touch the - or + key to switch off the melting function.
   Zero (0) appears in the display.

Switch on the keep warm function

1. Switch on the hob and place a suitable pan on one of the cookings zones.
2. Touch the melting/keep warm key twice.

The keep warm light above the key lights up.

1. Touch the - or +^ key of the desired cooking zone.

2. Keep warm function is selected. The symbol 'U' appears in the display.

3. Touch the - or +^ key to switch off the keep warm function.

Zero (0) appears in the display.

Setting the acoustic signal and lock parameters

You can adjust the volume of the acoustic signal, duration of acoustic alarm, and automatic lock settings.

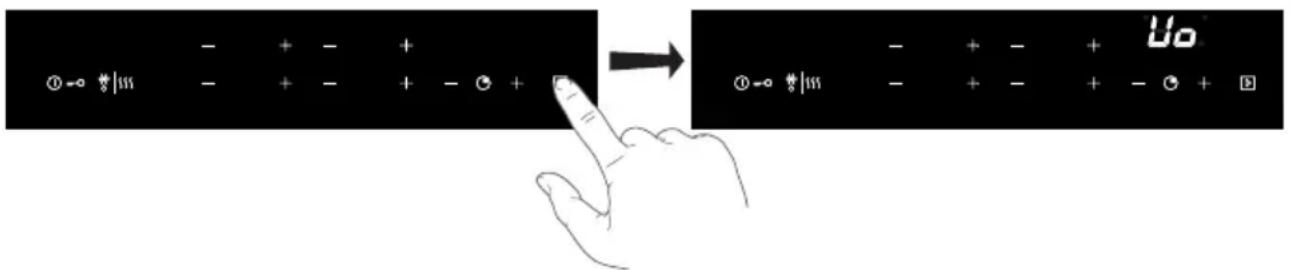

Activate the setting menu:

1. Switch off the appliance.
2. Touch and hold the pause key for approx. 3 seconds.

The first parameter "Uo" will appear on the timer display, indicating the volume (loudness) of acoustic signals.

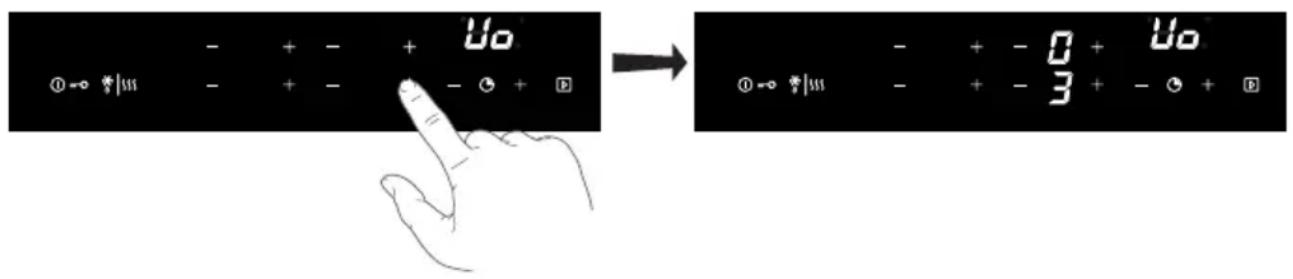

1. Touch the ^+ or - timer key to select the type of parameter:

2. Uo - acoustic signal and alarm volume (loudness)

3. So - alarm duration
4. Lo - Automatic lock
5. Po - Total maximum power

The currently set value will appear on the right cooking zone power level displays.

1. Touch the - or +^ keys from the front right cooking zone to adjust the value.
2. Touch and hold the pause key for 2 seconds to confirm and store all parameters.

A short acoustic signal will sound.

1. Touch the On/Off key to close the settings mode (if you do not wish to store the new parameter settings).

Acoustic signal and alarm volume (loudness) 'Uo'

The following values can be set:

00 on the display = off (does not apply to alarm and error acoustic signal)

01 on the display = minimum volume
02 on the display = medium volume
-03 on the display = maximum volume (default)

• The first digit appears on the right rear display and the second digit on the right front display.
• A short acoustic signal will be sounded upon every change, with the newly set volume.

Acoustic alarm duration 'So'

The following values can be set:

05 on the display = 5 seconds
1.0 on the display = 1 minute
2.0 on the display = 2 minutes (default)

Child safety lock 'Lo'

If the automatic lock function is activated in the user settings mode, the cooking hob will be automatically locked every time it is switched off.

00 on the display = off (default)
01 on the display = on

Total maximum power "Po"

If the electric installation in your home has different current limits, maximum power consumption of the cooking hob can be reduced:

2.3 on the display = 2.3kW (10 A)
2.8 on the display = 2.8kW (12 A)
3.0 on the display = 3.0kW (13 A)
3.7 on the display = 3.7kW (16 A)

only for models: KIF670ZT / KIF670DS / KI680ZT / KIF680DS

7.4 on the display = 7.4kW (2× 16A) / preset for all appliances except KIS670ZT

If the power level is limited, the settings and the resulting cooking power can be limited as well. The appliance is fitted with a power management system that makes sure the effect of power limiting is minimal.

Cleaning

Set the child lock before you start cleaning the hob. We recommend that you clean the appliance after each use. This prevents that over cooked food can damage the glass surface.

Daily cleaning

1. Use a damp cloth and a mild cleaning agent (washing-up liquid) to clean the appliance.
2. Dry the appliance with a paper towel or a cloth.

Heavily polluted glass

1. Immediately remove any food remains, burned grease, sugar or stubborn stains from the glass ceramic hob using a scraper, even if the hob is still hot! Sugar and/or other food related remains may permanently damage the glass ceramic surface.
   Hold the scraper at the correct angle (45^ to 60^) in relative to the glass. Gently press the scraper against the glass and slide it over the surface to remove the dirt. Make sure the plastic handle of the scraper (in some models) does not come into contact with a hot cooking zone.
   Do not press the scraper perpendicularly against the glass.
   Do not scratch the hob surface with the tips of the scraper blade. This can cause permanent scratches in the glass.
2. After you have removed the stubborn stains from the glass, use the steps of the daily cleaning to clean the hob.
3. If the cleaning result is not at your satisfaction you can repeat the above cleaning steps as often as needed.

Do not use abrasive cleaning agents, because they can cause scratches.
Do not use steelwool, scourers or any type of sharp objects to clean the appliance.

The hob can be still very hot due to the cooking process! Do not touch the surface directly. If desired use gloves to prevent burning while cleaning directly after cooking.

Information according regulation (EU) 66/2014

Measurements according EN60350-2

Model identification KIS670ZT/KIF670ZT	KIF670DS
Type of hob Induction hob
Number of electric cooking zones and/or areas 4
Heating technology Induction cooking zones
For circular electric cooking zones: diameter of useful surface area per electric heated cooking zone in cm	21.0 2x	18.0	16.0
Energy consumption per cooking zone or area calculated per kg (ECeletrichob) in Wh/kg	174.2 170	6 176.4
Energy consumption for the hob calculated per kg (ECeletrichob) in Wh/kg	173.0

Model identification KIF672DS
Type of hob Induction hob
Number of electric cooking zones and/or areas 4
Heating technology Induction cooking zones
For non-circular cooking zones or areas: lenght and width of useful surface area per electric heated cooking zone or area L/W in cm	19x21/19x21	19x21/19x21
Energy consumption per cooking zone or area calculated per kg (ECelectric hob) in Wh/kg	172.3/173.0	71.1/182.1
Energy consumption for the hob calculated per kg (ECelectric hob) in Wh/kg	174.6
Model identification KI680ZT/KIF680DS
Type of hob Induction hob
Number of electric cooking zones and/or areas 4
Heating technology Induction cooking zones
For circular electric cooking zones: diameter of useful surface area per electric heated cooking zone in cm	21.0 2x	18.0	16.0
Energy consumption per cooking zone or area calculated per kg (ECeletrichob) in Wh/kg	174.2 170	6 176.4
Energy consumption for the hob calculated per kg (ECeletrichob) in Wh/kg	173.0

General

If you notice a crack in the glass top (however small), switch the hob off immediately, unplug the hob, turn off the (automatic) fuse switch(es) in the meter cupboard or, in the event of a permanent connection, set the switch in the power supply lead to zero.) Contact the service department.

Troubleshooting table

If the appliance does not work properly, this does not always mean that it is defective.

Try to deal with the problem yourself first by checking the points mentioned below or

check for more information the website 'www.etna.nl/www.etna.be'.

Symptom Possible cause Solution
The display lights up when the hob is activated for the first time.	This is the standard set-up routine.	Normal operation.
A slight smell is noticeable the first few times the hob is used.	The new appliance is heating up.	This is normal and will disappear once it has been used a few times. Ventilate the kitchen.
The pans make a noise while cooking.	This is caused by the energy flowing from the hob to the saucepan.	At high settings this is perfectly normal for some pans. It will not damage either the pans or the hob.
Circle of pan bottom remains visible after cleaning.	Contaminated pan bottom used on the cooking zone.	Clean the induction hob with a ceramic hob cleaner and remove the dirt / grease from the pan bottom.
A cooking zone suddenly stops working and you hear a signal.	The preset time has ended. Switch off the bleep by touching the timer key.
The hob is not working and nothing appears in the display.	There is no power supply due to a defective cable or a faulty connection.	Check the fuses or the electric switch (if there is no plug).
A fuse blows as soon as the hob is switched on.	The hob has been wrongly connected.	Check the electrical connections.
Error code	The control panel is dirty or has water lying on it.	Clean the control panel.
	You have touched two or more keys at the same time.	Do not operate more than one key at the same time.
Error code F	Other defect Contact the service department.

Disposal of packaging and appliance

In the manufacturing of this appliance durable materials were used. Make sure to dispose of this equipment responsibly at the end of its lifecycle. Ask the authorities for more information regarding this.

The appliance packaging is recyclable. The following may have been used:

cardboard;
polythene film (PE);
CFC-free polystyrene (PS hard foam).

Dispos of these materials in a responsible manner and in accordance with government regulations.

As a reminder of the need to dispose of household appliances separately, the product is marked with the symbol of a crossed-out wheeled dustbin. This means that at the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service.

Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources.

Declaration of conformity

We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced.

Specifications techniques

The appliance identification card is located on the bottom of the appliance.

Stick the appliance identification card here.

When contacting the service department,

have the complete type number to hand.

You will find the addresses and phone numbers of the service organisation on the guarantee card.
