USER MANUAL Ascent A3300 Vitamix

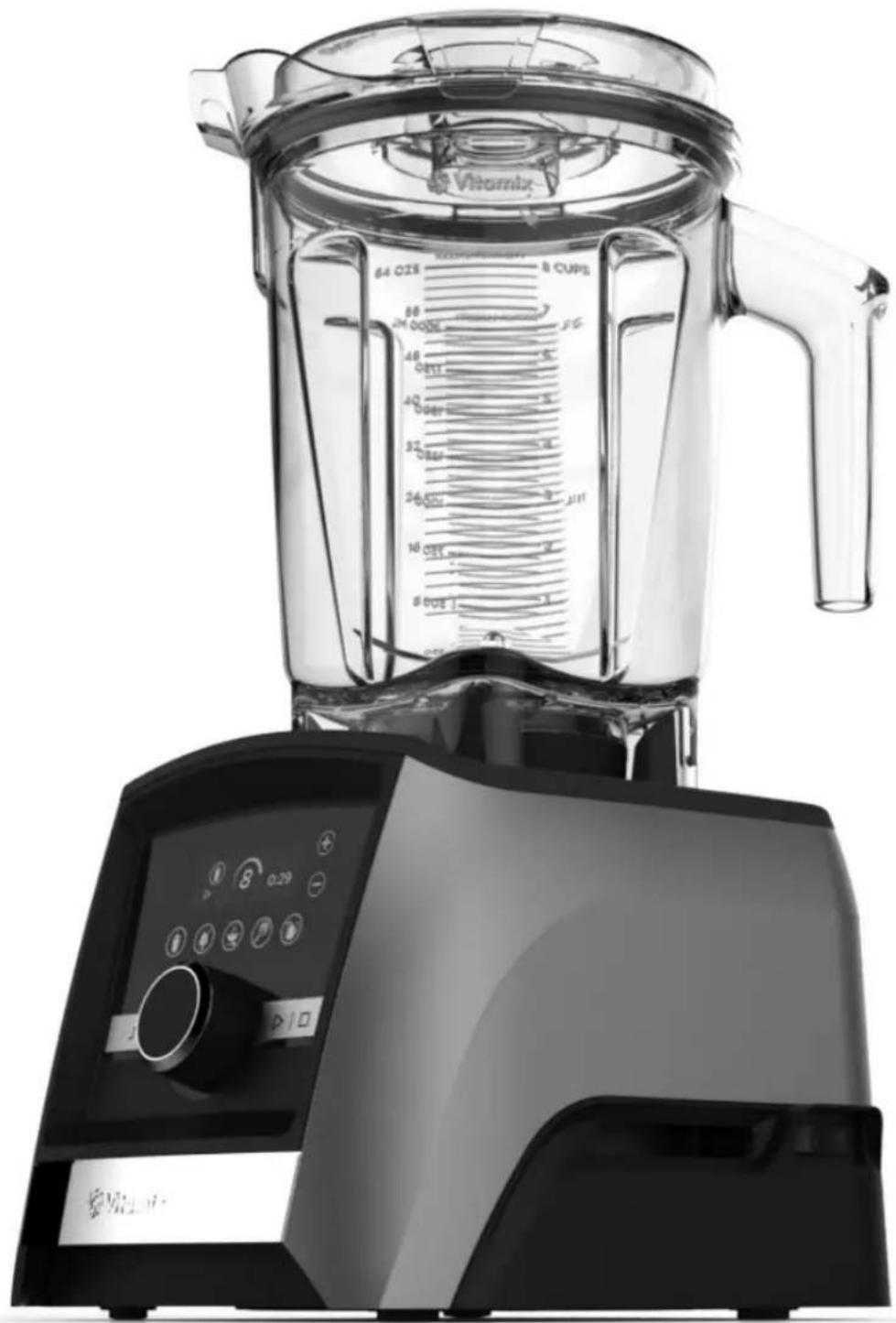

Black and white photo of a modern blender with visible caliper and control panel (no text or symbols on the device itself)

Vitamix.

vitamix.com

U.S. Patent: vitamix.com/patents

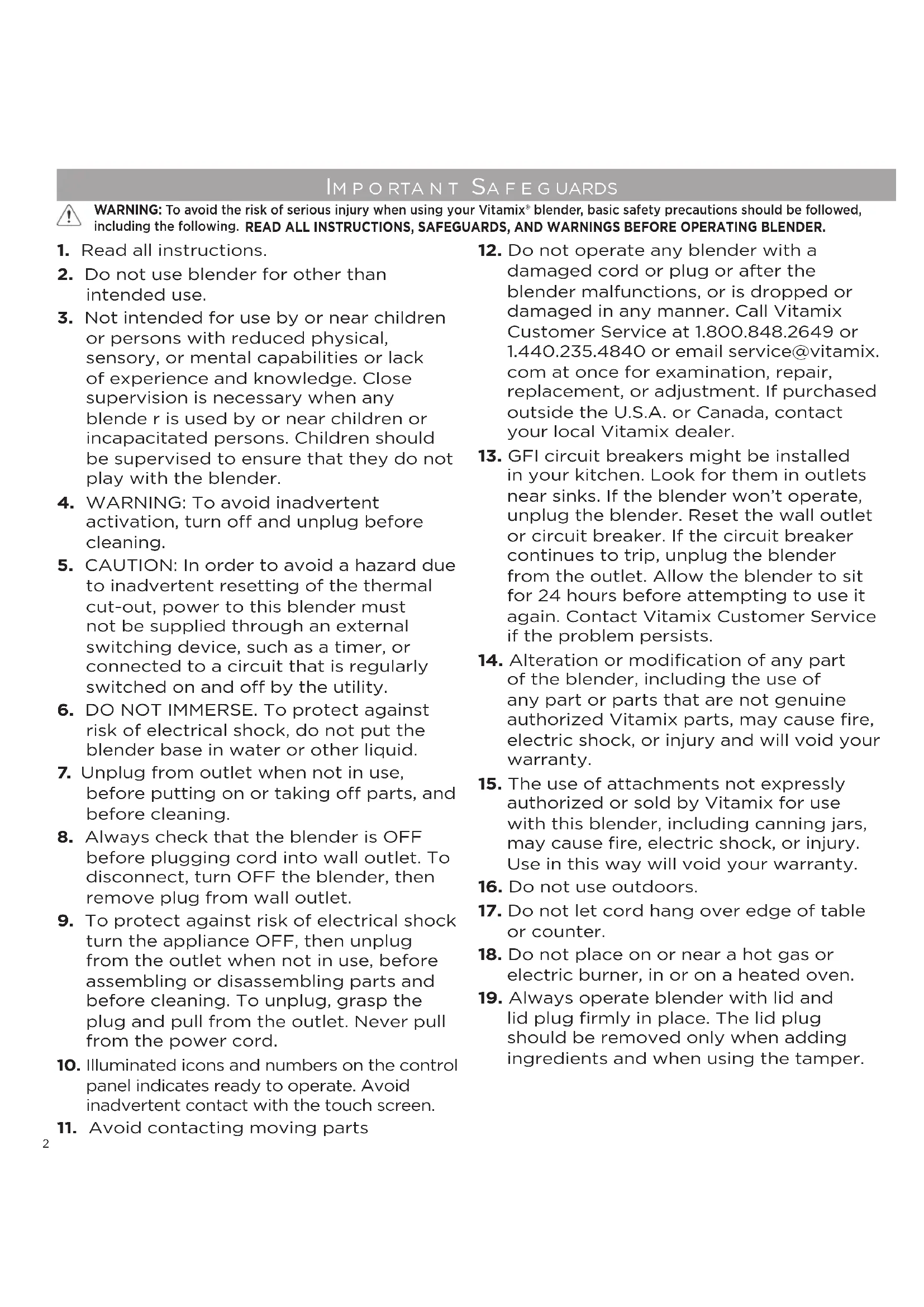

IMPORTANT SAFEGUARDS

WARNING: To avoid the risk of serious injury when using your Vitamix® blender, basic safety precautions should be followed, including the following. READ ALL INSTRUCTIONS, SAFEGUARDS, AND WARNINGS BEFORE OPERATING BLENDER.

1. Read all instructions.
2. Do not use blender for other than intended use.
3. Not intended for use by or near children or persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge. Close supervision is necessary when any blende r is used by or near children or incapacitated persons. Children should be supervised to ensure that they do not play with the blender.
4. WARNING: To avoid inadvertent activation, turn off and unplug before cleaning.
5. CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, power to this blender must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.
6. DO NOT IMMERSE. To protect against risk of electrical shock, do not put the blender base in water or other liquid.
7. Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
8. Always check that the blender is OFF before plugging cord into wall outlet. To disconnect, turn OFF the blender, then remove plug from wall outlet.
9. To protect against risk of electrical shock turn the appliance OFF, then unplug from the outlet when not in use, before assembling or disassembling parts and before cleaning. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
10. Illuminated icons and numbers on the control panel indicates ready to operate. Avoid inadvertent contact with the touch screen.

11. Avoid contacting moving parts

12. Do not operate any blender with a damaged cord or plug or after the blender malfunctions, or is dropped or damaged in any manner. Call Vitamix Customer Service at 1.800.848.2649 or 1.440.235.4840 or email [e-mail] at once for examination, repair, replacement, or adjustment. If purchased outside the U.S.A. or Canada, contact your local Vitamix dealer.

13. GFI circuit breakers might be installed in your kitchen. Look for them in outlets near sinks. If the blender won't operate, unplug the blender. Reset the wall outlet or circuit breaker. If the circuit breaker continues to trip, unplug the blender from the outlet. Allow the blender to sit for 24 hours before attempting to use it again. Contact Vitamix Customer Service if the problem persists.
14. Alteration or modification of any part of the blender, including the use of any part or parts that are not genuine authorized Vitamix parts, may cause fire, electric shock, or injury and will void your warranty.
15. The use of attachments not expressly authorized or sold by Vitamix for use with this blender, including canning jars, may cause fire, electric shock, or injury. Use in this way will void your warranty.
16. Do not use outdoors.
17. Do not let cord hang over edge of table or counter.
18. Do not place on or near a hot gas or electric burner, in or on a heated oven.

19. Always operate blender with lid and lid plug firmly in place. The lid plug should be removed only when adding ingredients and when using the tamper.

20. To avoid injury and damage, keep hands and utensils, other than the tamper provided, out of container while blending. The cover must remain in place when using the tamper through the lid plug opening. A utensil may be used in the container only when the it has been removed from the motor base.

21. The tamper provided must be used only when the main part of the lid is in place.
22. Blades are sharp. Clean around the blade assembly in the container with extreme care to avoid injury. To reduce the risk of injury, never place a blade assembly on the motor base unless assembled to the Vitamix container.
23. Care should be taken when handling the sharp cutting blades, emptying the container and during cleaning.
24. Do not leave foreign objects, such as spoons, forks, knives or the lid plug, in the container as this will damage the blades and other components when starting the blender and may cause injury.
25. Never attempt to operate with damaged blades.
26. Never attempt to operate with the centering pad removed.
27. When blending hot liquids or ingredients in the 64 oz. (Large) container, use caution; spray or escaping steam may cause burns. Do not fill container to the maximum capacity. Always begin processing on the lowest speed setting, variable speed 1. Keep hands and other exposed skin away from lid opening to prevent possible burns.
28. DO NOT use your 20 ounce cup or 8 ounce cup to heat ingredients or to blend hot liquids. Heated ingredients and liquids may create internal pressure which could cause the cup to burst and cause injury.

29. DO NOT continuously use your machine for more than 2 minutes with the 20 ounce cup or 75 seconds for the 8 ounce cup.

30. If a cup becomes warm to the touch or steams or vents, immediately stop blending ingredients and turn off or unplug blender.

31. When making nut butters or oil-based foods, do not process for more than one minute after the mixture starts to circulate in the container. Processing for longer periods can cause overheating.
32. Make sure that the container or cup and blade base are flush with the centering pad to ensure that the drive spline is engaged with the drive socket before operating.
33. Make sure to use the seal on the blade base and tighten the cup adequately to the blade base before blending.
34. Never place the blending adapter onto the blade base without the cup attached.

SAVE THESE INSTRUCTIONS

WARNING
	To Avoid Injury.Read and understand instruction manual before using this machine.

IMPORTANT INSTRUCTIONS FOR SAFE USE

This product is intended for HOUSEHOLD USE ONLY and is not intended to be used for commercial purposes.

Do not leave your Vitamix blender unattended when operating.

Any repair, servicing, or replacement of parts must be performed by Vitamix or a Vitamix authorized service representative.

NOTICE: THE FAILURE TO FOLLOW ANY OF THE IMPORTANT SAFEGUARDS AND IMPORTANT INSTRUCTIONS FOR SAFE USE IS A MISUSE OF YOUR VITAMIX BLENDER THAT CAN VOID YOUR WARRANTY AND CREATE THE RISK OF SERIOUS INJURY.

WARNING
	Electrical Shock Hazard.Use grounded outlet only.DO NOT remove ground.DO NOT use an adapter.DO NOT use an extension cord.Always unplug before cleaning the motor base or when not in use.Do not put the motor base in water or other liquid.Failure to follow instructions can cause death or electrical shock.

SPECIFICATIONS

Voltage: 120 V Height (with 64 oz. container on base): 17 inches

Frequency: 50 - 60 Hz Width: 8 inches

Amps: 12 Amps Depth: 11 inches

• This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
• This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
• This device complies with Health Canada's Safety Code. The installer of this device should ensure that RF radiation is not omitted in excess of the Health Canada's requirement. Information can be obtained at http://www.hc-sc.gc.ca/ewh-semt/pubs/radiation/radio_guide-lignes_direct/index-eng.php.

CAUTION

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

SYMBOLS

	Warning and Caution
	NEVER touch moving parts. Keep hands and utensils out of the container
	Electric Shock Hazard
	High temperature when blending hot liquids
	Unplug while not in use, before cleaning, changing accessories or touching parts that move while the blender is in use
	Operate with the lid and lid plug in place
	Read and understand owner's manual
	DO NOT immerse
	Parts will become hot with extended use. DO NOT touch the drive socket in the motor base or the drive spline in the adapter
I/O	On/Off
[SDC4]	Start/Stop
[03172]	Pulse
Program Symbols (correspond to Vitamix Recipes) - note: your blender might not include programs
[020V] Smoothies
[020W] Frozen Desserts
[0658] Soups
[2CHIA] Spreads
[1VAC3] Self-Cleaning

PARTS AND FEATURES

Technology - The blender, containers and cups communicate through wireless technology. Each container is programmed to run on the base for optimum performance according to it's size and functionality.

Legacy Vitamix Containers - Legacy Vitamix containers will not work with your Ascent blender base. Legacy machines are Vitamix C Series, G Series and S Series. For more information about Vitamix products, please go to vitamix.com.

On /Off (I/O) Switch - The On/Off switch (I/O) is located on the right side of the base. The On/Off switch controls power to the machine.

Sleep Mode - The blender will enter sleep mode if the control panel is not used after 30 seconds. The screen will dim and then a spinning vortex will appear on the control panel. To exit sleep mode, touch any part of the control panel.

Two Touch Operation - The control panel is designed to require two interactions of the controls to activate the blending cycle.

Container Detect - This symbol will be displayed on the control panel until a container is put on the blender base. The blender will not operate without a container in place. The control panel will display Variable 1 and a container/cup icon when ready for use.

Start/Stop (▶□) - Stop the blender at any time by pressing Start/Stop (▶□)

Variable Speed Dial - The Variable Speed Dial gives you manual control from Variable 1 (slowest) to 10 (highest).

Pulse (J) - The blades will rotate at the speed displayed on the control panel when pressed.

Using the Timer - The timer will count up when using variable speed until Start/Stop is pressed. Each container is programmed with a specific maximum run time. The blender will shut down automatically when the maximum run time has elapsed.To program a time for the blend: This feature is only available when using Variable Speed. Program times are not adjustable with the timer function. This feature will count down from the set time and the blender will shut off automatically. Press the + icon to increase blend time. To decrease time, press the - icon. The + and - icons do not work during the blend. To stop, press Start/Stop.

Programs - The icons are listed in Vitamix recipes. The blender will stop at the end of the program automatically. Programs can be stopped by pressing Start/Stop at any time. Program times are not adjustable with the timer function. When Start/Stop is pressed mid-program; Blender will stop and Variable Speed 1 will display. If you want to run a program, select a program and press Start/Stop.Smoothies frozen Desserts Source Dips and spreads Self-Cleaning

Error Codes - If you see an error code on the display (E1, E2, E3, E4), make note of the numbers on the display after the error code. Call Vitamix Customer Service for help with the issue.. Recording the numbers isn't necessary, but will give the Customer Service team more information to help with the issue.

Motor - The motor is designed to protect itself from overheating. If the blender will not start immediately check to make sure you have plugged the unit in and the On/Off switch is On. If the motor has overheated, allow the motor to cool for 20-45 minutes.Tips to prevent 'overloading' your blender:Process only Vitamix recipes when learning to use the blender. Do not process recipes at lower speeds than recommended. Do not process recipes at higher speeds than recommended. Do not process recipes for longer than recommended. Use your tamper to process thicker mixtures and keep ingredients moving around and through the blades.

Tamper - Lids and tampers are not interchangeable between different container styles, types and sizes. Use the tamper that was supplied with your blender.The container should not be more than two-thirds full when the tamper is used during blending. To avoid overheating, DO NOT use the tamper for more than 30 consecutive seconds.

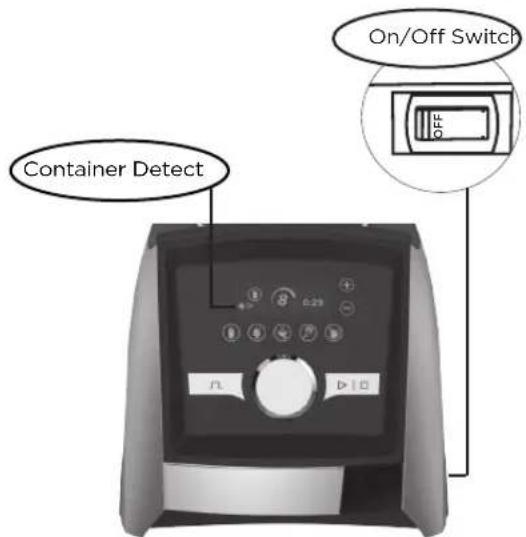

Container Detect On/Off Switch OFF

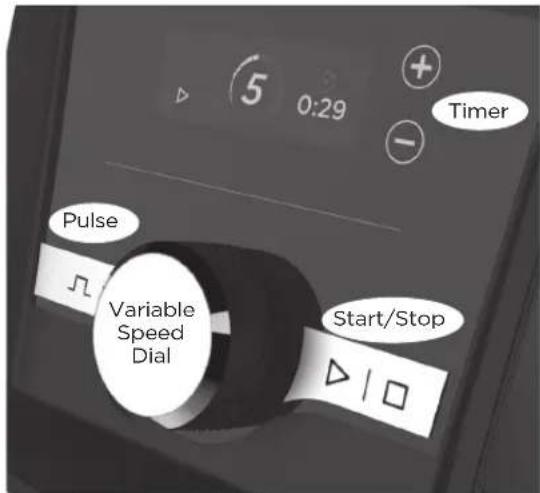

Blender with Variable Speed

5 0:29 Timer Pulse Variable Speed Dial Start/Stop 1

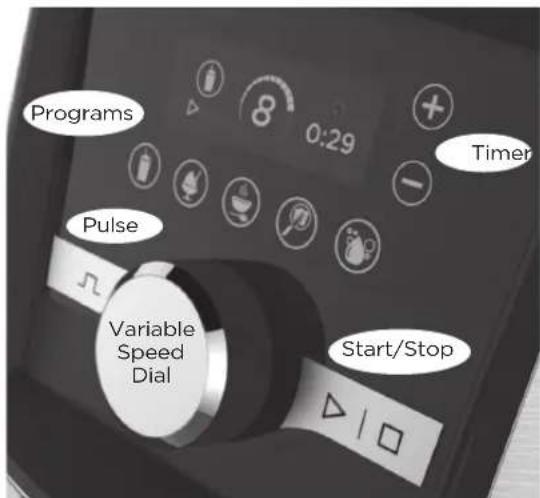

Blender with Variable Speed and Programs

Programs 0:29 Timer Pulse Variable Speed Dial Start/Stop

PARTS AND FEATURES

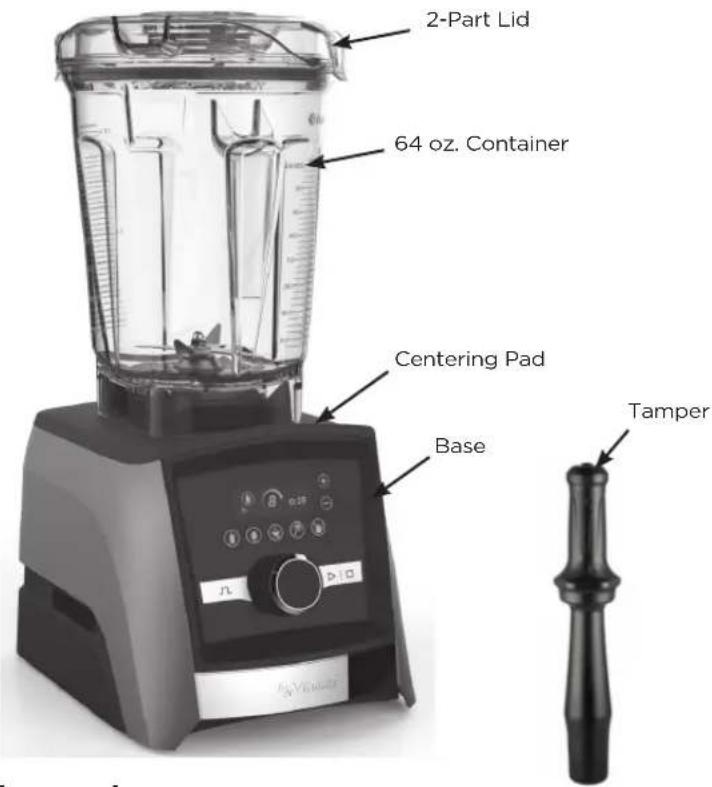

2-Part Lid 64 oz. Container Centering Pad Base Tamper

Accessories

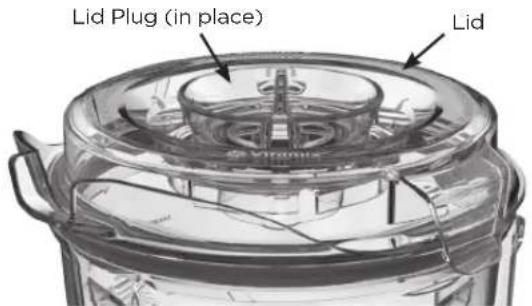

Lid Plug (in place) Lid

Container, Lid, Lid Plug and Tamper

CAUTION

Rotating Blades Can Cause Damage.

Lids and tampers are not interchangeable between different container styles, types and sizes. Use the tamper that was supplied with your blender.

• Always use the lid and the lid plug when operating the blender.
- Never operate the blender without checking to make sure that the lid is securely locked in place.
• The lid plug is marked so it can be used as a measuring cup.
- Insert the lid plug through the lid plug opening. Lock the plug in place by turning clockwise. To remove, turn counter-clockwise and lift out.
- Remove the lid plug to use the tamper or to add ingredients.
- Legacy Vitamix containers (C, G and S Series) will not operate on the Ascent blender base.

Accessories are available for creative recipe development. Visit vitamix.com for product offerings and inspiration.

WARNING

To Avoid Injury. NEVER TOUCH MOVING PARTS.

Keep hands and utensils out of containers and cups during blender operation. DO NOT insert fingers or utensils around the blades while the blades are spinning.

The blades will continue to spin until they come to a complete stop at the end of the blend cycle. Allow the blades to come to a complete stop before handling the blade base and cups.

Put a clean and dry seal onto and then firmly tighten the blade base onto the cup or bowl BEFORE blending.

Do not fill the cup beyond the maximum capacity line or the bowl beyond the 8oz fill line.

If the cup becomes un-threaded from the blade base during operation, turn the machine OFF and wait until the motor and blades come to a complete stop before attempting to remove the cup and blade base from the motor base.

Simple line drawing of a hand using a diagonal line to cut a circular object, no text or symbols present.

WARNING

To Avoid Possible Burns, Never Start on Speeds Above 1 when Processing Hot Liquids in a Large Container.

Escaping steam, splashes or contents may burn. Always start on Variable 1, then slowly increase to 10.

DO NOT use your 20 oz. (0.6 L) cup or 8 oz. (225 ml) bowl to heat ingredients or to blend hot liquids. Heated ingredients and liquids may create internal pressure which could cause the cup to burst and cause injury.

DO NOT continuously use your machine for more than 75 seconds for the 20 oz. (0.6 L) cup or 8 oz. (225 ml) bowl. If a cup becomes warm to the touch or steams or vents, immediately stop blending ingredients and turn off or unplug blender. Allow the cup and ingredients to cool to room temperature before removing the blade base.

Parts will become hot with extended use.

DO NOT touch the drive socket in the blender base or the drive spline in the blade base.

To avoid damage or personal injury, DO NOT use the cups (including the blade base or lids) in the microwave.

BLENDING IN THE FULL SIZE CONTAINER (64 OUNCE/2.0 L)

CAUTION

To Avoid Possible Burns, Never Start on Speeds Above 1 when Processing Hot Liquids.

Escaping steam, splashes or contents may burn.

To secure the contents, lock the lid and lid plug securely in place prior to operating the blender.

Always start on Variable 1, then slowly increase to 10.

NEVER touch moving parts

Parts will become hot with extended use. DO NOT touch the drive socket in the blender base or the drive spline in the blade base

Note: The On/Off switch is on the right hand side of the base.

1. Press the On/Off switch to the On (I) position.

After the blender is turned on, "Vitamix" will appear on the control panel. This symbol Ⓧ will be displayed on the control panel when no container is on the blender base.

1. Load your container according to the Vitamix recipe directions or the load order illustration here.

IMPORTANT! Always use the lid and the lid plug on the Full-Size Containers when the machine is in operation. Never operate the blender without checking to make sure that the lid and lid plug are securely locked in place.

1. Put the lid onto the container.

a. Push down on the lid until the two tabs snap onto the lip of the container.
b. Insert the lid plug.
c. Turn the lid plug clockwise to lock.

1. Put the container onto the blender base. 0:00 will display when a container/cup is detected and the blender is ready to operate.

2. Perform one of the following:

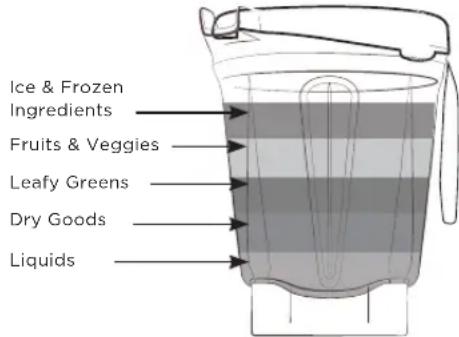

Ice & Frozen Ingredients Fruits & Veggies Leafy Greens Dry Goods Liquids

• To use variable speed:

a. Turn the variable speed dial counter-clockwise until Variable Speed 1 appears on the control panel.
b. Press Start/Stop. The blades will begin to turn and the timer will count the minutes and seconds that the blend has been processing. To set a blend time, use the +/- icons on the controls.
c. Rotate the Variable Speed Dial between 1 and 10 during the blending cycle to increase or decrease the speed of the blades.
d. At the end of the blend, rotate the Variable Speed Dial counter-clockwise until Variable 1 is displayed and press Start/Stop.

- To use Programs:

a. Press the icon for the desired program. (The default program time and variable speed setting will display on the control panel).
b. Press Start/Stop to start the program. (The blender will automatically stop at the end of the program.) Press Start/Stop at any time to stop the program.

6. If the mixture stops circulating:

• Insert the tamper through the lid plug and stir until it 'burps'. If this does not work, press the On/Off switch to stop the motor. Remove the container from the blender base and use a rubber spatula to press the air bubble away from the blades. Add liquid if necessary. Replace the lid and lid plug. Return the container to the blender base and continue blending.

• If necessary, use a Vitamix Blade Scraper or spatula to remove salsa, jelly, jam, peanut butter, and other thick ingredients from under the blades only after the blender has been turned off and the container has been removed from the motor base.

• After blending, wait until the blades completely stop before removing the lid or removing container from the blender base.

Tips to prevent 'overloading' your blender:

• Process only Vitamix recipes when learning to use the blender.
• Do not process recipes at lower speeds than recommended.
• Do not process recipes at higher speeds than recommended.
• Do not process recipes for longer than recommended.
• Use your tamper to process thicker mixtures and keep ingredients moving around and through the blades.

BLENDING IN CUPS AND BOWLS (8 oz. AND 20 oz.)

Note: The cups and bowls mentioned here are optional accessories of the Ascent Blenders. Please visit www.vitamix.com for more information.

	Warning and Caution
	NEVER touch moving parts
	DO NOT use your 20 oz. (0.6 L) cup or 8 oz. (225 ml) bowl to heat ingredients or to blend hot liquids
	Parts will become hot with extended use. DO NOT touch the drive socket in the blender base or the drive spline in the blade base
	To avoid damage or personal injury, DO NOT use the cups (including the blade base or lids) in the microwave

AWARNING

To Avoid Injury. NEVER TOUCH MOVING PARTS.

Keep hands and utensils out of containers and cups during blender operation. DO NOT insert fingers or utensils around the blades while the blades are spinning.

The blades will continue to spin until they come to a complete stop at the end of the blend cycle. Allow the blades to come to a complete stop before handling the blade base and cups.

Put a clean and dry seal onto and then firmly tighten the blade base onto the cup or bowl BEFORE blending.

Do not fill the cup beyond the maximum capacity line or the bowl beyond the 8oz fill line.

If the cup becomes un-threaded from the blade base during operation, turn the machine OFF and wait until the motor and blades come to a complete stop before attempting to remove the cup and blade base from the motor base.

Simple line drawing of a hand holding a circular object with a diagonal line crossing through it, enclosed in a circle (no text or symbols)

WARNING

DO NOT use your 20 oz. (0.6 L) cup or 8 oz. (225 ml) bowl to heat ingredients or to blend hot liquids. Heated ingredients and liquids may create internal pressure which could cause the cup to burst and cause injury.

DO NOT continuously use your machine for more than 75 seconds for the 20 oz. (0.6 L) cup or 8 oz. (225 ml) bowl. If a cup becomes warm to the touch or steams or vents, immediately stop blending ingredients and turn off or unplug blender. Allow the cup and ingredients to cool to room temperature before removing the blade base.

Parts will become hot with extended use.

DO NOT touch the drive socket in the blender base or the drive spline in the blade base.

To avoid damage or personal injury, DO NOT use the cups (including the blade base or lids) in the microwave.

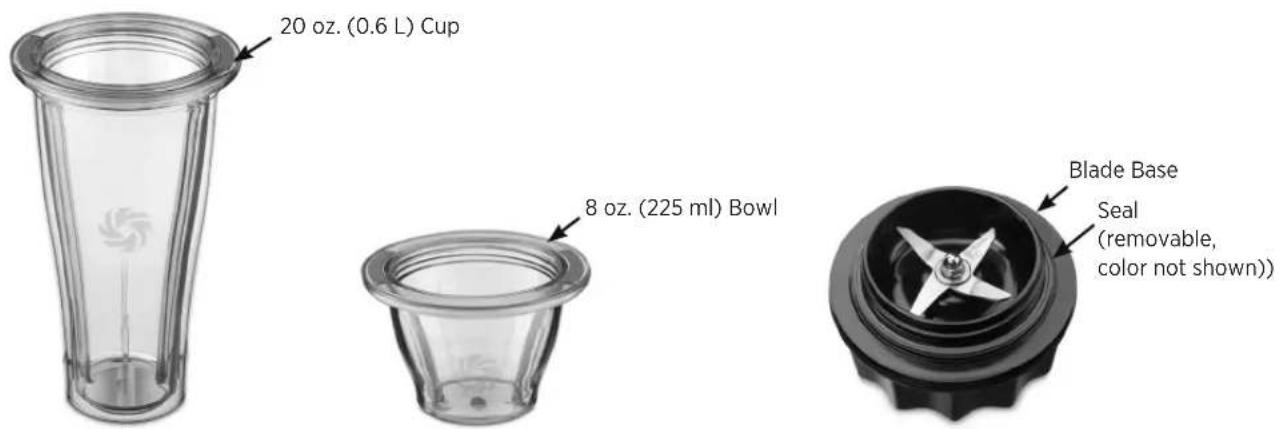

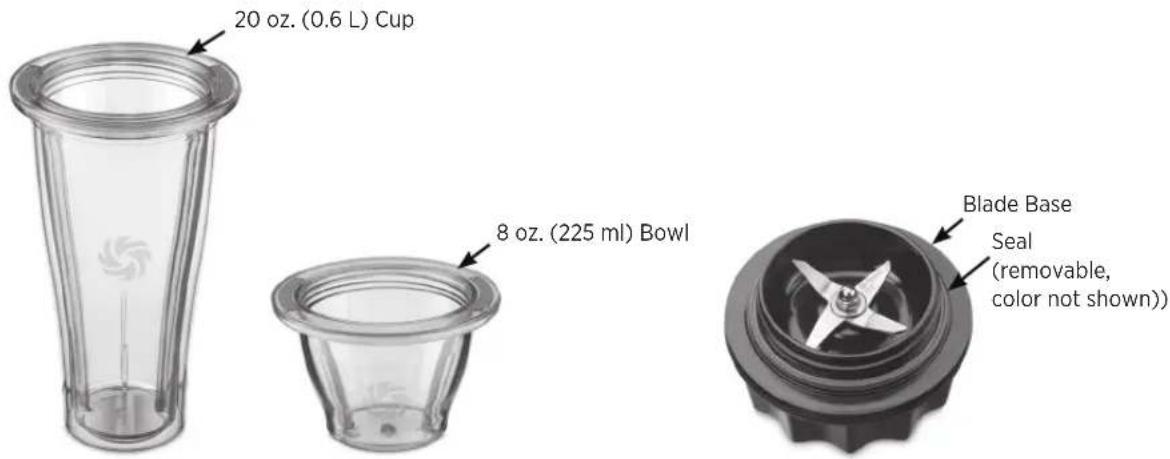

20 oz. (0.6 L) Cup 8 oz. (225 ml) Bowl Blade Base Seal (removable, color not shown)

BLENDING IN CUPS AND BOWLS (8 oz. AND 20 oz.)

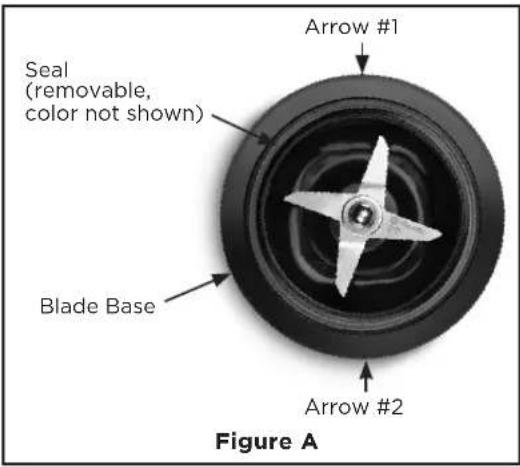

1. Locate the two arrows on the blade base. The arrows are opposite of each other on the blade base (see Figure A).
2. Put a clean, dry seal onto the bottom thread of the blade base (see Figure A). The seal should fit snugly and evenly around the thread.

Note: Do not blend hot liquids in the 20 oz. (0.6 L) cup or 8 oz. (225 ml) bowl. Do not fill the cup beyond the maximum capacity with solids or liquids. "MAXIMUM CAPACITY" is marked on the 20 oz cup. The maximum capacity of the bowl is the 8oz (225 ml) fill line.

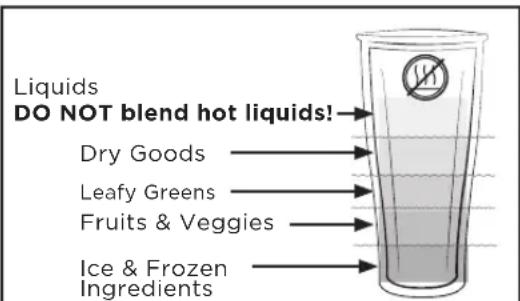

1. Load the cup or bowl (see Figure B for ingredient loading order).
2. Put the blade base onto the cup or bowl.

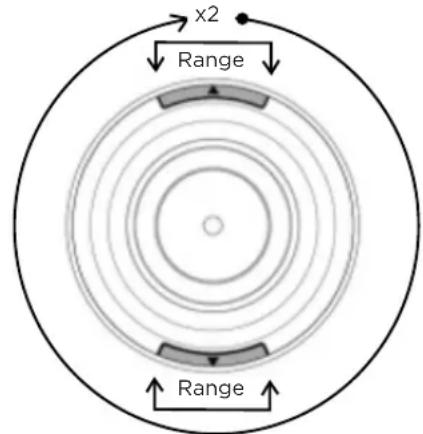

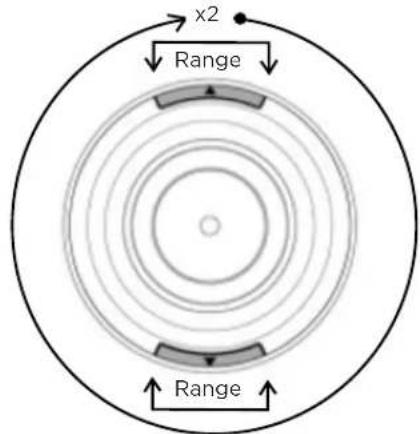

3. Rotate the blade base clockwise at least two complete turns from your starting point until the arrows are within the ranges marked on the cup or bowl. If necessary, continue to rotate clockwise until the arrows are within the ranges below (see Figure C).
4. Put the cup or bowl and blade base onto the blender motor base.
   If the blender motor base does not recognize the cup or bowl, tighten the blade base clockwise onto the cup or bowl and place it back onto the blender motor base. If the problem is not corrected, contact Vitamix Customer Service for support.
5. Blend the recipe according to the instructions in the recipe.
6. If the mixture stops circulating:

Press the On/Off switch to stop the motor. Wait until the blades stop rotating. Remove the cup or bowl and blade base from the blender motor base. Turn the cup over. Unthread the blade base from the cup by rotating counter-clockwise. Stir the ingredients. Add liquid if necessary. Place a clean and dry seal on the blade base. Wipe clean the threads on the blade base and cup or bowl. Reattach the blade base according to STEP 5, place on blender base and continue blending.

1. After blending, wait until the blades completely stop before removing the cup or bowl from the blender base.
2. If necessary, use a Vitamix Blade Scraper or spatula to remove salsa, jelly, jam, peanut butter, and other thick ingredients from under the blades only after the blender has been turned off and the container has been removed from the motor base.

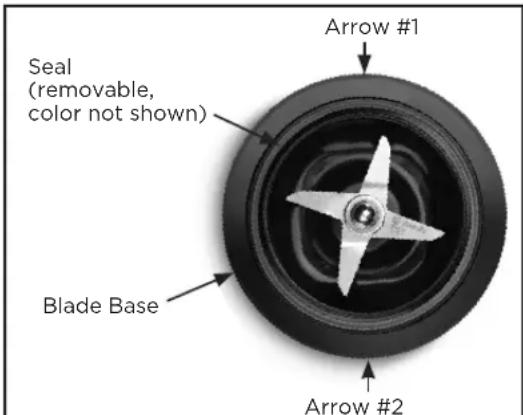

Seal (removable, color not shown) Blade Base Arrow #1 Arrow #2

Figure A

Liquids DO NOT blend hot liquids! Dry Goods Leafy Greens Fruits & Veggies Ice & Frozen Ingredients

Figure B

To tighten: rotate the blade base clockwise at least two complete turns from your starting point until the arrows are within the ranges marked on the cup or bowl. If necessary, continue to rotate clockwise until the arrows are within the ranges below.

x2 Range Range

Figure C

CARE AND CLEANING

BEFORE FIRST USE:

1. Wipe the base with a warm damp cloth and wipe clean with a dry, soft cloth. Wash the container, cups, lids, lid plug, and tamper with warm, soapy water. Rinse all parts. Wipe dry with a dry, soft cloth.
2. Choose a space on the counter that is level, dry and clean. Plug the blender into a grounded, 3-prong outlet.

Note: Your Vitamix container is designed to be completely cleanable without removing the retainer nut and blade assembly. DO NOT attempt to remove the retainer nut or blade assembly from the container. Our Normal Cleaning and Sanitizing procedures or a dishwasher cleaning cycle will ensure a complete and thorough cleaning of your container and it's components. If your container is damaged, please do not use. Contact Vitamix Customer Service IMMEDIATELY for assistance.

Care and Cleaning of 64 ounce/2.L Containers:

To Clean:

1. Fill the container half full with warm water and add a couple of drops of dishwashing liquid.
2. Snap or push the complete 2-Part lid into the locked position.
3. Perform one of the following:

- Variable Speed:

a. Press the Start / Stop.
b. Slowly increase variable speed to 10.
c. Run the machine for 30 to 60 seconds.
d. Rotate the Variable Speed dial back to Variable 1.

• Model A3500, press the Self-Cleaning Icon (☐) to select. Press Start/Stop. The program will stop automatically when complete.

1. Rinse and drain all pieces.

To Sanitize:

1. Follow the cleaning instructions above.
2. Fill the container half full with water and 1½ teaspoons of liquid bleach.
3. Snap or push the complete 2-part lid into the locked position.

4. Perform one of the following:

5. Variable Speed:
   a. Press the Start / Stop.
   b. Slowly increase variable speed to 10.
   c. Run the machine for 30 to 60 seconds.
   d. Rotate the Variable Speed dial back to Variable 1.

• Model A3500, press the Self-Cleaning Icon (100) to select. Press Start/Stop. The program will stop automatically when complete.

1. Allow mixture to stand in the container for an additional 1½ minutes.
2. Pour bleach mixture out. Allow container to air dry. Do not rinse after sanitizing.

Lids, Lid Plug, Centering Pad and Tamper

The parts are dishwasher safe. If preferred, wash the parts in warm soapy water. Rinse clean under running water, then dry.

Accessories

Refer to the care and cleaning instructions included with the accessory for more information.

Blender Base

1. Turn off and unplug the blender.

⚠ WARNING
	To Avoid Injury and Damage.To avoid inadvertent activation, turn off and unplug the blender before cleaning.
⚠ WARNING
	Electrical Shock Hazard.Always unplug before cleaning the blender base or when not in use.Do not put the blender base in water or other liquid.Failure to follow instructions can cause death or electrical shock.

1. Wash the outside surface with a damp, soft cloth or sponge that has been rinsed in a mild solution of liquid dish soap and warm water. Do not place the blender base in water. The centering pad can be removed for more thorough cleaning. The centering pad is dishwasher safe.
2. Immediately dry all surfaces and polish with a soft cloth.

CARE AND CLEANING

Care and Cleaning of Cups and Bowls:

Dishwasher:

The cups, lids, blade base and seals are dishwasher safe or can be washed and sanitized with the procedures below. The seals must be washed and dried after each use to avoid ingredient build-up. The threads of the blade base must be washed and dried after each use to avoid ingredient build-up.

In-Place Cleaning:

1. Locate the two arrows on the blade base. The arrows are opposite of each other on the blade base (see Figure A).
2. Put a clean, dry seal onto the bottom thread of the blade base (see Figure A). The seal should fit snugly and evenly around the thread.

Note: Do not blend hot liquids in the 20 oz. (0.6 L) cup or 8 oz. (225 ml) bowl.

1. Fill the cup or bowl to half-full with cold water and a couple of drops of dishwashing liquid.

2. Put the blade base onto the cup or bowl.

3. Rotate the blade base clockwise at least two complete turns from your starting point until the arrows are within the ranges marked on the cup or bowl. If necessary, continue to rotate clockwise until the arrows are within the ranges below (see Figure B).

4. Put the cup or bowl and blade base onto the blender motor base.

5. Press Start / Stop. Slowly increase speed to 10 and run the machine for 30 to 60 seconds.

6. Reduce speed to Variable 1. Press Start / Stop.

7. Slowly unthread the blade base from the cup or bowl.

8. Rinse and drain all pieces.

To Sanitize:

1. Follow the cleaning instructions STEPS 1-2 above.

Note: Do not blend hot liquids in the 20 oz. (0.6 L) cup or 8 oz. (225 ml) bowl.

1. Fill the cup or bowl to half-full with cold water and 1/2 teaspoons of liquid bleach.

2. Put the blade base onto the cup or bowl.

3. Rotate the blade base clockwise at least two complete turns from your starting point until the arrows are within the ranges marked on the cup or bowl. If necessary, continue to rotate clockwise until the arrows are within the ranges below (see Figure B).

4. Put the cup or bowl and blade base onto the blender motor base.

5. Press Start / Stop. Slowly increase speed to 10 and run the machine for 30 to 60 seconds.

6. Reduce speed to Variable 1. Press Start / Stop.

7. Allow mixture to stand in the container for an additional 1 ½ minutes.

8. Slowly unthread the blade base from the cup or bowl.

9. Pour bleach mixture out. Allow to air dry.

10. Do not rinse after sanitizing.

Arrow #1 Seal (removable, color not shown) Blade Base Arrow #2 Figure A

To tighten: rotate the blade base clockwise at least two complete turns from your starting point until the arrows are within the ranges marked on the cup or bowl. If necessary, continue to rotate clockwise until the arrows are within the ranges below.

x2 Range Range

Figure B

WARRANTY AND SERVICE

10-Year full Machine Warranty

1. PRODUCT REGISTRATION.

Vita-Mix Corporation (“Vitamix”) strongly encourages you to register your purchase by completing and returning the product registration card that came with this Blender. You can register online at vitamix.com/warranty; or by calling our Customer Service Department at 1.800.848.2649 or 1.440.235.4840. Failure to register your product purchase will not diminish your warranty rights. However, registering your purchase will allow Vitamix to better serve you with any of your customer service needs.

2. WHO CAN SEEK WARRANTY COVERAGE.

This Warranty is extended by Vitamix to the owner of this Blender for personal household use only. This Warranty does not apply to products used for commercial, rental or re-sale purposes. Should ownership of the blender change during the 10-year period, please update the Blender's owner information at vitamix.com.

3. WHAT IS COVERED.

Vitamix warrants to the owner that if this Blender (a "Blender" consists of a motor blender base, any container(s), lids and tamper(s) purchased together) fails within 10 years from the date of purchase due to a defect in material or workmanship or as a result of normal wear and tear from ordinary household use, Vitamix will, within 30 days of receipt of the returned blender, repair the failed Blender or component part of the Blender free of charge. If, in Vitamix's sole discretion, the failed Blender or component part of the Blender cannot be repaired, Vitamix will elect to either (A) replace the Blender free of charge or (B) refund the full purchase price to the owner, unless Vitamix receives prior written notice of the owner's preference.

4. WHAT IS NOT COVERED.

This Warranty does not apply to Blenders used commercially or in non-household applications. This Warranty does not cover cosmetic changes that do not affect performance, such as discoloration or the effects of the use of abrasives or cleaners or food build up. This Warranty is only valid if the Blender is used and maintained in accordance with the instructions, warnings and safeguards contained in the owner's manual.

Containers: Grinding certain herbs and spices in the container/cup will result in cosmetic marring of the container/cup and may cause the blades to wear prematurely. Traces of sand, coarse gritty and abrasive herbs will also cause the blades to wear prematurely. Herbs may contain volatile oils, cause the container/cup to retain the oils and cause permanent discoloration. Your container/cup and blades are not covered under the Vitamix warranty under these circumstances.

Vitamix will not be responsible for the cost of any unauthorized warranty repairs.

REPAIR, REPLACEMENT OR REFUND OF THE PURCHASE PRICE ARE THE EXCLUSIVE REMEDIES OF PURCHASER AND THE SOLE LIABILITY OF VITAMIX UNDER THIS WARRANTY. NO EMPLOYEE OR REPRESENTATIVE OF VITAMIX IS AUTHORIZED TO MAKE ANY ADDITIONAL WARRANTY OR ANY MODIFICATION TO THIS WARRANTY WHICH MAY BE BINDING UPON VITAMIX. ACCORDINGLY, PURCHASER SHOULD NOT RELY UPON ANY ADDITIONAL STATEMENTS MADE BY ANY EMPLOYEE OR REPRESENTATIVE OF VITAMIX. IN NO EVENT, WHETHER BASED ON CONTRACT, INDEMNITY, WARRANTY, TORT (INCLUDING NEGLIGENCE), STRICT LIABILITY OR OTHERWISE, SHALL VITAMIX BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING, WITHOUT LIMITATION, LOSS OF PROFIT OR REVENUE.

Some states do not allow limits on warranties. In such states, the above limitations may not apply to you. Outside the U.S.A. and Canada, other warranties may apply.

5. WHAT VOIDS THIS WARRANTY.

Abuse, misuse, negligent use, alteration of the Blender, exposure to abnormal or extreme conditions, or failure to follow the operating instructions in this manual will void this Warranty.

The Warranty is also void if repairs to the Blender or any component part of the Blender are performed by someone other than either Vitamix or an authorized Vitamix Service Provider or if any component part of a Blender subject to this Warranty is used in combination with a motor base or container that is not expressly authorized by Vitamix.

6. HOW TO OBTAIN RETURN AUTHORIZATION UNDER THIS WARRANTY.

In the event that you need service or repair, please call Vitamix Customer Service at 1.800.848.2649 or 1.440.235.4840. You will be asked to provide a date of purchase and proof of purchase for any blender that has not been registered with Vitamix. For blenders subject to this Warranty you will be provided with a return authorization number, up-to-date shipping instructions and a pre-paid return pick up label. Vitamix will pay standard shipping costs on the return of a Blender for warranty service and repair and for return shipment of the blender to you after the warranty repair or replacement. Purchaser is responsible for the costs of special shipping requests.

Within the U.S.A. and Canada, this Warranty is honored directly through the Vita-Mix Corporation.

United States Canada

Vita-Mix Corporation Vita-Mix Corporation

8615 Usher Road 200-1701 Shepherd Street East

Cleveland, Ohio 44138-2199 Windsor, Ontario N8Y 4Y5

1-800-848-2649

1-800-848-2649

[e-mail]

[e-mail]

You will be deemed to have accepted the returned product "as is" upon delivery unless you notify Vitamix of any problem, including shipment damage, within 48 hours of delivery.

When applicable:

©2022 Vita-Mix Corporation. No part of this publication may be reproduced or transmitted in any form or by any means, or stored in a database or retrieval system, without the written permission of Vita-Mix Corporation.

A3300 AND A3500 MÉLANGEURS À PERFORMANCES ÉLEVÉES

SÉRIE ASCENT

VM0185

Black and white photo of a modern blender with visible caliper and control panel (no text or symbols on the device itself)

Simple line drawing of a hand using a diagonal line to cut a circular object with a central hole (no text or symbols)

ATTENTION

Simple line drawing of a hand using a diagonal line to cut a circular object, no text or symbols present.

ATTENTION

x2 Zone Zone

figure C

ENTRETIEN

AVANT LA PREMIÈRE UTILISATION:

x2 Zone Zone

figure B

Transparent glass cup with a spiral pattern and an arrow pointing to the top rim (no text or symbols)

Bol de 225 ml (8 oz)

Close-up of a black plastic blender with three blades and a central hub, labeled B (no text or symbols on the object itself)

Cleveland, Ohio 44138-2199 Windsor, Ontario N8Y 4Y5

[phone]

[phone]

[e-mail]

[e-mail]
