USER MANUAL TTA5603 BOSCH

Turkish-style tea maker

TTA5...

[en] Instruction manual Turkish-style tea maker 7

B
TTA5201	✓		✓
TTA5603		✓	✓
TTA5883		✓		✓

C

1. max

Illustration of a white kettle with a digital display and a black base, no text or symbols present

Illustration of a container pouring granular material into a cylindrical container with a 1/3 scale indicator (no text or symbols on the diagram itself)

Illustration of a glass pitcher with an open lid and internal compartments, showing no text or symbols.

Illustration of a white kettle with a lid and handle, showing a black downward arrow indicating cooling or discharging (no text or symbols present)

6.7.8.

Illustration of a hand holding a device with an arrow indicating rotation, next to an hourglass icon (no text or symbols)

click!

Illustration of a kettle pouring liquid from a container into a glass (no text or symbols)

Illustration of a white kettle being placed on a base with a black arrow indicating the press or cooling process (no text or symbols present)

11.10.12.9.

click!

D

1.2.3. max

Diagram of a kettle with an open lid and lock indicator, showing internal components and a warning symbol.

Diagram illustrating a coffee cup being opened into a container, with arrows indicating the process and a coffee cup icon labeled '6'.

4. click!

Sicherheitshinweise

Please read and follow the operating instructions carefully and keep them for later reference. Enclose these instructions when you give this appliance to someone else. This appliance is intended for domestic use only.

This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Keep children under 8 years of age away from the appliance and connecting cable and do not allow them to use the appliance. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.

⚠️Danger of electric shock!

Only use the appliance indoors at room temperature and up to 2000 m above sea level. The appliance may only be connected to a power supply with alternating current via a correctly installed socket with earthing. Ensure that the protective conductor system of the domestic supply has been correctly installed.

Connect and operate the appliance only according to the type plate specifications. To avoid potential hazards, repairs such as replacing a damaged cable must only be carried out by our customer service personnel.

Avoid spillage on the connector. Never immerse the appliance, base or mains cable in water.

The tea maker should only be used with the base supplied.

Use only if power cord and appliance show no signs of damage.

Should a fault occur, pull the plug or disconnect from the mains immediately.

en

⚠️Risk of fire!

Do not place the base, kettle or teapot on or near hot surfaces, e.g. hobs. Avoid spatters of grease as the plastic may be damaged.

⚠️Risk of scalding!

The appliance heats up during use. Make sure you only pick it up by the handle and do not open the lid until the appliance has cooled down. Only use the appliance when the lid is engaged.

If the appliance is filled above the “max.” marking, there could be a risk from splashes of boiling water.

⚠️Risk of burns!

After the use the heating element surfaces can be subjected to residual heat.

⚠️Risk of suffocation!

Do not allow children to play with packaging material.

⚠️Risk of injury!

A misuse of the appliance can potentially lead to injury.

Caution! Cleaning surfaces which come into contact with foodstuffs!

Please note the special information on cleaning in the instructions.

WARNING: Do not use this appliance near bathtubs, showers, basins or other vessels containing water.

en

Congratulations on the purchase of your new Bosch appliance. You can find further information about our products on our website.

This instruction manual describes different models. → Fig. B

Parts and operating controls

→ Fig. A

1 Base
2 Kettle
3 Kettle lid (bayonet lock)
4 Limescale filter (removable)
5 On/Off switch ①, illuminated
6 Selection button "boil" / "keep warm"
7 Indicator light (orange)
8 Teapot (dishwasher-safe)
9 Lid for teapot, removable (dishwasher-safe)
10 Tea filter (dishwasher-safe)
11 Cable tidy

Important:

• The kettle should only be used with the base supplied.
• The kettle should only ever be filled with water. Milk or instant products will burn and damage the appliance.
• Do not operate the kettle without water or overfill, and observe the min and max markings. If the kettle is too full, the water will boil over!
• Only use the kettle with the teapot or lid attached or the kettle will otherwise not switch automatically to keeping warm.
  – If not using the kettle (e.g. away on holiday), unplug it.

Before using for the first time

■ Remove any stickers or film.
■ Unwind the cable to the required length and plug in.

■ Place the kettle with the base on a stable and level work surface.
■ Boil some water and discard.

→ "Boiling water" see page 10

■ Repeat the process twice to clean the kettle.
■ Rinse the teapot and tea filter.

Tip: When the water comes to the boil for the first time, add a tablespoon of white vinegar.

Making tea

→ Image sequence ©

The preparation of Turkish tea is described here. Other types of tea may become bitter due to the long steeping time.

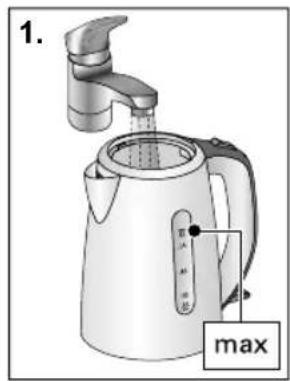

1. Fill the kettle with water, observing the min and max markings.

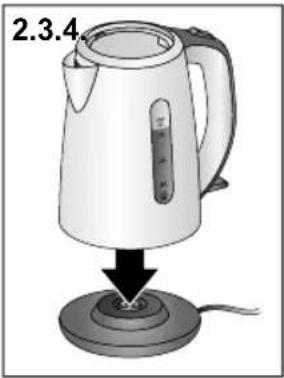

2. Place the kettle on the base.

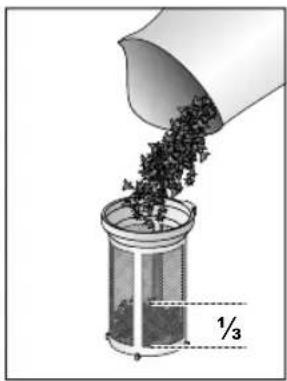

3. Fill the tea filter about 1/3 full with Turkish tea.

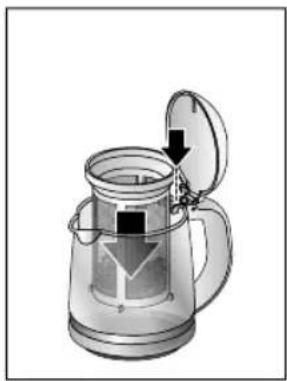

4. Hang the tea filter in the teapot by the handle.

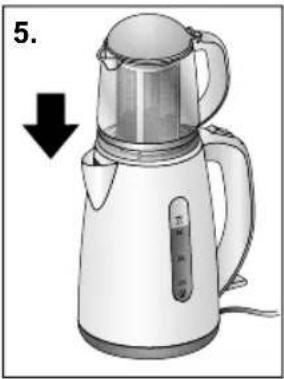

5. Place the teapot on the kettle.

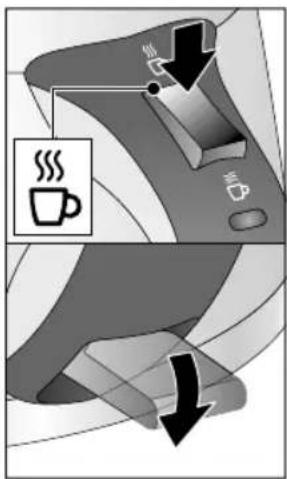

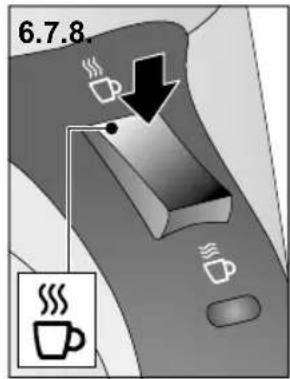

6. Set the selection button to "boil" ☐.
7. Press the On/Off switch down. The switch lights up.

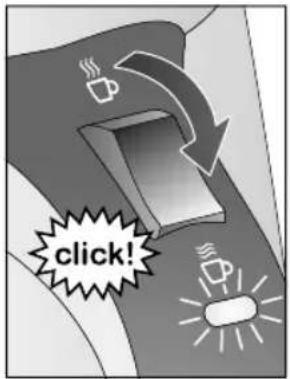

8. As soon as the water has boiled, the kettle automatically switches to "keep warm" 🌐. The indicator light lights up.

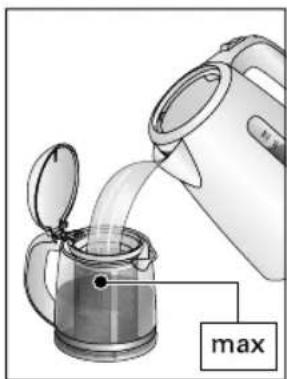

9. Remove the teapot and pour in the hot water.

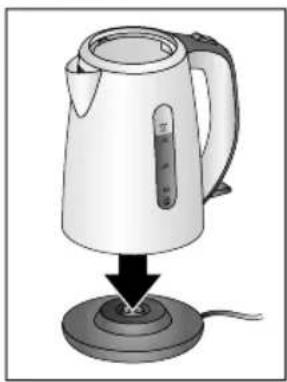

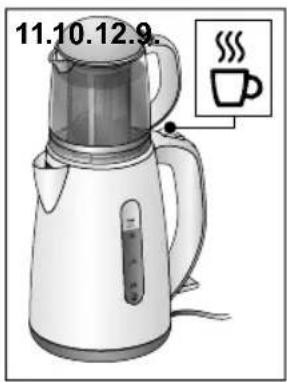

10. Refill the kettle with fresh water and place on the base.
11. Place the teapot on the kettle. Set the selection button to "boil" ☐.
12. As soon as the water has boiled, the kettle automatically switches to "keep warm" ☐. The indicator light lights up. The tea is kept warm.

Tips:

• Add the Turkish tea to the tea filter and briefly rinse under hot running water. This will remove dust residue from the tea and improve the taste.
  – Turkish tea should be left to steep for at least 20 min. to extract the full flavour.

en

– Always use up the tea extract in the teapot and do not refill with water.

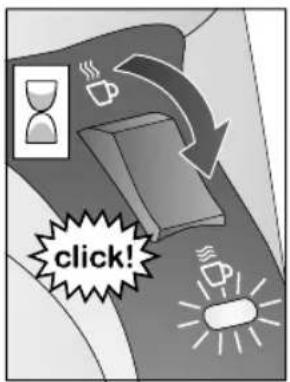

Info: The water and tea are kept warm by setting the switch to 🌈. This saves up to 90% energy. If the kettle is refilled with fresh water, first bring the water to the boil and then keep warm.

Boiling water

→ Image sequence D

The kettle can also be used without the teapot.

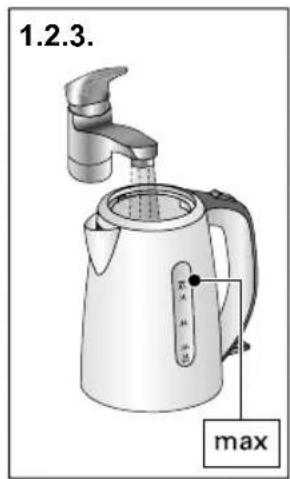

1. Fill the kettle with water, observing the min and max markings.

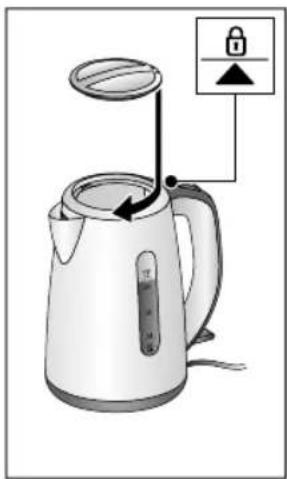

2. Position the kettle lid at the ▼ marking and lock 🔒. Place the kettle on the base.
3. Set the selection button to "boil" and press the On/Off switch down. The switch lights up.

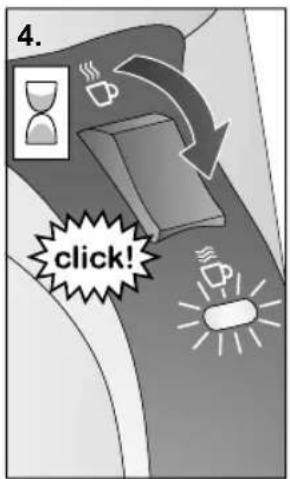

4. As soon as the water has boiled, the kettle automatically switches to "keep warm". The indicator light lights up.
   If you do not want to keep the water warm, switch off the kettle with the On/Off switch.

Caution: If you remove the kettle from the base and replace it before the heating process is over, the kettle will continue to heat the water.

Notes:

– Water should only be boiled with the lid closed and the limescale filter inserted.
- For reasons of physics condensation may form on the base. This is a normal process, and the kettle is not leaking.
- Do not turn on the appliance if the kettle is empty or the overheating protection will be triggered and the appliance will switch off automatically.

Cleaning and maintenance

⚠️ Risk of electric shock!

Never immerse the kettle or base in water or place in the dishwasher. Do not steam-clean the appliance.

■ Pull out the mains plug.

■ The kettle and base should only be wiped down on the outside with a damp cloth. Do not use harsh or abrasive detergents.
■ Remove the limescale filter and place in a little vinegar. Rinse with plain water.
■ Rinse the kettle and limescale filter with plain water.
■ The teapot, teapot lid and tea filter can be placed in the dishwasher.

Tip: Clean the stainless steel surface with a standard care product for stainless steel.

Descaling

Regular descaling

– prolongs the service life of the appliance
– ensures that it functions properly
- and saves energy.

Descale the kettle with vinegar or a standard descaling agent.

■ Fill the kettle with water up to the max mark and bring to the boil.
- Then add a small amount of white vinegar and let it act for several hours. You can also use a descaling agent according to the manufacturer's instructions.
■ Then rinse the kettle and limescale filter with plain water.

Caution: Never use hard objects to remove limescale residue as this will damage the seal.

Tip: Descale the kettle frequently in daily usage.

Rectifying minor faults yourself

Appliance does not heat up.

– The overheating protection has triggered.

■ Let the kettle cool down for a while so that the appliance can be switched on again.

en

The appliance switches off before the boiling process ends.

– Build-up of limescale in the appliance.
■ Descale the appliance according to the instructions.

Technical specifications

Electrical connection 22	0-240 V~50/60 Hz
Output 1500-1800 W
Appliance height 370 mm
Appliance width 235 mm
Appliance depth 165 mm
Water capacity 1.70 L

Disposal

Dispose of packaging in an environmentally-friendly manner. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment – WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU. Please ask your specialist retailer about current disposal facilities.

Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Changes reserved.
