USER MANUAL IWC 81251 B EU.M INDESIT

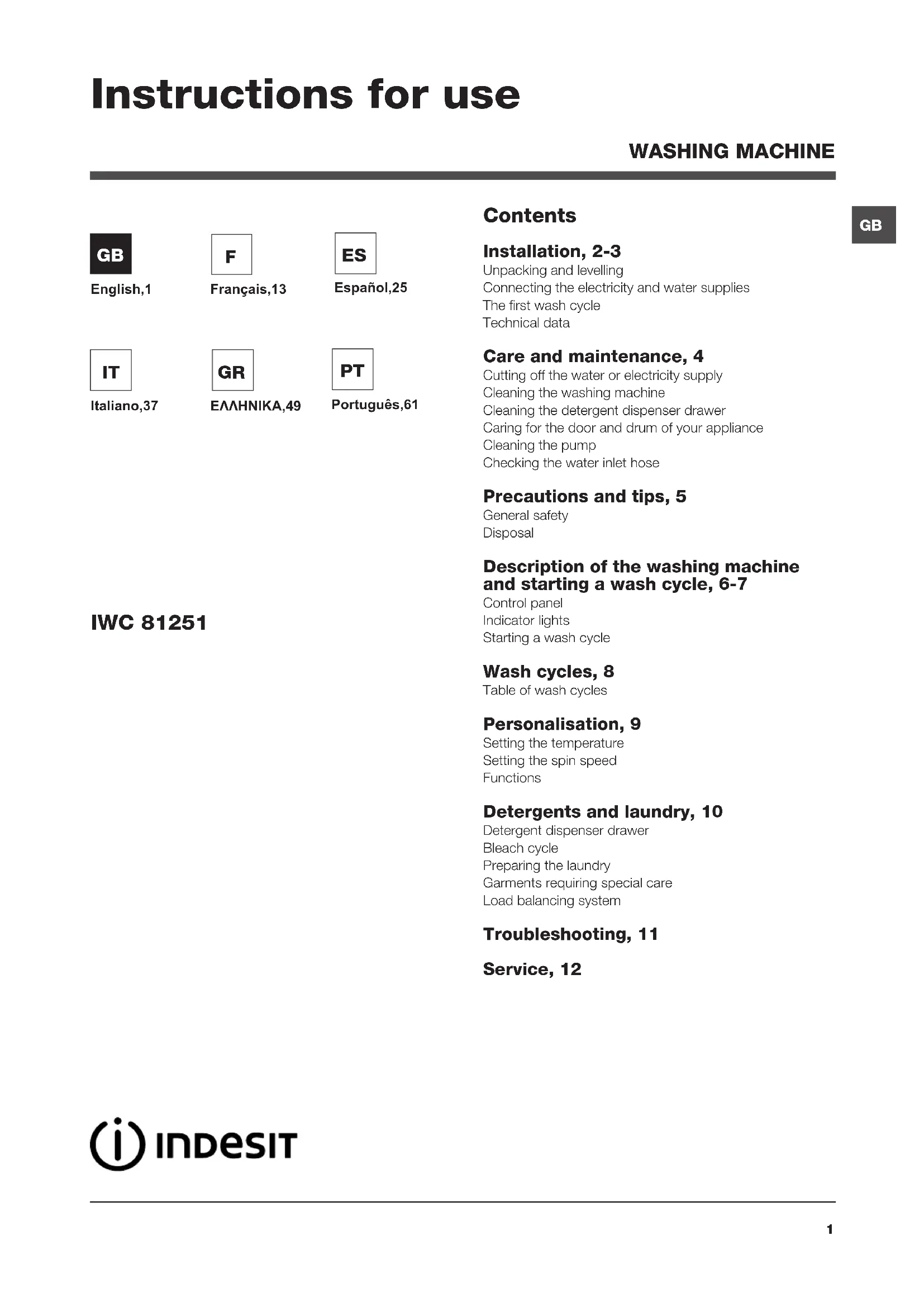

Contents Installation, 2-3 Unpacking and levelling Connecting the electricity and water supplies The first wash cycle Technical data Care and maintenance, 4 Cutting off the water or electricity supply Cleaning the washing machine Cleaning the detergent dispenser drawer Caring for the door and drum of your appliance Cleaning the pump Checking the water inlet hose Precautions and tips, 5 General safety Disposal Description of the washing machine and starting a wash cycle, 6-7 Control panel Indicator lights Starting a wash cycle Wash cycles, 8 Table of wash cycles Personalisation, 9 Setting the temperature Setting the spin speed Functions Detergents and laundry, 10 Detergent dispenser drawer Bleach cycle Preparing the laundry Garments requiring special care Load balancing system Troubleshooting, 11 Service, 12 IWC 81251 Instructions for use WASHING MACHINE English,1

Installation ! This instruction manual should be kept in a safe place for future reference. If the washing machine is sold, transferred or moved, make sure that the instruction manual remains with the machine so that the new owner is able to familiarise himself/ herself with its operation and features. ! Read these instructions carefully: they contain vital information relating to the safe installation and operation of the appliance. Unpacking and levelling Unpacking

1. Remove the washing machine from its packaging.

2. Make sure that the washing machine has

not been damaged during the transportation process. If it has been damaged, contact the retailer and do not proceed any further with the installation process.

3. Remove the 3 pro-

tective screws (used during transportation) and the rubber washer with the corresponding spacer, located on the rear part of the applian- ce (see figure).

4. Close off the holes using the plastic plugs

5. Keep all the parts in a safe place: you will need

them again if the washing machine needs to be moved to another location. ! Packaging materials should not be used as toys for children. Levelling

1. Install the washing machine on a flat sturdy

floor, without resting it up against walls, furniture cabinets or anything else.

2. If the floor is not per-

fectly level, compensa- te for any unevenness by tightening or loo- sening the adjustable front feet (see figure); the angle of inclination, measured in relation to the worktop, must not exceed 2°. Levelling the machine correctly will provide it with stability, help to avoid vibrations and excessive noise and prevent it from shifting while it is ope- rating. If it is placed on carpet or a rug, adjust the feet in such a way as to allow a sufficient venti- lation space underneath the washing machine. Connecting the electricity and wa- ter supplies Connecting the water inlet hose

1. Connect the supply

pipe by screwing it to a cold water tab using a ¾ gas threaded con- nection (see figure). Before performing the connection, allow the water to run freely until it is perfectly clear.

2. Connect the inlet

hose to the washing machine by screwing it onto the correspon- ding water inlet of the appliance, which is si- tuated on the top right- hand side of the rear part of the appliance (see figure).

3. Make sure that the hose is not folded over

or bent. ! The water pressure at the tap must fall within the values indicated in the Technical details table (see next page). ! If the inlet hose is not long enough, contact a specialised shop or an authorised technician. ! Never use second-hand hoses. ! Use the ones supplied with the machine.GB

Connecting the drain hose Connect the drain hose, without bending it, to a drainage duct or a wall drain located at a height between 65 and 100 cm from the floor; alternatively, rest it on the side of a washba- sin or bathtub, faste- ning the duct supplied to the tap (see figure). The free end of the hose should not be underwater. ! We advise against the use of hose extensions; if it is absolutely necessary, the extension must have the same diameter as the original hose and must not exceed 150 cm in length. Electrical connections Before plugging the appliance into the electricity socket, make sure that:

• the socket isearthed and complies with all applicable laws;

• thesocketisabletowithstandthemaximum power load of the appliance as indicated in the Technical data table (see opposite);

• thepowersupplyvoltagefallswithintheva- lues indicated in the Technical data table (see opposite);

• thesocketiscompatiblewiththeplugofthe washing machine. If this is not the case, repla- ce the socket or the plug. ! The washing machine must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain, storms and other weather conditions. ! When the washing machine has been installed, the electricity socket must be within easy reach. ! Do not use extension cords or multiple sockets. ! The cable should not be bent or compressed. ! The power supply cable must only be replaced by authorised technicians. Warning! The company shall not be held respon- sible in the event that these regulations are not respected. The first wash cycle Once the appliance has been installed, and before you use it for the first time, run a wash cycle with detergent and no laundry, using the wash cycle 2. Technical data Model IWC 81251 Dimensions width 59.5 cm height 85 cm depth 57.2 cm Capacity from 1 to 8 kg Electrical connec- tions please refer to the technical data plate fixed to the machi-

Water con- nection maximum pressure 1 MPa (10 bar) minimum pressure 0.05 MPa (0.5 bar) drum capacity 54 litres Spin speed up to 1200 rotations per minute Test wash cycles in accordance with re- gulations 1061/2010 and 1015/2010. Programme 2: Cotton stan- dard 60°; Programme 3: Cotton stan- dard 40°. This appliance conforms to the following EC Directives: - 2004/108/CE (Electromagne- tic Compatibility)

- 2006/95/EC (Low Voltage)4

Cutting off the water and electricity supplies

• Turnoffthewatertapaftereverywashcycle. This will limit wear on the hydraulic system in- side the washing machine and help to prevent leaks.

• Unplugthewashingmachinewhencleaningit and during all maintenance work. Cleaning the washing machine The outer parts and rubber components of the appliance can be cleaned using a soft cloth soaked in lukewarm soapy water. Do not use solvents or abrasives. Cleaning the detergent dispenser drawer Remove the dispenser by raising it and pulling it out (see figure). Wash it under running water; this operation should be repeated frequently. Caring for the door and drum of your appliance

• Alwaysleavetheportholedoorajarinorderto prevent unpleasant odours from forming. Cleaning the pump The washing machine is fitted with a self-cleaning pump which does not require any maintenance. Sometimes, small items (such as coins or buttons) may fall into the pre-chamber which protects the pump, situated in its bottom part. ! Make sure the wash cycle has finished and unplug the appliance. To access the pre-chamber:

1. using a screwdriver,

remove the cover pa- nel on the lower front part of the washing machine (see figure);

2. unscrew the lid by

rotating it anti-clockwi- se (see figure): a little water may trickle out. This is perfectly nor- mal;

3. clean the inside thoroughly;

4. screw the lid back on;

5. reposition the panel, making sure the hooks

are securely in place before you push it onto the appliance. Checking the water inlet hose Check the inlet hose at least once a year. If there are any cracks, it should be replaced immediately: during the wash cycles, water pressure is very strong and a cracked hose could easily split open. ! Never use second-hand hoses. Care and maintenanceGB

Precautions and tips ! This washing machine was designed and constructed in accordance with international safety regulations. The fol- lowing information is provided for safety reasons and must therefore be read carefully. General safety

• Thisappliancewasdesignedfordomesticuseonly.

• Thisappliancecanbeusedbychildrenaged from 8 years and above and persons with re- duced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• The washing machinemust only beused byadults, in accordance with the instructions provided in this manual.

• Donottouchthemachinewhenbarefootorwithwetor damp hands or feet.

• Donotpullonthepowersupplycablewhenunplugging the appliance from the electricity socket. Hold the plug and pull.

• Do not open thedetergent dispenser drawerwhilethe machine is in operation.

• Donottouchthedrainedwaterasitmayreachextremely high temperatures.

• Neverforcetheportholedoor.Thiscoulddamagethesafety lock mechanism designed to prevent accidental opening.

• Iftheappliancebreaksdown,donotunderanycircum- stances access the internal mechanisms in an attempt to repair it yourself.

• Alwayskeepchildrenwellawayfromtheappliancewhile it is operating.

• Thedoorcanbecomequitehotduringthewashcycle.

• Iftheappliancehastobemoved,workinagroupoftwoor three people and handle it with the utmost care. Never try to do this alone, because the appliance is very heavy.

• Beforeloadinglaundryintothewashingmachine,make sure the drum is empty. Disposal

• Disposingofthepackagingmaterials:observelocalregu- lations so that the packaging may be re-used.

• TheEuropean Directive2012/19/EU- WEEEon Waste Electrical and Electronic Equipment, requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old applian- ces must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.6

Detergent dispenser drawer: used to dispense detergents and washing additives (see “Detergents and laundry”). ON/OFF button: switches the washing machine on and off. WASH CYCLE knob: programmes the wash cycles. Du- ring the wash cycle, the knob does not move. FUNCTION buttons with indicator light: used to select the available functions. The indicator light corresponding to the selected function will remain lit. TEMPERATURE knob: sets the temperature or the cold wash cycle (see “Personalisation”). SPIN SPEED knob: sets the spin speed or exclude the spin cycle completely (see “Personalisation”).

WASH CYCLE PROGRESS/DELAY TIMER

indicator light s: used to monitor the progress of the wash cycle. The illuminated indicator light shows which phase is in progress. If the Delay Timer function has been set, the time remai- ning until the wash cycle starts will be indicated (see next page). DOOR LOCKED indicator light: indicates whether the door may be opened or not (see next page). START/PAUSE button with indicator light: starts or tem- porarily interrupts the wash cycles. N.B. To pause the wash cycle in progress, press this button; the corresponding indicator light will flash orange, while the indicator light for the current wash cycle phase will remain lit in a fixed manner. If the DOOR LOCKED indicator light is switched off, the door may be opened (wait approximately 3 minutes). To start the wash cycle from the point at which it was inter- rupted, press this button again. Standby mode This washing machine, in compliance with new energy sa- ving regulations, is fitted with an automatic standby system which is enabled after about 30 minutes if no activity is detected. Press the ON-OFF button briefly and wait for the machine to start up again. Description of the washing machine and starting a wash cycle

Indicator lights The indicator lights provide important information. This is what they can tell you: Delayed start IftheDELAYTIMERfunctionhasbeenactivated(see “Per- sonalisation”), after the wash cycle has been started the indicator light corresponding to the selected delay period will begin to flash: Astimepasses,theremainingdelaywillbedisplayedand the corresponding indicator light will flash: The set programme will start once the selected time delay has expired. Wash cycle phase indicator lights Once the desired wash cycle has been selected and has be- gun, the indicator lights switch on one by one to indicate which phase of the cycle is currently in progress. Function buttons and corresponding indicator lights When a function is selected, the corresponding indicator light will illuminate. If the selected function is not compatible with the program- med wash cycle, the corresponding indicator light will flash and the function will not be activated. If the selected function is not compatible with another function which has been selected previously, the indicator light corresponding to the first function selected will flash and only the second function will be activated; the indicator light corresponding to the enabled option will remain lit. Door locked indicator light When the indicator light is on, the porthole door is locked to prevent it from being opened; make sure the indicator light is off before opening the door (wait approximately 3 minutes). To open the door during a running wash cycle, presstheSTART/PAUSEbutton;thedoormaybeopened once the DOOR LOCKED indicator light turns off. Starting a wash cycle

2. Load the laundry and close the door.

3.SettheWASHCYCLEknobtothedesiredprogramme.

4. Set the washing temperature (see “Personalisation”).

5. Set the spin speed (see “Personalisation”).

6. Measure out the detergent and washing additives (see “Detergents and laundry”).

7. Select the desired functions.

8.StartthewashcyclebypressingtheSTART/PAUSEbuttonandthecorrespondingindicatorlightwillremainlitinafixed manner, in green. Tocancelthesetwashcycle,pausethemachinebypressingtheSTART/PAUSEbuttonandselectanewcycle. 9.Attheendofthewashcyclethe indicator light will switch on. The door can be opened once the DOOR LOCK indi- cator light turns off (wait approximately 3 minutes). Take out your laundry and leave the appliance door ajar to make sure the drum dries completely. Switch the washing machine off by pressing the ON/OFF button. Wash Rinse Spin Drain End of wash cycle8

Cotton Standard 20° (wash cycle 4) ideal for lightly soiled cotton loads. The effective performance levels achieved at cold temperatures, which are comparable to washing at 40°, are guaranteed by a mechanical action which operates at varying speed, with repeated and frequent peaks. Outwear (wash cycle 7) is studied for washing water-repellent fabrics and winter jackets (e.g. Gore-Tex, polyester, nylon); for best results, use a liquid detergent and dosage suitable for a half-load; pre-treat necks, cuffs and stains if necessary; do not use softeners or detergents containing softeners. Stuffed duvets cannot be washed with this programme. Express (wash cycle 11) this wash cycle was designed to wash lightly soiled garments quickly: it lasts just 15 minutes and therefore saves both energy and time. By selecting this wash cycle (11 at 30°C), it is possible to wash different fabrics toge- ther (except for wool and silk items), with a maximum load of 1,5 kg. Sport Intensive (wash cycle 12) is for washing heavily soiled sports clothing fabrics (tracksuits, shorts, etc.); for best results, we recommend not exceeding the maximum load indicated in the “Table of wash cycles”. Sport Light (wash cycle 13) is for washing lightly soiled sports clothing fabrics (tracksuits, shorts, etc.); for best results, we recommend not exceeding the maximum load indicated in the “Table of wash cycles”. We recommend using a liquid deter- gent and dosage suitable for a half-load. Special Shoes (wash cycle 14) is for washing sports shoes; for best results, do not wash more than 2 pairs simultaneously. Wash cycles Table of wash cycles

1) Test wash cycle in compliance with regulation 1061/2010: set wash cycle 2 with a temperature of 60°C.

This cycle is designed for cotton loads with a normal soil level and is the most efficient in terms of both electricity and water consumption; it should be used for garments which can be washed at 60°C. The actual washing temperature may differ from the indicated value.2) Test wash cycle in compliance with regulation 1061/2010: set wash cycle 3 with a temperature of 40°C. This cycle is designed for cotton loads with a normal soil level and is the most efficient in terms of both electricity and water consumption; it should be used for garments which can be washed at 40°C. The actual washing temperature may differ from the indicated value.For all Test Institutes:2) Long wash cycle for cottons: set wash cycle 3 with a temperature of 40°C.3) Long wash cycle for synthetics: set wash cycle 6; with a temperature of 40°C. The length of cycle shown on the display or in this booklet is an estimation only and is calculated assuming standard working conditions. The actual duration can vary accor- ding to factors such as water temperature and pressure, the amount of detergent used, the amount and type of load inserted, load balancing and any wash options selected. Wash cyclesDescription of the wash cycleMax. temp. (°C) Max. speed (rpm)DetergentsMax. load (kg)Residual dampness %Energy consumption kWh Total water ltCycle durationPrewash Wash Fabric softenerBleachDaily Cotton with prewash: extremely soiled whites. 90° 1200 - 8 - - - 215’ Cotton Standard 60° (1): heavily soiled whites and resistant colours. 60° (Max. 90°)1200 - 8 53 1.41 54.9 220’

Cotton Standard 40° (2): lightly soiled whites and delicate colours. 40° 1200 - 8 53 1.02 82 185’

Cotton Standard 20°: lightly soiled whites and delicate colours. 20° 1200 -

Coloured Cottons: lightly soiled whites and delicate colours. 40° 1200 -

Synthetics: heavily soiled resistant colours. 60° 1000 -

Synthetics (3): lightly soiled resistant colours. 40° 1000 - 3.5 - - - 120’Special7 Outwear30° 400 - - - 2 - - - 60’ Wool: for wool, cashmere, etc. 40° 800 - - 1.5 - - - 85’

Silk/Curtains: for garments in silk and viscose, lingerie. 30° 0 -

- 1 - - - 55’10 Jeans40° 800 - - 3.5 - - - 80’ Express: to refresh lightly soiled garments quickly (not suitable for wool, silk and clothes which require washing by hand).30° 800 -

• If you select programme and exclude the spin cycle, the machine will drain only.GB

Setting the temperature TurntheTEMPERATUREknobtosetthewashtemperature(seeTable of wash cycles). The temperature may be lowered, or even set to a cold wash . The washing machine will automatically prevent you from selecting a temperature which is higher than the maximum value set for each wash cycle. ! Exception: if the programme is selected, the temperature can be increased up to a value of 90°C. Setting the spin speed Turn the SPIN SPEED knob to set the spin speed for the selected wash cycle. The maximum spin speeds available for each wash cycle are as follows: Wash cycles Maximum spin speed Cottons 1200 rpm Synthetics 1000 rpm Wool 800 rpm Silk drain only The spin speed may be lowered, or the spin cycle can be excluded altogether by selecting the symbol . The washing machine will automatically prevent you from selecting a spin speed which is higher than the maximum speed set for each wash cycle. Functions The various wash functions available with this washing machine will help to achieve the desired results, every time. To activate the functions:

1. Press the button corresponding to the desired function;

2. the function is enabled when the corresponding indicator light is illuminated.

Note: - If the selected function is not compatible with the programmed wash cycle, the corresponding indicator light will flash and the function will not be activated. - If the selected function is not compatible with another function which has been selected previously, the indicator light corresponding to the first function selected will flash and only the second function will be activated; the indicator light corresponding to the enabled option will remain lit. Selecting this option enables you to suitably adjust drum rotation, temperature and water to a reduced load of lightly soiled cotton and synthetic fabrics (refer to the “Table of wash cycles” ). “ ” enables you to wash in less time thereby saving water and electricity. We suggest using a liquid detergent suitably measured out to the load quantity. Stain removal Bleaching cycle designed to remove the toughest stains. Please remember to pour the bleach into extra compartment 4 (see “Bleach cycle”). Easy iron Byselectingthisfunction,thewashandspincycleswillbemodifiedinordertoreducetheformationofcreases.Attheend ofthecyclethewashingmachinewillperformslowrotationsofthedrum;theindicatorlightsfortheEASYIRONandSTART/ PAUSEoptionswillflash(thefirstonegreen,thesecondorange).Toendthecycle,presstheSTART/PAUSEbuttonorthe EASYIRONbutton.Forthe7,9washcycles,themachinewillendthecyclewhilethelaundryissoakingandtheEASYIRON andSTART/PAUSEindicatorlightswillflashandtheRINSEphasewillremainlitinafixedmanner.Todrainthewatersothat thelaundrymayberemoved,presstheSTART/PAUSEbuttonortheEASYIRONbutton. Delay timer This timer delays the start time of the wash cycle by up to 12 hours. Press the button repeatedly until the indicator light corresponding to the desired delay time switches on. The fifth time the but- ton is pressed, the function will be disabled. N.B.OncetheSTART/PAUSEbuttonhasbeenpressed,thedelaytimecanonlybemodifiedbydecreasingituntillaunching the set programme. Personalisation10

Detergents and laundry Detergent dispenser drawer Good washing results also depend on the correct dose of detergent: adding too much detergent will not necessa-rily result in a more efficient wash, and may in fact cause build up on the inside of your appliance and contribute to environmental pollution. ! Do not use hand washing detergents because these create too much foam. ! Use powder detergent for white cotton garments, for pre- washing, and for washing at temperatures over 60°C. ! Follow the instructions given on the detergent packaging. Open the detergent di-spenser drawer and pour in the detergent or washing additive, as follows.compartment 1: pre-wash detergent (powder)Before pouring in the detergent, make sure that extra com-partment 4 has been removed.compartment 2: setergent for the wash cycle (powder or liquid)Liquid detergent should only be poured in immediately prior to the start of the wash cycle.compartment 3: additives (fabric softeners, etc.)The fabric softener should not overflow the grid.extra compartment 4: bleach Bleach cycle ! Traditional bleach should be used on sturdy white fa- brics, and delicate bleach for coloured fabrics, synthetics and for wool.This option is particularly useful for the removal of stubborn stains. Place extra compartment 4 (supplied) into compartment 1. When pouring in the bleach, be careful not to exceed the “max” level marked on the central pivot (see figure). To run the bleach cycle on its own, pour the bleach into extra compartment 4, set the “Rinse” programme and activate the “Stain removal” option. To bleach during a wash cycle, pour in the detergent and any fabric softener you wish to use, set the desired wash cycle and enable the “Stain removal” option. The use of extra compartment 4 excludes the “Pre-wash” cycle.

Preparing the laundry

• Dividethelaundryaccordingto: - the type of fabric/the symbol on the label - the colours: separate coloured garments from whites.•Emptyallgarmentpocketsandcheckthebuttons.•Donotexceedthevalueslistedinthe“Table of wash cycles”, which refer to the weight of the laundry when dry.How much does your laundry weigh? 1 sheet 400-500 g 1 pillow case 150-200 g 1 tablecloth 400-500 g 1 bathrobe 900-1200 g 1 towel 150-250 g Garments requiring special care Wool: all wool garments can be washed using programme 8, even those carrying the “hand-wash only” label. For best results, use special detergents and do not exceed 1.5 kg of laundry.Silk: use special wash cycle 9 to wash all silk garments. We recommend the use of special detergent which has been designed to wash delicate clothes.Curtains: fold curtains and place them in a pillow case or mesh bag. Use wash cycle 9.Jeans: Turn garments inside-out before washing and use a liquid detergent. Use programme 10. Load balancing system Before every spin cycle, to avoid excessive vibrations and to distribute the load in a uniform manner, the drum rotates continuously at a speed which is slightly greater than the washing rotation speed. If, after several attempts, the load is not balanced correctly, the machine spins at a reduced spin speed. If the load is excessively unbalanced, the washing machine performs the distribution process instead of spinning. To encourage improved load distribution and balance, we recommend small and large garments are mixed in the load.GB

Troubleshooting Yourwashingmachinecouldfailtowork.BeforecontactingtheTechnicalAssistanceCentre (see “Assistance”), make sure that the problem cannot be solved easily using the following list. Problem: The washing machine does not switch on. The wash cycle does not start. The washing machine does not take in water (the indicator light for the first wash cycle stage flashes rapidly). The washing machine continuously takes in and drains water. The washing machine does not drain or spin. The washing machine vibrates a lot during the spin cycle. The washing machine leaks. The “option” indicator lights and the “start/pause” indicator light flash, while one of the “phase in progress” indicator lights and the “door lo- cked” indicator light will remain lit in a fixed manner. There is too much foam. Possible causes / Solutions:

• Thewashingmachinedoorisnotclosedproperly.

• TheON/OFFbuttonhasnotbeenpressed.

• TheSTART/PAUSEbuttonhasnotbeenpressed.

• Thewatertaphasnotbeenopened.

• Thewatertaphasnotbeenopened.

• TheSTART/PAUSEbuttonhasnotbeenpressed.

• Thedrainhoseisnotfittedataheightbetween65and100cmfromthefloor (see “Installation”).

• Thefreeendofthehoseisunderwater(see “Installation”).

• Thewalldrainagesystemisnotfittedwithabreatherpipe. If the problem persists even after these checks, turn off the water tap, switch theapplianceoffandcontacttheAssistanceService.Ifthedwellingisononeof the upper floors of a building, there may be problems relating to water drainage, causing the washing machine to fill with water and drain continuously. Special anti-draining valves are available in shops and help to avoid this inconvenience.

• Thewashcycledoesnotincludedraining:somewashcyclesrequirethedrain phase to be started manually.

• The“Easyiron”optionhasbeenactivated:Tocompletethewashcycle,press theSTART/PAUSEbutton(see “Wash cycles and options”).

• Thedrainhoseisbent(see “Installation”).

• Thedrainageductisclogged.

• Thewaterinlethoseisnotscrewedonproperly(see “Installation”).

• Thedetergentdispenserdrawerisblocked(forcleaninginstructions,see “Care and maintenance”).

Service Before calling for Assistance:

• Check whether you can solve the problem alone (see “Troubleshooting”);

• theserialnumber(S/N). This information can be found on the data plate applied to the rear of the washing machine, and can also be found on the front of the appliance by opening the door.FR
