Product type	Cordless jigsaw
Brand	Metabo
Model	Powermaxx SSE 12 BL
Nominal voltage	12 V
Maximum cutting capacity (wood)	50 mm
Maximum cutting capacity (steel)	3 mm
No-load stroke rate	0 - 3000 strokes/min
Stroke length	15 mm
Weight with battery	1.5 kg
Dimensions (L x H x D)	200 x 180 x 70 mm
Power supply	Li-Ion 12 V battery (not included)
Compatible batteries	Metabo CAS 12 V, all capacities
Compatible chargers	ASC ultra, ASC 145, ASC 145 SE, ASC 30-36, ASC 55, ASC 55 SE, SC 60 Plus, SC 30
Blade type	T-shank (compatible with standard blades)
Blade change	Tool-free, with locking
Work light	Integrated LED
Blade brake	Yes, quick blade stop
Overload protection	Yes, electronic
Recommended ambient temperature	0°C to 40°C
Protection class	II (double insulation)
Cleaning	Clean with a dry cloth, do not use solvents
Maintenance	Regularly check the tightening of screws and the condition of blades
Included accessories	Saw blade (1), user manual
Warranty	2 years (according to Metabo conditions)

Frequently Asked Questions - Powermaxx SSE 12 BL METABO

What is the battery life on the Powermaxx SSE 12 BL?

Battery life depends on the capacity of the battery used. With a 2.0 Ah battery, you can make about 100 cuts in 18 mm wood. With a 4.0 Ah battery, the battery life doubles. Use a suitable Metabo CAS battery.

How to change the saw blade?

To change the blade, turn the tool-free locking lever, insert the T-shank blade until it stops, then release the lever. Make sure the blade is securely locked.

Can I use saw blades from other brands?

Yes, as long as they have a standard T-shank. Check compatibility of dimensions and the maximum rotational speed of the blade.

How do I maintain my Metabo jigsaw?

After use, clean the saw with a dry cloth. Regularly check the tightening of screws. Dull blades should be replaced. Do not use aggressive products.

Does the saw have an LED light?

Yes, the Powermaxx SSE 12 BL is equipped with an integrated LED light that illuminates the cutting area for better visibility.

What is the maximum cutting depth in wood?

The maximum cutting depth in wood is approximately 50 mm. In steel, it is 3 mm.

Can I use the saw for bevel cuts?

Yes, the base can be tilted up to 45° for bevel cuts. Follow the instructions in the user manual to set the angle.

How to charge the battery of my saw?

Use a compatible Metabo charger (e.g., ASC 30-36, ASC 55, etc.). Insert the battery into the charger until it clicks. The indicator blinks during charging and stays on when the battery is full.

What to do if the saw does not start?

Check that the battery is charged and inserted correctly. Make sure the safety brake is not activated. If the problem persists, contact Metabo after-sales service.

Where to find the original instruction manual?

The instruction manual is included with the device. You can also download it for free from notice-facile.com or metabo.com.

USER MANUAL Powermaxx SSE 12 BL METABO

Two Metabo miniators with ventilation grilles, one labeled 'AIR COOL EEO' and the other 'ASC 600s', shown in black (no additional text or symbols visible)

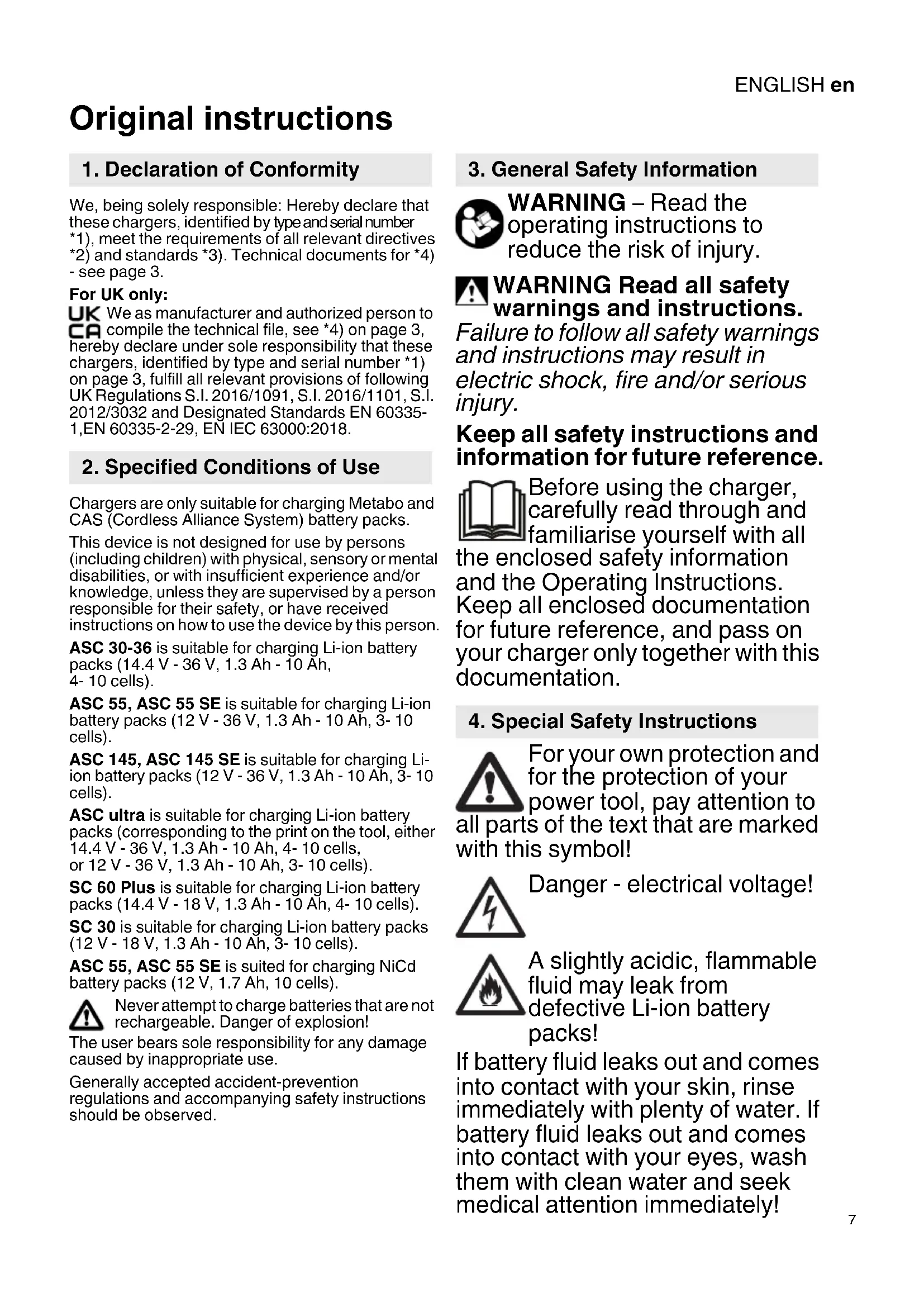

Original instructions

1. Declaration of Conformity

We, being solely responsible: Hereby declare that these chargers, identified by type and serial number *1), meet the requirements of all relevant directives *2) and standards *3). Technical documents for *4) - see page 3.

For UK only:

UK We as manufacturer and authorized person to CA compile the technical file, see *4) on page 3, hereby declare under sole responsibility that these chargers, identified by type and serial number *1) on page 3, fulfill all relevant provisions of following UK Regulations S.I. 2016/1091, S.I. 2016/1101, S.I. 2012/3032 and Designated Standards EN 60335-1, EN 60335-2-29, EN IEC 63000:2018.

2. Specified Conditions of Use

Chargers are only suitable for charging Metabo and CAS (Cordless Alliance System) battery packs.

This device is not designed for use by persons (including children) with physical, sensory or mental disabilities, or with insufficient experience and/or knowledge, unless they are supervised by a person responsible for their safety, or have received instructions on how to use the device by this person.

ASC 30-36 is suitable for charging Li-ion battery packs (14.4 V - 36 V, 1.3 Ah - 10 Ah, 4-10 cells).

ASC 55, ASC 55 SE is suitable for charging Li-ion battery packs (12 V - 36 V, 1.3 Ah - 10 Ah, 3-10 cells).

ASC 145, ASC 145 SE is suitable for charging Li-ion battery packs (12 V - 36 V, 1.3 Ah - 10 Ah, 3-10 cells).

ASC ultra is suitable for charging Li-ion battery packs (corresponding to the print on the tool, either 14.4 V - 36 V, 1.3 Ah - 10 Ah, 4-10 cells, or 12 V - 36 V, 1.3 Ah - 10 Ah, 3-10 cells).

SC 60 Plus is suitable for charging Li-ion battery packs (14.4 V - 18 V, 1.3 Ah - 10 Ah, 4-10 cells).

SC 30 is suitable for charging Li-ion battery packs (12 V - 18 V, 1.3 Ah - 10 Ah, 3-10 cells).

ASC 55, ASC 55 SE is suited for charging NiCd battery packs (12 V, 1.7 Ah, 10 cells).

Never attempt to charge batteries that are not rechargeable. Danger of explosion!

The user bears sole responsibility for any damage caused by inappropriate use.

Generally accepted accident-prevention regulations and accompanying safety instructions should be observed.

3. General Safety Information

WARNING – Read the operating instructions to reduce the risk of injury.

WARNING Read all safety warnings and instructions.

Failure to follow all safety warnings and instructions may result in electric shock, fire and/or serious injury.

Keep all safety instructions and information for future reference.

Before using the charger, carefully read through and familiarise yourself with all closed safety information e Operating Instructions.

Keep all enclosed documentation for future reference, and pass on your charger only together with this documentation.

4. Special Safety Instructions

For your own protection and for the protection of your power tool, pay attention to its of the text that are marked is symbol!

Danger - electrical voltage!

A slightly acidic, flammable fluid may leak from defective Li-ion battery packs!

If battery fluid leaks out and comes into contact with your skin, rinse immediately with plenty of water. If battery fluid leaks out and comes into contact with your eyes, wash them with clean water and seek medical attention immediately!

ENGLISHen

Do not recharge a fully charged battery pack!

Only for use in indoor rooms.

Protect the charger from moisture.

Never allow children to use the device.

Children should be supervised to ensure that they do not play with the tool.

Keep children away from the battery charger and the working area!

Keep your battery charger out of reach of children!

Pull out the mains plug immediately if the battery charger starts to smoke or flames emerge!

Do not insert objects into the ventilation slots on the battery charger – there is a danger of electric shocks and short circuits!

Do not use faulty battery packs. In areas with high metal dust exposure do not charge any battery packs with AIR COOLED chargers.

5. Overview

See page 2. The illustrations are regarded as exemplary for all devices.

1 Battery pack (not in scope of delivery)
2 Sliding seat
3 Operation display
4 Warning display

6. Initial Operation

Before commissioning, check that the rated mains voltage and mains frequency stated on the type plate match your power supply.

Devices like these that generate direct current can influence simple earth leakage protection devices. Use a type F or better, with a release current of max. 30 mA.

Before commissioning the charger, ensure that the air slots are free. Minimum distance to other objects is 5 cm!

6.1 Self-test

Plug in.

The warning display (4) and the operating indicator (3) light up one after the other for approx. 1 second and the installed fan runs for approx. 5 seconds.

7. Use

7.1 Charging battery pack

Push the battery pack completely to the stop on the sliding seat (2).

The operating indicator (3) flashes.

Note: To have the charge level displayed on Li-ion battery packs, first take the battery pack out of the charger and then press the button on the battery pack.

7.2 Conservation charge

Once the charging process has finished, the battery charger automatically switches to conservation mode.

The battery pack can remain in the battery charger and is therefore always ready for use.

The operating display (3) lights up continuously.

8. Faults

8.1 Warning display (4) lights up continuously

Battery pack is not charged. Excessive/insufficient temperature. When the temperature of the battery pack is between 0 °C and 50 °C, the charging process begins automatically.

8.2 Warning display (4) flashes

• Battery pack is defective. Remove the battery pack immediately from the charger.
• The battery pack was not pushed correctly onto the sliding seat (2). See chapter 7.1.

9. Repairs

Repairs to the charger must only be carried out by qualified electricians.

If the mains connection cable of this device is damaged, it must be replaced by the manufacturer

or the Customer Service department of the manufacturer or a similarly qualified person to prevent endangering personnel and property.

If you have Metabo charges that require repairs, please contact your Metabo service centre. See www.metabo.com for addresses.

10. Environmental Protection

Observe national regulations on environmentally compatible disposal and on the recycling of disused machines, packaging and accessories.

Only for EU countries: never dispose of power tools in your household waste! According to European Directive 2012/19/EU

on Waste from Electric and Electronic Equipment and implementation in national law, used power tools must be collected separately and recycled in an environmentally-friendly manner.

11. Technical Specifications

See page 3.

U = voltage ranges of the battery packs
C = battery pack capacity
l_C = charging current
t = charging time

^1) Depending on the residual capacity and the temperature of the battery pack, real charging times may deviate from the specifications.

Recommended ambient temperature when charging: 0 °C to 40 °C

Changes due to technological progress reserved.

Device of protection class II

\~ AC Power

FRANÇAISfr

Notice originale

C = accupack-capaciteit

I_C = laadstroom

t = laadtijd

Uju wtuwlyh wupftpp, npn6f qt6tpwg6m1d t6 hwnwnwnm6 hwnw6f, lwpnn t6 mqn9L yhi6ptpt6ghwL mwqwhnl1s ufswnnty5h4ph dpu: YhpwnlF wkwnlp, lquw wnwnlljwqn2j6p 30 d1U, wfswnndwl hwnwlfnl wejwnwnn daqtkp:

^1 npdwnphnufgh wwng hwnqyltf, np onwnphnufwgh mfgftpju hgnfujmds st6: Nmhqnukl wnfujmq6 5 nd hlnwnlpapnjuni wjl wnwnphnuklph gllwnndwdp:

6.1 Ummiqnli

kynngmhlq shmgfkl hnumfgh ympnmlhfi:

UqqnW6cmW6Jh6 (4) h wcjwnwnGfH h6nhlhwwnnpGtph lmjutpp (3) ymnjnu6 t6 hwgnpnpwpw dwnwnlpwnwtu 1 yph. empuftmuh, gtpumppfjmd hnlmgfdh hndwlmpqq mcjwnmmuf k dum. 5 yph. empuftmuh:

7. Чршннід

C = Uwpunlqngh hqnpncpjnufp

IC = lhglw|npdufihnuufif

t = 1,hgfu|npduw|duufulw|

1) qubqud hghduwupuuhg le yapuwuhfuuh wujuwukphg hghwunpufu hpulwduwuhp lwpn k uwpptpkl fclud duwuhwhwniudukphg:

Ighfuwapufu duwufuw ouunfuw ykpudwnuhfu^ hg uhyu 40 ^:

Bcpwqk k ywnpduw6 wkjgghwqng pwpkluwduw6 Guwwwnqnl:

□ II ηωυρ υωσωωω6m pγm6

\~ Φnμnμmμg hnuugf

№ ЕАЭС RU C-DE.ГБ09.B.00131/20, qnpδnul t, uhωδ 10.02.2020 άh624 09.02.2025 pp., mpjbl t, «'Ukqwllhuftwjuw έfwnlρωnhqu» UΩC' wpnnwnpwufh hw|wwnnwwqpwuf δwpd6h hqn6hg, hwugl (hpwnlwpwfuwr l qnpδnflklnpjw6) ' 115280, θnclwwnnw, fwunuf U'nuljlu, φnngg Ιθhghuhwjuw U1pnnnu, ct6f 19, 2-pn hwph, ut6jmw6tp ' 21w8, 21w9, 21w10, 21w11: Ztnwnpu ' [phone]; ηL. φnwnuh hwugt' [e-mail]: Zwi|wwnnwwqpwuf ίhwjwqhp No POCC RU.0001.11ГБ09 wn 09.09.2014 p.:

Zwduuununluwufprjwh hwnunupwquhp ' No EA3C N RU Д-DE.ГБ09.B.00348/20, qnpdnif k uluwd 04.03.2020 üh6h 26.02.2025 pp., qpwfgylt k «Ükqwlluhwjw fwntpwnhqw» UФ' wpmwnpw6f hwnwnwnqpw6 dmp6h hnp6h, hmugt (hpwnlpw6mhw6 h qnpdnftm pwr6h)' 115280, fncuunnuw6, fuqw f Unalhu, qhnng l,ghfuhwjw Ulnpnnw, ct6f 19, 2-pn hwph, utgjwl6tp '21w8, 21w9, 21w10, 21w11: Zbwnlwnn' [phone]; ξL. qwnuh hmugt' [e-mail]: Zwlnwnwnqpw6 g lqmjwqhp No POCC RU.0001.11ГБ09 mm 09.09.2014 p.:

Upumnprufng kphhp' Qfghwnwnfg, qjkwngm Upumnprunq "Metabowerke GmbH", Utkwnpnwnlbjk 1, D-72622 Ujnpuhfiqfg, qkpufmfgm Ukpufmdnq fncnuunnwnfgmud "Utkwnpn bilpuulm" UfC Pncnuunnwug, 127273, Unuqlqu Φ. fKpnqnqnlwju wltw, umt6 5 a, chg.-6 7, qpwnutgjwlq 106 htn.' [phone]

Upwnnpudw wduwpplp gcalmd k Lhgfwlpudw uwpfh qpm Tnpdft h dwnwnmpjw6 dmuhtpw 7 uwpfh k: hnphmprn sh wpfnd wnuhfg hwiofwqm hi nuuqdwfi oquwnqpdkl qnpdftp wpwnnpudw wduwpllg uhumd 5 umph cmpnfdmh wjh wpnhctwnmqlaplg hlaan (wpwnnpudw wduwphlp mlu whunwl h lpu):

Shukhupjuli qianpnh huiup.

Zwduwwwnwnu]vwGnIpJwfi hwylwwwnwqh.
