BeforeUse

IMPORTANT

To ensure proper use, please read through this manual before using this product. It is especially important that you read and observe Warnings and Cautions in this manual.
Please keep the manual in a safe and accessible place for future reference.

WARNING

- Do not operate any function that takes your attention away from safe driving.

CAUTION

Volume setting:

Adjust the volume so that you can hear sounds outside the car to prevent accidents.
Lower the volume before playing digital sources to avoid damaging the speakers by the sudden increase of the output level.

General:

Avoid using the external device if it might hinder safe driving.
Make sure all important data has been backed up. We shall bear no responsibility for any loss of recorded data.
Never put or leave any metallic objects (such as coins or metal tools) inside the unit to prevent a short circuit.
Depending on the types of cars, the antenna will automatically extend when you turn on the unit with the antenna control wire connected (page 31). Turn off the unit or change the source to STANDBY when parking at a low ceiling area.

How to read this manual

The displays and faceplates shown in this manual are examples used to provide clear explanations of the operations. For this reason, they may be different from the actual displays or faceplates.
Operations are explained mainly using buttons on the faceplate.
English indications are used for the purpose of explanation. You can select the display language from the [FUNCTION] menu. (Page 6)
• [XX] indicates the selected items.
• (Page XX) indicates references are available on the stated page.

KENWOOD DPXM3200BT - How to read this manual - 1

This symbol on the product means there are important operating and maintenance instructions in this manual. Be sure to carefully read instructions in this manual.

Basics

Faceplate

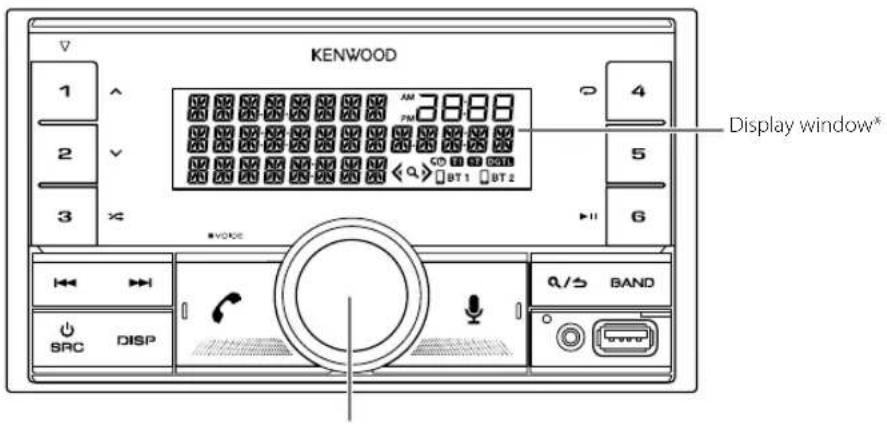

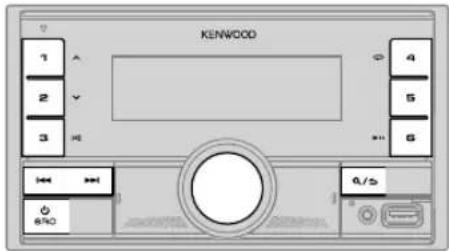

KENWOOD DPXM3200BT - Faceplate - 1

Volume knob

KENWOOD DPXM3200BT - Faceplate - 2

* Only for illustration purpose.

To On the faceplate
Turn on the power	Press ⏻SRC.Press and hold to turn off the power.
Adjust the volume Turn the volume knob.
Select a source	Press ⏻SRC repeatedly.Press ⏻SRC, then turn the volume knob within 2 seconds.
Change the display information Press DISP repeatedly. (Page 33)

ENGLISH

GettingStarted

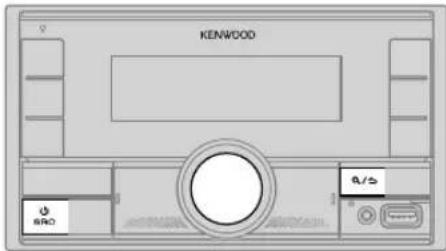

KENWOOD DPXM3200BT - GettingStarted - 1

1 Select the display language and cancel the demonstration

When you turn on the power for the first time (or [FACTORY RESET] is set to [YES], see page 6), the display shows: "SEL LANGUAGE" → "PRESS" → "VOLUME KNOB"

1 Turn the volume knob to select [EN] (English) / [RU] (Russian) / [SP] (Spanish) / [FR] (French) / [GE] (German), then press the knob. [EN] is selected for the initial setup.
Then, the display shows: "CANCEL DEMO" "PRESS" "VOLUME KNOB".
2 Press the volume knob again. [YES] is selected for the initial setup.
3 Press the volume knob again. "DEMO OFF" appears.

Then, the display shows the selected crossover type: "2-WAY X 'OVER" or "3-WAY X 'OVER"

- To change the crossover type, see "Change the crossover type" on page 7.

2 Set the clock and date

1 Press the volume knob to enter [FUNCTION].
2 Turn the volume knob to select [CLOCK], then press the knob.
3 Turn the volume knob to select [CLOCK ADJUST], then press the knob.
4 Turn the volume knob to make the settings, then press the knob. Set the time in the order of "Hour" "Minute".
5 Turn the volume knob to select [CLOCK FORMAT], then press the knob. 6 Turn the volume knob to select [12H] or [24H], then press the knob.

To adjust the clock

To set the date

7 Turn the volume knob to select [DATE FORMAT], then press the knob.
8 Turn the volume knob to select [DD/MM/YY] or [MM/DD/YY], then press the knob.
9 Turn the volume knob to select [DATE SET], then press the knob.
10 Turn the volume knob to make the settings, then press the knob. Set the date in the order of "Day" "Month" "Year" or "Month" "Day" "Year".

11 Press and hold to exit.

To return to the previous setting item, press 9/5

3 Set the other optional settings

You can only set the following items while the unit is in STANDBY source.

1 Press ⏻ SRC repeatedly to enter STANDBY.
2 Press the volume knob to enter [FUNCTION].
3 Turn the volume knob to select an item (page 6), then press the knob.
4 Repeat step 3 until the desired item is selected or activated.

5 Press and hold to exit.

To return to the previous setting item, press 9/5

ENGLISH

GettingStarted

[AUDIOCONTROL]
[SWITCHPREOUT]	(Applicable only if [X'OVER] is set to [2WAY].) (Page 7)[REAR]/[SUBWOOFER]: Selects whether rear speakers or a subwoofer are connected to the line out terminals on the rear (through an external amplifier). (Page 30)
[DISPLAY]
[EASY MENU]	When entering [FUNCTION]...[ON]: [LCD DISPLAY] illumination changes to white color.;[OFF]: [LCD DISPLAY] illumination remains as [COLOR SELECT] color. (Page 27)·[KEY 1] and [KEY 2] illuminations change to light blue color when you enter [FUNCTION], regardless of the [EASY MENU] setting.·Refer to the illustration on page 27 for zone identification.
[TUNER SETTING]
[PRESETTYPE]	[NORMAL]: Memorizes one station for each preset button in each band (FM1/FM2/FM3/MW/LW).;[MIX]: Memorizes one station for each preset button, regardless of the selected band.
[SYSTEM]
[KEY BEEP]	(Applicable only if [X'OVER] is set to [2WAY].) (Page 7)[ON]: Activates the keypress tone.;[OFF]: Deactivates.
[SOURCESELECT]
[SPOTIFY SRC]	[ON]: Enables SPOTIFY/SPOTIFY BT in source selection.;[OFF]: Disables. (Page 11)
[BT AUDIO SRC]	[ON]: Enables BT AUDIO in source selection.;[OFF]: Disables. (Page 20)
[BUILT-IN AUX]	[ON]: Enables AUX in source selection.;[OFF]: Disables. (Page 13)

GettingStarted

Change the crossover type

1 Press ⏻ SRC repeatedly to enter STANDBY.
2 Press and hold number buttons 4 and 5 to enter crossover select. The current crossover type appears.
3 Turn the volume knob to select "2WAY" or "3WAY", then press the knob.
4 Turn the volume knob to select "YES" or "NO", then press the knob. The selected crossover type appears.

• To cancel, press and hold 9/5.
• To adjust the selected crossover settings, see page 24.

CAUTION

Select a crossover type according to how the speakers are connected. (Page 30, 31)

If you select a wrong type:

• The speakers may damage.

• The output sound level may be extremely high or low.

Radio

KENWOOD DPXM3200BT - Radio - 1


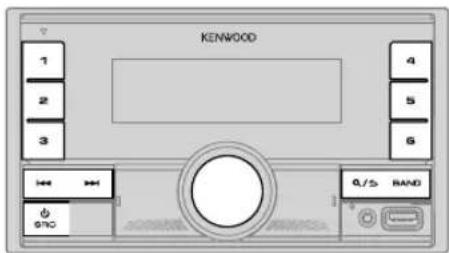

"ST" indicator lights up when receiving an FM stereo broadcast with sufficient signal strength.
The unit switches to FM alarm automatically when receiving an alarm signal from FM broadcast.

Search for a station

1 Press ⏻ SRC repeatedly to select RADIO.
2 Press BAND repeatedly to select FM1/FM2/FM3/MW/LW.
3 Press ◀◀◀ / ▶▶▶ to search for a station.

You can store up to 18 stations for FM and 6 stations for MW/LW.

• To store a station: Press and hold one of the number buttons (1 to 6).
- To select a stored station: Press one of the number buttons (1 to 6).

Radio

Other settings

1 Press the volume knob to enter [FUNCTION].
2 Turn the volume knob to select an item (see the following table), then press the knob.
3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item.
4 Press and hold to exit.

To return to the previous setting item, press 9/5.

Default: [XX]

[TUNER SETTING]
[SEEK MODE]	Selects the searching method for I ◀◀ /▶▶1 buttons when pressed. [AUTO1]: Automatically search for a station. ; [AUTO2]: Search for a preset station. ; [MANUAL]: Manually search for a station.
[LOCAL SEEK]	[ON]: Searches only stations with good reception. ; [OFF]: Cancels. · Settings made are applicable only to the selected source/station. Once you change the source/station, you need to make the settings again.
[AUTO MEMORY]	[YES]: Automatically starts memorizing 6 stations with good reception. ; [NO]: Cancels. · Selectable only if [NORMAL] is selected for [PRESET TYPE]. (Page 6)
[MONO SET]	[ON]: Improves the FM reception, but the stereo effect will be lost. ; [OFF]: Cancels.
[NEWS SET]	[ON]: The unit will temporarily switch to News Programme if available. ; [OFF]: Cancels.
[REGIONAL]	[ON]: Switches to another station only in the specific region using the “AF” control. ; [OFF]: Cancels.
[AF SET]	[ON]: Automatically searches for another station broadcasting the same program in the same Radio Data System network with better reception when the current reception is poor. ; [OFF]: Cancels.

[TI] [ON]: Allows the unit to temporarily switch to Traffic Information if available ("TI" indicator lights up) while listening to all sources except in MW/LW. ; [OFF]: Cancels.
[PTY SEARCH]	1 Turn the volume knob to select the available Program Type (see the following "Available Program Type for [PTY SEARCH]"), then press the knob.2 Turn the volume knob to select the PTY language ([ENGLISH]/ [FRENCH]/[GERMAN]), then press the knob.3 Press I◄◄/►►I to start searching.
[CLOCK]
[TIME SYNC]	[ON]: Synchronizes the unit's time to the Radio Data System station time. ; [OFF]: Cancels.

[LOCAL SEEK]/[MONO SET]/[NEWS SET]/[REGIONAL]/[AF SET]/[TI]/[PTY SEARCH] is selectable only when the band is FM1/FM2/FM3.
If the volume is adjusted during reception of traffic information or news bulletin, the adjusted volume is memorized automatically. It will be applied the next time traffic information or news bulletin is turned on.

Available Program Type for [PTY SEARCH]

[SPEECH]: [NEWS], [AFFAIRS], [INFO] (information), [SPORT], [EDUCATE], [DRAMA], [CULTURE], [SCIENCE], [VARIED], [WEATHER], [FINANCE], [CHILDREN], [SOCIAL], [RELIGION], [PHONE IN], [TRAVEL], [LEISURE], [DOCUMENT]
[MUSIC]: [POP M] (music), [ROCK M] (music), [EASY M] (music), [LIGHT M] (music), [CLASSICS], [OTHER M] (music), [JAZZ], [COUNTRY], [NATION M] (music), [OLDIES], [FOLK M] (music)

The unit will search for the Program Type categorized under[SPEECH] or [MUSIC] if selected.

USB/iPod

Connect a USB device
KENWOOD DPXM3200BT - USB/iPod - 1


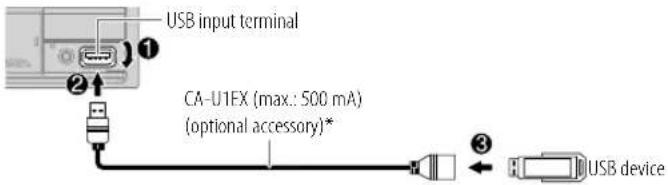

USB input terminal CA-U1EX (max.: 500 mA) (optional accessory)* USB device

The source changes to USB automatically and playback starts.

* Do not leave the cable inside the car when not in use.

Connect an iPod/iPhone

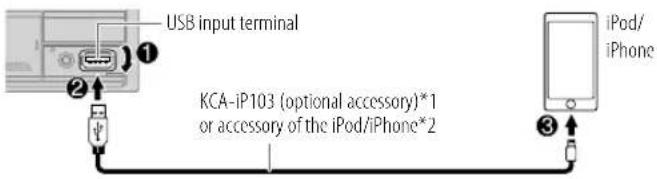

KENWOOD DPXM3200BT - USB/iPod - 2

The source changes to iPod USB automatically and playback starts.

- You can also connect iPod/iPhone via Bluetooth. (Page 15)

*1 KCA-iP103: Lightning type
*2 Do not leave the cable inside the car when not in use.

Basic operations
KENWOOD DPXM3200BT - USB/iPod - 3

To On the faceplate

Play back/pause	Press 6 ▶II.
Reverse/Fast-forward	Press and hold ◀◀/▶▶I.
Select a file	Press ◀◀/▶▶I.
Select a folder*1 Press 1	^ / 2V
Repeat play*2 Press 4	○ repeatedly.[FILE REPEAT]/[FOLDER REPEAT]/[ALL REPEAT]: MP3/WMA/AAC/WAV/FLAC file[REPEAT ONE]/[REPEAT ALL]/[REPEAT OFF] iPod
Random play*2 Press 3	✕repeatedly.[FOLDER RANDOM]/[RANDOM OFF]: MP3/WMA/AAC/WAV/FLAC file[SHUFFLE ON]/[SHUFFLE OFF]: iPod
Random play*2 Press 3	Press and hold 3✕to select [ALL RANDOM].*1

*1 This does not work for iPod.
*2 For iPod: Applicable only when [MODE OFF] is selected. (Page 10)

USB/iPod

Select music drive

While in USB source, press 5 repeatedly.

Stored songs in the following drive will be played back.

- Selected internal or external memory of a smartphone (Mass Storage Class).

- Selected drive of a multiple drive device.

You can also select the music drive from the [FUNCTION] menu.

1 Press the volume knob to enter [FUNCTION].

2 Turn the volume knob to select [USB], then press the knob.

3 Turn the volume knob to select [MUSIC DRIVE], then press the knob.

4 Turn the volume knob to select [DRIVE CHANGE], then press the knob.

The next drive ( [DRIVE 1] to [DRIVE 4]) is selected automatically and playback starts.

5 Repeat step 1 to step 4 to select the following drives.

6 Press and hold ① exit.

To return to the previous setting item, press Q/5.

Select control mode

While in iPod USB source (or iPod BT source), press 5 repeatedly.

[MODE ON]: Control iPod/iPhone using the iPod/iPhone itself. However, you can still perform play/pause, file skip, fast-forward or fast-reverse from this unit.

[MODE OFF]: Control iPod/iPhone from this unit.

Select a file to play

From a folder or list

- For iPod, applicable only when [MODE OFF] is selected.

1 Press .Q/S

2 Turn the volume knob to select a folder/list, then press the knob.

3 Turn the volume knob to select a file, then press the knob. Selected file starts playing.

Quick search(applicable only for USB source)

If you have many files, you can search through them quickly.

1 Press .Q/5

2 Turn the volume knob to select a folder/list, then press the knob.

3 Turn the volume knob quickly to browse through the list quickly.

4 Turn the volume knob to select a file, then press the knob. Selected file starts playing.

Skip search(applicable only for iPod USB source and iPod BT source)

If you have many files in the selected list, you can perform the following to search for a file by skipping through the list at a rate selected in [SKIP SEARCH]. (Page 11)

- For iPod, applicable only when [MODE OFF] is selected.

1 Press .Q/5

2 Turn the volume knob to select a list, then press the knob.

3 Press ◀◀◀ / ▶▶◀ to search at a preset skip search ratio. - Pressing and holding ◀◀◀ / ▶▶◀ searches at a 10% ratio regardless of the [SKIP SEARCH] settings.

4 Turn the volume knob to select a file, then press the knob. Selected file starts playing.

USB/iPod Spotify

[SKIP SEARCH] setting

1 Press the volume knob to enter [FUNCTION].
2 Turn the volume knob to select [USB], then press the knob.
3 Turn the volume knob to select [SKIP SEARCH], then press the knob.
4 Turn the volume knob to select the skip search ratio, then press the knob.
[0.5%] (default)/ [1%]/ [5%]/ [10%]
The skip search ratio is shown as a percentage of the total files.

5 Press and hold to exit.

Alphabet search(applicable only for iPod USB source and iPod BT source)

You can search for a file according to the first character.

- For iPod, applicable only when [MODE OFF] is selected. (Page 10)

1 Press .Q/5
2 Turn the volume knob to select a list, then press the knob.
3 Turn the volume knob quickly to enter character search.
4 Turn the volume knob to select the character.
- Select " * " to search for a character other than A to Z, 0 to 9.

5 Press |◀◀ / ▶▶▶ to move to the entry position.

- You can enter up to 3 characters.

6 Press the volume knob to start searching.

7 Turn the volume knob to select a file, then press the knob. Selected file starts playing.

To return to the root folder/first file/top menu, press 5. (Not applicable for BT AUDIO source.)
• To return to the previous setting item, press 9/5.
• To cancel, press and hold 9/5.

You can listen to Spotify on iPhone/iPod touch (via Bluetooth or via USB input terminal) or Android device (via Bluetooth) (page 15).

Preparation:

Install the latest version of the Spotify application on your device (iPhone/iPod touch or Android device), then create an account and log in to Spotify.
Select [ON] for [SPOTIFY SRC] in [SOURCE SELECT]. (Page 6)

Start listening

1 Start up the Spotify application on your device.
2 Connect your device to the USB input terminal.

KENWOOD DPXM3200BT - Start listening - 1


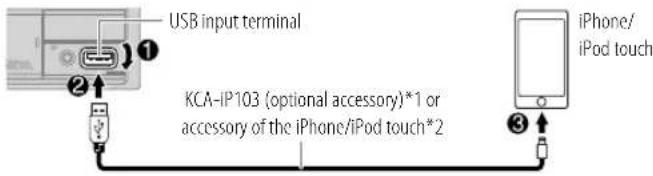

USB input terminal KCA-IP103 (optional accessory)*1 or accessory of the iPhone/iPod touch*2 iPhone/ iPod touch

You can also connect the iPhone/iPod touch or Android device via Bluetooth. (Page 15)

Make sure the USB input terminal is not connected to any device when you connect via Bluetooth.
3 Press ⏻ SRC repeatedly to select SPOTIFY (for iPhone/iPod touch) or SPOTIFY BT (for Android device).

Broadcast starts automatically.

*1 KCA-iP103: Lightning type
*2 Do not leave the cable inside the car when not in use.

Spotify

To On the faceplate
Play back/pause	Press 6 ▶II.
Skip a track	Press I◄◄*1 / ►►I.
Select thumbs up or thumbs down*2	Press 1 ∧ / 2 ∨
Start radio Press and hold 5.
Repeat play*3 Press 4	○ repeatedly.[REPEAT ALL]/[REPEAT ONE]*1/[REPEAT OFF]
Random play3 Press 3 repeatedly 1. ✕[SHUFFLE ON]/[SHUFFLE OFF]

*1 Available for premium account users only.
*2 This feature is available for tracks in Radio only. If thumbs down is selected, the current track is skipped.
*3 Available for tracks in Playlists only.

Save favorite song information

While listening to the Radio on Spotify...

Press and hold the volume knob.

"SAVED" appears and the information is stored to "Your Music" or "Your Library" on your Spotify account.

To unsave, repeat the same procedure.

"REMOVED" appears and the information is removed from "Your Music" or "Your Library" on your Spotify account.

Search for a song or station

1 Press Q/5
2 Turn the volume knob to select a list type, then press the knob.

The list types displayed differ depending on the information sent from Spotify.

3 Turn the volume knob to select the desired song or station.
4 Press the volume knob to confirm.

You can browse through the list quickly by turning the volume knob quickly.

To cancel, press and hold 9/5.

AUX Using Other Applications

You can listen to music from a portable audio player via the auxiliary input jack.

Preparation:

Select [ON] for [BUILT-IN AUX] in [SOURCE SELECT]. (Page 6)

Start listening

1 Connect a portable audio player (commercially available).

KENWOOD DPXM3200BT - Start listening - 1


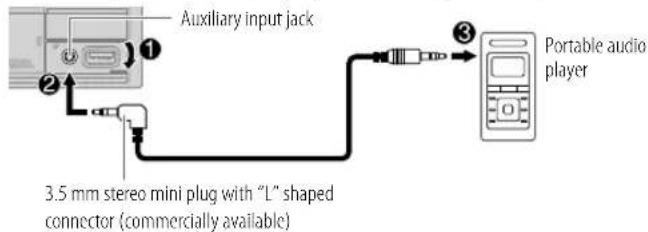

Auxiliary input jack 3.5 mm stereo mini plug with "L" shaped connector (commercially available) Portable audio player

2 Press ⏻ SRC repeatedly to select AUX.
3 Turn on the portable audio player and start playback.

Set the name of the external device

While listening to a portable audio player connected to the unit...

1 Press the volume knob to enter [FUNCTION].
2 Turn the volume knob to select [SYSTEM], then press the knob.
3 Turn the volume knob to select [AUX NAME SET], then press the knob.
4 Turn the volume knob to select an item, then press the knob. [AUX] (default)/[DVD]/[PORTABLE]/[GAME]/[VIDEO]/[TV]
5 Press and hold to exit.

To return to the previous setting item, press 9/5.

KENWOOD Remote application

You can control the KENWOOD car receiver from iPhone/iPod touch (via Bluetooth or via USB input terminal) or Android device (via Bluetooth) using KENWOOD Remote application.

- For more information, visit http://www.kenwood.com/cs/ce/.

Preparation:

Install the latest version of KENWOOD Remote application on your device before connecting.

Start using KENWOOD Remote application

1 Start up the KENWOOD Remote application on your device.
2 Connect your device.

- For Android device:

Pair the Android device with this unit via Bluetooth. (Page 15)

- For iPhone/iPod touch:

Connect iPhone/iPod touch to the USB input terminal. (Page 9) (or)

Pair the iPhone/iPod touch with this unit via Bluetooth. (Page 15)

(Make sure the USB input terminal is not connected to any device.)

3 Select the device to use from the [FUNCTION] menu.

See "Settings to use KENWOOD Remote application" on page 14.

By default, [ANDROID] is selected. To use iPhone/iPod touch, select [YES] for [IOS].

Using Other Applications

Settings to use KENWOOD Remote application

1 Press the volume knob to enter [FUNCTION].
2 Turn the volume knob to select an item (see the following table), then press the knob.
3 Repeat step 2 until the desired item is selected or activated.

4 Press and hold to exit.

To return to the previous setting item, press Q/5.

Default: [XX]

[REMOTE APP]
[SELECT]	Selects the device ([IOS] or [ANDROID]) to use the application.
[IOS]	[YES]: Selects iPhone/iPod touch to use the application via Bluetooth or connected via USB input terminal.; [NO]: Cancels.If [IOS] is selected, select iPod BT source (or iPod USB source if your iPhone/ iPod touch is connected via USB input terminal) to activate the application.The connectivity of the application will be interrupted or disconnected if:You change from iPod BT source to any playback source connected via the USB input terminal.You change from iPod USB source to iPod BT source.
[ANDROID]	[YES]: Selects Android device to use the application via Bluetooth.; [NO]: Cancels.
[ANDROID LIST]	Selects the Android device to use from the list.Displayed only when [ANDROID] of [SELECT] is set to [YES].

[STATUS] Shows the status of the selected device.

[IOS CONNECTED]: You are able to use the application using the iPhone/ iPod touch connected via Bluetooth or USB input terminal.

[IOS NOT CONNECTED]: No iOS device is connected to use the application.

[ANDROID CONNECTED]: You are able to use the application using the Android device connected via Bluetooth.

[ANDROID NOT CONNECTED]: No Android device is connected to use the application.

Tuneln Radio/Tuneln Radio Pro

While listening to Tuneln Radio or Tuneln Radio Pro, connect the iPhone/iPod touch to the USB Input terminal of the unit so that the unit will output the sound from these applications.

Bluetooth®

Depending on the Bluetooth version, operating system and the firmware version of your mobile phone, Bluetooth features may not work with this unit.
Be sure to turn on the Bluetooth function of the device to make the following operations.
• Signal conditions vary depending on the surroundings.

Bluetooth — Connection

Supported Bluetooth profiles

Hands-Free Profile (HFP)
Advanced Audio Distribution Profile (A2DP)
Audio/Video Remote Control Profile (AVRCP)
Serial Port Profile (SPP)
Phonebook Access Profile (PBAP)

Supported Bluetooth codecs

Sub Band Codec (SBC)
Advanced Audio Coding (AAC)

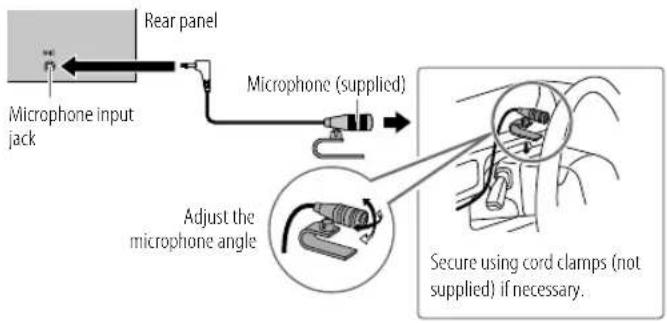

Connect the microphone
KENWOOD DPXM3200BT - Supported Bluetooth codecs - 1

Pair and connect a Bluetooth device for the first time

1 Press ⏻ SRC to turn on the unit.
2 Search and select the name of your receiver ("DPX-M3200BT") on the Bluetooth device.
"PAIRING" "PASS XXXXXX" "Device name" "PRESS" "VOLUME KNOB" appears on the display.
- For some Bluetooth devices, you may need to enter the Personal Identification Number (PIN) code immediately after searching.
"PAIRING OK" appears when pairing is completed.

3 Press the volume knob to start pairing.

Once pairing is completed, Bluetooth connection is established automatically.

"☐BT1" and/or "☐indicator on the display window lights up.
Depending on the settings made for [BATT/SIGNAL] (page 17), the strength of the battery and signal of the connected device are shown on the supplementary display (page 33).

• This unit supports Secure Simple Pairing (SSP).
- Up to five devices can be registered (paired) in total.
- Once the pairing is completed, the Bluetooth device will remain registered in the unit even if you reset the unit. To delete the paired device, see [DEVICE DELETE] on page 19.
- A maximum of two Bluetooth phones and one Bluetooth audio device can be connected at any time. To connect or disconnect the registered device, see [PHONE SELECT] or [AUDIO SELECT] in [BT MODE]. (Page 19) However, while in BT AUDIO source, you can connect to five Bluetooth audio devices and switch between these five devices. (Page 20)
- Some Bluetooth devices may not automatically connect to the unit after pairing. Connect the device to the unit manually.
- Refer to the instruction manual of the Bluetooth device for more information.

Bluetooth®

Auto Pairing

When you connect iPhone/iPod touch to the USB input terminal, pairing request (via Bluetooth) is automatically activated if [AUTO PAIRING] is set to [ON]. (Page 19)

Press the volume knob to pair once you have confirmed the device name.

Bluetooth — Mobile phone
KENWOOD DPXM3200BT - Auto Pairing - 1


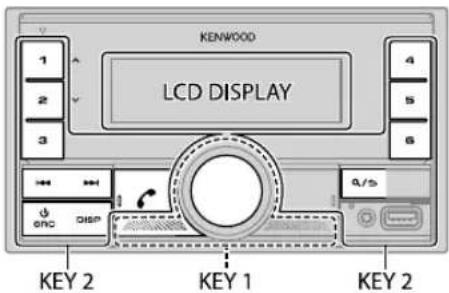

KENWOOD LCD DISPLAY 1 2 3 4 5 6 0/5 0/6 DISP KEY 2 KEY 1 KEY 2

Receive a call

When there is an incoming call:

- [KEY 1] zone and [KEY 2] zone illuminate in green color and flash.

- The unit answers the call automatically if [AUTO ANSWER] is set to a selected time. (Page 17)

During a call:
- [LCD DISPLAY] zone illuminates according to the settings made for [COLOR SELECT] (page 27) while [KEY 1] zone and [KEY 2] zone illuminate in green color.
- If you turn off the unit, Bluetooth is disconnected.

The following operations may differ or be unavailable depending on the connected phone.

To On the faceplate

First incoming call...

Answer a call	Press or the volume knob or one of the number buttons (1 to 6).
Reject a call	Press Q/S .
End a call	Press Q/S .

While talking on the first incoming call...

Answer another incoming call and hold the current call	Press ⬆.
Reject another incoming call	Press ⬆/♂.

While having two active calls...

End current call and activate held call	Press Q/S .
Swap between the current call and held call	Press F .

Adjust the phone volume*1[00] to [35] (Default: [15])	Turn the volume knob during a call.
Switch between hands-free and private talk modes*2	Press 6 ▶■ during a call.

*1 This adjustment will not affect the volume of the other sources.
*2 Operations may vary according to the connected Bluetooth device.

Bluetooth®

Improve the voice quality

While talking on the phone...

1 Press the volume knob to enter [FUNCTION].
2 Turn the volume knob to select an item (see the following table), then press the knob.
3 Repeat step 2 until the desired item is selected or activated.

4 Press and hold to exit.

To return to the previous setting item, press 9/5.

Default: [XX]

[MIC GAIN]	[LEVEL -10] to [LEVEL +10] ([LEVEL -4]): The sensitivity of the microphone increases as the number increases.
[NR LEVEL]	[LEVEL -5] to [LEVEL +5] ([LEVEL 0]): Adjust the noise reduction level until the least noise is being heard during a phone conversation.
[ECHOCANCEL]	[LEVEL -5] to [LEVEL +5] ([LEVEL 0]): Adjust the echo cancellation delay time until the least echo is being heard during a phone conversation.

Make the setting for receiving a call

1 Press to enter Bluetooth mode.
2 Turn the volume knob to select an item (see the following table), then press the knob.
3 Repeat step 2 until the desired item is selected or activated.

4 Press and hold 📄 exp.

To return to the previous setting item, press 9/5.

Default: [XX]

[SETTINGS]
[AUTO ANSWER]	[1] to [30]: The unit answers incoming call automatically in the selected time (in seconds). ; [OFF]: Cancels.
[BATT/SIGNAL]*	[AUTO]: Shows the strength of the battery and signal on the supplementary display (page 33) when the unit detects a Bluetooth device and the Bluetooth device is connected. ; [OFF]: Cancels.

* Functionality depends on the type of the phone used.

Make a call

You can make a call from the call history, phonebook, or dialing the number. Call by voice is also possible if your mobile phone has the feature.

1 Press to enter Bluetooth mode.

"(First device name)" appears.

If two Bluetooth phones are connected, press again to switch to the other phone.
"(Second device name)" appears.

2 Turn the volume knob to select an item (see the following table), then press the knob.

3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item.

4 Press and hold to exit.

To return to the previous setting item, press 9/5.

CALLHISTORY

1 Press the volume knob to select a name or a phone number.
- "INCOMING," "OUTGOING" or "MISSED" is shown on the lower part of the display to indicate the previous call status.
- Press DISP to change the display category (NUMBER or NAME).
- "NO DATA" appears if there is no recorded call history or call number.
2 Press the volume knob to call.

Bluetooth®

[PHONE BOOK] (Applicable only if the phone supports PBAP.)

1 Turn the volume knob quickly to enter alphabet search mode (if the phonebook contains many contacts). The first menu (ABCDEFGHIJK) appears.

- To go to the other menu (LMNOPQRSTUV orWXYZ1 *), press 1 ▲ 2 ▼.

- To select the desired first letter, turn the volume knob or press ||/| , then press the knob. Select "1" to search with numbers and select " *" to search with symbols.

2 Turn the volume knob to select a name, then press the knob.

3 Turn the volume knob to select a phone number, then press the knob to call.

- For using phonebook with this unit, make sure to allow access to or transfer from your smartphone. Depending on the connected phone, the process may be different.

- Contacts are categorized as: HOME, OFFICE, MOBILE, OTHER, GENERAL

- This unit can display only non-accent letters. (Accent letters such as "U" are shown as "U".)

[NUMBER DIAL] 1 Turn the volume knob to select a number (0 to 9) or character (*#, +).

2 Press I◀◀/▶▶I to move the entry position. Repeat step 1 and step 2 until you finish entering the phone number.

3 Press the volume knob to call.

[VOICE] Speak the name of the contact you want to call or the voice command to control the phone functions. (See also the following "Make a call using voice recognition".)

[LOW]/[MID]/[FULL]: Shows the strength of the battery.*

[NO SIGNAL]/[LOW]/[MID]/[MAX]: Shows the strength of the current received signal.*

* Functionality depends on the type of the phone used.

Make a call using voice recognition

1 Press and hold VOICE to activate the voice recognition of the connected phone.
2 Speak the name of the contact you want to call or the voice command to control the phone functions.
- Supported Voice Recognition features vary for each phone. Refer to the instruction manual of the connected phone for details.

Store a contact in memory

You can store up to 6 contacts into the number buttons (1 to 6).

1 Press to enter Bluetooth mode.
2 Turn the volume knob to select [CALL HISTORY], [PHONE BOOK] or [NUMBER DIAL], then press the knob.
3 Turn the volume knob to select a contact or enter a phone number. If a contact is selected, press the volume knob to show the phone number.
4 Press and hold one of the number buttons (1 to 6).
"STORED" appears when the contact is stored.

To erase a contact from the preset memory, select [NUMBER DIAL] in step 2, store a blank number in step 3 and proceed to step 4.

Make a call to a registered number

1 Press to enter Bluetooth mode.
2 Press one of the number buttons (1 to 6).
3 Press the volume knob to call.
"NO MEMORY" appears if there is no contact stored.

Bluetooth®

Bluetooth mode settings

To return to the previous setting item, press 9/5.

Default: [XX]

[BTMODE]
[PHONE SELECT]	Selects the phone or audio device to connect or disconnect. “✗” appears in front of the device name when connected.
[AUDIO SELECT]	“▷” appears in front of the current playback audio device. • You can connect a maximum of two Bluetooth phones and one Bluetooth audio device at a time.
[DEVICEDELETE]	1 Turn the volume knob to select a device to delete, then press the knob.2 Turn the volume knob to select [YES] or [NO], then press the knob.
[PIN CODE EDIT] (0000)	Changes the PIN code (up to 6 digits).1 Turn the volume knob to select a number.2 Press◄◄/►►i to move the entry position.Repeat step 1 and step 2 until you finish entering the PIN code.3 Press the volume knob to confirm.
[RECONNECT]	[ON]: The unit is automatically reconnect when the last connected Bluetooth device is within the connectable range. ; [OFF]: Cancels.
[AUTOPAIRING]	[ON]: The unit is automatically paired with the supported Bluetooth device (iPhone/iPod touch) when it is connected through USB input terminal. Depending on the operating system of the connected device, this function may not work. ; [OFF]: Cancels.

[INITIALIZE] [YES]: Initializes all the Bluetooth settings (including stored pairing, phonebook, and etc.). ; [NO]: Cancels.

Bluetooth test mode

You can check the connectivity of the supported profile between the Bluetooth device and the unit.

- Make sure there is no Bluetooth device paired.

1 Press and hold .

"PLEASE PAIR YOUR PHONE PIN 0000" appears on the display.

2 Search and select the name of your receiver ("DPX-M3200BT") on the Bluetooth device.

3 Operate the Bluetooth device to confirm pairing.

"TESTING" flashes on the display.

The connectivity result (OK or NG) appears after the test.

PAIRING: Pairing status

HF CNT: Hands-Free Profile (HFP) compatibility

AUD CNT: Advanced Audio Distribution Profile (A2DP) compatibility

PB DL: Phonebook Access profile (PBAP) compatibility

To cancel test mode, press and hold ⏻ SRC to turn off the unit.

Bluetooth®

Bluetooth — Audio
KENWOOD DPXM3200BT - Bluetooth® - 1


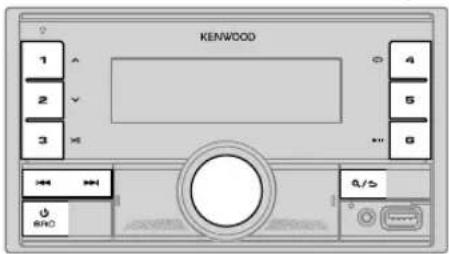

KENWOOD 1 2 3 4 5 6 7 8/5 9/60

While in BT AUDIO source, you can connect to five Bluetooth audio devices and switch between these five devices.

Listen to the audio player via Bluetooth

1 Press ⏻ SRC repeatedly to select BT AUDIO.
2 Operate the audio player via Bluetooth to start playback.

To On the faceplate

Play back/pause	Press 6 ▶II.
Select group or folder Press 1	^ / 2 ∨
Reverse skip/Forward skip	Press I◀◀ / ▶▶I.
Reverse/Fast-forward	Press and hold I◀◀ / ▶▶I.
Repeat play Press 4	○ repeatedly.[ALL REPEAT]/[FILE REPEAT]/[GROUP REPEAT]*/[REPEAT OFF]

To On the faceplate

Random play Press and hold 3 to select × [ALL RANDOM]or [GROUP RANDOM]*.• Press 3× to select [RANDOM OFF].
Select a file from a folder/list Refer to "Select a file to play" on page 10.
Switch between connectedBluetooth audio devices	Press 5.(Pressing the "Play" key on the connecteddevice itself also causes switching of soundoutput from the device.)

* Depending on the connected device, some devices may not support this feature.

Operations and display indications may differ according to their availability on the connected device.

Listen to iPod/iPhone via Bluetooth

You can listen to the songs on the iPod/iPhone via Bluetooth on this unit.

Press ⏻ SRC repeatedly to select iPod BT.

You can operate the iPod/iPhone in the same way as iPod/iPhone via USB input terminal. (Page 9)
If you plug in an iPod/iPhone to the USB input terminal while listening to iPod BT source, the source automatically changes to iPod USB source. Press ⏻ SRC to select iPod BT source if the device is still connected via Bluetooth.

AMAZONALEXA

Alexa is the cloud-based voice service developed by Amazon. You can ask Alexa to play music, get weather reports, traffic information, control smart home devices, shop on Amazon, search the internet, set reminders and more.

Preparation:

Create an account at .
• Install the latest version of the Alexa mobile application on your device (iPhone/iPod touch or Android device), then log in to the application.
Be sure to enable the internet connection on your smartphone.

Setup for the first time

For Android device

1 Pair your device with this unit via Bluetooth. (Page 15)
2 Start up the Alexa mobile application on your device.
3 Pair this unit to Alexa mobile application.
Perform Option A or Option B.

For iPhone/iPod touch

1 Pair your device with this unit via Bluetooth. (Page 15)
2 Start up the Alexa mobile application on your device.
3 Press on the unit to enter ALEXA source.
- You may also press ⏻ SRC repeatedly to select iPod BT source.
4 Pair this unit to Alexa mobile application.
Perform Option A or Option B.

Option A: Direct link

Access the following URL or scan the QR code with your smartphone:

https://www.kenwood.com/car/alexa

KENWOOD DPXM3200BT - Option A: Direct link - 1

Option B: Manual Pairing

1 Start up the Alexa mobile application and go to the "Devices" tab.
2 Tap the " + " icon at the top right corner.

3 Tap "Add Device".
4 Tap "Automotive Accessory" or "Headphones" from the list of device types.
5 Tap the name of your receiver ("DPX-M3200BT") and follow the instructions.

Once the setup process is completed, the Alexa mobile application will establish a connection with this unit.

• The Alexa connection can be disconnected if:
- A2DP profile is disconnected
- Bluetooth is disconnected
- This unit is turned off
– Any other conditions depending on the connected device.
To establish Alexa connection again, reconnect the A2DP profile.
- Alexa connection cannot be established again if you:
– Reinstall Alexa mobile application
- Delete the paired device and perform pairing again (for Android device)
To establish Alexa connection again, perform the setup process again.
- You can check the Alexa connection from the Alexa mobile application. If the name of this unit appears on the screen of "ALL DEVICES", you do not need to perform setup process again.

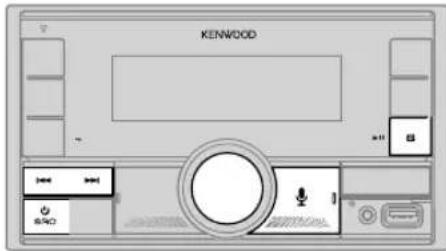

KENWOOD DPXM3200BT - Option B: Manual Pairing - 1

AMAZON ALEXA

Basic operations

Once Alexa connection is established...

1 Press on the unit to speak with Alexa.
The display shows: "ALEXA" "LISTENING...".
2 Communicate with Alexa via the connected microphone. (Page 15)
"THINKING..." appears when Alexa is processing your voice input.
"SPEAKING..." appears while Alexa is responding to your voice input.
"ALEXA" or display information such as playing time, song title, etc. appears while Alexa is in idle state.
• To return to the previous source before ALFXA, press ⏻ SRC.
• To activate Alexa, press
• To cancel current listening state, press ↓.
- To cancel current thinking/speaking states and go to listening state, press ⬇.
- Only one Alexa connection can be connected at one time.
- "DISCONNECTED" appears if the unit is disconnected from Alexa mobile application or the Bluetooth connection is disconnected.

Start listening

While in Alexa idle state...

1 Press on the unit to activate Alexa.
The display shows: "LISTENING...".
2 Communicate with Alexa via the connected microphone. (Page 15)
3 During music playback in ALEXA source, you can perform the following operations:

To On the faceplate

Play back/pause	Press 6▶II.
Reverse skip/Forward skip	Press I◀◀ / ▶▶I.

During music playback, press ⏻ to pause the music and activate Alexa. You can now start to communicate with Alexa.

22 ENGLISH

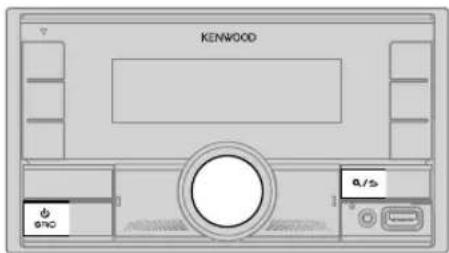

AudioSettings

KENWOOD DPXM3200BT - AudioSettings - 1

To return to the previous setting item, press 9/5.

Default: [XX]

[AUDIO CONTROL]
[SUB-W LEVEL]	[LEVEL -50] to [LEVEL +10] ([LEVEL 0]): Adjusts the subwoofer output level.
[EASY EQ]	Adjusts your own sound settings.The settings are stored to [USER] in [PRESET EQ].The settings made may affect the current settings of [MANUAL EQ].[SW]: [LEVEL -50] to [LEVEL +10] (Default: [LEVEL 0][BASS]: [LEVEL -9] to [LEVEL +9] [LEVEL 0][MID]: [LEVEL -9] to [LEVEL +9] [LEVEL 0][TRE]: [LEVEL -9] to [LEVEL +9] [LEVEL 0]}

Audio Settings

[MANUAL EQ] Adjusts your own sound settings for each source. The settings are stored to [USER] in [PRESET EQ]. The settings made may affect the current settings of [EASY EQ].
[62.5HZ] [LEVEL]	[LEVEL -9] to [LEVEL +9] ([LEVEL 0]): Adjusts the level to memorize for each source.(Before making an adjustment, select the source you want to adjust.)
[62.5HZ] [LEVEL]	[BASS EXTEND] [ON]: Turns on the extended bass. ; [OFF]: Cancels.
[100HZ]/[160HZ]/[250HZ]/[400HZ]/[630HZ]/[1KHZ]/[1.6KHZ]/[2.5KHZ]/[4KHZ]/[6.3KHZ]/[10KHZ]/[16KHZ]	[LEVEL -9] to [LEVEL +9] ([LEVEL 0]): Adjusts the level to memorize for each source.(Before making an adjustment, select the source you want to adjust.)
[Q FACTOR]	[1.35]/[1.50]/[2.00]: Adjusts the quality factor.
[PRESET EQ]	[NATURAL]/[ROCK]/[POPS]/[EASY]/[TOP40]/[JAZZ]/[POWERFUL]/[USER]: Selects a preset equalizer suitable to the music genre.When the display demonstration is activated ([ON] is selected initially, page 28), [ROCK] is automatically selected as the [PRESET EQ].- If you set [DEMO MODE] to [OFF] (page 28), [NATURAL] is selected as the default setting for [PRESET EQ].(Select [USER] to use the settings made in [EASY EQ] or [MANUAL EQ].)
[BASS BOOST]	[LEVEL1] to [LEVEL5]: Selects your preferred bass boost level.; [OFF]: Cancels.
[LOUDNESS]	[LEVEL1]/[LEVEL2]: Selects your preferred low or high frequencies boost to produce a well-balanced sound at low volume.; [OFF]: Cancels.
[SUBWOOFERSET]	[ON]: Turns on the subwoofer output.; [OFF]: Cancels.

[FADER] (Not applicable if 3-way crossover is selected.) [R15] to [F15] ([0]): Adjusts the front and rear speaker output balance.
[BALANCE]	[L15] to [R15] ([0]): Adjusts the left and right speaker output balance.
[VOLUME OFFSET]	[-15] to [+6] ([0]): Presets the initial volume level of each source by comparing to the FM volume level.(Before adjustment, select the source you want to adjust.)
[SOUND EFFECT]
[SOUND RECNSTR](Sound reconstruction)	(Not applicable for RADIO source and AUX source.)[ON]: Creates realistic sound by compensating the high-frequency components and restoring the rise-time of the waveform that are lost in audio data compression. ; [OFF]: Cancels.
[SPACE ENHANCE]	(Not applicable for RADIO source.)[SMALL]/[MEDIUM]/[LARGE]: Virtually enhances the sound space. ;[OFF]: Cancels.
[SND REALIZER]	[LEVEL1]/[LEVEL2]/[LEVEL3]: Virtually makes the sound more realistic. ; [OFF]: Cancels.
[STAGE EQ]	[LOW]/[MIDDLE]/[HIGH]: Virtually adjusts the sound position heard from the speakers. ; [OFF]: Cancels.
[DRIVE EQ]	[ON]: Boosts the frequency to reduce the noise heard from outside the car or running noise of the tyres. ; [OFF]: Cancels.
[SPEAKER SIZE]	Depending on the crossover type you have selected (see “Change the crossover type” on page 7), 2-way crossover or 3-way crossover setting items will be shown. (See “Crossover settings” on page 24.) By default, 2-way crossover type is selected.
[X'OVER]
[DTA SETTINGS]	For settings, see “Digital Time Alignment settings” on page 25.
[CAR SETTINGS]

- For 2-way crossover: [SUB-W LEVEL]/[SUBWOOFER SET] is selectable only if [SWITCH PREOUT] is set to [SUBWOOFER]. (Page 6)

- [SUB-W LEVEL] is selectable only when [SUBWOOFER SET] is set to [ON].

Audio Settings

Crossoversettings

Below are the available setting items for 2-way crossover and 3-way crossover.

SPEAKERSIZE

Selects according to the connected speaker size for optimum performance.

The frequency and slope settings are automatically set for the crossover of the selected speaker.
If [NONE] is selected for the following speaker in [SPEAKER SIZE], the [X'OVER] setting of the selected speaker is not available.

- 2-way crossover[TWEETER] of [FRONT]/[REAR]/[SUBWOOFER]

- 3-way crossover[WOOFER]

X'OVER(crossover)

[FRQ]/[F-HPF FRQ]/[R-HPF FRQ]/[SW LPF FRQ]/[HPF FRQ]/[LPF FRQ]: Adjusts the crossover frequency for the selected speakers (high pass filter or low pass filter). If [THROUGH] is selected, all signals are sent to the selected speakers.
[SLOPE]/[F-HPF SLOPE]/[R-HPF SLOPE]/[SW LPF SLOPE]/[HPF SLOPE]/[LPF SLOPE]: Adjusts the crossover slope.

Selectable only if a setting other than [THROUGH] is selected for the crossover frequency.

[SW LPF PHASE]/[PHASE]: Selects the phase of the speaker output to be in line with the other speaker output.
[GAIN LEFT]/[GAIN RIGHT]/[F-HPF GAIN]/[R-HPF GAIN]/[SW LPF GAIN]/[GAIN]: Adjusts the output volume of the selected speaker.

2-way crossover setting items

[SPEAKERSIZE]
[FRONT] [SIZE]		[8CM]/[10CM]/[12CM]/[13CM]/[16CM]/[17CM]/[18CM]/[4×6]/[5×7]/[6×8]/[6×9]/[7×10]
	[TWEETER]	[SMALL]/[MIDDLE]/[LARGE]/[NONE](not connected)
[REAR]	[8CM]/[10CM]/[12CM]/[13CM]/[16CM]/[17CM]/[18CM]/[4×6]/[5×7]/[6×8]/[6×9]/[7×10]/[NONE] (not connected)
[SUBWOOFER]	[16CM]/[20CM]/[25CM]/[30CM]/[38CM OVER]/[NONE](not connected)
[X'OVER]
[TWEETER] [FRQ]		[1KHZ]/[1.6KHZ]/[2.5KHZ]/[4KHZ]/[5KHZ]/[6.3KHZ]/[8KHZ]/[10KHZ]/[12.5KHZ]
	[GAIN LEFT]	[-8] to [0]
	[GAIN RIGHT]	[-8] to [0]
[FRONT HPF] [F-HPF FRQ]		[30HZ]/[40HZ]/[50HZ]/[60HZ]/[70HZ]/[80HZ]/[90HZ]/[100HZ]/[120HZ]/[150HZ]/[180HZ]/[220HZ]/[250HZ]/[THROUGH]
	[F-HPF SLOPE]	[-6DB]/[-12DB]/[-18DB]/[-24DB]
	[F-HPF GAIN]	[-8] to [0]
[REAR HPF] [R-HPF FRQ]		Configure the settings for the rear speakers similarly to the front speakers.
	[R-HPF SLOPE]
	[R-HPF GAIN]

Audio Settings

[SUBWOOFER LPF]	[SW LPF FRQ]	[30HZ]/[40HZ]/[50HZ]/[60HZ]/[70HZ]/[80HZ]/[90HZ]/[100HZ]/[120HZ]/[150HZ]/[180HZ]/[220HZ]/[250HZ]/[THROUGH]
	[SW LPF SLOPE]	[-6DB]/[-12DB]/[-18DB]/[-24DB]
	[SW LPF PHASE]	[REVERSE] (180°)/[NORMAL] (0°)
	[SW LPF GAIN]	[-8] to [0]

[SUBWOOFER] of [SPEAKER SIZE] and [SUBWOOFER LPF] of [X'OVER] is selectable only when [SWITCH PREOUT] is set to [SUBWOOFER] (page 6) and [SUBWOOFER SET] is set to [ON]. (Page 23)

B-way crossover setting items

[SPEAKERSIZE]
[TWEETER]	[SMALL]/[MIDDLE]/[LARGE]
[MID RANGE]	[8CM]/[10CM]/[12CM]/[13CM]/[16CM]/[17CM]/[18CM]/[4×6]/[5×7]/[6×8]/[6×9]
[WOOFER]	[16CM]/[20CM]/[25CM]/[30CM]/[38CM OVER]/[NONE](not connected)

[X'OVER]

[TWEETER] [HPF FRQ]	[1KHZ]/[1.6KHZ]/[2.5KHZ]/[4KHZ]/[5KHZ]/[6.3KHZ]/[8KHZ]/[10KHZ]/[12.5KHZ]
[SLOPE]	[-6DB]/[-12DB]
[PHASE]	[REVERSE] (180°)/[NORMAL] (0°)
[GAIN]	[-8] to [0]

[MID RANGE]	[HPF FRQ]	[30HZ]/[40HZ]/[50HZ]/[60HZ]/[70HZ]/[80HZ]/[90HZ]/[100HZ]/[120HZ]/[150HZ]/[180HZ]/[220HZ]/[250HZ]/[THROUGH]
	[HPF SLOPE]	[-6DB]/[-12DB]
	[LPF FRQ]	[1KHZ]/[1.6KHZ]/[2.5KHZ]/[4KHZ]/[5KHZ]/[6.3KHZ]/[8KHZ]/[10KHZ]/[12.5KHZ]/[THROUGH]
	[LPF SLOPE]	[-6DB]/[-12DB]
	[PHASE]	[REVERSE] (180°)/[NORMAL] (0°)
	[GAIN]	[-8] to [0]
[WOOFER] [LPF FRQ]		[30HZ]/[40HZ]/[50HZ]/[60HZ]/[70HZ]/[80HZ]/[90HZ]/[100HZ]/[120HZ]/[150HZ]/[180HZ]/[220HZ]/[250HZ]/[THROUGH]
		[SLOPE] [-6DB]/[-12DB]
		[PHASE] [REVERSE] (180°)/[NORMAL] (0°)
		[GAIN] [-8] to [0]

[WOOFER] of [SPEAKER SIZE] and [WOOFER] of [X'OVER] is selectable only when [SUBWOOFER SET] is set to [ON]. (Page 23)

Digital Time Alignment settings

Digital Time Alignment sets the delay time of the speaker output to create a more suitable environment for your vehicle.

- For more information, see "Determining the delay time automatically" on page 26.

Audio Settings

[DTA SETTINGS]
[POSITION]	Selects your listening position (reference point).[ALL]: Not compensating ; [FRONT RIGHT]: Front right seat ;[FRONT LEFT]: Front left seat ; [FRONT ALL]: Front seats• [FRONT ALL] is displayed only when [2-WAY X'OVER] is selected.(Page 7)
[DISTANCE]	[0CM] to [610CM]: Fine adjust the distance to compensate.(Before making an adjustment, select the speaker you want to adjust.)
[GAIN]	[-8DB] to [ODB]: Fine adjust the output volume of the selected speaker.(Before making an adjustment, select the speaker you want to adjust.)
[DTA RESET]	[YES]: Resets the settings ([DISTANCE] and [GAIN]) of the selected [POSITION] to default. ; [NO]: Cancels.
[CAR SETTINGS] Identify your car type and rear speaker location in order to make the adjustment for [DTA SETTINGS].
[CAR TYPE]	[COMPACT]/[FULL SIZE CAR]/[WAGON]/[MINIVAN]/[SUV]/[MINIVAN(LONG)]: Selects the type of vehicle. ;[OFF]: Not compensating.
[R-SP LOCATION]	Selects the location of the rear speakers in your vehicle to calculate the furthest distance from the listening position selected (reference point).• [DOOR]/[REAR DECK]: Selectable only when [CAR TYPE] is selected as [OFF], [COMPACT], [FULL SIZE CAR], [WAGON] or [SUV].• [2ND ROW]/[3RD ROW]: Selectable only when [CAR TYPE] is selected as [MINIVAN] or [MINIVAN(LONG)].

Before making an adjustment for [DISTANCE] and [GAIN] of [DTA SETTINGS], select the speaker you want to adjust:

When 2-way crossover is selected:

[FRONT LEFT]FRONT RIGHT]/[REAR LEFT]/[REAR RIGHT]/[SUBWOOFER]

- You can only select [REAR LEFT], [REAR RIGHT] and [SUBWOOFER] if a setting other than [NONE] is selected for [REAR] and [SUBWOOFER] of [SPEAKER SIZE]. (Page 24)

When 3-way crossover is selected:

[TWEETER LEFT]TWEETER RIGHT]/[MID LEFT]/[MID RIGHT]/[WOOFER]

- You can only select [WOOFER] if a setting other than [NONE] is selected for [WOOFER] of [SPEAKER SIZE]. (Page 25)

• [R-SP LOCATION] of [CAR SETTINGS] is selectable only if:

2-way crossover is selected. (Page 7)
A setting other than [NONE] is selected for [REAR] of [SPEAKER SIZE]. (Page 24)

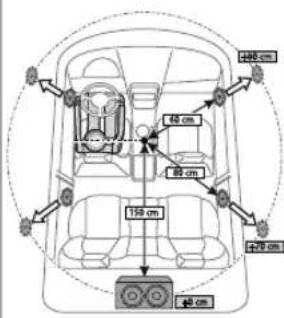

Determining the delay time automatically

KENWOOD DPXM3200BT - Determining the delay time automatically - 1

If you specify the distance from the currently set listening position to every speaker, the delay time will be automatically calculated.

1 Set [POSITION] and determine the listening position as the reference point (the reference point for [FRONT ALL] will be the center between the right and left in the front seats).
2 Measure the distances from the reference point to the speakers.
3 Calculate the distance between the furthest speaker (subwoofer on the illustration) and other speakers.
4 Sets the [DISTANCE] calculated in step 3 for individual speakers.
5 Adjusts [GAIN] for individual speakers.

Example: When [FRONT ALL] is selected as the listening position.

DisplaySettings

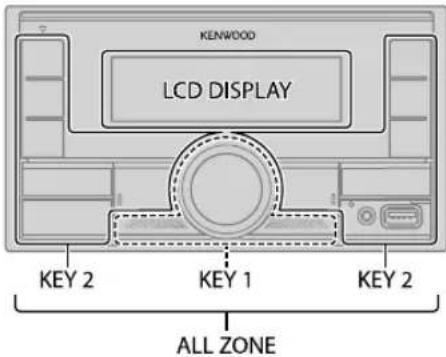

Zone identification for color settings and brightness settings

KENWOOD DPXM3200BT - DisplaySettings - 1

Set the dimmer

Press and hold DISP to turn on or off the dimmer.

- Once you press and hold this button, [DIMMER] setting will be overwritten.

Change the display settings

To return to the previous setting item, press 9/5.

Default: [XX]

[DISPLAY]
[COLORSELECT]	Selects illumination colors for [ALL ZONE], [LCD DISPLAY], [KEY 1] and [KEY 2] separately.1 Select a zone. (See the illustration on left column.)2 Select a preset color for the selected zone. (Page 28)Default: [VARIABLE SCAN]To make your own color, select [CUSTOM R/G/B]. The color you have made will be stored in [CUSTOM R/G/B].1 Press the volume knob to enter the detailed color adjustment.2 Press \|◄◄/►►\| to select the color ([R]/[G]/[B]) to adjust.3 Turn the volume knob to adjust the level ([0] to [9]), then press the knob.
[DIMMER]	Dims the illumination.[ON]: Dimmer is turned on.[OFF]: Dimmer is turned off.[DIMMER TIME]: Set the time to turn on dimmer and to turn off dimmer.1 Turn the volume knob to adjust the [ON] time, then press the knob.2 Turn the volume knob to adjust the [OFF] time, then press the knob.Default: [ON]: [18:00]; [OFF]: [6:00]
[BRIGHTNESS]	Sets the brightness for day and night separately.1 [DAY]/[NIGHT]: Select day or night.2 Select a zone. (See the illustration on left column.)3 [LEVEL00] to [LEVEL31]: Set the brightness level.
[TEXT SCROLL]	[ONCE]: Scrolls the display information once.; [AUTO]: Repeats scrolling at 5-second intervals.; [OFF]: Cancels.

DisplaySettings

[CLOCK]
[CLOCK DISPLAY]	[ON]: The clock time is shown on the display even when the unit is turned off. ; [OFF]: Cancels.
[DEMOMODE]	[ON]: Activates the display demonstration automatically if no operation is done for about 15 seconds. ; [OFF]: Deactivates.

Preset color:

[INITIAL COLOR]/[VARIABLE SCAN]/[CUSTOM R/G/B]/[RED1]/[RED2]/[RED3]/[PURPLE1]/[PURPLE2]/[PURPLE3]/[PURPLE4]/[BLUE1]/[BLUE2]/[BLUE3]/[SKYBLUE1]/[SKYBLUE2]/[LIGHTBLUE]/[AQUA1]/[AQUA2]/[GREEN1]/[GREEN2]/[GREEN3]/[YELLOWGREEN1]/[YELLOWGREEN2]/[YELLOW]/[ORANGE1]/[ORANGE2]/[ORANGERED]

Installation/Connection

This section is for the professional installer. For safety's sake, leave wiring and mounting to professionals. Consult the car audio dealer.

WARNING

The unit can only be used with a 12 V DC power supply, negative ground.
Disconnect the battery's negative terminal before wiring and mounting.
Do not connect Battery wire (yellow) and Ignition wire (red) to the car chassis or Ground wire (black) to prevent a short circuit.
• To prevent short circuit:
– Insulate unconnected wires with vinyl tape.
Be sure to ground this unit to the car's chassis again after installation.
Secure the wires with cable clamps and wrap vinyl tape around the wires that comes into contact with metal parts to protect the wires.

CAUTION

Install this unit in the console of your vehicle. Do not touch the metal parts of this unit during and shortly after use of the unit. Metal parts such as the heat sink and enclosure become hot.
Do not connect the ⏻ wires of speakers to the car chassis or Ground wire (black), or connect them in parallel.
Mount the unit at an angle of less than 30^ .
If your vehicle wiring harness does not have the ignition terminal, connect Ignition wire (red) to the terminal on the vehicle's fuse box which provides 12 V DC power supply and is turned on and off by the ignition key.
Keep all cables away from heat dissipate metal parts.
After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly.
If the fuse blows, first make sure the wires are not touching car's chassis, then replace the old fuse with one that has the same rating.

Installation/Connection

Part list for installation

(A) Mounting sleeve (×1) (B) Trim plate (×1)

KENWOOD DPXM3200BT - Part list for installation - 1

KENWOOD DPXM3200BT - Part list for installation - 2

KENWOOD DPXM3200BT - Part list for installation - 3

KENWOOD DPXM3200BT - Part list for installation - 4

Basic procedure

1 Remove the key from the ignition switch, then disconnect the terminal of the car battery.

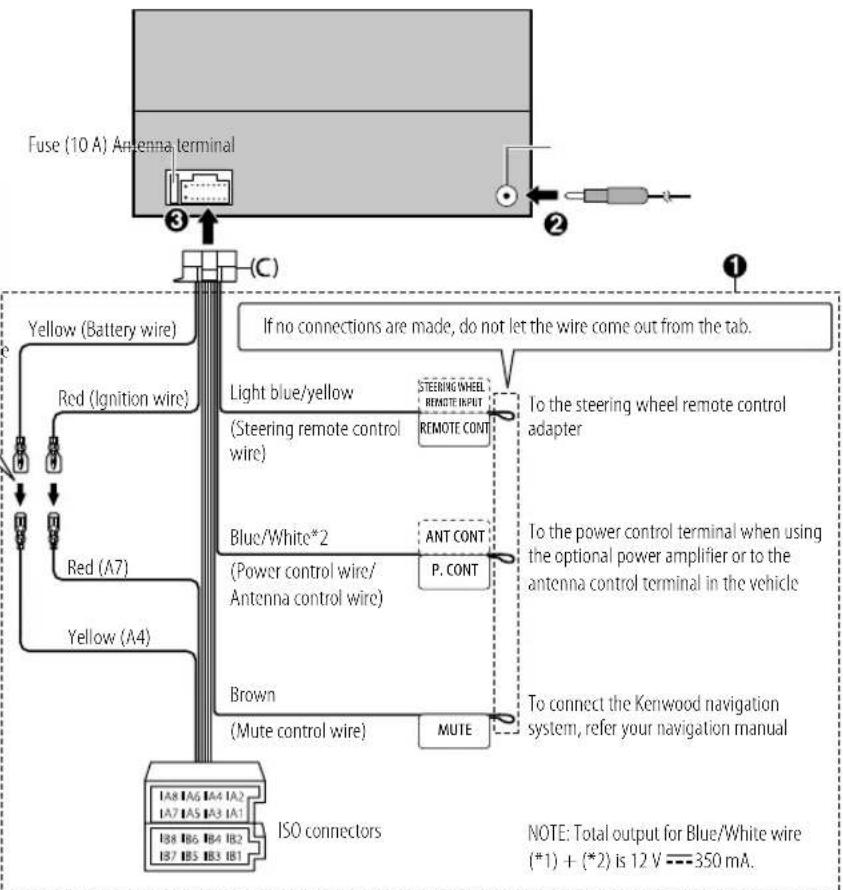

2 Connect the wires properly.

See "Wiring connection" on page 31.

3 Install the unit to your car.
See the following "Installing the unit (in-dash mounting)".
4 Connect the terminal of the car battery.
5 Press ⏻ SRC to turn on the power.
6 Reset the unit. (Page 4)

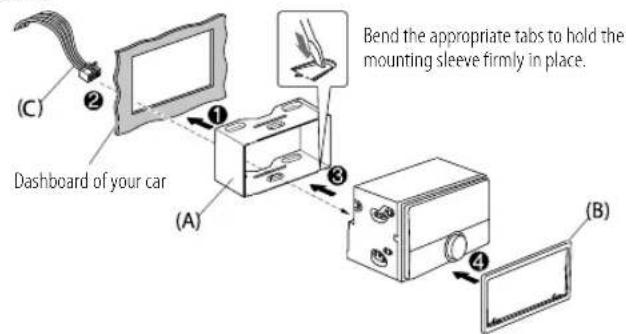

Installing the unit (in-dash mounting)

Do the required wiring.

(Page 31)

KENWOOD DPXM3200BT - Installing the unit (in-dash mounting) - 1

1 Remove the mounting sleeve and trim plate from the unit before installing.
2 Align the holes in the unit (on both sides) with the vehicle mounting bracket and secure the unit with screws (commercially available).

KENWOOD DPXM3200BT - Installing the unit (without mounting sleeve) - 1

▲ Use only the specified screws. Using wrong screws might damage the unit.

Installation/Connection

Removing the unit

1 Fit the catch pin on the extraction keys into the holes on both sides of the trim plate, then pull it out.
2 Insert the extraction keys deeply into the slots on each side, then follow the arrows as shown on the illustration.

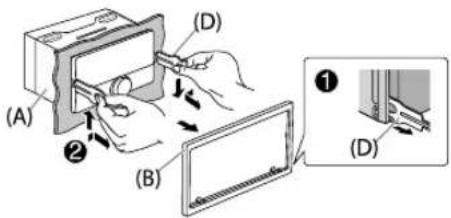

KENWOOD DPXM3200BT - Removing the unit - 1

Connect external components

KENWOOD DPXM3200BT - Connect external components - 1

NoPart

1 Microphone input jack (Page 15)

2 Output terminals FRONT: Front output (2-way crossover)/Mid Range output (3-way crossover) REAR/SW: Rear/subwoofer output (2-way crossover)/Woofer output (3-way crossover)

- When connecting an external amplifier to the output terminals of this unit, securely connect the amplifier ground wire to the car chassis to prevent damage to the unit.

Installation/Connection

Wiringconnection

If your car does not have an ISO terminal:

We recommend installing the unit with a commercially available custom wiring harness specific for your car and leave this job to professionals for your safety. Consult your car audio dealer.

Connecting the ISO connectors on some VW/Audi or Opel (Vauxhall) automobiles

You may need to modify the wiring of the supplied wiring harness as illustrated below.

KENWOOD DPXM3200BT - Connecting the ISO connectors on some VW/Audi or Opel (Vauxhall) automobiles - 1

Pin Color and function (for ISO connectors)

A4 Yellow : Battery
A5 Blue/White*1 : Power control
A7 Red : Ignition (ACC)
A8 Black : Earth (ground) connection
B1 Purple ⊕ : Rear speaker (right)
B2 Purple/black ⊖ For 3-way crossover: Tweeter (right)
B3 Gray ⊕ : Front speaker (right)
B4 Gray/black ⊖ For 3-way crossover: Mid range speaker (right)
B5 White ⊕ : Front speaker (left)
B6 White/black ⊖ For 3-way crossover: Mid range speaker (left)
B7 Green ⊕ : Rear speaker (left)
B8 Green/black ⊖ For 3-way crossover: Tweeter (left)

KENWOOD DPXM3200BT - Connecting the ISO connectors on some VW/Audi or Opel (Vauxhall) automobiles - 2

References

Maintenance

Cleaning the unit

Wipe off dirt on the faceplate with a dry silicone or soft cloth.

Moreinformation

For: — Latest firmware updates and latest compatible item list

KENWOOD original application

— Any other latest information

Visit .

playablefiles

- For USB mass storage class device:

MP3 (.mp3), WMA (.wma), AAC (.aac), AAC (.m4a), WAV (.wav), FLAC (.flac)

- Playable USB device file system: FAT12, FAT16, FAT32

Even when audio files comply with the standards listed above, playback may be impossible depending on the types or conditions of media or devices.

- For detailed information and notes about the playable audio files, visit .

About USB devices

You cannot connect a USB device via a USB hub.
Connecting a cable whose total length is longer than 5 m may result in abnormal playback.
This unit cannot recognize a USB device whose rating is other than 5 V and exceeds 1.5 A.

AboutiPod/iPhone

Made for
iPod touch (6th generation)
— iPhone 5S, 6, 6 Plus, 6S, 6S Plus, SE, 7, 7 Plus, 8, 8 Plus, X, XS, XS MAX, XR (iOS 12.1 or later)
It is not possible to browse video files on the "Videos" menu in [MODE OFF].
The song order displayed on the selection menu of this unit may differ from that of the iPod/iPhone.
You cannot operate iPod if "KENWOOD" or "✓" is displayed on iPod.
Depending on the version of the operating system of the iPod/iPhone, some functions may not operate on this unit.

About Spotify

Spotify application supports:
iPhone 5S, 6, 6 Plus, 6S, 6S Plus, SE, 7, 7 Plus, 8, 8 Plus, X, XS, XS MAX, XR (iOS 12.1 or later)
iPod touch (6th generation)
Android OS 4.0.3 or above
Spotify is a third party service, therefore the specifications are subject to change without prior notice. Accordingly, compatibility may be impaired or some or all of the services may become unavailable.
Some functions of Spotify cannot be operated from this unit.
For issues using the application, please contact Spotify at .

About AMAZON ALEXA

- Alexa is a third party service, therefore the specifications are subject to change without prior notice. Accordingly, compatibility may be impaired or some or all of the services may become unavailable.

References

Change the display information

Each time you press DISP, the display information changes.

- If the information is unavailable or not recorded, "NO TEXT", "NO INFO", or other information (eg. station name) appears or display will be blank.

KENWOOD DPXM3200BT - Change the display information - 1

Supplementary display

Source name Display information: Main display (supplementary)

STANDBY Source name (Date)
RADIO Frequency (Date)
	For FM Radio Data System stations only:Station name/Program type (Date) ➔ Radio text (Date) ➔ Radio text +(Radio text+) ➔ Song title (Artist) ➔ Song title (Date) Frequency (Date) ➔ back to the beginning
USB For MP3/WMA/AAC/WAV/FLAC files:Song title (Artist) ➔ Song title (Album title) ➔ Song title (Date) file name(Folder name) ➔ File name (Date) Playing time (Date) back to the beginning
iPod USB/iPod BT When [MODE OFF] is selected (page 10):Song title (Artist) ➔ Song title (Album title) ➔ Song title (Date) Playing time (Date) back to the beginning
SPOTIFY/SPOTIFY BT	Context title (Date) ➔ Song title (Artist) ➔ Song title (Album title) Song title (Date) ➔ Playing Time (Date) back to the beginning

Source name Display information: Main display (supplementary)

BT AUDIO/ ALEXA	Song title (Artist) ➔ Song title (Album title) ➔ Song title (Date) Playing time (Date) ➔ back to the beginning
AUX Source name	(Date)

Troubleshooting

Symptom Remedy
General	Sound cannot be heard. • Adjust the volume to the optimum level.• Check the cords and connections.
	"MISWIRING CHECK WIRING THEN PWR ON" appears.	Turn the power off, then check to be sure the terminals of the speaker wires are insulated properly. Turn the power on again.
	"PROTECTING SEND SERVICE" appears.	Send the unit to the nearest service center.
	Source cannot be selected. Check the [SOURCE SELECT] setting. (Page 6)
	The unit does not work at all. Reset the unit. (Page 4)
	Correct characters are not displayed.	• This unit can only display uppercase letters, numbers, and a limited number of symbols.• Depending on the display language you have selected (page 6), some characters may not be displayed correctly.
Radio	• Radio reception is poor.• Static noise while listening to the radio.	Connect the antenna firmly.
USB/iPod	Playback order is not as intended.	The playback order is determined by the order in which file name were recorded (USB).
	Elapsed playing time is not correct.	This depends on the recording process earlier (USB).
	"READING" keeps flashing. • Do not use too many hierarchical levels and folders.• Reattach the device (USB/iPod/iPhone).
	"UNSUPPORTED DEVICE" appears.	• Check whether the connected USB device is compatible with this unit and ensure the file systems are in supported formats. (Page 32)• Reattach the USB device.

Symptom Remedy
USB/iPod	"UNRESPONSIVE DEVICE" appears.	Make sure the USB device is not malfunction and reattach the USB device.
	"USB HUB IS NOT SUPPORTED" appears.	This unit cannot support a USB device connected via a USB hub.
	• The source does not change to "USB" when you connect a USB device while listening to another source.• "USB ERROR" appears.	The USB port is drawing more power than the design limit. Turn the power off and unplug the USB device. Then, turn on the power and reattach the USB device. If this does not solve the problem, turn the power off and on (or reset the unit) before replacing with another USB device.
	The iPod/iPhone does not turn on or does not work.	• Check the connection between this unit and iPod/iPhone.• Disconnect and reset the iPod/iPhone using hard reset.
	"LOADING" appears when you enter search mode by pressing Q/5.	This unit is still preparing the iPod/iPhone music list. It may take some time to load, try again later.
	"NA FILE" Make sure the media (USB) contain supported audio files.(Page 32)
	"COPY PRO" A copy-protected file is played (USB).
	"NO DEVICE" Connect a device (USB/iPod/iPhone), and change the source to USB or iPod USB again.
	"NO MUSIC" Connect a device (USB/iPod/iPhone) that contains playable audio files.
	"iPod ERROR" • Reconnect the iPod.• Reset the iPod.
	"MEMORY FULL" You have reached the maximum storage limit of your iPod/iPhone.

Troubleshooting

Symptom Remedy
Spotify	“DISCONNECTED” USB is disconnected from the head unit. Please make sure the device is connected properly through USB.
	“CONNECTING” • Connected via USB input terminal: The device is connecting to the head unit. Please wait.• Connected via Bluetooth: The Bluetooth is disconnected. Please check Bluetooth connection and make sure both the device and unit are paired and connected.
	“CHECK APP” The Spotify application is not connected properly or user is not login. End the Spotify application and restart. Then, log in to your Spotify account.
Bluetooth®	No Bluetooth device is detected.• Search from the Bluetooth device again.• Reset the unit. (Page 4)
	Bluetooth pairing cannot be made.• Make sure you have entered the same PIN code to both the unit and Bluetooth device.• Delete pairing information from both the unit and the Bluetooth device, then perform pairing again. (Page 15)
	Echo or noise is heard during a phone conversation.• Adjust the microphone unit’s position. (Page 15)• Check the [ECHO CANCEL] setting. (Page 17)
	Phone sound quality is poor.• Reduce the distance between the unit and the Bluetooth device.• Move the car to a place where you can get a better signal reception.
	Voice calling method is not successful.• Use voice calling method in a more quiet environment.• Reduce the distance from the microphone when you speak the name.• Make sure the same voice as the registered voice tag is used.

Symptom Remedy
Bluetooth ^e	Sound is being interrupted or skipped during playback of a Bluetooth audio player. Reduce the distance between the unit and the Bluetooth audio player.Turn off, then turn on the unit and try to connect again.Other Bluetooth devices might be trying to connect to the unit.
	The connected Bluetooth audio player cannot be controlled. Check whether the connected Bluetooth audio player supports Audio/Video Remote Control Profile (AVRCP).(Refer to the instructions of your audio player.)Disconnect and connect the Bluetooth player again.
	“NOT SUPPORT” The connected phone does not support Voice Recognition feature or phonebook transfer.
	“NO ENTRY”/“NO PAIR” There is no registered device connected/found via Bluetooth.
	“ERROR” Try the operation again. If “ERROR” appears again, check if the device supports the function you have tried.
	“NO INFO”/“NO DATA” Bluetooth device cannot get the contact information.
	“HF ERROR XX”/“BT ERROR” Reset the unit and try the operation again. If this does not solve the problem, consult your nearest service center.
	“SWITCHING NG” The connected phones might not support phone switching feature.
	The Bluetooth connection between the Bluetooth device and the unit is unstable. Delete the unused registered Bluetooth device from the unit. (Page 19)
AMAZON ALEXA	No response from Alexa after the voice input. Amazon cloud was unable to analyze the voice input.
	Wrong response from Alexa. Alexa misunderstood what was said or did not catch the entire request or sentence spoken. Please try again. (Page 21)
	"DISCONNECTED" Be sure to connect your smartphone to the unit via Bluetooth. (Page 15)
	Not able to connect or reconnect to Alexa mobile application. • Be sure the audio device is connected via Bluetooth. Select the audio device from [AUDIO SELECT] in [BT MODE]. (Page 19)• Perform the one-time setup process again. See "Setup for the first time" on page 21.• Turn off, then turn on the unit and try to connect again.• For iOS device, make sure ALEXA source or iPod BT source is selected.

SpecificationsTroubleshooting

Tuner	FM Frequency Range 87.5 MHz — 108.0 MHz (50 kHz step)
	Usable Sensitivity (S/N = 30 dB)	0.71 μV/75 Ω
	Quieting Sensitivity (DIN S/N = 46 dB)	2.0 μV/75 Ω
	Frequency Response (±3 dB) 30 Hz — 15 kHz
	Signal-to-Noise Ratio (MONO) 64.0 dB
	Stereo Separation (1 kHz) 40 dB
	MW(AM)	Frequency Range 531 kHz — 1 611 kHz (9 kHz step)
		Usable Sensitivity (S/N = 20 dB) 28.2 μV
	LW(AM)	Frequency Range 153 kHz — 279 kHz (9 kHz step)
		Usable Sensitivity (S/N = 20 dB) 50 μV

USB	USB Standard USB 1.1, USB 2.0 (Full speed)
	File System FAT12/16/32
	Maximum Supply Current	DC 5 V=1.5 A
	Frequency Response (±1 dB)	20 Hz—20 kHz
	Signal-to-Noise Ratio (1 kHz)	99 dB
	Dynamic Range	93 dB
	Channel Separation	90 dB
	MP3 Decode	Compliant with MPEG-1/2 Audio Layer-3
	WMA Decode Compliant with Windows Media Audio
	AAC Decode	AAC-LC ".aac", ".m4a" files
	WAV Decode	Linear-PCM
	FLAC Decode	FLAC file (Up to 96 kHz/24 bit)

Specifications

Bluetooth	Version Bluetooth 4.2
	Frequency Range 2.402 GHz — 2.480 GHz
	RF Output Power (E.I.R.P.) +4 dBm (MAX), Power Class 2
	Maximum Communication Range Line of sight approx. 10 m (32.8 ft)
	Profile HFP 1.7.1 (Hands-Free Profile)A2DP (Advanced Audio Distribution Profile)AVRCP 1.6.1 (Audio/Video Remote Control Profile)PBAP (Phonebook Access Profile)SPP (Serial Port Profile)

Audio	Maximum Output Power 50 W × 4
	Full Bandwidth Power (at less than 1 % THD)	22 W × 4
	Speaker Impedance 4 Ω — 8 Ω
	Tone Action Band 1: 62.5 Hz ±9 dB	Band 2: 100 Hz ±9 dB
		Band 3: 160 Hz ±9 dB
		Band 4: 250 Hz ±9 dB
		Band 5: 400 Hz ±9 dB
		Band 6: 630 Hz ±9 dB
		Band 7: 1 kHz ±9 dB
		Band 8: 1.6 kHz ±9 dB
		Band 9: 2.5 kHz ±9 dB
		Band 10: 4 kHz ±9 dB
		Band 11: 6.3 kHz ±9 dB
		Band 12: 10 kHz ±9 dB
		Band 13: 16 kHz ±9 dB
	Preout Level/Load 2 500 mV/10 kΩ
	Preout Impedance ≤ 600 Ω

Auxiliary	Frequency Response (±3 dB) 20 Hz — 20 kHz
	Input Maximum Voltage 1 000 mV
	Input Impedance 30 kΩ

General	Operating Voltage 12 V DC car battery
	Installation Size (W × H × D)	182 mm × 111 mm × 100 mm
	Net Weight(includes Trimplate and Mounting Sleeve)	1 kg

Subject to change without notice.

Table des matieres

Application KENWOOD Remote

Tuneln Radio/Tuneln Radio Pro

Bluetooth ^® 15

Bluetooth - Connexion

Bluetooth – Téléphone portable

Bluetooth - Audio

AMAZON ALEXA....21

Réglages audio....22

Installation/Connexion....28

Références....32

Entretien

Plus d'informations

Application KENWOOD Remote

No. Pièce

KENWOOD DPXM3200BT - No. Pièce - 1

Nr Teil

KENWOOD DPXM3200BT - Nr Teil - 1

"2-WAY X'OVER" of "3-WAY X'OVER"

Voor 2-weg crossover: [SUB-W LEVEL]/[SUBWOOFER SET] is alleen kiesbaar wanneer [SWITCH PREOUT] op [SUBWOOFER is gesteld. (Pagina 6)
[SUB-W LEVEL] is alleen kiesbaar wanneer [SUBWOOFER SET] op [ON] is gesteld.

Audio-instellingen

Crossover-instellingen

Nr Onderdeel

KENWOOD DPXM3200BT - Nr Onderdeel - 1

Meer over iPod/iPhone

• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
- Use of the Made for Apple badge means that an accessory has been designed to connect specifically to the Apple product(s) identified in the badge and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with an Apple product may affect wireless performance.
• Apple, iPhone, iPod, iPod touch, and Lightning are trademarks of Apple Inc., registered in the U.S. and other countries.
• Android is a trademark of Google LLC.
- SPOTIFY and the Spotify logo are among the registered trademarks of Spotify AB.
- The Bluetooth ^ word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by JVCKENWOOD Corporation is under license. Other trademarks and trade names are those of their respective owners.
• Amazon Alexa is not available in all languages and countries.
- Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates.

KENWOOD DPXM3200BT - Meer over iPod/iPhone - 1

KENWOOD DPXM3200BT - Meer over iPod/iPhone - 2

KENWOOD DPXM3200BT - Meer over iPod/iPhone - 3

KENWOOD DPXM3200BT - Meer over iPod/iPhone - 4

DPXM3200BT - Car stereo KENWOOD - Free user manual and instructions

This manual is not available in your language

User questions about DPXM3200BT KENWOOD

USER MANUAL DPXM3200BT KENWOOD

Information on Disposal of Old Electrical and Electronic Equipment and Batteries (applicable for countries that have adopted separate waste collection systems)

Manufacturer:

EU Representative:

Français

Article 1 General Provision

Article 2 License

Article 3 Conditions for Grant of License

Article 4 Right pertaining to the Licensed Software

Article 5 Indemnification of Licensor

Article 6 Liability to Third Party

Article 7 Confidentiality

Article 8 Termination

Article 9 Destruction of the Licensed Software

Article 10 Protection of Copyright

Article 11 Export Restriction

Article 12 Miscellaneous

Important Notice concerning the Software

T-Kernel 2.0

BSD-3-Clause

LFS Subsystem

Accordo2 Player

Contents

BeforeUse

IMPORTANT

WARNING

CAUTION

Volume setting:

General:

How to read this manual

Basics

Faceplate

GettingStarted

1 Select the display language and cancel the demonstration

2 Set the clock and date

To adjust the clock

To set the date

3 Set the other optional settings

GettingStarted

Change the crossover type

CAUTION

Radio

Search for a station

Radio

Other settings

Available Program Type for [PTY SEARCH]

USB/iPod

USB/iPod

Select music drive

Select control mode

Select a file to play

From a folder or list

USB/iPod Spotify

[SKIP SEARCH] setting

Alphabet search(applicable only for iPod USB source and iPod BT source)

Preparation:

Start listening

Save favorite song information

Press and hold the volume knob.

Search for a song or station

AUX Using Other Applications

Preparation:

Start listening

Set the name of the external device

KENWOOD Remote application

Preparation:

Start using KENWOOD Remote application

Using Other Applications

Settings to use KENWOOD Remote application

Tuneln Radio/Tuneln Radio Pro

Bluetooth®

Bluetooth — Connection

Supported Bluetooth profiles

Supported Bluetooth codecs

Pair and connect a Bluetooth device for the first time

3 Press the volume knob to start pairing.

Bluetooth®
