• Basics p. 4
• Getting Started p. 5
• 1 Select the display language and cancel the demonstration 2 Set the clock and date 3 Set the other optional settings Radio p. 8
• USB/iPod p. 9
• Spotify p. 12
• AUX p. 13
• Using Other Applications p. 14
• KENWOOD Remote application Tuneln Radio/Tuneln Radio Pro Bluetooth® p. 15
• Bluetooth – Connection Bluetooth – Mobile phone Bluetooth – Audio AMAZON ALEXA p. 21
• Audio Settings p. 23
• Display Settings p. 27
• Installation/Connection p. 29
• References p. 32
• Maintenance More information Change the display information Troubleshooting p. 34
• Specifications This symbol on the product means there are important operating and maintenance instructions in this manual. Be sure to carefully read instructions in this manual. How to read this manual p. 37

• The displays and faceplates shown in this manual are examples used to provide clear explanations of the operations. For this reason, they may be different from the actual displays or faceplates.

• Operations are explained mainly using buttons on the faceplate of

• English indications are used for the purpose of explanation. You can select the display language from the [FUNCTION] menu. (Page7)

[XX] indicates the selected items.

• To ensure proper use, please read through this manual before using this product. It is especially important that you read and observe Warnings and Cautions in this manual.

• Please keep the manual in a safe and accessible place for future reference. WARNING

• Do not operate any function that takes your attention away from safe driving.

• Do not ingest the battery, Chemical Burn Hazard. The remote control supplied with this product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention. CAUTION Volume setting:

• Adjust the volume so that you can hear sounds outside the car to prevent accidents.

• Lower the volume before playing digital sources to avoid damaging the speakers by the sudden increase of the output level. General:

• Avoid using the external device if it might hinder safe driving.

• Make sure all important data has been backed up. We shall bear no responsibility for any loss of recorded data.

• Never put or leave any metallic objects (such as coins or metal tools) inside the unit to prevent a short circuit.

• USB rating is indicated on the main unit. To view, detach the faceplate. (Page 4)

• Depending on the types of cars, the antenna will automatically extend when you turn on the unit with the antenna control wire connected (page31). Turn off the unit or change the source to STANDBY when parking at a low ceiling area. Remote control (RC-406):

• Do not leave the remote control in hot places such as on the dashboard.

• Risk of fire or explosion if the battery is replaced by an incorrect type. Ensure to replace only with the same type.

• Risk of fire, explosion or the leakage of flammable liquid or gas if the battery is left in an extremely high temperature surrounding environment and/or subjected extremely low air pressure. The battery pack or batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

• Risk of fire, explosion or the leakage of flammable liquid or gas if the battery is disposed into fire or a hot oven, recharged, shorted, mechanically crushed or cut of the battery.

• If spilled fluid comes in contact with your eyes or on clothing, immediately rinse with water and consult a physician. JS_KWD_KMM_BT356_EN_EN.indd 3JS_KWD_KMM_BT356_EN_EN.indd 3 6/21/2019 4:01:19 PM6/21/2019 4:01:19 PM4 ENGLISH Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Basics To On the faceplate Turn on the power Press B SRC.

• Press and hold to turn off the power. Adjust the volume Turn the volume knob. Select a source

• Press B SRC repeatedly.

• Press B SRC, then turn the volume knob within 2 seconds. Change the display information Press DISP repeatedly. (Page 33, 34) Attach How to reset Detach Faceplate Reset the unit within 5 seconds after detaching the faceplate.

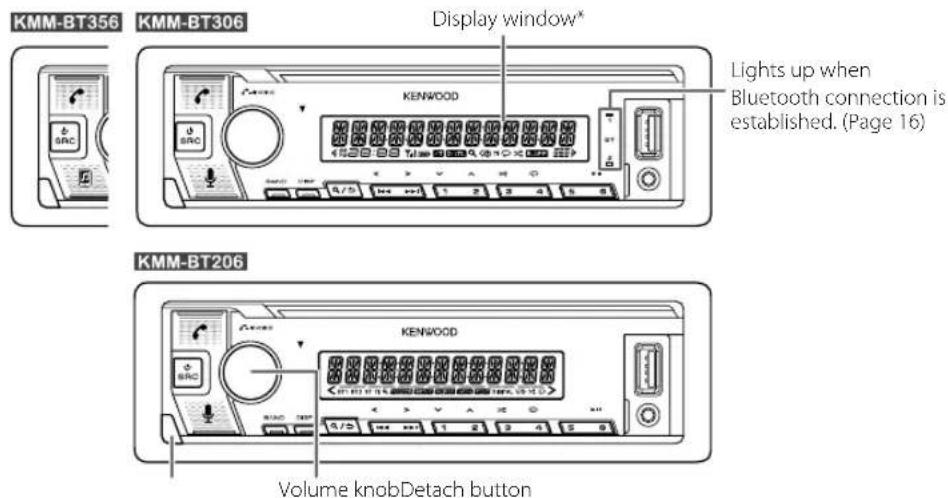

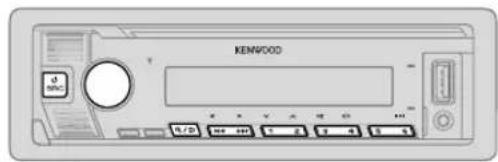

• Only for illustration purpose. Volume knobDetach button Display window* Lights up when Bluetooth connection is established. (Page16) JS_KWD_KMM_BT356_EN_EN.indd 4JS_KWD_KMM_BT356_EN_EN.indd 4 6/21/2019 4:01:19 PM6/21/2019 4:01:19 PMENGLISH

Data Size: B6L (182 mm x 128 mm)Book Size: B6L (182 mm x 128 mm) Remote control (RC-406) (supplied for ) Remote sensor (Do not expose to bright sunlight.) Pull out the insulation sheet when using for the first time. / : Remote control functions are not available. Getting Started

Select the display language and cancel the demonstration When you turn on the power for the first time (or [FACTORY RESET] is set to [YES] , see page7), the display shows: “SEL LANGUAGE” “PRESS” “VOLUME KNOB” 1 Turn the volume knob to select [EN] (English) / [RU] (Russian) / [SP] (Spanish) / [FR] (French) / [GE] (German), then press the knob. [EN] is selected for the initial setup. Then, the display shows: “CANCEL DEMO” “PRESS” “VOLUME KNOB”. 2 Press the volume knob again. [YES] is selected for the initial setup. 3 Press the volume knob again. “DEMO OFF” appears. Then, the display shows the selected crossover type: “2-WAY X ’ OVER” or

• To change the crossover type, see “Change the crossover type” on page7.

Set the clock and date

• Press and hold VOL to continuously increase the volume to 15. Press ATT during playback to attenuate the sound.

• Press again to cancel. Select a source Press SRC repeatedly. Turn off the power Press and hold SRC to turn off the power. ( Pressing SRC does not turn on the power. ) JS_KWD_KMM_BT356_EN_EN.indd 5JS_KWD_KMM_BT356_EN_EN.indd 5 6/21/2019 4:01:19 PM6/21/2019 4:01:19 PM6 ENGLISH Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Default: [XX] [AUDIO CONTROL] [SWITCH PREOUT] (For : Applicable only if [X’OVER] is set to [2WAY].) (Page 7) [REAR]/[SUB-W]: Selects whether rear speakers or a subwoofer are connected to the line out terminals on the rear (through an external amplifier). (Page 32) [DISPLAY] [EASY MENU] (For / ) When entering [FUNCTION]... [ON]: [ZONE 1] illumination changes to white color. ; [OFF]: [ZONE 1] illumination remains as [COLOR SELECT] color. (Page 28)

• [ZONE 2] illumination changes to light blue color when you enter [FUNCTION], irregardless of the [EASY MENU] setting.

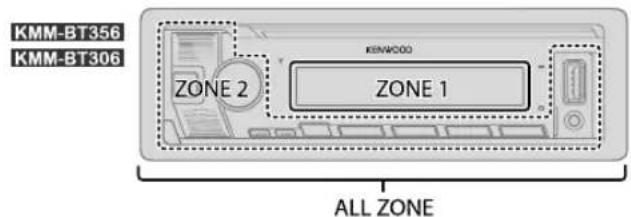

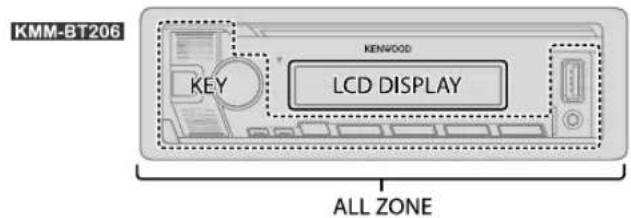

• Refer to the illustration on page 27 for zone identification. [TUNER SETTING] [PRESET TYPE] [NORMAL]: Memorizes one station for each preset button in each band (FM1/FM2/FM3/MW/LW). ; [MIX]: Memorizes one station for each preset button, regardless of the selected band. [SYSTEM] [KEY BEEP] (Applicable only if [X’OVER] is set to [2WAY].) (Page 7) [ON]: Activates the keypress tone. ; [OFF]: Deactivates. [SOURCE SELECT] [SPOTIFY SRC] [ON]: Enables SPOTIFY/SPOTIFY BT in source selection. ; [OFF]: Disables. (Page 12)

Set the other optional settings You can only set the following items while the unit is in STANDBY source. 1 Press B SRC repeatedly to enter STANDBY. 2 Press the volume knob to enter [FUNCTION]

3 Turn the volume knob to select an item (see the following table), then press the knob. 4 Repeat step 3 until the desired item is selected or activated. 5 Press and hold to exit. To return to the previous setting item, press

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Getting Started [P-OFF WAIT] Applicable only when the demonstration mode is turned off. Sets the duration when the unit will automatically turn off (while in standby mode) to save the battery. [20M]: 20 minutes ; [40M]: 40 minutes ; [60M]: 60 minutes ; [– – –]: Cancels

[UPDATE SYSTEM] [F/W UP xxxx] [YES]: Starts upgrading the firmware. ; [NO]: Cancels (upgrading is not activated). For details on how to update the firmware, visit <www.kenwood.com/cs/ce/>. [FACTORY RESET] [YES]: Resets the settings to default (except the stored station). ; [NO]: Cancels. [ENGLISH] Select the display language for [FUNCTION] menu and music information if applicable. By default, [ENGLISH] is selected.

Press B SRC repeatedly to enter STANDBY. 2 Press and hold number buttons 4 and 5 to enter crossover select. The current crossover type appears. 3 Turn the volume knob to select “2WAY” or “3WAY”, then press the knob. 4 Turn the volume knob to select “YES” or “NO”, then press the knob. The selected crossover type appears.

• To adjust the selected crossover settings, see page 24. CAUTION Select a crossover type according to how the speakers are connected. (Page31, 32) If you select a wrong type:

• The speakers may damage.

2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item. 4 Press and hold to exit. To return to the previous setting item, press

Default: [XX] [TUNER SETTING] [SEEK MODE] Selects the searching method for

buttons when pressed. [AUTO1]: Automatically search for a station. ; [AUTO2]: Search for a preset station. ; [MANUAL]: Manually search for a station. [LOCAL SEEK] [ON]: Searches only stations with good reception. ; [OFF]: Cancels.

• Settings made are applicable only to the selected source/station. Once you change the source/station, you need to make the settings again. [AUTO MEMORY] [YES]: Automatically starts memorizing 6 stations with good reception. ; [NO]: Cancels.

• Selectable only if [NORMAL] is selected for [PRESET TYPE]. (Page 6) [MONO SET] [ON]: Improves the FM reception, but the stereo effect will be lost. ; [OFF]: Cancels. [NEWS SET] [ON]: The unit will temporarily switch to News Programme if available. ; [OFF]: Cancels. [REGIONAL] [ON]: Switches to another station only in the specific region using the “AF” control. ; [OFF]: Cancels. [AF SET] [ON]: Automatically searches for another station broadcasting the same program in the same Radio Data System network with better reception when the current reception is poor. ; [OFF]: Cancels. Radio

• “ST” indicator lights up when receiving an FM stereo broadcast with sufficient signal strength.

• The unit switches to FM alarm automatically when receiving an alarm signal from FM broadcast. Search for a station

Press B SRC repeatedly to select RADIO. 2 Press BAND repeatedly (or press #FM+/

AM– on the remote control) to select FM1/FM2/FM3/MW/LW. 3 Press S / T (or press S / T (+) on the remote control) to search for a station. You can store up to 18 stations for FM and 6 stations for MW/LW.

• To store a station: Press and hold one of the number buttons (1 to 6).

• To select a stored station: Press one of the number buttons (1 to 6) (or press one of the number buttons (1 to 6) on the remote control). Direct Access Tuning (for using the remote control) 1 Press DIRECT to enter Direct Access Tuning. 2 Press the number buttons to enter a station frequency. 3 Press ENT IW to search for a station.

• To cancel, press or DIRECT.

• If no operation is done for 10 seconds after step 2, Direct Access Tuning is automatically canceled. JS_KWD_KMM_BT356_EN_EN.indd 8JS_KWD_KMM_BT356_EN_EN.indd 8 6/21/2019 4:01:19 PM6/21/2019 4:01:19 PMENGLISH

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) [TI] [ON]: Allows the unit to temporarily switch to Traffic Information if available (“TI” indicator lights up) while listening to all sources except in MW/LW. ; [OFF]: Cancels. [PTY SEARCH]

Turn the volume knob to select the available Program Type (see the following “Available Program Type for [PTY SEARCH]”), then press the knob.

to start searching. [CLOCK] [TIME SYNC] [ON]: Synchronizes the unit’s time to the Radio Data System station time. ; [OFF]: Cancels.

selectable only when the band is FM1/FM2/FM3.

• If the volume is adjusted during reception of traffic information or news bulletin, the adjusted volume is memorized automatically. It will be applied the next time traffic information or news bulletin is turned on. Available Program Type for [PTY SEARCH] [SPEECH]

[POP M] (music), [ROCK M] (music), [EASY M] (music), [LIGHT M] (music), [CLASSICS]

[OTHER M] (music), [JAZZ]

[NATION M] (music), [OLDIES]

[FOLK M] (music) The unit will search for the Program Type categorized under [SPEECH]

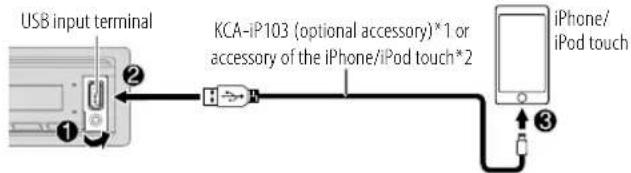

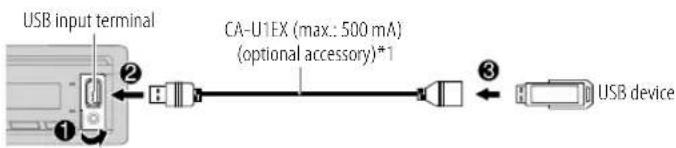

[MUSIC] if selected. Radio USB/iPod Connect a USB device USB input terminal CA-U1EX (max.: 500 mA) (optional accessory)*1 USB device The source changes to USB automatically and playback starts. Connect an iPod/iPhone USB input terminal KCA-iP103 (optional accessory)*2 or accessory of the iPod/iPhone*1 iPod/ iPhone The source changes to iPod USB automatically and playback starts.

• You can also connect iPod/iPhone via Bluetooth. (Page16) *1 Do not leave the cable inside the car when not in use. *2 KCA-iP103: Lightning type JS_KWD_KMM_BT356_EN_EN.indd 9JS_KWD_KMM_BT356_EN_EN.indd 9 6/21/2019 4:01:20 PM6/21/2019 4:01:20 PM10 ENGLISH Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) USB/iPod To On the faceplate On the remote control Play back/pause Press 6 IW. Press ENT IW. Reverse/Fast-forward Press and hold S / T. Press and hold S / T (+). Select a file Press S / T. Press S / T (+). Select a folder*1 Press 2 / 1 . Press #FM+/ AM–. Repeat play*2 Press 4 repeatedly. [FILE REPEAT]

[REPEAT OFF] : iPod Random play*2 Press 3 repeatedly. [FOLDERRANDOM]

[SHUFFLE OFF] : iPod Press and hold 3 to select [ALL RANDOM] *1. *1 This does not work for iPod. *2 For iPod: Applicable only when [MODE OFF] is selected. Select music drive While in USB source, press 5 repeatedly. Stored songs in the following drive will be played back.

• Selected internal or external memory of a smartphone (Mass Storage Class).

• Selected drive of a multiple drive device. You can also select the music drive from the [FUNCTION] menu. 1 Press the volume knob to enter [FUNCTION]

[DRIVE 4] ) is selected automatically and playback starts. 5 Repeat step 1 to step 4 to select the following drives. 6 Press and hold to exit. To return to the previous setting item, press

Select control mode While in iPod USB source (or iPodBT source), press 5 repeatedly. [MODE ON] : Control iPod/iPhone using the iPod/iPhone itself. However, you can still perform play/pause, file skip, fast-forward or fast-reverse from this unit. [MODE OFF] : Control iPod/iPhone from this unit. Direct Music Search (for using the remote control) 1 Press DIRECT. 2 Press the number buttons to enter a file number. 3 Press ENT IW to search for music. JS_KWD_KMM_BT356_EN_EN.indd 10JS_KWD_KMM_BT356_EN_EN.indd 10 6/21/2019 4:01:20 PM6/21/2019 4:01:20 PMENGLISH

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) 4 Turn the volume knob to select a file, then press the knob. Selected file starts playing. [SKIP SEARCH] setting 1 Press the volume knob to enter [FUNCTION]

[10%] The skip search ratio is shown as a percentage of the total files. 5 Press and hold to exit. Alphabet search (applicable only for iPod USB source and iPod BT source) You can search for a file according to the first character.

• For iPod, applicable only when [MODE OFF] is selected. (Page 10) 1 Press . 2 Turn the volume knob to select a list, then press the knob. 3 Turn the volume knob quickly to enter character search. 4 Turn the volume knob to select the character.

” to search for a character other than A to Z, 0 to 9. 5 Press S / T to move to the entry position.

• You can enter up to 3 characters. 6 Press the volume knob to start searching. 7 Turn the volume knob to select a file, then press the knob. Selected file starts playing.

• Not available if Random Play is selected.

• Not applicable for iPod USB. Select a file to play From a folder or list

• For iPod, applicable only when [MODE OFF] is selected. (Page 10) 1 Press . 2 Turn the volume knob to select a folder/list, then press the knob. 3 Turn the volume knob to select a file, then press the knob. Selected file starts playing. Quick search (applicable only for USB source) If you have many files, you can search through them quickly. 1 Press . 2 Turn the volume knob to select a folder/list, then press the knob. 3 Turn the volume knob quickly to browse through the list quickly. 4 Turn the volume knob to select a file, then press the knob. Selected file starts playing. Skip search (applicable only for iPod USB source and iPodBT source) If you have many files in the selected list, you can perform the following to search for a file by skipping through the list at a rate selected in [SKIP SEARCH]

• For iPod, applicable only when [MODE OFF] is selected. (Page 10) 1 Press . 2 Turn the volume knob to select a list, then press the knob. 3 Press S / T to search at a preset skip search ratio.

• Pressing and holding S / T searches at a 10% ratio irregardless of the [SKIP SEARCH] settings. JS_KWD_KMM_BT356_EN_EN.indd 11JS_KWD_KMM_BT356_EN_EN.indd 11 6/21/2019 4:01:20 PM6/21/2019 4:01:20 PM12 ENGLISH Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Spotify You can listen to Spotify on iPhone/iPod touch (via Bluetooth or via USB input terminal) or Android device (via Bluetooth). Preparation:

• Install the latest version of the Spotify application on your device (iPhone/ iPod touch or Android device), then create an account and log in to Spotify.

• Select [ON] for [SPOTIFY SRC]

Start up the Spotify application on your device. 2 Connect your device to the USB input terminal. USB input terminal KCA-iP103 (optional accessory)*1 or accessory of the iPhone/iPod touch*2 iPhone/ iPod touch You can also connect the iPhone/iPod touch or Android device via Bluetooth. (Page 16)

• Make sure the USB input terminal is not connected to any device when you connect via Bluetooth. 3 Press B SRC repeatedly to select SPOTIFY (for iPhone/iPod touch) or SPOTIFY BT (for Android device). Broadcast starts automatically. To On the faceplate On the remote control Play back/pause Press 6 IW. Press ENT IW. Skip a track Press S*3 / T. Press S*3 / T (+). Select thumbs up or thumbs down *4 Press 2 / 1 . Press #FM+/ AM–. Start radio Press and hold 5. Repeat play*5 Press 4 repeatedly. [REPEAT ALL]

[REPEAT ONE] *3, [REPEATOFF] Random play*5 Press 3 repeatedly *3. [SHUFFLE ON]

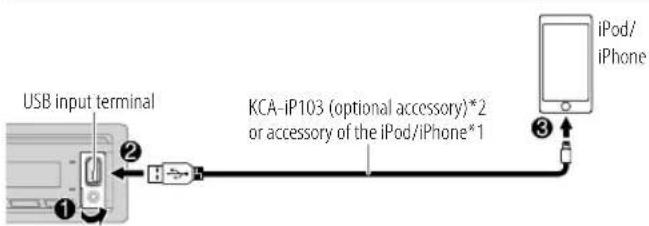

[SHUFFLEOFF] *1 KCA-iP103: Lightning type *2 Do not leave the cable inside the car when not in use. *3 Available for premium account users only. *4 This feature is available for tracks in Radio only. If thumbs down is selected, the current track is skipped. *5 Available for tracks in Playlists only. Save favorite song information While listening to the Radio on Spotify... Press and hold the volume knob. “SAVED” appears and the information is stored to “Your Music” or “Your Library” on your Spotify account. To unsave, repeat the same procedure. “REMOVED” appears and the information is removed from “Your Music” or “Your Library” on your Spotify account. JS_KWD_KMM_BT356_EN_EN.indd 12JS_KWD_KMM_BT356_EN_EN.indd 12 6/21/2019 4:01:20 PM6/21/2019 4:01:20 PMENGLISH

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Spotify Search for a song or station

Press . 2 Turn the volume knob to select a list type, then press the knob. The list types displayed differ depending on the information sent from Spotify. 3 Turn the volume knob (or press J/K on the remote control) to select the desired song or station. 4 Press the volume knob (or press ENT IW on the remote control) to confirm. You can browse through the list quickly by turning the volume knob quickly. To cancel, press and hold

You can listen to music from a portable audio player via the auxiliary input jack. Preparation: Select [ON] for [BUILT-IN AUX]

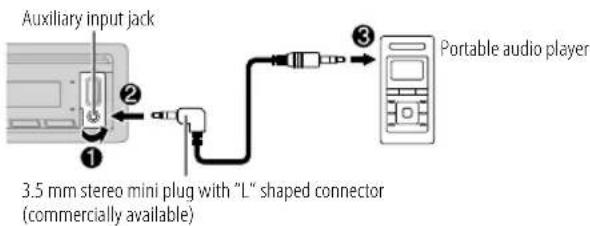

Connect a portable audio player (commercially available). Portable audio player

3.5 mm stereo mini plug with “L” shaped connector

(commercially available) Auxiliary input jack 2 Press B SRC repeatedly to select AUX. 3 Turn on the portable audio player and start playback. Set the name of the external device While listening to a portable audio player connected to the unit... 1 Press the volume knob to enter [FUNCTION]

[TV] 5 Press and hold to exit. To return to the previous setting item, press

AUX JS_KWD_KMM_BT356_EN_EN.indd 13JS_KWD_KMM_BT356_EN_EN.indd 13 6/21/2019 4:01:20 PM6/21/2019 4:01:20 PM14 ENGLISH Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Using Other Applications KENWOOD Remote application You can control the KENWOOD car receiver from iPhone/iPod touch (via Bluetooth or via USB input terminal) or Android device (via Bluetooth) using KENWOOD Remote application.

• For more information, visit <http://www.kenwood.com/cs/ce/>. Preparation: Install the latest version of KENWOOD Remote application on your device before connecting. Start using KENWOOD Remote application

Start up the KENWOOD Remote application on your device. 2 Connect your device.

• For Android device: Pair the Android device with this unit via Bluetooth. (Page 16)

• For iPhone/iPod touch: Connect iPhone/iPod touch to the USB input terminal. (Page 9) (or) Pair the iPhone/iPod touch with this unit via Bluetooth. (Page 16) (Make sure the USB input terminal is not connected to any device.) 3 Select the device to use from the [FUNCTION] menu. See the following “Settings to use KENWOOD Remote application”. By default, [ANDROID] is selected. To use iPhone/iPod touch, select [YES] for [IOS]

• For / , “R.APP” indicator lights up when KENWOOD Remote application is connected. Settings to use KENWOOD Remote application

2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected/activated. 4 Press and hold to exit. To return to the previous setting item, press

Default: [XX] [REMOTE APP] [SELECT] Selects the device ([IOS] or [ANDROID]) to use the application. [IOS] [YES]: Selects iPhone/iPod touch to use the application via Bluetooth or connected via USB input terminal. ; [NO]: Cancels. If [IOS] is selected, select iPod BT source (or iPod USB source if your iPhone/ iPod touch is connected via USB input terminal) to activate the application.

• The connectivity of the application will be interrupted or disconnected if: – You change from iPod BT source to any playback source connected via the USB input terminal. – You change from iPod USB source to iPod BT source. [ANDROID] [YES]: Selects Android device to use the application via Bluetooth. ; [NO]: Cancels. [ANDROID LIST] Selects the Android device to use from the list.

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Using Other Applications [STATUS] Shows the status of the selected device. [IOS CONNECTED]: You are able to use the application using the iPhone/ iPod touch connected via Bluetooth or USB input terminal. [IOS NOT CONNECTED]: No iOS device is connected to use the application. [ANDROID CONNECTED]: You are able to use the application using the Android device connected via Bluetooth. [ANDROID NOT CONNECTED]: No Android device is connected to use the application. TuneIn Radio/TuneIn Radio Pro While listening to TuneIn Radio or TuneIn Radio Pro, connect the iPhone/ iPod touch to the USB input terminal of the unit so that the unit will output the sound from these applications.

• Depending on the Bluetooth version, operating system and the firmware version of your mobile phone, Bluetooth features may not work with this unit.

• Be sure to turn on the Bluetooth function of the device to make the following operations.

• Signal conditions vary depending on the surroundings. Bluetooth — Connection Supported Bluetooth profiles – Hands-Free Profile (HFP) – Advanced Audio Distribution Profile (A2DP) – Audio/Video Remote Control Profile (AVRCP) – Serial Port Profile (SPP) – Phonebook Access Profile (PBAP) Supported Bluetooth codecs – Sub Band Codec (SBC) – Advanced Audio Coding (AAC) Connect the microphone Adjust the microphone angle Secure using cord clamps (not supplied) if necessary. Microphone input jack Microphone (supplied) Rear panel Bluetooth® JS_KWD_KMM_BT356_EN_EN.indd 15JS_KWD_KMM_BT356_EN_EN.indd 15 6/21/2019 4:01:20 PM6/21/2019 4:01:20 PM16 ENGLISH Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Pair and connect a Bluetooth device for the first time

Press B SRC to turn on the unit. 2 Search and select the name of your receiver (“KMM-BT356”/ “KMM-BT306”/“KMM-BT206”) on the Bluetooth device. “PAIRING” “PASS XXXXXX” “Device name” “PRESS” “VOLUME KNOB” appears on the display.

• For some Bluetooth devices, you may need to enter the Personal Identification Number (PIN) code immediately after searching. 3 Press the volume knob to start pairing. “PAIRING OK” appears when pairing is completed. Once pairing is completed, Bluetooth connection is established automatically.

/ : “BT1” and/or “BT2” indicator on the faceplate lights up.

” indicator lights up to show the strength of the battery and signal of the connected device.

: “BT1” and/or “BT2” indicator on the display window lights up.

• This unit supports Secure Simple Pairing (SSP).

• Up to five devices can be registered (paired) in total.

• Once the pairing is completed, the Bluetooth device will remain registered in the unit even if you reset the unit. To delete the paired device, see [DEVICE DELETE] on page19.

• A maximum of two Bluetooth phones and one Bluetooth audio device can be connected at any time. To connect or disconnect the registered device, see [PHONE SELECT]

[BT MODE] . (Page 19) However, while in BT AUDIO source, you can connect to five Bluetooth audio devices and switch between these five devices. (Page20)

• Some Bluetooth devices may not automatically connect to the unit after pairing. Connect the device to the unit manually.

• Refer to the instruction manual of the Bluetooth device for more information. Auto Pairing When you connect iPhone/iPod touch to the USB input terminal, pairing request (via Bluetooth) is automatically activated if [AUTO PAIRING] is set to [ON] . (Page 19) Press the volume knob to pair once you have confirmed the device name. Bluetooth — Mobile phone Receive a call When there is an incoming call:

[ZONE 2] illuminates in green color and flashes.

• The unit answers the call automatically if [AUTO ANSWER] is set to a selected time. (Page17) During a call:

[ZONE 1] illuminates according to the settings made for [DISPLAY] (page28) and [ZONE 2] illuminates in green color.

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) The following operations may differ or be unavailable depending on the connected phone. To On the faceplate On the remote control First incoming call... Answer a call Press or the volume knob or one of the number buttons (1 to 6). Press

While talking on the first incoming call... Answer another incoming call and hold the current call Press . Press . Reject another incoming call Press

While having two active calls... End current call and activate held call Press

Swap between the current call and held call Press . Press . Adjust the phone volume*1 [00]

Turn the volume knob during a call. Press VOL *2 or VOL during a call. Switch between hands- free and private talk modes*3 Press 6 IW during a call. ( Not available ) Bluetooth® *1 This adjustment will not affect the volume of the other sources. *2 Press and hold VOL to continuously increase the volume to 15. *3 Operations may vary according to the connected Bluetooth device. Improve the voice quality While talking on the phone... 1 Press the volume knob to enter [FUNCTION]

2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected or activated. 4 Press and hold to exit. To return to the previous setting item, press

Default: [XX] [MIC GAIN] [LEVEL –10] to [LEVEL +10] ([LEVEL –4]): The sensitivity of the microphone increases as the number increases. [NR LEVEL] [LEVEL –5] to [LEVEL +5] ([LEVEL 0]): Adjust the noise reduction level until the least noise is being heard during a phone conversation. [ECHO CANCEL] [LEVEL –5] to [LEVEL +5] ([LEVEL 0]): Adjust the echo cancellation delay time until the least echo is being heard during a phone conversation. Make the setting for answering a call

[30] , or select [OFF] to cancels. (Default: [OFF]

5 Press and hold to exit. To return to the previous setting item, press

JS_KWD_KMM_BT356_EN_EN.indd 17JS_KWD_KMM_BT356_EN_EN.indd 17 6/21/2019 4:01:20 PM6/21/2019 4:01:20 PM18 ENGLISH Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Make a call You can make a call from the call history, phonebook, or dialing the number. Call by voice is also possible if your mobile phone has the feature. 1 Press to enter Bluetooth mode. “(First device name)” appears.

• If two Bluetooth phones are connected, press again to switch to the other phone. “(Second device name)” appears. 2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item. 4 Press and hold to exit. To return to the previous setting item, press

[CALL HISTORY] (Applicable only if the phone supports PBAP.)

• “I” indicates call received, “O“ indicates call made, “M” indicates call missed.

• Press DISP to change the display category (NUMBER or NAME).

• “NO DATA” appears if there is no recorded call history or call number.

Press the volume knob to call. Bluetooth® [PHONE BOOK] (Applicable only if the phone supports PBAP.)

Turn the volume knob quickly to enter alphabet search mode (if the phonebook contains many contacts). The first menu (ABCDEFGHIJK) appears.

, then press the knob. Select “1” to search with numbers and select “ ” to search with symbols.

• For using phonebook with this unit, make sure to allow access to or transfer from your smartphone. Depending on the connected phone, the process may be different.

• Contacts are categorized as: HM (home), OF (office), MO (mobile), OT (other), GE (general)

• This unit can display only non-accent letters. (Accent letters such as “Ú” are shown as “U”.) [NUMBER DIAL]

Turn the volume knob to select a number (0 to 9) or character ( , #, +).

to move the entry position. Repeat step 1 and step 2 until you finish entering the phone number.

Press the volume knob to call. (or using the remote control)

Press the number buttons (0 to 9) to enter the phone number.

Press to call. [VOICE] Speak the name of the contact you want to call or the voice command to control the phone functions. (See also “Make a call using voice recognition” on page 19.) [LOW]/[MID]/[FULL]: Shows the strength of the battery.* [NO SIGNAL]/[LOW]/[MID]/[MAX]: Shows the strength of the current received signal.*

• Functionality depends on the type of the phone used. JS_KWD_KMM_BT356_EN_EN.indd 18JS_KWD_KMM_BT356_EN_EN.indd 18 6/21/2019 4:01:20 PM6/21/2019 4:01:20 PMENGLISH

Press and hold to activate the voice recognition of the connected phone. 2 Speak the name of the contact you want to call or the voice command to control the phone functions.

• Supported Voice Recognition features vary for each phone. Refer to the instruction manual of the connected phone for details. Store a contact in memory You can store up to 6 contacts into the number buttons (1 to 6). 1 Press to enter Bluetooth mode. 2 Turn the volume knob to select [CALL HISTORY]

[NUMBERDIAL] , then press the knob. 3 Turn the volume knob to select a contact or enter a phone number. If a contact is selected, press the volume knob to show the phone number. 4 Press and hold one of the number buttons (1 to 6). “STORED” appears when the contact is stored. To erase a contact from the preset memory, select [NUMBER DIAL] in step 2, store a blank number in step 3 and proceed to step 4. Make a call to a registered number

Press to enter Bluetooth mode. 2 Press one of the number buttons (1 to 6). 3 Press the volume knob to call. “NO MEMORY” appears if there is no contact stored. Bluetooth mode settings

2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item. 4 Press and hold to exit. To return to the previous setting item, press

Default: [XX] [BT MODE] [PHONE SELECT] Selects the phone or audio device to connect or disconnect.

” appears in front of the device name when connected.

” appears in front of the current playback audio device.

• You can connect a maximum of two Bluetooth phones and one Bluetooth audio device at a time. [AUDIO SELECT] [DEVICE DELETE]

Turn the volume knob to select a device to delete, then press the knob.

to move the entry position. Repeat step 1 and step 2 until you finish entering the PIN code.

Press the volume knob to confirm. [RECONNECT] [ON]: The unit is automatically reconnect when the last connected Bluetooth device is within the connectable range. ; [OFF]: Cancels. [AUTO PAIRING] [ON]: The unit is automatically paired with the supported Bluetooth device (iPhone/iPod touch) when it is connected through USB input terminal. Depending on the operating system of the connected device, this function may not work. ; [OFF]: Cancels. JS_KWD_KMM_BT356_EN_EN.indd 19JS_KWD_KMM_BT356_EN_EN.indd 19 6/21/2019 4:01:20 PM6/21/2019 4:01:20 PM20 ENGLISH Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) [INITIALIZE] [YES]: Initializes all the Bluetooth settings (including stored pairing, phonebook, and etc.). ; [NO]: Cancels. Bluetooth test mode You can check the connectivity of the supported profile between the Bluetooth device and the unit.

• Make sure there is no Bluetooth device paired. 1 Press and hold . “PLEASE PAIR YOUR PHONE PIN 0000” appears on the display. 2 Search and select the name of your receiver (“KMM-BT356”/ “KMM-BT306”/“KMM-BT206”) on the Bluetooth device. 3 Operate the Bluetooth device to confirm pairing. “TESTING” flashes on the display. The connectivity result (OK or NG) appears after the test. PAIRING: Pairing status HF CNT: Hands-Free Profile (HFP) compatibility AUD CNT: Advanced Audio Distribution Profile (A2DP) compatibility PB DL: Phonebook Access profile (PBAP) compatibility To cancel test mode, press and hold B SRC to turn off the unit. Bluetooth® Bluetooth — Audio While in BT AUDIO source, you can connect to five Bluetooth audio devices and switch between these five devices. Listen to the audio player via Bluetooth

Press B SRC repeatedly (or press SRC on the remote control) to select BTAUDIO.

• For : Pressing enters BT AUDIO directly. 2 Operate the audio player via Bluetooth to start playback. To On the faceplate On the remote control Play back/pause Press 6 IW. Press ENT IW. Select group or folder Press 2 / 1 . Press #FM+/ AM–. Reverse skip/ Forward skip Press S / T. Press S / T (+). Reverse/Fast-forward Press and hold S / T. Press and hold S / T (+). JS_KWD_KMM_BT356_EN_EN.indd 20JS_KWD_KMM_BT356_EN_EN.indd 20 6/21/2019 4:01:21 PM6/21/2019 4:01:21 PMENGLISH

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Bluetooth® To On the faceplate Repeat play Press 4 repeatedly. [ALLREPEAT]

[REPEATOFF] Random play Press and hold 3 to select [ALLRANDOM]

Press 3 to select [RANDOMOFF]. Select a file from a folder/list Refer to “Select a file to play” on page11. Switch between connected Bluetooth audio devices Press 5. (Pressing the “Play” key on the connected device itself also causes switching of sound output from the device.)

• Depending on the connected device, some devices may not support this feature. Operations and display indications may differ according to their availability on the connected device. Listen to iPod/iPhone via Bluetooth You can listen to the songs on the iPod/iPhone via Bluetooth on this unit. Press B SRC repeatedly to select iPodBT.

• You can operate the iPod/iPhone in the same way as iPod/iPhone via USB input terminal. (Page9)

• If you plug in an iPod/iPhone to the USB input terminal while listening to iPodBT source, the source automatically changes to iPodUSB source. Press B SRC to select iPodBT source if the device is still connected via Bluetooth. AMAZON ALEXA (for / ) Alexa is the cloud-based voice service developed by Amazon. You can ask Alexa to play music, get weather reports, traffic information, control smart home devices, shop on Amazon, search the internet, set reminders and more. Preparation:

• Create an account at <www.amazon.com>.

• Install the latest version of the Alexa mobile application on your device (iPhone/iPod touch or Android device), then log in to the application.

• Be sure to enable the internet connection on your smartphone. Setup for the first time For Android device 1 Pair your device with this unit via Bluetooth. (Page 16) 2 Start up the Alexa mobile application on your device. 3 Pair this unit to Alexa mobile application. Perform Option A or Option B. For iPhone/iPod touch 1 Pair your device with this unit via Bluetooth. (Page 16) 2 Start up the Alexa mobile application on your device. 3 Press on the unit to enter ALEXA source.

• You may also press B SRC repeatedly to select iPod BT source. 4 Pair this unit to Alexa mobile application. Perform Option A or Option B. Option A: Direct Link Access the following URL or scan the QR code with your smartphone: https://www.kenwood.com/car/alexa Option B: Manual Pairing 1 Start up the Alexa mobile application and go to the “Devices” tab. 2 Tap the “ + ” icon at the top right corner. JS_KWD_KMM_BT356_EN_EN.indd 21JS_KWD_KMM_BT356_EN_EN.indd 21 10/21/2019 11:58:53 AM10/21/2019 11:58:53 AM22 ENGLISH Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) 3 Tap “Add Device”. 4 Tap “Automotive Accessory” or “Headphones” from the list of device types. 5 Tap the name of your receiver (“KMM-BT306”/“KMM-BT206”) and follow the instructions. Once the setup process is completed, the Alexa mobile application will establish a connection with this unit.

• The Alexa connection can be disconnected if: – A2DP profile is disconnected – Bluetooth is disconnected – This unit is turned off – Any other conditions depending on the connected device. To establish Alexa connection again, reconnect the A2DP profile.

• Alexa connection cannot be established again if you: – Reinstall Alexa mobile application – Delete the paired device and perform pairing again (for Android device) To establish Alexa connection again, perform the setup process again.

• You can check the Alexa connection from the Alexa mobile application. If the name of this unit appears on the screen of “ALL DEVICES”, you do not need to perform setup process again. Basic operations Once Alexa connection is established... 1 Press on the unit to speak with Alexa. The display shows: “ALEXA” “LISTENING...”. 2 Communicate with Alexa via the connected microphone. (Page15) “THINKING...” appears when Alexa is processing your voice input. “SPEAKING...” appears while Alexa is responding to your voice input. “ALEXA” or display information such as playing time, song title, etc. appears while Alexa is in idle state.

• To return to the previous source before ALEXA, press B SRC (or press SRC on the remote control).

• To cancel current thinking/speaking states and go to listening state, press

• Only one Alexa connection can be connected at one time.

• “DISCONNECTED” appears if the unit is disconnected from Alexa mobile application or the Bluetooth connection is disconnected. Start listening While in Alexa idle state... 1 Press on the unit to activate Alexa. The display shows: “LISTENING...”. 2 Communicate with Alexa via the connected microphone. (Page15) 3 During music playback in ALEXA source, you can perform the following operations: To On the faceplate On the remote control Play back/pause Press 6 IW. Press ENT IW. Reverse skip/Forward skip Press S / T. Press S / T (+). During music playback, press to pause the music and activate Alexa. You can now start to communicate with Alexa. AMAZON ALEXA (for / ) JS_KWD_KMM_BT356_EN_EN.indd 22JS_KWD_KMM_BT356_EN_EN.indd 22 10/21/2019 11:59:14 AM10/21/2019 11:59:14 AMENGLISH

2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected or activated. 4 Press and hold to exit. (or using the remote control) 1 Press AUD to enter [AUDIO CONTROL]

Default: [XX] [AUDIO CONTROL] [SUB-W LEVEL] [LEVEL –50] to [LEVEL +10] ([LEVEL 0]): Adjusts the subwoofer output level. [EASYEQ] Adjusts your own sound settings.

• The settings are stored to [USER] in [PRESET EQ].

• The settings made may affect the current settings of [MANUAL EQ]. [SW]: [LEVEL –50] to [LEVEL +10] (Default: [LEVEL 0] [BASS]: [LEVEL –9] to [LEVEL +9] [LEVEL 0] [MID]: [LEVEL –9] to [LEVEL +9] [LEVEL 0] [TRE]: [LEVEL –9] to [LEVEL +9] [LEVEL 0]) [MANUAL EQ] Adjusts your own sound settings for each source.

• The settings are stored to [USER] in [PRESET EQ].

• The settings made may affect the current settings of [EASYEQ]. [62.5HZ] [LEVEL] [LEVEL–9] to [LEVEL+9] ([LEVEL0]): Adjusts the level to memorize for each source. (Before making an adjustment, select the source you want to adjust.) [BASS EXTEND] [ON]: Turns on the extended bass. ; [OFF]: Cancels. [100HZ]/[160HZ]/ [250HZ]/[400HZ]/ [630HZ]/[1KHZ]/ [1.6KHZ]/[2.5KHZ]/ [4KHZ]/[6.3KHZ]/ [10KHZ]/[16KHZ] [LEVEL –9] to [LEVEL +9] ([LEVEL 0]): Adjusts the level to memorize for each source. (Before making an adjustment, select the source you want to adjust.) [Q FACTOR] [1.35]/[1.50]/[2.00]: Adjusts the quality factor. [PRESET EQ] [NATURAL]/[ROCK]/[POPS]/[EASY]/[TOP40]/[JAZZ]/[POWERFUL]/ [USER]: Selects a preset equalizer suitable to the music genre.

• When the display demonstration is activated ([ON] is selected initially, page 28), [ROCK] is automatically selected as the [PRESETEQ]. – If you set [DEMO MODE] to [OFF] (page 28), [NATURAL] is selected as the default setting for [PRESET EQ]. (Select [USER] to use the settings made in [EASY EQ] or [MANUAL EQ].) [BASS BOOST] [LV1] to [LV5]: Selects your preferred bass boost level. ; [OFF]: Cancels. [LOUDNESS] [LV1]/[LV2]: Selects your preferred low or high frequencies boost to produce a well-balanced sound at low volume. ; [OFF]: Cancels. [SUBWOOFER SET] [ON]: Turns on the subwoofer output. ; [OFF]: Cancels. [FADER] (Not applicable if 3-way crossover is selected.) [R15] to [F15] ([0]): Adjusts the front and rear speaker output balance. JS_KWD_KMM_BT356_EN_EN.indd 23JS_KWD_KMM_BT356_EN_EN.indd 23 6/21/2019 4:01:21 PM6/21/2019 4:01:21 PM24 ENGLISH Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Audio Settings [BALANCE] [L15] to [R15] ([0]): Adjusts the left and right speaker output balance. [VOLUME OFFSET] [–15] to [+6] ([0]): Presets the initial volume level of each source by comparing to the FM volume level. (Before adjustment, select the source you want to adjust.) [SOUND EFFECT] [SOUNDRECNSTR] (Sound reconstruction) (Not applicable for RADIO source and AUX source.) [ON]: Creates realistic sound by compensating the high-frequency components and restoring the rise-time of the waveform that are lost in audio data compression. ; [OFF]: Cancels. [SPACE ENHANCE] (Not applicable for RADIO source.) [SML]/[MED]/[LRG]: Virtually enhances the sound space. ; [OFF]: Cancels. [SND REALIZER] [LV1]/[LV2]/[LV3]: Virtually makes the sound more realistic. ; [OFF]: Cancels. [STAGE EQ] [LOW]/[MID]/[HI]: Virtually adjusts the sound position heard from the speakers. ; [OFF]: Cancels. [DRIVE EQ] [ON]: Boosts the frequency to reduce the noise heard from outside the car or running noise of the tyres. ; [OFF]: Cancels. [SPEAKER SIZE] Depending on the crossover type you have selected (see “Change the crossover type” on page 7), 2-way crossover or 3-way crossover setting items will be shown. (See the following “Crossover settings”.) By default, 2-way crossover type is selected. [X ‘ OVER] [DTA SETTINGS] For settings, see “Digital Time Alignment settings” on page 26. [CAR SETTINGS]

• : For 2-way crossover: [SUB-W LEVEL]

selectable only if [SWITCH PREOUT] is set to [SUB-W] . (Page 6)

[SUB-W LEVEL] is selectable only when [SUBWOOFER SET] is set to [ON]

(Page23) Crossover settings Below are the available setting items for 2-way crossover and 3-way crossover. SPEAKER SIZE Selects according to the connected speaker size for optimum performance.

• The frequency and slope settings are automatically set for the crossover of the selected speaker.

• If [NONE] is selected for the following speaker in [SPEAKER SIZE] , the [X ‘ OVER] setting of the selected speaker is not available. – 2-way crossover: [TWEETER]

[SUBWOOFER] – 3-way crossover: [WOOFER] X ‘ OVER (crossover)

[LPFFRQ] : Adjusts the crossover frequency for the selected speakers (high pass filter or low pass filter).

[THROUGH] is selected, all signals are sent to the selected speakers.

Adjusts the crossover slope. Selectable only if a setting other than [THROUGH] is selected for the crossover frequency.

[PHASE] : Selects the phase of the speaker output to be in line with the other speaker output.

[GAIN LEFT] [–8] to [0] [GAIN RIGHT] [–8] to [0]

[FRONT HPF] [F-HPF FRQ]

[F-HPF SLOPE] [–6DB]/[–12DB]/[–18DB]/[–24DB] [F-HPF GAIN] [–8] to [0]

[–8] to [0] 3-way crossover setting items [SPEAKER SIZE] [TWEETER]

[30HZ]/[40HZ]/[50HZ]/[60HZ]/[70HZ]/[80HZ]/[90HZ]/ [100HZ]/[120HZ]/[150HZ]/[180HZ]/[220HZ]/[250HZ]/ [THROUGH] [SLOPE] [–6DB]/[–12DB] [PHASE] [REVERSE] (180°)/[NORMAL] (0°) [GAIN] [–8] to [0] *1 For : Selectable only when [SWITCH PREOUT] is set to [SUB-W]. (Page 6) *2 Selectable only when [SUBWOOFERSET] is set to [ON]. (Page 23) Digital Time Alignment settings Digital Time Alignment sets the delay time of the speaker output to create a more suitable environment for your vehicle.

• For more information, see “Determining the delay time automatically” on page 27. [DTA SETTINGS] [POSITION] Selects your listening position (reference point). [ALL]: Not compensating ; [FRONT RIGHT]: Front right seat ; [FRONT LEFT]: Front left seat ; [FRONT ALL]: Front seats

• [FRONT ALL] is displayed only when [2-WAY X’OVER] is selected. (Page 7) [DISTANCE] [0CM] to [610CM]: Fine adjust the distance to compensate. (Before making an adjustment, select the speaker you want to adjust.) [GAIN] [–8DB] to [0DB]: Fine adjust the output volume of the selected speaker. (Before making an adjustment, select the speaker you want to adjust.) [DTA RESET] [YES]: Resets the settings ([DISTANCE] and [GAIN]) of the selected [POSITION] to default. ; [NO]: Cancels. [CAR SETTINGS] Identify your car type and rear speaker location in order to make the adjustment for [DTA SETTINGS]. [CAR TYPE] [COMPACT]/[FULL SIZE CAR]/[WAGON]/[MINIVAN]/[SUV]/ [MINIVAN(LONG)]: Selects the type of vehicle. ; [OFF]: Not compensating. [R-SP LOCATION] Selects the location of the rear speakers in your vehicle to calculate the furthest distance from the listening position selected (reference point).

• [DOOR]/[REAR DECK]: Selectable only when [CAR TYPE] is selected as [OFF], [COMPACT], [FULL SIZE CAR], [WAGON] or [SUV].

• [2ND ROW]/[3RD ROW]: Selectable only when [CAR TYPE] is selected as [MINIVAN] or [MINIVAN(LONG)].

• Before making an adjustment for [DISTANCE] and [GAIN]

select the speaker you want to adjust: When 2-way crossover is selected: [FRONT LEFT]

[SUBWOOFER] – You can only select [REAR LEFT]

[REAR RIGHT] and [SUBWOOFER] if a setting other than [NONE] is selected for [REAR] and [SUBWOOFER]

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Audio Settings When 3-way crossover is selected: [TWEETER LEFT]

[WOOFER] – You can only select [WOOFER] if a setting other than [NONE] is selected for [WOOFER]

[CAR SETTINGS] is selectable only if: – 2-way crossover is selected. (Page7) – A setting other than [NONE] is selected for [REAR]

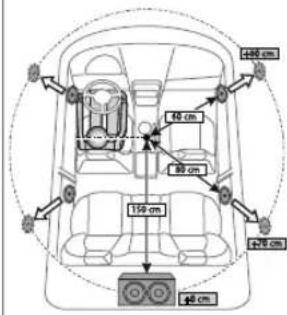

(Page25) Determining the delay time automatically If you specify the distance from the currently set listening position to every speaker, the delay time will be automatically calculated.

Set [POSITION] and determine the listening position as the reference point (the reference point for [FRONT ALL] will be the center between the right and left in the front seats).

Measure the distances from the reference point to the speakers.

Calculate the distance between the furthest speaker (subwoofer on the illustration) and other speakers.

Sets the [DISTANCE] calculated in step 3 for individual speakers.

Adjusts [GAIN] for individual speakers. Example: When [FRONT ALL] is selected as the listening position. Display Settings Zone identification for color settings and brightness settings Zone identification for brightness setting Set the dimmer Press and hold DISP to turn on or off the dimmer.

2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item. 4 Press and hold to exit. To return to the previous setting item, press

Default: [XX] [DISPLAY] [COLOR SELECT] (For / ) Selects illumination colors for [ALL ZONE], [ZONE 1] and [ZONE 2] separately.

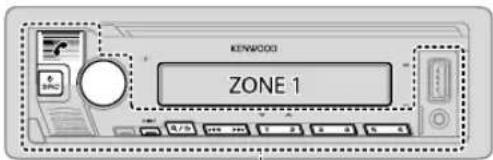

Select a zone. (See the illustration on page 27.)

Select a preset color for the selected zone. Default: [VARIABLE SCAN] To make your own color, select [CUSTOM R/G/B]. The color you have made will be stored in [CUSTOM R/G/B].

Press the volume knob to enter the detailed color adjustment.

to select the color ([R]/[G]/[B]) to adjust.

Turn the volume knob to adjust the level ([0] to [9]), then press the knob. [DIMMER] Dims the illumination. [ON]: Dimmer is turned on. [OFF]: Dimmer is turned off. [DIMMER TIME]: Set the time to turn on dimmer and to turn off dimmer.

[DAY]/[NIGHT]: Select day or night.

Select a zone. (See the illustration on page 27.)

[LVL00] to [LVL31]: Set the brightness level. [TEXT SCROLL] [ONCE]: Scrolls the display information once. ; [AUTO]: Repeats scrolling at 5-second intervals. ; [OFF]: Cancels. [LEVEL METER] (For / ) [ON]: Shows the level meter on the display window (as shown below). ; [OFF]: Cancels. Level meter [CLOCK] [CLOCK DISPLAY] [ON]: The clock time is shown on the display even when the unit is turned off. ; [OFF]: Cancels. [DEMO MODE] [ON]: Activates the display demonstration automatically if no operation is done for about 15 seconds. ; [OFF]: Deactivates. Preset color: [INITIAL COLOR]

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) This section is for the professional installer. For safety’s sake, leave wiring and mounting to professionals. Consult the car audio dealer. WARNING

• The unit can only be used with a 12V DC power supply, negative ground.

• Disconnect the battery’s negative terminal before wiring and mounting.

• Do not connect Battery wire (yellow) and Ignition wire (red) to the car chassis or Ground wire (black) to prevent a short circuit.

• To prevent short circuit: – Insulate unconnected wires with vinyl tape. – Be sure to ground this unit to the car’s chassis again after installation. – Secure the wires with cable clamps and wrap vinyl tape around the wires that comes into contact with metal parts to protect the wires. CAUTION

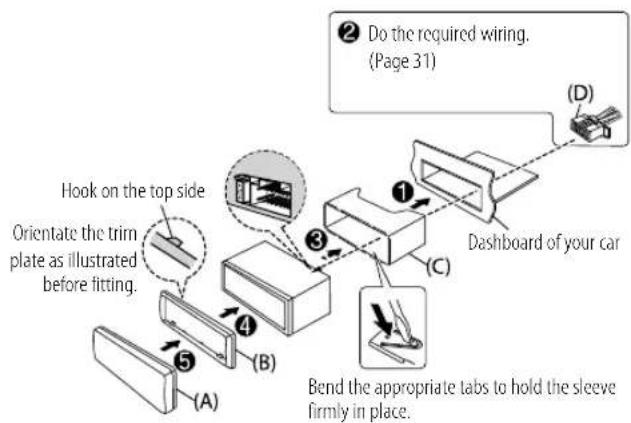

• Install this unit in the console of your vehicle. Do not touch the metal parts of this unit during and shortly after use of the unit. Metal parts such as the heat sink and enclosure become hot.

• Do not connect the wires of speakers to the car chassis or Ground wire (black), or connect them in parallel.

• Mount the unit at an angle of less than 30°.

• If your vehicle wiring harness does not have the ignition terminal, connect Ignition wire (red) to the terminal on the vehicle’s fuse box which provides 12 V DC power supply and is turned on and off by the ignition key.

• Keep all cables away from heat dissipate metal parts.

• After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly.

• If the fuse blows, first make sure the wires are not touching car’s chassis, then replace the old fuse with one that has the same rating. Installation/Connection Part list for installation (A) Faceplate (×1) (B) Trim plate (×1) (C) Mounting sleeve (×1) (D) Wiring harness (×1) (E) Extraction key (×2) Basic procedure 1 Remove the key from the ignition switch, then disconnect the terminal of the car battery. 2 Connect the wires properly. See “Wiring connection” on page31. 3 Install the unit to your car. See “Installing the unit (in-dash mounting)” on page 30. 4 Connect the terminal of the car battery. 5 Press B SRC to turn on the power. 6 Detach the faceplate and reset the unit within 5 seconds. (Page4) JS_KWD_KMM_BT356_EN_EN.indd 29JS_KWD_KMM_BT356_EN_EN.indd 29 6/21/2019 4:01:21 PM6/21/2019 4:01:21 PM30 ENGLISH Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Installing the unit (in-dash mounting) Installation/Connection Removing the unit 1 Detach the faceplate. 2 Remove the trim plate. 3 Insert the extraction keys deeply into the slots on each side, then follow the arrows as shown on the illustration. Do the required wiring. (Page 31) Bend the appropriate tabs to hold the sleeve firmly in place. Hook on the top side Orientate the trim plate as illustrated before fitting. Dashboard of your car JS_KWD_KMM_BT356_EN_EN.indd 30JS_KWD_KMM_BT356_EN_EN.indd 30 6/21/2019 4:01:22 PM6/21/2019 4:01:22 PMENGLISH

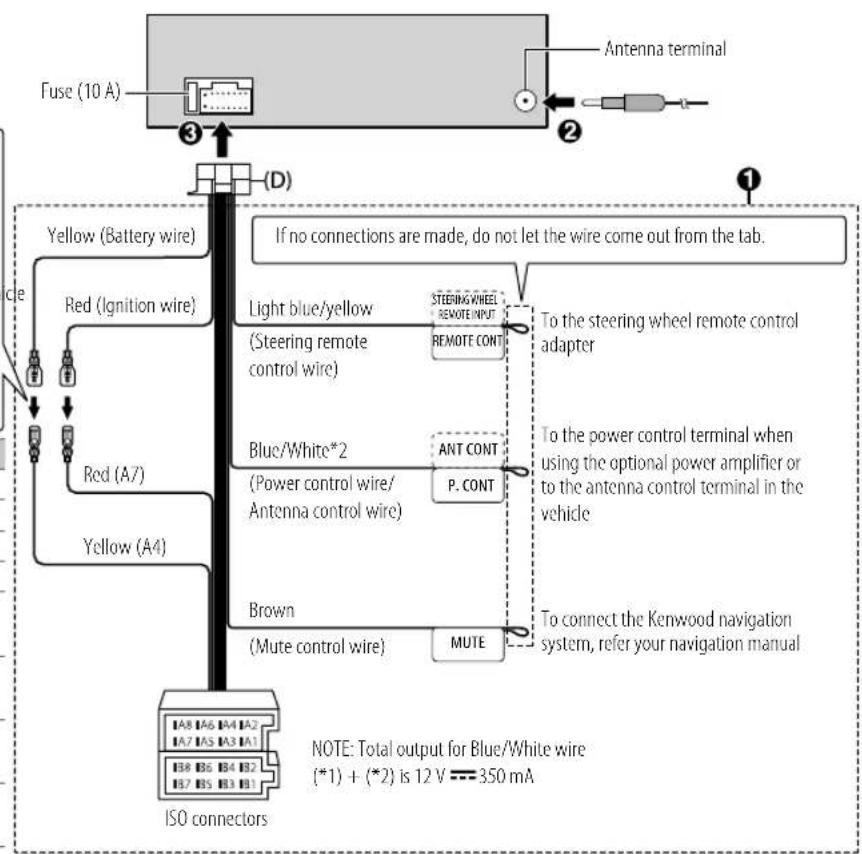

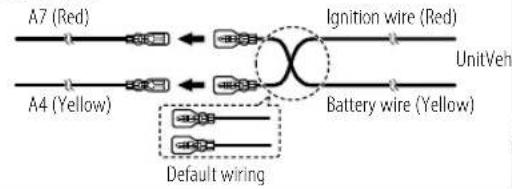

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Wiring connection Installation/Connection REMOTE CONT

: Rear speaker (right) For 3-way crossover: Tweeter (right)

: Front speaker (right) For 3-way crossover: Mid range speaker (right)

: Front speaker (left) For 3-way crossover: Mid range speaker (left)

: Rear speaker (left) For 3-way crossover: Tweeter (left)

Fuse (10 A) Antenna terminal Blue/White*2 (Power control wire/ Antenna control wire) Light blue/yellow (Steering remote control wire) To the power control terminal when using the optional power amplifier or to the antenna control terminal in the vehicle Brown (Mute control wire) To connect the Kenwood navigation system, refer your navigation manual If no connections are made, do not let the wire come out from the tab. To the steering wheel remote control adapter If your car does not have an ISO terminal: We recommend installing the unit with a commercially available custom wiring harness specific for your car and leave this job to professionals for your safety. Consult your car audio dealer. Connecting the ISO connectors on some VW/Audi or Opel (Vauxhall) automobiles You may need to modify the wiring of the supplied wiring harness as illustrated below. UnitVehicle A7 (Red) Ignition wire (Red) A4 (Yellow) Default wiring Battery wire (Yellow) Yellow (A4) Red (Ignition wire) Red (A7) Yellow (Battery wire) ISO connectors NOTE: Total output for Blue/White wire (*1) + (*2) is 12 V 350 mA JS_KWD_KMM_BT356_EN_EN.indd 31JS_KWD_KMM_BT356_EN_EN.indd 31 6/21/2019 4:01:22 PM6/21/2019 4:01:22 PM32 ENGLISH Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Installation/Connection Connect external components No Part

Output terminals (See the following “Connect external amplifiers via output terminals”.) Connect external amplifiers via output terminals When connecting an external amplifier to the output terminals of this unit, securely connect the amplifier ground wire to the car chassis to prevent damage to the unit. Model Output terminals 2-way crossover 3-way crossover

REAR: Rear output Tweeter output FRONT: Front output Mid Range output SW: Subwoofer output Woofer output REAR/SW: Rear/subwoofer output Woofer output Maintenance Cleaning the unit Wipe off dirt on the faceplate with a dry silicone or soft cloth. Cleaning the connector Detach the faceplate and clean the connector gently with a cotton swab. Be careful not to damage the connector. More information For: – Latest firmware updates and latest compatible item list – KENWOOD original application – Any other latest information Visit <www.kenwood.com/cs/ce/>. Playable files

• For USB mass storage class device: MP3 (.mp3), WMA (.wma), AAC (.aac), AAC (.m4a), WAV (.wav), FLAC (.flac)

• Playable USB device file system: FAT12, FAT16, FAT32 Even when audio files comply with the standards listed above, playback may be impossible depending on the types or conditions of media or devices.

• For detailed information and notes about the playable audio files, visit <www.kenwood.com/cs/ce/audiofile/>. About USB devices

• You cannot connect a USB device via a USB hub.

• Connecting a cable whose total length is longer than 5 m may result in abnormal playback.

• This unit cannot recognize a USB device whose rating is other than 5 V and exceeds 1.5 A. References Connector (on the reverse side of the faceplate) JS_KWD_KMM_BT356_EN_EN.indd 32JS_KWD_KMM_BT356_EN_EN.indd 32 6/21/2019 4:01:22 PM6/21/2019 4:01:22 PMENGLISH

• It is not possible to browse video files on the “Videos” menu in [MODE OFF].

• The song order displayed on the selection menu of this unit may differ from that of the iPod/ iPhone.

• You cannot operate iPod if “KENWOOD” or “ ” is displayed on iPod.

• Depending on the version of the operating system of the iPod/iPhone, some functions may not operate on this unit. About Spotify

• Spotify application supports: – iPhone 5S, 6, 6 Plus, 6S, 6S Plus, SE, 7, 7 Plus 8, 8 Plus, X, XS, XS MAX, XR (iOS 12.1 or later) – iPod touch (6th generation) – Android OS 4.0.3 or above

• Spotify is a third party service, therefore the specifications are subject to change without prior notice. Accordingly, compatibility may be impaired or some or all of the services may become unavailable.

• Some functions of Spotify cannot be operated from this unit.

• For issues using the application, please contact Spotify at <www.spotify.com>. About AMAZON ALEXA

• Alexa is a third party service, therefore the specifications are subject to change without prior notice. Accordingly, compatibility may be impaired or some or all of the services may become unavailable. References Change the display information (For / ) Each time you press DISP, the display information changes.

• If the information is unavailable or not recorded, “NO TEXT”, “NO INFO”, or other information (eg. station name) appears or display will be blank. Main display Clock time Level meter (Page 28) Source name Display information: Main display STANDBY Source name Date back to the beginning RADIO Frequency Date back to the beginning For FM Radio Data System stations only: Station name/Program type Radio text Radio text+ Radio text+ song title/Radio text+ artist Frequency Date back to the beginning USB For MP3/WMA/AAC/WAV/FLAC files: Song title/Artist Album title/Artist Folder name File name Playing time Date back to the beginning iPod USB / iPod BT When [MODE OFF] is selected (page 10): Song title/Artist Album title/Artist Playing time Date back to the beginning SPOTIFY/ SPOTIFY BT Context title Song title Artist Album title Playing time Date back to the beginning BT AUDIO/ ALEXA Song title/Artist Album title/Artist Playing time Date back to the beginning AUX Source name Date back to the beginning JS_KWD_KMM_BT356_EN_EN.indd 33JS_KWD_KMM_BT356_EN_EN.indd 33 6/21/2019 4:01:22 PM6/21/2019 4:01:22 PM34 ENGLISH Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) (For ) Each time you press DISP, the display information changes.

• If the information is unavailable or not recorded, “NO TEXT”, “NO INFO”, or other information (eg. station name) appears or display will be blank. Main display Source name Display information: Main display STANDBY Source name/Clock Clock back to the beginning RADIO Source name/Clock Frequency Clock back to the beginning For FM Radio Data System stations only: Source name/Clock Station name/Program type Radio text Radio text+ Radio text+ song title/Radio text+ artist Frequency Clock back to the beginning USB For MP3/WMA/AAC/WAV/FLAC files: Source name/Clock Song title/Artist Album title/Artist Folder name File name Playing time Clock back to the beginning iPod USB / iPod BT When [MODE OFF] is selected (page 10): Source name/Clock Song title/Artist Album title/Artist Playing time Clock back to the beginning SPOTIFY/ SPOTIFY BT Source name/Clock Context title Song title Artist Album title Playing time Clock back to the beginning BT AUDIO/ ALEXA Source name/Clock Song title/Artist Album title/Artist Playing time Clock back to the beginning AUX Source name/Clock Clock back to the beginning References Symptom Remedy General Sound cannot be heard. • Adjust the volume to the optimum level.

• Check the cords and connections.

“MISWIRING CHECK WIRING

THEN PWR ON” appears. Turn the power off, then check to be sure the terminals of the speaker wires are insulated properly. Turn the power on again.

“PROTECTING SEND SERVICE”

appears. Send the unit to the nearest service center. Source cannot be selected. Check the [SOURCESELECT] setting. (Page 6)

• Sound cannot be heard.

• The unit does not turn on.

• Information shown on the display is incorrect. Clean the connectors. (Page 32) The unit does not work at all. Reset the unit. (Page 4) Correct characters are not displayed.

• This unit can only display uppercase letters, numbers, and a limited number of symbols.

• Depending on the display language you have selected (page 7), some characters may not be displayed correctly. Radio

• Radio reception is poor.

• Static noise while listening to the radio. Connect the antenna firmly. USB/iPod Playback order is not as intended. The playback order is determined by the order in which file name were recorded (USB). Elapsed playing time is not correct. This depends on the recording process earlier (USB). “READING” keeps flashing. • Do not use too many hierarchical levels and folders.

• Check whether the connected USB device is compatible with this unit and ensure the file systems are in supported formats. (Page 32)

• Reattach the USB device. “UNRESPONSIVE DEVICE” appears. Make sure the USB device is not malfunction and reattach the USB device.

SUPPORTED” appears. This unit cannot support a USB device connected via a USB hub.

• The source does not change to “USB” when you connect a USB device while listening to another source.

• “USB ERROR” appears. The USB port is drawing more power than the design limit. Turn the power off and unplug the USB device. Then, turn on the power and reattach the USB device. If this does not solve the problem, turn the power off and on (or reset the unit) before replacing with another USB device. The iPod/iPhone does not turn on or does not work.

• Check the connection between this unit and iPod/iPhone.

• Disconnect and reset the iPod/iPhone using hard reset. “LOADING” appears when you enter search mode by pressing

This unit is still preparing the iPod/iPhone music list. It may take some time to load, try again later. “NA FILE” Make sure the media (USB) contain supported audio files. (Page 32) “COPY PRO” A copy-protected file is played (USB). “NO DEVICE” Connect a device (USB/iPod/iPhone), and change the source to USB or iPod USB again. “NO MUSIC” Connect a device (USB/iPod/iPhone) that contains playable audio files. Troubleshooting Symptom Remedy USB/iPod “iPod ERROR” • Reconnect the iPod.

• Reset the iPod. “MEMORY FULL” You have reached the maximum storage limit of your iPod/iPhone. Spotify “DISCONNECTED” USB is disconnected from the head unit. Please make sure the device is connected properly through USB. “CONNECTING” • Connected via USB input terminal: The device is connecting to the head unit. Please wait.

• Connected via Bluetooth: The Bluetooth is disconnected. Please check Bluetooth connection and make sure both the device and unit are paired and connected. “CHECK APP” The Spotify application is not connected properly or user is not login. End the Spotify application and restart. Then, log in to your Spotify account. Bluetooth® No Bluetooth device is detected.

• Search from the Bluetooth device again.

• Reset the unit. (Page 4) Bluetooth pairing cannot be made.

• Make sure you have entered the same PIN code to both the unit and Bluetooth device.

• Delete pairing information from both the unit and the Bluetooth device, then perform pairing again. (Page 16) Echo or noise is heard during a phone conversation.

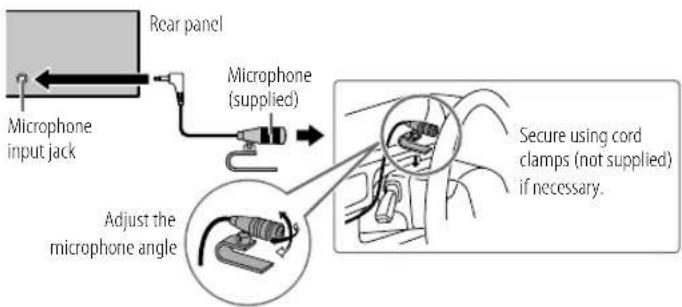

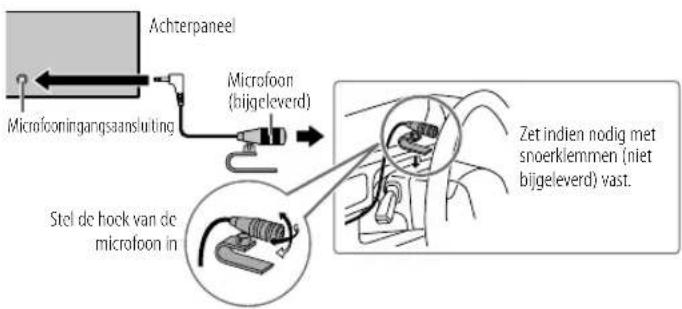

• Adjust the microphone unit’s position. (Page 15)

• Check the [ECHO CANCEL] setting. (Page 17) Phone sound quality is poor. • Reduce the distance between the unit and the Bluetooth device.

• Move the car to a place where you can get a better signal reception. JS_KWD_KMM_BT356_EN_EN.indd 35JS_KWD_KMM_BT356_EN_EN.indd 35 6/21/2019 4:01:22 PM6/21/2019 4:01:22 PM36 ENGLISH Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Troubleshooting Symptom Remedy AMAZON ALEXA No response from Alexa after the voice input. Amazon cloud was unable to analyze the voice input. Wrong response from Alexa. Alexa misunderstood what was said or did not catch the entire request or sentence spoken. Please try again. (Page 21) “DISCONNECTED” Be sure to connect your smartphone to the unit via Bluetooth. (Page 16) Not able to connect or reconnect to Alexa mobile application.

• Be sure the audio device is connected via Bluetooth. Select the audio device from [AUDIO SELECT] in [BT MODE]. (Page 19)

• Perform the one-time setup process again. See “Setup for the first time” on page 21.

• Turn off, then turn on the unit and try to connect again.

• For iOS device, make sure ALEXA source or iPod BT source is selected. Symptom Remedy Bluetooth® Voice calling method is not successful.

• Use voice calling method in a more quiet environment.

• Reduce the distance from the microphone when you speak the name.

• Make sure the same voice as the registered voice tag is used. Sound is being interrupted or skipped during playback of a Bluetooth audio player.

• Reduce the distance between the unit and the Bluetooth audio player.

• Turn off, then turn on the unit and try to connect again.

• Other Bluetooth devices might be trying to connect to the unit. The connected Bluetooth audio player cannot be controlled.

• Check whether the connected Bluetooth audio player supports Audio/Video Remote Control Profile (AVRCP). (Refer to the instructions of your audio player.)

• Disconnect and connect the Bluetooth player again. “NOT SUPPORT” The connected phone does not support Voice Recognition feature or phonebook transfer. “NO ENTRY”/“NO PAIR” There is no registered device connected/found via Bluetooth. “ERROR” Try the operation again. If “ERROR” appears again, check if the device supports the function you have tried. “NO INFO”/“NO DATA” Bluetooth device cannot get the contact information.

“BT ERROR” Reset the unit and try the operation again. If this does not solve the problem, consult your nearest service center. “SWITCHING NG” The connected phones might not support phone switching feature. The Bluetooth connection between the Bluetooth device and the unit is unstable. Delete the unused registered Bluetooth device from the unit. (Page 19) JS_KWD_KMM_BT356_EN_EN.indd 36JS_KWD_KMM_BT356_EN_EN.indd 36 6/21/2019 4:01:22 PM6/21/2019 4:01:22 PMENGLISH

Quieting Sensitivity (DIN S/N = 46 dB)

(AM) Frequency Range 153 kHz — 279 kHz (9 kHz step) Usable Sensitivity (S/N = 20 dB) 50.0 μV USB USB Standard USB 1.1, USB 2.0 (High speed) File System FAT12/16/32 Maximum Supply Current DC 5 V

2 500 mV/10 kΩ Preout Impedance ≤ 600 Ω General Operating Voltage 12 V DC car battery Installation Size (W × H × D) 182 mm × 53 mm × 100 mm Net Weight (includes Trimplate, Mounting Sleeve)

[SUBWOOFER] – Transition 3 voies : [WOOFER] X ‘ OVER (transition)

[FRONT HPF] [F-HPF FRQ]

[FRONT HPF] [F-HPF FRQ]

[SUBWOOFER] – 3-weg crossover: [WOOFER] X ‘ OVER (crossover)

[FRONT HPF] [F-HPF FRQ]

• Made for – iPod touch (6th generation) – iPhone 5S, 6, 6 Plus, 6S, 6S Plus, SE, 7, 7 Plus, 8, 8 Plus, X, XS, XS MAX, XR (iOS 12.1 of later)

• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

• Use of the Made for Apple badge means that an accessory has been designed to connect specifically to the Apple product(s) identified in the badge and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with an Apple product may affect wireless performance.

• Apple, iPhone, iPod, iPod touch, and Lightning are trademarks of Apple Inc., registered in the U.S. and other countries.

• Android is a trademark of Google LLC.

• SPOTIFY and the Spotify logo are among the registered trademarks of Spotify AB.

• The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by JVCKENWOOD Corporation is under license. Other trademarks and trade names are those of their respective owners.

• Amazon Alexa is not available in all languages and countries.

• Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates. JS_KWD_KMM_BT356_EN_C10a.indd 2JS_KWD_KMM_BT356_EN_C10a.indd 2 10/21/2019 11:42:25 AM10/21/2019 11:42:25 AM
