USER MANUAL Tassimo Fidelia TAS4017 BOSCH

Symmetrical geometric flower-like pattern composed of six interlocking circles (no text or symbols)

TQSSIMO

FIDELIA

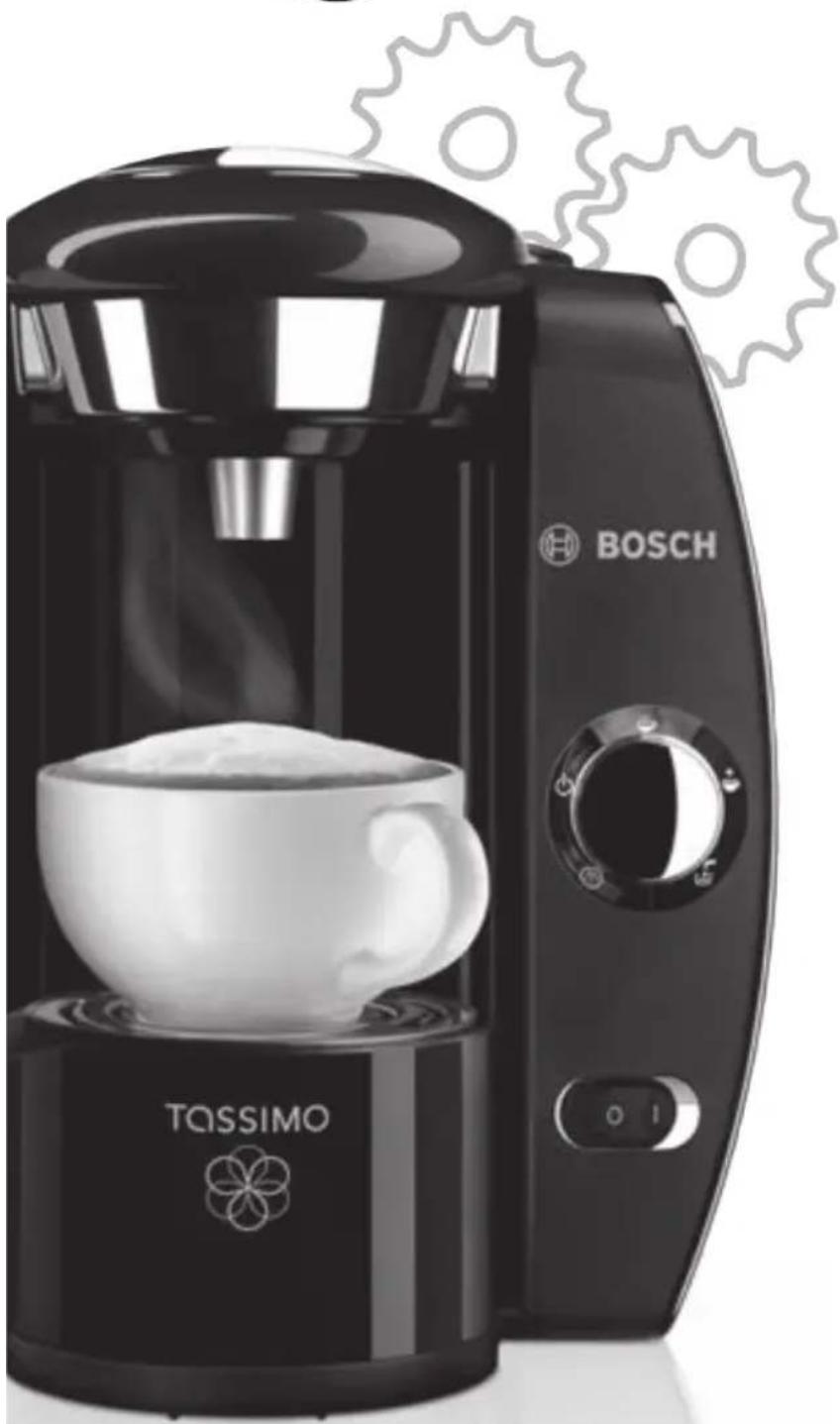

Black Bosch Bosch milk tea machine with white cup and steam, no visible text or symbols on device body

TAS 40xx TAS 42xx

Diagram showing a coffee maker with a 'No' symbol crossed out by a hand, indicating no coffee maker is open.

Diagram showing a hand pouring coffee into a blender with a control panel, indicating the process.

Three circular symbols with prohibition signs and barcode icons, indicating no restrictions on food safety, water, or other items.

Gebrauchsanleitung

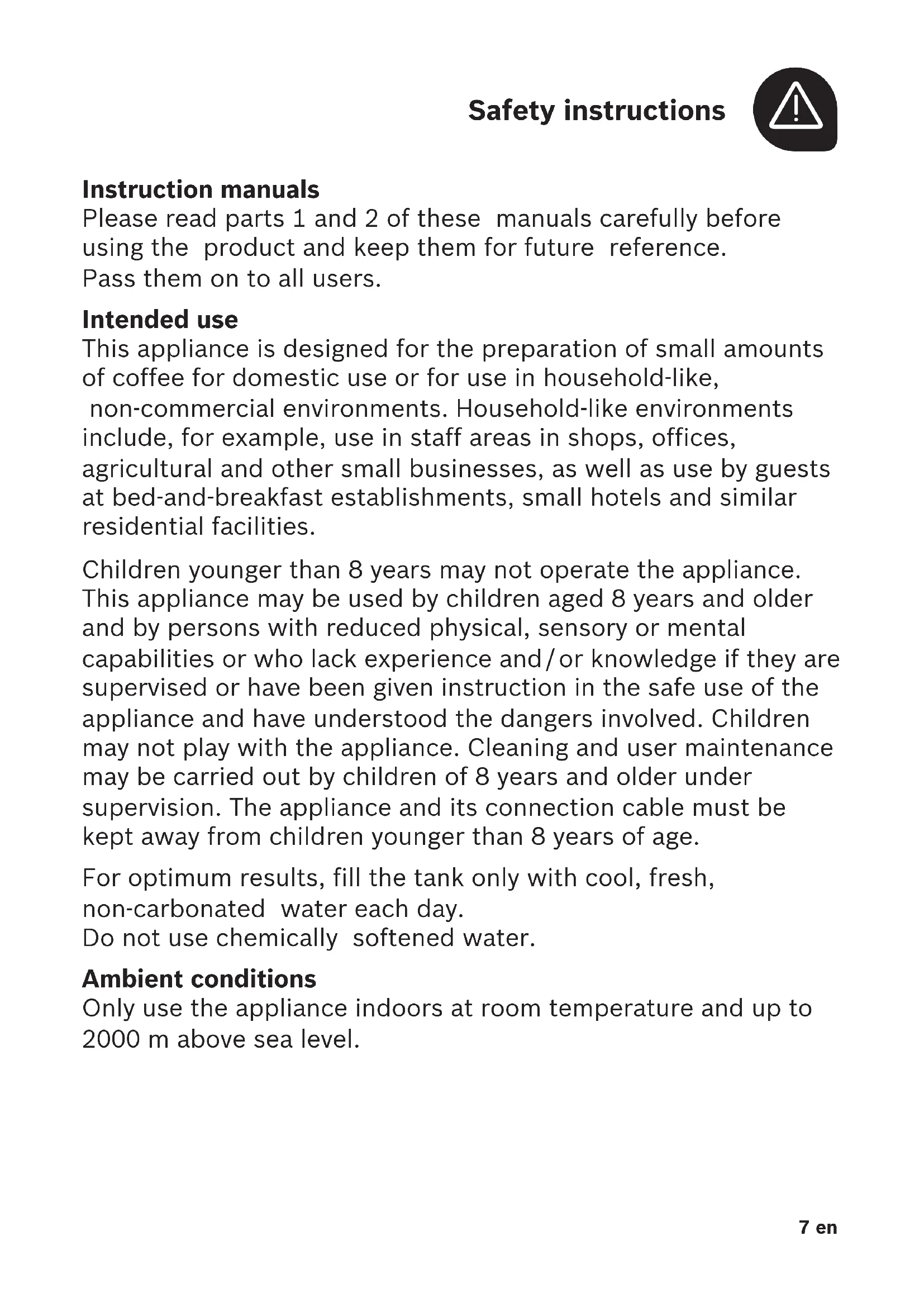

Please read parts 1 and 2 of these manuals carefully before using the product and keep them for future reference.

Pass them on to all users.

Intended use

This appliance is designed for the preparation of small amounts of coffee for domestic use or for use in household-like,

non-commercial environments. Household-like environments include, for example, use in staff areas in shops, offices, agricultural and other small businesses, as well as use by guests at bed-and-breakfast establishments, small hotels and similar residential facilities.

Children younger than 8 years may not operate the appliance. This appliance may be used by children aged 8 years and older and by persons with reduced physical, sensory or mental capabilities or who lack experience and/or knowledge if they are supervised or have been given instruction in the safe use of the appliance and have understood the dangers involved. Children may not play with the appliance. Cleaning and user maintenance may be carried out by children of 8 years and older under supervision. The appliance and its connection cable must be kept away from children younger than 8 years of age.

For optimum results, fill the tank only with cool, fresh, non-carbonated water each day.

Do not use chemically softened water.

Ambient conditions

Only use the appliance indoors at room temperature and up to 2000 m above sea level.

Power connection

Operate and connect the appliance only in accordance with the instructions given on the nameplate.

Only use your TASSIMO appliance if the power cable and appliance show no signs of damage.

Repairs

Disconnect the appliance from the mains as soon as a fault is detected.

Any repairs, such as replacing a damaged power cable, may only be carried out by our Customer Services team in order to avoid potential danger.

Risk of burns!

Never attempt to open the brewing unit during operation.

Please note that any escaping liquids will be very hot.

The T DISC, the piercing unit and the beverage outlet may be very hot immediately after brewing. Allow to cool first.

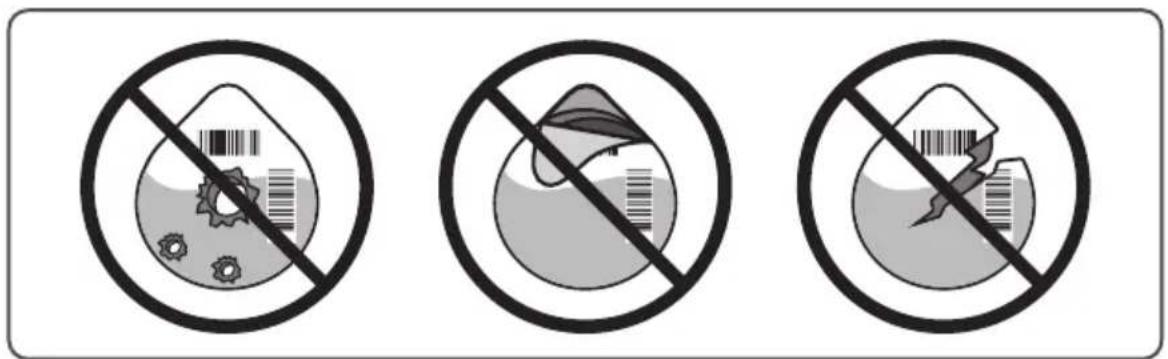

Do not use T DISCs that are damaged.

Only use each T DISC once.

Risk of electric shock!

Before cleaning, switch off the appliance using the On/Off switch and disconnect from the mains.

Never immerse the appliance or power cable in water.

Risk of injury!

Under no circumstances should you drink the descaling liquid.

Saving energy

You should switch off your TASSIMO appliance after every use in order to save energy.

Before reading on, please unfold the illustrations page at the start of the booklet.

1 On/Off switch
2 Start/Stop button
3 Indicators

a Stand-by ⏻
b Automatic
c Manual
d Fill water tank
e Descale

4 Brewing unit

a Lid
b T DISC support
c T DISC piercing unit
d T DISC reading window
e Beverage outlet
f Splash guard

5 Removable water tank

a max mark
b min mark
c Float
d Lid for water tank

6 Storage compartment

a Yellow Service T DISC
bBriefcleaning/descaling

instructions

7 Cup stand

(removable and height adjustable)

a Height adjustment with drip grate
b Drip tray

8 Cord storage compartment

Disposal

Info

Dispose of packaging in an environmentally-friendly manner. This appliance is labelled in accordance with European Directive 2012/19/EG concerning used electrical and electronic appliances (waste electrical and electronic equipment – WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Please ask your specialist retailer about current disposal facilities.

Bosch is the manufacturer of the TASSIMO machine. Therefore, it cannot provide any delivery guarantee for the TASSIMO T DISCs.

TASSIMO T DISCs are available from specialistretailers.

Or visit www.tassimo.com to discover the large variety of beverages available and to order your discs online.

The following table contains solutions to problems or faults which may occur during operation of the appliance and that can be easily rectified at home. If you are not satisfied with the solutions provided here, please contact our Customer Service department. Further customer service information can also be found online: www.tassimo.com

Problem Cause Solution
The appliance is not working and none of the display elements (LEDs) are lighting.	The appliance has no power supply.	Check to see whether the appliance is connected to the mains.
	The appliance is not switched on.	Make sure the appliance has been switched on.
The brewing starts, however there is no beverage dispensed.	The water tank is not inserted correctly.	Check that the water tank is correctly inserted.
	The water tank was removed during the brewing stage or there is air in the system.	Start the cleaning process with the yellow Service T DISC. Please refer here to the section First Time Use, Steps 2 - 14.
	The float in the water tank is stuck.	Clean the water tank and free the float.
The brewing will not start.	No T DISC inserted. Check that a T DISC has been inserted.
	The appliance does not recognise the T DISC bar code.	Clean the T DISC reading window with a soft, damp cloth.
		Smooth out the foil of the T DISC with your finger so that the bar code can be read.
		Use a new T DISC.
		If the problem persists, contact the TASSIMO careline.
	The brewing unit is not closed properly.	Clean the brewing unit with a soft, damp cloth, paying particular attention to the lid area.
	The appliance was not switched on when inserting the T DISC.	Switch on the appliance before inserting the T DISC
The brewing unit cannot be closed.	The piercing unit and/or the T DISC support have not been correctly inserted.	Press the piercing unit into its holder using both thumbs and check the position of the T DISC support.
	The T DISC has not been correctly inserted.	Replace the damaged T DISC with a new one. Place the T DISC with the printed side facing downwards so that the tab is resting in the intended slot.
	The brewing unit is not closed properly.	Clean the brewing unit with a soft, damp cloth, paying particular attention to the lid area.
		Press the lid down until it audibly clicks into place.
Fill water tank lights up.	There is not enough water in the water tank.	Fill the tank with cold, fresh water as far as the max mark. Reinsert the water tank.
Fill water tank lights up even though there is enough water in the water tank.	The float in the water tank is stuck.	Clean the water tank and free the float.
	The water tank is not inserted correctly.	Check that the water tank has been correctly inserted.
Fill water tank and Descale are flashing simulta neously and it is not possible to prepare drinks.	There is a fault on the machine.	Turn the machine off using the On/Off switch, wait approximately 5 minutes and turn the machine back on. If and are still flashing, please contact the TASSIMO careline.
Descale lights up or starts flashing.	The appliance needs to be descaled.	Descale the appliance. Please refer here to the section Descaling.
Descale lights up or starts flashing even though decalcified water has been used.	Even decalcified water contains low amounts of calcium carbonate.	Descale the appliance. Please refer here to the section Descaling.
The “Automatic” mode is skipped; the “Manual” mode appears instantly.	The bar code reader was unable to recognise the bar code.	Clean the bar code reading window.
		Use a new T DISC.
		You can still prepare the beverage regardless by pressing and holding the Start/Stop button.
The quality of the crema has deteriorated.	The beverage outlet is sticky or dirty.	Clean the beverage outlet. Please refer here to the section Cleaning.
		Clean the brewing unit with the yellow Service T DISC. Please refer here to the section Cleaning.
	Build-up of limescale in the appliance.	Descale the appliance. Please refer here to the section Descaling.
Water is dripping from the brewing unit.	The T DISC is damaged or leaky.The T DISC has not been pierced correctly.	Do not use T DISCs that are damaged.Only use each T DISC once.Wait until the brewing stage has come to an end and the appliance has cooled down.Remove the T DISC and clean the brewing unit.Please refer here to the section Cleaning.
	The piercing unit has not been inserted correctly.	Press the piercing unit into its holder using both thumbs (until an audible click is heard).
On the surface below the cup stand there is water.	This is condensation. Condensation may appear and is not caused by any fault with the appliance. Wipe the water away with a cloth.
The yellow Service T DISC is damaged or lost.		The yellow Service T DISC can be requested from Bosch Customer Services (item no. 621101, contact information included at the end of these instructions).
The beverage quantity does not meet your requirements.	The T DISC bar code provides the recommended volume for every beverage selected. This volume can also be adapted to personal requirements.	Reduced quantity:During the brewing process, press the Start/Stop button to interrupt this stage.Increased quantity:Press and hold the Start/Stop button until the required beverage quantity has been reached.
	Build-up of limescale in the appliance could cause reduced quantity.	Descale the appliance. Please refer here to the section Ⓞ Descaling.
