USER MANUAL RSSA290M33X BEKO

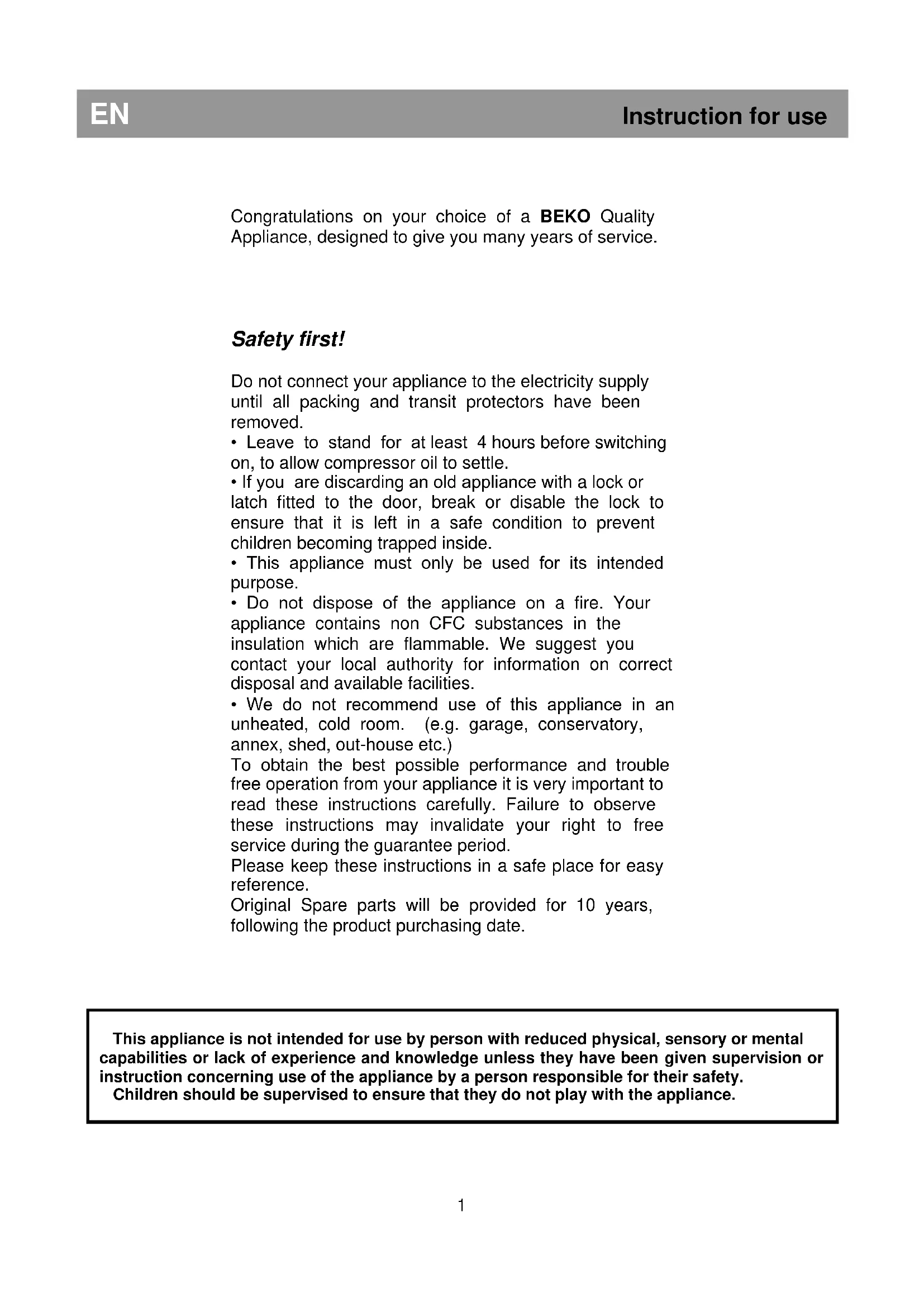

67Congratulations on your choice of a BEKO Quality Appliance, designed to give you many years of service.

Safety first! Do not connect your appliance to the electricity supply until all packing and transit protectors have been removed.

• Leave to stand for at least 4 hours before switching on, to allow compressor oil to settle.

• If you are discarding an old appliance with a lock or latch fitted to the door, break or disable the lock to ensure that it is left in a safe condition to prevent children becoming trapped inside.

• This appliance must only be used for its intended purpose.

• Do not dispose of the appliance on a fire. Your appliance contains non CFC substances in the insulation which are flammable. We suggest you contact your local authority for information on correct disposal and available facilities.

• We do not recommend use of this appliance in an unheated, cold room. (e.g. garage, conservatory, annex, shed, out-house etc.) To obtain the best possible performance and trouble free operation from your appliance it is very important to read these instructions carefully. Failure to observe these instructions may invalidate your right to free service during the guarantee period. Please keep these instructions in a safe place for easy reference. Original Spare parts will be provided for 10 years, following the product purchasing date.

EN Instruction for use

This appliance is not intended for use by person with reduced physical, sensory or mental capabilities or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.EN Instruction for use Electrical requirements Before inserting the plug into the wall socket make sure that the voltage and the frequency shown in the rating plate inside the appliance corresponds to your electricity supply. We recommend that this appliance is connected to the mains supply via a suitably switched and fused socket in a readily accessible position. Warning! This appliance must be earthed. Repairs to electrical equipment should only be performed by a qualified technician. Incorrect repairs carried out by an unqualified person are carry risks that may have critical consequences for the user of the appliance. ATTENTION! This appliance operates with R 600a which is an environmental friendly but flammable gas. During the transportation and fixing of the product, care must be taken not to damage the cooling system. If the cooling system is damaged and there is a gas leak from the system, keep the product away from ignition sources and ventilate the room for a while. WARNING - Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. WARNING - Do not damage the refrigerant circuit. WARNING - Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. WARNING - If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Transportation instructions

1. The appliance should be transported only in

an upright position. The packing as supplied must be intact during transportation.

2. The appliance should not be operated for at

least 4 hours after installation, to allow the system to settle. You may also need to alloww five minutes between plugging in and switching on the appliance.

3. Failure to comply with the above

instructions could result in damage to the appliance, for which the manufacturer will not be held liable.

4. The appliance must be protected against

rain, moisture and cold. Important!

• Care must be taken while cleaning/carrying the appliance not to touch the bottom of the condenser metal wires at the back of the appliance, as this could cause injury to fingers and hands.

• Do not to sit or stand on top of your appliance as it is not designed for such use. You could injure yourself or damage the appliance. WARNING - Make sure that the mains cable is not caught under the appliance during and after moving, as this could damage the cable.

• Do not allow children to play with the appliance or tamper with the controls. Installation instructions

1. Do not keep your appliance in a room

where the temperature is likely to fall below 10 degrees C (50 degrees F) at night and/or especially in winter, as it is designed to operate in ambient temperatures between +10 and +43 degrees C (50 and 109 degrees F). At lower temperatures the appliance may not operate, resulting in a reduction in the storage life of the food.

2. Do not place the appliance near cookers

or radiators or in direct sunlight, as this will cause extra strain on the appliance's functions. If installed next to a source of heat or freezer, maintain the following minimum side clearances: From Cookers 30 mm From Radiators 300 mm From Freezers 25 mm

3. Make sure that sufficient room is provided

around the appliance to ensure free air circulation (Item 2).

• Open the door of your refrigerator to set the distance between the refrigerator and the wall (Item 3). 2EN Instruction for use

4. The appliance should be positioned on a

smooth surface. The two front feet can be adjusted as required.To ensure that your appliance is standing upright adjust the two front feet by turning clockwise or anti- clockwise, until firm contact is secured with the floor. Correct adjustment of feet prevents excessive vibration and noise (Item 4).

5. Refer to "Cleaning and Care" section to

prepare your appliance for use. Getting to know your appliance (Item 1)

1 - Thermostat and lamp housing

2 - Adjustable Cabinet shelves

7 - Dairy Compartment

9 - Shelf for bottles

Suggested arrangement of food in the larder fridge Guidelines for obtaining optimum storage and hygiene:

1. This appliance for the short-term storage

of fresh food and drinks.

2. Dairy products should be stored in the

special compartment provided in the door liner.

3. Cooked dishes should be stored in airtight

containers and are bes kept on either of the removable shelves.

4. Fresh wrapped produce can be kept on

the shelf. Fresh fruit and vegetables should be cleaned and stored in the crisper bins.

5. Bottles can be kept in the door section.

6. To store raw meat, wrap in polythene

bags and place on the lowest shelf. Do not allow to come into contact with cooked food, to avoid contamination. Fo safety, only store raw meat for two to three days.

7. For maximum efficiency, the removable

shelves should not be covered with paper or other materials to allow free circulation of cool air.

8. The shelves are fitted with rear stops and

tilting for storing bottles. Lift shelf clear of grooves when adjusting.

9. To tilt a shelf, place the back of the shelf

one level below the front of the shelf. To remove a tilted shelf, first release the back from the one level below the front of the shelf. To remove a tilted shelf, first release the back from the grooves and then pull.

10. Do not keep vegetable oil on door

shelves. Keep food packed, wrapped or covered. Allow hot food and beverages to cool before refrigerating. Do not store explosive substances in the refrigerator. High proof alcohol must be stored upright in sealed containers. Leftover canned food should not be stored in the can.

11. Some fruit and vegetables suffer damage

if kept at temperatures near 0 degrees centigrade. Therefore wrap pineapples, melon, cucumbers, tomatoes and similar produce in polythene bags.EN Instruction for use Temperature control and adjustment The internal temperature could be adjusted by means of the button from the thermostat. The temperatures obtained inside the appliance could oscillate depending on the usage conditions: location, environmental temperature, doors opening frequency, foods quantity. Position of thermostat button will change depending on these conditions. Generally, for an environmental temperature of 25°C (77°F), thermostat button will be settled on a medium position. Avoid some positions of thermostat button that could involve a continuously running of the appliance. This could involve a temperature decrease under 0°C, therefore the drinks and fresh foods could freeze and an excessive ice quantity could be accumulated on the internal wall. All these above mentioned could involve a decrease of the refrigerating efficiency (increase of the power consumption).

Before operating Final Check Before you start using the appliance check that:

1. The feet have been adjusted for perfect

2. The interior is dry and air can circulate

3. The interior is clean as recommended

under "Cleaning and care.”

4. The plug has been inserted into the wall

socket and the electricity is switched on. When the door is open the interior light will come on. And note that:

5. You will hear a noise as the compressor

starts up. The liquid and gases sealed within the refrigeration system may also make some (noise), whether the compressor is running or not. This is quite normal.

6. Slight undulation of the top of the cabinet

is quite normal due to the manufacturing process used; it is not a defect.

7. We recommend setting the thermostat

knob midway and monitor the temperature to ensure the appliance maintains desired storage temperatures (See section Temperature Control and Adjustment).

8. Do not load the appliance immediately it is

switched on. Wait until the correct storage temperature has been reached. We recommend checking the temperature with an accurate thermometer (see; Temperature Control and Adjustment).EN Instruction for use

Defrosting The larder refrigerator defrosts automatically. The defrosting water runs to the drain tube via a collection channel and is evaporated in a special container at the back of the appliance. (Item 5). During defrosting, water droplets may form at the back of the larder refrigerator where a concealed evaporator is located. Some droplets may remain on the liner and refreeze when defrosting is completed. Do not use pointed or sharp-edged objects such as knives or forks to remove the droplets which have refrozen. If, at any time, the defrost water does not drain from the collection channel, check that no food particles have blocked the drain tube. The drain tube can be cleared by pushing the special plastic plunger provided down the drain tube. Check that the tube is permanently placed with its end in the collecting tray on the compressor to prevent the water spilling on the electric installation or on the floor (Item 6). Replacing the interior light bulb To change the Bulb/LED used for illumination of your refrigerator, call your AuthorisedService. The lamp(s) used in this appliance is not suitable for household room illumination. The intended purpose of this lamp is to assist the user to place foodstuffs in the refrigerator/freezer in a safe and comfortable way. The lamps used in this appliance have to withstand extreme physical conditions such as temperatures below -20°C. Repositioning the door Proceed in numerical order (Item 7). Cleaning and care

1. We recommend that you switch off the

appliance at the socket outlet and pull out the mains plug before cleaning.

2. Never use any sharp instruments or

abrasive substances, soap, household cleaner, detergent or wax polish for cleaning.

3. Use luke warm water to clean the cabinet

of the appliance and wipe it dry.

4. Use a damp cloth wrung out in a solution of

one teaspoon of bicarbonate of soda to one pint of water to clean the interior and wipe it dry.

5. Make sure that no water enters the

temperature control box.

6. If the appliance is not going to be used for

a long period of time, switch it off, remove all food, clean it and leave the door ajar.

7. Any dust that gathers on the condenser,

which is located at the back of the appliance, should be removed once a year with a vacuum cleaner.

8. Check door seals regularly to ensure they

areclean and free from food particles.

• Clean the appliance with unsuitable material; eg petroleum based products.

• Subject it to high temperatures in any way,

• Scour, rub etc., with abrasive material.

10. Removal of dairy cover and door tray :

• To remove the dairy cover, first lift the cover up by about an inch and pull it off from the side where there is an opening on the cover.

• To remove a door tray, remove all the contents and then simply push the door tray upwards from the base.

11. Make sure that the special plastic

container at the back of the appliance which collects defrost water is clean at all times. If you want to remove the tray to clean it, follow the instructions below:

• Switch off at the socket outlet and pull out the mains plug

• Gently uncrimp the stud on the compressor, using a pair of pliers, so that the tray can be removed

• Clean and wipe it dry

• Reassemble, reversing the sequence and operations.EN Instruction for use

Do’s and don’ts Do- Clean and defrost your appliance regularly. Do- Keep raw meat and poultry below cooked food and dairy products. Do- Keep food for as short a time as possible and adhere to "Best Before" and "Use by" etc. dates. Do- Take off any unusable leaves on vegetables and wipe off any soil. Do- Leave lettuce, cabbage, parsley and cauliflower on the stem. Do- Wrap cheese firstly in greaseproof paper and then in a polythene bag, excluding as much air as possible. For best results, take out of the fridge compartment an hour before eating. Do- Wrap raw meat and poultry loosely in polythene or aluminium foil. This prevents drying. Do- Wrap fish and offal in polythene bags. Do- Wrap food with a strong odour or which may dry out, in polythene bags, or aluminium foil or place in airtight container. Do- Wrap bread well to keep it fresh. Do- Chill white wines, beer, lager and mineral water before serving.

Don’t- Store bananas in your fridge compartment. Don’t- Store melon in your fridge. It can be chilled for short periods as long as it is wrapped to prevent it flavouring other food. Don’t- Leave the door open for long periods, as this will make the larder refrigerator. Your larder refrigerator has been designed for the storage of edible foodstuffs only. Don’t- Cover the shelves with any protective materials which may obstruct air circulation. Don’t- Store poisonous or any dangerous substances in your appliance. It has been designed for the storage of edible foodstuffs only. Don’t- Consume food which has been refrigerated for an excessive length of time. Don’t- Store cooked and fresh food together in the same container. They should be packaged and stored separately. Don’t- Let defrosting food or food juices drip onto food.Troubleshooting If the appliance does not operate when switched on, check;

• That the plug is inserted properly in the socket and that the power supply is on. (To check the power supply to the socket, plug in another appliance)

• Whether the fuse has blown/circuit breaker has tripped/main distribution switch has been turned off.

• That the temperature control has been set correctly.

• That the new plug is wired correctly, if you have changed the fitted, moulded plug. If the appliance is still not operating at all after above checks, contact the dealer from whom you purchased the unit. Please ensure that above checks have been done, as a charge will be made if no fault is found.

EN Instruction for use Information about operating noises To keep the selected temperature constant, your appliance occasionally switches ON the compressor. The resulting noises are quite normal. As soon as the appliance has reached the operating temperature, the noises automatically reduce in volume. The humming noise is emitted by the motor (compressor). When the motor switches ON, the noise may briefly increase in volume. The bubbling, gurgling or whirring noise is emitted by the refrigerant as it flows through the pipes. The clicking noise can always be heard when the thermostat switches ON/OFF the motor. A clicking noise may occur when - the automatic defrosting system is active. - the appliance is cooling down or warming up (material expansion). If these noises are excessively loud, the causes are probably not serious and are usually very easy to eliminate. - The appliance is not level - Use the height- adjustable feet or place packing under the feet. - The appliance is not free-standing - Please move the appliance away from kitchen units or other appliances. - Drawers or shelves are loose or stick - Please check the detachable components and, if required, refit them. - Bottles and/or receptacles are touching each other - Please move bottles and/or receptacles away from each other.
