Upright and Chest Freezer Owner's Manual

English Section 2

Francais 19

Keep these instructions for future reference. Be sure this manual stays with freezer.

Contents

Electrical Requirements 2

Model Identification 3

Model Diagrams

Free-O-Frost™ Upright Freezer 4

Standard Upright Freezer 5

Chest Freezer 6

Installation Information

General 7

Placement.... 7

Door Handle (upright freezer models).... 7

Leveling (upright freezer models) 8

Setting Controls

Temperature Control 9

Temperature Monitor (C22 freezer model)..... 10

Features

Door Lock 10

Power On Light (chest freezer models) ...... 10

Reversible Rack

(some upright freezer models) 11

Divider (some chest freezer models) 11

Basket (some chest freezer models) 11

Freezing Guide

Wrapping 12

Freezing Guidelines 12

Care and Cleaning

General.... 13

Adhesives 13

Door Gaskets 13

Odor Removal 13

Defrosting 14

Light Bulb.... 16

Energy Tips.... 17

Vacation Tips 17

Normal Operating Sounds 17

Before Calling for Service 17

Factory Service Centers.... 18

Asure™ Extended Service Plan.... 18

Electrical Requirements

RECOGNIZE THIS SYMBOL AS A SAFETY PRECAUTION

WARNING

Electrical Grounding Instructions--This appliance is equipped with a three-prong (grounding) plug for protection against possible shock hazards. If a two-prong wall receptacle is encountered, contact a qualified electrician and have the two-prong wall receptacle replaced with a properly grounded three-prong wall receptacle in accordance with the National Electrical Code.

Freezer is designed to operate on a separate 103 to 126 volt, 15 amp., 60 cycle line.

DO NOT UNDER ANY CIRCUMSTANCES CUT OR REMOVE THE ROUND GROUNDING PRONG FROM THE PLUG. REFRIGERATOR MUST BE GROUNDED AT ALL TIMES. DO NOT REMOVE WARNING TAG FROM THE SERVICE CORD.

WARNING

DO NOT USE A TWO-PRONG ADAPTER.

DO NOT USE AN EXTENSION CORD.

Model Identification

Please read this Owner's Manual thoroughly. This manual provides proper maintenance information. Any questions, call the Consumer Affairs Department at 1-800-843-0304 inside U.S.A. and 1-319-622-5511 outside U.S.A.

Complete enclosed registration card and promptly return. If registration card is missing, call the Consumer Affairs Department.

When contacting Amana Refrigeration, Inc., provide product information. Locate product information on the serial plate. Upright freezer serial plate is located on upper left wall. Chest freezer serial plate is located on upper right wall. Record the following information:

Model Number:
Manufacturing Number:
S/N or Serial Number:
Date of purchase:
Dealer's name and address:

Keep a copy of sales receipt for future reference.

Locate an authorized servicer by calling 1-800-NATLSVC (628-5782) inside U.S.A. and 319-622-5511 outside U.S.A. Warranty service must be performed by an authorized servicer. Amana Refrigeration, Inc. also recommends contacting an authorized servicer if service is required after warranty expires.

Amana Refrigeration, Inc. offers a complete line of appliances...refrigerators, ranges, cooktops, wall ovens, microwave ovens, dishwashers, washers and dryers. Amana Refrigeration, Inc. also manufactures a complete selection of high efficiency gas furnaces plus both central and room air conditioners.

Enjoy this new Amana ^® freezer.

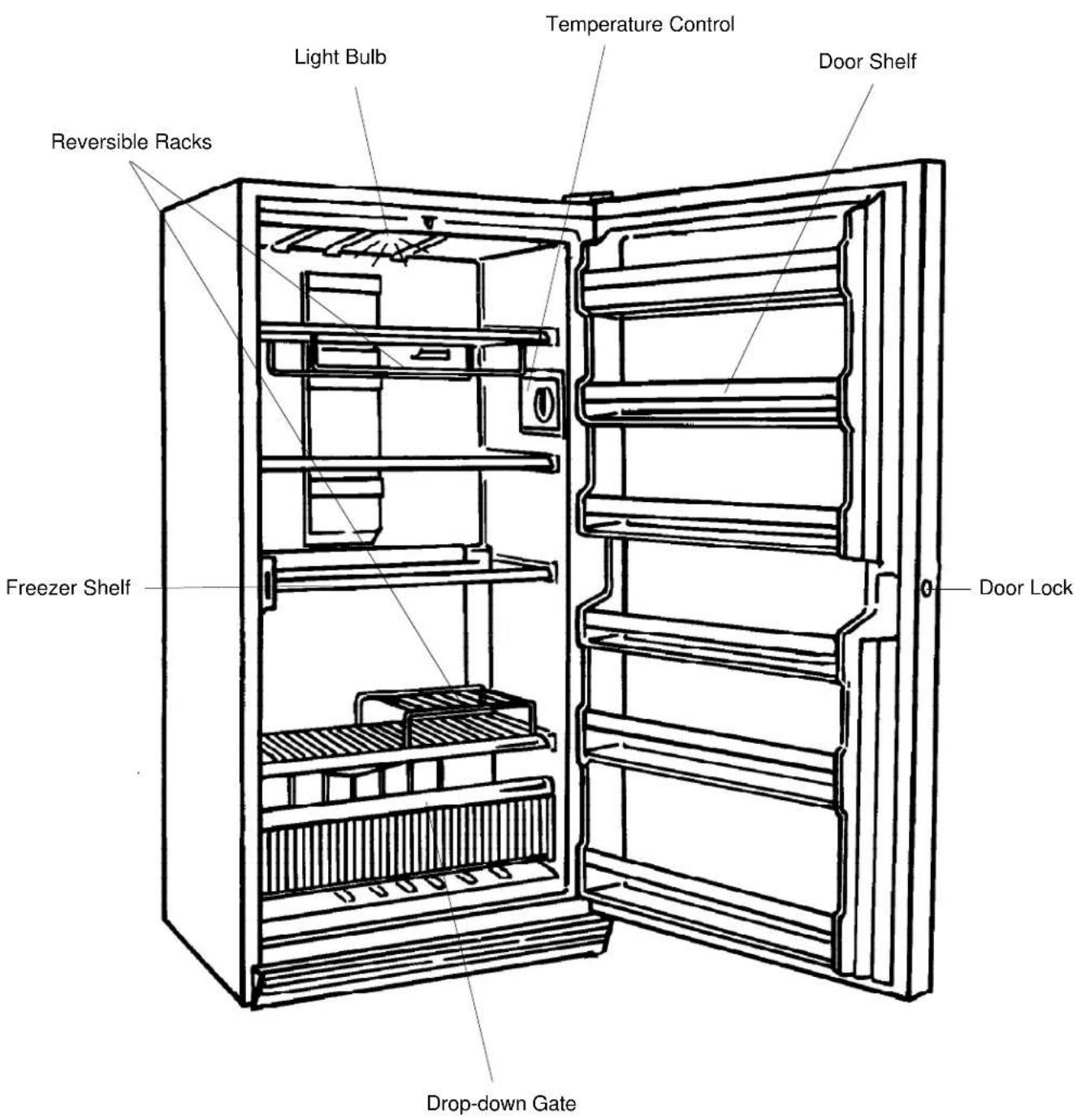

Free-O-Frost™ Upright Freezer

Temperature Control Light Bulb Door Shelf Reversible Racks Freezer Shelf Door Lock Drop-down Gate

Standard Upright Freezer

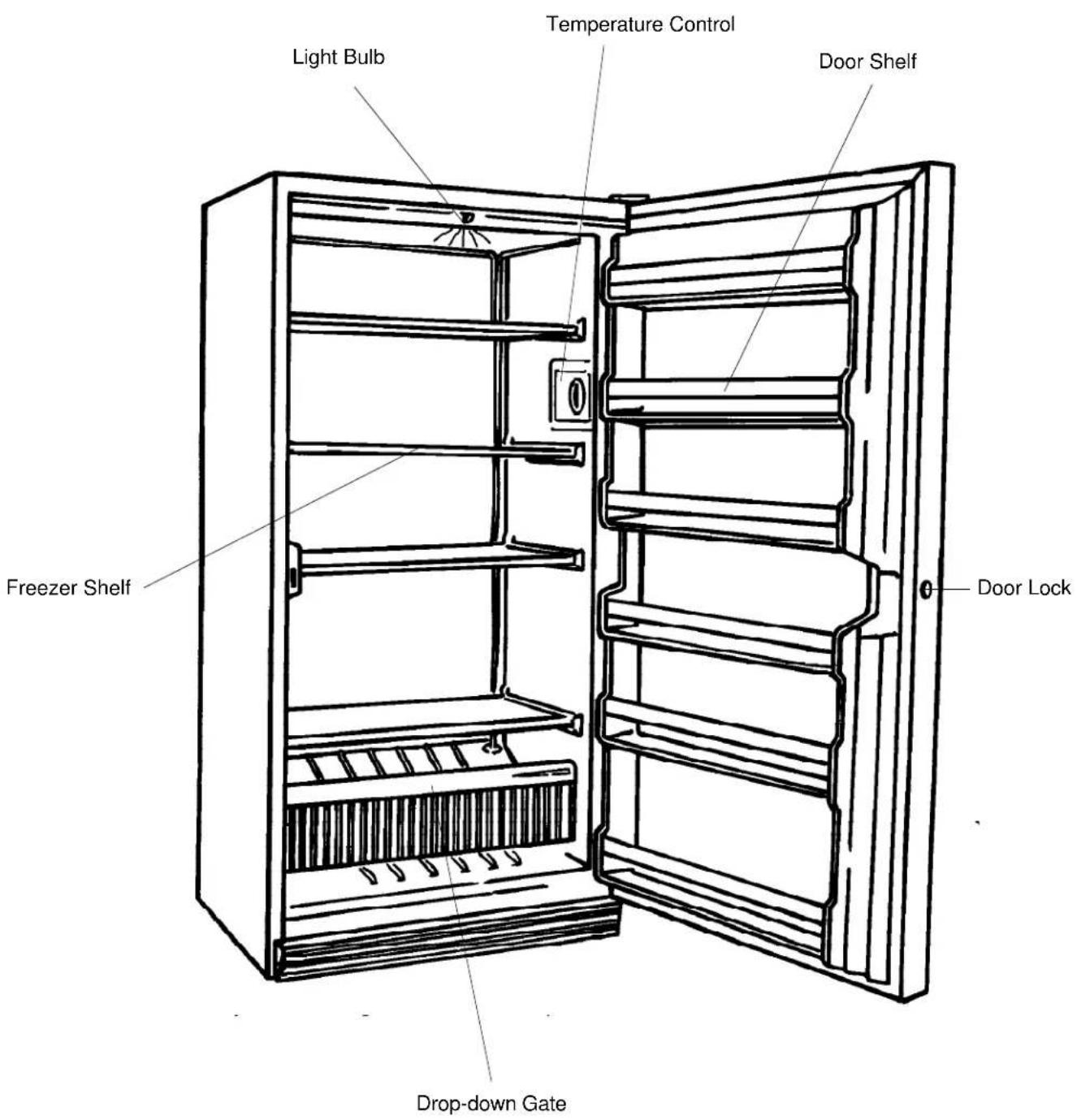

Light Bulb Temperature Control Door Shelf Freezer Shelf Door Lock Drop-down Gate

Chest Freezer

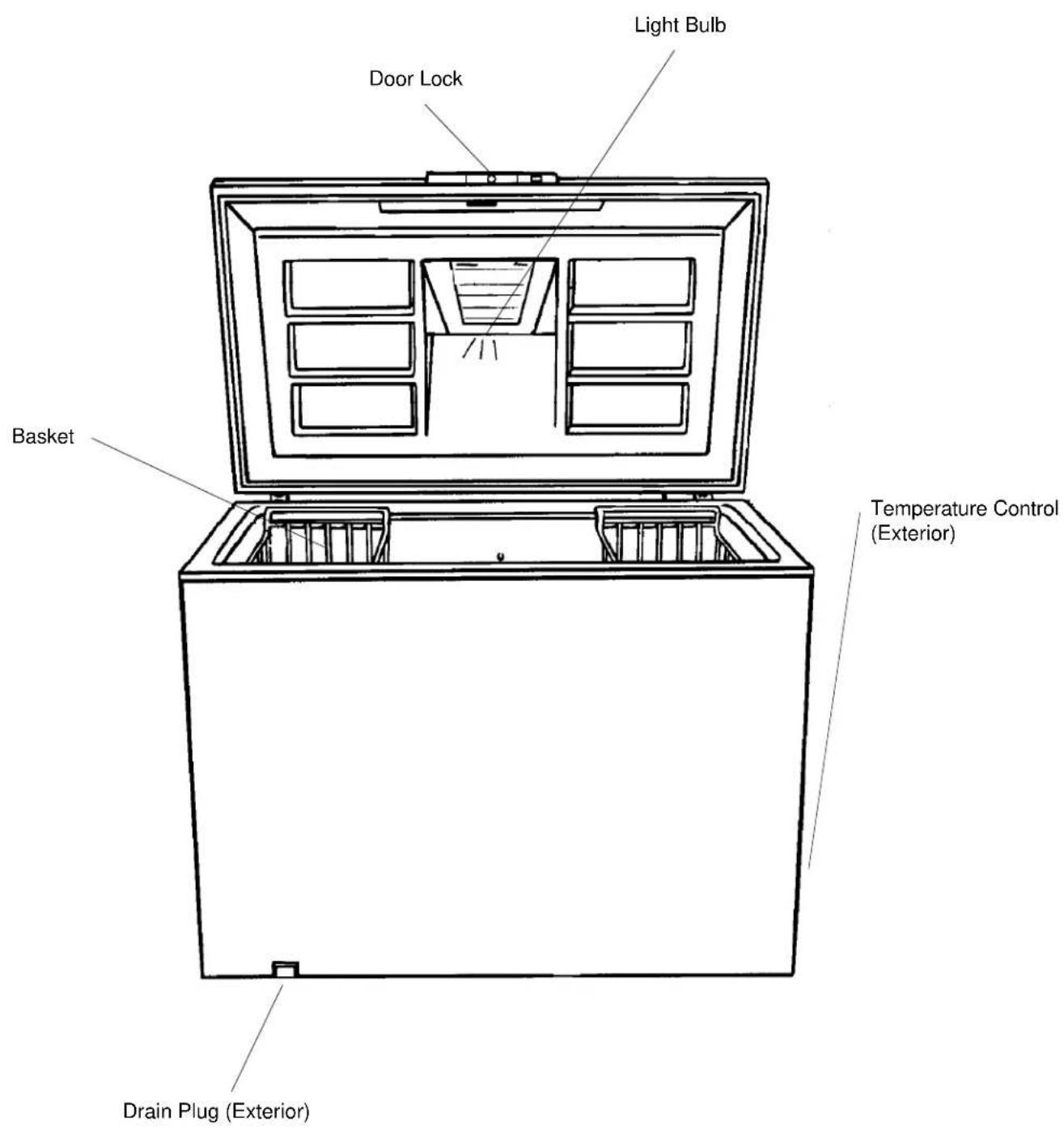

Light Bulb Door Lock Basket Temperature Control (Exterior) Drain Plug (Exterior)

Caution

To avoid personal injury, wear gloves when installing freezer.

Caution

To avoid property damage, protect soft vinyl or other flooring with cardboard, rugs or other protective material.

General

• Secure door before moving freezer. Do not use door or handle to lift or push freezer. Hinges on lid of chest freezer are under tension. If hinges must be removed, check instruction label on rear of freezer cabinet.
• Amana ^® upright and chest freezers are commercially rated for home use. Not designed for commercial application.
• Confirm the following items are installed.
• Free-O-Frost™ Upright Freezer Models
  Defrost drain pan behind toe grille.
• Standard Upright Freezer Models
  Drain plug in bottom front of freezer liner.
• Chest Freezer Models
  Interior drain plug in bottom left front corner and exterior drain plug in lower left front corner are installed.

Placement

Place freezer a minimum of three inches from surrounding walls or cabinets.

Door Handle

(upright freezer models)

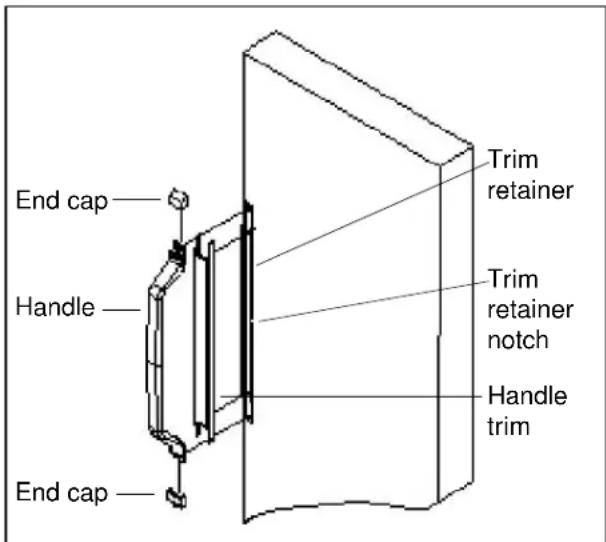

1. If handle trim has not been factory installed, slide right edge of handle trim under right edge of trim retainer. Verify rib on right inside edge of handle trim fits into trim retainer notch. Snap outside edge of handle trim over outside edge of trim retainer.
2. Install handle on freezer door as shown. Verify freezer handle is angled inward towards door. Secure handle to freezer door with screws provided. Verify screws are secure.
3. Slide end caps over ends of handle until end caps snap in place. End cap marked L goes on top end of handle. End cap marked R goes on bottom end of handle.

End cap Handle End cap Trim retainer Trim retainer notch Handle trim

Leveling

(upright freezer models)

1. Install leveling legs under front corners behind toe grille.
2. Level freezer side to side and tilt freezer 1/4 inch from front to back. Turn legs clockwise to raise freezer and counterclockwise to lower freezer. If freezer cannot be level due to flooring, use shims under rear of freezer cabinet to level freezer.
3. Check freezer 2 or 3 weeks after loading with food and confirm freezer is level.

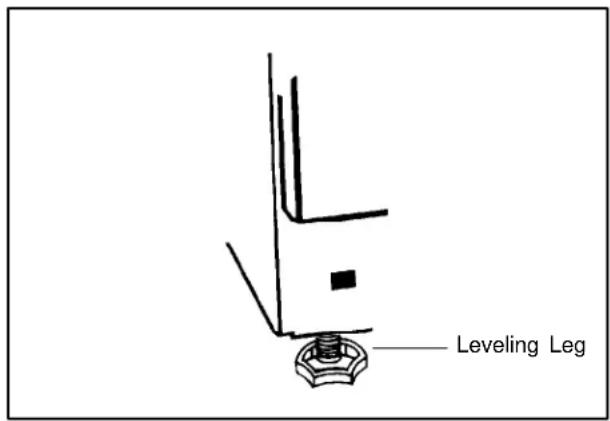

Leveling Leg

This freezer operates most efficiently in normal household temperatures of 65^ to 90^ F.

Temperature Control

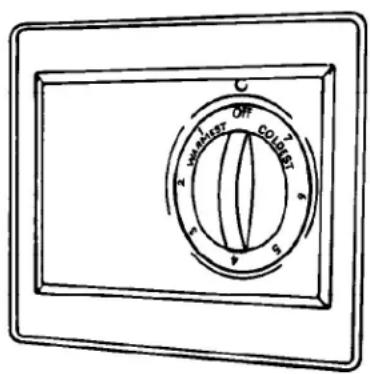

On upright freezer models, locate temperature control on right wall.

On chest freezer models, locate temperature control on right side of freezer cabinet near lower right back corner.

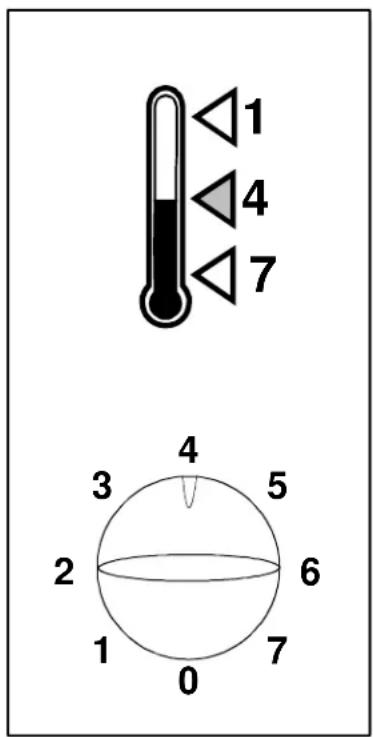

When control is set to 0, freezer will not cool. Initially, set control to 4. Wait 3 hours after connecting power for freezer to reach desired temperatures, then add food. After 24 hours, adjust control as desired. 1 is warmest setting and 7 is coldest.

Set temperatures precisely using a household thermometer that includes temperatures between -5^ to 50^ F. Put thermometer snugly between frozen packages in freezer. Wait 5-8 hours. If freezer temperature is not 0^ to 2^ F., adjust control, one number at a time. Check again after 5-8 hours.

1 4 7 3 4 5 2 6 1 7 0

Temperature Monitor

(C22 freezer model)

Locate temperature monitor on right side of freezer cabinet near bottom right corner.

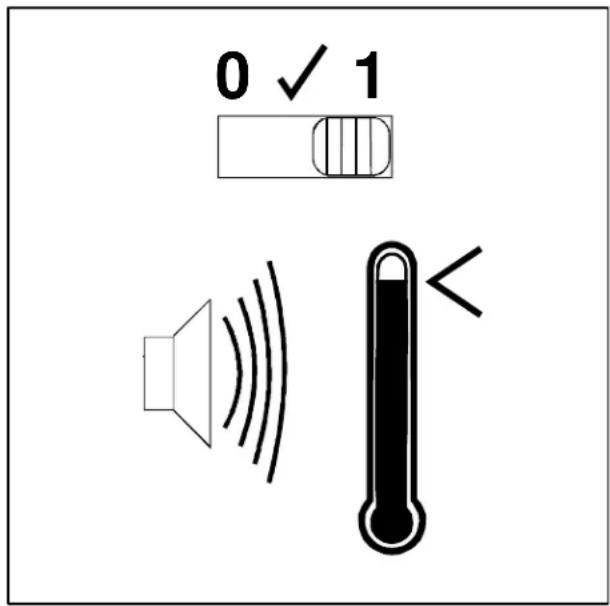

Alarm sounds if temperature in freezer rises 10^ F or more above normal for selected setting. Alarm may sound if temperature control dial is turned to a much lower colder setting or if a large amount of unfrozen food is added at one time.

Alarm is controlled by a three-position switch.

• 0 prevents alarm from sounding when freezer is warm, such as during initial start-up or defrosting.
• sounds alarm regardless of temperature. Alarm system should be tested at least once a month.
• 1 is proper setting for normal freezer use. Return switch to 1 after defrosting.

Features

Door Lock

Lock freezer door by completing the following:

1. Insert key into lock approximately 1/4".
2. Turn key clockwise to lock door and counterclockwise to unlock door.

WARNING

TO HELP PREVENT CHILD ENTRAPMENT KEEP KEY OUT OF REACH OF CHILDREN AND AWAY FROM CABINET.

Power On Light

(chest freezer models)

Locate power on light near door lock keyhole. Light is on when freezer is connected to power source. Light is off when power source is interrupted or when bulb needs replacing. Flickering light indicates faulty bulb.

0 ✓ 1

Reversible Rack

(some upright freezer models)

Rack separates food for more storage space.

• Remove rack by releasing rack from shelf wires. Pull down if located under shelf or lift up if located above shelf.
• Replace rack by positioning on top or underneath shelf wires. Slide rack until rack locks in place.

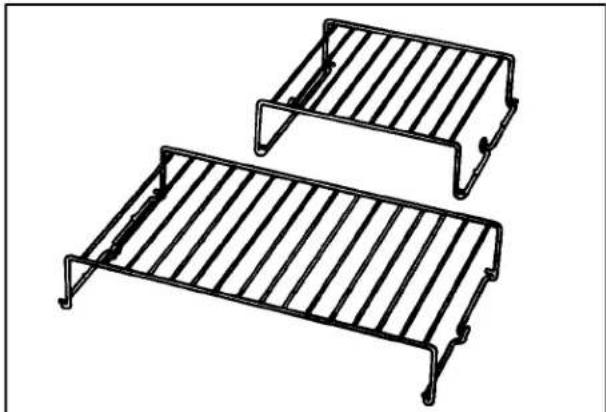

Two metal rack units with slats and side supports, no text or symbols visible

Divider

(some chest freezer models)

Divider keeps items in place. Divider sets on freezer floor.

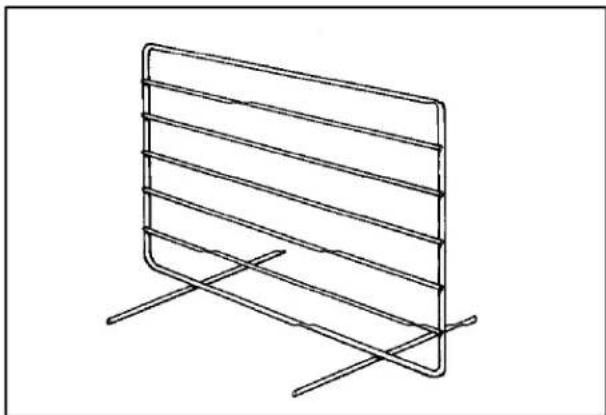

Line drawing of a metal-framed rack or stand with multiple horizontal bars and supports (no text or symbols)

Basket

(some chest freezer models)

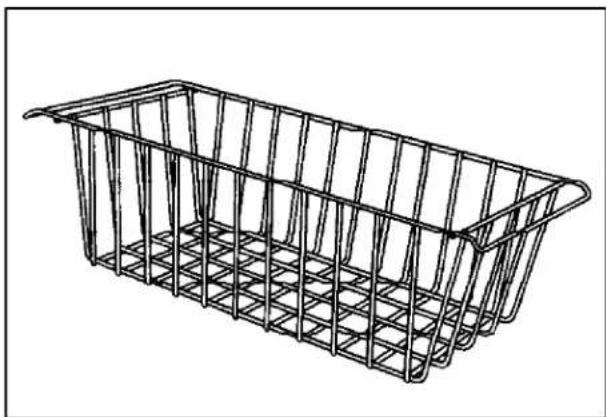

Basket separates food to organize storage space and removes for easier access of smaller items. Baskets rest on freezer liner.

Line drawing of a wire mesh basket (no text or symbols)

Wrapping

• Use moisture-vapor-proof materials and seal tightly. When lids are furnished, follow manufacturer's directions for best results.
• Choose materials which are labeled for freezer use. Ordinary waxed paper or butcher paper does not provide proper protection for frozen food. Materials not designed for freezer use may give off odors.

Freezing Guidelines

Item Recommended Storage Times at 0°F. (Months)
Meat
Beef Roast or Steak (fresh) 9-12
Meat Casserole (cooked) 3-6
Hamburger 3-4
Pork (cured) 1-3
Pork Chop or Roast (fresh) 4-8
Roast (fresh) 4-8
Sausage 1-3
Veal 8-9
Lamb	9-12
Poultry
Chicken (fresh) 9-12
Chicken (cooked) 1-3
Duck 6
Goose 6
Turkey (fresh) 6-12
Turkey (cooked) 1-3
Fish	3-6
Vegetables	8
Fruits	12
Breads and Pastries
Bread	1-3
Yeast Rolls	1-3
Layer Cake	2-4
Fruit Pie (unbaked)	8
Ice Cream, Sherbert	1-2

WARNING

To avoid electrical shock which can cause severe personal injury or death, disconnect power to freezer before cleaning. After cleaning, restore power.

Caution

To avoid personal injury or property damage, read and follow all cleaning product manufacturer's directions.

General

1. Wash surfaces with four tablespoons baking soda dissolved in one quart warm water and a soft, clean cloth.
2. Rinse surfaces with warm water. Dry surfaces with a soft, clean cloth.

Important

• Do not use the following items:
• abrasive or harsh cleaners, ammonia, chlorine bleach, etc.
• concentrated detergents or solvents
• metal scouring pads
  These items can scratch, crack and discolor surfaces.
• Do not place shelves or accessories in dishwasher.

Adhesives

Remove glue residue by dabbing toothpaste over adhesive. Rub toothpaste into adhesive with fingers until adhesive loosens. Rinse surface with warm water. Dry surface with a soft, clean cloth.

Door Gaskets

1. Clean door gaskets every three months or more frequently if necessary.
2. Rinse and dry gaskets thoroughly.
3. Apply a light film of petroleum jelly to keep gaskets pliable.

Odor Removal

1. Remove all food.
2. Wash all interior surfaces including door, floor and walls according to "General" instructions. Pay special attention to corners, crevices and grooves. Include all accessories, shelves and gaskets.
3. Rinse and dry thoroughly.
4. Wrap foods in tightly sealed wrap or containers to prevent further odor. After 24 hours, check if odor was eliminated.
5. Clean defrost drain pan in Free-O-Frost ^™ models by removing toe grille. Pull drain pan forward. Wash surface according to "General" instructions. When replacing drain pan verify that drain pan clips rest in slots on both sides of drain pan.

If odor was not eliminated, do the following:

1. Complete procedures in steps 1-3 above.
2. Pack freezer with crumpled sheets of black and white newspaper.
3. Place charcoal briquettes randomly throughout newspaper.
4. Close door and let stand 24-48 hours.
5. Remove charcoal briquettes and newspapers. Wash all interior surfaces including door, floor and walls according to "General" instructions. Pay special attention to corners, crevices and grooves. Include all accessories, shelves and gaskets.
6. Wrap foods in tightly sealed wrap or containers to prevent further odor. After 24 hours, check if odor was eliminated.

If odor was still not eliminated, contact Consumer Affairs Department.

Defrosting

WARNING

To avoid electrical shock which can cause severe personal injury or death, disconnect power to freezer before defrosting. After defrosting, restore power.

Defrost freezer when frost has accumulated to 1/4". Upper section of freezer will normally have more frost than lower section.

Upright Models

1. Transfer food to an alternate cooling source.
2. Remove toe grille by pulling forward.
3. Locate defrost drain tube and place tube in a shallow pan.
4. Remove defrost drain plug on bottom front of freezer liner so defrost water will flow into drain tube. Empty pan as needed during defrosting.
5. Open freezer door and place pans of hot water on shelves. Allow ice to melt before removing shelves.

Caution

To avoid property damage, do not use sharp or pointed instruments to scrape frost from shelves or interior surfaces.

1. Wash all interior surfaces including door, floor and walls according to "General" instructions.
2. Clean defrost drain using a bottle brush. Flush drain with clear water before replacing drain tube and drain plug. Drain plug must be properly installed for efficient operation.

Hand holding a small object inserted into a metal grate (no text or symbols visible)

Chest Freezer

1. Transfer food to an alternate cooling source.
2. Place pans of hot water in freezer.

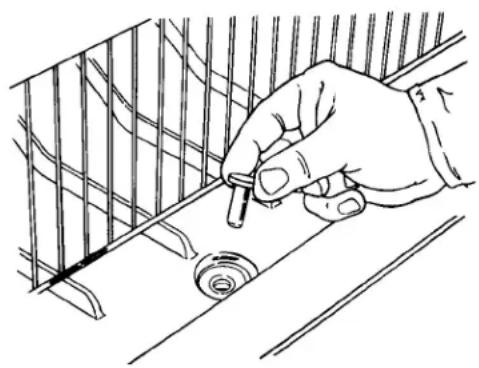

3. Remove interior drain plug from bottom left front corner of freezer.

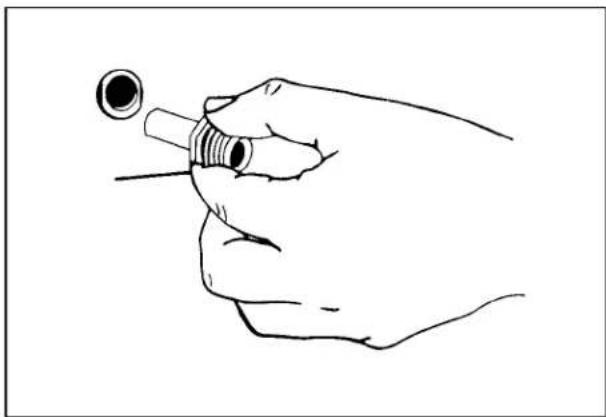

Line drawing of a hand holding a circular object, possibly a device or tool, with no visible text or symbols.

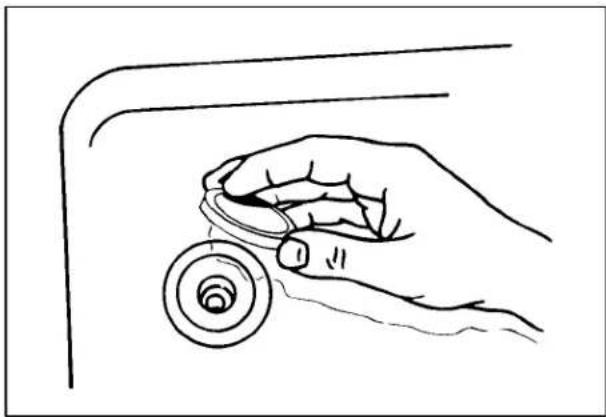

1. Remove exterior drain plug from lower left front corner of freezer.

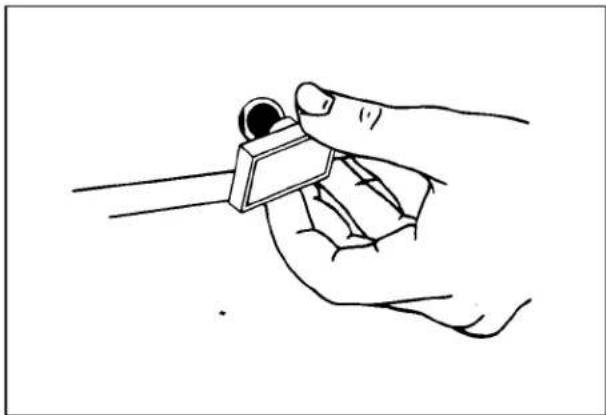

Line drawing of a hand holding a small object with a circular head, no text or symbols present

Line drawing of a hand holding a small cylindrical object with a pointed tip, no text or symbols present

1. Place shallow pan beneath drain opening to catch defrost water or attach a garden hose to outside drain hole, using supplied hose fitting (some models). Press hose fitting into outside drain opening.
2. Wash all interior surfaces including door, floor and walls according to "General" instructions.
3. Remove hose fitting if used. Replace both inside and outside drain plugs. Drain plug must be properly installed for efficient operation.

Light Bulb

WARNING

To avoid electrical shock which can cause severe personal injury or death, disconnect power to freezer before replacing light bulb. After replacing light bulb, restore power.

Caution

To avoid personal injury or property damage, observe the following:

• Allow light bulb to cool.
• Wear gloves when replacing light bulb.

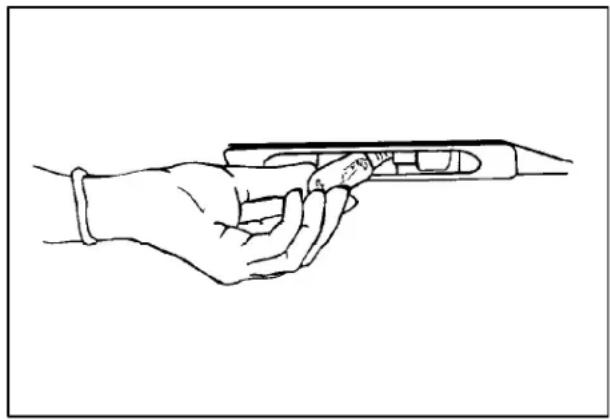

Remove light bulb cover by pressing front and back of light bulb cover together. Replace light bulb with 15-watt appliance bulb part #R0662001.

Line drawing of a hand holding a flat tool (no text or symbols)

Energy Tips

This freezer is designed to be one of the most energy efficient freezers available. Reduce energy use by doing the following:

• Operate in normal room temperatures away from heat sources and direct sunlight.
• Set controls no colder than necessary.
• Keep freezer full.
• Keep door gaskets clean and pliable. Replace gaskets if worn.

Vacation Tips

For long vacations, do the following:

1. Empty freezer.
2. Unplug freezer.
3. Clean freezer including door gaskets.
4. Prop doors open, so air can circulate inside.

Normal Operating Sounds

Today's freezers have new features and are more energy efficient. As a result, certain sounds may be unfamiliar. These sounds are normal and will soon become familiar. These sounds also indicate freezer is operating and performing as designed.

1. Temperature Control Temperature control clicks when starting or stopping compressor.

2. Freezer Fan (Free-O-Frost™ Upright Freezer Models) Freezer fan air rushes and whirs.

3. Evaporator Evaporator refrigerant flow gurgles, pops or sounds like boiling water.

4. Compressor Compressor has a high pitched hum or pulsating sound.

5. Insulation Foam insulation is very energy efficient and has excellent insulating capabilities. However, foam insulation is not as sound absorbent as previously used fiberglass insulation.

Before Calling For Service

Freezer does not operate.

• Confirm temperature control is on.
• Confirm freezer is plugged in.
• Check fuse or circuit breaker. Plug in another item at that wall outlet.
• Wait 20 minutes to see if freezer restarts. If freezer control is on, freezer may be in defrost cycle.

Freezer still won't operate.

• Unplug freezer. Transfer food to another unit or place dry ice in freezer to preserve food.
• Call 1-800-NATLSVC (628-5782) inside U.S.A. and 319-622-5511 outside U.S.A. to locate an authorized servicer.

Food temperature appears too warm.

• See above sections.
- Allow time for recently added food to reach freezer temperature.
- Check gasket for proper seal.
- Adjust temperature control.

Freezer runs too frequently.

• It may be normal to maintain an even temperature.
• Doors may have been opened frequently or for an extended period of time.
• Adjust temperature control.
• Check gaskets for proper seal.
• Confirm freezer has proper clearance on each side.

Water droplets form on outside of freezer.

- Check door gaskets for proper seal.

Water is on floor beneath freezer.

• Confirm drain plugs are properly positioned.
• On upright models, confirm defrost drain pan is properly positioned.

Freezer has an odor.

- See "Odor Removal" instructions in "Care and Cleaning" section.

Freezer makes unfamiliar sounds or seems too loud.

- It may be normal. See "Normal Operating Sounds" section.

Factory Service Centers

Listed below are Factory Service Centers which service most metropolitan and surrounding areas. Amana Refrigeration, Inc. also has a network of independent authorized servicers. Locate a Factory Service Center or independent servicer by calling 1-800-NATLSVC (628-5782) inside U.S.A. and 319-622-5511 outside U.S.A. When contacting Amana Refrigeration, Inc., provide product information. Locate product information on the nameplate. Upright freezer nameplate is on the upper left wall. Chest freezer nameplate is on the upper left corner. Warranty service must be performed by an authorized servicer. Amana Refrigeration, Inc. also recommends contacting an authorized servicer if service is required after warranty expires.

Amana Factory Service Center Arizona

Also dispatches service in areas of Nevada

Amana Factory Service Center California

Amana Factory Service Center Colorado

Also dispatches service in areas of Utah

Amana Factory Service Center Florida

Amana Factory Service Center Georgia

Also dispatches service in areas of Alabama, North Carolina, South Carolina and Tennessee

Amana Factory Service Center Iowa

Also dispatches service in areas of Kansas, Minnesota, Missouri and Wisconsin

Amana Factory Service Center Illinois

Also dispatches service in areas of Indiana and Kentucky

Amana Factory Service Center Massachusetts

Also dispatches service in areas of New Hampshire and Rhode Island

Amana Factory Service Center Maryland

Also dispatches service in areas of Pennsylvania, Virginia and Washington D.C.

Amana Factory Service Center New York

Also dispatches service in areas of Connecticut and New Jersey

Amana Factory Service Center Ohio

Also dispatches service in areas of Michigan and Pennsylvania

Amana Factory Service Center Texas

Asure™ Extended Service Plan

Amana Refrigeration, Inc. is pleased to offer long-term service protection on this new freezer. Asure ^™ Extended Service Plan is specially designed to supplement Amana's strong warranty. Asure ^™ provides budget-protecting coverage on freezer for up to five full years and includes parts, labor and travel charges. A participating Amana ^® dealer has details.

Table des matières

Pure geometric diagram of a rectangle divided by two diagonal lines forming an X (no text or symbols)

Simple geometric diagram of a rectangle divided by two diagonal lines forming an X (no text or symbols)

Caractéristiques

Two metal rack units with slats and side supports, no text or symbols visible

Séparateur

Line drawing of a metal rack stand with multiple horizontal bands (no text or symbols)

Panier

Line drawing of a wire mesh basket (no text or symbols)

Emballage

Hand holding a small tool inside a metal cage (no text or symbols visible)

Attention

Line drawing of a hand holding a circular object, possibly a device or tool, with no visible text or symbols.

Line drawing of a hand holding a small object, possibly a device or tool, with no visible text or symbols.

Line drawing of a hand holding a small cylindrical object with a pointed tip, no text or symbols present

Line drawing of a hand holding a flat tool (no text or symbols)

Amana Factory Service Center Arizona

Amana Factory Service Center California

Amana Factory Service Center Colorado

Amana Factory Service Center Florida

Amana Factory Service Center Georgia

Amana Factory Service Center Iowa

Amana Factory Service Center Illinois

Amana Factory Service Center Massachusetts

Amana Factory Service Center Maryland

Amana Factory Service Center New York

Amana Factory Service Center Ohio

Amana Factory Service Center Texas
