USER MANUAL EBX 943 610 SM AMICA

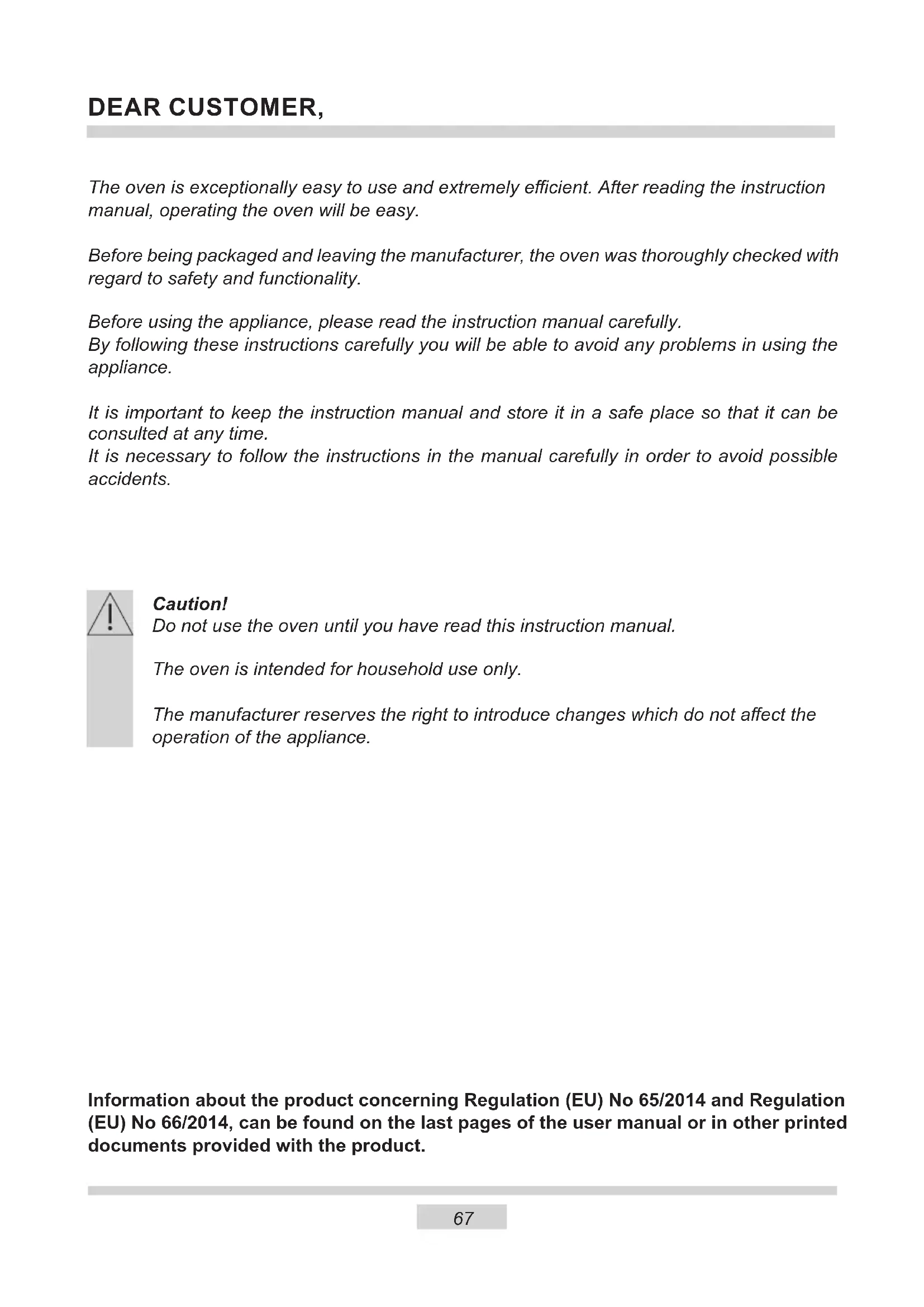

DEAR CUSTOMER, The oven is exceptionally easy to use and extremely ecient. After reading the instruction manual, operating the oven will be easy. Before being packaged and leaving the manufacturer, the oven was thoroughly checked with regard to safety and functionality. Before using the appliance, please read the instruction manual carefully. By following these instructions carefully you will be able to avoid any problems in using the appliance. It is important to keep the instruction manual and store it in a safe place so that it can be consulted at any time. It is necessary to follow the instructions in the manual carefully in order to avoid possible accidents. Caution! Do not use the oven until you have read this instruction manual. The oven is intended for household use only. The manufacturer reserves the right to introduce changes which do not aect the operation of the appliance. Information about the product concerning Regulation (EU) No 65/2014 and Regulation (EU) No 66/2014, can be found on the last pages of the user manual or in other printed documents provided with the product.68 SAFETY INSTRUCTIONS

Warning: The appliance and its accessible parts become hot

during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the ha- zards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by chil- dren without supervision. During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven. Accessible parts may become hot during use. Young children should be kept away.

Warning: Do not use harsh abrasive cleaners or sharp metal

scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

Warning: Ensure that the appliance is switched o󰀨 before

replacing the lamp to avoid the possibillity of electric shock. You should not use steam cleaning devices to clean the appliance.69 SAFETY INSTRUCTIONS ● Ensure that small items of household equipment, including connection leads, do not touch the hot oven as the insulation material of this equipment is usually not resistant to high temperatures. ● Do not leave the oven unattended when frying. Oils and fats may catch re due to overheating or boiling over. ● Do not put pans weighing over 15 kg on the opened door of the oven. ● Do not use harsh cleaning agents or sharp metal objects to clean the door as they can scratch the surface, which could then result in the glass cracking. ● Do not use the oven in the event of a technical fault. Any faults must be xed by an appropriately qualied and authorised person. ● In the event of any incident caused by a technical fault, disconnect the power and report the fault to the service centre to be repaired. ● The rules and provisions contained in this instruction manual should be strictly observed. Do not allow anybody who is not familiar with the contents of this in- struction manual to operate the oven. ● The appliance has been designed only for cooking. Any other use (for example for heating) does not comply with its operating prole and may cause danger. Danger of burns! Hot steam may escape when you open the oven door. Be careful when you open the oven door during or after cooking. Do NOT lean over the door when you open it. Please note that depending on the temperature the steam can be invisible.70

Using energy in a respon- sible way not only saves money but also helps the environment. So let’s save energy! And this is how you can do it: ● Do not uncover the pan too often (a wat- ched pot never boils!). Do not open the oven door unnecessarily often. ● Only use the oven when cooking larger dishes. Meat of up to 1 kg can be prepared more economically in a pan on the cooker hob. ● Make use of residual heat from the oven. If the cooking time is greater than 40 minutes switch o󰀨 the oven 10 minutes before the end time. Important! When using the timer, set appropriately shorter cooking times according to the dish being prepared.

● Make sure the oven door is pro- perly closed. Heat can leak through spillages on the door seals. Clean up any spillages immediately. ● Do not install the cooker in the direct vicinity of refrigerators/freezers. Otherwise energy consumption increases unnecessarily.71 During transportation, pro- tective packaging was used to protect the appliance against any damage. After unpacking, please dispose of all elements of packaging in a way that will not cause damage to the environment. All materials used for packaging the app- liance are environmentally friendly; they are 100% recyclable and are marked with the appropriate symbol. Caution! During unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept out of reach of children. UNPACKING

DISPOSAL OF THE APPLIANCE

Old appliances should not sim- ply be disposed of with normal household waste, but should be delivered to a collection and recycling centre for electric and electronic equipment. A symbol shown on the product, the instruction manual or the packaging shows that it is suitable for recycling. Materials used inside the appliance are recyclable and are labelled with information concerning this. By recycling materials or other parts from used devices you are making a signicant contribution to the protection of our environment. Information on appropriate disposal centres for used devices can be provided by your local authority.72

Cooker ttings: Baking tray* Grill grate (drying rack) Roasting tray* Sideracks76 INSTALLATION Installing the oven ● The kitchen area should be dry and aired and equipped with e󰀩cient ventillation. When installing the oven, easy access to all control elements should be ensured. ● This is a Y–type design built–in oven, which means that its back wall and one side wall can be placed next to a high piece of furniture or a wall. Coating or veneer used on tted furniture must be applied with a heat–resistant adhesive (100°C). This prevents surface deforma- tion or detachment of the coating. ● Hoods should be installed according to the manufacturer’s instructions. ● Make an opening with the dimensions given in the diagram for the oven to be tted. ● Make sure the mains plug is disconnected and then connect the oven to the mains supply. ● Insert the oven completely into the ope- ning without allowing the four screws in the places shown in the diagram to fall out.77 INSTALLATION ● The oven is manufactured to work with a one-phase alternating current (230V 1N~50 Hz) and is equipped with a 3 x 1,5

connection lead of 1.5 mm length with a plug including a protection contact. ● A connection socket for electricity supply should be equipped with a protection pin and may not be located above the coo- ker. After the cooker is positioned, it is necessary to make the connection socket accessible to the user. ● Before connecting the oven to the socket, check if: - the fuse and electricity supply are able to withstand the cooker load, - the electricity supply is equipped with an e󰀩cacious ground system which meets the requirements of current standards and provisions, - the plug is within easy reach. Electrical connection Important! If the xed power supply cable is damaged, it should be replaced at the manufacturer or at an authorized servicing outlet, or by a qualied person to avoid danger.78 OPERATION Before using the oven for the rst time The oven is equipped with a retractable knobs. In order to select a function do the following:

1. Gently press and release a knob which

2. Turn the oven functions selection knob to

the desired function. Symbols printed around the knob indicate available oven functions.

Remove packaging, clean the interior of the oven and the hob. Take out and wash the oven ttings with warm water and a little washing–up liquid. Switch on the ventillation in the room or open a window. Heat the oven (to a temperature of 250°C, for approx. 30 min.), remove any stains and wash carefully; the heating zones of the hob should be heated for around 4 min. without a pan. Important! To clean the oven, only use a cloth well rang out with warm water to which a little washing-up liquid has been added. The electronic prgrammer Ts is equip- ped with electronic sensors which are switched on by touching or pressing the sensor surface for at least one second. Each sensor reaction is conrmed by the beep.Keep the sensor surface clean at all times. Important! In ovens equipped with the electronic programmer Ts, the time “0.00” will start ashing in the display eld upon connection to the power supply. The programmer should be set with the current time. (See Electronic programmer ). If the current time is not set operation of the oven is impossible.79 OPERATION Electronic timer* Setting the time When the appliance is plugged into the elec- trical mains supply, or when power is restored after power outage, the digital display will show ashing 0.00. lTouch and hold MENU ((or simultaneously touch < / >) until you will see on the display and the dot below the symbol is ashing, lTouch < / > within 7 seconds to set the current time. To store the new time setting, wait approx- imately 7 seconds after time has been set. The dot below the symbol will stop ashing. You can adjust the time later. To do this touch < / > simultaneously and adjust the current time while the dot below the symbol is ashing. Note: The oven can be turned on when you see the symbol on the display. MENU — select the mode of operation > — higher setting sensor < — lower setting sensor — appliance on indicator — Kitchen timer — Duration Kitchen Timer You can active the Kitchen Timer at any time, regardless of the status of other functions. The Kitchen Timer can be set from 1 minute up to 23 hours and 59 minutes. To set the Kitchen Timer: lTouch MENU, then the display will show blinking : lUse the < / >, sensors to set the Kitchen Timer. The display will show the set time and Kitchen Timer symbol . Once the set time elapses, alarm sounds and the icon ashes, lTouch and hold MENU or simultaneously touch and hold < / > to mute the alarm, the will be o󰀨 and the display will show the current time. Note! If no button is touched, alarm will turn o󰀨 automatically after approximately 7 minutes. Timed operation To set the appliance to switch o󰀨 after a specic duration: lSet the operation mode knob and the tem- perature control knob to your preferred settings. lTouch MENU repeatedly until the display shows dur (duration) briey and the symbol will be ashing, lSet the desired duration from 1 minute to 10 hours using the < / > sensors. The set duration will be memorised after about 7 seconds. The display will show the current time and the symbol. Once the Duration has elapsed the oven will turn o󰀨 automatically. You will hear an alarm and the symbol will be ashing. *optional80 OPERATION lSet the oven function selector knob and the temperature selector knob in o󰀨 po- sition., lTouch and hold MENU or simultaneously touch and hold < / > to mute the alarm, the will be o󰀨 and the display will show the current time. Cancel settings Timer and Timed operation settings may be cancelled at any time. Cancel Timed operation settings: l Simultaneously touch and hold the < / > sensors. Cancel timer settings: lTouch the MENU sensor to select the Kitch- en Timer, lsimultaneously touch the < / > sensors Change the beep tone You can change the beep tones as follows: lSimultaneously touch the < / >, sensors lTouch MENU repeatedly to select the ton (tone). The display will be ashing: lUse the < / > sensors to select your pre- ferred tone: Use > to select the setting 1 to 3 Use < to select the setting 3 to 1 Adjust display brightness You can adjust display brightness 1 to 9, where 1 is the darkest and 9 is the brightest. The brightness setting applies to an inactive control panel, i.e. when no controls are touched for 7 seconds. You can adjust display brightness as follows: lSimultaneously touch the < / > sensors, lTouch MENU repeatedly to select the bri (brightness) setting — the settings can be accessed in sequence ton (tone) and bri (brightness). lUse the < / > sensors to select your pre- ferred brightness: Use > to select the setting 1 to 9 Use < to select the setting 9 to 1 Note: The display is at its brightest setting when active, i.e. a control was touched within the last 7 seconds. Night Mode The display is dimmed during the night hours 22:00 — 06:00.81 OPERATION The oven can be warmed up using the bottom and top heaters, as well as the grill. Operation of the oven is controlled by the oven function knob – to set a required function you should turn the knob to the selected position, as well as the temperature regulator knob – to set a required function you should turn the knob to the selected position. The oven is equipped with a retractable knobs. In order to select a function do the following: - Gently press and release a knob which will pop out, - Turn the oven functions selection knob to the desired function. Symbols printed around the knob indicate available oven functions. The oven can be switched o󰀨 by setting both of these knobs to the position “l”/“0”. Caution! When selecting any heating function (switching a heater on etc.) the oven will only be switched on after the temperature has ben set by the tem- perature regulator knob. 0 Oven is o󰀨 Roaster on. Roasting is used for cooking of small portions of meat: steaks, schnitzel, fish, toasts, Frankfurter sausages, (thickness of roasted dish should not exceed 2-3 cm and should be turned over during roasting). Defrosting Only fan is on and all heaters are o󰀨. Fan and combined grill on When the knob is turned to this posi- tion, the oven activates the combined grill and fan function. In practice, this function allows the grilling process to be speeded up and an improvement in the taste of the dish. You should only use the grill with the oven door shut. Enhanced roaster (super roaster) In this setting both roaster and top heater are on. This increases tem- perature in the top part of the oven’s interior, which makes it suitable for browning and roasting of larger por- tions of food. Oven with automatic air circulation (including a fan and top and bottom heaters) Oven functions and operation. Rapid Preheating Top and bottom heater, roaster and fan on. Use to preheat the oven.

OPERATION Top and bottom heaters on Set the knob in this position for co- nventional baking. This setting is ideal for baking cakes, meat, sh, bread and pizza (it is necessary to preheat the oven and use a baking tray) on one oven level. Top heater, bottom heater and fan are on. This knob setting is most suitable for baking cakes. Convection baking (recommended for baking). When the functions have been selected but the temperature knob is set to zero only the fan will be on. With this function you can cool the dish or the oven chamber. Bottom heater on When the knob is set to this position the oven is heated using only the bottom heater. Baking of cakes from the bottom until done (moist cakes with fruit stu󰀩ng). Switching on the oven is indicated by two si- gnal lights, R, L, turning on. The R light turned on means the oven is working. If the L light goes out, it means the oven has reached the set temperature. If a recipe recommends pla- cing dishes in a warmed-up oven, this should be not done before the L light goes out for the rst time. When baking, the Llight will tem- porarily come on and go out (to maintain the temperature inside the oven). The R signal light may also turn on at the knob position of “oven chamber lighting”. Independent oven lighting Set the knob in this position to light up the oven interior. ECO Heating This is an optimised heating function designed to save energy when pre- paring food. At this knob position, the oven lighting is o󰀨.83 OPERATION The oven can be warmed up using the bottom and top heaters, as well as the grill. Operation of the oven is controlled by the oven function knob – to set a required function you should turn the knob to the selected position, as well as the temperature regulator knob – to set a required function you should turn the knob to the selected position. The oven can be switched o󰀨 by setting both of these knobs to the position “l”/“0”. Caution! When selecting any heating function (switching a heater on etc.) the oven will only be switched on after the temperature has ben set by the tem- perature regulator knob. 0 Oven is o󰀨 Defrosting Only fan is on and all heaters are o󰀨. Oven with automatic air circulation (including a fan and top and bottom heaters) Model EBX 947 600 SM

Top and bottom heaters on Set the knob in this position for co- nventional baking. This setting is ideal for baking cakes, meat, sh, bread and pizza (it is necessary to preheat the oven and use a baking tray) on one oven level. Bottom heater on When the knob is set to this position the oven is heated using only the bottom heater. Baking of cakes from the bottom until done (moist cakes with fruit stu󰀩ng). Top heater, bottom heater and fan are on. This knob setting is most suitable for baking cakes. Convection baking (recommended for baking). When the functions have been selected but the temperature knob is set to zero only the fan will be on. With this function you can cool the dish or the oven chamber. Top heater on Setting the knob to this postion allows the oven to be heated only with the top heater switched on, e.g. use for nal baking from above.84 OPERATION Switching on the oven is indicated by two si- gnal lights, R, L, turning on. The R light turned on means the oven is working. If the L light goes out, it means the oven has reached the set temperature. If a recipe recommends pla- cing dishes in a warmed-up oven, this should be not done before the L light goes out for the rst time. When baking, the Llight will tem- porarily come on and go out (to maintain the temperature inside the oven). The R signal light may also turn on at the knob position of “oven chamber lighting”. Independent oven lighting Set the knob in this position to light up the oven interior. ECO Heating This is an optimised heating function designed to save energy when pre- paring food. At this knob position, the oven lighting is o󰀨.85 OPERATION Use of the grill Warning! When using function grill it is recom- mended that the oven door is closed. When the grill is in use accessible parts can become hot. It is best to keep children away from the oven. The grilling process operates through infra- red rays emitted onto the dish by the incan- descent grill heater. In order to switch on the grill you need to: l Set the oven knob to the position marked grill, l Heat the oven for approx. 5 minutes (with the oven door shut). l Insert a tray with a dish onto the appro- priate cooking level; and if you are grilling on the grate insert a tray for dripping on the level immediately below (under the grate). l Close the oven door. For grilling with the function grill and combined grill the temperature must be set to 220ºC, but for the function fan and grill it must be set to a maximum of 190ºC.86

BAKING IN THE OVEN – PRACTICAL HINTS

Baking ● we recommend using the baking trays which were provided with your cooker; ● it is also possible to bake in cake tins and trays bought elsewhere which should be put on the drying rack; for baking it is better to use black trays which conduct heat better and shorten the baking time; ● shapes and trays with bright or shiny surfaces are not recommended when using the conventional heating method (top and bottom heaters), use of such tins can result in undercooking the base of cakes; ● when using the ultra-fan function it is not necessary to initially heat up the oven chamber, for other types of heating you should warm up the oven chamber before the cake is inserted; ● before the cake is taken out of the oven, check if it is ready using a wooden stick (if the cake is ready the stick should come out dry and clean after being inserted into the cake); ● after switching o󰀨 the oven it is advisable to leave the cake inside for about 5 min.; ● temperatures for baking with the ultra-fan function are usually around 20 – 30 degrees lower than in normal baking (using top and bottom heaters); ● the baking parameters given in Table are approximate and can be corrected based on your own experience and cooking preferences; ● if information given in recipe books is signicantly di󰀨erent from the values included in this instruction manual, please apply the instructions from the manual. Roasting meat ● cook meat weighing over 1 kg in the oven, but smaller pieces should be cooked on the gas burners. ● use heatproof ovenware for roasting, with handles that are also resistant to high temperatures; ● when roasting on the drying rack or the grate we recommend that you place a baking tray with a small amount of water on the lowest level of the oven; ● it is advisable to turn the meat over at least once during the roasting time and during roasting you should also baste the meat with its juices or with hot salty water – do not pour cold water over the meat.87

dish Oven functions Temperature Level Time in minutes

ECO Heating l ECO Heating an optimised heating function designed to save energy when preparing food. l You cannot reduce the cooking time by setting a higher temperature; preheating the oven is not recommended. l Do not change the temperature setting and do not open the oven door during cooking. Recommended setting for ECO Heating88

dish Oven functions Temperature Level Time in minutes

ECO Heating l ECO Heating an optimised heating function designed to save energy when preparing food. l You cannot reduce the cooking time by setting a higher temperature; preheating the oven is not recommended. l Do not change the temperature setting and do not open the oven door during cooking. Recommended setting for ECO Heating89

BAKING IN THE OVEN – PRACTICAL HINTS

Type of dish Type of heating Temperature Level Time (min.)

Oven with automatic air circulation (including a fan and top and bottom heaters) The times are apply to dish that is placed into a cold oven. For the preheated oven, the times should be reduced by about 5-10 minutes.

Baking smaller items Note: The gures given in Tables are approximate and can be adapted based on your own experience and cooking preferences.90

BAKING IN THE OVEN – PRACTICAL HINTS

Type of dish Type of heating Temperature Level Time (min.)

Oven with conventional heating (including top + bottom heaters) Model EBX 947 600 SM The times are apply to dish that is placed into a cold oven. For the preheated oven, the times should be reduced by about 5-10 minutes.

Baking smaller items Note: The gures given in Tables are approximate and can be adapted based on your own experience and cooking preferences.91 TEST DISHES. According to standard EN 60350-1. Type of dish Accessory Level Type of heating Temperature

Baking time (min.) Small cakes Baking tray 4 160

Baking tray Roasting tray 2 + 4

Baking tray Roasting tray 2 + 4

black baking tins placed after the dia- gonal, back right, front left

Preheat, do not use Rapid preheat function about 5 minutes92 TEST DISHES. According to standard EN 60350-1. Type of dish Accessory Level Type of heating Temperature

Time (min.) White bread toast Wire rack 4 220

Beef burgers Wire rack + roasting tray (to gather drops)

1st side 13 - 18 2nd side 10 - 15 Grilling

Preheat for 8 minutes, do not use Rapid preheat function. Type of dish Accessory Level Type of heating Temperature

Time (min.) Whole chicken Wire rack + roasting tray (to gather drops)

Wire rack + roasting tray (to gather drops)

Roasting The times are apply to dish that is placed into a cold oven. For the preheated oven, the times should be reduced by about 5-10 minutes.93

CLEANING AND MAINTENANCE

Oven ● The oven should be cleaned after every use. When cleaning the oven the lighting should be switched on to enable you to see the surfaces better. ● The oven chamber should only be washed with warm water and a small amount of washing-up liquid. ● After cleaning the oven chamber wipe it dry. Caution! Do not use cleaning products con- taining abrasive materials for the cleaning and maintenance of the glass front panel. By ensuring proper cleaning and mainte- nance of your cooker you can have a signi- cant inuence on the continuing fault-free operation of your appliance. Before you start cleaning, the cooker must be switched o󰀨 and you should ensure that all knobs are set to the position “off ”. Do not start cleaning until the cooker has completely cooled. ● Steam Cleaning function: -pour 250ml of water (1 glass) into a bowl placed in the oven on the rst level from the bottom, - close the oven door, - set the temperature knob to 50°C, and the function knob to the bottom heater position - heat the oven chamber for approximately 30 minutes, - open the oven door, wipe the chamber inside with a cloth or sponge and wash using warm water with washing-up liquid., ● After cleaning the oven chamber wipe it dry. Replacing the halogen bulb in the oven Before replacing the halogen bulb, make sure the appliance is disconnected from the electric mains to avoid a possible electric shock. Oven lighting ● Set all control knobs to the position “●”/“0” and disconnect the mains plug, ● Unscrew and wash the lamp cover and then wipe it dry. ● Pull the halogen bulb out using a cloth or paper. If necessary, replace the halogen bulb with a new one. - voltage 230V - power 25W - G9 ● Replace the halogen bulb in its socket. ● Screw in the lamp cover. Note! Make sure not to touch the halogen directly with your ngers.94

CLEANING AND MAINTENANCE

Important! Do not wash telescopic runners in a dishwasher. Removing telescopic runners Installing telescopic runners Removing wire shelf supports Installing wire shelf supports

lOvens in cookers marked with the letter D are equipped with easily removable wire shelf supports. To remove them for washing, pull the front catch, then tilt the support and remove from the rear catch. lOvens in cookers marked with the letters Dp* have stainless steel sliding telescopic runners attached to the wire shelf sup- ports. The telescopic runners should be removed and cleaned together with the wire shelf supports. Before you put the baking tray on the telescopic runners, they should be pulled out (if the oven is hot, pull out the telescopic runners by hooking the back edge of the baking tray on the bumpers in the front part of the telescopic runners) and then insert them together with the tray. *optional95

CLEANING AND MAINTENANCE

Door removal In order to obtain easier access to the oven chamber for cleaning, it is possible to remove the door. To do this, tilt the safety catch part of the hinge upwards (g. A). Close the door lightly, lift and pull it out towards you. In order to t the door back on to the cooker, do the inverse. When tting, ensure that the notch of the hinge is correctly placed on the protrusion of the hinge holder. After the door is tted to the oven, the safety catch should be carefully lowered down again. If the safety catch is not set it may cause damage to the hinge when closing the door. Removing the inner panel

1. Pull the upper door slat loose. (g. B, C)

Tilting the hinge safety catches

A96 Regular inspections Besides keeping the oven clean, you should: ● carry out periodic inspections of the con- trol elements and cooking units of the cooker. After the guarantee has expired you should have a technical inspection of the cooker carried out at a service centre at least once every two years, ● x any operational faults, ● carry out periodical maintenance of the cooking units of the oven. Caution! All repairs and regulatory activities should be carried out by the ap- propriate service centre or by an appropriately authorised tter.

CLEANING AND MAINTENANCE

2. Pull the inner glass panel from its seat

(in the lower section of the door). Re- move the inner panel (g. D).

3. Clean the panel with warm water with

some cleaning agent added. Carry out the same in reverse order to reassemble the inner glass panel. Its smooth surface shall be pointed up- wards. Important! Do not force the upper strip in on both sides of the door at the same time. In order to correctly t the top door strip, rst put the left end of the strip on the door and then press the right end in until you hear a “click”. Then press the left end in until you hear a “click”. Removal of the internal glass panel

In the event of an emergency, you should: ● switch o󰀨 all working units of the oven ● disconnect the mains plug ● call the service centre ● some minor faults can be xed by referring to the instructions given in the table below. Before calling the customer support centre or the service centre check the following points that are presented in the table.

PROBLEM REASON ACTION

1. The appliance does not

work. Break in power supply. Check the household fuse box; if there is a blown fuse replace it with a new one.

2. The programmer display

shows “0:00”. The appliance was discon- nected from the mains or there was a temporary power cut. Set the current time (see ‘Use of the programmer’).

3. The oven lighting does not
