10021689 - Food Processor Klarstein - Free user manual and instructions

Brand	Klarstein
Model	10021689
Product Type	Food processor / Blender
Power Supply	220-240 V ~ 50/60 Hz
Rated Power	400 W (estimated)
Bowl Capacity	1.5 L (estimated)
Number of Speeds	3 (Low, Medium, High)
Functions	Pulse, Timer (30 s, 60 s, 90 s)
Bowl Material	Plastic
Blade Material	Stainless Steel (estimated)
Dimensions (L x W x H)	Approx. 30 x 20 x 25 cm (estimated)
Weight	Approx. 2.5 kg (estimated)
Cable Length	Approx. 1.2 m (estimated)
Safety	Safety lid with lock (estimated)
Cleaning	Do not immerse in water, do not put in dishwasher
Maintenance	Clean only when switched off, wipe with a damp cloth
Included Accessories	Mixing bowl, silicone lid, knife blade, pusher
Repairs	Entrust to a qualified professional
Intended Use	Food chopping
Warranty	2 years (estimated)
Country of Origin	Germany (estimated)

Frequently Asked Questions - 10021689 Klarstein

How to use the device to chop hard foods?

For hard foods like carrots or celery, select the Medium speed. Cut the food into pieces, add a little liquid if necessary, and use the Pulse function for precise control. Do not exceed the maximum bowl capacity.

What speeds are available and for which foods?

The device has 3 speeds: Low for soft foods (cucumbers, bananas), Medium for hard foods (carrots, apples), and High for very hard foods (coffee, nuts, ice cubes). Use the timer of 30, 60, or 90 seconds depending on the desired texture.

How to clean the mixing bowl?

Turn off and unplug the device. Clean the mixing bowl by hand with a damp cloth and mild detergent. Never immerse the bowl in water and do not put it in the dishwasher. Dry all parts before reassembling.

Is the device suitable for ice cubes?

Yes, use the High speed to crush ice cubes. Add the ice cubes to the bowl, close the lid, and use the Pulse function with short presses. Be careful not to overload the bowl.

What to do if the device does not turn on?

First check that the device is properly plugged into a functional outlet. Make sure the lid is properly locked (safety feature). If the problem persists, the fuse may be defective; replace it or contact a qualified professional.

Can I blend hot liquids?

No, it is not recommended to blend hot liquids (>70°C) as the pressure could blow off the lid and cause burns. Let liquids cool to room temperature before using. The device is designed for cold or lukewarm foods.

How to use the Pulse function?

The Pulse function (Instant Turing Switch button) allows impulse operation. Hold the button down for momentary maximum power. Release to stop. Ideal for coarse chopping or to avoid over-mixing.

What is the maximum bowl capacity?

The bowl capacity is estimated at 1.5 liters. Do not fill the bowl beyond the level marks to avoid overflow. For solid foods, do not exceed half the bowl to allow efficient mixing.

Is the device guaranteed?

The standard warranty is generally 2 years from the date of purchase. Keep your receipt. The warranty does not cover damages due to improper use or unauthorized repairs. Contact Klarstein customer service for any claims.

How to replace the fuse?

Unplug the device. Using a screwdriver, open the fuse compartment (marked on the housing). Replace the defective fuse with a fuse of the same type and rating. If the problem persists, consult a qualified professional.

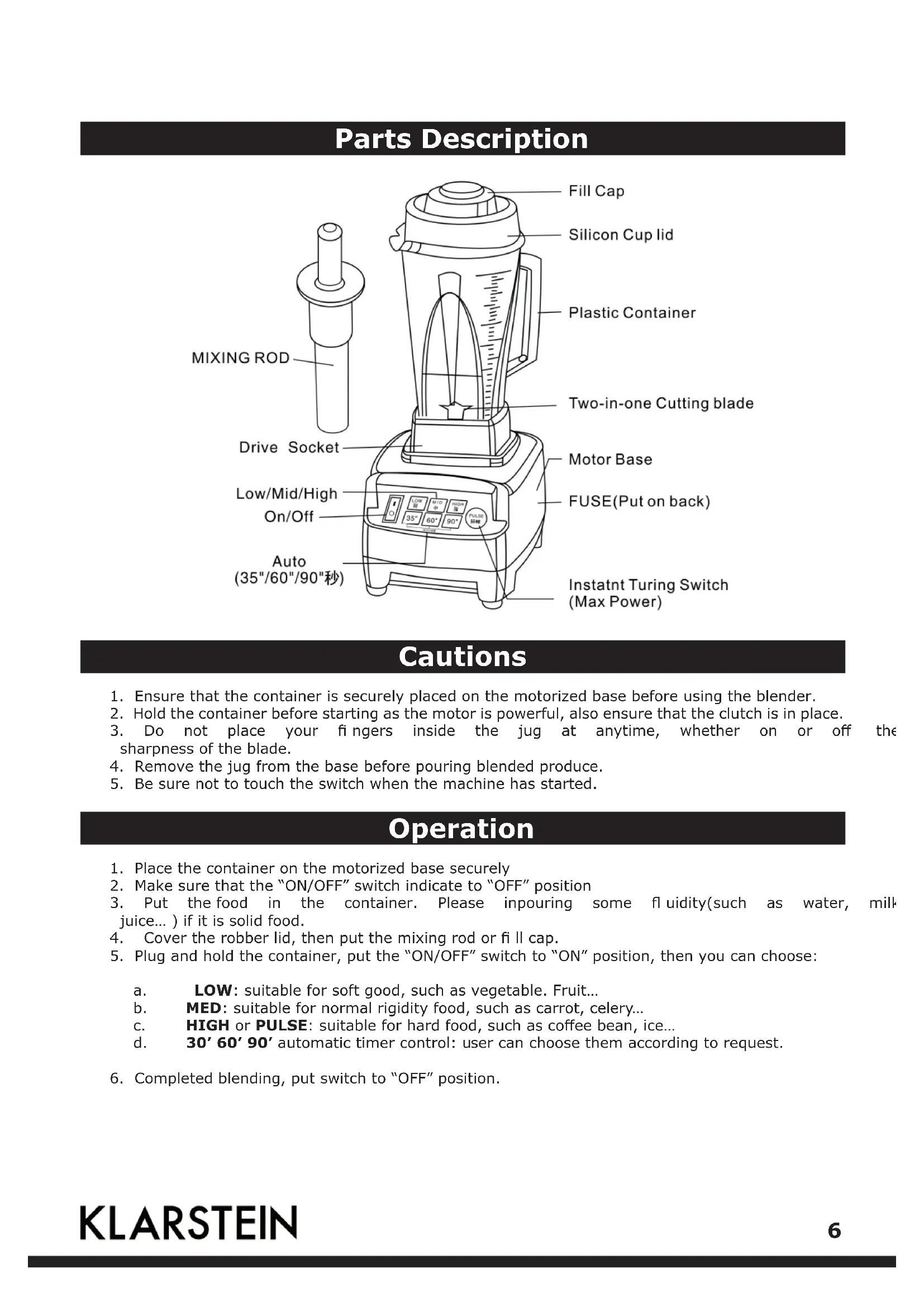

USER MANUAL 10021689 Klarstein

1. Ensure that the container is securely placed on the motorized base before using the blender.
2. Hold the container before starting as the motor is powerful, also ensure that the clutch is in place.
3. Do not place your fingers inside the jug at anytime, whether on or off the sharpness of the blade.
4. Remove the jug from the base before pouring blended produce.
5. Be sure not to touch the switch when the machine has started.

Operation

1. Place the container on the motorized base securely
2. Make sure that the "ON/OFF" switch indicate to "OFF" position
3. Put the food in the container. Please inpouring some fluidity(such as water, milk juice...) if it is solid food.
4. Cover the robber lid, then put the mixing rod or fi ll cap.
5. Plug and hold the container, put the "ON/OFF" switch to "ON" position, then you can choose:

a. LOW: suitable for soft good, such as vegetable. Fruit...
b. MED: suitable for normal rigidity food, such as carrot, celery...
c. HIGH or PULSE: suitable for hard food, such as coffee bean, ice...
d. 30^60^90^ automatic timer control: user can choose them according to request.

1. Completed blending, put switch to "OFF" position.

Safeguards

1. Unplug from wall when blender is not in use.
2. The cover can only be opened when the blade has completely stopped rotating.
3. When cleaning, ensure that you unplug the appliance, the jug can be washed separately.
4. Do not submerge the motorized blender base in water or place in the dishwasher.
5. When in use, keep children away to prevent accidents.
6. Do not put the metal matter in the container. Such as knife, fork, scoop...

Maintenance tips

1. When cleaning or maintaining, unplug appliance and ensure main switch is turned to off position.
2. Clean the blender body and the cover with a sponge or cloth
3. Do not clean inside the jug by hand unless the blade is already removed.
4. Clean the rotary shaft and the motor base with a dry rag.
5. If required use a clean cloth with a mild-ph detergent to clean

Troubleshooting

Check if the current protector button is turned off, press it and then reset. If the blender still doesn't work. Check the following:

1. Whether the appliance is plugged in
2. If there is a power cut
3. If none of the above applies, please do not attempt to fix the blender yourself and instead, ask specialized personnel for repair or approved supplier for replacement.

How to replace a new drive socket

Take off old drive socket by using screwdriver, then replace it by new socket.

Hints on Disposal

According to the European waste regulation 2002/96/EG this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Declaration of Conformity

Producer: Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)
