USER MANUAL Yofruit 10027882 Klarstein

Congratulations on purchasing this Klarstein equipment. Please read this manual carefully and take care of the following hints on installation and use to avoid technical damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the operation and installation instructions are not covered by our warranty and any liability.

Contents

Technical Data 6

Safety Instructions 6

Packing Content and Product Description 7

Before first Use 7

Use and Operation 7

Drying Time and Temperature Modes 8

How to prepare Yoghurt 9

Cleaning and Care 9

Environment Concerns 9

Declaration of Conformity 9

Technical Data

Item number 10027882, 10027883
Power supply 220-240 V ~ 50-60 Hz
Power consumption 250 W
Weight 2.87 kg
Dimensions 290 mm (Height) x 280 mm (Width) x 180 mm (Depth)

Safety Instructions

• Please read these operating instructions carefully in order to avoid damage due to incorrect use and keep it for future reference.
• Before the first switching on check that the voltage indicated on the rating label corresponds to the mains voltage in your home.
• Incorrect operation and improper handling can lead to malfunction of the appliance and injuries to the user.
• For home use only. Do not use for industrial purposes.
• Always unplug the appliance from the power supply when not in use.
• Do not immerse the unit, cord or plug in water or other liquids. If it has happened, remove the plug from the wall socket immediately, an expert should check the unit before using it again.
• Do not operate the appliance if the cord or the plug is damaged or if the appliance has been otherwise damaged. In such cases take the appliance to a qualified specialist for check and repair if necessary.
• Ensure that the cord does not hang over sharp edges and keep it away from hot surfaces.
• To disconnect the appliance from the power supply pull it by the plug only, not by the cord.
• Place the appliance on a dry stable non-hot surface, away from hot objects (e.g. hotplates); do not place under curtains and shelves.
• Never leave the appliance not supervised during use.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.

• Do not touch hot surface.

• The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock or injury to users.

• Do not use the device for longer than 40 hours at once. After 40 hours of usage, unplug the device from the socket and let it cool off.
• Do not cover the device.
• ATTENTION: in order to avoid catching fire, always place the device only on a non-heating surface.
• The appliance is not designed for use with external timer or separate remote control system.
• Do not attempt to repair, adjust or replace parts in the appliance. Repair the malfunctioning appliance in the nearest service center.
• If the product has been exposed to temperatures below 0^ for some time it should be kept at room temperature for at least 2 hours before turning it on.

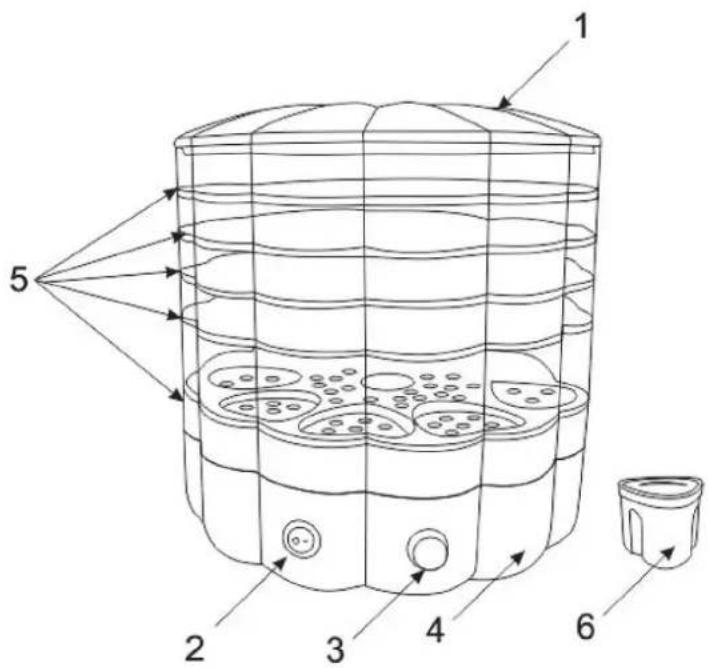

Packing Content and Product Description

1) Lid
2) Switch button I/O
3) Temperature controller
4) Base
5) 5 removable sections for drying
6) 9 jars for yoghurt

Before first Use

• Unpack the item.
• Before the first use wash all the containers and removable parts with warm soapy water, rinse thoroughly and wipe them dry.
• Wipe the inside of the base with a moist cloth.

Use and Operation

1 Place the drier on a steady horizontal surface.
2 Lay out the food items and removable sections.
3 The sections should be positioned so that the air can easily circulate between the sections. Do not put too many food items in each section. Maximum capacity of each tray is 0,8kg
4 Place the removable sections on the base.
5 Cover the device with the lid. The lid should cover the device for the whole period of operation
6 Plug the device into the socket. Move the switch button to «I» position. The light indicator will turn on.
7 Set the necessary temperature using temperature controller.

Drying Time and Temperature Modes

Recommended Temperature Modes

Foord Temperature Mode
Herbs 35-40°C
Bread 40-50°C
Vegetables 50-55°C
Fruits 55-60°C
Mushrooms 50-55°C
Meat, Fish 65-70°C

Recommended Drying Time

ATTENTION: The duration of the drying process depends on the desired result. It is recommended to put all 5 removable sections during the operation even if some of the sections will remain empty. It is recommended to soak the fruit in corresponding juice diluted with water before drying; the soaking time is 2 hours; 1/4 cup of juice with 2 cups of water).

Food item Preparation Drying Time in		hours
Fruits
Apricots Remove the pit and cut in thin slices. 13-28
Pineapple Remove the rind and cut in pieces. 6-36
Bananas Remove the peel and cut in circles. 8-38
Grapes	Do not cut.	8-26
Cherries	You may leave the pit.	6-36
Pears	Remove the peel and cut in thin pieces.	8-30
Cranberries	Do not cut.	6-26
Peaches	Cut in half, remove the pit when the fruit is half dry.	6-26
Apples	Remove the peel, remove the heart and cut in circles or pieces.	4-15
Vegetables
Mushrooms	Cut in thin slices (small mushrooms may be dried in one piece.	6-14
Carrots	Boil until soft. Grate or cut in circles.	8-14
Bell peppers	Remove the heart and cut in strips or circles	4-14
Garlic	Skin and cut in circles	6-16

After Drying

After the drying process is finished, turn off the dryer by moving the switch button to «O» position.
- Wait until the food is cool, and then pack the food.
- Unplug the device from the socket.

How to prepare Yoghurt

The delivery set of the dryer includes 9 cans for yoghurt. Before initial use wash the jars thoroughly with warm soapy water, and wipe dry.

To prepare yoghurt in all jars you will need milk (1 litre) and 9 tablespoons of yoghurt.
- Leave only the bottom container on the dryer.
- Place the uncovered jars flled with yoghurt premix in the container cavities.
- Put the lid on the container.
- Connect the unit to mains. Set the power button to the „I“ position. The indicator lights.
- Set the temperature control to „yogurt" position (temperature 35, 40 or 45 oC).
- The cooking time depends on the desirable thickness of yoghurt (5 to 8 hours).
After cooking, set the power button to the "O" position and switch the dryer off.
- Disconnect the appliance from mains.
Take out the jars filled with yoghurt.
- Close the jars fi lled with yoghurt with lids and place them into refrigerator.

Cleaning and Care

• Unplug the dryer from the socket and let it cool off completely
• Wash the lid and the removable sections with soapy water (you may wash the lid and the sections in the upper shelf of the dishwasher), rinse thoroughly and dry.
• Carefully wipe the base with a moist cloth.
• Do not use abrasive cleaners, organic solvents and aggressive liquids.
• Keep the appliance in a dry cool place.

Environment Concerns

According to the European waste regulation 2002/96/EG this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Declaration of Conformity

Producer: Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)
