Product Type	Food Dehydrator
Model	Fruit Jerky 9
Brand	Klarstein
Item Number	10031936
Number of Trays	9
Power Supply	220-240 V~, 50/60 Hz
Power Consumption	42-500 W
Temperature Range	35-70 °C
Temperature Increment	5 °C per press
Timer Range	0:30 to 19:30 hours (30-minute increments)
Fan Type	Automatic circulation fan
Door	Transparent for visibility
Overheat Protection	Yes
Non-stick Sheet	Included for residue collection
Damper Door	Yes
Max Load per Tray	0.5 kg
Continuous Operation Limit	20 hours, then 2-hour cool down
Cleaning	Hand wash trays; do not immerse main unit
Use	Domestic only
Display	LED screen showing time and temperature
Controls	Power, Timer, Temp, Up/Down buttons

Frequently Asked Questions - Fruit Jerky 9 Klarstein

How do I set the drying time?

Press the TIMER button, then use the UP or DOWN button to adjust the time from 0:30 to 19:30 in 30-minute increments. The setting is confirmed automatically after 3 seconds.

How do I set the drying temperature?

Press the TEMP button, then use the UP or DOWN button to adjust the temperature from 35 °C to 70 °C in 5 °C increments. The setting is confirmed after 3 seconds.

What is the maximum continuous operation time?

The dehydrator can run for a maximum of 20 hours in one session. After 20 hours, turn it off and let it cool down for at least 2 hours before using again.

Can I dry different types of food at the same time?

Yes, you can dry different foods simultaneously. However, be aware that drying times may vary depending on the moisture content and thickness of each food. It is recommended to check progress hourly and adjust if needed.

How should I clean the dehydrator?

Unplug the unit and let it cool. Clean trays, damper door, and non-stick sheet with a lightly moistened cloth and mild detergent. Do not immerse the main unit in water or any liquid. Use a soft brush to remove stuck food. Dry all parts before storing.

Why does the dehydrator beep when starting?

A beep sound at startup is normal and indicates the device is beginning operation. The fan and motor start first, followed by the heating element after 5 seconds.

What does the 'End' display mean?

When the set time reaches 0:00, the heating element stops, the fan runs for 10 seconds, and the buzzer sounds 20 times. The LED screen shows 'End' to indicate the drying cycle is complete.

How should I store dried food?

Allow food to cool completely. Store in a cool, dry, dark place in airtight containers. Remove as much air as possible. Optimal storage temperature is 15 °C or lower. For long-term storage, refrigerate or freeze.

Can I leave the dehydrator unattended?

No, do not leave the dehydrator unattended during use. Always monitor the appliance, especially when drying for long periods. The unit should be placed on a stable, level surface away from children.

What is the maximum load per tray?

Each tray can hold a maximum of 0.5 kg of food. Do not overload or overlap food pieces for proper air circulation and even drying.

USER MANUAL Fruit Jerky 9 Klarstein

KLARSTEIN NIEI SRA T TEIN NIEI SRA T K LAR KLARSTEIN NIEI SRA T TEIN NIEI SRA T K LAR KLARSTEIN NIEI SRA T TEIN NIEI SRA T K LAR KLARSTEIN NIEI SRA T

KLARSTEIN

Fruit Jerky 6 Fruit Jerky 9

DÖRRAUTOMAT

FOOD DEHYDRATOR

Symbol of a trash bin with no text or labels, including a crossed-out wheel and a solid black rectangle below (no text or symbols present)

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints on installation and use to avoid technical damages. Any failure caused by ignoring the items and cautions mentioned in the operation and installation instructions are not covered by our warranty and any liability.

CONTENTS

Technical Data 12

Safety Advice 13

Device Description 15

Before Use 16

Assembling the appliance 16

DRYING TIPS: 18

STORAGE 18

Maintenance/Cleaning Method 19

Disposal Considerations 20

TECHNICAL DATA

Item number 10031935 1	0031936
Number of layers 6 9
Power supply 220 -240 V~ 50/60 Hz
Power consumption 42 - 500 W
Temperature range 35-70 °C

Read the following instruction carefully before using the appliance for the first time.

• PLEASE READ THIS INSTRUCTION CAREFULLY BEFORE USE AND RETAIN FOR FUTURE REFERENCE
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children less than 8 years.
  • This appliance is intended to be used in household and similar applications such as:
• staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.
• This food dehydrator is designed for DOMESTIC USE ONLY and is not suitable for commercial use. Do not use it for outdoors.
• When using the food dehydrator ensures that it is on a flat, level and sturdy surface, ensure no risk that it may fall. Also that it can take the weight of the unit during use.
• Failure to follow all the instructions listed may result in electric shock, fire or serious personal injury. The warnings, cautions and instructions discussed in this instruction manual cannot cover all possible conditions and situations that may occur while the product in use
• Do not leave the food dehydrator unattended during use.
• Always keep the food dehydrator out of children as they are unable to recognize the hazards associated with incorrect handling of electrical appliances.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge. Unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.
• Before plugging the food dehydrator into the mains electrical supply, check that the voltage and power supply comply with the specifications on the food dehydrator's rating label.
• Make sure that the food dehydrator is switched off and remove the plug from the mains electrical supply when it is not in use; before it is cleaned and whilst it is being repaired.
• Ensure that the food dehydrator and power cord is not hung over sharp edges and keep away from hot objects and open flames; otherwise the plastic will melt and cause a fire.
• Under no circumstances should the food dehydrator or plug be immersed in water or any other liquid. Do not use the appliance with wet hands.
• Check the food dehydrator and power cord regularly for damage.
• Do not use the food dehydrator should there be damage to the plug or cord, following a malfunction, or after it has been dropped or damaged in any way.

EN

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Repairs to the food dehydrator should only be performed by a qualified electrician. Improper repairs may place the user at risk.
• None of the product's parts are dishwasher safe, unless explicitly specified otherwise.
• Always turn the power off at the power outlet before you insert or remove a plug. Remove by grasping the plug; do not pull on the cord.
• Do not use your appliance with an extension cord unless this cord has been checked and tested by a qualified technician or service person.
  • Never use an unauthorized attachment.
• Avoid contact with moving parts. Keep hands, hair, clothing, spatulas and other utensils away during operation to reduce the risk of injury to persons and/or damage to the machine.
• Please don't turn the draught of engine towards others or tinder.
• Please don't keep it beside anything heating. Please keep the plug away from pressing; otherwise it will cause a fire or electric shock.
• If you pass this appliance on to a third party, these operating instructions must also be handed over.
• Do not run the appliance for more than 20 hours in one single use. After 20 hours, press the power button, then unplug and let it cool down for at least 2 hours before operating again.
• The temperature of accessible surface may be HIGH when the appliance is operating.

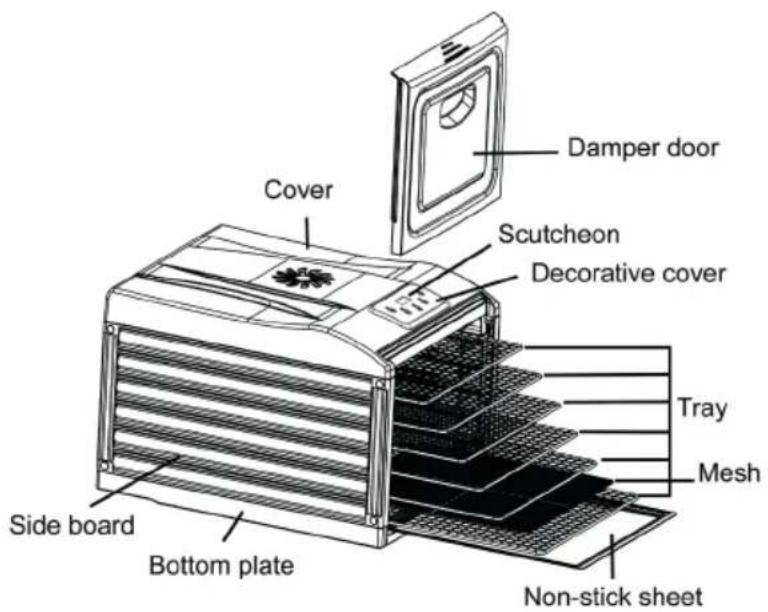

Features of Dehydrator

• This unit features an automatic fan, which circulates warm air producing a nice evenly dried device! Dried foods are a great treat to snack on because they hold almost all of their nutritional value and flavor.
  • Perfect way to preserve fruit, snacks, vegetables, bread, flowers and more.
• With six trays (Item No. 10031935) or nine trays (10031935), each tray can not load more than 0.5 kg of food.
• If you want to dry thicker food, you can take out one tray to make the height higher between two trays.
• Put the Non-stick sheet on bottom can collect the residue during dry food.
• Close the transparent door can dry the food more efficient.
  • From the transparent door, you can see the food situation during drying.

BEFORE USE

Cleaning:

Before using the first time, wipe all parts of the appliance. Clean all trays, damper door and non-stick sheet with a lightly moistened cloth. Use detergent as needed. Don't put the main engine into water or other liquids!

After cleaning, the unit must be run for 30 minutes without placing any food for drying during this period. Any smoke or smells produced during this procedure are normal. Please ensure sufficient ventilation. After the running in period, rinse the racks in water and dry all parts. This act is only necessary for the first time, but don't put the main engine into water or other liquids.

Unplug the dehydrator from the power supply and let it cool down before cleaning. Use a soft brush to remove food sticking. Dry all parts before storing the dehydrator.

Do not clean the appliance with aggressive chemicals or abrasives in order not to damage the surface.

ASSEMBLING THE APPLIANCE

Make sure that the dehydrator on a level surface. Stock the drying trays and connect the plug with a wall socket. The dehydrator is now ready for use.

Usage Method

1. Put the clean food in the trays – Do not overload the trays and never overlap the food. Close the damper door.
2. Plug dehydrator into wall outlet. There is a beep sound at the beginning when it starts up. Press the power button, The LED screen will show default time setting "10:00" and temp setting "70 °C". Motor and fan start first, then heating element start working 5 seconds later. Set time begins to count down, the signal ":" on LED screen flashes.
3. Press the "TIMER" button and LED screen shows the time value. According to actual needs, press UP or DOWN button to change the drying time between "0:30" and "19:30". Press UP or DOWN button once, the time increment or decrement is 30 minute/press. If press UP or DOWN button for long time, then it automatically increases or decreases. 3 seconds after finish setting the drying time, system automatically gets into operating mode in current time setup.
4. Press the "TEMP" button and LED screen shows the temp value. According to actual needs, press UP or DOWN button to change the drying temp between "35 °C" and "70 °C". Pres sUP or DOWN button once, the temp increment or decrement

is 5 °C/press. If press UP or DOWNbutton for long time, then it automatically increases or decreases. 3 seconds after finish setting the drying temp system automatically confirms to work in current temp setup. LED screen operating in time mode.

Note: Set low temperature for thin/small pieces of food or for a small load of food. Set high temperature for drying thick/big pieces of food and large loads. The thermostat can also be used to decrease the temperature as the food is near the end of its drying cycle making it easier to control the final moisture level in the food.

1. During drying process, you can change or check the drying time. Press the "TIMER" button first, then press the UP or DOWN button. Press "TIMER" button, you can check the setting time.
2. During drying process, you can change or check the drying temp. Press the "TEMP" button first, then press the UP or DOWN button. 5 seconds after finish changing or checking, LED screen changes to time mode.
3. During drying process, press the power button, all functions will be paused. Screen no display.
4. In standby mode, you can press the power button directly to get into default mode (TIME: 10 hours TEMP: 70 °C). You also can change the drying time and temp if needed.

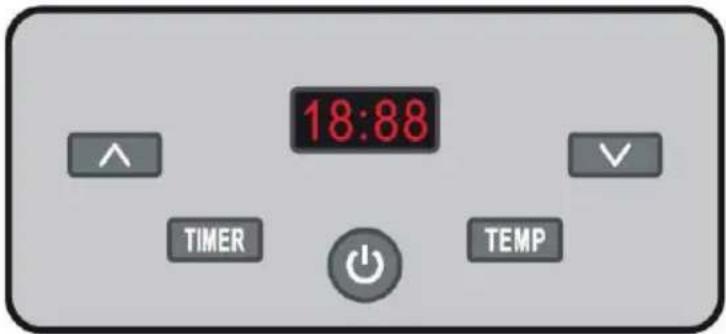

Function buttons as below:

1. When the set time counts down to "0:00", the heating element stops working first. The fan will continue running for 10 seconds and the buzzer rings 20 times "beep" sound (1 time/second). The LED screen display signal "End" means finish drying.

Note: Make sure that the fan base is always in place when operating the dryer. If you do not have time to dry all the food in one day, you can dry them the next day. In this case, you should store the food in a container/polyethylene bag and put it in the freezer.

1. Unplug the unit from the power point.

Hints:

• This dehydrator includes 6/9 drawer trays and an overheat protection. The main engineer contains heating elements, motor, fan and thermostat.
  • The air vents on the tray allow air to be circulated.
• Using a controlled heat temperature, Air from the back flow into each tray drying moisture..
• Depending on the moisture in the food itself and the humidity in the air, drying operation time can change. Use the dryer in a dust free, well ventilated, warm and dry room. Well air ventilation is also important.
• Fruit and vegetables dried in your food dehydrator will be different in appearance from those sold in health food stores and supermarkets. This is due to your food dehydrator uses no preservatives, no artificial coloring and only natural additives.
• Records of humidity, weight of produce before and after drying times, will be helpful to improving your drying techniques for the future.

DRYING TIPS

Drying time for pre-treatment fruit will vary according to the following factors:

• thickness of pieces or slices
• number of trays with food being dried
• volume of food being dried
• moisture or humidity in your environment
- your preferences of drying for each type of dried food

It is recommended to:

• Check your food every hour.
- Label food with contents dried, date and weight before drying. It will also be helpful to note the drying time for future reference.
- Pretreated food will give the best effect in drying.
- Correct food storage after drying also will help to keep food in good quality and save the nutrients.

STORAGE

• Store food only after they have cooled down.
• Food can be kept longer if stored in a cool, dry and dark place.
• Remove all the air you possibly can from the storage container and close tightly.
• Optimal storage temperature is 15 or lower.
• Never store food directly in a metal container.
• Avoid containers that "breathe" or have a weak seal.
• Check the contents of your dried food for moisture during the weeks following dehydration. If there is moisture inside, you should dehydrate the contents for a longer time to avoid spoiling.
• For best quality, dried fruit, vegetables, herbs, nuts, bread should not be kept for more than 1 year, if kept in the refrigerator or freezer.

- Dried meats, poultry and fish should be stored for no more than 3 months if kept in the refrigerator, or 1 year if kept in the freezer.

MAINTENANCE/CLEANING METHOD

After using, unplug the dehydrator from the power supply and let it cool down before cleaning. Use a soft brush to remove food sticking on the trays. Dry all parts with a dry cloth before storing the dehydrator. Clean the surface of body with wet cloth.

Use paper towels to remove any excess marinade.

Do not clean the appliance with aggressive chemicals or abrasives in order not to damage the surface.

DISPOSAL CONSIDERATIONS

Symbol of a waste bin with no text or labels

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Declaration of Conformity

Producer: Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany

This product is conform to the following European Directives:

2011/65/EU (RoHS)

2014/30/EU (EMC)

2014/35/EU (LVD)
