Installation requirements 3

Before you start 4

Using Detergent 4

Using Rinse 9

Using Softener 12

Operations 14

Cycle overview 14

Energy, water saving tip 15

Cycle chart 16

Maintenance 23

Cleaning 23

Troubleshooting 27

Checkpoints 27

Information codes 30

English2

Installation

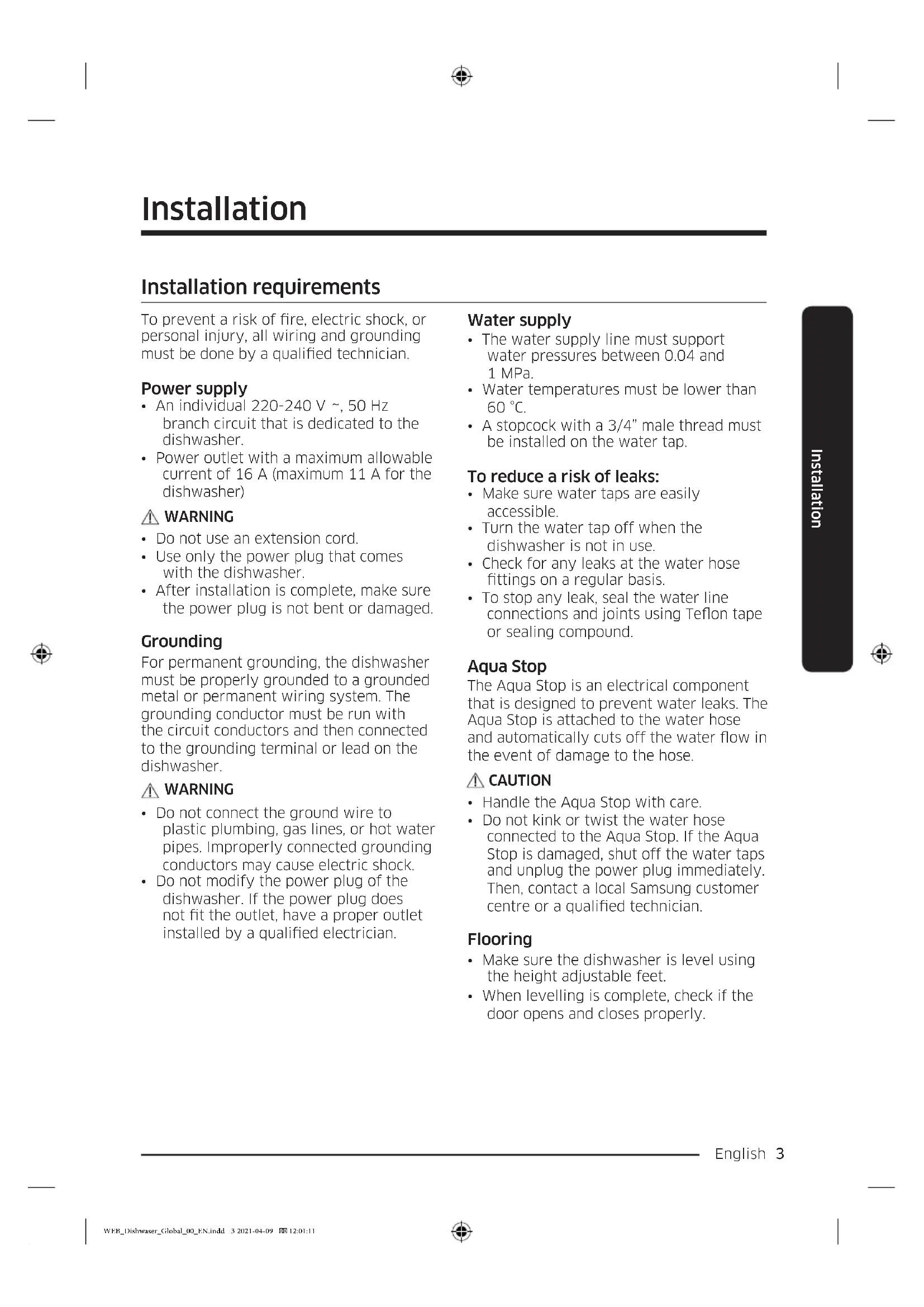

Installation requirements

To prevent a risk of fire, electric shock, or personal injury, all wiring and grounding must be done by a qualified technician.

Power supply

• An individual 220-240 V \~, 50 Hz branch circuit that is dedicated to the dishwasher.
• Power outlet with a maximum allowable current of 16 A (maximum 11 A for the dishwasher)

WARNING

• Do not use an extension cord.
• Use only the power plug that comes with the dishwasher.
  • After installation is complete, make sure the power plug is not bent or damaged.

Grounding

For permanent grounding, the dishwasher must be properly grounded to a grounded metal or permanent wiring system. The grounding conductor must be run with the circuit conductors and then connected to the grounding terminal or lead on the dishwasher.

WARNING

• Do not connect the ground wire to plastic plumbing, gas lines, or hot water pipes. Improperly connected grounding conductors may cause electric shock.
• Do not modify the power plug of the dishwasher. If the power plug does not fit the outlet, have a proper outlet installed by a qualified electrician.

Water supply

• The water supply line must support water pressures between 0.04 and 1 MPa.
• Water temperatures must be lower than 60 °C.
• A stopcock with a 3/4" male thread must be installed on the water tap.

To reduce a risk of leaks:

• Make sure water taps are easily accessible.
• Turn the water tap off when the dishwasher is not in use.
• Check for any leaks at the water hose fittings on a regular basis.
• To stop any leak, seal the water line connections and joints using Teflon tape or sealing compound.

Aqua Stop

The Aqua Stop is an electrical component that is designed to prevent water leaks. The Aqua Stop is attached to the water hose and automatically cuts off the water flow in the event of damage to the hose.

CAUTION

• Handle the Aqua Stop with care.
• Do not kink or twist the water hose connected to the Aqua Stop. If the Aqua Stop is damaged, shut off the water taps and unplug the power plug immediately. Then, contact a local Samsung customer centre or a qualified technician.

Flooring

• Make sure the dishwasher is level using the height adjustable feet.
• When levelling is complete, check if the door opens and closes properly.

Before you start

There are two types of dispenser as follows. Check the instructions for the right dispenser for your dishwasher.

3D diagram of a mechanical component with an arrow indicating direction (no text or symbols)

Type A Type B

Diagram of a mechanical device with a lever and cable, showing no text or symbols

Using Detergent

Detergent compartment

All dishwasher cycles require detergent in the detergent compartment. Apply detergent as recommended for the selected cycle to ensure best performance.

WARNING

• Do not place dishwasher detergent in your mouth. Avoid breathing in detergent fumes. Dishwasher detergent contains irritants and caustic chemicals that can induce respiratory conditions. If you have consumed dishwasher detergent or inhaled detergent fumes, seek medical attention immediately.
• Keep dishwasher detergent out of children's reach.

CAUTION

• Use dishwasher detergent only. Other types of detergent produce excessive foam, which may decrease the dishwasher's performance or cause it to malfunction.
• The dishwasher may not wash well if there is not much detergent. For normally soiled items, we recommend 20-25 grams; however, this may differ depending on the detergent manufacturer, so please follow that manufacturer's recommendations.
  • We recommend 15-20 grams for DW5***** models.

English4

Filling the detergent

- Type A

Hand inserting a device into a plastic case with a black arrow indicating the component (no text or symbols present)

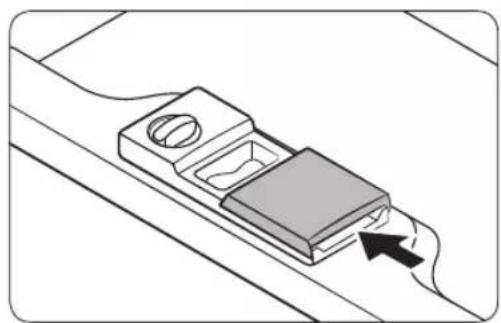

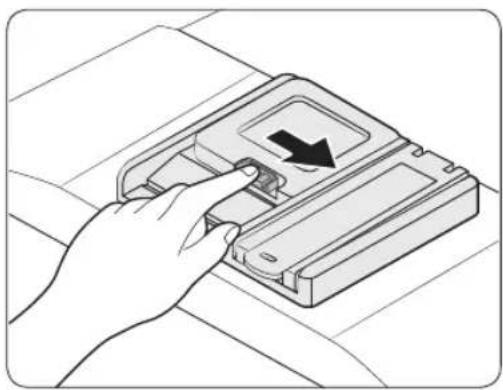

1. Open the detergent dispenser cap by pushing the detergent dispenser catch to the right.

NOTE

The cap remains open at the end of a cycle.

Illustration of a device being placed into a tray with a lid, showing internal components (no text or symbols)

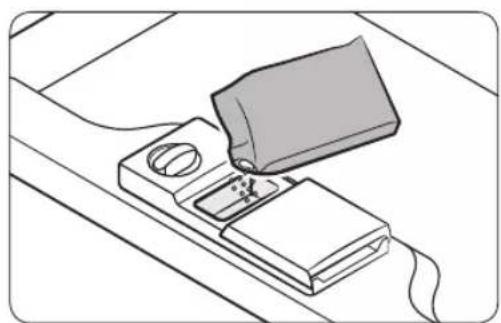

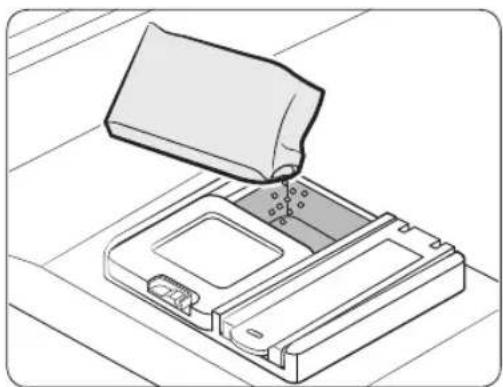

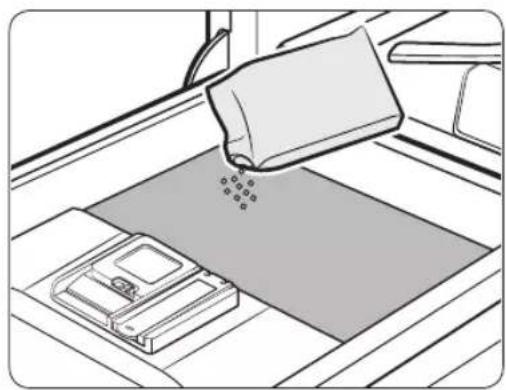

1. Add the recommended amount of detergent to the main wash detergent compartment.

3D diagram of a mechanical component with an arrow indicating direction (no text or symbols)

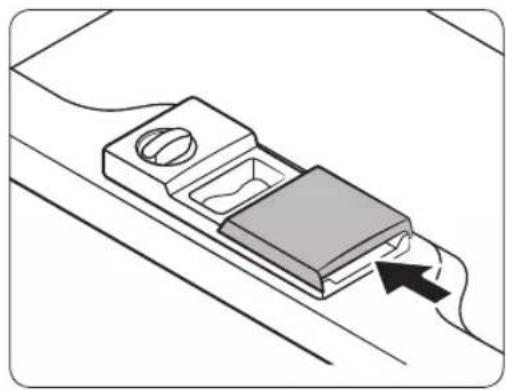

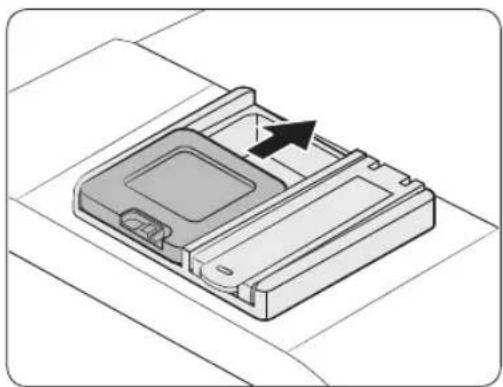

1. Close the lid by sliding it up.

Before you start

Illustration of a hand pouring liquid onto a tray with a small inset device (no text or symbols visible)

1. If the items are heavily soiled, pour a small amount of detergent onto the door for better cleaning results.

NOTE

The additional detergent will activate during the pre-wash process.

The cover opens automatically to dispense the detergent during the wash.

English6

• Type B


Diagram of a mechanical component with a highlighted section and arrow, no text or symbols present

Diagram of a mechanical component with a black arrow indicating direction, mounted on a diagonal line (no text or symbols)

Line drawing of a mechanical assembly with a clamped component inserted into a base (no text or symbols)

Diagram of a mechanical component with a highlighted section and an arrow indicating direction (no text or symbols)

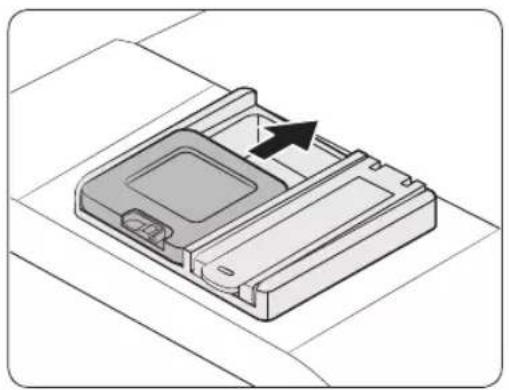

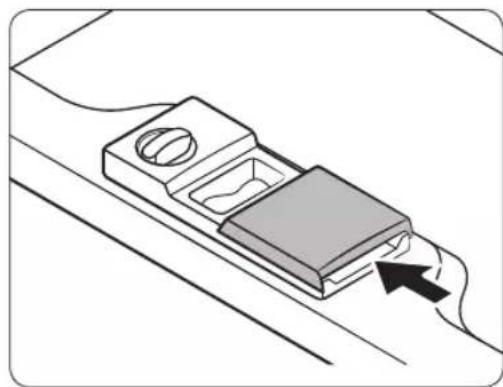

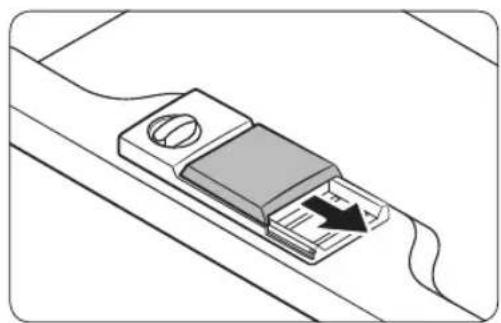

1. Open the detergent dispenser flap by pushing the detergent dispenser release catch.

NOTE

The flap is always open at the end of a dishwashing cycle.

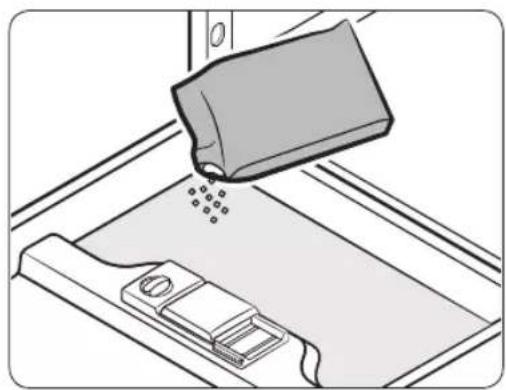

1. Add the recommended amount of detergent to the main wash detergent compartment.

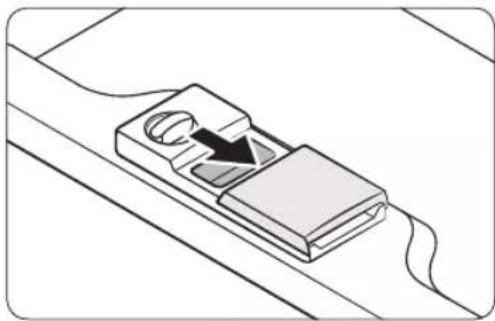

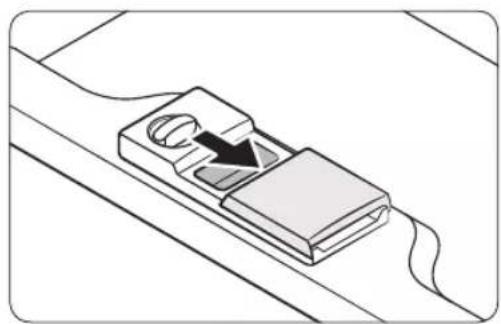

2. Close the flap by sliding it to the left and then pressing it down.

NOTE

There is no separate button that is specific to using tablet detergents.

Before you start

Diagram of a mechanical component being inserted into a tray, showing a handle and base plate (no text or symbols)

1. If the items are heavily soiled, pour a small amount of detergent onto the door for better cleaning results.

NOTE

The additional detergent will activate during the pre-wash process.

The cover opens automatically to dispense the detergent during the wash.

English8

Using Rinse

Rinse aid reservoir

Rinse aid improves the drying performance of the dishwasher. When the Rinse Refill indicator lights up on the control panel, refill with rinse aid. Only use liquid rinse aid. Powdered rinse aid will clog the reservoir opening and cause the dishwasher to malfunction.

CAUTION

• Do not apply any type of detergent to the rinse aid reservoir.
• Do not excessively fill the reservoir. Excessive rinse aid may overflow during a cycle.

Filling the rinse aid

• Type A


Hand inserting a device into a tray with an arrow indicating the process (no text or symbols present)

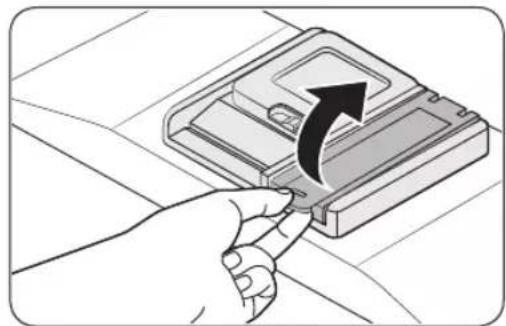

1. Open the rinse aid reservoir cap.

NOTE

Adding rinse aid to tablet detergents will improve drying performance.

Illustration of a bottle pouring liquid into a tray with a small container (no text or symbols)

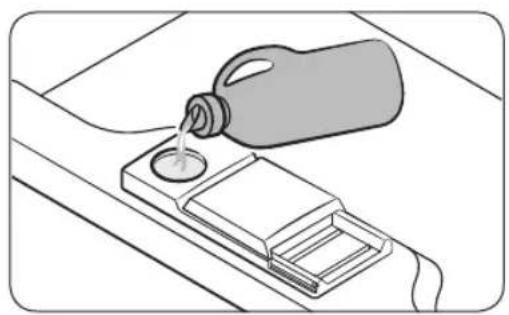

1. Fill the rinse aid reservoir with rinse aid.

CAUTION

Do not fill the reservoir above the full level indicator. Excess rinse aid can overflow during the wash cycle.

Before you start

Isometric diagram of a computer flash drive with a black arrow indicating the working area (no text or symbols present)

1. Close the rinse aid reservoir cap.

Rinse aid setting

You can change the amount of rinse aid applied during a cycle. The buttons used to enter the setting mode may vary depending on the model. Check the buttons for your model.

• DW6*R70**** / DW5*R407*BB / DW5*R406*BB : A (AUTO), B (Sanitize)
• DW5*R405*BB / DW5*R404*BB : A (Normal), B (Sanitize)

• DW5*R40**F*: A (Program), B (Rinse Add)

• Press and hold the A button for five seconds.

• Press the B button to select the rinse aid level setting menu.
• The display shows the current setting. (Default setting: 'd4')
• Press the A button to change the setting.
• You can select from d1-d5 (minimum-maximum)

• Wait 5 seconds to save the setting.

• DW6*M5***BB / DW60M5070IB : A (Express)

• DW6*M5***F*/S*/U* models : A (Program)
• Press and hold the A button for five seconds.
• Press the Delay Start button to enter the Rinse aid setting mode.
• The display shows the current setting.
• Press the A button to select the amount of rinse aid you want.
• You can select from d1-d5 (minimum-maximum)
• Wait 5 seconds to save the setting.

English10

- Type B

Diagram of a mechanical component with a rotating arrow, no text or symbols present

Illustration of a hand pouring liquid into a container on a tray (no text or symbols)

Diagram of a mechanical component with a rotating arrow indicating motion (no text or symbols)

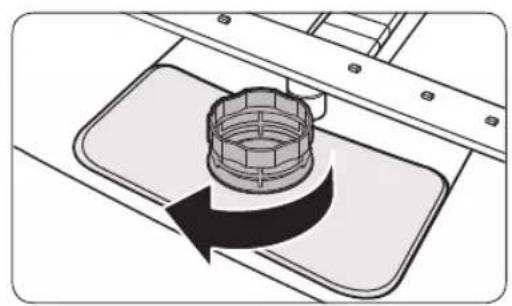

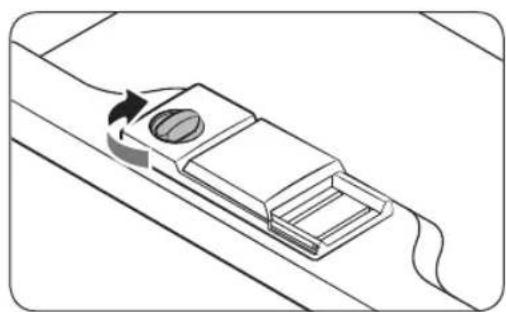

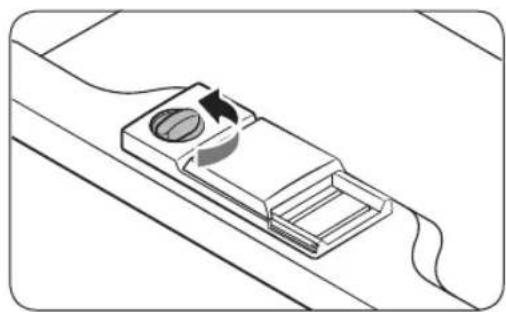

1. Remove the rinse aid reservoir cap by rotating it counterclockwise.

NOTE

Adding rinse aid to tablet detergents will improve drying performance.

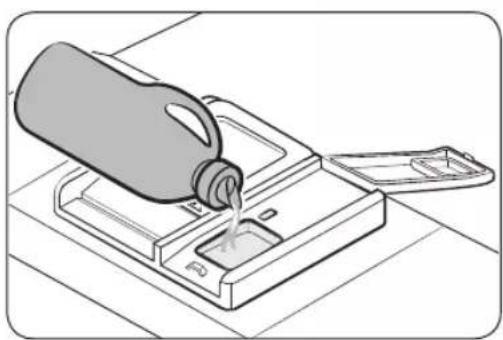

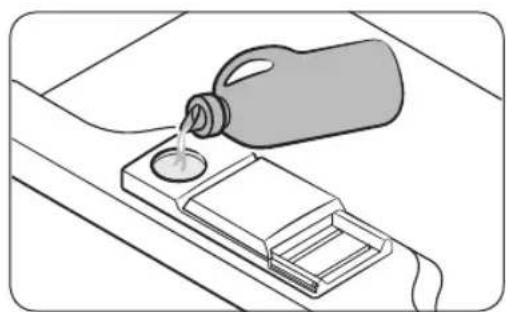

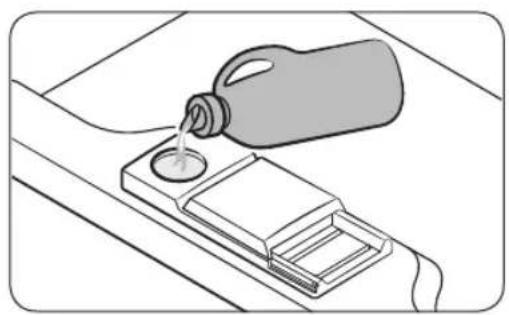

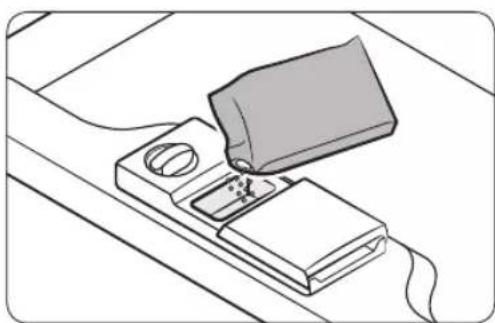

1. Fill the rinse aid reservoir with rinse aid.

NOTE

Use the viewing port when filling the rinse aid reservoir.

CAUTION

Do not fill the reservoir above the full level indicator. Excess rinse aid can overflow during the wash cycle.

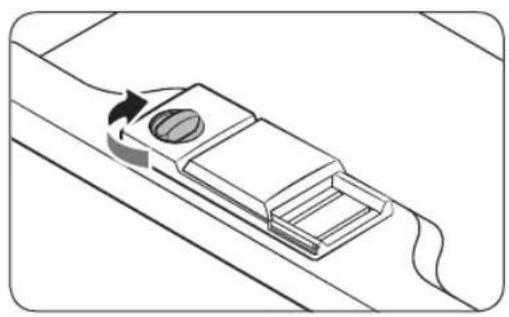

1. Turn the rinse aid indicator dial to a number between 1 and 6.

2. The higher the number, the more rinse aid the dishwasher uses.

3. To improve the drying performance, select a higher level.
4. If there is discoloring on the dishes, switch to a lower level.

5. If you are unable to rotate the rinse aid dial easily, try using a coin.

6. Close the rinse aid reservoir cap by rotating it clockwise.

Before you start

Using Softener

Salt storage

The water softener is designed to remove minerals from the water, which would have a detrimental or adverse effect on the operation of the appliance. We recommend using soft water for better results. Hard water contains impurities that can reduce the washing performance. You will need to soften the water if the supplied water is harder than 1.0 mmol/l (6 °d - German scale).

• To soften the water, you need dishwasher-specific salt and configuration of the water hardness level according to your area. For more information about the water hardness level in your area, contact your local water department.
• If the hardness level of the supplied water supply is unsteady, set the dishwasher to the highest measurement. For example, if the water hardness reading ranges from 6.7 mmol/l to 9.0 mmol/l, set the dishwasher to 9.0 mmol/l.
• The dishwasher's default water hardness level is 3 (2.1-3.0 mmol/l). If this setting matches the water hardness level in your area, you do not need to change it.

NOTE

• It is recommended that adjustments should be made in accordance with the following (or Manual) table.
  • The manufactory setting: H3

Water hardness				Water hardness setting	Salt consumption (gram/cycle)	Autonomy (cycles/1 kgs)
°dH °fH	°Clark m	mol/l
0-5 0-9	0-6 0-0	94 H1 0	/
6-11 1	0-20 7-14	1.0-2.0	H2 20	60
12-17 2	1-30 15-	21 2.1	-3.0 H3 30	50
18-22 3	1-40 22-	28 3.1	-4.0 H4 40	40
23-34 4	1-60 29-	42 4.1	-6.0 H5 50	30
35-55 6	1-98 43-	69 6.1	-9.8 H6 60	20

NOTE

• 1 dH (German degree) = 0.178 mmol/l
• 1 Clark (British degree) = 0.143 mmol/l
• 1 fH (French degree) = 0.1 mmol/l
- Contact your local water board for information on the hardness of your water supply.

English12

NOTE

How water softener regeneration works (ECO cycle with H3 level setting)

• Operates for about 2 minutes when drying starts and uses 2 L water, 0.0002 kWh energy
  • Regenerates once every 5 cycles

How to set the softener level

The dishwasher is designed to allow for adjusting the amount of salt consumed based on the hardness of the water used. This is intended to optimise and customise the level of salt consumption so that the salt consumption could be set proceed as follows:

The buttons used to enter the setting mode may vary depending on the model. Check the buttons for your model.

• DW6*R70**** / DW5*R407*BB / DW5*R406*BB : A (AUTO)
• DW5*R405*BB / DW5*R404*BB : A (Normal)
• Press and hold the A button for five seconds.
• Press the Delay Start button to select the water hardness level setting menu.
• The display shows the current setting.
• Press the A button to change the setting.
• You can select from H1-H6 (soft - hard)

• Wait 5 seconds to save the setting.

• DW6*M6***BB / DW60M6070IB : A (Pre Wash)

• DW6*M5***BB / DW60M5070IB : A (Express)

• DW6*M****F*/S*/U* models : A (Program)

• Press the A button for five seconds to select the water hardness level setting menu.

• The display shows the current setting.

• Press the A button to change the setting.

• You can select from H1-H6 (soft - hard)
• Wait 5 seconds to save the setting.

Operations

Cycle overview

ECO	ECO*	This cycle reduces power and water consumption, which is appropriate for normally soiled items
	AUTO / Auto wash	This cycle detects the level of soil and automatically initiates the optimal cycle, which is appropriate for all levels of soiled items.
	Normal	For normally soiled loads, such as pots, plates, glasses, and lightly soiled pans.
	Intensive Select this cycle for heavily soiled items.
	Delicate	Select this cycle for lightly soiled, fragile items such as glasses.
	Express Normally soiled daily using items, with short cycle time.
	Quick / Quick wash	Select this cycle to clean lightly soiled items in a short time.
	Pre Wash	Cold water rinse for removing dirt before running another program.
	Extra Silence	Select this cycle for more smooth and quiet washing. This cycle washes a little bit slower, but creates 2 decibels less noise than the ECO program.
	Self Clean	Select this cycle to clean the inside of the dishwasher. Make sure the dishwasher is empty.

Operations

The cycle used may vary depending on the model.

* The values for the ECO program have been obtained following the test standard EN 60436:2020. The values given for the other programs are indicative only.

English14

Energy, water saving tip

• ECO programme is suitable to clean normally soiled tableware, that for this use, it is the most efficient programme in terms of its combined energy and water consumption, and that it is used to assess compliance with the EU ecodesign legislation (COMMISSION REGULATION (EU) 2019/2022).
• Manual pre-rinsing of tableware items leads to increased water and energy consumption and is not recommended.
  Use a knife, etc. to remove only large bits of food before loading.
• Water supplied can be up to 60 °C, and less power is consumed when hot water is connected.
• It's better to fill the basket if possible but without overloading.
• To save water and energy, use the ECO cycle. ECO is the most efficient program when washing normally soiled items.
• Use an appropriate amount of detergent and rinse according to the manufacturer's guidelines.
• Dishwasher use saves water compared to ordinary washing by hand.
• Ecodesign information can be found by going to www.samsung.com/support.

To access the EPREL registration of the model :

1. Go to https://eprel.ec.europa.eu
2. Get the model identifier from the energy label of the product and type it in the search box
3. Energy Labelling information of the model is shown
   * You can directly access the product information via https://eprel.ec.europa.eu/qr/######(registration no.)
   The registration no. can be found on the rating label on your product.

Operations

Cycle chart

DW6*R707***/DW6*R705***/DW6*R704***

Cycle AUTO ECO Intensive
Amount of food remains	Normal Normal Heavy
Cycle sequence	Pre wash (45 °C) ►Main wash (55 °C-65 °C) ► Rinse ►Hot rinse (50 °C -70 °C) ► Dry ► End	Pre wash ►Main wash (50 °C) ►Rinse ►Hot rinse (48 °C) ►Dry ► End	Pre wash (50 °C) ►Main wash (65 °C) ► Rinse ►Hot rinse (58 °C) ►Dry ► End
Water consumption (L)	8.5-18 9.9 16.6
Energy consumption (kWh)	0.85-1.55	0.848(DW6*R707***/DW6*R705***)0.836(DW6*R704***)	1.5
Cycle time (min.) 15	0 210 205

Cycle Delicate	Express * Pre Wash
Amount of food remains	Light Normal	Light
Cycle sequence	Pre wash (40 °C) ▶Main wash (50 °C) ▶Rinse ▶Hot rinse (50 °C) ▶Dry ▶ End	Main wash (60 °C) ▶Rinse ▶Hot rinse (55 °C) ▶Dry ▶ End	Pre wash ▶ End
Water consumption (L)	13.5	15	4.1
Energy consumption (kWh)	0.95	0.95	0.02
Cycle time (min.) 120		60	15

English16-

Cycle Extra Silence ** Self Clean
Amount of food remains	Normal -
Cycle sequence	Pre wash (35 °C) ►Main wash (60 °C) ►Rinse ►Hot rinse (55 °C) ►Dry ► End	Pre wash ►Main wash (70 °C) ►Rinse ►Hot rinse (70 °C) ►Dry ► End
Water consumption (L)	13 15
Energy consumption (kWh)	1.5 1.25
Cycle time (min.) 270 145

* Pre Wash : This cycle does not activate the Auto Door function nor the drying process. Continuous use of the Pre Wash cycle for an extended time is not recommended. This may reduce the performance of the water softener.
** Self Clean : Only for DW6*R707*/DW6*R705* models

NOTE

The power consumption and cycle time depends on the water temperature and/or load.

English 17

Operations

DW5*R407***/DW5*R406***

Cycle AUTO ECO Intensive
Amount of food remains	Very light to heavy Normal Heavy
Cycle sequence	Pre wash (45 °C) ▶Main wash (45 °C-55 °C) ▶ Rinse ▶Hot rinse (65 °C) ▶Dry ▶ End	Main wash (50 °C) ▶ Rinse ▶ Hot rinse (50 °C) ▶ Dry ▶ End	Pre wash (50 °C) ▶ Main wash (60 °C) ▶ Rinse ▶ Rinse ▶ Hot rinse (70 °C) ▶ Dry ▶ End
Water consumption (L)	9.5-13	9.9 (DW5*R406***) 9.5 (DW5*R407***)	15.5
Energy consumption (kWh)	0.85-1.2	0.704 (DW5*R406***) 0.755 (DW5*R407***)	1.33
Cycle time (min) 150	220 175

Cycle Delicate	Express Quick
Amount of food remains	Light Normal	Light
Cycle sequence	Pre wash ▶Main wash (40 °C) ▶Rinse ▶Hot rinse (60 °C) ▶Dry ▶End	Pre wash (40 °C) ▶Main wash (45 °C) ▶Hot rinse (60 °C) ▶Dry ▶End	Main wash (35 °C) ▶Rinse (35 °C)
Water consumption (L)	12 9.1	10.5
Energy consumption (kWh)	0.71	0.77	0.28
Cycle time (min) 125	60	20

English18-

DW5*R405***/DW5*R404***

Cycle Normal	ECO Intensive
Amount of food remains	Normal Normal Heavy
Cycle sequence	Pre wash (45 °C) ▶Main wash (55 °C) ▶ Rinse ▶Hot rinse (65 °C) ▶Dry ▶ End	Main wash (45 °C) ▶ Rinse ▶ Hot rinse (60 °C) ▶ Dry ▶ End	Pre wash (50 °C) ▶ Main wash (60 °C) ▶ Rinse ▶ Rinse ▶ Hot rinse (70 °C) ▶ Dry ▶ End
Water consumption (L)	13.1	9.5 (DW5*R404***)9.9 (DW5*R405***)	16.5
Energy consumption (kWh)	1.1	0.780 (DW5*R404***)0.836 (DW5*R405***)	1.3
Cycle time (min) 17	5 220 165

Cycle Delicate	Express Quick
Amount of food remains	Light Normal	Light
Cycle sequence	Pre wash ▶Main wash (40 °C) ▶Rinse ▶Hot rinse (60 °C) ▶Dry ▶End	Pre wash (50 °C) ▶Main wash (60 °C) ▶Hot rinse (60 °C) ▶Dry ▶End	Main wash (35 °C) ▶Rinse (35 °C)
Water consumption (L)	13.4 9.1 10.5
Energy consumption (kWh)	0.78 0.75 0.3
Cycle time (min) 12	5 60	20

NOTE

The power consumption and cycle time depends on the water temperature and/or load.

English

Operations

DW6*M503***/DW6*M505***/DW60M5070IB

Cycle Intensive Normal ECO
Amount of food remains	Heavy Normal	Normal
Cycle sequence	Pre wash (50 °C) ▶Main wash (60 °C) ▶ Rinse ▶ Rinse ▶Hot rinse (70 °C) ▶Dry ▶ End	Pre wash (45 °C) ▶Main wash (55 °C) ▶ Rinse ▶Hot rinse (65 °C) ▶Dry ▶ End	Main wash (45 °C) ▶ Rinse ▶ Hot rinse (65 °C) ▶ Dry ▶ End
Water consumption (L)	18.5 15 12
Energy consumption (kWh)	1.5 1.35 1.037
Cycle time (min) 170 180 195

Cycle ** Delicate Express
Amount of food remains	Light Normal
Cycle sequence	Pre wash ▶Main wash (40 °C) ▶Rinse ▶Hot rinse (60 °C) ▶Dry ▶End	Pre wash (50 °C) ▶Main wash (60 °C) ▶Hot rinse (60 °C) ▶Dry ▶End
Water consumption (L)	14.5	10
Energy consumption (kWh)	0.95	0.9
Cycle time (min.) 130		60

** Delicate : Only for DW6*M505***/DW60M5070IB models

NOTE

The power consumption and cycle time depends on the water temperature and/or load.

English20-

DW6*M6031**/DW6*M605***/DW60M6070IB/DW6*M604***

Cycle Intensive Auto wash ECO
Amount of food remains	Heavy Normal	Normal
Cycle sequence	Pre wash (50 °C) ▶Main wash (60 °C) ▶ Rinse ▶ Rinse ▶Hot rinse (70 °C) ▶Dry ▶ End	Pre wash (45 °C) ▶ Main wash (45-55 °C) ▶ Rinse ▶Hot rinse (65 °C) ▶ Dry ▶ End	Pre wash ▶ Main wash (50 °C) ▶ Hot rinse (55 °C) ▶ Dry ▶ End
Water consumption (L)	17.5 11-15 10.5
Energy consumption (kWh)	1.6 0.9-1.3		0.950 (DW6*M6031** / DW6*M605*** / DW60M6070IB) 0.936 (DW6*M604***)
Cycle time (min) 17	5 150 225

Cycle Express	Pre Wash Delicate
Amount of food remains	Normal	Light	Light
Cycle sequence	Pre wash (50 °C) ▶ Main wash (60 °C) ▶ Hot rinse (60 °C) ▶ Dry ▶ End	Pre wash ▶ End	Pre wash ▶ Main wash (40 °C) ▶ Rinse ▶ Hot rinse (60 °C) ▶ Dry ▶ End
Water consumption (L)	10	4	13
Energy consumption (kWh)	1.15 0.02	0.9
Cycle time (min)	60	15	130

English 21

Operations

Cycle ** Quick wash
Amount of food remains	Light
Cycle sequence	Main wash (45 °C)▶ Hot rinse (50 °C)▶ Hot rinse (55 °C)▶ End
Water consumption (L)	11
Energy consumption (kWh)	0.75
Cycle time (min) 30

** Quick wash : Only for DW6*M6031**/DW6*M605***/DW60M6070IB models Continuous use of the Quick Wash cycle for an extended time is not recommended. This may reduce the performance of the water softener.

NOTE

The power consumption and cycle time depends on the water temperature and/or load.

English22

Maintenance

Cleaning

Keep the dishwasher clean to improve performance, reduce unnecessary repairs, and lengthen the lifecycle.

Exterior

Clean spills on the surface of the dishwasher immediately. Use a soft, damp cloth on the control panel to gently wipe away spills and dust.

CAUTION

• Do not use benzene, wax, thinner, chlorine bleach, alcohol, or other chemical substances. These materials may discolour the surface of the dishwasher and cause stains.
• The dishwasher has electric parts inside. Do not spray water directly onto the dishwasher. Protect electrical components from water.
• For a stainless-steel door panel, use a stainless steel cleaner for home appliances and a clean, soft cloth.

Interior

Clean the interior of the dishwasher on a regular basis to remove any dirt or food particles. Wipe inside the dishwasher and inside the door with a wet dishcloth.

CAUTION

• Do not remove the front seal (the long rubber seal enclosing the opening of the dishwasher). The seal keeps the inner side of the dishwasher sealed.
• Use a damp cloth to remove lime scale or grease deposits inside the dishwasher. Alternatively, apply some detergent, and then run an empty cycle using the highest rinse temperature.

Maintenance

Nozzles

To prevent the nozzles from being clogged or if the nozzles are clogged, remove and clean each nozzle. Use caution when removing the nozzles as they may break.

Upper nozzle

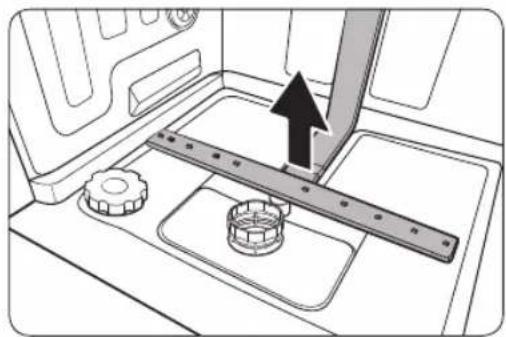

Technical line drawing of a mechanical assembly with an inset circular detail showing a component (no text or symbols)

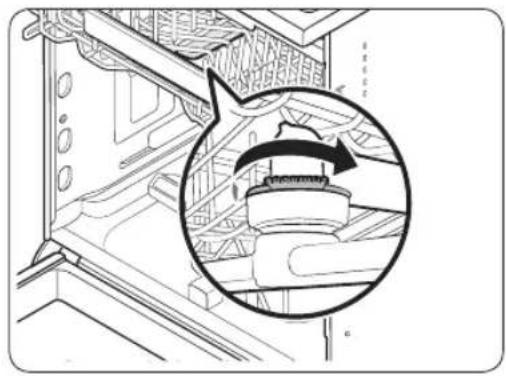

1. Open the door, and then pull out the upper rack to reveal the upper nozzle.
2. Loosen and remove the nut, and then remove the nozzle.
3. Unclog and clean the nozzle.
4. Reinsert the nozzle, and then tighten the nut by hand.
5. Rotate the nozzle by hand to make sure the nozzle is engaged correctly.

Lower nozzle

Technical diagram of a mechanical assembly with gears and a ruler, showing no text or symbols

1. Open the door, and then pull out the lower rack. The lower nozzle is visible on the bottom.

2. Unclog and clean the nozzle.

3. Reinsert the nozzle.

4. Rotate the nozzle by hand to make sure the nozzle is engaged correctly.

NOTE

Depending on the models, actual parts may look differ from the figures.

Internal Cleaning

We recommend internal cleaning every month. You can use the Self Clean cycle (if available) or the Intensive cycle without putting in dishes. In some models with a notification feature, the LED may blink after 20-22 cycles.

If your tap water is hard, you can prevent limescale inside the dishwasher by adding citric acid to the detergent when operating the dishwasher.

English24

Filter

We recommend cleaning the filter every month.

Technical illustration of a mechanical component with a central cylindrical housing and surrounding components (no text or symbols)

1. Open the door, and then remove the lower rack first.

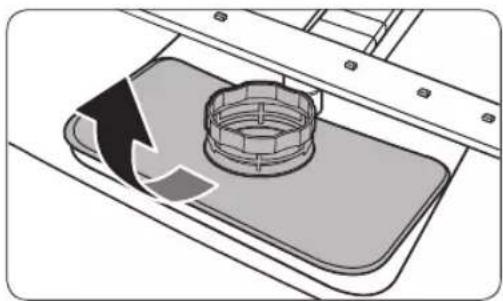

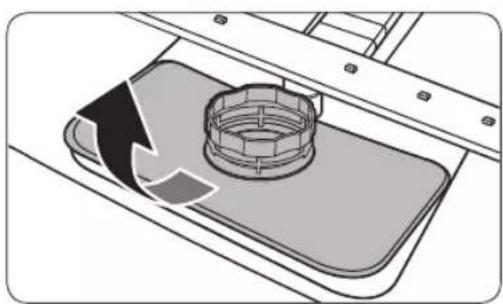

2. Turn the filter handle counterclockwise to unlock the Coarse filter.

Diagram of a mechanical component with a circular housing and directional arrow, no text or symbols present

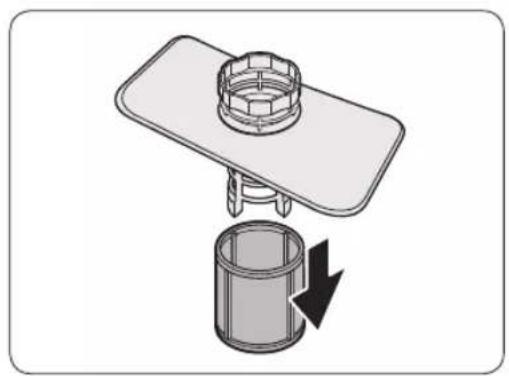

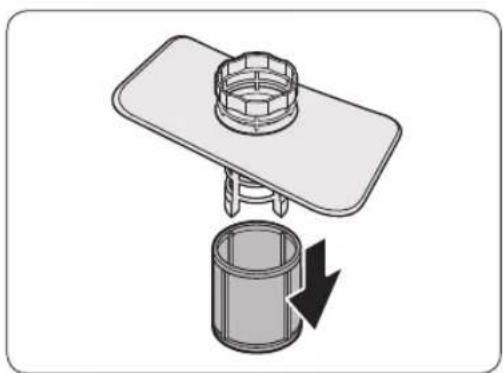

1. Remove the Coarse filter, and then the cylindrical micro filter underneath.

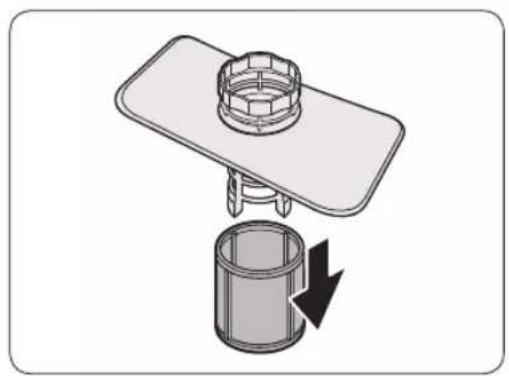

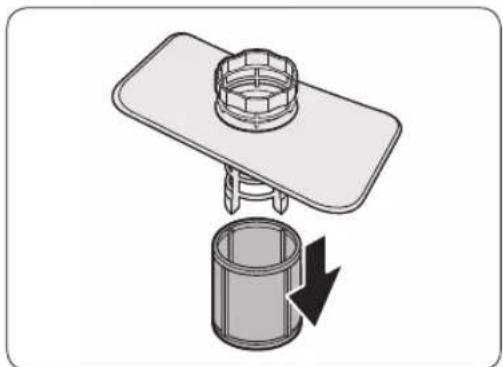

Diagram of a mechanical assembly with a cylindrical component and a flat plate, showing a downward arrow indicating rotation (no text or symbols present)

Maintenance

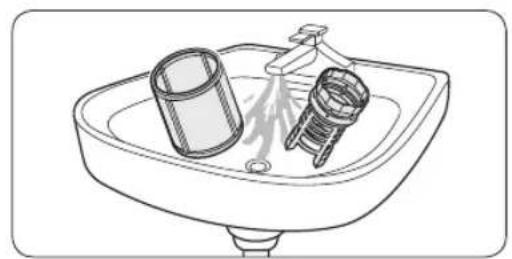

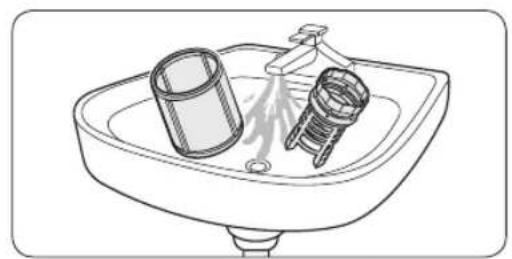

Line drawing of a sink with two fixtures, one cylindrical and one threaded, no text or symbols present

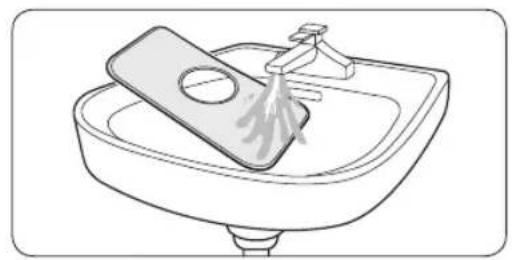

Line drawing of a sink with a hand washing it, no text or symbols present

Diagram of a mechanical component with a rotating arrow indicating rotation (no text or symbols)

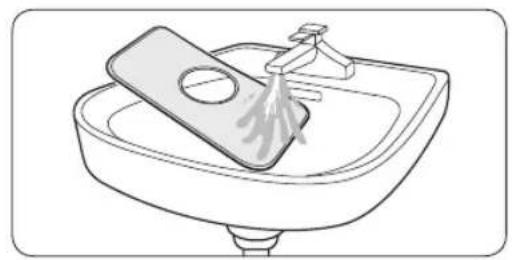

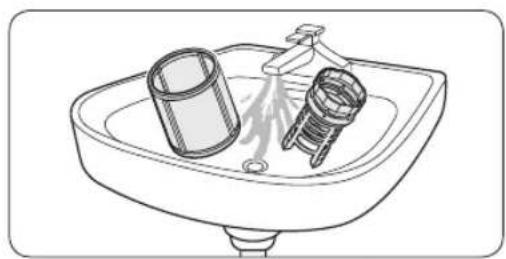

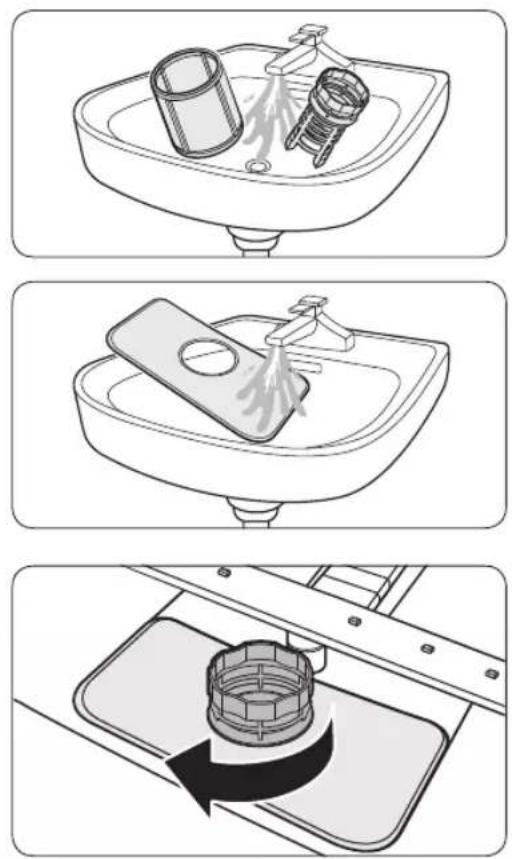

1. Remove any dirt and impurities from the micro filter and the Coarse filter.

2. Rinse them with running water, and then dry well.

3. Reinsert the filter, and then the Coarse filter.

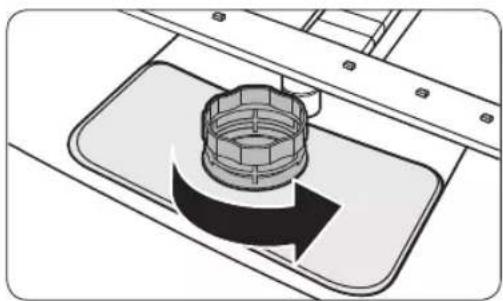

4. Turn the filter handle clockwise to lock.

NOTE

Depending on the models, actual parts may look differ from the figures.

CAUTION

Make sure the Coarse filter is closed properly. A loose cover can reduce the filtering performance.

English26-

Troubleshooting

Checkpoints

If you encounter an issue with the dishwasher, first check the table below and try the suggestions.

Following the repair by a non-authorised service provider, self-repair or non-professional repair of the product, Samsung is not liable for any damage to the product, any injury or any other product safety issue caused by any attempt to repair the product which does not carefully follow these repair and maintenance instructions. Any damage to the product caused by an attempt to repair the product by any person other than a Samsung certified service provider will not be covered by the warranty.

Symptom Possible cause Action
The dishwasher does not start.	The door is not completely closed.	Make sure the door is latched and completely closed.Make sure the upper rack is properly joined with the nozzle.Make sure the upper rack is properly assembled.
	The power cord is not connected.	Connect the power cord.
	Water is not being supplied.	Make sure the water supply valve is open.
	The control panel is locked. • Deactivate the Control Lock.
The dishwasher has bad odours.	Water remains from the previous cycle.	With the dishwasher empty, add detergent, and then run the Quick cycle. This is available only on applicable models.
Water remains in the dishwasher after a cycle has finished.	The drain hose is folded or clogged.	Straighten and unclog the hose.

Troubleshooting

Symptom Possible cause Action
Food remains on dishes.	An incorrect cycle was selected.	Select a cycle according to the soil level of the dishes as instructed in this manual.
	The filters are clogged or not correctly fastened.	Clean the filters.Make sure the filters are correctly fastened.
	An insufficient amount of detergent was used.	Use the correct amount of detergent for each load.
	The water pressure is low.	Make sure the pressure is between 0.04-1.0 MPa.
	The nozzles are clogged.	Clean and unclog the nozzles.
	Dishes improperly loaded or overloaded.	Arrange the dishes so they do not interfere with the nozzles and/or the detergent dispenser.
	The water is too hard.	Check the salt refill indicator, and refill with dishwasher salt.
Dishes are not dried well.	There is no rinse aid in the dispenser, or not enough rinse aid was used.	Add rinse aid.Check the rinse aid settings.
	Too many dishes are loaded.	Overloading may reduce the drying performance.Load your dishes as recommended.
	Glasses and cups spilled water onto other dishes while being unloaded.	Empty the lower rack first, and then the upper rack. This will avoid water dripping from the upper rack onto the dishes in the lower rack.
	Multiple detergent tablets were used without selecting the Sanitize option.	Select the Sanitize option or use rinse aid.

English28-

Symptom Possible cause Action
The dishwasher is too noisy.	The dishwasher makes a sound when the dispenser cover is open and the drain pump is operating.	This is normal.
	The dishwasher is not level.	Make sure the dishwasher is level.
	The nozzle bumps against the dishes, creating a chopping sound.	Rearrange the dishes.
Yellow or brown film remains on dishes.	Coffee and tea soils.	Use a cycle with a higher temperature.
Indicators do not light up.	The power cord is not connected.	Connect the power cord.
The nozzles do not rotate smoothly.	The nozzles are clogged with food particles.	Clean the nozzles.
A white coating remains on dishes.	The water is too hard.	Make sure the salt fill indicator and softener settings are correct according to the water hardness of your area.Make sure the salt storage cap is correctly fastened.
Air bubbles and scratch marks are on the control panel.	Air gets into the protective film, causing EPS marks to remain.	Remove the protective film from the control panel.

Troubleshooting

Information codes

If the dishwasher fails to operate, you may see an information code on the display. Check the table below and try the suggestions.

Code Action
LC	Leakage checkClose the water supply valve. Go to your home's circuit breaker panel, and set the dishwasher's circuit breaker switch to off. Then, contact the installer to repair. If the issue continues, contact a local Samsung service centre.
4C	Water supply checkCheck if the water supply valve is closed, if the water supply is suspended, or if the water inlet valve or line is frozen or clogged by foreign particles. If the issue continues, contact a local Samsung service centre.
AC	PCB communication checkAbnormal communication between the main PCB and the sub PCB.If the problem continues, contact an authorised Samsung service centre.
HC	High temperature heating checkFunctional check. With the dishwasher empty, add detergent, and then run a cycle. If the issue continues, go to your home's circuit breaker panel, and set the dishwasher's circuit breaker switch to off. Then, contact a Samsung service centre.
tC	Thermistor checkTemperature sensor is broken (short or open circuit). If the problem continues, contact an authorised Samsung service centre.
EC	Washing pump checkAbnormal working with washing pump. If the issue continues, contact a local Samsung service centre.
PC	Distribution motor checkAbnormal working with distribution motor assembly, or main PCB. If the issue continues, contact a local Samsung service centre.
bc2	Button checkButton pressed for 30 seconds.Check if there is a water or foreign substances on the button part.If the issue continues, contact a local Samsung service centre.

English30-

If any information code keeps appearing on the screen, contact a local Samsung service centre.

Spare parts* for end-usersare available for a minimum of 10 years**.

* Applicable parts : door hinge and seals, other seals, spray arms, drain filters, interior racks and plastic peripherals such as baskets and lids.
** This means a minimum of 10 years after Samsung places the last unit of the model on the market.

SAMSUNG

QUESTIONS OR COMMENTS?

COUNTRY CALL OR VISIT US ONLINE AT
UK 0333	000 0333 www.samsung.com/uk/support
IRELAND (EIRE)	0818 717100 www.samsung.com/ie/support
FRANCE 01	48 63 00 00 www.samsung.com/fr/support
NETHERLANDS	088 90 90 100 www.samsung.com/nl/support
GERMANY 06	196 77 555 77 www.samsung.com/de/support
SWEDEN 07	71 726 786 www.samsung.com/se/support
NORWAY 21	29099 www.samsung.com/no/support
FINLAND 030	-6227 515 www.samsung.com/fi/support
DENMARK	707 019 70	www.samsung.com/dk/support
ITALIA	800-SAMSUNG (800.7267864)	www.samsung.com/it/support
SPAIN 91	175 00 15 www.samsung.com/es/support
PORTUGAL	808 207 267	www.samsung.com/pt/support
POLAND	[IM]801-172-678* lub [phone]*Specjalistyczna infolinia do obsługizapytań dotyczących telefonówkomórkowych:801-672-678*(opłata według taryfy operatora)[CE]801-172-678* lub [phone]*(opłata według taryfy operatora)	http://www.samsung.com/pl/support/
HUNGARY	0680SAMSUNG (0680-726-7864)	www.samsung.com/hu/support
CROATIA	072 726 786	www.samsung.com/hr/support
ALBANIA	045 620 202	www.samsung.com/al/support
North Macedonia	023 207 777	www.samsung.com/mk/support
SLOVENIA	080 697 267 (brezplačna številka)	www.samsung.com/si/support
BOSNIA 055	233 999 www.samsung.com/ba/support
ESTONIA 800	-7267 www.samsung.com/ee/support
LITHUANIA	8-800-77777	www.samsung.com/lt/support
LATVIA 800	-7267 www.samsung.com/lv/support

Lave-vaisselle

3D diagram of a mechanical component with an arrow indicating direction (no text or symbols)

Type A Type B

Diagram of a mechanical component with a directional arrow indicating motion (no text or symbols)

Hand inserting a device into a plastic case with a black arrow indicating the component (no text or symbols present)

Illustration of a mechanical device with a lid and internal components, no text or symbols present

3D diagram of a mechanical component with an arrow indicating direction (no text or symbols)

Illustration of a hand pouring liquid onto a tray with a small inset device (no text or symbols visible)

Diagram of a mechanical component with a highlighted section and arrow, no text or symbols present

Diagram of a mechanical component with a black arrow indicating direction, no text or symbols present

Line drawing of a mechanical assembly with a clamped component inserted into a base (no text or symbols)

Diagram of a mechanical component with a highlighted section and an arrow indicating direction (no text or symbols)

Diagram of a mechanical component being inserted into a tray, showing a handle and base plate (no text or symbols)

Illustration of a hand inserting a USB into a hard drive into a memory card slot (no text or symbols)

Illustration of a bottle pouring liquid into a tray with a small container (no text or symbols)

Isometric diagram of a computer flash drive with a black arrow indicating the working area (no text or symbols present)

Diagram of a mechanical component with a rotating arrow, no text or symbols present

Illustration of a hand pouring liquid into a container on a tray (no text or symbols)

Diagram of a mechanical device with a rotating arrow and circular component, connected to a diagonal line (no text or symbols)

DW6*R707***/DW6*R705***/DW6*R704***

Technical line drawing of a mechanical assembly with an inset circular detail showing a component (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a gear and shaft (no text or symbols)

Technical diagram of a mechanical component with a central cylindrical housing and surrounding components (no text or symbols)

Diagram of a mechanical component with a circular housing and directional arrow, no text or symbols present

Diagram of a mechanical assembly with a cylindrical component and a flat plate, showing a downward arrow indicating rotation (no text or symbols present)

Entretien

Line drawing of a sink with a cylindrical object and a screwdriver, no text or symbols present

Line drawing of a sink with a hand mixer and faucet, no text or symbols present

Diagram of a mechanical component with a rotating arrow indicating rotation (no text or symbols)

3D diagram of a mechanical component with an arrow indicating direction (no text or symbols)

Type A Type B

Diagram of a mechanical component with a moving arrow, no text or symbols present

Wasmiddel gebruiken

Vaatwasmiddeldispenser

Hand inserting a device into a plastic case with a black arrow indicating the component (no text or symbols present)

Line drawing of a mechanical device with a lid pouring liquid into a tray (no text or symbols)

Isometric technical diagram of a mechanical device with a black arrow indicating direction (no text or symbols)

Illustration of a hand pouring liquid onto a tray with a small inset device (no text or symbols)

Diagram of a mechanical component being inserted into a tray, showing a handle and base plate (no text or symbols)

Illustration of a hand inserting a USB into a hard drive into a memory card slot (no text or symbols)

Illustration of a bottle pouring liquid into a tray with a lid (no text or symbols)

Diagram of a mechanical device with a black arrow pointing to a component (no text or symbols present)

DW6*R707***/DW6*R705***/DW6*R704***

Wasprogramma AUTOMATISCH ECO Intensief
Hoeveelheid voedselresten	Normaal Normaal Veel
Programmavolgorde	Voorwas (45 °C) ▶ Hoofdwas (55 °C-65 °C) ▶ Spoelen ▶ Warm spoelen (50 °C-70 °C) ▶ Drogen ▶ Einde	Voorwas ▶ Hoofdwas (50 °C) ▶ Spoelen ▶ Warm spoelen (48 °C) ▶ Drogen ▶ Einde	Voorwas (50 °C) ▶ Hoofdwas (65 °C) ▶ Spoelen ▶ Warm spoelen (58 °C) ▶ Drogen ▶ Einde
Waterverbruik (l) 8,5-18 9,9 16,6
Energieverbruik (kWh) 0,85-1,55		0,848 (DW6*R707***/ DW6*R705***) 0,836 (DW6*R704***)	1,5
Programmaduur (min) 150 210 205

Technical diagram of a mechanical assembly with an inset showing a rotating component (no text or symbols present)

Mechanical assembly diagram showing a rotating shaft and gear mechanism (no text or symbols)

Technical illustration of a mechanical component with a central cylindrical housing and surrounding components (no text or symbols)

Diagram of a mechanical component with a circular housing and directional arrow, no text or symbols present

Diagram of a mechanical assembly with a cylindrical component and a flat plate, showing a downward arrow indicating rotation (no text or symbols present)

Line drawing of a sink with two fixtures, one cylindrical and one threaded, no text or symbols present

Line drawing of a sink with a plate and faucet, showing liquid being poured into it (no text or symbols)

Diagram of a mechanical component with a rotating arrow indicating rotation (no text or symbols)

3D diagram of a mechanical component with an arrow indicating direction (no text or symbols)

Typ A Typ B

Diagram of a mechanical component with a scroll and directional arrow, no text or symbols present

Hand inserting a device into a plastic case with a black arrow indicating the component (no text or symbols present)

Line drawing of a device being inserted into a tray (no text or symbols)

3D diagram of a mechanical component with an arrow indicating direction (no text or symbols)

Illustration of a hand pouring liquid onto a flat surface with a small device on the floor (no text or symbols visible)

Diagram of a mechanical component with a highlighted section and arrow, no text or symbols present

Diagram of a mechanical component with a black arrow indicating direction, mounted on a diagonal line (no text or symbols)

Line drawing of a mechanical assembly with a clamped component inserted into a base (no text or symbols)

Diagram of a mechanical component with a highlighted section and an arrow indicating direction (no text or symbols)

Diagram of a mechanical component being inserted into a tray, showing a handle and base plate (no text or symbols)

Illustration of a hand inserting a USB into a hard drive into a memory card slot (no text or symbols)

Illustration of a bottle pouring liquid into a tray with a small container (no text or symbols)

Diagram of a mechanical device with a black arrow pointing to a component (no text or symbols present)

Diagram of a mechanical component with a rotating knob and curved base, no text or symbols present

Illustration of a hand pouring liquid from a bottle onto a tray with a small container (no text or symbols)

Diagram of a mechanical component with a rotating arrow indicating motion (no text or symbols)

- DW6*M5***BB / DW60M5070IB: A (Express)

- Modelle DW6*M****F*/S*/U*: A (Programm)

DW6*R707***/DW6*R705***/DW6*R704***

Technical line drawing of a mechanical assembly with an inset circular detail showing a rotating component (no text or symbols)

Mechanical assembly diagram showing a rotating shaft and gear mechanism (no text or symbols)

Technical diagram of a mechanical component with a central cylindrical housing and surrounding components (no text or symbols)

Diagram of a mechanical component with a circular housing and directional arrow, no text or symbols present

Diagram of a mechanical assembly with a cylindrical component and a flat plate, showing a downward arrow indicating rotation (no text or symbols present)

Wartung und Pflege

3D diagram of a mechanical component with an arrow indicating direction (no text or symbols)

Typ A Typ B

Diagram of a mechanical component with a moving arrow, no text or symbols present

Använda diskmedel

Diskmedelsfack

Hand inserting a device into a plastic case with a black arrow indicating the component (no text or symbols present)

Line drawing of a device being inserted into a tray (no text or symbols)

3D diagram of a mechanical component with an arrow indicating direction (no text or symbols)

Illustration of a hand pouring liquid onto a tray with a small inset device (no text or symbols visible)

Diagram of a mechanical component being inserted into a tray, showing a handle and base plate (no text or symbols)

Hand inserting a USB into a device slot, showing a black arrow indicating the process (no text or symbols present)

Illustration of a bottle pouring liquid into a tray with a small container (no text or symbols)

Isometric diagram of a computer flash drive with a black arrow indicating the working area (no text or symbols present)

DW6*R707***/DW6*R705***/DW6*R704***

Technical line drawing of a mechanical assembly with an inset circular detail showing a component (no text or symbols)

Mechanical assembly diagram showing a rotating shaft and gear mechanism (no text or symbols)

Technical illustration of a mechanical component with a central hub and surrounding plates (no text or symbols)

Diagram of a mechanical component with a circular housing and directional arrow, no text or symbols present

Diagram of a mechanical assembly with a cylindrical component and a tray, showing a downward arrow indicating rotation (no text or symbols present)

Underhåll

Line drawing of a sink with two fixtures, one cylindrical and one threaded, showing a shower (no text or symbols)

Line drawing of a sink with a hand washing it, no text or symbols present

Diagram of a mechanical component with a rotating arrow indicating rotation (no text or symbols)

3D diagram of a mechanical component with an arrow indicating direction (no text or symbols)

Type A Type B

Diagram of a mechanical component with a directional arrow indicating motion (no text or symbols)

Bruke oppvaskmiddel

Beholder for oppvaskmiddel

Hand inserting a device into a plastic case with a black arrow indicating the component (no text or symbols present)

Line drawing of a device being inserted into a tray (no text or symbols)

3D diagram of a mechanical component with an arrow indicating direction (no text or symbols)

Illustration of a hand pouring liquid onto a tray with a small inset device (no text or symbols visible)

Diagram of a mechanical component being inserted into a tray, showing a handle and base plate (no text or symbols)

Hand inserting a device into a tray with an arrow indicating rotation (no text or symbols)

Illustration of a bottle pouring liquid into a tray with a lid, on a tiled surface (no text or symbols)

1. Fyll skyllemiddelbeholderen med skyllemiddel.

OBS

Isometric diagram of a computer flash drive with a black arrow indicating the working area (no text or symbols present)

1. Lukk lokket på glansemiddelbeholderen.

DW6*R707***/DW6*R705***/DW6*R704***

Syklus AUTO ∅K∅ Intensiv
Mengde matrester Normal Normal Mye
Syklussekvens	Forvask (45 °C) ▶Hovedvask (55 °C-65 °C) ▶ Skylling ▶Varm skylling (50 °C-70 °C) ▶ Tørking ▶Slutt	Forvask ▶Hovedvask (50 °C) ▶Skylling ▶ Varm skylling (48 °C) ▶Tørking ▶ Slutt	Forvask (50 °C) ▶Hovedvask (65 °C) ▶Skylling ▶ Varm skylling (58 °C) ▶Tørking ▶ Slutt
Vannforbruk (L) 8,5-18 9,9 16,6
Strømforbruk (kWt) 0,85-1,55		0,848(DW6*R707***/DW6*R705***)0,836(DW6*R704***)	1,5
Tid for vaskesyklus (min.)	150 210 205

Syklus Finvask Ekspress		* Forvask
Mengde matrester	Lite	Normal	Lite
Syklussekvens	Forvask (40 °C) ▶Hovedvask (50 °C) ▶Skylling ▶ Varm skylling (50 °C) ▶Tørking ▶ Slutt	Hovedvask (60 °C) ▶Skylling ▶ Varm skylling (55 °C) ▶Tørking ▶ Slutt	Forvask ▶ Slutt
Vannforbruk (L)	13,5	15	4,1
Strømforbruk (kWt)	0,95	0,95	0,02
Tid for vaskesyklus (min.)	120	60	15

Norsk16

Technical line drawing of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a gear and base plate (no text or symbols)

Technical illustration of a mechanical component with a central hub and surrounding plates (no text or symbols)

Diagram of a mechanical component with a circular housing and directional arrow, no text or symbols present

Diagram of a mechanical assembly with a cylindrical component and a flat plate, showing a downward arrow indicating rotation (no text or symbols present)

Line drawing of a sink with two fixtures, one cylindrical and one threaded, no text or symbols present

Line drawing of a sink with a plate and faucet, showing liquid being poured into it (no text or symbols)

Diagram of a mechanical component with a rotating arrow indicating rotation (no text or symbols)

3D diagram of a mechanical component with an arrow indicating direction (no text or symbols)

Tyyppi A Tyyppi B

Diagram of a mechanical component with a directional arrow indicating motion (no text or symbols)

Hand inserting a device into a plastic case with a black arrow indicating the component (no text or symbols present)

Line drawing of a device being inserted into a tray (no text or symbols)

3D diagram of a mechanical component with an arrow indicating direction (no text or symbols)

Illustration of a hand pouring liquid onto a tray with a small inset device (no text or symbols)

Diagram of a mechanical component being inserted into a tray, showing a handle and base plate (no text or symbols)

Illustration of a hand inserting a device into a tray with an arrow indicating rotation (no text or symbols)

Illustration of a bottle pouring liquid into a container on a tray (no text or symbols)

Isometric diagram of a computer flash drive with a black arrow indicating the working principle (no text or symbols present)

DW6*R707***/DW6*R705***/DW6*R704***

Technical line drawing of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a gear and base plate (no text or symbols)

Technical illustration of a mechanical component with a central cylindrical housing and surrounding components (no text or symbols)

Diagram of a mechanical component with a circular housing and directional arrow, no text or symbols present

Diagram of a mechanical assembly with a cylindrical component and a flat plate, showing a downward arrow indicating rotation (no text or symbols present)

Ylläpito

Line drawing of a sink with two fixtures, one cylindrical and one threaded, no text or symbols present

Line drawing of a sink with a plate and faucet, showing liquid being poured into it (no text or symbols)

Diagram of a mechanical component with a rotating arrow indicating rotation (no text or symbols)

KYSYMYKSET JA KOMMENTIT

MAA SOITA	TAI VIERAILE VERKKOSIVUILLAMME
UK 0333 000 0333 www.samsung.com/uk/support
IRELAND (EIRE) 0818 717100 www.samsung.com/ie/support
FRANCE 01 48 63 00 00 www.samsung.com/fr/support
NETHERLANDS 088 90 90 100 www.samsung.com/nl/support
GERMANY 06196 77 555 77 www.samsung.com/de/support
SWEDEN 0771 726 786 www.samsung.com/se/support
NORWAY 21629099	www.samsung.com/no/support
FINLAND	030-6227 515	www.samsung.com/fi/support
DENMARK	707 019 70	www.samsung.com/dk/support
ITALIA	800-SAMSUNG (800.7267864)	www.samsung.com/it/support
SPAIN	91 175 00 15	www.samsung.com/es/support
PORTUGAL	808 207 267	www.samsung.com/pt/support
POLAND	[IM]801-172-678* lub [phone]*Specjalistyczna infolinia do obsługi zapytańdotyczących telefonów komórkowych:801-672-678*(opłata według taryfy operatora)[CE]801-172-678* lub [phone]*(opłata według taryfy operatora)	http://www.samsung.com/pl/support/
HUNGARY	0680SAMSUNG (0680-726-7864)	www.samsung.com/hu/support
CROATIA	072 726 786	www.samsung.com/hr/support
ALBANIA	045 620 202	www.samsung.com/al/support
North Macedonia	023 207 777	www.samsung.com/mk/support
SLOVENIA	080 697 267 (brezplaćna številka)	www.samsung.com/si/support
BOSNIA	055 233 999	www.samsung.com/ba/support
ESTONIA 800-7267	www.samsung.com/ec/support
LITHUANIA	8-800-77777	www.samsung.com/lt/support
LATVIA	8000-7267 www.samsung.com/lv/support

Opvaskemaskine

∅kodesignvejledning

SAMSUNG

SAMSUNG

Indhold

Installation 3

Installationskrav 3

Før du starter 4

Brug af opvaskemiddel 4

Brug af Skylning 9

3D diagram of a mechanical component with an arrow indicating direction (no text or symbols)

Type A Type B

Diagram of a mechanical component with a scroll and directional arrow, no text or symbols present

Brug af opvaskemiddel

Sæberum

Hand inserting a device into a plastic case with a black arrow indicating the component (no text or symbols present)

Line drawing of a mechanical device with a lid and internal components, no text or symbols present

3D diagram of a mechanical component with an arrow indicating direction (no text or symbols)

1. Luk låget ved at skubbe det op.

Dansk 5

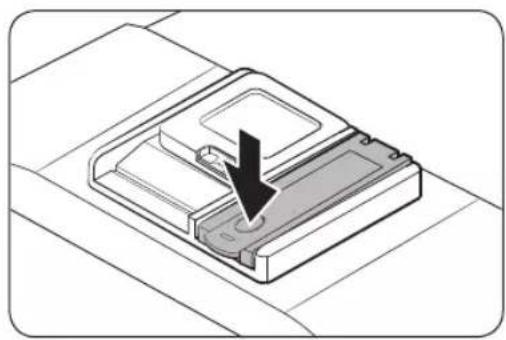

Før du starter

Illustration of a hand pouring liquid onto a tray with a small inset device (no text or symbols visible)

Diagram of a mechanical component being inserted into a tray, showing a handle and base plate (no text or symbols)

Hand inserting a USB into a device casing with an arrow indicating the process (no text or symbols present)

Illustration of a bottle pouring liquid into a tray with a small container (no text or symbols)

Isometric diagram of a computer flash drive with a black arrow indicating the working area (no text or symbols present)

Diagram of a mechanical component with a rotating arrow, no text or symbols present

Illustration of a hand pouring liquid into a container on a tray (no text or symbols)

Diagram of a mechanical device with a rotating arrow and circular component, connected to a diagonal line (no text or symbols)

DW6*R707***/DW6*R705***/DW6*R704***

Program AUTO ∅KO Intensiv
Resterende mængde madvarer	Normal Normal Stor
Programsekvens	Forvask (45 °C) ▶Hovedvask (55 °C-65 °C) ▶ Skylning ▶Varm skylning (50 °C -70 °C) ▶ Tørring ▶ Slut	Forvask ▶Hovedvask (50 °C) ▶Skylning ▶ Varm skylning (48 °C) ▶Tørring ▶ Slut	Forvask (50 °C) ▶Hovedvask (65 °C) ▶Skylning ▶ Varm skylning (58 °C) ▶Tørring ▶ Slut
Vandforbrug (L) 8,5-18 9,9 16,6
Energiforbrug (kWh) 0,85-1,55		0,848(DW6*R707***/DW6*R705***)0,836(DW6*R704***)	1,5
Programtid (min.) 150	210 205

Program Fint Ekspres * Forvask
Resterende mængde madvarer	Lille Normal Lille
Programsekvens	Forvask (40 °C) ▶Hovedvask (50 °C) ▶Skylning ▶ Varmskylning (50 °C) ▶Tørring ▶ Slut	(Hovedvask) (60 °C) ▶Skylning ▶ Varmskylning (55 °C) ▶Tørring ▶ Slut	Forvask ▶ Slut
Vandforbrug (L)	13,5	15	4,1
Energiforbrug (kWh)	0,95	0,95	0,02
Programtid (min.) 120	60	15

Dansk16-

Program Ekstra lydløs ** Selvrens
Resterende mængde madvarer	Normal -
Programsekvens	Forvask (35 °C) ▶Hovedvask (60 °C) ▶Skylning ▶ Varm skylning (55 °C) ▶Tørring ▶ Slut	Forvask ▶Hovedvask (70 °C) ▶Skylning ▶ Varm skylning (70 °C) ▶Tørring ▶ Slut
Vandforbrug (L) 13 15
Energiforbrug (kWh) 1,5 1,25
Programtid (min.) 270 145

Technical line drawing of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

Mechanical assembly diagram showing a lever pressing into a component with gears and a ruler (no text or symbols)

Technical diagram of a mechanical component with a central cylindrical housing and surrounding components (no text or symbols)

Diagram of a mechanical component with a circular housing and directional arrow, no text or symbols present

Diagram of a mechanical assembly with a cylindrical component and a flat plate, showing a downward arrow indicating rotation (no text or symbols present)

1. Abn lågen, og fjern den nederste kurv først.

2. Drej filterets håndtag mod uret for at låse det grove filter op.

3. Fjern det grove filter og derefter det cylinderformede mikrofilter underneden.

Vedligeholdelse

Line drawing of a sink with two fixtures, one cylindrical and one threaded, no text or symbols present

Line drawing of a sink with a drain and a plate, showing shower spraying (no text or symbols)

Diagram of a mechanical component with a rotating arrow indicating rotation (no text or symbols)

3D diagram of a device casing with an arrow indicating direction (no text or symbols)

Tipo A Tipo B

Diagram of a mechanical device with a block and directional arrow, no text or symbols present

Uso del detersivo

Comparto detersivo

Hand inserting a device into a plastic case with a black arrow indicating the component (no text or symbols present)

Line drawing of a device being inserted into a tray (no text or symbols)

3D diagram of a mechanical component with an arrow indicating direction (no text or symbols)

Illustration of a hand pouring liquid onto a flat surface with a small device on the floor (no text or symbols visible)

Diagram of a mechanical component with a lever and base plate, showing no text or symbols

Illustration of a hand inserting a USB into a hard drive into a memory card slot (no text or symbols)

Illustration of a bottle pouring liquid into a tray with a lid, on a tiled floor (no text or symbols)

Isometric diagram of a computer flash drive with a black arrow indicating the working area (no text or symbols present)

DW6*R707***/DW6*R705***/DW6*R704***

Technical diagram showing a mechanical assembly with an inset circular view of a component (no text or symbols)

Mechanical assembly diagram showing a rotating shaft and gear mechanism (no text or symbols)

Technical diagram of a mechanical component with a central cylindrical housing and surrounding components (no text or symbols)

Diagram of a mechanical component with a circular housing and directional arrow, no text or symbols present

Diagram of a mechanical assembly with a cylindrical component and a flat plate, showing a downward arrow indicating rotation (no text or symbols present)

Manutenzione

Line drawing of a sink with two fixtures, one cylindrical and one threaded, showing a shower (no text or symbols)

Line drawing of a sink with a hand washing it, no text or symbols present

Diagram of a mechanical component with a rotating arrow indicating rotation (no text or symbols)

3D diagram of a mechanical component with an arrow indicating direction (no text or symbols)

Tipo A Tipo B

Diagram of a mechanical device with a lever and cable, showing no text or symbols

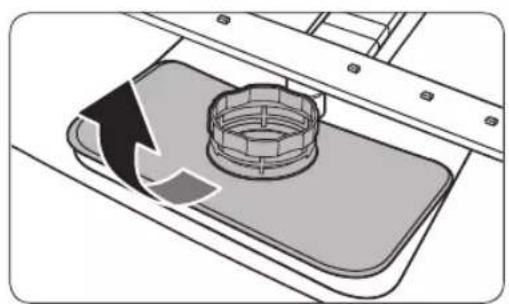

Uso de detergente

Hand inserting a device into a plastic case with an arrow indicating the process (no text or symbols present)

Line drawing of a mechanical device with a lid pouring liquid into a tray (no text or symbols)

Isometric technical diagram of a mechanical device with a black arrow indicating direction (no text or symbols)

Illustration of a hand pouring liquid onto a tray with a small inset device (no text or symbols visible)

Diagram of a mechanical component with a highlighted section and arrow, no text or symbols present

Diagram of a mechanical component with a black arrow indicating direction, no text or symbols present

Line drawing of a mechanical assembly with a clamped component inserted into a base (no text or symbols)

Diagram of a mechanical component with a highlighted section and an arrow indicating direction (no text or symbols)

Diagram of a mechanical component being inserted into a tray, showing a handle and base plate (no text or symbols)

Illustration of a hand inserting a USB into a hard drive into a memory card slot (no text or symbols)

Illustration of a bottle pouring liquid into a tray with a small container (no text or symbols)

Isometric diagram of a computer flash drive with a black arrow indicating the working area (no text or symbols present)

DW6*R707***/DW6*R705***/DW6*R704***

Programa Automático ECO Intensivo
Cantidad de restos de comida	Normal Normal Mucha
Secuencia de ciclos	Prelavado (45 °C) ▶Lavado principal(55 °C-65 °C) ▶Aclarado ▶ Aclaradocaliente (50 °C-70 °C) ▶Secado ▶ Fin	Prelavado ▶ Lavadoprincipal (50 °C) ▶Aclarado ▶ Aclaradocaliente (48 °C) ▶Secado ▶ Fin	Prelavado(50 °C) ▶ Lavadoprincipal (65 °C) ▶Aclarado ▶ Aclaradocaliente (58 °C) ▶Secado ▶ Fin
Consumo de agua (l) 8,5-18 9,9 16,6
Consumo de energía(kWh)	0,85-1,55	0,848(DW6*R707***/DW6*R705***)0,836(DW6*R704***)	1,5
Duración del programa(min)	150 210 205

Programa Delicado	Exprés * Prelavado
Cantidad de restos de comida	Poca Normal Poca
Secuencia de ciclos	Prelavado(40 °C) ▶ Lavadoprincipal (50 °C) ▶Aclarado ▶ Aclaradocaliente (50 °C) ▶Secado ▶ Fin	Lavado principal(60 °C) ▶Aclarado ▶ Aclaradocaliente (55 °C) ▶Secado ▶ Fin	Prelavado ▶ Fin
Consumo de agua (l) 13,5 15		4,1
Consumo de energía(kWh)	0,95	0,95	0,02
Duración del programa(min)	120	60	15

Español 16-

Programa Extra silencioso ** Autolimpieza
Cantidad de restos de comida	Normal -
Secuencia de ciclos	Prelavado(35 °C) ▶ Lavadoprincipal (60 °C) ▶Aclarado ▶ Aclaradocaliente (55 °C) ▶Secado ▶ Fin	Prelavado ▶Lavado principal(70 °C) ▶ Aclarado ▶Aclarado caliente(70 °C) ▶ Secado ▶ Fin
Consumo de agua (l) 13	15
Consumo de energía(kWh)	1,5 1,25
Duración del programa(min)	270 145

Technical line drawing of a mechanical assembly with an inset circular detail showing a component (no text or symbols)

Technical diagram showing a mechanical assembly with a lever and gear, no text or symbols present

Line drawing of a sink with two fixtures, one cylindrical and one threaded, no text or symbols present

Line drawing of a sink with a plate and faucet, showing liquid being poured into it (no text or symbols)

Diagram of a mechanical component with a rotating arrow indicating rotation (no text or symbols)

3D diagram of a mechanical component with an arrow indicating direction (no text or symbols)

Tipo A Tipo B

Diagram of a mechanical component with a directional arrow indicating motion (no text or symbols)

Hand inserting a device into a plastic case with a black arrow indicating the component (no text or symbols present)

Illustration of a mechanical device with a lid and internal components, no text or symbols present

3D diagram of a mechanical component with an arrow indicating direction (no text or symbols)

Illustration of a hand pouring liquid onto a flat surface with a small inset device (no text or symbols)

Diagram of a mechanical component being inserted into a tray, showing a handle and base plate (no text or symbols)

Illustration of a hand inserting a device into a tray with an arrow indicating rotation (no text or symbols)

Illustration of a bottle pouring liquid into a tray with a lid (no text or symbols)

Diagram of a mechanical device with a black arrow pointing to a component, no text or symbols present

- DW6*M5***BB / DW60M5070IB: A (Expresso)

- Modelos DW6*M****F*/S*/U*: A (Programa)

DW6*R707***/DW6*R705***/DW6*R704***

Technical line drawing of a mechanical assembly with an inset circular detail showing a rotating component (no text or symbols)

Technical diagram of a mechanical assembly with gears and a ruler, showing no text or symbols

Technical diagram of a mechanical component with a central cylindrical housing and surrounding components (no text or symbols)

Diagram of a mechanical component with a circular housing and directional arrow, no text or symbols present

Diagram of a mechanical assembly with a cylindrical component and a flat plate, showing a downward arrow indicating rotation (no text or symbols present)

Line drawing of a sink with two fixtures, one cylindrical and one threaded, showing a shower (no text or symbols)

Line drawing of a sink with a hand washing it, no text or symbols present

Diagram of a mechanical component with a rotating arrow indicating rotation (no text or symbols)

3D diagram of a mechanical component with an arrow indicating direction (no text or symbols)

Typ A Typ B

Diagram of a mechanical device with a lever and cable, showing no text or symbols

Hand inserting a device into a plastic case with a black arrow indicating the component (no text or symbols present)

Line drawing of a device being inserted into a tray (no text or symbols)

3D diagram of a mechanical component with an arrow indicating direction (no text or symbols)

Illustration of a hand pouring liquid onto a tray with a small inset device (no text or symbols visible)

Diagram of a mechanical component with a highlighted section and arrow, no text or symbols present

Diagram of a mechanical component with a black arrow indicating direction, mounted on a diagonal line (no text or symbols)

Line drawing of a mechanical assembly with a clamped component inserted into a base (no text or symbols)

Diagram of a mechanical component with a highlighted section and an arrow indicating direction (no text or symbols)

Diagram of a mechanical component being inserted into a tray, showing a handle and base plate (no text or symbols)

Hand inserting a device into a folder with an arrow indicating rotation (no text or symbols)

Illustration of a bottle pouring liquid into a tray with a lid (no text or symbols)

Isometric diagram of a computer flash drive with a black arrow indicating the working principle (no text or symbols present)

Technical line drawing of a mechanical component with a rotating knob and curved base, no text or symbols present

Illustration of a hand pouring liquid into a container on a tray (no text or symbols)

Diagram of a mechanical component with a rotating arrow indicating motion (no text or symbols)

DW6*R707***/DW6*R705***/DW6*R704***

Technical line drawing of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

Diagram of a mechanical assembly with gears and a ruler, showing an upward arrow indicating motion (no text or symbols present)

Technical diagram of a mechanical component with a central cylindrical housing and surrounding components (no text or symbols)

Diagram of a mechanical component with a circular housing and directional arrow, no text or symbols present

Diagram of a mechanical assembly with a cylindrical component and a flat plate, showing a downward arrow indicating rotation (no text or symbols present)

Konserwacja

Line drawing of a sink with two fixtures, one cylindrical and one threaded, showing a shower (no text or symbols)

Line drawing of a sink with a hand washing it, no text or symbols present

Diagram of a mechanical component with a rotating arrow indicating rotation (no text or symbols)

3D diagram of a mechanical component with an arrow indicating direction (no text or symbols)

„A” típus „B” típus

Diagram of a mechanical component with a block and directional arrow, no text or symbols present

Hand inserting a device into a plastic case with a black arrow indicating the component (no text or symbols present)

Illustration of a mechanical device with a lid and internal components, no text or symbols present

3D diagram of a mechanical component with an arrow indicating direction (no text or symbols)

Illustration of a hand pouring liquid onto a tray with a small inset device (no text or symbols visible)

Diagram of a mechanical component with a handle and internal structure, no visible text or symbols

Diagram of a mechanical component with a black arrow indicating direction, connected to wires (no text or symbols)

Line drawing of a mechanical assembly with a clamped component inserted into a base (no text or symbols)

Diagram of a mechanical component with a highlighted section and an arrow indicating direction (no text or symbols)

Diagram of a mechanical component being inserted into a tray, showing a handle and base plate (no text or symbols)

Hand inserting a device into a plastic case with an arrow indicating the process (no text or symbols present)

Illustration of a bottle pouring liquid into a container on a metal tray (no text or symbols)

Diagram of a mechanical device with a black arrow pointing to a component (no text or symbols present)

Diagram of a mechanical component with a rotating arrow, no text or symbols present

Illustration of a hand pouring liquid from a bottle onto a tray with a small container (no text or symbols)

Diagram of a mechanical device with rotating arm and housing, no text or symbols present

DW6*R707***/DW6*R705***/DW6*R704***

Technical diagram showing a mechanical assembly with an inset circular view of a rotating component (no text or symbols present)

Technical diagram of a mechanical assembly with gears and a ruler, showing no text or symbols

Technical diagram of a mechanical component with a central cylindrical housing and surrounding plates (no text or symbols)

Diagram of a mechanical component with a circular housing and directional arrow, no text or symbols present

Diagram of a mechanical assembly with a cylindrical component and a flat plate, showing a downward arrow indicating rotation (no text or symbols present)

Karbantartás

Line drawing of a sink with a cylindrical object and a screwdriver, no text or symbols present

Line drawing of a sink with a hand washing it, no text or symbols present

Diagram of a mechanical component with a rotating arrow indicating rotation (no text or symbols)
