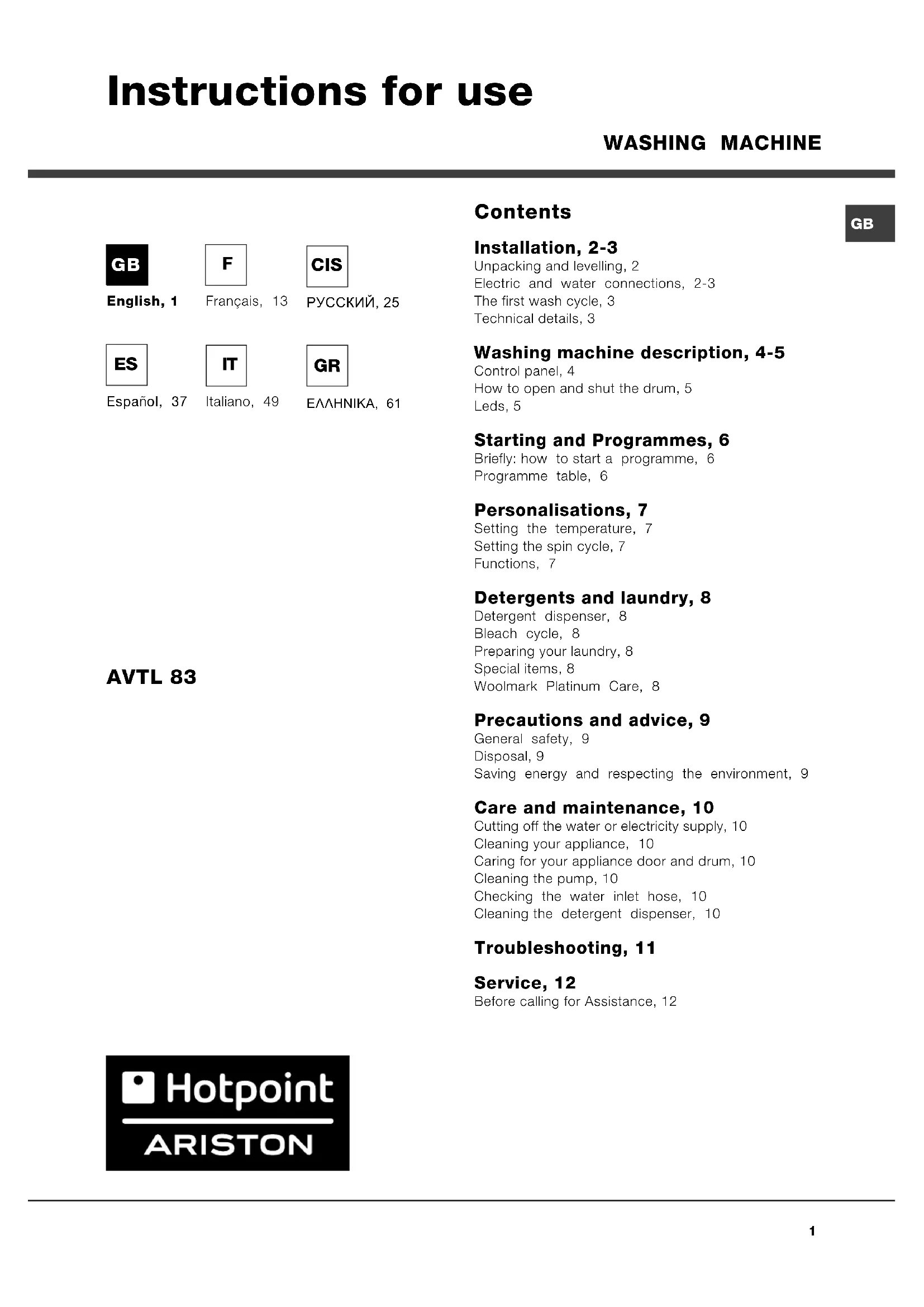

Contents Installation, 2-3 Unpacking and levelling, 2 Electric and water connections, 2-3 The first wash cycle, 3 Technical details, 3 Washing machine description, 4-5 Control panel, 4 How to open and shut the drum, 5 Leds, 5 Starting and Programmes, 6 Briefly: how to start a programme, 6 Programme table, 6 Personalisations, 7 Setting the temperature, 7 Setting the spin cycle, 7 Functions, 7 Detergents and laundry, 8 Detergent dispenser, 8 Bleach cycle, 8 Preparing your laundry, 8 Special items, 8 Woolmark Platinum Care, 8 Precautions and advice, 9 General safety, 9 Disposal, 9 Saving energy and respecting the environment, 9 Care and maintenance, 10 Cutting off the water or electricity supply, 10 Cleaning your appliance, 10 Caring for your appliance door and drum, 10 Cleaning the pump, 10 Checking the water inlet hose, 10 Cleaning the detergent dispenser, 10 Troubleshooting, 11 Service, 12 Before calling for Assistance, 12 WASHING MACHINE AVTL 83 Instructions for use English, 1

Keep this instruction manual in a safe place for future reference. Should the appliance be sold, transferred or moved, make sure the instruction manual accompanies the washing machine to inform the new owner as to its operation and features. Read these instructions carefully: they contain vital information on installation, use and safety. Unpacking and levelling Unpacking

1. Unpack the washing

washing machine has been damaged during transport. If this is the case, do not install it and contact your retailer.

protective screws and the rubber washer with the respective spacer, situated on the rear of the appliance (see figure).

4. Seal the gaps using the plastic plugs provided.

5. Keep all the parts: you will need them again if the

washing machine needs to be moved to another location.

Warning: should the screws be re-used, make sure

you fasten the shorter ones at the top. Packaging materials are not children's toys. Levelling Your machine may make a considerable amount of noise if the two front feet have not been adjusted correctly.

1. Install the washing

machine on a flat sturdy floor, without resting it up against walls, furniture cabinets or other.

2. If the floor is not

perfectly level, compen- sate for any unevenness by tightening or loosening the adjustable front feet (see figure); the angle of inclination, measured according to the worktop, must not exceed 2°. Levelling your appliance correctly will provide it with stability and avoid any vibrations, noise and shifting during operation. If it is placed on a fitted or loose carpet, adjust the feet in such a way as to allow enough room for ventilation beneath the washing machine. Electric and water connections Connecting the water inlet hose

1. Insert seal A into the

end of the inlet hose and screw the latter onto a cold water tap with a 3/4 gas threaded mouth (see figure). Before making the connection, allow the water to run freely until it is perfectly clear.

2. Connect the other end

of the water inlet hose to the washing machine, screwing it onto the appliance's cold water inlet, situated on the top right-hand side on the rear of the appliance (see figure).

3. Make sure there are no kinks or bends in the

hose. The water pressure at the tap must be within the values indicated in the Technical details table (on the next page). If the water inlet hose is not long enough, contact a specialist store or an authorised serviceman. Installation

Connecting the drain hose Connect the drain hose,without bending it, to adraining duct or a walldrain situated between65 and 100 cm from thefloor;alternatively, place itover the edge of abasin, sink or tub,fastening the ductsupplied to the tap (seefigure). The free end ofthe hose should not beunderwater. We advise against the use of hose extensions; in case of absolute need, the extension must have thesame diameter as the original hose and must notexceed 150 cm in length.Electric connectionBefore plugging the appliance into the mains socket,make sure that: the socket is earthed and in compliance with theapplicable law; the socket is able to sustain the appliance'smaximum power load indicated in the Technicaldetails table (on the right); the supply voltage is included within the values indicated on the Technical details table(on the right); the socket is compatible with the washingmachine's plug. If this is not the case, replace thesocket or the plug. The washing machine should not be installed in an outdoor environment, not even when the area issheltered, because it may be very dangerous toleave it exposed to rain and thunderstorms. When the washing machine is installed, the main socket must be within easy reach. Do not use extensions or multiple sockets. The power supply cable must never be bent or dangerously compressed. The power supply cable must only be replaced by an authorised serviceman.Warning! The company denies all liability if and whenthese norms are not respected. The first wash cycle Once the appliance has been installed, and beforeyou use it for the first time, run a wash cycle withdetergent and no laundry, setting the 90°Cprogramme without a pre-wash cycle. Technical details ModelAVTL 83Dimensions40 cm wide85 cm high60 cm deepCapacityfrom 1 to 5 kgElectricconnectionsPlease refer to the technical data platefixed to the machine.Waterconnectionsmaximum pressure 1 MPa (10 bar)minimum pressure 0.05 MPa (0.5 bar)drum capacity 42 litresSpin speedup to 800 rpmControlprogrammesaccording to EN60456 directiveprogramme 3; temperature 60°C;run with a load of 5 kg.This appliance is compliant with thefollowing European CommunityDirectives:- 89/336/CEE of 03/05/89(Electromagnetic Compatibility) andsubsequent amendments- 2006/95/CE (Low voltage)- 2002/96/CE

Control panel Washing machine description ON-OFF/LID LOCK led: If this LED is on, the appliance Lid is locked to prevent it from being opened accidentally; to avoid any damages, you must wait for the lamp to flash before you open the Lid.

The rapid flashing of the ON-OFF/LID LOCK Led together with the flashing of at least one other LED indicates there is an abnormality (see page11). TEMPERATURE knob PROGRAMME knob LEDs FUNCTION keys ON/OFF key START/RESET key SPIN SPEED knob LID LOCKED LED Detergent dispenser to add detergent and fabric softener (see page 8). LEDs to find out which wash cycle phase is under way. If the Delay Timer function has been set, the time left until the programme starts will be indicated (see page 5). SPIN SPEED knob to set the spin speed or exclude the spin cycle completely (see page 7). FUNCTION keys to select the functions available. The button corresponding to the function selected will remain on. TEMPERATURE knob to set the temperature or the cold wash cycle (see page 7). ON/OFF key to turn the washing machine on and off. START/RESET key to start the programmes or cancel incorrect settings. ON-OFF/LID LOCK led ,to find out whether the washing machine is on (flashing) and if the lid may be opened (see page 5). PROGRAMME knob to set the programmes (see page 6). The knob stays still during the cycle.5

Leds The LEDS provide important information. This is what they can tell you: Cycle phase under way: During the wash cycle, the LEDs gradually illuminate on to indicate the cycle phase under way: Prewash Wash Rinse Spin cycle Note: during draining, the LED corresponding to the Spin cycle phase will be turned on. Function keys The FUNCTION KEYS also act like LEDS. When a function is selected, the corresponding button is illuminated. If the function selected is incompatible with the programme set, the button will flash and the function will not be enabled. If you set a function that is incompatible with another function you selected previously, only the last one selected will be enabled. Fig. 3 Fig. 4 Fig. 1 Fig. 2 A) Opening (Fig. 1). Lift the external lid and open it completely. B) Then open the drum using both hands as shown in Fig. 2: - press the button indicated by the arrow in Fig. 2 lightly downwards, with one hand firmly resting on the doors to prevent them from suddenly opening and hurting your fingers; - therefore follow the appliance doors along as these unhook and open easily. C) Loading the washing machine. (Fig. 3). D) Shutting (Fig. 4). - close the drum fully by first shutting the front door followed by the rear one; - then ensure the hooks on the front door are perfectly housed within the seat of the rear door; - after the hooks have clicked into position, press both doors lightly downwards to make sure they do not come loose; - finally shut the external lid. How to open and to close the drum6

Starting and Programmes Notes For the anti-crease function: see Easy iron, opposite page. The information contained in the table is purely indicative. Special programme Daily 30' (programme 9 for Synthetics) is designed to wash lightly soiled garments in a short amount of time: it only lasts 30 minutes and allows you to save on both time and energy. By setting this programme (9 at 30°C), you can wash different fabrics together (except for woollen and silk items), with a maximum load of 3 kg. We recommend the use of liquid detergent. Briefly: starting a programme

1. Switch the washing machine on by pressing button .

All the LEDS will light up for a few seconds and the ON-OFF/DOOR LOCK Led will begin to flash.

2. Load your laundry into the washing machine, add

the detergent and any fabric softener (see page 8) and shut the appliance door.

3. Set the PROGRAMME knob to the programme

4. Set the wash temperature (see page 7).

5. Set the spin speed (see page 7).

6. Start he programme by pressing the START/RESET

button. To cancel it, keep the START/RESET button pressed for at least 2 seconds.

7. When the programme is finished, the ON-OFF/

DOOR LOCK Led will flash to indicate that the appliance door can be opened. Take out your laundry and leave the appliance door ajar to allow the drum to dry thoroughly. Turn the washing machine off by pressing button

Pre-wash, wash cycle, rinsecycles, intermediate and finalspin cyclesExtremely soiled whites(sheets, tablecloths, etc.) 90°C Delicate/Tradi t ional

Wash cycl e, ri nse cycles,intermediate and final spincyclesSlightly soiled whites anddelicate colours (shirts,jumpers, etc.) 30°C Delicate/Tradi t ional

Wash cycle, rinse cycles, anti-crease or delicate spin cycleDelicate colours (all typesof slightly soiledgarments) 40°C Delicate

Wash cycle, rinse cycles, anti-crease or draining cyclePARTIAL PROGRAMMESRinse Rinse cycles and spin cycleDelicate rinse cycle Rinse cycles, anti-crease ordrainingSpin cycleDraining and heavy duty spincycleDelicate spin cycleDraining and delicate spincycleDraining Draining Programme table7

Function Effect Comments Enabled with programmes: Super Wash Allows for an impeccable wash, visibly whiter than a standard Class A wash. This function is incompatible with the RAPID function. 1, 2, 3, 4, 5, 6, 7, 8 Easy i ron This option reduces the amount of creasing on fabrics, making them easier to iron. When this function is set, programmes 6, 7, 8, 11 and Delicate rinse will end with the laundry left to soak (Anti-crease) and the Rinse cycle phase LED will flash. - to conclude the cycle, press the START/RESET button; - to run the draining cycle alone, set the knob to the relative symbol and press the START/RESET button. All programmes except for 1, 2, 9, 10 and Draining. Rapi d Cuts the duration of the wash cycle by 30%. This function is incompatible with the SUPER WASH function. 1, 2, 3, 4, 5, 6, 7, 8 Rinses Extra Rinse Increases the efficiency of the rinse. Recommended when the appliance has a full load or with large quantities of detergent. 1, 2, 3, 4, 5, 6, 7, 8, and Rinse cycles. Personalisations Setting the temperature Turn the TEMPERATURE knob to set the wash temperature (see Programme table on page 6). The temperature can be lowered, or even set to a cold wash (

Setting the spin speed Turn the SPIN SPEED knob to set the spin speed for the programme selected.The maximum spin speeds for each programme are as follows:Programmes Maximum spin speedCottone 800 rpmSynthetics 800 rpmWool 600 rpmSilk noThe spin speed can be lowered, or the spin cycle can be excluded altogether by selecting symbol The washing machine will automatically prevent you from selecting a spin speed higher than the maximum speed foreach programme. To avoid excessive vibrations, before every spin cycle the machine distributes the load in a uniform manner by continuously rotating the drum at a speed which is slightly faster than the normal washing speed. When, despiterepeated attempts, the load is still not evenly distributed, the machine spins at a lower speed than the set frequency.If the load is excessively unbalanced, the machine attempts to distribute it instead of spinning.The balancing attempts may extend the total duration of the cycle, up to a maximum of 10 minutes. Functions To enable a function:1. press the button corresponding to the desired function, according to the table below;2. the function is enabled when the corresponding button is illuminated. Note: The rapid flashing of the button indicates that the corresponding function cannot be selected for the programme set.8

Detergent dispenser Good washing results also depend on the correct dose of detergent: adding too much detergent won't necessarily make for a more efficient wash, and may in fact cause build up on the interior of your appliance and even pollute the environment. Open up the detergent dispenser and pour in the detergent and fabric softener, as follows. compartment 1: Detergent for pre-wash compartment 2: Detergent for the wash cycle (powder or liquid) It is recommended that you place liquid detergent directly into the compartment using the appropriate dosing cup. compartment 3: Additives (softener, etc.) When pouring the softener in compartment 3, avoid exceeding the "max" level indicated. The softener is added automatically into the machine during the last wash. At the end of the wash programme, some water will be left in compartment

3. This is used for the inlet of denser fabric softeners

into the machine, i.e. to dilute the more concentrated softeners. Should more than a normal amount of water remain in compartment 3, this means the emptying device is blocked. For cleaning instructions, see page 10. compartment 4: Bleach Do not use hand wash detergent because it may form too much foam. Bleach cycle Traditional bleach should be used on sturdy white fabrics, and delicate bleach for coloured fabrics, synthetics and for wool. When pouring in the bleach, be careful not to exceed the "max" level indicated on compartment 4 .. To run the bleach cycle alone, pour the bleach into compartment 4 and set the Extra Rinse option

Preparing your laundry Divide your laundry according to: - the type of fabric/the symbol on the label. - the colours: separate coloured garments from whites. Empty all pockets and check for loose buttons. Do not exceed the weight limits stated below, which refer to the weight when dry: Sturdy fabrics: max 5 kg Synthetic fabrics: max 2.5 kg Delicate fabrics: max 2 kg Wool: max 1 kg How much does your laundry weigh? 1 sheet 400-500 g 1 pillow case 150-200 g 1 tablecloth 400-500 g 1 bathrobe 900-1,200 g 1 towel 150-250 g Special items Curtains: fold curtains and place them in a pillow case or mesh bag. Wash them separately without exceeding half the appliance load. Use programme 11 which excludes the spin cycle automatically. Quilted coats and windbreakers: if they are padded with goose or duck down, they can be machine-washed. Turn the garments inside out and load a maximum of 2-3 kg, repeating the rinse cycle once or twice and using the delicate spin cycle. Trainers: remove any mud. They can be washed together with jeans and other tough garments, but not with whites. Wool: for best results, use a specific detergent, taking care not to exceed a load of 1 kg. Woolmark Platinum Care As gentle as a hand wash. Hotpoint Ariston sets a new standard of superior performance that has been endorsed by The Woolmark Company with the prestigious Woolmark Platinum Care brand. Look for the Woolmark Platinum Care logo on the washing machine to ensure you can safely and effectively wash wool garments labelled as "hand wash" (M.0303): Set programme 10 for all "Hand wash" garments, using the appropriate detergent (max load 1 kg). Detergents and laundry9

Precautions and advice The washing machine was designed and built in compliance with the applicable international safety regulations. The following information is provided for your safety and should consequently be read carefully. General safety This appliance has been designed for non- professional, household use and its functions must not be changed. This washing machine should only be used by adults and in accordance with the instructions provided in this manual. Never touch the washing machine when barefoot or with wet or damp hands or feet. Do not pull on the power supply cable to unplug the appliance from the electricity socket. Pull the plug out yourself. Do not open the detergent dispenser while the appliance is in operation. Do not touch the drain water as it could reach very high temperatures. Never force the washing machine door: this could damage the safety lock mechanism designed to prevent any accidental openings. In the event of a malfunction, do not under any circumstances touch internal parts in order to attempt repairs. Always keep children well away from the appliance while in operation. The appliance door tends to get quite hot during the wash cycle. Should it have to be moved, proceed with the help of two or three people and handle it with the utmost care. Never try to do this alone, because the appliance is very heavy. Before loading your laundry into the washing machine, make sure the drum is empty. Disposal Disposing of the packaging material: observe local regulations, so the packaging can be re-used. Disposal of old electrical appliances The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance. Disposing of an old washing machine: before scrapping your appliance, cut the power supply cable and remove the appliance door. Saving energy and respecting the environment Environmentally-friendly technology If you only see a little water through your appliance door, this is because thanks to the latest technology, your washing machine only needs less than half the amount of water to get the best results: an objective reached to respect the environment. Saving on detergent, water, energy and time To avoid wasting resources, the washing machine should be used with a full load. A full load instead of two half loads allows you to save up to 50% on energy. The pre-wash cycle is only necessary on extremely soiled garments. Avoiding it will save on detergent, time, water and between 5 and 15% energy. Treating stains with a stain remover or leaving them to soak before washing will cut down the need to wash them at high temperatures. A programme at 60°C instead of 90°C or one at 40°C instead of 60°C will save up to 50% on energy. Use the correct quantity of detergent depending on the water hardness, how soiled the garments are and the amount of laundry you have, to avoid wastage and to protect the environment: despite being biodegradable, detergents do contain ingredients that alter the natural balance of the environment. In addition, avoid using fabric softener as much as possible. If your laundry has to be dried in a tumble dryer, select a high spin speed. Having the least water possible in your laundry will save you time and energy in the drying process.10

Care and maintenance Cutting off the water or electricity supply Turn off the water tap after every wash. This willlimit the wear of your appliance's water systemand also prevent leaks. Unplug your appliance when cleaning it andduring all maintenance operations. Cleaning your appliance The exterior and rubber parts of your appliance canbe cleaned with a soft cloth soaked in lukewarmsoapy water. Do not use solvents or abrasives. Cleaning the detergent dispenser Remove the dispenser by raising it and pulling it out(see figure).Wash it under running water; this operation shouldbe repeatedfrequently. Caring for your appliance door and drum Always leave the appliance door ajar to preventunpleasant odours from forming. Cleaning the pump The washing machine is fitted with a self-cleaningpump that does not require any maintenance.Sometimes, small items (such as coins or buttons)may fall into the pre-chamber that protects thepump, situated in the lower part of the same.To recover any objects that have fallen into the pre-chamber:1. remove the plinth atthe bottom on thefront side of thewashing machine bypulling from the sidewith your hands (seediagram); (see figure);2. unscrew the lidrotating it anticlock-wise (see figure): alittle water may trickleout. This is perfectlynormal;3. clean the interiorthoroughly;4. screw the lid back on;

5. reposition the panel,making sure the hooksare securely in placebefore you push it ontothe appliance.

Checking the water inlet hose Check the water inlet hose at least once a year. Ifyou see any cracks, replace it immediately: duringthe wash cycles, water pressure is very strong anda cracked hose could easily split open. Never use hoses that have already been used. Make sure the wash cycle has ended and unplug the appliance. How to clean the detergent dispenser Fig. 1 Fig. 2 Cleaning: Then clean the dispenser under a tap (fig. 3) using an old toothbrush and, once the pair of siphons inserted in the top of compartments 1 and 2 (fig. 4) have been pulled out, check whether the same are not clogged and then rinse them. Reassembly: Do not forget to reinsert the pair of siphons into the special housings and then to replace the dispenser into its seat, clicking it into place (fig. 4, 2 and 1). Disassembly: Press lightly on the large button on the front of the detergent dispenser and pull it upwards (fig. 1). Fig. 3 Fig. 411

Your washing machine could fail to work. Before calling for Assistance (see page 12), make sure the problem can't easily be solved by consulting the following list. Troubleshooting Problem The washing machine won't start. The wash cycle won't start. The washing machine fails to load water. The washing machine continuously loads and unloads water. The washing machine does not drain or spin. The washing machine vibrates too much during the spin cycle. The washing machine leaks. The ON-OFF/DOOR LOCK Led flashes rapidly at the same time as at least one other LED. There is too much foam. Possible causes/Solution: The appliance is not plugged into the socket, or not enough to make contact. There has been a power failure. The appliance Lid is not shut properly. The Lid locked Led flashes. The button has not been pressed. The START/RESET button has not been pressed. The water tap is not turned on. The water inlet hose is not connected to the tap. The hose is bent. The water tap is not turned on. There is a water shortage. The water pressure is insufficient. The START/RESET button has not been pressed. The drain hose is not fitted between 65 and 100 cm from the floor (see page 3). The free end of the hose is underwater (see page 3). The wall drainage system doesn't have a breather pipe. If the problem persists even after these checks, turn off the water tap, switch the appliance off and call for Assistance. If the dwelling is on one of the upper floors of a building, there may be drain trap problems causing the washing machine to load and unload water continuously. In order to avoid such an inconvenience, special anti-drain trap valves are available in shops. The programme does not foresee the draining: some programmes require enabling the draining manually (see page 6). The Easy iron option is enabled: to complete the programme, press the START/RESET button (see page 7). The drain hose is bent (see page 3). The drain duct is clogged. When the machine is installed, the locking screws for the oscillating assembly are still in place. Remove the screws (see page 2). The washing machine is not level (see page 2). The washing machine is closed in between furniture cabinets and the wall (see page 2). The water inlet hose is not screwed on correctly (see page 2). The detergent dispenser is obstructed (to clean it, see page 10). The drain hose is not secured properly (see page 3). Switch off the machine and unplug the appliance; wait for approximately 1 minute then switch it on again. If the problem persists, contact Assistance. The detergent is not suitable for machine washing (it should bear the definition "for washing machines" or "hand and machine wash", or the like). You used too much detergent.12

Before calling for Assistance: Check whether you can solve the problem on your own (see page 11); Restart the programme to check whether the problem has been solved; If this is not the case, contact an authorised Technical Service Centre on the telephone number provided on the guarantee certificate. If the machine has been installed or used incorrectly, you may be charged for the maintenance callout service. Always request the assistance of authorised servicemen. Notify the operator of: the type of problem; the appliance model (Mod.); the serial number (S/N); This information can be found on the data plate situated on the rear of the washing machine. Service ServiceF
