Product type	Freezer
Brand	JUNO
Model	JCG08820S9
Height	873 mm
Width	540 mm
Depth	549 mm
Supply voltage	230-240 V
Frequency	50 Hz
Operating autonomy	20 hours
Climate class	SN, N, ST, T
Refrigerant	Isobutane (R600a)
Main functions	Super freeze, high temperature alarm, adjustable thermostat
Defrosting	Manual
Cleaning	Warm water and mild detergent
Safety	Child lock (via instructions), protected refrigeration circuit
Installation	Wait 4 hours before switching on, do not obstruct ventilation openings
Maintenance	Regular cleaning, check seals, defrost if frost >3-5 mm
Spare parts	Contact approved after-sales service
Use	Domestic

Frequently Asked Questions - JCG08820S9 JUNO

How to adjust the temperature of my JUNO JCG08820S9 freezer?

Turn the thermostat to a medium position for standard adjustment. Turn to minimum for less cold, to maximum for more cold. The temperature adjusts automatically.

What is the Super function for and how do I activate it?

The Super function accelerates freezing of fresh food and protects already frozen food. Press the Super button to activate it; the Super indicator lights up. It stops automatically after 52 hours or can be turned off manually.

What should I do if the alarm light flashes and an audible alarm sounds?

This indicates a temperature too high inside. Press the Super button to turn off the audible alarm. The alarm light flashes until normal temperature is restored. If the problem persists, check the door closure or contact customer service.

How to defrost the freezer?

Defrost when the frost layer reaches 3 to 5 mm. Beforehand, set the thermostat to the coldest position for 12 hours. Turn off the appliance, remove food and leave the door open. Use a bowl of hot water to speed up the process. Never scrape ice with metal objects.

What to do in case of a prolonged power outage?

If the outage lasts longer than the operating autonomy (20 hours), thawed food must be consumed quickly or cooked before refreezing. Avoid opening the door during outage.

How to clean the inside of the freezer?

Before first use or regularly, clean the interior and accessories with warm soapy water, then dry thoroughly. Never use abrasive cleaners, chlorine or oil. Check and wipe door seals.

Why is the door difficult to open?

This can happen if you try to reopen the door immediately after closing it. Wait a few seconds for the pressure to equalize. If the problem persists, check that the seals are clean and not deformed.

What are the normal operating noises?

A slight gurgling (refrigerant liquid), a humming from the compressor, cracking due to thermal expansion, and a clicking from the thermostat. These noises are normal.

Where to install the freezer for good performance?

Install it in a dry, well-ventilated place, away from direct sunlight and heat sources (radiator, oven). Observe the climate classes indicated on the rating plate (SN, N, ST, T) for ambient temperature.

How to save energy with this freezer?

Open the door only when necessary and do not leave it open too long. Ensure ventilation openings are not blocked. Defrost regularly to avoid thick frost layer. Place the appliance in a room with moderate temperature.

USER MANUAL JCG08820S9 JUNO

1-3 4-6 7-12

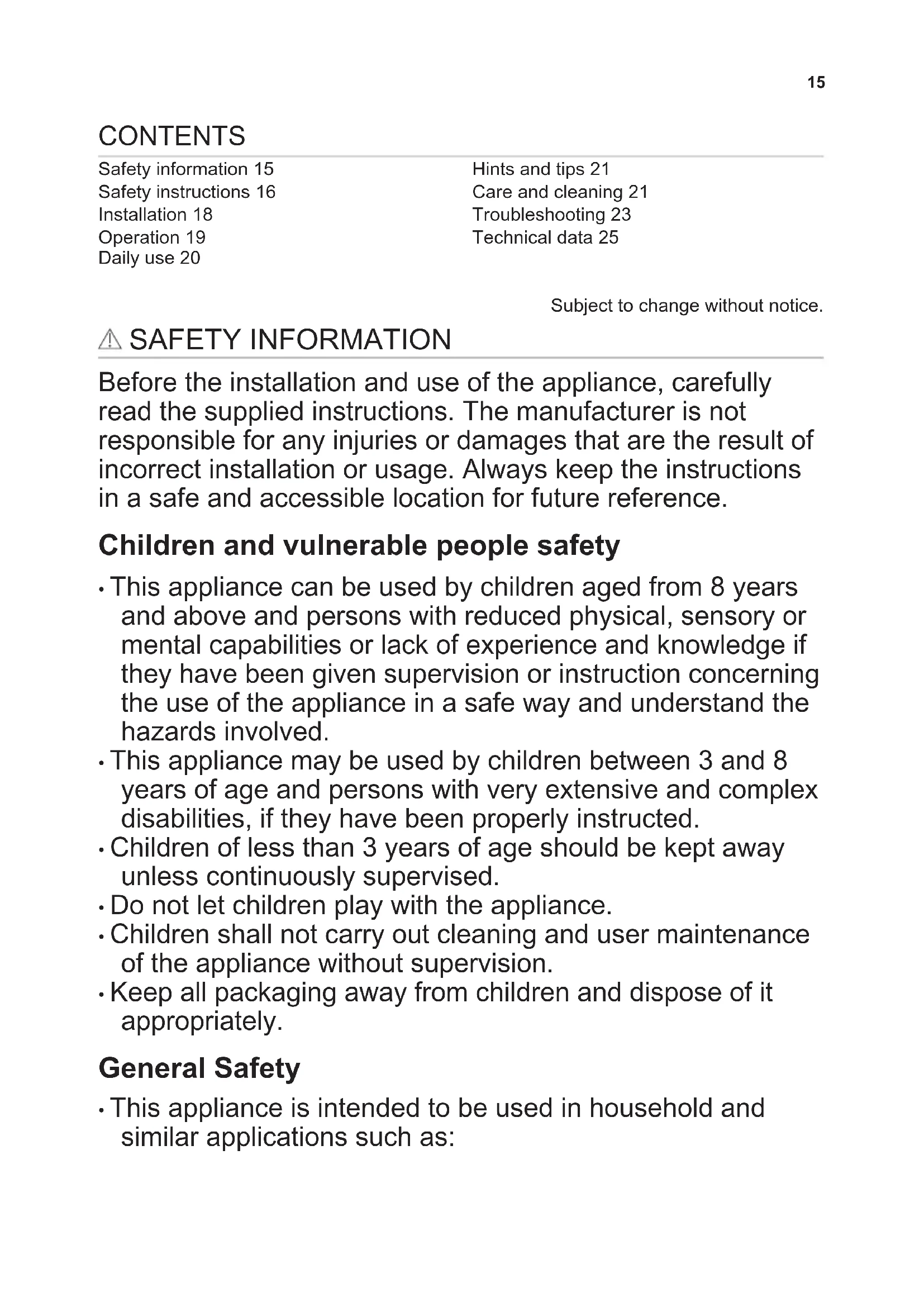

Safety information 15 Safety instructions 16 Installation 18 Operation 19 Daily use 20

Hints and tips 21 Care and cleaning 21 Troubleshooting 23 Technical data 25

Subject to change without notice.

⚠ SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damages that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
• This appliance may be used by children between 3 and 8 years of age and persons with very extensive and complex disabilities, if they have been properly instructed.
• Children of less than 3 years of age should be kept away unless continuously supervised.
• Do not let children play with the appliance.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.
• Keep all packaging away from children and dispose of it appropriately.

General Safety

- This appliance is intended to be used in household and similar applications such as:

- Farm houses; staff kitchen areas in shops, offices and other working environments - By clients in hotels, motels, bed and breakfast and other residential type environments

- WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

- WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

- WARNING: Do not damage the refrigerant circuit.

- WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

- Do not use water spray and steam to clean the appliance.

- Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

- If the supply cord is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons in order to avoid a hazard.

SAFETY INSTRUCTIONS

Installation

WARNING! Only a qualified person must install this appliance.

- Remove all the packaging and the transit bolts.

- Do not install or use a damaged appliance.

- Follow the installation instructions supplied with the appliance.

• Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.

- Make sure the air can circulate around the appliance.

- At first installation or after reversing the door wait at least 4 hours before connecting the appliance to the power supply. This is to allow the oil to flow back in the compressor.

- Before carrying out any operations on the appliance (e.g. reversing the door), remove the plug from the power socket.

- Do not install the appliance close to radiators or cookers, ovens or hobs.

- Do not expose the appliance to the rain.

- Do not install the appliance where there is direct sunlight.

- Do not install this appliance in areas that are too humid or too cold.

- When you move the appliance, lift it by the front edge to avoid scratching the floor.

Electrical connection

WARNING! Risk of fire and electric shock.

WARNING! When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING! Do not use multi- plug adapters and extension cables.

• The appliance must be earthed.
- Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.
• Always use a correctly installed shockproof socket.
- Make sure not to cause damage to the electrical components (e.g. mains plug, mains cable, compressor). Contact the Authorised Service Centre or an electrician to change the electrical components.
- The mains cable must stay below the level of the mains plug.
- Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
- Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

Use

WARNING! Risk of injury, burns, electric shock or fire.

• Do not change the specification of this appliance.

• Do not put electrical appliances (e.g. ice cream makers) in the appliance unless they are stated applicable by the manufacturer.

• Be careful not to cause damage to the refrigerant circuit. It contains isobutane (R600a), a natural gas with a high level of environmental compatibility. This gas is flammable.

• If damage occurs to the refrigerant circuit, make sure that there are no flames and sources of ignition in the room. Ventilate the room.
• Do not let hot items to touch the plastic parts of the appliance.
• Do not put soft drinks in the freezer compartment. This will create pressure on the drink container.
• Do not store flammable gas and liquid in the appliance.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.
• Do not touch the compressor or the condenser. They are hot.
• Do not remove or touch items from the freezer compartment if your hands are wet or damp.
• Do not freeze again food that has been thawed.
• Obey the storage instructions on the packaging of frozen food.

Care and cleaning

WARNING! Risk of injury or damage to the appliance.

• Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
• This appliance contains hydrocarbons in the cooling unit. Only a qualified person must do the maintenance and the recharging of the unit.
• Regularly examine the drain of the appliance and if necessary, clean it. If the drain is blocked, defrosted water collects in the bottom of the appliance.

Service

• To repair the appliance contact an Authorised Service Centre.
- Use original spare parts only.

Disposal

WARNING! Risk of injury or suffocation.

• Disconnect the appliance from the mains supply.
• Cut off the mains cable and discard it.
• Remove the door to prevent children and pets to be closed inside of the appliance.

• The refrigerant circuit and the insulation materials of this appliance are ozone-friendly.

• The insulation foam contains flammable gas. Contact your municipal authority for information on how to discard the appliance correctly.

• Do not cause damage to the part of the cooling unit that is near the heat exchanger.

INSTALLATION

WARNING! Refer to Safety chapters.

Location

Refer to the assembly instructions for the installation.

To ensure best performance, install the appliance well away from sources of heat such as radiators, boilers, direct sunlight etc. Make sure that air can circulate freely around the back of the cabinet.

Positioning

Install the appliance in a dry, well ventilated indoors where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance.

Climate class	Ambient temperature
SN +10°C to + 32°C
N +16°C to + 32°C
ST +16°C to + 38°C
T +16°C to + 43°C

Some functional problems might occur for some types of models when operating outside of that range. The correct operation can only be guaranteed within the specified temperature range. If you have any doubts regarding where to install the appliance, please turn to the vendor, to our customer service or to the nearest Authorised Service Centre.

Electrical connection

• Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply.
• The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician.
  • The manufacturer declines all responsibility if the above safety precautions are not observed.
• This appliance complies with the E.E.C. Directives.

OPERATION

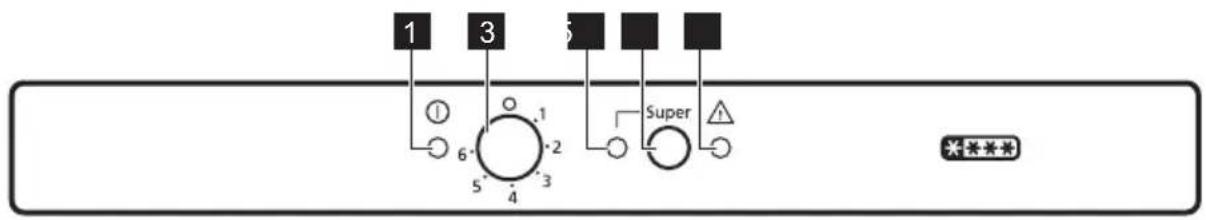

Control panel

1 3 5 Super * * * *

1 Power indicator light
2 Temperature regulator
3 Super light

4 Super switch and alarm reset switch
5 Alarm light

Switching on

Connect the appliance to the main power supply.

1. Turn the Temperature regulator clockwise to a medium setting. The power indicator light will light up and a sound will signal for 2 seconds.

If the temperature inside the appliance is too high, the Alarm light will blink and the sound signal alarm will turn on.

1. Push the Super switch and the sound signal alarm will get off.
2. Push the Super switch once again and the Super light will light up. The appliance will start to operate.

Switching off

Turn the Temperature regulator to the "O" position and a sound is on only for 2 seconds.

The power indicator light will switch off.

Temperature regulation

The temperature is regulated automatically.

1. Turn the Temperature regulator toward lower settings to obtain the minimum coldness.

2. Turn the Temperature regulator toward higher settings to obtain the maximum coldness.

A medium setting is generally the most suitable.

However, the exact setting should be chosen keeping in mind that the temperature inside the appliance depends on:

• room temperature,
  • how often the door is opened,
  • the quantity of food stored,
  • the location of the appliance.

Super function

The Super function accelerates the freezing of fresh food and, at the same time, protects foodstuffs already stored from undesirable warming.

To activate this function press the Super button.

The Super indicator appears. This function stops automatically after 52 hours.

You can deactivate the Super function before its automatic end by pressing the

Super button again. The Super indicator will turn off.

The function switches off by selecting a different set temperature.

High temperature alarm

If the temperature inside the freezer has risen to a point where the safe storage of frozen food is no longer ensured (for example due to a power failure), the Alarm light will blink and an acoustic alarm will sound.

DAILY USE

WARNING! Refer to Safety chapters.

Freezing fresh food

The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time.

To freeze fresh food activate the Super function at least 24 hours before placing the food to be frozen in the freezer compartment.

Place the fresh food to be frozen in the two bottom compartments.

The maximum amount of food that can be frozen in 24 hours is specified on the rating plate, a label located on the inside of the appliance.

The freezing process lasts 24 hours, during this period do not add other food to be frozen.

When the freezing process is completed, you can restore previously set temperature (see "Super function").

Storage of frozen food

When first starting-up or after a period out of use, before putting the products in the compartment let the appliance run at least 2 hours with the Super function turned on.

When the freezer is first switched on, the Alarm light blinks until the temperature has dropped to a safe level for the storage of frozen food.

1. Switch off the warning tone by pressing the Super switch.
   The Super indicator appears.
   The Alarm light blinks until the required temperature has been reached again.
2. Release the Super switch as soon as the Alarm light is off.
   The Super indicator turns off.

In the event of accidental defrosting, for example due to a power failure, if the power has been off for longer that the value shown in the technical data chart under "Rising time", the defrosted food must be consumed quickly or cooked immediately and then re-frozen (after cooling).

Thawing

Deep-frozen or frozen food, prior to being used, can be thawed in the refrigerator compartment or at room temperature, depending on the time available for this operation.

Small pieces may even be cooked still frozen, directly from the freezer: in this case, cooking will take longer.

Frozen Food Calendar

1-3 4-6 7-12

The symbols show different types of frozen goods.

The numbers indicate storage times in months for the appropriate types of frozen goods. Whether the upper or lower value of the indicated storage time is valid

depends on the quality of the foods and treating before freezing.

Ice-cube production

This appliance is equipped with one or more trays for the production of ice-cubes.

HINTS AND TIPS

Normal operating sounds

The following sounds are normal during operation:

• A faint gurgling and bubbling sound from coils sound when refrigerant is pumped.
• A whirring and pulsating sound from the compressor when refrigerant is pumped.
• A sudden cracking noise from inside appliance caused by thermic dilatation (a natural and not dangerous physical phenomenon).
• A faint click noise from the temperature regulator when the compressor switches on or off.

Hints for energy saving

- Do not open the door frequently or leave it open longer than absolutely necessary.

Hints for freezing

• Freeze only top quality, fresh and thoroughly cleaned food products.
• For more efficient freezing and thawing divide food into small portions.

CARE AND CLEANING

WARNING! Refer to Safety chapters.

General warnings

CAUTION! Unplug the appliance before carrying out any maintenance operation.

Do not use metallic instruments to remove the trays from the freezer.

1. Fill these trays with water

2. Put the ice trays in the freezer compartment.

3. Wrap the food in aluminium foil or polythene. Make sure that the packages are airtight.

4. To avoid increase in temperature of already frozen food, do not place fresh unfrozen food directly next to it.
5. Lean foods store better and longer than fatty ones. Salt reduces the storage life of food.
6. Do not eat ice cubes, water ices or ice lollies immediately after taking them out of the freezer. Risk of frostbites.
7. It is advisable to show the freezing date on each individual pack to enable you to keep tab of the storage time.

Hints for storage of frozen food

• Make sure that the commercially frozen food products were adequately stored by the retailer.
• Make sure that frozen foodstuffs are transferred from the food store to the freezer in the shortest possible time.
• Once defrosted, food deteriorates rapidly and cannot be refrozen.
• Do not exceed the storage period indicated by the food manufacturer.

This appliance contains hydrocarbons in its cooling unit; maintenance and recharging must therefore only be carried out by authorized technicians.

The accessories and parts of the appliance are not suitable for washing in a dishwasher.

Cleaning the interior

Before using the appliance for the first time, the interior and all internal accessories should be washed with lukewarm water and some neutral soap to remove the typical smell of a brand-new product, then dried thoroughly.

CAUTION! Do not use detergents, abrasive powders, chlorine or oil-based cleaners as they will damage the finish.

Periodic cleaning

CAUTION! Do not pull, move or damage any pipes and/or cables inside the appliance.

CAUTION! Do not damage the cooling system.

The equipment has to be cleaned regularly:

1. Clean the inside and accessories with lukewarm water and some neutral soap.
2. Regularly check the door seals and wipe them clean to ensure they are clean and free from debris.
3. Rinse and dry thoroughly.
4. If accessible, clean the condenser and the compressor at the back of the appliance with a brush.
   This will improve the performance of the appliance and save electricity consumption.

Defrosting of the freezer

CAUTION! Never use sharp metal tools to scrape off frost from the evaporator as you could damage it. Do not use a mechanical device or any artificial means to speed up the thawing process other than those recommended by the manufacturer. A temperature rise of the frozen food packs, during defrosting, may shorten their safe storage life.

About 12 hours prior to defrosting, set a lower temperature, in order to build up sufficient chill reserve for the interruption in operation.

A certain amount of frost will always form on the freezer shelves and around the top compartment.

Defrost the freezer when the frost layer reaches a thickness of about 3-5 mm.

1. Switch off the appliance, or pull out electrical plug from the wall socket.
2. Remove any stored food, wrap it in several layers of newspaper and put it in a cool place.

WARNING! Do not touch frozen goods with wet hands. Hands can freeze to the goods.

1. Leave the door open. In order to speed up the defrosting process, place a pot of warm water in the freezer compartment. In addition, remove pieces of ice that break away before defrosting is complete.

2. When defrosting is completed, dry the interior thoroughly.

3. Switch on the appliance. After three hours reload the previously removed food into the freezer compartment.

Periods of non-operation

When the appliance is not in use for long periods, take the following precautions:

1. Disconnect the appliance from electricity supply.
2. Remove all food.
3. Defrost (if necessary) and clean the appliance and all accessories.
4. Leave the door/doors open to prevent unpleasant smells.

CAUTION! If you want to keep the appliance switched on, ask somebody to check it once in a while to prevent the food inside from spoiling in case of a power failure.

TROUBLESHOOTING

WARNING! Refer to Safety chapters.

What to do if...

Problem Possible cause Solution
The appliance does not operate.	The appliance is switched off.	Switch on the appliance.
The mains plug is not connected to the mains socket correctly.	Connect the mains plug to the mains socket correctly.
There is no voltage in the mains socket.	Connect a different electrical appliance to the mains socket. Contact a qualified electrician.
The appliance is noisy. The appliance is not supported properly.	Check if the appliance stands stable.
Audible or visual alarm is on. The cabinet has been recently switched on.	Refer to "Door Open Alarm"or "High Temperature Alarm".
	The temperature in the appliance is too high.	Refer to "Door Open Alarm"or "High Temperature Alarm".
Power indicator light is flashing.	An error has occurred in measuring the temperature.	Contact a qualified electrician or contact the nearest Authorized Service Centre.
	The appliance is not working properly.	Contact a qualified electrician or contact the nearest Authorized Service Centre.
	The temperature in the appliance is too high.	Contact a qualified electrician or contact the nearest Authorized Service Centre.
The compressor operates continually.	Temperature is set incor-rectly.	Refer to "Operation" chap-ter.
Many food products to be	frozen were put in at the same time.	Wait a few hours and then check the temperature again.
The room temperature is too	high.	Refer to climate class chart on the rating plate.
Food products placed in the	appliance were too warm.	Allow food products to cool to room temperature before storing.
	The door is not closed cor-rectly.	Refer to "Closing the door".
	The Super function is switched on.	Refer to "Super function".
There is too much frost and ice.	The door is not closed cor-rectly or the gasket is de-formed/dirty.	Refer to "Closing the door".
	The water drainage plug is not correctly positioned.	Position the water drainage plug in the correct way.
	Food products are not wrap-ped properly.	Wrap the food products bet-ter.
	Temperature is set incor-rectly.	Refer to "Operation" chap-ter.
The compressor does not start immediately after pressing the Super, or after changing the temperature.	This is normal, no error has occurred.	The compressor starts after a period of time.
Temperature cannot be set. The Super function is switched on.		Switch off Super manually, or wait until the function re-sets automatically to set the temperature. Refer to "Su-per function"
The temperature in the ap-pliance is too low/too high.	The temperature regulator is not set correctly.	Set a higher/lower tempera-ture.
	The door is not closed cor-rectly.	Refer to "Closing the door".
	The food products' tempera-ture is too high.	Let the food products tem-perature decrease to room temperature before storage.
Problem Possible cause Solution
	Many food products are stored at the same time.	Store less food products at the same time.
	The thickness of the frost is greater than 4-5 mm.	Defrost the appliance.
	The door has been opened often.	Open the door only if necessary.
	The Super function is switched on.	Refer to "Super function".
	There is no cold air circulation in the appliance.	Make sure that there is cold air circulation in the appliance.
Door does not open easily. You attempted to re-open the door immediately after closing.		Wait a few seconds between closing and re-opening of the door.

If the advice does not lead to the desired result, call the nearest Authorized Service Centre.

1. If necessary, adjust the door. Refer to assembly instructions.
2. If necessary, replace the defective door gaskets. Contact the Authorised Service Centre.

Closing the door

1. Clean the door gaskets.

TECHNICAL DATA

Technical data

Height mm 873
Width mm 540
Depth mm 549
Rising time Hours 20
Voltage Volts 230 - 240
Frequency Hz 50

The technical information is situated in the rating plate, on the external or internal

side of the appliance and in the energy label.

ENVIRONMENTAL CONCERNS

Recycle materials with the symbol Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do

not dispose of appliances marked with the symbol ☒ with the household waste. Return the product to your local recycling facility or contact your municipal office.

TABLE DES MATIÈRES

1-3 4-6 7-12

1-3 4 6 7-12
