USER MANUAL JGI3403 JUNO

Line drawing of a rectangular refrigerator with ventilation grilles at the bottom (no text or symbols)

JGI 3403

GEBRAUCHSANWEISUNG

Instructions for the user

Important Safety Instructions 13

Use 15

Cleaning the interior 15

Control panel 15

Starting-up and temperature regulation 15

NORMAL-SUPER switch 15

Warning light 15

Quick freezing 16

Freezing fresh foods and storage of commercially frozen food 16

Ice-cube trays 16

Thawing 16

Defrosting 17

Maintenance 17

Periodic clearing 17

Periodic of non-operation 17

Customer service and spare parts 18

Instructions for the installer

Technical specifications 18

Installation 18

Positioning 18

Electrical connection 18

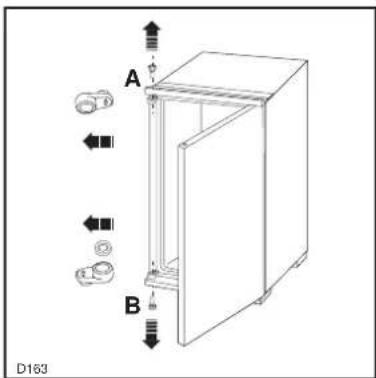

Door reversibility 19

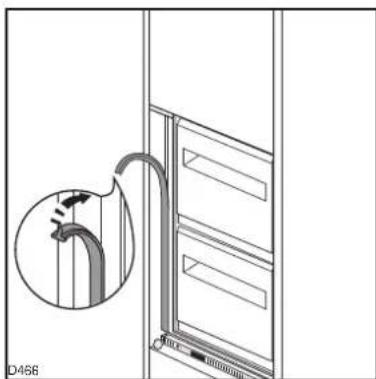

Instructions for totally built-in appliances 19

IMPORTANT SAFETY INSTRUCTIONS

It is most important that this instruction book should be retained with the appliance for future reference.

Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is supplied with the appliance in order that the new owner can be acquainted with the functioning of the appliance and the relevant warnings.

These warnings are provided in the interest of safety. You must read them carefully before installing or using the appliance.

General Safety

• This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the product.
  ■ It is dangerous to alter the specifications or modify this product in any way.
  ■ Before any cleaning or maintenance work is carried out, be sure to switch off and unplug the appliance.
  ■ This appliance is heavy. Care should be taken when moving it.
  ■ Ice follies can cause frost burns if consumed straight from the appliance.
  ■ Take utmost care when handling your appliance so as not to cause any damages to the cooling unit with consequent possible fluid leakages.
• The appliance must not be located close to radiators or gas cookers.
• Avoid prolonged exposure of the appliance to direct sunlight.
• There must be adequate ventilation round the back of the appliance and any damage to the refrigerant circuit must be avoided.
• For freezers only (except built-in models): an ideal location is the cellar or basement.
• Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances.

Service / Repair

■ Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.
■ This appliance should be serviced by an authorised Service Centre, and only genuine spare parts should be used.
■ Under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or

more serious malfunctioning. Refer to your local Service Centre, and always insist on genuine spare parts.

- This appliance contains hydrocarbons in its cooling unit; maintenance and recharging must therefore only be carried out by authorised technicians.

Use

• The domestic refrigerators and freezers are designed to be used specifically for the storage of edible foodstuffs only.
  ■ Frozen food must not be re-frozen once it has been thawed out.
  ■ Manufacturers' storage recommendations should be strictly adhered to. Refer to relevant instructions.
• The inner lining of the appliance consists of channels through which the refrigerant passes. If these should be punctured this would damage the appliance beyond repair and cause food loss. DO NOT USE SHARP INSTRUMENTS to scrape off frost or ice. Frost may be removed by using the scraper provided. Under no circumstances should solid ice be forced off the liner. Solid ice should be allowed to thaw when defrosting the appliance. See defrost instructions.
• Do not place carbonated or fizzy drinks in the freezer as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance. Do not use a mechanical device or any artificial means to speed up the thawing process other than those recommended by the manufacturer. Never use metal objects for cleaning your appliance as it may get damaged.

Installation

• Care must be taken to ensure that the appliance does not stand on the electrical supply cable. Important: if the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.
  ■ During normal operation, the condenser and compressor at the back of the appliance heat up considerably. For safety reasons, minimum ventilation must be as shown in the relevant Figure.

Attention: keep ventilation openings clear of obstruction.

• If the appliance is transported horizontally, it is possible that the oil contained in the compressor flows in the refrigerant circuit. It is advisable to wait at least two hours before connecting the appliance to allow the oil to flow back in the compressor.
• There are working parts in this product which heat up. Always ensure that there is adequate ventilation as a failure to do this will result in component failure and possible food loss. See installation instructions.
• Parts which heat up should not be exposed. Wherever possible the back of the product should be against a wall.
• If the appliance has been transported horizontally, it is possible that the oil contained in the compressor flows in the refrigerant circuit. It is advisable to wait at least two hours before connecting the appliance to allow the oil to flow back in the compressor.

Environment Protection

• This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. Avoid damaging the cooling unit, especially at the rear near the heat exchanger. Information on your local disposal sites may be obtained from your municipal authorities.
• The materials used on this appliance marked with the symbol are recyclable.

USE

The freezer is marked with the 🎨 who which means that the compartment is suitable for freezing fresie food and long-term storage of frozen food.

Cleaning the interior

Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand-new product, then dry thoroughly.

Do not use detergents or abrasive powders, as these will damage the finish.

Control panel

6 5 1 4 2 3 A B C D E F I O △ N S

A - Thermostat knob for adjusting the temperature B
B - ON/OFF switch
C - Operating light
D - Warning light
E - SUPER indicator light
F-NORMAL-SUPER switch

Starting-up and temperature regulation

Insert the plug into the wall socket, move switch (B) to position «I», operating light (C) will come on.

To ensure proper storage of deep-frozen and frozen foods, the temperature inside the freezer must be -18° or colder.

lower numbers= warmer temperatures higher numbers= colder temperatures

The temperature inside the appliance automatically adjusts itself: generally, it is best to set knob (A) to the mid position.

To turn off the freezer, turn the switch (B) to the «O» position.

NORMAL-SUPER switch (F)

For normal operation the switch must be moved over to the left so that it covers window (E).

Warning light (D)

This light warns when the temperature inside the freezer has increased so much as to jeopardize the pr eservation of food.

When the appliance is switched on for the first time or when food is placed in the compartment for freezing, this light remains on until the temperature has reached the level required for correct storage.

If the warning light remains on continuously (more that 2 days), and after having checked that the door is properly closed, cali the Service Centre.

Quick freezing

Slide switch (F) towards the right to position «S» («SUPER»).

Indicator light (E) will then light up.

Freezing of fresh foods and storage of commercially frozen food

The freezer is marked with the Symbol, which means that the compartment is suitable for freezing fresie food and for long-term storage of frozen food.

Freezing of fresh foods

To fast-freeze foods when the appliance has not been in use, switch on the freezer and let it run on the fast-freeze setting for at least three hours before putting the food to be frozen in the compartment. If the appliance is already in operation, it should run on the fast-freeze setting for at least 24 hours before the food is put in the freezer.

Food to be frozen must be placed in the top compartment.

The freezing operation can be considered to be complete 24 hours later.

Once freezing is complete, switch (F) must be reset to the normal position.

To help you get the best out of the freezing process, here are a few hints:

■ The maximum amount of food which is freezable in 24 hours is indicated on the rating plate;
■ freeze only good-quality, fresie and well-cleaned foods;
■ split foods into small portions to speed up freezing and avoid having to thaw out more food than you require;
■ wrap food in foil or polythene film, ensuring that the wrapping adheres closely to the food and is well sealed;
■ it is a good idea to mark the packs - or the special card, if provided - with the date on which foods were frozen so that you can keep a check on storage periods;
■ the foods for freezing should not be placed in contact with already frozen foods, but put in the special freezing compartment. This will stop the temperature of already frozen foods from rising.

Never put fizzy drinks in the freezer as they might well burst.

Storage of commercially frozen food

■ Make sure that the products travel been correctly packed and stored by the retailer;
■ that there is only a very short time between when you purchase the products and when you put them in the freezer;
■ you do not store products for longer than the time specified by the food manufacturer;
■ you avoid opening the door too frequently and when you do open it, leave it open only for as long as is strictly necessary.

If the freezer has been out of use for some time, before putting the products in the compartment let the freezer run for at least three hours on the normal setting.

Important

If accidental thawing occurs - due to a power cut for example - the foods must be used up very quickly or else cooked immediately and refrozen. If, however, the power failure is relatively brief (from 6 to 8 hours) and the freezer compartment is packed full, the frozen foods will not suffer any damage.

Ice cube trays

The appliance is provided with one or more ice cube trays. These trays should be filled with drinking water and then placed in the appropriate compartment.

Do not use metal tools to remove the trays when they are stuck-frozen inside the compartment.

Never consume ice lollies or ice cubes immediately after removing them from the freezer since they can cause frost burns.

Thawing

Before being used, deep-frozen and frozen food can be thawed out either in the refrigerator (meat, poultry, fish, etc.) or at room temperature (for other foods), depending on the time available for this operation. Small pieces of food can be cooked straight out of the freezer, without any intermediate thawing operation.

Clearly, cooking time will be marginally longer than in the case of thawed food.

Defrosting

Frost should be removed from the inside of the compartment with the special plastic scraper provided, whenever the thickness exceeds 4 mm.

Do not use metal tools to remove frost so as to avoid seriously damaging the appliance.

If a thick layer of ice is formed it will be necessary to carry out complete defrosting as following:

1. unplug the appliance from the mains socket or set knob (B) to position «O».
2. wrap frozen food in several layers of newspaper and piace the food packages in a cool piace;
3. leave the door open. Insert the plastic scraper in the appropriate seating to act as an extension drain channel, piace a basin underneath to collect the defrost water;
4. when defrosting is completed, dry the interior thoroughly;
5. keep the scraper for future use;
6. plug the appliance back in; set switch (B) to position «I»,. Set the appliance to fast-freeze operation. After three hours, move switch (F) to the Normal setting.

Frequent opening of the doors encourages increased frost formation at the top of the appliance.

To remove this excess frost, use the special plastic scraper provided.

Important

A temperature rise of the frozen food packs, during defrosting, may shorten their safe storage life.

MAINTENANCE

Unplug the appliance before carrying out any maintenance operation.

Warning

This appliance contains hydrocarbons in its cooling unit maintenance and recharging must therefore only be carried out by authorised technicians.

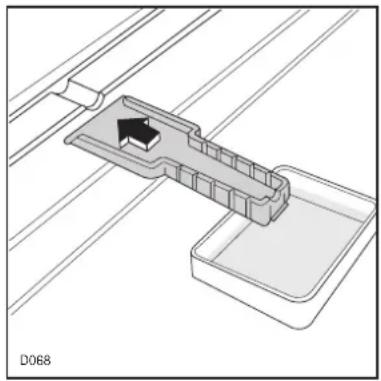

Periodic clearing

Never use metal object for clearing your appliance as it may get damaged. Clean the inside with warm water and bicarbonate of soda.

Rinse and dry thoroughly.

Technical diagram of a mechanical component with directional arrow and label D068 (no readable text or symbols)

Periods of non-operation

During periods when the appliance is not used, you should take the following precautions:

remove the plug from the wall socket;

remove all food from the appliance;

defrost and clean the interior and all accessories;

leave the door slightly open, thus letting air circulate and preventing the formation of mould and unpleasant smells.

i CUSTOMER SERVICE AND SPARE PARTS

If the appliance is not functioning properly, check that:

the plug is firmly in the wall socket and the mains power switch is on;

there is an electricity supply (find out by plugging in another appliance);

the thermostat knob is in the correct position.

If there are water drops on the bottom of the cabinet, check that the defrost water drain opening is not obstructed (see "Defrosting" section).

If your appliance is still not working properly after making the above checks, contact the nearest service centre.

To obtain fast service, it is essential that when you apply for it you specify the model and serial number of your appliance which can be found on the guarantee certificate or on the rating plate located inside the appliance, on the bottom left-hand side.

i TECHNICAL SPECIFICATIONS

The technical data is indicated in the rating plate on the left side inside the appliance.

i INSTALLATION

If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lock unusable before you discard the old appliance. This will prevent it from becoming a death-trap for a child.

Positioning

The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight etc.

Best performance is obtained with ambient temperature between +18°C and +43°C (class T); +18°C and +38°C (class ST); +16°C and +32°C (class N); +10°C and +32°C (class SN).

The class of your appliance is shown on its rating plate.

For building into kitchen units follow the special "Building-in" instructions given.

Electrical connection

Before plugging in, ensure that the voltage and frequency shown on the serial number plate correspond to your domestic power supply.

Voltage can vary by ±6% of the rated voltage.

For operation with different voltages, a suitably sized auto-transformer must be used.

Important The appliance must be earthen. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a specialist technician.

The Manufacturer declines all responsibility if the above safety precautions are not observed.

This appliance complies with EEC directive number, 87/308 of 2/6/87 relative to radio interference suppression.

CE This appliance complies with the following E.E.C. Directives:

- 73/23 EEC of 19.2.73 (Low Voltage Directive) and subsequent modifications;

- 89/336 EEC of 3.5.89 (Electromagnetic Compatibility Directive) and subsequent modifications.

Door reversibility

A B D163

The appliance door is secured by means of pins for transport. Unscrew pins (A) and (B) from the side on which the door is to open.

Instructions for totally built-in appliances

Dimensions of housing

Height 600 mm

Depth 550 mm

Width 560 mm

50-min. cm' 200 D028 min. cm' 200

1. For safety reasons, minimum ventilation must be as shown in Fig.

Attention: keep ventilation openings clear of obstruction.

540 H 560 min 50 950 min 50 H1 50 H1 540 Air entry min 200 cm 20 D464

1. If a refrigerator is fitted into a tall kitchen unit together with the freezer, air intake must be both through the grille fixed to the appliance and through a grille fixed to an opening made in the kitchen unit base, having the minimum dimensions indicated in the diagram.

A 0322

1. Slide the appliance into the recess, pushing it against the wall on the handle side.

D648

1. Open the door and push the appliance against the side of the kitchen unit opposite to that of appliance hinges. Fasten the appliance with 4 screws provided in the kit included with the appliance. Snap hinge cover (D) into position.

Diagram of a cabinet with a pipe and cable inserted, showing internal components (no text or symbols)

1. Press on the seal between the appliance and the kitchen unit.

50mm A 20mm PR166

1. Place guide (A) on the inside part of the furniture door, up and down as shown in the figure and mark the position of external holes. After having drilled holes, fix the guide with the screws supplied.

BB D013

1. Apply covers (B) on joint cover lugs and into hinge holes.

A C PR33/2

1. Fix cover (C) on guide (A) until it clips into place.

A B C D PR266

1. Separate parts A, B, C, D as shown in the figure.

8mm A B PR167

1. Open the appliance door and the furniture door at 90°. Insert the small square (B) into guide (A). Put together the appliance door and the furniture door and mark the holes as indicated in the figure.

Remove the squares and drill holes with ∅ 2 mm at 8 mm from the outer edge of the door. Place the small square on the guide again and fix it with the screws supplied.

Technical line drawing of a mechanical assembly with two circular components and directional arrows (no text or symbols)

1. Should the lining up of the furniture door be necessary, use the clearance of slots. At the end of operations, it is necessary to check if the door of the furniture closes properly.

PR167/1 B D

1. Fix cover (D) on guide (B) until it clips into place.
