| Product type | Cooker (ceramic hob with touch controls) |
| Number of burners | 4 burners (some dual-zone or large pan zone) |
| Control type | Touch with digital displays |
| PowerBoost function | Yes, on some burners for rapid heating |
| Child safety | Yes, manual and programmable automatic lock |
| Timer | Independent, up to 99 minutes |
| Automatic timer for burners | Yes, programmable up to 99 minutes |
| Automatic safety shut-off | Yes, after 1 to 10 hours depending on heat setting |
| Residual heat indicator | Yes, two levels (H / h) |
| Anti-wipe | Yes, locks control panel for 30 seconds |
| Energy consumption display | Yes, in kWh after each use (configurable) |
| Surface type | Ceramic glass |
| Frame color | Not specified, usually black or stainless steel |
| Power supply | Electric, 220-240 V or 400 V (depending on configuration) |
| Connection | By a qualified expert (without plug) |
| Cleaning | With specific ceramic hob cleaners, glass scraper for stubborn dirt |
| After-sales service | E and FD numbers on the rating plate |
| Warranty | Does not cover damage due to incorrect connection |
Frequently Asked Questions - JR38IT56 Junker
User questions about JR38IT56 Junker
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Cooker in PDF format for free! Find your manual JR38IT56 - Junker and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. JR38IT56 by Junker.
USER MANUAL JR38IT56 Junker
Störungen, was tun? 11
? Störungen, was tun?
Important safety information 24
Causes of damage 25
Overview 25
Environmental protection 25
Energy-saving tips 25
Environmentally-friendly disposal 25
Getting to know your appliance 26
The control panel 26
The hotplates 26
Residual heat indicator. 26
Operating the appliance 27
Switching the hob on and off 27
Setting a hotplate 27
Table of cooking times. 27
PowerBoost function. 28
Switching on PowerBoost. 28
Switching off PowerBoost. 28
Childproof lock. 28
Switching the childproof lock on and off 28
Automatic childproof lock 28
Time-setting options 29
Automatic hotplate switch-off 29
Automatic timer 29
Kitchen timer 29
Automatic safety cut-out. 29
Wipe protection 30
Energy consumption indicator 30
Basic settings. 30

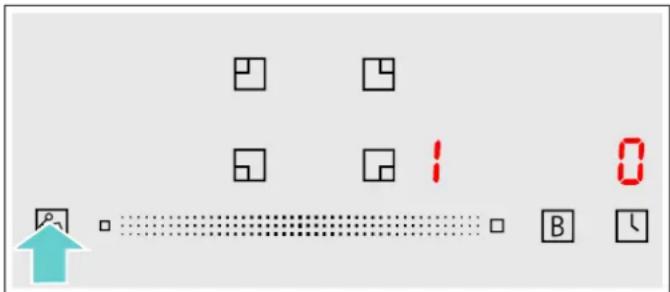

Changing the basic settings. 31
Cleaning 31
Ceramic 31
Hob surround. 31
Trouble shooting 32
E-report in the displays. 32
Customer service. 32
E number and FD number 32

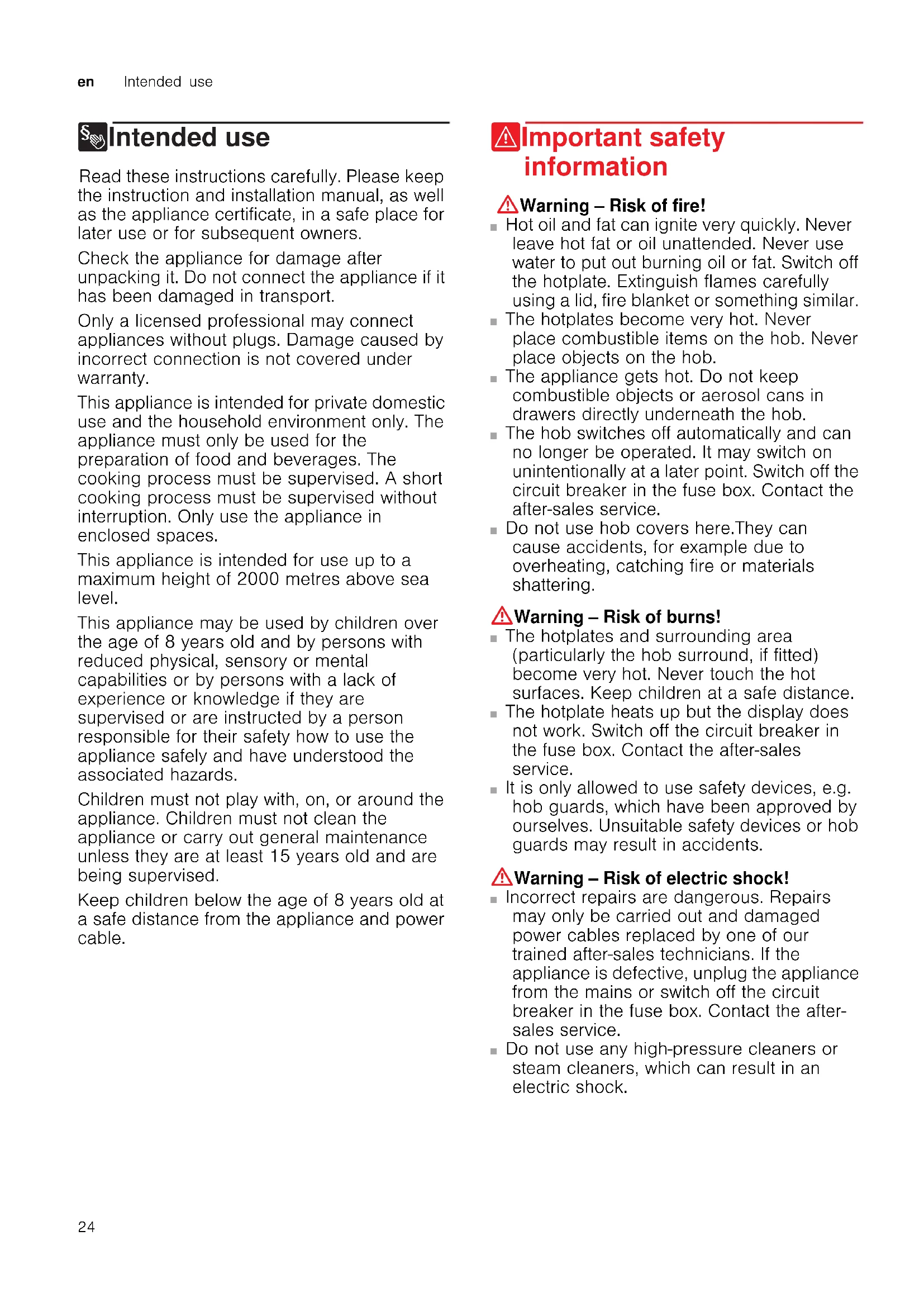

Intended use
Read these instructions carefully. Please keep the instruction and installation manual, as well as the appliance certificate, in a safe place for later use or for subsequent owners.
Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transport.
Only a licensed professional may connect appliances without plugs. Damage caused by incorrect connection is not covered under warranty.
This appliance is intended for private domestic use and the household environment only. The appliance must only be used for the preparation of food and beverages. The cooking process must be supervised. A short cooking process must be supervised without interruption. Only use the appliance in enclosed spaces.
This appliance is intended for use up to a maximum height of 2000 metres above sea level.
This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capabilities or by persons with a lack of experience or knowledge if they are supervised or are instructed by a person responsible for their safety how to use the appliance safely and have understood the associated hazards.
Children must not play with, on, or around the appliance. Children must not clean the appliance or carry out general maintenance unless they are at least 15 years old and are being supervised.
Keep children below the age of 8 years old at a safe distance from the appliance and power cable.
Important safety information
Warning - Risk of fire!
Hot oil and fat can ignite very quickly. Never leave hot fat or oil unattended. Never use water to put out burning oil or fat. Switch off the hotplate. Extinguish flames carefully using a lid, fire blanket or something similar.
The hotplates become very hot. Never place combustible items on the hob. Never place objects on the hob.
The appliance gets hot. Do not keep combustible objects or aerosol cans in drawers directly underneath the hob.
The hob switches off automatically and can no longer be operated. It may switch on unintentionally at a later point. Switch off the circuit breaker in the fuse box. Contact the after-sales service.
- Do not use hob covers here. They can cause accidents, for example due to overheating, catching fire or materials shattering.
Warning - Risk of burns!
The hotplates and surrounding area (particularly the hob surround, if fitted) become very hot. Never touch the hot surfaces. Keep children at a safe distance.
- The hotplate heats up but the display does not work. Switch off the circuit breaker in the fuse box. Contact the after-sales service.
It is only allowed to use safety devices, e.g. hob guards, which have been approved by ourselves. Unsuitable safety devices or hob guards may result in accidents.
Warning - Risk of electric shock!
Incorrect repairs are dangerous. Repairs may only be carried out and damaged power cables replaced by one of our trained after-sales technicians. If the appliance is defective, unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service.
- Do not use any high-pressure cleaners or steam cleaners, which can result in an electric shock.
A defective appliance may cause electric shock. Never switch on a defective appliance. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service.
- Cracks or fractures in the glass ceramic may cause electric shocks. Switch off the circuit breaker in the fuse box. Contact the after-sales service.
Warning - Risk of injury!
Saucepans may suddenly jump due to liquid between the pan base and the hotplate. Always keep the hotplate and saucepan bases dry.
Causes of damage
Caution!
- Rough pot and pan bases scratch the ceramic.
- Avoid boiling pots dry. This may cause damage.
- Never place hot pots or pans on the control panel, the display area or the surround. This may cause damage.
- Damage can occur if hard or pointed objects fall on the hob.
Aluminium foil and plastic containers melt on hot hotplates. Oven protective foil is not suitable for your hob.
Overview
You will find the most frequently caused damage in the following table.
| Damage Cause Measure | |
| Stains Boiled over food Remove boiled over food immedi-dately with a glass scraper. | |
| Unsuitable clean-ing agents | Only use cleaning agents that are suitable for glass ceramic. |
| Scratches Salt, sugar and sand | Do not use the hob as a work surface or storage space. |
| Rough pot and pan bases scratch the ceramic. | Check your cookware. |
| Discolouration Unsuitable cleaning agents | Only use cleaning agents that are suitable for glass ceramic. |
| Pan abrasion (e.g. aluminium) | Lift pots and pans when moving them. |
| Blisters Sugar, food with a high sugar con- tent | Remove boiled over food immedi-dately with a glass scraper. |
Environmental protection
In this section, you can find information about saving energy and disposing of the appliance.
Energy-saving tips
Always place suitable lids on saucepans. When cooking without a lid, considerably more energy is required. A glass lid means that you can see inside without having to lift the lid.
Use pots and pans with even bases. Uneven bases increase energy consumption.
The diameter of pot and pan bases should be the same size as the hotplate. In particular, small saucepans on the hotplate cause energy losses. Please note: cookware manufacturers often indicate the upper diameter of the saucepan. This is usually bigger than the diameter of the base of the pan.
Use a small saucepan for small quantities. A larger, less full saucepan requires a lot of energy.
Cook with only a little water. This will save energy. Vitamins and minerals in vegetables are preserved.
Always cover as large an area of the hotplate as possible with your saucepan.
Switch to a lower heat setting in good time.
- Select a suitable ongoing cooking setting. You will waste energy by using an ongoing cooking setting which is too high.
Use the residual heat of the hob. For longer cooking times, you can switch the hotplate off 5-10 minutes before the end of the cooking time.
Environmentally-friendly disposal
Dispose of packaging in an environmentally-friendly manner.
This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.
Getting to know your appliance
The instruction manual is the same for various different hobs. You can find the hob dimensions in the overview of models. Page 2

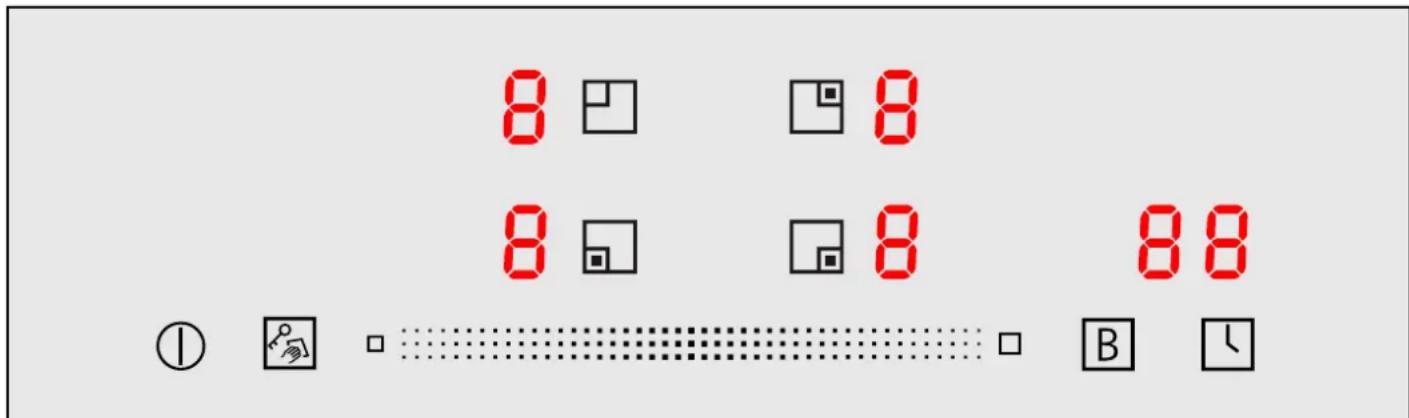

The control panel
Displays
Heat settings
H/h Residual heat
b PowerBoost function
88 Timer
Touch controls
① Main switch
Childproof lock Wipe protection
□ Control panel
Hotplate selection
Automatic zone control
B PowerBoost function
Timer
Notes
- When you touch a symbol, the respective function is activated.
Always keep the controls dry. Moisture reduces their effectiveness. - Do not pull pans close to the displays and sensors. The electronics could overheat.
The hotplates
Hotplate Activating and deactivating
Single-circuit hot-plate
Dual-circuit hotplate Select the hotplate and touch the
symbol again
Hotplate Activating and deactivating
Extended cooking zone
Select the hotplate and touch the symbol again
When the hotplate is activated: The corresponding indicator lights up
Notes
Any dark areas in the glow pattern of the hotplate are due to technical reasons. The function of the hotplate is not affected.
Hotplate temperature is regulated by the heat switching on and off. The heat may also switch on and off at the highest setting.
This ensures e.g.:
- sensitive components are protected from overheating
- the appliance is protected from electrical overload
-
better cooking results are achieved
-
With multi-circuit hotplates the heater elements of the inner filament circuits and the heater element of the activations may switch on and off at different times.
Residual heat indicator
The hob has a two-stage residual heat indicator for each hotplate.
If appears in the display the hob is still hot. It may be used, for example, to keep a small meal warm or to melt cooking chocolate. As the hotplate cools down further, the display changes to . The display remains lit until the hotplate has cooled sufficiently.
Operating the appliance
In this section, you can find out how to set the hotplates. The table shows heat settings and cooking times for various meals.
Switching the hob on and off
The main switch is used to switch the hob on and off.
Switching on
Touch the symbol ①. An audible signal sounds. The indicator light above the main switch and the ② indicators light up. The cooktop is ready to use.
Switching off
Touch the symbol ① until the indicator light above the main switch and the indicators go out. All hotplates are switched off. The residual heat indicator remains on until the hotplates have cooled down sufficiently.
Notes
The hob will switch itself off automatically once all hotplates have been switched off for a while (10-60 seconds).
The settings remain stored for 4 seconds after the cooktop has been switched off. If you switch it on again during this time, the cooktop will operate using the previously stored settings.
Setting a hotplate
Set the desired heat setting on the control panel.
Heat setting 1 = lowest output
Heat setting 9 = highest output
Every heat setting has an intermediate setting. This is identified by a dot.
Selecting the heat setting
The hob must be switched on.
- Touch the symbol to select the hotplate.
lights up in the heat setting display, lights up under the heat setting display. - Select the required heat setting on the control panel.
Changing the heat setting:
Select the hotplate and set the required heat setting on the control panel.
Switching off the hotplate
Use the symbol to select the hotplate. Select 0 on the control panel. After about 10 seconds the residual heat indicator appears.
Note: The last selected hotplate remains activated. You can set the hotplate without selecting it again.
Table of cooking times
The following table provides some examples.
Cooking times and heat settings may vary depending on the type of food, its weight and quality. Deviations are therefore possible.
For bringing liquids to the boil, use heat setting 9.
Stir thick liquids occasionally.
Food that needs to be seared quickly or food which loses a lot of liquid during initial frying is best seared in several small portions.
Tips for energy-saving cooking can be found in the Environmental protection section. Page 25
| Ongoing cooking setting | Ongoing cooking time in minutes | |
| Melting | ||
| Chocolate coating 1-1. - | ||
| Butter, honey, gelatine 1-2 - | ||
| Heating and keeping warm | ||
| Stew (e.g. lentil stew) 1-2 - | ||
| Milk** 1.-2. - | ||
| Heating sausages in water** | 3-4 - | |
| Defrosting and heating | ||
| Frozen spinach | 2.-3. | 10-20 min |
| Frozen goulash | 2.-3. | 20-30 min |
| Poaching, simmering | ||
| Dumplings | 4.-5.* | 20-30 min |
| Fish | 4-5* | 10-15 min |
| White sauces, e.g. béchamel sauce | 1-2 3-6 min | |
| Whisked sauces, e.g. sauce Béarnaise, hollandise | 3-4 8-12 min | |
| Boiling, steaming, braising | ||
| Rice (with double the quantity of water) | 2-3 15-30 min | |
| Rice pudding | 1.-2. | 35-45 min |
| Unpeeled boiled potatoes | 4-5 25-30 min | |
| Boiled potatoes | 4-5 15-25 min | |
| Pasta, noodles | 6-7* | 6-10 min |
| * Ongoing cooking without a lid** Without lid*** Turn frequently | ||
| Stew, soups 3-4. 15-60 min | ||
| Vegetables 2-3. 10-20 min | ||
| Frozen vegetables 3-4. 10-20 min | ||
| Cooking in a pressure cooker 4-5 - | ||
| Braising | ||
| Roulades | 4-5 50-60 min | |
| Pot roast | 4-5 60-100 min | |
| Goulash | 2-3. 50-60 min | |
| Frying with little oil** | ||
| Escalope, plain or breaded | 6-7 6-10 min | |
| Escalope, frozen | 6-7 8-12 min | |
| Chop, plain or breaded*** | 6-7 8-12 min | |
| Steak (3 cm thick) 7-8 8-12 min | ||
| Hamburger, rissoles (3 cm thick)*** | 4-5. 30-40 min | |
| Poultry breast (2 cm thick)*** | 5-6 10-20 min | |
| Poultry breast, frozen*** | 5-6 10-30 min | |
| Fish and fish fillet, plain | 5-6 8-20 min | |
| Fish and fish fillet, breaded | 6-7 8-20 min | |
| Fish and fish fillet, breaded and frozen, e.g. fish fingers | 6-7 8-12 min | |
| Scampi and prawns | 7-8 4-10 min | |
| Sautéing vegetables, fresh mushrooms | 7-8 10-20 min | |
| Vegetables, meat in Asian-style strips | 7-8. 15-20 min | |
| Stir fry, frozen | 6-7 6-10 min | |
| Pancakes | 6-7 consecutively | |
| Omelette | 3-4. consecutively | |
| Fried eggs | 5-6 3-6 min | |
| Deep-fat frying (150-200 g per portion continuously in 1-2 litres oil**) | ||
| Frozen products, e.g. chips, chicken nuggets | 8-9 - | |
| Croquettes, frozen | 7-8 - | |
| Meat, e.g. chicken portions | 6-7 - | |
| Fish, breaded or battered | 5-6 - | |
| Vegetables, mushrooms, breaded or battered, tempura | 5-6 - | |
| Small baked items, e.g. ring doughnuts/jam-filled doughnuts, fruit in batter | 4-5 - | |
| * Ongoing cooking without a lid | ||
| ** Without lid | ||
| *** Turn frequently | ||
PowerBoost function
PowerBoost lets you heat up large volumes of water even faster than on heat setting 9.
PowerBoost is only available on hotplates marked with the B symbol.
With dual-circuit hotplates, the second filament circuit has to be activated for use with the PowerBoost function.
Switching on PowerBoost
- Select the hotplate.
- Touch the B symbol. The b indicator lights up. The PowerBoost function is switched on.
Switching off PowerBoost
- Select the hotplate.
- Select any ongoing cooking setting. The 品 display goes out.
The PowerBoost function is switched off.
Notes
If you do not turn off the PowerBoost function, it switches off automatically after a certain period of time. The hotplate switches back to the heat setting 9.
Please remember that oil and fat heat up quickly with PowerBoost. Never leave the hob unattended. Oil and fat that have overheated will catch fire quickly, see section Important safety information. Page 24
Childproof lock
You can use the childproof lock to prevent children from switching on the hob.
Switching the childproof lock on and off
The hob must be switched off.
To switch on: Touch the _分 symbol for approx.
4 seconds.The indicator light above the _光 /symbol lights up for 10 seconds. The hob is now locked.
To switch off: Touch the symbol for approx.
4 seconds.The lock is now released.
Automatic childproof lock
This function automatically activates the childproof lock every time you switch the hob off.
Switching on and off
Find out how to switch the automatic childproof lock on and off in the Basic settings section. Page 30
Time-setting options
There are 2 different time-setting options:
A hotplate should switch off automatically
Kitchen timer
Automatic hotplate switch-off
Enter a cooking time for the relevant hotplate. When the cooking time has elapsed, the hotplate switches off automatically.
Setting the cooking time
- Selecting the heat setting
- Touch the l symbol. The I I indicator for the required hotplate lights up.00 lights up on the timer display.
- Within the next 10 seconds slide your finger along the control panel repeatedly until the required cooking time is reached.
The cooking time counts down. If you have set a cooking time for more than one hotplate, the cooking time of the hotplate selected is always displayed.
When the time has elapsed
When the cooking time has elapsed, the hotplate switches off. You will hear an audible signal and 00 lights up in the display for 10 seconds. The I I display lights up brightly. Touch any symbol. The displays go out and the audible signal ceases.
Changing or cancelling the cooking time
Select the hotplate and touch the symbol. The 1 1 indicator lights up brightly. Change the cooking time or set to 00 on the control panel.
Notes
The faster you slide your finger over the settings range, the faster the minutes display counts forwards or back. By tapping your finger, you stop the display immediately.
You can set a cooking time of up to 99 minutes.
Automatic timer
You can use this function to preselect a cooking time for all hotplates. Each time a hotplate is switched on, the pre-selected cooking time then counts down. When the cooking time has elapsed, the hotplate switches off automatically.
You can find out how to switch on the automatic timer in the Basic settings section. Page 30
Note: You can change the cooking time for a hotplate or switch off the automatic timer for the hotplates: Select the hotplate and touch the symbol. On the control panel change the cooking time or set to 00.
Kitchen timer
You can use the kitchen timer to set a time of up to 99 minutes. It runs independently of all the other settings.
Switching on the kitchen timer
You can switch on the kitchen timer in 2 different ways:
If a hotplate has been selected, touch the symbol twice within 10 seconds.
If a hotplate has not been selected, touch the symbol.
The indicator lights up.
Setting the kitchen timer
Set the required time on the control panel.
When the time has elapsed
After the time has elapsed, you will hear a beep. 00 lights up in the timer display. The indicator for the kitchen timer lights up brightly. The indicator switches off after 10 seconds.
Displaying the time
Use the symbol to select the kitchen timer. The time is displayed for 10 seconds.
Changing the time
Use the symbol to select the kitchen timer and reset the time.
Automatic safety cut-out
If a hotplate has been switched on for a long time without the setting being changed, the automatic time limit is activated.
The hotplate stops heating. F and the / residual heat indicator flash alternately on the hotplate display.
The display goes out when you touch any control. You can make new settings.
When the time limit is activated depends on the heat setting selected (1 to 10 hours).
Wipe protection
If you wipe over the control panel while the hob is switched on, settings may be changed.
To prevent this from happening, your hob has a wipe protection function. Touch the symbol. An audible signal will sound. The indicator light above the symbol lights up. The control panel is locked for 30 seconds. You can now wipe over the control panel without changing any settings.
Note: The main switch is not affected by the wipe protection function. You can switch off the hob at any time.
Energy consumption indicator
You can use this function to display the total energy consumption between switching the hob on and off.
Once switched off, the energy consumption is displayed in kilowatt hours (e.g. 1.08 kWh) for 10 seconds
The accuracy on the display depends on the voltage quality of the power supply, among other factors.
The display has not been activated. You can find out how to activate the display in the Basic settings section. Page 30
Basic settings
Your appliance has various basic settings. You can adjust these settings to meet your own needs.
| Display Function | |
| c1 | Automatic child safety lock |
| 0 | Switched off.* |
| 1 | Switched on. |
| 2 | Manual and automatic child safety lock switched off. |
| c2 | Beep |
| 0 | Confirmation signal and operation error signal are switched off (primary switch signal always remains). |
| 1 | Only the operation error signal is switched on. |
| 2 | Only the confirmation signal is switched on. |
| 3 | Confirmation signal and operation error signal switched on.* |
| c3 | Energy consumption display (Ask your electric company what the mains voltage is) |
| 0 | Consumption display switched off.* |
| 1 | Consumption display with mains voltage at 230 V. |
| 2 | Consumption display with mains voltage at 400 V. |
| 3 | Consumption display with mains voltage at 220 V. |
| 4 | Consumption display with mains voltage at 240 V. |
| c5 | Automatic timer |
| 00 | Switched off.* |
| 01-99 | Cooking time after which the hotplates switch off. |
| c6 | Duration of the timer end signal |
| 1 | 10 seconds.* |
| 2 | 30 seconds |
| 3 | 1 minute. |
| c7 | Activation of the heating elements |
| 0 | Switched off. |
| 1 | Switched on. |
| 2 | Last setting before the hotplate was switched off.* |
| c8 | Selected time for the hotplate |
| 0 | Unlimited: the most recently selected hotplate can always be adjusted without having to select it again.* |
| 1 | Once you select a hotplate, you have 10 seconds to adjust it, after which you will have to select it again in order to be able to adjust it. |
| c9 | Reset the basic settings |
| 0 | Switched off.* |
| 1 | Switched on. |
| *Basic setting | |
Changing the basic settings
The hob must be switched off.
- Switch on the hob.
- Within the next 10 seconds touch the symbol for 4 seconds.
c and i flash alternately in the left-hand display; 0 lights up in the right-hand display.
- Touch the symbol repeatedly until the required setting appears in the left-hand display.
- Set the required value on the control panel.
- Touch the symbol for 4 seconds. The setting is activated.
Switching off
To exit the basic setting, switch off the hob with the main switch and make new settings.
Cleaning
Suitable maintenance and cleaning products can be purchased from the after-sales service or in our e-Shop.
Ceramic
Clean the hob after each use. This will prevent spills from burning onto the ceramic.
Only clean the hob when it has cooled down sufficiently. Use only cleaning agents which are suitable for glass ceramic. Follow the cleaning instructions on the packaging.
Never use:
Undiluted washing-up liquid
Detergent intended for dishwashers
Scouring agents
Harsh cleaning agents such as oven spray or stain remover
Abrasive sponges
High-pressure cleaners or steam jet cleaners
Ground-in dirt can be best removed with a glass scraper, available from retailers. Please note the manufacturer's instructions.
You can also obtain a suitable glass scraper from our after-sales service or from the e-Shop.
Using special sponges to clean glass ceramic achieves great cleaning results.
Hob surround
To prevent damage to the hob surround, observe the following instructions:
Use only hot soapy water.
Wash new sponge cloths thoroughly before use.
- Do not use any sharp or abrasive agents.
Do not use the glass scraper.
Trouble shooting
Faults often have simple explanations. Please read the notes in the table before calling the after-sales service. The electronics of your hob are underneath the control panel. For various reasons, the temperature in this area may rise sharply.
In order that the electronics do not overheat, the hotplates are switched off as and when necessary. The F2, F4, or FS display appears alternately with the H or h residual heat indicator.
| Display Fault Measure | ||
| None The power supply has been disconnected. Check the household fuse for the appliance. Check whether there is a power cut by trying other electronic appliances. | ||
| All displays flash The touch control is wet or an object is resting on it. | Dry the control or remove the object. | |
| F2 | Several hotplates have been used over a pro-longed period at high power settings. To protect the electronics, the hotplate has been switched off. | Wait a while. Touch any touch control. When F2 goes out, the electronics have cooled down sufficiently. You can continue cooking. |
| F4 | Despite the switch-off by F2, the electronics have become hot again. All hotplates have therefore been switched off. | Wait a while. Touch any touch control. When F4 goes out, you can continue cooking. |
| FS and the heat setting flash alternately. An audible signal can be heard | Warning: There is a hot pan in the area of the control panel. There is a risk that the electronics will overheat. | Remove the pan. The fault display goes out shortly afterwards. You can continue cooking. |
| FS and audible signal | There is a hot pan in the area of the control panel. To protect the electronics, the hotplate has been switched off. | Remove the pan. Wait a while. Touch any control. When FS goes out, you can continue cooking. |
| FB | The hotplate was in operation for too long and has switched itself off. | You can switch the hotplate back on again immediately. |
| dE The hotplates do not heat up | Demo mode is switched on Switching off the demo mode: Disconnect the appliance for 30 seconds from the power supply (switch off the household fuse or the circuit breaker in the fuse box). Touch any touch control after 3 minutes. The demo mode is switched off. | |
E-report in the displays
When an error message with "E" appears in the display, e.g. E0111, switch the appliance off and on again.
If it was a one-off error, the display goes out. If the error message appears again, call the after-sales service and quote the exact error message.
Customer service
Our after-sales service is there for you if your appliance needs to be repaired. We will always find an appropriate solution, also in order to avoid after-sales personnel having to make unnecessary visits.
E number and FD number
Please quote the E-number (product number) and the FD number (production number) of your appliance when contacting the after-sales service. The rating plate bearing these numbers can be found on the appliance certificate.
Please note that a visit from an after-sales service engineer is not free of charge in the event of misuse of the appliance, even during the warranty period.
Inhoudsopgave
