| Product Type | Gas Chainsaw |
| Brand | Poulan Pro |
| Model | PP22VA48 |
| Engine | PR5020 (LDAV50MC), 50.2 cm³, 2.1 kW / 9000 rpm |
| Bore x Stroke | 44 mm x 33 mm |
| Idle Speed | 2800 to 3200 rpm |
| Ignition | Husqvarna HQT-1 or Brisk PR17YC spark plug, gap 0.6 mm |
| Fuel | Mix of unleaded gasoline min 87 AKI + synthetic 2-stroke oil (50:1), max E10 |
| Fuel Tank | 425 cm³ |
| Chain Oil Tank | 295 cm³, automatic pump (13 ml/min at 9000 rpm) |
| Standard Guide Bar | 50 cm (20 inches), low kickback |
| Chain | 3/8", gauge 1.3 mm, 7 teeth, chain speed 27.8 m/s |
| Weight (without bar and chain, empty tanks) | 5.9 kg (13.0 lb) |
| Sound Power Level (guaranteed EU) | 122 dB(A) |
| Sound Pressure Level (operator) | 104 dB(A) |
| Vibrations (front/rear handle) | 8.70 / 9.78 m/s² |
| Safety | Inertia chain brake, hand guard, STOP switch, low kickback chain |

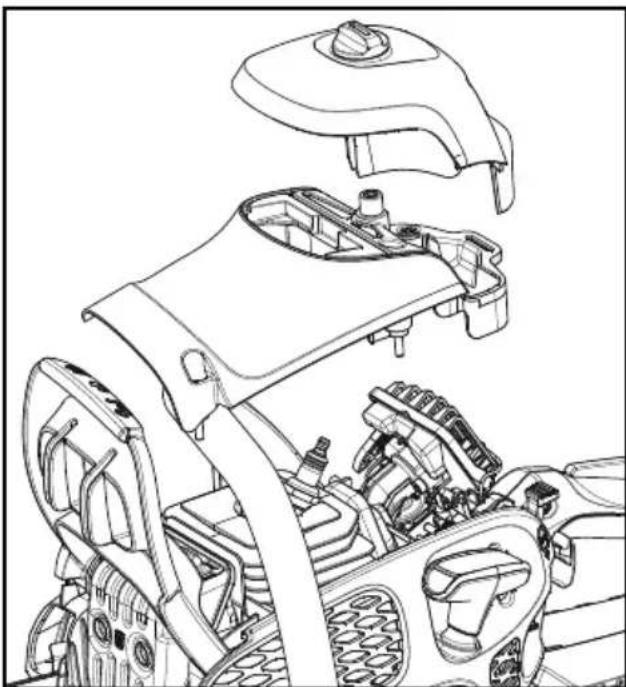

| Maintenance | Washable air filter, spark arrestor screen, annual spark plug, chain sharpening |
| Repairability | Original spare parts available at authorized dealer |
| Warranty | Consult manual or dealer |
Frequently Asked Questions - Pro PP22VA48 POULAN
What fuel to use for the Poulan Pro PP22VA48 chainsaw?
Use a mixture of unleaded gasoline (minimum octane rating 87 AKI) and synthetic air-cooled two-stroke engine oil, in a 50:1 ratio. Do not use gasoline with more than 10% ethanol (E-15, E-85) or methanol.
How to start a cold engine on the PP22VA48?
Engage the chain brake, set the switch to ON, press the primer bulb 10 times, pull the choke lever to FULL CHOKE, pull the starter rope 5 times, then push the choke to half-throttle and pull until it starts. Let it warm up for 30 seconds.

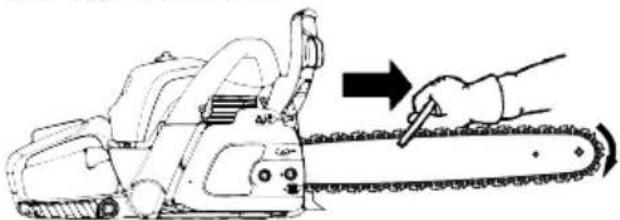

How to adjust the chain tension?
Loosen the guide bar nuts, turn the tensioning screw clockwise until the chain touches the bottom of the rail, then turn a quarter turn counterclockwise. The chain should not sag but should rotate freely. Tighten the nuts.
What to do if the engine does not start?
Check that the switch is ON, the tank has fuel mix, the spark plug is not fouled, and the air filter is clean. If the engine is flooded, push the choke to OFF CHOKE and follow the hot start procedure.
How to maintain the air filter?
Clean the air filter after 10 fill-ups or 5 hours of use. Remove the cover, take out the filter, wash it in warm soapy water, rinse, dry completely in air, then reinstall. Replace it annually or after 50 hours.
What oil to use for chain lubrication?
Use special bar and chain oil or SAE 30 oil. In very cold weather, dilute with 5 to 10% diesel or kerosene. Never use used oil.

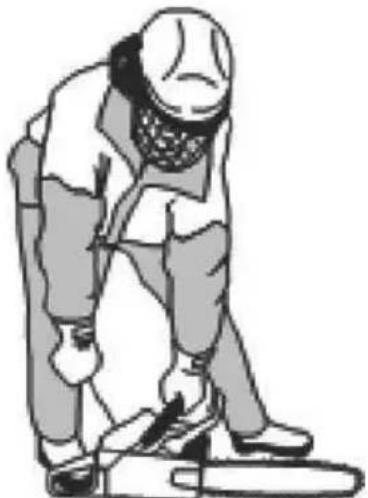

How to check the chain brake?
With the engine running at full throttle, activate the brake by pushing the front hand guard. The chain must stop immediately. Perform this test several times a day. If the brake band is less than 0.5 mm thick, have it replaced by a dealer.
What is the chain sharpening procedure?

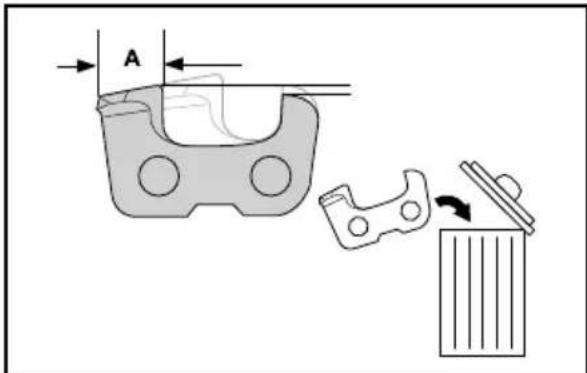

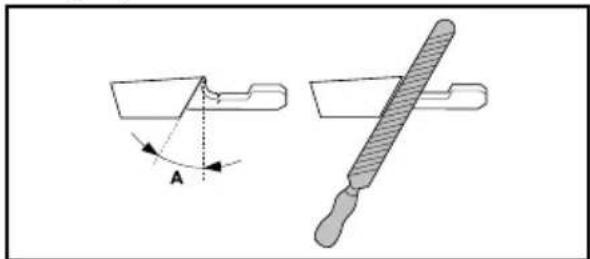

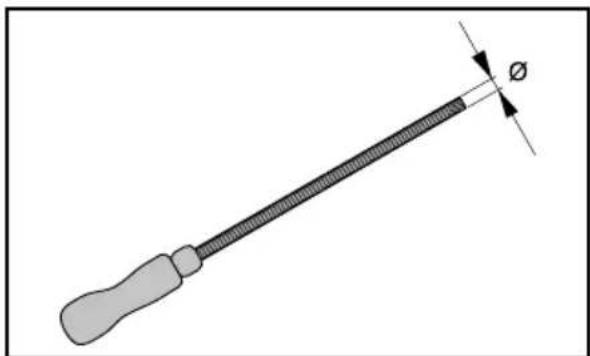

Use a 5.5 mm round file and a depth gauge set to 0.635 mm. File all teeth on one side at a 60° angle for the top and side plate, then file the other side. Replace the chain if tooth height is less than 4 mm.
How to store the chainsaw at the end of the season?

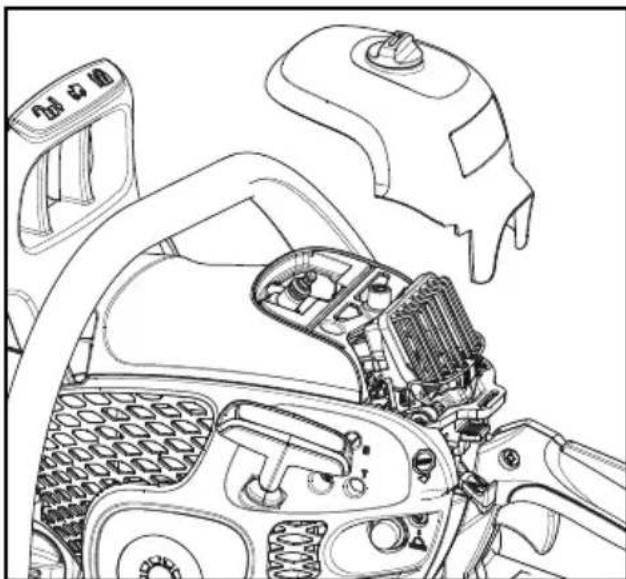

Clean the machine, empty the fuel tank, add stabilizer if necessary. Remove the spark plug, pour 1 teaspoon of 2-stroke oil into the hole, pull the rope 8 to 10 times, replace the plug. Store in a dry, cool place out of reach of children.
Where to find replacement parts for the PP22VA48?
Original parts are available from authorized Poulan Pro dealers. Contact customer service at 1-800-554-6723 or visit poulanpro.com. Use only original parts to ensure safety and performance.
