USER MANUAL TE 50AVR HILTI

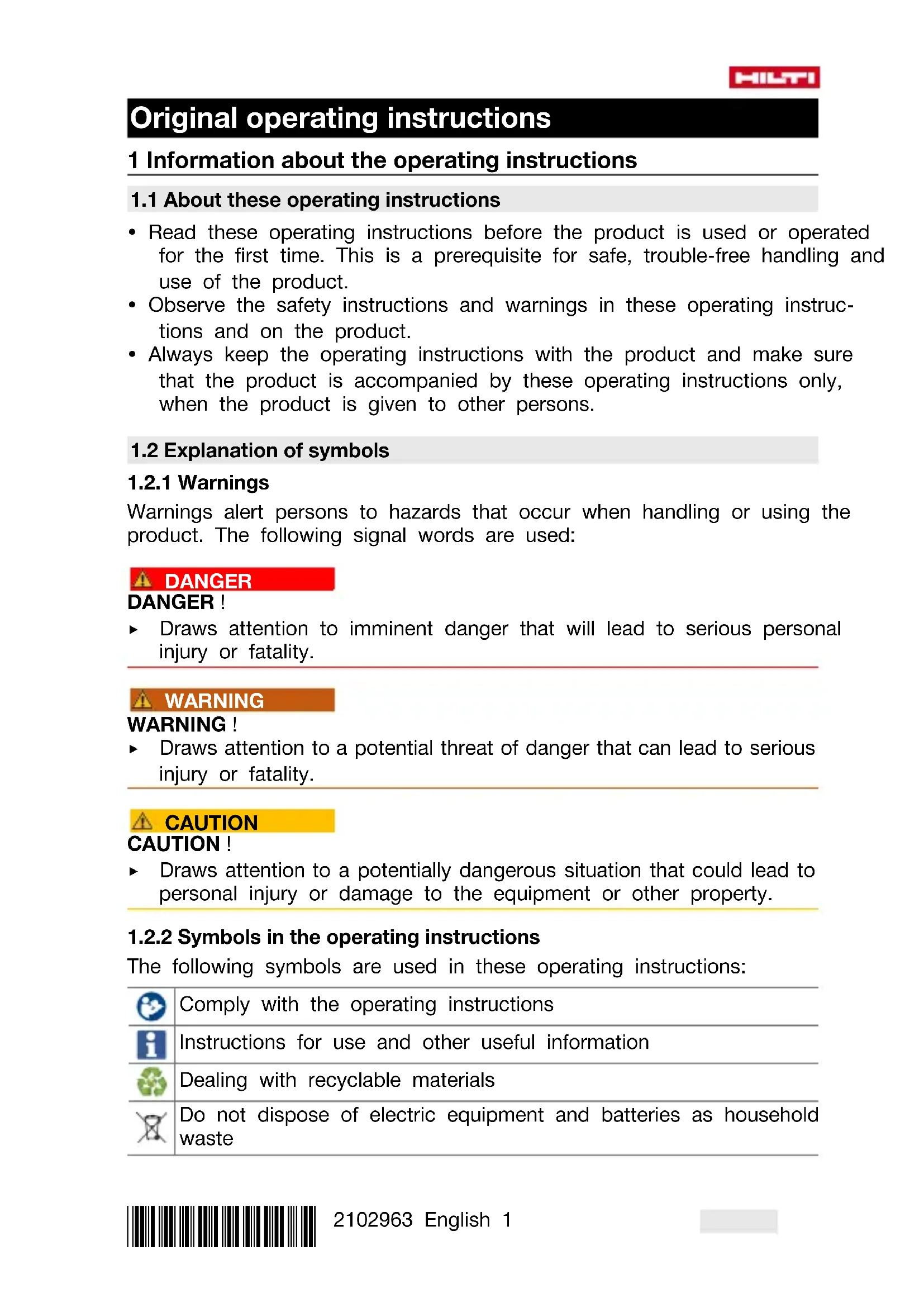

1.1 About these operating instructions

• Read these operating instructions before the product is used or operated for the first time. This is a prerequisite for safe, trouble-free handling and use of the product.

• Observe the safety instructions and warnings in these operating instruc- tions and on the product.

• Always keep the operating instructions with the product and make sure that the product is accompanied by these operating instructions only, when the product is given to other persons.

1.2 Explanation of symbols

Warnings alert persons to hazards that occur when handling or using the product. The following signal words are used: DANGER DANGER ! ▶ Draws attention to imminent danger that will lead to serious personal injury or fatality. WARNING WARNING ! ▶ Draws attention to a potential threat of danger that can lead to serious injury or fatality. CAUTION CAUTION ! ▶ Draws attention to a potentially dangerous situation that could lead to personal injury or damage to the equipment or other property.

1.2.2 Symbols in the operating instructions

The following symbols are used in these operating instructions: Comply with the operating instructions Instructions for use and other useful information Dealing with recyclable materials Do not dispose of electric equipment and batteries as household waste2 English 2102963 *2102963*

1.2.3 Symbols in illustrations

The following symbols are used in illustrations: These numbers refer to the illustrations at the beginning of these operating instructions. The numbers in illustrations refer to important work steps or to com- ponents important for the work steps. In the text, the corresponding numbers draw attention to these work steps or components, e.g. (3). Item reference numbers are used in the overview illustration and refer to the numbers used in the key in the product overview sec- tion. This symbol is intended to draw your special attention to certain points for handling the product.

1.3 Product-dependent symbols

1.3.1 Symbols on the product

The following symbols are used on the product: Drilling with hammer action (hammer drilling) Chiseling Chisel positioning Protection class II (double-insulated) Revolutions per minute Rated speed under no load Diameter Wireless data transfer

1.4 Product information

products are designed for professional users and only trained, authorized personnel are permitted to operate, service and maintain the products. This personnel must be specifically informed about the possible hazards. The product and its ancillary equipment can present hazards if used incorrectly by untrained personnel or if used not in accordance with the intended use. The type designation and serial number are printed on the rating plate.*2102963* 2102963 English 3 ▶ Write down the serial number in the table below. You will be required to state the product details when contacting Hilti Service or your local Hilti organization to inquire about the product. Product information Combihammer TE 50AVR Generation 03 Serial no.

1.5 Declaration of conformity

We declare, on our sole responsibility, that the product described here complies with the applicable directives and standards. A copy of the declaration issued by the certification department can be found at the end of this documentation. The technical documentation is filed here: Hilti Entwicklungsgesellschaft mbH | Tool Certification | Hiltistrasse 6 | 86916 Kaufering, Germany 2 Safety

2.1 General power tool safety warnings

WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instruc- tions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. Work area safety ▶ Keep work area clean and well lit. Cluttered or dark areas invite accidents. ▶ Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. ▶ Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. Electrical safety ▶ Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. ▶ Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.4 English 2102963 *2102963* ▶ Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. ▶ Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. ▶ When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. ▶ If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock. Personal safety ▶ Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. ▶ Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries. ▶ Prevent unintentional starting. Ensure the switch is in the off- position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. ▶ Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. ▶ Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. ▶ Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. ▶ If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. ▶ Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.*2102963* 2102963 English 5 Power tool use and care ▶ Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. ▶ Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. ▶ Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. ▶ Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. ▶ Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. ▶ Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. ▶ Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. ▶ Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations. Service ▶ Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

2.2 Hammer safety warnings

Safety instructions for all operations ▶ Wear ear protectors. Exposure to noise can cause hearing loss. ▶ Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury. ▶ Hold the power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make6 English 2102963 *2102963* exposed metal parts of the power tool "live" and could give the operator an electric shock. Safety instructions when using long drill bits with rotary hammers ▶ Always start drilling at low speed and with the bit tip in contact with the workpiece. At higher speeds, the bit is likely to bend if allowed to rotate freely without contacting the workpiece, resulting in personal injury. ▶ Apply pressure only in direct line with the bit and do not apply excessive pressure. Bits can bend causing breakage or loss of control, resulting in personal injury.

2.3 Additional safety instructions

Personal safety ▶ Use the product only when it is in technically faultless condition. ▶ Never tamper with or modify the power tool in any way. ▶ Apply appropriate safety measures at the opposite side of the workpiece in work that involves breaking through. Parts breaking away could fall out and / or fall down causing injury to other persons. ▶ Always hold the power tool with both hands on the grips provided. Keep the grips clean and dry. ▶ Always grip the side handle at its outermost end. When drilling and screwdriving, the grip of the power tool may be deflected laterally (the power tool tends to pivot about its own axis). ▶ Avoid touching rotating parts – risk of injury! ▶ Wear suitable protective glasses, a hard hat, ear protection, protective gloves and light respiratory protection while using the power tool. ▶ Wear protective gloves also when changing the accessory tool. Touching the accessory tool presents a risk of injury (cuts or burns). ▶ Wear eye protection. Flying fragments present a risk of injury to the body and eyes. ▶ Before beginning the work, check the hazard classification of the dust that will be produced. Use an industrial vacuum cleaner with an officially approved protection classification in compliance with locally applicable dust protection regulations. ▶ Use a dust removal system and suitable vacuum cleaner whenever possible. Dust from materials, such as paint containing lead, some wood species, concrete/masonry/stone containing silica, and minerals as well as metal, may be harmful. ▶ Make sure that the workplace is well ventilated and, where necessary, wear a respirator appropriate for the type of dust generated. Contact with or inhalation of the dust may cause allergic reactions and/or respiratory or other diseases to the operator or bystanders. Certain kinds of dust are classified as carcinogenic such as oak and beech dust, especially in conjunction with additives for wood conditioning (chromate, wood*2102963* 2102963 English 7 preservative). Material containing asbestos may be handled only by specialists. ▶ Take breaks between working and do physical exercises to improve the blood circulation in your fingers. Exposure to vibration during long periods of work can lead to disorders of the blood vessels and nervous system in the fingers, hands and wrists. Electrical safety ▶ Before beginning work, check the working area for concealed electric cables or gas and water pipes. External metal parts of the power tool may become live, presenting a risk of electric shock, if you damage an electric cable accidentally. Careful handling and use of power tools ▶ Switch the power tool off if the accessory tool sticks and stalls. The power tool may be deflected laterally. ▶ Wait until the power tool stops completely before you lay it down. 3 Description

3.2 Version with detachable supply cord 2

Connector on electric tool

Supply cord with keyed, re- leasable plug connector

The product described is an electrically-powered combihammer with pneu- matic hammering mechanism. It is designed for drilling in concrete, masonry, wood and metal. The product can also be used for light to medium-duty chiseling on masonry and surface finishing work on concrete. ▶ Operation is permissible only when connected to a power source providing a voltage and frequency in compliance with the information given on the type identification plate.

• This product is not suitable for working on hazardous materials.

• This product is not suitable for working in a damp environment.8 English 2102963 *2102963*

3.5 Active Vibration Reduction

The tool is equipped with an Active Vibration Reduction (AVR) system which reduces vibration noticeably.

3.6 Quick-release chuck (accessory)

The quick-release chuck makes changing accessory tools a quick operation with no additional tools needed. It is suitable for accessory tools with cylindrical or hexagonal shank used in the "Without hammering action " mode.

3.7 Service indicator

The product has an LED service indicator. Status Meaning Service indicator shows Servicing is due. Service indicator flashes The product is faulty. Have the combihammer repaired by Hilti Ser- vice.

Combihammer, side handle, operating instructions. Other system products approved for use with this product can be found at your local Hilti Store or at: www.hilti.group 4 Technical data For rated voltage, rated current, frequency and/or input power, refer to the country-specific type identification plate. If the device is powered by a generator or transformer, the generator or transformer’s power output must be at least twice the rated input power shown on the rating plate of the device. The operating voltage of the transformer or generator must always be within +5 % and -15 % of the rated voltage of the device. TE 50AVR Weight (without supply cord)

5.1 Preparations at the workplace

CAUTION Risk of injury! Inadvertent starting of the product. ▶ Unplug the supply cord before making adjustments to the power tool or before changing accessories. Observe the safety instructions and warnings in this documentation and on the product.

5.1.1 Fitting the side handle 3

1. Release the side handle clamping band by turning the handle grip.

2. Slide the side handle clamping band over the tool holder from the front

and into the recess provided.

3. Bring the side handle into the desired position.

4. Tighten the side handle clamping band by turning the handle grip.

5.1.2 Fitting the depth gauge (optional) 4

1. Release the side handle clamping band by turning the handle grip.

2. Slide the depth gauge from the front into the 2 guide holes provided.

3. Tighten the side handle clamping band by turning the handle grip.

▶ The depth gauge is fitted. To set the drilling depth:

4. Release the screw at the depth gauge.

5. Adjust the depth gauge to the desired drilling depth.

6. Tighten the screw at the depth gauge.

5.1.3 Fitting/removing the accessory tool 5

CAUTION Risk of injury by the accessory tool! The accessory tool might be hot or have sharp edges. ▶ Wear protective gloves when changing the accessory tool.10 English 2102963 *2102963*

1. Apply a little grease to the connection end of the accessory tool.

2. Push the accessory tool into the chuck as far as it will go (until it engages).

▶ The product is ready for use.

3. Pull the chuck back as far as it will go and remove the accessory tool.

Use only the recommended grease supplied by Hilti. Use of unsuitable grease may cause damage to the product.

CAUTION Risk of damage by incorrect handling! ▶ Do not operate the switches for direction of rotation and/or function selection during operation. Observe the safety instructions and warnings in this documentation and on the product.

5.2.1 Drilling with hammering action (hammer drilling) 6

Set the function selector switch to the “Hammer drilling” position .

2. Press the drill bit against the work surface.

3. Press the control switch.

▶ The product starts.

5.3 Chisel positioning 7

CAUTION Risk of injury! Loss of control over the chisel direction. ▶ Do not operate the tool when the selector switch is set to “Chisel positioning”. Turn the function selector switch until it engages in the “Chiseling” position. The chisel can be adjusted to 24 different positions (in 15° increments). This ensures that flat chisels and shaped chisels can always be set to the optimum working position.

Set the function selector switch to the “Chisel positioning” position .

2. Rotate the chisel to the desired position.

Turn the function selector switch until it engages in the “Chiseling” position. ▶ The product is ready for use.

5.3.2 Switching sustained operation on and off 9

When chiseling, the on/off switch can be locked in the “on” position.

1. Push the lockbutton for continuous operation forward.

2. Press the on/off switch as far as it will go.

▶ The product then runs in sustained operating mode.

3. Push the lockbutton for continuous operation back.

▶ The product switches off. 6 Detachable supply cord

6.1 Connecting the detachable supply cord

CAUTION Risk of injury! Due to leakage current as a result of dirty contacts. ▶ Connect the detachable electric connector to the electric tool only when it is clean and dry and when the supply cord is unplugged from the power outlet.

1. Push the keyed, detachable electric plug connector into the socket as

far as it will go, until it is heard to engage.

2. Plug the supply cord into the power outlet.

6.2 Disconnecting the detachable supply cord

1. Unplug the supply cord from the power outlet.

2. Press the release button and pull the keyed, detachable electric plug

connector out of the socket.

3. Pull the supply cord connector out of the power tool.

7 Care and maintenance WARNING Electric shock hazard! Attempting care and maintenance with the supply cord connected to a power outlet can lead to severe injury and burns. ▶ Always unplug the supply cord before carrying out care and maintenance tasks. Care

• Carefully remove stubborn dirt from the tool.

• Clean the air vents carefully with a dry brush.

• Use only a slightly damp cloth to clean the casing. Do not use cleaning agents containing silicone as they can attack the plastic parts.12 English 2102963 *2102963* Maintenance WARNING Danger of electric shock! Improper repairs to electrical components may lead to serious injuries including burns. ▶ Repairs to the electrical section of the tool or appliance may be carried out only by trained electrical specialists.

• Check all visible parts and controls for signs of damage at regular intervals and make sure that they all function correctly.

• Do not operate the product if signs of damage are found or if parts malfunction. Have it repaired immediately by Hilti Service.

• After cleaning and maintenance, fit all guards or protective devices and check that they function correctly. To help ensure safe and reliable operation, use only genuine Hilti spare parts and consumables. Spare parts, consumables and accessories approved by Hilti for use with the product can be found at your local Hilti Store or online at: www.hilti.group. 8 Transport and storage

• Do not transport electric tools with accessory tools fitted.

• Always unplug the supply cord before storing an electric tool or appliance.

• Store tools and appliances in a dry place where they cannot be accessed by children or unauthorized persons.

• Check electric tools or appliances for damage after long periods of transport or storage. 9 Troubleshooting If the trouble you are experiencing is not listed in this table or you are unable to remedy the problem by yourself, please contact Hilti Service.

Trouble or fault Possible cause Action to be taken The power tool doesn’t start. Interruption in the elec- tric supply. ▶ Plug in another electric tool or appliance and check whether it works. The electronic restart interlock is activated after an interruption in the electric supply. ▶ Switch the power tool off and then on again.*2102963* 2102963 English 13 Trouble or fault Possible cause Action to be taken No hammering ac- tion. The power tool is too cold. ▶ Bring the tip of the drill bit into contact with the working surface, switch the rotary hammer on and allow it to run. If necessary, repeat the procedure until the hammering mechanism begins to operate. The combihammer doesn’t achieve full power. The gauge (cross sec- tion) of the extension cord conductors is inad- equate. ▶ Use an extension cord with an adequate con- ductor cross section. The voltage provided by the electric supply is too low. ▶ Connect the combi- hammer to a different electric supply. The drill bit doesn’t rotate. The function selector switch is not engaged or is in the “Chiseling” or “Chisel adjust- ment” position. ▶ Set the function selector switch to the “Hammer drilling” position . The drill bit can’t be released. The chuck is not pulled back fully. ▶ Pull the tool lock back as far as it will go and remove the accessory tool. The side handle is not fitted correctly. ▶ Release the side handle and refit it correctly so that the clamping band and side handle engage in the recess. The service indicator lights after changing the carbon brushes. The contact surfaces are not yet run in. ▶ Run in the carbon brushes by allowing the power tool to run under no load for at least 1 minute without interruption. 10 Disposal Most of the materials from which Hilti tools and appliances are manu- factured can be recycled. The materials must be correctly separated before14 Français 2102963 *2102963* they can be recycled. In many countries, your old tools, machines or appli- ances can be returned to Hilti for recycling. Ask Hilti Service or your Hilti representative for further information. ▶ Do not dispose of power tools, electronic equipment or batteries as household waste! 11 Manufacturer’s warranty ▶ Please contact your local Hilti representative if you have questions about the warranty conditions. Notice d'utilisation originale 1 Indications relatives au mode d'emploi
