PLT8031 - Tablet Proscan - Free user manual and instructions

Product Type	Touch Screen Tablet
Brand	Proscan
Model	PLT8031
Operating System	Google Android 4.0
Processor	3 cores at 1.2 GHz + 3D GPU + 1080p multimedia processor
RAM	512 MB DDR3
Internal Storage	4 GB NAND Flash (optional up to 32 GB)
Display	8 inch, 800 x 600 resolution, LED, capacitive touch
Wireless Connectivity	Wi-Fi 802.11 b/g/n
Wired Connectivity	Ethernet via USB key (not included), Mini HDMI, Mini USB
Supported Audio Formats	MP3, WMA, FLAC, AAC, OGG, WAV, APE
Supported Video Formats	VP8, RMVB, RM, MOV, MPG, MP4, AVI, 3GP, DAT, FLV, MKV
Supported Image Formats	JPEG, BMP, GIF, PNG
Camera	2 megapixels
Sensors	Gravity (3D)
Power Supply	Power adapter 5V-2A (model HNC050200U), built-in polymer battery
Estimated Battery Life	Several hours depending on usage (not precisely specified)
Maintenance and Cleaning	Do not use alcohol, thinner, or benzene. Clean with a soft, dry cloth.
Safety	Do not disassemble, do not use on an airplane, avoid high temperature and humidity, do not expose to shocks.
Spare Parts and Repairability	Adapter, USB cable provided. Any unauthorized disassembly voids warranty. Contact an authorized distributor.
General Information	8 inch tablet, Android 4.0, capacitive screen, Wi-Fi, HDMI output. Weight and dimensions not provided.

Frequently Asked Questions - PLT8031 Proscan

How to charge the tablet for the first time?

For the first use, charge the device for ten hours with the provided power adapter (5V-2A). Then, recharge as needed.

What to do if the tablet does not turn on?

Plug in the power cable to recharge and wait a few minutes. If it still does not turn on, try resetting the device with a paperclip by pressing the recessed reset button. As a last resort, download the firmware from www.curtisint.com or contact your dealer.

How to insert a micro SD card?

Turn off the device, then insert the micro SD card into the slot until it clicks. Make sure the device is not using the card before removing it.

How to connect the tablet to a TV?

Use a Mini HDMI cable (not included) to connect the tablet to the TV. The HDMI output can display content in 1080p.

Why does Wi-Fi not connect?

Check that the router is on and nearby. Move away from devices emitting waves (microwaves, Bluetooth). Make sure Wi-Fi is enabled in settings. If the problem persists, bring the tablet closer to the router.

How to reset the tablet if it freezes?

Use a thin object (paperclip) to press the recessed reset button. This should restart the device. If the touch screen does not respond, this operation may resolve the issue.

What audio and video formats are supported?

Audio: MP3, WMA, FLAC, AAC, OGG, WAV, APE. Video: VP8, RMVB, RM, MOV, MPG, MP4, AVI, 3GP, DAT, FLV, MKV. Image: JPEG, BMP, GIF, PNG.

The battery drains quickly, what to do?

If you do not use the device for a long time, charge/discharge the battery once a month to avoid deep discharge. Avoid leaving the device in direct sunlight or a hot place. Close unused apps via Settings > Apps.

Can I use a different charger?

It is strongly recommended to use the original charger (model HNC050200U, 5V-2A). Using another charger may burn the device and void the warranty.

How to transfer files from a PC?

Connect the tablet to the PC via the provided USB cable. The device will enter USB mode, allowing file transfer. Ensure the cable is properly connected and the device is powered on.

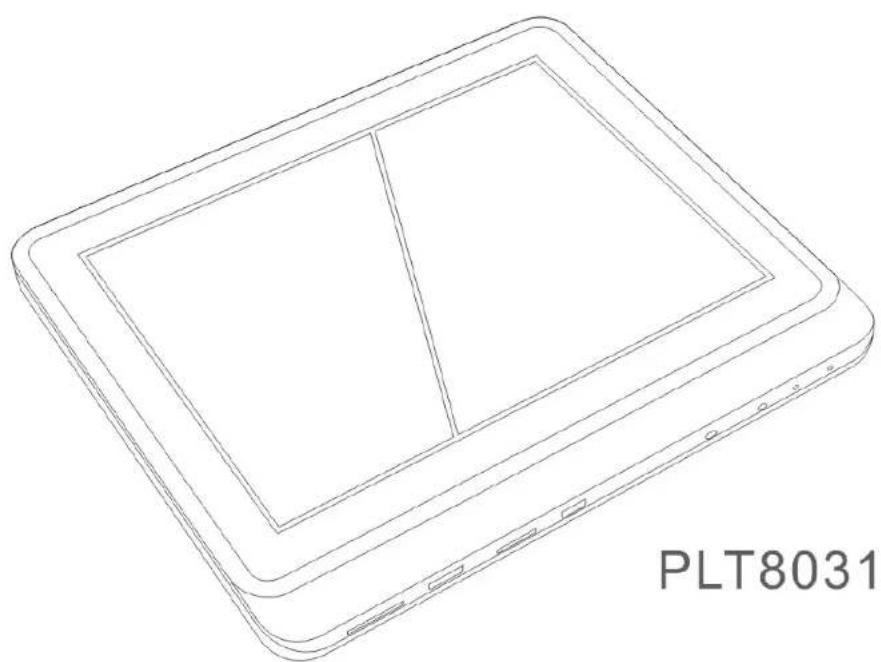

USER MANUAL PLT8031 Proscan

Please read the user guide carefully before using

User Manual

manual before using. Thank you!

The machine adopts capacitive touch screen, you can just touch it by finger or click with capacitive pen for operation. (Never use the sharp objects to click the screen, or the touch screen may be damaged).
Do not put the device at any high temperature, high humidity or dusty place.
Do not drop or crash the device, avoid violent impacting between the display and the capacitive touch screen.
Please choose the suitable volume and avoid turning it too loud. If you feel uncomfortable, please turn down the volume or stop to use the device soon.
Please charge if you meet those situations as below:

A、Low battery on the battery icon. B、The system turns off automatically.
C、The keys do not work. D、“” is battery charging.

【Note】: Don't use the different type charger or it may make the device burned. We assume no liability for the damage.

Please contact with local agent if you need the original adaptor.

In the charging process, the device may be warming up a little (not too hot), this is normal, and it won't effect the functions.
Do not disconnect the device while formatting, downloading or uploading, or it may make the error.
Our company won't bear the duty for the loss of the memory erasing on account of the damage, repair or some other reason. Please operate the device according to the user manual correctly and backup the important data in time.
Do not dismantle this device by yourself, and do not polish it with alcohol, dilution, or benzene.
Do not use this device where electronics is forbidden, such as on the airplane.
Do not use this device while walking or driving, in order to avoid traffic accident.
USB is for transferring data but also for charging.
Virus can damage this device. So please use proper computer antivirus and keep it updated.
Android system will occupy space of NAND Flash, it occupies space in "Total space/Available space", Apps installation is defaulted to store here. In case lack of space, it is recommended user to install Apps in the Mini SD(Excluded).
If multiple programs are running simultaneously, the system becomes slow, hence, please close down some of the RUNNING Apps, in the Settings Apps.
For any support needed for this device please contact the company or the authorized distributor. Any unauthorized dismantling of the device will make the warranty null and void.

We reserve the right to keep the change of the products, the specification and design is subject to change without notice!

Packing List:

Please check box for the following items

1,Device
2.User Manual
3,Product Warranty
4,Power Adaptor
5,USB Cable

Other accessories can be purchased at local Proscan retailers

The accessories may not be compatible with other devices

Power Adaptor Specification:

MODEL:HNC050200U

INPUT:AC 100-240V 50/60Hz 0.35A MAX

OUTPUT: 5.0V = = 2.0A

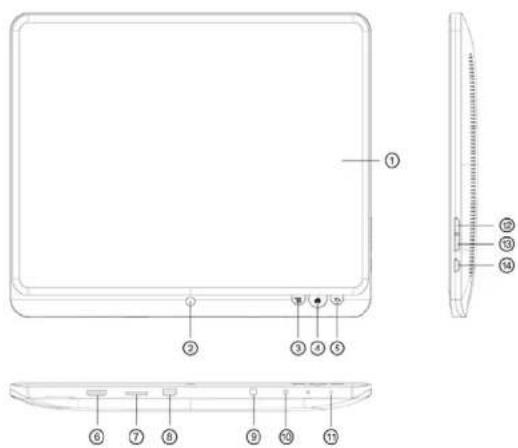

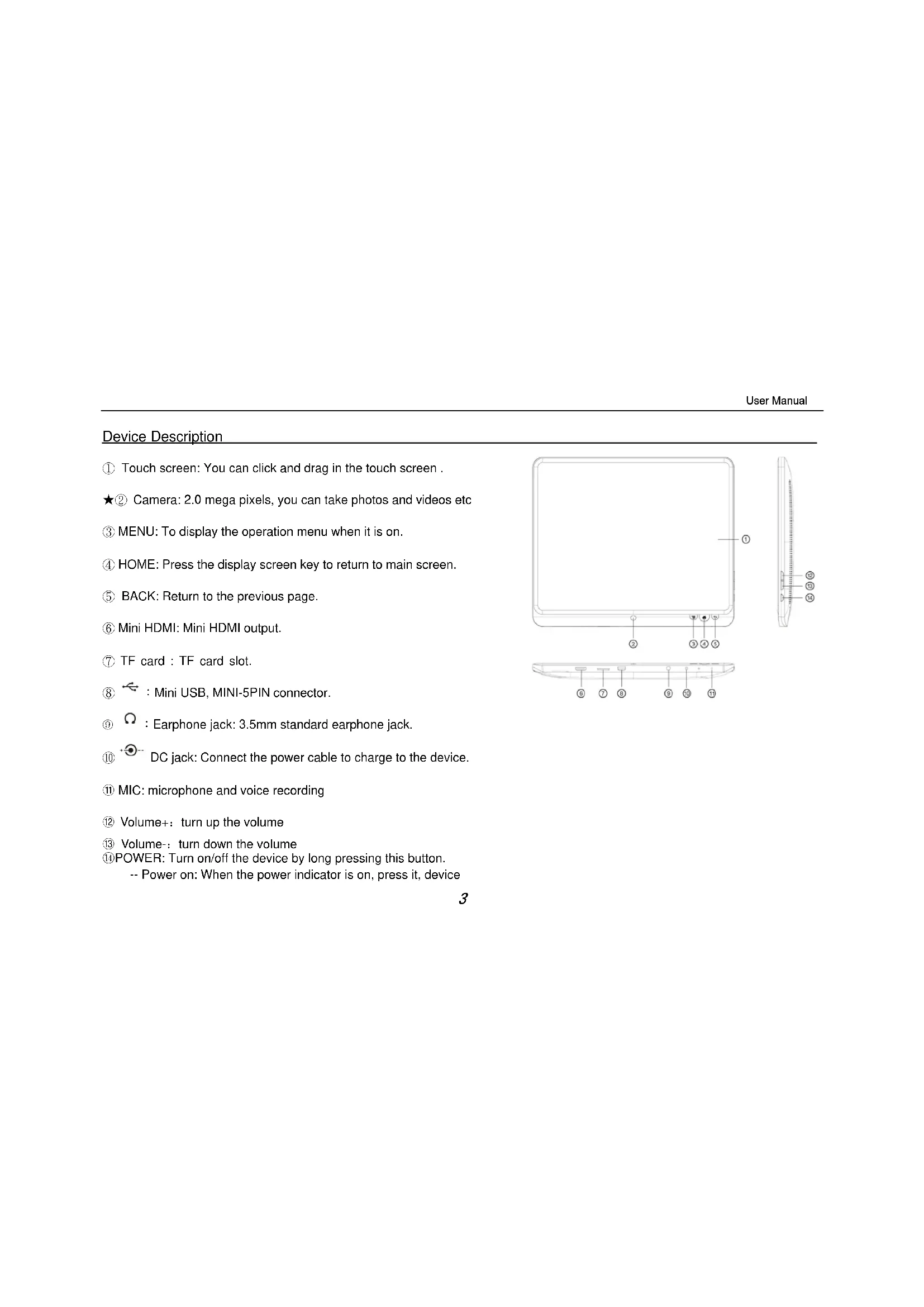

Device Description

① Touch screen: You can click and drag in the touch screen.

② Camera: 2.0 mega pixels, you can take photos and videos etc

③ MENU: To display the operation menu when it is on.

④ HOME: Press the display screen key to return to main screen.

⑤ BACK: Return to the previous page.

⑥ Mini HDMI: Mini HDMI output.

TF card: TF card slot.

⑧ : Mini USB, MINI-5PIN connector.

: Earphone jack: 3.5mm standard earphone jack.

DC jack: Connect the power cable to charge to the device.

MIC: microphone and voice recording

Volume+: turn up the volume

13 Volume: turn down the volume

10 POWER: Turn on/off the device by long pressing this button

-- Power on: When the power indicator is on, press it, device

will turn on till the turning-on picture is over.

-- Power off: Press it for 5 seconds. The system would indicate

some options : Muting or Power off. Click “Power off” to shut it down.

【TIPS】：

1. When the battery is low, it will power off automatically.
   2.Shutdown illegally, when you restart, device would scan and repair the disk. The screen will stay at the progress bar for a long time.
2. Definition of "Press":

Short Press: Press the button less than 2 seconds.

Long Press: Press the button more than 3 seconds.

If there is no special explain, "Press" means Short Press.

Setting up for the first time

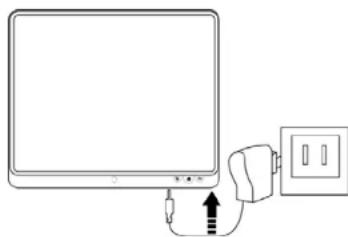

Charging your device:

For first-time use, you need to charge the device for ten hours.

After that you can recharge the device as needed.

Connect the DC-in jack to your device and plug the AC adapter into any AC outlet.

【TIPS】：

1. This device adopts built-in polymer battery. Only the specified charger should be used.
2. It is normal for the device's surface to become warm during charging or long time of use. All devices are factory tested before release.
3. If you do not use this set for a long time, please charge/release it once a month to avoid deep discharge. The damage caused by battery over-consuming is not included in the warranty.

User Manual

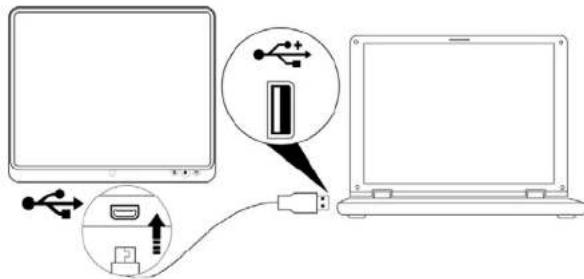

Connecting to a PC:

• You can connect with PC by USB cable attached with the device.
  You can transfer your personal data to the PC.
• Connect the PC and the device, it will change to the USB mode, in this state, realize the files transfer function between the PC and the device.

Connecting a USB device:

• USB devices are supported, such as a keyboard, through the USB port.
  View media files on USB storage with installed photo, music or video applications.

【Caution】: Before removing this USB storage, make sure your device is not accessing data from the USB storage.

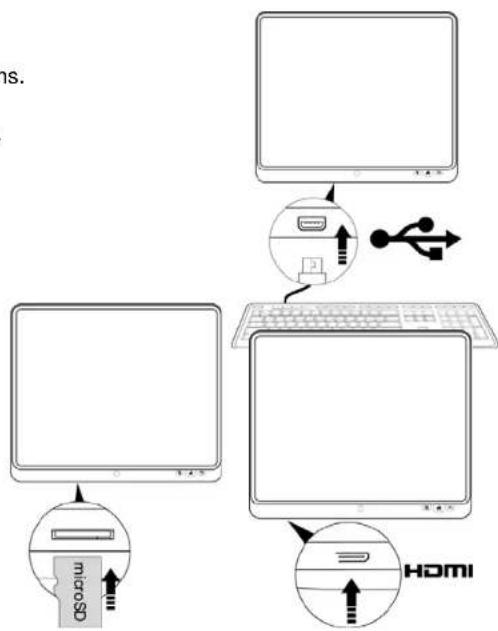

Inserting the micro SD card (excluded):

You may install a micro SD card to expand your device's storage space.

1. Turn off the device by pressing and holding the power button.
2. Insert the micro SD card as shown.

User Manual

【Note】: Ensure that the micro SD card is inserted all the way into the card slot.

【Caution】: Before removing this card,

make sure your device is not accessing data on the card.

Connecting to a television with HDMI ( HDMI cable excluded):

Connect a micro HDMI cable to your device then plug the other end of the HDMI connector into a TV or monitor with an HDMI port.

Resetting the device:

You may have to perform a reset if your device fails to respond when buttons are pressed or the screen is tapped or it does not respond to screen input.

To reset your device, use a small thin object (such as a paperclip) to press the recessed reset button.

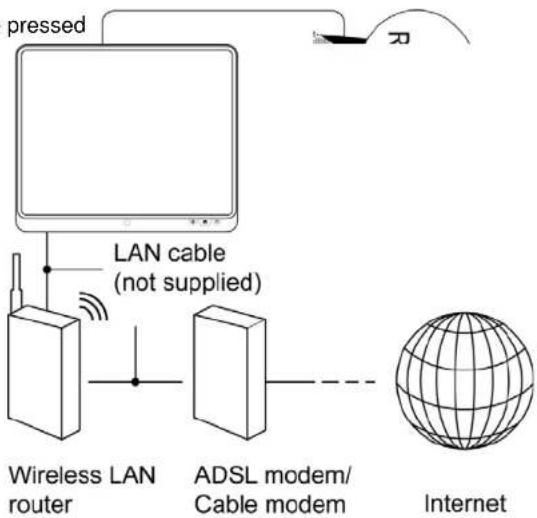

Connecting to the Network:

1. Wi-Fi wireless setup:

Enter the setting interface, and turn on the Wi-Fi item.

The device will automatically search any accessible nearby wireless networks.

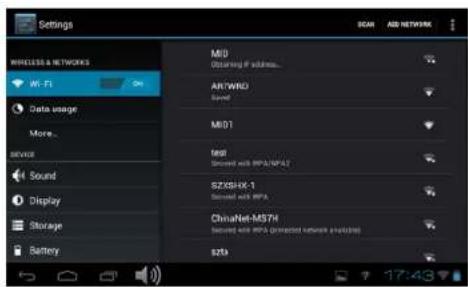

Commonly used settings

Press the setup icon to enter the setting.

Wi-Fi: Click ON or OFF to open or close Wi-Fi.

When open Wi-Fi, the system will scan the wifi signal around automatically. Meanwhile, users could add network manually as well.

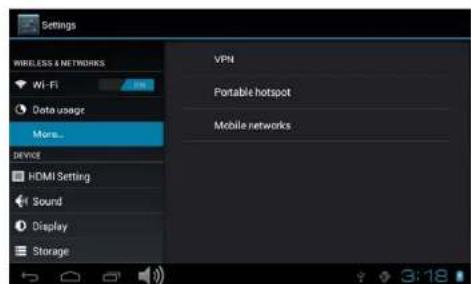

More...

1.VPN:The user can preset the 3G operators information.

1. Portable hotspot: You must connect the cable to network (by RJ45 connector) then you can enter the option to open or close the "Portable Wi-Fi hotspot", you can also take this device as a Wi-Fi Router.

3. Mobile networks:

Connect a USB 3G Dongle setting : To insert a USB 3G dongle, the device will connect the Internet automatically. A 3G icon will be displayed on the screen. (Please make sure the 3G SIM card is matching with the 3G dongle well)

【Remark1】: After turning on "Portable Wi-Fi hotspot", Wi-Fi will close automatically.

【Remark2】: When you use 3G to connect internet, you must shut off Wi-Fi first.

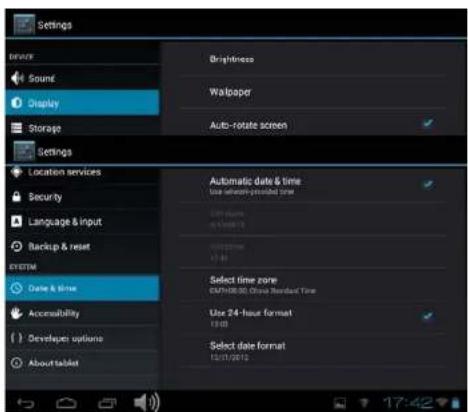

Display:

Rotate screen setting: Enter setting menu : Display Auto-rotate screen, you can turn on / off the screen auto-rotation function.

Language & input:

1. Language: Users can choose OSD Languages.
2. KEYBOARD & INPUT METHODS: select language input method.

【Remark】: In this state, users can switch the input method.

Date & time: when the internet is connected, turn on "Automatic date & time", the device can obtain the real date and time from the internet.

Troubleshooting

• Can not power on:

--Connect the power cable to charge to the device, after a while and then check again.
--If turn on device failed after charged, please download the right firmware and upgrade the device on www.curtisint.com by a PC. --If it still can not be powered on, please contact with local distributor or service centre.

• Serious noise:

--Check if the music file is damaged.
--If the music files are damaged, it may cause serious noise and jumping sound.

• Can not download or copy:

--Check if it is connecting correctly between the device and PC.
--Check the spare space of the memory.
--Check the USB cable.

- USB connect is failed.

--Make sure that the USB device is properly connected to the USB jack.
--Check if the USB device or a cable is damaged.
--If the USB device is connected via a USB hub, connect the USB device directly to the device.

- Cannot connect the device to the wireless LAN router

--Check if the wireless LAN router is on.
--Based on the surrounding environment, such as the wall material, radio wave receiving condition, or obstacles between the device and the wireless LAN router, the communication distance may need to be shortened. Move the device and the wireless LAN router closer to each other.
--Devices that use a 2.4GHz frequency band, such as a microwave, Bluetooth, or digital cordless device, may interrupt the communication. Move the device away from such devices, or turn off such devices.

Product Specification

OS	Google Android 4.0
CPU 3 Core up to 1	2GHz main chip + Super 3D GPU + 1080P media processor
System RAM	512MB DDRIII
Memory 4GB NAND Flash (2GB to 32GB optional)
Touch Panel 8" 800*600 LED-backlit panel
LCD TFT Capacitive Touch Screen
WIFI	802.11 b/g/n

User Manual

Ethernet LAN	Yes (USB dongle)
3G 3G USB dongle
Gravity	3D gravity sensor
HDMI output Mini HDMI can support 1080p content output to display
Music format MP3,WMA,FLAC,AAC,OGG,WAV,APE
Video format VP8,RMB,RM,MOV,MPG,MP4,AVI,3GP,DAT,FLV,MKV,...etc.
Picture format JPEG,BMP,GIF,PNG

Specifications are for reference, to prevail in kind

FCC Statement :

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.

Note: The manufacturer is not responsible for any interference, for example RADIO or TV interference, caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment.

PROSCAN

⑦ TF card : TF card slot.
