Product Type	PCIe Wi-Fi 6 + Bluetooth 5.0 Network Card
Model	Archer TX3000E
Brand	TP-Link
Wi-Fi Standards	IEEE 802.11ax/ac/n/a 5 GHz, IEEE 802.11ax/n/g/b 2.4 GHz
Max Speed	Up to 2402 Mbps (5 GHz) and 574 Mbps (2.4 GHz)
Bluetooth	5.0/4.2/4.0
Technologies	MU-MIMO, 1024-QAM
Wireless Security	WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK, 802.1X
Interface	PCI Express X1
Antennas	2 external antennas with magnetic base
Supported Operating Systems	Windows 10 (64-bit) only
Operating Temperature	0 °C to 40 °C
Storage Temperature	-40 °C to 70 °C
Operating Humidity	10% to 90% non-condensing
Storage Humidity	5% to 90% non-condensing
Power Supply	Via PCIe slot
Dimensions (approx.)	12.1 x 2.2 x 12.1 cm (card with antennas)
Weight (approx.)	About 150 g (with antennas and cable)
Care and Cleaning	Clean with a soft, dry cloth. Do not use solvents.
Safety	Compliant with FCC and IC. Minimum distance of 20 cm between antenna and body.
Spare Parts and Repairability	Not applicable (sealed product). 2-year manufacturer warranty.
Package Contents	Archer TX3000E card, USB Bluetooth cable, antennas, low-profile bracket, driver CD, quick installation guide

Frequently Asked Questions - Archer TX3000E TP-LINK

How to install Wi-Fi and Bluetooth driver on Windows 10?

Insert the provided CD and run Autorun.exe. Click the Wi-Fi icon to install the Wi-Fi driver, then click the Bluetooth icon to install the Bluetooth driver. Do not install both simultaneously. You can also download the latest drivers from the TP-Link website.

What to do if the adapter is not detected by the computer?

Check that the adapter is properly inserted into a PCI-E X1 slot. Make sure you are using Windows 10 64-bit and the latest driver. Try restarting the computer or testing the adapter on another PC.

How to check if the drivers are installed correctly?

Look in the taskbar: if the Wireless Network icon appears, the Wi-Fi driver is installed. If the Bluetooth icon appears, the Bluetooth driver is installed.

Why doesn't the Bluetooth icon appear in the taskbar?

Make sure Bluetooth is enabled in Settings > Devices > Bluetooth. Disable any other Bluetooth device in Device Manager, then reinstall the driver.

How to connect a Bluetooth device?

Right-click the Bluetooth icon in the taskbar, select Add a Bluetooth Device, choose your device from the list, and follow the on-screen instructions.

How to uninstall the Wi-Fi and Bluetooth drivers?

Go to Start > Apps, search for 'Intel PROSet/Wireless' for Wi-Fi or 'Intel Wireless Bluetooth' for Bluetooth, click on it, and select Uninstall.

What is the maximum speed of the Archer TX3000E?

The maximum theoretical speed is 2402 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band, with Wi-Fi 6 standard.

Is the Archer TX3000E compatible with Windows 11?

The manufacturer indicates only Windows 10 64-bit. Under Windows 11, it may work if drivers are compatible, but TP-Link does not officially guarantee it.

How to find the hardware version of my adapter?

The hardware version is printed on the product label, in the form 'Ver:X.Y' (e.g., Ver:1.0) in the serial number field.

What to do if I can't connect to Wi-Fi after installing the driver?

First check that the driver is properly installed. Temporarily disable antivirus and firewall. Make sure the adapter is firmly inserted into the PCI-E X1 slot. Try another slot or reinstall the driver.

USER MANUAL Archer TX3000E TP-LINK

https://www.tp-link.com/support/download/

TP-Link USA Corporation, d/b/a TP-Link North America, Inc.

Address: 145 South State College Blvd. Suite 400, Brea, CA 92821

Website: http://www.tp-link.com/us/

Tel: [phone]

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/ TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This device may not cause harmful interference.
2) This device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment.

FCC RF Radiation Exposure Statement:

This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter.

"To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter."

We, TP-Link USA Corporation, has determined that the equipment shown as above has been shown to comply with the applicable technical standards, FCC part 15. There is no unauthorized change is made in the equipment and the equipment is properly maintained and operated.

Issue Date: 2019-09-24

CE Mark Warning

This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.

OPERATING FREQUENCY(the maximum transmitted power)

EU declaration of conformity

TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2011/65/EU and (EU)2015/863.

The original EU declaration of conformity may be found at

https://www.tp-link.com/en/ce

RF Exposure Information

This device meets the EU requirements (2014/53/EU Article 3.1a) on the limitation of exposure of the general public to electromagnetic fields by way of health protection.

The device complies with RF specifications when the device used at 20 cm from your body.

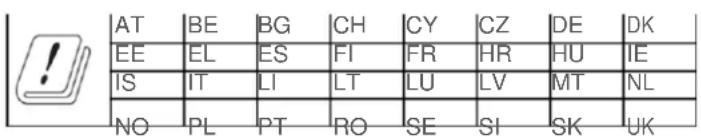

Attention: This device may only be used indoors in all EU member states and EFTA countries.

Canadian Compliance Statement

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:

(1) This device may not cause interference.

(2) This device must accept any interference, including interference that may cause undesired operation of the device.

This radio transmitter (IC: 1000M-AX200NG/ Model: Archer TX3000E) has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain indicated. Antenna types not included in this list below, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.

Antenna Two High-Gain Dual Band Antennas

Caution:

1) The device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems;
2) For devices with detachable antenna(s), the maximum antenna gain permitted for devices in the bands 5250-5350 MHz and 5470-5725 MHz shall be such that the equipment still complies with the e.i.r.p. limit.
3) For devices with detachable antenna(s), the maximum antenna gain permitted for devices in the band 5725-5850 MHz shall be such that the equipment still complies with the e.i.r.p. limits specified for point-to-point and non-point-to-point operation as appropriate; and

DFS (Dynamic Frequency Selection) products that operate in the bands 5250-

5350 MHz, 5470-5600MHz, and 5650-5725MHz.

Avertissement:

Radiation Exposure Statement:

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

Industry Canada Statement

CANICES-3 (B)/NMB-3(B)

Korea Warning Statements

当用，

NCC Notice

注意！

依據低功率電波輻射性電機管理辦法

第十二條

• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device
• Do not use the device where wireless devices are not allowed.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

Explanation of the symbols on the product label

Symbol

Explanation

RECYCLING

This product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to European directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment. User has the choice to give his product to a competent recycling organization or to the retailer when he buys a new electrical or electronic equipment.
