Brand	Lucide
Model	Safiya 135250131
Product type	Indoor lamp
Power supply	Mains 220-240 V
Electrical class	Class I (with earth connection)
Protection rating	IP20 (indoor use)
Compatible bulb type	E27 (max 60 W)
Material	Metal and glass
Weight	Approximately 1.2 kg
Dimensions	Height 30 cm, diameter 25 cm
Installation	Ceiling or wall mounting (depending on model)
Maintenance	Clean with a soft dry cloth
Warranty	2 years against manufacturing defects
Repairability	Replaceable bulb, spare parts available
Minimum distance from flammable objects	0.5 m

Frequently Asked Questions - Safiya 135250131 Lucide

What type of bulb to use for the Safiya 135250131 lamp?

Use an E27 bulb with a maximum power of 60 W. Follow the bulb type indicated on the product.

How to install the Lucide Safiya lamp?

Cut the power supply before installation. Fix the lamp to the wall or ceiling mount following the supplied diagram. Connect the wires according to colors (blue, brown, green/yellow). Call a qualified electrician if necessary.

Can I use this lamp in a bathroom?

No, the Safiya lamp has an IP20 protection rating, it is designed only for dry indoor use, not for humid rooms.

Does the lamp heat up?

Yes, the bulb and housing can become hot. Let it cool before touching and respect the minimum distance from flammable objects.

How to clean the Lucide Safiya lamp?

Unplug the lamp and let it cool. Clean with a soft dry cloth. Do not use abrasive products or liquids.

What to do if the lamp does not turn on?

Check the bulb (replace if faulty), the power supply and connections. If the problem persists, contact an electrician or Lucide customer service.

Does the warranty cover broken glass parts?

Glass parts are covered only within 14 days of purchase in case of manufacturing defects. Accidental damage is not covered by the warranty.

Can I use a dimmer with this lamp?

It depends on the bulb used. If you use a dimmable bulb, make sure the dimmer is compatible. The lamp itself does not contain a dimmer.

Where can I find spare parts for the Safiya 135250131?

Spare parts are available from the Lucide manufacturer or authorized dealers. Contact customer service for references.

What is the recommended minimum mounting height?

It is recommended to maintain a distance of at least 0.5 m between the lamp and any flammable object, and to install it at a sufficient height to avoid accidental contact.

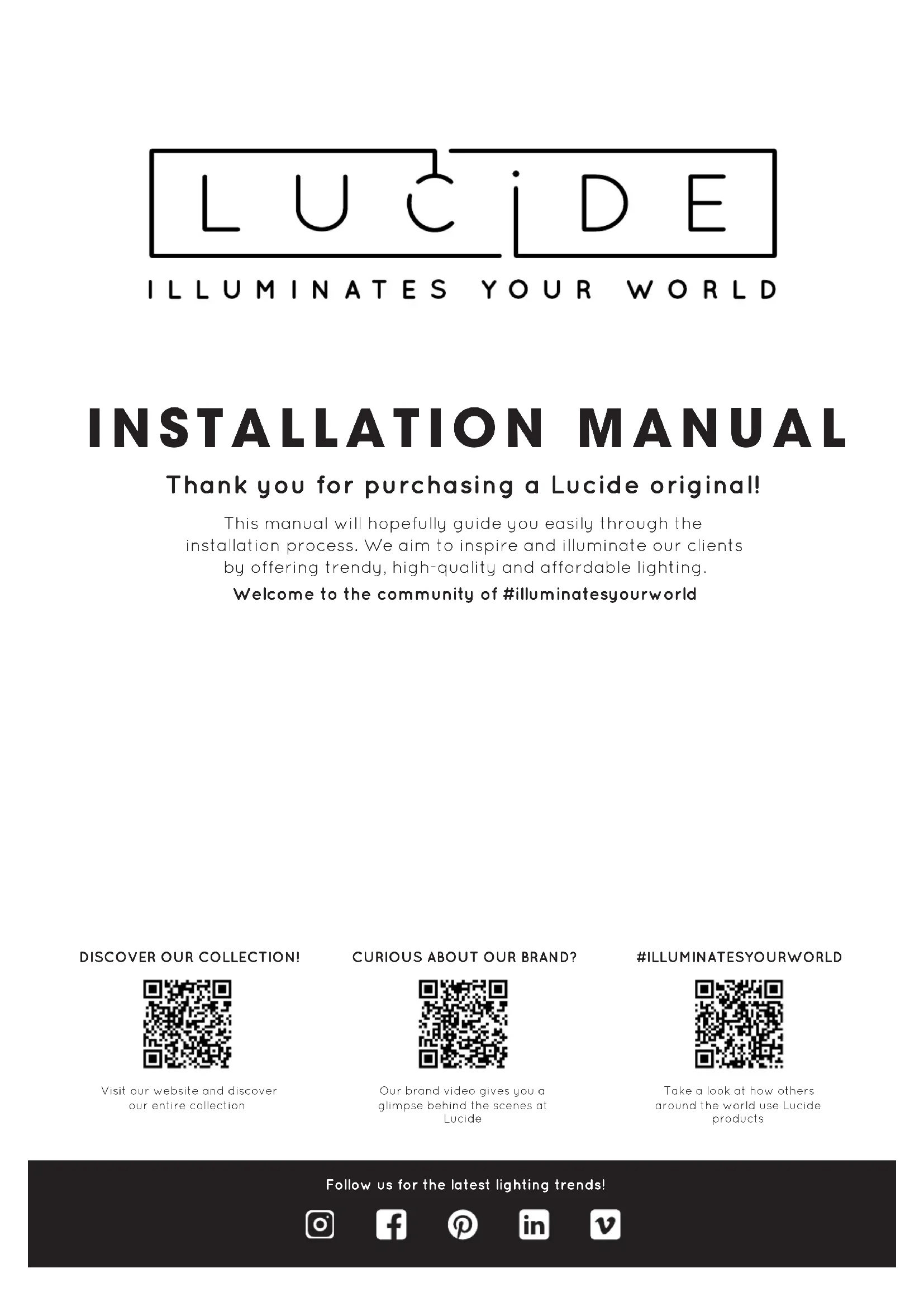

USER MANUAL Safiya 135250131 Lucide

Thank you for purchasing a Lucide original!

This manual will hopefully guide you easily through the installation process. We aim to inspire and illuminate our clients by offering trendy, high-quality and affordable lighting.

Welcome to the community of #illuminatesyourworld

DISCOVER OUR COLLECTION!

Visit our website and discover our entire collection

CURIOUS ABOUT OUR BRAND?

Our brand video gives you a glimpse behind the scenes at Lucide

ILLUMINATESYOURWORLD

Take a look at how others around the world use Lucide products

LUCiDE

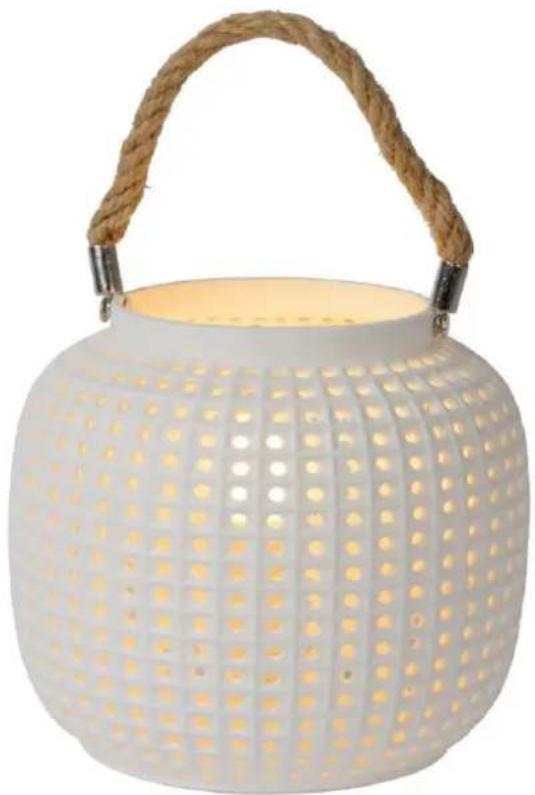

White ceramic lantern with perforated lattice and woven handle (no text or symbols)

Item number: 13525/01/31

EAN code: 5411212133939

SAFIYA

Simple illustration of a glowing light bulb with a screw base (no text or symbols)

RECOMMENDED LUCIDE LIGHT SOURCE

49022/04/67

Dimmable: Yes

Included: No

General

Dimensions LxW xH: 16,5cm x 16,5cm x 16,4cm

Main material: Porcelain

Color: White

Style: Cottage

Shape: Globe

Weight: 0,70 kg

Warranty: 2 Years

Specifications

Dimmable: No

Light direction: Around (Diffuse)

Adjustable in height: Not In Height Adjustable

Directional: Not Directional

Cable: Yes, Cable With Plug On Product

Cable length: 170 cm

Sensor: Without Sensor

Control: On/Off Switch - In The Cord

Power supply: Adapter/Power Grid

IP-Class: 20

Electric Class: 2

Number of light sources: 1

Lamp socket: E14

Wattage: 1 x 25W

Power requirements: 220-240V\~50Hz

SAFIYA

Item number: 13525/01/31

EAN code: 5411212133939

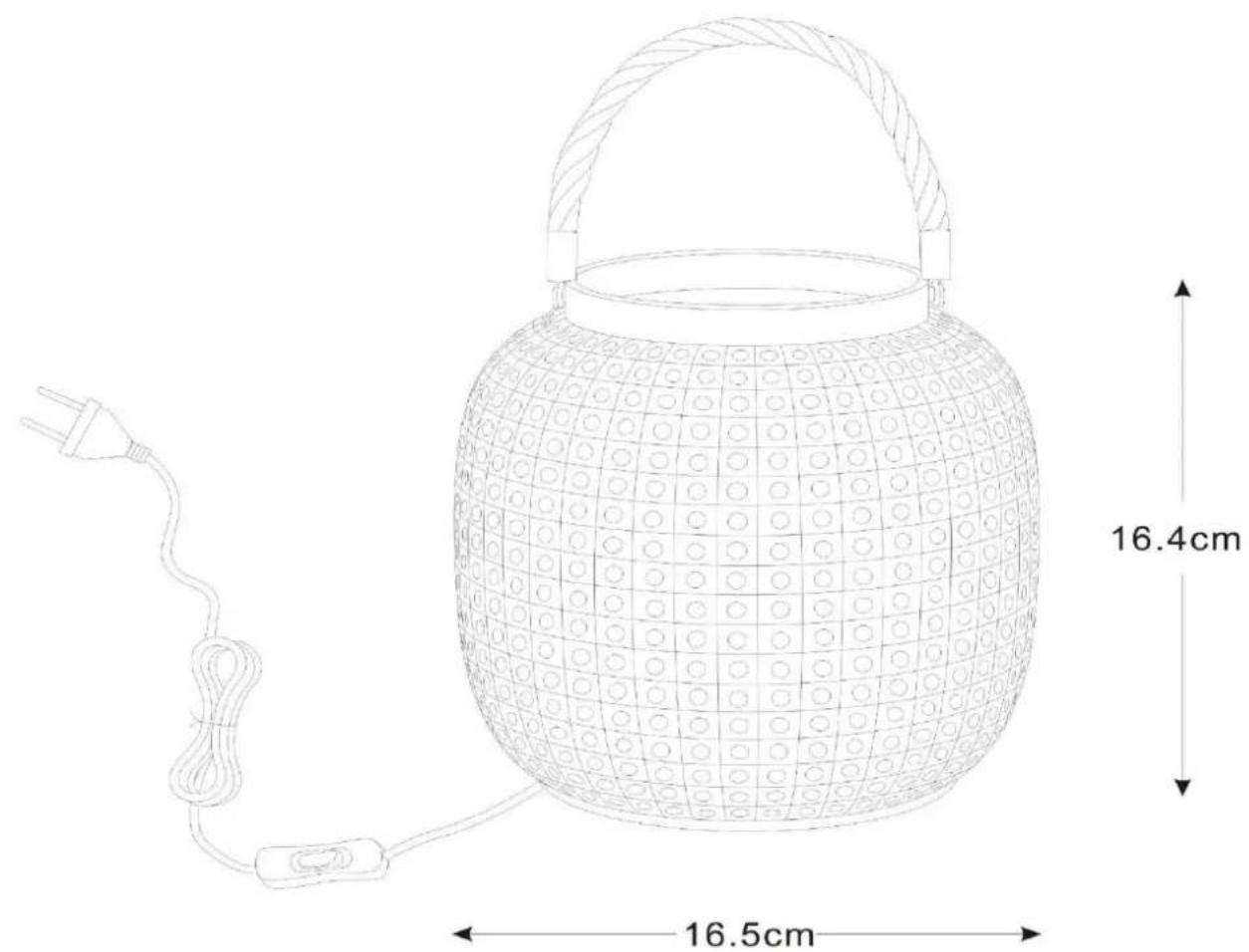

16.4cm 16.5cm

SAFIYA

Item number: 13525/01/31

EAN code: 5411212133939

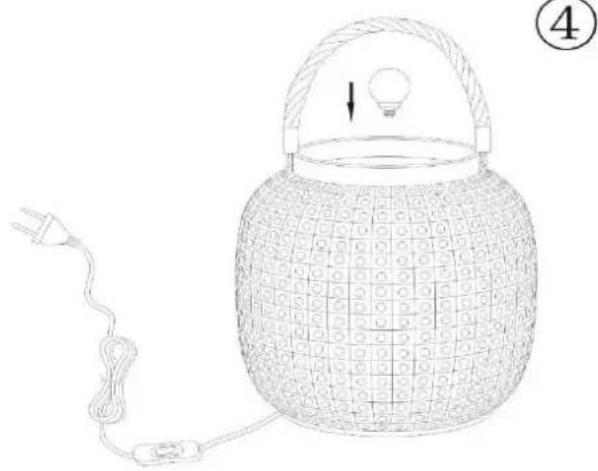

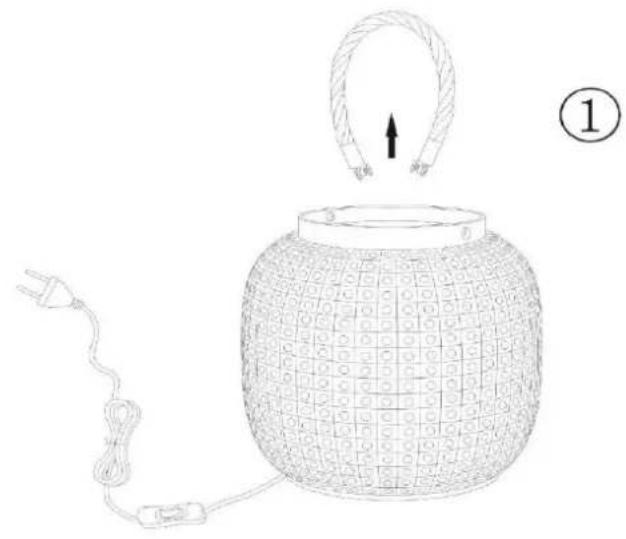

Line drawing of a lamp with a coiled cable and a hanging hook, no text or symbols present

Simple line drawing of a braided circular object with two side connectors and a numbered label (②) in the corner.

Line drawing of a helmet with a side tab and arrow indicator (no text or symbols)

Line drawing of a wireframe lamp with a bulb, power cord, and cable (no text or symbols)

IP20 0.5m

IP20 0.5m

Please read this notice carefully and keep it during the lifetime of this product. Follow the instructions for a safe and correct installation and functioning of the light fixture. The manufacturer does not accept any responsibility for damage caused by improper installation and service. Installation should always be done by a qualified electrician.

Always isolate the power before commencing installation, maintenance or repair.

In case of doubts, please contact a qualified electrician.

Please pay attention to locations where the item can be installed (indoor, outdoor, bathroom (for outdoor and bathroom installation, please see further). Indoor items cannot be used in humid places. Do not put the item in contact with water or any liquids or inflammable products. Always respect the minimal distance (indicated on the light) to inflammable products.

During installation, make sure that the cables will not be squeezed or damaged by sharp edges. If the external flexible cable is damaged, it needs to be replaced exclusively by the manufacturer, his service agent, or a qualified electrician.

This is to avoid all risks.

Because the temperature of the item and the bulbs can get very high, they must cool down before being touched. Always use the correct bulb (respect type and maximal wattage as indicated on the product).

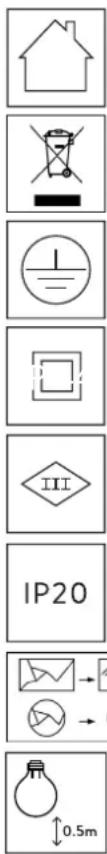

Explanation of the symbols which can appear on the fixture

Vertical sequence of icons and labels, including house, circuit, water level, square, diamond, IP20, email, and light bulb with 0.5m scale indicator.

This item is only suitable for indoor use, exclusive bathroom

(except if a higher IP degree permits that the item can be used in the bathroom).

Legislation requires that all electrical and electronic equipment must be collected for reuse and recycling. Electrical and electronic equipment marked with this symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

Class I: The item has an earth connection. The earth wire (green-yellow) needs to be connected to the earth connection (marked with this symbol).

Class II: The item is double insulated and must not be connected to the earth wire.

Class III: The item is only suitable for lower voltage supply and must not be connected to the earth wire.

IP 20: Protection against contact with a finger

If the protection glass is damaged or broken, it needs to be replaced immediately.

Please respect the minimum distance from the bulb to inflammable objects.

Sicherheitshinweise

Vertical sequence of icons and labels, including house, grid, water level, square, IP20 symbol, and light bulb with 0.5m scale indicator.

Vertical sequence of icons and labels including house, circuit symbol, water level, square, IP20 label, and light bulb with 0.5m scale indicator

Warranty declaration:

Lucide NV warrants that the products supplied will be free from defects in material and workmanship for a period of

2 years from the date of purchase by the end user, if the item is installed and maintained properly as mentioned in the user manual.

Exclusions for the warranty:

1. Broken glass parts of the fixture will only be replaced within 14 days after purchasing by the end user.

2. Normal wear and tear, discoloring as a result from normal use.

3. Damage caused by external causes like fire, water, wrong use/installation or maintenance of the product.

For warranty claims the customer needs to hand over defective fixture/part and the original purchase ticket.

Garantieverklaring:

Further explanations can be found on our website.
