USER MANUAL FK 701 GRAEF

EN Operating Instructions

FR Mode d'emploi

General safety instructions 20

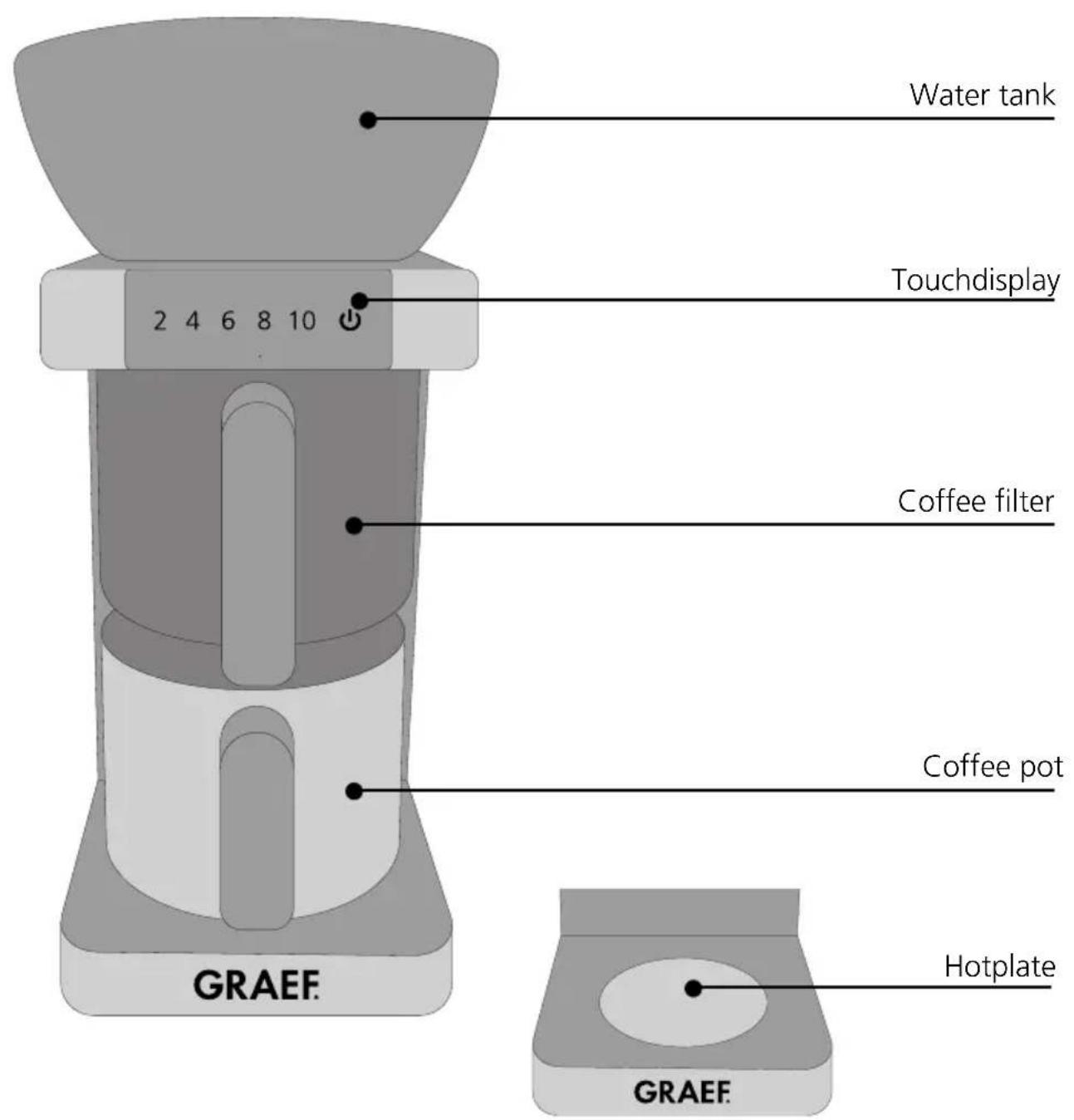

Product description 22
Preface 23
Information on these operating instructions 23
Warning messages 23
Danger caused by electric current 24
Intended use 24
Limitation of liability. 24
Unpacking 24
Disposal of the packaging 25
Requirements on the installation location 25
Electrical connection 25
Prior to first use 26
Coffee preparation and operation 26
Tank emptying 29
Dscaling reminder 29
Dscaling function 30
Removing the lid and aroma hopper 31
External cleaning 32
Security control 32
Technical data 32
After-sales service 32
Disposal of the unit 32
Two-year warranty 33
Accessories 33

DE
EN
FR
NL
IT

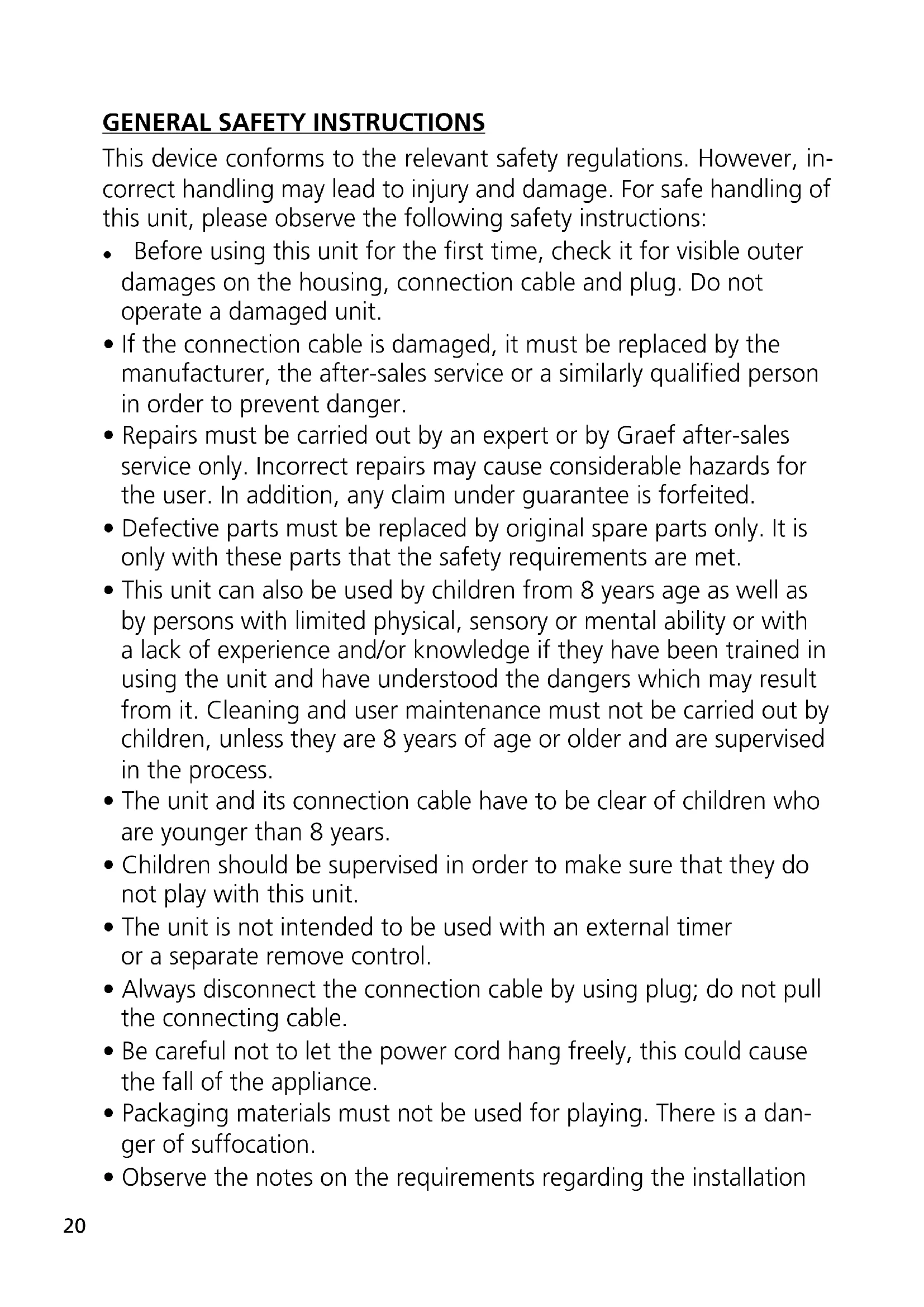

GENERAL SAFETY INSTRUCTIONS

This device conforms to the relevant safety regulations. However, incorrect handling may lead to injury and damage. For safe handling of this unit, please observe the following safety instructions:

• Before using this unit for the first time, check it for visible outer damages on the housing, connection cable and plug. Do not operate a damaged unit.
• If the connection cable is damaged, it must be replaced by the manufacturer, the after-sales service or a similarly qualified person in order to prevent danger.
• Repairs must be carried out by an expert or by Graef after-sales service only. Incorrect repairs may cause considerable hazards for the user. In addition, any claim under guarantee is forfeited.
• Defective parts must be replaced by original spare parts only. It is only with these parts that the safety requirements are met.
• This unit can also be used by children from 8 years age as well as by persons with limited physical, sensory or mental ability or with a lack of experience and/or knowledge if they have been trained in using the unit and have understood the dangers which may result from it. Cleaning and user maintenance must not be carried out by children, unless they are 8 years of age or older and are supervised in the process.
• The unit and its connection cable have to be clear of children who are younger than 8 years.
• Children should be supervised in order to make sure that they do not play with this unit.
• The unit is not intended to be used with an external timer or a separate remove control.
• Always disconnect the connection cable by using plug; do not pull the connecting cable.
• Be careful not to let the power cord hang freely, this could cause the fall of the appliance.
• Packaging materials must not be used for playing. There is a danger of suffocation.
• Observe the notes on the requirements regarding the installation

location and the electrical connection of the unit in order to avoid personal and material damages.

• Do not place the unit in a dishwasher, and do not hold under running water either.
• The surfaces become hot while using the unit. Also after that, they will keep being hot for some time.

• This appliance is intended for domestic and similar use, such as:

• Staff kitchens in shops and office
  In agricultural estates

• In hotels, motels and other residential areas
  In bed and breakfast boarding houses

Another or any exceeding use shall not be considered intended.

CAUTION

The appliance can cause dangers, if is not used as intended. Please therefore do the following:

• Use the unit exclusively as intended.
• Observe the procedures described in these operating instructions.

Claims of any kind caused by damage by unintended use shall be excluded. The risk shall be borne sole by the operator.

PREFACE

Dear Customer,

You have made a good choice by buying this filter coffee machine.

You have purchased a recognised quality product. We would like to thank you for buying this machine and wish you a lot of fun with your new Graef filter coffee machine.

INFORMATION ON THESE OPERATING INSTRUCTIONS

The operating instructions of the filter coffee machine (in the following referred to as unit) provides you with important information about its commissioning, security, the intended use and care of the unit.

The operating instructions shall have to be available at the unit at all times. The instructions have

to be read and applied by every person who deals with

initial operation,
- operation,
Troubleshooting and/or
- Cleaning

of the unit.

Store this operating instructions and pass them on to a possible subsequent owner. These operating instructions cannot take into consideration every conceivable use.

For further information or in case of problems which are not dealt with or not dealt with sufficiently in these instructions, please get in touch with Graef customer service or your specialist dealers.

WARNING MESSAGES

In these operating instructions, the following warning messages and signal words are used:

WARNING

This refers to a potentially dangerous situation. Failure to observe this warning may result in serious injury or even death.

CAUTION

This refers to a potentially dangerous situation. In case of non-observation of this warning message, material damage may occur.

IMPORTANT!

This refers to application tips and other especially important information.

WARNING

Mortal danger is caused by contact with energised cables or components! Please observe the following safety instructions in order to prevent an exposure to electric current:

• Do not use the unit if the mains cable or plug are damaged.
• In this case, you should let the Graef Customer Service install a new connection cable before using the appliance again. This may be done also by an authorised specialist.
• Do not open the housing under any circumstances. If live connections are touched or the electrical and mechanical construction are modified, there is the danger of electric shock.
• Never touch live parts. This can cause an electric shock and may cause even death.

INTENDED USE

This unit is not intended for commercial use. Use the unit only

in closed spaces only, and operate it with water only. In order to avoid potential dangers, use the unit for coffee preparation only. Any other type of use or application is not allowed. Use the coffee pot and the coffee filter only together with this filter coffee machine.

LIMITATION OF LIABILITY

All technical information, data and notes on the installation,

the operation and the care contained in these operating instructions correspond to the last status before printing, and are rendered under consideration of our previous experience and to the best of knowledge.

No claims may be derived from the particulars, illustrations and descriptions in these instructions.

The manufacturer shall not assume any liability for damage caused by:

non-observation of the instructions
- unintended use
- incorrect repairs
- technical modifications
use of unapproved spare parts

Translations shall be carried out to the best of knowledge. We shall not assume any liability for translation mistakes. The original German text only shall be binding.

UNPACKING

When unpacking the unit, proceed as follows:

Pull the unit out of the cardboard box.
- Remove the packaging parts.
- Remove any stickers on the unit (do not remove the type plate).

DISPOSAL OF THE PACKAGING

The packaging protects the unit against transport damage. The packaging materials are selected according to the environmental compatibility and disposal-related aspects and can therefore be recycled. The return of packaging into the material cycle saves raw material and reduces the waste volume. Dispose of the packaging material no longer needed at collection points for the "Green Dot" recycling system (in Germany).

IMPORTANT!

If possible, keep the original packaging during the guarantee period of the device in order to be able to properly pack and transport the device in the guarantee case.

REQUIREMENTS ON THE INSTALLATION LOCATION

For safe and fault free operation of the unit, the following requirements of the installation location have to be met:

• The unit has to be placed on a solid, flat, horizontal, and non-slipping surface with a sufficient weight-carrying capacity.
• Make sure that the unit cannot topple over.
• Choose the location in such a way that children cannot reach the hot surface of the unit or the supply lines.
• Do not place the appliance on hot surfaces, such as hotplates, or near them.
• Never use the appliance outdoors, and always keep it in a dry place.
• The unit is not designed for installation in a wall or a built-in cupboard.
• Do not set up the unit in a hot, wet or moist environment.
• The socket has to be easily accessible so that the power cable can be removed easily in case of emergency.

ELECTRICAL CONNECTION

For safe and fault-free operation of the unit, the following requirements have to be met during the electrical connection:

• Before connecting the unit, compare the connecting data (voltage and frequency) on the type plate with those of your energy network. These details must correspond so that no damage occurs to the unit. In case of doubt ask your trained electrician.

• The socket has to be protected at least by a 10 amps circuit breaker.

• Make sure that the power cable is not damaged and is not laid across hot surfaces or sharp edges.

• The connecting cable must not be stretched tightly.
• The electric safety of the unit is ensured only when it is connected to a socket with protective conductor installed correctly. Operation on a socket without protective conductor is forbidden. If in doubt, let the house installation checked by a trained electrician. The manufacturer shall not assume responsibility for damage which has been caused by absent or interrupted protective conductor.

PRIOR TO FIRST USE

Before initial use, after non-using the unit for a long time or after descending it, we recommend to carry out 2 brewing operations for approximately 4 cups as described in the following, but without coffee.

The minimum preparation quantity for coffee is 2 cups, the maximum one is 10 cups.

• Insert the plug into the socket.

The LED-indicator will briefly illuminate and then go out again.

The unit is not switched on yet.

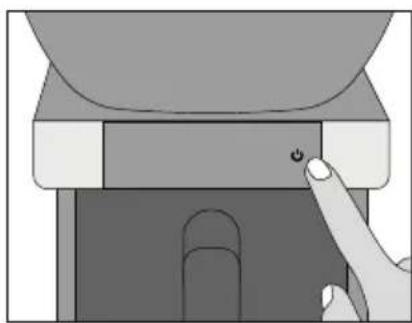

• Press the display on the touch display for 2 seconds.

• You will hear one beep. The unit is now switched on.

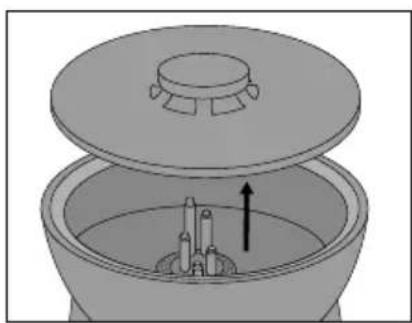

• Remove the lid.

IMPORTANT!

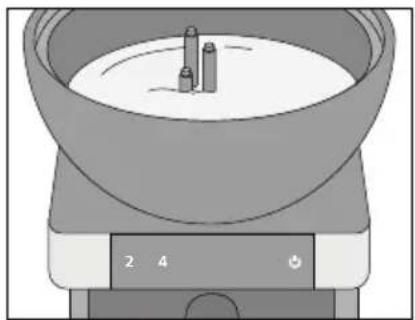

If there is still water in the water tank, the remaining water level will be displayed. If it is less than 2 cups, the 2 will flash.

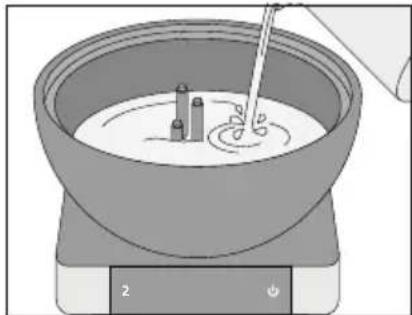

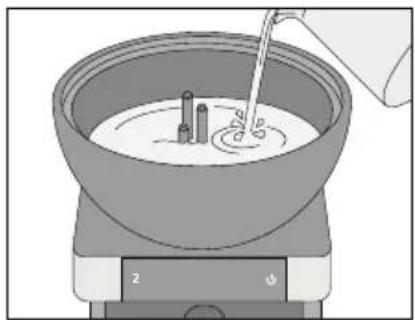

• Fill in the desired amount of water.

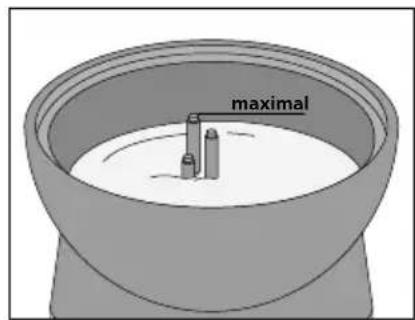

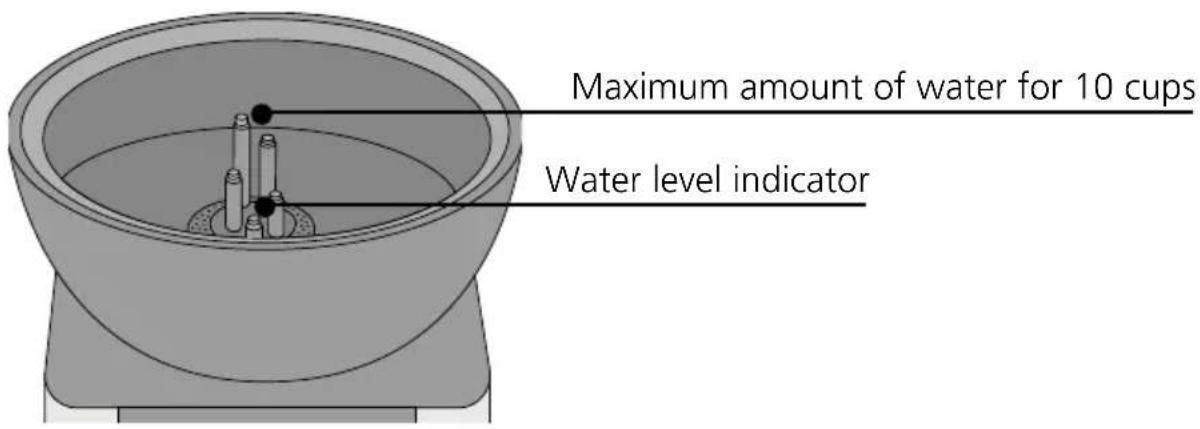

• Display of the maximum filling level / maximum water level.

IMPORTANT!

It is also possible to carefully pour water via the opening of the lid with a downward curvature. The water will then flow through the openings in the lid into the water tank.

IMPORTANT!

You can also fill in more water than for the desired amount of cups. It will be used only the amount of water which is required for the respective selection of cups.

• On the display, the number of possible cups will be shown that can be prepared.

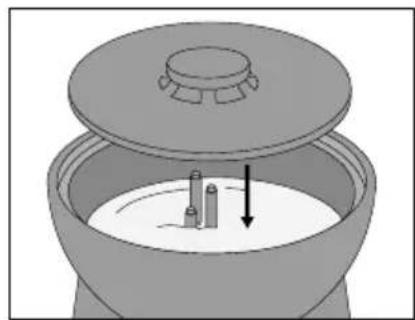

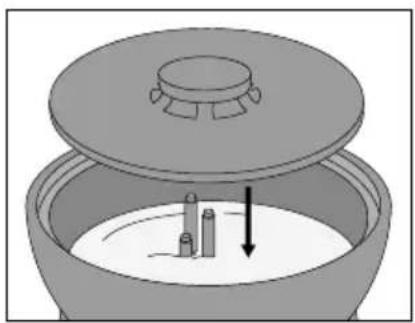

Put the lid back onto the water tank again.

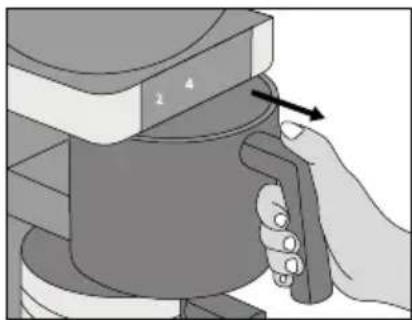

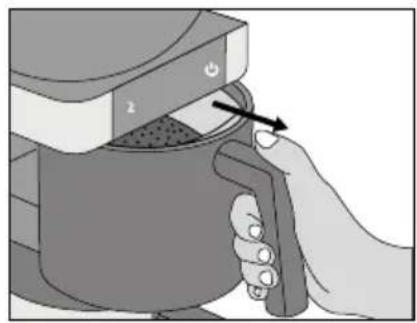

• Remove the coffee filter.

• Insert a size 4 paper filter.

• Fill in the desired amount of coffee grounds.

IMPORTANT!

Bore putting the paper filter in, moisten the filter briefly. It contains pores which will then open making it possible that more flavours get into the coffee.

IMPORTANT!

With regard to the amount of ground coffee, we recommend to use per cup one measuring spoon that is full to the brim. That would be about 7 g per cup. Depending on your personal taste, you can also take more or less ground coffee.

IMPORTANT!

Please check to see that the lid is always firmly on the filter jug.

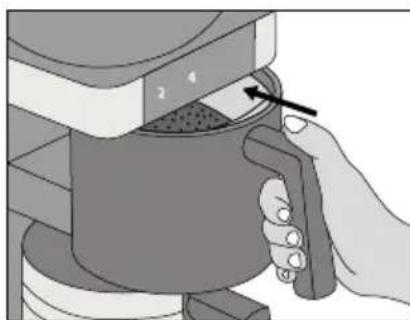

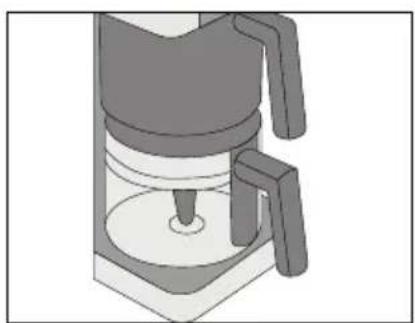

• Put the coffee filter back onto the guide again.

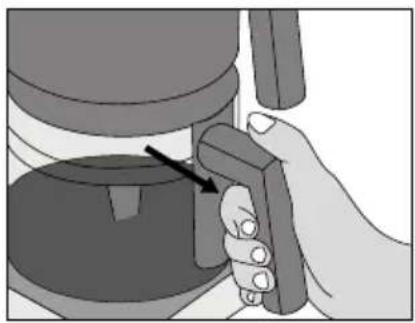

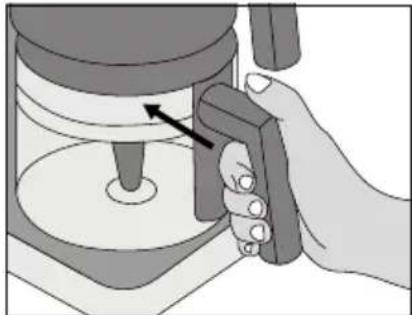

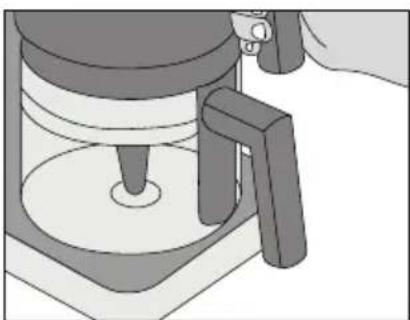

• Ensure that the coffee pot has been inserted.

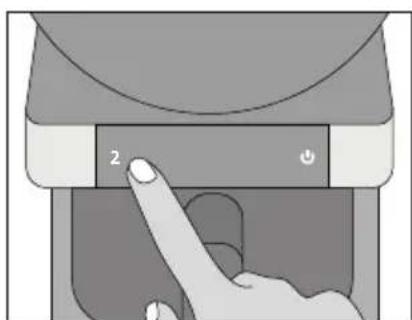

• Select the desire number of cups.

The brewing operation starts.

After the brewing operation has been finished, you will hear 3 beeps.

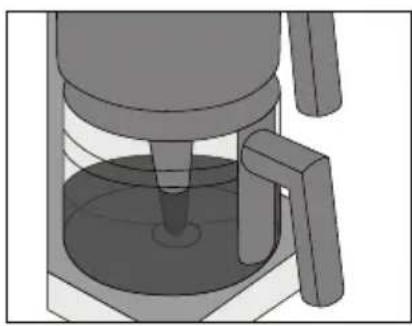

Wait for a moment until the coffee has flown through.

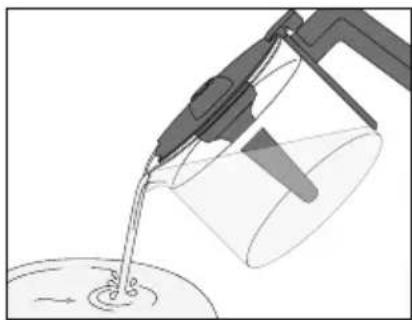

• Remove the coffee pot and pour the coffee into a cup.

• Immediately after the brewing operation, remove the paper filter together with the coffee grounds. Before you can start another brewing operation, you must remove the coffee filter once.

IMPORTANT!

If there is remaining quantity of water in the tank, this will be shown to you by indicator lights showing the corresponding number of cups. If there is less water than for 2 cups in the tank, there will only flash the 2 on the display.

TANK EMPTYING

In order to empty the tank, please touch the number of cups display 2, for about 5 seconds until it beeps twice.

Make sure that the empty coffee filter has been inserted and the coffee pot with lid stand on the hotplate.

DESCALING REMINDER

If you touch the number of cups display 2 - 10 after 60 cycles, the numbers from 2 to 10 will illuminate one by one. The process is repeated twice. The unit will indicate that it should be descaled.

After 70 cycles, the device must be descaled. The display 4 will flash fast; coffee cannot be prepared any longer.

DESCALING FUNCTION

If you regularly decalcify the unit, this will increase its service life. For decalcifying, exclusively use Graef descaling tablets which are matched to our units. You can obtain them from our online shop on haushalt.graef.de/service/shop/ under article number 145618 or from your specialist dealer.

IMPORTANT!

We accept no liability for missing or insufficient decalcification. In this case, the warranty will become null and void.

Put in water for 4 cups into the tank.

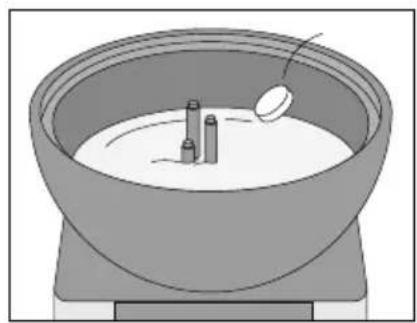

• Put one Graef descal-ing tablet (Article no. 145618) into the tank.

Wait a moment until the tablet has dissolved and put the lid back on again.

Make sure that the coffee filter is inserted and the coffee pot stands on the hotplate.

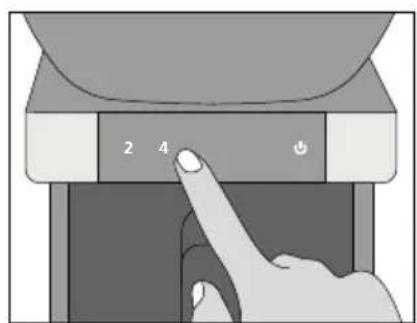

• Touch the display 4 for approx. 5 seconds.

• You will hear 2 beeps.

The unit will start the
descaling process.
The number of cups displays will illuminate one by one.

After approximately 15 minutes, the process will be finished with the unit switching off automatically.

• Pour away the descending mixture.

• Switch the unit back on again.

• Put the coffee pot back onto the hotplate again.

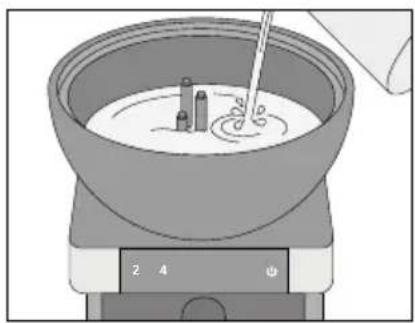

• Fill in water for 2 cups.

• Touch the display 2 for approx. 5 seconds.

The water flows through the unit and removes all residues of the descending mixture. After that, pour it away and thoroughly rinse the coffee filter and the coffee pot. Now you can make coffee as usual.

REMOVING THE LID AND AROMA HOPPER

The lid and aroma hopper can be removed for easier cleaning. After you have removed the lid, you can screw off the aroma hopper.

IMPORTANT!

The aroma hopper ensures optimal coffee circulation and perfect aroma after each brewing operation.

EXTERNAL CLEANING

IMPORTANT!

Watch the following safety instructions before starting to clean the unit:

• Switch the unit off before cleaning and pull the power cord from the electric socket.

• Let the unit cool down before cleaning.

• Use a soft and moist cloth to clean the outer surfaces of the unit. Use a mild detergent in case of heavy soiling.

• Do not use any aggressive or abrasive detergents and no solvents.

• Do not scratch off stubborn soiling with hard objects.
• Do not put the unit in the dishwasher and do not use it under running water.

SECURITY CONTROL

• If you can hear 2 continuous beeps, ensure that the coffee filter has been inserted.
• If you can hear 3 beeps, ensure that the coffee pot is on the hotplate. Without the coffee filter and the coffee pot not being inserted, it will not be possible to make coffee.

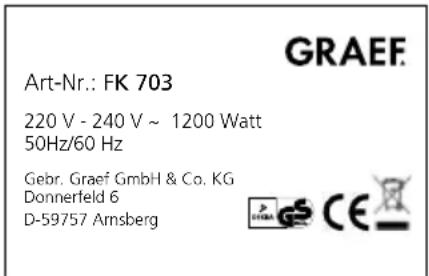

TECHNICAL DATA

AFTER-SALES SERVICE

If your Graef device is damaged, please contact your dealer or the Graef Customer Service at [phone] or write an e-mail to [e-mail]

DISPOSAL OF THE UNIT

At the end of its service life, this product cannot be disposed of in normal domestic waste. The symbol on the product and in the operating instructions point out to this fact. The materials are recyclable according to your marking. With the reuse, recycling or other forms of recycling of old equipment, you make an important contribution to the protection of our environment. Please ask your municipal ad

ministration for the disposal point.

TWO-YEAR WARRANTY

For this product, we assume 24 months manufacturer warranty for defects, which are due to production or material defects. Your legal warranty claim in conformity with Section 437 et seq. of the German Civil Code (BGB) shall remain unaffected by this regulation. The warranty does not cover damage caused by improper handling or use as well as defects which only slightly influence the function or the value of the appliance. Furthermore, we do not assume any liability for damages due to a lack of or insufficient descaling and care. In this case, the warranty will also become null and void. Use original Graef descaling and cleaning tablets only. Transport damages, as far as we are not responsible for it, are excluded from the warranty claims. A warranty claim is excluded for damage caused by a repair which has not been carried out by us or one of our agents. In case of justified complaints, we shall repair the defective product or replace it by a product without defects at our discretion.

ACCESSIONS

You can order further accessories in our Online shop via haushalt.graef.de/service/shop/ or through your specialist dealer.

Dscaling tablets, 6 pieces Article No. 145618

Glass pot Article No. 146538
