Vario led 246561031 - Lamp Lucide - Free user manual and instructions

Product Type	LED Lamp
Brand	Lucide
Model	Vario led 246561031
Category	Lamp
Power Supply	Mains 220-240 V AC
Protection Rating	IP20
Electrical Class	Class I (with earth connection)
Maximum Bulb Wattage	Integrated LED or compatible (see label)
Approximate Dimensions	30 cm x 10 cm x 10 cm
Approximate Weight	0.5 kg
Materials	Metal, glass
Usage	Indoor only
Installation	By a qualified electrician
Warranty	3 years (glass parts: 14 days)
Maintenance	Clean with a dry cloth
Repairability	Contact an authorized professional

Frequently Asked Questions - Vario led 246561031 Lucide

What type of bulb should I use for the Vario led lamp?

This lamp is equipped with an integrated LED module. Do not replace the bulb yourself; contact an authorized professional.

How to install the Lucide Vario led lamp?

Installation must be carried out by a qualified electrician. Always cut off the power supply before starting. Observe the minimum distances from flammable materials.

Can I use this lamp in a bathroom?

No, the IP20 protection rating indicates it is suitable only for dry indoor use, not in humid rooms like a bathroom.

How to clean the Vario led lamp?

Use a dry, soft cloth. Never use water or liquid products to avoid any electrical risk.

What to do if the glass cover is broken?

Replace it immediately. Do not use the lamp without the glass cover. Contact a professional for replacement.

Can the lamp be used outdoors?

No, this lamp is designed only for indoor use (IP20). It does not withstand weather conditions.

What is the warranty on the Lucide Vario led lamp?

The warranty is 3 years from the date of purchase, except for glass parts (14 days). Keep your receipt.

Why is my lamp flickering?

This may be due to an unstable electrical connection. Cut off the power supply and check the connections or call an electrician.

Can I replace the power cord?

No, the cord can only be replaced by the manufacturer or an authorized agent to avoid any risk. Contact customer service.

How to recycle the lamp at the end of its life?

Do not throw it in household waste. Take it to a municipal collection point for electrical and electronic equipment.

USER MANUAL Vario led 246561031 Lucide

Thank you for purchasing a Lucide original!

This manual will hopefully guide you easily through the installation process. We aim to inspire and illuminate our clients by offering trendy, high-quality and affordable lighting.

Welcome to the community of #illuminatesyourworld

DISCOVER OUR COLLECTION!

Visit our website and discover our entire collection

CURIOUS ABOUT OUR BRAND?

Our brand video gives you a glimpse behind the scenes at Lucide

ILLUMINATESYOURWORLD

Take a look at how others around the world use Lucide products

LUCiDE

Modern desk lamp with adjustable arm and base (no text or symbols visible)

Item number: 24656/10/31

EAN code: 5411212241825

VARIO LED

General

Dimensions LxW xH: 13,5cm x 60cm x 42cm

Height minimum: 35cm

Height maximum: 42cm

Main material: Metal

Color: White

Style: Modern

Shape: Other

Weight: 1,00 kg

Warranty: 3 Years

Specifications

Dimmable: Yes

Light direction: Downlight

Adjustable in height: Adjustable In Height

(After Installation)

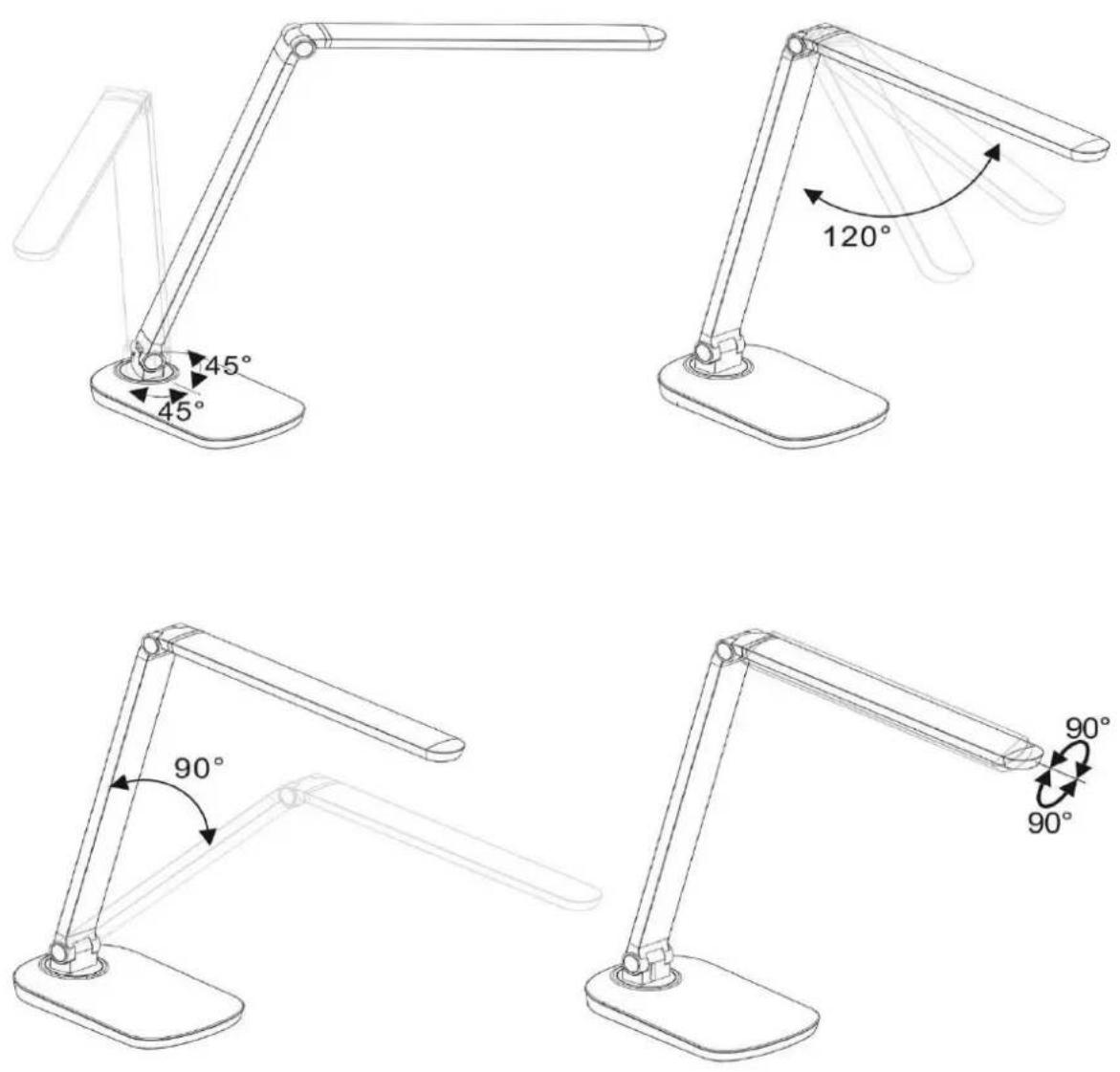

Directional: Rotatable & Tiltable (360 Degrees)

Cable: Yes, Cable With Plug On Product

Cable length: 150 cm

Sensor: Without Sensor

Control: Touch Dimmer - On The Product

Power supply: Adapter/Power Grid

IP-Class: 20

Electric Class: 2

Number of light sources: 1

Lamp socket: Integrated LED

Wattage: 1 x 8W

Power requirements: 220-240V\~50Hz

Lumen: 1 x 480 Lm

Colour temperature: 2700K

Beam angle (if directional): 100°

Color Rendering Index: 85

Expected lifetime: 40000h

VARIO LED

Item number: 24656/10/31

EAN code: 5411212241825

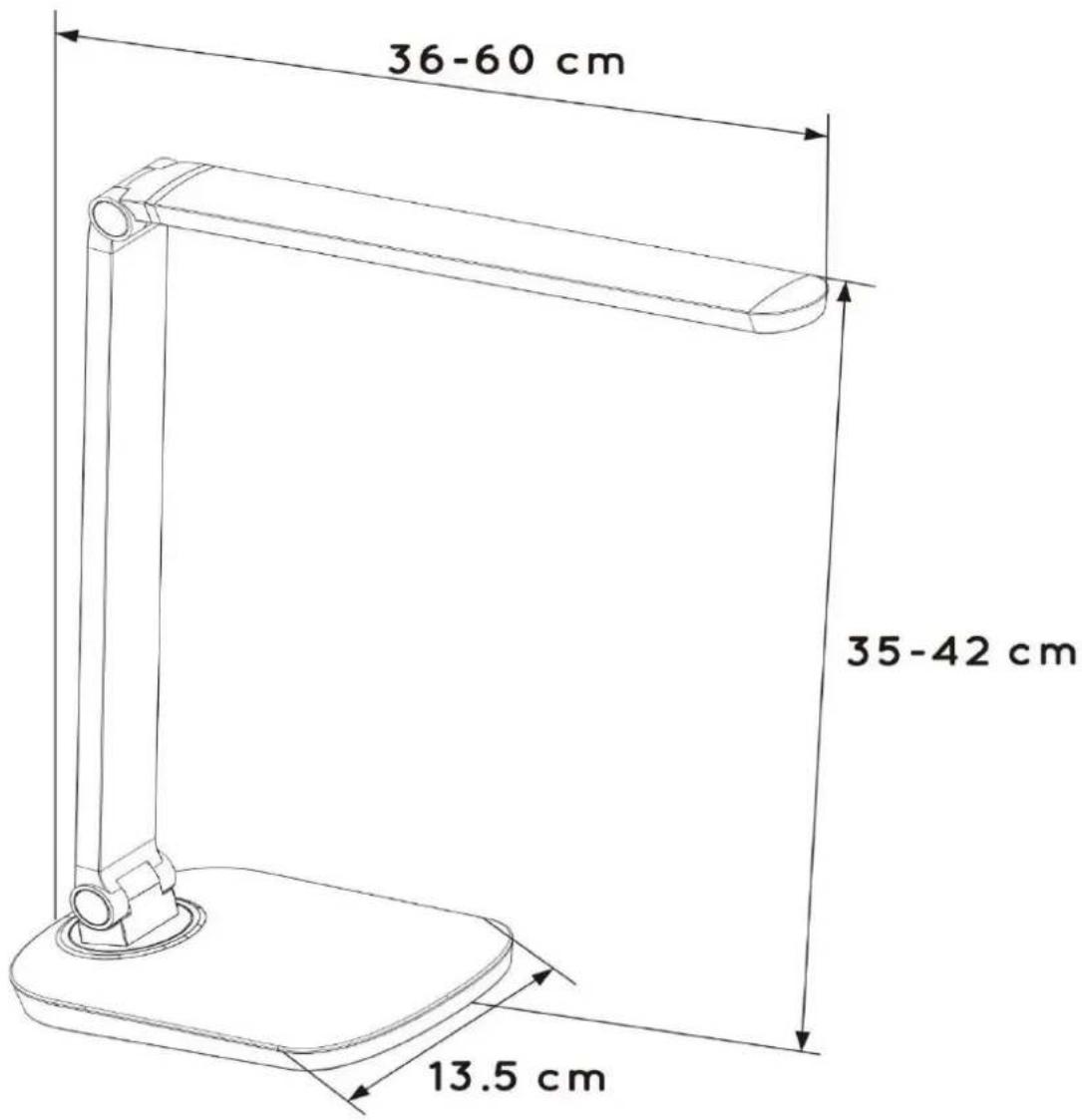

36-60 cm 35-42 cm 13.5 cm

LUCiDE

VARIO LED

Item number: 24656/10/31

EAN code: 5411212241825

Vertical sequence of icons and labels including house, water level, IP20 symbol, and light bulb with 0.5m scale indicator

IP20 0.5m

Please read this notice carefully and keep it during the lifetime of this product. Follow the instructions for a safe and correct installation and functioning of the light fixture. The manufacturer does not accept any responsibility for damage caused by improper installation and service. Installation should always be done by a qualified electrician.

Always isolate the power before commencing installation, maintenance or repair.

In case of doubts, please contact a qualified electrician.

Please pay attention to locations where the item can be installed (indoor, outdoor, bathroom (for outdoor and bathroom installation, please see further). Indoor items cannot be used in humid places. Do not put the item in contact with water or any liquids or inflammable products. Always respect the minimal distance (indicated on the light) to inflammable products.

During installation, make sure that the cables will not be squeezed or damaged by sharp edges. If the external flexible cable is damaged, it needs to be replaced exclusively by the manufacturer, his service agent, or a qualified electrician.

This is to avoid all risks.

Because the temperature of the item and the bulbs can get very high, they must cool down before being touched. Always use the correct bulb (respect type and maximal wattage as indicated on the product).

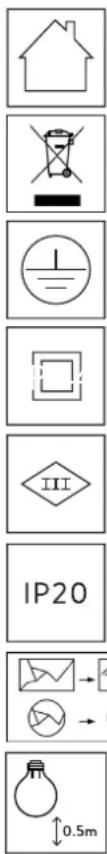

Explanation of the symbols which can appear on the fixture

Vertical sequence of icons and labels, including house, circuit, water level, square, diamond, IP20, email, and light bulb with 0.5m scale indicator.

This item is only suitable for indoor use, exclusive bathroom

(except if a higher IP degree permits that the item can be used in the bathroom).

Legislation requires that all electrical and electronic equipment must be collected for reuse and recycling. Electrical and electronic equipment marked with this symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

Class I: The item has an earth connection. The earth wire (green-yellow) needs to be connected to the earth connection (marked with this symbol).

Class II: The item is double insulated and must not be connected to the earth wire.

Class III: The item is only suitable for lower voltage supply and must not be connected to the earth wire.

IP 20: Protection against contact with a finger

If the protection glass is damaged or broken, it needs to be replaced immediately.

Please respect the minimum distance from the bulb to inflammable objects.

Sicherheitshinweise

Vertical sequence of icons and labels, including house, circuit, water level, square, IP20 symbol, and light bulb with 0.5m scale indicator.

Vertical sequence of icons and labels including house, circuit symbol, water level, square, IP20 label, and light bulb with 0.5m scale indicator

Warranty declaration:

Lucide NV warrants that the products supplied will be free from defects in material and workmanship for a period of 3 years from the date of purchase by the end user, if the item is installed and maintained properly as mentioned in the user manual.

Exclusions for the warranty:

1. Broken glass parts of the fixture will only be replaced within 14 days after purchasing by the end user.

2. Normal wear and tear, discoloring as a result from normal use.

3. Damage caused by external causes like fire, water, wrong use/ installation or maintenance of the product.

For warranty claims the customer needs to hand over defective fixture/part and the original purchase ticket.

Garantieverklaring:

Further explanations can be found on our website.
