Turbin 265000536 - Lamp Lucide - Free user manual and instructions

Product type	Indoor lamp
Brand	Lucide
Model	Turbin 265000536
Use	Indoor (dry rooms)
Protection rating	IP20
Electrical class	Class I (with earth connection)
Supply voltage	220-240 V ~ 50 Hz
Compatible bulb	Respect the type and max power indicated on the product
Warranty	3 years (excluding glass parts, see conditions)
Maintenance and cleaning	Unplug before cleaning, use a soft dry cloth
Safety	Installation by a qualified electrician, respect safety distances
Repairability	Defective parts to be replaced by an authorized professional
Recycling	Do not dispose of with household waste, take to WEEE collection point
Main functions	Decorative lighting

Frequently Asked Questions - Turbin 265000536 Lucide

How to install the Turbin 265000536 lamp?

Installation must be carried out by a qualified person in accordance with current electrical regulations. Always isolate the power supply before starting. Connect the wires respecting color codes (green/yellow for earth).

Can I use this lamp in a bathroom?

No, this lamp has a protection rating of IP20, meaning it does not protect against moisture. It is not suitable for a bathroom or any humid environment.

What type of bulb to use with the Turbin lamp?

Use only a bulb that complies with the indications on the product: respect the type and maximum power indicated. Do not exceed the recommended power.

How to clean the lamp?

Before any cleaning, disconnect the power supply. Use a soft dry cloth. Never use liquid or abrasive products.

What to do if the protective glass is broken?

If the protective glass is damaged or broken, it must be replaced immediately. Call a qualified professional to carry out the replacement.

What is the warranty period for this lamp?

Lucide offers a warranty of 3 years from the date of purchase by the end user, covering material and workmanship defects. Broken glass parts are only covered within 14 days of purchase.

Can I use a dimmer with this lamp?

The manual does not specify compatibility with a dimmer. If you wish to use a dimmer, verify that the bulb and lamp are compatible, and consult a qualified electrician.

What does the IP20 symbol mean?

The IP20 rating means the lamp is protected against solid objects larger than 12.5 mm (like a finger), but offers no protection against water. Indoor use only.

Do I need to connect the earth wire?

Yes, this lamp is Class I: it has an earth connection. The green/yellow wire must be connected to an appropriate earth terminal to ensure safety.

How to recycle my lamp at end of life?

Do not throw the lamp away with household waste. In accordance with legislation, take it to a municipal collection point for waste electrical and electronic equipment (WEEE).

USER MANUAL Turbin 265000536 Lucide

Thank you for purchasing a Lucide original!

This manual will hopefully guide you easily through the installation process. We aim to inspire and illuminate our clients by offering trendy, high-quality and affordable lighting.

Welcome to the community of #illuminatesyourworld

DISCOVER OUR COLLECTION!

Visit our website and discover our entire collection

CURIOUS ABOUT OUR BRAND?

Our brand video gives you a glimpse behind the scenes at Lucide

ILLUMINATESYOURWORLD

Take a look at how others around the world use Lucide products

LUCiDE

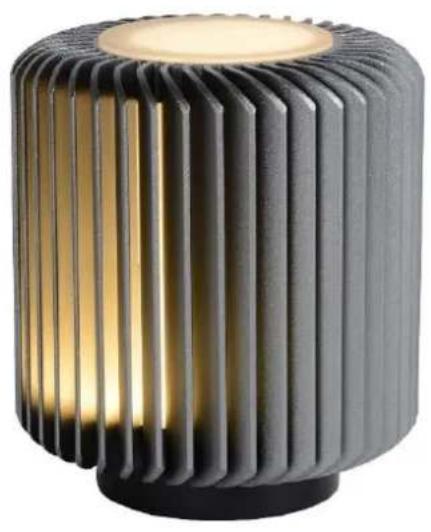

Close-up of a dark, ribbed cylindrical object with a light central body and golden rim, resembling a minimalist lamp or decorative item (no text or symbols visible)

Item number: 26500/05/36

EAN code: 5411212262660

TURBIN

General

Dimensions LxW xH: 10,6cm x 10,6cm x 13,7cm

Main material: Aluminum

Color: Grey

Style: Modern

Shape: Cylinder

Weight: 0,80kg

Warranty: 3 Years

Specifications

Dimmable: No

Light direction: Around (Diffuse)

Adjustable in height: Not In Height Adjustable

Directional: Not Directional

Cable: Yes, Cable With Plug On Product

Cable length: 150 cm

Sensor: Without Sensor

Control: On/Off Switch - In The Cord

Power supply: Adapter/Power Grid

IP-Class: 20

Electric Class: 2

Number of light sources: 1

Lamp socket: Integrated LED

Wattage: 1 x 5W

Power requirements: 220-240V\~50Hz

Lumen: 1 x 400 Lm

Colour temperature: 3000K

Color Rendering Index: 80

Expected lifetime: 30000h

TURBIN

Item number: 26500/05/36

EAN code: 5411212262660

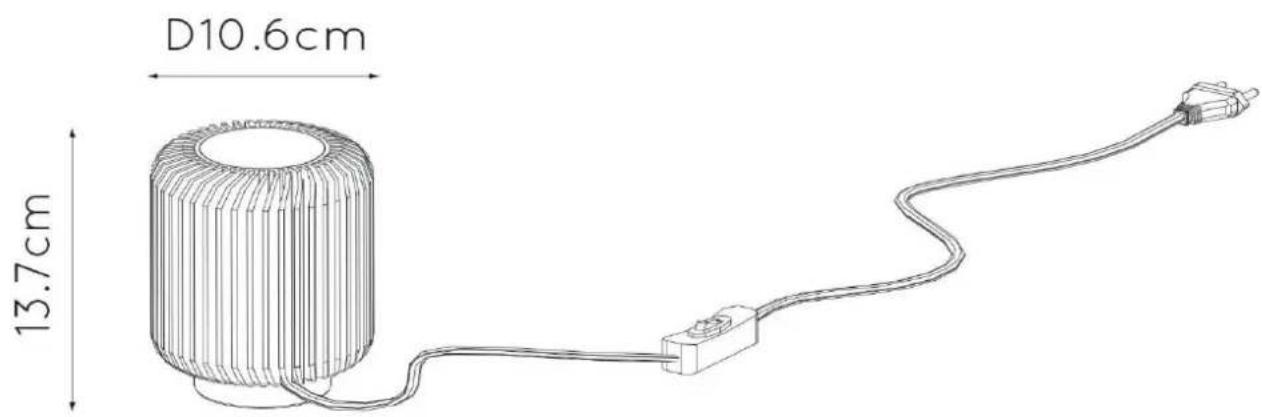

D10.6cm 13.7cm

TURBIN

Item number: 26500/05/36

EAN code: 5411212262660

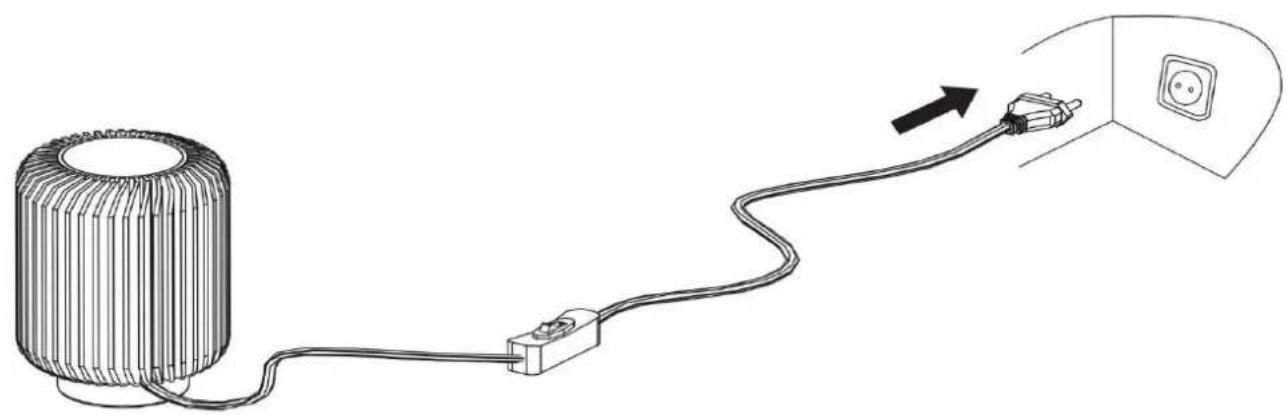

Diagram of a motor connected to a wall-mounted power plug, showing cable routing and outlet placement (no text or symbols)

IP20 0.5m

IP20 0.5m

Please read this notice carefully and keep it during the lifetime of this product. Follow the instructions for a safe and correct installation and functioning of the light fixture. The manufacturer does not accept any responsibility for damage caused by improper installation and service. Installation should always be done by a qualified electrician.

Always isolate the power before commencing installation, maintenance or repair.

In case of doubts, please contact a qualified electrician.

Please pay attention to locations where the item can be installed (indoor, outdoor, bathroom (for outdoor and bathroom installation, please see further). Indoor items cannot be used in humid places. Do not put the item in contact with water or any liquids or inflammable products. Always respect the minimal distance (indicated on the light) to inflammable products.

During installation, make sure that the cables will not be squeezed or damaged by sharp edges. If the external flexible cable is damaged, it needs to be replaced exclusively by the manufacturer, his service agent, or a qualified electrician.

This is to avoid all risks.

Because the temperature of the item and the bulbs can get very high, they must cool down before being touched. Always use the correct bulb (respect type and maximal wattage as indicated on the product).

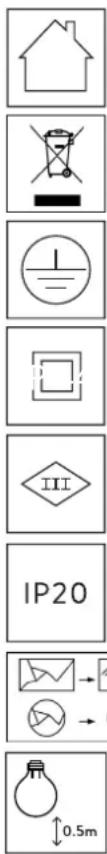

Explanation of the symbols which can appear on the fixture

Vertical sequence of icons and labels, including house, circuit, water level, square, diamond, IP20, email, and light bulb with 0.5m scale indicator.

This item is only suitable for indoor use, exclusive bathroom

(except if a higher IP degree permits that the item can be used in the bathroom).

Legislation requires that all electrical and electronic equipment must be collected for reuse and recycling. Electrical and electronic equipment marked with this symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

Class I: The item has an earth connection. The earth wire (green-yellow) needs to be connected to the earth connection (marked with this symbol).

Class II: The item is double insulated and must not be connected to the earth wire.

Class III: The item is only suitable for lower voltage supply and must not be connected to the earth wire.

IP 20: Protection against contact with a finger

If the protection glass is damaged or broken, it needs to be replaced immediately.

Please respect the minimum distance from the bulb to inflammable objects.

Sicherheitshinweise

Vertical sequence of icons and labels, including house, circuit, water level, square, IP20 symbol, and light bulb with 0.5m scale indicator.

Vertical sequence of icons and labels including house, circuit, water level, square, IP20 symbol, and directional arrows with distance annotation

Warranty declaration:

Lucide NV warrants that the products supplied will be free from defects in material and workmanship for a period of 3 years from the date of purchase by the end user, if the item is installed and maintained properly as mentioned in the user manual.

Exclusions for the warranty:

1. Broken glass parts of the fixture will only be replaced within 14 days after purchasing by the end user.

2. Normal wear and tear, discoloring as a result from normal use.

3. Damage caused by external causes like fire, water, wrong use/ installation or maintenance of the product.

For warranty claims the customer needs to hand over defective fixture/part and the original purchase ticket.

Garantieverklaring:

Further explanations can be found on our website.
