USER MANUAL RDCM 45 MIN ROSIERES

Dear Customer: Before going any further, we want to thank you for preferring our product. We are sure that this modern, functional and practical microwave oven, manufactured with top quality materials, will fully meet your expectations. We ask you to read the instructions in this booklet very carefully as this will allow you to get the best results from using your microwave oven.

KEEP THE DOCUMENTATION OF THIS

Always keep the instruction manual handy. If you lend the microwave oven to someone else give them the manual as well! Environmental protection Disposal of the packaging The packaging bears the Green Point mark. Dispose of all the packaging materials such as cardboard, expanded polystyrene and plastic wrapping in the appropriate bins. In this way you can be sure that the packaging materials will be re-used. Disposal of equipment no longer used According to European Directive 2002/96/EC on the management of waste electrical and electronic equipment (WEEE), home electrical appliances should not be put into the normal systems for disposal of solid urban waste. Outdated appliances should be collected separately to optimise component material recovery and re-cycling rates and to prevent potential harm to human health and the environment. The symbol of a rubbish container superimposed by a diagonal cross should be put on all such products to remind people of their obligation to have such items collected separately. Consumers should contact their local authorities or point of sale and request information on the appropriate places to leave their old home electrical appliances. Before disposing of your appliance, render it non- usable by pulling out the power cable, cutting this and disposing of it.34

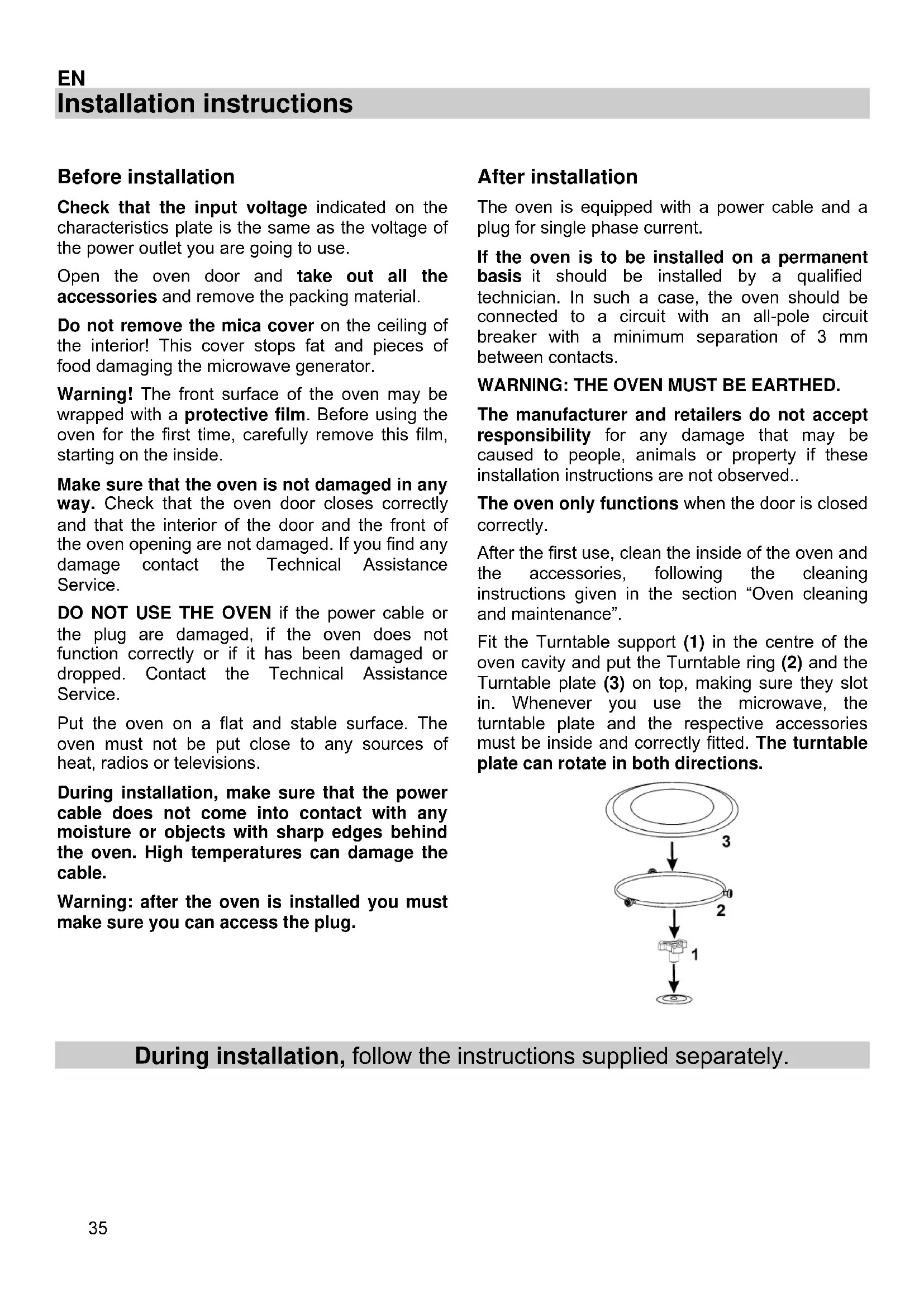

Installation instructions Before installation Check that the input voltage indicated on the characteristics plate is the same as the voltage of the power outlet you are going to use. Open the oven door and take out all the accessories and remove the packing material. Do not remove the mica cover on the ceiling of the interior! This cover stops fat and pieces of food damaging the microwave generator. Warning! The front surface of the oven may be wrapped with a protective film. Before using the oven for the first time, carefully remove this film, starting on the inside. Make sure that the oven is not damaged in any way. Check that the oven door closes correctly and that the interior of the door and the front of the oven opening are not damaged. If you find any damage contact the Technical Assistance Service. DO NOT USE THE OVEN if the power cable or the plug are damaged, if the oven does not function correctly or if it has been damaged or dropped. Contact the Technical Assistance Service. Put the oven on a flat and stable surface. The oven must not be put close to any sources of heat, radios or televisions. During installation, make sure that the power cable does not come into contact with any moisture or objects with sharp edges behind the oven. High temperatures can damage the cable.

Warning: after the oven is installed you must

make sure you can access the plug. After installation The oven is equipped with a power cable and a plug for single phase current. If the oven is to be installed on a permanent basis it should be installed by a qualified technician. In such a case, the oven should be connected to a circuit with an all-pole circuit breaker with a minimum separation of 3 mm between contacts.

WARNING: THE OVEN MUST BE EARTHED.

The manufacturer and retailers do not accept responsibility for any damage that may be caused to people, animals or property if these installation instructions are not observed.. The oven only functions when the door is closed correctly. After the first use, clean the inside of the oven and the accessories, following the cleaning instructions given in the section “Oven cleaning and maintenance”. Fit the Turntable support (1) in the centre of the oven cavity and put the Turntable ring (2) and the Turntable plate (3) on top, making sure they slot in. Whenever you use the microwave, the turntable plate and the respective accessories must be inside and correctly fitted. The turntable plate can rotate in both directions.

During installation, follow the instructions supplied separately.36

• Warning! Never leave the oven unwatched, especially when using paper, plastic or other combustible materials. These materials can char and may fire. FIRE RISK!

• Warning! If you see smoke or fire, keep the door closed in order to smother the flames. Switch off the oven and take the plug out of the socket or cut off the oven power supply.

• Warning! Do not heat pure alcohol or alcoholic drinks in the microwave. FIRE RISK!

• Warning! Do not heat liquids or other foods in closed containers since these may explode readily.

• Warning! This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

• Warning! If the oven has a combined function mode (microwave with other means of heating), children should not be allowed to use the oven without adult supervision on account of the high temperatures generated.

• Warning! The oven cannot be used if: - The door is not closed correctly; - The door hinges are damaged; - The surfaces of the contact between the door and the oven front are damaged; - The door window glass is damaged; - There is frequent electrical arcing inside the oven even though there is no metal object inside.

• The oven can only be used again after it has been repaired by a Technical Assistance Service technician.

• This appliance is not intended for use by young children or infirm persons without supervision.

• Young children should be supervised to ensure that they do not play with the appliance.

• During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.

• Warning: Accessible parts may become hot during use. Young children should be kept away.

• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass. Beware!

• Never heat baby foods or drinks in bottles or jars with the teats or lids on them. After heating the food mix or shake well so that the heat is spread evenly. Check the food temperature before feeding this to the child. DANGER OF BURNING!

• To avoid food overheating or burning it is very important not to select long time periods or power levels that are too high when heating small quantities of food. For example, a bread roll can burn after 3 minutes if the power selected is too high.

• For toasting, use just the grilling function and watch the oven all the time. It you use a combined function to toast bread it will catch fire in a very short time.

• Make sure you never catch the power cables of other electrical appliances in the hot door or the oven. The cable insulation may melt. Danger of short-circuiting! Take care when heating liquids! When liquids (water, coffee, tea, milk, etc.) are nearly at boiling point inside the oven and are taken out suddenly, they may spurt out of their containers. DANGER OF INJURIES AND BURNS! To avoid that type of situation when heating liquids, put a teaspoon or glass rod inside the container.37

Microwave safety This oven is exclusively for domestic use! Use the oven only for preparing meals. Avoid damaging the oven or other dangerous situations by following these instructions:

• Do not switch on the oven without the turntable support, the turntable ring and the respective plate being in place.

• Never switch on the microwave when it is empty. If there is no food inside there may be an electrical overcharge and the oven could be damaged. RISK OF DAMAGE!

• For carrying out oven programming tests put a glass of water inside the oven. The water will absorb the microwaves and the oven will not be damaged.

• Do not cover or obstruct the ventilation openings.

• Use only dishes suitable for microwaves. Before using dishes and containers in the microwave, check that these are suitable (see the section on types of dishes).

• Never remove the mica cover on the ceiling of the oven interior! This cover stops fat and pieces of food damaging the microwave generator.

• Do not keep any inflammable object inside the oven as it may burn if the oven is switched on.

• Do not use the oven as a pantry.

• Eggs with their shells and whole boiled eggs must not be heated in microwave ovens because they may explode.

• Do not use the oven for frying as it is impossible to control the temperature of oil heated by microwaves.

• To avoid being burnt, always use oven gloves for handling dishes and containers and touching the oven.

• Do not lean or sit on the open oven door. This may damage the oven, especially in the hinge zone. The door can bear a maximum weight of 8 kg.

• The turntable and the grills can bear a maximum load of 8 kg. To avoid damaging the oven, do not exceed this load. Cleaning:

• Warning! Your microwave oven must be cleaned regularly. All food remains must be removed (see section on Oven Cleaning). If the microwave oven is not kept clean its surface may deteriorate and this may shorten the oven’s working life and could even result in a dangerous situation.

• The door contact surfaces (the front of the cavity and the inside part of the doors) must be kept very clean in order to ensure the oven functions correctly.

• Please follow the instructions regarding cleaning in the section “Oven Cleaning and Maintenance”. Repairs:

• Warning – Microwaves! The outer protection of the oven must not be removed. It is dangerous for anyone not authorised by the manufacturer to carry out any kind of repair or maintenance work.

• If the power cable is damaged it should be substituted by the manufacturer, authorised agents or technicians qualified for this task in order to avoid dangerous situations. Furthermore, special tools are required for this task.

• Repair and maintenance work, especially of current carrying parts, can only be carried out by technicians authorised by the manufacturer.38

The advantages of microwaves In conventional ovens, heat radiated by electrical elements or gas burners slowly penetrates the food from outside to inside. On account of this there is a major amount of energy is wasted heating the air, the oven components and the food containers. In a microwave oven, heat is generated by the food itself and the heat travels from inside to outside. No heat is lost to the air, the walls of the oven cavity or the dishes and containers (if these are suitable for use in microwave oven), in other words, only the food is heated. Microwave ovens have the following advantages:

1. Shorter cooking times; in general these are

up to 3/4 less than the time required for conventional cooking.

2. Ultra-fast food defrosting, thus reducing the

danger of bacterial development.

4. Conservation of the nutritional value of foods

due to the shorter cooking times.

How a microwave oven works In a microwave oven there is a high tension valve called a magnetron which converts electrical energy into microwave energy. These electromagnetic waves are channelled to the interior of the oven through a wave guide and distributed by a metallic spreader or through a turntable. Inside the oven the microwaves propagate in all directions and are reflected by the metal walls, uniformly penetrating the food. Why food heats up Most foods contain water and water molecules vibrate when subjected to microwaves. The friction between molecules produces heat which raises the temperature of the food, de- freezing it, cooking it or keeping it hot. Since the heat arises inside the food:

• This can be cooked with little or no liquid or fats/oils;

• De-freezing, heating or cooking in a microwave oven is quicker than in a conventional oven;

• The vitamins, minerals and nutritional substances in the food are conserved;

• The natural colour and aroma of the food are unchanged. Microwaves pass through china, glass, cardboard or plastic but do not go through metal. For this reason, metal containers or ones with metal parts must not be used in a microwave oven. Microwaves are reflected by metal... ... but go through glass and china... ... and are absorbed by foods.39

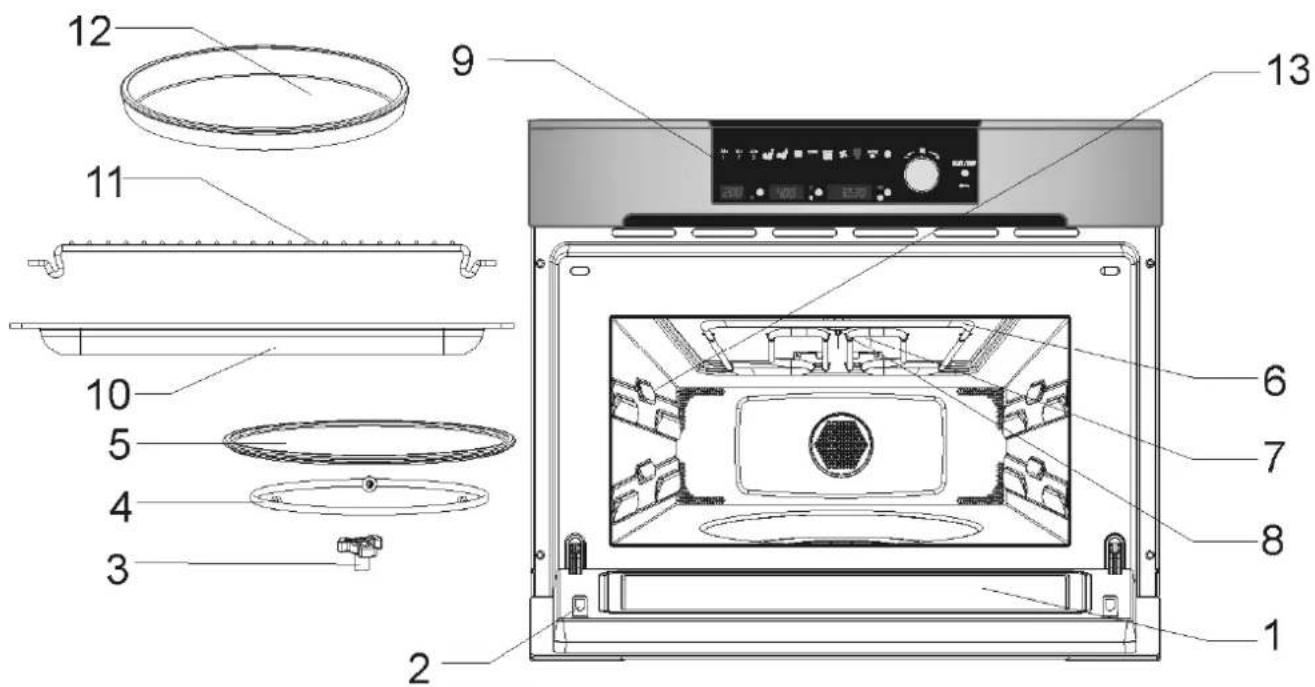

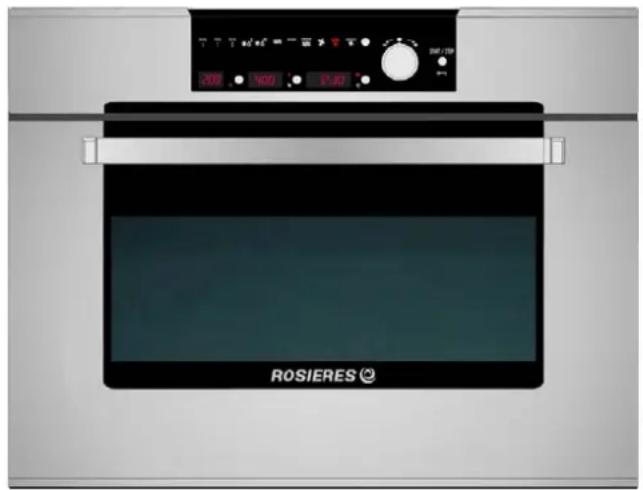

Description of your oven

1. – Door window glass 7. – Mica cover

2. – Catches 8. – Lamp bulb

3. – Turntable support 9. – Control panel

13. – Lateral supports

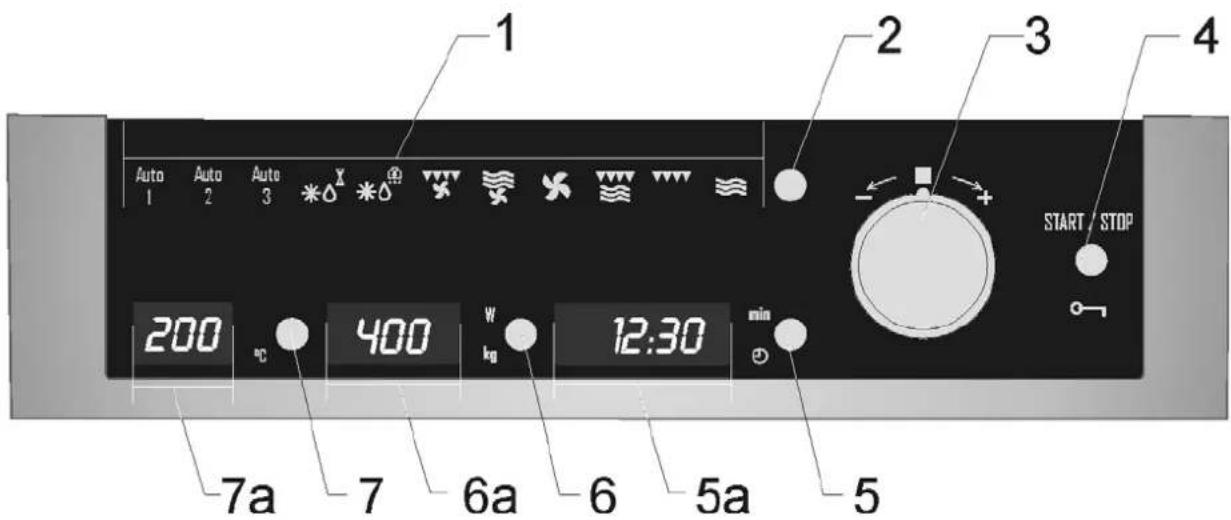

2. – Function selection key 6. – Weight/Power Selection key

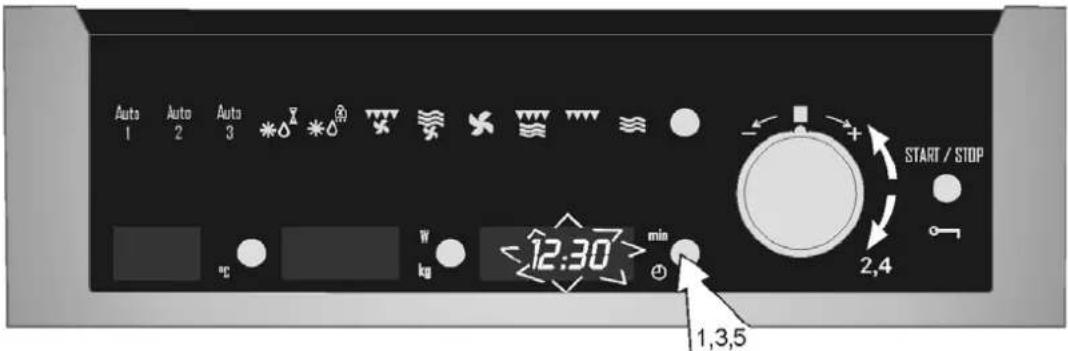

Basic settings Setting the clock After your microwave oven is first plugged in or after a power failure, the clock display will flash to indicate that the time shown is not correct. To set the clock, proceed as follows:

1. Press the Clock key. The hour numbers will

2. Turn the rotating knob to set the correct hour

3. Press again the Clock key to set the minutes.

The minute numbers will start to flash.

4. Turn the rotating knob to set the correct minute

5. To finish, press the Clock key again.

Hiding/Displaying the Clock If the clock display disturbs you, you can hide it by pressing the Clock key for 3 seconds. The dots that separate the hours and minutes will flash but the rest of the clock display will be hidden. If you want to see the clock display again, press the Clock key again for 3 seconds. Safety blocking The oven functioning can be blocked (for example, to stop it being used by children).

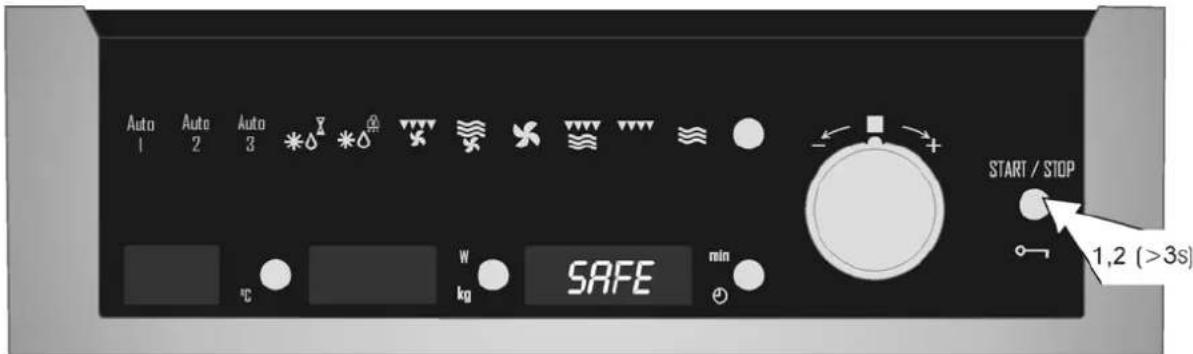

1. To block the oven, press the Start/Stop key for

3 seconds. You will hear a sound signal and the display will show the word “SAFE”. The oven is blocked in this state and cannot be used.

2. To unblock the oven, press the Start/Stop key

again for 3 seconds. You will hear a sound signal and the display will show the time again.41

Basic Functions Microwave oven Use this function to cook and heat vegetables, potatoes, rice, fish and meat.

1. Press the Function Selector key. One of the

function lights will flash.

2. Turn the Rotating Knob in either direction until

the Microwave function light flashes

3. Press the Power Selection key to change the

microwave power. The respective light will flash. If you do not press this key, the oven operates at 800 W power

4. Select the power you want by turning the

Rotating Knob in either direction.

5. Press the Time Selection key to change the

operating time. The respective light will start to flash.

6. Select the operating time you want by turning

the Rotating Knob in either direction (for example, to 1 minute).

7. Press the START key. The oven will start to

operate. NOTE: When 1000 W power is selected, the operating time is limited to a maximum of 15 minutes. Microwave oven – Quick Start Use this function to rapidly heat foods with a high water content, such as water, coffee, tea or thin soup.

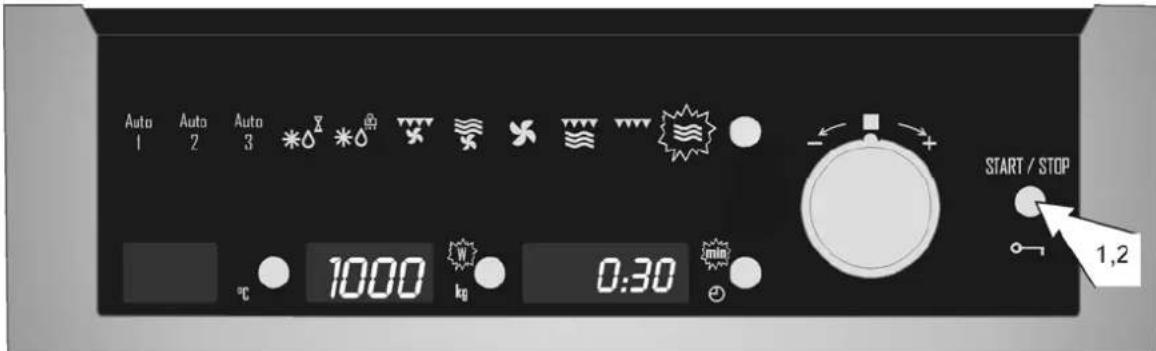

1. Press the Start/Stop key. The oven starts to

operate in the Microwave function at maximum power for 30 seconds.

2. If you want to increase the operating time press

the Start/Stop key again. Each time you press this key the operating time will be increased by 30 seconds. NOTE: When 1000 W power is selected, the operating time is limited to a maximum of 15 minutes.42

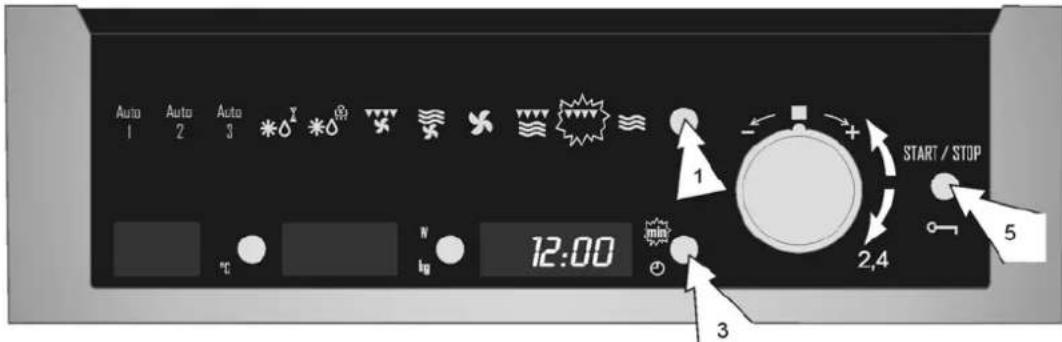

Basic Functions Grill Use this function to brown the top of food quickly.

1. Press the Function Selector key. One of the

function lights will flash.

2. Turn the Rotating Knob in either direction until

the Grill function light flashes.

3. Press the Time Selection key to change the

operating time. The respective light will flash.

4. Select the operating time wanted by turning the

Rotating Knob in either direction (for example, 12 minutes).

5. Press the START key. The oven will start to

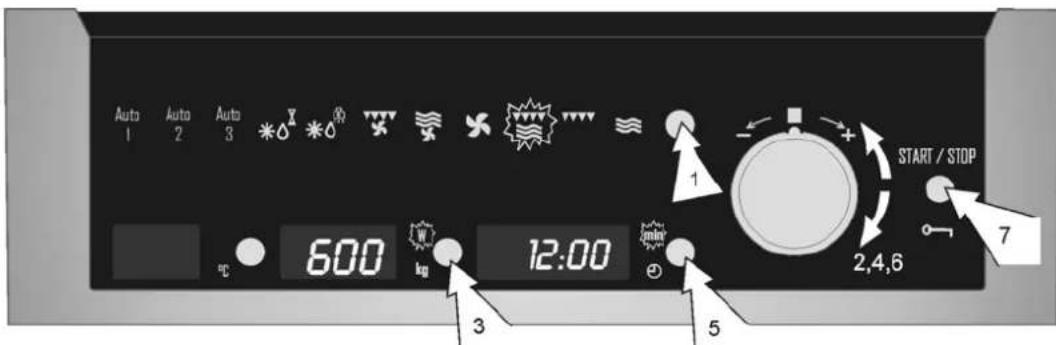

operate. Microwave + Grill Use this function to cook lasagne, poultry, roast potatoes and toasted foods.

1. Press the Function Selector key. One of the

function lights will flash.

2. Turn the Rotating Knob in either direction until

the Microwave + Grill function light flashes.

3. Press the Power Selection key to change the

microwave power. The respective light will flash. If you do not press this key, the oven operates at 600 W power.

4. Select the power you want by turning the

Rotating Knob in either direction.

5. Press the Time Selection key to change the

operating time. The respective light will start to flash.

6. Select the operating time you want by turning

the Rotating Knob in either direction (for example, to 12 minutes).

7. Press the START key. The oven will start to

Basic Functions Hot-Air Use this function to bake food.

1. Press the Function Selector key. One of the

function lights will flash.

2. Turn the Rotating Knob in either direction until

the Hot-Air function light flashes.

3. Press the Oven Temperature Selection key to

change the oven temperature. The respective light will flash. If you don’t press this key the oven will operate at 160 ºC.

4. Select the temperature wanted by turning the

Rotating Knob in either direction (for example, 160 ºC).

5. Press the Time Selection key to change the

operating time. The respective light will flash.

6. Select the operating time wanted by turning the

Rotating Knob in either direction (for example, 12 minutes).

7. Press the START key. The oven will start to

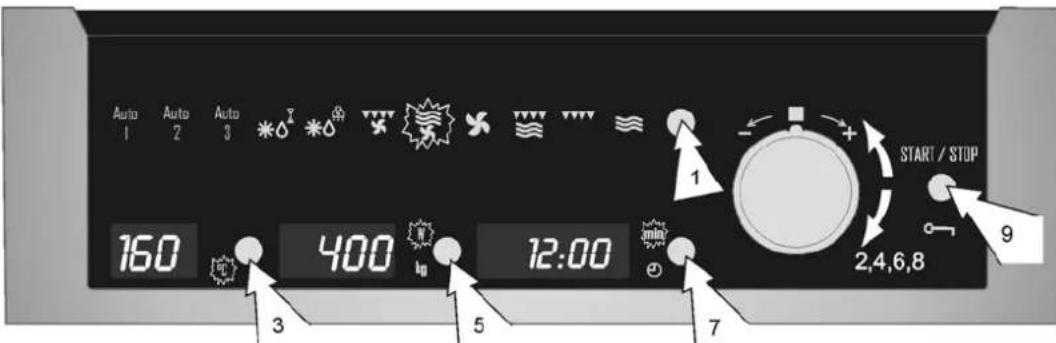

operate. Microwave + Hot-Air Use this function to rapidly bake the foods.

1. Press the Function Selector key. One of the

function lights will flash.

2. Turn the Rotating Knob in either direction until

the Microwave + Hot-Air function light flashes.

3. Press the Oven Temperature Selection key to

change the oven temperature. The respective light will flash. If you don’t press this key the oven will operate at 160 ºC.

4. Select the temperature wanted by turning the

Rotating Knob in either direction (for example, 160 ºC).

5. Press the Power Selection key to change the

microwave power. The respective light will flash. If you do not press this key, the oven operates at 600 W power.

6. Select the power you want by turning the

Rotating Knob in either direction.

7. Press the Time Selection key to change the

operating time. The respective light will start to flash.

8. Select the operating time you want by turning the

Rotating Knob in either direction (for example, to 12 minutes).

9. Press the START key. The oven will start to

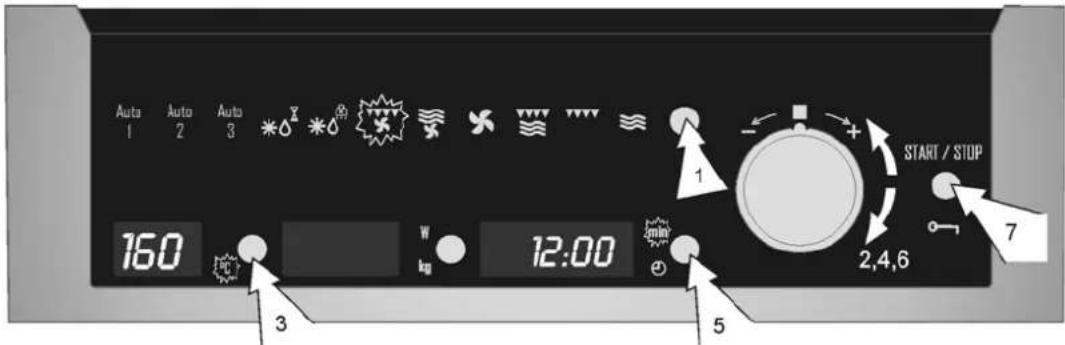

Basic Functions Grill + Fan Use this function to bake evenly the food and at the same time brown their surface.

1. Press the Function Selector key. One of the

function lights will flash.

2. Turn the Rotating Knob in either direction until

the Grill + Fan function light flashes.

3. Press the Oven Temperature Selection key to

change the oven temperature. The respective light will flash. If you don’t press this key the oven will operate at 160 ºC.

4. Select the temperature wanted by turning the

Rotating Knob in either direction (for example, 160 ºC).

5. Press the Time Selection key to change the

operating time. The respective light will flash.

6. Select the operating time wanted by turning the

Rotating Knob in either direction (for example, 12 minutes).

7. Press the START key. The oven will start to

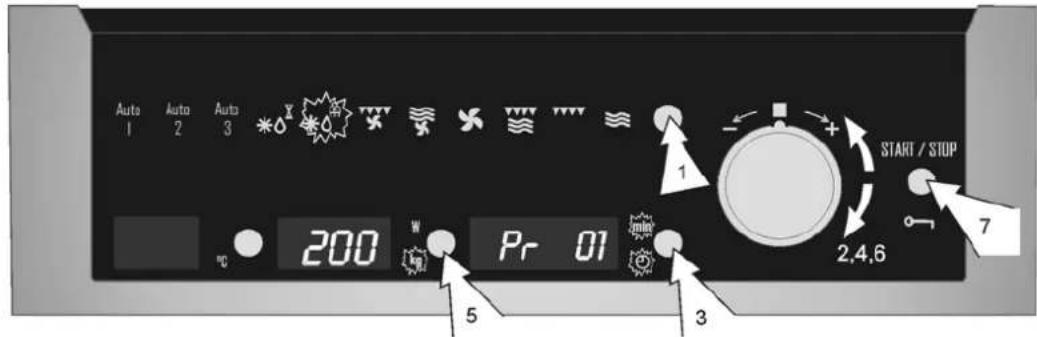

Basic Functions Defrosting by weight (automatic) Use this function to defrost meat, poultry, fish, fruit and bread quickly.

1. Press the Function Selector key. One of the

function lights will flash.

2. Turn the Rotating Knob in either direction until the

Defrosting by Weight function light flashes.

3. Press the Time Selection key to change the type of

food. The time and clock lights will start to flash.

4. Select the programme you want by turning the

Rotating Knob in either direction, for example, to “Pr 01” (see table below).

5. Press the Weight Selection key to define the food

weight. The respective light will flash.

6. Select the food weight by turning the Rotating

Knob in either direction.

7. Press the START key. The oven starts to operate

The following table shows the defrosting by weight function programmes, indicating weight intervals, and defrosting and standing times (in order to ensure the food is of a uniform temperature). Programme Food Weight (g) Time (min) Standing time (min) Pr 01 Meat 100 – 2000 2 – 43 20 – 30 Pr 02 Poultry 100 – 2500 2 – 58 20 – 30 Pr 03 Fish 100 – 2000 2 – 40 20 – 30 Pr 04 Fruit 100 – 500 2 – 13 10 – 20 Pr 05 Bread 100 – 800 2 – 19 10 – 20 Important Note: see “General instructions for defrosting”. Defrosting by time (manual) Use this function to defrost any type of food quickly.

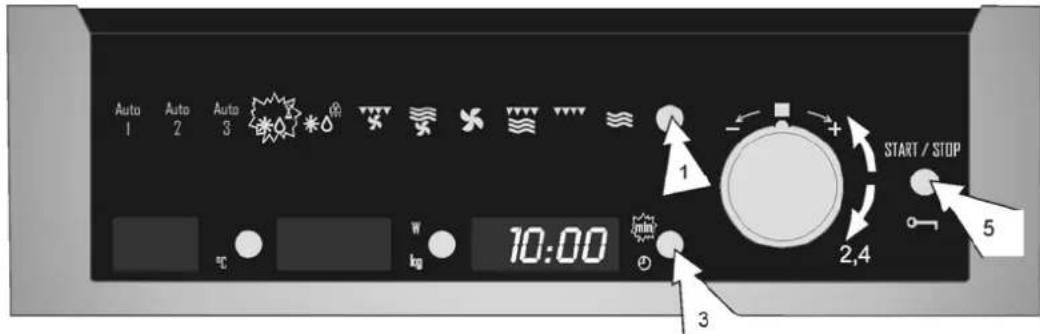

1. Press the Function Selector key. One of the function

2. Turn the Rotating Knob in either direction until the

Defrosting by Time function light flashes.

3. Press the Time Selection key to change the operating

time. The respective light will flash. 4. Select the operating time wanted by turning the Rotating Knob in either direction (for example, 10 minutes).

5. Press the START key. The oven will start to operate.46

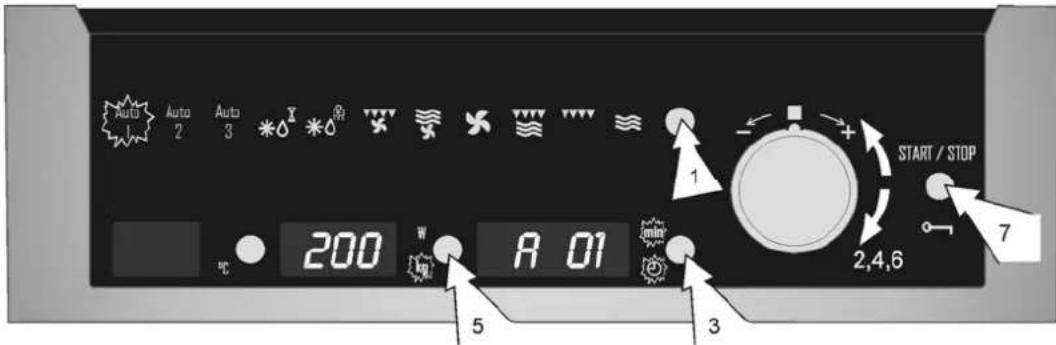

Special functions Special Function P1: Heating food Use this function to heat various types of food.

1. Press the Function Selector key. One of the

function lights will flash.

2. Turn the Rotating Knob in either direction until

the Special Function P1 light flashes.

3. Press the Time Selection key to change the

type of food. The time and clock lights will start to flash.

4. Select the food type you want by turning the

Rotating Knob in either direction, for example, to “A 01” (see table below).

5. Press the Weight Selection key to define the

food weight. The respective light will flash.

6. Select the weight you want by turning the

Rotating Knob in either direction.

7. Press the START key. The oven will start to

operate. The following table shows the Special Function P1 programmes, indicating weight intervals, and defrosting and standing times (in order to ensure the food is of a uniform temperature). Programme Food Weight (kg) Time (min) Note A 01 Soup 200 – 1500 3 – 15 Turn 1-2 x, keep covered A 02 Pre-prepared dishes dense food 200 – 1500 3 – 20 Turn 1-2 x, keep covered A 03 Pre-prepared dishes e.g. goulash 200 – 1500 3 – 18 Turn 1-2 x, keep covered A 04 Vegetables 200 – 1500 2,6 – 14 Turn 1-2 x, keep covered Important Notes:

• Always use dishes for use in the microwave oven and a lid or cover to avoid loss of liquids.

• Stir or mix the foods several times during heating, especially when the oven emits a beep and the display is flashing as follows: .

• The time required to heat the food will depend on its initial temperature. Food taken straight from the fridge will take longer to heat up than food that is at room temperature. If the food temperature is not what is wanted, select a greater or lesser weight next time you heat up the food.

• After heating, stir the food and then leave the food to stand for some time to allow the temperature to become uniform throughout the food. Warning! After heating the container may be very hot. Although microwaves do not heat up most containers, these may heat up through heat transmission from food.47

Special functions Special Function P2: Cooking Use this function to cook fresh food.

1. Press the Function Selector key. One of the

function lights will flash.

2. Turn the Rotating Knob in either direction until

the Special Function P2 light flashes.

3. Press the Time Selection key to change the

type of food. The time and clock lights will start to flash.

4. Select the food type you want by turning the

Rotating Knob in either direction, for example, to “b 01” (see table below).

5. Press the Weight Selection key to define the

food weight. The respective light will flash.

6. Select the weight you want by turning the

Rotating Knob in either direction.

7. Press the START key. The oven will start to

operate The following table shows the Special Function P2 programmes, indicating weight intervals, and defrosting and standing times (in order to ensure the food is of a uniform temperature). Programme Food Weight (kg) Time (min) Note b 01 Potatoes 200 – 1000 4 – 17 Turn 1-2 x, keep covered b 02 Vegetables 200 – 1000 4 – 15 Turn 1-2 x, keep covered b 03 Rice 200 – 500 13 – 20 One part rice, two parts water b 04 Fish 200 – 1000 4 – 13 Keep covered Important Notes:

• Always use dishes for use in the microwave oven and a lid or cover to avoid loss of liquids.

• Stir or mix the foods several times during heating, especially when the oven emits a beep and the display is flashing as follows

Warning! After heating, the container may be very hot. Although microwaves do not heat up most containers, these may heat up through heat transmission from food. Preparation instructions:

• Fish pieces – Add 1 to 3 soup spoons of water or lemon juice.

• Rice – Add water equivalent to twice times the quantity of rice.

• Unpeeled potatoes – Use potatoes of the same size. Wash them and prick the skin several times. Add 1 to 3 soup spoons of water.

• Peeled potatoes and Fresh vegetables– Cut into pieces of the same size. Add a soup spoon of water for every 100 g of vegetables, and salt to taste.48

Special functions Special Function P3: Defrosting & Toasting Use this function to defrost and toast various types of food.

1. Press the Function Selector key. One of the

function lights will flash.

2. Turn the Rotating Knob in either direction until

the Special Function P3 light flashes.

3. Press the Time Selection key to change the

type of food. The time and clock lights will start to flash.

4. Select the food type you want by turning the

Rotating Knob in either direction, for example, to “C 01” (see table below).

5. Press the Weight Selection key to define the

food weight. The respective light will flash.

6. Select the weight you want by turning the

Rotating Knob in either direction.

7. Press the START key. The oven will start to

operate. The following table shows the Special Function P3 programmes, indicating weight intervals, and defrosting and standing times (in order to ensure the food is of a uniform temperature). Programme Food Weight (kg) Time (min) Note C 01 Pizza 300 – 550 3 – 9 Preheat the backing pan C 02 Deep-frozen food 400 – 1000 8 – 14 Turn 2 x, keep covered C 03 Potato dishes 200 – 450 10 – 12 Turn 1 x Important Notes:

• Always use dishes for use in the microwave oven and a lid or cover to avoid loss of liquids.

• Stir or mix the foods several times during heating, especially when the oven emits a beep and the display is flashing as follows

Warning! After heating, the container may be very hot. Although microwaves do not heat up most containers, these may heat up through heat transmission from food. Preparation instructions:

• Frozen pizza – Use pre-cooked frozen pizzas and pizzas-rolls.

• Deep-frozen food – Use lasagne, cannelloni, prawn soufflé, all frozen. Keep covered.

• Potato dishes, frozen – Chips, potato croquettes and fried potatoes must be suitable for preparation in the oven.49

Using the Browning Plate Normally when cooking food, such as pizzas or pies, on a grill or in a microwave oven, the dough or pastry becomes soggy. This can be avoided by using a browning plate. As a high temperature is reached quickly on the bottom of the browning plate, the crust turns crisp and brown. The browning plate can also be used for bacon, eggs, sausages, etc. VERY IMPORTANT NOTES:

• Use oven gloves at all times as the browning plate will become very hot.

• Never place the browning plate in the oven without the glass plate.

• Do not place any recipients on the browning plate that are not heat-resistant (plastic bowls for example). How to cook with the browning plate:

1. Preheat the browning plate by selecting the

Microwave and Grill function for 3 to 5 minutes with a 600 W microwaves power level.

2. Brush the browning plate with oil in order to

brown the food nicely.

3. Place the fresh or frozen food directly on the

4. Place the browning plate on the glass

turntable in the microwave oven.

5. Select the Microwaves and Grill function and

the cooking time as described below. VERY IMPORTANT NOTES: As the browning plate has a Teflon layer, if you use it incorrectly, it can be damaged. Never cut the food on the plate. Remove the food from the plate prior to cutting. Cleaning: The best way to clean the browning plate is to wash it with hot water and detergent and rinse off with clean water. Do not use a scrubbing brush or a hard sponge otherwise the top layer will be damaged. Food Weight Cooking Time Standing Time Recommendation 200 g 4 - 5 min --- 300 g 5 - 6 min --- Pizza 400 g 7 – 8 min --- If the pizza is thin. If the pizza is high increase the time by 1 – 2 minutes 200 g 3 – 4 min 2 – 3 min Quiches and Pies 300 g 5 - 6 min 2 – 3 min Hamburgers 150 - 200 8 - 10 min 5 – 8 min Turn 2 x Oven chips 400 g 6 -8 min --- Turn 1 x50

When the oven is working... Interrupting a cooking cycle You can stop the cooking process at any time by pressing the Start/Stop key once or by opening the oven door. In both cases:

• Microwave emission is stopped immediately.

• The grill is de-activated but is still very hot. Danger of burning!

• The timer stops and the display shows the remaining amount of operating time. If you wish, at this time you can:

1. Turn or stir the food to ensure it will be

3. Cancel the process by pressing the

Start/Stop key. To restart the process, close the door and press the Start/Stop key Altering parameters The operating parameters (time, weight, power, etc.) can be altered when the oven is operating or when the cooking process has been interrupted by proceeding as follows:

1. To alter the time, turn the rotating knob. The

new time defined is immediately valid.

2. To alter the power, press the Weight/Power

Selection key. The respective light start to flash. Alter the parameter by pressing the “- “and “+”keys and confirm by pressing the Power Selection key again. Cancelling a cooking cycle If you wish to cancel the cooking process, press the Start/Stop key for 3 seconds. You will then hear a beep and the time will appear on the display. End of a cooking cycle At the end of the process you will hear three beeps and the display will show the word “End”. The beeps are repeated every 30 seconds until the door is opened or the Start/Stop key is pressed.51

Defrosting The table below shows different defrosting and standing times (in order to ensure the food temperature is evenly distributed) for different types and weights of food, plus recommendations. Food Weight (g) Defrosting time (min) Standing time (min) Recommendation 100 2-3 5-10 Turn once 200 4-5 5-10 Turn once 500 10-12 10-15 Turn twice 1000 21-23 20-30 Turn twice 1500 32-34 20-30 Turn twice Portions of meat, veal, beef, pork 2000 43-45 25-35 Turn three times 500 8 -10 10-15 Turn twice Goulash 1000 17-19 20-30 Turn three times 100 2-4 10-15 Turn twice Minced meat 500 10-14 20-30 Turn three times 200 4-6 10-15 Turn once Sausages 500 9-12 15-20 Turn twice Poultry (portions) 250 5-6 5-10 Turn once Chicken 1000 20-24 20-30 Turn twice Poularde 2500 38-42 25-35 Turn three times Fish fillet 200 4-5 5-10 Turn once Trout 250 5-6 5-10 Turn once 100 2-3 5-10 Turn once Prawns 500 8-11 15-20 Turn twice 200 4-5 5-10 Turn once 300 8-9 5-10 Turn once Fruit 500 11-14 10-20 Turn twice 200 4-5 5-10 Turn once 500 10-12 10-15 Turn once Bread 800 15-17 10-20 Turn twice Butter 250 8-10 10-15 Cream cheese 250 6-8 10-15 Creams 250 7-8 10-1552

Defrosting General instructions for defrosting

1. When defrosting, use only dishes that are

appropriate for microwaves (china, glass, suitable plastic).

2. The defrost function by weight and the tables

refer to the defrosting of raw food.

3. The defrosting time depends on the quantity

and thickness of the food. When freezing food keep the defrosting process in mind. Distribute the food evenly in the container.

4. Distribute the food as best as possible inside

the oven. The thickest parts of fish or chicken drumsticks should be turned towards the outside. You can protect the most delicate parts of food with pieces of aluminium foil. Important: The aluminium foil must not come into contact with the oven cavity interior as this can cause electrical arcing.

5. Thick portions of food should be turned several

6. Distribute the frozen food as evenly as possible

since narrow and thin portions defrost more quickly than the thicker and broader parts.

7. Fat-rich foods such as butter, cream cheese

and cream should not be completely defrosted. If they are kept at room temperature they will be ready to be served in a few minutes. With ultra-frozen cream, if you find small pieces of ice in it, you should mix these in before serving.

8. Place poultry on an upturned plate so that the

meat juices can run off more easily.

9. Bread should be wrapped in a napkin so that it

does not become too dry.

10. Turn the food whenever the oven lets out a

beep and the display flashes the word:

11. Remove frozen food from its wrapping and do

not forget to take off any metal twist-tags. For containers that are used to keep frozen food in the freezer and which can also be used for heating and cooking, all you need to do is take off the lid. For all other cases you should put the food into containers that are suitable for microwave use.

12. The liquid resulting from defrosting, principally

that from poultry, should be discarded. In no event should such liquids be allowed to come into contact with other foods.

13. Do not forget that by using the defrosting

function you need to allow for standing time until the food is completely defrosted.53

Cooking with a microwave oven Warning! Read the section “Microwave Safety” before cooking with your microwave. Follow these recommendations when cooking with your microwave:

• Before heating or cooking foods with peel or skin (e.g. apples, tomatoes, potatoes, sausages) prick them so that they do not burst. Cut the food up before starting to prepare it.

• Before using a container or dish make sure that it is suitable for microwave use (see the section on types of ovenware).

• When cooking food with very little moisture (e.g. defrosting bread, making popcorn, etc.) evaporation is very quick. The oven then works as if it was empty and the food may burn. The oven and the container may be damaged in such a situation. You should therefore set just the cooking time necessary and you must keep a close eye on the cooking process.

• It is not possible to heat large quantities of oil (frying) in the microwave.

• Remove pre-cooked food from the containers they come in since these are not always heat resistant. Follow the food manufacturer’s instructions.

• If you have several containers, such as cups, for example, set them out uniformly on the turntable plate.

• Do not close plastic bags with metal clips. Use plastic clips instead. Prick the bags several times so that the steam can escape easily.

• When heating or cooking foods, check that they reach at least a temperature of 70°C.

• During cooking, steam may form on the oven door window and may start to drip. This situation is normal and may be more noticeable if the room temperature is low. The oven’s safe working is not affected by this. After you have finished cooking, clean up the water coming from the condensation

• When heating liquids, use containers with a wide opening, so that the steam can evaporate easily. Prepare the foods as per the instructions and keep in mind the cooking times and power levels indicated in the tables. Keep in mind that the figures given are only indicative and can vary depending on the initial state, temperature, moisture and type of food. It is advisable to adjust the times and power levels to each situation. Depending on the exact characteristics of the food you may need to increase or shorten the cooking times or increase or decrease the power levels. Cooling with microwaves...

1. The greater the amount of food, the longer the

cooking time. Keep in mind that:

• Double the quantity » double the time

• Half the quantity » half the time

2. The lower the temperature, the longer the

3. Foods containing a lot of liquid heat up more

4. Cooking will be more uniform if the food is

evenly distributed on the turntable. If you put dense foods on the outside part of the plate and less dense ones on the centre of the plate, you can heat up different types of food simultaneously.

5. You can open the oven door at any time. When

you do this the oven switches off automatically. The microwave will only start working again when you close the door and press the start key.

6. Foods that are covered require less cooking

time and retain their characteristics better. The lids used must let microwaves pass through and have small holes that allow steam to escape.54

Cooking with a microwave oven Tables and suggestions – Cooking vegetables Food Quantity (g) Addition of liquids Power (Watt) Time (min.) Standing Time (min.) Instructions Cauliflower Broccoli Mushrooms

9-11 6-8 6-8 2-3 2-3 2-3 Cut into slices. Keep covered. Peas & carrots Frozen carrots

7-9 8-10 2-3 2-3 Cut into chunks or slices. Keep covered. Potatoes 250 25 ml 800 5-7 2-3 Peel and cut into equal sized pieces. Keep covered. Paprika Leek

5-7 5-7 2-3 2-3 Cut into chunks or slices Keep covered. Frozen Brussel sprouts 300 50 ml 800 6-8 2-3 Keep covered. Sauerkraut 250 25 ml 800 8-10 2-3 Keep covered. Tables and suggestions – Cooking fish Food Quantity (g) Power (Watt) Time (min.) Standing Time (min.) Instructions Fish fillets 500 600 10-12 3 Cook covered over. Turn after half of cooking time. Whole fish 800 800

2-3 7-9 2-3 Cook covered over. Turn after half of cooking time. You may wish to cover up the small edges of the fish.55

Cooking with the grill For good results with the grill, use the grid iron supplied with the oven. Fit the grid iron in such a way that it doesn’t come into contact with the metal surfaces of the oven cavity since if it does there is a danger of electric arcing which may damage the oven. IMPORTANT POINTS:

1. When the microwave grill is used for the first

time there will be some smoke and a smell coming from the oils used during oven manufacture.

2. The oven door window becomes very hot

when the grill is working. Keep children away.

3. When the grill is operating, the cavity walls

and the grid iron become very hot. You should use oven gloves.

4. If the grill is used for extended period of time it

is normal to find that the elements will switch themselves off temporarily due to the safety thermostat.

5. Important! When food is to be grilled or

cooked in containers you must check that the container in question is suitable for microwave use. See the section on types of ovenware!

6. When the grill is used it is possible that some

splashes of fat may go onto the elements and be burnt. This is a normal situation and does not mean there is any kind of operating fault.

7. After you have finished cooking, clean the

interior and the accessories so that cooking remains do not become encrusted.56

Cooking with the Grill Tables and suggestions – Grill without microwave Fish Quantity (g) Time (min.) Instructions Fish Bass Sardines/gurnard

6-8 fish. 18-24 15-20 Spread lightly with butter. After half of cooking time turn and spread with seasoning. Meat Sausages 6-8 units 22-26 Prick after half cooking time and turn. Frozen hamburgers 3 units 18-20 Spare rib (approx. 3 cm thick) 400 25-30 After half of cooking time, baste and turn. Others Toast 4 units 1½-3 Watch toasting. Toasted sandwiches 2 units 5-10 Watch toasting. Heat up the grill beforehand for 2 minutes. Unless indicated otherwise, use the grid iron. Place the grid on a bowl so that the water and the fat can drop. The times shown are merely indicative and can vary as a function of the composition and quantity of the food, as well as the final condition wished for. Fish and meat taste great if, before grilling, you brush them with vegetable oil, spices and herbs and leave to marinate for a few hours. Only add salt after grilling. Sausages will not burst if you prick them with a fork before grilling. After half the grilling time has passed, check on how the cooking is going and, if necessary, turn the food over. The grill is especially suitable for cooking thin portions of meat and fish. Thin portions of meat only need to be turned once, but thicker portions should be turned several times.57

Cooking with the Grill Tables and suggestions – Microwave + Grill The microwave + grill function is ideal for cooking quickly and, at the same time, browning foods. Furthermore, you can also grill and cook cheese covered food. The microwave and the grill work simultaneously. The microwave cooks and the grill toasts.

Food Quantity (g) Dish Power (Watt) Time (min.) Standing time (min.) Cheese topped pasta 500 Low dish 400 12-17 3-5 Cheese topped potatoes 800 Low dish 600 20-22 3-5 Lasagne approx. 800 Low dish 600 15-20 3-5 Grilled cream cheese approx. 500 Low dish 400 18-20 3-5 2 fresh chicken legs (grilled) 200 each Low dish 400 10-15 3-5 Chicken approx. 1000 Low and wide dish 400 35-40 3-5 Cheese topped onion soup 2 x 200 g cups Soup bowls 400 2-4 3-5 Before using a dish in the microwave oven make sure that it is suitable for microwave use. Only use dishes or containers that are suitable for microwave use. The dish to be used in the combined function must be suitable for microwave and grill use. See the section on types of ovenware! Keep in mind that the figures given are merely indicative and can vary as a function of the initial state, temperature, moisture and type of food. If the time is not enough to brown the food well, put it under the grill for another 5 or 10 minutes. Please follow the standing times and don’t forget to turn the meat pieces. Unless indicated to the contrary, use the turntable plate for cooking. The values given in the tables are valid when the oven cavity is cold (it is not necessary to pre-heat the oven).58

Tables and suggestions – Roasting Tables and suggestions – Roasting Type Quantity (g) Power (Watt) Temperature

Time (min) Standing Time (min) Comments Beef stew 1000 200 160/170 80/90 10 Do not put lid on container Pork loin 500/600 200 180/190 35/40 10 Do not put lid on container Whole chicken 100/1200 400 200 30/40 10 Put lid on container. Breast facing upwards. Do not turn. Chicken portions 800 400 200 25/35 10 Do not put lid on container. Arrange portions with skin facing upwards. Do not turn. Duck 1500/1700 200 200 70/80 10 Put lid on container. Do not turn. Advice for roasting meat Turn the pieces of meat halfway through the cooking time. When the roasted meat is ready you should let it stand for 10 minutes in the oven with this switched off and closed. This will ensure the juices in the meat are well distributed. Add 2 to 3 soup spoons of gravy or similar liquid to lean meat and 8 to 10 soup spoons to stews, depending on the amount of meat in question. The roasting temperature and time required depends on the type and amount of meat being cooked. If the weight of the meat to be roasted does not appear on the table choose the settings for the weight immediately below and extend the cooking times. Advice on ovenware Check that the ovenware fits inside the oven. Hot glass containers should be put on a dry kitchen cloth. If such containers are put on a cold or wet surface the glass may crack and break. Use oven gloves to take the ovenware out of the oven.59

Tables and suggestions – Baking Tables and suggestions – Cakes Type Container Level Temperature Time (min) Walnut cake Spring-form type tin 1 170/180 30/35 Fruit tart Spring-form type tin 2 150/160 35/45 Fruit cakes Cake tin with central hole 1 170/190 30/45 Savoury tarts Spring-form type tin 2 160/180 50/70 Simple cake (sponge cake) Spring-form type tin 1 160/170 40/45 Almond cakes Cake tray 2 110 35/45 Puff pastry Cake tray 2 170/180 35/45 Advice on cake baking ware The most commonly used type of baking ware is black metal tins. If you are also going to use the microwave, use glass, ceramic or plastic baking ware. These must be able to withstand temperatures up to 250ºC. If you use these types of baking ware the cakes are not browned as much. Advice on how to bake cakes Different amounts and types of pastry require different temperatures and baking times. Try low settings first of all and then, if necessary, use higher temperatures next time. A lower temperature will result in more uniform baking. Always put the cake tray in the centre of the turntable. Baking suggestions How to check if the cake is properly cooked Start sticking a tooth pick in the highest part of the cake 10 minutes before the end of the baking time. When no dough sticks to the tooth pick the cake is ready. If the cake is very dark on the outside Next time choose a lower temperature and let the cake bake for a longer time. If the cake is very dry Make small holes in the cake with a tooth pick after baking has finished. Then sprinkle the cake with some fruit juice or alcoholic drink. Next time increase the temperature by about 10º and reduce the baking time. If the cake does not come free when turned Let the cake cool down for 5 to 10 minutes after baking and it will come out of the tin more easily. If the cake still does not come free run a knife carefully around the edges. Next time grease the cake tin well.

What kind of ovenware can be used? Microwave function For the microwave function, keep in mind that microwaves are reflected by metal surfaces. Glass, china, clay, plastic, and paper let microwaves pass. For this reason, metal pans and dishes or containers with metal parts or decorations cannot be used in the microwave. Glass ware and clay with metallic decoration or content (e.g. lead crystal) cannot be used in microwave ovens. The ideal materials for use in microwave ovens are glass, refractory china or clay, or heat resistant plastic. Very thin, fragile glass or china should only be used for short period of times (e.g. heating). Hot food transmits heat to the dishes which can become very hot. You should, therefore, always use an oven glove! How to test ovenware you want to use Put the item you want to use in the oven for 20 seconds at maximum microwave power. After that time, if it is cold and just slightly warm, it is suitable to use. However, if it heats up a lot or causes electric arcing it is not suitable for microwave use. Grill and Hot-Air functions In the case of the grill function, the ovenware must be resistant to temperature of at least 300°C. Plastic dishes are not suitable for use in the grill. Combined functions In the microwave + grill function, the ovenware used must be suitable for use in both the microwave and the grill. Aluminium containers and foil Pre-cooked food in aluminium containers or in aluminium foil can be put in the microwave if the following aspects are respected:

• Keep in mind the manufacturer’s recommendations written on the packaging.

• The aluminium containers cannot be more than 3 cm high or come in contact with the cavity walls (minimum distance 3 cm). Any aluminium lid or top must be removed.

• Put the aluminium container directly on top of the turntable plate. If you use the grid iron, put the container on a china plate. Never put the container directly on the grid iron!

• The cooking time is longer because the microwaves only enter the food from the top. If you have any doubts, it is best to use only dishes suitable for microwave use.

• Aluminium foil can be used to reflect microwaves during the defrosting process. Delicate food, such as poultry or minced meat, can be protected from excessive heat by covering the respective extremities/edges.

• Important: aluminium foil cannot come into contact with the cavity walls since this may cause electrical arcing. Lids We recommend you use glass or plastic lids or cling film since:

1. This will stop excessive evaporation (mainly

during very long cooking times);

2. The cooking times are shorter;

3. The food does not become dry;

4. The aroma is preserved.

The lid should have holes or openings so that no pressure develops. Plastic bags must also be opened. Baby feeding bottles or jars with baby food and similar containers can only be heated without their tops / lids otherwise they can burst.61

What kind of ovenware can be used? Table of Ovenware The table below gives you a general idea of what type of ovenware is suitable for each situation. Microwave Operating mode Type of ovenware Defrosting / heating Cooking Grill Microwave + Grill Glass and china 1) Home use, not flame resistant, can be used in dish washer yes Yes no no Glazed china Flame resistant glass and china yes Yes yes yes China, stone ware 2) Unglazed or glazed without metallic decorations yes Yes no no Clay dishes 2) Glazed Unglazed yes

Plastic dishes 2) Heat resistant to 100°C Heat resistant to 250°C yes yes

Plastic films 3) Plastic film for food Cellophane

Accessories (grid iron) yes

1. Without any gold or silver leaf edging; no

2. Keep the manufacturer’s instructions in

3. Do not use metal clips for closing bags.

Make holes in the bags. Use the films only to cover the food.

4. Do not use paper plates.

5. Only shallow aluminium containers without

lids/tops. The aluminium cannot come into contact with the cavity walls.62

Oven Cleaning and Maintenance Cleaning is the only maintenance normally required. Warning! Your microwave oven should be cleaned regularly, with all food remains being removed. If the microwave is not kept clean its surfaces may deteriorate, reducing the oven’s working life and possibly resulting in a dangerous situation. Warning! Cleaning should be done with the oven power switched off. Take the plug out of the socket or switch off the oven’s power circuit. Do not use aggressive or abrasive cleaning products, scourers that scratch surfaces or sharp objects, since stains may appear. Do not use high pressure or stream jet cleaning appliances. Front surface Normally you just need to clean the oven with a damp cloth. If it is very dirty, add a few drops of dishwashing liquid to the cleaning water. Afterwards, wipe the oven with a dry cloth. In an oven with an aluminium front, use a glass cleaning product and a soft cloth that does not release any fibres or threads. Wipe from side to side without exerting any pressure on the surface. Immediately remove lime, fat, starch or egg white stains. Corrosion can occur under these stains. Do not let any water get inside the oven. Oven interior After each time the oven is used, clean the inside walls with a damp cloth since this is the easiest way to remove splashes or spots of food that may have stuck to the inside. To remove dirt that is harder to shift, use a non- aggressive cleaning product. Do not use oven sprays or other aggressive or abrasive cleaning products. Always keep the door and the oven front very clean to ensure that the door opens and closes properly. Make sure water does not enter the microwave ventilation holes. Regularly take out the turntable plate and the respective support and clean the cavity base, especially after any liquid spillage. Do not switch on the oven without the turntable and the respective support being in place. If the oven cavity is very dirty, put a glass of water on the turntable and switch on the microwave oven for 2 or 3 minutes at maximum power. The steam released will soften the dirt which can then be cleaned easily using a soft cloth. Unpleasant odours (e.g. after cooking fish) can be eliminated easily. Put a few drops of lemon juice in a cup with water. Put a spoonful of coffee in the cup to avoid the water boiling over. Heat the water for 2 to 3 minutes at maximum microwave power.63

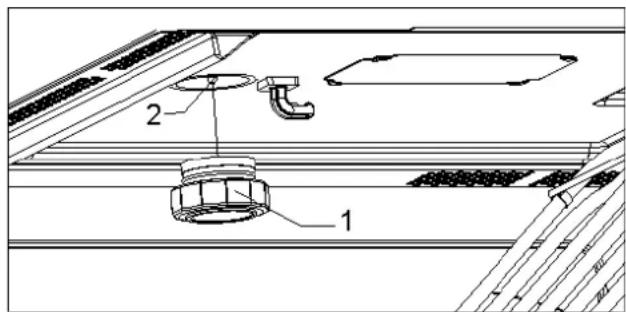

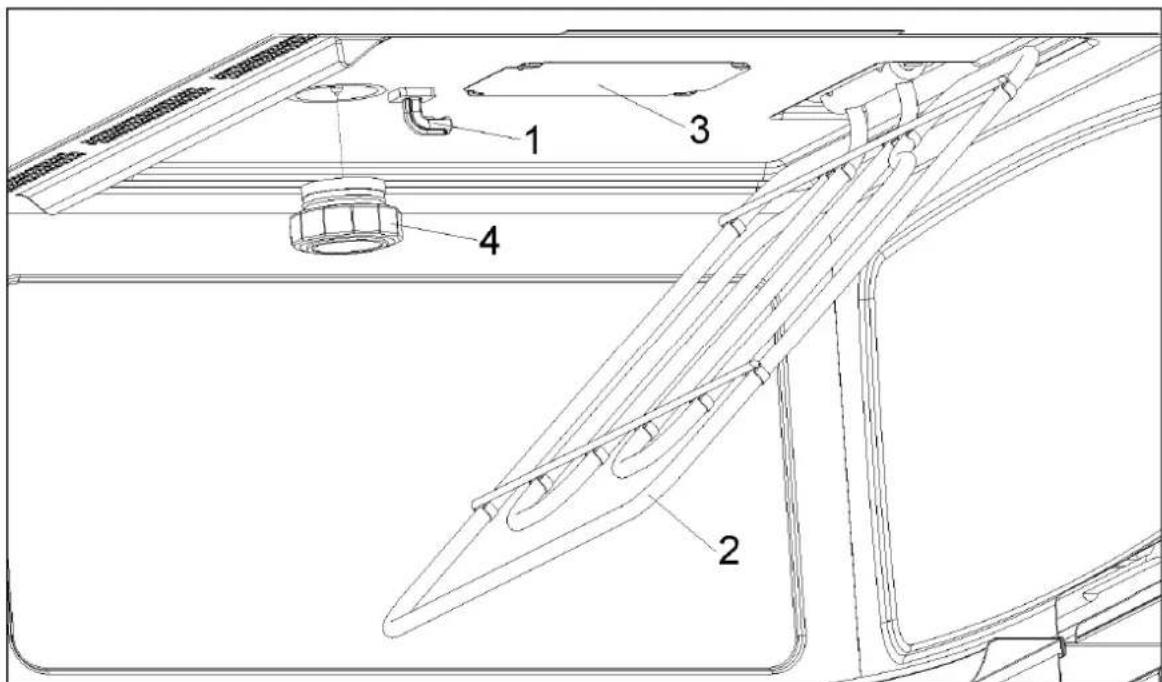

Oven Cleaning and Maintenance Oven ceiling To avoid the danger of burning, wait until the grill is cold before starting to clean. The mica cover (3) located in the ceiling must always be kept clean. Any food remains that collect on the mica cover can cause damage or provoke sparks. Do not use abrasive cleaning products or sharp objects. To avoid any risk, do not remove the mica cover. The glass lamp cover (4) is located on the oven ceiling and can be removed easily for cleaning. For this you just need to unscrew it and clean it with water and dishwashing liquid. Accessories Clean the accessories after each use. If they are very dirty, soak them first of all and then use a brush and sponge. The accessories can be washed in a dish washing machine. Make sure that the turntable plate and the respective support are always clean. Do not switch on the oven unless the turntable and the respective support are in place.64

What should I do if the oven doesn’t work? WARNING! Any type of repair must only be done by a specialised technician. Any repair done by a person not authorised by the manufacturer is dangerous. You do not need to contact Technical Assistance to resolve the following questions:

• The display is not showing! Check if: - The time indication has been switched off (see section on Basic Settings).

• Nothing happens when I press the keys! Check if: - The Safety Block is active (see section on Basic Settings).

• The oven does not work! Check if: - The plug is correctly fitted in the socket. - The oven’s power is switched on. - The door is completely closed. The door should close with an audible click. - There are any foreign bodies between the door and the cavity front.

• When the oven is operating I can hear some strange noises! Check if: - There is any electrical arcing inside the oven caused by foreign metallic objects (see section on type of ovenware). - The ovenware is touching the oven walls. - There are any loose items of cutlery or cooking tools inside the oven.

• The food doesn’t heat up or heats very slowly! Check if: - You have inadvertently used metal ovenware. - You have selected the correct operating times and power level. - The food you have put inside the oven is a larger amount or colder than you usually put in.

• The food is too hot, dried out or burnt! Check if you selected the correct operating time and power level.

• I hear some noises after the cooking process is finished! This is not a problem. The cooling fan keeps on working for some time. When the temperature has dropped sufficiently, the fan will switch itself off.

• The oven switches on but the interior light does not go on! If all the functions work properly it is probable that the lamp has blown. You can keep on using the oven. Substitution of light bulb To substitute the light bulb, proceed as follows: - Disconnect the oven from the power supply. Take the plug out of the socket or switch off the oven’s power circuit. - Unscrew and remove the glass light cover (1). - Remove the halogen light bulb (2). Warning! The bulb may be very hot. - Fit a new 12V / 10W halogen bulb. Warning! Do not touch the light bulb surface directly with your fingers because you may damage the bulb. Follow the lamp manufacturer’s instructions. - Screw the glass light cover into place (1). - Connect the oven again to the power supply.65

Technical characteristics Description of Functions Symbol Function Microwave Power Output Foods 200 W Slow defrosting for delicate foods; keeping food hot 400 W Cooking with little heat; boiling rice Rapid defrosting 600 W Melting butter Heating baby food 800 W Cooking vegetables and food Cooking and heating carefully, Heating and cooking small portions of food Heating delicate food Microwave 1000 W Cooking and rapidly heating liquids and pre-cooked foods 200 W Toasting food 400 W Grilling poultry and meat Microwave + Grill 600 W Cooking pies and cheese-topped dishes Grill Grilling food

Meat roast and simmer

Other fast roasts Hot-Air

Roast and bake Grill + Fan

Food even browning Specifications

• Push oven completely into the cabinet and centre it.

• Open microwave door and fasten the appliance to the cabinet using the four screws provided. Insert the screws through the front holes.Cód: 163431
