WVD2000AP - Vacuum Cleaner Numatic - Free user manual and instructions

Product type	Wet and dry vacuum cleaner (dry/wet)
Brand	Numatic
Model	WVD2000AP
Intended use	Indoor, domestic and commercial use (hotels, schools, hospitals, etc.)
Power supply	Mains, 10 m power cable (2 conductors 1.0 mm² or 3 conductors 1.5 mm²)
Rated voltage	230 V AC
Rated frequency	50 Hz
Main functions	Suction of dry materials, suction of wet materials, carpet and upholstery cleaning
Filtration system	Filter bag and filter (check compatibility according to the type of material being vacuumed)
Safety	Safety float valve to limit water level in wet mode
Routine maintenance	Frequent cleaning of the machine, checking the bag and filters, inspection of the cable
Spare parts	Specific power cable available from Numatic or its agents
Repairability	Entrust repairs to a competent person; do not let an inexperienced person intervene
Certifications	CE marking, compliant with WEEE directive 2012/19/EU

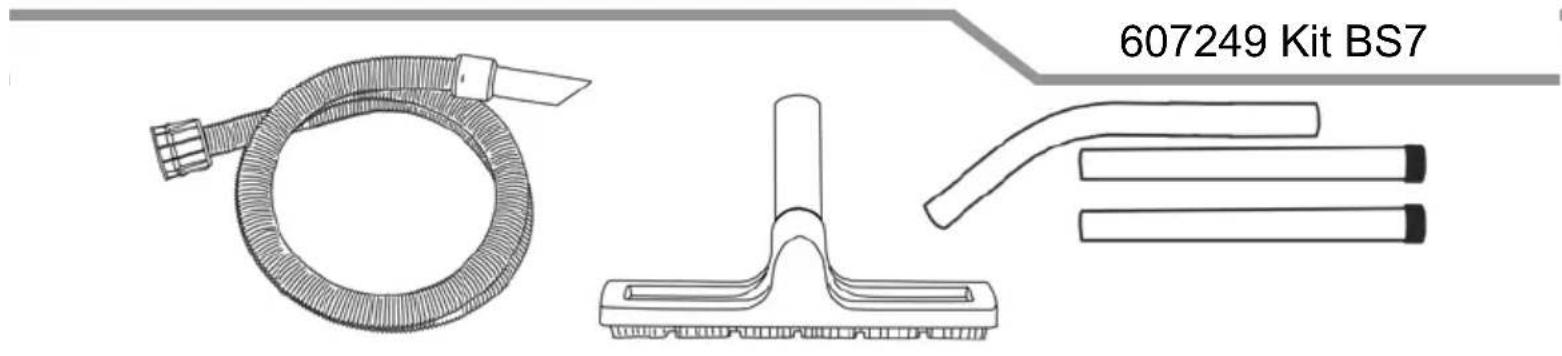

Included accessories	Hose, tubes, floor tool (not detailed)
Storage conditions	Indoors, sheltered from rain

Frequently Asked Questions - WVD2000AP Numatic

Can the WVD2000AP vacuum water?

Yes, the Numatic WVD2000AP is a wet and dry vacuum cleaner. Make sure to use the float valve and empty the tank after vacuuming liquids.

What type of filter bag should I use?

Always use a filter bag suitable for the WVD2000AP model, available from Numatic. Check compatibility with the type of materials being vacuumed.

How do I know if the bag is full?

Suction decreases if the bag is full. Check the bag regularly and replace it if necessary. The appliance may also stop in dry mode if the bag is clogged.

What should I do if the vacuum stops in wet mode?

The float valve may have activated. Stop the machine, unplug it, empty the liquid tank and check that the valve works properly before restarting.

How do I clean the filters?

Clean the filters regularly according to the manual instructions. For washable filters, rinse with clean water and let dry completely before reinstalling.

Can I use the vacuum for hot ashes?

No, never vacuum hot ashes or lit cigarette butts. This could damage the appliance and pose a fire risk.

The cable is damaged, can I replace it myself?

Replacement of the power cable must be carried out by a professional using a specific Numatic cable. Contact your dealer or an approved service.

What daily maintenance is recommended?

Each day, check that the machine, tubes and hose are clean, that the bag and filters are properly in place, and inspect the condition of the power cord.

Is the vacuum under warranty?

The warranty is provided by Numatic. Check the terms in the manual. Incorrect use or adding foreign objects into the filter may void it.

Can I use the vacuum outdoors?

This vacuum is intended for indoor use only. Do not use it in the rain and always store it in a sheltered place.

USER MANUAL WVD2000AP Numatic

WV 1500-APWV 1500-AP

WVD 1500-APWVD 1500-AP

WV 2000-APW 2000-AP

WVD 2001-APW 2001-AP

Numatic

numatic.comnumatic.c

Original Instructions

CAUTION, Read instructions before using the machine.

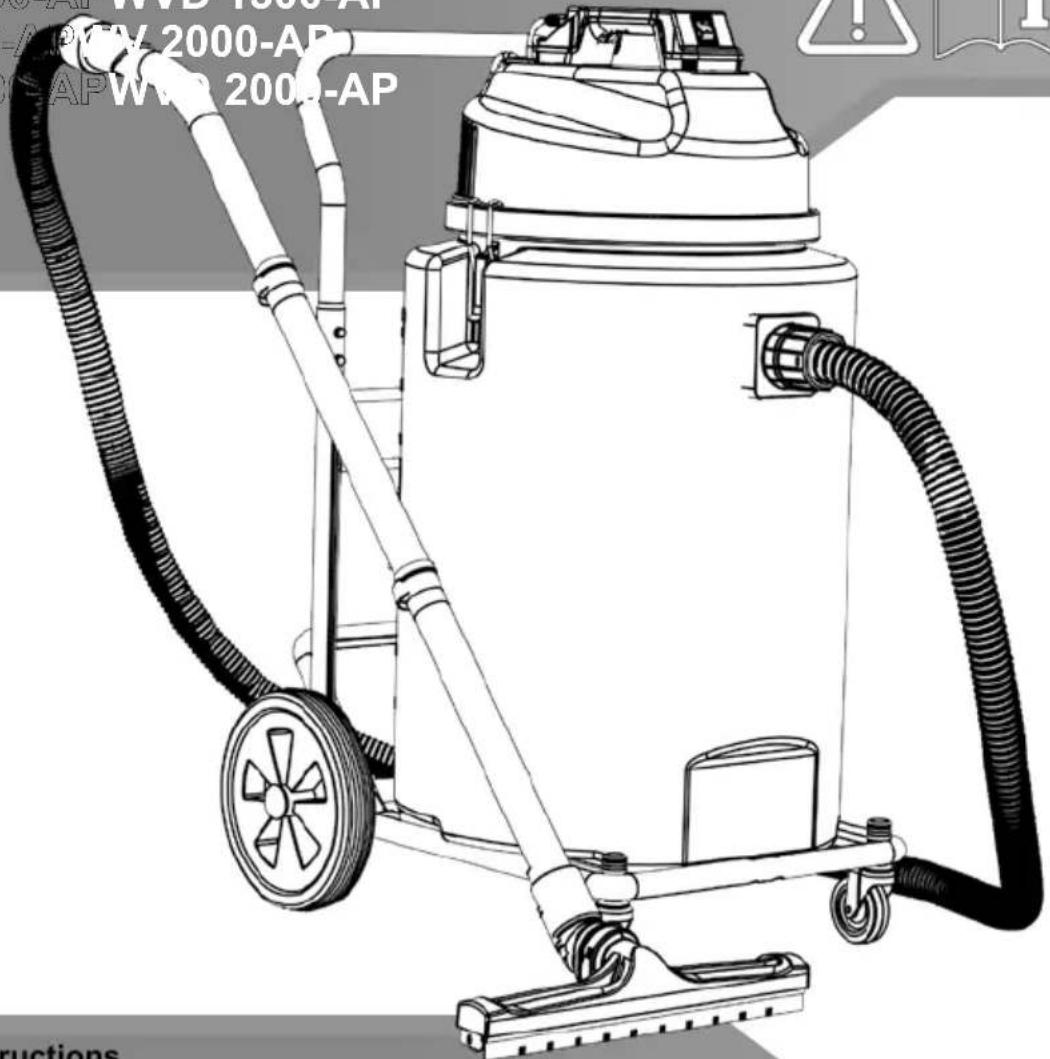

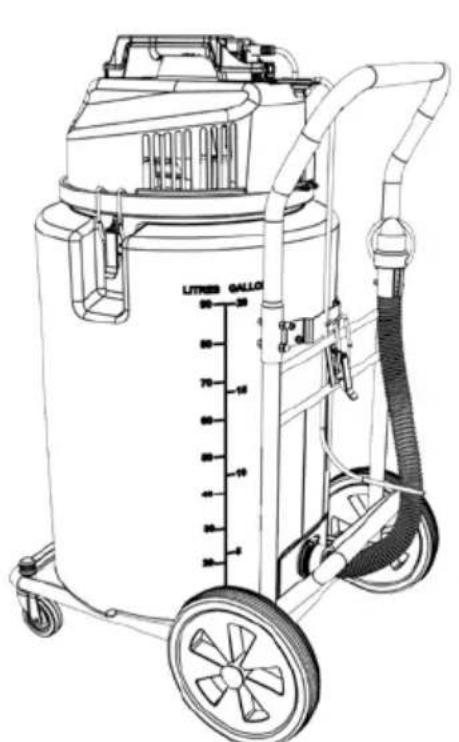

Line drawing of a vacuum cleaner with wheels and control panel (no text or symbols)

Line drawing of a gas washing machine with wheels and control panel (no text or symbols)

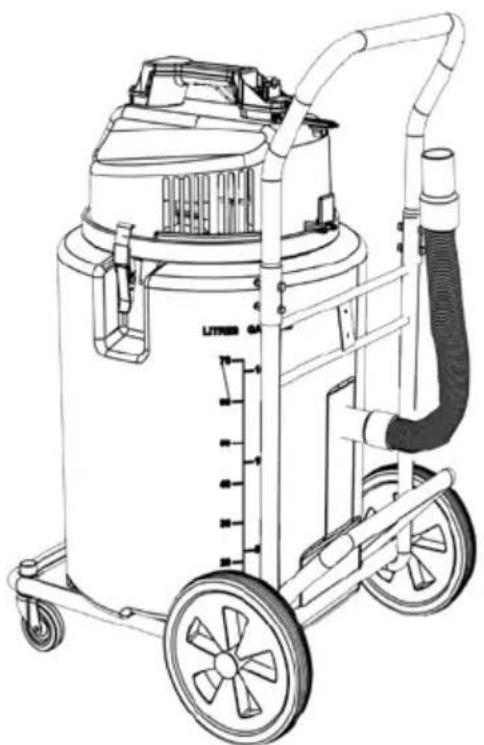

Line drawing of a vacuum cleaner with wheels and handle (no text or symbols)

WV / WVD 2000 WV / WVD 2000 APWV / WVD 2000 DH

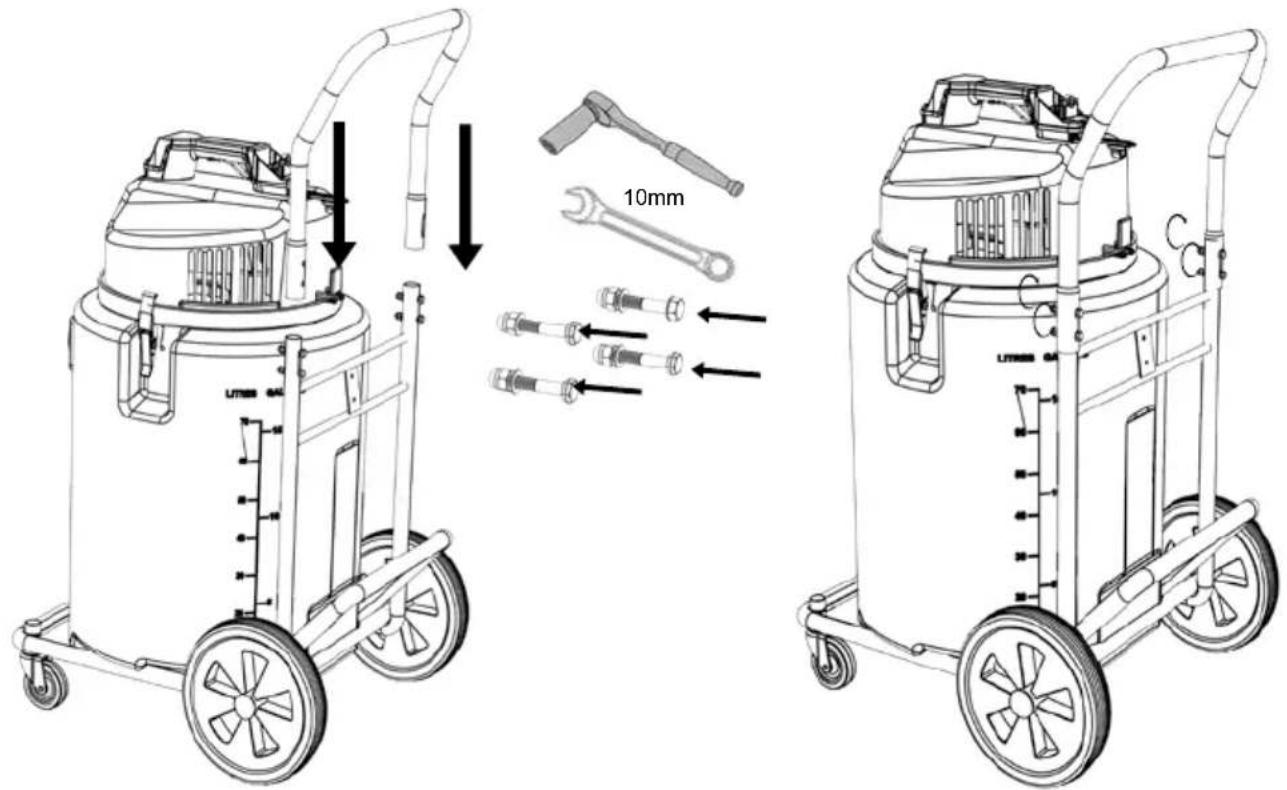

Handle Fitting Instructions - Anbringen des geraden Bügelgriffs - Instructions de montage de la poignée droite - Montage Instructie voor rechte handel - Montar a pega - Gruppo maniglia - Montaje del asa - Montowanie uchwytu - Montera handtag - Työntöaisan kiinnittäminen - Håndtagsenhed

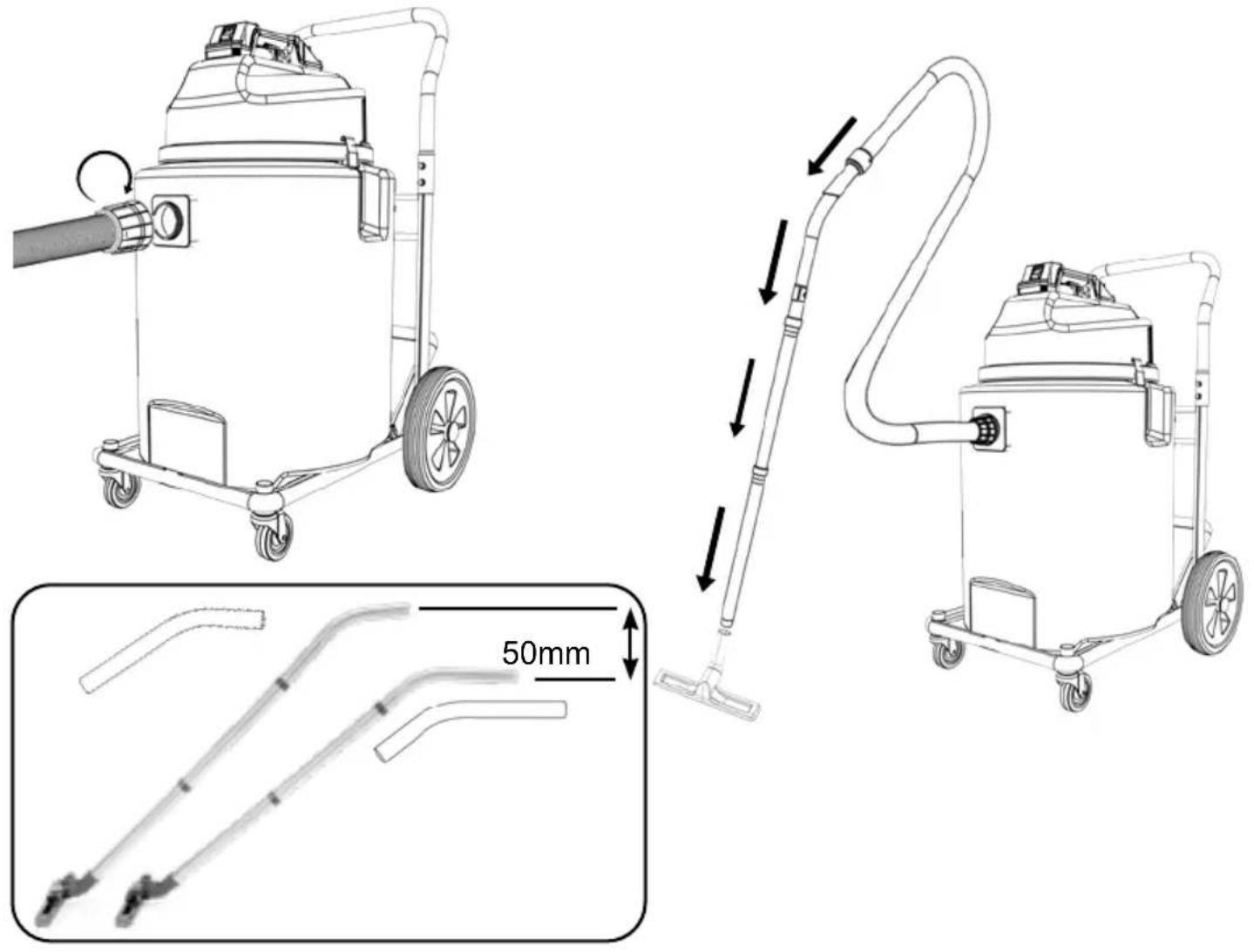

Wet / Assembling the machine for extraction use - Montage der Maschine Montage de la machine - Machine samenstellen / opbouwen - A húmido / Montar a máquina para utilização a húmido - Umido / Assemblaggio dell'apparecchio per l'uso da umido - HÚMEDO: Montaje de la máquina para uso en HÚMEDO - Na mokro / Montaż urządzenia do użytku NA MOKRO - Vått / Montering av maskinen för våtanvändning - Märkä / Koneen käyttöönotto MÄRKÄkäyttöä varten - Våd / Samling af maskinen til våd bru

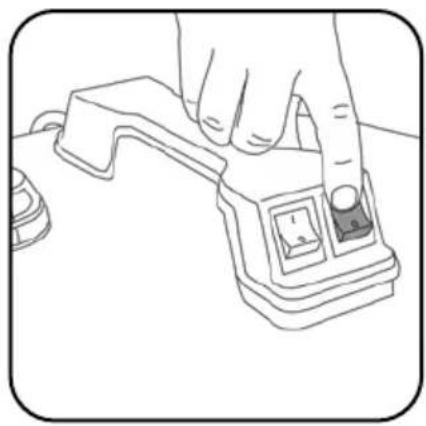

Machine Function - Funktionen des Geräts - Fonction de la machine - Machine Functies - função da máquina - Funzione macchina - Función de la máquina - Funkcja maszyny - Maskinfunktion - Koneen toiminto - Maskinens funktion

Line drawing of a hand holding a handheld device with a control panel (no text or symbols)

WV 1500AP

WVD 1500AP

WV 2000AP

WVD 2000AP

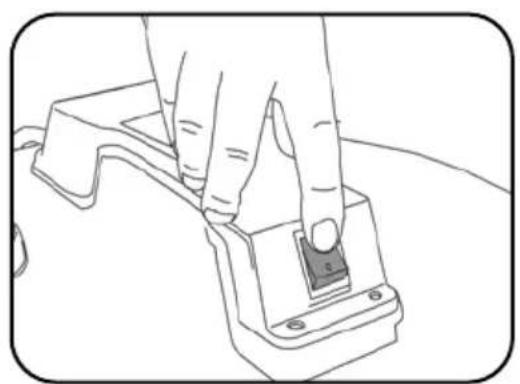

Line drawing of a hand pressing a small component on a mechanical base (no text or symbols)

WV 1500

WVD 1500

WV 2000

WVD 2000Vac

WV 1500DH

WVD 1500DH

WV 2000DH

WVD 2000DH

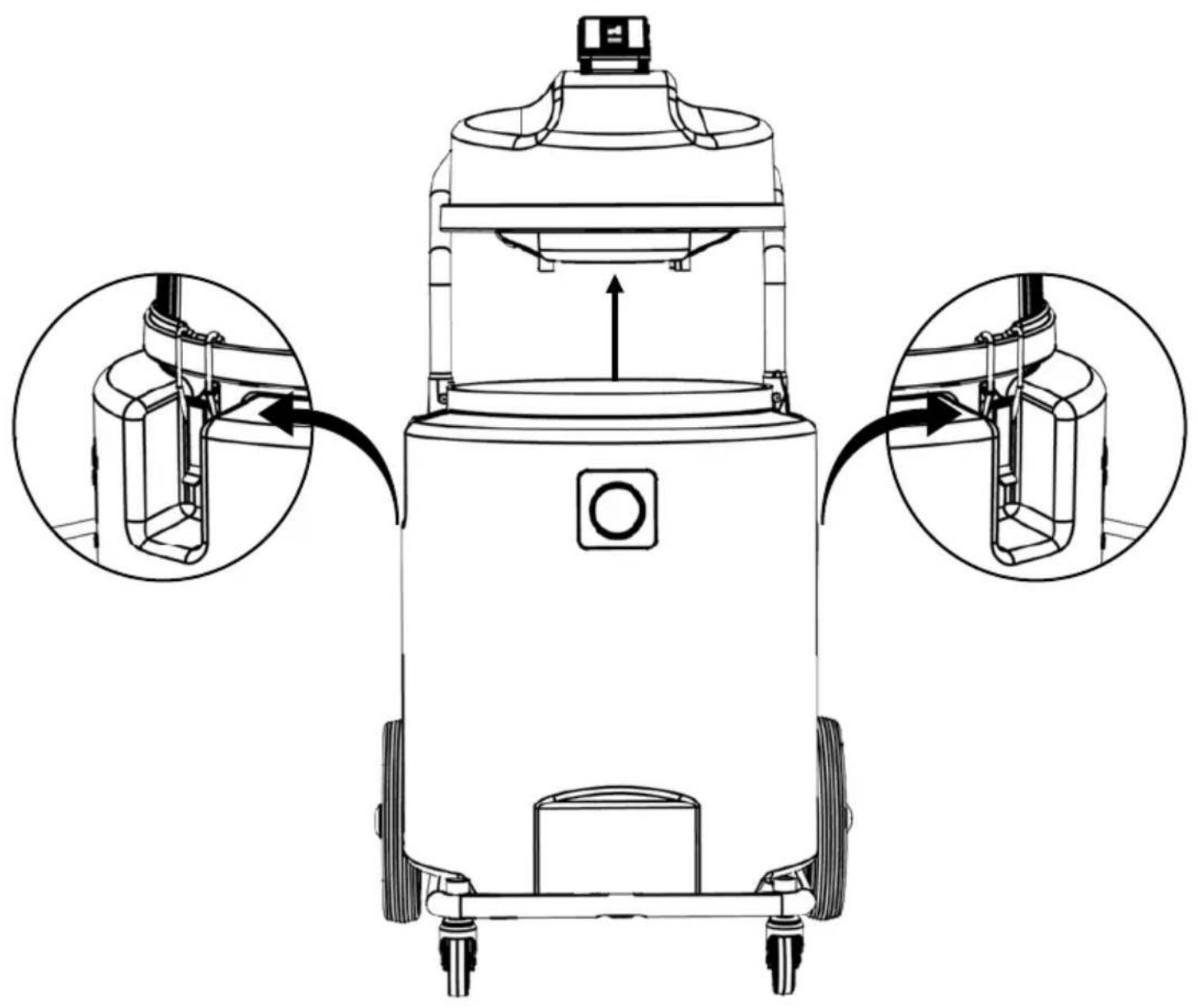

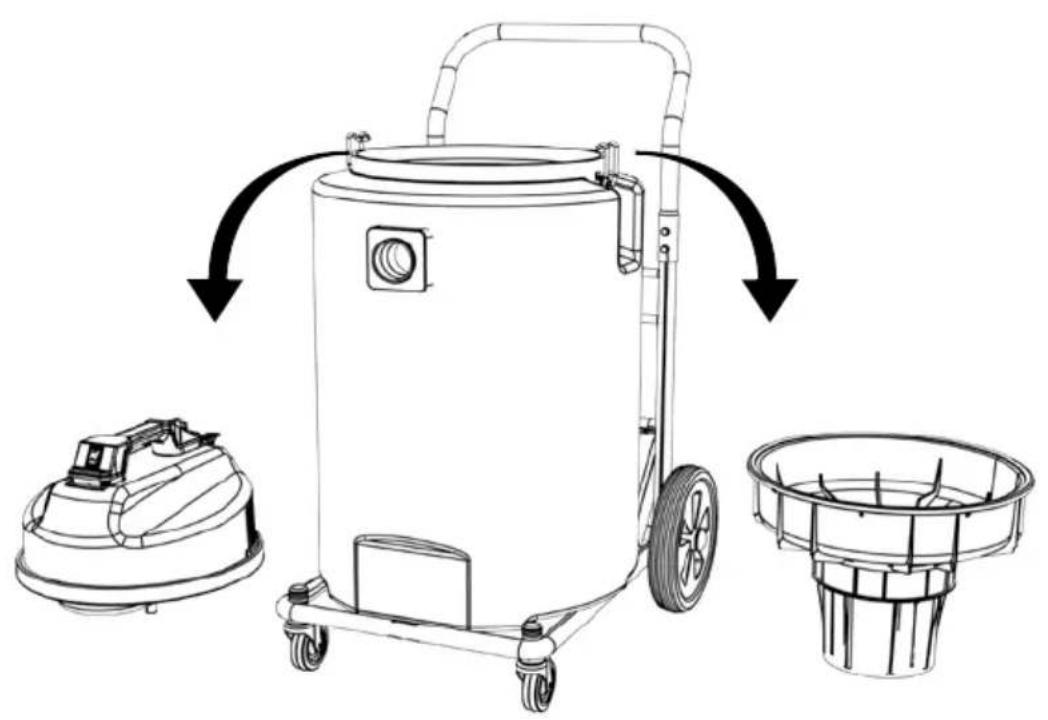

Cleaning the machine - Reinigung der Maschine - Nettoyage de la machine - De machine reinigen - Limpeza da máquina - Pulizia apparecchio - Limpieza de la máquina - Czyszczenie maszyny - Rengöra maskinen - Koneen puhdistus - Rengøring af maskinen

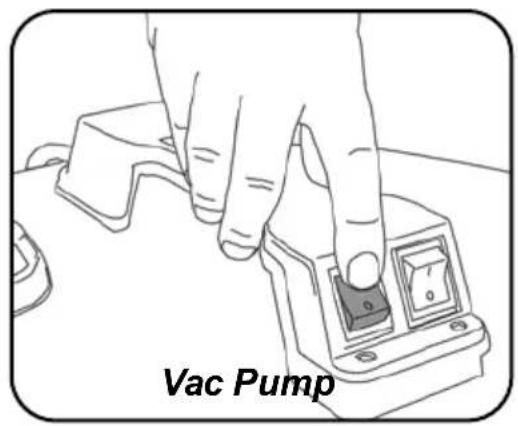

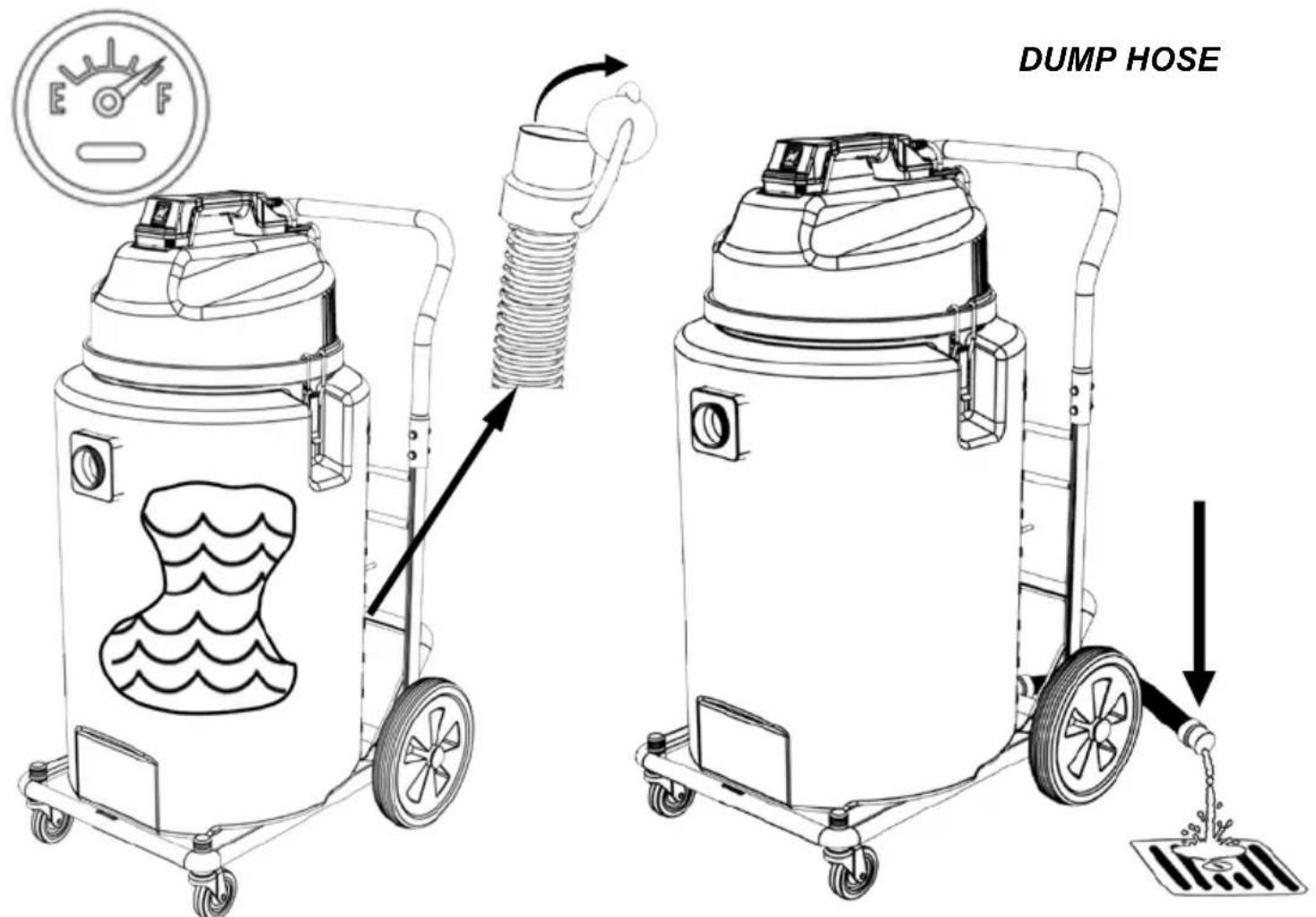

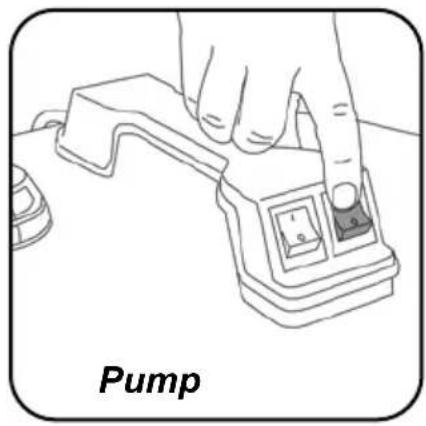

AUTO PUMP

Line drawing of a hand holding a pump device with a control panel (no text or symbols on the device itself)

WV 1500AP
WVD 1500AP
WV 2000AP
WVD 2000AP

Technical line drawing of a mechanical device with three circular insets showing internal components (no text or symbols)

Line drawing of a cleaning or dust handling device with wheels and a bucket, showing directional arrows (no text or symbols)

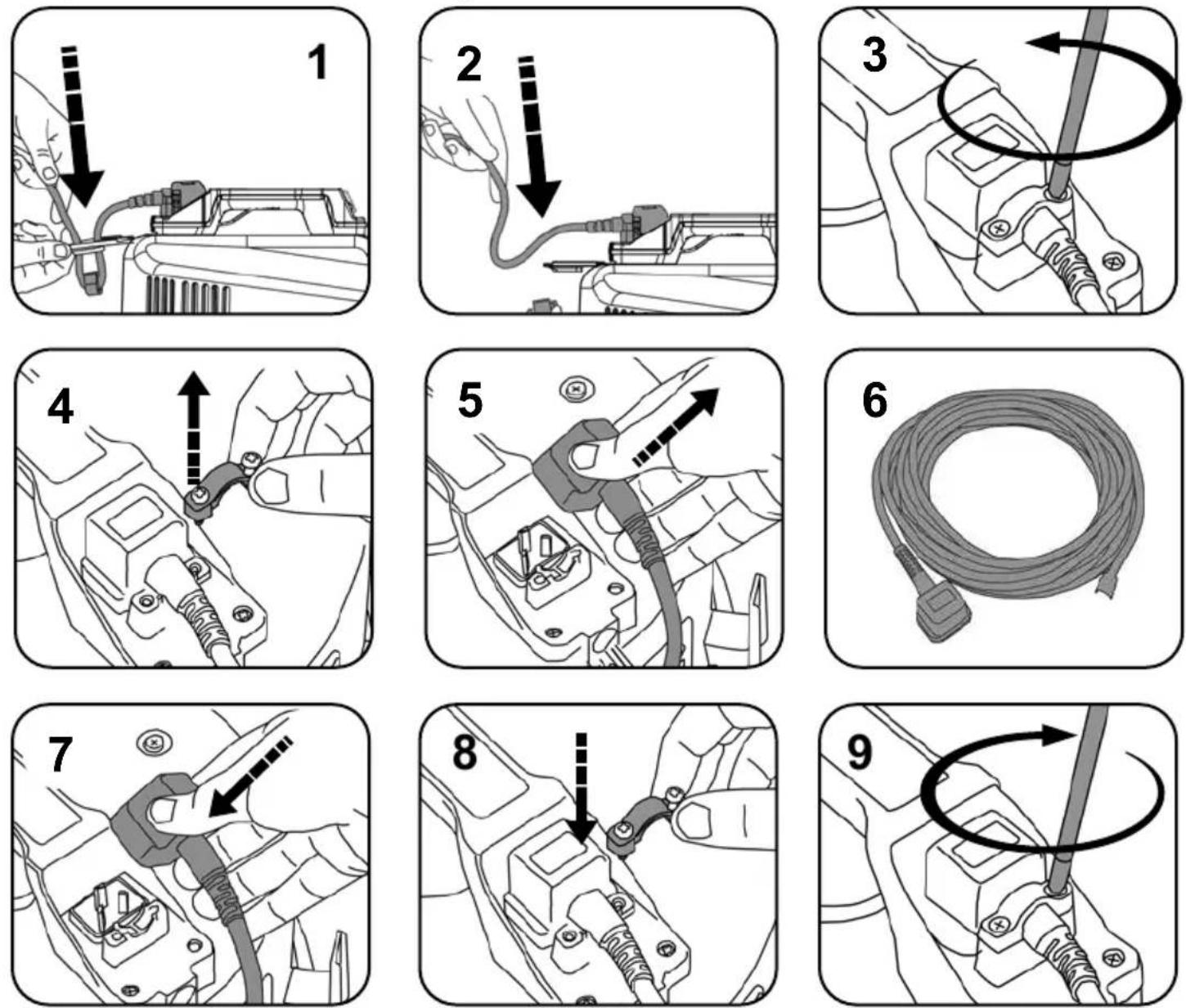

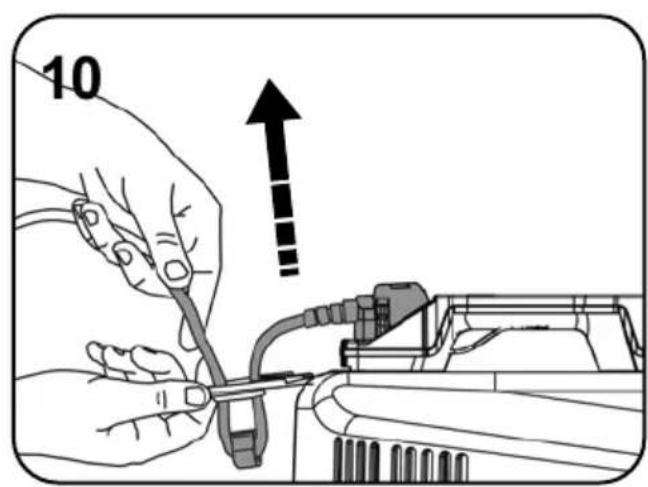

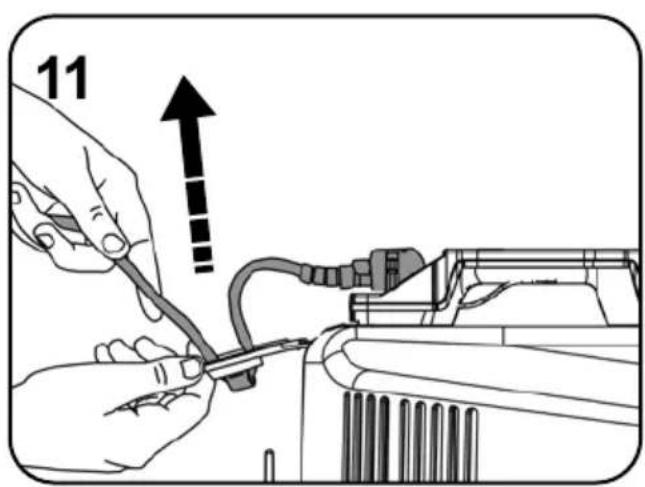

Changing / Replacing Cable - Auswechseln des Kabels - Changement/Remplacement du câble - Vervangen van de kabel - Mudar/substituir cabo - Cambio/sostituzione del cavo - Cambio del cable - Zmiana / Wymiana kabla - Wymiana kabla - Byta sladd - Kaapelin vaihtaminen - Udskiftning af kabel

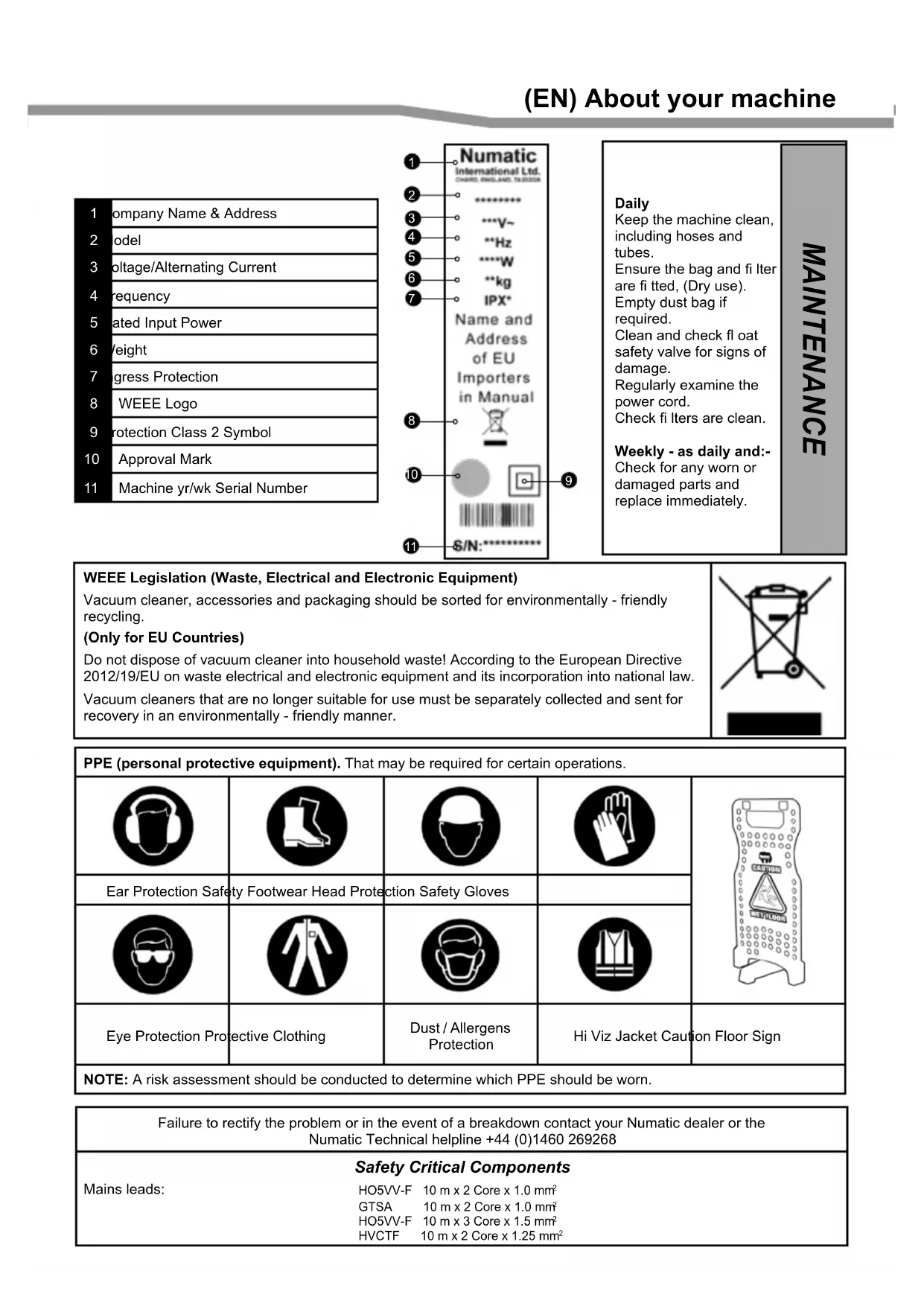

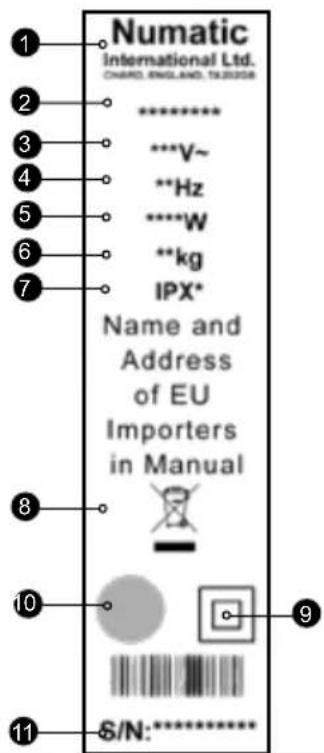

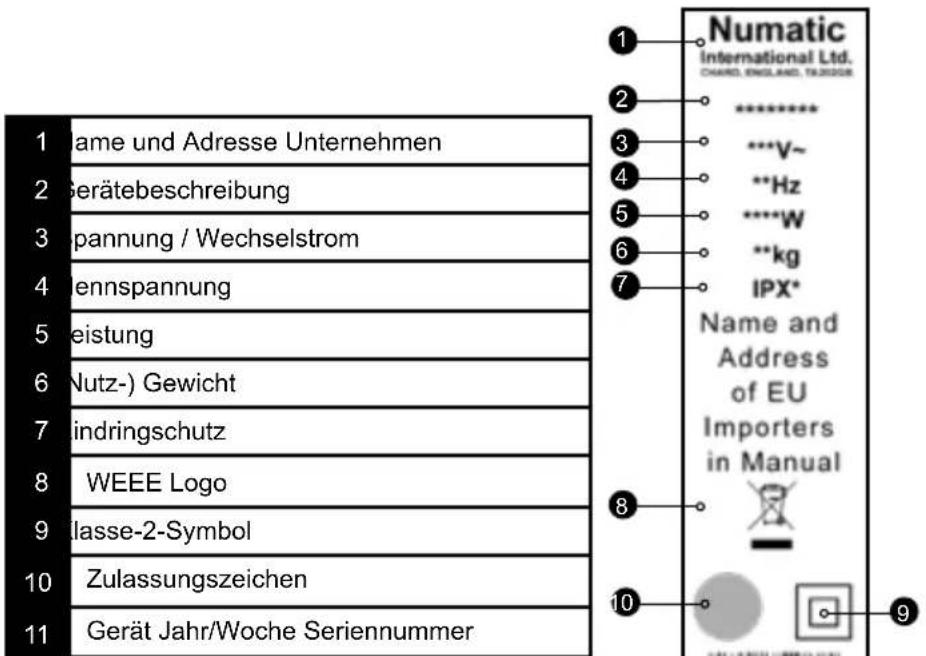

1	company Name & Address
2	Model
3	Voltage/Alternating Current
4	frequency
5	Rated Input Power
6	Weight
7	gress Protection
8	WEEE Logo
9	protection Class 2 Symbol
10	Approval Mark
11	Machine yr/wk Serial Number

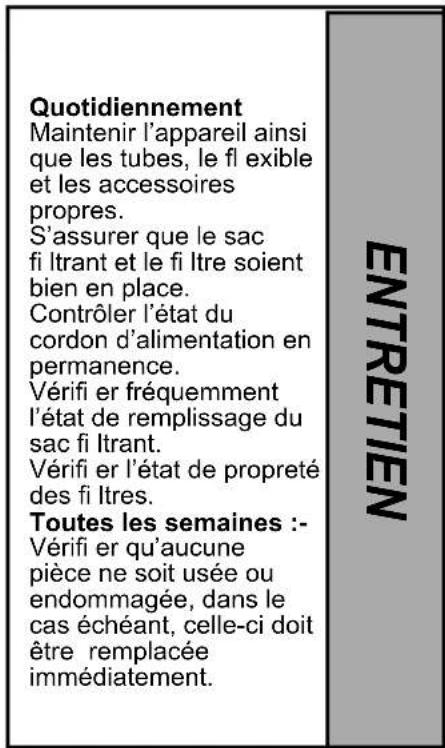

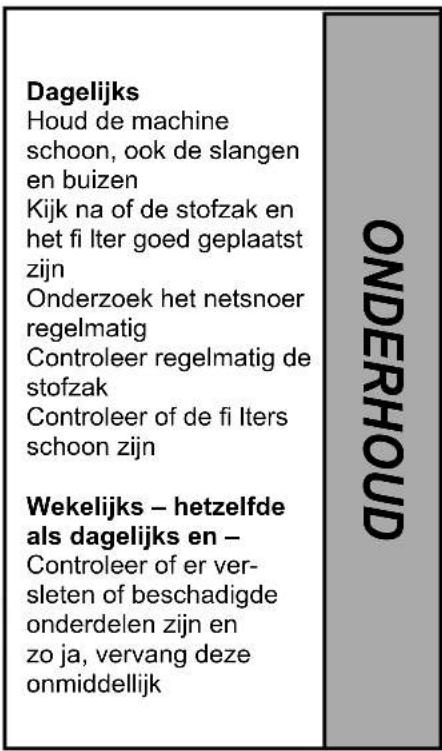

DailyKeep the machine clean, including hoses and tubes.Ensure the bag and fi liter are fi tted, (Dry use).Empty dust bag if required.Clean and check fi oat safety valve for signs of damage.Regularly examine the power cord.Check fi Iters are clean.Weekly - as daily and:-Check for any worn or damaged parts and replace immediately.

MAINTENANCE

MAINTENANCE

WEEE Legislation (Waste, Electrical and Electronic Equipment)

Vacuum cleaner, accessories and packaging should be sorted for environmentally - friendly recycling.

(Only for EU Countries)

Do not dispose of vacuum cleaner into household waste! According to the European Directive 2012/19/EU on waste electrical and electronic equipment and its incorporation into national law. Vacuum cleaners that are no longer suitable for use must be separately collected and sent for recovery in an environmentally - friendly manner.

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)

PPE (personal protective equipment). That may be required for certain operations.

Ear Protection Safety Footwear Head Protection		ction Safety Gloves
Eye Protection Protective Clothing		Dust / Allergens Protection	Hi Viz Jacket Caution Floor Sign

NOTE: A risk assessment should be conducted to determine which PPE should be worn.

Failure to rectify the problem or in the event of a breakdown contact your Numatic dealer or the Numatic Technical helpline [phone]
Mains leads:	Safety Critical Components
	HO5VV-F 10 m x 2 Core x 1.0 mm2
	GTSA 10 m x 2 Core x 1.0 mm2
	HO5VV-F 10 m x 3 Core x 1.5 mm2
	HVCTF 10 m x 2 Core x 1.25 mm2

Warning

Read the instruction manual before using the machine.

Operators shall be adequately instructed on the use of these machines.

As with all electrical equipment, care and attention must be exercised at all times during use,

in addition to ensuring that routine and preventative maintenance is carried out periodically to ensure safe operation.

Failure to carry out maintenance as necessary, including the replacement of parts to the correct standard could render this equipment unsafe and the manufacturer can accept no responsibility in this respect.

The machine shall be disconnected from the mains power by removing the plug from the power supply socket during cleaning or maintenance and when replacing parts or converting the machine to another function.

This machine is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience or knowledge.

Children being supervised are NOT to play with the machine.

This appliance is intended to be assembled, cleaned and maintained by an adult.

This machine is not a toy.

This machine is not suitable for picking up hazardous or explosive dust. Contact your local distributor if you require a machine capable of performing these tasks.

Caution

If foam/liquid comes out of machine exhaust, switch off immediately.

Allow the accumulated liquid to drain out through the machine exhaust, check the float assembly to ensure correct operation, empty the container if full of liquid, reassemble the machine.

Immediately upon start up there will be a certain amount of liquid issuing from the machine exhaust which will be the residue of liquid still within the power head. This will be quickly discharged after which the machine should function normally.

Liquid ejected from the machine could be hazardous as a result of its temperature, pressure or chemical content.

Ensure that the fi ltration system fi tted to the machine is suitable for the material being collected.

This machine is for indoor use only.

This machine shall be stored indoors only.

When moving from one place to another, consider the weight of the machine.

Notes

You must ensure that the fi ltration system fi tted to the machine is suitable for the material being collected.

This product complies with the requirements of clause 20 of IEC/EN 60335-2-69 Stability and Mechanical Hazards.

The primary use for this machine is commercial, for example in hotels, schools, hospitals, factories, shops and offices.

If the vacuum cleaner stops working, remove the plug from the power supply before investigating where the fault lies.

The vacuum cleaner should be inspected after use for damage.

The power light will illuminate, when your machine is connected to a suitable power supply (where fitted).

Do

• Use a bag and fi Iter at all times when using 'dry'.
- Keep your machine clean.
- Keep fi Iters clean.
• Regularly clean the water level limiting float safety valve and examine for signs of damage or correct operation.
- Keep hoses and tubes clear.
- Replace any worn or damaged parts immediately.
• Regularly examine the power cord, if damage is found, the power cord must be replaced by a special cord available from Numatic or its service agents.

Don't

• Use steam cleaners or pressure washers to clean the machine or use the machine in the rain.
• Immerse in water for cleaning.
- Allow any inexperienced repairs. Call the experts.
• Use wet if float valve is not functioning or fitted.
• Use to suck up hot ashes, or lighted cigarette ends.
• Run the machine over the power cable during operation as a hazard may occur.
• Pull on the cable to unplug the machine from the power supply.
• Walk over-wet carpets, upholstery or fabrics.
• Walk on clean carpets until fully dry.
• Attempt machine maintenance or cleaning unless the power supply plug has been removed from the supply outlet.
• Under any circumstances place foreign objects including (but not limited to) air fresheners, air freshener capsules or scented beads of any type into the top filter of the machine. Doing so can be dangerous and risk damage to the machine and may invalidate the machine warranty.

Dry Mode maintenance/fault fi nding

If the vacuum cleaner stops working switch off and remove the plug from the wall before investigating were the fault lies. If the vacuum cleaner will not pick up any debris from the surface, switch off and remove the plug from the wall, inspect the floor tool, wands and hose for blockages, if no blockages are found, the dust bag may be full if the dust bag is not full the filter may be blocked.

Wet mode

If the vacuum cleaner stops working switch off and remove the plug from the wall before investigating were the fault lies. If the vacuum cleaner has a blockage and will not pick up liquid, switch off and remove the plug from the wall, has the float valve operated, this will shut off the suction and the pitch of the vacuum motor will change.

Remove the power head and empty the liquid out of the container, if the container is empty, check that the floor tool wands and hose are not blocked.

Flush the system with clean water after use.

After use always inspect the machine for damage.

Symbol of a trash bin with crossed lines indicating no waste or restriction (no text or labels)

Symbol of a trash bin with crossed lines indicating no waste or restriction, plus a solid black rectangle below (no text or labels)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Codziennie

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

1	ompany Name & Address
2	Model
3	Voltage/Alternating Current
4	Frequency
5	Rated Input Power
6	Weight
7	gress Protection
8	WEEE Logo
9	rotection Class 2 Symbol
10	Approval Mark
11	Machine yr/wk Serial Number

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

You must ensure that the fi ltration system fi tted to the machine is suitable for the material being collected.

This product complies with the requirements of clause 20 of IEC/EN 60335-2-69 Stability and Mechanical Hazards.

The primary use for this machine is commercial, for example in hotels, schools, hospitals, factories, shops and offices.

If the vacuum cleaner stops working, remove the plug from the power supply before investigating where the fault lies.

The vacuum cleaner should be inspected after use for damage.

The power light will illuminate, when your machine is connected to a suitable power supply (where fitted).

OIKEIN

Dagligt

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

	Motor	AirFlo	Suction	Cleaning Range	Class
WV 2000	1060 W	49 L/s	2400 mm	26.8m	II
WVD 2000	1060 W x2	98 L/s	2400 mm	26.8m	II
WV 2000AP	1060 W	49 L/s	2400 mm	26.8m	I
WVD 2000AP	1060 W x2	98 L/s	2400 mm	26.8m	I
	Capacity Dry	Capacity Wet	Size	Weight	Sound Pressure
WV 2000	90 L	70 L	640 x 530 x 970 mm	24.1 kg	73.7dB
WVD 2000	90 L	70 L		28.9 kg	(IEC 60704-2-1)
WV 2000AP	90 L	70 L		30.4 kg	Uncertainty: 0.2 dB (A)
WVD 2000AP	90 L	70 L		36.4 kg

Drums Pumps
500627	WV 1500 GREY DRUM ASSEMBLY	389119	110V/60HZ.(1500/2000 DRUM)
500629	WV 1500AP GREY DRUM ASSEMBLY	389122	230V/50HZ.(1500/2000 DRUM)
500670	WV 2000 AP GREY DRUM ASSEMBLY	389124	220V/60HZ.(1500/2000 DRUM)
500628	WVD 2000 GREY DRUM ASSEMBLY	389125	110V/50HZ.(1500/2000 DRUM)
Filters/ Baskets/Floats Hose

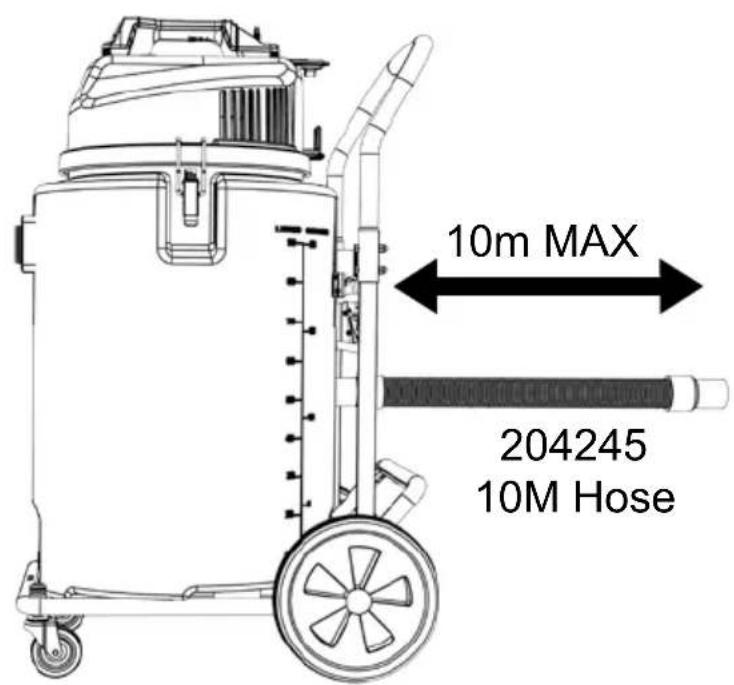

604116 PR	PRIMARY PERMATEX FILTER 604245 10M DISCHARGE HOSE FOR AP MACHINES
502034 W	FLOAT ASSEMBLY

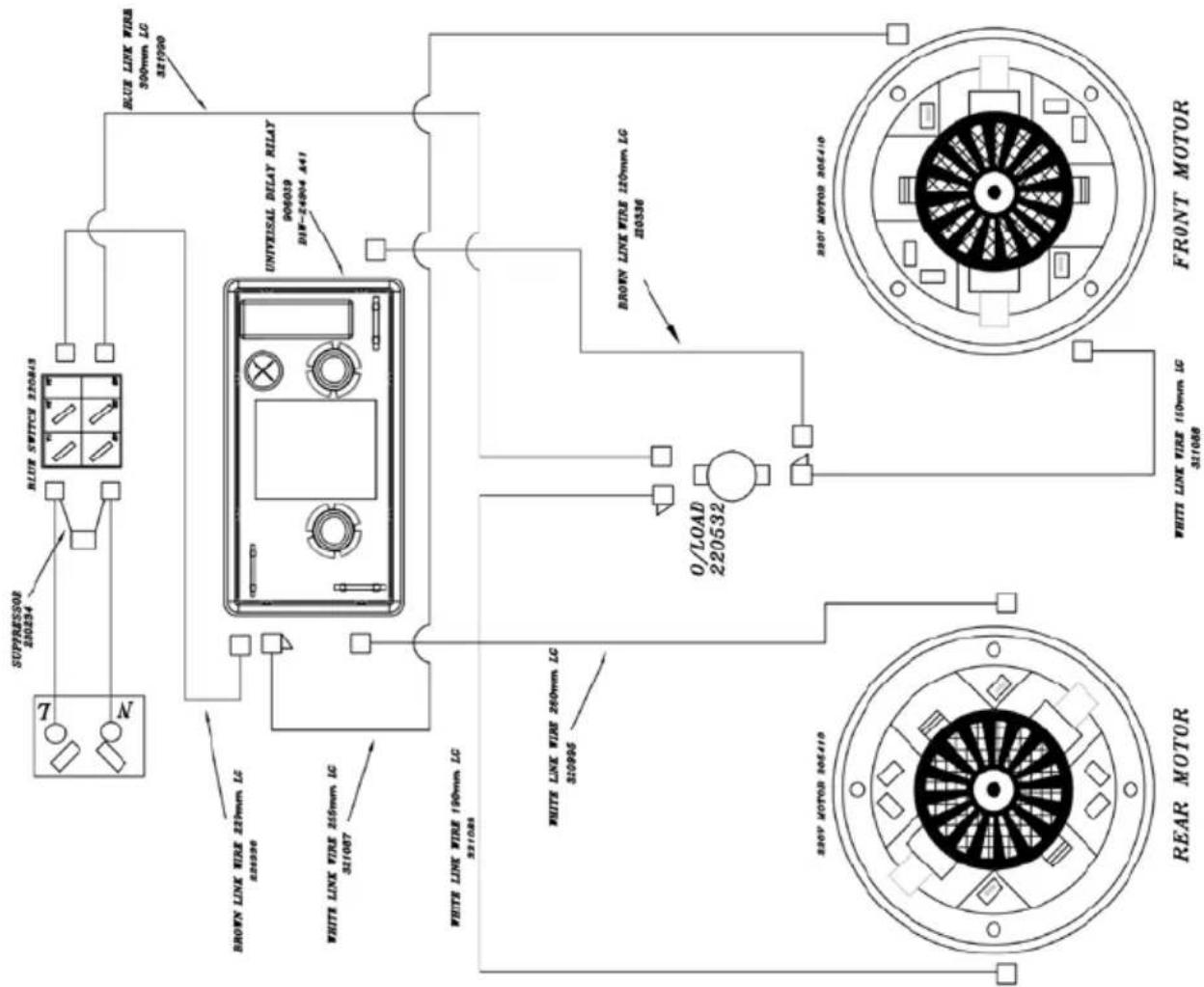

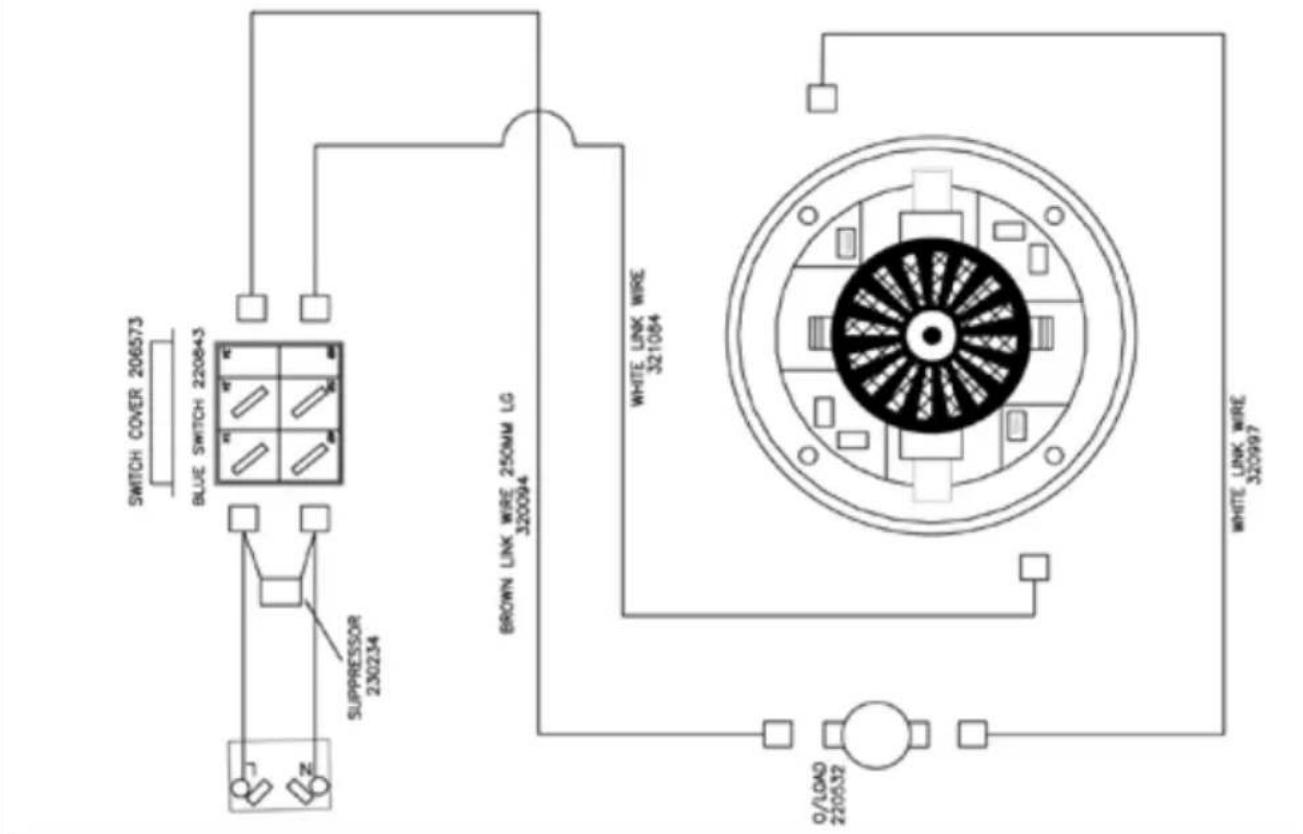

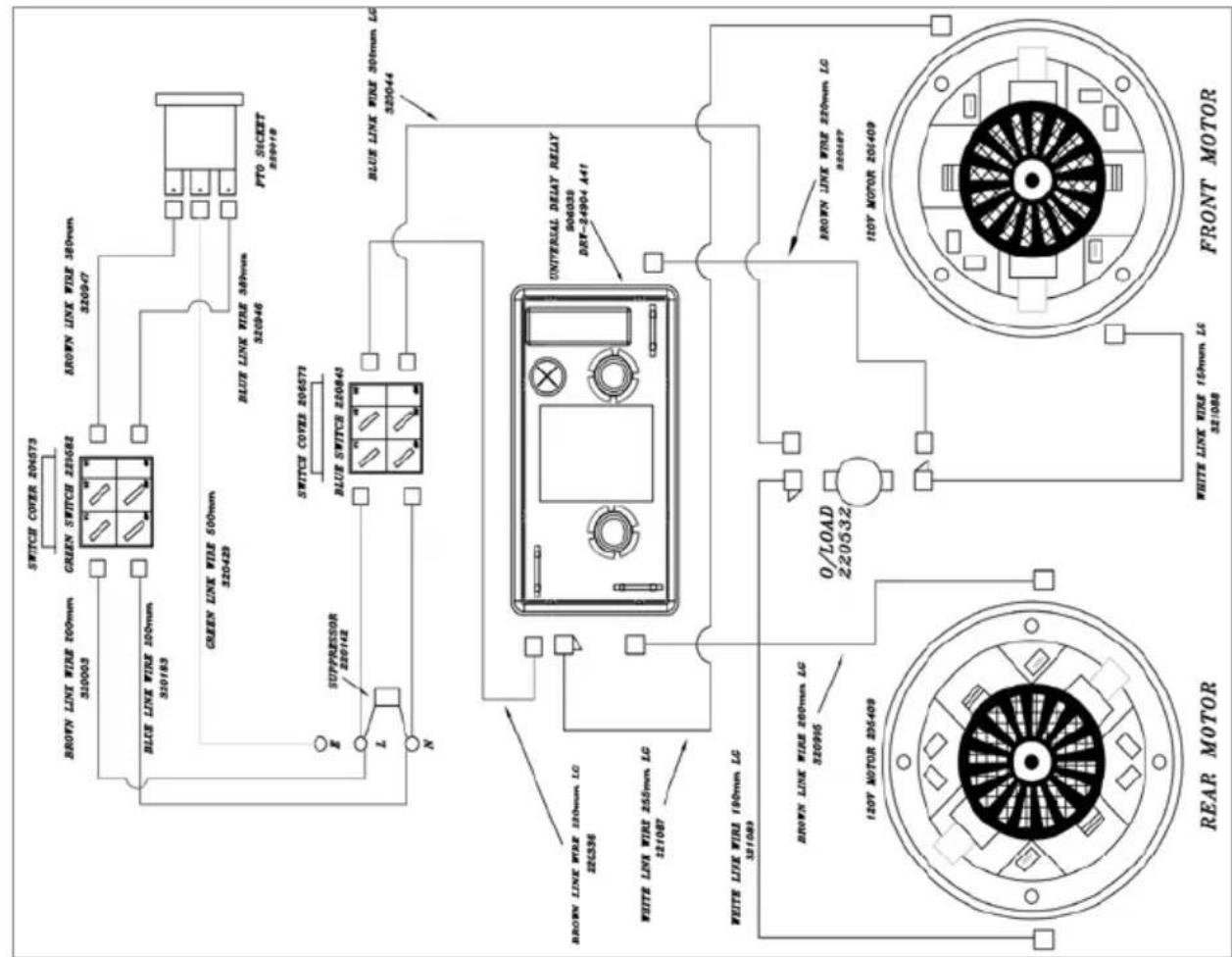

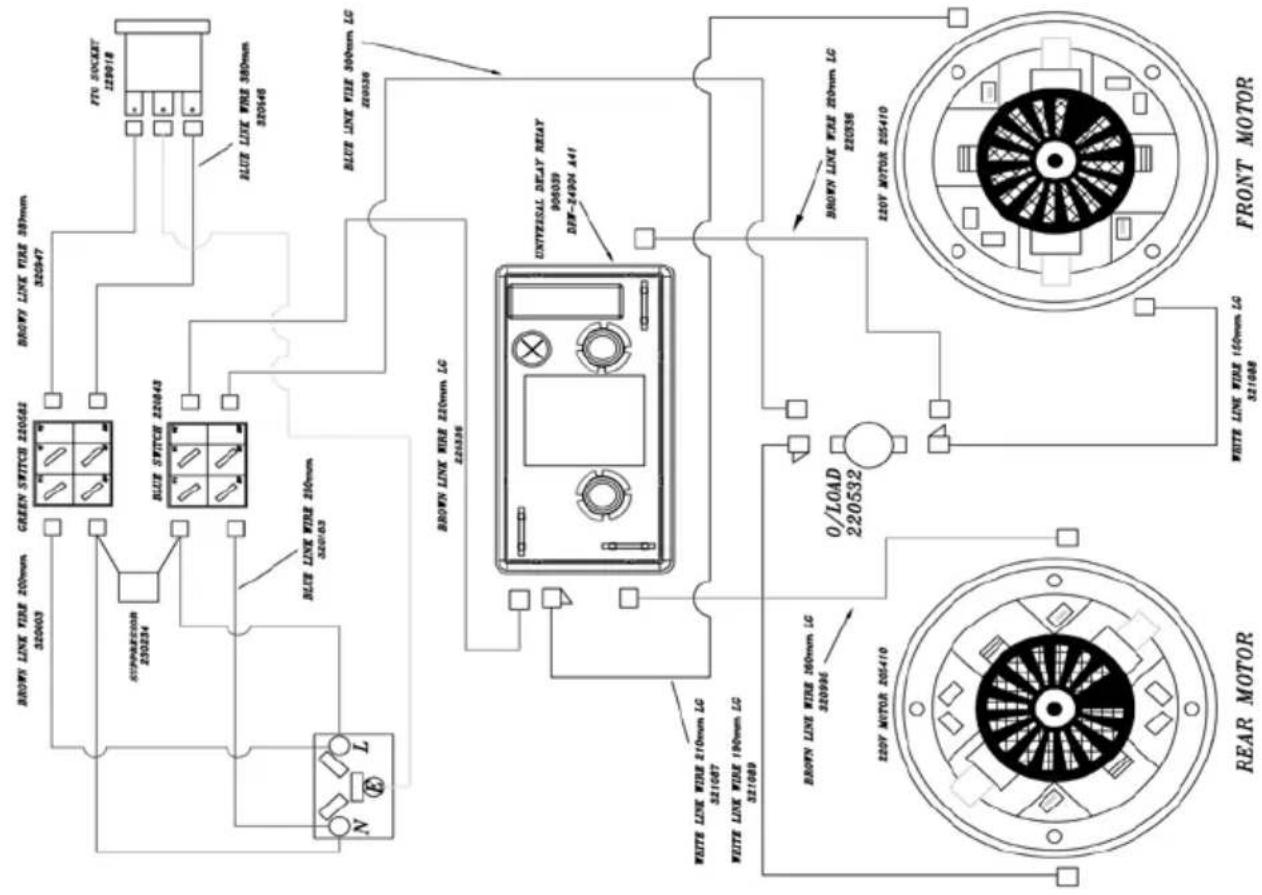

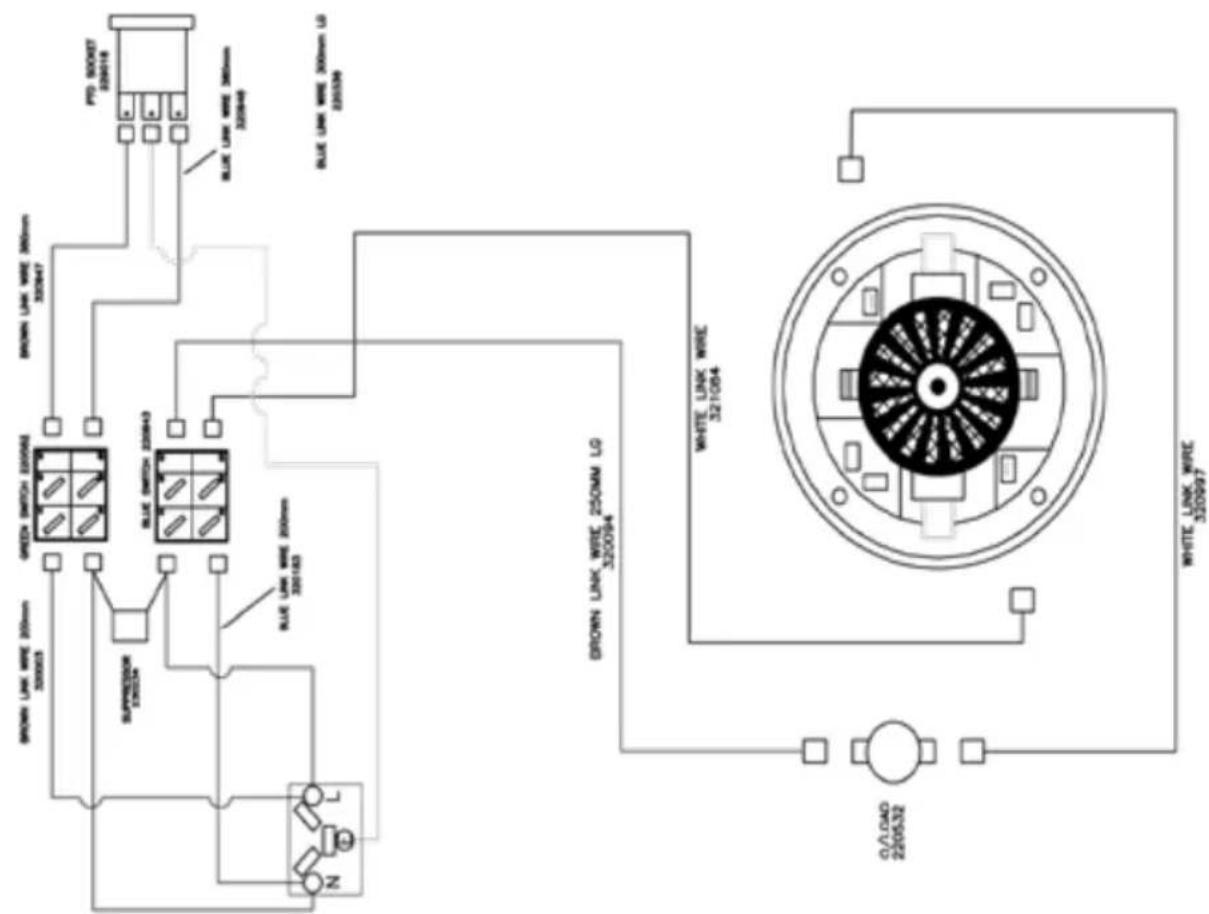

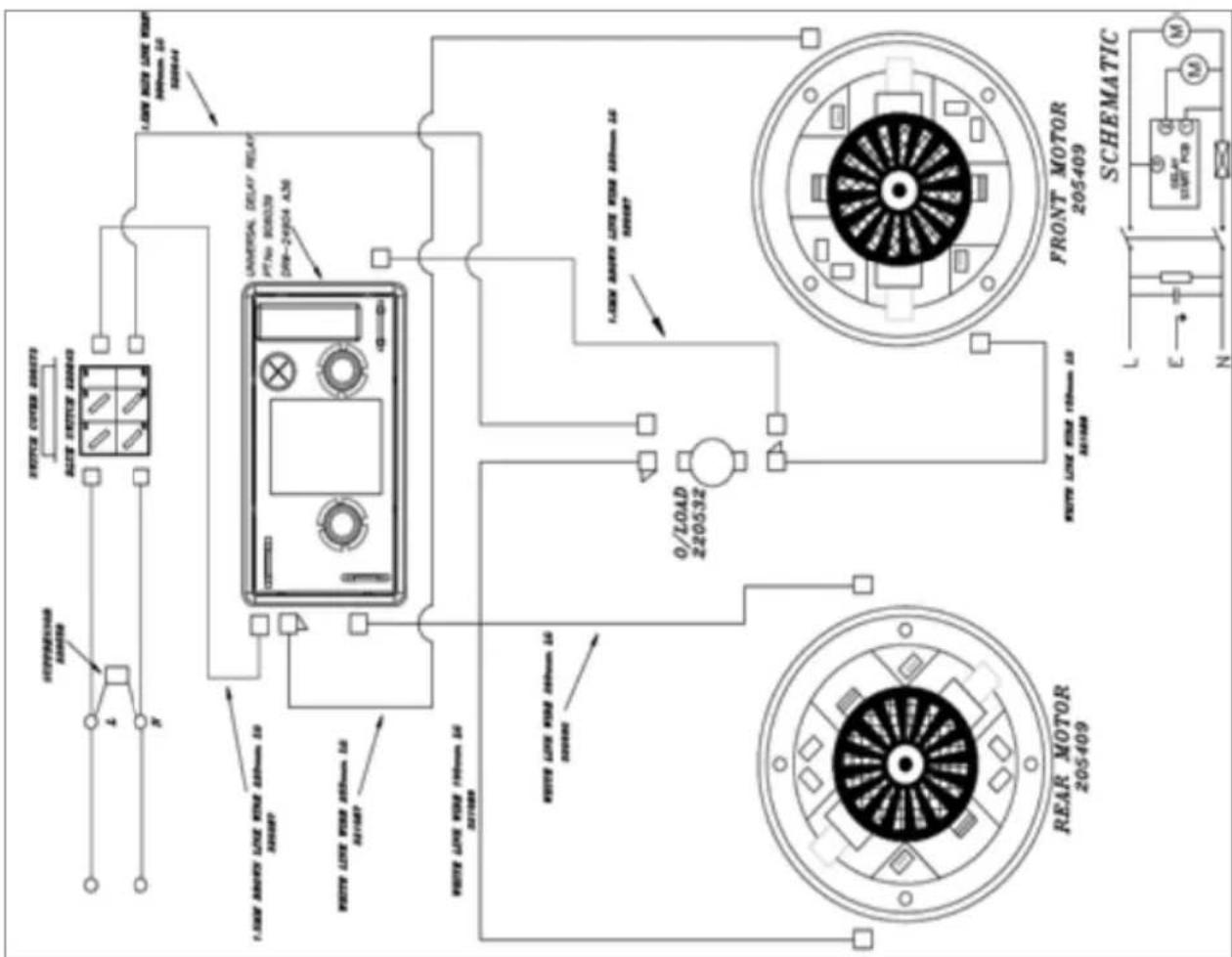

14" WVD Duplex 230V..... WD-0255 (A06)

14" Duplex PTO 240V
WD-0246 (A06)

14" Simplex AP/PH 240V / 120V
WD-0244 (A03)

14" WV Duplex PTO120V
WD-0259 (A03)
14" WV Duplex 120V
WD-0257 (A03)

14" WV Simplex 220V
WD-0289 (A01)

14” WV Simlex AP/PH 220V
17/03/05 WD-0288 (A01)

14" WV Duplex AP/PH 220V WD-0290 04/03/09 (A03)

14" WV Duplex 220V
WD-0293 05/03/09 (A03)

UKCA Declaration of Conformity
Manufacturer:	Numatic International LimitedChardSomersetTA20 2GBwww.numatic.co.uk			EU, EC, EL, UE, ES:Declaration of ConformityProhäläseni o shodëKonformitatserklarungOverensstemmelseserklæringDeclaración de conformidadVastavusdeklaratsioonDéclaration de conformité	Декларация за съответствиеΔηλωση συμμόρφωσηςMegfelelőségi nyliatkozatDichlarazione di conformitàAttikties deklaracijaConformiteitsverklaringSamsvarserklæringDeclaração de conformidade
Product:	WV, WVD, CV, CVD		Manufacturer: / Výrobce / Hersteller / Fabrikant / Fabricante / Tootja / Fabricant / производитель / Kataokseuaotíc / Gyártó / Fabbricante / Gamintojas / Fabrikant / Produsent / Fabricante / Producent / Producátor / производитель / Tillverkare / Proizvajalca / Valmistaja:		Numatic International LimitedChardSomersetTA20 2GBwww.numatic.co.uk
Description:	Vacuum Cleaner – Commercial – Wet & Dry		Product: / Produkt / Produkt / Produkt / Producto, Toodet, Produit / Проdykt / Проϊöv / Termék / Prodotto / Produktas / Artikel / Produkt / Produtos / Produkt / Produs / товар / Produkt / Izdelka / Tuote:		WV, WVD, CV, CVD, SSIVD
			Description: / Popis / Beschreibung / Beskrivelse / Descripción / Kirjeldus / La description / Описание / Перурафή / Leirás / Descrizione / Apibudinimas / Omschrijving / Beskrivelse / Descrição / Opis / Descriere / Описание / Beskrivning / Opis / Kuvaus:		Vacuum Cleaner – Commercial – Wet & Dry
We, Numatic hereby declare under our sole responsibility, that the above-mentioned product(s) is/are in conformity with the following directives and standards.			EN We, Numatic hereby declare under our sole responsibility, that the above-mentioned product(s) is/are in conformity with the following directives and standards.CZ My, Numatic prohlašujeme na syou vylučnou odpovědnost, že výše uvedený vyrobek je ve shodě s nasledujcimi směrnicemi a normami.DE Wir, Numatic erklären in alleiniger Verantwortung, dass das oben genannte Produkt den folgenden Richtlinien und Normen entspricht.DA VI, Numatic erklærer hermed under eget ansvar at ovennaavnite produkt(er) er i overensstemmelse med folgende direktiver og standarder.		PT Nós, a Numatic declaramos, sob nossa exclusiva responsabilidade, que o produto acima mencionado está em conformidade com as diretrizes e normas a seguir.PL My, Numatic Niniejszym oświadczy z pełną odpowiedzialnością, ze wyżej wymieniony produkt jest zgodny z następującymi dyrektywami i normami.RO Noi, Numatic Prin prezenta declarám pe propria räspundere, cā produsul mai sus menjonat este în conformitate cu urmätoarelle standarde yi directive.RU Mi, Нилифск овим изjavљујем под пуном одговорношу, да наведеног производ је у складу са следећим директивама и стандардима.SV Vi Numatic förklar härmed under eget ansvar att ovan nämnda produkt överensstammer med foljande direktiv och normer.SL MI, Numatic izjavljamo s polno odgovornostjo, da je zgoraj omenjeni izdelek v skladu z naslednjimi smernicami in standardi.FI Me, Numatic täten vakuutamme omaila vastuulla, että edellä mainittu tuote on yhdenmukainen seuraavien direktivien ja standardien mukaisesti
S.I. 2008: 1597	Supply of Machinery Regulations	EN60335-1:2012 + AC:2014 + A11:2014 + A13:2017 + A15:2021EN60335-2-69:2012EN62233:2008				BG Hne, Numatic С настоящото декларираме на свов лична отговорност, не посоченийте по-роре продуктет в съответствие сус следните директиви и стандарти.EL Ejusic, Numatic δηλώνουμε με αποκλειστική μας ευδύνη, ότο το προσανφερόμενο προϊόν αυμμορφώνεται με τις ακέλουθες οδηγίες και πρατυπα.HU Mi, Numatic Kijelentijk, egyedüli feleldssäggel, hogy a fent emitlett termék megfelel az alábbi irányelveknek és szabványoknakIT Noi, Numatic dichiara sotto la propria responsabilità, che il prodotto di cui sopra è conforme alle seguenti direttive e norme.
S.I. 2016: 1091	EMC Regulations	EN55014-1:2017 + A11:2020EN55014-2:1997 + A1:2001 + A2:2008EN61000-3-2:2014EN61000-3-3:2013
S.I. 2012: 3032	RoHS Regulations		ES Nosotros, Numatic declaramos bajo nuestra única responsabilidad que el producto antes mencionado está en conformidad con las siguientes directivas y normasET Meie, Numatic Käesolevaga kinnitame ja kanname ainuisikulist vastutust, et eespool nimetatud toode on kooskõlas järgmiste direktiviide jaFR Numatic déclare sous notre seule responsabilité que le produit mentionné ci-dessus est conforme aux directives et normes suivantes.	LT Mes, "Numatic parelskiu vienačaliikos atsakomybės, kad pirmiaiu minetas produktas atitinka šlas direktyvas ir standardusNL We verklaren Numatic hierbij op eigen verantwoordelijkheid, dat het bovengenoemde product voldoet aan de volgende richtlijnen en normenNO VI, Numatic erklærer herved under eget ansvar, at det ovennevnte produktet er i samsvar med folgende direktiver og standardier
Authorised Signatory: Mr. Matthew Coles		Position: Head of TechnologyNumatic International Limited, Chard,Somerset, TA20 2GB, UK
Signed: M Colos Date: 2ndFebruary 2024			2006/42/EC	Machinery Directive	EN60335-1:2012 + AC:2014 + A11:2014 + A13:2017 + A15:2021EN60335-2-69:2012EN62233:2008
			2014/30/EU	EMC Directive	EN55014-1:2017 + A11:2020EN55014-2:1997 + A1:2001 + A2:2008EN61000-3-2:2014EN61000-3-3:2013
			2011/65/EU	RoHS Directive

Position: Head of Technology

Numatic International Limited

Chard,

nd February 2024 Somerset, TA20 2GB, UK

Numatic

numatic.com

Numatic International Limited (Head Office)

Chard, Somerset TA20 2GB, UNITED KINGDOM

Tel: [phone] numatic.com

Numatic International GmbH

Fränkische Straße 15-19, 30455 Hannover, DEUTSCHLAND

Tel: [phone] numatic.de

Numatic International Denmark

Fränkische Straße 15-19, 30455 Hannover, DEUTSCHLAND

Tel: [phone] numatic-online.dk

Numatic International S.A.S

Numatic International BV

Numatic International (PTY) Ltd.

Cnr. 16th & Pharmaceutical Road, Randjes Park, Midrand 1685, SOUTH AFRICA

Tel: [phone] numatic.co.za

Numatic International ULDA

Rua Francisco da Silva Duarte, n°79,

4475-269 Santa Maria de Avioso, Castêlo da Maia, PORTUGAL

Tel: [phone] numatic.pt

NUMATIC INTERNATIONAL SPAIN, S.L.U.

Av. Baix Llobregat, 5-7, Ofi cina bajos 1 (Parc Negocis Mas Blau II),

08820 El Prat de Llobregat (Barcelona) SPAIN

Tel: [phone] numatic.es

Numatic International Italy S.R.L

Via Luigi Galvani, 2, Z.I. Talponedo, 33080 Porcia (PN), ITALY

Tel: [phone] numatic.it

Specification subject to change without prior notice

numatic.com © Numatic International Limited
