| Product Type | Multi-beverage capsule coffee maker |
| Brand | Bosch |
| Model | Tassimo Suny TAS3107 |
| Power supply | 220-240 V ~, 50/60 Hz, 1300 W |
| Brewing system | Automatic barcode reading via T DISC |
| Capsule type | Original Tassimo T DISC only |
| Water tank capacity | Approximately 1 L (max mark) |
| Main functions | Hot beverage preparation, auto shut-off, standby mode |
| Indicator lights | Status LED, cleaning/descaling |
| Materials | Plastic, removable parts |
| Maintenance | Dishwasher-safe parts (water tank, cup support, drip tray) |
| Descaling | With service T DISC, phosphoric acid-free |
| Safety | Do not immerse in water; min. 10 cm distance for implants |
| Maximum altitude | 2000 m above sea level |
| Use | Domestic, enclosed rooms |
| Repairability | Original parts, repair by qualified after-sales service |
| Dimensions (approx.) | Not specified |
| Weight (approx.) | Not specified |
Frequently Asked Questions - Tassimo Suny TAS3107 BOSCH
User questions about Tassimo Suny TAS3107 BOSCH
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Coffee maker in PDF format for free! Find your manual Tassimo Suny TAS3107 - BOSCH and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Tassimo Suny TAS3107 by BOSCH.
USER MANUAL Tassimo Suny TAS3107 BOSCH
m = 311
22
13/14
24
25
26
28
29
30
31
32
34
36
38
40
41
42
43
44
m = 311
46
m = 311
48
13/14
50
51
52
54
56
58
60
62
64
65
66
67
de
Inhaltsverzeichnis
1 Sicherheit 13
1.1 General information 20
1.2 Intended use 20
1.3 Restriction on user group 20
1.4 Safety information 20
2 Overall view 22
2.1 Operation and display 22
3 Performing initial start-up 22
4 Operation 22
4.1 Preparing a drink 22
5 Cleaning and servicing 22
5.1 Dishwasher-safe components 22
5.2 Cleaning the appliance 22
5.3 Descale the appliance 23
6 Dishwasher-safe components. 23
7 Cleaning the appliance 23
8 Descale the appliance. 23
9 Troubleshooting 23
10 Technical specifications 24
11 Disposing of old appliance. 24
12 Customer Service 25
en Safety

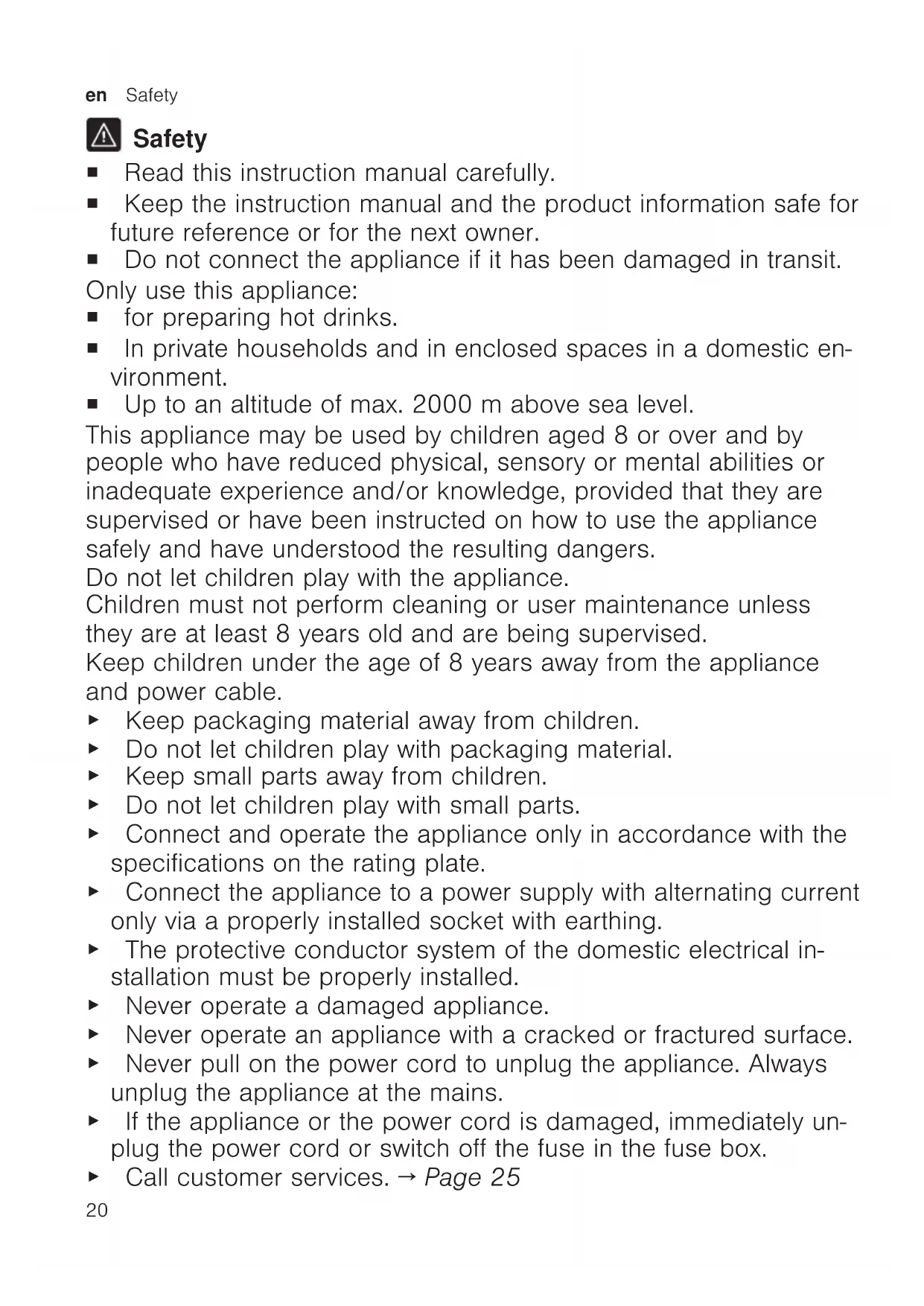

Safety
- Read this instruction manual carefully.
- Keep the instruction manual and the product information safe for future reference or for the next owner.
- Do not connect the appliance if it has been damaged in transit. Only use this appliance:
for preparing hot drinks.
In private households and in enclosed spaces in a domestic environment.
Up to an altitude of max. 2000m above sea level.
This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers.
Do not let children play with the appliance.
Children must not perform cleaning or user maintenance unless they are at least 8 years old and are being supervised.
Keep children under the age of 8 years away from the appliance and power cable.
- Keep packaging material away from children.
- Do not let children play with packaging material.
- Keep small parts away from children.
Do not let children play with small parts. - Connect and operate the appliance only in accordance with the specifications on the rating plate.
- Connect the appliance to a power supply with alternating current only via a properly installed socket with earthing.
The protective conductor system of the domestic electrical installation must be properly installed. - Never operate a damaged appliance.
- Never operate an appliance with a cracked or fractured surface.

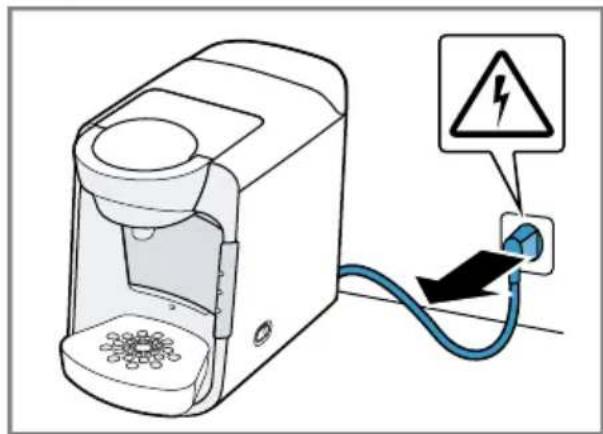

- Never pull on the power cord to unplug the appliance. Always unplug the appliance at the mains.
- If the appliance or the power cord is damaged, immediately unplug the power cord or switch off the fuse in the fuse box.
- Call customer services. Page 25
Repairs to the appliance should only be carried out by trained specialist staff.
- Only use genuine spare parts when repairing the appliance.
If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.
- Never immerse the appliance or the power cord in water.
- Liquids must not be spilled on the appliance plug connection.
- Only use the appliance in enclosed spaces.
- Never expose the appliance to intense heat or humidity.
- Do not use steam- or high-pressure cleaners to clean the appliance.
- Ventilate the appliance adequately.
- Never operate the appliance in a cupboard.
- Never leave the appliance unattended while it is switched on.
- Do not use extension cables or multiple socket strips.
- Only use adapters and power cords approved by the manufacturer.
If the power cord is too short and a longer one is not available, please contact an electrician to have the domestic installation adapted.
- Never open the brewing system during operation.
Only use the original Tassimo T DISCs.
- Never use a damaged T DISC.
Never use a drinks T DISC more than once.

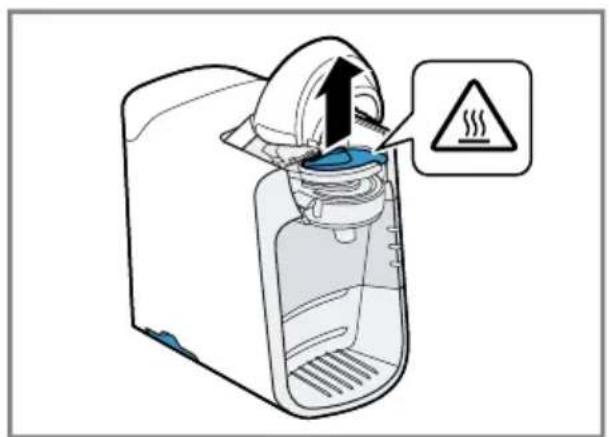

- Never touch hot appliance parts.
- Allow hot appliance parts to cool down before touching.
Leave drinks to cool down if necessary.
- Do not let escaping liquids or steam come into contact with your skin.
- To avoid injuries, only use the appliance for its intended purpose.

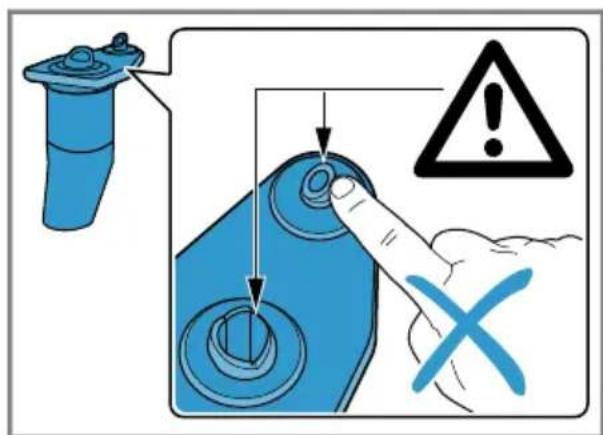

Be careful of your fingers when inserting or cleaning the T DISC.
People with electronic implants must stand at least 10 cm away from the appliance.
- This minimum distance of 10cm must also be observed for the water tank when removed.
- To ensure hygiene, follow the cleaning instructions for the appliance.
Overall view
You can find an overview of the parts of your appliance here.
Note: Individual details and colours may differ, depending on the appliance model.
Fig. 1
1 On/off switch
2 Start / stop button
3 Display symbols
4 Brief cleaning / descending instructions
5 Service T DISC
Storage compartment
7 T DISC reading window
8 T DISC piercing unit
9 T DISC holder
10 Lock
11 Brewing system
12 Water tank
13 Maxmark
14 Mark
15 Float
16 Bowl
17 Cup stand
18 Drip grate
Operation and display
You can find an overview of the function of the start / stop button and an explanation of the display symbols here.
Activate the appliance.
- Start and stop dispensing drinks.
Prolong drinks dispensing.
Start service programme.
Display status.
Fill water tank.
Descale appliance.

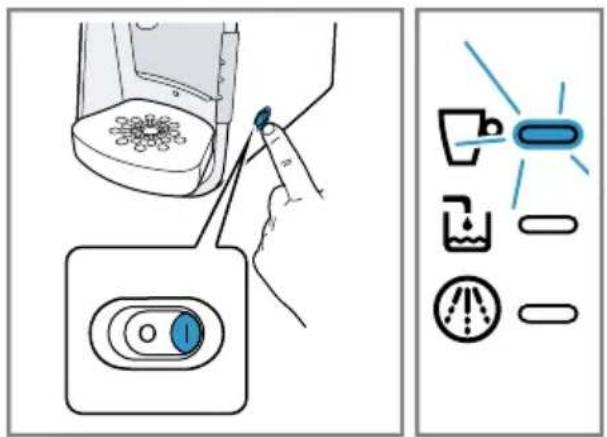

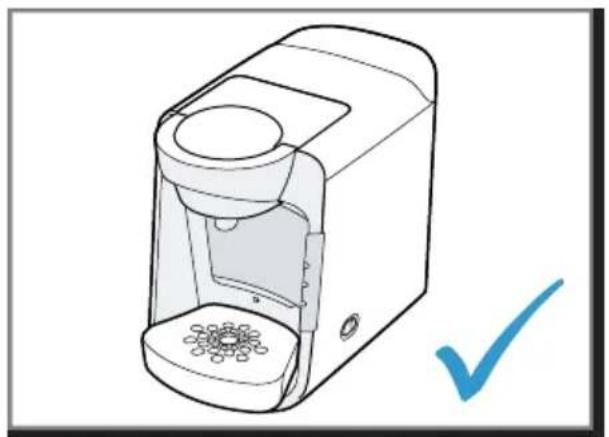

Performing initial start-up

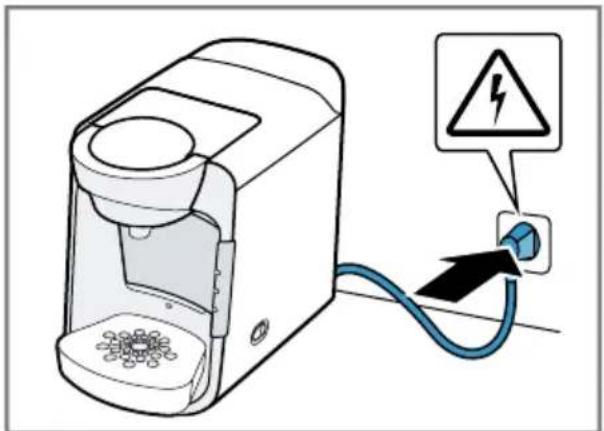

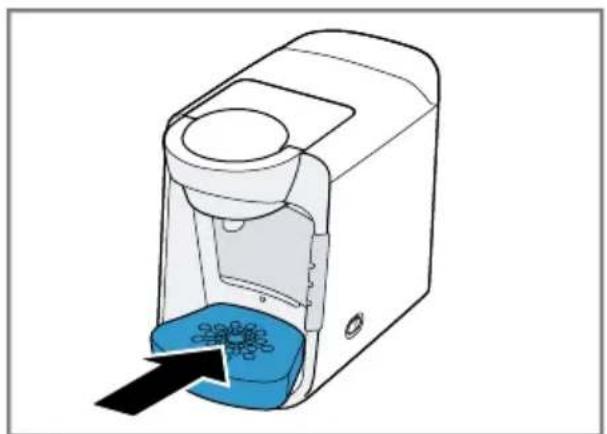

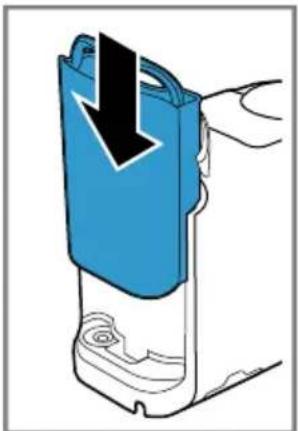

Follow the pictorial instructions at the start of these instructions.
Fig. 2 - 15
Note: You can prepare a wide range of hot beverages with the multiple hot drinks machine. When you insert a T DISC, the scanner reads the barcode and controls the flow of hot water automatically.

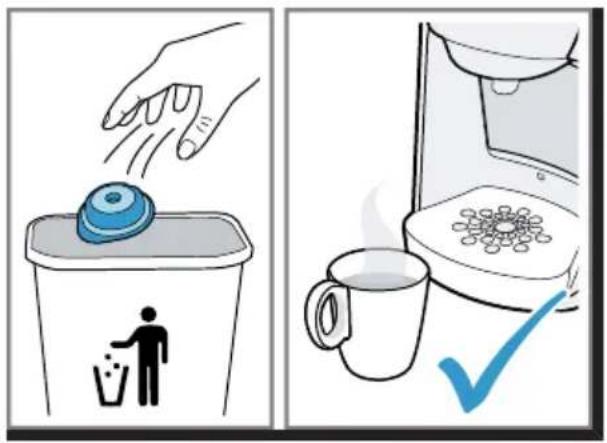

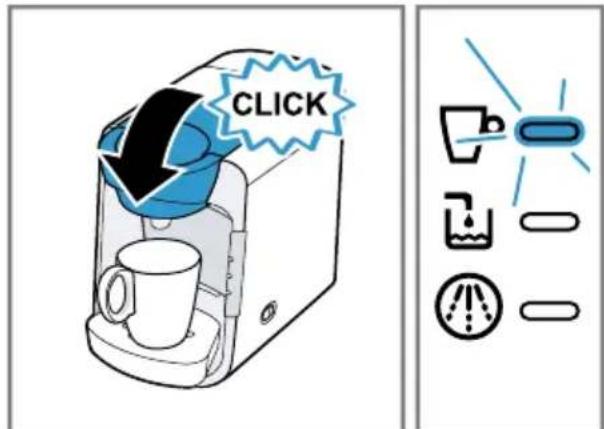

Operation

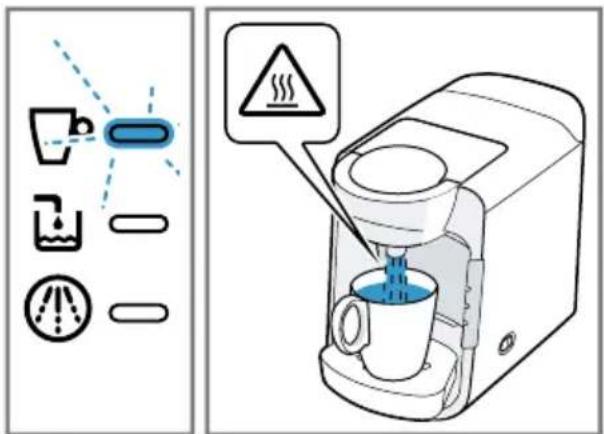

Preparing a drink

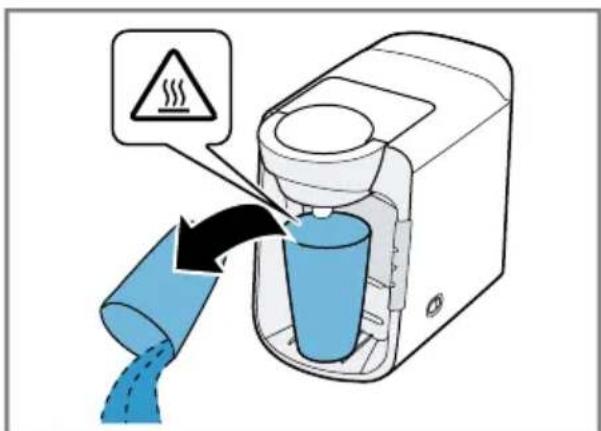

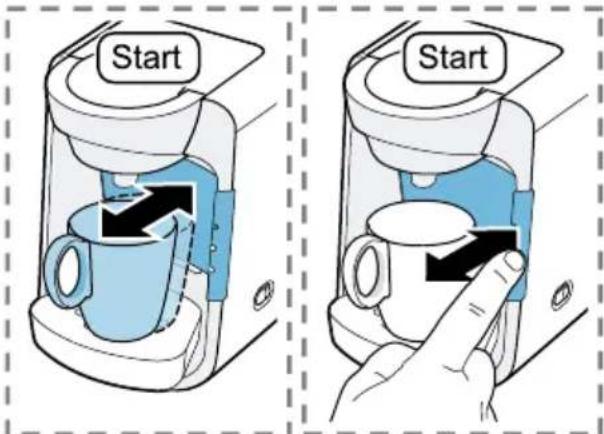

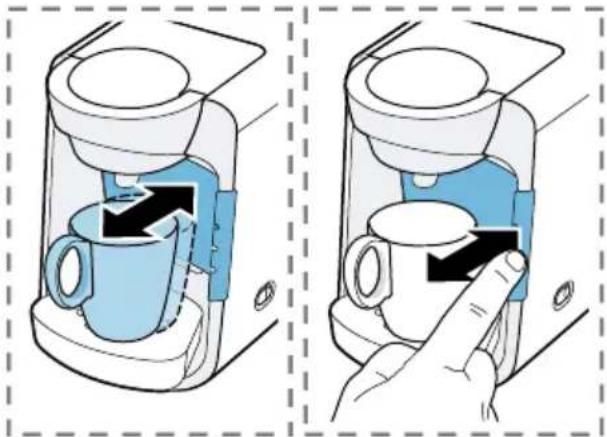

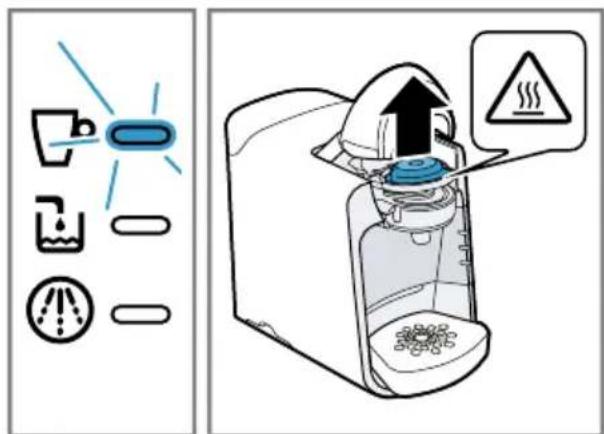

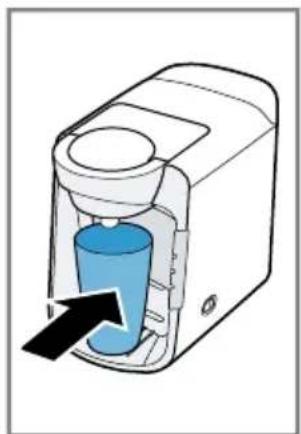

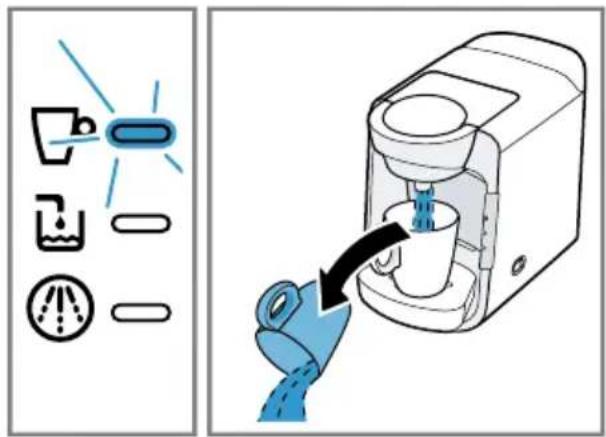

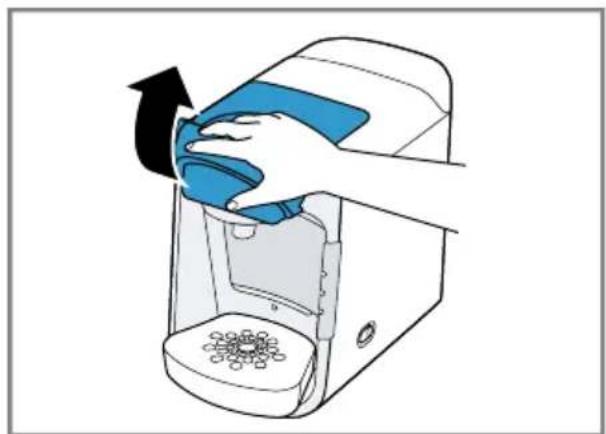

Find out how to prepare a drink of your choice. Follow the pictorial instructions at the start of these instructions.
Fig. 16 - 28
Note: Fill the water tank each day with fresh, cold, non-carbonated water.
Tips
- Do not use chemically decalcified water.

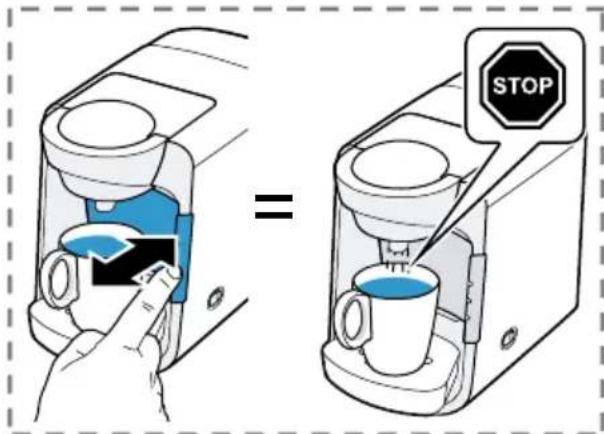

To interrupt the dispensing process, briefly press
Cleaning and servicing
To keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully.

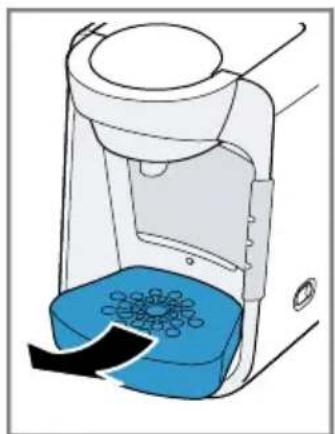

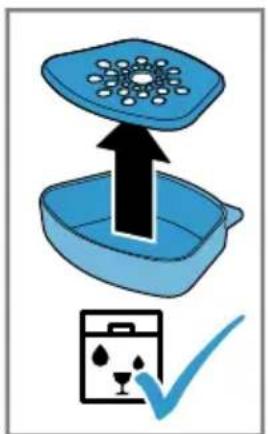

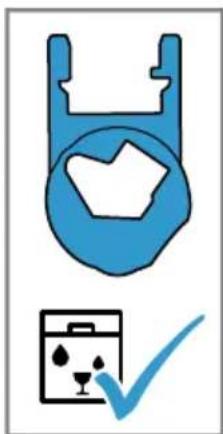

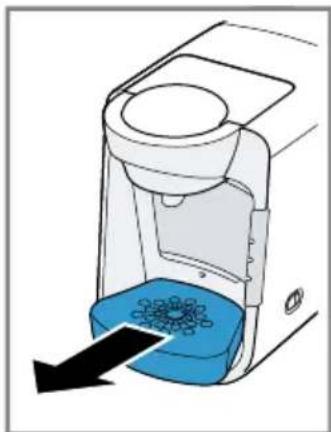

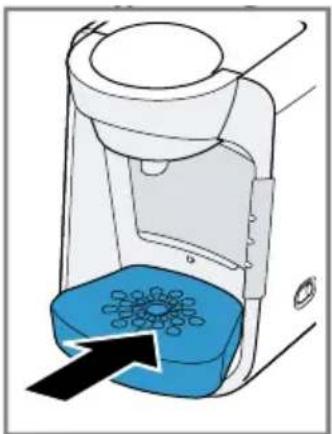

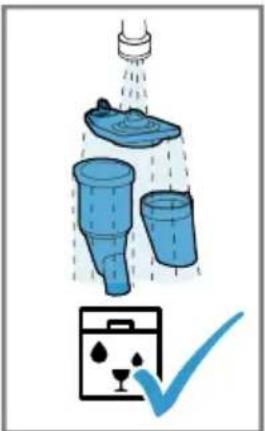

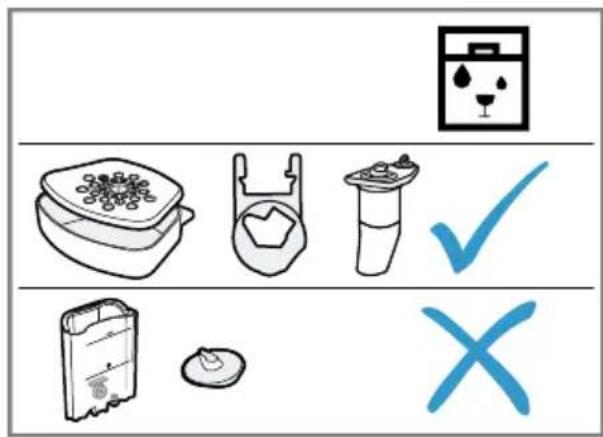

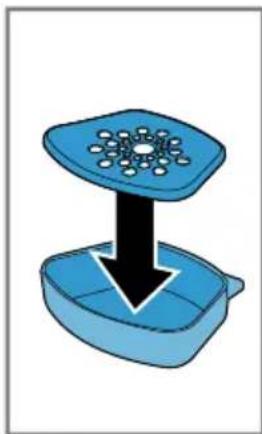

Dishwasher-safe components
Here you can find an overview of the components you can clean in the dishwasher.

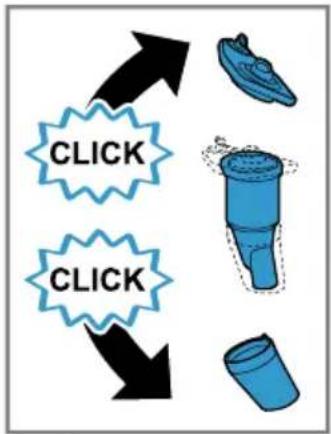

Fig. 29

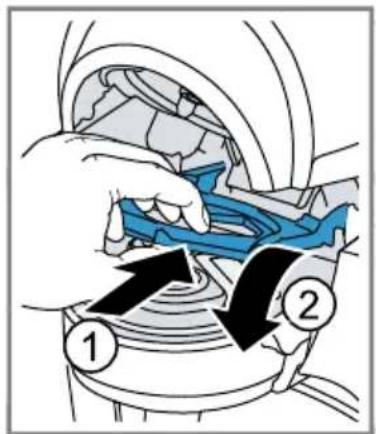

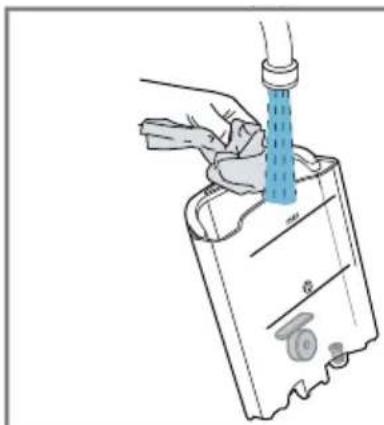

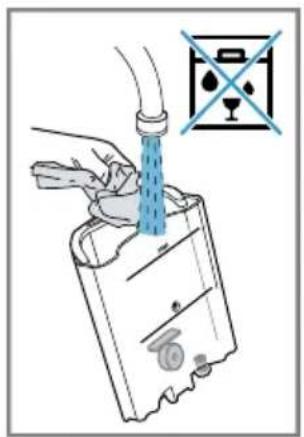

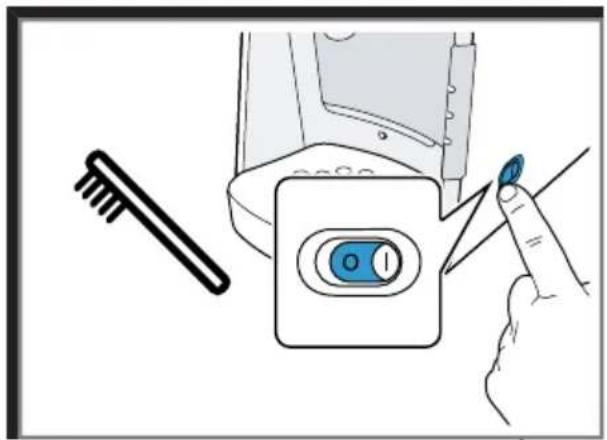

Cleaning the appliance

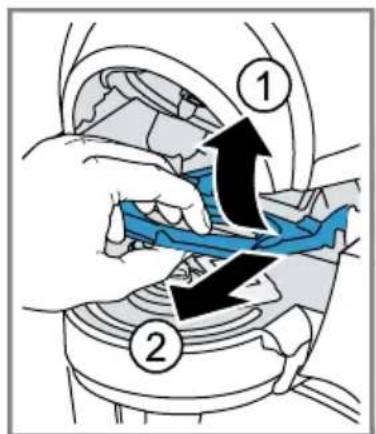

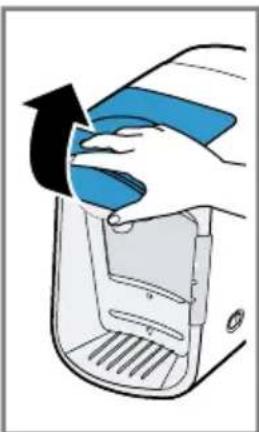

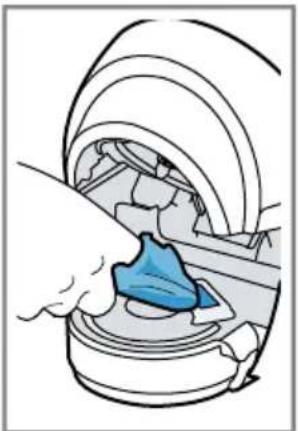

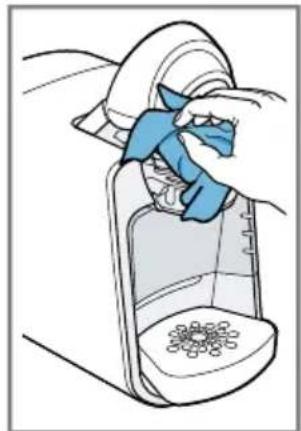

Follow the pictorial instructions at the start of these instructions.
Fig. 30 - 50

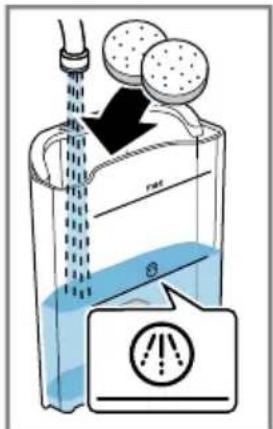

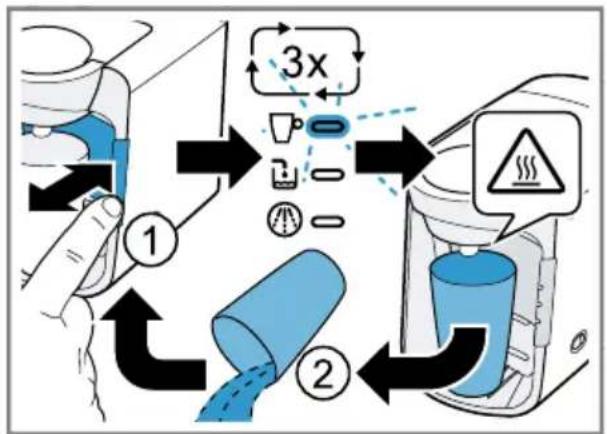

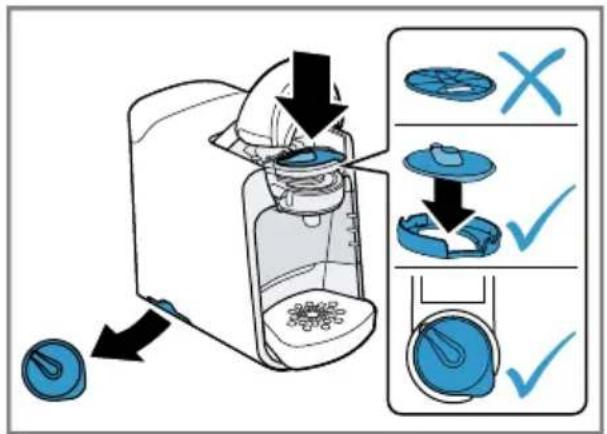

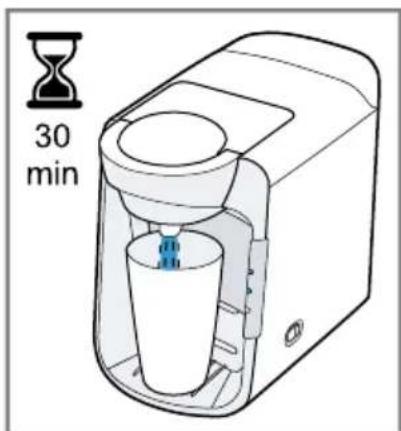

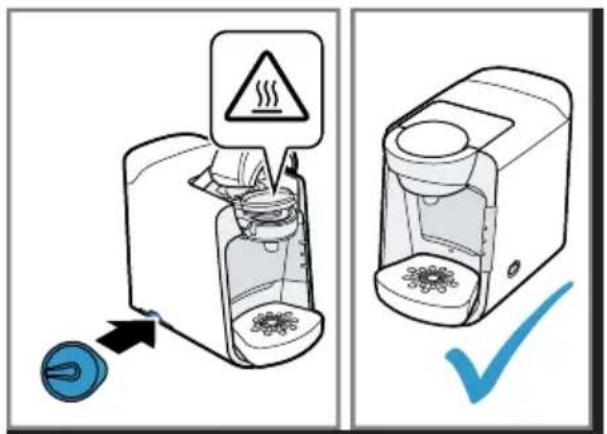

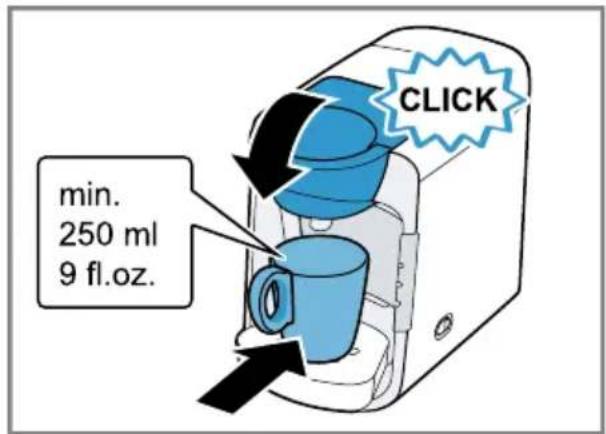

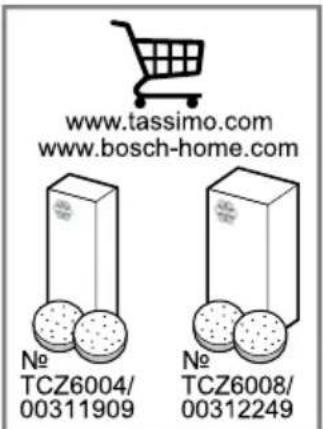

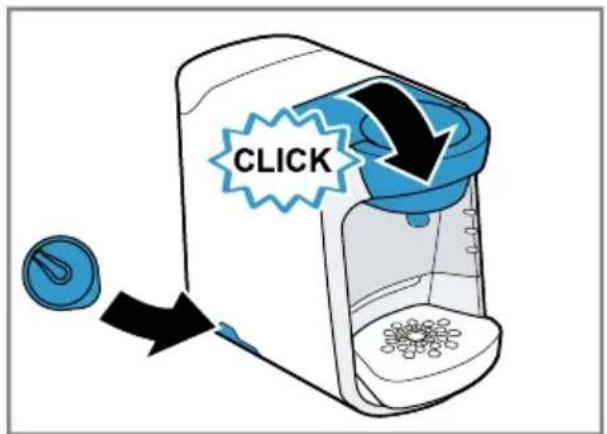

Descale the appliance

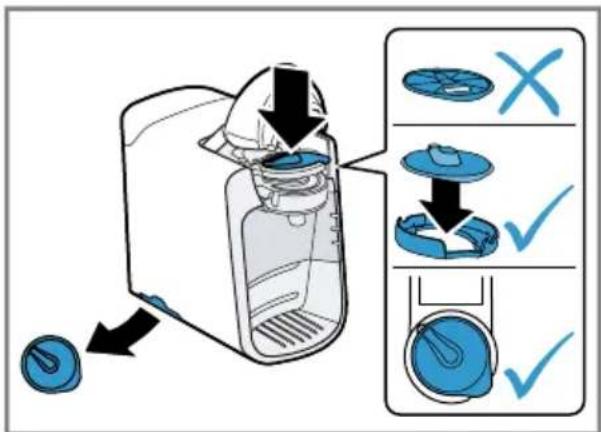

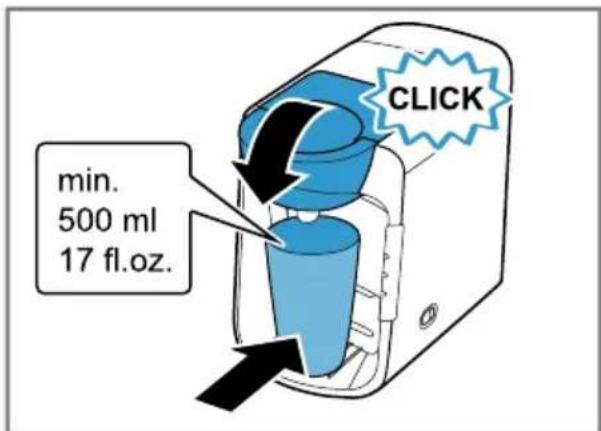

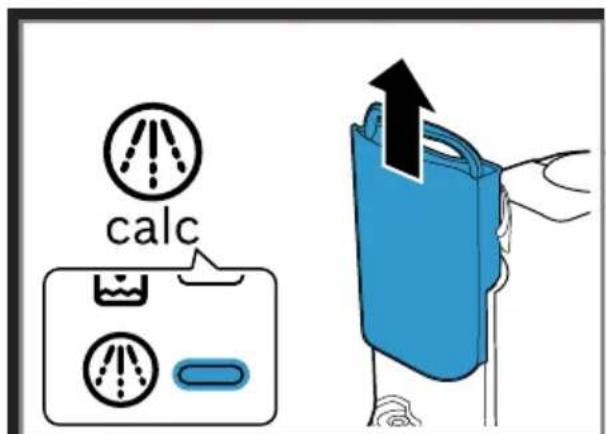

If the LED lights up, run the descending programme. Follow the illustrated instructions at the beginning of this manual.
- Immediately perform the descending process in accordance with the instructions.
Do not use descending agent with phosphoric acid.

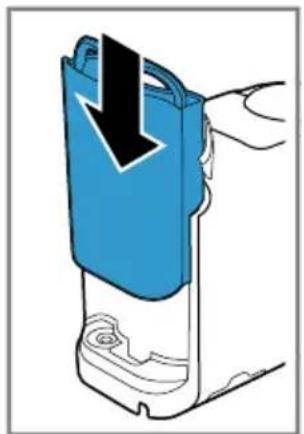

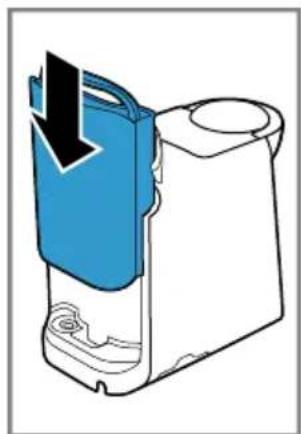

Fig. 51 - 67
Dishwasher-safe components
Here you can find an overview of the components you can clean in the dishwasher.
Fig. 29
Cleaning the appliance
Follow the pictorial instructions at the start of these instructions.
Fig. 30 - 50
Descale the appliance
If the LED lights up, run the descending programme. Follow the illustrated instructions at the beginning of this manual.
- Immediately perform the descending process in accordance with the instructions.
- Do not use descending agent with phosphoric acid.
Fig. 51 - 67
Troubleshooting
Repairs to the appliance should only be carried out by trained specialist staff.
- Only use genuine spare parts when repairing the appliance.
If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.
The appliance is not working.
LEDs do not light up.
The appliance has no power supply.
- Check to see whether the appliance is connected to the mains.
Brewing process starts, drink is not dispensed.
Water tank was removed during brewing and inserted again or appliance has not been used for a long time.
Start cleaning with the Service T DISC.
Float is stuck in the water tank.
- Descale the appliance.
- Reach into the water tank and move the float up and down.
Brewing process does not start.
Water tank has not been sufficiently filled.

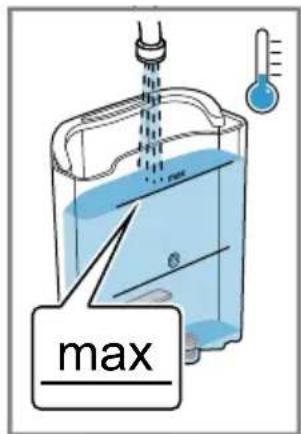

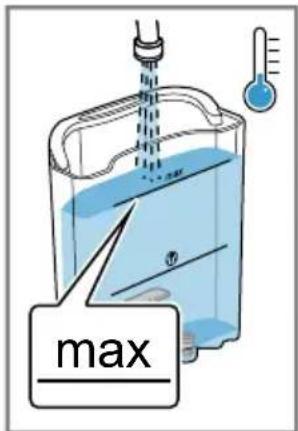

- Fill the water tank with fresh, cold water up to the mark .max

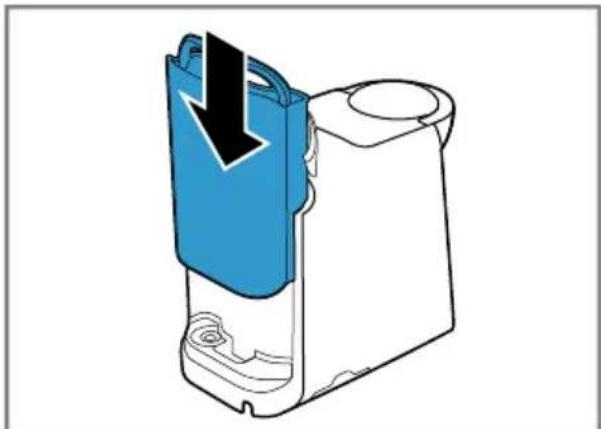

- Insert the water tank.
T DISC has not been correctly inserted.
- Check whether the T DISC is inserted.
The T DISC bar code is not recognised.
Clean the T DISC reading window with a soft, damp cloth.
Smooth out the film of the T DISC.
- Remove the used T DISC.
- Contact the TASSIMO careline if the problem persists.
The appliance not connected to the power supply when the T DISC was inserted.
- Connect the appliance to the power supply before inserting the T DISC.
Brewing unit cannot be closed.
T DISC piercing unit or T DISC holder is not correctly inserted.

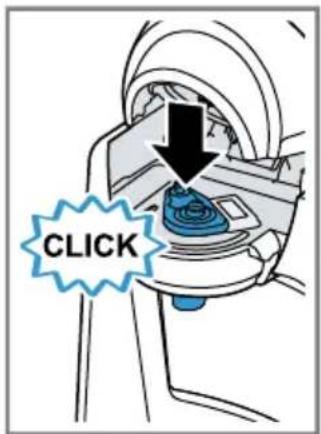

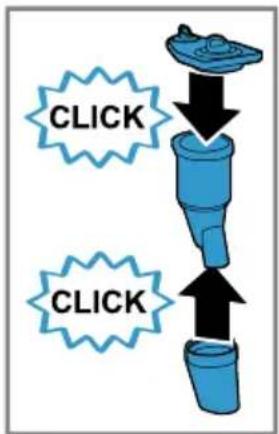

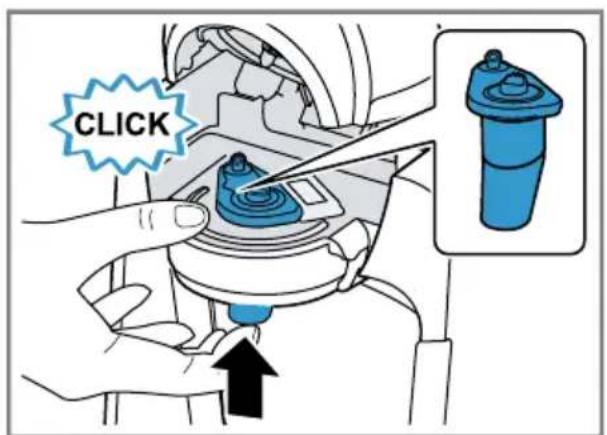

- Press the T DISC piercing unit into the holder until it clicks audibly into place.
- Check the position of the T DISC holder.
T DISC has not been correctly inserted.
- Insert the T DISC with the printed side facing downwards.
- Check whether the tab of the T DISC is in the recess.
en Technical specifications
Brewing unit cannot be opened.
Brewing unit is locked.

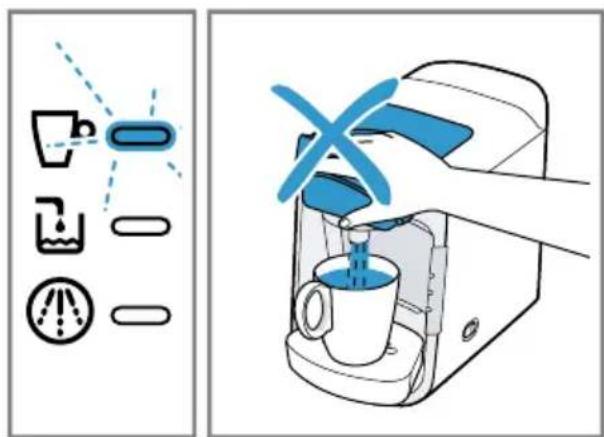

- Only open the brewing unit when the status display remains lit continuously.
If the brewing unit remains locked, contact the TASSIMO careline.
Water is dripping from the brewing unit.
T DISC is damaged or not correctly inserted.
Use a new T DISC.
T DISC piercing unit is not correctly inserted.
Press the T DISC piercing unit into the holder until it clicks audibly into place.
There is water under the cup stand.
Condensation has formed due to technical reasons or valves are clogged with limescale.
- Descale the appliance.
No LED is lit.
Appliance is in idle mode.
Press the Start/Stop button or open or close the brewing system.
LED lights up even though there is enough water in the water tank.
Float is stuck in the water tank.
- Descale the appliance.
- Reach into the water tank and move the float up and down.
LED lights up although softened water has been used.
Decalcified water still contains small amounts of lime.
- Descale the appliance.
LED and LED flash, brewing is not possible.
Appliance has a fault.
- Switch the appliance off for approx. 5 minutes.
If the and EDs continue flashing, contact the TASSIMO careline.
Quality of beverages has deteriorated, e.g.crema or volume.
Beverage outlet is soiled.
Clean the beverage outlet.
Clean the brewing unit with the T DISC.
Build-up of limescale in the appliance.
- Descale the appliance.
Drink volume has reduced.
Drink dispensing halts.
Water tank has not been sufficiently filled.

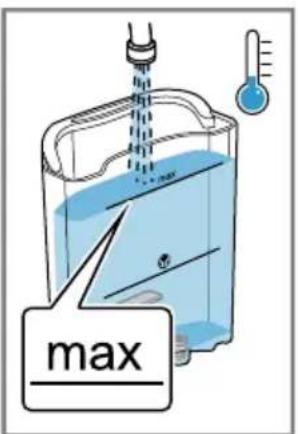

- Fill the water tank with fresh, cold water up to the mark .max

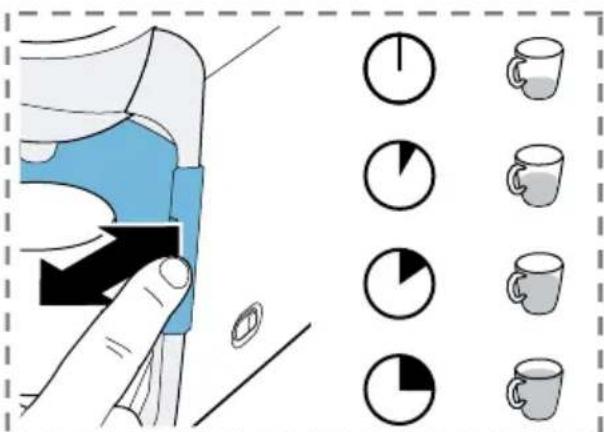

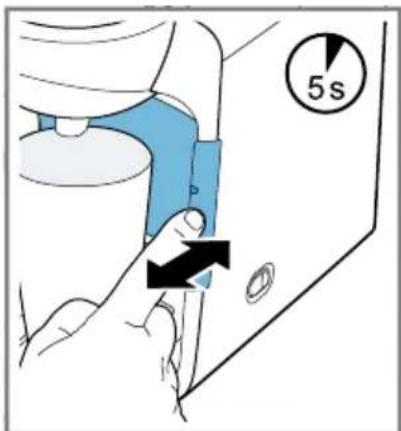

- Hold down the Start/Stop button until the desired per-cup quantity is reached.
Technical specifications
Voltage 220-240 V ~
Frequency 50 / 60 Hz
Power rating 1300 W
Disposing of old appliance
- Unplug the appliance from the mains.
- Cut through the power cord.
- Dispose of the appliance in an environmentally friendly manner.
Information about current disposal methods are available from your specialist dealer or local authority.
This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.
Customer Service
Detailed information on the warranty period and terms of warranty in your country is available from our after-sales service, your retailer or on our website.
The contact details for Customer Service can be found in the enclosed Customer Service directory or on our website.
fr
Table des matieres
You'll find it here.
Expert advice for your Bosch home appliances, need help with problems or a repair from Bosch experts.
Find out everything about the many ways Bosch can support you:
www.bosch-home.com/service
Contact data of all countries are listed in the attached service directory.
Visit tassimo.com for registration, accessories and more.
