Product type	Connected LED bulb
Brand	IKEA
Model	TRÅDFRI 304.413.37
Dimensions (approx.)	60 x 110 mm
Weight (approx.)	100 g
Power supply	230 V AC, 50 Hz (domestic standard)
Color temperature	2200 K (reddish) to 4000 K (cool white)
Dimming function	Yes (via IKEA control device)
Number of sources per control	Up to 10 light sources
Operating frequency	2405 - 2480 MHz
Output power	10 dBm
Reset	Toggle the main switch 6 times
Compatibility	Only products from the IKEA connected lighting range
Maintenance	Clean with a dry cloth
Safety	Do not use with standard dimmer; minimum distance 20 cm
Spare parts	Not applicable (sealed unit)

Frequently Asked Questions - TRÅDFRI 304.413.37 IKEA

How to pair the TRÅDFRI bulb with the remote control?

Place the remote control within 5 cm of the lit bulb, hold the pairing button for at least 10 seconds until the red light turns on. The bulb flashes once to confirm.

Can I use a standard dimmer with this bulb?

No, only use the dimming device provided or mentioned in the instructions. Standard dimmers may damage the bulb.

How to adjust the light color?

The color temperature ranges from 2200 K (reddish) to 4000 K (cool white). Use the remote control or the IKEA Home Smart app to adjust.

How many bulbs can I connect to a single remote control?

You can pair up to 10 light sources to one control device. Pair them one by one.

How to reset the bulb?

Toggle the main switch 6 times in a row (on/off). The bulb will reset.

Does the bulb work with Alexa or Google Home?

Yes, via the IKEA TRÅDFRI gateway and the IKEA Home Smart app, it is compatible with voice assistants.

What to do if the bulb does not respond?

Check that it is screwed in properly and turned on. Try resetting it (6x on/off). If the problem persists, bring it closer to the control device.

Can I use this bulb in a circuit with other brands?

No, it only works properly with products from the IKEA connected lighting range.

What is the safety distance?

Maintain a distance of at least 20 cm between the bulb and people to comply with radiofrequency exposure standards.

How to clean the bulb?

Use a dry cloth to clean the surface. Do not immerse it in water.

USER MANUAL TRÅDFRI 304.413.37 IKEA

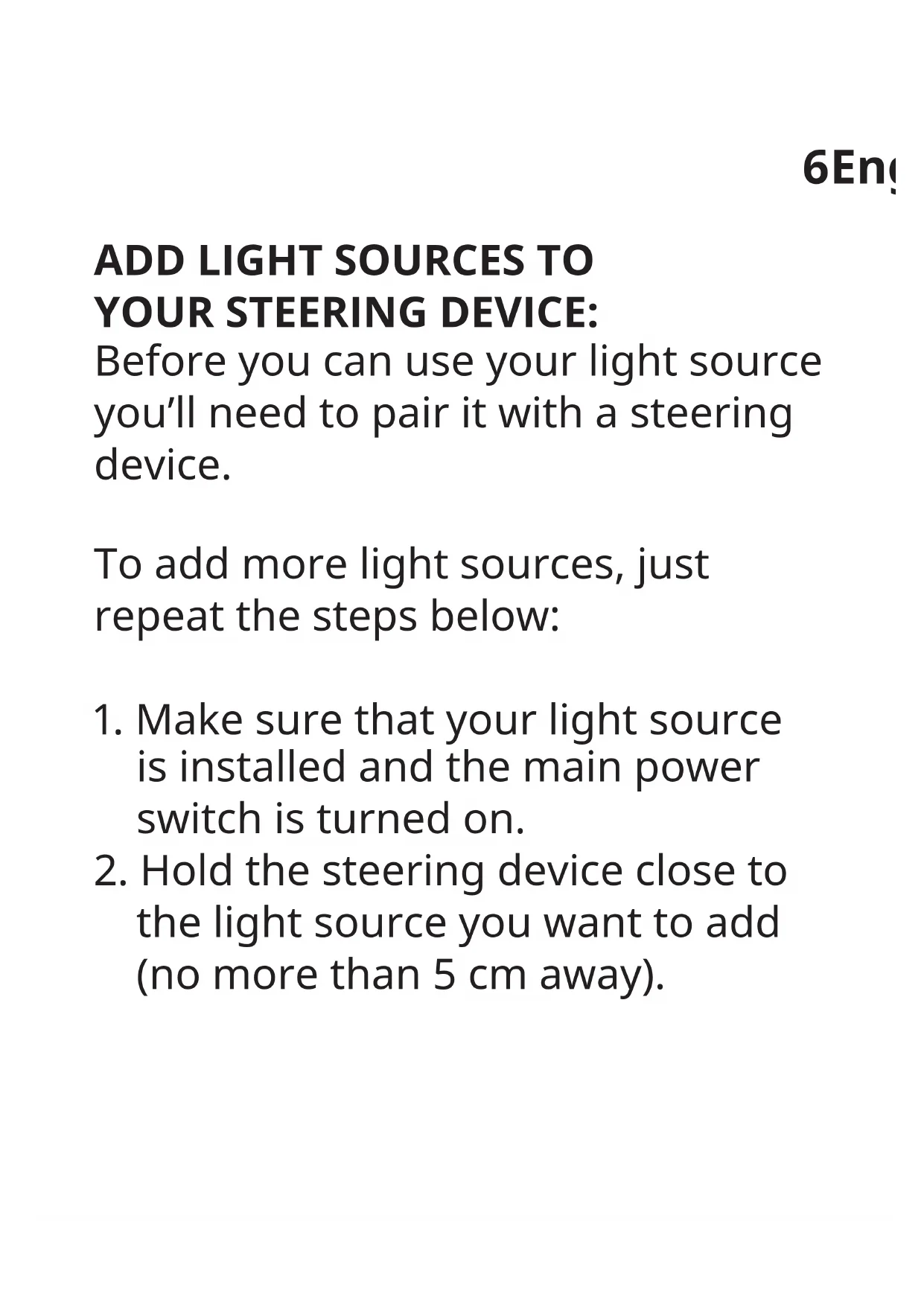

ADD LIGHT SOURCES TO YOUR STEERING DEVICE:

Before you can use your light source you'll need to pair it with a steering device.

To add more light sources, just repeat the steps below:

1. Make sure that your light source is installed and the main power switch is turned on.
2. Hold the steering device close to the light source you want to add (no more than 5 cm away).
3. Press and hold the pairing button

for at least 10 seconds. A red light will shine steadily on the steering device. Your light source will begin to dim and finally flash one time to indicate that it has been successfully paired.

Up to 10 light sources can be paired with 1 steering device.

Make sure to pair them one at a time. If the light sources are close to each other, disconnect those that have already been paired from the main power switch.

CAUTION:

DO NOT USE WITH STANDARD DIMMERS. Only use the control provided with or specified by these instructions to control this bulb. This bulb will not operate properly when connected to a standard (incandescent) dimmer or dimming control. Only controllable by IKEA Smart lighting products.

The colour temperature can be switched between 2200K (warm glow), 2700K (warm white) and 4000K (cool white).

RESET YOUR DEVICE

Toggle the main switch 6 times.

TECHNICAL DATA:

Operating

frequency: 2405 - 2480 MHz

Output power: 10 dBm

Manufacturer:

IKEA of Sweden AB

Address:

Box 702, SE-343 81

Almhult, SWEDEN

This device complies with Part 15 of the FCC Rules.

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation Science and Economic Development Canada's licence-exempt RSS standard(s).

Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device.

WARNING:

Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

RF EXPOSURE INFORMATION

According to RF exposure regulations, under normal operations the end user shall refrain from being closer than 20 cm from the device.

License rights and limitations

NO RIGHTS OR LICENSES, EXPRESS OR IMPLIED, ARE GRANTED TO USE THIRD-PARTY DEVICES IN COMBINATION WITH THESE PRODUCTS IN A WIRELESS MESH NETWORK, OR TO USE THIRD-PARTY SERVICES TO ACCESS, MONITOR OR CONTROL THESE PRODUCTS IN A

WIRELESS MESH NETWORK VIA THE INTERNET OR ANOTHER EXTERNAL WIDE AREA NETWORK.

For use pursuant to U.S. Patent Nos.:

US 6,914,893

US 7,697,492

US 8,964,708

The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.

ADDING LIGHT SOURCES TO THE CONTROL DEVICE

Manufacturer: IKEA of Sweden AB

Address:

Box 702, SE-343 81 Ålmhult, SWEDEN
