USER MANUAL VFP337ES VEDETTE

VFP337EW VFP337ESPART Ⅰ: Generic Version Please read this manual carefully before using the dishwasher. Keep this manual for future reference.SAFETY INFORMATION

USING YOUR DISHWASHER

MAINTENANCE AND CLEANING

INSTALLATION INSTRUCTION Power Connection Water Supply And Drain Connection Of Drain Hoses Free Standing Installation Positioning The Appliance

NOTE: Reviewing the section on will help you solve some common problems by yourself. If you cannot solve the problems by yourself, please ask for help from a professional technician. The manufacturer, following a policy of constant development and updating of the product, may make modifications without giving prior notice. If lost or out-of-date, you can receive a new user manual from the manufacturer or responsible vendor. Troubleshooting Tips TROUBLESHOOTING TIPS

Availability Of Spare PartsSAFETY INFORMATION WARNING When using your dishwasher, follow the precautions listed below: Installation and repair can only be carried out by a qualified technician This appliance is intended to be used in household and similar applications such as:

working environments; -farm houses; -by clients in hotels, motels and other residential type environments; -bed and breakfast type environments.

sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children without supervision. (For EN60335-1) This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. staff kitchen areas in shops, offices and other This appliance can be used by children aged from 8 years and above and persons with reduced physical (For IEC60335-1) 3Packaging material could be dangerous for children! This appliance is for indoor household use only. To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid. Please unplug before cleaning and maintenance the appliance . If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. Children should be supervised to ensure that they do not play with the appliance. Use a soft cloth moisten with mild soap, and then use a dry cloth to wipe it again. Earthing Instructions

This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of an electric shock by providing a path of least resistance of electric current. This appliance is equipped with an earthing conductor plug. The plug must be plugged into an appropriate outlet that is installed and earthed in accordance with all local codes and ordinances. Improper connection of the equipment-earthing conductor can result in the risk of an electric shock. Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded.Do not modify the plug provided with the appliance if it does not fit the outlet. Have a proper outlet installed by a qualified electrician. Do not abuse, sit on, or stand on the door or dish rack of the dishwasher. Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door very carefully if the dishwasher is operating, there is a risk of water squirting out. Do not place any heavy objects on or stand on the door when it is open. The appliance could tip forward. When loading items to be washed:

1) Locate sharp items so that they are not likely to

damage the door seal;

2) Warning: Knives and other utensils with sharp

points must be loaded in the basket with their points facing down or placed in a horizontal position. Some dishwasher detergents are strongly alkaline. They can be extremely dangerous if swallowed. Avoid contact with the skin and eyes and keep children away from the dishwasher when the door is open. Check that there are no detergent residues after completion of the wash cycle. Do not wash plastic items unless they are marked “dishwasher safe” or the equivalent.

For unmarked plastic items not so marked, check the manufacturer's recommendations. Use only detergent and rinse agents recommended for use in an automatic dishwasher. Never use soap, laundry detergent, or hand washing detergent in your dishwasher. The door should not be left open, since this could increase the risk of tripping. During installation, the power supply must not be excessively or dangerously bent or flattened. Do not tamper with controls. The appliance needs to be connected to the main water valve using new hose sets. Old sets should not be reused. To save energy, in stand by mode, the appliance will switch of automatically after 15 minutes without any user interaction. The maximum number of place settings to be washed is 13. The maximum permissible inlet water pressure is 1MPa. The minimum permissible inlet water pressure is 0.04MPa.Disposal For disposing of package and the appliance please go to a recycling center. Therefore cut off the power supply cable and make the door closing device unusable. Cardboard packaging is manufactured from recycled paper and should be disposed in the waste paper collection for recycling. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office and your household waste disposal service. DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary. 7PRODUCT OVERVIEW To get the best performance from your dishwasher, read all operating instructions before using it for the first time. IMPORTANT:

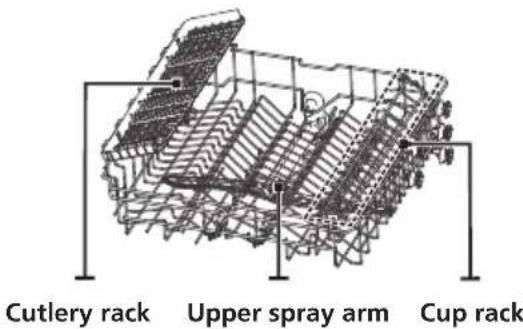

Pictures are only for reference, different models may be different. NOTE: Dispenser Salt container Filter assembly Lower spray arm Inner pipe Cutlery basket Lower basket Upper basket Upper spray arm Cutlery rack Cup rackLoading The Salt Into The Softener Only use salt specifically designed for dishwashers use! Every other type of salt not specifically designed for dishwasher use, especially table salt, will damage the water softener. In case of damages caused by the use of unsuitable salt the manufacturer does not give any warranty nor is liable for any damages caused. Only fill with salt before running a cycle. This will prevent any grains of salt or salty water, which may have been spilled, remaining on the bottom of the machine for any period of time, which may cause corrosion. WARNING Always use salt intended for dishwasher use. The salt container is located beneath the lower basket and should be filled as explained in the following: Please check the section 1 “Water Softener” of PART Ⅱ: Special Version, If you need to set the water softener . Please check the section 1 “Water Softener” of PART Ⅱ: Special Version, If you need to set the water softener .

If your model does not have any water softener, you may skip this section. NOTE:

USING YOUR DISHWASHER

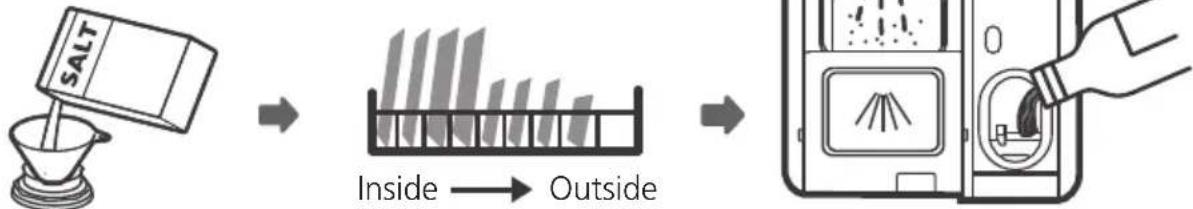

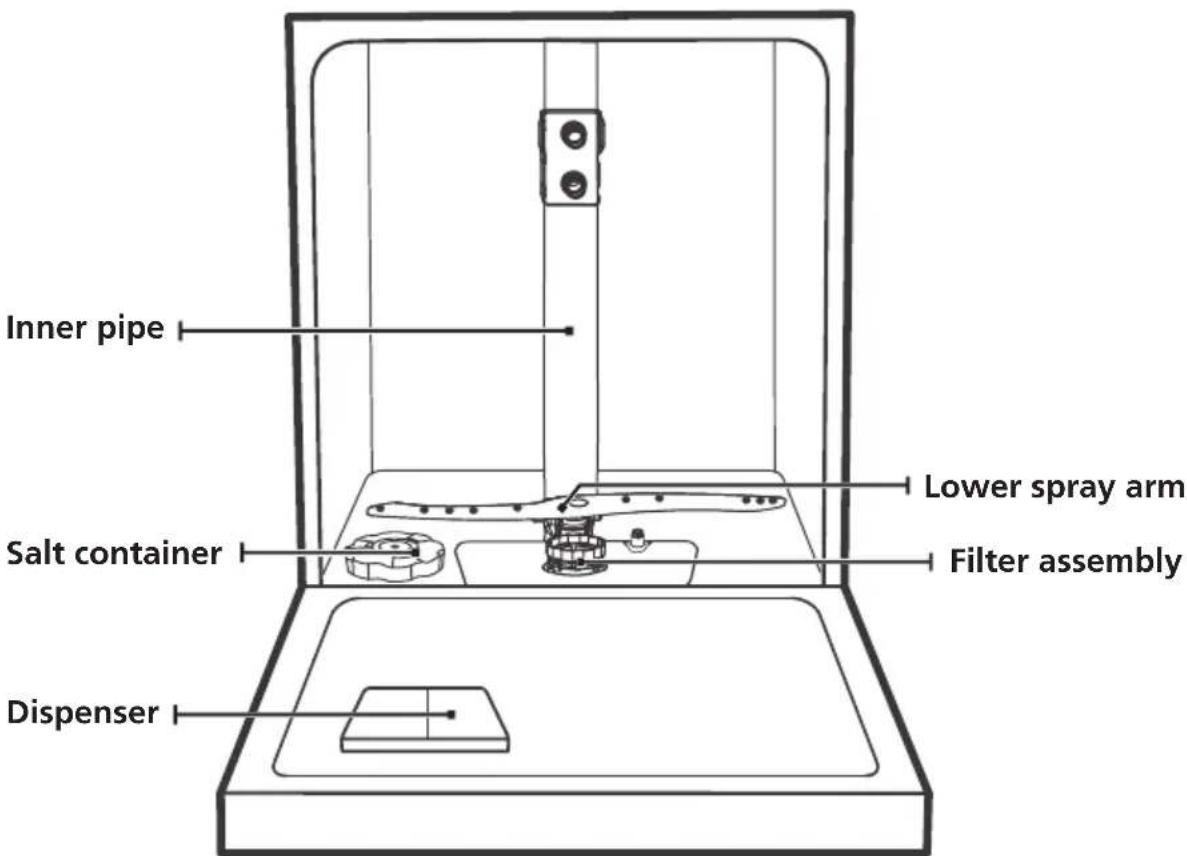

Before using your dishwasher : Inside Outside

1. Set the water softener

2. Loading the salt Into the softener

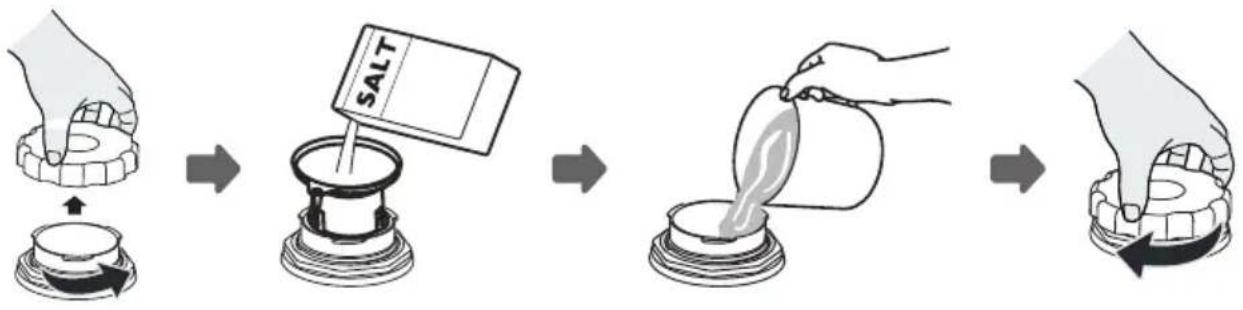

1. Remove the lower basket and unscrew the reservoir cap.

2. Place the end of the funnel (if supplied) into the hole and pour in about 1.5 kg of

3. Fill the salt container to its maximum limit with water, It is normal for a small

amount of water to come out of the salt container.

4. After filling the container, screw back the cap tightly.

5. The salt warning light will after the salt container has been filled with salt.

6. Immediately after filling the salt into the salt container, a washing program should

be started (We suggest to use a short program). Otherwise the filter system, pump or other important parts of the machine may be damaged by salty water. This is out of warranty. turn off NOTE: The salt container must only be refilled when the salt warning light ( ) in the control panel comes on. Depending on how well the salt dissolves, the salt warning light may still be on even though the salt container is filled. If there is no salt warning light in the control panel (for some ), you can estimate when to fill the salt into the softener by the cycles that the dishwasher has run. If salt has spilled, run a soak or quick program to remove it. models Please follow the steps below for adding dishwasher salt:11 Adjusting the upper basket The height of the upper basket can be easily adjusted to accommodate taller dishes in either the upper or lower basket. To adjust the height of the upper rack, follow these steps:

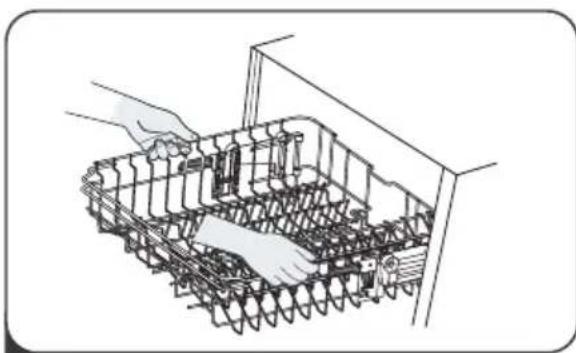

Pull out the upper basket.

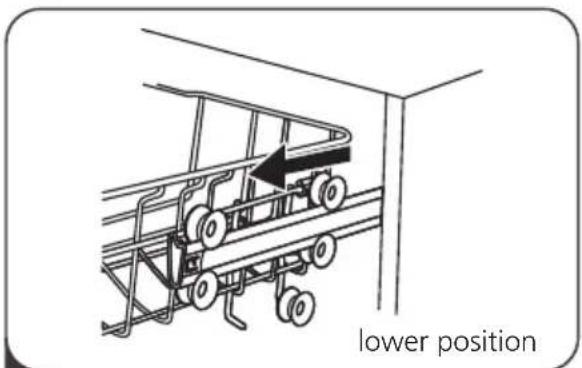

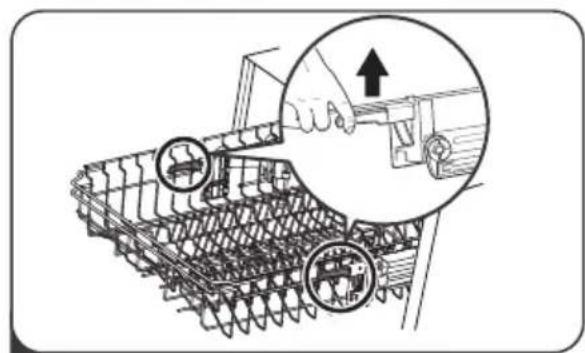

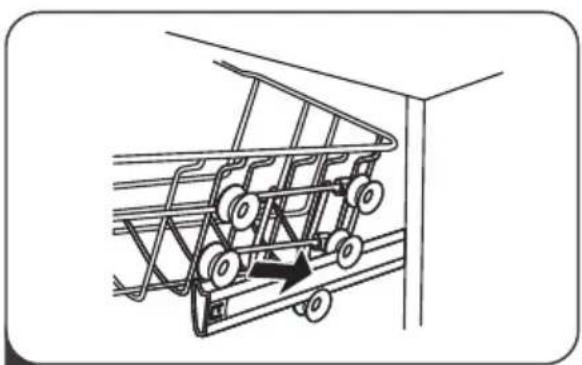

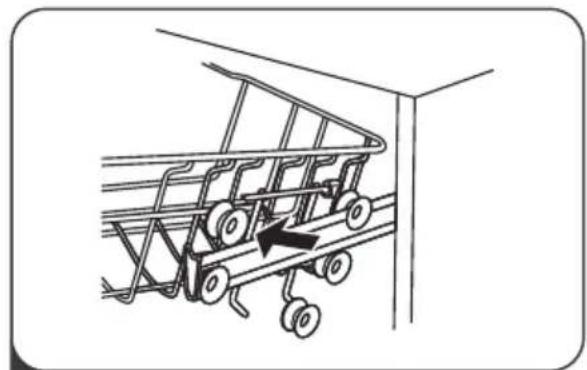

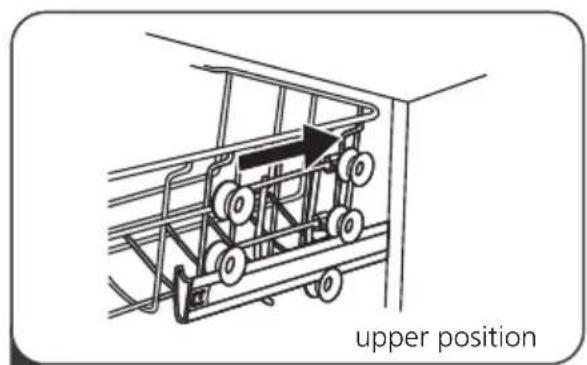

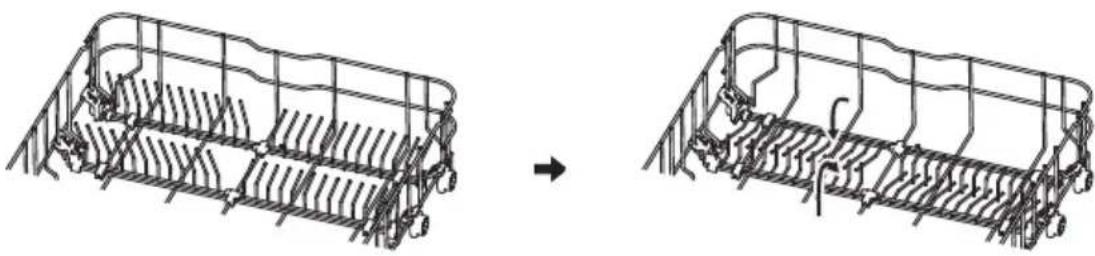

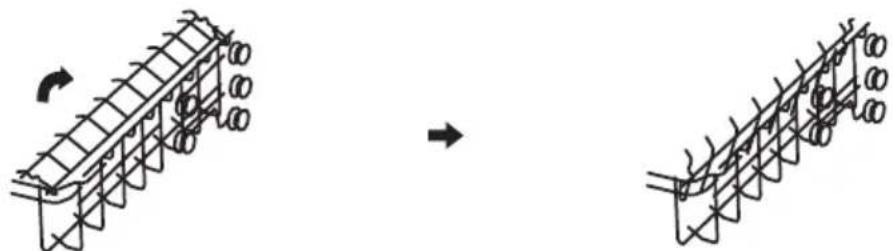

Re-attach the upper basket to upper or lower rollers. Push in the upper basket. lower position upper position Type 1: Basket TipsLoading12 Folding back the cup shelves To make room for taller items in the upper basket, raise the cup rack upwards. You can then lean the tall glasses against it. Folding back the rack shelves The spikes of the lower basket are used for holding plates and a platter. They can be lowered to make more room for large items. raise upwards fold backwards

To raise the the upper basket at the center of each side until the basket locks into place in the upper position. It is not necessary to lift the adjuster handle. upper basket just lift ,

To lower the lift the adjust handles on each side to release the basket and lower it to the lower position. upper basket, Type 2:13

MAINTENANCE AND CLEANING

External Care The door and the door seal Clean the door seals regularly with a soft damp cloth to remove food deposits. When the dishwasher is being loaded, food and drink residues may drip onto the sides of the dishwasher door. These surfaces are outside the wash cabinet and are not accessed by water from the spray arms. Any deposits should be wiped off before the door is closed. The control panel If cleaning is required, the control panel should be wiped with a soft damp cloth only. To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind. Never use abrasive cleaners or scouring pads on the outer surfaces because they may scratch the finish. Some paper towels may also scratch or leave marks on the surface. WARNING Internal Care Filtering system NOTE: Pictures are only for reference, different models of the filtering system and spray arms may be different. The filtering system in the base of the wash cabinet retains coarse debris from the washing cycle, including foreign objects such as tooth picks or shards. The collected coarse debris may cause the filters to clog. Check the condition of the filters regularly, carefully remove foreign objects and clean the parts of the filtering system if necessary with water. Follow the steps below to clean the filter.1 2 Hold the coarse filter and rotate it anticlockwise to unlock the filter. Lift the filter upwards and out of the dishwasher. The fine filter can be pulled off the bottom of the filter assembly. The coarse filter can be detached from the main filter by gently squeezing the tabs at the top and pulling it away.

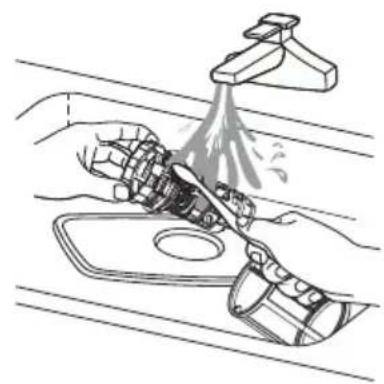

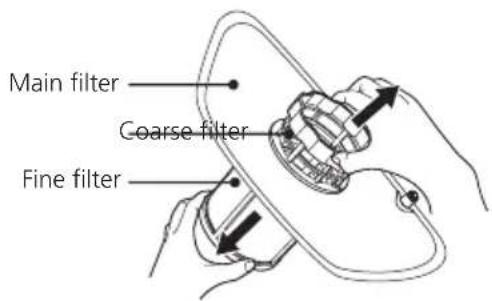

Larger food remnants can be cleaned by rinsing the filter under running water. For a more thorough clean, use a soft cleaning brush. Reassemble the filters in the reverse order of the disassembly, replace the filter insert, and rotate clockwise to the close arrow. Do not over tighten the filters. Put the filters back in sequence securely, otherwise coarse debris could get into the system and cause a blockage. Never use the dishwasher without filters in place. Improper replacement of the filter may reduce the performance level of the appliance and damage dishes and utensils. WARNING

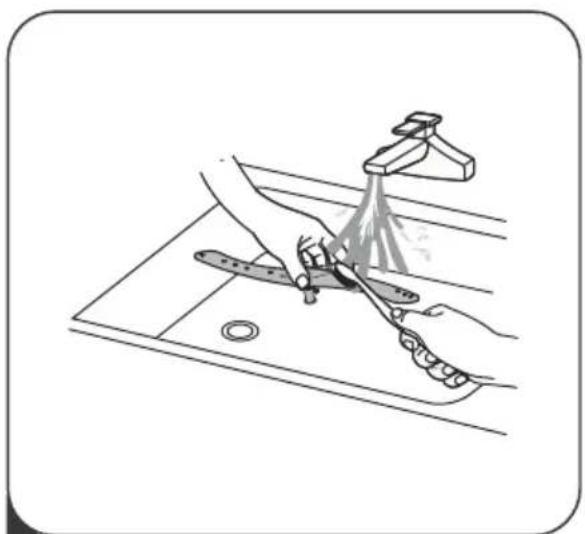

Main filter Main filter Coarse filterCoarse filter Fine filterSpray arms Wash the arms in soapy and warm water and use a soft brush to clean the jets. Replace them after rinsing them thoroughly. It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings. To clean the spray arms, follow the instructions below:

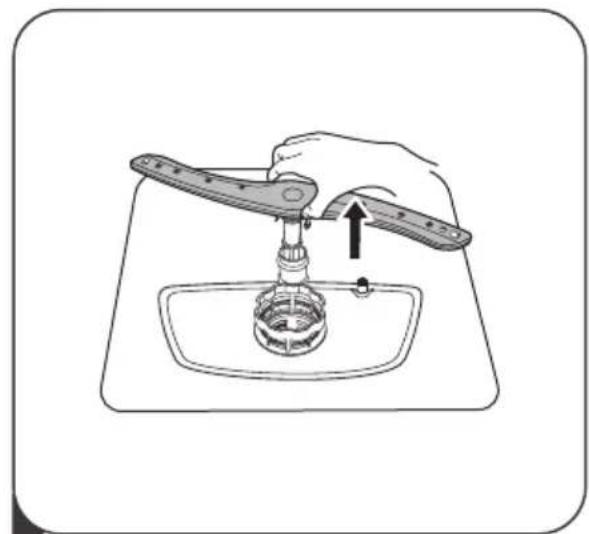

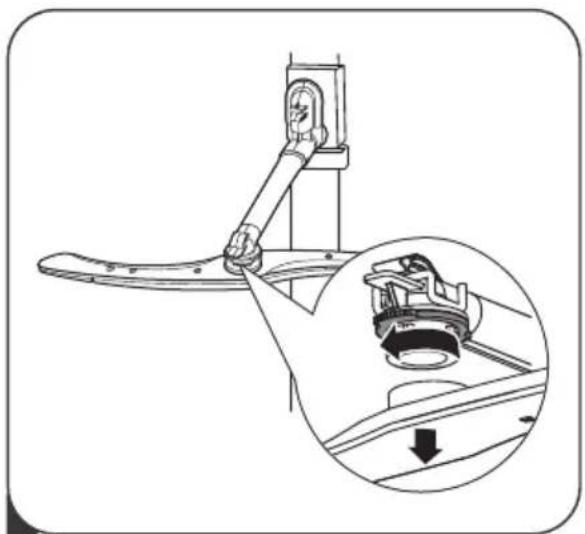

To remove the lower spray arm, pull out the spray arm upward.

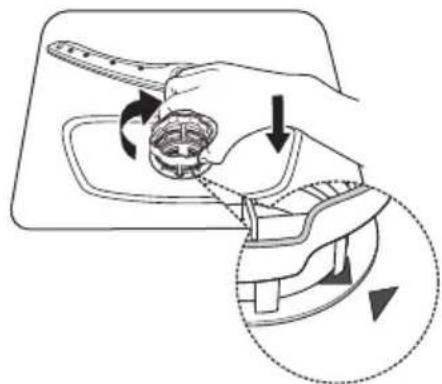

To remove the upper spray arm, hold the nut, rotate the arm clockwise to remove it.16 Caring For The Dishwasher Frost precaution Please take frost protection measures on the dishwasher in winter. Every time after washing cycles, please operate as follows:

1. Cut off the electrical power to the dishwasher at the supply source.

2. Turn off the water supply and disconnect the water inlet pipe from the water valve.

3. Drain the water from the inlet pipe and water valve. (Use a pan to gather the water)

4. Reconnect the water inlet pipe to the water valve.

5. Remove the filter at the bottom of the tub and use a sponge to soak up water in

the sump. After every wash After every wash, turn off the water supply to the appliance and leave the door slightly open so that moisture and odors are not trapped inside.for a while Remove the plug Before cleaning or performing maintenance, always remove the plug from the socket. No solvents or abrasive cleaning To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Only use a cloth with warm soapy water. To remove spots or stains from the surface of the interior, use a cloth dampened with water an a little vinegar, or a cleaning product made specifically for dishwashers. When not in use for a long time It is recommend that you run a wash cycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly open. This will help the door seals to last longer and prevent odors from forming within the appliance. Moving the appliance If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back. Seals One of the factors that cause odours to form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring.17 INSTALLATION INSTRUCTION Ensure the voltage and frequency of the power being corresponds to those on the rating plate. Only insert the plug into an electrical socket which is earthed properly. If the electrical socket to which the appliance must be connected is not appropriate for the plug, replace the socket, rather than using a adaptors or the like as they could cause overheating and burns. Electrical requirements Electrical connection Ensure that proper earthing exists before use About Power Connection WARNING For personal safety: Do not use an extension cord or an adapter plug with this appliance. Do not, under any circumstances, cut or remove the earthing connection from the power cord. The installation of the pipes and electrical equipments should be done by professionals. Attention WARNING Electrical Shock Hazard Disconnect electrical power before installing dishwasher. Failure to do so could result in death or electrical shock. Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply. Use the required fuse 10A/13A/16A, time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance.Water Supply And Drain Cold water connection Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear. This precaution is needed to avoid the risk of the water inlet to be blocked and damage the appliance. safety supply hose ordinary supply hose About the safety supply hose The safety supply hose consists of the double walls. The system guarantees its intervention by blocking the flow of water in case of the supply hose breaking and when the air space between the supply hose itself and the outer corrugated hose is full of water. How to connect the safety supply hose

1. Pull safety supply hoses out from storage compartment located at

2. the screws of the safety supply hose to the faucet with thread 3/4inch.

3. Turn water fully on before starting the dishwasher.

the Tighten the WARNING A hose that attaches to can burst if it is installed on the same water line as the dishwasher. If your sink has one, it is recommended that the hose be disconnected and the hole plugged. a tap How to disconnect the safety supply hose

1. Turn off the water.

2. Unscrew the safety supply hose from the faucet.

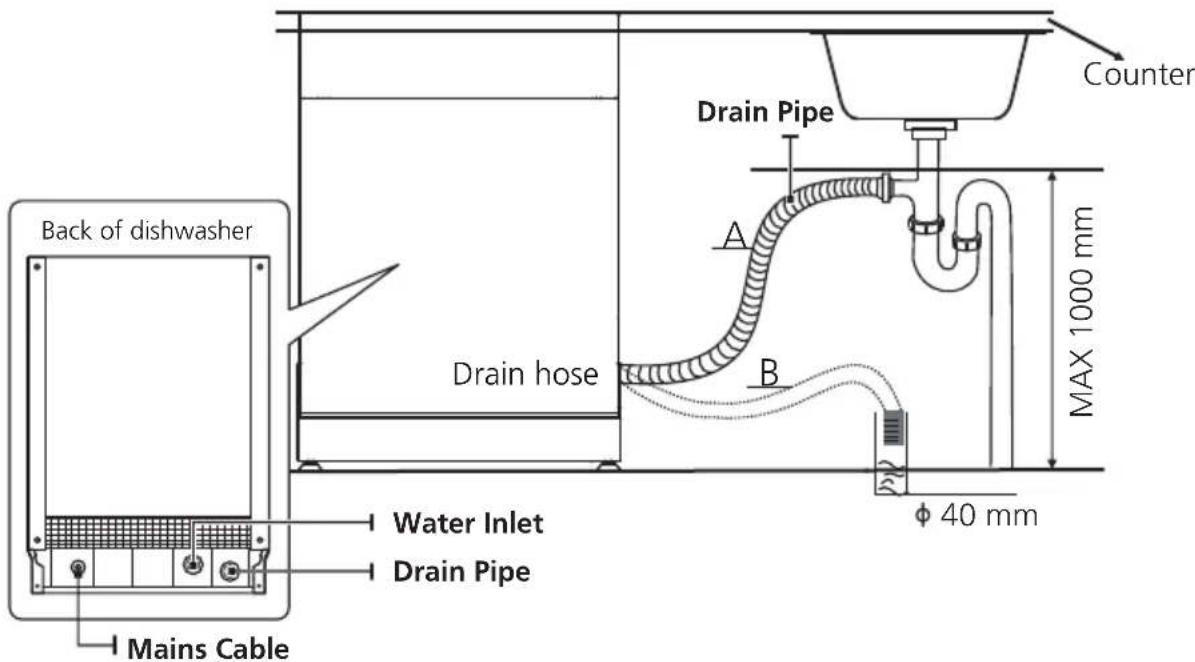

18Connection Of Drain Hoses Please securely fix the drain hose in either position A or position B

MAX 1000 mm Counter Drain hose Insert the drain hose into a drain pipe with a minimum diameter of 4 cm, or let it run into the sink, making sure to avoid bending or crimping it. The height of drain pipe must be less than 1000 mm. The free end of the hose must not be immersed in water to avoid the back flow of it. Extension hose Water outlet How to drain excess water from hoses Syphon connection If the connection to the drain pipe is positioned higher than 1000 mm, excess water may remain in the drain hose. the hose It will be necessary to drain excess water from into a bowl or suitable container that is held outside and lower than the sink. Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks. Ensure that the water drain hose is not kinked or squashed. The waste connection must be at a height less than (maximum) from the bottom of the . 1000 mm dishwasher If you need a drain hose extension, make sure to use a similar drain hose. It must not be longer than 4 meters, otherwise the cleaning effect of the dishwasher could be reduced.

Back of dishwasherWater InletDrain PipeMains Cable 40 mm Drain Pipe20 Free Standing Installation Type 1: Fitting between existing carbinets The height of the dishwasher, 845 mm, has been designed in order to allow the machine to be fitted between existing cabinets of the same height in modern fitted kitchens. The feet can be adjusted so that correct height is reached. The laminated top of the machine does not require any particular care since it is heatproof, scratchproof and stainproof. Position The Appliance Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or the left sides to facilitate proper installation. Levelling the appliance Once the appliance is positioned for levelling, the dishwasher may be altered via adjustment of the screwing level of the feet. In any case, the appliance should not be inclined more than 2°. Type 2: Underneath existing work top (When fitting beneath a work top) In most modern fitted kitchens there is only one single work top under which cabinets and electrical appliances are fitted. In this case remove the work top of the dishwasher by unscrewing the screws under the rear edge of the top (a).

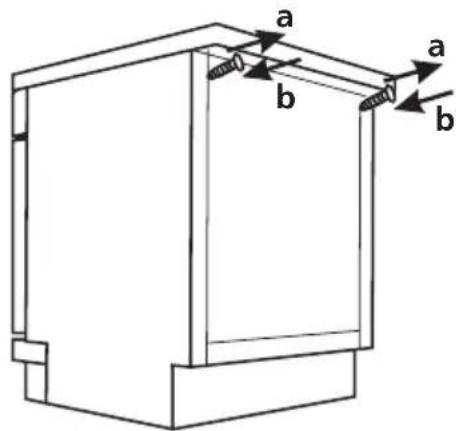

After removing the work top, the screws must be screwed again under the rear edge of the top (b). Attention21 Selecting the best location for the dishwasher The installation position of dishwasher should be near the existing inlet and drain and power . Illustrations of cabinet dimensions and installation position of the dishwasher.

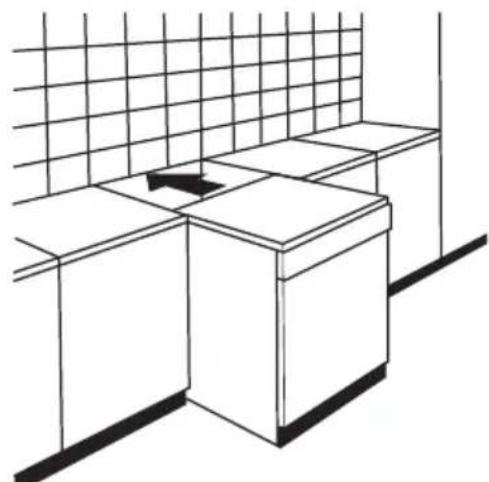

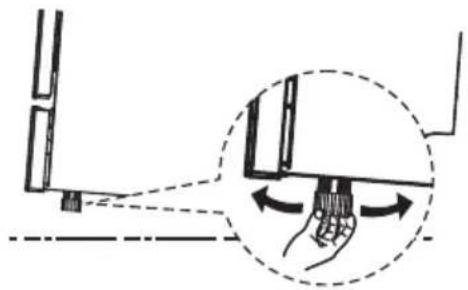

1. Less than 5 mm between the top of dishwasher and cabinet and the outer door

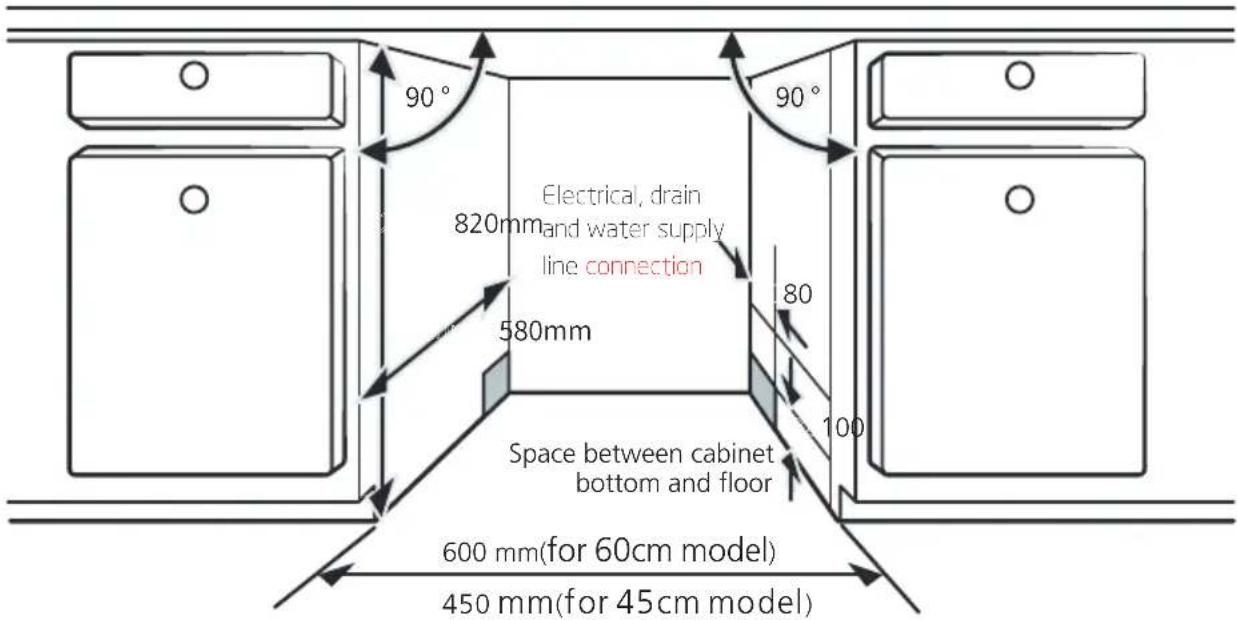

aligned to cabinet. the hose socket 90 ° 90 ° 580mm580mm 820mm820mm

Electrical, drain and water supply line connectionElectrical, drain and water supply line connection Space between cabinet bottom and floor Space between cabinet bottom and floor 600 mm(for 60cm model) 450 mm(for 45cm model)

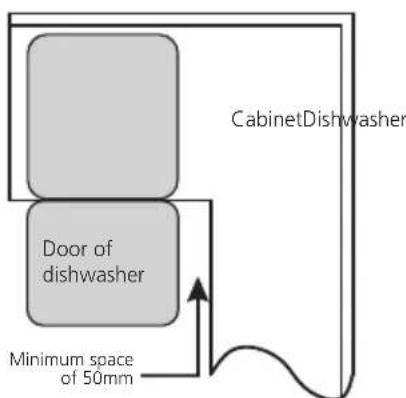

2. If dishwasher is at the corner of the cabinet,

there should be some space when the door is opened. installed CabinetDishwasherDoor of dishwasherMinimum space of 50mm NOTE: Depending on where your electrical outlet is, you may need to cut a hole in the opposite cabinet side.22 TROUBLESHOOTING TIPS Before Calling For Service Reviewing the charts on the following pages may save you from calling for service. Problem Possible Causes What To Do Dishwasher doesn't start Fuse blown, or the circuit break tripped. Replace fuse or reset circuit breaker. Remove any other appliances sharing the same circuit with the dishwasher. Power supply is not turned on. Make sure the dishwasher is turned on and the door is closed securely. Make sure the power cord is properly plugged into the wall socket. Check that the water supply is connected properly and the water is turned on. Door of dishwasher not properly closed. Make sure to close the door properly and latch it. Water not pumped form dishwasher Twisted or trapped drain hose. Filter clogged. Kitchen sink clogged. Check the drain hose. Check .the filter system Check the kitchen sink to make sure it is draining well. If the problem is the kitchen sink that is not draining , you may need a plumber rather than a serviceman for dishwashers. Foam in the tub Wrong detergent. Water pressure is low Use only the special dishwasher detergent to avoid suds. If this occurs, open the dishwasher and let suds evaporate. Add 1 of cold water to the bottom of the dishwasher. Close the dishwasher door, then select any cycle. Initially, the dishwasher will drain out the water. Open the door after draining stage is complete and check if the suds have disappeared. Repeat if necessary. liter23 Spilled .rinse aid Always wipe up spills immediately. rinse aid Stained tub interior Detergent with colourant may have been used. Make sure that the detergent has no colourant. White film on inside surface Hard water minerals. To clean the interior, use with dishwasher detergent and wear rubber gloves. Never use any other cleaner than dishwasher detergent otherwise, it may cause foaming or suds. the damp soft cloth There are rust stains on cutlery The affected items are not corrosion resistant. A program was not run after dishwasher salt was added. Traces of salt have gotten into the wash cycle. Always run a wash program without any crockery after adding salt. Do not select the Turbo function (if present), after adding dishwasher salt. The lid of the softer is loose. Check the softener lid is secure. Problem Possible Causes What To Do Avoid washing items that are not corrosion resistant in the dishwasher. Knocking noise in the dishwasher A spray arm is knocking against an item in a basket Interrupt the program and rearrange the items which are obstructing the spray arm. Rattling noise in the dishwasher Items of crockery are loose in the dishwasher. Interrupt the program and rearrange the items of crockery. Knocking noise in the water pipes This may be caused by on-site installation or the cross-section of the piping. This has no influence on the dishwasher function. If in doubt, contact a qualified plumber. The dishes are not clean The dishes were not loaded correctly. See PART Ⅱ “Preparing And Loading Dishes”. The program was not powerful enough. Select a more intensive program.24 Not enough detergent was dispensed. Use more detergent, or change your detergent. Items are blocking the movement of the spray arms. Rearrange the items so that the spray can rotate freely. The filter combination is not clean or is not correctly fitted in the base of wash cabinet. This may cause the spray arm jets to get blocked. Clean and/or fit the filter correctly. Clean the spray arm jets. Cloudiness on glassware. Combination of soft water and too much detergent. Use less detergent if you have soft water and select a shorter cycle to wash the glassware and to get them clean. Problem Possible Causes What To Do The dishes are not clean. White spots appear on dishes and glasses. Check water softener settings or fill status of salt container. Black or grey marks on dishes Aluminium utensils have rubbed against dishes Use a mild abrasive cleaner to eliminate those marks. Hard water area can cause limescale deposits. Improper loading Use gloves if detergent residue can be found on dishes to avoid skin irritations. Dishes are removed too soon Do not empty your dishwasher immediately after washing. Open the door slightly so that the steam can come out. Take out the dishes until the inside temperature is safe to touch. Unload the lower basket first to prevent the dropping water from the upper basket. Detergent left in dispenser Dishes block detergent dispenser Re-loading the dishes properly. The dishes aren't dryingProblem Wrong program has been selected. With a short program, the washing temperature is lower, decreasing cleaning performance. Choose a program with a long washing time. Use of cutlery with a low-quality coating. Water drainage is more difficult with these items. Cutlery or dishes of this type are not suitable for washing in the dishwasher. Possible Causes What To Do

The dishes aren't drying Seven years after placing the last unit of the model on the market: Motor, circulation and drain pump, heaters and heating elements, including heat pumps (separately or bundled), piping and related equipment including all hoses, valves, filters and aqua stops, structural and interior parts related to door assemblies (separately or bundled), printed circuit boards, electronic displays, pressure switches, thermostats and sensors, software and firmware including reset software. Ten years after placing the last unit of the model on the market: Door hinge and seals, other seals, spray arms, drain filters, interior racks and plastic peripherals such as baskets and lids. Availability Of Spare Parts WARNING Self-repair or non-professional repair may cause serious risks to the safety of the user of the appliance and impact warranty.1.Upper basket: 2.Lower basket:

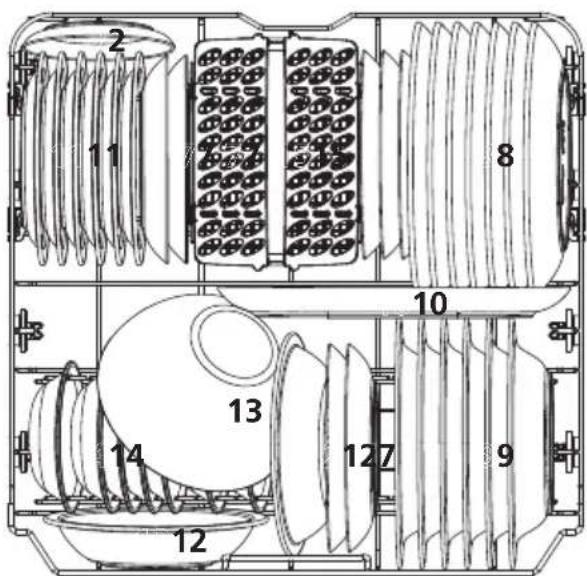

Cups Mugs Oven pot Small pot Saucers Glasses Item Number

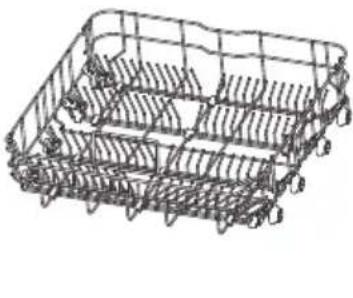

Dessert plates Dinner plates Soup plates Oval platter Melamine dessert plates Melamine bowls Glass bowl Dessert bowls Cutlery basket Item Number

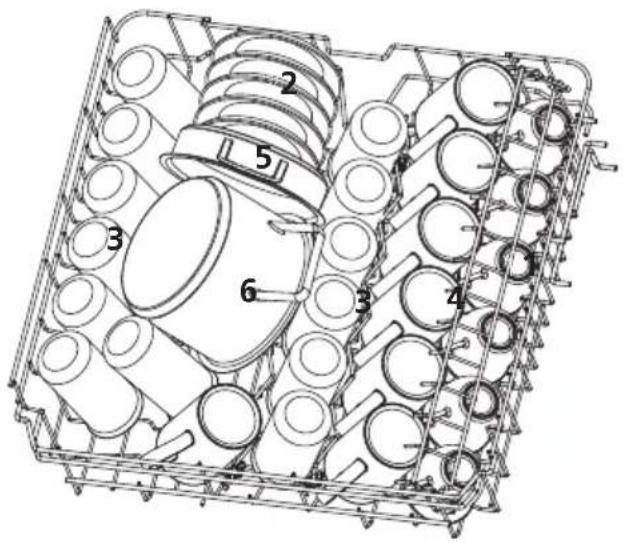

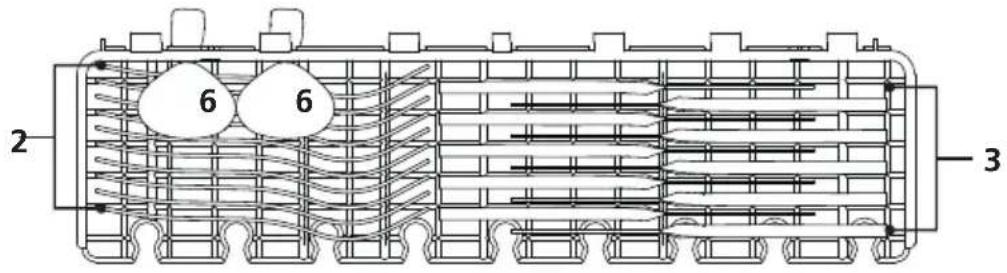

Loading the dishwasher to its full capacity will contribute to energy and water savings. 263.Cutlery rack: Information for comparability tests in accordance with EN60436 Capacity: 13 place settings Position of the upper basket: lower position Program: ECO Rinse aid setting: Max Softener setting: H3

Please place the light flat wares on the shelf. is 1.5kg. The maximum loading weight

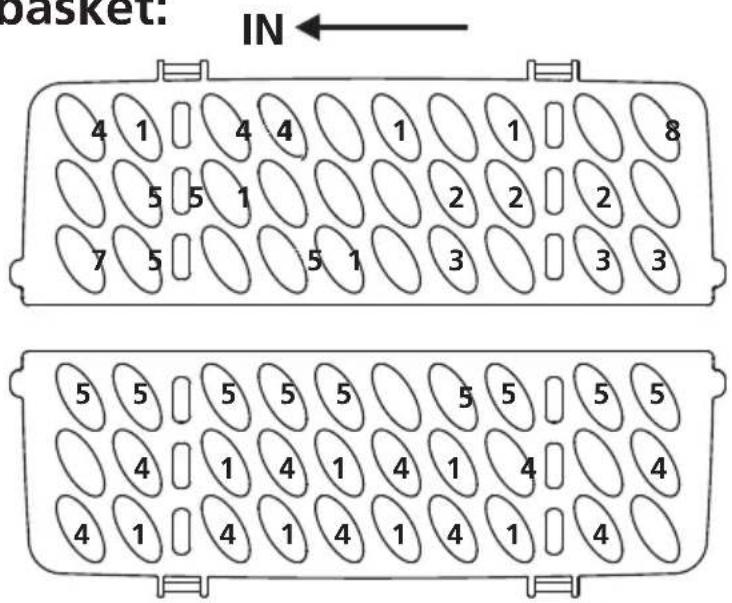

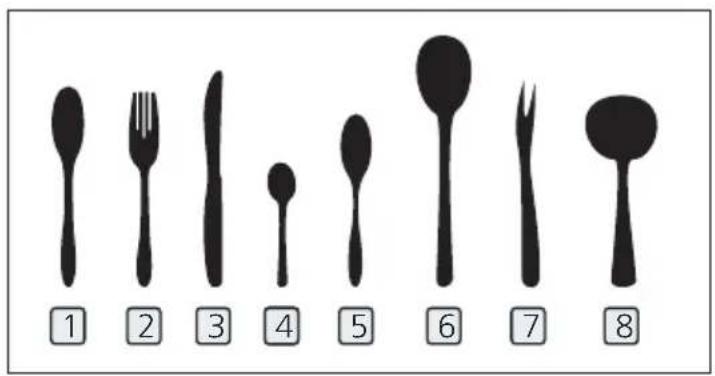

Soup spoons Forks Knives Tea spoons Dessert spoons Serving spoons Serving fork Gravy ladle Item Number INPART Ⅱ: Special VersionCONTENTS ERROR CODES USAGE COUNTER NOTE: If you cannot solve the problems by yourself, please ask for help from a professional technician. The manufacturer, following a policy of constant development and updating of the product, may make modifications without giving prior notice. If lost or out-of-date, you can receive a new user manual from the manufacturer or responsible vendor.

USING YOUR DISHWASHER

PROGRAM SELECTION Wash Cycle Table Saving Energy Starting A Program Changing The Program Mid-cycle Forget To Add A Dish? Auto open

Please read the corresponding content in the instruction manual for detailed operating method.

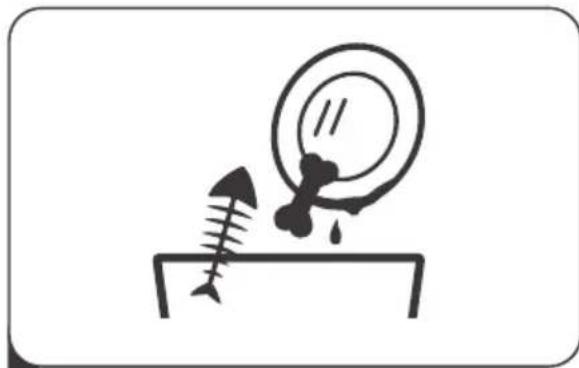

Remove larger residue from dishes. Avoid pre-rinsing.

Fill the dispenser with detergent and rinse aid. Select a suitable program and start the dishwasher. Inside Outside

USING YOUR DISHWASHER

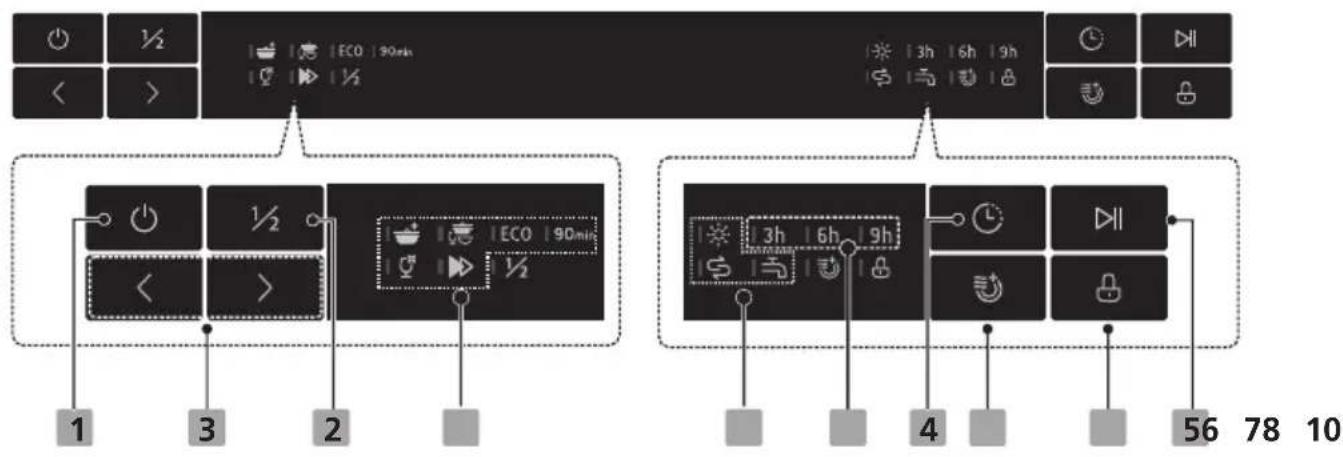

Control Panel Operation (Button) Power Program

Press this button to turn on your dishwasher. Half-load Delay

When you have about or less than half of full place settings dishware to wash, you can choose this function to save energy and water. (It can only be used with Intensive, Universal, ECO, Glass and 90 min.) Press this button to select the appropriate washing program,the program indicator will be lit. Press the button to set the delay time. Press the button to start the selected washing program or pause the working program. For better drying result. (It can only be used with Intensive, Universal, ECO, Glass, 90 min) This option allows you to lock the buttons on the control panel, except the Power button, so children cannot accidently start the dishwasher by pressing the buttons on the panel.To lock or unlock the buttons on the control panel, hold the button for 3 seconds.

Intensive For heaviest soiled crockery, and normally soiled pots, pans, dishes etc. With dried-on food. ECO This is standard program, it is suitable to clean normally soiled tableware and it is the most efficient program in terms of its combined energy and water consumption for that type of tableware. Delay time

To show the delay time (3h/6h/9h). Glass For lightly soiled crockery and glass. 90 min For normally soiled loads that need quick wash. Warning indicator

Salt If the “ ” indicator is lit, it means the dishwasher is low on dishwasher salt and needs to be refilled. Rinse Aid If the “ ” indicator is lit, it means the dishwasher is low on dishwasher rinse aid and requires a refill. Water Faucet If the “ ” indicator is lit, it means the water faucet closed. Rapid A shorter wash for lightly soiled loads that do not need drying. Universal For normally soiled loads, such as pots, plates, glasses and lightly soiled pans. Display Program indicator

Intensive For heaviest soiled crockery, and normally soiled pots, pans, dishes etc. With dried-on food. ECO This is standard program, it is suitable to clean normally soiled tableware and it is the most efficient program in terms of its combined energy and water consumption for that type of tableware. Delay time

Glass For lightly soiled crockery and glass. 90 min For normally soiled loads that need quick wash. Warning indicator

Salt If the “ ” indicator is lit, it means the dishwasher is low on dishwasher salt and needs to be refilled. Rinse Aid If the “ ” indicator is lit, it means the dishwasher is low on dishwasher rinse aid and requires a refill. Water Faucet If the “ ” indicator is lit, it means the water faucet closed. Rapid A shorter wash for lightly soiled loads that do not need drying. Universal For normally soiled loads, such as pots, plates, glasses and lightly soiled pans.6 Water Softener The water softener must be set manually, using the water hardness dial. The water softener is designed to remove minerals and salts from the water, which would have a detrimental or adverse effect on the operation of the appliance. The more minerals there are, the harder your water is. The softener should be adjusted according to the hardness of the water in your area. Your local Water Authority can advise you on the hardness of the water in your area. Adjusting salt consumption The dishwasher is designed to allow for adjustment in the amount of salt consumed based on the hardness of the water used. This is intended to optimise and customise the level of salt consumption.

1. Close the door, switch on the appliance;

2. Within 60 seconds after the appliance was switched on press the “>” button for

more than 5 seconds to enter the water softener setting mode.

3. Press the “>” button again to select the proper set according to your local

environment, the setting will change in the following sequence: H3->H4->H5->H6->H1->H2->H3;

4. Without operation in 5 seconds or press the Power button to complete the setup

and exit the setting mode. Please follow the steps below for adjustment in salt consumption. The factory setting: H3 Every cycle with a regeneration operation consumes additional 2.0 litres of water, the energy consumption increases by 0.02 kWh and the program extents by 4 minutes.

Regeneration occurs every X program sequenceNo regeneration

1NOTE: If your model does not have any water softener, you may skip this section. Water Softener The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will form on the dishes and utensils. The appliance is equipped with a special softener that uses a salt container specifically designed to eliminate lime and minerals from the water. Preparing And Loading Dishes Consider buying utensils which are identified as dishwasher-proof. For particular items, select a program with the lowest possible temperature. To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the program has ended. Cutlery with wooden, horn china or mother-of-pearl handles Plastic items that are not heat resistant Older cutlery with glued parts that are not temperature resistant Bonded cutlery items or dishes Pewter or cooper items Crystal glass Steel items subject to rusting Wooden platters Items made from synthetic fibres Some types of glasses can become dull after a large number of washes Silver and aluminum parts have a tendency to discolor during washing Glazed patterns may fade if machine washed frequently For washing the following cutlery/dishes Are not suitable Are of limited suitability

Please check the section 3 “Loading The Salt Into The Softener” of PART Generic Version, If your dishwasher lacks salt.Ⅰ: Please check the section 3 “Loading The Salt Into The Softener” of PART Ⅰ: Generic Version, If your dishwasher lacks salt.8 Items such as cups, glasses, pots, pans, etc. must face downwards. Curved items, or ones with recesses, should be loaded aslant so that water can run off. All utensils are stacked securely and can not tip over. All utensils are placed in the way that the spray arms can rotate freely during washing. Load hollow items such as cups, glasses, pans etc. With the opening facing downwards so that water cannot collect in the container or a deep base. Dishes and items of cutlery must not lie inside one another, or cover each other. To avoid damage, glasses should not touch one another. The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups. Long bladed knives stored in an upright position are a potential hazard! Long and sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket. Please do not overload your dishwasher. This is important for good results and for reasonable consumption of energy. NOTE: Very small items should not be washed in the dishwasher as they could easily fall out of the basket. To prevent water dripping from the upper basket into the lower basket, we recommend that you empty the lower basket first, followed by the upper basket. Removing the dishes WARNING Items will be hot! To prevent damage, do not take glass and cutlery out of the dishwasher for around 15 minutes after the program has ended. Recommendations for loading the dishwasher Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans. It is not necessary to rinse the dishes under running water. For best performance of the dishwasher, follow these loading guidelines. (Features and appearance of baskets and cutlery baskets may vary from your model.) Place objects in the dishwasher in the following way:Loading the upper basket The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty). Position the dishes and cookware so that they will not get moved by the spray of water. Loading the lower basket We suggest that you place large and difficult to clean items into the lower basket: such as pots, pans, lids, serving dishes and bowls, as shown in the figure below. It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the top spray arm. The maximum diameter advised for plates in front of the detergent dispenser is of 19 cm, this not to hamper the opening of it. WARNING Do not let any item extend through the bottom. Always load sharp utensils with the sharp point down! Loading the cutlery basket

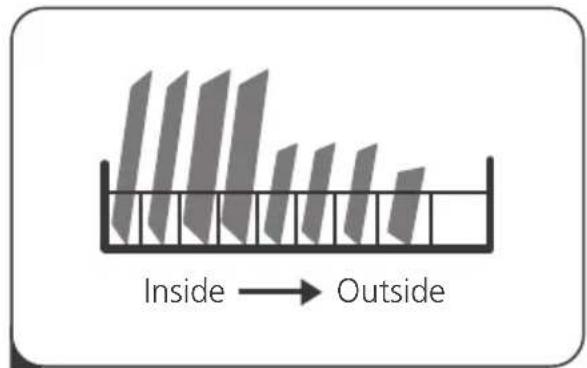

For the best washing effect, please load the baskets refer to standard loading options on last section of PART Generic VersionⅠ: For the best washing effect, please load the baskets refer to standard loading options on last section of PART Ⅰ: Generic Version Cutlery should be placed in the cutlery basket separate from each other in the appropriate positions. Avoid nesting of the cutlery to prevent insufficient cleaning performance.10 The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to run off the dishes. Your dishwasher is designed to use liquid rinse aids. WARNING Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances (e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance. Function Of The Rinse Aid And Detergent Function of detergent The chemical ingredients that compose the detergent are necessary to remove, crush and dispense all dirt out of the dishwasher. Most of the commercial quality detergents are suitable for this purpose. WARNING Proper Use of Detergent Use only detergent specifically made for dishwashers use. Keep your detergent fresh and dry. Do not fill detergent into the dispenser until you are ready to start the dishwasher. Dishwasher detergent is corrosive! Keep dishwasher detergent out of the reach of children. When to refill the rinse aid The regularity of the dispenser needing to be refilled depends on how often dishes are washed and the rinse aid setting used. The Low Rinse Aid indicator ( ) will be lit when more rinse aid is needed. Do not overfill the rinse aid dispenser.11 Filling The Rinse Aid Reservoir

Adjusting the rinse aid reservoir To achieve a better drying performance with limited rinse aid, the dishwasher is designed to adjust the consumption by user. Follow the below steps.

2. Within 60 seconds after the appliance was switched on press the “>” button

for more than 5 seconds, and then press the Delay button to enter the set model, the rinse aid indication blinks as 1Hz frequency.

3. Press the “>” button to select the proper set according to your using habits,

the setting will change in the following sequence: d3->d4->d5->d1->d2->d3. The higher the number, the more rinse aid the dishwasher uses.

4. Without operation in 5 seconds or press the Power button to complete the setup

and exit the setting mode. Close the door, switch on the appliance again

Close the cap after all.

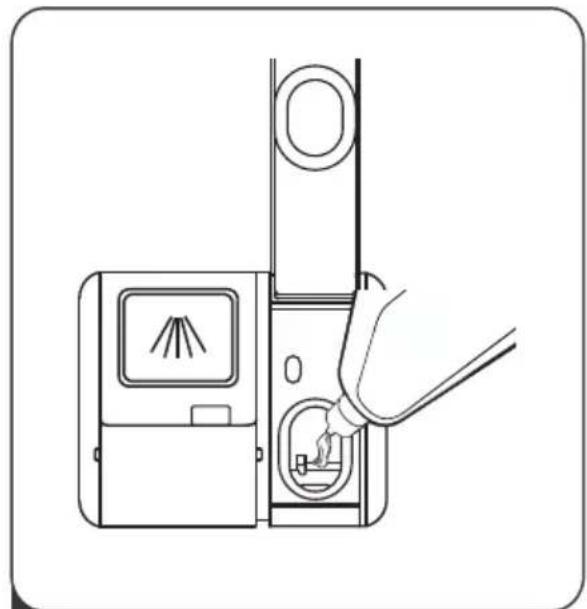

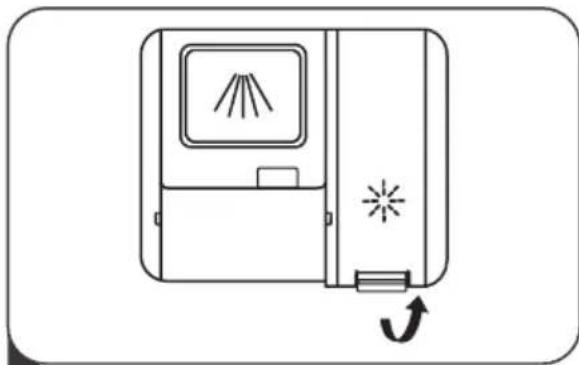

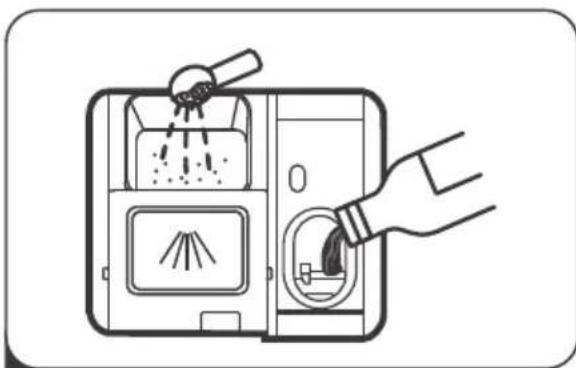

Remove the rinse reservoir cap by lifting up the handle . Pour the rinse aid into the dispenser, being careful not to overfill.12 Filling The Detergent Dispenser

Please choose an open way according to the actual situation.

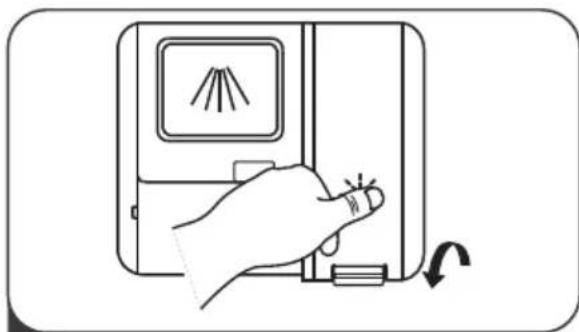

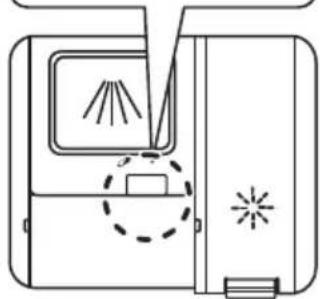

1. Open the cap by sliding the release

2. Open the cap by pressing down the

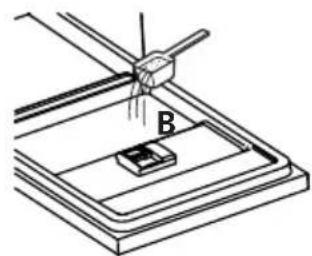

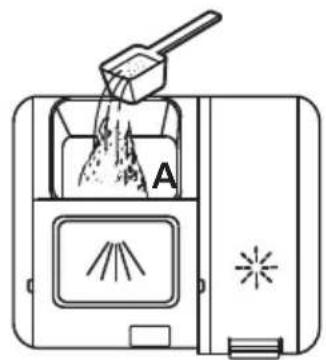

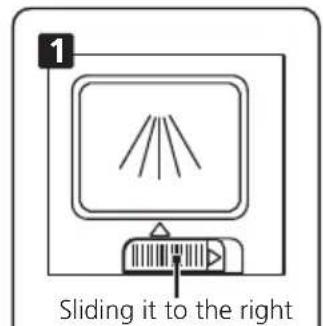

release catch. Add detergent into the larger cavity (A) for the main wash cycle . For better cleaning result, especially if you have very dirt items, pour a small amount of detergent onto the door. The additional detergent will activate during the pre-wash phase.

Close the flap by sliding it to the front and then pressing it down. AAA Sliding it to the rightPress down

BBB NOTE: Be aware that depending on the soiling of water, setting may be different.Please observe the manufacturer's recommendations on the detergent packaging.Wash Cycle Table The table below shows which programs are best for the levels of food residue on them and how much detergent is needed. It also show various information about the programs.consumption values and program duration are only indicative except for ECO program. indicates that the program uses rinse aid in the last rinse. ( )

Pre-washWash(60℃)RinseRinse(65- )Drying72℃Pre-washWash(60℃)RinseRinse(65- )Drying72℃Wash(50℃)RinseRinse(45℃)DryingWash(45℃)RinseRinse(45℃) 4/17g 4/17g 21gIntensiveUniversal(*EN60436)120 0.850-0.925 13.9Pre-washWash(45℃)RinseRinse(55-60℃)Drying 4/17g Rapid Glass 12g EN60436: The ECO program is suitable to clean normally soiled tableware, that for this use, it is the most efficient program in terms of its combined energy and water consumption, and it is used to assess compliance with the EU ecodesign legislation. NOTE: 1 or 2 tabs1 or 2 tabs 1 or 2 tabs DetergentPre/Main Wash1 tab1 tab 0.955-1.030

21g 1 tab 90 minWash(55℃)RinseRinse(60-65℃)Drying14 Saving Energy

1. Pre-rinsing of tableware items leads to increased water and energy consumption

and is not recommended.

2. Washing tableware in a household dishwasher usually consumes less energy and

water in the use phase than hand dishwashing when the household dishwasher is used according to the instructions. A program can only be changed if it has been running only for a short period of time, otherwise the detergent may have already been released or the wash water with detergent has already been drained. If this is the case, the dishwasher needs to be reset and the detergent dispenser must be refilled. To reset the dishwasher, follow the instructions below:

1. Press the Start/Pause button to pause the washing.

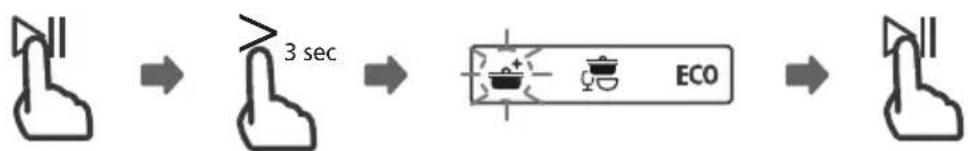

2. Press the '>' button more than three seconds the machine will be in

program selection mode.

3. Press the “>”or “<”Program button to select the desired program.

4. Press the Start/Pause button, the dishwasher will restart.

3 sec Starting A program

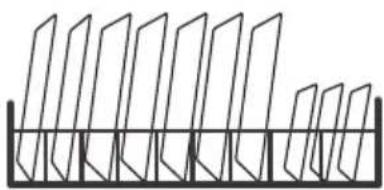

1. Draw out the lower and upper basket, load the dishes and push them back.

It is commended to load the lower basket first, then the upper one.

2. Pour in the detergent.

3. Insert the plug into the socket. The power supply refer to last page”Product fiche”.

Make sure that the water supply is turned on to full pressure.

4. Close the door, press the Power button.

5. Choose a program, the response light will turn on. Then press the Start/Pause

button, the dishwasher will start its cycle. Changing The Program Mid-cycle >15 Forget To Add A Dish? After 5 sec WARNING It is dangerous to open the door mid-cycle, as hot steam may scald you. A forgotten dish can be added any time before the detergent dispenser opens. If this is the case, follow the instructions below:

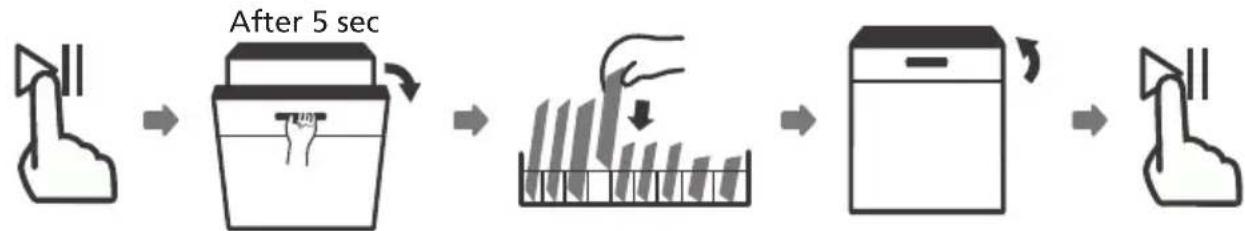

1. Press the Start/Pause button to pause the washing.

2. After the spray arms stopped working, you can open the door completely.

3. Add the forgotten dishes.

5. Press the Start/Pause button, the dishwasher will continued to run after 10 seconds.

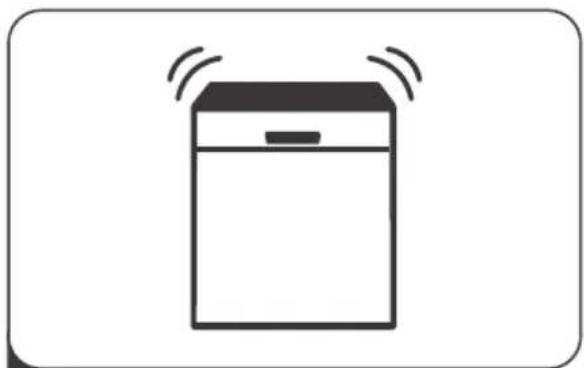

Auto Open Door The dishwasher door opens automatically at the end of some programs. When the door opens it does not mean that the program is finished. There is still time to dry. At the end of this remaining time a beep sounds indicating that your program is now finished. (If the dishwasher is built-in the surrounding furnishings must be resistant to any condensation.) The dishwasher door must not be blocked when set to open automatically. This can disrupt door lock functionality. NOTE: NOTE: You can return to factory settings at any time. Please to refer to the different settings pages.WARNING

ERROR CODES If there is a malfunction the dishwasher will display an error code. The following table shows possible error codes and their causes. If there is an error code that cannot be solved, please request professional assistance. Codes Meanings Possible Causes Longer inlet time. Not reaching required temperature. Overflow. Malfunction of heating element. Some element of dishwasher leaks. Faucets is not opened, or water intake is restricted, or water pressure is too low. The Rapid light flicker fleetly The 90 min light flicker fleetly The Glass and Rapidlight flicker fleetly Open circuit or break wiring for the communication. Failure of communication between main PCB with display PCB. The ECO indicator

3. For example, 1234 cycles will indicated as below illustration.

Since this model has no display screen, the cycles number will informed by using 4 LEDs, the detailed introduction is as follows:

1. When the power cord is connected, but the dishwasher is not turned on, close the

door, press and hold the Delay button "+" for 5 seconds, the dishwasher display will show the usage count;

2. The counting will be done from units to thousands sequence as below: Rapid

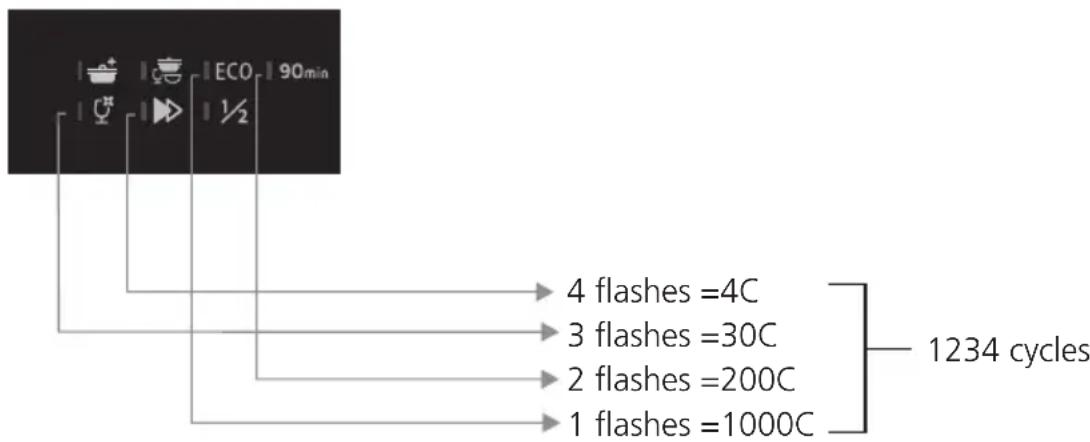

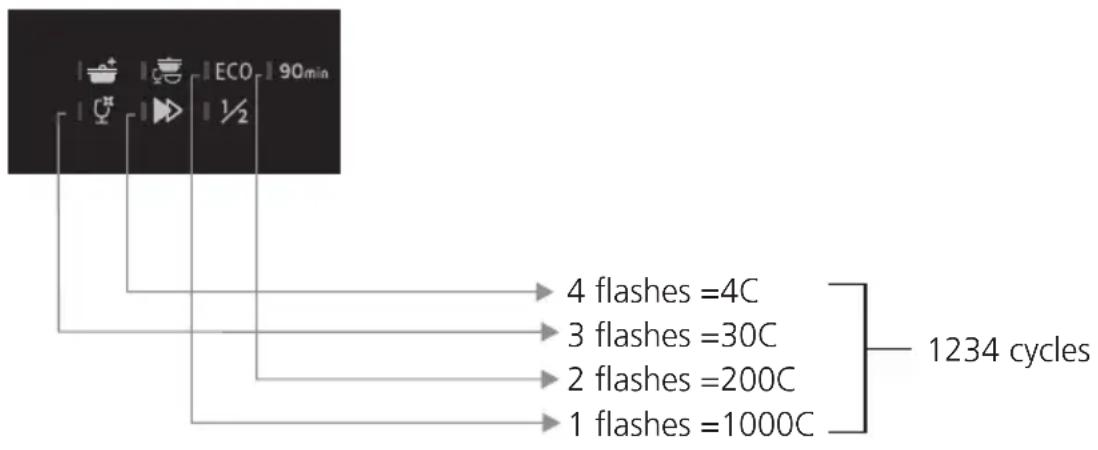

1234 cycles 2 flashes =200C 1 flashes =1000C 4 flashes =4C 3 flashes =30CTECHNICAL INFORMATION

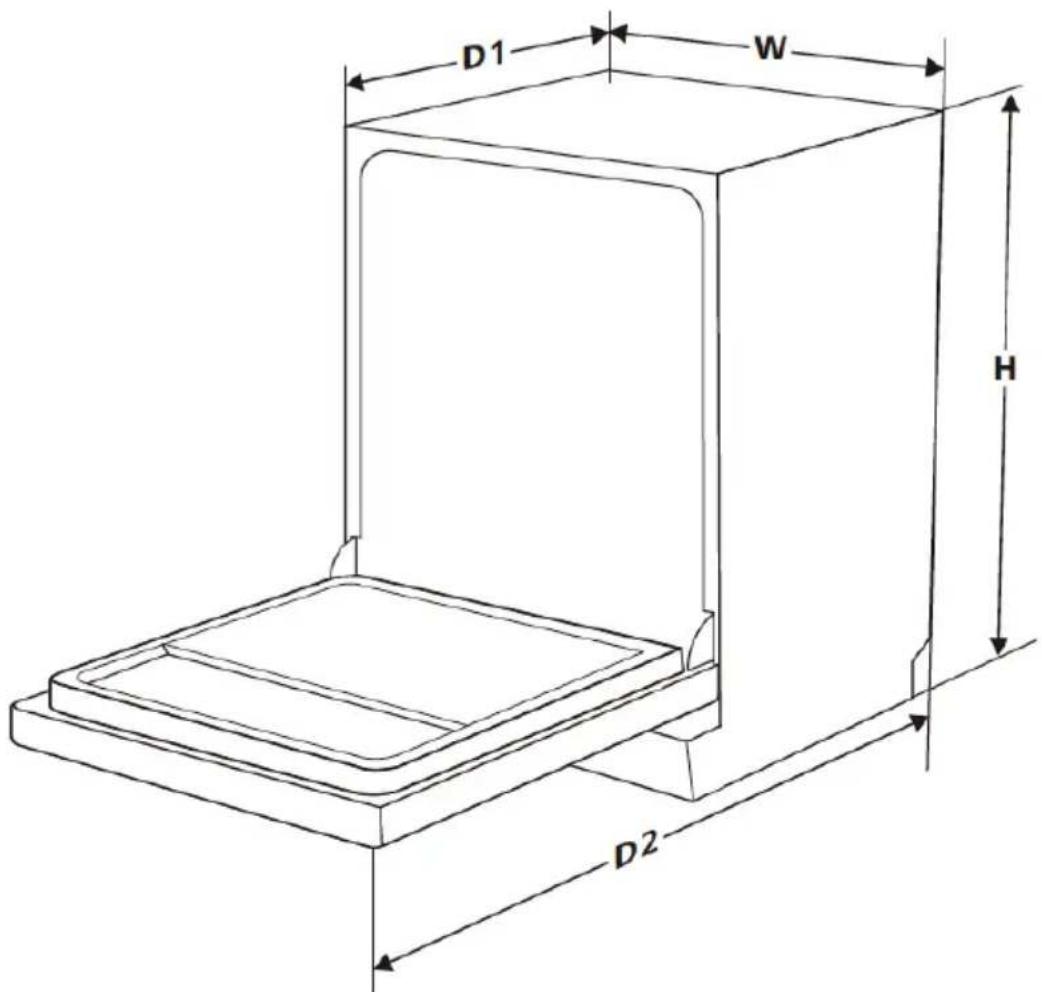

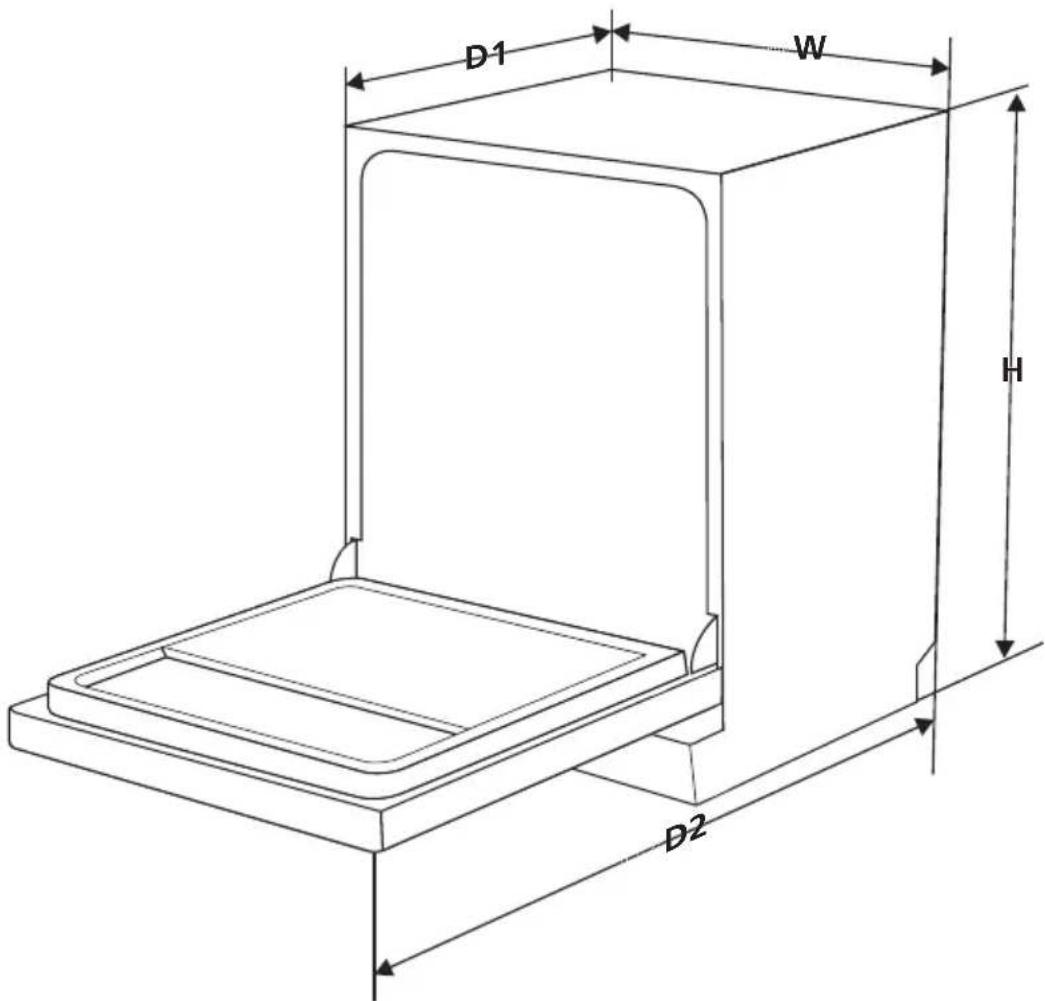

D2D2 Height (H) Width (W) Depth (D1) Depth (D2) 845mm 598mm 600mm (with the door closed) 1150mm (with the door opened 90 )In order to access to your model information stored in the product database, as set out in Regulation (EU) 2019/2017 and relating to energy labelling, please log on to the website: https://eprel.ec.europa.eu/ Look for the reference of your product on the website by putting the service reference that is indicated on your product rating plate. Another means to access this information is to flash the "QR" code on the energy label of your product. DATABASE ACCESSINFORMATION The minimum period of availability of spare parts listed in the European Regulation 2019-2022-EU and accessible in particular to the user of the appliance, is 10 years under the conditions layed down in the same regulation.MODE D’EMPLOI FR

3. For example, 1234 cycles will indicated as below illustration.

Since this model has no display screen, the cycles number will informed by using 4 LEDs, the detailed introduction is as follows:

1. When the power cord is connected, but the dishwasher is not turned on, close the

door, press and hold the Delay button for 5 seconds, the dishwasher display will show the usage count;

2. The counting will be done from units to thousands sequence as below: flash

indicate units of cycles, Fragile flash indicate tens of cycles, ECO flash indicate hundreds of cycles, Auto flash indicate thousands of cycles;

1234 cycles 2 flashes =200C 1 flashes =1000C 4 flashes =4C 3 flashes =30C18 04 INFORMATIONS TECHNIQUES
