USER MANUAL Bluwave 03 Ferplast

1 Filter body
2 Connection
3 Canisters
4 Biological filtering material
5 Filter cover
6 Pump
7 Adjustable circulation jet
8 Mechanical filter (fine sponge)
9 Pump delivery pipe
10 BLUCLIMA heater compartment (optional)
11 Mechanical filter (coarse sponge)
12 Adsorbent filter
13 Water intake grills

BLUWAVE 05/07

1 Filter body
2 Connection
3 Pump delivery pipe
4 Biological filter cartridges
5 Adsorbent filter
6 Pump
7 Filter cover
8 Adjustable circulation jet
9 Canister
10 BLUCLIMA heater compartment (optional)
11 Mechanical filter (coarse sponge)
12 Mechanical filter (fine sponge)
13 Removable bulkhead
14 Water intake grills

BLUWAVE 09

1 Filter body
2 BLUMODULAR
3 Spray-bar
4 Biological filter cartridges
5 Adsorbent sponge
6 Connector
7 Filter cover
8 Adjustable circulation jet
9 BLUCLIMA heater compartment (optional)
10 Removable bulkhead
11 Water intake grills

FR

BLUWAVE 03

RICAMBI ED ACCESSORI

How to quickly create a perfect habitat that will keep your fish healthy and you happy.

THANK YOU FOR CHOOSING FERPLAST QUALITY.

Congratulations on having chosen the BLUWAVE filter.

BLUWAVE has been designed to give you the greatest pleasure and to fully safeguard the life and health of your fish and plants. A few minutes maintenance each month is all that's needed to ensure the aquarium is always perfectly efficient. BLUWAVE is supplied with all that's needed for it to function at its best. All parts have been fully tested and comply with the relative international safety regulations.

CHECK THE INTEGRITY OF ALL OF THE COMPONENTS.

Although Ferplast uses safe packaging and individually product, we recommend checking for accidental damage that can during shipping, storage and sale, which could compromise the product's initial characteristics, functionality and safety.

OPENING THE BOX

Inside the packaging you will find:

• n°1 BLUWAVE filter complete with:
• filtering material
• BLUPOWER pump (BLUWAVE 03-05-07)
• BLUMODULAR 3 mechanical filter with 1,200 l/h pump (BLUWAVE 09)
• n^2 (for BLUWAVE 03 and 05 filters) or 4 (for BLUWAVE 07 and 09 filter) BLUSTART capsules (special capsules that speed up the filter maturing process)
• n^4 / 6 suckers.
• n^2/3 filter supports.

BLUWAVE 03

Designed for small aquariums. Complete with filter material and pump.

Mechanical filtration. Two, easily removable, inde containing two sponges of different porosity for mechanical filtration. To remove it from the filter, just pull the two handles upwards.

Biological filtration. The BLURINGS razor shells with ample surfaces in the special housing create the biological action and are ideal for developing the bacterial flora necessary for oxidizing polluting compounds. Only original Ferplast filtering materials, already tested to guarantee perfect filtration, should be used.

Adsorptive filtration. Sponge soaked in active carbon for the (adsorption) of aromatic and coloured compounds to guarantee maximum water clarity.

BLUPOWER. Centrifugal pump that forces the water into the filter at a fixed flow rate, ideal for ensuring the stability of the filtering action.

Circulation jet. Circulation jet which allows the direction of the flow of water from the filter outlet to be adjusted.

Water intake grilles: the intake at the top forces the movement of surface particles and limits the oily layer, which forms on the surface; the lower intake collects waste from the aquarium. The double intake (right and left sides of the filter) continuously guarantees proper operation of the filter even if clogging forms, common in small tanks.

Heater compartment. Compartment for the heater in the case of tropical freshwater and marine fish tanks. Ferplast BLUCLIMA heat used. The removable panel makes the compartment easy to clean.

BLUWAVE 05/07

Three filtration stages and five filter spaces in a comp filtering material and pump.

Mechanical filtration. Basket containing two synthetic sponges of different porosity, for the selective removal of particles and organic waste. To remove it from the filter, just pull the two handles upwards.

Biological filtration. Double biological action thanks to two special cartridges holding material with a large surface area (BLURINGS ceramic rings and BLUBALLS plastic spheres) suited to developing the bacterial flora necessary to oxidise all the polluting compounds. It is recommended that only original Ferplast filtering materials are used - these have already been fully tested to guarantee perfect filtering.

Adsorptive filtration. Sponge soaked in active carbon for the removal (adsorption) of aromatic and coloured compounds to guarantee maximum water clarity.

BLuPOver/ Centrifugal pump that forces the water into the filter at a fixed flow rate, ideal for ensuring the stability of the filtering action.

Circulation jet. Circulation jet which allows the direction of the flow of water from the filter outlet to be adjusted.

Water intake grilles: the intake at the top forces the movement of surface particles and limits the oily layer, which forms on the surface; the lower intake collects waste from the aquarium.

Heater compartment. Special heater compartment where to position the heater in freshwater or tropical marine aquariums. We recommend using a Ferplast BLUCLIMA heater. The removable bulkhead enables easy cleaning of the heater compartment.

BLUWAVE 09

Three filtration stages and five filter spaces in a complex filtering material and pump.

Mechanical filtration. Mechanical filtration by means of the innovative BLUMODULAR, made up of 3 filtration modules with synthetic sponges of different porosity for the selective elimination of particles and organic waste. Thanks to the spray-bar an appropriate quantity of the mechanically filtered water is conveyed into the biological filtration modules. The spray-bar also allows this water to be oxygenated.

Biological filtration. Double biological action thanks to two special cartridges holding material with a large surface area suited to developing the bacterial flora necessary to oxidise all the polluting compounds. It is recommended that only original Ferplast filtering materials are used – these have already been fully tested to guarantee perfect filtering.

Adsorbent filtration. Sponge soaked in active carbon for the elimination (adsorption) of aromatic and coloured compounds to guarantee maximum water clarity.

Water intake grilles: the intake at the top forces the movement of surface particles and limits the oily layer, which forms on the surface; the lower intake collects waste from the aquarium.

Heater compartment. A BLUCLIMA heater is easily inserted in compartment. It guarantees efficient control of the water temperature. To adjust, simply set the selector at the top of the heater to the desired temperature. Ferplast has a wide range of 50 - 300 W BLUCLIMA heaters.

BLUWAVE: A FEW RULES, TOTAL SAFETY

Before carrying out any installation, please read the following instructions carefully to determine your safety and prevent damage to the filter.

PRELIMINARYWARNINGS

• Ensure that the voltage shown on the appliance corresponds to that of your home electrical power supply.
  Make sure your home is protected by an automatic safety breaker switch with an operating current of no more than 30 mA.
• Do not connect the filter to the power supply before correctly completing all the installation procedures (including filling the aquarium with water).
  The filter is intended only for indoor use
• Always disconnect the filter from the electric power supply before carrying out any maintenance.
• Always ensure that the water level stays above the minimum level and below the maximum; both are shown on the front of the BLUWAVE filter.

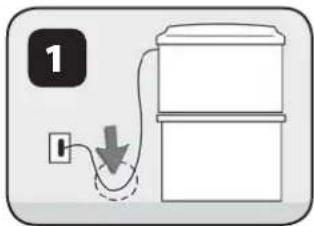

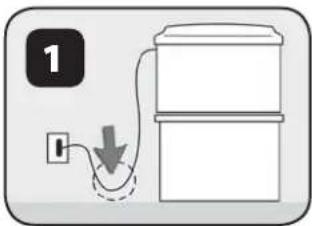

• Connect the plugs to your electric power supply leaving a loop in the cable below the electrical socket to prevent drops of water running down the cable and into the power supply (1).
• The pump power supply cable cannot be repaired or replaced; if damaged, the whole pump or heater must be replaced.
• Check that the filter intake grilles are not blocked.
  The water temperature must not exceed 35^

INSTALLING THE BLUWAVE FILTER

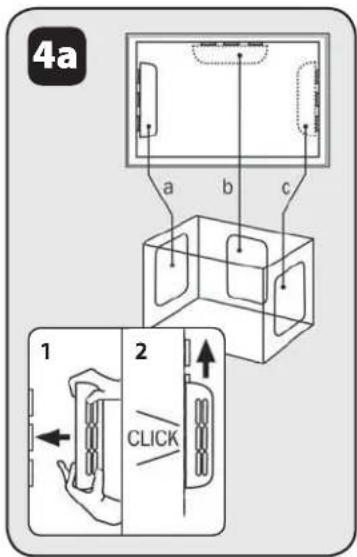

Position the BLUWAVE filter inside the aquarium (on the side or back). You can use:

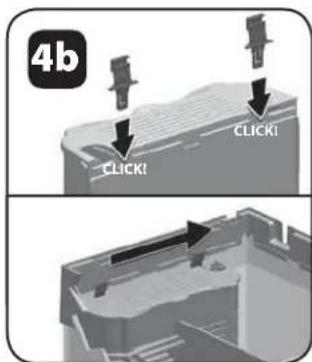

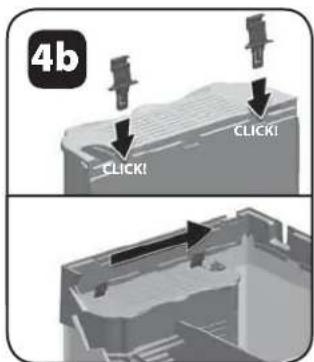

- the special brackets to be applied to the guides on the back of the filter, adjusted to the thickness of the aquarium glass from 3 to 12 mm( 5) ;

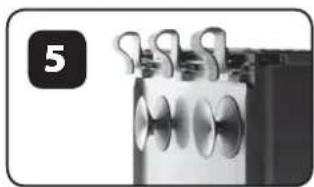

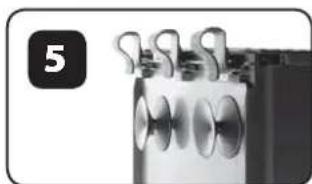

- the 4/6 special suckers: we recommend applying these to the back of the filter before immersing it in the water;
- silicone for aquariums, available from your retailer;
- the special guides on the upper frame of the aquarium, if this is a CAYMAN aquarium (4a); if it is a DUBAI model set the special hooks before fixing it to the frame guides (4b).
- When setting up a tropical aquarium it is important that a heater is used. A range of BLUCLIMA heaters from 30 to 300 W is available.
If you are setting up an aquarium for freshwater tropical fish, we recommend laying about 2cm of fertilized gravel on the bottom of the aquarium and covering it with 2-3 cm of grit or gravel. Decorate the aquarium as you p (your local retailer will be able to help and advise you).
- Fill the aquarium by pouring water onto a dish placed on the bottom to prevent the material used to create the base from being moved about. In general, it is advisable to mix tap water with about 50% demineralised water for aquarriums; however, this percentage may vary according to the chemical contents of your tap water and the right amount of demineralised water from your retailer).
- Set the required heater temperature (if present) according to the type of fish and plants chosen (e.g. for freshwater tropical fish the average temperature is about 25 - 26^ ).
- Put 1 (aquariums up to 150 litres) or 2 (aquariums over 150 litres) capsules of BLUSTART filter activator (2) in the first filter compartment. Before arranging the plants in the aquarium, we recommend waiting at least one day to allow time for the water to stabilise.

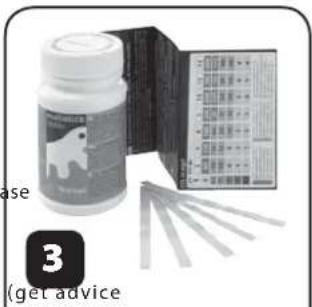

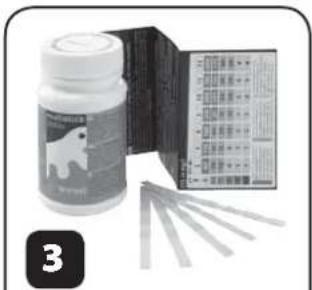

MULTISTICK TESTER

Simultaneously measures 5 parameters in a few minutes: pH, KH, GH, NO, NO. Indirect measurement of CO concentration in fresh water.

N.B.

• To care for and protect your fish, it is strongly advised to wait until the filter has matured: the first fish should only be introduced after the addition of BLUSTART filter activator capsules. Before carrying out this operation, the water's main parameters should be checked using the special MULTISTICK TESTER (3) available from your dealer, who can also suggest the ideal water temperature, hardness, etc., depending on the types of fish and plants that you decide to raise in your tank. These parameters should be frequently retested.
• During the filter maturing period, add a small quantity of dry food each day: this will help the formation of bacterial flora.

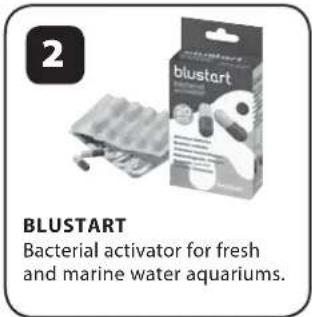

• When adding the fish, insert the remaining BLUSTART filter activator capsules in the first filter compartment.
• We recommend not putting too many fish into the aquarium all at once, but building up to the maximum population gradually.

BLUWAVE

The main maintenance procedures we recommend are:

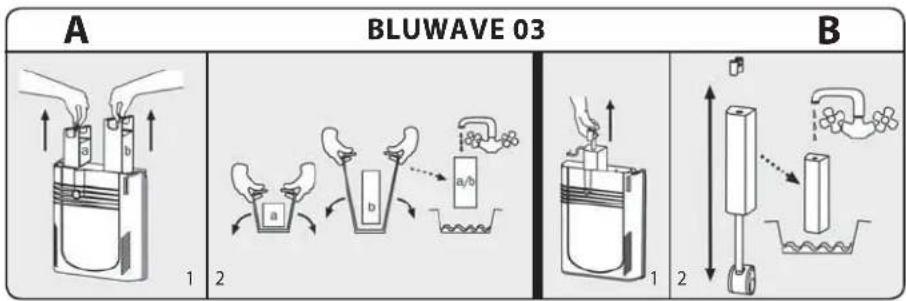

Rinsing all the mechanical filtration sponges at least every 2-3 weeks:
A BLUWAVE 03

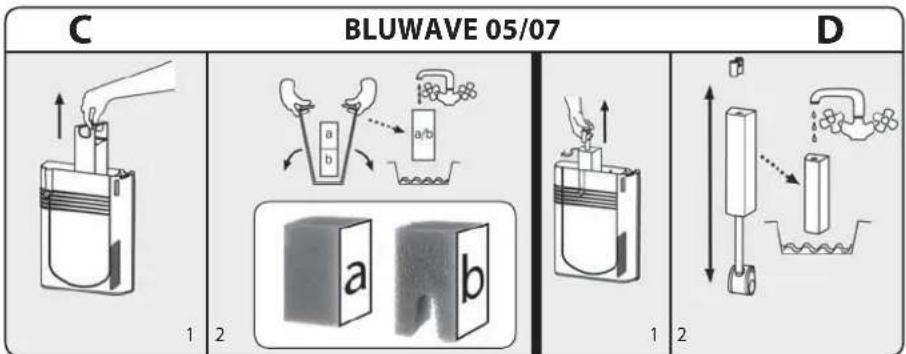

C BLUWAVE 05 and 07, when replacing them, ensure that the right order is maintained (fine sponge top (a), coarse sponge below (b);

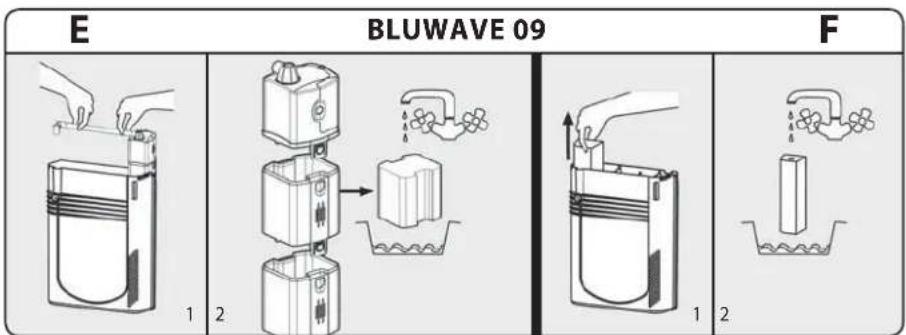

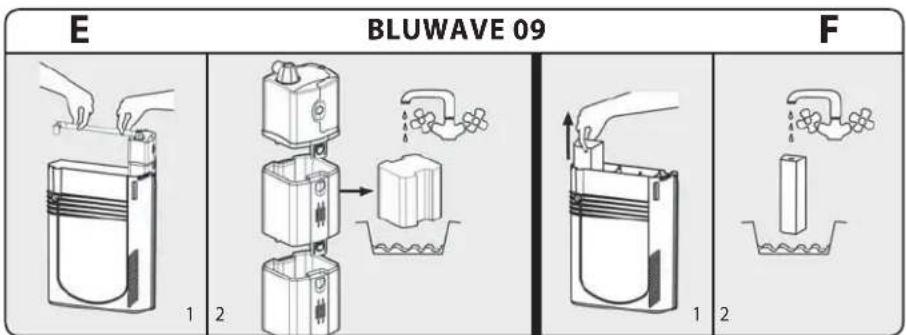

E BLUWAVE 09.
- Replacing the mechanical filtration sponges at least every 6 months. Only use BLUMEC spare parts.
The effect of the adsorbent sponge ceases in about 2-3 weeks; we therefore advise, if necessary, replacing it with a Ferplast replacement sponge available from leading retailers or leaving it in the filter to perform a mechanical function, rinsing it every 2-3 weeks. In any case, it should be changed at least every 6 months:
B BLUWAVE 03
D BLUWAVE 05-07;
F BLUWAVE 09.

BLUCARBON active carbon granules or the BLUZEOLITE zeolite may also fit into this section.

During periods when the fish are being treated with a solution added to the water for illness or disease, the adsorbent sponge should be removed from the filter (so this does not reduce the beneficial effects of the treatment). When the treatment is over, we recommend putting in a new sponge.
- Always keeping the filter intake grilles clean.

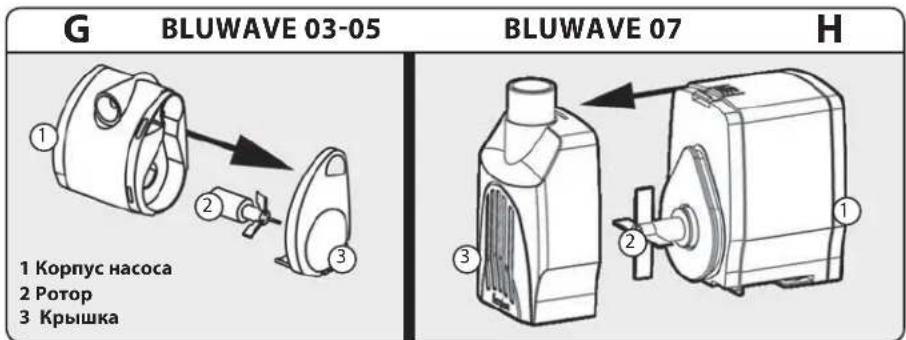

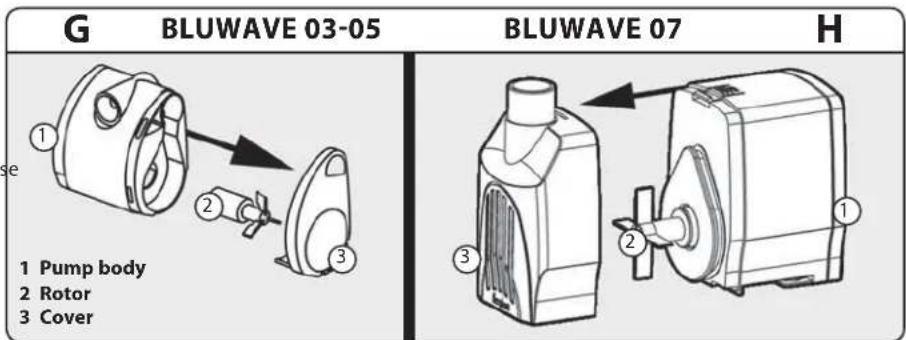

• Checking the pump at least every 2 months and cleaning it when necessary in the following way:
• disconnect the pump and heater from your electric power supply;
• unscrew the filter top;
• remove the pump unit, adsorbent sponge and return pipe from the filter, pulling it upwards (B - D - F);
• remove the pump from the return pipe, remove the front section and remove the rotor. In the BLUWAVE 09 remove the BLUMODULAR together with the relative spray-bar (G - H - I) . If necessary, replace the rotor with an original Ferplast spare part;
• remove any lime scale or impurities with soft brush BLU 9037 (never use detergents or chemical substances);
  re-assemble the unit following these instructions in reverse.

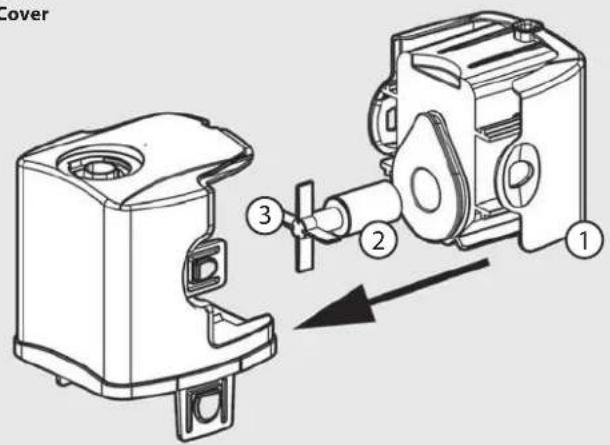

BLUWAVE 09

1 Pump body
2 Rotor
3 Cover

IMPORTANT

• The biological materials should not be washed. Therefore, we suggest never removing them from the filter so they retain their active bacterial properties.
• However if you think it beneficial to replace these biological materials with others of a different type to Ferplast's, put them into the two cartridges separately, leaving a period of at least 2-3 weeks between each introduction (BLUWAVE 05, 07 and 09 filters).
• Use only original Ferplast parts to replace any filter components. The use of non Ferplast parts nullifies the guarantee. BLURINGS and BLUBALLS spare parts are available at your local retailer.

BLUWAVE: water conditions always under your control

BLUWAVE automatically ensures the best possible living conditions for fish and plants because it correctly controls all the water properties.

The water in the aquarium is actually a complex solution defined by numerous chemical and physical 'readings': temperature, acidity (pH), total and carbonic hardness (GH, KH), content in polluting substances (PO4, NH3, NO2, NO3), etc. If you want to, you can study more on these subjects in specialist literature; for now, though, it is important to know that with the BLUWAVE filter... it simply isn't necessary to become an expert in chemistry!

SPARE PARTS AND ACCESSORIES

Every part of the BLUWAVE filter can be easily replaced. The parts are available from the retailer where you bought the filter. A full range of updated Ferplast accessories is always available for adapting your filter to your individual needs. To replace part and always ensure the full working order and safety of your product, use only Ferpla parts. Installing non-Ferplast parts nullifies the guarantee.

GUARANTEE

Ferplast guarantees the BLUWAVE filter and all its parts and accessories within the limits provided for in this paragraph and the legal regulations currently in force. The guarantee only covers manufacturing defects and provides for free repair or replacement. The guarantee does not cover damage and/or defects caused by carelessness, wear and tear, usage not in accordance with the instructions and warnings in this booklet, accide improper use, incorrect repairs and purchases not confirmed by receipt. The sponges and filtering materials are not covered by guarantee.

IMPORTANT

Within the European Union the barred rubbish container symbol indicates that the product, at the end of its lifecycle, needs to be sent to separate collection point for electrical and electronic waste and cannot be disposed of together with domestic solid waste.

To ensure correct product disposal, please dispose of this product in compliance with the law provisions of the country where the product is found.

Dimensions: L = width W = depth H = height

Total volume

Maximum pump flow

Maximum pump head

Pump power

Recommended heater power

Recommended for tanks of litres (l)

BLUWAVE	Lx W x H cm	L	l/h	cm	W	BLUCLIMA	L max
03	21 x 6,5 x 25	2,6	350	50	5,5	50/75 W	75
05	27,5 x 7,5 x 32	5,3	500	80	6,5	100/150 W	200
07	34 x 9,5 x 39 12090011,5				12	200/300 W	300
09	34 x 9,5 x 39	11,6	1200	150	16	300 W	500
