WDP4R - Tumble drier LG - Free user manual and instructions

Product type	Tumble dryer
Brand	LG
Model	WDP4R
Drying capacity	7.5 kg
Dimensions (H x W x D)	85 x 60 x 60 cm
Net weight	46 kg
Power supply	220-240 V / 50 Hz
Rated power	2100 W
Energy class	A++
Drying type	Heat pump condensation
Motor	Brushless inverter
Moisture sensor	Yes (intelligent drying)
Drying programmes	10 programmes including Cotton, Synthetic, Delicate, Wool, Sport, Quick 30 min
Options	Delayed start, Gentle drying, Anti-crease, Child lock
Noise level (drying)	64 dB
Display	Digital LED
Filter maintenance	Lint filter with cleaning indicator
Water tank	3.5 L, removable
Safety	Overheat protection, automatic shut-off, child safety
Compatible pedestal	Yes (LG model 27WDP4RPL)
Warranty	2 years parts and labor

Frequently Asked Questions - WDP4R LG

What is the drying capacity of the LG WDP4R?

The LG WDP4R tumble dryer has a drying capacity of 7.5 kg, suitable for a family of 3 to 4 people.

How to install the pedestal under the dryer?

Refer to the installation manual. Make sure you have at least two people to lift the appliance. Position the pedestal on a flat floor, place the dryer on top, align the holes and secure with the provided screws. Check the level with a spirit level.

What drying programmes are available?

The LG WDP4R offers 10 programmes: Cotton, Synthetic, Delicate, Wool, Sport, Quick 30 min, Easy iron, Anti-odour, Cold drying, and Condenser self-clean.

How to clean the lint filter?

Open the door and remove the filter located at the bottom. Remove lint by hand or with a vacuum cleaner. Rinse with water if necessary. Replace after drying. Clean after each cycle to avoid fire hazards.

What to do if the dryer does not start?

Check that the door is properly closed, the programme is selected, the water tank is emptied, and the filter is clean. Make sure the appliance is plugged in and the circuit breaker has not tripped. If the problem persists, contact after-sales service.

The dryer makes noise during spinning, is this normal?

A slight motor or rotation noise is normal. If a banging or excessive vibration noise occurs, check that the appliance is level and the feet are adjusted. Ensure the pedestal is properly secured and no objects are trapped.

What is the energy consumption of the LG WDP4R?

The energy class is A++. The estimated annual consumption is about 176 kWh, depending on programme and usage. Use the Eco programme to reduce consumption.

Can the dryer be used without the water tank?

Yes, if you install a drain hose to a pipe. Otherwise, the tank must be emptied after each cycle. The Tank full indicator lights up when it is empty.

How to level the dryer?

Use a spirit level. Turn the adjustable feet in one direction or another to adjust the height. After adjustment, tighten the lock nuts to secure the feet. Check that the appliance does not move by pushing on the corners.

What does the warranty of the LG WDP4R cover?

The 2-year warranty covers manufacturing defects and labor. It does not cover damages due to improper installation, misuse, or external causes. Keep your invoice for any warranty service.

USER MANUAL WDP4R LG

Before beginning installation, read these instructions carefully. This will simplify installation and ensure that the pedestal is installed correctly and safely. Leave these instructions near the pedestal after installation for future reference.

For 27" washer, dryer, and combination

TROUSSE DE PIÉDESTAL

DIRECTIVES D'INSTALLATION

IMPORTANT: Read and follow these instructions.

NOTICE

The installer must have electrical and mechanical training and acceptable knowledge in the required work.

Safety is foremost---both your own and that of other people. Many important safety instructions are provided in this instruction and your appliance. Always read and observe all safety instructions.

WARNING

Excessive Weight Hazard

Two or more people may be needed to install and move the appliance and pedestal assembly. Do not allow children to play on the drawer. Do not step on the handle.

NOTE

A firm, solid floor is even more critical to a front-loading washer than to a top-loader. If your floor is wooden and /or frame construction, you may need to reinforce it. Front-loaders have substantially faster spin speed than top-loaders, causing greater vibration. If the floor is not solid, your washer will vibrate.

NOTE

If a drip pan must be used, take extra care to follow the instructions provided with the drip pan and make sure the leveling feet are adjusted for firm and even contact with the pan. Use of drip pans and failure to properly level the machine may result in increased vibration and noise during operation.

Simple line drawing of a construction beam with a circular symbol indicating no construction or reinforcement (no text or labels)

WASHER/COMBO INSTALLATION

1 Remove pedestal, installation hardware, and instructions from the shipping carton.

2 Before installing the pedestal, remove foreign objects on the floor clean the floor. Dust, water, oil, detergent and so on could cause vibration due to bad contact of legs with floor.

Two diagrams showing a valve with a prohibition symbol, one above and one below, against a textured background (no text or symbols)

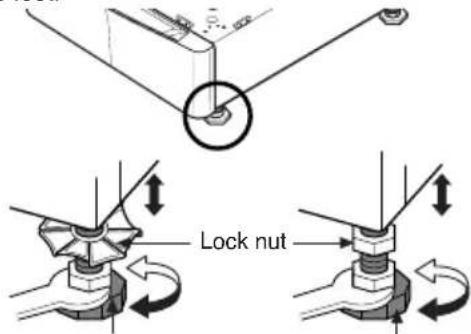

3 Level the pedestal on the clean place by adjusting the feet.

Lock nut

Adjustable feet Adjustable feet

NOTE

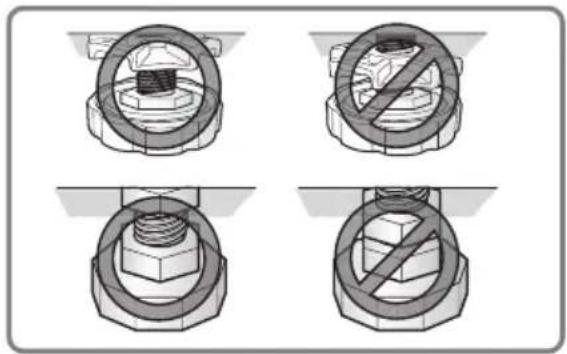

Do not extend the legs no more than necessary to level the washer. The more the legs are extended, the more the washer will vibrate.

Leg Extension

▶ After the washer is leveled, tighten the lock nuts up toward the base of the washer using the wrench. All four lock nuts should be tightened.

Two technical illustrations of a bolt head with a no-smoking symbol, shown from different angles (no text or labels)

4 Position the washer/combo on top of the pedestal.

NOTE

Because of the weight of the washer/combo, two or more people may be needed.

NOTE

If the washer or combo was previously installed, unplug it, disconnect the inlet hose (s) from the faucet (s), disconnect the drain hose, and drain all hoses.

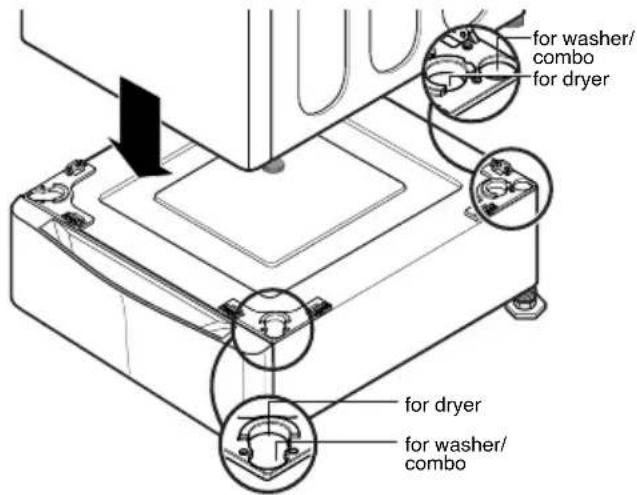

for washer/combo for dryer for dryer for washer/combo

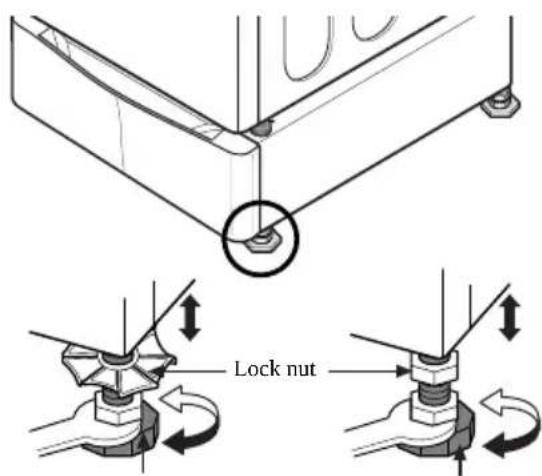

5 Level the washer/combo on the pedestal by adjusting the feet.

Lock nut

Adjustable feet Adjustable feet

Four technical diagrams showing mechanical assembly with no visible text or symbols

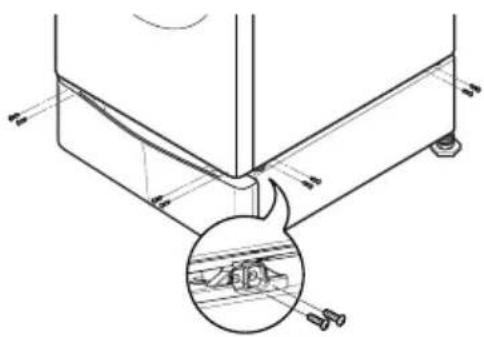

6 Make sure the holes on the pedestal align with the holes in the appliance, then install 4 screws at each corner to securely attach the appliance to the pedestal.

NOTE

If the screws are not installed properly, noise and vibration may result.

Technical line drawing of a mechanical assembly with a magnified inset showing a component detail (no text or symbols)

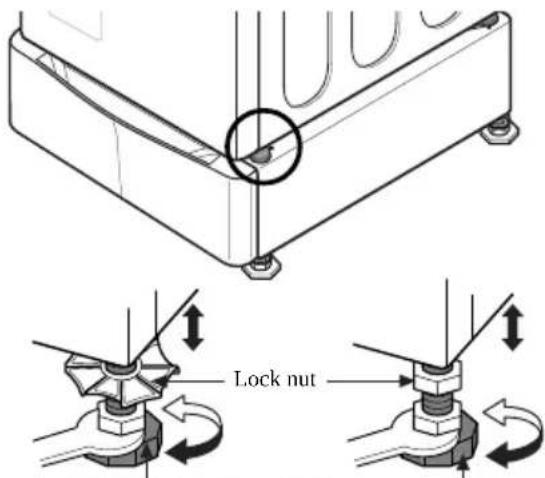

7 Move the washer/combo to the desired place.

NOTE

The appliance and pedestal assembly must be placed on a solid and level floor for proper operation. Adjust the legs of the appliance and pedestal by turning with a wrench. Then, adjust the lock nut toward the pedestal while holding the pedestal leg using a wrench.

Lock nut

Adjustable feet Adjustable feet

White washing machine with circular vent and side grilles, no visible text or symbols

NOTE

Diagonal Check

When pushing down the edges of the washing machine top plate diagonally, the machine should not move up and down at all.(Please check both directions.) If the machine rocks when pushing the machine top plate diagonally, adjust the feet again.

NOTE

To make sure that the washer is properly level, run the washer with a test load: place approximately 6 pounds of laundry in the machine. Then press POWER, press RINSE+SPIN, and then press the START/PAUSE button. See the following sections for additional information on cycle selection and operation. Verify that the washer does not rock or vibrate excessively during the spin cycle. If the washer vibrates or shakes, adjust the leveling feet until the washer is stable and retest.

DRYER INSTALLATION

1 Remove pedestal, installation hardware, and instructions from the shipping carton.

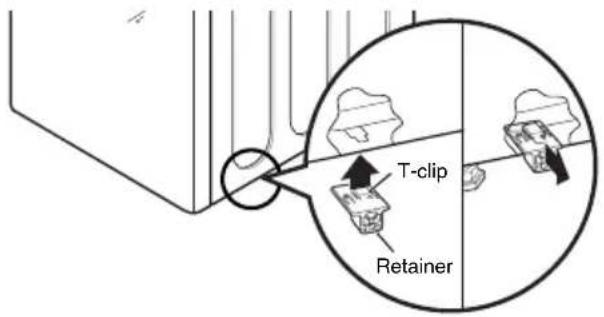

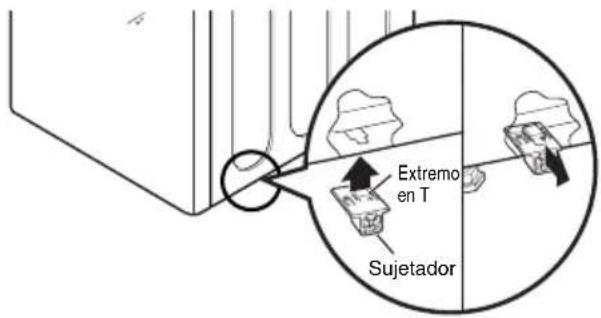

2 Insert the T-clip of the 4 retainers into the dryer base as shown. Press up on the back of the clip and pull outward to lock into place.

T-clip Retainer

3 Position dryer on top of the pedestal.

NOTE

Because of the weight of the dryer, two or more people may be needed.

NOTE

If dryer was previously installed, uninstall it as follows:

A. Uninstalling an electric dryer:

1) Unplug the power supply cord,
2) Pull the dryer away from the wall enough to loosen the vent clamp. Loosen the clamp and carefully remove the exhaust vent from the dryer exhaust outlet.

B. Uninstalling a gas dryer:

1) Unplug power supply cord.
2) Turn off the gas supply.
3) Pull the dryer away from the wall enough to loosen the vent clamp. Loosen the clamp and carefully remove the exhaust vent from the dryer exhaust outlet.

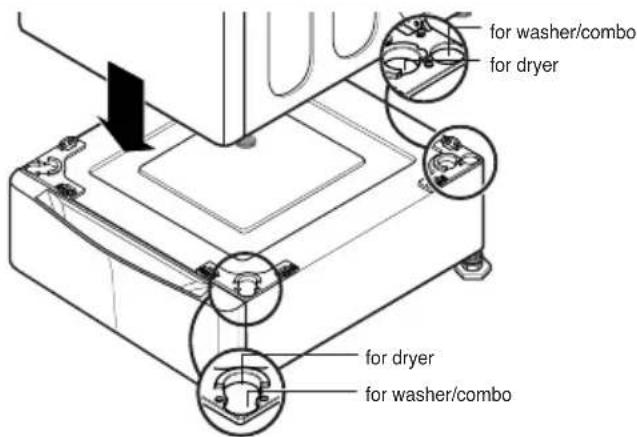

for washer/ combo for dryer for dryer for washer/ combo

4 Make sure the holes on the pedestal align with the holes in the appliance, then install 2 screws at each corner to securely attach the appliance to the pedestal.

NOTE

If the screws are not installed properly, noise and vibration may result.

Technical line drawing of a mechanical component with no visible text or symbols

5 Move the dryer to the desired place.

NOTE

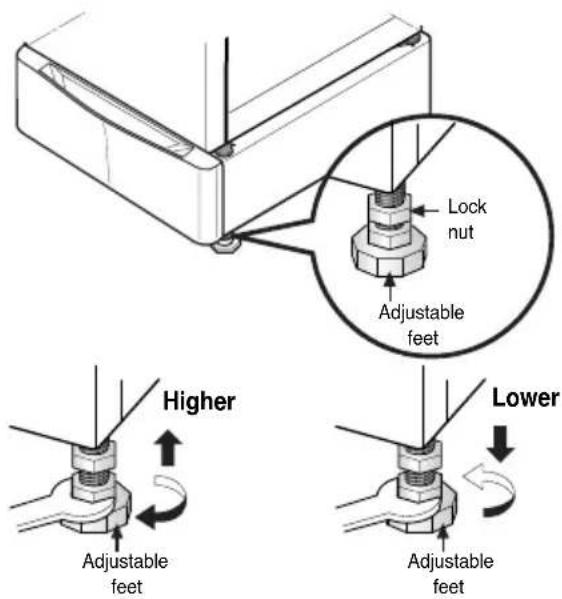

The appliance and pedestal assembly must be placed on a solid and level floor for proper operation. Adjust the legs of the appliance and pedestal by turning with a wrench. Then, adjust the lock unt toward the pedestal while holding the pedestal leg using a wrench.

Lock nut Adjustable feet Higher Lower Adjustable feet Adjustable feet

LG Electronics Inc., Will repair or at its option replace, without charge, your product if it proves to be defective material or workmanship under normal use during the warranty period set forth below, effective from the date of original consumer purchase of the product. This limited warranty is good only to the original purchaser of the product and effective only when used in the United states including Alaska, Hawaii, and U.S. Territories; and Canada.

WARRANTY PERIOD:1Year from the Date of Purchase.

HOW SERVICE IS HANDLED:Call 1-800-243-0000 (USA) or 1-888-LGCANADA and choose the appropriate prompt. Please have product type, model number, serial number, and ZIP code ready.

THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE EXTENT ANY IMPLIED WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESS WARRANTY PERIOD ABOVE. LG WILL NOT BE LIABLE FOR ANY CONSEQUENTIAL, INDIRECT, OR INCIDENTAL DAMAGES OF ANY KIND, INCLUDING LOST REVENUSE OR PROFITS, IN CONNECTION WITH THE PRODUCT.

SOME STATES DO NOT ALLOW LIMITATION ON HOW LONG AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU.

THIS LIMITED WARRANTY DOES NOT APPLY TO:

1. Service trips to your home to deliver, pick up, and/or install the product, instruct, or replace house fuses or correct wiring, or correction of unauthorized repairs; and
2. Damages or operating problems that result from misuse, abuse, operation outside environmental specifications or contrary to the requirements or precautions in the Operating Guide, accident, vermin, fire, flood, improper installation, acts of God, unauthorized modification or alteration, incorrect electrical current or voltage, or commercial use, or use for other than intended purpose.
3. Therefore, the cost of repair or replacement of such a defective product shall be borne by the consumer.

CUSTOMER INTER-ACTIVE CENTER NUMBERS:

To Prove Warranty Coverage	Retain your Sales Receipt to prove date of purchase.A copy of your Sales Receipt must be submitted at the time warranty service is provided.
To Obtain Nearest Authorized Service Center or Sales Dealer, or to Obtain Product,Customer, or Service Assistance	Call 1-800-243-0000 or 1-888-LGCANADA and choose the appropriate prompt from the menu, and have your product type, model number, serial number, and ZIP Code; or visit our website athttp://www.lgservice.com

Two diagrams showing a valve with a circular symbol and a prohibition sign, no text or symbols present.

Two technical diagrams showing a bolt and nut assembly with no text or symbols

Four technical diagrams showing mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with a magnified inset showing a detail (no text or symbols)

Illustration of a white washing machine with black arrows pointing to top and bottom ports (no text or symbols)

REMARQUE

Verification diagonale

Technical line drawing of a mechanical component with no visible text or symbols

CETTE GARANTIE LIMITÉE NE S'APPLIQUE PAS:

Simple line drawing of a construction beam with a circular symbol indicating no construction or reinforcement (no text or labels)

Two diagrams showing a valve with a prohibition symbol, one above and one below, against a background of debris or noise (no text or symbols)

Two technical illustrations of a bolt and nut assembly, showing no text or symbols (no readable labels or symbols)

4 Coloque la lavadora/combo encima del pedestal.

NOTA

Four technical diagrams showing a bolt and nut assembly with no text or symbols, including prohibition signs (no readable text)

Technical line drawing of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

Illustration of a white washing machine with black arrows pointing to its top panel (no text or symbols)

NOTA

Verificacion Diagonal

2 Insert the T-clip of the 4 retainers into the dryer base as shown. Press up on the back of the clip and pull outward to lock into place.

Technical line drawing of a mechanical component with no visible text or symbols

25.4" (64.5cm) 18.4" (46.7 cm) 3" (7.7cm) 27" (68.6cm) 13.6" (34.5cm)

* Specifications are subject to change by manufacturer.
* Las especificaciones son sujetas a cambio por el fabricante
* Données techniques sujettes à changement sans préavis

MEMO

LG Electronics Inc.

P/No.: 3828ER4001V
