USER MANUAL E30403 IFM

Installation instructions

Welding thermowell

E30403

E374x0

E374x1

1 Preliminary note

You will find instructions, technical data, approvals and further information using the QR code on the unit / packaging or at www.ifm.com.

2 Safety instructions

- The unit described is a subcomponent for integration into a system.

• The system architect is responsible for the safety of the system.

• The system architect undertakes to perform a risk assessment and to create documentation in accordance with legal and normative requirements to be provided to the operator and user of the system. This documentation must contain all necessary information and safety instructions for the operator, the user and, if applicable, for any service personnel authorised by the architect of the system.

• Read this document before setting up the product and keep it during the entire service life.

• The product must be suitable for the corresponding applications and environmental conditions without any restrictions.
• Only use the product for its intended purpose (→ Intended use).
• Only use the product for permissible media.
• If the operating instructions or the technical data are not adhered to, personal injury and/or damage to property may occur.
• The manufacturer assumes no liability or warranty for any consequences caused by tampering with the product or incorrect use by the operator.
• Installation, electrical connection, set-up, operation and maintenance of the product must be carried out by qualified personnel authorised by the machine operator.
• Protect the product against damage.

3 Intended use

The thermowell protects temperature sensors against aggressive media, high pressures and high flow velocities.

The Thermowell allows replacement of the sensor without process interruption.

4 Installation

General notes on the welding operation:

▶ The welding operation is to be carried out by qualified personnel according to state-of-the-art technology.
▶ Use materials and welding operations that are suitable for the housing material.
▶ Keep the surfaces free from any contamination.
▶ Ensure the careful preparation of the components.

In case welded adapters are used, the food contact surface must be smooth (surface roughness Ra < 0.8 μm) and the welding has to be done according to EHEDG Guideline 9 and 35.

Welding operation:

Fig. 1: Applying the fixing points

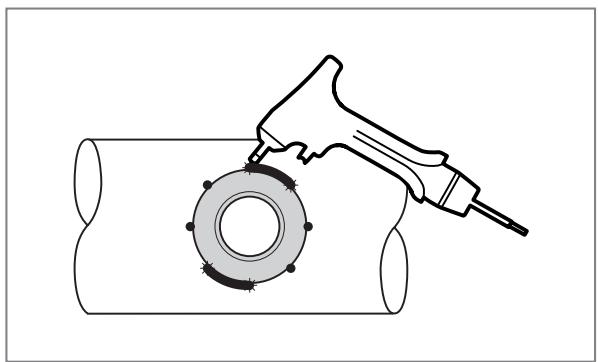

Fig. 2: Applying the welding seams

▶ Apply the fixing points of the welding thermowell at equal distance (crosswise) with a sufficient adhesive force.
▶ Apply the welding seams between the fixing points opposite each other.
▶ Ensure sufficient intervals between the individual welding operations to avoid glowing through or warping of the welding thermowell due to overheating.

After completion of the welding operation:

▶ Let the workpiece cool down.
▶ Slightly grease the thread using a lubricating paste which is suitable and approved for the application.
▶ Screw the sensor into the adapter and tighten. Tightening torque: 30...50 Nm.
