USER MANUAL Full Sun UB485 Seura

WATERPROOF RATING IP55

RESPONSE TIME 8ms Five outdoor picture modes from full sun to nighttime viewing

inc h inchinchinch inch inch inch inch inch inch inch inch inch inch inch inch inch inch inch inch OUTLINED ICONS

inch inch inch inch inch inch inch inch inch inch inch inch inch inch OUTDOOR SAFE

inch inch inch inch inch inch inch

inch inch inch inch inch HDR

inc h inchinchinch inch inch inch inch inch inch inch inch inch inch inch inch inch inch inch inch OUTLINED ICONS

inch inch inch inch inch inch inch inch inch inch inch inch inch inch OUTDOOR SAFE

inch inch inch inch inch inch inch

inch inch inch inch HDR

inc h inchinchinch inch inch inch inch inch inch inch inch inch inch inch inch inch inch inch inch OUTLINED ICONS

inch inch inch inch inch inch inch inch inch inch inch inch inch inch OUTDOOR SAFE

inch inch inch inch inch inch inch

inch inch inch4 This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufcient magnitude to constitute a risk of electric shock to persons. This symbol is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the appliance.

WARNING: READ ALL INSTRUCTIONS BEFORE ATTEMPTING TO

INSTALL OR SERVICE THIS PRODUCT. Warnings: Do not handle or remove your outdoor display from the packaging until it is ready to be installed. To avoid damage to the outdoor display, only transport it in a vertical position. It is highly recommended that at least two (2) persons assist in the installation of the outdoor display. CAUTION

Outdoor Display in water: The Séura

Outdoor Display will resist water exposure from normal rain, sprinklers, snow, etc.; however, it is not designed to be submerged in water. Do not wash with garden hose or pressure-wash: Séura

Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• Using cabinets or stands recommended by the manufacturer of the television set.

• Only using furniture that can safely support the television set.

• Ensuring the television set is not overhanging the edge of the supporting furniture.

• Not placing the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.

• Not placing the television set on cloth or other materials that may be located between the television set and supporting furniture.

WARNING: If you manipulate against the

recommended usage, serious injury or death to user may result. AVERTISSEMENTS Pour réduire le risque d’incendie, de choc électrique et d’autres blessures, garder ces consignes de sécurité à l’esprit lors de l’installation, l’utilisation et l’entretien de votre moniteur en plein air. La prise de courant doit être installée près de l’équipement et être facilement accessible. Le moniteur doit être relié à une prise de courant avec terre protégé par disjoncteur différentiel. ATTENTION: Si vous manipulez contre l’utilisation recommandée, des blessures graves ou la mort à l’utilisateur peuvent en résulter. FCC Supplier’s Declaration of Conformity Séura Outdoor Entertainment UB4-50, UB4-65, UB4-85 This device complies with part 15 of the FCC Rules. Operation is subject to the follow two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Séura Address: 1230 Ontario Road, Green Bay, WI 54301 United States Phone number: 920-857-9069 This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and any part of your body.

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected

• Consult the dealer or an experienced radio/TV technician for help. Caution: The user is cautioned that changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

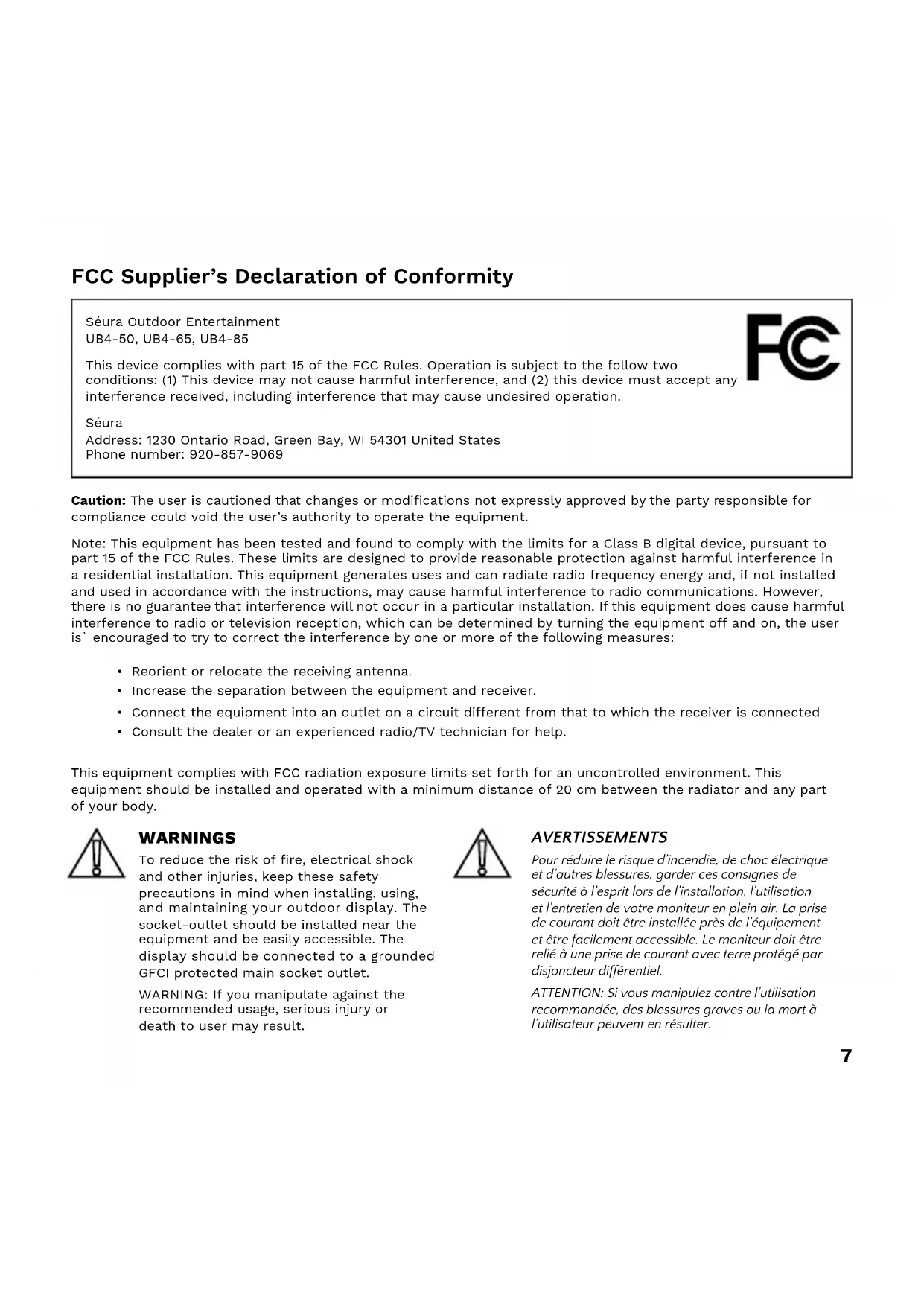

part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in

a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is` encouraged to try to correct the interference by one or more of the following measures:8

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Clean only with a dry cloth.

6. Do not block any of the ventilation openings. Install in

accordance with the manufacturer’s instructions.

7. Do not install near any heat sources such as radiators,

heat registers, stoves,or other apparatus (including ampliers) that produce heat.

8. Do not defeat the safety purpose of the polarized or

grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. When the provided plug does not t into your outlet, consult an electrician for replacement of the obsolete outlet.

9. Protect the power cord from being walked on or pinched

particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

10. Only use the attachments/accessories specied by the

11. Use only with the cart, stand,

tripod, bracket, or table specied by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.

12. Unplug this apparatus during lightning

storms or when unused for long periods of time.

13. Refer all servicing to qualied service personnel.

Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

14. To reduce the risk of re or electric shock, do not expose

the inside of this apparatus to rain or moisture. The inside of this apparatus shall not be exposed to dripping or splashing.

15. The apparatus shall not be exposed to dripping or

splashing and that no objects lled with liquids, such as vases, shall be placed on the apparatus.

16. The apparatus shall be connected to a MAINS socket outlet

with a protective earthing connection. Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

17. The disconnect device shall remain readily operable.

18. The socket-outlet shall be installed near the equipment

and shall be easily accessible.

19. Inspect the desired location for installation and be aware

of all electrical wiring pathways, water pipes, gas lines, or other potentially hazardous conditions that may exist to protect from accidental damage during creation of on-site conditions.

20. Ensure all required electrical specications are adhered to

and have been installed by the appropriate individuals and are code approved.

21. Ensure all framing requirements, if needed, have been

completed to building code and pose no structural issues.

22. It is REQUIRED that this product is plugged into an

electrical outlet protected by a Ground Fault Circuit Interrupter (GFCI) to protect against electric shock, re, and/or injury. Failure to do so will void any warranty for this product.

23. Only qualied individuals should attempt to service the

product. Removing covers can expose you to high voltage and other dangerous conditions.

24. Do not overload AC outlets or extension cords. Overloading

can cause re or electric shock.

25. Close adult supervision is necessary when any product is

used by or near children.

26. Do not operate any product with a damaged cord or plug

or operate it after the appliance malfunctions or has been damaged in any manner.

27. To electrically disconnect the product, turn OFF the

product, then remove the electrical power plug from the outlet.

28. This Séura product is intended for use indoors and

29. If you notice any smoke or scorched smell near the

product, unplug power cord and refer to qualied personnel for service and/or repair.

30. Do not use or place any combustible or ammable

substances near the product.

31. Do not use this product for other than intended use.

32. This product is water resistant. Do not immerse this

33. The cable distribution system should be grounded

(earthed) in accordance with ANSI/NFPA 70, the National Electrical Code (NEC), in particular Section 820.93, Grounding of Outer Conductive Shield of a Coaxial Cable. Important Safety Instructions9

Outdoor Display If you have questions, call Séura at 1-800-957-3872 to speak to a design expert. Selecting the Installation Location Installation over a gas replace is acceptable if the distance from the heat source is such that the air temperature surrounding the display does not exceed the maximum operating temperature. A mantle or other heat shield is recommended to further protect the display from heat. Installation over a wood replace or near heaters or blowers is not recommended and may result in damage to the electronics. If you have questions about your situation, you may call Séura at 1-800-957-3872 to speak to a design expert. Not for installation in a sauna or directly above a hot tub where extreme heat and steam could damage the electronics. Ventilation Adequate ventilation must be maintained to ensure reliable and continued operation and to protect the display from overheating. There must be at least 1.5 inches of space on all sides. Do not install inside a cabinet, kiosk, or other enclosure. Cable Management When running cables from inside the compartment to the sources, allow adequate spacing at the foam entry to the cabinet that allows the foam seal to completely surround each cable. Bunching the cables together can create gaps in the foam that allows moisture and insects to enter the cabinet that may result in damage. When running HDMI cables longer than 30 feet, check your cable specications. HDMI cables loose signal over long distances and your media setup may require a signal booster or HDMI balun. Once connections are made, the media compartment cover must be secured. Failure to close the media compartment exposes the ports and components to the elements and has the potential to permanently damage electronics. Screen Health The 4K liquid crystal panel is a high technology product with 8,294,400 pixels, giving you ne picture details. Occasionally, a few non-active pixels may appear on the screen as a xed point of blue, green or red. Please note that this does not affect the performance of your product. Pixel errors outside of Séura’s specied and permitted area are covered under Séura’s limited product warranty. Please inquire directly with Séura Technical Support regarding Séura’s Pixel Policy. Baery Disposal Caution: This product may be shipped with batteries. Do not dispose of batteries in a re or with ordinary household waste. Batteries may explode and can cause damage. Replace batteries only with the same or equivalent type of battery recommended by Séura. The disposal of batteries may be regulated by your state. For more information on recycling or properly disposing of your batteries, please check with your local municipality.12 Full Sun Series

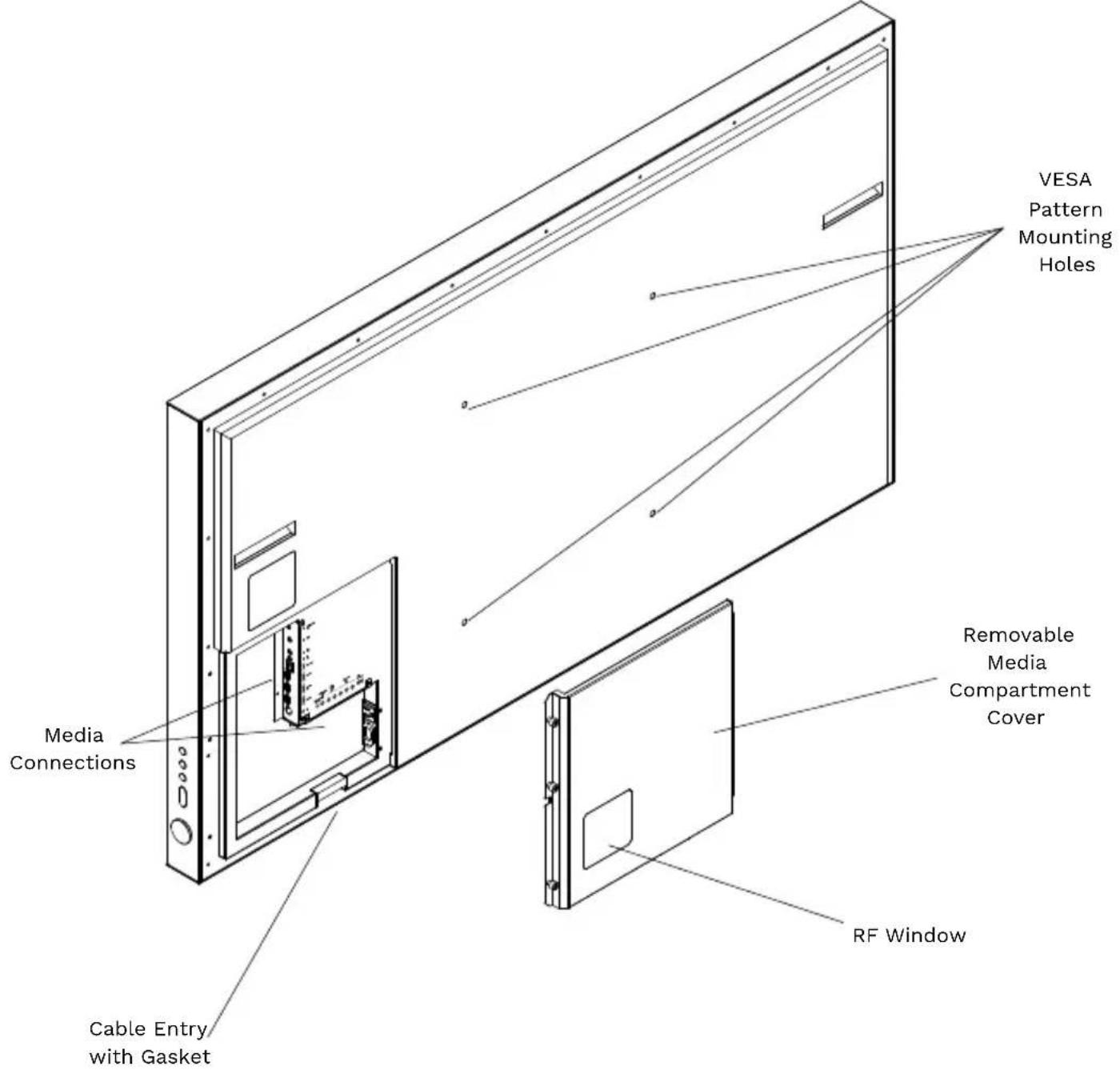

Power Cable On 85” model only, the power cable is hardwired to the display. In the Box IR Remote Control Resource Information

QUICK START GUIDE & PRODUCT MANUAL

Outdoor TV UB4-50UB4-65UB4-85WARRANTY REGISTRATION REGISTER FOR EXTRA BENEFITS Activate within 30 days of purchase: seura.com/activate Access product set-up and installation instructions, product specications, warnings and safety information, product warranty, and additional product information. www.seura.com/ub4-manual Open and Scan13 Parts Removable Media Compartment Cover VESA Pattern Mounting Holes RF Window Media Connections Cable Entry with Gasket14 Installing Your Full Sun Series

Full Sun Series™ is designed to be wall-mounted using the standard mounting hole pattern (VESA) on the back of the display. Use an outdoor-rated wall mount (sold separately) to mount to most outdoor wall surfaces. Follow the instructions with your mount for full details to install your display. NOTE: Before beginning installation, verify that the weight rating and VESA hole pattern on the mount you purchased is compatible with your outdoor display.

1. Aach the Soundbar (Optional)

Follow the instructions included with your soundbar to attach to your Full Sun Series.

2. Install the Wall Mounting Brackets

(sold separately) Follow the instructions included with your outdoor-rated wall mount to attach brackets to your display and wall. Before hanging the display, proceed to step 3.

3. Make Media Connections

Make all other preferred media connections inside the media compartment. Turn on the display and verify all media sources. TIP: In case you decide to add an additional streaming device or media player at a later date, we recommend connecting extra HDMI or other cabling at the time of installation so you won’t have to remove the display from the wall to connect.

4. Close Media Compartment Cover

Reattach the media compartment cover. Take care when screwing into place to minimize gaps around cords. At entry, cables should be spaced out to allow the foam seal to completely surround each cable. Bunching the cables together can create gaps in the foam that allow moisture and insects to enter the cabinet that may result in damage.

5. Hang Full Sun Series on the Wall

Connecting Your Full Sun Series

Open the weatherproof media compartment to access all connections. To connect a source such as a streaming device or cable box, connect one end of an HDMI cable (or other, cables not included) into an HDMI port on the display and the other end into your device.16 Install your wall mount on a solid wall perpendicular to the oor. When attaching to other building materials, please contact your nearest dealer. If installed on a ceiling or slanted wall, it may fall and result in severe personal injury. We recommend that you use a Séura wall mount when mounting the display to a wall. VESA Wall Mounting

50 INCH UB4-50 65 INCH UB4-65 85 INCH UB4-85 VESA PATTERN (A x B) 400 x 400mm 600 x 400mm STANDARD SCREW M8 M8 M8 NOTE Screw length needed depends on the wall mount used. For further information, refer to the instructions included with the mount. Standard dimensions for wall mounting are shown in the above table. When purchasing a Séura wall mount, a detailed installation manual and all parts necessary for assembly are provided. Do not use screws longer than the standard dimension, as they may cause damage to the inside to the display.

For wall mounts that do not comply with the VESA standard screw specications, the length of the screws may differ depending on their specications. Do not use screws that do not comply with the VESA standard screw specications. Do not fasten the screws too strongly, this may damage the display or cause the display to fall, leading to personal injury. Séura is not liable for these kinds of accidents. Séura is not liable for display damage or personal injury when a non-VESA or non specied wall mount is used or the consumer fails to follow the display installation instructions.17 Consult with your local dealer for a wall mount that complies with the VESA pattern and weight of your display model. Refer to the instructions provided with your wall mount. Carefully attach the wall mount bracket at the rear of the display. Install the wall mount bracket on a solid wall perpendicular to the oor. If you are attaching the display to other building materials, please contact qualied personnel to install the wall mount. While a Séura wall mount is recommended, ensure that any third party mount is adequately secured to the wall with enough space to allow connectivity to external devices. If you are using a non- adjustable mount, attach the mount to the wall. Attach the cables to the display rst, then attach the display to the mount. CAUTION: Do not install your wall mount kit while your display is turned on. It may result in personal injury due to electric shock. CAUTION: Do not allow children to climb on or hang from the display. Wall Bracket Full Sun Series with Brackets18 Remote Functions Power Input Source Selection Content Navigation Control Menu Controls Exit Menu Mute Turns On or Off Audio Channel Control Volume Control Last/Recall Last Channel Numerical Keypad19 Caring for your Séura

While Full Sun Series may be safely exposed to weather and moisture, the use of a Séura Outdoor Cover when not in use is recommended. Transporting the Display When transporting Full Sun Series, never carry it by holding or putting pressure on the screen. Screen pressure may damage the LCD or weaken the waterproof seal. Be sure to always transport with two people supporting it with both hands. Caring for the Screen To clean the screen, gently wipe the surface of the front panel with a clean, soft and lint-free cloth. If needed, dampen the cloth with distilled water or isopropyl alcohol and lightly wipe the screen. Do not use force as pressure on the screen may damage the LCD or weaken the waterproof seal. Do not use solvents or chemical cleaners as they may damage the screen. Do not use a garden hose or pressure washer on the display. Caring for the Cabinet Clean regularly with a clean, soft and lint-free cloth. Do not use a chemical cloth (wet/dry sheet type cloth). Use a mild detergent, isopropyl alcohol or multi-use cleaner to remove dust and debris. Stubborn stains such as mineral water deposits may be removed with a calcium or lime remover such as CRL

. However, DO NOT allow CRL

to touch the LCD screen as it will distort the surface. Cleaning with an abrasive cloth or using strong force may scratch the surface of the cabinet. Do not apply insecticides or other volatile liquids. Use of a Séura Outdoor Cover when not in use is highly recommended to protect your display. Do not allow the cabinet to remain in contact with rubber or vinyl products for a long period of time. Plasticizers inside the plastic may cause the cabinet to deform and cause the paint to peel off.20 Challenge Possible Solution Will Not Power Up

• Make sure to check that the AC power cable is connected to an outlet and the display

• Make sure that the power outlet is receiving power

• Try pressing POWER button on the display to make sure the problem is not the remote. If the display turns on, refer to ‘Remote control does not work’ troubleshooting guide. Remote Control Not Working

• Make sure that there is known working batteries in the remote and in the correct polarity

• Make sure there are no obstacles in between the IR receiver and the remote (ex. sunlight or tape)

• Try pointing the remote directly at the display from 5 feet away. Signal Issue

• Check cable connections to ensure they are connected.

• Plug the video source directly into the display which will remove any potential issues associated with an extender or matrix switch device. (if applicable)

• Replace cables with known working cables.

• Make sure the connected devices are powered ON.

• Make sure that the source is on the correct INPUT.

• Power cycle the video source device by unplugging the device and plugging the device back in. No Sound Soundbar

• Make sure your cables are connected properly

• Make sure the display is not on MUTE / turn up the volume.

• Make sure the soundbar is connected to the power supply External Sound System

• Make sure your cables are connected properly

• Make sure the display is not on MUTE / turn up the volume.

• Make sure the Digital Audio Settings within the display is not set to OFF

• Test the external sound system with another device to ensure that it is working. For additional technical support, please contact Séura at 1-800-957-3872 during regular business hours: M-F 8:00 am - 4:30 pm, Central Time. Troubleshooting If the product is not working properly, please check the following troubleshooting solutions before you contact customer service:21Publish date: August 23, 2021 Information is subject to change without notice. © 2021 Séura 1230 Ontario Road Green Bay, Wisconsin 54311 1-800-957-3872 contacts@seura.com www.seura.com Control Documentation To access current control documents, please visit www.seura.com/download-center For responsible recycling information, please contact Séura or visit the following URL: https://www.seura.com/support/recycling/

LIMITED PRODUCT WARRANTY

For information regarding Séura’s warranty policy, please visit our website: www.seura.com/warranty. If the current Séura warranty policy is after your product purchase date, please contact Séura Customer Support to request warranty documentation from the date of your purchase. For additional customer support, please contact Séura. Toll Free: 1-800-957-3872 (Monday - Friday 8:00 am – 4:30 pm, Central Time) Website: www.seura.com/support
