AR2PP1 - Kitchen scale ARDES - Free user manual and instructions

Product type	Kitchen scale (bathroom scale)
Brand	Ardes
Model	AR2PP1
Power supply	1 lithium battery CR2032 (3V)
Display	LCD screen
Units of measurement	kg and lbs (convertible)
Power on	Automatic when stepping on the scale
Auto-off	Approximately 8 seconds after weight display
Overload indicator	Displays a message if capacity exceeded
Low battery indicator	Displays a message to replace the battery
Unit conversion	Button on the back of the scale (press when off)
Cleaning	Slightly damp cloth; do not immerse
Precautions	Platform must be dry; keep batteries out of reach of children
Warranty	2 years from date of purchase
Usage	On a smooth, hard floor; avoid carpets and soft surfaces
Error message "C"	Weight not recorded correctly; step on again
Maximum capacity	Approximately 150 kg (estimated)

Frequently Asked Questions - AR2PP1 ARDES

How to change the battery of the Ardes AR2PP1 scale?

Open the battery compartment on the back of the scale. Gently press to release the battery. Insert the new CR2032 battery by first connecting one side to the positive (+) pole, then press the other side. Observe polarity.

How to convert the unit of measurement between kg and lbs?

Find the conversion button on the back of the scale. Press it when the scale is off. The LCD screen shows the current unit. Press again to change the unit.

What does the message 'C' on the screen mean?

The 'C' message appears if the weight was not recorded correctly. Step back on the scale and weigh yourself again, staying still until the measurement stabilizes.

What to do in case of scale overload?

If the overload indicator appears, it means the maximum capacity (approximately 150 kg) has been exceeded. Step off immediately to avoid damaging the scale.

How to clean the Ardes AR2PP1 scale?

Use a slightly damp cloth. Do not use abrasive products or chemical solvents. Never immerse the scale in water.

Can children use this scale?

Yes, from 8 years old, under adult supervision. Children should not play with the device. Cleaning and maintenance should not be done by children without supervision.

What type of battery does the AR2PP1 scale use?

The scale uses a lithium battery type CR2032 (3V). Make sure to use a new battery and observe polarity.

Why does the scale not turn on?

Check that the battery is properly inserted and not drained. If the screen shows a low battery symbol, replace the battery with a new one.

Can I use the scale on a carpet?

It is recommended to place the scale on a smooth, hard floor (tiles, marble, etc.). Avoid carpets or soft surfaces that could distort the measurement.

How long does it take for the scale to turn off automatically?

The scale turns off automatically approximately 8 seconds after the weight is displayed, once you step off.

USER MANUAL AR2PP1 ARDES

Simple line drawing of a bench placed on a platform (no text or symbols)

58.5 kg 58.5.

Simple line drawing of a square electronic device with four legs and a central screen (no text or symbols)

Simple line drawing of a U-shaped pipe fitting with two horizontal rods (no text or symbols)

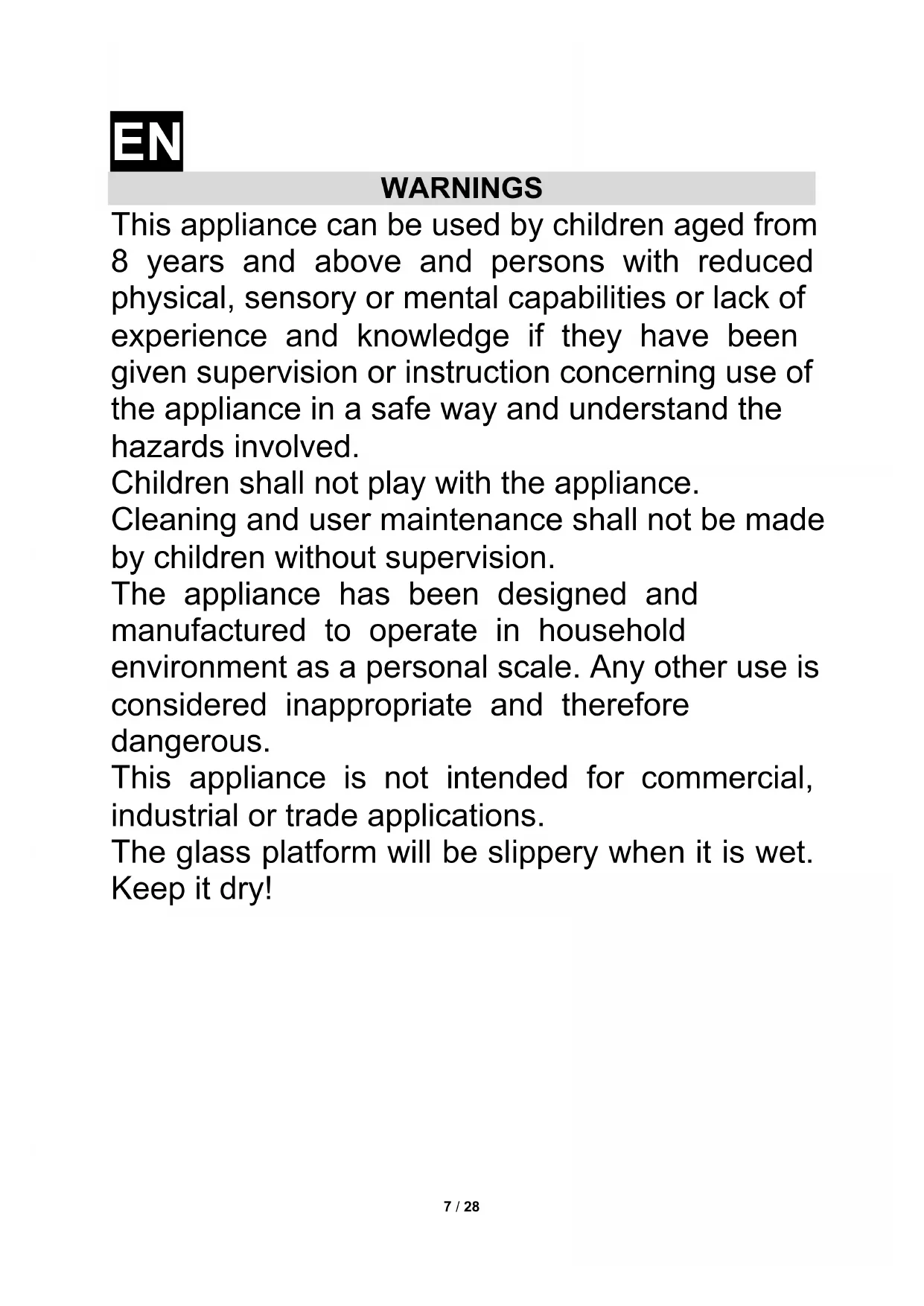

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

The appliance has been designed and manufactured to operate in household environment as a personal scale. Any other use is considered inappropriate and therefore dangerous.

This appliance is not intended for commercial, industrial or trade applications.

The glass platform will be slippery when it is wet. Keep it dry!

ATTENTION : read this booklet carefully it contains important instructions for a safe installation, use and maintenance.

Important instructions to be kept for future reference.

Keep handy the guarantee, receipt of payment and these instructions for future use and reference.

After removing the packaging, check the appliance for any signs of damage.

In case of visible damage, do not use it and contact a qualified technician. Do not leave parts of the packaging with in the reach of children.

WARNINGS ABOUT BATTERIES

1. KEEP BATTERIES OUT OF THE REACH OF CHILDREN. Swallowing can lead to chemical burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion. Seek medical attention immediately.

2. Do not allow children to replace batteries.

3. Always insert batteries correctly with regard to polarity (+ and -) marked on the battery and the equipment.

4. Do not short-circuit batteries.

5. Do not charge batteries.

6. Do not force discharge batteries.

7. Do not mix new and used batteries or batteries of different types or brands.

8. Exhausted batteries should be immediately removed from equipment and properly disposed of.

9. Do not heat batteries

10. Do not weld or solder directly to batteries.

11. Do not dismantle batteries.

12. Do not deform batteries.

13. Do not dispose of batteries in fire.

14. A lithium battery with a damaged container should not be exposed to water.

15. Do not encapsulate and/or modify batteries.

16. Store unused batteries in their original packaging away from metal objects. If already unpacked, do not mix or jumble batteries.

17. Remove batteries from equipment if it is not to be used for an extended period of time unless it is for emergency purposes.

18. Clean the battery contacts and also those of the equipment prior to battery installation.

19. In case of leak from batteries, avoid any contact with it; in case of contact, wash the affected part with water and seek medical attention.

BATTERY

3V CR2032 +

Lithium battery (CR2032 3V).

Please remove the isolation sheet from the battery contact before use.

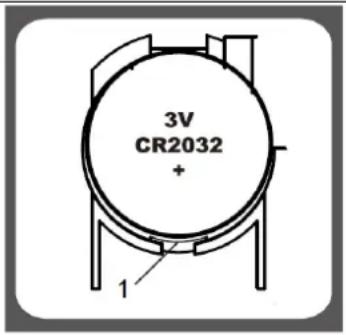

TO REPLACE BATTERY

3V CR2032 + 1

Open battery case cover on the back of scale, if battery case is the type shown in picture.

• Press battery gently, the battery will pop up automatically.
• Install new battery by connecting one side of battery to the positive plate (1) first, and then pressing down other side.
  Please observe polarity.

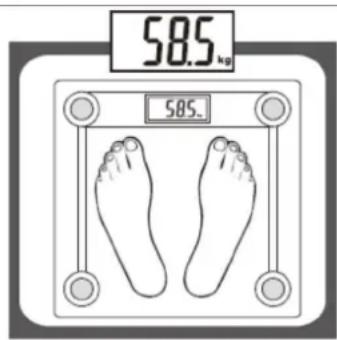

OPERATION

Simple line drawing of a bench on a platform (no text or symbols)

1. To make sure accuracy, place the scale on a hard, flat floor and avoid carpet or soft surface.

Remanrk: if the scale is one of our “slim” series, make sure to put it on hard surface such as marble, floor tile etc., and make sure no foreign bodies beneath the scale before weighing.

58.5 kg 585.

1. Gently step on the scale, then the scale will be automatically turned on.

Stand evenly on the scale without moving and wait until your weight shown on display is stable and locked.

AUTOMATIC SWITCH OFF

Simple line drawing of a square meter with four legs and a central screen, no text or symbols present.

When you step off the scale, i twill automatically switch off.

Auto shut-off occurs if display shows the same weight reading for approximate 8 seconds..

TO CONVERT WEIGHT UNIT

If the scale is with both measuring system of Metric (kilograms) and Imperial (pounds), you can convert weight unita s follow:

Simple line drawing of a U-shaped pipe fitting with two horizontal leads (no text or symbols)

If the unit switch is on the back of the scale:

- Find unit switch on the back of the scale;

- Press the unit conversion button when scale is power off, LCD shows current weight unit. Press the button again to convert weight unit.

DISPLAY MESSAGES

OVERLOAD INDICATION

Scale overload (max weight capacity is indicated on the scale). Please step off to avoid damage.

LOW BATTERY INDICATION

Battery power is low. Please install new battery.

RE-TEST

Display "C" when you step off the scale, means this weight reading with error. Please re-test.

MAINTENANCE

This appliance does not require any special maintenance.

In order to clean the appliance, use a soft or slight damp cloth.

Never use abrasives or chemical solvents.

Do not use very wet substances, liquids or cloths to prevent water from entering into the apparatus and irreparably damaging it.

NEVER IMMERSE THE APPLIANCE INTO THE WATER.

DISPOSAL

BATTERIES - Remove the batteries from the appliance before its disposal.Do not dispose the batteries with domestic waste. The batteries must be disposed of in the appropriate containers or in the specific collecting centre.Suitable segregated collection helps prevent damage to the environment and to human health.To remove batteries, refer to USER INSTRUCTIONS.

USER INFORMATION“Implementation of Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE)”, pertaining to reduced use of hazardous substances in electrical and electronic equipment, as well as to waste disposal.The symbol of the crossed-out wheelie bin on the equipment or on its packaging indicates that the product must be disposed of separately from other waste at the end of its service life.The user must therefore take the dismissed equipment to suitable separate collection centres for electrical and electronic waste.For more details, please contact the appropriate local authority.Suitable segregated collection of the equipment for subsequent recycling, treatment or environmentally-friendly disposal helps prevent damage to the environment and to human health, and encourages the re-use and/or recycling of the materials that make up the equipment.Abusive disposal of the product by the user shall result in the application of administrative fines in accordance with the laws in force.

GUARANTEE

Terms and Conditions

The guarantee is valid for 24 months.

This guarantee applies only if it has been duly filled in and is submitted with the receipt showing the date of purchase.

The guarantee covers the replacement or repair of parts making up the appliance which were faulty at source due to manufacturing faults.

After the guarantee has expired, the appliance will be repaired against payment.

The manufacturer declines any responsibility for damage to persons, animals or property due to misuse of the appliance and failure to observe the directions contained in the instructions.

Limits

All rights under this guarantee and any responsibility on our part will be voided if the appliance has been:

• mishandled by unauthorized persons
• improperly used, stored or transported.

The guarantee does not cover damage to the outward appearance or any other that does not prevent regular operation.

If any faults should be found despite the care taken in selecting the materials and in creating the product, or if any information or advice are required, please contact your local dealer.

AVERTISSEMENTS

Simple line drawing of a bench placed on a platform (no text or symbols)

Simple line drawing of a square electronic device with four circular ports and a central display (no text or symbols)

Simple line drawing of a U-shaped pipe fitting with two side handles (no text or symbols)

Simple line drawing of a rectangular block on a flat surface with two supports (no text or symbols)

Simple line drawing of a square electronic device with four circular ports and a central display (no text or symbols)

Simple line drawing of a U-shaped pipe fitting with two horizontal leads (no text or symbols)

Simple line drawing of a bench placed on a platform (no text or symbols)

1. Posicione la báscula sobre un pavimento liso, evite alfombras o superficies suaves

Simple line drawing of a square electronic device with four circular ports and a central display (no text or symbols)

Simple line drawing of a U-shaped pipe fitting with two side handles (no text or symbols)
