Granite ED - Binoculars CELESTRON - Free user manual and instructions

Product Type	Binoculars
Brand	Celestron
Model	Granite ED
Magnification	8x (estimated)
Objective Lens Diameter	42 mm (estimated)
Weight	Approx 700 g (estimated)
Power Supply	Not applicable (optical)
Dioptric Adjustment	Yes, adjustment ring on the right eyepiece
Interpupillary Distance Adjustment	Yes, by pivoting the barrels
Eyecups	Adjustable (raised or lowered) for eyeglass wearers
Tripod Adapter	Yes, threading under the logo plate cap
Waterproofing	Yes, waterproof and filled with dry nitrogen
Optical Material	ED Glass (Extra-low Dispersion)
Maintenance	Clean lenses with soft brush and cloth
Storage	Cool, dry place, avoid excessive heat
Warranty	Celestron Limited Lifetime Warranty
Safety	Never look directly at the sun

Frequently Asked Questions - Granite ED CELESTRON

Can I look at the sun with these binoculars?

No, never look directly at the sun with binoculars, as it can cause permanent eye damage.

How do I adjust the distance between the two eyes?

Spread or bring the two barrels of the binoculars together until you get a single clear image. The interpupillary distance varies per user.

How do I adjust the focus for my eyesight?

Cover the right lens, turn the focus wheel for sharpness in the left eye. Then cover the left lens and turn the diopter ring for sharpness in the right eye.

Are the eyecups adjustable for eyeglass wearers?

Yes, the eyecups twist to raised position (without glasses) or lowered position (with glasses). Intermediate positions are possible.

Can I mount the binoculars on a tripod?

Yes, unscrew the logo plate at the front of the hinge to access the thread. Use a tripod adapter to attach the binoculars.

Are the binoculars waterproof?

Yes, they are waterproof and filled with dry nitrogen to prevent internal fogging.

How do I maintain the lenses?

Remove dust with a soft brush, then clean smudges with a cleaning cloth in circular motions.

Where should I store the binoculars when not in use?

Store them in a cool, dry place, preferably with the lens caps. For long-term storage, place them in an airtight bag with desiccant.

What is the warranty on the Granite ED binoculars?

They come with a limited lifetime warranty covering defects in materials and workmanship for the original owner.

Can I use the binoculars with prescription glasses?

Yes, lower the eyecups to bring your eyes closer to the eyepieces and enjoy a maximum field of view. Myopia glasses should be worn.

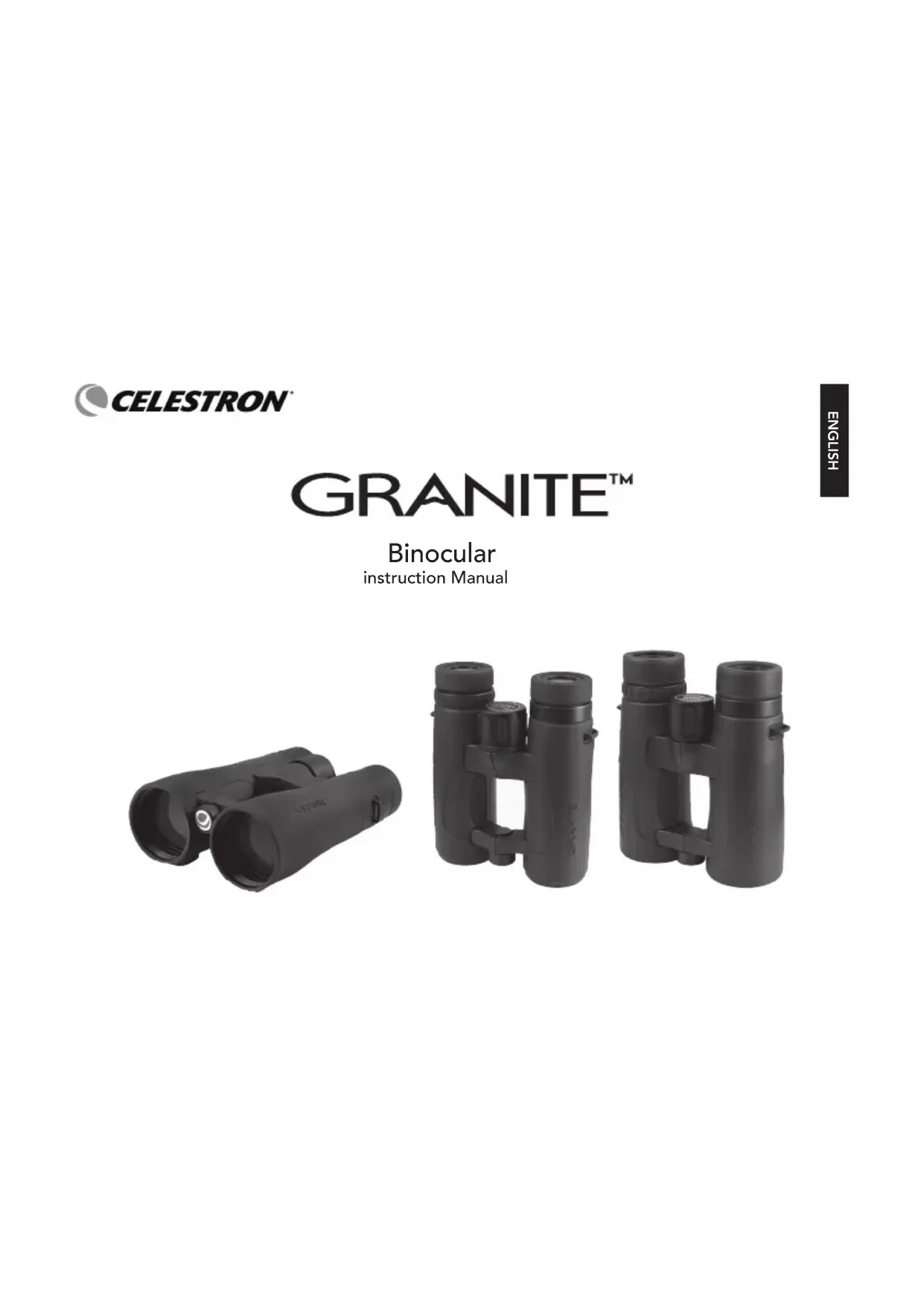

USER MANUAL Granite ED CELESTRON

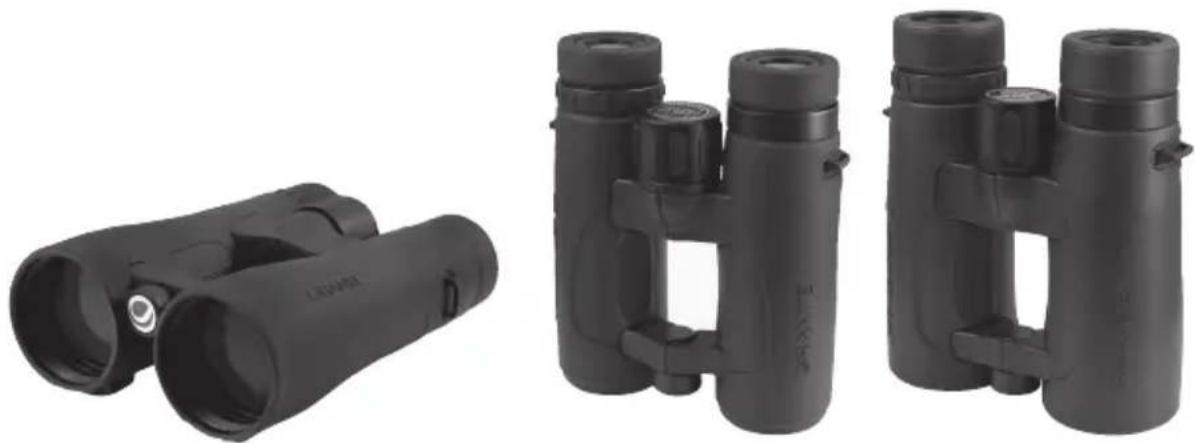

Three black binoculars with visible lens and frame (no text or symbols)

Thank you for purchasing a Celestron Granite binocular. We trust this binocular will provide you with years of enjoyment and faithful service. Please read the instructions carefully before using your binocular to ensure proper use and care.

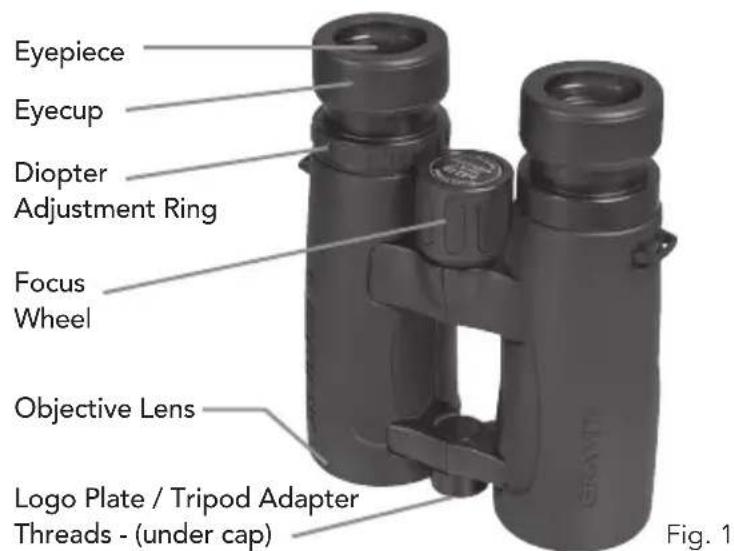

Eyepiece Eyecup Diopter Adjustment Ring Focus Wheel Objective Lens Logo Plate / Tripod Adapter Threads - (under cap) Fig. 1

Two black circular objects with a label reading 'Rain Guard' below (no other text or symbols visible)

Two black objective lens cap components with no visible text or symbols on the parts themselves.

WARNING

Never look at the Sun while using your binocular. Looking at the Sun can cause permanent eye damage.

ADJUSTING THE INTERPUPILLARY DISTANCE

The interpupillary distance, or the distance between the pupils, varies from person to person. The binocular must be correctly aligned (adjusted) to the distance between your pupils to achieve a single, clear image. To adjust this distance, lift the binocular up to your eyes (using both hands) and look through them at an object in the distance. Move the two barrels (halves) of the binocular closer together or further apart until you see a single, clear image (Fig. 2). Check that the interpupillary distance is set correctly every time you use your binocular.

SETTING THE DIOPTER / FOCUSING

To ensure a crisp, sharp image, the binocular's focusing system must be set to compensate for any differences in your eyesight. This is achieved by setting the diopter (located on the right eyepiece) before use. To set the binocular to your eyesight follow the instructions below.

1. View an object in the distance through the binocular.
2. Cover the right objective lens with your hand or the objective lens cap.
3. Rotate the focus wheel until the image viewed with your left eye is clear and sharp.
4. Cover the left objective lens with your hand or objective lens cap.
5. Viewing the same object, adjust the diopter ring until the image viewed with your right eye is clear and sharp.

Black binoculars with directional arrows indicating rotational motion (no text or symbols on the binoculars)

Fig. 2

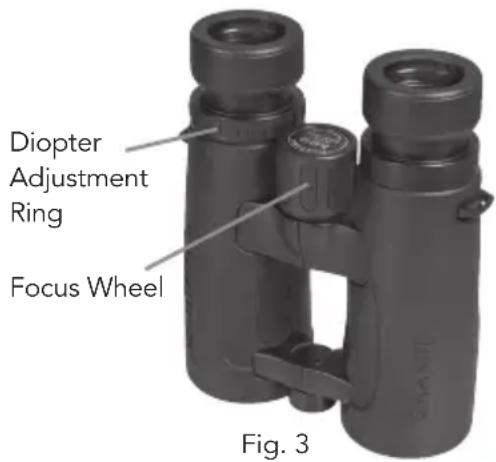

Diopter Adjustment Ring Focus Wheel Fig. 3

1. Your binocular is now adjusted to your eyes and focusing on any object can now be achieved by simply turning the focus wheel.

Tip: Eyeglasses worn for nearsightedness should be worn when using binoculars as you may not be able to obtain focus at infinity without them.

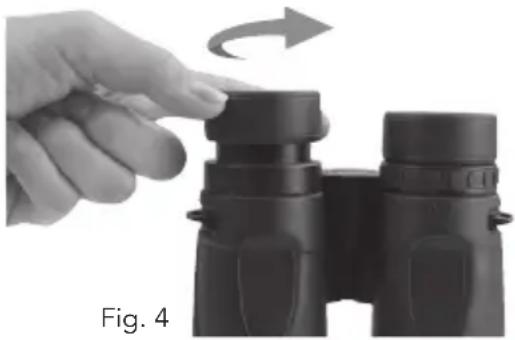

EYECUP ADJUSTMENT

The Granite features twist-up eyecups to accommodate both eyeglass and non-eyeglass wearers. If you do not wear eyeglasses, twist the eyecups counterclockwise until they reach the up position. If you wear eyeglasses, make sure that the eyecups are in the down position to obtain the maximum field of view. The eyecups can be set at positions between fully up and down which may suit some users better.

TRIPOD ADAPTABILITY

The Granite binoculars feature built-in threads that allow the binocular to be attached to a tripod using a binocular tripod adapter. These threads can be accessed by unscrewing the logo plate found on the front of the hinge (Fig. 5). To attach the binocular to a tripod, thread the adapter into the binocular and attach the other end of the adapter to a photographic tripod. Mounting the binocular on a tripod allows for added stability and comfort during prolonged viewing.

Hand holding binoculars with a curved arrow indicating rotation (no text or symbols on the binoculars)

Black binoculars with a small inset showing a lid, labeled 'Fig' in the corner (no other text or symbols visible)

Fig. 5

WATERPROOF / FOGPROOF

The Granite series binoculars are waterproof and filled with dry nitrogen gas to prevent the housing from fogging internally.

CARE AND STORAGE

Your Celestron binocular will provide you years of dependable service if it is cared for and stored properly.

1. Protect the binocular from impact and do not force any of the moving parts beyond their limits.
2. Protect the optics of your binocular by putting on all lens caps when not in use.
3. Store your binocular in a cool, dry place whenever possible.
4. When storing for an extended period of time, place the binocular in a plastic bag or airtight container with a desiccant.
5. Do not leave the binocular in a car on a hot/sunny day or near anything that generates heat as this may cause damage.
6. Clean any dust, dirt or water that may get on the binocular or inside moving parts as soon as possible to prevent any unforeseen damage.

CLEANING

Proper cleaning of the lenses is essential to maintaining the optical integrity of your binocular. Dirty lenses diminish the amount of light transmitted through the binocular and your overall viewing experience.

1. Remove any dust on the lenses with a soft lens brush or can of pressurized air.

2. Remove any fingerprints, stains or smudges from the lens surface with a soft, clean lens cloth or lens tissue by rubbing in a circular motion. Start in the middle of the lens and work your way to the edges. Breathe lightly on the lens to provide moisture if needed.

3. For a more thorough cleaning we recommend the use of a lens/optics cleaning kit available at most photo or optical shops. Follow the directions supplied with the cleaning kit for best results.

SERVICE AND REPAIR

If warranty problems arise or repairs are necessary, contact the Celestron customer service department if you live in the United States or Canada. If you live outside of these countries, please contact the dealer you purchased your binocular from or the Celestron distributor in your country. A list of our distributors can be found on our website.

WARRANTY

Your binocular is covered under the Celestron Limited Lifetime Warranty. Celestron warrants these binoculars to be free from defects in materials and workmanship for the binocular's usable lifetime to the original owner. Celestron will repair or replace the binoculars which, upon inspection by Celestron, are found to be defective in materials or workmanship and within the definitions of the limits described below.

This warranty does not cover products that have been subject to abuse, misuse, physically damaged, altered, or had unauthorized repairs or modifications. This warranty does not cover defects due to normal wear and tear and other conditions.

This warranty is valid to U.S.A. and Canadian customers who have purchased their binocular from an authorized Celestron dealer in the U.S.A. or Canada. For products purchased outside of the U.S.A. or Canada please contact your local Celestron Distributor or authorized Dealer for applicable warranty information. Additional warranty information and eligibility details can be found on the Celestron website.

Celestron binoculars are designed and intended for those 14 years of age and older. Product design and specifications are subject to change without prior notification.

For complete specifications and product information:

©2013 Celestron • All rights reserved. • www.celestron.com

2835 Columbia Street • Torrance, CA 90503 U.S.A.

Telephone: [phone] • Printed in China 0113

CELESTRON

CELESTRON

GRANITE™

JuMEIIEs

MoDE D'EMPloi

Three black binoculars with visible lens and frame (no text or symbols)

Black binoculars with directional arrows indicating rotational motion (no text or symbols on the bin itself)

Fig. 2

Hand holding binoculars with an arrow indicating rotation (no text or symbols on the binoculars)

Black binoculars with a small inset showing a lid, labeled 'Fig' in the corner (no other text or symbols visible)

Fig. 5

ÉTANCHE/ANTIBUÉE

Three black binoculars with visible lens and frame (no text or symbols)

Black binoculars with directional arrows indicating rotational motion, labeled Abb. 2 (no text on binoculars)

Dioptrie- Einstellring Fokussierrad Abb. 3

Hand holding binoculars with a curved arrow indicating rotation (no text or symbols on the binoculars)

Black binoculars with a small inset showing a labeled component (Ab), no text or symbols on the binoculars themselves.

Abb. 5

Three black binoculars with visible lens and frame (no text or symbols)

Black binoculars with directional arrows indicating rotational motion (no text or symbols on the bin itself)

Fig. 2

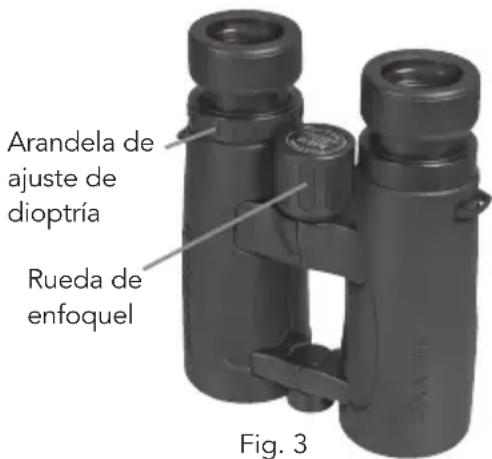

Arandela de ajuste de dioptría Rueda de enfoquel Fig. 3
