USER MANUAL PHGTX1050TI4G ASUS

Drivers and Utilities

Installation Guide

E15279

Revised Edition V6

March 2019

Copyright © 2019 ASUSTeK Computer Inc. All Rights Reserved.

No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK Computer Inc. ("ASUS").

Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.

ASUS PROVIDES THIS MANUAL "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTYES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners' benefit, without intent to infringe.

Contents

Notices. 5

Safety information 6

About this guide 7

1. Support CD information 8
2. VGA drivers 9

2.1 Installing the VGA drivers 9
2.2 Uninstalling the VGA drivers 10

1. ASUS GPU Tweak utility 11

3.1 Installing ASUS GPU Tweak 11
3.2 Uninstalling ASUS GPU Tweak 12

1. ASUSAPRP 13

4.1 Installing ASUS APRP 13
4.2 Uninstalling ASUS APRP 14

1. XSplit Gamecaster 15

5.1 Installing XSplit Gamecaster 15
5.2 Uninstalling XSplit Gamecaster 16

1. ASUS AURA 17

6.1 Installing ASUS AURA 17
6.2 UninstallingASUS AURA 18

1. Other information 19

7.1Browse the Support CD 19
7.2 Contact Information 19
7.3 Viewing the Readme file 20

Appendix: Basic troubleshooting 21

Notices

Federal Communications Commission Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference
• This device must accept any interference received including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with manufacturer's instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the distance between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

The use of shielded cables for connection of the monitor to the graphics card is required to assure compliance with FCC regulations. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

Canadian Department of Communication Statement

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

This class B digital apparatus complies with Canadian ICES-003.

REACH

Complying with the REACH (Registration, Evaluation, Authorisation, and Restriction of Chemicals) regulatory framework, we published the chemical substances in our products at ASUS REACH website at http://csr.asus.com/ english/REACH.htm

Macrovision Corporation Product Notice

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only, unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Safety information

Electrical safety

• When adding or removing devices to or from the system, ensure that the power cables for the devices are unplugged before the signal cables are connected. If possible, disconnect all power cables from the existing system before you add a device.
• Make sure that your power supply is set to the correct voltage in your area. If you are not sure about the voltage of the electrical outlet you are using, contact your local power company.
• If the power supply is broken, do not try to fix it by yourself. Contact a qualified service technician or your retailer.

Operation safety

• Before installing devices on your motherboard, carefully read all the manuals that came with the package.
• Before using the product, make sure all cables are correctly connected and the power cables are not damaged. If you detect any damage, contact your dealer immediately.
• To avoid short circuits, keep paper clips, screws, and staples away from connectors, slots, sockets and circuitry.
• Avoid dust, humidity, and extreme temperature. Do not place the product in any area where it may be exposed to moisture.
• Place the product on a stable surface.
• If you encounter technical problems with the product, contact a qualified service technician or your retailer.

About this guide

Conventions used in this guide

To make sure that you perform certain tasks properly, take note of the following symbols used throughout this manual.

WARNING: Information to prevent injury to yourself when completing a task.

CAUTION: Information to prevent damage to the components when completing a task.

IMPORTANT: Information that you MUST follow to complete a task.

NOTE: Useful tips and additional information for completing a task.

Where to find more information

Refer to the following sources for additional information and for product and software updates.

1. ASUS Websites

The ASUS websites worldwide (https://www.asus.com/) provide updated information on ASUS hardware and software products. The ASUS websites are listed in the ASUS Contact Information on the inside front cover of this installation guide.

2. Optional Documentation

Your product package may include optional documentation, such as warranty flyers, that may have been added by your dealer. These documents are not part of the standard package.

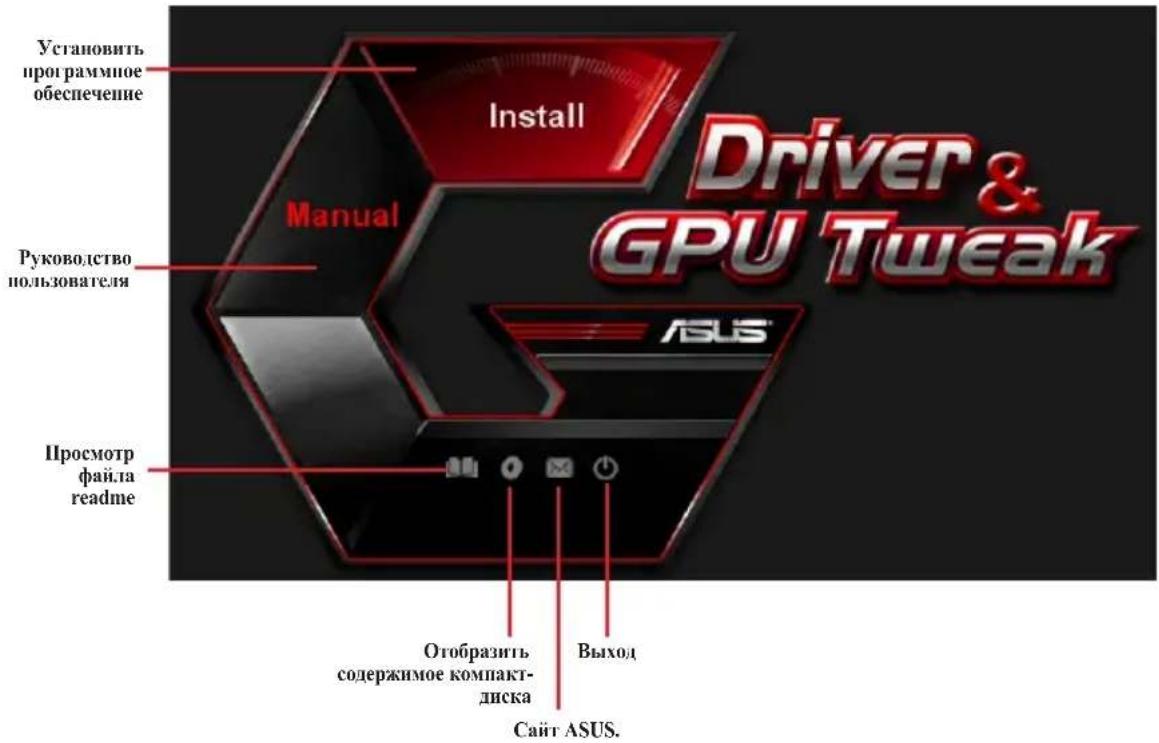

1. Support CD information

The support CD contains the drivers and utilities for your VGA card. Click the icons on the support CD's main menu to install software, obtain ASUS contact information, browse CD contents, or view the Readme file.

• The screens in this manual are for reference only and may not exactly match what you see on your screen.
• The device driver and utility in the support CD apply only to specific ASUS VGA card models.
• You may need administrator rights to install the drivers and utilities. See your Windows® 10 / 8.1 / 8 / 7 documentation for details.
• The contents of the support CD are subject to change at any time without notice. Visit the ASUS website at www.asus.com for updates.

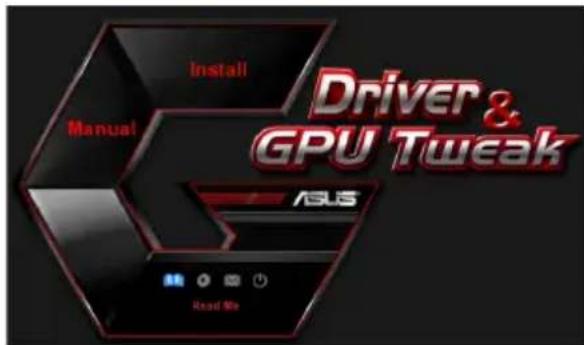

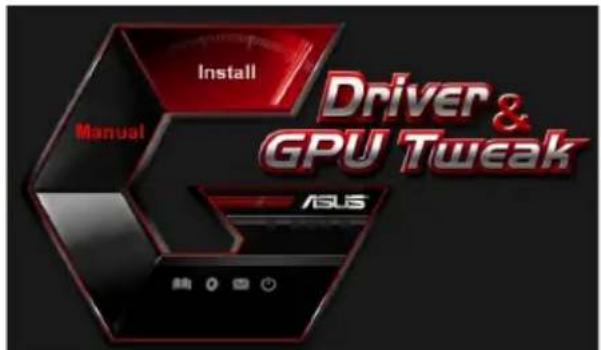

Insert the CD into your computer's optical drive. If Autorun is enabled, the Main Menu launches automatically.

If Autorun is NOT enabled on your computer, browse the contents of the support CD to locate the file UI.exe. Double-click the UI.exe to run the support CD installation program.

2. VGA drivers

The VGA driver is the software program that makes the device work with your operating system. After physically installing your graphics card, use any of the recommended methods in this section to install, update, or remove the VGA driver.

If you are replacing an old graphics card with a new ASUS graphics card, uninstall the old display driver from your system.

2.1 Installing the VGA drivers

2.1.1 Installing the VGA drivers in Windows 10/8.1/8/7 (64-bit)

To install the VGA driver in Windows® 10 / 8.1 / 8 / 7 (64-bit):

1. Insert the support CD into your optical drive.

2. If Autorun is enabled, the main menu appears automatically. If Autorun is disabled, run UI.exe from the root directory of your support CD.

3. From the main menu, click Install.

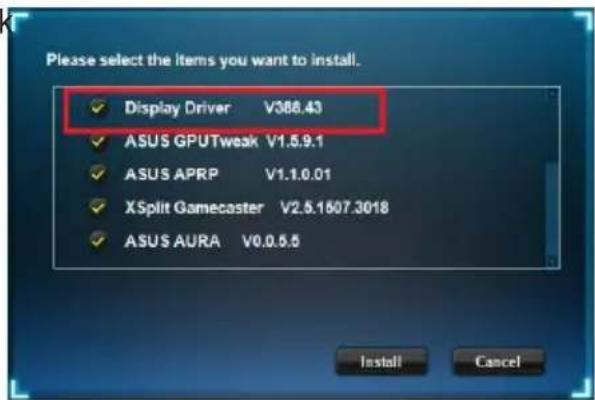

4. Select Display Driver and click the Install button.

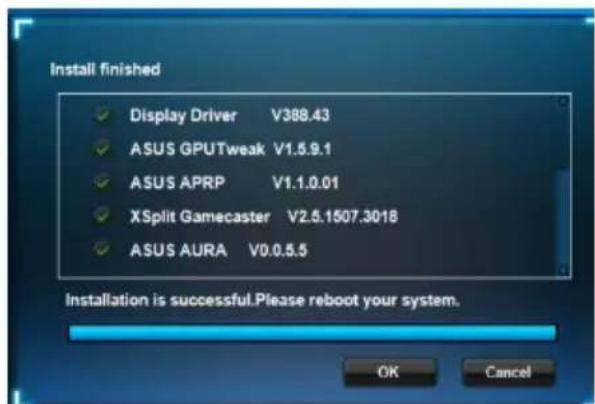

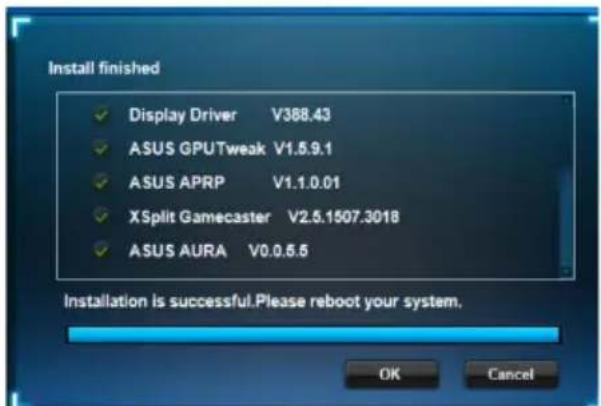

1. Once installation is complete, click OK to reboot the system.

2.2 Uninstalling the VGA drivers

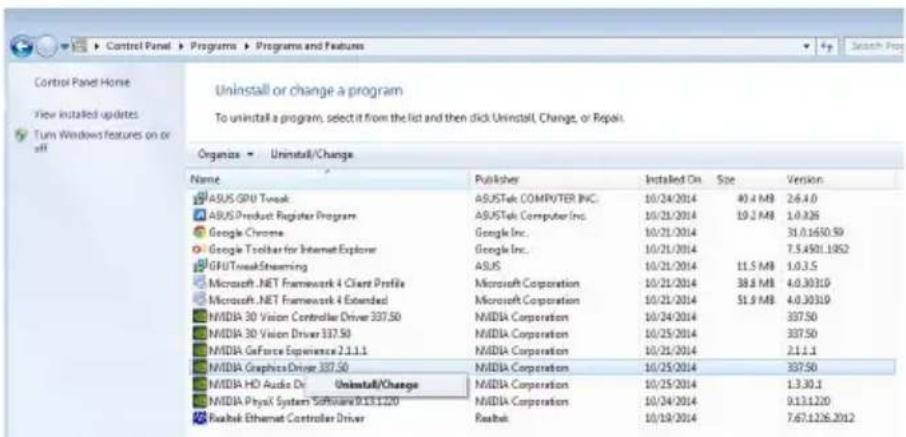

2.2.1 Uninstalling the VGA drivers in Windows 10/8.1/8/7 (64-bit)

To remove the VGA drivers in Windows® 10 / 8.1 / 8 / 7 (64-bit):

• Click Start > Control Panel > Programs > Programs and Features, select Graphics driver. Click Uninstall.

3. ASUS GPU Tweak utility

ASUS GPU Tweak utility allows you to monitor and optimize the settings of your ASUS Graphics card.

3.1 Installing ASUS GPU Tweak

3.1.1 Installing ASUS GPU Tweak in Windows 10/8.1/8/7 (64-bit)

To install ASUS GPU Tweak in Windows® 10 / 8.1 / 8 / 7 (64-bit):

1. Insert the support CD into your optical drive.

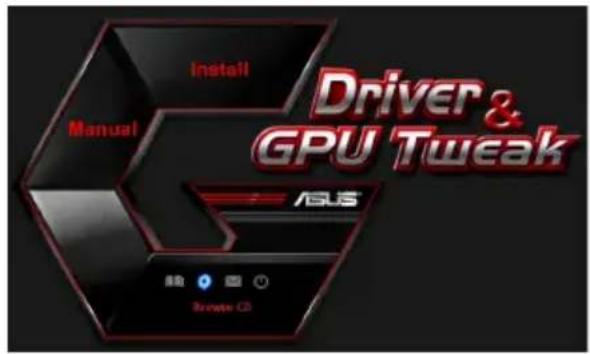

2. If Autorun is enabled, the main menu appears automatically. If Autorun is disabled, run UI.exe from the root directory of your support CD.

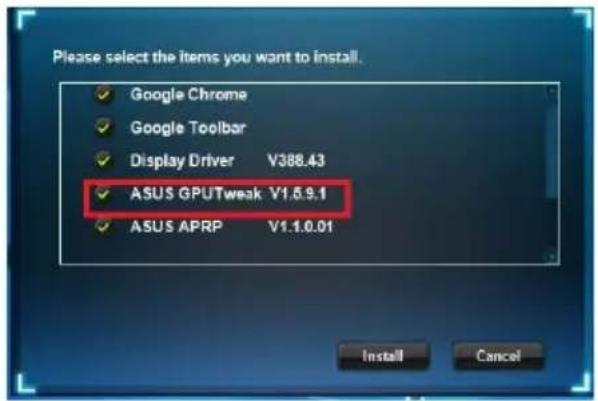

1. From the main menu, click Install. Select ASUS GPU Tweak and click the Install button.

1. Once installation is complete, click OK.

3.2 Uninstalling ASUS GPU Tweak

3.2.1 Removing OSUS GPU Tweak in Windows 10/8.1/8/7 (64-bit)

To remove ASUS GPU Tweak in Windows® 10 / 8.1 / 8 / 7 (64-bit):

• Click Start > Control Panel > Programs > Programs and Features, select ASUS GPU Tweak. Click Uninstall.

4. ASUS APRP

4.1 Installing ASUS APRP

4.1.1 Installing ASUS APRP in Windows 10 / 8.1 / 8 / 7 (64-bit)

To install ASUS APRP in Windows® 10 / 8.1 / 8 / 7 (64-bit):

1. Insert the support CD into your optical drive.
2. If Autorun is enabled, the main menu appears automatically. If Autorun is disabled, run UI.exe from the root directory of your support CD.

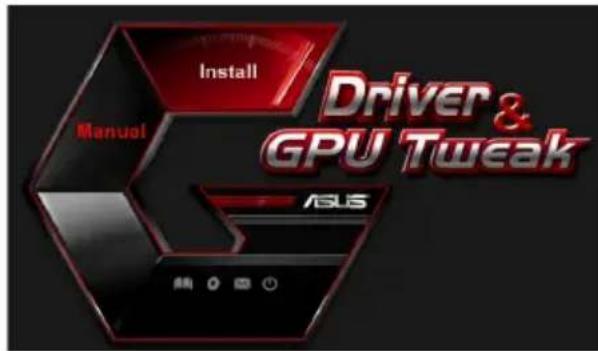

1. From the main menu, click Install.

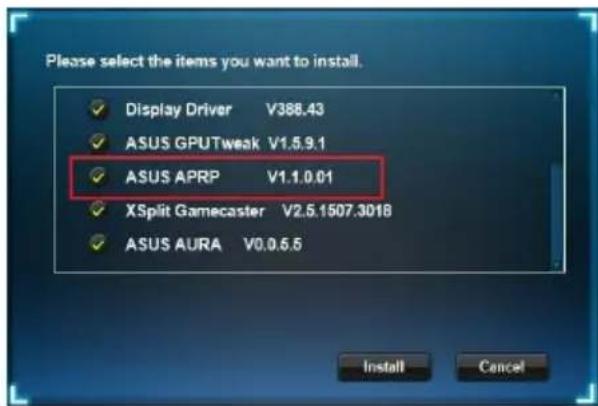

Select ASUS APRP and click the Install button.

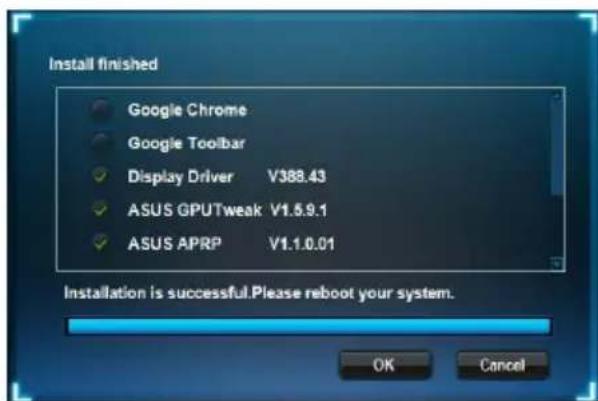

1. Once installation is complete, click OK.

4.2 Uninstalling ASUS APRP

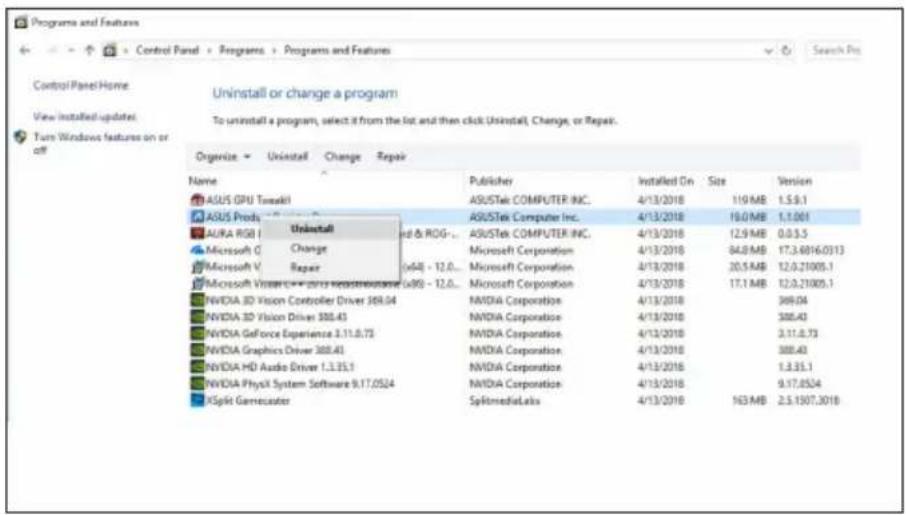

4.2.1 Removing ASUS APRP in Windows 10/8.1/8/7 (64-bit)

To remove ASUS APRP in Windows® 10 / 8.1 / 8 / 7 (64-bit):

• Click Start > Control Panel > Programs > Programs and Features, select ASUS APRP. Click Uninstall.

5. XSplit Gamecaster

5.1 Installing XSplit Gamecaster

5.1.1 Installing XSplit Gamecaster in Windows 10/8.1/8/7 (64-bit)

To install XSplit Gamecaster in Windows® 10 / 8.1 / 8 / 7 (64-bit):

1. Insert the support CD into your optical drive.

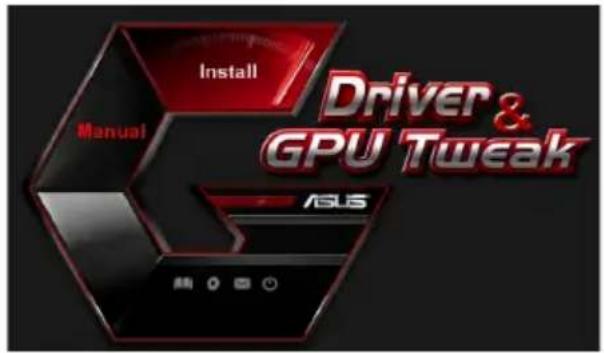

2. If Autorun is enabled, the main menu appears automatically. If Autorun is disabled, run UI.exe from the root directory of your support CD.

1. From the main menu, click Install.

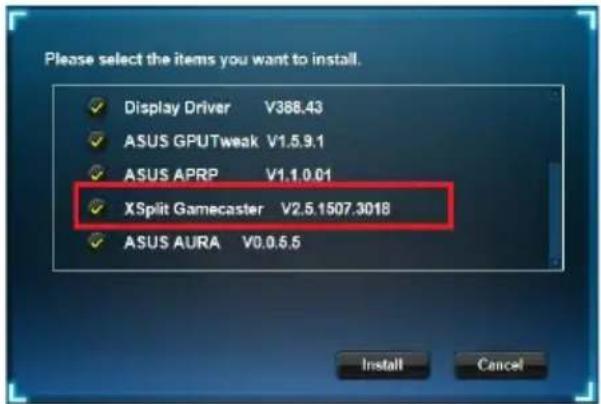

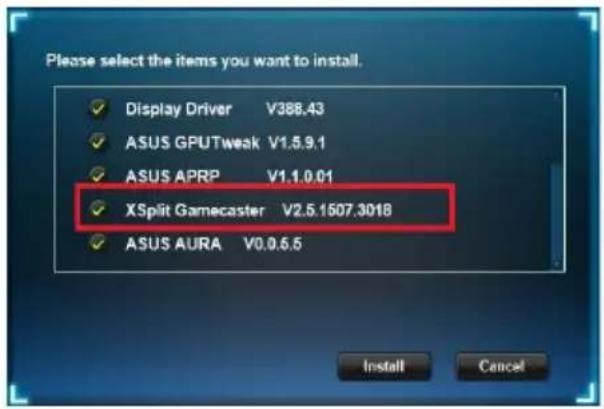

Select XSplit Gamecaster and click the Install button.

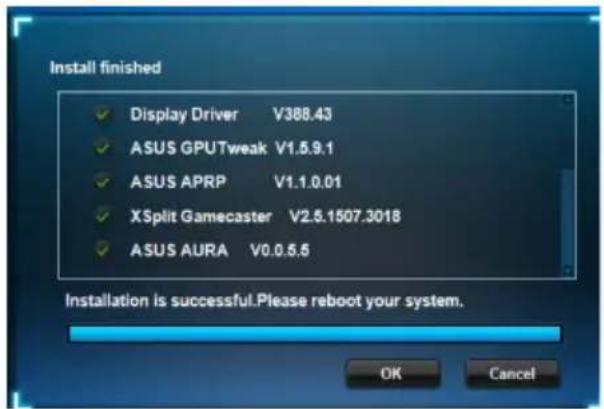

1. Once installation is complete, click OK.

5.2 Uninstalling XSplit Gamecaster

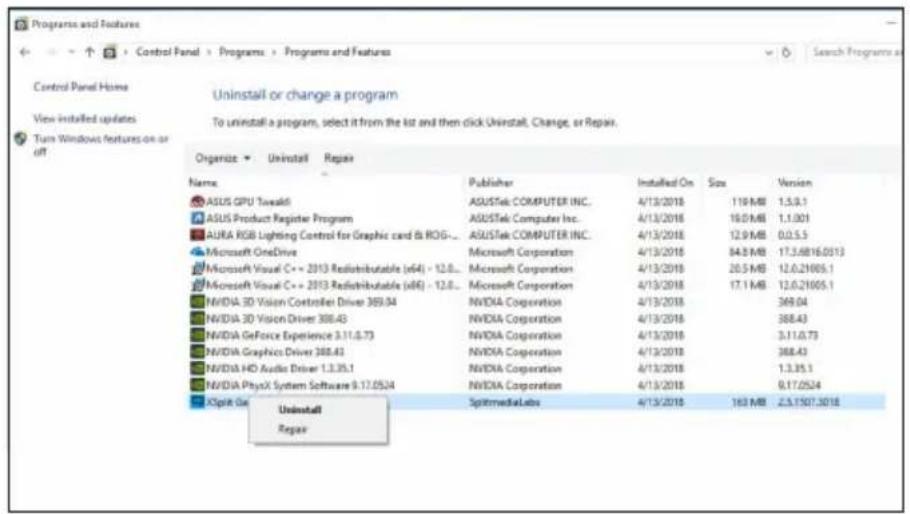

5.2.1 Removing XSplit Gamecaster in Windows 10/8.1/8/7 (64-bit)

To remove XSplit Gamecaster in Windows® 10 / 8.1 / 8 / 7 (64-bit):

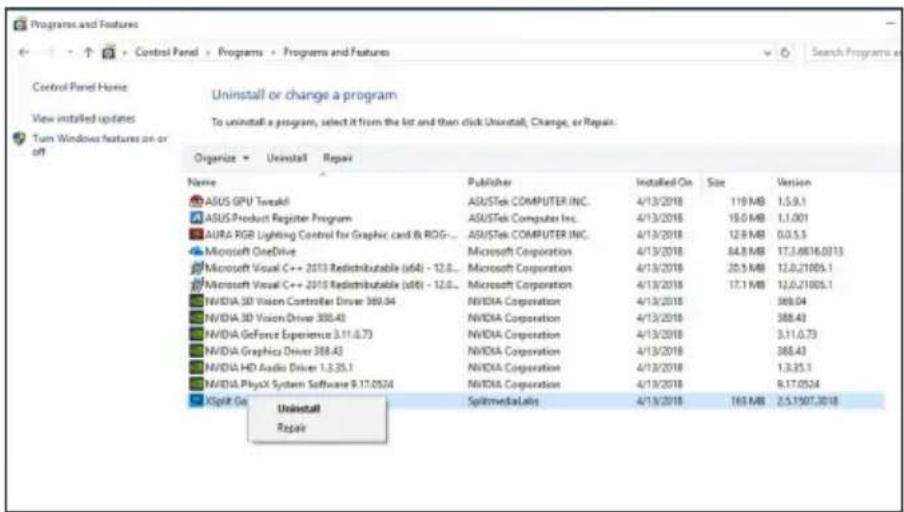

• Click Start > Control Panel > Programs > Programs and Features, select XSplit Gamecaster. Click Uninstall.

6. ASUS AURA

6.1 Installing ASUS AURA

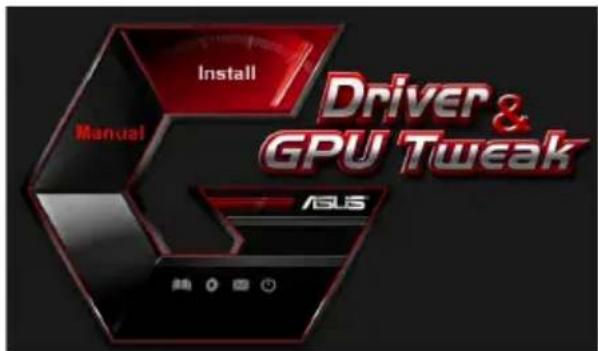

6.1.1 Installing ASUS AURA in Windows 10 / 8.1 / 8 / 7 (64-bit)

To install ASUS AURA in Windows® 10 / 8.1 / 8 / 7 (64-bit):

1. Insert the support CD into your optical drive.
2. If Autorun is enabled, the main menu appears automatically. If Autorun is disabled, run UI.exe from the root directory of your support CD.

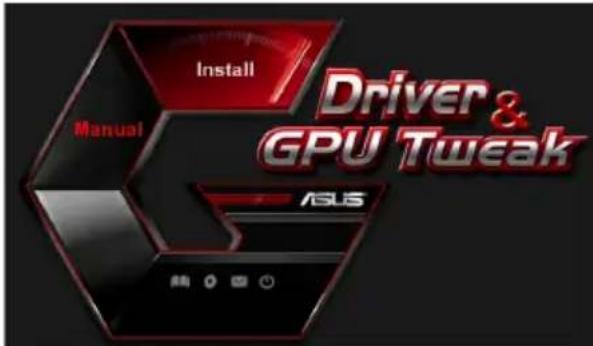

3. From the main menu, click Install.

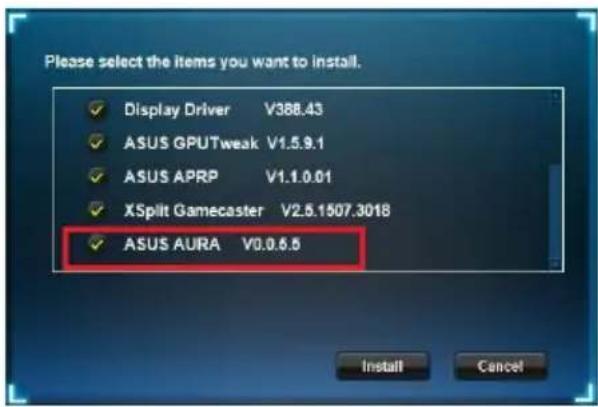

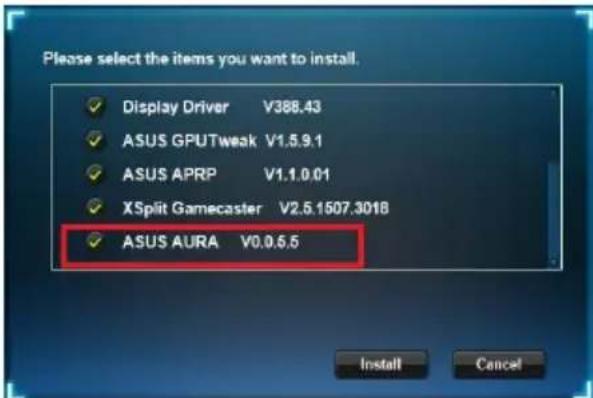

Select ASUS AURA and click the Install button.

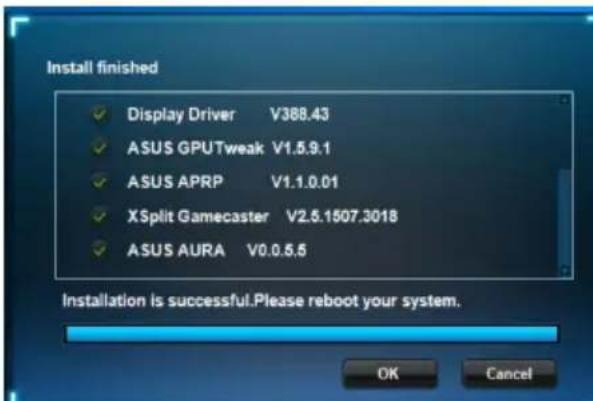

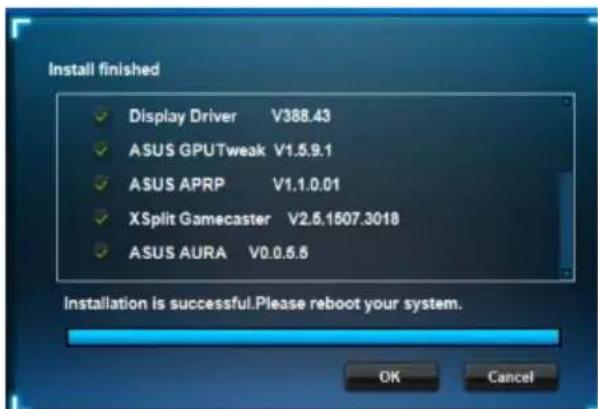

1. Once installation is complete, click OK.

6.2 Uninstalling ASUS AURA

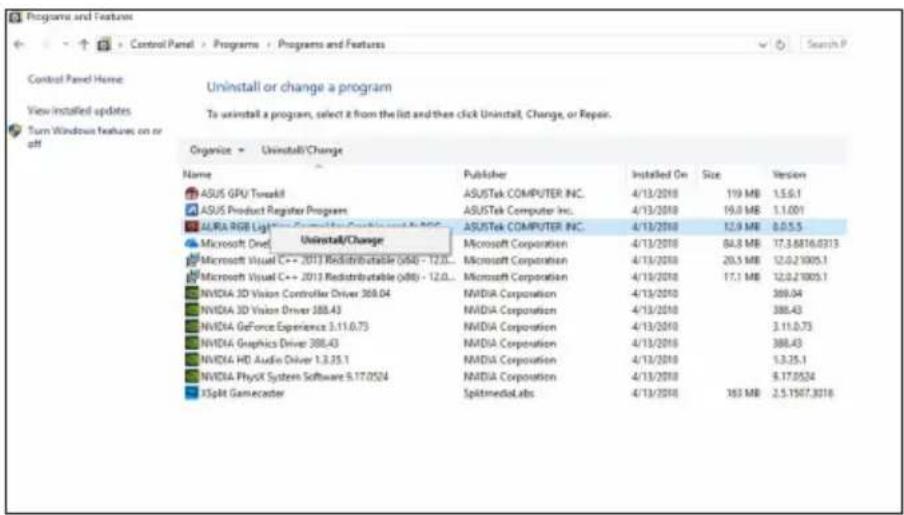

6.2.1 Removing ASUS AURA in Windows 10/8.1/8/7 (64-bit)

To remove ASUS AURA in Windows® 10 / 8.1 / 8 / 7 (64-bit):

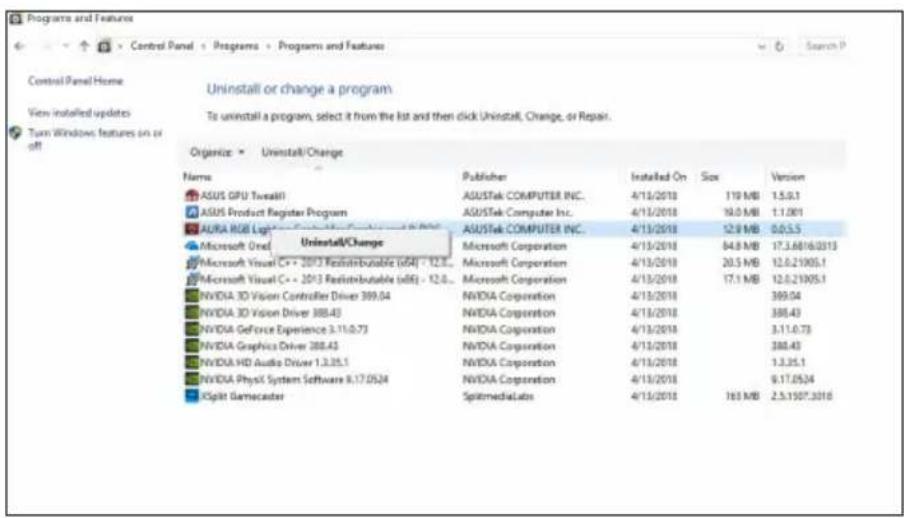

• Click Start > Control Panel > Programs > Programs and Features, select ASUS AURA. Click Uninstall.

7. Other information

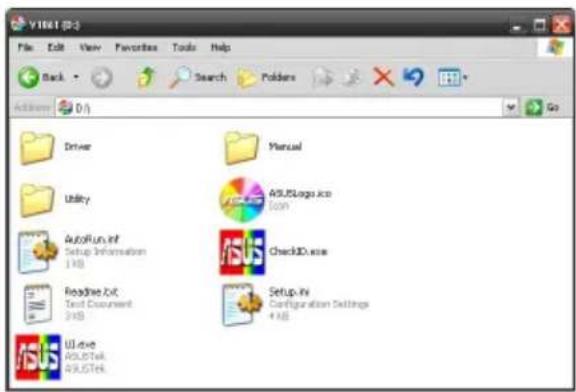

7.1 Browse the Support CD

To browse the support CD:

1. Insert the support CD into your optical drive.
2. If Autorun is enabled, the main menu appears automatically. If Autorun is disabled, run UI.exe from the root directory of your support CD.

1. From the main menu, click Browse CD to view the contents of the CD.

7.2 Contact Information

1. Insert the support CD into your optical drive.
2. If Autorun is enabled, the main menu appears automatically.

If Autorun is disabled, run UI.exe from the root directory of your support CD.

1. From the main menu, click Contact Us to open the ASUS website for additional information.

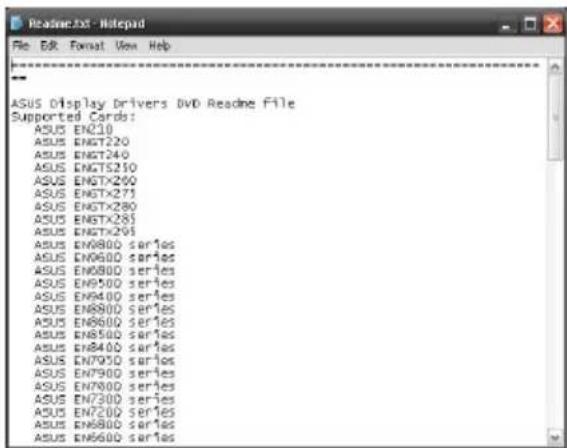

7.3 Viewing the Readme file

To view the Readme file:

1. Insert the support CD into your optical drive.
2. If Autorun is enabled, the main menu appears automatically. If Autorun is disabled, run UI.exe from the root directory of your support CD.

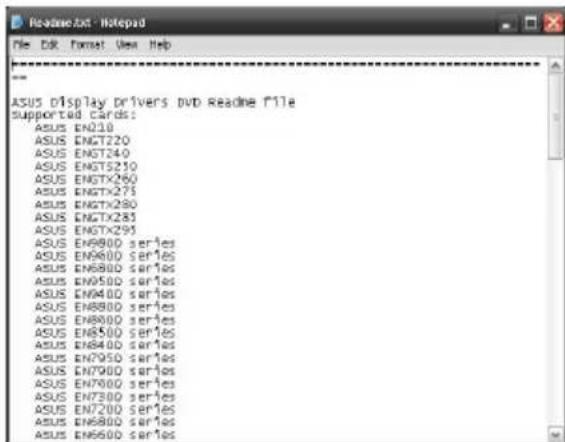

1. From the main menu, click Read Me to display the Readme text file.

Appendix: Basic troubleshooting

If you encounter any of the following scenarios after installing your graphics card, try performing one of the possible solutions before calling for technical support.

If you still have some issues with the product, please visit https://www.asus.com/support for more information.

Problem No display after the card is installed

Cause Your card might not be properly installed. Solution Make sure that the card is not tilted or skewed on the slot.

Cause Your monitor might not be properly connected. Solution Make sure that the signal cable is properly connected to your monitor and graphics card.

Cause Your graphics card is not supported by your motherboard. Solution Check the technical documentation that came with your motherboard and check the required specifications for your graphics card (e.g. AGP voltage requirement).

Cause The graphics card's auxiliary power is not connected. Solution Make sure that the auxiliary power cables are properly connected with the power supply unit.

Cause Insufficient power supply. Solution Make sure that your power supply unit can provide the minimum power requirement to your system.

Cause Incorrect motherboard hardware system settings (e.g. system control panel connections). Solutions • Make sure that the system control panel cables are connected properly (e.g. power switch, reset). • Make sure that your CPU, CPU fan and/or memory DIMMs are in good working condition and are connected properly.

Problem Wrong color balance

Cause Your card might not be properly installed. Solution Make sure that the card is not tilted or skewed on the slot.

Cause Your video controls might not be properly set. Solution • Manually configure your video controls to your desired settings. • Configure your graphics card display resolution in Dis-play properties.

Cause There may be unsupported graphics card drivers installed in your system. Conflicts may occur with graphics card drivers from different vendors. Solution • Remove any unused graphics card drivers installed on your system. • Install the graphics card driver from the support CD that came with your graphics card package.

Cause The graphics card's auxiliary power is not connected. Solution Make sure that the auxiliary power cables are properly connected to the power supply unit.

Cause If your monitor comes with BNC connectors, the port con-nections may be incorrect. Solution Make sure that all BNC connectors are connected properly to its corresponding port.

Cause Your monitor software settings might be incorrect. Solution Configure your monitor to supported display settings.

Cause Your monitor might not be properly connected. Solution Make sure that the signal cable is properly connected to your monitor and graphics card.

Problem The screen image is garbled

Cause Your monitor cannot support the selected display setting. Solution Make sure that your monitor can support your desired display setting. Refer to the technical documentation that came with your monitor.

Cause Your graphics card cannot support the desired system setting. Solution Make sure that your graphics card can support your desired display setting. See the specifications table that came with this graphics card package.

Cause Some graphics driver files might be corrupt. Solution Remove your current graphics drivers and reinstall the graphics drivers from the support CD.

Cause Poor heat dissipation inside the chassis. Solution Make sure that the chassis fan, CPU, and heatsink with fan, and/or the graphics card GPU fan are working properly.

Cause GPU or VGA memory overclocked beyond optimal working conditions. Solutions Restore default frequency settings of GPU and VGA memory.

Other problems that you might encounter can be related to other parts or accessories (e.g., motherboard, power supply unit, LCD/CRT) of your system.

AUS

顯示卡

驅動程式與公用程式

安装指南

T15279

第六版

2019年3月

版權所有·不得翻印©2019華碩電腦

Federal Communications Commission Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

This device may not cause harmful interference
- This device must accept any interference received including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with manufacturer's instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
- Increase the distance between the equipment and receiver.
- Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

The use of shielded cables for connection of the monitor to the graphics card is required to assure compliance with FCC regulations. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

Canadian Department of Communication Statement

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

This class B digital apparatus complies with Canadian ICES-003.

華碩REACH

Federal Communications Commission Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

This device may not cause harmful interference
- This device must accept any interference received including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with manufacturer's instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
- Increase the distance between the equipment and receiver.
- Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

The use of shielded cables for connection of the monitor to the graphics card is required to assure compliance with FCC regulations. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

Canadian Department of Communication Statement

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

This class B digital apparatus complies with Canadian ICES-003.

华硕REACH

Erklärung des Canadian Department of Communications

Dichiarazione FCC (Federal Communications Commission)

Per installare i driver VGA in Windows® 10 / 8.1 / 8 / 7 (64-bit):

Per disinstallare i driver VGA in Windows® 10 / 8.1 / 8 / 7 (64-bit):

Copyright © 2019 ASUSTeK Computer Inc. All Rights Reserved.

Windows 10 / 8.1 / 8 / 7 (64bit) ASUS AURA to tellaharre:

Посiologicals yctaHOBKN

UA15279

IOnOBHeHe BuaHnB Bepcia6

Bepesb2019

Konipaɪr © 2019 ASUSTeK COMPUTER INC. Bci npaba 3acTepexeNo.

KoHa qactNa hO noci6HnKa, BkIouaOnu Bnpo6n Ta nporpaMHe 3a6e3neueHHB Hi, 6e3 NcMbOoi 3roDn KOMnaii ASUSTeK COMPUTER INC. (dani "ASUS") He moke 6ytn BiTbOpena, nepeana, nepenncaHa, 36epexekaB nowkoBni Cntem i a60 nepeKlaedeHa 6ydb-koIO INHO MOBOIO B 6ydb-iaKII foPMi, 6ydb-IAKM YHOM, 3a BKNIOUeHNM DOkymentaui, kky nokyeub 36epira dIra NOdaIbWoTO KOpNCYBaHHBnpo6om.

IapaHTIO HA Bnpi6 a6o 6cnyroBvBaHH He 6yde npOIOBKeHO y BnAiky, kAnio: (1) Bnpi6 6yNo pEmOnTOBaHO, MoNtIKOBaHO uHbOcKOHaJeHO 6e3 NcMbOro Do3BOy KOMNaHii ASUS a6o (2) cepiHni Homep Ha Bnpo6i BiCyTHi a6o CTeptn 3 HbOr.

ASUS HADAE LEEI NOCIBHNIK "AK E, BE3 KOJINHX TAPAHITBI, BNCIOBJIENHX ABO TAKNX, IIO MAOTbCA HA YBA3I, BKJIOUAYOHN, AIE HE O5MEKJIOYHCb TAPAHITMI ABO YMOBAMTOBAPHORO CTAHY TA BIIOBIDHOCTI PEBHMN CILJAM. 3A KODHIX OBCTABUN ASUS, INPEKTOPN, OFIUEPN, POBITHKN U AHTN KOMPAHII HE HECYTB IIIOBIDAIbHOCTI 3A BYb-RAI IPRMI, HABMNCHI YIN BINAKOBI, ABO IOBUHNI (BKJIOUAYOHN 3BNTKN, IIO CNPIUHNII BTPATY IINBYTK, BTPATY B13HECY, BTPATY DYHKUHOHAHBOCTI ABO DAHNX, PEPEPNAHNN B13HECY TOIO), HABITb RAIO ASUS BNYIO NOPEPEDKEHO IPO IODISHI 3BNTKN, RIKI EPEUYbTATOM DEFEKTY ABO IOMNIKN Y LNX NOCIBHNIK ABO BIP0BI.

TEXHUYI XAPAKTEPNCTIKNA IHOPMALJIA, LIO MICTNTbC B LbOMY NOCIBHNKU, PIIITOTOBAHI JINIEJK DKEPEINO IHOPMALJI; BOHNI IINIAIATb 3MIHI bYb-KOJI INEPEIDXEHN; IX HEMOXHAPO3JIADATNI K3OBO'B'3AHN ASUS. ASUS HE BN3HAE KOJHIX 3OBO'B'3AHb ABO BIINOBIAJIbHOCTI 3A6yB-RAI IOMNJKN YI HETOUHCTI, RIKMOKYtB 3'RBINTNCBbOMY NOCIBHNKU, BKJIIOAUOHN BINO5NA TIPORPAMHE 3AE3NEUEHHN, ONICAHIB HbOMY.

Ha3Bn Bnpo6ib Ta Kopnpaui, HabeJeHb CbOmy KepiBnHTBi, Moxyt 6yTu NHe 6yTu 3apeCTpOBAHmToproBMM Mapkamn a6o 6yTu 3axuueHMM ABTOPCbKMM npabAm BiDNOBIDHX KOMNaH. BOHN BxNBAOTbcA DnBn3HaenHH i NoeHenn y TeKCTi, Ha KopncB BlaChNKIB i 6e3 Hamipy npuyuHTn npaba BlaChOCTi.

3mict

Ppimitkn 292
Inphiopmaiz3Texhik6e3nekn 293
Ipro dann noci6nK 294

1. Inφopmaζη npo dɔnοmɪχнй кOMnaKT-ДиκΚ 295
2. Драиверн VGA 296

2.1 IHCtAiziaIpaBepaVGA 296
2.2 DeiHctaIyia IpaIbepa VGA 297

1. 3actocy Hok ASUS GPU Tweak 298

3.1 IHCtTaeJAsUS GPU Tweak.. 298
3.2 DeiHctaIauIg ASUS GPU Tweak 299

1. ASUSAPRP 300

4.1 HcTalauiAsUSAPRP 300
4.2 DeiHctaIauia ASUSAPRP 301

1. XSplit Gamecaster 302

5.1 IInctaIauIg XSplit Gamecaster 302
5.2 DeiHCTaJIaIg XSplit Gamecaster 303

1. ASUS AURA 304

6.1 IHCtanaia ASUS AURA 304
6.2 Deinctauius ASUS AURA 305

1. Ддаткова inhфорmaць … 306

7.1 DOnomixkHn KOMNaKT-DnCK 306
7.2 KOnTaKTha iHΦopMaζi 306
7.3 Ozhannomnyi faui 307

Iodatok.BnAbleHNaOCHOBHX HecnpaBHOtei 308

Ppimitkn

3aBaΦeepaIbHoiKomicii 3B'ra3ky (CUSA)

Cen npnctpi BIDNOBidae BmOram YactHn 15 PpaBn PhedepaIbHOi Komicii 3B'ay. EKnnyataucipnpnaDy npnucTma 3a BIKOHaHH DBOX HaCTynHx yMOB:

• Lcien npictpiH ne nobHe HnKnKaTu 6yNb-jkX paIiopeWkoD; Ta
• 田 npnctpi noBHe ncbepiratn po6oTo3daTHicTb npn HaeBHOCTi 6ydb-aynx padionepewkoD, Habitb TaKx, 0o moKyTb 3aBADHTn HopMaIbHi p6oTi.

Lc e 6nlaHnna npoIwNo Bnnp6yBaHn i 6yIb Bu3HaHe BiNOBiHm 6mMeJennm
Ira cHpObx npncTpoIB KIacy B 3rIINO YactHH 15 PpaBnI ΦepeaBHOi Komicii
3b'3ky. Li o6meJehn p03p6JIeHi 3 MeTOIO HADATN DOUJIbHNI 3axNC T pOTN WkIDINBnx
paiaOpeneKoD y JNTIOBOMy cekTopi. Lc o6laadHnH CTBOPIOE, BnKOpNCTOByE Ta MoKe
BnnpomHOBaTI paioaCTOTHy eHepriIO ta, JAKIo BCTAHOBJIeHe Ta BnKOpNCTOByETbcR He y
BiNobiHDocTI Do IHCTpyKciBnPo6Hnka, MoKe CTBOpHTu WkIDINBI paiaOpeneKoDN paio-
38a3Ky. IpoTe ce He n E rapaHTieIO, 10 paiaOpeneKoD He BUNIKHe y neBHOMy po3TaWbAHHI.
JaKIO CE 6nlaHaHH CTBOpIOe peewKOOn pniOMy paio a6o Tele6aueHH, IoO
MOxHa BCTaHOBTu BKNIOuaIOu Ta BnKIOUaIOU OH 6nlaHaHH, KopNCTyBaueBi BAPTO
Cnpo6yBaTI BnnpaBHTn NepeWKOD OndHM 3 TaKHX CnOCoIB:

• Ipeha npabntn a6o 3miHHTn po3auybaHH aHTeHN.
  36inbintu BiDCTaHb Mx O6naHaHHaT Ta OepKyBaHem.
  -Пд'энати обладнаньdo розтки зiструмOM,ю BiDpi3HЯETbCBAID TORO,doяKOROniД'энданоedgeжвач.
  3BepHyTnca no donomory do dinepa a6o DocBicHeHoro paio- a6o TeleBizHoro iHexeHepa.

BnKOpNCtAHnE ekpaHOBAHOrO Ka6eIIO dIa 3'EDHaHH MoHITopa 3 rpaΦiHoIO KapTOU E Heo6xIDHM dIa 3a6e3neueHH BIdNoBIDHOCTI npabINam FCC. 3mHi a60 nOHOBLeHHr cIbO rnpIaMy, kI He 6yIu cIbKO 3aTBePdJKeHHM CTOpOHIO, BiNobIaJIbHOIO 3a TakoDpIMaHH, MoKyTB N036aBHTN KOpNCTyBaHa npaba Ha BnKOpNCtAHn rbo O6naHaHH.

3aBa KaHaCbKOro DenaPtaMeHTy 3B'ra3ky

UeunpOBNn npnad He npeBnue Mek KnaCy B dny paio nepewkoD npn nepedaui 3 uNpOBOrO npnady, BCTAHOBHeHOro 3riIHO DnpeKtnB npo PaiaionepwkoOn KaHaDCbKOro DeapTaMeHTy 3B'ra3Ky.

CenufoBn npnaKnaCy B biNoBiaKaHaDbkOmy cTaNdapTy CAN ICES-3(B)/ NMB3(B).

REACH

3riINO 3 BIMORAMn peryIIOUOoi MepeXi REACH (PeecTpaia, OcIHka, Ceptnphiacia, O6mexeHHBVKOpNCTaHnX xIMiHuNX peoBnH) MN ONpuiIOHIOEMO cKlaad ximiuHx peoBnH y Haixnx Bnpo6ax Ha Be6-caTI ASUS REACH http://csr.asus.com/english/REACH.htm.

3ayBaXeHnKopnpauii Macrovision 0do Bnpo6y

Даньи Вириб містпь Тхнорію 3axnctу abTOpськux npab,яka 3axnueha 3aRbKaMn npo MeToDi,шо містЯысьВпeвнx паTeHtax CUSA,Ta iHsIMN npabami iHTeJIeKtyaIbHoI BnacHocTi,яki HanexkaTb kopnapaüi Macrovision Ta iHsIMBnacHkam npab.Виkopnstahняцie'TexHOroi 3axnctTy abTOpcBknx npab MaE 6yTu Do3BOJeHe kopnpaueio Macrovision i npu3NaueHe Дял зactocyBaHHдя DomaunHoro neperJny Ta iHswOro obMexeHoro BnKopnstahnry,TilbKnЯко iHwe He Do3BOJeHe Kopnpaueio Macrovision. IHXKeHepn anai3 Ta din3acem6nIOBaHHra 3a6OpOHeHi.

Inφopmaця 3 texhikn 6e3nekn

EneKtpnHa 6e3neka

• Добачуни вдаляочи 3 системпристpoi, посяонайся по niжлоченя синhalьнх кабелов, по кабелі лений вдклочeni. якшо можлво, по добаганham HOBOО пристpoio BiIDKLOUITb yci kабeli лений вд icHyюoi систем.
• IpekehauTeC, 0x JINBHeHn BCTaHOBHe Ha npabunbHy HAnpyry, 0o di y BaWi MicceBOcTi. RaKIO Bn He BneBHei 0do HAnpyr B eNeKtpuHni Po3eTci, KaO KoPNCyTEcB, 3BepHiTbcA Do MICeBOi KOMNaH II 3 eNeKtpoNtcaAHn.
  B pa3i HecnpabHocti Mepeksi KINBHeHH He HamaraTecb BiDpemOnTyBaTn iii camocTiiHo. 3BepHiTbc DO KBaIiΦiKOBaHorO cneuiAnicta YN npOdaBzra.

Be3neka ekcnnyataaii

• Перш 키вскетаноьовати пистою в материнську палу, уразно почитайтевци посбнки, як BXODЯть до сklаду пakety.
• Ipepe 3actocybaHHm Bnpo6y nepekoHaTeC8 B npaBnIbHOcti niKJIoueHHra BCix Ka6eJIB Ta BiCyTHOCTi NOsKOxKeH Ka6eJIB KINBLeHH. y pa3i BuRbEnHra 6yDb- JAKoro NOnKoDKeHH HeaHNO 3BepHiTbcra DO CBORO DInNepa.
• Κο6 He δόπγειτηκ KOPOTKαx 3amɪkaHB, Trpɪmaɪte ckrpɪnKN, rBnHTu Ta cko6Kn noaJI Bɪd pɔz'εMiB, rHɪzɪ eɪeKtpoHHx CXem.
  He donyckaIte hAIBHOCTI NUY, BONOROCTI Ta KpaHIX 3NaueHb TemnepaTyPi. He KnaIITb Bnpi6 y Micux, De BIn MoKe HAMOKHTN.
  KlaidiBbpi6Ha ctiKi nobepxhi.
• Y pa3i BUNHKHeHЯ TexHicHnx npo6nem i3 Bnpo6om 3BepHITbCЯ Do KBaJIΦIKOBaHOcneuiJanCTa YN Do CBORO npodabuz.

Прднй посбнк

yMOBHI no3haeHHa, 0BVKOpNCTOByIObCBAHOMy noci6Hnky.

Iio6 3a6e3neuHT npabunbHicTB BnKoHaHH neBHX 3aJa, npinMiTb Do yBaHn HactynHi CnMBOJI, IO BnKOpNCTOByIOBcB DaHomy Noci6HNY.

NONEPEDJXEHH: Inopmaia, npn3naeHa dna 3anobirahn Tainechnx ykoJeH npn cnpo6i BnKoHaHHa daqui.

YBATA: InΦopMaia, npn3HaueHa dIy 3anO6iraHnnoKoJKeHHIO KOMNoHEHTIB pni cnpo6i BnKOHaHHa4aqi.

BAXJINBO: Inopmaiz, kky Bn IOBHHI B3aTn do ybaru dans BIKOHaHHa 3aDaqi.

1. BCTaBTe CD nIaTpumkn Do ONTNUHOrO DnCKOBODY.
   2.ЯкwoakTNBOBAHOaBTO3aNyCK, TOLOBHE MeHIO 3'YBNTbCra aBTOMaTNUHO.

Kkuo aBTO3aynck BmKHeHO, 3anyctitb UI.exe 3 KopeheBoro MeHIO ha CD niTpumKn.

1. Y roNoBHOmy MeHIO HaTnCHiTb Ha Install (InCTaIIOBaTu).

Bn6epitb XSplit Gamecaster iHaTncHItb Ha KhoNci Install (IhctanIOBaTu).

1. Koni iHCTaJIaIa 3aBepuINaC, HATNCiTb Ha OK.

5.2 DeiHcTaIaIg XSplit Gamecaster

5.2.1 Видаленя XSplit Gamecaster y Windows® 10 / 8.1 / 8 / 7 (64-6it)

Iio6 BuaaNTs XSplit Gamecaster y Windows® 10 / 8.1 / 8 / 7 (64-6it):

• HatnciHa Start (Iyck) > Control Panel (KohtpoBha naHelb) > Programs (Pporpam) > Programs and Features (Pporpam Ta 3ac06n), Bn6epitb XSplit Gamecaster. HatnciHa Uninstall (DeinhctalnoBaTu).

6. ASUS AURA

6.1 Inctajci ASUS AURA

6.1.1 InctaiaASUS AURA y Windows 10 / 8.1 / 8 / 7 (64-6it)

Ioo6 iHcTaIIOBAtn ASUS AURA y Windows 10 / 8.1 / 8 / 7 (64-6it):

1. BCTaBTe CD nIaTpUmKn do ONTNuHOrO dNCKOBODY.
   2.ЯкsoakTUBObaHO aBTO3aNyCK, TOLOBHE MeHIO 3'ABNTbCra ABTomatuHo.

KuO aTO3aNcBMMKeHo, 3anyctIb UI.exe 3 KopeheBoro MeHIO Ha CD nITpIMKn.

1. Y roNoBHOmy MeHIO HaTnCHiTb Ha Install (InctanIOBAtu).

Bn6epitb ASUS AURA i HaTncHITb Ha KHonci Install (InctanIObatn).

1. Koni iHCTaJIaIa 3aBepuINnac, HATNCiTb Ha OK.

6.2 DeiHcTalau ASUS AURA

6.2.1 BvdaJIeHnA ASUS AURA y Windows 10 / 8.1 / 8 / 7 (64-6it)

Iio6 BuaaNTs ASUS AURA y Windows 10/8.1/8/7 (64-6iT):

• Hatncitb Ha Start (Iyck) > Control Panel (KoHTpOlbHa naneB) > Programs (IporpaMn) > Programs and Features (IporpaMn Ta 3ac06n), Bn6epiB ASUS AURA. Hatncitb Ha Uninstall (DeinhctanIOBaTu).

1. Y roJIOBOMy MeHIO HaTnCHiTb Ha Browse CD (NeperJHyTu CD), 06 nepERJHyTu 3mict CD.

7.2 KoHTaKTHa iHΦopMaúi

1. BCTaBTe KOMnAaKr-ДИСК ПIДТРUMKn Do ONTNtHOrO DnCKOBoDy.
   2.ЯкwoakTUBOBAHOaBTO3anyck,ABTomTuH03'YBnEtbcraekpaH iHCTanlaIi npaBepaASUSVGA.

Kkuo aBtOMaTHHn 3anyck He hanaTobAHn, 3anyctitb faan UI.exe 3 KopeHeBOrO KaTAnory DonomixHOrO KOMNaKT-DnCKy.

1. Y roNoBHOmy MeHIO HaTnCHiTb Ha Contact Us (3BepHyTncsdo Hac), 0o6 nepeytn do Be6-caTy ASUS i diHaTncs 6inbwe.

7.3 O3haioomnu foai

Uo6 neperrnHytn 03HaHOMn faiJ:

1. BCTaBTe KOMnakT-DnCK NiDTPmKn Do ONTNHOrO DnCKOBODY.
   2.ЯкwoakTNBOBAHOABTO3anyck, ABTOMaTHUHO 3'ABJrE7bc8ekpaH IHCTaJIiDpaBbepaASUSVGA.

Якшо abTomatnHni 3anyck He HanaTObAHNI, 3anyctiTB faaUl.exe 3 KopeHeBOrO KaTAnory DOONOMIXHOrO KOMNaKT-DnCKy.

1. Y rONOBHOMy MEHIO HAtNCiTb Ha Read Me (HTaTu).

Ha ekpañi 3'ЯВиТьСАtake BIKHO.

Доаtok. Виавлени OCHOBнх HecnpaBHOtei

KIO nICBCTaHOBHeHrpaHOro aAnTePa BnHKaOTb 6yIb-aki 3 HabeJeHX np6Ie, cnp6yIte nepeTm, k BnKlnKaTu TexHiCy NiTpumKy, BnKOHaTu Ondy 3 MOKnBux Oepaui.

Якwo Bce ue BnHkaToB npo6IeMn 3 Bnpo6om, BiDbIaIte cnyK6y niItpmKn https:// www.asus.com/support, o6 otpmaTn 6ilbwe iNphiOpMaJI.

Copyright © 2019 ASUSTeK Computer Inc. Vse pravice pridrzane.

Copyright © 2019 ASUSTeK Computer Inc. Bce npaba 3aunnebl.

JIO6a qactb 3rO pyKOBOCTBA, BJIIOHua 6OpyIOBaHHe H IPOIpaMMHOe 06ecIeueHHe, OINCAHHB E HEM, He MOKET 6b1b dy6IIbPOBaHa, IepcdaHa, Ipc6oPa3OBaHa, coXpaHcHa B cHCTeMa IOHcKa H IN IpeCBeIHa Ha IpyTOI 3bIK B JIO60f oPme H IN JIO6bIMn CpeCTBaMn, KpOME JOKyMeHTaHn, XpaHnIeCHN KOKyIATEIeM C IeJIbHO pe3epBPOBaHn, 6e3 CneHAIbHO rHcBMeHHOro pa3peIeHn ASUSTeK COMPUTER INC. ("ASUS").

FapaTHHIIpeKpaIaCTc,ccIH:1) H3DEJIeOTpEOHTNPOBAHO,MOHΦHIIHPoBAHO HIN H3MEHHO 6e3 IIHCbMEHOROPa3peHHeHH ASUS; (2) cepHnHbHIOHEMep H3DEJIH NOBpeJH, Hepa36OpHB JH6O OTCyTCTByer.

KOMIIAHN ASUS IPEIOCTABJET DAHHOE PYKOBOCTBO HA YCJIOBHN KAKECTb,BE3 KAKNX-JINBO TAPAHTHI, IPRMbx HJIN IOJPA3YMEBAEMbIX, BKJIOUAY, B TOM YHCJI, JIOBbIE IIOJPA3YMEBAEMbIE TAPAHTHI HJIN YCJIOBNI FOIOCTH JIA IPOJADKN, HJIN IIPNIOHOCTK KOHKPETHOJI EJIIN HCIOJIb3OBAHNA. KOMIIAHN ASUS, EE INPEKTOPA, PYKOBOINTeJI, COTPYDHHKIN IINI IPEICTABITEJIN HE HECYT HIKAKOI OTBETCTBEHHOCTN 3A JIOBbIE KOCBEHHbIE, FAKTINCHECKNE OCObIE HJIN CJUYAHNBIE YbBITKN (BKJIIOUAY YbBITKN OT YIYIHEHON BblObl, VTPATY DEATEJBHOCTN, HE HCIOJIb3OBAHNE HJIN IOTEPIO DAHbIX, IPEPBHAHNE DEATEJBHOCTN I TOMV IOIDBOHE), IAJKE ECJIN KOMIIAHN ASUS BblA OCBEJOMJIIEHA O BO3MOJHOCTN YbBITKOB BCJIEDCTBNE DEFEKTA HJIN OIHINKIN B DAHHOM PYKOBOCTBE HJIN IPOJyKTE.

TEXHNUECKHEXAPAKTEPHCTIKN INHΦOPMAUIN, COIDEPKAIIUECBAJAHHOM PYKOBOCTBE, IIPBIOJRTCTOJIbKO BIEJIXO3HAKOMJIEHN. OHIMOTYTBITB3MEHEHB JIIOBOE BPEM BE3 YBEJOMJIEHN IN HE JOJXHBI PACCMATPBATCB KAK OBJ3ATEJBCTBO CO CTOPHO ASUS. KOMIIAHNAUS HE HECET HNKAKOH OTBETCTBEHHOCTH IN OB3ATEJECTB 3A JIOBBIE OIIIBKN IIN HETOHOCTH, KOTOPBIE MOVT COIDEPKATBCB HACTOIAEM PYKOBOCTBE, BKJIOUAY OIICAHNI IIPOJUKUHN IIPOPGAMMHOTO BECEIUEHEN.

IpoNyKIIHnHa3BaHHN KOpnpaHn, HMeIOHecB 3ToM pyKOBoCTBe, MOryT BHTbC3apeHCTpHPOBAHHBMN TopOBbIMH 3HaKaAMn Hn 6bITb 3aIIHHeHHbIMn ABTOPCKHM IIpaBAMn COOTBECTBYOHN KOMIIaHHN HHCIO.Ib3yOTcR ToJbKO B IeJIAX HHeHTHΦHKaHn.

Copegxanhe

YbeJomJIeHn 358
HnΦopMaunr o npabHJax 6e3oIacIIOCTH 359
O pykoBoIcTBe 360

1. HhOpMaIIH O KOMnAaKT-HeNcKe 361
   2.Драиьера Видаокары 362

2.1 YcTaHOBKa VGA IpaIbCpOB 362
2.2 YdaJIeHne VGA IpaIbepOB 363

1. YTHIHTA ASUS GPU Tweak 364

3.1 YcraHObka ASUS GPU Tweak 364
3.2 YIJIeHHe ASUS GPU Tweak 365

1. ASUS AURA 366

4.1 YcTaHOBka ASUS APRP 366
4.2 YdaJIeHne ASUSAPRP 367

1. XSplit Gamecaster 368

5.1 YcTaHOBka XSplit Gamecaster 368
5.2 YIaJIeHHe XSplit Gamecaster 369

1. ASUS AURA 370

6.1 YcTaHOBka ASUS AURA 370
6.2 YdaJIeHne ASUS AURA 371

7.Дугай Инфорmaць.. 372

7.1 Ipocmotp KOMnakT-tncka. 372
7.2KoHTaKTHaIHHOpMaIIH 372
7.3 IpocmoTp paaiJa readme 373

IIpHIOKeHHe: OchOBHbIe HeHCIIpaBHOcTH 374

YBeDOMJIeHnIa

YIOCTOBepeHHe ΦeIepaJIbHoI KOMHcHH IIO cBra3H CIIIA

JaHHoe ycTpoiCTBO COOTBeTCTByeT Yactn 15 PpaBJI FCC. 3KcIIiyataunna o6OpyIOBaHn IOnyCTMa IIpN CO6JIHOdeHHN CJIeIyIOIIHX ycIOBn:

JaHHoe yctpoHCTBO Hc JIOJKHOC3aBaTaB IOMEX
Ha pa60Ty yctpoiCTBa MOrY OKa3bIBaTb BIIHHe BHeIHHne IOMEXH, BKJIIOUaIOMexH, Bbl3bBAIOuHne HeKeJIaTeJIbHbIe peKHMbl eTo pa60TbI.

Даиhoe obopyюbaHne 6bIIO IPOTEcTHpoBAHO n COUTeHO COOTBeTCTBYIOIIHM OraHHueHIM IO IIHΦpOBbIM yctpoIcTBaM KJIacca B, B coOTBeTcBHN c ChactbIO 15 IIpaBNI FCC. ΘTN ORpaHueHn paCCHTaHbI Ha o6ecNueHHe 3aIHTb I ba3yMHbIX IpeJIax OT BpeIoHOCHbIX BO3JeICTBH IIpyuHOBKe B JHIOM IOMeIIeHIN. Данhoe obopyJOBaHne reHepHyET H3Iyuae TpaIHOaCTOTHyO 3HepHIO, KOtopaЯ MOnKet C03JaBaTb IOMEXN B paIHOCB3H, ECJIN YcTOCTBO YcTAHOJIcHO HJIN HcIOJIb3YeTcR He B COOTBeTcBHN C HHCTpyKIIHM IIPOI3BOIDTeJIr. Tem He MeHee, HeBO3MOJHO rapaHTHPOBaTb OTCyTcTBHe IOMEX B KAJKdOM KOHKpeTHom cJIyuae. B cJIyuae, ecJIN DaHHoe obopyJOBaHne DeIcTBHIO BB3bIBaet IOMEXN B paIHO HJIN TeJIeBH3IOHHOM IprHeme, YTO MOKHO IPOBepHTb, BKJIIOUVB IN BbIKJIIOUHв DAHHoe obopyJOBaHne, POJIb3OBAteJIHO peKOMeHdyETc IIObITaTbcry UdaIHTb IOMEXN cJIeIyIOIIHM cpeICTBaMH:

• IpeopeHHTnPoBaTb HIN IpeMeCTHTb IIpHHMaHOIIyO aHTEHy.
• YBEJHHTb paCCrOHHe MEKdy daHHbIM IIpH6OpOM H IIPHEMHKKOM.
  -ПОДКЛHOUHTb ДАнhoe obOpуIDOBaHnE Kpo3eTKepyrOg 3JIeKTPoIIeIN, HeJcJIIn Ta, K KOtOpOI ПОДКЛHOUeH pHcMHNK.
• IIpoKoHcyJIbTHnpOBaTbc8c IIpoIaBcOM HJIN KBAJIHΦHIIpOBaIIbIM paJIO-/TB-TexHHKOM.

HcIOJIb3yIte 3KpaHnpOBaHHbIe Ka6eJIN IIOIIOKJIIOUeHn MOHHTOPa K BIIeOKeAPTe - 3TO rapaHTIpyET COBmecTlMOCTb C Tpe6OBaHHMn FCC. H3MeHeHHN IIN IOIOJIHeHHN K IaHIOMy IIYIKTy, He cOJIACOBaHHbIe HeIOcpeIcTBeHHIO CO CTOpHO, OTBeTcTBeHHIOI 3a COOTBeTcTBHe IpaBHJAM, MOrYT cJeJAbIbIbIeHNeCTBHTJIbHbIM IpaBO IOJIb3OBaTeJIHa IIOJIb3OBaHHe IaHHbIM O6OpYIOBAHHem.

YIOCTOBepeHHe IenapTaMeHTa IIO cpeIcTBam CBra3N KaHaIbI

JaHHoe uHpOBoe yctpoiCTBO He IpeBbIaAe T OrpaHnueHn KJIacca B IO BblJeHIO paIHOIIyMa OT uHpOBoBix yctpoiCTB, yCTaHOBJIeHHbIX B IIpaBnIax IIO paIHOIIomExAm JeIapTaMeHTA IIO cpeIcTBam CB3N KaHaIbI.

ДанhoeифpoBoe yctpoiCTBO KJIacca B COOTBETCTByet cTaNdapTy ICES-003.

REACH

Corlacno peIamEnTy EC REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals - PerntpaHnna, OueHka, Pa3peHnHnHa OrpaHnueHnHa HcNoJIb3ObaHne XHMuecknx BeIIeCTB), Ha caTc ASUS REACH pa3MeIeH cINcOK XHMuecknx BeIIeCTB coIepKaIIuXcR B npOyKtax ASUS: http://csr.asus.com/english/REACH.htm

Hhopmaunna 6n3deJnn Koppopaunn Macrovision

Данhoe ИЗделно BKлюает В ceбг Тхнлогио 3aшпьг ABTOPCKHx ПраВ, 3aшишснHyIO nATEHTAMN CIIIA, И nHBle прави ИНтелктуаЛьно сбctBeHHocTH, прнадлесашпе корлораим Macrovision И дугим ЛИцam. ИспOLьзOBанe ДАнHOТexHoJOrn 3aшпьг ABTOPCKHx IIpaB BO3MOЖHо TOЛьКО C corJIacHЯ KOPлораим Macrovision И пpeДусмOTpeH OTOЛьКО ДЯДOMaшHeRo И HHOro ORpaHNeHHO RCHOLJb3OBaHnE, ecIJN HHOe He IIpeДПИСaHOb KORlOpaIneM Macrovision. ИнжЕнрьий aHaJIIN3 И разборka 3aПpeIeHы.

HΦopMaun o npabnJax 6e30nacHoCTN

3JIeKtpo6e30IacHocTb

• IIpn IIO6aJIeHHH HJIN H3BJIeueHHN KOMIIHOHTOB CnCTEmbl, IpeJI IIOJKIIOueHHem CNTHAJIbHbIX KaBeJIe, y6eINTecb, YTO IITaIOUHe Ka6JIH N OKIIOUeHb. IIO BO3MOxKHOCTH, IpeJI yCTaHOBKO YcTPOHCTB OTKIIIOHTe OT CnCTEmbl BCE IITaIOUHe Ka6JIH.
• Y6eIITecb, YTO HApJKeHHe 3JIeKTPoCeTH B DOIyCTHMbIX IIpeIeJax. EcII IN BbI He yBepeHb I TIIIE 3JIeKTPoIHHTaHHa B BaIeM IOMe, IIpOKOHcyJBtHpyIITecb C MeCTHO 3HEPretHueckO KOMIIaHHei.
• EcIN 3JIeKTPoINrTaHnE HeHCIIpaBHO, He IIbITaIeTecb HaJIaIHTb eRO caMOCTOaTEJbHO. O6paHTeCb K KBaJIHΦHIIuPobAHOMy TExHHky IIN IpoJaBHy.

Iob30BaTeJbckHe npabHJa 6e30nacHoCTN

• Ipeen yctaHOBkoJ ycIPOINCTb Ha BaIy MaTePHNcKyo IIaTy, TIIaTeJIbHO IpOHTaIte BCE npHlaIaemble pyKOBOdCTBa.
• IpeI HcIOJIb3OBAHHeM IpoIyKta, yIOCTOBePbTEcB, YTO BCE Ka6JIH IIpaBnIbHO IIOIKJIIOUeHbI, H Ka6JIH IIHTaHnI He IOBpeKJdeHbI. EcIIH BbI ObHApYKnI KAKoe-H6yIb IOBpeKJIeHHe, HeMeIJIeHNO CB8KNTecB c BaIIHM dJIlepOM.
• TTo6bI H36eKaTb KOpOTKHX 3aMbIkaHH, XpaHHTe cKeIIKN IJIa 6yMaI, BnHTbI, IIOJaJIbIe OT CoEINHHTeJIe, CJLOTOB, pa3bEmOB IN CXEM.
• I36eaiTe IIbIIH, BJIaXHOCTn H 3KcTpeMaJIbHBIX TeMIIepaTyp. He IIOmeIaIte IIOPOJyKT TyJa, TIDE OH MOxET HAOMOKHyTb.
• YcTaHaBJIINBaIte IpoJyKT Ha yCTOuHbYIO IOBepXHOCTb.
  BcIyuae,ecJIn y Bac BO3HKNJIN TexHHueckHe Ipo6JIeMbIC H3JeJIeM,obpaHTTeCb K KBaJIHΦHIIHPoBAHHOMy CnCIHaJIHCTy IChHTpa 06cJIyKHBaHHN HJN K IpOJaBIy.

O pykoBODCTBE

0603HaueHn, HcnoJb3yEmble B pyKOBoDCTBe

B pykoBoJCTBe HMeIOTcIIpHMeaHHN H IIpeIyIpeKJeHHN, c KOToPbIMn Bam HyxHo 03HaKomMTbcIJIy ycIIeIHHO BbIIIOJIHeHHN 3a,IaU.

BHIMAHHE: INΦopMaIIH O DeIcTBHX, KOtOpbIe MOryT IIpNBcCTN K IOBpeKJdeHIO o6OpUIOBaHnI, IOTepe IaHHbIX H 6bITOBbIM TpaBMam.

BHIMAHNE: HOpMaIIH O JeCTBHX, KOtOpbIe MOrY T pINBcT N IOBpeKJdeHIO o6OpyIOBaHH.

BAKHO: HOpMaHn, KOToPoi BbIOJXhI cJeIOBaTb IIpN BBIOJIHeHH 3aJa.

IIPIMEUAHNE: CoBETbI H IOnIOJIHHTeJIbHa NHOOpMaIuN, IOMOraIOUaI
IIIN BbIOJIHeHH 3aJaU.

Ie haHTn 60JIbIe HNΦopMaHH

O6paHTHecb K cIeIyIOIHm HcTOUHNKam 3a IOnIOJIHNTeJIbHOH HhOpMaIIHeN IДJI
OBHOBJEHHI pOrpAMMHOro O6ecIeueHHI.

1. CaiTbI ASUS

CaT ASUS (https://www.asus.com/)пслocTaBЯстakTuJbHyUHΦopMaHIO OTHOCHTeJIbHO obOpyIobAHn H IIpoIrpAMMHOO obecIeueHHA ASUS. CaTbI ASUS yka3aHb B KOHTaKTHOH HΦopMaunn Ha BHyTppeHHe CTOPHe o6JIOxKN.

2.ДоноJINHTe.IbHЯДOKуMeHTaHnA

B KOMIIIEK T BaIIIErO IIPOyKTa MoKeT 6bITb BKIOUeHa IOIOJIHHTeJIbHa IOKyMeHTaIIH, THIa rapaHTnHbIX TaIOHOB, KOtOpbIe MOrY 6bITb IO6aJIeHbI BaIIHM IIJIepOM.3THIOKMyEHTbI He ABJIAOTc HaCTbIO KOMIIIEKTAIIH.

1. Информацьоkomпакт-дисke

Ha KOMIaKT-INcKe HaxoJIaTcR IpaIbepbI N yTHJInTbI JIA VGA KapTbI. B rJaBHom MeHIO KOMIaKT-INcKa MoKHO ycTaHOBHTb IIporpamMHOe OecIeueHHe IIOJyHTb KOHTaKTHyo INΦOpMaIIHOS ASUS, IpocMoTpeTB coIEpKHMoe KOMIaKT-INcKa HIN φaJI ReadMe.

Bce H3o6paJKeHnI npHBeJeHbToJIbKO JnI cIIpaBKn H MoTy OTJNuHaTbcr OTeX, TTO Bby yBuInTe Ha 3KpaHe.
- HeKOTOpBie IpaIbepa H yTHINTBi Ha KOMIIAKT-ⅡHcKe IIOJIePJKBAHOr TOJbKO K OIIpeJIeHHbIe MOJIIN BIIeOkaPT ASUS.
IyctaHOBKn IpaHbcpOB H yTHJNT MOYr IOHaIO6HTbcra IIpaBa aIMHHcTpaTopa. IIOIO6HyIO IHΦOpMaIIIO cMOTpHTE B JOKyMeHTaIIHN Ha Windows 10/8.1/8/7.
CoepKHMoe support CD MOKeT H3MeHrTbC6e3 yBeIOMJIeHH. O6HOBJEHH MoKIO HAHT Ha caTte ASUS www.asus.com.

BcTAbbTe KOMIaKT-IMCK B OITINueckn IIpHBOJ KOMIIbIOTepa. EcJIn aBTO3aIyck BKJIIOUeH, IJIaBHoe MEHIO IOIBHTcA BTOMaTHueckN.

EcJIH aBTO3aIyCK BbIKJIOueH, HauINTE Ha INcKe faui UL.exe. IBaKbI IIeJIKNHTe 1IO UI.exe 3aIIycka MeHIO.

YTHINTa ASUS GPU Tweak IO3BOJnCT KOHTPOJnHOBaTb H N3MeHrTB NapaMeTpbl JIOCTHKeHHOITHMajBHoI IPOH3BOJnTeJIbHOcTH BnDEoKapr ASUS.

3.1 YctaHOBka ASUS GPU Tweak

3.1.1 YctaHOBka ASUS GPU Tweak B Windows 10 / 8.1 / 8/7 (64-6HT)

Ipa Support CD BbIOHnTe cJeIyoHne HhctpyKHH:

1. BcTaBbTe KOMIIaKT-ⅡNCK B OITINueckn IIpNbO.I
2. EcJH aBTO3aIyck BKJIIOUeH, IOABHTcMeHIO yCTaHOBKN. EcJH aBTO3aIyck OTKIIIOUeH, 3aIycTHTe UI.exe H3 KOpHeBOI INpcKTopHH KOMIIaKT-INHcKa.

1. BJIABHOM MeHIO HaKMITE Browse CD IIO OTO6paKeHHa coepKHMOrO nCKa.

7.2 KoHTaKTHa HhΦopMaun

1. BcTaBbTe KOMIIaKT-ⅡNCK B OIIITHueckn IIpHBOI.
2. EcJIN abTO3aIyck BKIOueH, IOBHTcM MeHIO yCTaHOBKN.

EcJn aBTO3aIyck OTKJIIOueH, 3aIyCTHTe UI.exe H3 KOpHeBOJ DInpeKTOpHH KOMIIaKTINCKa.

1. B IJIaBHOM MeHIO HaKMHTe Contact Us IIЯ IIepexoHa ha caIr ASUS H IIpocMoTpa IIOJOHHTeJIbHOH INHΦOpMaIIHN.

7.3 Ipocmotp faaJra readme

Inpocmotpa faia readme BbIOJHnTe cJeNyUOHe HnctpyKuH:

1. BcTaBbTe KOMIIaKT-ⅡHcK B OITnueckn IIpHBoI.
2. EcJIN aBTO3aIyck BKIIIOueH, IOJBNTcMCHIO YCTaHOBKNI.

EcHn aBTo3aIyck OTKJIOueH, 3aIyCTHTe UI.exe H3 KOpHeBOI dHpeKTOpHH KOMIIAKT-DNCKa.

1. B rJIaBHOM MeHIO HaKMITE Read Me IIOPOcMOTpa faJa readme.
