Product type	Projector
Brand	Epson
Model	PowerLite Pro G6470WU
Native resolution	WUXGA (1920 x 1200)
Brightness	6,000 lumens
Contrast ratio	5,000:1
Lamp type	UHE
Lamp life (Normal mode)	3,000 hours
Lamp life (ECO mode)	4,000 hours
Keystone correction	Vertical and horizontal
Zoom	Motorized, 1.8x ratio
Focus	Motorized
Dimensions (W x D x H)	450 x 350 x 150 mm (approx.)
Weight	8 kg (approx.)
Power supply	100-240 V ~ 50/60 Hz
Power consumption (Normal mode)	450 W
Power consumption (standby)	0.5 W
Video inputs	HDMI, DVI-D, VGA, S-Video, Composite, HDBaseT (optional)
Control ports	RS-232C, LAN, USB (Type B)
Noise level (Normal mode)	35 dB
Noise level (ECO mode)	28 dB
Maintenance and cleaning	Clean air filter every 100 hours; replace lamp as needed
Safety	Grounding required; avoid humidity and air obstructions
Spare parts and repairability	Replacement lamp, air filter; repair by an Epson authorized technician

Frequently Asked Questions - PowerLite Pro G6470WU EPSON

How to install the PowerLite Pro G6470WU projector?

Place the projector on a stable, flat surface, at least 20 cm from walls for ventilation. Connect the video and power cables, then turn on the projector using the power button. Use the motorized zoom and focus adjustments to adjust the image.

What is the maximum supported resolution?

The native resolution is WUXGA (1920 x 1200). The projector can accept signals up to 1080p and WUXGA, but higher signals are scaled.

How to connect a computer to the projector?

Use an HDMI, DVI-D, or VGA cable depending on your computer's outputs. Connect the cable to the corresponding input on the projector. For network control, use the LAN or RS-232C port.

What to do if the image is blurry or distorted?

Check the motorized focus and adjust the zoom. If the image is keystone distorted, use the vertical and horizontal keystone correction in the menu. Make sure the projector is perpendicular to the screen.

How to maintain the air filter?

Turn off and unplug the projector. Remove the air filter located on the side and clean it with a vacuum cleaner or lukewarm water. Let it dry completely before reinstalling. Replace the filter every 6 months or so.

When to replace the projector lamp?

The lamp should be replaced when the lamp indicator lights up or the image becomes very dim. The lifespan is approximately 3,000 hours in Normal mode and 4,000 hours in ECO mode. Use only an original Epson lamp.

The projector does not turn on, what to do?

Check that the power cable is properly plugged in and the outlet works. Wait a few seconds after turning off before turning on again. If the problem persists, consult the user guide or contact Epson support.

How to use the HDBaseT function?

The HDBaseT transmitter (optional) allows transmission of HDMI and control signals over a network cable up to 100 m. Connect the transmitter to the projector via the HDBaseT port and link it to the HDMI source. Ensure HDBaseT mode is enabled in the projector settings.

What are the important safety instructions?

Do not place heavy objects on the projector. Avoid humidity and dust. Use only the provided power cable. Disconnect the device during thunderstorms or prolonged inactivity. Contact an authorized technician for any repairs.

How to obtain spare parts?

Spare parts (lamp, air filter) are available from Epson authorized dealers or on the official website. For repairs, contact Epson technical support who will direct you to an authorized service center.

USER MANUAL PowerLite Pro G6470WU EPSON

HDBaseT™ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.

©SEIKO EPSON CORPORATION 2013. All rights reserved.

使用・保管上の注意

Illustration of a device with ports and cables, no text or symbols present

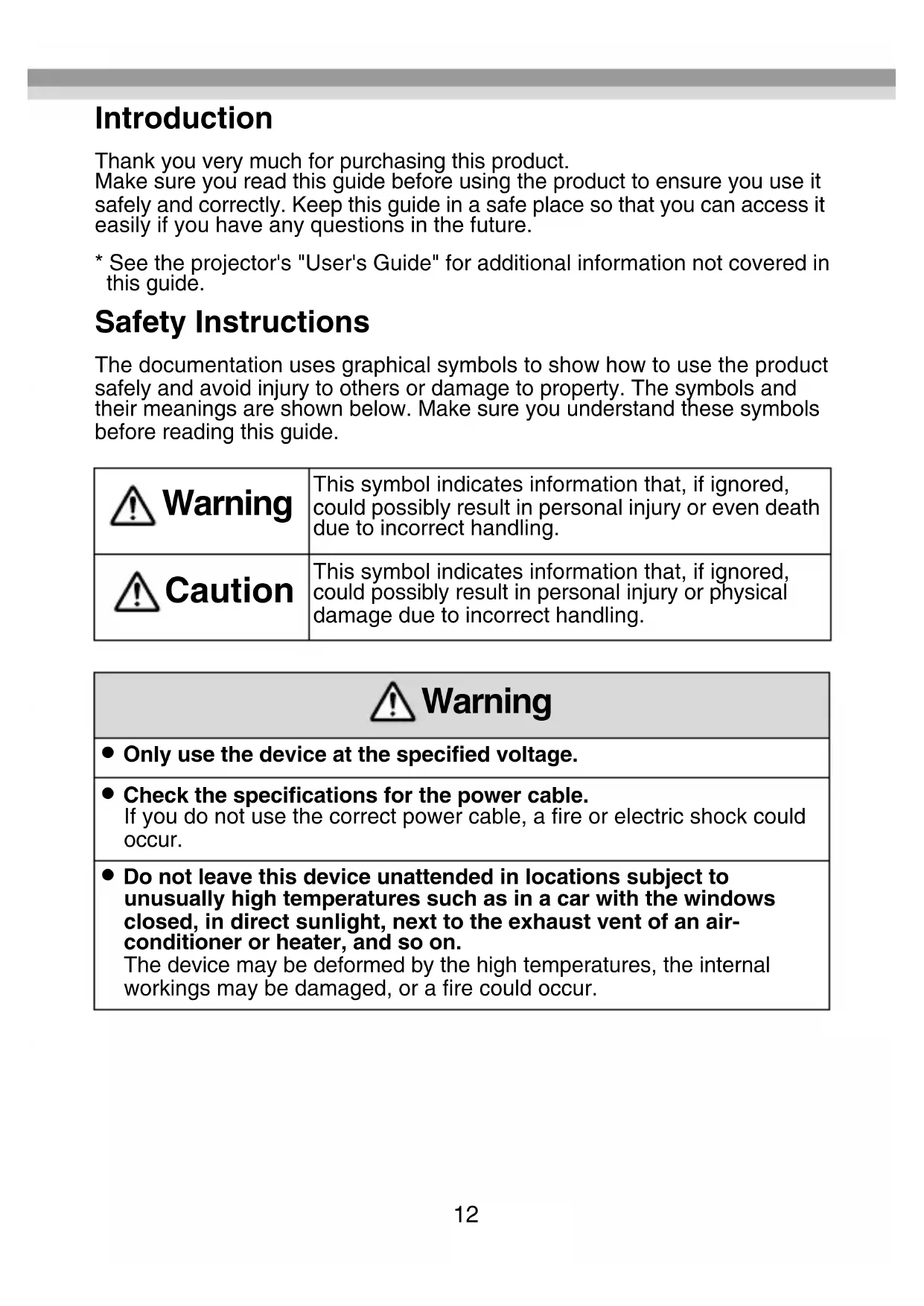

Thank you very much for purchasing this product.

Make sure you read this guide before using the product to ensure you use it safely and correctly. Keep this guide in a safe place so that you can access it easily if you have any questions in the future.

* See the projector's "User's Guide" for additional information not covered in this guide.

Safety Instructions

The documentation uses graphical symbols to show how to use the product safely and avoid injury to others or damage to property. The symbols and their meanings are shown below. Make sure you understand these symbols before reading this guide.

Warning	This symbol indicates information that, if ignored, could possibly result in personal injury or even death due to incorrect handling.
Caution	This symbol indicates information that, if ignored, could possibly result in personal injury or physical damage due to incorrect handling.

Warning

• Only use the device at the specified voltage.
• Check the specifications for the power cable.
  If you do not use the correct power cable, a fire or electric shock could occur.
• Do not leave this device unattended in locations subject to unusually high temperatures such as in a car with the windows closed, in direct sunlight, next to the exhaust vent of an air-conditioner or heater, and so on.
  The device may be deformed by the high temperatures, the internal workings may be damaged, or a fire could occur.

Take care when handling the power plug.If it is not handled correctly, a fire or electric shock could occur. Note the following points when handling the plug.Do not overload wall outlets, extension cables, or power strips.Do not plug it in if there are any foreign substances, such as dust, attached to the plug.Make sure the plug is fully plugged in.Do not plug in or unplug if your hands are wet.Do not unplug by pulling on the power cable.Do not use a different power supply (AC adapter). Only use the one supplied.

Do not use a damaged power cable.Otherwise, a fire or electric shock could occur.Do not modify the power cable.Do not place heavy objects on the power cable.Do not apply excess force, bend, or twist the power cable.Do not perform wiring near an electric heater.

Do not install or use this device in locations subject to humidity or water such as outdoors, near a bath or shower, and so on.Otherwise, a fire or electric shock could occur.

Make sure this device is grounded (earthed).Connect the FG port on the device to an earth wire.

Do not touch the plug during a thunderstorm.Otherwise, an electric shock could occur.

Except as indicated in the "User's Guide", the case for this device should only be opened by qualified service personnel. Do not disassemble or remodel this device or its consumables.Many sections inside the device carry a high electrical charge which could cause a fire or electric shock to occur.

Do not place vases, containers containing water, or medical containers on this device.If any liquid spills from the container, a fire or electric shock could occur.

If you notice any of the following abnormalities, turn off the device immediately, unplug the power cable from the electrical outlet, and contact your local dealer or Epson service call center.If you see smoke coming from the device, or notice abnormal odors or sounds.If any water or foreign substances enter the device.If the device was dropped and the case was damaged.If you continue using the device in any of these states, a fire or electric shock could occur.Do not perform repairs yourself.

Caution

When moving the device, make sure you turn off the power, unplug the power cable from the electrical outlet, and disconnect any wiring before moving. Otherwise, a fire or electric shock could occur.

Do not install the device in a location subject to humidity or dust such as a kitchen counter or near a humidifier, or in a location subject to smoke or steam. Otherwise, a fire or electric shock could occur.

Do not install the device in the following locations. On a carpet, a bed, a blanket, and so on. Do not cover it with a blanket, curtain, tablecloth, and so on.

Do not place it on a surface that is slanted or unstable. Otherwise, it could fall and cause an injury.

When maintaining the device, do not use a wet cloth or solvents such as alcohol, benzene, or thinner. Otherwise, an electric shock or malfunction could occur.

Do not sit on this device, or place heavy objects on this device. Otherwise, an injury could occur.

When maintaining the device, make sure you unplug the power, unplug the power cable from the electrical outlet, and disconnect any wiring before performing maintenance. Otherwise, an electric shock could occur.

For safety reasons, when not using this device, make sure you unplug the power cable from the electrical outlet. If the insulation has degraded, a fire could occur.

Trademarks and Copyrights

HDMI and High-Definition Multimedia Interface are the trademarks or registered trademarks of HDMI Licensing LLC.

HDBaseT™ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.

Other product names used herein are also for identification purposes only and may be trademarks of their respective owners. Epson disclaims any and all rights in those marks.

©SEIKO EPSON CORPORATION 2013. All rights reserved.

Notes on Usage and Storage

• Do not drop the device or subject it to shocks.
• Use and store the device under the following conditions.

Power (AC adapter): 100 to 240 V AC ±10% 50/60 Hz Operating temperature: +5 to +35°C (41 to 95 °F); no condensation Storage temperature: -10 to +60°C (14 to 140 °F); no condensation

• Do not install it in a location subject to vibrations or shocks.
• Do not use or store the device in locations subject to high or low temperatures. Avoid sudden changes in temperature. Otherwise, the device may not operate correctly.

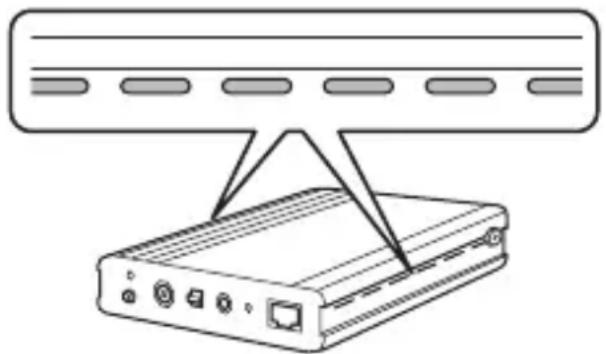

• Make sure there is a gap of at least 20 mm (0.8 inch) between the device and the walls on the left and right to prevent the air vents on the side from being blocked, and a gap of at least 25 mm (1 inch) above the device.

Line drawing of a portable electronic device with ports and cables, no text or symbols present

• Do not install the device near high-voltage lines or magnetic equipment. Otherwise, the device may not operate correctly.
• Because it can be easily influenced by internal noise, make sure the LAN cable is completely unwound and stretched out when installing.
• Do not twist or bend the LAN cable.
• Do not tie the LAN cable together with other cables. In particular, make sure that it is separated from the power cable.
• Do not loosen any screws except for the FG port screw.
• Make sure the earth wire is grounded before use.
• Connect all necessary cables before turning on the device.
• During communication, do not turn on/off this device or the projector, and do not connect or disconnect any cables.

* If you notice any operational abnormalities or damage, stop using the device immediately and contact your local dealer or the nearest Epson repair center mentioned in the projector's "User's Guide". * This is an optional device made exclusively for Epson projectors. See the projector's "User's Guide" for more information on handling this device.

Function Overview

This transmitter allows long-distance transmission of an HDMI and control (RS-232C) signal using a LAN cable (category 5e or 6). This device is based on the HDBaseT standard.

This device is useful when you want to control the projector from a remote location, such as in a hall or event site, since you can use a LAN cable up to 100 m (328 feet) in length.

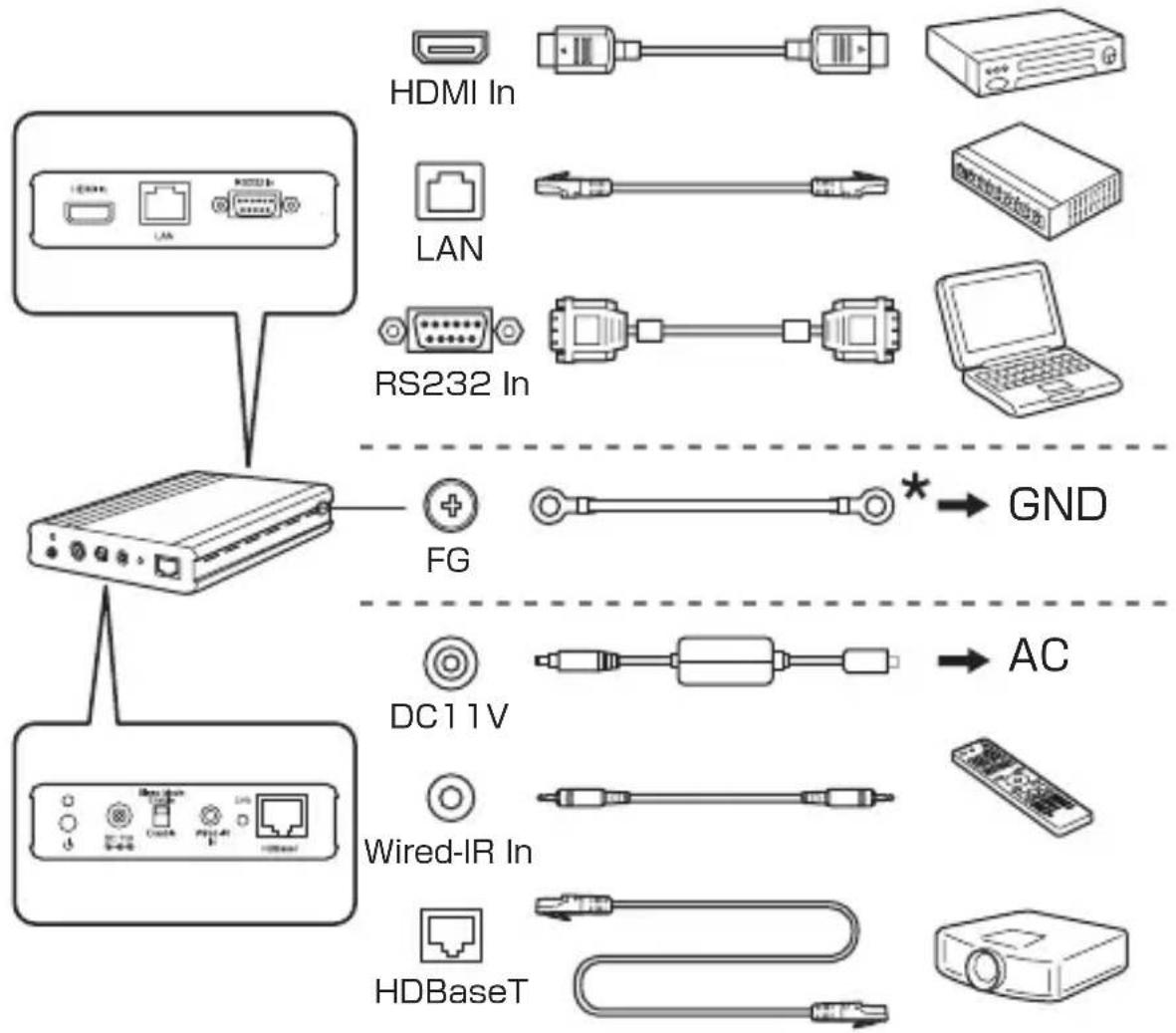

Connecting

Connect the projector to the HDBaseT port on this device using a LAN cable. Then connect this device to your HDMI compatible video equipment or a computer to control the projector with.

* Fix this with an M4 screw.

Interface

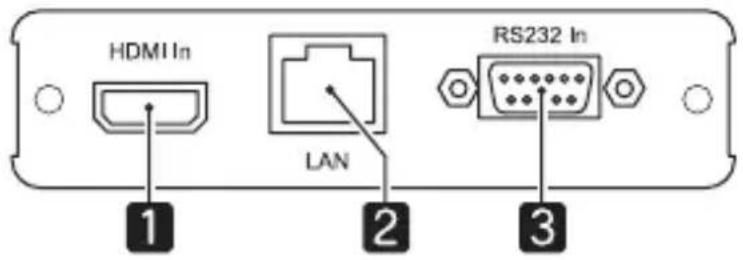

Front

HDMI In LAN RS232 In 1 2 3

Z

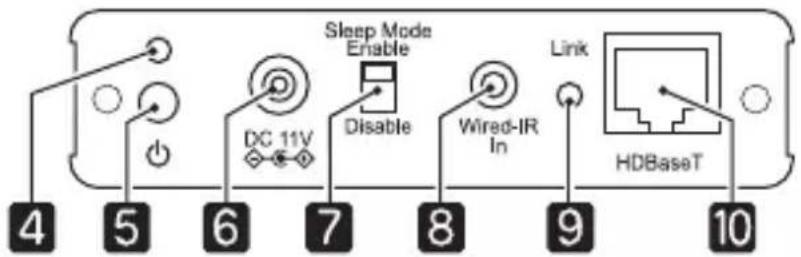

Rear

Sleep Mode Enable DC 11V Disable Wired-IR In Link HDBaseT 4 5 6 7 8 9 10

	Name Function
1	HDMI In port Inputs	video and audio signals from HDMI compatible video equipment and computers.
2	LAN port (for control)	Allows the device to connect to a network using a LAN cable. Connect when controlling the projector from a computer over a network.
3	RS-232 In port (for control)	Allows the device to connect to a computer using a RS-232C cable. Connect when controlling the projector from a computer.
4	Power indicator Ind	icates the operating status of the device.On green: Device is operating.On orange: Device is standing by.
5	Power button Turns	the device on/off.This device supports Direct Power On. This feature allows the projector to turn on automatically when power is supplied to it.
6	Power inlet Connects the AC adapter's power plug.Do not use a different power supply (AC adapter/ power cable). Only use the one supplied.Note that when the power cable is plugged in, this device turns on automatically (Direct Power On)when power is restored after a power outage.
7	[Sleep Mode] switch	When set to [Enable], the device automatically enters sleep mode and turns off after 30 minutes if no signals are input. Press the power button to turn the device back on.When set to [Disable], the device does not turn off automatically. When monitoring and controlling using HDBaseT, set this to [Disable] so that the device does not enter sleep mode.If the device is connected to an access point over a LAN connection, it will not turn off even when sleep mode is enabled.
8	Wired-IR In port Connects the projector's optional remote control cable set (ELPKC28) and inputs signals from the remote control.
9	Link indicator Turns green when communicating with the projector.
10	HDBaseT port Allows the device to connect to a projector using a LAN cable.
11	FG connector (earth)	Grounds the earth wire.

Supported LAN Cables

Use a category 5e or category 6 straight STP cable. When using a cable, use a tester to check that the cable's properties are at least category 5e before connecting. When using a relay connector, make sure the connecting cables meet the specifications mentioned above.

Troubleshooting

Problem Solution
No images appear Is the power on?Check that the Power indicator is green.
The remote control does not work	Is the remote control cable connected correctly? Check that the remote control cable is securely connected to the connectors on the remote control and this device.
	Do the remote control ID and the projector ID match? Make sure the ID for the projector you want to operate and the ID for the remote control match.
	Is a remote control from another company connected? Remote controls from other companies are not supported.
	Is the device ready to communicate? See the following entry "Cannot communicate".
Cannot communicate (Cannot control from the LAN, RS-232 In, or Wired-IR In ports)	Is the HDBaseT function enabled for the connected projector? Check the projector's settings.
	Has the device entered sleep mode? In sleep mode, the device cannot be controlled from the RS-232 In or Wired-IR In ports. Set the [Sleep Mode] switch to [Disable].
	Was the power turned on/off or a cable connected or disconnected during communication? A communication error occurs if the power or the signal is disrupted during communication.

Specifications

HDBaseT port RJ45	/Cable length 100 m (328 feet) maximum
Supported output signals (HDBaseT)	HDMI (Video, Audio)/RS-232 (for control)/Wired IR (Remote Control)/LAN (for control)
HDMI In port HDMI	HDCP supported (only PCM supported for audio)/Cable length 3 m (9.8 feet) maximum
HDMI input signals	VGA/SVGA/XGA/WXGA/WXGA+/WXGA++/WSXGA+/SXGA/SXGA+/UXGA/WUXGA/SDTV(480i/480p)/SDTV(576i/576p)/HDTV(720p)/HDTV(1080i)/HDTV(1080p)* Varies depending on the connected projector. For more details, see the projector's "User's Guide".
LAN port RJ45 (100)	Base-TX only)
RS-232 In port Mini	D-Sub 9 pin (male)/Cable length 5 m (16.5 feet) maximum (cross cable)
Wired-IR In port	Stereo mini jack (3.5 Φ)/Cable length 20 m (65.6 feet) maximum
Power supply (AC adapter)	100 to 240 V AC ±10% 50/60 Hz
Power (ELPHD01)	11 VDC
Power consumption	Operating: 6 WStanding by: 0.48 W
Operating environment	Temperature: +5 to +35°C (41 to 95 °F)Humidity: 20 to 80% (no condensation)
Storage environment	Temperature: -10 to +60°C (14 to 140 °F)Humidity: 10 to 90% (no condensation)
Dimensions (W x H x D)	102 x 25 x 102 mm (4 x 1 x 4 inches); not including projecting parts
Mass Approx. 280 g
Items Included HDB	aseT Transmitter, AC adapter, power cable, earth wire

Wiring for the RS-232 In Port

Use an RS-232C cross cable.

- Signal name

Connector Pin Signal	Name Function
○	2 RD Receive data
	3 TD Transmit data
	5 GND Signal wire ground

- Communications protocol

Default baud rate setting: 9,600 bps, Data length: 8 bit, Parity: None, Stop-bit: 1 bit, Flow control: None

Introduction

HDBaseT™ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.

©SEIKO EPSON CORPORATION 2013. All rights reserved.

Line drawing of a device with ports and cables, no text or symbols present

HDBaseT™ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.

© SEIKO EPSON CORPORATION 2013. All rights reserved.

Line drawing of a device with ports and cables, no text or symbols present

HDBaseT™ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.

©SEIKO EPSON CORPORATION 2013. All rights reserved.

T

Line drawing of a device with ports and cables, no text or symbols present

HDBaseT™ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.

©SEIKO EPSON CORPORATION 2013. All rights reserved.

Line drawing of a device with ports and cables, no text or symbols present

HDBaseT™ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.

©SEIKO EPSON CORPORATION 2013. All rights reserved.

Line drawing of a device with ports and cables, no text or symbols present

©SEIKO EPSON CORPORATION 2013. All rights reserved.

本产品中有毒有害物质或元素的名称及含量

Line drawing of a device with ports and cables, no text or symbols present

HDBaseT™ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.

©SEIKO EPSON CORPORATION 2013. All rights reserved.

使用及存放注意事項

Line drawing of a device with ports and cables, no text or symbols present

FCC Compliance Statement For United States Users

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

●Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

For United States Users

In North America, wiring needs to be fireproofed as defined in NFPA70. Make sure you use a suitable LAN cable when performing wiring.

For Canadian Users

This Class B digital apparatus complies with Canadian ICES-003.

For users in Turkey:

In Conformity with the Turkish EEE Regulation.

Abstract geometric symbol with a star-like shape inside a circle, labeled '001' below (no text or symbols within the graphic itself)

WARNING: The cords included with this product contain chemicals, including lead, known to the State of California to cause birth defects or other reproductive harm. Wash hands after handling. (This notice is provided in accordance with Proposition 65 in Cal. Health & Safety Code § 25249.5 and following.)

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

For users outside the Province of Buenos Aires, Argentina:

This information only applies to customers in the Province of Buenos Aires, Argentina, according to Law No. 14321 in the Province of Buenos Aires (excluding the City of Buenos Aires) on waste electrical and electronic equipment (WEEE).

For other countries and other locations, please contact your local government to investigate the possibility of recycling your product.
