USER MANUAL X2210 BLACK & DECKER

BLACK+ DECKER™

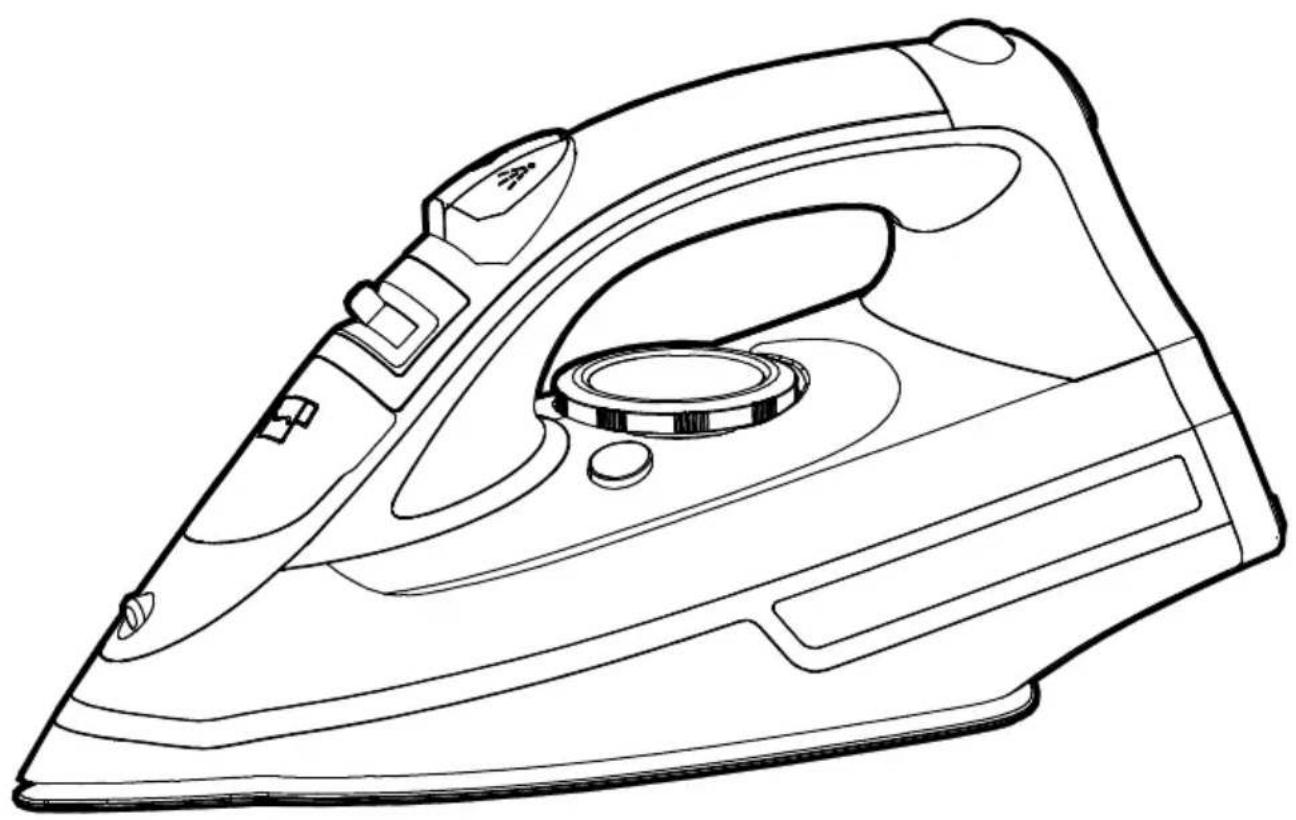

Line drawing of a steam iron with internal components (no text or symbols)

ENGLISH

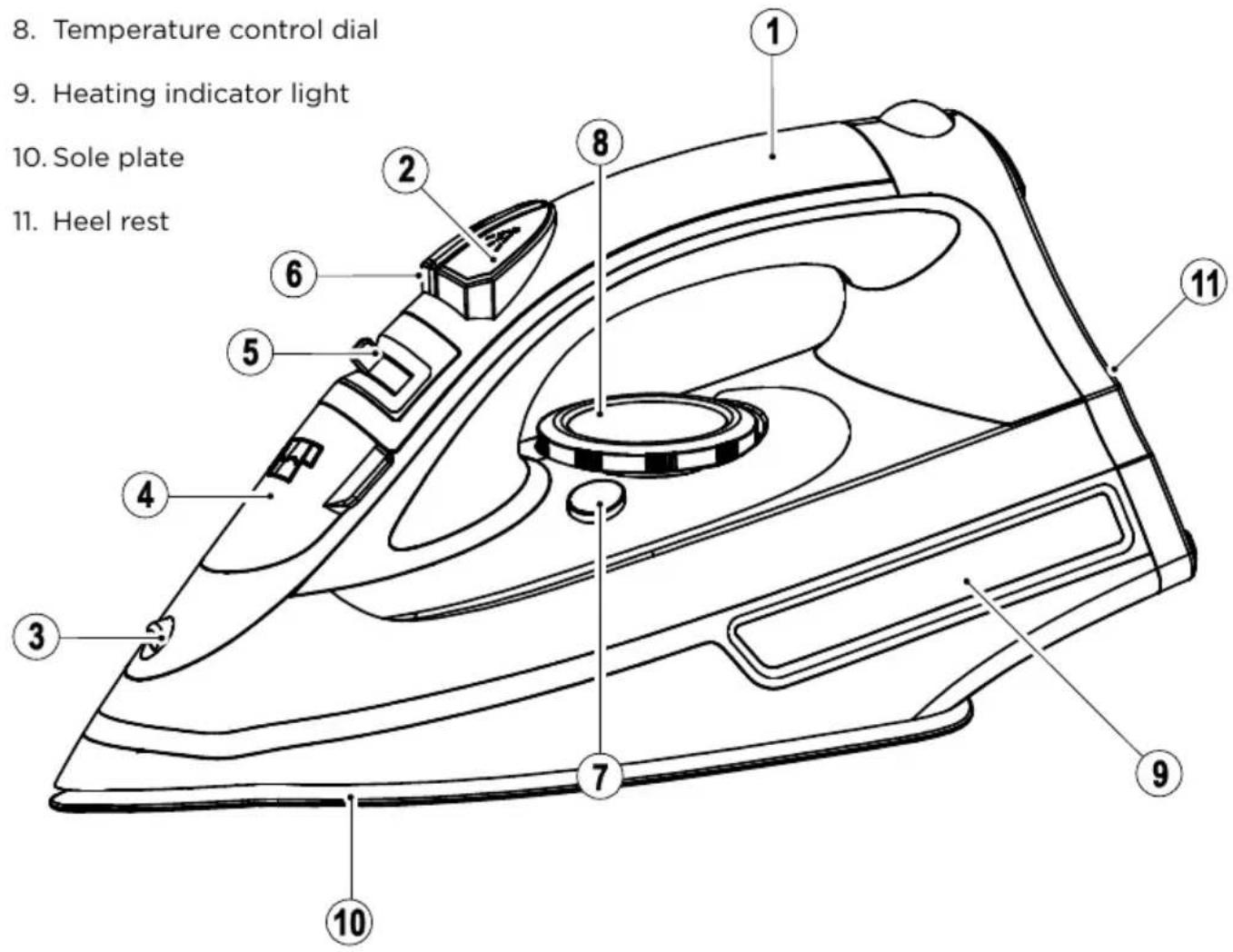

Parts Identification

1. Handle
2. Spray button
3. Spray nozzle
4. Water tank cover
5. Steam control
6. Steam burst button
7. Self clean
8. Heating indicator light
9. Sole plate

10. Heel rest

11. Temperature control dial

8. Temperature control dial 9. Heating indicator light 10. Sole plate 11. Heel rest

Intended use

Your Black & Decker iron has been designed to remove creases from fabrics using heat & steam and is not to be used for any other purpose.

This appliance is intended for use in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments. This product is not intended for regular use

Read this entire manual carefully before using the appliance.

Denotes the risk of electric shock.

Safety instructions

Warning! When using mains-powered appliances, basic safety precautions, including the following, should always be followed to reduce the risk of fire, electric shock, personal injury and material damage.

• The intended use is described in this manual. The use of any accessory or attachment or the performance of any operation with this appliance other than those recommended in this instruction manual may present a risk of personal injury.
• Retain this manual for future reference.
• Always route the cord carefully to avoid a tripping hazard.
• Never operate an appliance directly below the socket-outlet it is connected to.

Using your appliance

• Always take care when using the appliance.
- Do not use the appliance outdoors.
- Do not operate the appliance if your hands are wet. Do not operate the appliance if you are barefoot.
- Guide the power supply cord neatly so it does not hang over the edge of a worktop and cannot be caught accidentally or tripped over.

- Never pull the power supply cord to disconnect the plug from the socket. Keep the power supply cord away from heat, oil and sharp edges.

- If the power supply cord is damaged during use, disconnect the appliance from the power supply immediately. Do not touch the power supply cord before disconnecting from the power supply.

- Disconnect the appliance from the power supply when not in use and before cleaning.

Safety of others

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.

ENGLISH

• Do not allow children or any person unfamiliar with these instructions to use the appliance.
• Do not allow children or animals to come near the work area or to touch the appliance or power supply cord.
• Close supervision is necessary when the appliance is used near children.

After use

• Switch off and remove the plug from the socket before leaving the appliance unattended and before changing, cleaning or inspecting any parts of the appliance.
• When not in use, the appliance should be stored in a dry place. Children should not have access to stored appliances.

Inspection and repairs

- Before use, check the appliance for damaged or defective parts. Check for breakage of parts, damage to switches and any other conditions that may affect its operation.

- Do not use the appliance if any part is damaged or defective.

- Have any damaged or defective parts repaired or replaced by an authorised repair agent.

- Before use, check the power supply cord for signs of damage, ageing and wear.

- Do not use the appliance if the power supply cord or mains plug is damaged or defective.

- If the power supply cord or mains plug is damaged or defective it must be repaired by an authorised repair agent in

order to avoid a hazard. Do not cut the power supply cord and do not attempt to repair it yourself.

• Never attempt to remove or replace any parts other than those specified in this manual.
• Do not attempt to repair the appliance. Take it to your nearest Black & Decker-owned or authorised Service Centre for repair.

Electrical safety

This product must be earthed. Always check that the power

supply corresponds to the voltage on the rating plate.

- Power plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (Class 1) appliances. Unmodified plugs and matching outlets will reduce the risk of electric shock.

Extension cables & Class 1 product

- A 3-core cable must be used as your appliance is earthed and of Class 1 construction.

- Up to 30m (100ft) can be used without loss of power.

To avoid the risk of electric shock, do not immerse the cord, plug or appliance in water or other liquid.

- If the supply cord is damaged, it must be replaced by the manufacturer or an authorized Black & Decker Service Center in order to avoid a hazard.

Additional safety instructions for irons

• Always route the cord carefully to avoid a tripping hazard.
- Do not use the appliance near water.
- Do not place the appliance near heat sources or directly under cabinets. Do not use the appliance in the presence of explosive or flammable materials.
- The filling aperture must not be opened during use.
- Steam may escape from the soleplate.
- Surfaces may be hot during use and during the cool down period.
- Set the temperature control dial to the min position before plugging in or out.
- Let the appliance cool down before leaving it unattended and before cleaning or inspecting any parts of the appliance.
- The power supply cord should not touch the hot soleplate during use or during the cool down period.
- Do not touch the soleplate until it has cooled down.
- Wait until the appliance has cooled down before emptying the water tank as the water may still be hot.
- Do not immerse the appliance, cored set or plug in liquids
• Always disconnect the appliance from the supply before filling, emptying,

cleaning, or carrying out any maintenance on the appliance.

• The iron must not be left unattended while it is connected to the supply mains
- The plug must be removed from the socketoutlet before the water reservoir is filled with water.

- The iron must be used and rested on a stable surface.

- The iron is not to be used if it has been dropped, if there are visible signs of damage or if it is leaking.

Caution : Hot Surface.

Before first use

- Remove all packaging from the appliance.

- Clean the appliance before first use.

Warning! Before filling the appliance, make sure that the appliance is switched off and unplugged.

Filling the water tank

In order to be able to use the steam function, you will first need to fill the water tank with water.

• Make sure that the appliance is unplugged.
- Set the steam control to the no steam position.

- Hold the appliance at an angle.

- Fill the appliance with water using the beaker provided.

ENGLISH

Warning! Never fill above the maximum filling level indicated on the beaker provided. Normal tap water can be used, but if you live in a hard water area the use of distilled water is recommended. Do not use chemically de-scaled water.

Use

Warning! Do not leave the appliance unattended while it is connected to the power supply and during the cool down period.

Temperature setting

The required temperature setting depends on the garment fabric.

- Adjust the temperature control dial to the required setting:

- •Synthetics

- •• Silk/wool

- ... Cotton/Linen

If you are unsure of the fiber content of a garment: start with a low temperature setting and test on a small area (seam or inside hem). If wrinkles remain, gradually increase the heat setting until you find the optimum setting.

Using as a dry iron

- Stand the appliance on its heel rest.

- Plug the appliance in and switch on.

- Set the steam control to the no steam position.

- Adjust the temperature control dial to the required setting.

The heating light will switch off when the appliance has reached the required temperature.

Using as a steam iron

- Fill the water steam tank as described above.

- Stand the appliance on its heel rest.

- Adjust the temperature control dial to the required steam setting.

- Plug the appliance in and switch on.

- The heating light will switch on. Readiness for use is indicated by the colour of the heating light.

• To create steam, set the steam control to the steam position.

Using the steam burst button

The steam burst feature can only be used whilst ironing on a high temperature setting.

• Make sure that there is water in the tank and the temperature control dial is set to the high steam position.

- Lift the appliance and press the steam burst button. You may need to press a few times to activate the pump.

Self Clean

The self-clean function must be used before using the appliance for the first time and then regularly to remove scale.

• Fill the tank to the maximum filling level.

- Set the temperature control dial to the max position.

• Plug the appliance in and switch on.
• Allow the appliance to heat up until the heating light switches off and then on again.
• Unplug the appliance and hold it horizontally over the sink.
• Press the self-clean button

Warning! Hot water and steam will come out of the vents. Impurities and scale will be washed away.

• Move the iron backwards and forwards while this is happening.
• Release the self-clean button.
• Stand the appliance upright on its heel rest.
• Plug the appliance in and switch on.
• Iron an old cloth or towel to dry the soleplate.

Using the spray button

The spray feature can be used at any temperature setting when either steam or dry ironing.

• Make sure that there is water in the spray water tank.
- Press the spray button several times to activate the pump while you are ironing.

Anti-drip

This iron is equipped with a anti drip function: the iron automatically stops steaming when the temperature is too low to prevent water from dripping out of the soleplate.

Anti-calc

The Anti-calc function filters the minerals from the water to prevent mineral residue build up in the steam chamber.

Automatic shut off

If the iron is switched on and not moved for a period of 8 minutes while standing on its heel or 30 seconds while standing on the soleplate, an internal safety feature will switch the iron off and the auto-shutoff indicator will blink. Move the appliance sharply to switch it on again.

Heating indicator light

When the iron is switched on the heating indicator light will light up to reflect the temperature of the iron.

The temperature is indicated by the colour of the heating light:

Blue On
Green • Cool Synthetics
Yellow •• Warm Silk, wool
Purple ••• Hot Cotton, linen
Red Max	Denim

Cleaning and maintenance

Before cleaning and maintenance, remove the plug from the socket and allow the appliance to cool.

Warning! Before cleaning and maintenance, switch the appliance off, remove the plug from the socket and allow the appliance to cool.

Warning! Do not immerse the appliance, the cord set or the plug in water or any other liquid.

ENGLISH

• Pour out any remaining water after each use by tilting the appliance forward.
• Wipe the exterior with a damp cloth.
• Wipe scale and other residues off the soleplate with a damp cloth.
• Do not use scouring pads.
• If necessary, use a mild detergent to remove spots.
• Do not use any abrasive or solvent based cleaner.
• Do not immerse the appliance in water or any other liquid.

Technical data

X2210

Voltage/ Supply 220-240V 50/60Hz

Power consumption 2200-2600W

Weight 1.38kg

Protecting the environment

Separate collection. This product must not be disposed of with normal household waste.

Should you find one day that your Black & Decker product needs replacement, or if it is of no further use to you, do not dispose of it with household waste. Make this product available for separate collection.

- Black & Decker provides a facility for recycling Black & Decker products once they have reached the end of their working life. This service is provided free of charge. To take advantage of this service, please return your product to any authorised repair agent who will collect them on our behalf.

- You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual. Alternatively, a list of authorized Black & Decker repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com.

Warranty

Black & Decker is confident of the quality of its products and offers an outstanding warranty.

This warranty statement is in addition to and in no way prejudices your statutory rights.

The warranty is valid within the territories of the Member States of the European Union and the European Free Trade Area.

If a Black & Decker product becomes defective due to faulty materials, workmanship or lack of conformity, within 24 months from the date of purchase, Black & Decker warranty to replace defective parts, repair products subjected to fair wear and tear or replace such products to ensure minimum inconvenience to the customer unless:

The product has been used for trade, professional or hire purposes;

The product has been subjected to misuse or neglect;

The product has sustained damage through foreign objects, substances or accidents;

Repairs have been attempted by persons other than authorised repair agents or Black & Decker service staff.

To claim on the warranty, you will need to submit proof of purchase to the seller or an authorised repair agent. You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual.

Alternatively, a list of authorised Black & Decker repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com.
