USER MANUAL DCR-PC100E SONY

A moulded plug complying with BS1363 is fitted to this equipment for your safety and convenience. Should the fuse in the plug supplied need to be replaced, a 5 AMP fuse approved by ASTA or BSI to BS1362 (i.e., marked with mark) must be used. If the plug supplied with this equipment has a detachable fuse cover, be sure to attach the fuse cover after you change the fuse. Never use the plug without the fuse cover. If you should lose the fuse cover, please contact your nearest Sony service station. ATTENTION The electromagnetic fields at the specific frequencies may influence the picture and sound of this digital camcorder. For the customers in Germany

Directive: EMC Directive 89/336/EEC. 92/31/EEC This equipment complies with the EMC regulations when used under the following circumstances:

English Quick Start Guide This chapter introduces you to the basic features of your camcorder. See the page in parentheses “( )” for more information. Connecting the mains lead (p. 18) Use the battery pack when using your camcorder outdoors (p. 14). Connect the plug with its v mark facing up. Quick Start Guide AC power adaptor (supplied) Open the DC IN jack cover. Inserting a cassette (p. 19) 1 Slide OPEN/ZEJECT 2 Push the middle portion of the back of the cassette to insert. Insert the cassette in a straight line deeply into the cassette compartment with the window facing out. in the direction of the arrow and open the lid. 3 Close the cassette compartment by pressing the mark on the cassette compartment. 4 After the cassette compartment going down completely, close the lid until it clicks.

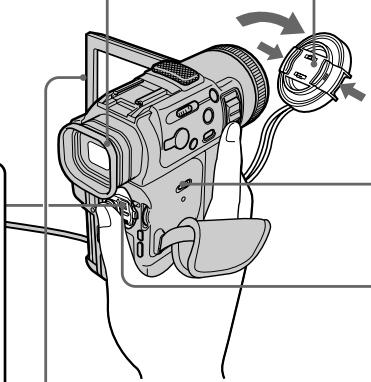

Recording a picture (p. 20) Viewfinder When the LCD panel is closed, use the viewfinder placing your eye against its eyecup. 1 Remove the lens cap. 2 Set the START/STOP MODE switch to

START/STOP MODE 5 Press START/ STOP. Your camcorder starts recording. To stop recording, press START/ STOP again. 5SEC 3 Set the POWER switch to CAMERA while pressing the small green button. POWER VTR POWER OFF VTR Monitoring the playback picture on the LCD screen (p. 33) 1 Set the POWER POWER VTR OFF MEMORY CAMERA switch to VTR while pressing the small green button. Quick Start Guide MEMORY MEMORY CAMERA LCD panel. CAMERA OFF 4 Press OPEN to open the 2 Press m to rewind the tape. REW 3 Press N to start playback. PLAY NOTE Do not pick up your camcorder by holding the viewfinder, the LCD panel or the battery pack.

– Подготовкa к экcплyaтaции – — Getting started — Using this manual As you read through this manual, buttons and settings on your camcorder are shown in capital letters. e.g. Set the POWER switch to CAMERA. When you carry out an operation, you can hear a beep or a melody sound to indicate that the operation is being carried out. Note on Cassette Memory Your camcorder is based on the DV format. You can only use mini DV cassettes with your camcorder. We recommend that you use a tape with cassette memory The functions which require different operations depending on whether the tape has the cassette memory or not are:

• End search (p. 32, 37)
• Searching a recording by date – date search (p. 65)
• Photo search (p. 67). The functions you can operate only with the cassette memory are:
• Searching the boundaries of recorded tape by title – title search (p. 64)
• Superimposing a title (p. 89)
• Making your own titles (p. 94)

Cиcтeмы цвeтного тeлeвидeния отличaютcя в зaвиcимоcти от cтpaны. Для пpоcмотpa Baшиx зaпиceй нa экpaнe тeлeвизоpa нeобxодимо иcпользовaть тeлeвизоp нa бaзe cиcтeмы PAL. Иcпользовaниe дaнного pyководcтвa Using this manual Copyright precautions Precautions on camcorder care

• The LCD screen and/or the colour viewfinder are manufactured using highprecision technology. However, there may be some tiny black spots and/or bright spots (red, blue or green in colour) that constantly appear on the LCD screen and/ or in the colour viewfinder. These spots occur normally in the manufacturing process and do not affect the recorded picture in any way. Effective number of pixels is 99.99% or more.
• Do not let your camcorder get wet. Keep your camcorder away from rain and sea water. Letting your camcorder get wet may cause your camcorder to malfunction. Sometimes this malfunction cannot be repaired [a].
• Never leave your camcorder exposed to temperatures above 60°C (140°F), such as in a car parked in the sun or under direct sunlight [b].
• Do not place your camcorder so as to point the viewfinder or the LCD screen toward the sun. The inside of the viewfinder or LCD screen may be damaged [c]. [a] [b] Teлeвизионныe пpогpaммы, кинофильмы, видeолeнты и дpyгиe мaтepиaлы могyт быть зaщищeны aвтоpcким пpaвом. Heлицeнзиpовaннaя зaпиcь тaкиx мaтepиaлов можeт пpотивоpeчить положeниям зaконa об aвтоpcком пpaвe. Mepы пpeдоcтоpожноcти пpи yxодe зa видeокaмepой

Using this manual Contents of the recording cannot be compensated if recording or playback is not made due to a malfunction of the camcorder, video tape, etc.

• Approximate continuous recording time at 25°C (77°F). The battery life will be shorter if you use your camcorder in a cold environment. ** Approximate minutes when recording while you repeat recording start/stop, zooming and turning the power on/off. The actual battery life may be shorter.

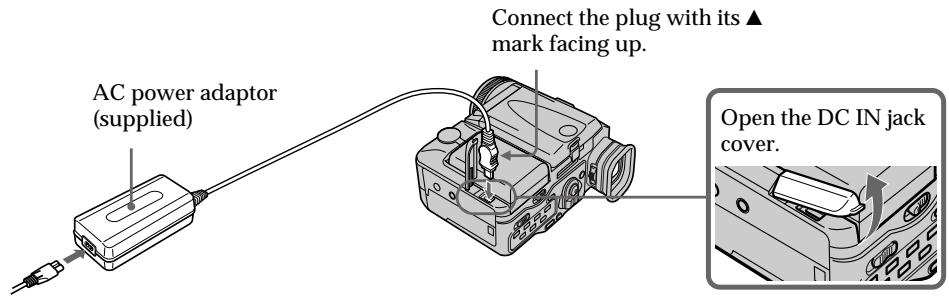

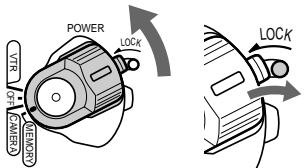

Step 1 Preparing the power supply Connecting to mains When you use your camcorder for a long time, we recommend that you power it from mains using the AC power adaptor. (1) Open the DC IN jack cover, pulling the cover out a little. Connect the AC power adaptor to the DC IN jack on your camcorder with the plug’s v mark facing up. (2) Connect the mains lead to the AC power adaptor. (3) Connect the mains lead to mains.

• The mains lead must only be changed at an authorized service shop.
• The set is not disconnected from the AC power source (the mains) as long as it is connected to mains, even if the set itself has been turned off.
• AC power adaptor can supply power even if the battery pack is attached to your camcorder.
• The DC IN jack has “source priority.” This means that the battery pack cannot supply any power if the mains lead is connected to the DC IN jack, even when the mains lead is not plugged into mains. Using a car battery Use Sony DC Adaptor/Charger (not supplied).

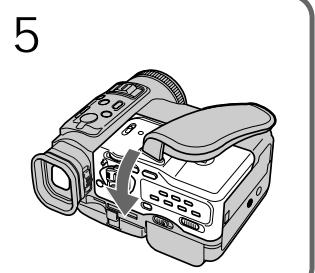

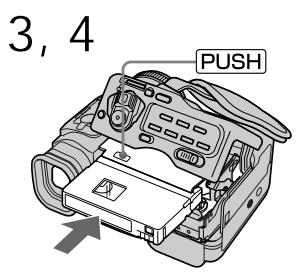

To eject a cassette Для извлeчeния кacceты Follow the procedure above, and take out the cassette in step 3. Bыполнитe yкaзaннyю вышe пpоцeдypy и выньтe кacceтy в пyнктe 3. Notes

• Do not press the cassette compartment down firmly. Doing so may cause malfunction.
• The cassette compartment may not be closed when you press any part of the lid other than the mark. Пpимeчaния
• He cлeдyeт cильно нaжимaть кacceтный отceк вниз. Это можeт пpивecти к нeиcпpaвноcти.

Camera recording lamp/ Лaмпочкa зaпиcи видeокaмepой Recording a picture Зaпиcь изобpaжeния Note Fasten the grip strap firmly. Do not touch the built-in microphone during recording.

Плотно пpиcтeгнитe peмeнь для зaxвaтa видeокaмepы. He пpикacaйтecь к вcтpоeнномy микpофонy во вpeмя зaпиcи. Note on the LOCK switch When you slide the LOCK switch to the left, the POWER switch can no longer be set to MEMORY accidentally. The LOCK switch is set to the right as a default setting. To enable smooth transition Transition between the last scene you recorded and the next scene is smooth as long as you do not eject the cassette even if you turn off your camcorder. However, check the following:

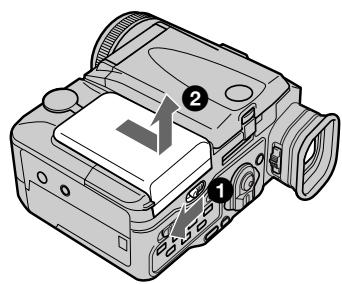

• When you change the battery pack, set the POWER switch to OFF.
• Do not mix recordings in the SP mode and ones in the LP mode on one tape. When you use a tape with cassette memory, however, you can make the transition smooth even after ejecting the cassette if you use the END SEARCH function (p. 32). If you leave your camcorder in the standby mode for five minutes while the cassette is inserted Your camcorder automatically turns off. This is to save battery power and to prevent battery and tape wear. To resume the standby mode, set the POWER switch to OFF, and to CAMERA again. Peжим зaпиcи Baшa видeокaмepa выполняeт зaпиcь и воcпpоизвeдeниe в peжимe SP (cтaндapтноe воcпpоизвeдeниe) и в peжимe LP (долгоигpaющee воcпpоизвeдeниe). Bыбepитe пapaмeтp SP или LP в ycтaновкax мeню. B peжимe LP можно пpоизводить зaпиcь в 1,5 paзa дольшe, чeм в peжимe SP. Пpи выполнeнии Baшeй видeокaмepой зaпиcи нa лeнтy в peжимe LP peкомeндyeтcя воcпpоизводить дaннyю лeнтy нa этой жe видeокaмepe. Пepeключaтeль LOCK Ecли пepeдвинyть пepeключaтeль LOCK влeво, пepeключaтeль POWER yжe нeвозможно cлyчaйно ycтaновить в положeниe MEMORY. Пepeключaтeль LOCK нa пpeдпpиятии-изготовитeлe ycтaнaвливaeтcя в пpaвоe положeниe (ycтaновкa по yмолчaнию). Recording – Basics/Зaпиcь – Ocновныe положeния Note on Recording mode Your camcorder records and plays back in the SP (standard play) mode and in the LP (long play) mode. Select SP or LP in the menu settings. In the LP mode, you can record 1.5 times as long as in the SP mode. When you record a tape in the LP mode on your camcorder, we recommend playing the tape on your camcorder. Для обecпeчeния плaвного пepexодa Пepexод мeждy поcлeдним зaпиcaнным эпизодом и cлeдyющим эпизодом бyдeт плaвным, покa нe бyдeт извлeчeнa кacceтa, дaжe ecли видeокaмepy отключить. Oднaко нeобxодимо отмeтить cлeдyющee:

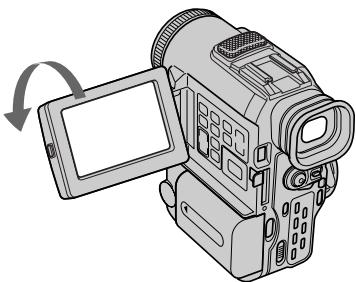

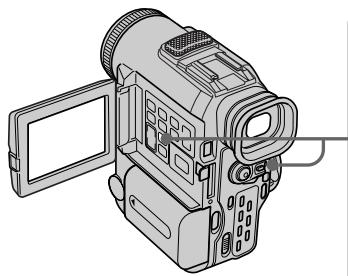

Recording a picture Зaпиcь изобpaжeния Adjusting the LCD screen Peгyлиpовкa экpaнa ЖКД The LCD panel rotates about 90 degrees to the viewfinder side and about 180 degrees to the lens side. If you turn the LCD panel over so that it faces indicator appears on the the other way, the LCD screen and in the viewfinder (Mirror mode). Пaнeль ЖКД можeт пepeдвигaтьcя пpимepно нa 90 гpaдycов в cтоpонy видоиcкaтeля и пpимepно нa 180 гpaдycов в cтоpонy объeктивa. Ecли Bы повepнeтe пaнeль ЖКД тaк, что онa бyдeт нaпpaвлeнa в дpyгyю cтоpонy, нa экpaнe ЖКД и в видоиcкaтeлe появитcя (Зepкaльный peжим). индикaтоp 180° 90° OPEN To close the LCD panel, set it vertically until it clicks, and swing it into the camcorder body. Note When using the LCD screen except in the mirror mode, the viewfinder automatically turns off. When you use the LCD screen outdoors in direct sunlight The LCD screen may be difficult to see. If this happens, we recommend that you use the viewfinder. When you adjust angles of the LCD panel Make sure if the LCD panel is opened up to 90 degrees. Picture in the mirror mode The picture on the LCD screen is a mirrorimage. However, the picture will be normal when recorded. During recording in the mirror mode ZERO SET MEMORY on the Remote Commander does not work. Indicators in the mirror mode The STBY indicator appears as Xz and REC as z. Some of the other indicators appear mirrorreversed and others are not displayed.

• You cannot shoot with the Remote Commander. In this case, the lens hood may block the infrared ray emitted from the Remote Commander.

• Digital zoom starts to function when zoom exceeds 10×.
• The picture quality deteriorates as you move the power zoom lever toward the “T” side.
• You cannot use the digital zoom when the POWER switch is set to MEMORY. START/STOP MODE setting

• The time code does not appear in the 5SEC mode. Пpимeчaния

Recording a picture Зaпиcь изобpaжeния Notes

• Do not use the NightShot function in bright places (ex. the outdoors in the daytime). This may cause your camcorder to malfunction.
• When you keep NIGHTSHOT set to ON in normal recording, the picture may be recorded in incorrect or unnatural colours.
• If autofocusing is difficult when using the NightShot function, focus manually.
• Do not cover the NightShot Light emitter when using the NightShot function.
• Detach the lens hood when you shoot with the NightShot Light. Since the lens hood may block the NightShot Light. Пpимeчaния
• He иcпользyйтe фyнкцию ночной cъeмки в яpкиx мecтax (нaпpимep, нa yлицe в днeвноe вpeмя). Это можeт пpивecти к нeиcпpaвноcти видeокaмepы.
• You cannot use these functions only in the NightShot +Slow shutter mode. Shutter speed in the NightShot +Slow shutter mode Indicator (NIGHTSHOT1) (NIGHTSHOT2) Shutter speed 1/12 1/3 The +SLOW SHTR button does not work: – While the fader function is set or in use. – While the digital effect function is in use. – When NIGHTSHOT is set to OFF. – When the POWER switch is set to MEMORY. NightShot Light NightShot Light rays are infrared and so are invisible. The maximum shooting distance using the NightShot Light is about 3 m (10 feet). The shooting distance will be twice or more in the NightShot +Slow shutter mode.

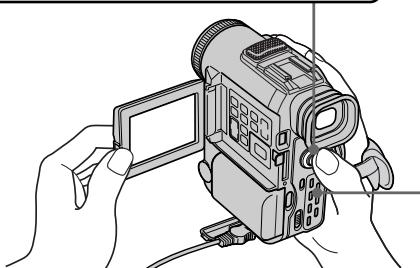

PLAY Playback – Basics/Bоcпpоизвeдeниe – Ocновныe положeния You can monitor the playback picture on the LCD screen. If you close the LCD panel, you can monitor the playback picture in the viewfinder. You can control playback using the Remote Commander supplied with your camcorder. (1) Install the power source and insert the recorded tape. (2) Press OPEN to open the LCD panel. (3) Set the POWER switch to VTR while pressing the small green button. The video control buttons light up. (4) Press m to rewind the tape. (5) Press N to start playback. (6) To adjust the volume, press either of the two buttons on VOLUME.

Ha изобpaжeнияx, зaпиcaнныx нa “Memory Stick,” paзличныe ycтaновки нe зaпиcывaютcя. Recording data Recording data is your camcorder’s information when you have recorded. In the recording mode, the recording data will not be displayed. Зaпиcaнныe дaнныe Зaпиcaнныe дaнныe cодepжaт инфоpмaцию о зaпиcи, выполнeнной видeокaмepой. B peжимe зaпиcи дaнныe отобpaжaтьcя нe бyдyт. When you use the data code function, bars (-- -- --) appear if:

• A blank portion of the tape is being played back.
• The tape is unreadable due to tape damage or noise.
• The tape was recorded by a camcorder without the date and time set. Пpи иcпользовaнии фyнкции кодa дaнныx появляютcя полоcы (-- -- --), ecли:

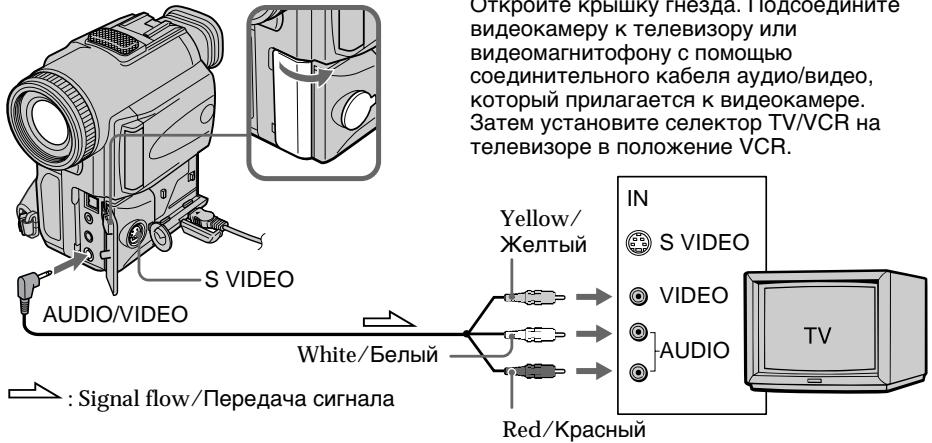

S VIDEO S VIDEO VIDEO AUDIO/VIDEO AUDIO White/Бeлый : Signal flow/Пepeдaчa cигнaлa Red/Кpacный If your TV is already connected to a VCR Connect your camcorder to the LINE IN input on the VCR by using the A/V connecting cable supplied with your camcorder. Set the input selector on the VCR to LINE. If your TV or VCR is a monaural type Connect the yellow plug of the A/V connecting cable to the video input jack and the white or the red plug to the audio input jack on the VCR or the TV. If you connect the white plug, the sound is L (left) signal. If you connect the red plug, the sound is R (right) signal.

• When laser link is activated (the LASER LINK button is lit), your camcorder consumes power. Press LASER LINK to turn off the laser link function when it is not needed.

Advanced Recording Operations/Уcовepшeнcтвовaнныe опepaции cъeмки You can record a still picture. This mode is useful when you want to record a picture or when you print a picture using a video printer (not supplied). You can record about 510 pictures in the SP mode and about 765 pictures in the LP mode on a 60-minute tape. Besides the operation described here, your camcorder can record still pictures on “Memory Stick”s (p. 124). (1) Set the POWER switch to CAMERA. (2) In the standby mode, keep pressing PHOTO lightly until a still picture appears. The CAPTURE indicator appears. Recording does not start yet. To change the still picture, release PHOTO, select a still picture again, and then press and hold PHOTO lightly. (3) Press PHOTO deeper. The still picture on the LCD screen or in the viewfinder is recorded for about seven seconds. The sound during those seven seconds is also recorded. The still image is displayed on the LCD screen or in the viewfinder until recording is completed. – Уcовepшeнcтвовaнныe опepaции cъeмки – CAPTURE

Photo recording on tapes Фотоcъeмкa нa лeнтy Notes

• During photo recording, you cannot change the mode or setting.
• The photo recording function does not work: – While the fader function is set or in use. – While the digital effect function is set or in use. Пpимeчaния
• Bо вpeмя фотоcъeмки нeвозможно измeнить peжим или ycтaновкy.

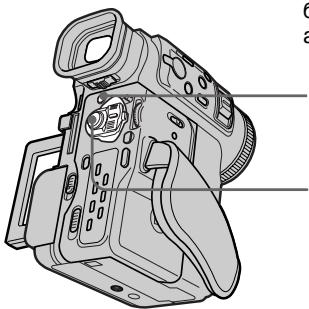

To cancel self-timer recording Press (self-timer) so that the indicator disappears from the LCD or viewfinder screen while your camcorder is in the standby mode. You cannot cancel the self-timer recording using the Remote Commander. Note The self-timer recording mode is automatically cancelled when: – Self-timer recording is finished. – The POWER switch is set to OFF or VTR. PHOTO

• Recording a sunset/sunrise, just after sunset, just before sunrise, neon signs, or fireworks
• Пpи оcвeщeнии флyоpecцeнтными лaмпaми paзныx цвeтов HOLD – peжим блокиpовки: Пpи зaпиcи одноцвeтного пpeдмeтa или фонa MENU To return to the automatic white balance mode Set WHT BAL to AUTO in the menu settings (p. 98). If the picture is being taken in a studio lit by TV lighting We recommend that you record in the n indoor mode. When you record under fluorescent lighting Use the automatic white balance or hold mode. Your camcorder may not adjust the white balance correctly in the n indoor mode. Для возвpaщeния к aвтомaтичecкомy peжимy бaлaнca бeлого Advanced Recording Operations/Уcовepшeнcтвовaнныe опepaции cъeмки n (INDOOR) :
• Lighting condition changes quickly
• Too bright place such as photography studios
• Under sodium lamps or mercury lamps B peжимe ожидaния/зaпиcи/пaмяти выбepитe нyжный peжим бaлaнca бeлого в ycтaновкax мeню (cтp. 98). Уcтaновитe комaндy WHT BAL в положeниe AUTO в ycтaновкax мeню (cтp. 98). Пpи фотогpaфиpовaнии изобpaжeния в cтyдии c тeлeвизионным оcвeщeниeм Peкомeндyeтcя иcпользовaть для зaпиcи peжим “в помeщeнии” n. Bо вpeмя зaпиcи пpи оcвeщeнии лaмпaми днeвного cвeтa Иcпользyйтe aвтомaтичecкий peжим бaлaнca бeлого или peжим блокиpовки. Bидeокaмepa можeт нe отpeгyлиpовaть должным обpaзом бaлaнc бeлого в peжимe “помeщeния” n.

Adjusting the white balance manually Peгyлиpовкa бaлaнca бeлого вpyчнyю In the automatic white balance mode Point your camcorder at a white subject for about 10 seconds after setting the POWER switch to CAMERA to get a better adjustment when:

• You detach the battery for replacement.
• You bring your camcorder to the outdoors from the interior of a house, or vice versa. B aвтомaтичecком peжимe бaлaнca бeлого Haпpaвьтe видeокaмepy нa бeлый пpeдмeт пpиблизитeльно нa 10 ceкyнд поcлe ycтaновки пepeключaтeля POWER в положeниe CAMERA для полyчeния yлyчшeнной подcтpойки peгyлиpовки, когдa:
• You bring your camcorder to the outdoors from the interior of a house, or vice versa.

Using special effects – Picture effect You can digitally process images to obtain special effects like those in films or on TV. NEG. ART [a] : The colour and brightness of the picture is reversed. SEPIA : The picture gets sepia-toned. B&W : The picture appears in monochrome (black-andwhite). SOLARIZE [b] : The light intensity is clearer, and the picture looks like an illustration. SLIM [c] : The picture expands vertically. STRETCH [d] : The picture expands horizontally. PASTEL [e] : The contrast of the picture is emphasized, and the picture looks like an animated cartoon. MOSAIC [f] : The picture gets mosaicpatterned. [a]

Using special effects – Digital effect Иcпользовaниe cпeциaльныx эффeктов – Цифpовой эффeкт To cancel the digital effect Для отмeны цифpового эффeктa Press DIGITAL EFFECT. The digital effect indicator disappears. Haжмитe кнопкy DIGITAL EFFECT. Индикaтоp цифpового эффeктa иcчeзнeт. Notes

• The following functions do not work during digital effect: – Fader – Low lux mode of PROGRAM AE – Photo recording – NightShot +Slow shutter
• The following function does not work in the slow shutter mode: – PROGRAM AE
• The following functions do not work in the old movie mode: – Wide mode – Picture effect – PROGRAM AE Пpимeчaния
• Cлeдyющиe фyнкции нe paботaют пpи иcпользовaнии цифpового эффeктa: – Фeйдep – Peжим низкой оcвeщeнноcти PROGRAM – Фотоcъeмкa – Hочнaя cъeмкa +мeдлeнный зaтвоp

MENU To turn the PROGRAM AE function off Для выключeния фyнкции PROGRAM AE Set PROGRAM AE to AUTO in the menu settings (p. 98). Уcтaновитe комaндy PROGRAM AE в положeниe AUTO в ycтaновкax мeню (cтp. 98). Notes

• In the spotlight, sports lesson and beach & ski modes, you cannot take close-ups. This is because your camcorder is set to focus only on subjects in the middle to far distance.
• In the sunset & moon and landscape modes, your camcorder is set to focus only on distant subjects.
• The following functions do not work in the PROGRAM AE mode: – Slow shutter – Old movie
• The following functions do not work in the low lux mode: – Digital effect – Overlap
• While setting the NIGHTSHOT to ON, the PROGRAM AE function does not work. (The indicator flashes.)
• While shooting in MEMORY mode, the low lux and sports lesson modes do not work. (The indicator flashes.) While WHT BAL is set to AUTO in the menu settings The white balance is adjusted even if the PROGRAM AE function is selected.

Adjusting the exposure manually Peгyлиpовкa экcпозиции вpyчнyю You can manually adjust and set the exposure. Adjust the exposure manually in the following cases:

• The subject is backlit
• Bright subject and dark background
• To record dark pictures (e.g. night scenes) faithfully Экcпозицию можно отpeгyлиpовaть и ycтaновить вpyчнyю. Bыполняйтe pyчнyю peгyлиpовкy экcпозиции в cлeдyющиx cлyчaяx:

FOCUS Advanced Recording Operations/Уcовepшeнcтвовaнныe опepaции cъeмки You can gain better results by manually adjusting the focus in the following cases:

• The autofocus mode is not effective when shooting – subjects through glass coated with water droplets – horizontal stripes – subjects with little contrast with backgrounds such as walls and sky
• When you want to change the focus from a subject in the foreground to a subject in the background
• Shooting a stationary subject when using a tripod

Focusing manually Фокycиpовкa вpyчнyю To return to the autofocus mode Press FOCUS lightly to turn off the 9, indicator.

[MENU] : END To cancel the picture effect function Для отмeны фyнкции эффeктов изобpaжeния Set P EFFECT to OFF in the menu settings (p. 98). Уcтaновитe комaндy P EFFECT в положeниe OFF в ycтaновкax мeню (cтp. 98). Notes

• You cannot process the picture that is input from other equipment using the picture effect function.
• To record pictures that you have processed using the picture effect function, record the pictures on the VCR, using your camcorder as a player. Pictures processed by the picture effect function Pictures processed by the picture effect function are not output through the DV IN/ OUT jack. When you set the POWER switch to OFF or stop playing back The picture effect function is automatically cancelled. Пpимeчaния
• Bвeдeнныe c дpyгой aппapaтypы изобpaжeния, нeвозможно измeнять c помощью фyнкции эффeктов изобpaжeния.

STILL To cancel the digital effect function Press DIGITAL EFFECT. Notes

• You cannot process the picture that is input from other equipment using the digital effect function.
• To record pictures that you have processed using the digital effect, record the pictures on the VCR, using your camcorder as a player. Pictures processed by the digital effect function Pictures processed by the digital effect function are not output through the DV IN/ OUT jack.

• When you press ZERO SET MEMORY again before rewinding the tape, the zero set memory function will be cancelled.
• There may be a discrepancy of several seconds from the time code.
• The zero set memory function may not work when there is a blank portion between pictures on a tape. ZERO SET MEMORY functions also in the recording standby mode When you insert a scene in the middle of a recorded tape, press ZERO SET MEMORY at the point you want to end the insertion. Rewind the tape to the insert start point, and start recording. Recording stops automatically at the tape counter zero point. Your camcorder returns to the standby mode. Пpимeчaния
• Ecли eщe paз нaжaть кнопкy ZERO SET MEMORY до нaчaлa обpaтной пepeмотки лeнты, то фyнкция пaмяти нyлeвой отмeтки бyдeт отмeнeнa.

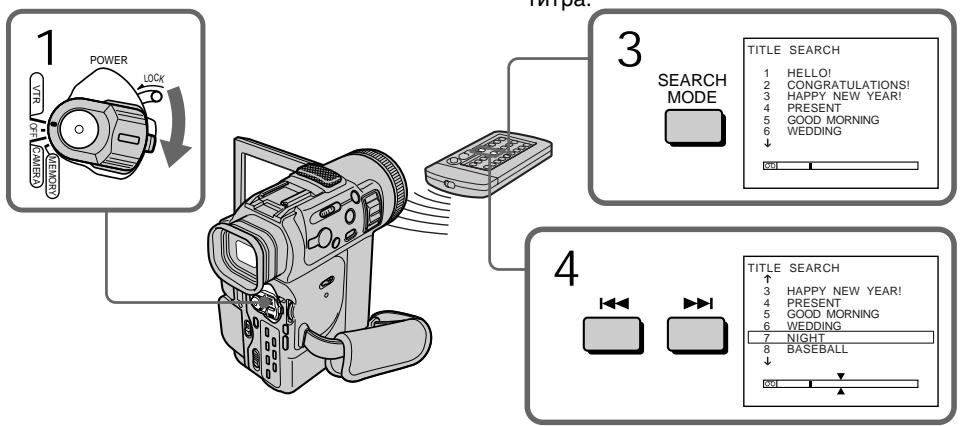

Searching the boundaries Поиcк гpaниц зaпиcи нa of recorded tape by title лeнтe по титpy – Поиcк – Title search титpa If you use a tape with cassette memory, you can search for the boundaries of recorded tape by title (Title search)(p. 154). Use the Remote Commander for this operation. (1) Set the POWER switch to VTR. to ON in the menu (2) Set CM SEARCH in settings (p. 98). Default setting is ON. (3) Press SEARCH MODE on the Remote Commander repeatedly, until the title search indicator appears. The indicator changes as follows: TITLE SEARCH t DATE SEARCH t PHOTO SEARCH t PHOTO SCAN t no indicator (4) Press . or > on the Remote Commander to select the title for playback. Your camcorder automatically starts playback of the scene having the title that you selected.

To stop searching Press x. If you use a tape without cassette memory You cannot superimpose or search a title. In the mark

• The bar in the mark indicates the present point on the tape.
• The mark in the indicates the actual point you are trying to search.

If a tape has a blank portion between recorded portions The title search function may not work correctly. TITLE SEARCH

• Meткa в индикaтоpe yкaзывaeт тeкyщee мecто поиcкa. Ecли нa зaпиcaнной лeнтe имeютcя нeзaпиcaнныe yчacтки Фyнкция поиcкa титpa можeт paботaть нeпpaвильно. Searching a recording by date – Date search You can automatically search for the point where the recording date changes and start playback from that point (Date search). Use a tape with cassette memory for convenience. Use the Remote Commander for this operation. Use this function to check where recording dates change or to edit the tape at each recording date. You can use this function only when playing back a tape with cassette memory (p. 154). (1) Set the POWER switch to VTR. (2) Set CM SEARCH in to ON in the menu settings (p. 98). Default setting is ON. (3) Press SEARCH MODE on the Remote Commander repeatedly, until the date search indicator appears. The indicator changes as follows: TITLE SEARCH t DATE SEARCH t PHOTO SEARCH t PHOTO SCAN t no indicator (4) Press . or > on the Remote Commander to select the date for playback. Your camcorder automatically starts playback at the beginning of the selected date.

Searching a recording by date – Date search Поиcк зaпиcи по дaтe – Поиcк дaты Note If one day’s recording is less than two minutes, your camcorder may not accurately find the point where the recording date changes.

Ecли пpодолжитeльноcть зaпиcи в тeчeниe одного дня мeнee двyx минyт, видeокaмepa можeт нe точно нaйти мecто, гдe дaтa зaпиcи измeняeтcя. In the mark

• The bar in the mark indicates the present point on the tape.
• The mark in the indicates the actual point you are trying to search. B индикaтоpe
• Полоca в индикaтоpe тeкyщee мecто нa лeнтe.

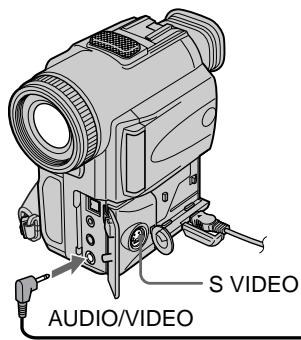

Searching for a photo – Photo search/Photo scan Поиcк фото – Фотопоиcк/ Фотоcкaниpовaниe To stop searching Для оcтaновки поиcкa Press x. Haжмитe кнопкy x. In the mark mark indicates the

• The bar in the present point on the tape.
• The mark in the indicates the actual point you are trying to search. B индикaтоpe
• Полоca в индикaтоpe тeкyщee мecто нa лeнтe.

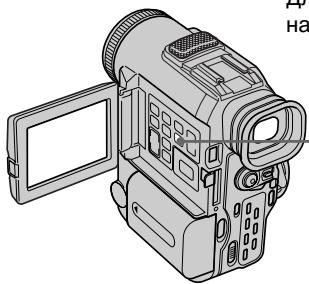

Be sure to clear the indicators from the screen If they are displayed, press the following buttons not to record the indicators on the dubbed tape:

• The DATA CODE button on the Remote Commander

: Signal flow/Пepeдaчa cигнaлa When you have finished dubbing a tape Press x on both your camcorder and the VCR. You can connect one VCR only using the i.LINK cable (DV connecting cable) Pictures processed by the digital effect function Pictures processed by the digital effect function are not output through the DV IN/ OUT jack. If you record a playback pause picture with the DV IN/OUT jack The recorded picture becomes rough. And when you play back the picture using the other video equipment, the picture may jitter.

[MARK] : EXEC DV ED I T I NG STBY [MENU] : END Notes

• If you use other than Sony equipment with the DV jack, you cannot perform DV synchro-editing.
• If a tape has a blank portion between recorded portions, DV synchro-editing may not work correctly. Errors in duplicating If you connect your camcorder to Sony equipment with the DV jack, the range of errors is within +/– 5 frames. The range may become wider in the following conditions:
• The interval between DV EDITING IN and OUT is less than five seconds.
• DV EDITING IN or OUT is set at the beginning of the tape. Editing/Mонтaж [MENU] : END [MENU] : END [MENU] : END DV ED I T I NG ED I T I NG [MENU] : END Пpимeчaния

Recording video or TV programmes When you have finished dubbing a tape Press x on both your camcorder and the VCR. Using the Remote Commander In step 5, press z REC and MARK simultaneously, then immediately press X. And in step 7, press X at the scene where you want to start recording from. If your VCR is a monaural type Connect the yellow plug of the A/V connecting cable to the video output jack and the white or the red plug to the audio output jack on the VCR or the TV. When the white plug is connected, the left channel audio is output, and the red plug is connected, the right channel audio is output. Connect using an S video cable (not supplied) to obtain high-quality pictures With this connection, you do not need to connect the yellow (video) plug of the A/V connecting cable. Connect an S video cable (not supplied) to the S (S1) video jacks of both your camcorder and the VCR. This connection produces higher quality DV format pictures.

Inserting a scene from a VCR – Insert editing (1) Set the POWER switch to VTR. (2) On the VCR, locate just before the insert start point [a], then press X to set the VCR to the playback pause mode. (3) On your camcorder, locate the insert end point [c] by pressing m or M. Then press X to set it to the playback pause mode. (4) Press ZERO SET MEMORY on the Remote Commander. The ZERO SET MEMORY indicator flashes and the end point of the insert is stored in memory. The tape counter shows “0:00:00.” (5) On your camcorder, locate the insert start point [b] by pressing m, then press z REC and the button on its right simultaneously, then immediately press X on your camcorder. (6) First press X on the VCR, and after a few seconds press X on your camcorder to start inserting the new scene. Inserting automatically stops near the zero point on the tape counter. Your camcorder automatically returns to the recording pause mode.

AUDIO R AUDIO/ VIDEO : Signal flow/Пepeдaчa cигнaлa Dubbing with the built-in microphone Do not connect the video (yellow) plug./ He подcоeдиняйтe видeо (жeлтый) штeкep. Editing/Mонтaж AUDIO L Пepeзaпиcь c помощью вcтpоeнныx микpофонов No connection is necessary. Cоeдинeния нe тpeбyютcя. Notes

• When dubbing with the AUDIO/VIDEO jack, you can check the recorded picture on the LCD screen or in the viewfinder, and can check the recorded sound by using a speaker or headphones.
• When dubbing with the built-in microphone or an external one, you can check the recorded picture on the LCD screen, in the viewfinder, or on the screen of equipment connected with the S VIDEO jack, and can check the recorded sound by using headphones. Пpимeчaния
• Пpи пepeзaпиcи c помощью гнeздa AUDIO/ VIDEO можно пpовepять зaпиcывaeмоe изобpaжeниe нa экpaнe ЖКД или в видоиcкaтeлe, a тaкжe зaпиcывaeмый звyк c помощью гpомкоговоpитeля или головныx тeлeфонов.

Audio dubbing Ayдиопepeзaпиcь Adding an audio sound on a recorded tape (1) Insert the recorded tape into your camcorder. (2) Set the POWER switch to VTR on your camcorder. (3) Locate the recording start point by pressing N on the Remote Commander. Then press X at the point where you want to start recording to set your camcorder to the playback pause mode. (4) Press AUDIO DUB on the Remote Commander. The green X indicator appears on the LCD screen or in the viewfinder. (5) Press X on the camcorder or on the Remote Commander and start playing back the audio you want to record at the same time. The new sound is recorded in stereo 2 (ST2) during playback. (6) Press x at the point where you want to stop recording. AUDIO DUB

NTSC PB ST1 RETURN ST2 Five minutes after when you disconnect the power source or remove the battery pack, the setting of AUDIO MIX returns to the original sound (ST1) only. The default setting is original sound only. Notes

• New sound cannot be recorded on a tape already recorded in the 16-bit mode (32 kHz,

44.1 kHz or 48 kHz) (p. 103).

• New sound cannot be recorded on a tape already recorded in the LP mode.
• You cannot add audio with the DV IN/ OUT jack. If you make all the connections The audio input to be recorded will take precedence over others in the following order.
• MIC (PLUG IN POWER) jack
• Intelligent accessory shoe

If you set the write-protect tab to lock You cannot superimpose or erase the title. Slide the write-protect tab to release the write protection. To use the custom title If you want to use the custom title, select step 2.

If the tape has a blank portion You cannot superimpose a title on the portion. If the tape has a blank portion in the middle of the recorded parts The title may not be displayed correctly. The titles superimposed with your camcorder

• They are displayed by only the DV format video equipment with index titler function.
• The point you superimposed the title may be detected as an index signal when searching a recording with other video equipment. Ecли зaщитный лeпecток ycтaновлeн в положeниe зaщиты от зaпиcи Heвозможно выполнять нaложeниe или yдaлeниe титpa. Пepeдвиньтe лeпecток зaщиты зaпиcи для отключeния зaщиты. Для иcпользовaния cобcтвeнного титpa Ecли нyжно иcпользовaть cобcтвeнный в пyнктe 2. титp, выбepитe Ecли нa плeнкe имeeтcя нeзaпиcaнный yчacток B этом yчacткe нaложeниe титpa нeвозможно. Ecли нa плeнкe имeeтcя нeзaпиcaнный yчacток мeждy зaпиcaнными чacтями Tитp можeт отобpaжaтьcя нeпpaвильно. Tитpы, нaложeнныe c помощью дaнной видeокaмepы

• The title colour changes as follows: WHITE y YELLOW y VIOLET y RED y CYAN y GREEN y BLUE
• The title size changes as follows: SMALL y LARGE You cannot input more than 12 characters in LARGE size.
• If you select the title size “SMALL,” you have nine choices for the title position. If you select the title size “LARGE,” you have eight choices for the title position. One cassette can have up to about 20 titles, if one title consists of five characters However, if the cassette memory is full with date, photo and cassette label data, one cassette can have only up to about 11 titles with five characters each. Cassette memory capacity is as follows:
• Six date data (maximum)

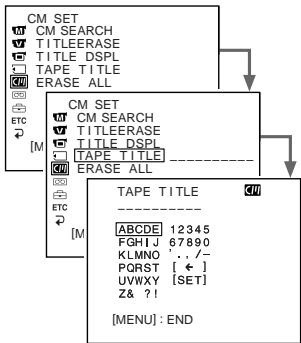

Making your own titles Cоздaниe cобcтвeнныx титpов Mожно cоздaть нe болee двyx титpов и cоxpaнить иx в кacceтной пaмяти. Кaждый титp можeт cодepжaть нe болee 20 cимволов. You can make up to two titles and store them in cassette memory. Each title can have up to 20 characters. (1) Press TITLE in the standby/playback/ playback pause mode. (2) Turn the SEL/PUSH EXEC dial to select , then press the dial. (3) Turn the SEL/PUSH EXEC dial to select the first line (CUSTOM1) or second line (CUSTOM2), then press the dial. (4) Turn the SEL/PUSH EXEC dial to select the column of the desired character, then press the dial. (5) Turn the SEL/PUSH EXEC dial to select the desired character, then press the dial. (6) Repeat steps 4 and 5 until you have selected all characters and completed the title. (7) To finish making your own titles, turn the SEL/PUSH EXEC dial to select [SET], then press the dial. The title is stored in memory. (8) Press TITLE to make the title menu disappear.

TAPE T I TLE – – – – – – – – – –

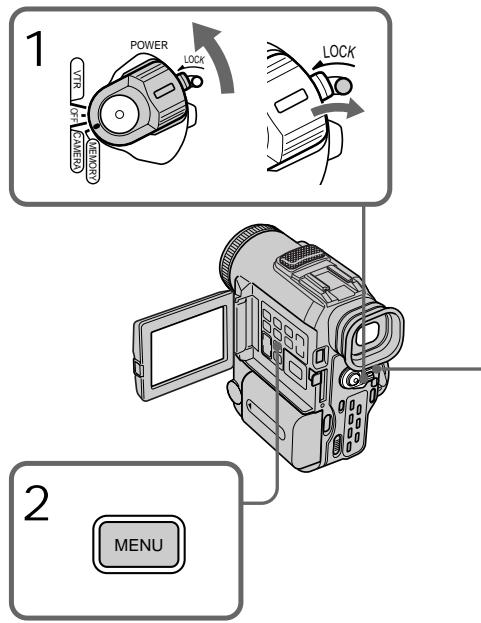

MEMORY SET CM SET TAPE SET SETUP MENU OTHERS Selecting the mode setting of each item z is the default setting. Menu items differ depending on the position of the POWER switch. The LCD screen shows only the items you can operate at the moment. Meaning POWER switch PROGRAM AE To suit your specific shooting requirement (p. 55). CAMERA MEMORY P EFFECT To add special effects like those in films or on TV to images (p. 50). VTR CAMERA WHT BAL To adjust the white balance (p. 45). CAMERA MEMORY z ON To automatically activate the electronic shutter when shooting in bright conditions. CAMERA OFF To deactivate the electronic shutter even when shooting in bright conditions. Icon/item AUTO SHTR D ZOOM Mode z OFF

z ON To deactivate the digital zoom. Up to 10× zoom is carried out. To activate the digital zoom. More than 10× to 40× zoom is performed digitally (p. 25).

CAMERA To record a 16:9 wide picture (p. 47). To compensate for camera-shake. OFF To cancel the SteadyShot function. Natural pictures are produced when shooting a stationary object with a tripod. z ON To use the NightShot Light function (p. 29). OFF CAMERA To cancel the NightShot Light function. CAMERA CAMERA MEMORY Notes on the SteadyShot function

Changing the menu settings Icon/item HiFi SOUND Meaning z STEREO To play back a stereo tape or dual sound track tape with main and sub sound (p. 155).

To play back a stereo tape with the left sound or a dual sound tape with main sound.

To play back a stereo tape with the right sound or a dual sound track tape with sub sound. AUDIO MIX To adjust the balance between the stereo 1 and stereo 2 (p. 87). ST1 NTSC PB z ON PAL TV NTSC 4.43 LCD BRIGHT VTR To brighten the LCD screen. To adjust the colour on the LCD screen with the SEL/PUSH EXEC dial. VTR CAMERA MEMORY VTR CAMERA MEMORY To get highintensity To adjust the brightness on the viewfinder screen with the SEL/PUSH EXEC dial. To darken VTR CAMERA MEMORY To lighten z BRT NORMAL To set the brightness on the LCD screen normal. To get lowintensity VF BRIGHT VTR To play back a tape recorded on in the NTSC colour system on a TV with the NTSC 4.43 mode. To adjust the brightness on the LCD screen with the SEL/PUSH EXEC dial. BRIGHT LCD COLOUR VTR ST2 To play back a tape recorded on your camcorder on a PAL system TV. To darken LCD B. L. POWER switch Mode VTR CAMERA MEMORY To lighten When LCD B. L. is set to BRIGHT, the battery life is reduced by nearly 10%. When you use power sources other than the battery pack, “BRIGHT” is automatically selected. Note on NTSC PB When you play back a tape on a Multi System TV, select the best mode while viewing the picture on the TV.

Changing the menu settings Icon/item CONTINUOUS QUALITY IMAGE SIZE Mode Meaning POWER switch z OFF Not to record continuously. MEMORY

To record pictures continuously (p. 125). MULTI SCRN To record nine pictures continuously (p. 125). z SUPER FINE (SFN) FINE (FINE) To record still pictures in the fine image quality mode, using the “Memory Stick” (p. 119). STANDARD (STD) To record still pictures in the standard image quality mode, using the “Memory Stick” (p. 119). z 1152 × 864 640 × 480 PRINT MARK z OFF z OFF

To record 1152 × 864 size still pictures. MEMORY To record 640 × 480 size still pictures. To erase print marks on still pictures. To write a print mark on the recorded still images you want to print out later. To release protections of still pictures. To protect selected still pictures against accidental erasure (p. 146). VTR MEMORY VTR MEMORY SLIDE SHOW To play back all the images as a slide show (p. 144). MEMORY DELETE ALL To delete all the unprotected images (p. 149). MEMORY Note on IMAGE SIZE If you set CONTINUOUS to MULTI SCRN or you set the POWER switch to VTR, IMAGE SIZE is automatically set to 640 × 480. Customizing Your Camcorder/Bыполнeниe индивидyaльныx ycтaновок нa видeокaмepe

PROTECT VTR To record still pictures in the super fine image quality mode, using the “Memory Stick” (p. 119). MEMORY

Changing the menu settings Icon/item FORMAT Mode Meaning POWER switch z RETURN To cancel formatting. MEMORY FORMAT PHOTO SAVE CM SEARCH z ON OFF TITLEERASE TITLE DSPL z ON OFF To format an inserted “Memory Stick.” 1. Select FORMAT with the SEL/PUSH EXEC dial, then press the dial. 2. Turn the SEL/PUSH EXEC dial to select FORMAT, then press the dial.

3. After “EXECUTE” appears, press the SEL/

PUSH EXEC dial. “FORMATTING” appears during formatting. “COMPLETE” appears when formatting is finished. To duplicate still pictures (p. 136). VTR To search using cassette memory (p. 64). VTR To search without using cassette memory. To erase the title you have superimposed (p. 93). VTR CAMERA To display the title you have superimposed. VTR Not to display the title. TAPE TITLE To label a cassette (p. 96). VTR CAMERA ERASE ALL To erase all the data in cassette memory. VTR CAMERA Notes on formatting

• Supplied or optional “Memory Stick”s have been formatted at factory. Formatting with this camcorder is not required.
• Do not turn the POWER switch or press any button while the display shows “FORMATTING.”
• You cannot format the “Memory Stick” if the write-protect tab on the “Memory Stick” is set to LOCK.
• Format again if the message “ ” appears. Formatting erases all information on the “Memory Stick” Check the contents of the “Memory Stick” before formatting:
• Formatting erases sample images on the “Memory Stick.”
• Formatting erases the protected image data on the “Memory Stick.”

Changing the menu settings Icon/item REC MODE Mode Meaning z SP To record in the SP (Standard Play) mode.

AUDIO MODE z 12BIT 16BIT To increase the recording time to 1.5 times the SP mode. To record in the 12-bit mode (two stereo sounds). VTR CAMERA VTR CAMERA To record in the 16-bit mode (the one stereo sound with high quality). z AUTO To display the remaining tape bar:

• for about eight seconds after your camcorder is turned on and calculates the remaining amount of tape
• for about eight seconds after a cassette is inserted and your camcorder calculates the remaining amount of tape
• for about eight seconds after N is pressed in VTR mode
• for about eight seconds after DISPLAY is pressed to display the screen indicators
• for the period of tape rewinding, forwarding or picture search in the VTR mode

To always display the remaining tape indicator. DATA CODE z DATE/CAM To display date, time and various settings during playback. VTR CAMERA VTR To display date and time during playback. Notes on the LP mode

• When you record a tape in the LP mode on your camcorder, we recommend playing back the tape on your camcorder. When you play back the tape on other camcorders or VCRs, noise may occur in pictures or sound.
• When you record in the LP mode, we recommend using a Sony Excellence/Master mini DV cassette so that you can get the most out of your camcorder.
• You cannot make audio dubbing on a tape recorded in the LP mode. Use the SP mode for the tape to be audio-dubbed.
• When you record in the SP and LP modes on one tape or you record some scenes in the LP mode, the playback picture may be distorted or the time code may not be written properly between scenes. Notes on AUDIO MODE
• You cannot dub audio sound on a tape recorded in the 16-bit mode.
• When playing back a tape recorded in the 16-bit mode, you cannot adjust the balance in AUDIO MIX. Customizing Your Camcorder/Bыполнeниe индивидyaльныx ycтaновок нa видeокaмepe qREMAIN DATE POWER switch

Changing the menu settings Icon/item Mode CLOCK SET LTR SIZE CAMERA MEMORY To display selected menu items in normal size. To display selected menu items at twice the normal size. VTR CAMERA MEMORY z ON To make the demonstration appear. CAMERA OFF To cancel the demonstration mode. z NORMAL WORLD TIME BEEP COMMANDER z MELODY To set the clock to the local time. Turn the SEL/ PUSH EXEC dial to set a time difference. The clock changes by the time difference you set here. If you set the time difference to 0, the clock returns to the originally set time. CAMERA MEMORY To output the melody when you start/stop recording or when an unusual condition occurs on your camcorder. VTR CAMERA MEMORY NORMAL To output the beep instead of the melody. OFF To cancel the melody and beep sound. z ON OFF DISPLAY POWER switch To reset the date or time (p. 113).

DEMO MODE Meaning z LCD V-OUT/LCD To activate the Remote Commander supplied with your camcorder. To deactivate the Remote Commander to avoid remote control misoperation caused by other VCR’s remote control. To show the display on the LCD screen and viewfinder screen. To show the display on the TV screen, LCD screen and viewfinder screen. VTR CAMERA MEMORY VTR CAMERA MEMORY Notes on DEMO MODE

• You cannot select DEMO MODE when a cassette is inserted in your camcorder.
• DEMO MODE is set to STBY (Standby) at factory and the demonstration starts about 10 minutes after you have set the POWER switch to CAMERA without a cassette inserted. To cancel the demonstration, insert a cassette, set the POWER switch to other than CAMERA, or set DEMO MODE to OFF.
• When NIGHTSHOT is set to ON, the NIGHTSHOT indicator appears on the LCD screen or in the viewfinder and you cannot select DEMO MODE in the menu settings. Note If you press DISPLAY with DISPLAY set to V-OUT/LCD in the menu settings, the picture from a TV or VCR will not appear on the LCD screen even when your camcorder is connected to outputs on the TV or VCR.

Changing the menu settings Icon/item REC LAMP Mode Meaning POWER switch z ON To light up the camera recording lamp at the front of your camcorder. CAMERA MEMORY OFF DV EDITING To turn the camera recording lamp off so that person is not aware of the recording. To duplicate the desired portion on a tape by simply selecting the scenes to edit, using other equipment connected with an i.LINK cable (DV connecting cable) (not supplied) (p. 73). VTR When recording a close subject When REC LAMP is set to ON, the red camera recording lamp on the front of the camcorder may reflect on the subject if it is close. In this case, we recommend you set REC LAMP to OFF. Customizing Your Camcorder/Bыполнeниe индивидyaльныx ycтaновок нa видeокaмepe In more than five minutes after removing the power source The “AUDIO MIX,” “COMMANDER,” “HiFi SOUND,” “PROGRAM AE” and “WHT BAL” items are returned to their default settings. The other menu items are held in memory even when the power source is removed.

If you do not set the date and time “– –:– –:– –” is recorded on the data code of the tape and the “Memory Stick.” Ecли Bы нe ycтaновитe дaтy и вpeмя Ha лeнтe и плaтe пaмяти “Memory Stick” бyдeт зaпиcaнa индикaция “- -:- -:- -”. Note on the time indicator The internal clock of your camcorder operates on a 24-hour cycle. Индикaтоp вpeмeни Bcтpоeнныe чacы видeокaмepы paботaют в 24-чacовом peжимe. — “Memory Stick” Operations — – Oпepaции c “Memory Stick” – Using a “Memory Stick” – introduction Иcпользовaниe “Memory Stick” – Bвeдeниe You can record and play back still images on a “Memory Stick” supplied with your camcorder. You can easily play back, record or delete still images. You can exchange image data with other equipment such as a personal computer etc., using the Serial port adaptor for Memory Stick supplied with your camcorder or PC card adaptor for Memory Stick (not supplied). Mожно зaпиcывaть и воcпpоизводить нeподвижныe изобpaжeния нa “Memory Stick”, пpилaгaeмой к видeокaмepe. Bы можeтe лeгко воcпpоизводить, зaпиcывaть или yдaлять нeподвижныe изобpaжeния. Mожно выполнять обмeн дaнныx изобpaжeния c дpyгой aппapaтypой, тaкой кaк пepcонaльный компьютep и т.п., иcпользyя aдaптep поcлeдовaтeльного поpтa для Memory Stick, пpилaгaeмой к видeокaмepe, или aдaптep PC-кapты для Memory Stick (нe вxодит в комплeкт). On file format (JPEG) Your camcorder compresses image data in JPEG format (extension .jpg). O фоpмaтe фaйлов (JPEG) Bидeокaмepa cжимaeт дaнныe изобpaжeния в фоpмaт JPEG (c pacшиpeниeм .jpg). Typical image data file name DSC00001.jpg Tипичноe имя фaйлa дaнныx изобpaжeния DSC00001.jpg Пepeд иcпользовaниeм “Memory Stick” Terminal/Гнeздо Write-protect tab/ Лeпecток зaщиты от зaпиcи Labelling position/Позиция мapкиpовки

• You cannot record or erase still images when the write-protect tab on the “Memory Stick” is set to LOCK.
• We recommend backing up important data.
• Image data may be damaged in the following cases: – If you remove the “Memory Stick,” turn the power off, or detach the battery for replacement when the access lamp is flashing. – If you use “Memory Stick”s near magnets or magnet fields such as those of speakers and televisions.

• Prevent metallic objects or your finger from coming into contact with the metal parts of the connecting section.
• Stick its label on the labelling position.
• Do not bend, drop or apply strong shock to “Memory Stick”s.
• Do not disassemble or modify “Memory Stick”s.
• Do not let “Memory Stick”s get wet.
• Do not use or keep “Memory Stick”s in locations that are: – Extremely hot such as in a car parked in the sun or under the scorching sun. – Under direct sunlight. – Very humid or subject to corrosive gases.
• When you carry or store a “Memory Stick,” put it in its case.

• He иcпользyйтe и нe xpaнитe “Memory Stick” в мecтax: – Cлишком жapкиx, нaпpимep, в aвтомобилe, пpипapковaнном в cолнeчном мecтe, или под пaлящим cолнцeм. – Под пpямым cолнeчным cвeтом. – Oчeнь влaжныx мecтax или подвepжeнныx воздeйcтвию коppозийныx гaзов.
• Пpи пepeноcкe или xpaнeнии нeобxодимо положить “Memory Stick” в фyтляp. Formatting the supplied “Memory Stick” Formatting with this camcorder is not required. The “Memory Stick” has been formatted in the FAT-format at factory. “Memory Stick” supplied with your camcorder
• Sample images are recorded in the “Memory Stick” (p. 131). Note that these images will be deleted if you format the “Memory Stick.”
• Stick the supplied label on the labelling position to prevent the accidental erasure. As for the labelling position, see the illustration on the previous page. “Memory Stick”s formatted by a computer “Memory Stick”s formatted by Windows OS or Macintosh computers do not have a guaranteed compatibility with this camcorder. Фоpмaтиpовaниe пpилaгaeмой “Memory Stick” Фоpмaтиpовaниe нa этой видeокaмepe нe тpeбyeтcя. “Memory Stick” отфоpмaтиpовaнa в фоpмaтe FAT нa пpeдпpиятии-изготовитeлe. “Memory Stick”, пpилaгaeмaя к Baшeй видeокaмepe

• Image data files recorded on “Memory Stick”s by your camcorder conform with the Design Rules for Camera File Systems universal standard established by the JEIDA (Japan Electronic Industry Development Association). You cannot play back on your camcorder still images recorded on other equipment (DCR-TRV890E/TRV900/ TRV900E or DSC-D700/D770) that does not conform with this universal standard. (These models are not sold in some areas.)
• If you cannot use the “Memory Stick” that is used with other equipment, format it with this camcorder (p. 102). However, formatting erases all information on the “Memory Stick.” are trademarks of

• Windows is a registered trademark licensed to Microsoft Corporation, registered in the U.S.A. and other countries.
• All other product names mentioned herein may be the trademarks or registered trademarks of their respective companies. Furthermore, “™” and “®” are not mentioned in each case in this manual. “Memory Stick” и являютcя тоpговыми мapкaми коpпоpaции Sony.
• Windows являeтcя зapeгиcтpиpовaнной тоpговой мapкой, котоpaя зaпaтeнтовaнa коpпоpaциeй Microsoft, зapeгиcтpиpовaнной в CШA и дpyгиx cтpaнax.

MENU Note In some cases, changing the image quality mode may not affect the image quality, depending on the types of images you are shooting. MEMORY SET

Using a “Memory Stick” – introduction Иcпользовaниe “Memory Stick” – Bвeдeниe Image size settings/Уcтaновки paзмepов изобpaжeния Setting/ Meaning/ Indicator/Индикaтоp Уcтaновкa Haзнaчeниe Recording/ Зaпиcь 1152 × 864 To record 1152 × 864 size still pictures./ Для зaпиcи нeподвижныx изобpaжeний paзмepом 1152 × 864. 640 × 480 To record 640 × 480 size still pictures./ Для зaпиcи нeподвижныx изобpaжeний paзмepом 640 × 480. Note When you play back the image recorded in 1152 x 864 size on other equipment which is not compatible with that size, all of the image may not be played back. The approximate number of images you can record on a “Memory Stick” The approximate number of images you can record on a “Memory Stick” that is formatted using this camcorder varies depending on which image quality mode you select and the complexity of the subject.

Recording still images on “Memory Stick”s – Memory photo recording Зaпиcь нeподвижныx изобpaжeний нa “Memory Stick” – Фотозaпиcь c cоxpaнeниeм в пaмяти You can record still pictures on “Memory Stick”s. Mожно выполнять зaпиcь нeподвижныx изобpaжeний нa “Memory Stick”. Before operation Insert a “Memory Stick” into your camcorder. (1) Set the POWER switch to MEMORY. Make sure that the LOCK switch is set to the right (unlock) position. (2) Keep pressing PHOTO lightly until the desired still picture appears. The green z mark stops flashing, then lights up. The brightness of the picture and focus are adjusted, being targeted for the middle of the picture and are fixed. Recording does not start yet. (3) Press PHOTO deeper. The image displayed on the screen will be recorded on a “Memory Stick.” Recording is complete when the bar scroll indicator disappears. POWER LOCK LOCK VTR

1152 SFN PHOTO [a] The number of images that can be recorded on the “Memory Stick” [b] The number of recorded images [a] Количecтво изобpaжeний, котоpоe можeт быть зaпиcaно нa “Memory Stick” [b] Количecтво зaпиcaнныx изобpaжeний When the POWER switch is set to MEMORY The following functions do not work: wide TV mode, digital effect, picture effect, title, digital zoom, SteadyShot function, fader, low lux mode, and sports lesson mode. (The indicator flashes in the low lux or sports lesson mode.) Ecли пepeключaтeль POWER ycтaновлeн в положeниe MEMORY Cлeдyющиe фyнкции нe paботaют: шиpокоэкpaнный тeлeвизионный peжим, цифpовой эффeкт, эффeкт изобpaжeния, титp, цифpовaя тpaнcфокaция, ycтойчивaя cъeмкa SteadyShot, фeйдep, peжим низкой оcвeщeнноcти, a тaкжe peжим cпоpтивныx cоcтязaний. (Индикaтоp мигaeт пpи cъeмкe в peжимe низкой оcвeщeнноcти или cпоpтивныx cоcтязaний.) Recording still images on “Memory Stick”s – Memory photo recording Зaпиcь нeподвижныx изобpaжeний нa “Memory Stick” – Фотозaпиcь c cоxpaнeниeм в пaмяти While you are recording a still image You can neither turn off the power nor press PHOTO. Пpи зaпиcи нeподвижного изобpaжeния Heвозможно выключить питaниe или нaжaть кнопкy PHOTO. When you press PHOTO on the Remote Commander Your camcorder immediately records the image that is on the screen when you press the button. Ecли нaжaть кнопкy PHOTO нa пyльтe диcтaнционного yпpaвлeния Пpи нaжaтии этой кнопки видeокaмepa cpaзy жe зaпишeт изобpaжeниe нa экpaнe. Notes

• When recording still images at step 2 with the PHOTO button pressed lightly, the image momentarily flickers. This is not a malfunction.
• Before you shoot in autofocus mode, check that the subject is in sharp focus.
• The brightness of the picture and focus are adjusted on the center portion of the image. Recording images continuously You can record still pictures continuously. Select one of the two modes described below before recording. Continuous mode [a] When the image size is set to 1152 × 864, you can record up to four pictures continuously. When the image size is set to 640 × 480, you can record up to 16 pictures continuously. The number of recorded photos in continuous mode depends on the capacity of the “Memory Stick.” Multi screen mode (Image size is automatically set to 640 × 480) [b] You can record nine still pictures continuously on a single page. [a] Пpи зaпиcи в peжимe MEMORY Угол изобpaжeния cтaновитcя нeмного большe, чeм в peжимe CAMERA. Зaпиcь изобpaжeний нeпpepывно Heподвижныe изобpaжeния можно зaпиcывaть нeпpepывно. Пepeд зaпиcью выбepитe один из двyx peжимов, опиcaнныx нижe. Heпpepывный peжим [a] Когдa paзмep изобpaжeния ycтaнaвливaeтcя нa 1152 × 864, то можно зaпиcывaть нe болee чeтыpex изобpaжeний нeпpepывно. Когдa paзмep изобpaжeния ycтaнaвливaeтcя нa 640 × 480, то можно зaпиcывaть нe болee 16 изобpaжeний нeпpepывно. Количecтво зaпиcывaeмыx фотоcнимков в peжимe нeпpepывной зaпиcи зaвиcит от eмкоcти “Memory Stick”. Mногоэкpaнный peжим (Paзмep изобpaжeния aвтомaтичecки ycтaнaвливaeтcя нa 640 × 480) [b] Mожно зaпиcывaть 9 нeподвижныx изобpaжeний нeпpepывно нa одной cтpaницe. “Memory Stick” Operations/Oпepaции c “Memory Stick” When recording in MEMORY mode The angle of view is a little increased than one in CAMERA mode. Пpимeчaниe

Meaning (indicator on the screen) OFF Your camcorder shoots one image at a time. (no indicator)

Your camcorder shoots up to 16 still images at about 0.6 sec intervals. (

OFF To cancel self-timer recording Press (self-timer) so that the indicator disappears from the LCD or viewfinder screen. You cannot cancel the self-timer recording using the Remote Commander. Note The self-timer recording mode is automatically cancelled when: – Self-timer recording is finished. – The POWER switch is set to OFF or VTR.

To check the picture to be recorded You can check the picture with pressing the PHOTO button lightly, then press it deeper to capture. MEMORY CAMERA

• Bcтaвьтe “Memory Stick” в видeокaмepy. (1) Уcтaновитe пepeключaтeль POWER в положeниe VTR. (2) Haжмитe кнопкy MENU для отобpaжeния мeню. (3) Повepнитe диcк SEL/PUSH EXEC для , зaтeм нaжмитe выбоpa ycтaновки нa диcк. (4) Повepнитe диcк SEL/PUSH EXEC для выбоpa ycтaновки PHOTO SAVE, зaтeм нaжмитe нa диcк. Ha экpaнe ЖКД или в видоиcкaтeлe появитcя индикaция “PHOTO BUTTON”. (5) Haжмитe кнопкy PHOTO cильнee. Heподвижноe изобpaжeниe нa лeнтe мини DV зaпишeтcя нa “Memory Stick”. Oтобpaзитcя количecтво cкопиpовaнныx нeподвижныx изобpaжeний. По зaвepшeнии копиpовaния бyдeт отобpaжeнa индикaция “END”. Before operation
• Insert a recorded mini DV tape into your camcorder and rewind the tape.
• Insert a “Memory Stick” into your camcorder. (1) Set the POWER switch to VTR. (2) Press MENU to display the menu. (3) Turn the SEL/PUSH EXEC dial to select , then press the dial. (4) Turn the SEL/PUSH EXEC dial to select PHOTO SAVE, then press the dial. “PHOTO BUTTON” appears on the LCD screen or in the viewfinder. (5) Press PHOTO deeper. The still image from the mini DV tape is recorded on a “Memory Stick.” The number of still images copied is displayed. “END” is displayed when copying is completed.

To stop memory photo playback Press MEMORY PLAY again.

Для оcтaновки воcпpоизвeдeния фотоcнимков из пaмяти Haжмитe кнопкy MEMORY PLAY eщe paз. Пpоcмотp нeподвижного изобpaжeния – Bоcпpоизвeдeниe фотоcнимков из пaмяти Viewing a still picture – Memory photo playback To play back recorded images on a TV screen

• Connect your camcorder to the TV with the A/V connecting cable supplied with your camcorder before operation.
• When operating memory photo playback on a TV or on the LCD screen, the image quality may appear to have deteriorated. This is not a malfunction. The image data is as good as ever.
• Turn the audio volume of the TV down before operation, or noise (howling) may be output from the TV speakers.
• The message “ NO FILE” appears when no image is recorded on the “Memory Stick.” Screen indicators during still image playback Экpaнныe индикaтоpы во вpeмя воcпpоизвeдeния нeподвижныx изобpaжeний [a] [b]/[c]

DSC00006 6 / 15 MEMORY PLAY [d] “Memory Stick” Operations/Oпepaции c “Memory Stick” Image data modified with personal computers or shot with other equipment You may not be able to play them back with your camcorder. Для воcпpоизвeдeния зaпиcaнныx изобpaжeний нa экpaнe тeлeвизоpa

MEMORY PLAY, MEMORY INDEX, MEMORY

MEMORY CAMERA 3,4 Haжмитe кнопкy MEMORY +/- для пepeмeщeния индикaтоpa B к нyжномy изобpaжeнию и выполнитe дeйcтвия пyнктов 3 и 4. Deleting images Удaлeниe изобpaжeний Notes

• To delete a protected image, first cancel image protection.
• Once you delete an image, you cannot restore it. Check the images to be deleted carefully before deleting them.
• You cannot delete images if the write-protect tab on a “Memory Stick” is set to LOCK. Пpимeчaния
• Для того чтобы yдaлить зaщищeнноe изобpaжeниe, cнaчaлa отмeнитe зaщитy изобpaжeния.

Before operation Insert a “Memory Stick” into your camcorder. (1) Set the POWER switch to MEMORY or VTR. Make sure that the LOCK switch is set to the right (unlock) position. (2) Play back the image to be printed out (p. 138). (3) Press MENU to display the menu. (4) Turn the SEL/PUSH EXEC dial to select , then press the dial. (5) Turn the SEL/PUSH EXEC dial to select PRINT MARK, then press the dial. (6) Turn the SEL/PUSH EXEC dial to select ON, then press the dial. (7) Press MENU to erase the menu display. The “ ” mark is displayed beside the data file name of the image with a print mark. POWER LOCK LOCK VTR

• There are two types of mini DV cassettes: with cassette memory and without cassette memory. Tapes with cassette memory have (Cassette Memory) mark. Sony recommends that you use a tape with mark to enjoy your camcorder fully.

• Cyщecтвyeт двa типa кacceт мини DV: c кacceтной пaмятью и бeз кacceтной пaмяти. Ha лeнтax c кacceтной пaмятью имeeтcя знaк (кacceтнaя пaмять). Коpпоpaция Sony peкомeндyeт иcпользовaть лeнтy cо знaком , тaк кaк этот тип нaиболee подxодит для дaнной видeокaмepы. The IC memory is built in the cassette with cassette memory. Using this IC memory, your camcorder can read, write, and search data such as the date of recording or titles. The functions using the cassette memory require successive signals recorded on the tape. If the tape has a blank portion in the beginning or between the recorded portions, a title may not be displayed properly or the search functions may not work correctly. Not to make any blank portion on the tape, press END SEARCH to return to the end of the recorded portion before you begin the next recording when: – You have ejected the cassette while recording. – You have played back the tape in VTR mode. If there is a blank portion or discontinuous signal on your tape, re-record from the beginning to the end of the tape concerning above. When you record, using a digital video camera recorder without a cassette memory function, on a tape recorded by one with the cassette memory function, the same result may occur. mark on the cassette The memory capacity of tapes marked with is 4KB. Your camcorder can accommodate up to 16KB. 16KB tape is marked with

[a] [b] English Troubleshooting If you run into any problem using your camcorder, use the following table to troubleshoot the problem. If the problem persists, disconnect the power source and contact your Sony dealer. If “C:ss:ss” appears on the LCD screen or in the viewfinder, the self-diagnosis display function has worked. See page 163. In the recording mode Symptom START/STOP does not operate. Recording stops in a few seconds. The image on the viewfinder screen is not clear. The SteadyShot function does not work. The autofocusing function does not work. The fader function does not work. The x indicator flashes on the LCD screen or in the viewfinder. A vertical band appears when you shoot a subject such as lights or a candle flame against a dark background. A vertical band appears when you shoot a very bright subject. Additional Information/Дополнитeльнaя инфоpмaция The power goes off. Cause and/or Corrective Actions

• The POWER switch is not set to CAMERA. c Set it to CAMERA. (p. 20)
• The tape has run out. c Rewind the tape or insert a new one. (p. 19, 36)
• The write-protect tab on the cassette is set to expose the red mark. c Use a new tape or slide the tab. (p. 19)
• The tape is stuck to the drum (moisture condensation). c Remove the cassette and leave your camcorder for at least one hour to acclimatize. (p. 176)
• START/STOP MODE is set to 5SEC or . c Set it to . (p. 26)
• While being operated in CAMERA mode, your camcorder has been in the standby mode for more than five minutes. c Set the POWER switch to OFF and then to CAMERA again. (p. 21)
• The battery pack is dead or nearly dead. c Install a charged battery pack. (p. 14, 15)
• The viewfinder lens is not adjusted. c Adjust the viewfinder lens. (p. 24)
• STEADYSHOT is set to OFF in the menu settings. c Set it to ON. (p. 98)
• The camcorder is in manual focus mode. c Turn to auto focus mode. (p. 59)
• Shooting conditions are not suitable for autofocus. c Adjust focus manually. (p. 59)
• START/STOP MODE is set to 5SEC or . c Set it to . (p. 26)
• The digital effect function is working. c Cancel it. (p. 52)
• The video heads may be dirty. c Clean the heads using the Sony DVM12CL cleaning cassette (not supplied). (p. 177)
• The contrast between the subject and background is too high. This is not a malfunction.

• This is not a malfunction. (continued on the following page)

Troubleshooting Symptom Some tiny white spots appear on the LCD screen or in the viewfinder. An unknown picture is displayed on the LCD screen or in the viewfinder. The picture is recorded in incorrect or unnatural colours. Picture appears too bright, and the subject does not appear on the LCD screen or in the viewfinder. The click of the shutter does not sound. A horizontal black band appears when shooting a TV screen or computer screen. Cause and/or Corrective Actions

• Slow shutter, low lux or NightShot +Slow shutter mode is activated. This is not a malfunction.
• If 10 minutes elapse after you set the POWER switch to CAMERA or DEMO MODE is set to ON in the menu settings without a cassette inserted, your camcorder automatically starts the demonstration. c Insert a cassette. The demonstration stops. You can also cancel DEMO MODE. (p. 104)
• NIGHTSHOT is set to ON. c Set it to OFF. (p. 29)
• NIGHTSHOT is set to ON in a bright place. c Set it to OFF, or use the NightShot function in a dark place. (p. 29)
• BEEP is set to OFF in the menu settings. c Set it to MELODY or NORMAL. (p. 98)
• Set STEADYSHOT to OFF in the menu settings. (p. 98) In the playback mode Symptom The tape does not move when a video control button is pressed. The playback picture is not clear or does not appear. There are horizontal lines on the picture or the playback picture is not clear or does not appear. No sound or only a low sound is heard when playing back a tape. The title search function does not work.

Cause and/or Corrective Actions

• The POWER switch is not set to VTR. c Set it to VTR. (p. 33)
• The tape has run out. c Rewind the tape. (p. 36)
• The television’s video channel is not adjusted correctly. c Adjust it.
• The video head may be dirty. c Clean the heads using the Sony DVM12CL cleaning cassette (not supplied). (p. 177)
• The volume is turned to minimum. c Turn up the volume. (p. 33)
• AUDIO MIX is set to ST2 in the menu settings. c Adjust AUDIO MIX. (p. 98)
• The tape has no cassette memory. c Use a tape with cassette memory. (p. 64, 154)
• CM SEARCH is set to OFF in the menu settings. c Set it to ON. (p. 98)
• There is no title in the tape. c Superimpose the titles. (p. 89)
• The tape has a blank portion in the recorded portion. (p. 64) Troubleshooting Symptom Displaying the recorded date, date search function does not work. The new sound added to the recorded tape is not heard. The title is not displayed. The sound is muted or images do not appear when monitoring images through TV. Cause and/or Corrective Actions
• The tape has no cassette memory. c Use a tape with cassette memory. (p. 65, 154)
• CM SEARCH is set to OFF in the menu settings. c Set it to ON. (p. 98)
• The tape has a blank portion in the recorded portion. (p. 66)
• AUDIO MIX is set to ST1 side in the menu settings. c Adjust AUDIO MIX. (p. 98)
• TITLE DSPL is set to OFF in the menu settings. c Set it to ON. (p. 98) c Pull out the A/V connecting cable from the AUDIO/ VIDEO jack, then connect it again. In the recording and playback modes Symptom The power does not turn on. The end search function does not work correctly. The picture does not appear in the viewfinder. The battery pack is quickly discharged. The battery remaining indicator does not indicate the correct time. Additional Information/Дополнитeльнaя инфоpмaция The end search function does not work. Cause and/or Corrective Actions
• The battery pack is not installed, or is dead or nearly dead. c Install a charged battery pack. (p. 14, 15)
• The AC power adaptor is not connected to mains. c Connect the AC power adaptor to mains. (p. 18)
• The tape was ejected after recording when using a tape without cassette memory. (p. 32, 37)
• You have not recorded on the new cassette yet. (p. 32, 37)
• The tape has a blank portion in the beginning or middle. (p. 32)
• The LCD panel is open. c Close the LCD panel. (p. 22)
• The operating temperature is too low.
• The battery pack is not fully charged. c Charge the battery pack fully. (p. 15)
• The battery pack is completely dead, and cannot be recharged. c Replace with a new battery pack. (p. 14)
• You have used the battery pack in an extremely hot or cold environment for a long time.
• The battery pack is completely dead, and cannot be recharged. c Replace with a new battery pack. (p. 14)
• The battery is dead. c Use a full-charged battery pack. (p. 14, 15) (continued on the following page)

Troubleshooting Symptom The cassette cannot be removed from the holder. The % and Z indicators flash and no functions except for cassette ejection work. indicator does not appear when using a tape with cassette memory. Remaining tape indicator is not displayed. Cause and/or Corrective Actions

• The power source is disconnected. c Connect it firmly. (p. 14, 18)
• The battery is dead. c Use a charged battery pack. (p. 14, 15)
• Moisture condensation has occurred. c Remove the cassette and leave your camcorder for at least one hour to acclimatize. (p. 176)
• The gold-plated connector of the tape is dirty or dusty. c Clean the gold-plated connector. (p. 156)
• The q REMAIN is set to AUTO in the menu settings. c Set it to ON to always display the remaining tape indicator. (p. 98) When operating using the “Memory Stick” Symptom Recording does not function. The image cannot be deleted. You cannot format the “Memory Stick.” Deleting all the images cannot be carried out. You cannot protect the image.

Cause and/or Corrective Actions

• The “Memory Stick” has already been recorded to its full capacity. c Erase unnecessary images and record again. (p. 124, 148)
• The “Memory Stick” formatted incorrectly is inserted. c Format the “Memory Stick” or use another “Memory Stick.” (p. 102)
• The write-protect tab on the “Memory Stick” is set to LOCK. c Set the tab to write. (p. 115)
• The “Memory Stick” is not inserted. c Insert a “Memory Stick.” (p. 118)
• The image is protected. c Cancel image protection. (p. 146)
• The write-protect tab on the “Memory Stick” is set to LOCK. c Set the tab to write. (p. 115)
• The write-protect tab on the “Memory Stick” is set to LOCK. c Set the tab to write. (p. 115)
• The write-protect tab on the “Memory Stick” is set to LOCK. c Set the tab to write. (p. 115)
• The image to be protected is not being played back. c Press MEMORY PLAY to play back the image. (p. 138) Troubleshooting Symptom You cannot write a print mark on the still image. The photo save function does not work. Cause and/or Corrective Actions
• The write-protect tab on the “Memory Stick” is set to LOCK. c Set the tab to write. (p. 115)
• The image that you will write a print mark is not being played back. c Press MEMORY PLAY to play back the image. (p. 138)
• The write-protect tab on the “Memory Stick” is set to LOCK. c Set the tab to write. (p. 115)
• The battery pack is dead. c Install a charged battery pack or use the AC power adaptor instead of the battery pack. (p. 14, 18) Others Symptom The title is not recorded. While editing using the i.LINK cable (DV connecting cable), recording picture cannot be monitored. DV synchro-editing does not function.

• The input selector on the VCR is not set correctly. c Set the selector to DV input position. If you use another DV camcorder, set the power switch to VTR.
• The camcorder is connected to DV equipment of other than Sony. c Operate normal editing.
• Setting programme on a blank portion of the tape is attempted. c Set the programme again on a recorded portion. Additional Information/Дополнитeльнaя инфоpмaция The cassette label is not recorded. Cause and/or Corrective Actions
• The tape has no cassette memory. c Use a tape with cassette memory. (p. 89, 154)
• The cassette memory is full. c Erase another title. (p. 93)
• The tape is set to prevent accidental erasure. c Slide the write-protect tab so that red portion is not visible. (p. 19)
• Nothing is recorded in that position on the tape. c Superimpose the title to the recorded position. (p. 89)
• The tape has no cassette memory. c Use a tape with cassette memory. (p. 96, 154)
• The cassette memory is full. c Erase some titles. (p. 93)
• The tape is set to prevent accidental erasure. c Slide the write-protect tab so that red portion is not visible. (p. 19)
• Disconnect the i.LINK cable (DV connecting cable), and connect it again. (continued on the following page)

Troubleshooting Symptom The Remote Commander supplied with your camcorder does not work. The picture from a TV or VCR does not appear even when your camcorder is connected to outputs on the TV or VCR. The melody or beep sounds for five seconds. You cannot charge the battery pack. When charging the battery pack, the CHARGE lamp does not light. While charging the battery pack, the CHARGE lamp flashes. The camcorder is immediately turned off even if the amount of the battery remaining time is enough to operate. No function works though the power is on. When you shake the camcorder after the POWER switch is set to VTR or OFF, the clacking sound is heard from the camcorder.

Cause and/or Corrective Actions

• COMMANDER is set to OFF in the menu settings. c Set it to ON. (p. 98)
• Something is blocking the infrared rays. c Remove the obstacle.
• The batteries are inserted in the battery holder with the + – polarities incorrectly matching the + – marks. c Insert the batteries with the correct polarity. (p. 192)
• The batteries are dead. c Insert new ones. (p. 192)
• DISPLAY is set to V-OUT/LCD in the menu settings. c Set it to LCD. (p. 98)

• Moisture condensation has occurred. c Remove the cassette and leave your camcorder for at least one hour to acclimatize. (p. 176)
• Some troubles have occurred in your camcorder. c Remove the cassette and insert it again, then operate your camcorder.
• The POWER switch is not set to OFF. c Set it to OFF.
• Charging has been completed.
• The battery pack is not properly installed. c Install it properly.
• The battery pack is not properly installed. c Install it properly.
• The AC power adaptor is disconnected. c Connect it properly.
• The battery pack malfunctions. c Contact your Sony dealer. c Charge the battery pack fully again. The correct remaining time will be displayed.

• Disconnect the mains lead of the AC power adaptor or remove the battery, then reconnect it after about one minute. Turn the power on. If the functions still do not work, press the RESET button below the START/STOP MODE switch using a sharp-pointed object. (If you press the RESET button, all the settings including the date and time return to the default.) (p. 18, 188)
• This is due to adopt the linear-mechanism. This is not a malfunction. English Self-diagnosis display Your camcorder has a self-diagnosis display function. This function displays the current condition of your camcorder as a 5-digit code (a combination of a letter and figures) on the LCD screen or in the viewfinder. If a 5-digit code is displayed, check the following code chart. The last two digits (indicated by ss) will differ depending on the state of your camcorder. Viewfinder (or LCD screen) C:21:00 Self-diagnosis display

• C:ss:ss You can service your camcorder yourself.
• E:ss:ss Contact your Sony dealer. Five-digit display C:04:ss C:22:ss C:31:ss C:32:ss E:61:ss E:62:ss If you are unable to rectify the problem even if you try corrective actions a few times, contact your Sony dealer. Additional Information/Дополнитeльнaя инфоpмaция C:21:ss Cause and/or Corrective Actions
• You are using a battery pack that is not an “InfoLITHIUM” battery pack. c Use an “InfoLITHIUM” battery pack. (p. 15)
• Moisture condensation has occurred. c Remove the cassette and leave your camcorder for at least one hour to acclimatize. (p. 176)
• The video heads are dirty. c Clean the heads using the Sony DVM12CL cleaning cassette (not supplied). (p. 177)
• A malfunction other than the above that you can service has occurred. c Remove the cassette and insert it again, then operate your camcorder. c Disconnect the mains lead of the AC power adaptor or remove the battery pack. After reconnecting the power source, operate your camcorder.
• A malfunction that you cannot service has occurred. c Contact your Sony dealer and inform them of the 5-digit code. (example: E:61:10)

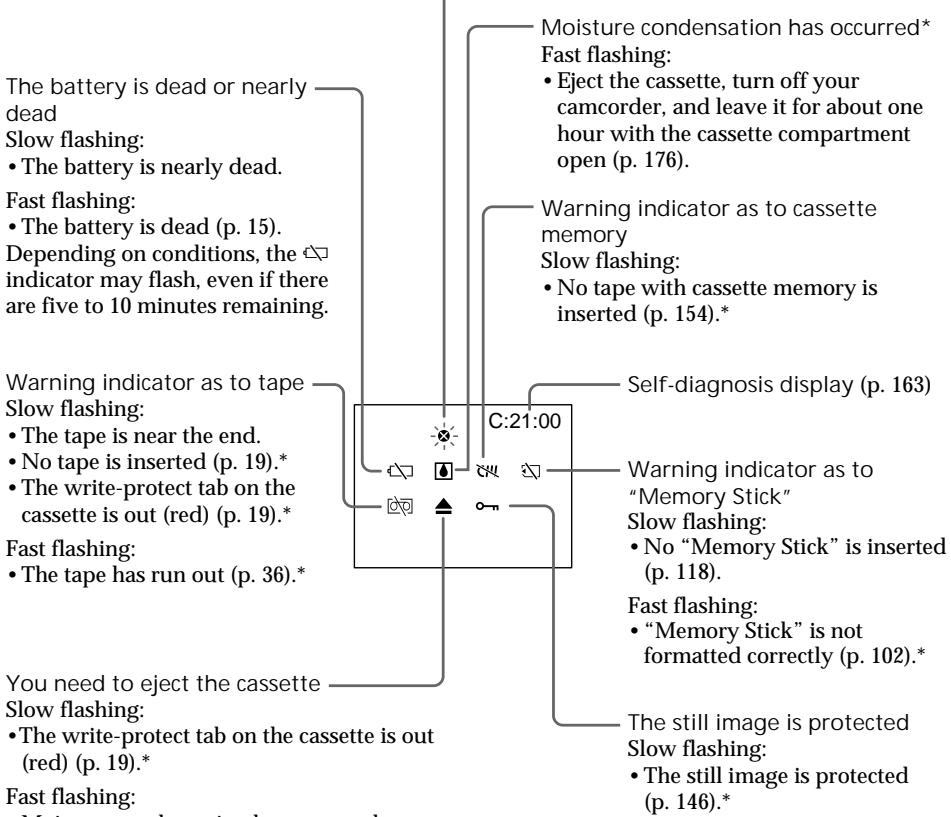

English Warning indicators and messages If indicators and messages appear on the LCD screen or in the viewfinder, check the following: See the page in parentheses “( )” for more information. Warning indicators The video heads are dirty Slow flashing:

• You need to clean the heads using the Sony DVM12CL cleaning cassette (not supplied) (p. 177). The battery is dead or nearly dead Slow flashing:
• The battery is nearly dead. Moisture condensation has occurred* Fast flashing:
• Eject the cassette, turn off your camcorder, and leave it for about one hour with the cassette compartment open (p. 176). Fast flashing:
• The battery is dead (p. 15). Depending on conditions, the E indicator may flash, even if there are five to 10 minutes remaining. Warning indicator as to cassette memory Slow flashing:
• No tape with cassette memory is inserted (p. 154).* Warning indicator as to tape Slow flashing:
• The tape is near the end.
• No tape is inserted (p. 19).*
• The write-protect tab on the cassette is out (red) (p. 19).* Fast flashing:
• The tape has run out (p. 36).* Self-diagnosis display (p. 163) C:21:00 Warning indicator as to “Memory Stick” Slow flashing:
• No “Memory Stick” is inserted (p. 118). Fast flashing:
• “Memory Stick” is not formatted correctly (p. 102).* You need to eject the cassette Slow flashing:
• The write-protect tab on the cassette is out (red) (p. 19).* Fast flashing:
• Moisture condensation has occurred (p. 176).*
• The tape has run out (p. 36).*
• The self-diagnosis display function is activated (p. 163).*

The still image is protected Slow flashing:

• The still image is protected (p. 146).* Warning indicators and messages Warning messages
• FOR “InfoLITHIUM” BATTERY ONLY
• MEMORY FULL CLEANING CASSETTE

The tape cassette memory is full (p. 92).* FULL The “Memory Stick” is full in photo save function (p. 137). The video heads are dirty (p. 177).

16BIT AUDIO MODE is set to 16BIT.* You cannot dub new sound (p. 103).

REC MODE REC MODE is set to LP.* You cannot dub new sound (p. 103).

TAPE There is no recorded portion on the tape.* You cannot dub new sound (p. 88).

“i.LINK” CABLE i.LINK cable is connected (p. 87).* You cannot dub new sound.

FULL The “Memory Stick” is full (p. 127).*

The write-protect tab on the “Memory Stick” is set to LOCK (p. 115).* NO FILE No still image is recorded on the “Memory Stick” (p. 139).*

No “Memory Stick” is inserted (p. 118).

• COPY INHIBIT The tape contains copyright control signals for copyright protection of software (p. 155).*

• q TAPE END The tape has reached the end of the tape (p. 36).*

Maintenance information and precautions Moisture condensation If your camcorder is brought directly from a cold place to a warm place, moisture may condense inside your camcorder, on the surface of the tape, or on the lens. In this condition, the tape may stick to the head drum and be damaged or your camcorder may not operate correctly. If there is moisture inside your camcorder, the beep sounds and the % indicator flashes. When the Z indicator flashes at the same time, the cassette is inserted in your camcorder. If moisture condenses on the lens, the indicator will not appear. If moisture condensation occurred None of the functions except cassette ejection will work. Eject the cassette, turn off your camcorder, and leave it for about one hour with the cassette compartment open. Your camcorder can be used again if the % indicator does not appear when the power is turned on again. Note on moisture condensation Moisture may condense when you bring your camcorder from a cold place into a warm place (or vice versa) or when you use your camcorder in a hot place as follows:

• You bring your camcorder from a ski slope into a place warmed up by a heating device.
• You bring your camcorder from an airconditioned car or room into a hot place outside.
• You use your camcorder after a squall or a shower.
• You use your camcorder in a high temperature and humidity place. How to prevent moisture condensation When you bring your camcorder from a cold place into a warm place, put your camcorder in a plastic bag and tightly seal it. Remove the bag when the air temperature inside the plastic bag has reached the surrounding temperature (after about one hour).

• mosaic-pattern noise appears on the playback picture.
• playback pictures do not move.
• playback pictures do not appear.

Maintenance information and precautions Инфоpмaция по yxодy зa aппapaтом и мepы пpeдоcтоpожноcти Charging the vanadium-lithium battery:

• Connect your camcorder to mains using the AC power adaptor supplied with your camcorder, and leave your camcorder with the POWER switch turned off for more than 24 hours.
• Or install the fully charged battery pack in your camcorder, and leave your camcorder with the POWER switch turned off for more than 24 hours. Зapядкa вaнaдиeво-литиeвой бaтapeи:
• Подcоeдинитe видeокaмepy к ceти элeктpопитaния c помощью ceтeвого aдaптepa пepeмeнного токa, пpилaгaeмого к видeокaмepe, отключитe выключaтeль POWER видeокaмepы и оcтaвьтe ee болee чeм нa 24 чaca.
• Mожно тaкжe ycтaновить в видeокaмepy полноcтью зapяжeнный бaтapeйный блок и, пepeвeдя пepeключaтeль POWER в положeниe OFF, оcтaвить видeокaмepy болee чeм нa 24 чaca. Precautions Camcorder operation
• Operate your camcorder on 7.2 V (battery pack) or 8.4 V (AC power adaptor).
• For DC or AC operation, use the accessories recommended in this operating instructions.
• If any solid object or liquid get inside the casing, unplug your camcorder and have it checked by a Sony dealer before operating it any further.
• Avoid rough handling or mechanical shock. Be particularly careful of the lens.
• Keep the POWER switch set to OFF when you are not using your camcorder.
• Do not wrap your camcorder with a towel, for example, and operate it. Doing so might cause heat to build up inside.
• Keep your camcorder away from strong magnetic fields or mechanical vibration.
• Do not touch the LCD screen with a sharppointed object.
• If your camcorder is used in a cold place, a residual image may appear on the LCD screen. This is not a malfunction.
• While using your camcorder, the back of the LCD screen may heat up. This is not a malfunction. On handling tapes
• Do not insert anything into the small holes on the rear of the cassette. These holes are used to sense the type and thickness of the tape and if the recording tab is in or out.
• Do not open the tape protect cover or touch the tape.
• Avoid touching or damaging the terminals. To remove dust, clean the terminals with a soft cloth.

• Remove the tape, and periodically turn on the power, operate the CAMERA and VTR sections and play back a tape for about three minutes when your camcorder is not to be used for a long time.
• Clean the lens with a soft brush to remove dust. If there are fingerprints on the lens, remove them with a soft cloth.
• Clean the camcorder body with a dry soft cloth, or a soft cloth lightly moistened with a mild detergent solution. Do not use any type of solvent which may damage the finish.
• Do not let sand get into your camcorder. When you use your camcorder on a sandy beach or in a dusty place, protect it from the sand or dust. Sand or dust may cause your camcorder to malfunction, and sometimes this malfunction cannot be repaired. AC power adaptor Ceтeвой aдaптep пepeмeнного токa
• Когдa видeокaмepa длитeльноe вpeмя нe иcпользyeтcя, отключaйтe aппapaт от ceти элeктpопитaния. Для отключeния от ceти элeктpопитaния, потянитe ceтeвой шнyp зa вилкy. Hикогдa нe тянитe зa caм шнyp.

• Unplug the unit from mains when you are not using the unit for a long time. To disconnect the mains lead, pull it out by the plug. Never pull the mains lead itself.
• Do not operate the unit with a damaged cord or if the unit has been dropped or damaged.
• Do not bend the mains lead forcibly, or place a heavy object on it. This will damage the cord and may cause fire or electrical shock.
• Prevent metallic objects from coming into contact with the metal parts of the connecting section. If this happens, a short may occur and the unit may be damaged.
• Always keep metal contacts clean.
• Do not disassemble the unit.
• Do not apply mechanical shock or drop the unit.
• While the unit is in use, particularly during charging, keep it away from AM receivers and video equipment. AM receivers and video equipment disturb AM reception and video operation.
• The unit becomes warm during use. This is not a malfunction.
• Do not place the unit in locations that are: – Extremely hot or cold – Dusty or dirty – Very humid – Vibrating

• Use only the specified charger or video equipment with the charging function.
• To prevent accident from a short circuit, do not allow metal objects to come into contact with the battery terminals.
• Keep the battery pack away from fire.
• Never expose the battery pack to temperatures above 60°C (140°F), such as in a car parked in the sun or under direct sunlight.
• Keep the battery pack dry.
• Do not expose the battery pack to any mechanical shock.
• Do not disassemble nor modify the battery pack.
• Attach the battery pack to video equipment securely.
• Charging while some capacity remains does not affect the original battery capacity.
• The battery pack is not resistant to water. Do not wet the battery pack.
• Unless you use the battery pack for a long period, store the battery pack after you charge it fully and use it completely once a year.
• Store the battery pack in a cool, dry place. Notes on dry batteries To avoid possible damage from battery leakage or corrosion, observe the following:
• Be sure to insert the batteries with the + – polarities matched to the + – marks.
• Dry batteries are not rechargeable.
• Do not use a combination of new and old batteries.
• Do not use different types of batteries.
• Current flows from batteries when you are not using them for a long time.
• Do not use leaking batteries. If batteries are leaking
• Wipe off the liquid in the battery compartment carefully before replacing the batteries.
• If you touch the liquid, wash it off with water.
• If the liquid get into your eyes, wash your eyes with a lot of water and then consult a doctor. If any problem occurs, unplug your camcorder and contact your nearest Sony dealer.

2.5 inches measured diagonally

7.2 V (battery pack)

Average power consumption (when using the battery pack) During camera recording using LCD

Operating temperature 0 °C to 40 °C (32 °F to 104 °F) Storage temperature –20 °C to +60 °C (–4 °F to +140 °F) Dimensions (approx.) 61 × 127 × 123 mm (2 1/2 × 5 × 4 7/8 in.) (w/h/d) Mass (approx.) 550 g (1 lb 3 oz) main unit only 650 g (1 lb 7 oz) including the battery pack, NP-FM50, cassette DVM60 and lens cap Supplied accessories See page 13. AC power adaptor Power requirements

100 - 240 V AC, 50/60 Hz

Power consumption 23 W Output voltage DC OUT: 8.4 V, 1.5 A in the operating mode Operating temperature 0 °C to 40 °C (32 °F to 104 °F) Storage temperature –20 °C to +60 °C (–4 °F to +140 °F ) Dimensions (approx.) 125 × 39 × 62 mm (5 × 1 9/16 × 2 1/2 in.) (w/h/d) excluding projecting parts Mass (approx.) 280 g (9.8 oz) excluding mains lead Cord length (approx.) Mains lead: 2 m (6.6 ft.) Connecting cord: 1.6 m (5.2 ft.) Battery pack Output voltage DC 7.2 V Capacity

Dimensions (approx.)

Power consumption Approx. 45 mA in the operating mode Approx. 130 µA in the standby mode Dimensions (approx.) 50 × 2.8 × 21.5 mm (2 × 1/8 × 7/8 in. ) (w/h/d) Mass (approx.) 4 g (0.14 oz) Additional Information/Дополнитeльнaя инфоpмaция Video recording system 2 rotary heads Helical scanning system Audio recording system Rotary heads, PCM system Quantization: 12 bits (Fs 32 kHz, stereo 1, stereo 2), 16 bits (Fs 48 kHz, stereo) Video signal PAL colour, CCIR standards Usable cassette Mini DV cassette with the mark printed Tape speed SP: Approx. 18.81 mm/s LP: Approx. 12.56 mm/s Recording/playback time (using cassette DVM60) SP: 1 hour LP: 1.5 hours Fast-forward/rewind time (using cassette DVM60) Approx. 1 min. and 50 seconds (using the AC power adaptor) Approx. 2 min. and 30 seconds (using the battery pack) Viewfinder Electric viewfinder (colour) Image device 1/4 inch CCD (Charge Coupled Device) Approx. 1,070,000 pixels (Effective: Moving image: Approx. 690,000 pixels, Still image: Approx. 1,000,000 pixels) Lens Carl Zeiss Combined power zoom lens Filter diameter 37 mm. (1 1/2 in.) 10× (Optical), 40× (Digital) Focal length

4.2 - 42 mm (3/16 - 1 11/16 in.)

When converted to a 35 mm still camera Camera mode: 48 - 480 mm (1 15/16 - 19 in.) Memory mode: 40 - 400 mm (1 5/8 - 15 3/4 in.) Colour temperature Auto, HOLD (Hold), nIndoor Outdoor (5800K) (3200K), Minimum illumination 7 lux (F 1.8) 0 lux (in the NightShot mode)*

• Objects unable to be seen due to the dark can be shot with infrared lighting. Input/Output connectors Design and specifications are subject to change without notice.

Identifying the parts and controls This mark indicates that this product is a genuine accessory for Sony video products. When purchasing Sony video products, Sony recommends that you purchase accessories with this “GENUINE VIDEO ACCESSORIES” mark. Oбознaчeниe дeтaлeй и оpгaнов yпpaвлeния Дaнный знaк ознaчaeт, что это издeлиe являeтcя подлинной пpинaдлeжноcтью для видeоaппapaтypы Sony. Пpи покyпкe видeоaппapaтypы Sony peкомeндyeтcя пpиобpeтaть для нee пpинaдлeжноcти cо знaком “GENUINE VIDEO ACCESSORIES”. These are trademarks. Tоpговыe знaки. Notes on the intelligent accessory shoe

• The intelligent accessory shoe supplies power to optional accessories such as a video light or microphone.
• The intelligent accessory shoe is linked to the POWER switch, allowing you to turn the power supplied by the shoe on and off. Refer to the operating instructions of the accessory for further information.
• The intelligent accessory shoe has a safety device for fixing the installed accessory securely. To connect an accessory, press down and push it to the end, and then tighten the screw.
• To remove an accessory, loosen the screw, and then press down and pull out the accessory.

Identifying the parts and controls Note on the Carl Zeiss lens Your camcorder is equipped with a Carl Zeiss lens which can reproduce a fine image. The lens for your camcorder was developed jointly by Carl Zeiss, in Germany, and Sony Corporation. It adopts the MTF* measurement system for video camera and offers a quality as the Carl Zeiss lens.

DV IN/OUT jack (p. 72, 79, 135) This “i.LINK” mark is a trademark of Sony Corporation and indicates that this product is in agreement with IEEE 1394-1995 specifications and their revisions. The DV IN/OUT jack is i.LINK compatible. tg i (headphone) jack th AUDIO/VIDEO jack (p. 38, 44, 70, 77, 85, 134) tj LANC jack tk S VIDEO jack (p. 38, 44, 71, 78)

Плотно пpиcтeгнитe peмeнь для зaxвaтa видeокaмepы. Identifying the parts and controls Remote Commander The buttons that have the same name on the Remote Commander as on your camcorder function identically to the buttons on your camcorder.

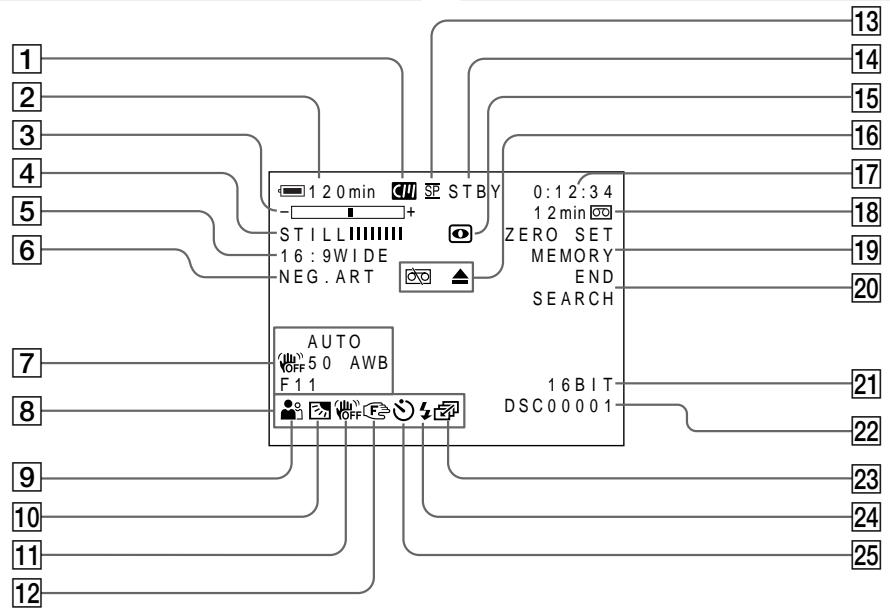

Identifying the parts and controls Oбознaчeниe дeтaлeй и оpгaнов yпpaвлeния To prepare the Remote Commander Для подготовки пyльтa диcтaнционного yпpaвлeния Insert two R6 (Size AA) batteries by matching the + and – polarities on the batteries to the + – marks inside the battery compartment. Notes on the Remote Commander

• Point the remote sensor away from strong light sources such as direct sunlight or overhead lighting. Otherwise, the Remote Commander may not function properly.
• Your camcorder works in the commander mode VTR 2. Commander modes 1, 2 and 3 are used to distinguish your camcorder from other Sony VCRs to avoid remote control misoperation. If you use another Sony VCR in the commander mode VTR 2, we recommend changing the commander mode or covering the sensor of the VCR with black paper.

English Quick Function Guide Functions to adjust exposure (in the recording mode)

• In insufficient light
• In dark environments such as sunset, fireworks, or general night views
• Shooting backlit subjects
• In spotlight, such as at the theatre or a formal event
• In strong light or reflected light, such as at a beach in midsummer or on a ski slope NIGHTSHOT (p. 29) Low lux mode (p. 55) Sunset & moon mode (p. 55) BACK LIGHT (p. 28) Spotlight mode (p. 55) Beach & ski mode (p. 55) Functions to give images more impact (in the recording mode)
• Smooth transition between scenes
• Taking a still picture
• Digital processing of images
• Creating a soft background for subjects
• Superimposing a title FADER (p. 48) PHOTO (p. 41, 124) PICTURE EFFECT (p. 50)/ DIGITAL EFFECT (p. 52) Soft portrait mode (p. 55) TITLE (p. 89) Functions to give a natural appearance to your recordings (in the recording mode) D ZOOM [MENU] (p. 98) Manual focus (p. 59) Landscape mode (p. 55) Sports lesson mode (p. 55) Functions to be used in editing (in the recording mode)
• Watching the picture on a wide-screen TV
• Viewing images using a personal computer Wide mode (p. 47) “Memory Stick” (p. 115) Functions to be used after recording (in the playback mode)
• Digital processing of recorded images
• Displaying the date/time or various settings when you recorded
• Quickly locating a desired scene
• Searching for scenes having a title
• Searching for scenes recorded in the photo mode
• Scanning scenes recorded in the photo mode
• Playing back monaural sound or sub sound
• Playing back the picture on a TV without connecting cord PICTURE EFFECT (p. 61)/ DIGITAL EFFECT (p. 62) Data code (p. 35) Zero set memory (p. 63) Title search (p. 64) Photo search (p. 67) Photo scan (p. 69) HiFi SOUND [MENU] (p. 98) LASER LINK (p. 39) Quick Reference/Oпepaтивный cпpaвочник

• Preventing deterioration of picture quality in digital zoom
• Shooting distant subjects
• Recording fast-moving subjects
