USER MANUAL DEHS1200UB PIONEER

• In the following instructions, a USB memory or USB audio player are referred to as “USB device”. Table of Contents

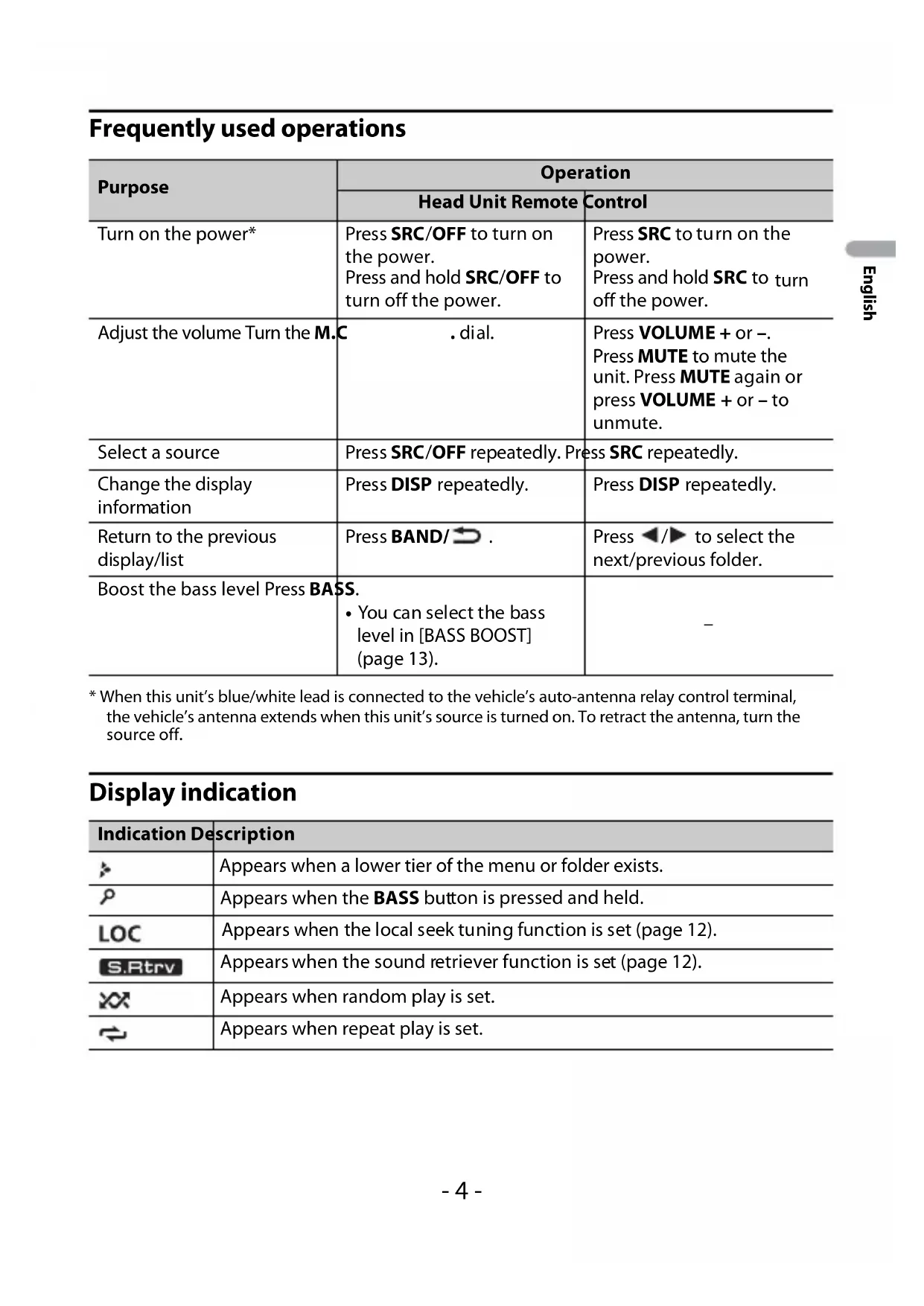

SRC (source) VOLUME +/– MUTE DISP (display) FUNCTION AUDIO- 4 - English Frequently used operations

• When this unit’s blue/white lead is connected to the vehicle’s auto-antenna relay control terminal, the vehicle’s antenna extends when this unit’s source is turned on. To retract the antenna, turn the source off. Display indication Purpose Operation Head Unit Remote Control Turn on the power* Press SRC/OFF to turn on the power. Press and hold SRC/OFF to turn off the power. Press SRC to

rn on the power. Press and hold SRC to turn off the power. Adjust the volume Turn the M.C . di al. Press VOLUME + or –. Press MUTE to mute the unit. Press MUTE again or press VOLUME + or – to unmute. Select a source Press SRC/OF F rep eatedly. Press SRC repeatedly. Change the display inform ation Press DISP repeatedly. Press DISP repeatedly. Return to the previous

splay/list Press BAND/ . Press / to select the next/previous folder. Boost the bass level Press BASS.

• You can select the bass level in [ BASS BOOST] (page 13).

Indication Description Appears when a lower tier of the menu or folder exists. Appears when the BASS but ton is pressed and held. Appears when the local seek tuning function is set (page 12). Appears when the sound retriever function is set (page 12). Appears when random play is set. Appears when repeat play is set.- 5 -- 5 - English Detach the front panel to prevent theft. Remove any cables and devices attached to the front panel and turn off the unit before detaching it. Important

• Avoid subjecting the front panel to excessive shock.• Keep the front panel out of direct sunlight and high temperatures.• Always store the detached front panel in a protective case or bag. Remove the insulation sheet before use. WARNING

• Do not ingest the battery, Chemical Burn Hazard. (The remote control supplied with) This product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. Detaching the front panel Preparing the remote control Detach Attach How to replace the battery Insert the CR2025 (3 V) battery with the plus (+) and minus (–) poles orientated properly.- 6 - English If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
• Batteries (battery pack or batteries installed) must not be exposed to excessive heat such as sunshine, fire or the like. CAUTION

• There is a danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type.• Do not handle or store the battery with metallic tools or objects.
• If the battery leaks, remove the battery and wipe the remote control completely clean. Then install a new battery.
• When disposing of used batteries, please comply with governmental regulations or environmental public institution’s rules that apply in your country/area.
• “Perchlorate Material - special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate. (Applicable to California, U.S.A.)” Important

• Do not store the remote control in high temperatures or direct sunlight.
• Do not let the remote control fall onto the floor, where it may become jammed under the brake or accelerator pedal. When you turn the ignition switch to ON after installation, [SET UP :YES] appears in the display. 1 Press the M.C. dial. The setup menu disappears after 30 seconds of no operation. If you prefer not to set at thi s time, turn the M.C. dial to select [NO], then press to confirm. 2 Turn the M.C. dial to adjust the hour, then press to confirm. The indicator moves to the minute setting automatically. 3 Turn the M.C. dial to adjust the minute, then press to confirm. [QUIT] appears. 4 Turn the M.C. dial to select [YES], then press to confirm. NOTES

• You can cancel the menu setting by pressing SRC/OFF.

• This setting can be made at any time. See page 14 for more details. 1 Press the M.C. dial to display the main menu. 2 Turn the M.C. dial to select [SYSTEM], then press to confirm. Setting the clock (CLOCK SET) Canceling the demonstration display (DEMO OFF)- 7 -- 7 - English 3 Turn the M.C. dial to select [DEMO OFF], then press to confirm. 4 Turn the M.C. dial to select [YES], then press to confirm. 1 Press and hold SRC/OFF until the unit turns off. 2 Press the M.C. dial to display the main menu. 3 Turn the M.C. dial to select [INITIAL], then press to confirm. 4 Turn the M.C. dial to select an option, then press to confirm. The tuner frequencies on this unit are allocated for use in North America. Use in other are as may result in poor reception. INITIAL settings Menu Item DescriptionSP-P/O MODE Select when there is a full-range speaker connected to the rear spea ker output leads and there is a subwoofer connected to the RCA output.[REAR/SUB.W][SUB.W/SUB.W] Select when there is a passive subwoofer connected directly to he rear speaker output leads and there is a subwoofer connected to the RCA output.[REAR/REAR] Select when there are full-range speakers connected to the rear speaker output leads and RCA output. If there is a full-range speaker connected to the rear speaker output leads, and the RCA output is not used, you may select either [REAR/SUB.W] or [REAR/REAR].S/W UPDATE Select to confirm the latest system information on the unit.[SYSTEM INFO][SYSTEM UPDATE] Select to update the unit to the latest software and initialize the it settings. For details on the latest software and updating, visit our website.SYSTEM RESET Select [YES] to initialize the unit settings. The unit will be

tarted automatically.(Some of the settings may be retained even after resetting the unit

[YES], [NO] Radio- 8 - English 1 Press SRC/OFF to select [RADIO]. 2 Press BAND/ to select the band from [FM1], [FM2], [FM3] or [AM]. 3 Press a number button (1/ to 6/ ). TIP The / buttons can be also used to select a preset station when [SEEK] is set to [PCH] in the FUNCTION settings (page 12). The six strongest stations are stored on the number buttons (1/ to 6/ ). 1 After selecting the band, press the M.C. dial to display the main menu. 2 Turn the M.C. dial to select [FUNCTION], then press to confirm. 3 Turn the M.C. dial to select [BSM], then press to confirm. To seek a station manually 1 After selecting the band, press / to select a station. Press and hold / then release to seek an available station. Scanning stops when the unit receives a station. To cancel seek tuning, press / . NOTE [SEEK] needs to be set to [MAN] in the FUNCTION settings (page 12). To store stations manually 1 While receiving the station you want to store, press and hold one of the number buttons (1/ to 6/ ) until it stops flashing. Disconnect headphones from the device before connecting it to the unit. Receiving preset stations Best stations memory (BSM)

Playing back- 9 -- 9 - English

1 Insert a disc into the disc loading slot with the label side up. To eject a disc, stop playback first then press . USB devices (including Android™) 1 Open the USB port cover. 2 Plug in the USB device using an appropriate cable. NOTE To automatically switch to [USB] source when a USB device is connected to the unit, set [USB AUTO] to [ON] in the SYSTEM settings (page 14). CAUTION Use a USB cable (sold separately) to connect the USB device as any device connected directly to the unit will protrude out from the unit, which could be dangerous. Before removing the device, stop playback. AOA connections For details on AOA connection, see page 11. MTP connection A device installed with Android OS 4.0 or most of later versions can be connected to the unit via MTP, using the cable supplied with the device. However, depending on the connected device, OS version or the numbers of the files in the device, audio files/songs may not be able to be played back via MTP. Note that MTP connection is not compatible with WAV and FLAC file formats. NOTE If you use an MTP connection, [ANDROID WIRED] needs to be set to [MEMORY] in the SYSTEM settings (page 14). AUX 1 Insert the stereo mini plug into the AUX input jack. 2 Press SRC/OFF to select [AUX] as the source. NOTE If [AUX] is set to [OFF] in the SYSTEM settings, [AUX] cannot be selected as a source (page 14). You can make various adjustments in the FUNCTION settings (page 12). Note that the following operations do not work f or an AUX device. To operate an AUX device, use the device itself. Operations- 10 - English *1 Compressed audio files only *2 When you use the fast forward or reverse function while playing a VBR file, the playback time may be not correct. You can operate the unit from Pioneer ARC APP installed on an Android device. In some cases, you can control aspects of the application, such as source selection, pause, etc., by using the unit. For details on what operations are available on the application, see the application’s help sect ion. Purpose Operation Select a folder*1 Press 1/ or 2/ . Select a track/song Press or . Fast forward or reverse*2 Press and hold or . Search for a file from a list 1 Press and hold BASS to display the list. 2 Turn the M.C. di al to select the desired file (folder) name or category, then press to confirm. 3 Tu rn the M.C. di al to select the desired file, then press to confirm. Playback starts. View a list of the files in the selected folder/ cat

gory*1 Press the M.C. dial when a folder/category is selected. Play a song in the selected folder/ cat

gory*1 Press and hold the M.C. dial when a folder/ category is selected. Repeat play Press 6/ . Random play Press 5/ . Pause/resume playback Press 4/PA USE. Ret urn to root folder (CD/USB only)*1 Press and hold 1/ . Switch between compressed audio and CD- DA (CD only) Press BAND/ . Change drives in USB device (Devices that support the USB mass storage device class protocol only) Press BAND/ . Using Pioneer ARC APP- 11 -- 11 - English WARNING Do not attempt to operate the application while driving. Make sure to pull off the road and park your vehicle in a safe location before attempting to use the controls on the application. For Android device users This function is compatible with a phone that runs Android 4.1 up to 7.1.2 and also suppor ts AOA (Android Open Accessory) 2.0, but the compatibility depends on the smartphone. You can download Pioneer ARC APP on Google Play™. NOTE Some Android devices connected via AOA 2.0 may not work properly or emit sounds due to their own software design, regardless of the OS version. 1 Press the M.C. dial to display the main menu. 2 Turn the M.C. dial to select [SYSTEM], then press to confirm. 3 Turn the M.C. dial to select [ANDROID WIRED], then press to confirm. 4 Turn the M.C. dial to select [APP CONTROL], then press to confirm. 5 Turn the M.C. dial to select [P.APP AUTO ON], then press to confirm. 6 Turn the M.C. dial to select [ON], then press to confirm. 7 Connect this unit with the Android device via USB. Pioneer ARC APP on the device starts automatically. NOTE If Pioneer ARC APP has not been installed on your Android device yet, a message that prompts you to install the application will appear on your Android device. Select [OFF] in [P.APP AUTO ON] to clear the message (page 14). 1 Press SRC/OFF to select [ANDROID]. Basic operations Making a connection with Pioneer ARC APP Listening to music on Android Purpose OperationSelect a track Press or . Fast forward or reverse Press and hold or .- 12 - English You can adjust various settings in the main menu. 1 Press the M.C. dial to display the main menu. 2 Turn the M.C. dial to select one of the categories below, then press to confirm.

• ILLUMINATION settings (page 14) 3 Turn the M.C. dial to select the options, then press to confirm. The menu items vary according to the source. Pause/resume playback Press 4/PAUSE. Settings FUNCTION settings Menu Item Description BSM Store the six strongest stations on the number butt ons (1/ to 6/ ) automatically. LOCAL

estrict the tuning station according to the signal st rength. SEEK [MAN], [PCH] Assign or buttons to seek the stations one by one (manual tuning) or select a station

om the preset channels. S.RTRV [1] (effective for low compression rates), [2] (effective for high com pression rates), [OFF] Enhance compressed audio and restore rich

• C D-DA/CD-TEXT is played back.

• The FLAC file is played back. Purpose Operation USB- 13 -- 13 - English AUDIO settings Menu Item Description FADER*1 Adjust the front and rear speaker balance. BALANCE Adjust the left and right speaker balance. EQ SETTING [SUPER BASS], [POWERFUL], [DYNAMIC], [NATURAL], [VOCAL], [VIVID], [CUSTOM1], [CUSTOM2], [FLAT] Select an equalizer band and level fo r fu rther customizing. Equalizer band: [80HZ], [250H Z],

[800HZ], [2.5KHZ], [8KHZ]

Equalizer level: [+6] to [–6] Select or customize the equalizer curve. [CUSTOM1] can be set separately for each source.

wever, each of the below combinations are set to the same setting automatically. [CUSTOM2] is a shared setting used for all

rces. You can also switch the equalizer by pressing repeatedly. LOUDNESS [OFF], [LOW], [MID], [HI] Compensate for clear sound at low volume. SUB.W*2 [NOR], [REV], [OFF] Select the subwoofer phase.

nly frequencies lower than those in the selec ted range are output from the subwoofer. BASS BOOST [0] to [+6] Select the bass boost level. HPF SETTING Cut-off frequency: [O

nly frequencies higher than the high-pass filter

PF) cutoff are output from the speakers. SLA [+4] to [–4] Adjust the volume level for each source except

.- 14 - English *1 Not available when [SUB.W/SUB.W] is selected in [SP-P/O MODE] in the INITIAL settings (page 7). *2 Not available when [REAR/REAR] is selected in [SP-P/O MODE] in the INITIAL settings (page 7). *3 Not available when [OFF] is selected in [SUB.W]. You can also access to these menus when the unit is turned off. SYSTEM settings Menu Item Description CLOCK SET Set the clock (page 6). 12H/24H [12H], [24H] Select the time notation. SCROLL SET [ONCE], [LOOP], [OFF] Select the way to scroll the text in the display window. AUX [ON], [OFF] Set to [ON] when using an auxiliary device connec ted to the unit. ANDROID WIRED [MEMORY], [APP CONTROL] Select the appropriate connection method for an

droid device. P. AP P AU T O O N [ON], [OFF] Select [ON] to automatically launch Pioneer ARC APP when an Android device is connected to the unit via AOA. (Not available when [MEMORY] is selected in [ANDROID WIRED].) USB AUTO [ON], [OFF] Select [ON] to automatically switch to [USB] source when a USB device is connected to the unit. Select [OFF] when a USB device is being

nnec ted to the unit just for charging. ILLUMINATION settings Menu Item Description DIM SETTING [SYNC CLOCK], [MANUAL] Select the way to change the display brightness.- 15 -- 15 - English BRIGHTNESS [1] to [10] Change the display brightness. The available setting ranges differ depending on [DIM SETTING]. Menu Item Description- 16 - English The display automatically returns to the normal display.

• No operations have been made for about 30 seconds. –Perform an operation. The repeat play range changes unexpectedly.

• Depending on the repeat play range, the selected range may change when another folder or track is being selected or during fast forwarding/reversing. –Select the repeat play range again. A subfolder is not played back.

• Subfolders cannot be played when [FLD] (folder repeat) is selected. –Select another repeat play range. The sound is intermittent.

• You are using a device, such as a cellular phone, that may cause audible interference. –Move electrical devices that may be caus ing t he interference away from the unit. Common AMP ERROR

• This unit fails to operate or the speaker connection is incorrect.

• The protective circuit is activated.

Check the speaker connection. –Turn the ignition switch OFF and back

ON again. If the message remains, contact your dealer or an authorized Pioneer Service Station for assistance. NO XXXX (NO TITLE, for example)

• There is no embedded text information. – Switch the display or play another tra ck/file. CD player ERROR-07, 11, 12, 17, 30

• The disc is dirty. –Clean the disc.

• The disc is scratched.

Replace the disc. ERROR-07, 10, 11, 12, 15, 17, 30, A0

• There is an electrical or mechanical error. –Turn the ignition switch OFF and back

ON, or switch to a different source, then back to the CD player. ERROR-15

• Sometimes there is a delay between the start of playback and when you start to hear any sound. –Wait until the message disappears and

u hear sound. NO AUDIO

• The inserted disc does not contain any playable files. –Replace the disc. SKIPPED

• The inserted disc contains DRM protected files. –The protected files are skipped. Additional Information Troubleshooting Error messages- 17 - English PROTECT

• All the files on the inserted disc are embedded with DRM. –Replace the disc. USB device FORMAT READ

• Sometimes there is a delay between the start of playback and when you start to hear any sound. –Wait until the message disappears and

u hear sound. NO AUDIO

• There are no songs. –Transfer the audio files to the USB dev ice and connect.

• The connected USB device has security enable

–Follow the USB device instructions to

sable the security. SKIPPED

• The connected USB device contains DRM protected files. –The protected files are skipped. PROTECT

• All the files on the connected USB device are embedded with DRM. –Replace the USB device.

• The connected USB device is not supported by this unit. –Disconnect your device and replace it

th a compatible USB device. HUB ERROR

• The USB device connected via a USB hub is not supported by this unit. – Connect the USB device directly to this unit using a USB cable. CHECK USB

• The USB connector or USB cable has short-circuited. –Check that the USB connector or USB

ble is no t caught in something or damaged.

• T he connected USB device consumes mor e than maximum allowable current. –Disconnect the USB device and do not use it . Turn the ignition switch OFF and back to ACC or ON. Connect only compliant USB devices. ERROR-19

• Communication failed. –Perform one of the following

erations, then return to the USB source.

• Dis connect the USB device.

• Change to a different source. ERROR-23

• USB device was not formatted properly. –Format the USB device with FAT12, FAT1 6 or FAT32. Discs and player

• Use only discs that feature either of the following two logos.

• Use only conventional, fully circular discs.

• The following types of discs cannot be

ed with this unit: –DualDiscs – 8-cm discs: Attempts to use such discs wit

an adaptor may cause the unit to malfunction. – Oddly shaped discs –Discs other than CDs – Damaged discs, including discs that are crack

d, chipped or warped Handling guidelines- 18 - English – CD-R/RW discs that have not been finalized

• Do not write on or apply chemicals to the surface of the discs.

• To clean a CD, wipe the disc with a soft

loth outward from the center.

he player’s performance. Let it rest for about one hour to adjust to a warmer temperature. Also, wipe any damp discs off with a soft cloth.

• W hen using discs that can be printed on

abel surfaces, check the instructions and the warnings of the discs. Depending on the discs, inserting and ejecting may not be possible. Using such discs may result in damage to this equipment.

• D o not attach commercially available

abels or other materials to the discs. – The discs may warp making the disc unplay able.

The labels may come off during play back and prevent ejection of the discs, which may result in damage to the equipment. USB storage device

• Connections via USB hubs are not supported.

• Firmly secure the USB storage device

efore driving. Do not let the USB storage device fall onto the floor, where it may become jammed under the brake or accelerator pedal.

• D epending on the USB storage device,

he following problems may occur. –Operations may vary. –The storage device may not be reco

nized. – Files may not be played back properly. – The device may cause audible int

ference when you are listening to the radio.

• On ly the first 32 characters can be

isplayed as a file name (including the file extension) or a folder name.

• The uni t may not work properly

epending on the application used to encode WMA files.

• There m ay be a slight delay at the start of

e playback of audio files embedded with image data, or audio files stored on a USB device with numerous folder hierarchies. CAUTION

• Pioneer cannot guarantee compatibility with all USB mass storage devices, and assumes no responsibility for any loss of data on media players, smartphones, or other devices while using this product.

• Do not leave discs or a USB storage device in any place that is subject to high temperatures. WMA files MP3 files Compressed audio compatibility File extension .wmaBit rate 48 kbps to 320 kbps (CBR), 48 kbps to 384 kbps (VBR)Sampling frequency 32 kHz, 44.1 kHz, 48 kHz Windows Media™ Audio Professional, Lossless, Voice/DRM Stream/Stream with videoNot compatibleFile extension .mp3Bit rate 8 kbps to 320 kbps (CBR), VBR- 19 - English WAV files

• WAV file formats cannot be connected via MTP. FLAC files

• FLAC file formats cannot be connected via MTP.

• Regardless of the length of the blank section between the songs from the original recording, compressed audio discs play with a short pause between songs. USB device

• There may be a slight delay when starting playback of audio files on a USB storage device with numerous folder hierarchies. The user cannot assign folder numbers and specify playback sequences with this unit. Sequence of audio file depends on the connected device. Note that the hidden files in a USB device cann

be played back. Sampling frequency 8 kHz to 48 kHz (32 kHz, 44.1 kHz, 48 kHz for emphasis) Compatible ID3 tag version 1.0, 1.1, 2.2, 2.3, 2.4 (ID3 tag Version 2.x is given priority over Version 1.x.) M3u playlist Not compatible MP3i (MP3 interactive), mp3 PRO Not compatible File extension .wav Quantization bits 8 and 16 (LPCM) Sampling frequency 16 kHz to 48 kHz (LPCM) File extension .flac Sampling frequency 8/11.025/12/16/22.05/ 24/32/44.1/48 kHz Quantization bit rate 16 bit Channel mode 1/2 ch Playable folder hierarchy Up to eight tiers (A practical hierarchy is less than two tiers.) Playable folders Up to 99 Playable files Up to 999 File system ISO 9660 Level 1 and 2, Romeo, Joliet Multi-session playback Compatible Packet write data transfer Not compatible Playable folder hierarchy Up to eight tiers (A practical hierarchy is less than two tiers.) Playable folders Up to 500 Playable files Up to 15 000 Playback of copyright- protected files Not compatible Partitioned USB device Only the first partition can be played. Sequence of audio files- 20 - English Example of a hierarchy WMA Windows Media is either a registered trad emark or trademark of Microsoft Corporation in the United States and/or other countries. This product includes technology owned

icrosoft Corporation and cannot be used or distributed without a license from Microsoft Licensing, Inc. FLAC Copyright © 2000-2009 Josh Coalson Copyright © 2011-2013 Xiph.Org

ndation Redistribution and use in source and

ary forms, with or without modification, are permitted provided that the following conditions are met: –Redistributions of source code must

tain the above copyright notice, this list of conditions and the following disclaimer. –Redistributions in binary form must

produce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. –Neither the name of the Xiph.org

undation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

OR IMPLIED WARRANTIES, INCLUDING, BUT

CONSEQUENTIAL DAMAGES (INCLUDING,

ademarks of Google LLC. General Power source: 14.4 V DC (10.8 V to 15.1 V allowable) Grounding system: Negative type Maximum current consumption: 10.0 A Dimensions (W × H × D): DIN Chassis: 178 mm × 50 mm × 165 mm (7 i

. × 2 in. × 6-1/2 in.) Nose: 188 mm × 58 mm × 17 mm (7-

8 i n. × 2-1/4 in. × 5/8 in.) Copyright and trademark FolderCompressed audio file to : Playback sequence01 to 05: Folder number Specifications- 21 - English

Chassis: 178 mm × 50 mm × 165 mm (7 in. × 2 in. × 6-1/2 in.) Nose: 170 mm × 46 mm × 17 mm (6- 3/4 i n. × 1-3/4 in. × 5/8 in.) Weight: 1 kg (2.2 lbs) Audio Maximum power output:

• 50 W × 4 ch/4 Ω (for no subwoofer)

• 50 W × 2 ch/4 Ω + 70 W × 1 ch/2 Ω (for subwoofer) Continuous power output: 22 W × 4 (50 Hz to 15 000 Hz, 5 %

, 4 Ω load, both channels driven) Load impedance: 4 Ω (4 Ω to 8 Ω allowable) Preout maximum output level: 2.0 V Loudness contour: +10 dB (100 Hz), +6.5

WAV signal format: Linear PCM (Non- com pressed) USB USB standard specification: USB 2.0 full speed Maximum current supply: 1.5 A USB Protocol: MSC (Mass Storage Class) MTP (Media Transfer Protocol) AOA (Android Open Accessory) 2.0 File system: FAT12, FAT16, FAT32 MP3 decoding format: MPEG-1 & 2 Audio

FLAC decoding format: v1.3.0 (Free Lossl ess Audio Codec) WAV signal format: Linear PCM (Non- com pressed) FM tuner Frequency range: 87.9 MHz to 107.9 MHz Usable sensitivity: 11 dBf (1.0 μV/75 Ω, mono , S/N: 30 dB) Signal-to-noise ratio: 72 dB (IHF-A network) AM tuner Frequency range: 530 kHz to 1 710 kHz Usable sensitivity: 25 μV (S/N: 20 dB) Signal-to-noise ratio: 62 dB (IHF-A network) CTA2006 Specifications Power output: 14 W RMS × 4 Channels (4 Ω and 1 % THD+N) S/N ratio: 91 dBA (reference: 1 W into 4 Ω) NOTE Specifications and the design are subject to modifications without notice.
